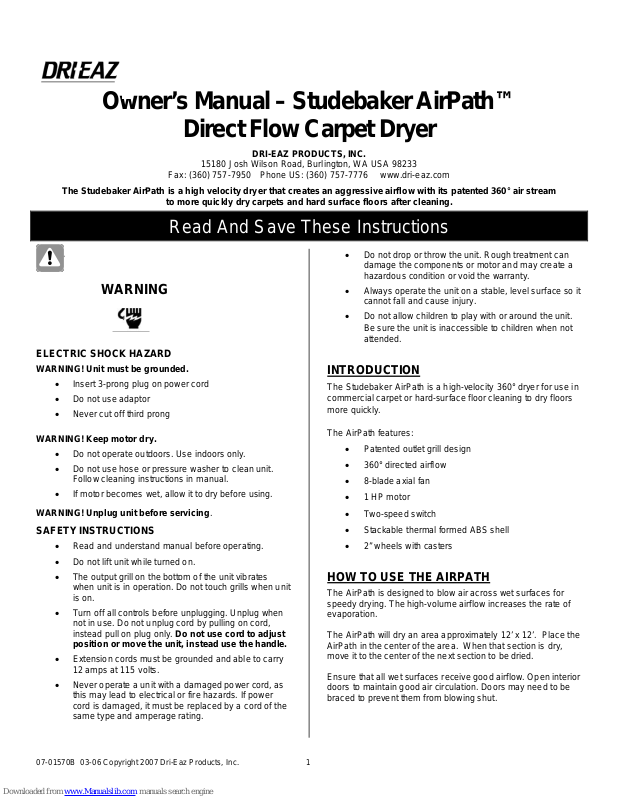

Dri-Eaz Studebaker AirPath Owner's Manual

Owner’s Manual – Studebaker AirPath™

Direct Flow Carpet Dryer

DRI-EAZ PRODUCTS, INC.

15180 Josh Wilson Road, Burlington, WA USA 98233

Fax: [phone] Phone US: [phone] www.dri-eaz.com

The Studebaker AirPath is a high velocity dryer that creates an aggressive airflow with its patented 360° air stream

to more quickly dry carpets and hard surface floors after cleaning.

Read And Save These Instructions

SAFETY INFORMATION

WARNING

ELECTRIC SHOCK HAZARD

WARNING! Unit must be grounded.

• Insert 3-prong plug on power cord

• Do not use adaptor

• Never cut off third prong

WARNING! Keep motor dry.

• Do not operate outdoors. Use indoors only.

• Do not use hose or pressure washer to clean unit.

Follow cleaning instructions in manual.

• If motor becomes wet, allow it to dry before using.

WARNING! Unplug unit before servicing.

SAFETY INSTRUCTIONS

• Read and understand manual before operating.

• Do not lift unit while turned on.

• The output grill on the bottom of the unit vibrates

when unit is in operation. Do not touch grills when unit
is on.

• Turn off all controls before unplugging. Unplug when
not in use. Do not unplug cord by pulling on cord,
instead pull on plug only. Do not use cord to adjust
position or move the unit, instead use the handle.

• Extension cords must be grounded and able to carry
12 amps at 115 volts.

• Never operate a unit with a damaged power cord, as
this may lead to electrical or fire hazards. If power
cord is damaged, it must be replaced by a cord of the
same type and amperage rating.

• Do not drop or throw the unit. Rough treatment can
damage the components or motor and may create a
hazardous condition or void the warranty.

• Always operate the unit on a stable, level surface so it
cannot fall and cause injury.

• Do not allow children to play with or around the unit.
Be sure the unit is inaccessible to children when not
attended.

INTRODUCTION

The Studebaker AirPath is a high-velocity 360° dryer for use in
commercial carpet or hard-surface floor cleaning to dry floors
more quickly.

The AirPath features:

• Patented outlet grill design

• 360° directed airflow

• 8-blade axial fan

• 1 HP motor

• Two-speed switch

• Stackable thermal formed ABS shell

• 2” wheels with casters

HOW TO USE THE AIRPATH

The AirPath is designed to blow air across wet surfaces for
speedy drying. The high-volume airflow increases the rate of
evaporation.

The AirPath will dry an area approximately 12’ x 12’. Place the
AirPath in the center of the area. When that section is dry,
move it to the center of the next section to be dried.

Ensure that all wet surfaces receive good airflow. Open interior
doors to maintain good air circulation. Doors may need to be
braced to prevent them from blowing shut.

07-01570B 03-06 Copyright 2007 Dri-Eaz Products, Inc. 1

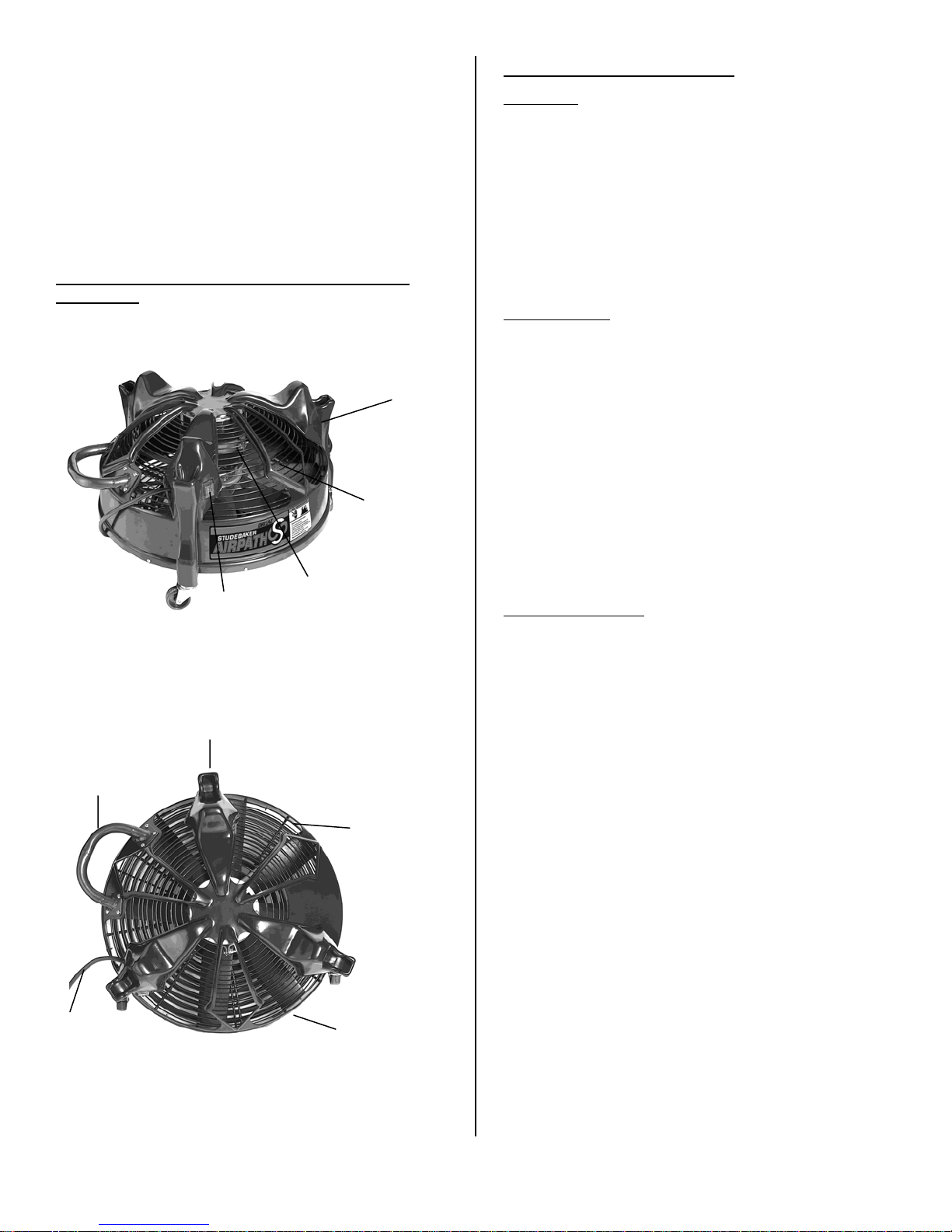

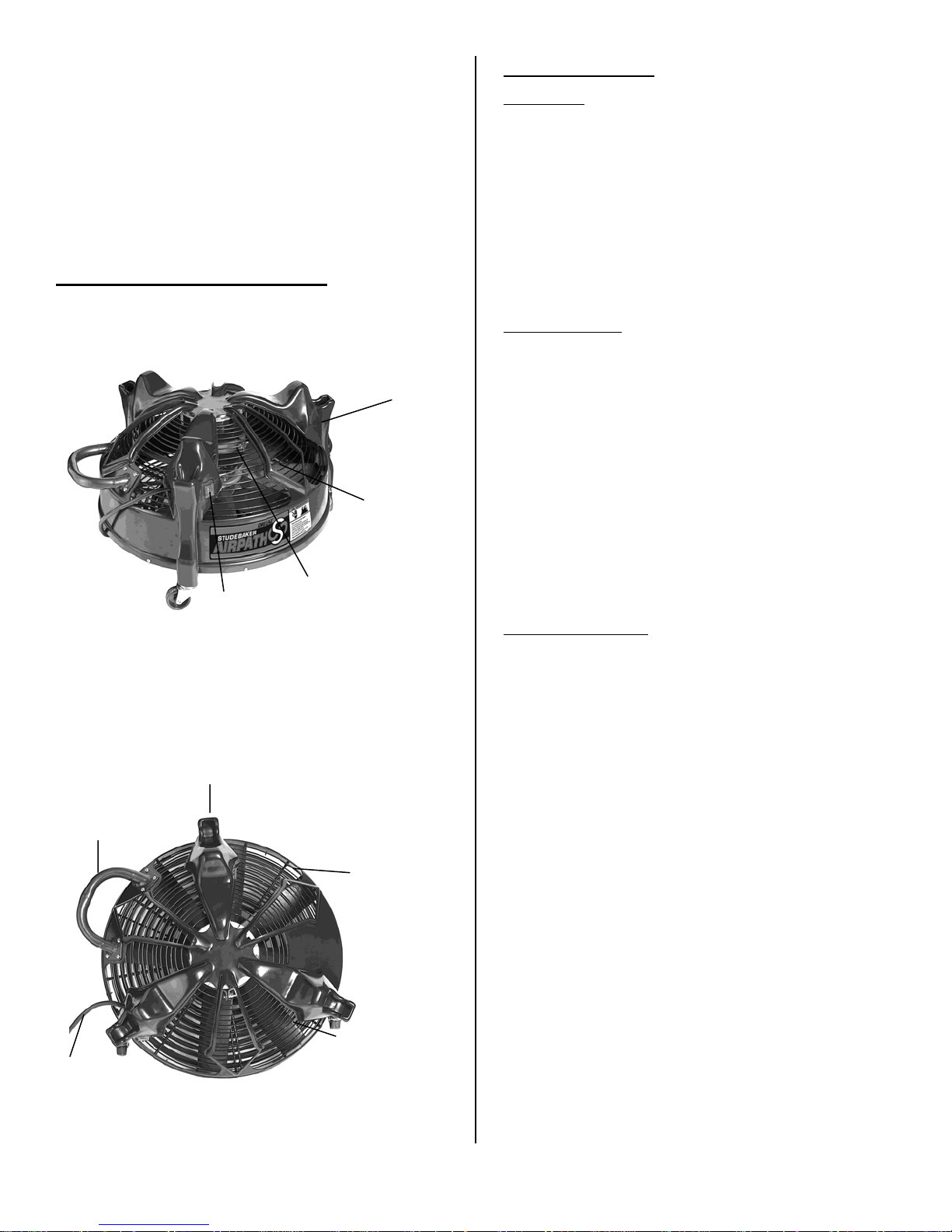

PARTS INDENTIFICATION (Shown, below)

Thermaformed
ABS Molding

Inlet Grill

Motor

High (II) / Low (I)
Switch

AirPath T

OP VIEW

Wheels

Handle

Outlet Grill

2. Unwrap the cord and plug the unit into a standard 115v
outlet. Caution! Be sure the unit is turned off before
plugging in.

Getting Started

1. To dry carpet, position the AirPath in the center of a 12 ft. x

12 ft. section to be dried.

2. Set the switch at the desired speed. Setting I is for low

speed and setting II is for high speed. Allow 15-20 minutes
of drying time per section. If the room is larger than 12 ft. x
12 ft. then move the unit to the center of the next 12 ft. x
12 ft. section of room for drying (see Drying Tips for
instructions).

3. Check for proper operation before leaving the unit

unattended. Do not move or carry the AirPath when it is
running. CAUTION! Do not lift the AirPath once the unit is
turned on, as it could result in injury.

Drying Tips

1. After drying first 12 ft. x 12 ft. section turn off the unit.

2. Unplug unit if the cord does not reach length of next

placement.

3. Pick up or roll the unit using the handle and move it to the

center of the next area (12 ft. x 12 ft. area) of carpet for
drying. NOTICE! Do not use the electrical cord to move or
position the unit.

4. Turn the unit to the desired speed (Low or High).

Transporting and Storing

1. Use the handle to load or carry the unit.

2. When transporting in a vehicle, secure the unit and strap it
into place to prevent sliding and possible injury to the unit
and vehicle occupants. NOTICE! Store securely to avoid
any damaging impact to the motor, blades, and other
internal parts.

Power
Cord

Fan Blades

AirPath U

NDERSIDE VIEW

OPERATING INSTRUCTIONS

Setting Up

1. Keep the air inlet and outlet grills clean and free of debris.
With the unit unplugged and turned off, look inside the fan
for any debris that has fallen in the fan chamber; carefully
dislodge debris if present.

07-01570B 03-06 Copyright 2007 Dri-Eaz Products, Inc. 2

ELECTRICAL CONNECTIONS

This unit is designed to operate on a 115V/60 Hz electrical
connection. Make sure that the electrical outlet is grounded
and that all safety precautions (outlined on page 1 of this
manual) are taken.

MAINTENANCE

Always turn off the power and unplug the unit before
performing maintenance procedures. WARNING! Turn off

and unplug unit before servicing or clearing obstructions.
Weekly Maintenance

Keep Unit Clean: Keep outlet air vents clear of lint/dust

debris by vacuuming out as needed.

Monthly Maintenance

Clean Components:

• Using a Phillips #2 screwdriver, unscrew the four

screws connecting the bottom grill and the wire
support grill behind it. Carefully lift off bottom grill.
CAUTION! Watch for pinch points when handling grill;
careless handling could result in injury.

• Next, inspect blades for dirt, dust and debris. If dirty,

wipe down the blades with a damp cloth.

• Use a vacuum or a damp cloth to remove lint and dust

from motor and grill covers. WARNING! Do not allow
water into the motor. A buildup of lint and dust will
reduce the airflow and may cause the motor to
overheat and become a fire hazard.

Inspect Motor: Look for debris or damage to motor.

Call an Authorized Service Center, or the Dri-Eaz Service
Department for help at 888-867-3235 or [phone].

Do Not Wet Motor: To prevent damage to motor, do not use

a hose or pressure washer to clean the unit. If motor becomes
wet, let motor dry before using again. WARNING! Keep motor
dry, a wet motor could result in personal injury.

Exterior Inspection: Evaluate exterior components and make

sure they are properly installed. If you hear any abnormal
sounds when running the unit, call an Authorized Service
Center or the Dri-Eaz Service Department at 888-867-3235 for
information on parts or repairs.

SPECIFICATIONS

Model F366
Weight 37 lbs (16.8 kg)
Dimensions (HxD) 14.3" x 23" (36.3 x 58.4 cm)
Amp Draw 7 amps
Speed 2 speed switch
Power 805 W (1.0 HP)

Cord Length
Fan
Construction
Wheels

Specifications are subject to change without notice.
Some values may be approximate.

FOR PARTS AND SERVICE CALL YOUR LOCAL DISTRIBUTOR,
or the Dri-Eaz Service Department at 888-867-3235 or (360)
757-7776

25 ft. (7.62 m)
8 Blades
Thermaformed ABS Body
Rubber

07-01570B 03-06 Copyright 2007 Dri-Eaz Products, Inc. 3
