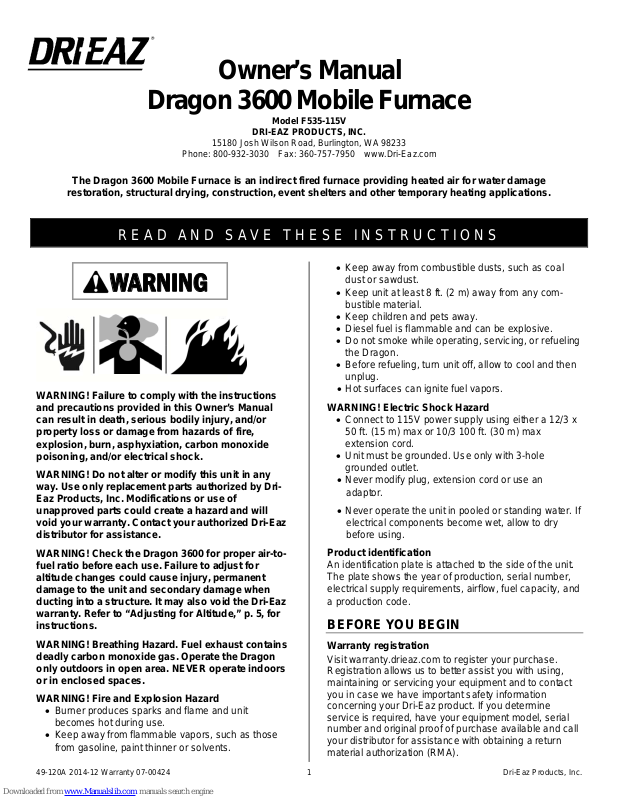

Dri-Eaz Dragon 3600 F535 Owner's Manual

W

Owner’s Manual

Dragon 3600 Mobile Furnace

Model F535-115V

DRI-EAZ PRODUCTS, INC.

15180 Josh Wilson Road, Burlington, WA 98233

Phone: [phone] Fax: [phone] www.Dri-Eaz.com

The Dragon 3600 Mobile Furnace is an indirect fired furnace providing heated air for water damage

restoration, structural drying, construction, event shelters and other temporary heating applications.

READ AND SAVE THESE INSTRUCTIONS

WARNING! Failure to comply with the instructions
and precautions provided in this Owner’s Manual
can result in death, serious bodily injury, and/or
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, carbon monoxide
poisoning, and/or electrical shock.

WARNING! Do not alter or modify this unit in any
way. Use only replacement parts authorized by Dri­Eaz Products, Inc. Modifications or use of
unapproved parts could create a hazard and will
void your warranty. Contact your authorized Dri-Eaz
distributor for assistance.

WARNING! Check the Dragon 3600 for proper air-to­fuel ratio before each use. Failure to adjust for
altitude changes could cause injury, permanent
damage to the unit and secondary damage when
ducting into a structure. It may also void the Dri-Eaz
warranty. Refer to “Adjusting for Altitude,” p. 5, for
instructions.

ARNING

 Keep away from combustible dusts, such as coal

dust or sawdust.

 Keep unit at least 8 ft. (2 m) away from any com-

bustible material.

 Keep children and pets away.
 Diesel fuel is flammable and can be explosive.
 Do not smoke while operating, servicing, or refueling

the Dragon.

 Before refueling, turn unit off, allow to cool and then

unplug.

 Hot surfaces can ignite fuel vapors.

WARNING! Electric Shock Hazard

 Connect to 115V power supply using either a 12/3 x

50 ft. (15 m) max or 10/3 100 ft. (30 m) max
extension cord.

 Unit must be grounded. Use only with 3-hole

grounded outlet.

 Never modify plug, extension cord or use an

adaptor.

 Never operate the unit in pooled or standing water. If

electrical components become wet, allow to dry
before using.

Product identification

An identification plate is attached to the side of the unit.
The plate shows the year of production, serial number,
electrical supply requirements, airflow, fuel capacity, and
a production code.

BEFORE YOU BEGIN

WARNING! Breathing Hazard. Fuel exhaust contains
deadly carbon monoxide gas. Operate the Dragon
only outdoors in open area. NEVER operate indoors
or in enclosed spaces.

WARNING! Fire and Explosion Hazard

 Burner produces sparks and flame and unit

becomes hot during use.

 Keep away from flammable vapors, such as those

from gasoline, paint thinner or solvents.

49-120A 2014-12 Warranty 07-00424 1 Dri-Eaz Products, Inc.

Warranty registration

Visit warranty.drieaz.com to register your purchase.
Registration allows us to better assist you with using,
maintaining or servicing your equipment and to contact
you in case we have important safety information
concerning your Dri-Eaz product. If you determine
service is required, have your equipment model, serial
number and original proof of purchase available and call
your distributor for assistance with obtaining a return
material authorization (RMA).

OVERVIEW

The Dragon 3600 Mobile Furnace is an indirect fired
heater. This design keeps combustion air separate from
heated air and allows the Dragon to heat air without
adding any moisture, fumes or smoke.

The Dragon should always be operated outdoors, and
should utilize outside air for combustion. An electric fan
directs this heated air into the structure through ducting.
The remote thermostat automatically cycles the Dragon
on and off to maintain a preset temperature in the target
area.

Principles of Use

The clean, dry heat from the Dragon helps reduce drying
times while maintaining stable and comfortable
temperatures. The Dragon is ideal for wide range of
applications, including

 water damage restoration
 new construction drying
 unheated jobsites
 temporary event shelters
 workshops, storage rooms, and warehouses
 greenhouses and polyurethane tunnels for

agriculture

 any situation calling for clean, dry temporary heat

For use in water damage restoration and new
construction drying, the Dragon can increase drying
efficiency. The added heat from the Dragon will increase
the rate of evaporation by decreasing the relative
humidity of the affected area. Raising the temperature of
a drying area with the Dragon from 60° to 70°F can
increase the evaporative potential of your existing drying

system up to 45 percent.
For best results when using the Dragon for restoration ,

you should understand the basic principles of structural
drying. You can learn these skills and more in an IICRC­certified Applied Structural Drying (ASD) course. To
learn more about ASD courses, contact the Restoration
Science Academy at 800-932-3030.

GROUNDING INSTRUCTIONS

The Dragon 3600 Mobile Furnace is designed to
operate on a 115V/60 Hz electrical connection. The unit

requires 7.5 amps. Make sure that the electrical outlet is
grounded with three prongs. Use with a grounded
extension cord intended for outdoor use and rated to
deliver enough power to the Dragon.

WARNING! Improper connection of the equipment­grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlets
are properly grounded. Do not modify the plugs
provided with the appliance – if the plugs do not fit
the outlets, have proper outlets installed by a
qualified electrician.

This equipment is for use on circuits with a nominal
rating of no more than 120V.

This unit is intended for household and commercial use.

HANDLE THE UNIT CAREFULLY

Always operate the unit on a stable, level surface. Do
not drop, throw, or place where it could fall. Rough
treatment can damage the unit, and may create a
hazardous condition or void the warranty.

Fig. A: Parts Identification

Weather shield

Air intake

Control panel

49-120A 2014-12 Warranty 07-00424 2 Dri-Eaz Products, Inc.

Burner reset
access panel.

Flue opening (stack
not shown)

Heated air outlet
and duct ring

Fuel filter
Fuel level sight
Fuel fill and cap

Air adjustment
dial

Handle

Fuel drain under
tank (not shown)

FUEL TYPE

The Dragon is designed to operate on diesel. In cold
weather, add 4 oz. Diesel Guard™ for each tank of fuel.

WARNING: Failure to use diesel fuel as specified
could cause injury and permanent damage to the
unit. It may also void the Dri-Eaz warranty.

For best results, purchase fresh fuel from a reliable fuel
distributor. Keep the Dragon fuel tank full to help prevent
the formation of condensation inside the tank. When not
using the Dragon for extended periods of time, we
recommend the addition of Diesel Guard fuel stabilizer
as described below.

Cold weather recommendations

To optimize fuel quality and improve performance in cold
condtions use 4 oz. Diesel Guard anti-gel deicer additive
in each full tank of fuel. This product helps to prevent
fuel gelling and freezing problems in cold conditions. The
treatment also has anti-corrosion properties and
provides additional lubricity, while detergents help to
keep the burner nozzles clean and operating efficiently.
Follow lable instructions for proper use. Additional
quantities of Diesel Guard may be purchased from your
Dri-Eaz distributor.

Increasing temperature rise

In normal operating conditions (above 35° F / 2° C), the
weather shield can be removed when operating the
Dragon. However, when operating the Dragon in
extremely low outdoor temperatures (below 35°F / 2°C)
the temperature of the heated air can be increased by
leaving the weather shield in place during operation.
Note that removing the weather shield increases airflow
by about 100 CFM but will reduce the Dragon’s heat
output.

Install Weather Shield

Place shield over lower posts first, then lower into place
over the the two upper pegs. See Fig. B.

Setting up the Dragon

Choosing a location

WARNING! Use the Dragon outdoors only. Place the
unit on a level, stable surface. Be sure to chock the
wheels securely to prevent the unit from rolling.
Choose a location away from high-traffic areas,
children and pets, and ensure there are no
obstructions to the air intake.

NOTICE: Keep air intake vents clean and clear of any

obstruction. Avoid setting up unit in a location where the
intake could be blocked or restricted. Blocking the air
intake will cause the unit to produce sooty exhaust,
potentially damaging the unit and the structure being
heated.
NOTICE: Install and operate the Dragon in accordance
with all local and regional regulations.

Fill the fuel tank

The Dragon is shipped with the fuel tank empty. Before
operating, fill the tank with no. 1 or no. 2 diesel or fuel
oil. Do not overfill.

In freezing conditions, see “Cold weather
recommendations,” p. 3.

NOTICE: Never use gasoline or crankcase drainings for
fuel.
NOTICE: Do open the fuel cap or fill the tank while the
unit is operating.

BEFORE FIRST USE

The unit is shipped with an Accessory Kit
that includes the following 1) Heat outlet
duct ring, 2) 25 ft. / 7.6 m of heat resistant
semi-rigid ducting, 3) a handle and 2
locking clevis pins, 4) weather shield, and

5) exhaust stack and rain cap. A heat
sensor cable is permanently attached to
the unit and is ready for use.

Install Handle

Insert handle into slots on the sides of the
fuel tank. Insert clevis pins on both sides
and secure with clip. See Fig. B.

Install Heat Outlet Duct Ring

Install on the heat outlet using the 8
screws provided.

49-120A 2014-12 Warranty 07-00424 3 Dri-Eaz Products, Inc.

Fig. B: Weather Shield and Handle Installation

Place lower brackets over
posts and then lower over
upper posts.

Slide handle into slots
and secure with clevis
pins provided.
