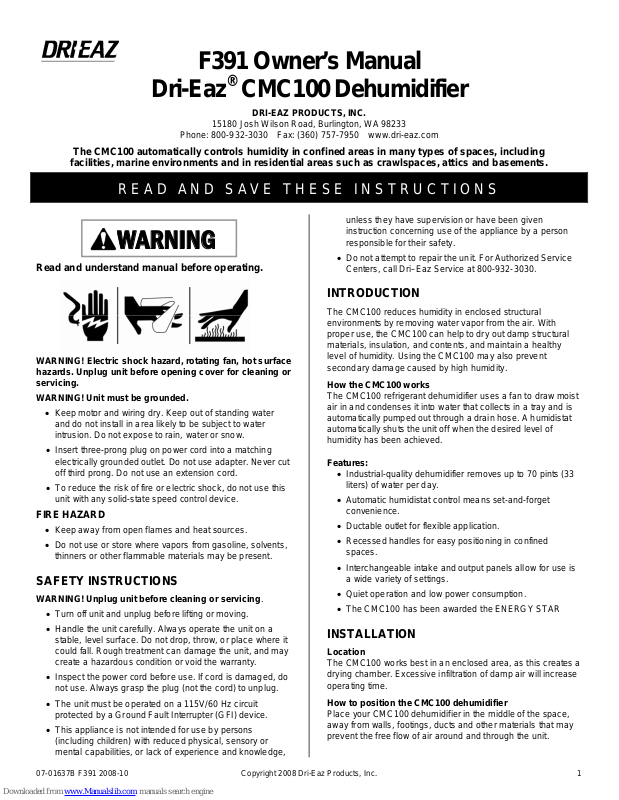

F391 Owner’s Manual

®

Dri-Eaz

Phone: [phone] Fax: [phone]

The CMC100 automatically controls humidity in confined areas in many types of spaces, including

facilities, marine environments and in residential areas such as crawlspaces, attics and basements.

READ AND SAVE THESE INSTRUCTIONS

Read and understand manual before operating.

WARNING! Electric shock hazard, rotating fan, hot surface
hazards. Unplug unit before opening cover for cleaning or
servicing.

WARNING! Unit must be grounded.

• Keep motor and wiring dry. Keep out of standing water
and do not install in area likely to be subject to water
intrusion. Do not expose to rain, water or snow.

• Insert three-prong plug on power cord into a matching

electrically grounded outlet. Do not use adapter. Never cut
off third prong. Do not use an extension cord.

• To reduce the risk of fire or electric shock, do not use this

unit with any solid-state speed control device.

FIRE HAZARD

• Keep away from open flames and heat sources.

• Do not use or store where vapors from gasoline, solvents,

thinners or other flammable materials may be present.

SAFETY INSTRUCTIONS

WARNING! Unplug unit before cleaning or servicing.

• Turn off unit and unplug before lifting or mov ing.

• Handle the unit carefully. Always operate the unit on a

stable, level surface. Do not drop, throw, or place where it
could fall. Rough treatment can damage the unit, and may
create a hazardous condition or void the warranty.

• Inspect the power cord before use. If cord is damaged, do

not use. Always grasp the plug (not the cord) to unplug.

• The unit must be operated on a 115V/60 Hz circuit

protected by a Ground Fault Interrupter (GFI) device.

• This appliance is not intended for use by pers ons

(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,

ARNING

CMC100 Dehumidifier

DRI-EAZ PRODUCTS, INC.

15180 Josh Wilson Road, Burlington, WA 98233

www.dri-eaz.com

unless they have supervision or have been given
instruction concerning use of the appliance by a person
responsible for their safety.

• Do not attempt to repair the unit. For Authorized Service
Centers, call Dri–Eaz Service at 800-932-3030.

INTRODUCTION

The CMC100 reduces humidity in enclosed structural
environments by removing water vapor from the air. With
proper use, the CMC100 can help to dry out damp structural
materials, insulation, and contents, and maintain a healthy
level of humidity. Using the CMC100 may also prevent
secondary damage caused by high humidity.

How the CMC100 works

The CMC100 refrigerant dehumidifier uses a fan to draw moist
air in and condenses it into water that collects in a tray and is
automatically pumped out through a drain hose. A humidistat
automatically shuts the unit off when the desired level of
humidity has been achieved.

Features:

• Industrial-quality dehum idifier removes up to 70 pints (33
liters) of water per day.

• Automatic humidistat control means set-and-forget
convenience.

• Ductable outlet for flexible applicatio n.

• Recessed handles for easy positioning in confined

spaces.

• Interchangeable intake and output panels a llow for use is
a wide variety of settings.

• Quiet operation and low po wer consumption.

• The CMC100 has been a warded the ENERGY STAR

INSTALLATION

Location

The CMC100 works best in an enclosed area, as this creates a
drying chamber. Excessive infiltration of damp air will increase
operating time.

How to position the CMC100 dehumidifier

Place your CMC100 dehumidifier in the middle of the space,
away from walls, footings, ducts and other materials that may
prevent the free flow of air around and through the unit.

07-01637B F391 2008-10 Copyright 2008 Dri-Eaz Products, Inc. 1

Keep unit level

A

The unit must be level to operate properly. Four screw-in
adjustable foot pads are provided. If the CMC is to be used on
an uneven surface, these feet must be assembled and
installed into the bottom of the CMC before placing the unit into
service.

1. To assemble the feet, press the bolt through the center of
the rubber foot and tighten the nut until it is snug against
the rubber foot.

2. To install the feet into the CMC100 base, screw one foot
assembly into the bottom of each corner of the unit.
NOTICE: To avoid damage to the condensate drain outlet,
do not tip the unit over onto the condensate drain side.

3. To level the unit with the feet, place a carpenter’s level on
the top of the unit and adjust the footpads to raise or lower
each corner of the unit until it is level.

NOTICE: The CMC100 must be kept in an upright position. If it
is necessary to place the unit on its side, such as during the
installation of the feet, return the unit to the upright position and
wait at least 10 minutes before starting the unit.

Drain hose set-up

During operation, water condenses out of the air and collects in
a drain pan inside the unit. The CMC100 automatically pumps
out this water through the drain hose outlet (see Figure 3).
Dri-Eaz recommends directing the hose into a drain or well
away from area to be kept dry.

NOTICE: Do not place the end of the drain hose higher than 3
feet (1 meter) above the top of the CMC, or leaking may occur.

Pump operation

Depending on operating conditions, the unit may produce
condensate water intermittently, in a steady stream, or not at
all for short periods of time. These functions indicate normal
dehumidifier and pump-purge operations.
NOTICE: To avoid spills, always secure the end of the drain
hose so that the intermittent pumping action doesn’t shift the
hose out of position.
NOTICE: Do not allow the outlet of the drain hose to become
submerged, blocked or otherwise subject to pressure that
might reduce the ability of unit to pump water.

Duct the outlet for optimum performance

The processed air outlet is designed to accept standard 6 inch
ducting (not included). For best results, use ducting and fasten
it securely to the duct ring (see Figure 3). Place the open end
of the duct some distance away from the unit. Ducting the
processed (outlet) air away from the unit will help to ensure
more complete distribution of dehumidified air throughout the
drying area. Install with insulated flex ducting for the quietest
operation.

OPTIONAL CONFIGURATIONS

Figures 2 and 3). Lift the panels out of the CMC frame.
Replace the panels in the desired position and carefully tighten
the screws. NOTE: When placing both intake and output
panels on the side of the unit (option C, above right), Dri–Eaz
recommends attaching ducting to the output ring and placing
the open end of the ducting some distance away from the
CMC. This will help distribute the processed air more
completely.

FIGURE 1

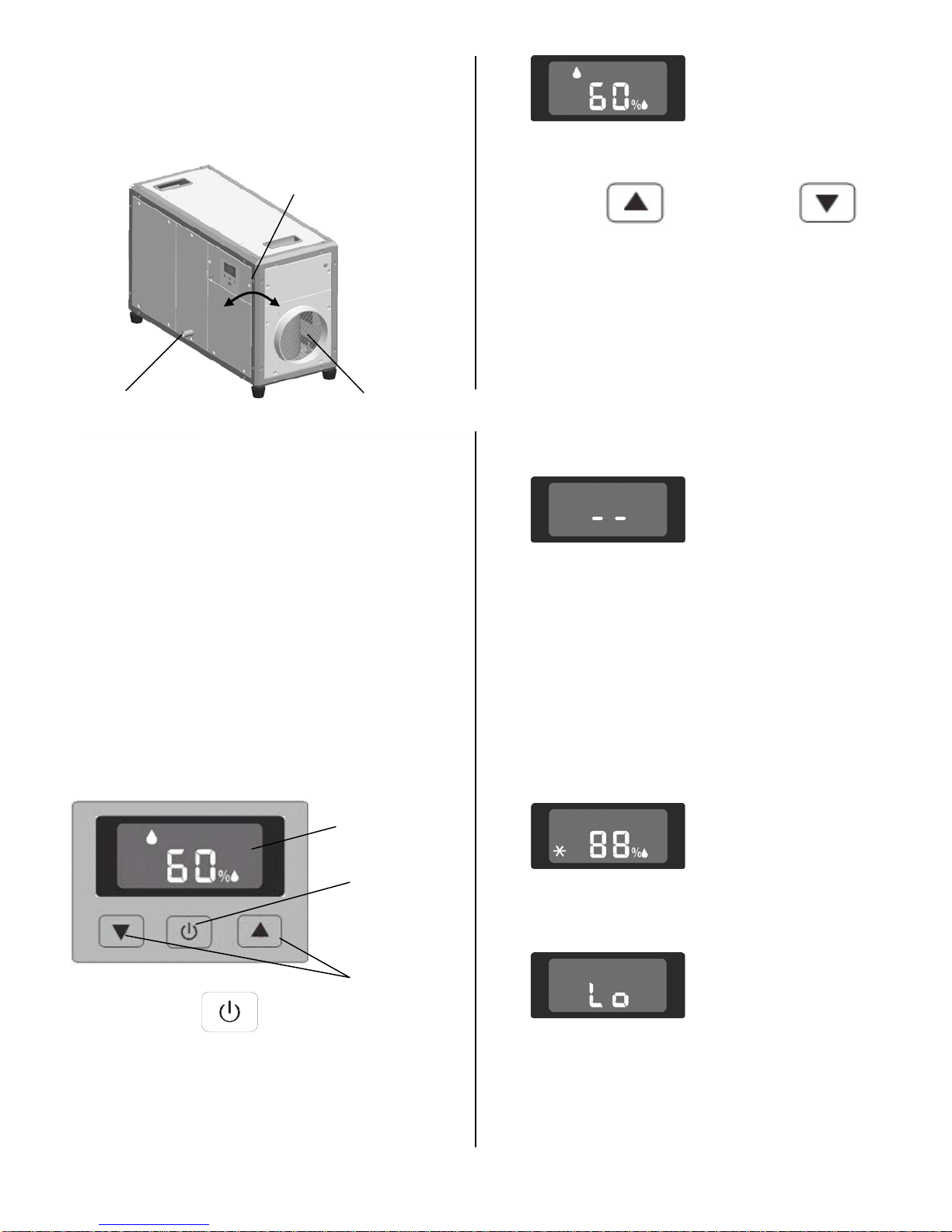

AIRFLOW OPTIONS (TOP VIEW)

C D

B

FIGURE 2

PARTS IDENTIFICATION

Recessed
handles

Filter door panel
(remove 4 screws
to access filter)

Humid
air inlet

Control panel

Interchangeable panels.
See Optional
Configurations, left.

The CMC100 features interchangeable panels that allow the
unit to be adapted for use on shelves, small storage areas or in
other locations where directing the air straight through the unit
is not possible. The damp air intake can be set up to draw in
air from the end of the unit or from the side of the unit.
Similarly, the dry air output can be set up to exhaust processed
air from the end of the unit or from the side of the unit. See
Figure 1, below.

To change the configuration, first unplug the CMC, then
remove the four screws that hold each panel in place (see

07-01637B F391 2008-10 Copyright 2008 Dri-Eaz Products, Inc. 2
