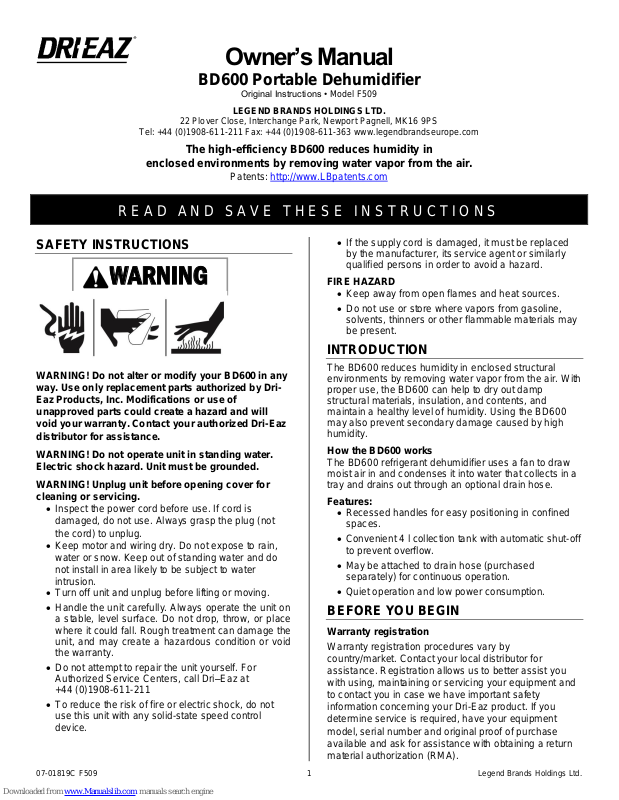

Dri-Eaz BD600, F509 Owner's Manual

Owner’s Manual

WARNING

BD600 Portable Dehumidifier

Original Instructions • Model F509

LEGEND BRANDS HOLDINGS LTD.

22 Plover Close, Interchange Park, Newport Pagnell, MK16 9PS

Tel: [phone] Fax: [phone] www.legendbrandseurope.com

The high-efficiency BD600 reduces humidity in

enclosed environments by removing water vapor from the air.

Patents: http://www.LBpatents.com

REA D A N D S A V E T H E S E I N S T R U C T I O N S

SAFETY INSTRUCTIONS

WARNING! Do not alter or modify your BD600 in any
way. Use only replacement parts authorized by Dri­Eaz Products, Inc. Modifications or use of
unapproved parts could create a hazard and will
void your warranty. Contact your authorized Dri-Eaz
distributor for assistance.

WARNING! Do not operate unit in standing water.
Electric shock hazard. Unit must be grounded.

WARNING! Unplug unit before opening cover for
cleaning or servicing.

 Inspect the power cord before use. If cord is

damaged, do not use. Always grasp the plug (not
the cord) to unplug.

 Keep motor and wiring dry. Do not expose to rain,

water or snow. Keep out of standing water and do
not install in area likely to be subject to water
intrusion.

 Turn off unit and unplug before lifting or moving.
 Handle the unit carefully. Always operate the unit on

a stable, level surface. Do not drop, throw, or place
where it could fall. Rough treatment can damage the
unit, and may create a hazardous condition or void
the warranty.

 Do not attempt to repair the unit yourself. For

Authorized Service Centers, call Dri–Eaz at
[phone]

 To reduce the risk of fire or electric shock, do not

use this unit with any solid-state speed control
device.

 If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

FIRE HAZARD

 Keep away from open flames and heat sources.
 Do not use or store where vapors from gasoline,

solvents, thinners or other flammable materials may
be present.

INTRODUCTION

The BD600 reduces humidity in enclosed structural
environments by removing water vapor from the air. With
proper use, the BD600 can help to dry out damp
structural materials, insulation, and contents, and
maintain a healthy level of humidity. Using the BD600
may also prevent secondary damage caused by high
humidity.

How the BD600 works

The BD600 refrigerant dehumidifier uses a fan to draw
moist air in and condenses it into water that collects in a
tray and drains out through an optional drain hose.

Features:

 Recessed handles for easy positioning in confined

spaces.

 Convenient 4 l collection tank with automatic shut-off

to prevent overflow.

 May be attached to drain hose (purchased

separately) for continuous operation.

 Quiet operation and low power consumption.

BEFORE YOU BEGIN

Warranty registration

Warranty registration procedures vary by
country/market. Contact your local distributor for
assistance. Registration allows us to better assist you
with using, maintaining or servicing your equipment and
to contact you in case we have important safety
information concerning your Dri-Eaz product. If you
determine service is required, have your equipment
model, serial number and original proof of purchase
available and ask for assistance with obtaining a return
material authorization (RMA).

07-01819C F509 1 Legend Brands Holdings Ltd.

FIG. A: FRONT

Water container
full indicator light

Carry handle (×2)

Power cord wrap
fittings

FIG. B: REAR

Power cord

Start button

Air filter and filter
access slot

Drain hose outlet

kWh and hour meter

Water container
Carry handle

PARTS IDENTIFICATION

Operating Features

Combined kWh and hour meter. Indicates the total

number of running hours and kilowatts consumed. The
meter cannot be reset.

Water full indicator. An indicator light will glow amber
when the collection container is full. Remove and empty
the basin, and replace it inside the unit.

Defrost mode. In colder temperatures, the unit may
automatically enter a “defrost mode” to reduce the build­up of frost on the evaporator coil inside the unit. When
the unit enters this mode, the compressor will stop
operating and the fan will continue to operate until any
frost has been thawed. No user intervention is required
during this operation. The unit will automatically resume
normal operation when the defrost operation is
completed.

Compressor protection function. In certain
circumstances, the unit may require a 3 minute rest
before restarting. If the unit does not operate when

you press the Start button, wait three minutes and
try again.

OPERATING INSTRUCTIONS

Position the unit. The unit should be placed on a firm,

level surface. To permit adequate airflow, provide at
least 30 cm of clearance around all sides of the unit.

Set up. Ensure that the collection basin is in place.
If using the drain hose, make sure it is properly placed

over the basin drain outlet nipple. Place the other end of
the drain hose in a suitable container or in a floor drain
at a level below the basin drain hose outlet. Make sure
there are no kinks or sharp bends in the drain hose.

1. Switch unit on. Press the power button. Unit will
begin operating.

2. Switch off. Press the power button again to turn the
unit off.

Operating Tips

The amount of humidity the BD600 can remove from the
air is dependent on airflow, temperature, and humidity.

Depending on these factors, the unit may need to
operate for several minutes before producing any
water in the collection container. Note that the unit
will remove very little water in excessively cold
(<5° C) or dry (<30% RH) conditions.

The unit should be operated only in temperatures
between 5°−32° C. Operating in temperatures above
below or above this range will produce very little water
and may possibly damage the machine.

Always place the unit in a level position. Operating or
storing the unit beyond 45° may damage the
compressor.

The unit will produce a small amount of heat during
operation. Temperatures in the treated area may rise
1°−3° C. This is normal.

Ensure adequate air flow through the unit at all times.
Clean the filter regularly, and keep the unit at least 30

07-01819C F509 2 Legend Brands Holdings Ltd.
