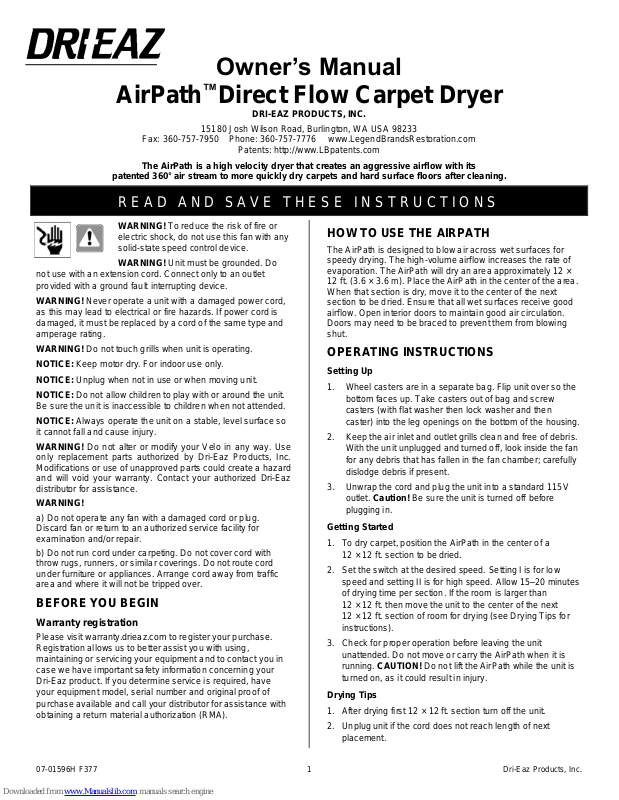

Dri-Eaz AirPath Owner's Manual

Owner’s Manual

AirPath™Direct Flow Carpet Dryer

DRI-EAZ PRODUCTS, INC.

15180 Josh Wilson Road, Burlington, WA USA 98233

Fax: [phone] Phone: [phone] www.LegendBrandsRestoration.com

Patents: http://www.LBpatents.com

The AirPath is a high velocity dryer that creates an aggressive airflow with its

patented 360° air stream to more quickly dry carpets and hard surface floors after cleaning.

REA D A N D S A V E T H E S E I NSTRUCTIO N S

WARNING! To reduce the risk of fire or
electric shock, do not use this fan with any
solid-state speed control device.

WARNING! Unit must be grounded. Do
not use with an extension cord. Connect only to an outlet
provided with a ground fault interrupting device.

WARNING! Never operate a unit with a damaged power cord,
as this may lead to electrical or fire hazards. If power cord is
damaged, it must be replaced by a cord of the same type and
amperage rating.

WARNING! Do not touch grills when unit is operating.
NOTICE: Keep motor dry. For indoor use only.
NOTICE: Unplug when not in use or when moving unit.
NOTICE: Do not allow children to play with or around the unit.

Be sure the unit is inaccessible to children when not attended.
NOTICE: Always operate the unit on a stable, level surface so

it cannot fall and cause injury.
WARNING! Do not alter or modify your Velo in any way. Use

only replacement parts authorized by Dri-Eaz Products, Inc.
Modifications or use of unapproved parts could create a hazard
and will void your warranty. Contact your authorized Dri-Eaz
distributor for assistance.

WARNING!

a) Do not operate any fan with a damaged cord or plug.
Discard fan or return to an authorized service facility for
examination and/or repair.

b) Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.

BEFORE YOU BEGIN

Warranty registration

Please visit warranty.drieaz.com to register your purchase.
Registration allows us to better assist you with using,
maintaining or servicing your equipment and to contact you in
case we have important safety information concerning your
Dri-Eaz product. If you determine service is required, have
your equipment model, serial number and original proof of
purchase available and call your distributor for assistance with
obtaining a return material authorization (RMA).

HOW TO USE THE AIRPATH

The AirPath is designed to blow air across wet surfaces for
speedy drying. The high-volume airflow increases the rate of
evaporation. The AirPath will dry an area approximately 12 ×
12 ft. (3.6 × 3.6 m). Place the AirPath in the center of the area.
When that section is dry, move it to the center of the next
section to be dried. Ensure that all wet surfaces receive good
airflow. Open interior doors to maintain good air circulation.
Doors may need to be braced to prevent them from blowing
shut.

OPERATING INSTRUCTIONS

Setting Up

1. Wheel casters are in a separate bag. Flip unit over so the
bottom faces up. Take casters out of bag and screw
casters (with flat washer then lock washer and then
caster) into the leg openings on the bottom of the housing.

2. Keep the air inlet and outlet grills clean and free of debris.
With the unit unplugged and turned off, look inside the fan
for any debris that has fallen in the fan chamber; carefully
dislodge debris if present.

3. Unwrap the cord and plug the unit into a standard 115V
outlet. Caution! Be sure the unit is turned off before
plugging in.

Getting Started

1. To dry carpet, position the AirPath in the center of a

12 × 12 ft. section to be dried.

2. Set the switch at the desired speed. Setting I is for low

speed and setting II is for high speed. Allow 15–20 minutes
of drying time per section. If the room is larger than
12 × 12 ft. then move the unit to the center of the next
12 × 12 ft. section of room for drying (see Drying Tips for
instructions).

3. Check for proper operation before leaving the unit

unattended. Do not move or carry the AirPath when it is
running. CAUTION! Do not lift the AirPath while the unit is
turned on, as it could result in injury.

Drying Tips

1. After drying first 12 × 12 ft. section turn off the unit.

2. Unplug unit if the cord does not reach length of next

placement.

07-01596H F377 1 Dri-Eaz Products, Inc.

3. Pick up or roll the unit using the handle and move it to the

Model

F377

Weight

38 lbs. | 17.3 kg

Dimensions
(H × W × D)

14.7 × 25.4 × 26 in.

37.3 × 64.5 × 66 cm

Speed

2 speed switch

Amps

7.5 amps

Power

746 W (1.0 HP) / 120V / 60Hz

Cord Length

25 ft. | 7.62 m

Fan

8 Blades

Construction

Rotomolded shell

Wheels

Plastic

Safety

ETL listed to UL and CSA standards

Inlet grill

Rotomolded
shell

High (II) / Low (I) switch
Handle

Locking
Outlet

grill

Locking caster (×3)
Power cord

Lock washer

Flat washer

center of the next area (12 × 12 ft. area) of carpet for
drying. NOTICE! Do not use the electrical cord to move or
position the unit. Turn the unit to the desired speed (Low – I
or High – II).

Transporting and Storing

1. Use the handle to load or carry the unit.

2. When transporting in a vehicle, secure the unit and strap it
into place to prevent sliding and possible injury to the unit
and vehicle occupants. NOTICE! Store securely to avoid
any damaging impact to the motor, blades, and other
internal parts.

ELECTRICAL CONNECTIONS

This unit is designed to operate on a 115V/60 Hz electrical
connection. Make sure that the electrical outlet is grounded
and that all safety precautions (outlined on page 1 of this
manual) are taken.

MAINTENANCE

Always turn off the power and unplug the unit before
performing maintenance procedures. WARNING! Turn off and

unplug unit before servicing or clearing obstructions.

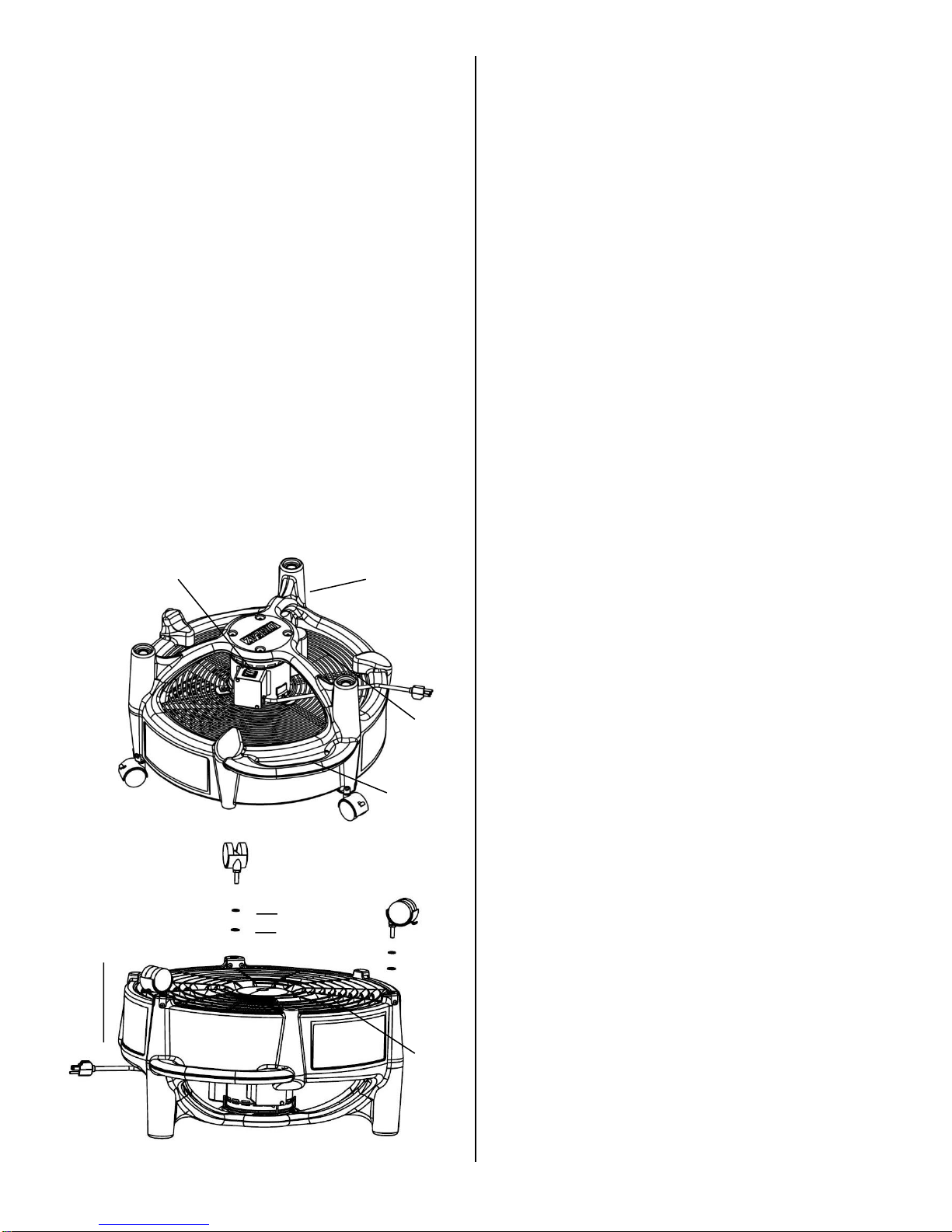

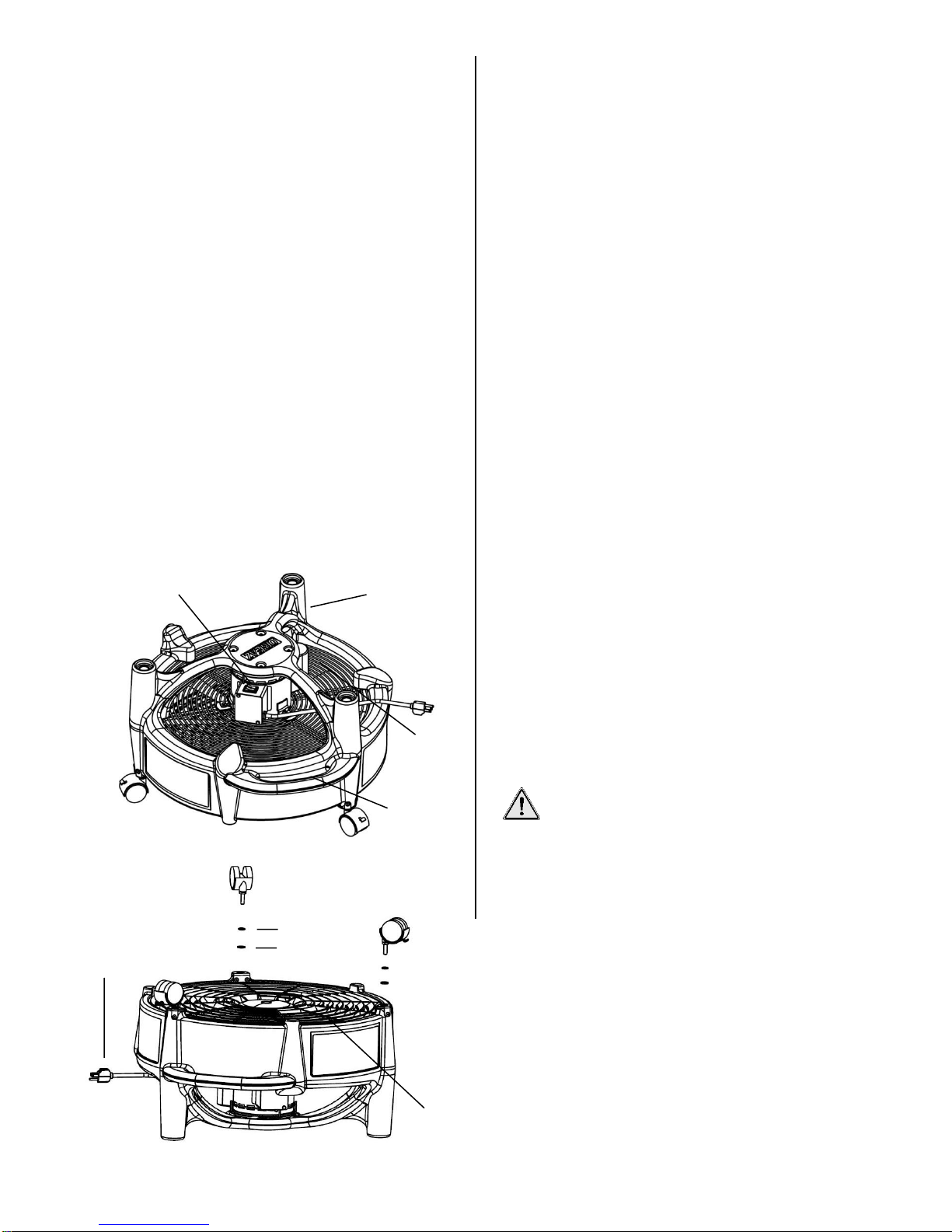

PARTS IDENTIFICATION

Weekly Maintenance

Keep Unit Clean: Keep outlet air vents clear of lint/dust debris
by vacuuming out as needed.

Monthly Maintenance

Clean Components:

 Using a Phillips #2 screwdriver, unscrew the four screws

connecting the bottom grill and the wire support grill
behind it. Carefully lift off bottom grill. CAUTION! Watch
for pinch points when handling grill; careless handling
could result in injury.

 Next, inspect blades for dirt, dust and debris. If dirty, wipe

down the blades with a damp cloth.

 Use a vacuum or a damp cloth to remove lint and dust

from motor and grill covers.

WARNING! Do not allow water into the motor. A buildup of
lint and dust will reduce the airflow and may cause the
motor to overheat and become a fire hazard.

Inspect Motor: Look for debris or damage to motor. Call an
Authorized Service Center for help.

Do Not Wet Motor: To prevent damage to motor, do not use a
hose or pressure washer to clean the unit. If motor becomes
wet, let motor dry before using again.

WARNING! Keep motor dry, a wet motor could result in
personal injury.

Exterior Inspection: Evaluate exterior components and make
sure they are properly installed. If you hear any abnormal
sounds when running the unit, call an Authorized Service
Center.

WARNING: This product and other substances that
may become airborne from its use contain chemicals,

including lead and phthalates, known to the State of
California to cause cancer, birth defects, or other reproductive
harm. For more information, go to P65Warnings.ca.gov

SPECIFICATIONS

Caster

07-01596H F377 2 Dri-Eaz Products, Inc.

Specifications are subject to change without notice. Some
values may be approximate.

FOR PARTS AND SERVICE CALL YOUR LOCAL DISTRIBUTOR.

Manual del propietario

AirPath™ Secadora para alfombras

de flujo directo

DRI-EAZ PRODUCTS, INC.

15180 Josh Wilson Road, Burlington, WA USA 98233

Fax en EE.UU: 360-757-7950 Teléfono en EE.UU.: 360-757-7776 www.LegendBrandsRestoration.com

Patents: http://www.LBpatents.com

AirPath es una secadora de alta velocidad que crea un flujo de aire agresivo gracias al chorro de aire patentado de 360° para

secar alfombras y superficies duras más rápidamente después de su limpieza.

LEA Y G U A R D E E S T A S I N STRUCCIONE S

¡ADVERTENCIA! Para reducir el riesgo
de incendio o descarga eléctrica, no utilice
este ventilador con ningún dispositivo de

control de velocidad de estado sólido.
¡ADVERTENCIA! La unidad debe estar conectada a tierra. No
la utilice con una extensión. Conecte sólo a una toma de
corriente provista de un dispositivo de interrupción de fallos a
tierra.
¡ADVERTENCIA! Nunca utilice una unidad con un cable de
alimentación dañado, ya que esto puede causar peligros
eléctricos o peligros de incendio. Si el cable de alimentación
está dañado, debe ser sustituido por un cable del mismo tipo y
amperaje.
¡ADVERTENCIA! No toque las rejillas cuando la unidad está
en funcionamiento.

AVISO: Mantenga el motor seco. Sólo para uso en interiores.
AVISO: Desenchufe cuando no se utilice o cuando la unidad

esté en movimiento.
AVISO: No permita que los niños jueguen con la unidad o
alrededor de ella, Asegúrese de que la unidad no esté al
alcance de los niños cuando no esté presente.
AVISO: Utilice siempre la unidad en una superficie plana y
nivele la superficie para que no se caiga ni cause lesiones.
¡ADVERTENCIA! No altere ni modifique su unidad Velo de
ninguna manera. Utilice únicamente las piezas de repuesto
autorizadas por Dri-EazProducts, Inc. Las modificaciones o el
uso de piezas no autorizadas puede ocasionar daños y la
garantía será anulada. Contacte a su distribuidor autorizado Dri­Eaz para obtener asistencia.

¡ADVERTENCIA!

a) No operar ningún ventilador que tenga el cable o el enchufe
dañados. Elimine el ventilador o devuélvalo a un centro de
servicio autorizado para que sea examinado o reparado
b) No despliegue el cable por debajo de alfombras. No lo cubra
con alfombras, tapetes o cobertores similares. Tampoco se lo
debe pasar por debajo de muebles o aparatos. Coloque el cable
alejado de zonas de tránsito, de modo tal que no pueda
provocar tropiezos.

ANTES DE COMENZAR

Registro de la garantía

Visitewarranty.drieaz.com para registrar su compra. El registro
nos permite proporcionarle una mejor asistencia en el uso,
mantenimiento o reparación del equipo y contactarlo en caso
de que se tenga información importante de seguridad acerca

07-01596H F377 3 Dri-Eaz Products, Inc.

de su producto Dri-Eaz. Si cree que requiere servicio técnico,
tenga lista la información sobre el modelo de su equipo, el
número de serie y la prueba de compra original y llame a su
distribuidor para conseguir ayuda en la obtención de una
autorización de devolución de material (RMA).

INSTRUCCIONES DE USO DEL AIRPATH

El AirPath ha sido diseñado para soplar aire sobre superficies
mojadas para agilizar el secado. El flujo de aire de alto
volumen incrementa la frecuencia de evaporación. El AirPath
secará un área de aproximadamente 12 × 12 pies (3,6 × 3,6
m). Coloque el AirPath en el centro del área. Cuando esa
sección esté seca, mueva la unidad al centro de la siguiente
sección que desee secar. Asegúrese de que todas las
superficies mojadas reciban un flujo de aire bueno. Abra las
puertas interiores para mantener una buena circulación de
aire. Es posible que las puertas necesiten sujetarse para evitar
que se cierren.

INSTRUCCIONES DE USO

Instalación

1. Los echadores de la rueda están en un bolso separado.
Mueva de un tirón el excedente de la unidad tan las caras
inferiores para arriba. Tome los echadores de los
echadores del bolso y del tornillo (con la arandela y
entonces el echador planos de cerradura de la arandela
entonces) en las aberturas de la pierna en el fondo de la
cubierta.

2. Mantenga las rejillas de entrada y salida de aire limpias y
libres de fragmentos. Con la unidad desenchufada y
apagada, compruebe que el interior del ventilador no
tenga ningún fragmento que haya podido depositarse en
la cámara del ventilador; con cuidado retire todos los
fragmentos, de haberlos.

3. Desenrolle el cable de alimentación y enchufe la unidad
en un tomacorrientes normal de 115 v. ¡Precaución!
Asegúrese de que la unidad está apagada antes de
enchufarla.
