Page 1
O
PERATING INSTRUCTIONS
dermalight® 80
psoracomb
UV-B-311nm-narrowband
Art.-no. #200001 (230V 50Hz)
Art.-no. #200003 (230V 50Hz)
Before putting the unit into operation and starting the treatment,
read these operating instructions carefully.
#200001 / S 0406 e – 230 V / 50 Hz
Page 2
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
1
Dear Sir or Madam,
The dermalight® 80 is a handy and economical unit used for the treatment of various skin
diseases. We hope that you will be satisfied with the dermalight® 80 too. In order to help you
to achieve goods results, please follow these instructions exactly.
Kind regards,
Dr. Hönle Medizintechnik GmbH
CONTENT
1.
Safety Information .........................................................................................2
2.
Description.....................................................................................................4
2.1. General......................................................................................................................4
2.2. Scope of Delivery.......................................................................................................4
3.
Operation........................................................................................................ 5
3.1. Operation with the Comb Attachment ........................................................................5
3.2. Operating Conditions.................................................................................................5
3.3. Electromagnetic Compatibility....................................................................................6
4.
Fields of Application and Therapy Information ..........................................7
4.1. Fields of Application...................................................................................................7
4.2. Therapy Information...................................................................................................7
4.3. Therapy recommendation..........................................................................................9
5.
Maintenance Information ............................................................................11
5.1. Cleaning the Hand Lamp .........................................................................................11
5.2. Cleaning and Disinfecting the Comb Attachment.....................................................11
5.3. Spare Parts and Accessories...................................................................................12
6.
Repair and Spare Parts Service ................................................................. 12
7.
Technical Data ............................................................................................. 13
7.1. Symbols...................................................................................................................14
7.2. Therapy spectrum....................................................................................................14
8.
Warranty and Liability .................................................................................15
9.
Environmental Protection...........................................................................15
Attachment: Patient diary
Page 3
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
2
1.
S
AFETY INFORMATION
Read the operating instructions carefully before using the dermalight® 80 for the first
time.
All important safety information is marked with this symbol. Please follow these
instructions carefully to prevent health risks and damage to property.
dermalight® 80 emits intense UV-radiation which can lead to health damages like
sunburn/skin burns, conjunctivitis and keratitis (retina damage), if used
improperly, especially when overdosed. Your doctor in charge has to be
informed in such cases and has to be seen regularly.
Never operate without UV safety goggles!
Perform therapy only as described in the operating instructions or as
recommended by a doctor.
Never use the unit in the bath tub!
Never use the unit when housing or power cable are defect!
The safe handling and smooth operation of the dermalight® 80 presupposes familiarity with
all the basic safety regulations.
The operating instructions contain all essential information on how to operate the equipment
safely.
The operating instructions, especially the safety information and safety regulations, must be
observed by everyone working with this equipment.
The accident-prevention rules and regulations prevailing at the place of use must also be
observed.
Additional safety instructions for doctors/clinics:
The operator (doctor/clinic) has to check the careful operation of the personnel handling the
equipment in regular intervals.
Before commencing work, those people who are to work with the dermalight® 80 have to:
Observe the regulations governing safety and accident prevention.
Read the chapter on safety and the warnings contained in these operating instructions
and to observe these at all times during operation.
Page 4
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
3
Hazards when using the equipment
The dermalight® 80 was built according to the state of the art and in compliance with
recognized safety standards. The equipment must be used
only for that purpose for which it was intended,
only when in perfect working order.
Improper use can endanger the health of the user and/or third parties (including damage to
the skin and eyes) as well as impairing the equipment or other items of property.
Any faults which might impair the safety of the equipment must be remedied immediately.
Proper use
The dermalight® 80 is a UV-irradiation unit for the treatment of skin diseases.
Any other use of the equipment going beyond this shall be deemed improper and may be
hazardous.
The operator may operate the equipment only if all the user information contained in these
operating instructions is observed at all times. Failure to do so may render the warranty null
and void and jeopardize the success of the therapy.
The operator undertakes to observe the prescribed schedule for inspection and maintenance
work and the replacement of wear parts (e.g. lamps) this work entails.
The company Dr. K. Hönle Medizintechnik GmbH shall not be liable for any damage caused
by the improper use of the equipment.
Proper use also entails:
adherence to all the information contained in the operating instructions
adherence to the schedule for inspection and maintenance work
• adherence to the general and specific safety information and safety regulations
contained in these operating instructions as well as the prevailing accidentprevention regulations.
Page 5
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
4
2.
D
ESCRIPTION
2.1. G
ENERAL
dermalight® 80 is a medical UV-irradiation unit designed for mobile use. The emission
spectrum of its lamps is in the UVB narrowband-range. The lamps contain a small innoxious
part of visible light.
Simple and universal use of the dermalight® 80 is made possible by its low weight and
handy shape. Treatment of the scalp – normally a difficult exercise – is easy to perform with
the slip-on comb attachment.
Never start the dermalight® 80 without first putting on safety goggles. UVBirradiation may harm your eyes!
2.2. S
COPE OF DELIVERY

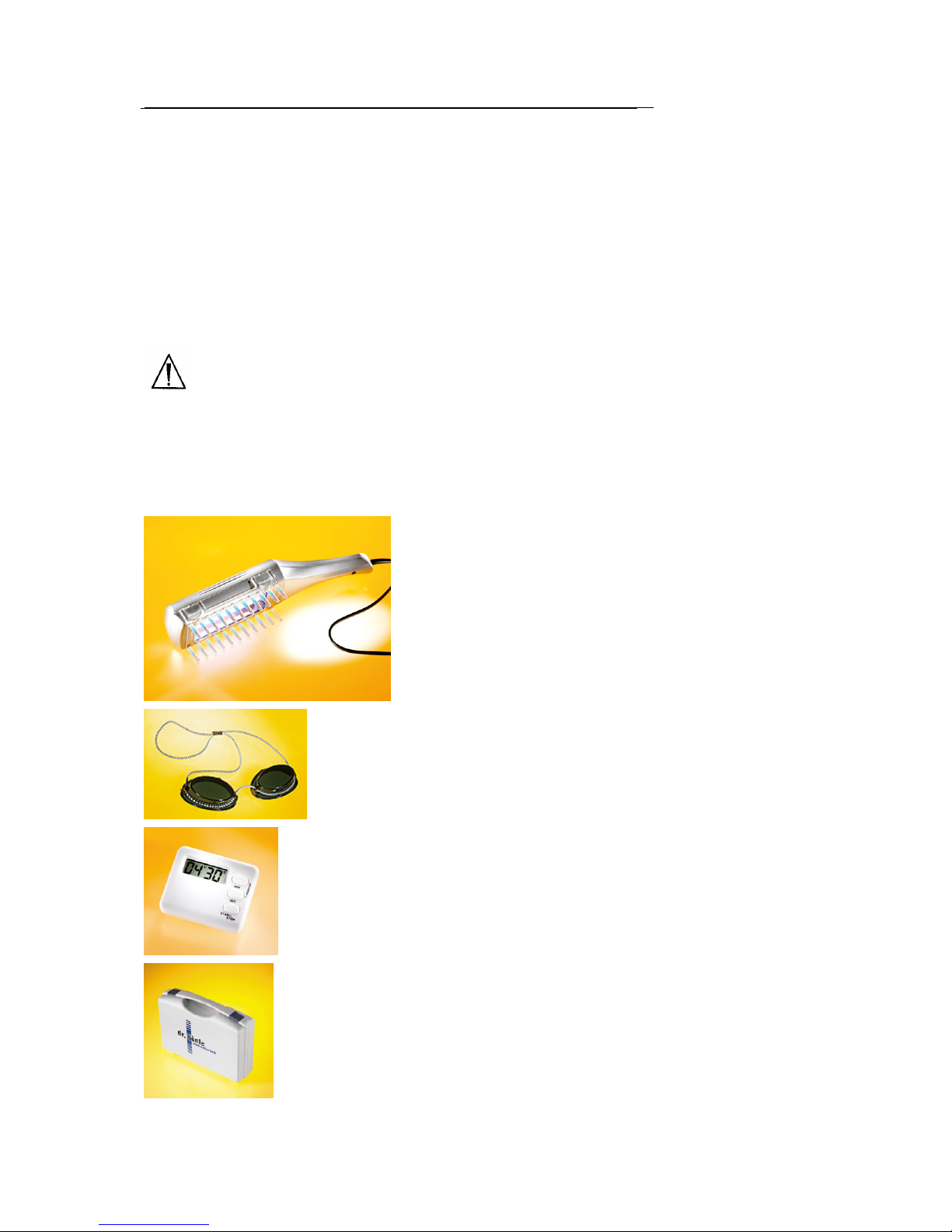

The dermalight® 80 is delivered with the following parts:
• dermalight® 80 unit with mains plug
• comb attachment
• Operation instructions with patient’s diary
• UV-protective googles
• LCD-timer
• plastic suitcase
Page 6
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
5
3.
O
PERATION
Plug the dermalight® 80 into a mains outlet (230 V / 50 Hz). Operate the dermalight® 80
only from properly installed socket outlets. The plug should only be operated in horizontal
position in order to avoid, that it falls out of the mains outlet (you can use a triple socket
assembly). With the rocker switch on the top of the unit you can switch the dermalight® 80
on and off. After the unit is switched on there may be an ignition delay of up to 30 seconds
before the lamps emit a uniform light.
The dermalight® 80 is ready for use immediately after lamp ignition, i.e. there is no warm-up
period.
3.1. O
PERATION WITH THE COMB ATTACHMENT

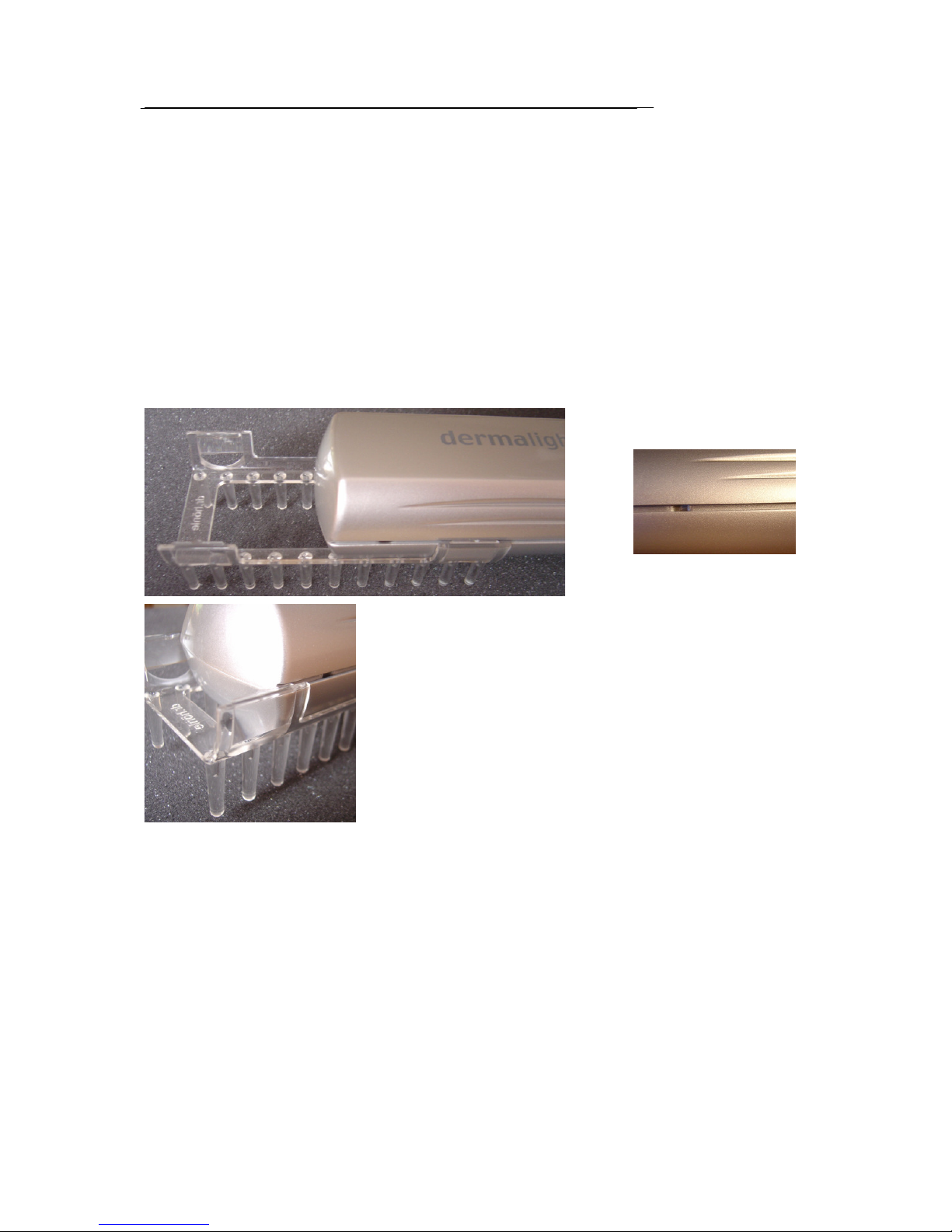

To use the dermalight® 80 with the comb attachment (Art.-no.
995200), slip on the attachment from the front of the unit until
the two lugs on the comb snap into the recesses in the
dermalight® 80. The attachment is correctly fitted when the
four guide ribs of the comb are inside the guide slots of the
dermalight® 80. The “dr. hönle”-logo then lies at the front of
the dermalight® 80.
3.2. O
PERATING CONDITIONS
dermalight® 80 is designed for use in dry rooms with an ambient temperature never
exceeding 45 °C.
Be sure to protect the unit from chemical vapours and never use it in potentially explosive
atmospheres.
The unit can be used at any angle.
Page 7
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
6
3.3. E
LECTROMAGNETIC COMPATIBILITY
dermalight 80 uses high frequency energy exclusively for its internal function. Therefore its
HF-emission is very low and it is unlikely that surrounding electronic devices are disturbed.
(HF-emissions acc. to CISPR 11, group 1)
dermalight 80 is determined for the use in an environment as described below. The user
should take care that the unit is used in such an environment.
dermalight 80 is determined for the use in all facilities, including residential areas and such
facilities connected directly to an official supply network, which also supplies buildings and
residential buildings. (HF-emissions acc. to CISPR 11, class B)
Magnetic fields at the supply frequency should correspond to the typical values for business
and hospital environments.
Portable and mobile radios should not be used at a lower distance to the dermalight 80
including cables than the recommended security distance acc. To the table below:
Security distance depending on the transmitter frequency m
Nominal capacity of
the transmitter
150 kHz - 80 MHz 80 MHz - 800 MHz 800 MHz - 2,5 GHz
0,01 0,03 m 0,03 m 0,07 m
0,1 0,11 m 0,11 m 0,22 m
1 0,35 m 0,35 m 0,70 m
10 1,11 m 1,11 m 2,21 m
100 3,50 m 3,50 m 7,00 m
Page 8
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
7
4.
F
IELDS OF APPLICATION AND THERAPY INFORMATION
4.1. F
IELDS OF APPLICATION
With the dermalight® 80 it is possible to carry out UVB-therapy, depending on the
indications.
Indications: Given the latest findings in photodermatology, this means that the following
indications can be treated with promise of success:
• Psoriasis
• Alopecia areata
• Vitiligo
• dermalight® 80 can be used for local irradiation of small circumscribed areas of skin all
over the body, for wrinkles and for the scalp
Contra-indications: Because there are no experiences in the case of pregnancy, you
should carry out a UV-therapy only after consulting your doctor in charge. The following
contra-indications are valid for all irradiation units:
• Hyperthyroidism
• Lupus erythematosus
• Tumorous skin changes
• Diseased hyperphotosensitivity (e.g. Xeroderma pigmentosa)
• Porphyrin disease
• Floride tuberculosis or other floride processes
• Accompanying medical treatment with potential skin damage or intensified
photosensitivity
4.2. T
HERAPY INFORMATION
The given therapy examples are to be seen as standard values and have to be ^co-ordinated
with your doctor.
In order to achieve a steady irradiation intensity at short irradiation times, the unit should be
switched on approx. 30 seconds before starting the therapy treatment.
For the therapy success it is essential to pre-treat your skin or scalp, i.e. to remove scale.
For the sake of simplicity we have based the following descriptions on skin type 2 (applies to
the majority of Central Europeans).
Guide values for skin type 2, first exposure :
approx. 60 seconds for each irradiated area of the body;
approx. 5-6 minutes for the entire hair-covered scalp.
Page 9
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
8
The duration of the first exposure for hair-covered scalp depends on the extent of the hair
covering and its thickness. The purpose of the comb is to part the hair and allow the UVirradiation to get through to the scalp (see Chapter 4.3. T
HERAPY RECOMMENDATION
).
The guide value for the percentage increase per exposure for skin type 2 is 25% to 30%.
In case of overdose (noticeable and visible sun burn or pronounced reddening
of the skin), shorten the irradiation period or discontinue treatment.
Guide values for the maximum final exposure time (to complete the irradiation treatment)
are:
approx. 3-4 minutes for each irradiated area or
approx. 2 times 20 minutes for the entire hair-covered scalp (f. ex. once in the
morning and once in the evening).
UV safety goggles guaranteeing 100% UV protection must be worn during
treatment. Suitable goggles are available from Dr. Hönle Medizintechnik (see
Chapter 6. S
PARE PARTS AND ACCESSORIES
).
Use sun lotion with a high sun block factor (≥15) on your forehead and on your
ears.
Irradiation intensity decreases as the lamps grow older. This means that you
must add an additional 10 - 20 % allowance to the exposure time after approx.
200 - 300 hours in operation. Remember to deduct this allowance again after
replacing the old lamps with new ones.
For greater uniformity of irradiation we recommend combing your hair during
exposure from left to right and then from the front to the back. Wear a glove on
the hand holding the unit to protect it from the UV radiation.
Skin type Description
1
light skin, red- or fair-haired, blue or green eyes, freckles
always quick sunburn; scarcely or no bronzing even after repeated
treatments (Celtic type)
2
fair-haired, blue, grey or green eyes
almost always sunburn; moderate bronzing after repeated treatments (fair
European type)
3
light brown or brown hair, brown eyes
moderately often sunburn; progressive bronzing after repeated treatments
(dark-skinned European type)
4
dark brown or black hair, brown eyes
rarely sunburn; quickly beginning and clear bronzing (Mediterranean type)
Table 1: Characteristics of the skin types
Page 10
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
9
4.3. T
HERAPY RECOMMENDATION
The doctor has to determine the initially treatment time and the increase or decrease of
treatment time.
Example 1: Psoriasis of the hair-covered scalp
Therapy: UV-B-311 nm therapy
Unit:
dermalight® 80 with comb attachment
Patient's skin type: 2 (European average)
Irradiation distance: 2- 3 cm (is kept automatically by the comb attachment)
Duration of first exposure: approx. 5-6 minutes for the entire scalp
Increase of exposure time per
follow-up exposure:
approx. 20 - 30% of previous exposure time
Maximum exposure time:
2 times 20 minutes (entire scalp; e.g. one time in the
morning and one time in the evening) per treatment
Duration of treatment: 4 - 6 weeks, longer for particularly serious cases
Frequency of irradiation: 4 - 7 times per week
If skin irritations appear, decrease the treatment time of the following treatment by about 2
minutes. Only increase the time after two further treatments.
Example 2: Psoriasis of a small circumscribed area of skin
Therapy: UV-B-311 nm therapy
Unit:
dermalight® 80 (with comb attachment)
Patient's skin type: 2 (European average)
Irradiation distance: approx. 2 - 3 cm
Duration of first exposure: approx. 45 - 60 seconds per irradiated area
Increase of exposure time per
follow-up exposure:
approx. 20 - 30 % of previous exposure time
Maximum exposure time: approx. 3 - 4 minutes per irradiated area
Duration of treatment: 3 - 4 weeks, longer for particularly serious cases
Frequency of irradiation: 4 - 5 times a week
If skin irritations appear, decrease the treatment time of the following treatment by about 20
seconds. Only increase the time after two further treatments.
Page 11
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
10
Example 3: Treatment of Vitiligo
Distance: 3 cm, use the comb attachment as a distance holder. The comb attachment does
not influence the treatment.
Frequency: 3 times a week
Session Dose
mJ / cm2
Treatment time
minutes : seconds
1. 70 20 sec
2. 140 40 sec
3. 210 1 min
4. 280 1 min 20 sec
5. 350 1 min 40 sec
6. 420 2 min
7. 490 2 min 20 sec
8. 560 2 min 40 sec
9. 630 3 min
10. 700 3 min 20 sec
11. 770 3 min 40 sec
12. 840 4 min
13. 910 4 min 20 sec
14.
and all further sessions
980 4 min 40 sec
Maximum treatment time: 4 min 40 sec
If skin irritations appear, decrease the treatment time of the following treatment by about 20
seconds. Only increase the time after two further treatments.
Page 12
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
11
5.
M
AINTENANCE INFORMATION
Daily: Check the filter glass for damage and dirt; check the housing for damage.
Every 400 operation hours / each 2-3 years in private operation:
Replace the lamps.
Every 2 years: Maintenance by our Customer Service or a technician authorized by us
(applies only to commercial users but is recommended to comply with the
Medical Devices Act).
5.1. C
LEANING THE HAND LAMP
Disconnect the unit by unplugging the power-pack!
Never wipe the hand lamp or the filter glass with a dry cloth. To clean dusty or dirty surfaces,
wipe with a damp soft cloth or sponge (add a little dishwashing liquid to warm water).
Anti-static plastic cleaners are also suitable.
Never clean with concentrated disinfectant or solvent such as Sagrotan, Lysoform,
methyl alcohol or any other liquid containing alcohol.
5.2. C
LEANING AND DISINFECTING THE COMB ATTACHMENT
The comb attachment (Art.-No. 995200) is skin-friendly and hygienic. Its poreless surface
makes it difficult for dirt and bacteria to accumulate.
To clean and disinfect the comb, see Section 5.2.
• At 25 °C the comb is resistant to the following chemicals:
- Baktolan, up to 5 % - Merfen
- Chinosol, up to 1 % - Perhydrol
- Elmocid Gamma, up to 2 % - Perodin
- Lugol's solution - Sagrotan, up to 2 %
- Mefarol, up to 1 % - Hydrogen peroxide, up to 40 %
- Merckojod, up to 1 % - Zephirol, up to 5%
Page 13
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
12
• Under no circumstances are you to use:
- Alcohol - Perchloroethylene
- Baktolan, concentrated - Sagrotan, over 2%
- Gasoline mix - Sidolin
- Tincture of iodine, 5% - Spirit of wine
- Phenic acid - Carbon tetrachloride
- Lysoform - Trichloroethylene
5.3. S
PARE PARTS AND ACCESSORIES
• Lamp UV-B-311 nm (PL-S 9W/01) Art.-No. 995500
• Housing with filter Art.-No. 995210
• Comb attachment Art.-No. 995200
• UV safety goggles with elastic headband Art.-No. 995000
• UV safety goggles “professional” Art.-No. 995001
• Countdown timer Art.-No. 995020
Our current price list is available on request.
6.
R
EPAIR AND SPARE PARTS SERVICE
Please contact our company for warranty claims, repairs and spare parts:
Dr. K. Hönle Medizintechnik GmbH Tel.: +49 - 8191-30555-0
Viktor-Frankl-Straße 20 Fax: +49 - 8191-30555-50
86916 Kaufering e-mail: [email protected]
Germany http://www.drhoenle.de
For safety reasons the replacement of parts or the repair of the unit may only be carried out
by Dr. K. Hönle Medizintechnik GmbH or by an authorized dealer.
Page 14
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
13
7.
T
ECHNICAL DATA
Type dermalight® 80 psoracomb UV-B-311 nm
Order No. / Power supply
200001: 230V/50Hz
200003: 230V/50Hz
Power consumption
11 W
Lamp
1 x UV-B-311 nm (PL-S 9W/01)
Dimensions (L x W x H)
300 x 60 x 45 mm
Weight (with power cable)
800 g
Irradiation outlet
110 x 40 mm
Operating temperature
5 - 45 °C
MPG class
IIa
Protection class
II, totally insulated
Marking
Manufacturer
A.L.T. Lichttherapietechnik
GmbH
Thura Mark 10
D-06780 Zörbig
Tel.: 0049-34956-20056
Fax: 0049-34956-20053
Exclusive Sales
Dr. K. Hönle Medizintechnik GmbH
Viktor-Frankl-Str. 20
D-86916 Kaufering
Tel.: 0049-8191-30555-0
Fax: 0049-8191-30555-50
All technical specifications are subject to technical alterations.
Page 15
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
14

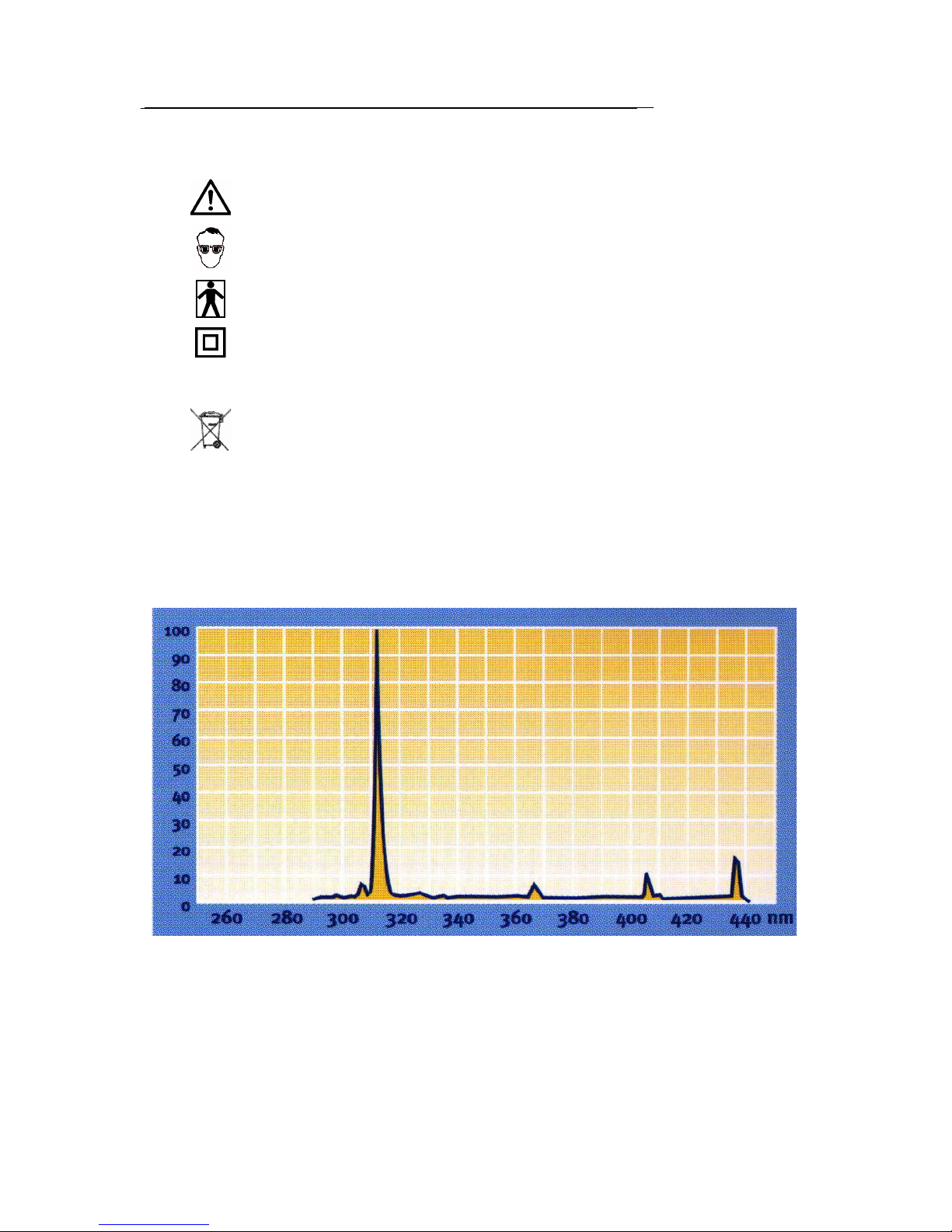

7.1. S
YMBOLS
Attention, see operating
instructions
Wear UV-protective googles
Part of application type BF
Protection class II
~
Alternating current
Unit contains electronic parts and may not be disposed
in the household rubbish. (see also chapter 9)
7.2. T
HERAPY SPECTRUM
Relative spectral irradiation distribution (%)
Wavelength [nm]
Page 16
Dr. K. Hönle Medizintechnik GmbH
dermalight® 80 uva
B
EDIENUNGSANLEITUNGOPERATING INSTRUCTIONS
15
8.
W
ARRANTY AND LIABILITY
In principle, the General Terms of Sales and Delivery of Dr. K. Hönle Medizintechnik GmbH
shall apply. These shall be submitted to the operator upon the signing of contract at the very
latest. The warranty for the unit is 12 months (not for lamps). There shall be no warranty or
liability claims in the event of personal injury or damage to property if these are attributable to
one or more of the following causes:
• the use of the dermalight® 80 for a purpose other than that for which it was intended
• failure to observe the information on the assembly, commissioning, operation and
maintenance of the unit contained in the operating instructions
• improper assembly, commissioning, operation and maintenance of the
dermalight® 80
• operation of the dermalight® 80 with defective and/or malfunctioned safety and
protective equipment
• unauthorized structural modifications of the dermalight® 80
• inadequate checking of wear parts
• repairs performed by persons who are not authorized by Dr. Hönle Medizintechnik
• catastrophes caused by foreign bodies or acts of God
9.
E
NVIRONMENTAL PROTECTION
The UV-lamps contain substances, which can harm the environment. Please take care, that
the lamps are not disposed with the household rubbish, after having reached their maximum
service life. Please take them to official collection points, in order to grant an environmentally
suitable disposal.
The dermalight 80 has been constructed for a long-time reliable operation. If you don’t want
to use dermalight 80 any more, please take care, that the electronic parts must not be
disposed with the household rubbish. Please return the unit to your dealer.
Loading...
