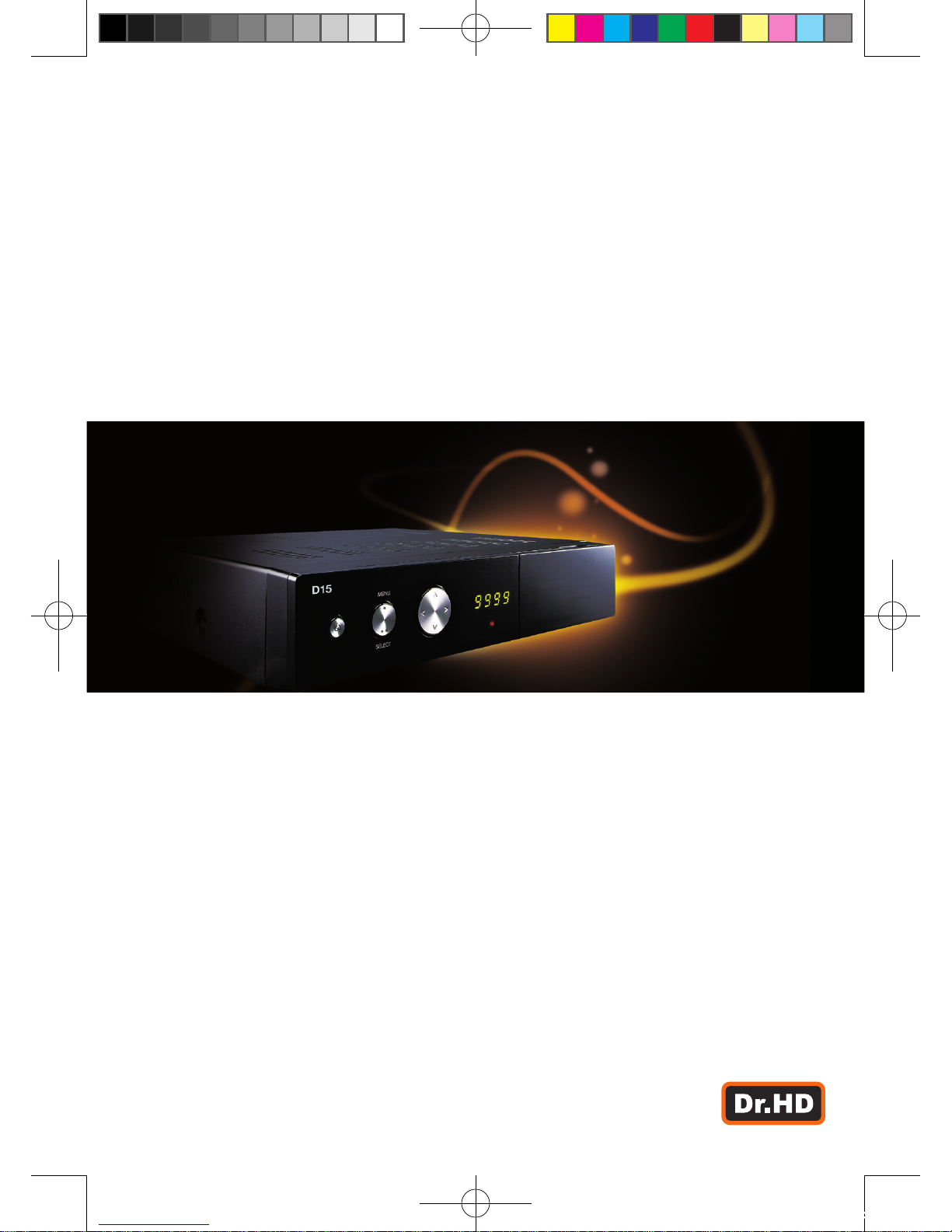

Dr.HD D15 User Manual

USER'S Manual

[2012.10.12]D15+F15_russian+english.indd 1 2012-10-12 11:22:38

73

English

Contents

1. Introduction ------------------------------------------------------- 74

1.1 Overview -------------------------------------------------------- 74

1.2 Main Features --------------------------------------------------- 74

2. Safety Precautions ----------------------------------------------- 75

2.1 safety ------------------------------------------------------------ 75

2.2 Precautions ------------------- ---------------------------------- 76

3. Points to Check before Use -------------------------------------- 77

3.1 Accessories ------------------------------------------------------ 77

3.2 The Satellite dish ------------------------------------------------ 77

4. Controls/Functions ----------------------------------------------- 78

4.1 D15 - Front Panel ------------------------------------------------ 78

4.2 D15 - Rear Panel ------------------------------------------------ 79

4.3 F15 - Front Panel ------------------------------------------------ 80

4.4 F15 - Rear Panel ------------------------------------------------ 81

4.5 Remote Controller ---------------------------------------------- 82

5. How to Connect -------------------------------------------------- 84

6. Operation --------------------------------------------------------- 86

6.1 Getting Started ------------------------------------------------- 86

6.2 System Setting ------------------------------------------------- 101

6.3 Channel Manager ---------------------------------------------- 108

6.4 Installation ----------------------------------------------------- 114

6.5 Entertainment --------------------------------------------------- 116

6.6 Utils ------------------------------------------------------------- 118

6.7 Common Interface ---------------------------------------------- 124

6.8 Conditional Access System ------------------------------------- 126

6.9 DVR ------------------------------------------------------------- 128

7. Troubleshooting --------------------------------------------------- 135

8. Specifications ----------------------------------------------------- 136

[2012.10.12]D15+F15_russian+english.indd 73 2012-10-12 11:23:02

74

1. Introduction

1.1 Overview

This satellite receiver is designed for the reception of free-to-air and encrypted channels.
Depending on your location, enjoy the rich choice of up to 10,000 different channels
broadcasting a large range of programs: culture, sports, cinema, news, events, etc.
This receiver is assembled with highly qualified electronic parts.

1.2 Main Features

▪ Video Resolution : 1080p / 1080i / 720p / 576p / 576i
▪ Common Interface
▪ DVR Ready via USB External Mass Data Storage Device

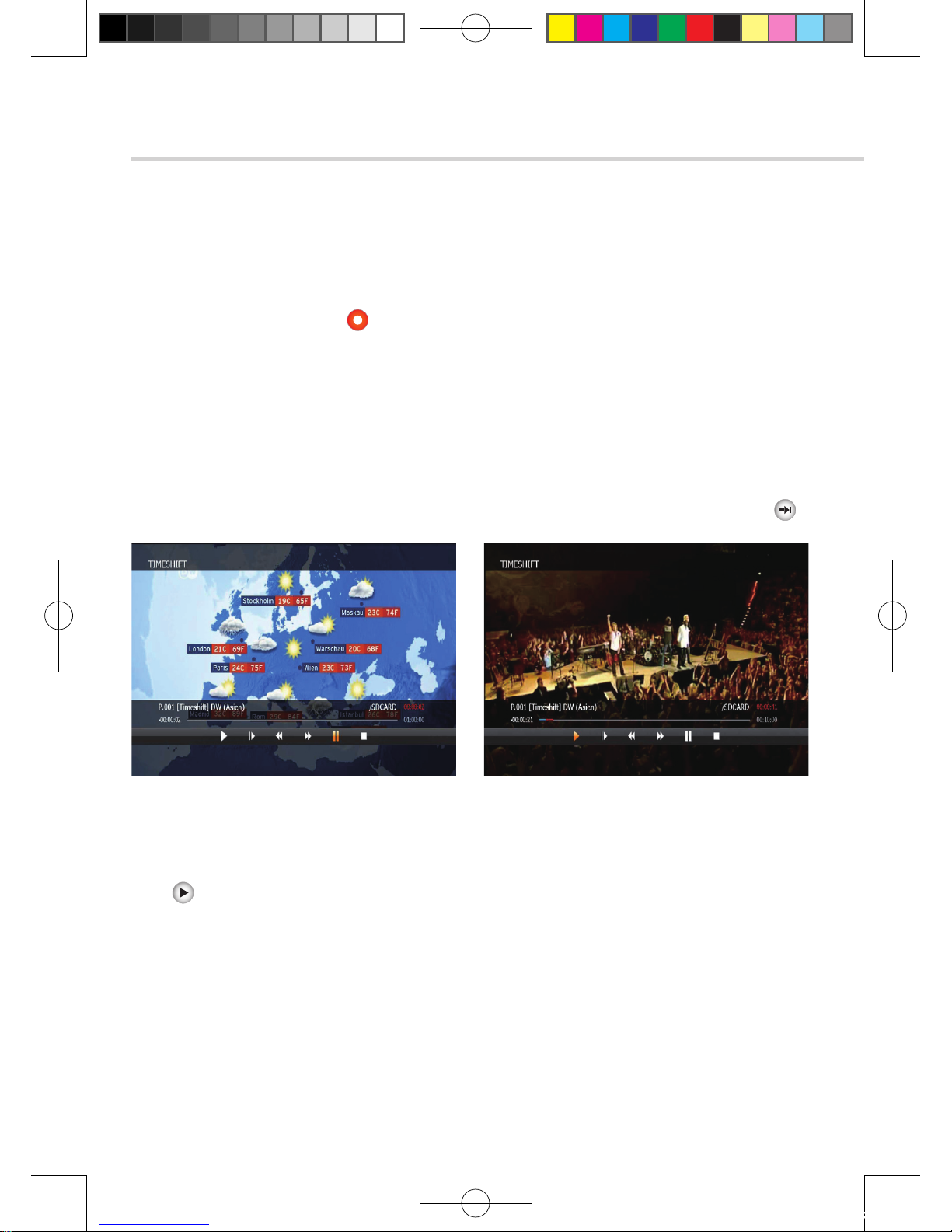

▪ Time Shift, Record & Playback
▪ USB 2.0 Host for MP3 Playback, JPEG Viewing & Firmware Update
▪ 10,000 Programmable Channels
▪ DVB-S, DVB-S2 Compliant
▪ HDMI Output
▪ On-screen display with true color full resolution
▪ Advanced Blind Scan
▪ Auto & Manual Channel Search
▪ Dolby Digital Output
▪ Channel Sorting by Alphabet, Transponder or CAS
▪ 16 Favorite Channel Groups
▪ OSD in 12 Languages
▪ Multi Picture Display and Zoom
▪ 16:9 Full Screen, 4:3 Letterbox & Full Screen
▪ DiSEqC 1.2 and USALS Compatible
▪ Data Transfer Between Units
▪ Extended Electronic Program Guide (EPG) and program reservation through EPG
▪ Teletext by OSD/VBI (Vertical Blanking Interval)
▪ Auto Voltage (AC 100 - 250V) SMPS
▪ High speed software upgrade via USB 2.0
▪ Parental Lock/ Installation Lock / Receiver Lock / Channel Lock / Lock Channel Confirm
▪ Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D Symbol are trademarks of Dolby Laboratories.

✽ DiSEqC is a trademark of EUTELSAT

[2012.10.12]D15+F15_russian+english.indd 74 2012-10-12 11:23:03

75

English

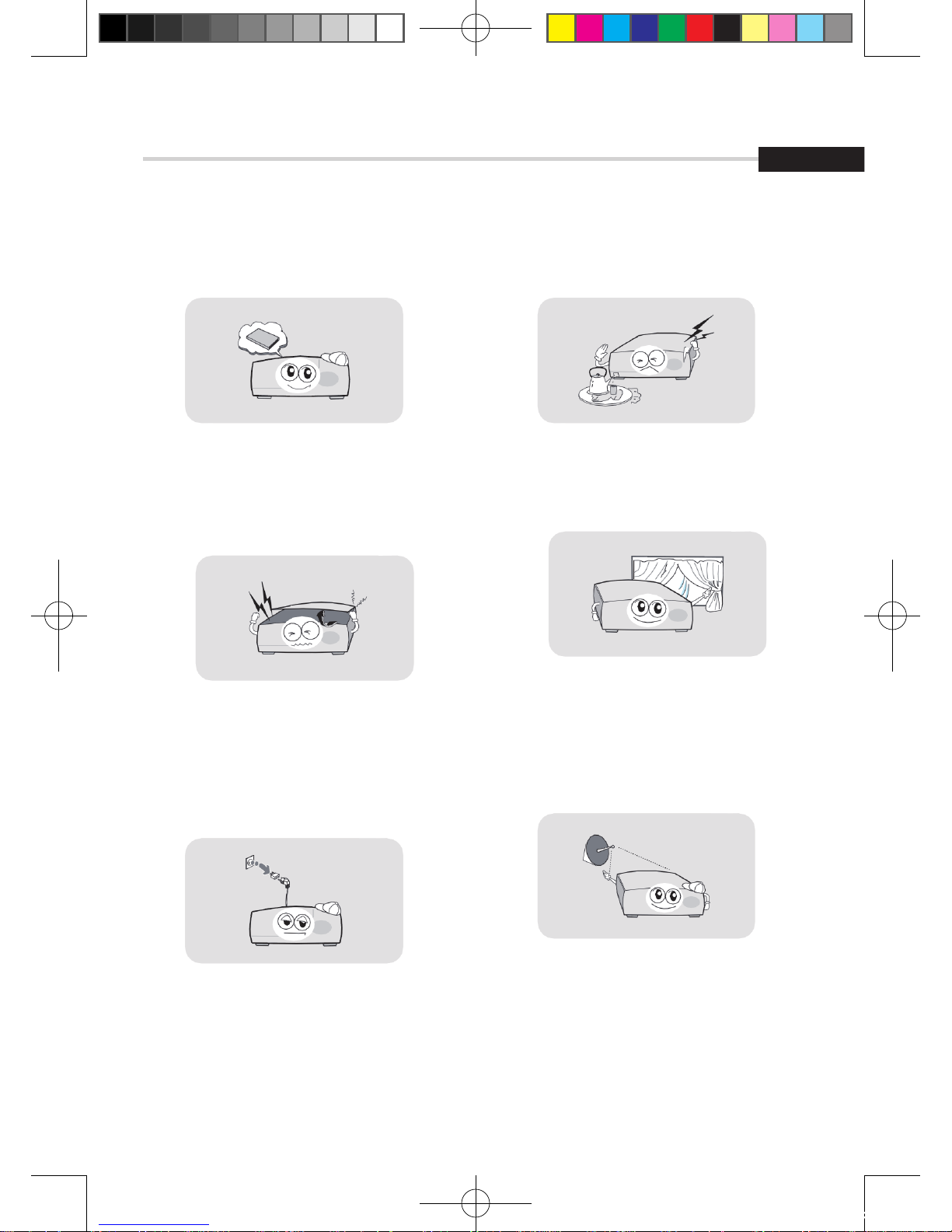

2. Safety Precautions

2.1 Safety

l Be sure to read this user’s manual before

starting the operation of the unit.

l Do not touch the power cord with wet hands

as it may cause electric shock.

l Never open the cover. It is very dangerous

to touch the inside of the unit due to possible
electric shock.

l Place the unit in a well ventilated and

no-heat environment.

l When you do not use this unit for a long

time, make sure that power cord is pulled out
from the outlet. Also do not use a damaged
power cord as it may cause fire or electric shock.

l A professional installation is required.

If reception is interrupted, contact
your local service centre.

[2012.10.12]D15+F15_russian+english.indd 75 2012-10-12 11:23:03

76

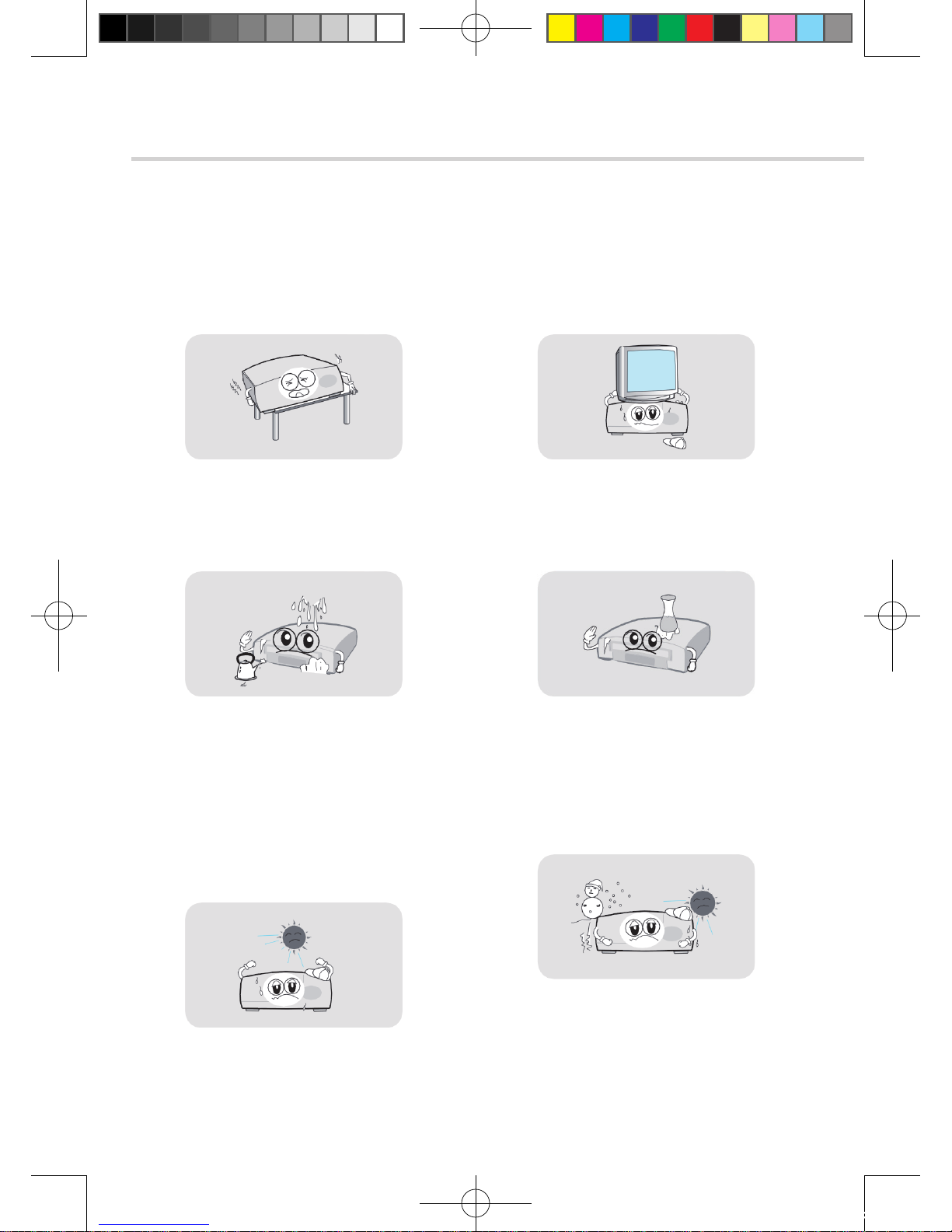

2. Safety Precautions

2.2 Precautions

l Install the unit horizontally. An uneven

installation may cause the unit to be damaged.

l Do not put heavy items such as a TV set on

the unit. That may damage the unit.

l Do not leave the unit where the water drops

or splashes.

l Do not put water holding items such as vases

on the unit.

l Do not install the unit:

▪ Where it is subject to vibrations
▪ Where it is exposed to direct sunlight
▪ Where there is humidity
▪ Where the temperature is too high or too low
▪ Where there is no ventilation

l Moving the unit to a hot area from a cold

one will cause condensation. Do not operate
the unit for one or two hours or until it has
dried completely.

When installing the unit

[2012.10.12]D15+F15_russian+english.indd 76 2012-10-12 11:23:03

77

English

✽ This unit supports DiSEqC 1.2 and can work with a compatible antenna positioner.

Ask your dealer for information.

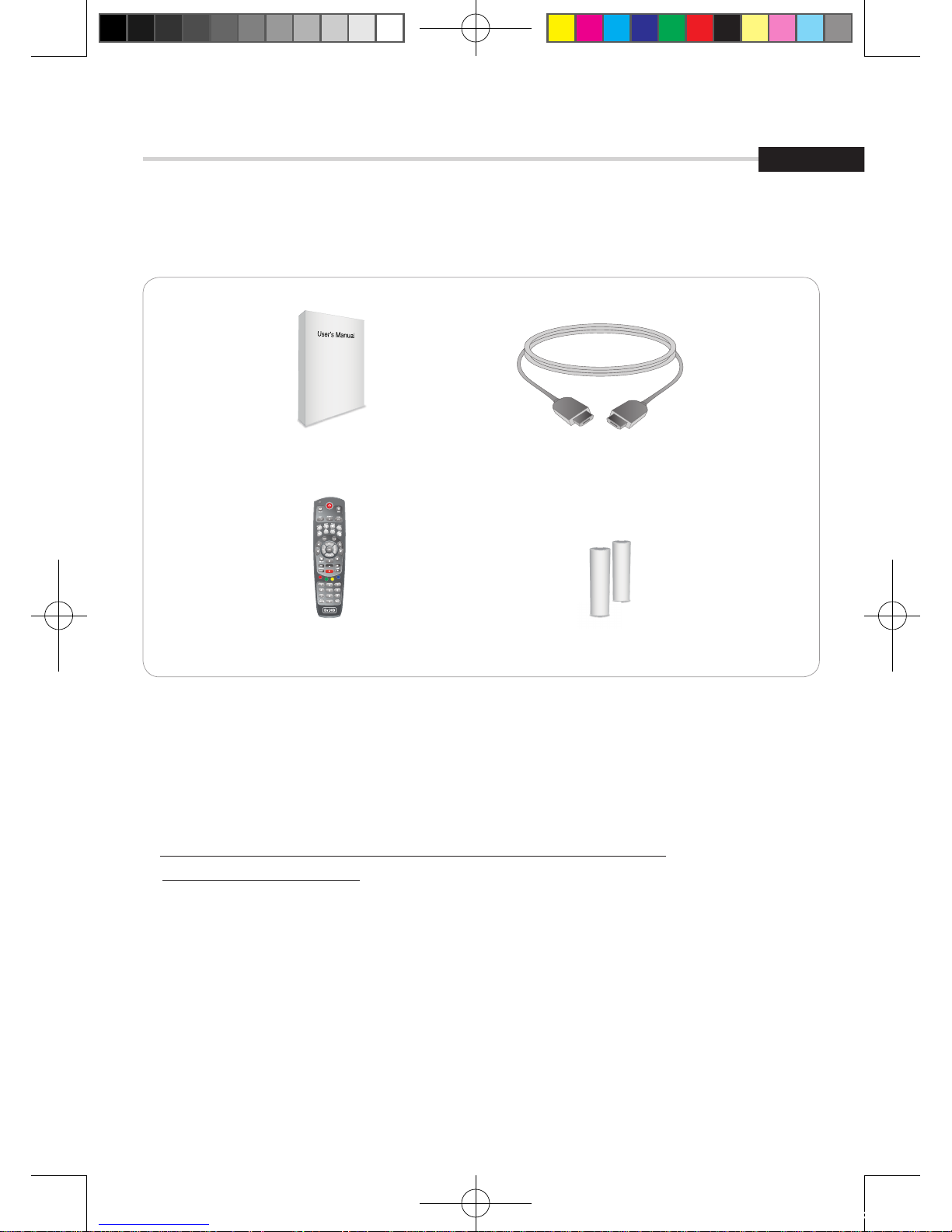

3. Points to Check before Use

The accessories below are included with this receiver:

Your dish should be properly installed and azimuth and elevation must be precisely set up

3.1 Accessories

3.2

The Satellite dish

Remote control

User’s manual

Batteries(A AA type) 2EA

BATTERY

BATTERY

BATTERY

BATTERY

HDMI Cable

HDMI

HDMI

[2012.10.12]D15+F15_russian+english.indd 77 2012-10-12 11:23:03

78

4. Controls/Functions

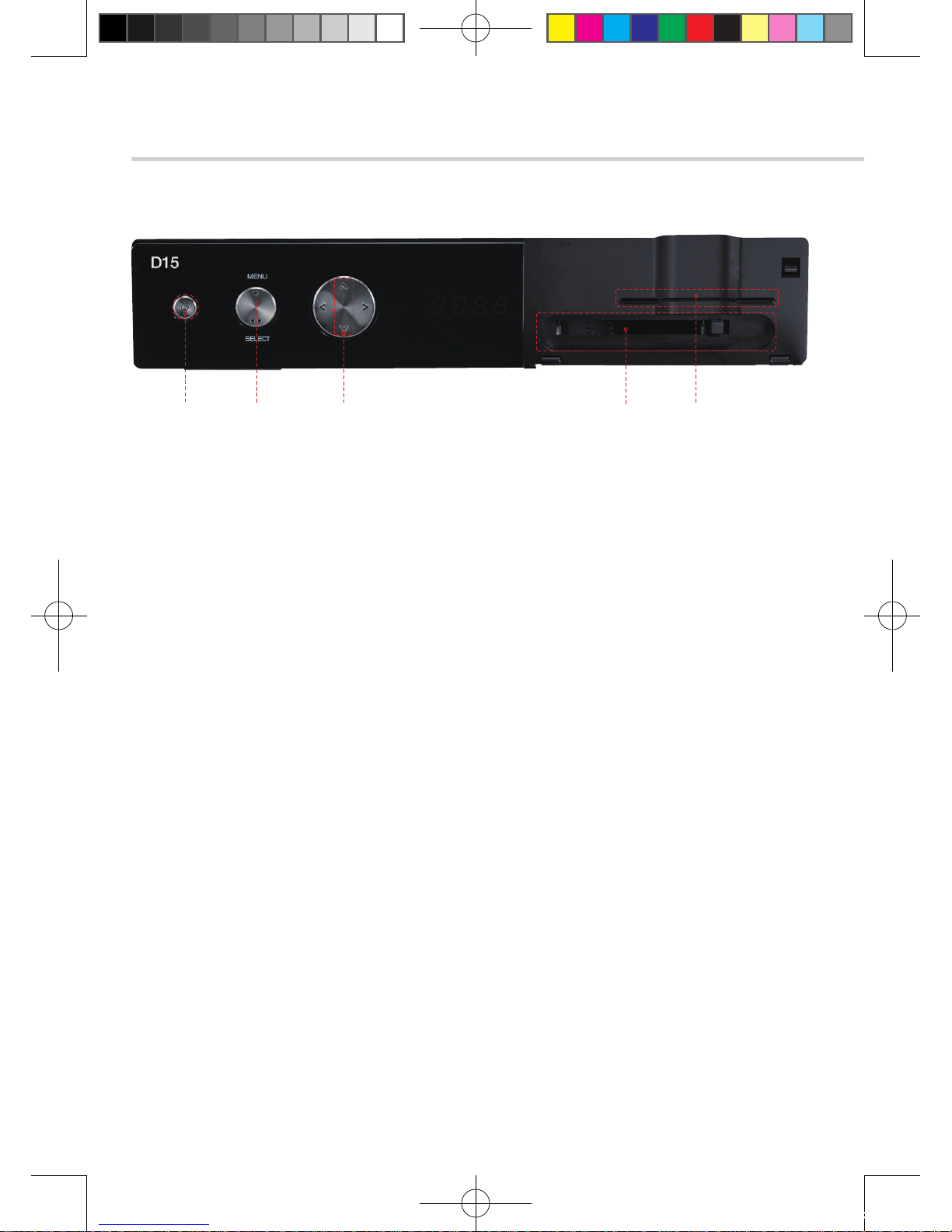

4.1 D15 - Front Panel

❶ Standby/Power on Indications Lamp: Flashes red light in ‘Standby’ mode and
shows no light in ‘Power ON’ mode.

❷ Power: Switches the receiver between ‘Standby’ and ‘Power ON’ modes.

❸ CH. (▲/▼): To switch channels or change the cursor position on the

application screen.

❹ Smart Card Reader: Insert smart card for encrypted channel access.

❺ Common Interface Slot: For CI module (PCMCIA module) with smart card to watch pay TV channels.

❷ ❶ ❸ ❺ ❹

[2012.10.12]D15+F15_russian+english.indd 78 2012-10-12 11:23:03

79

English

4. Controls/Functions

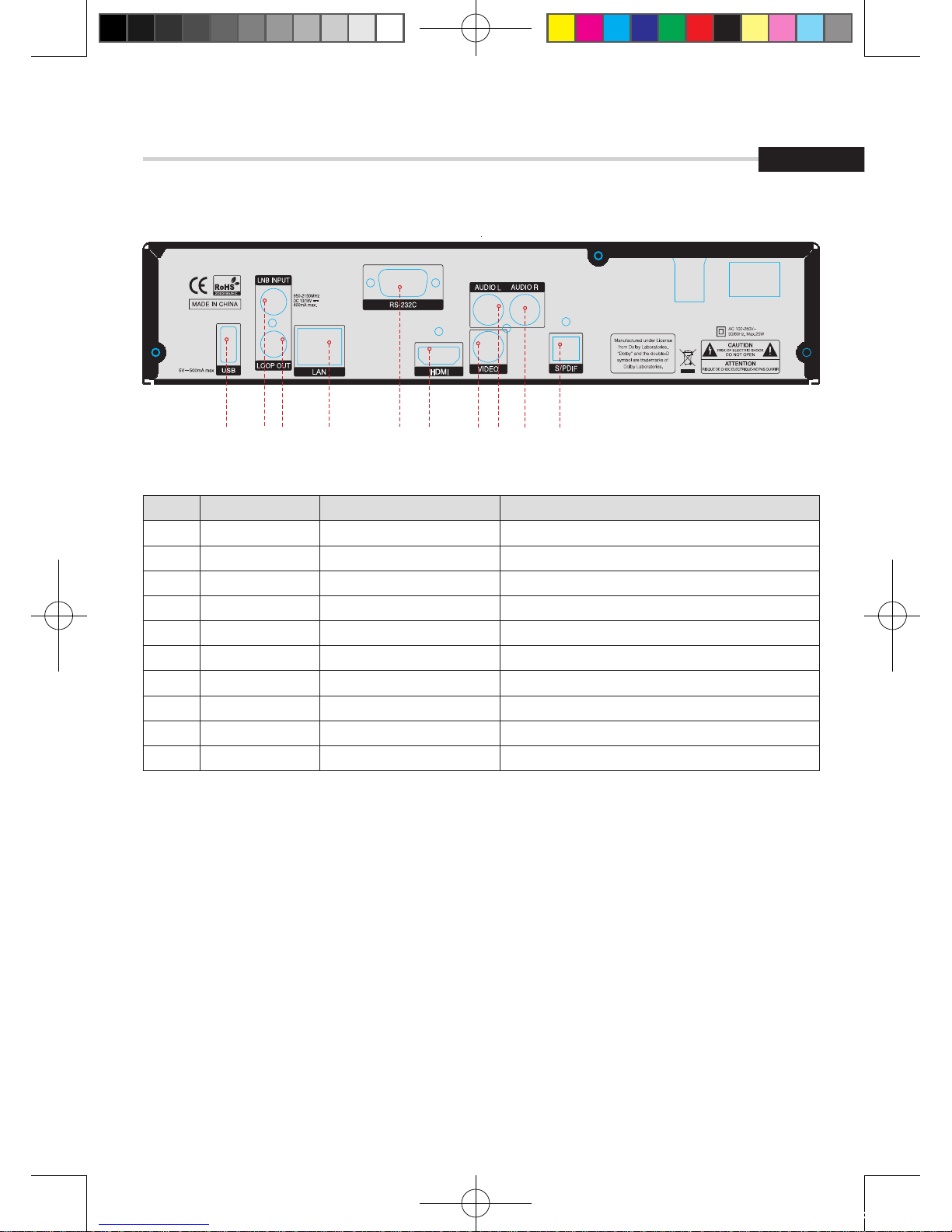

4.2 D15 - Rear Panel

NO Name Connector Function

❶

LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner

❷

LOOP OUT IEC 169-24 FEMALE IF loop-through output from digital tuner

❸

VIDEO RCA cinch Composite video output

❹

AUDIO L RCA cinch Left audio output

❺

AUDIO R RCA cinch Right audio output

❻

S/PDIF Fiber Optical Digital audio output

❼

LAN RJ-45 10/100Mbps Ethernet

❽

HDMI HDMI Digital Video/Audio Output

❾

RS-232 DB-9 Low speed serial port

❿

USB USB A-Type USB 2.0

❶ ❷❿ ❽❾ ❸ ❹ ❺ ❻❼

[2012.10.12]D15+F15_russian+english.indd 79 2012-10-12 11:23:03

80

❶ Power: Switches the receiver between “Standby” and “Power ON” modes.
❷ Menu: To enter or exit the main menu.
❸ Select: To show the Channel List in non-menu mode and select on item or confirm in menu mode.
❹ VOL ◀ / ▶: Регулировка громкости. (А в режиме «Меню»- установка параметра).
❺ CH ▲ / ▼: Переключение каналов. (А в режиме «Меню»- перемещение курсора вверх-вниз

❶ ❷ ❸ ❹ ❺

4. Controls/Functions

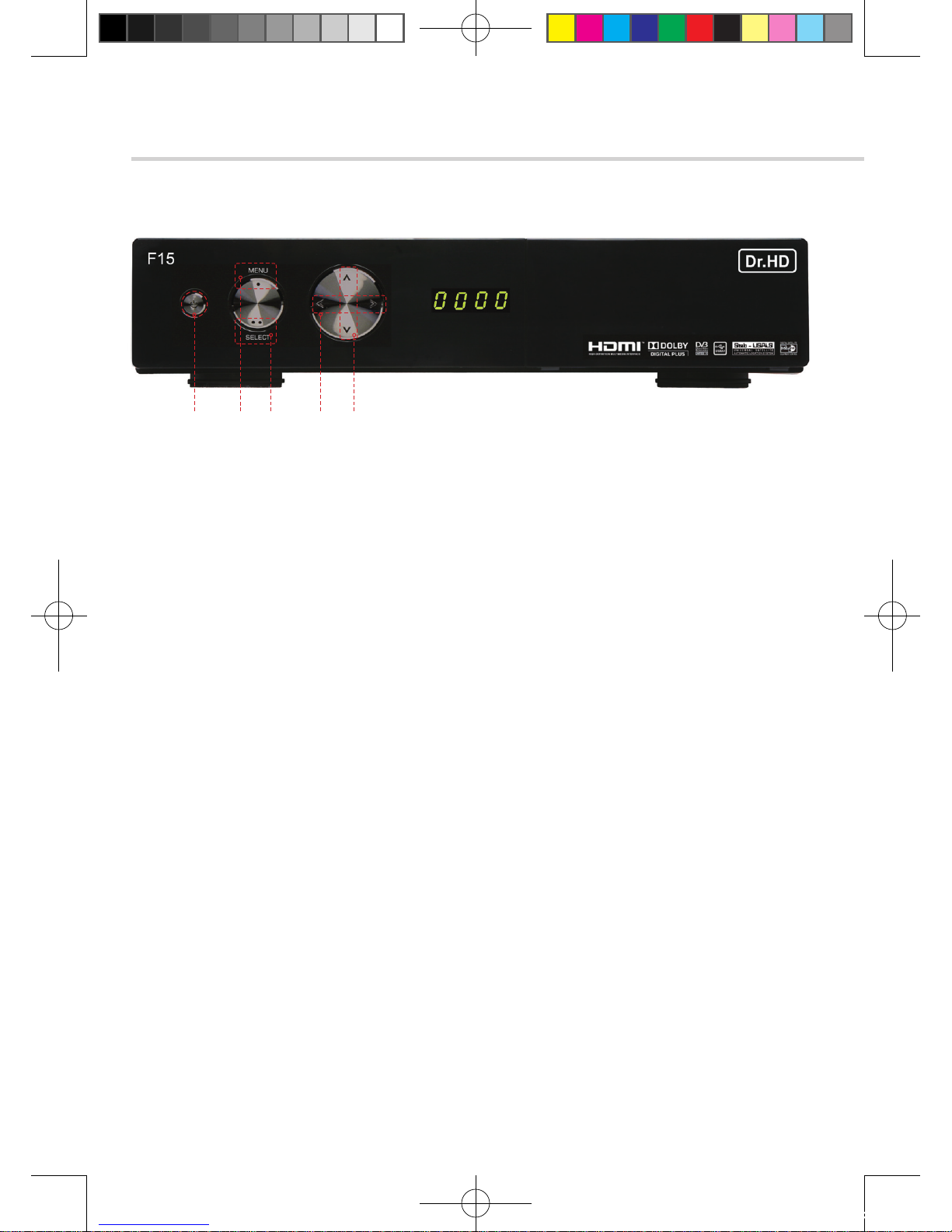

4.3 F15 - Front Panel

[2012.10.12]D15+F15_russian+english.indd 80 2012-10-12 11:23:04

81

English

4. Controls/Functions

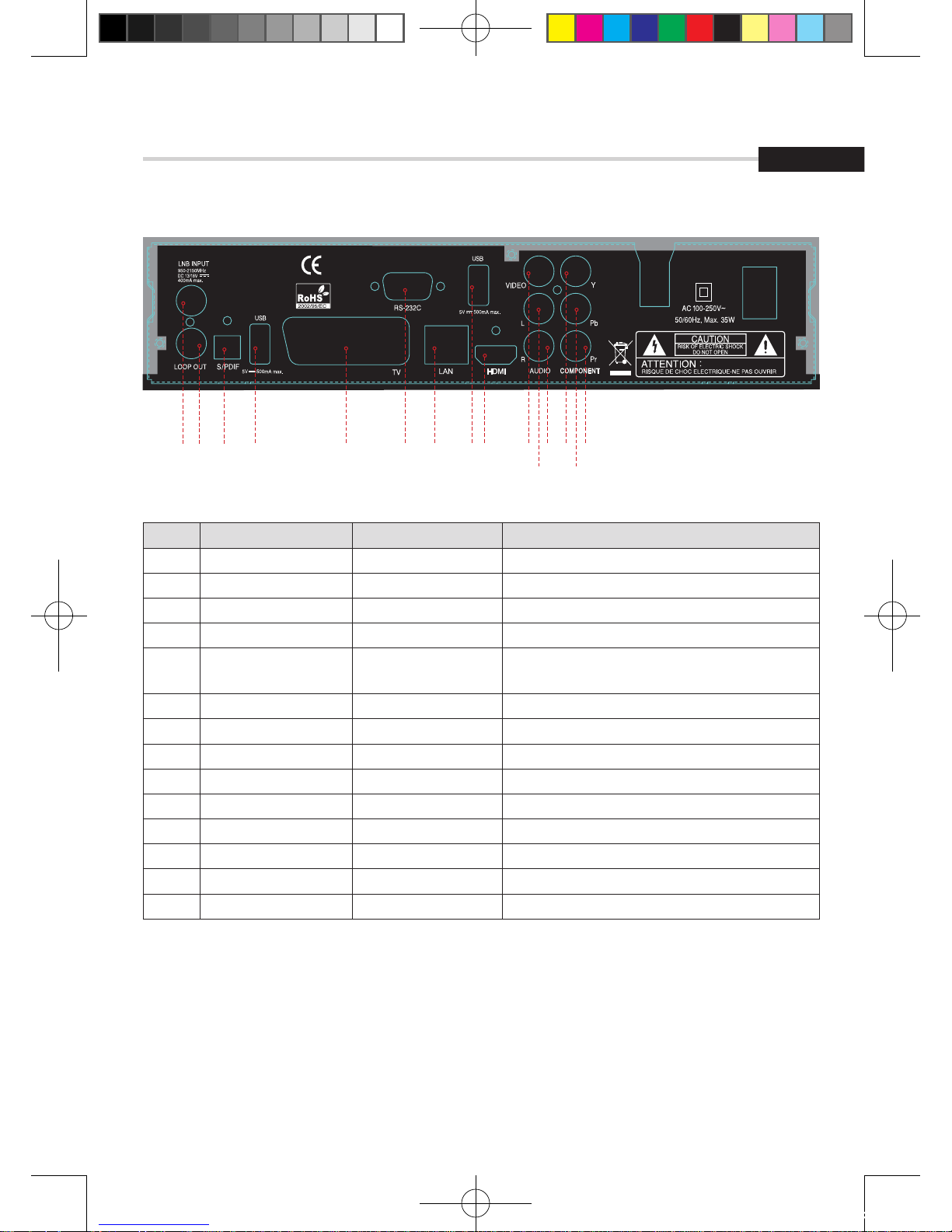

4.4 F15 - Rear Panel

NO

Name Connector Function

❶

LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner

❷

LNB OUTPUT IEC 169-24 FEMALE IF loop-through output from digital tuner

❸

S/PDIF Fiber Optic Digital audio output (Optical)

❹

USB USB A-type USB 2.0

❺

TV SCART SCART Video output(CVBS, RGB)

Audio output(R, L)

❻

RS-232C DB-9 Low speed serial port

❼

LAN RJ-45 10/100Mbps Ethernet

❽

HDMI HDMI Digital Video/Audio Output

❾

VIDEO RCA cinch Composite video output

❿

AUDIO L RCA cinch Left audio output

⓫

AUDIO R RCA cinch Right audio output

⓬

Y RCA cinch Component video output(Y)

⓭

Pb RCA cinch Component video output(Pb)

⓮

Pr RCA cinch Component video output(Pr)

❶ ❷ ❾

❿

⓭

⓫ ⓬ ⓮

❹

❽

❸ ❹ ❺ ❻ ❼

[2012.10.12]D15+F15_russian+english.indd 81 2012-10-12 11:23:04

82

4. Controls/Functions

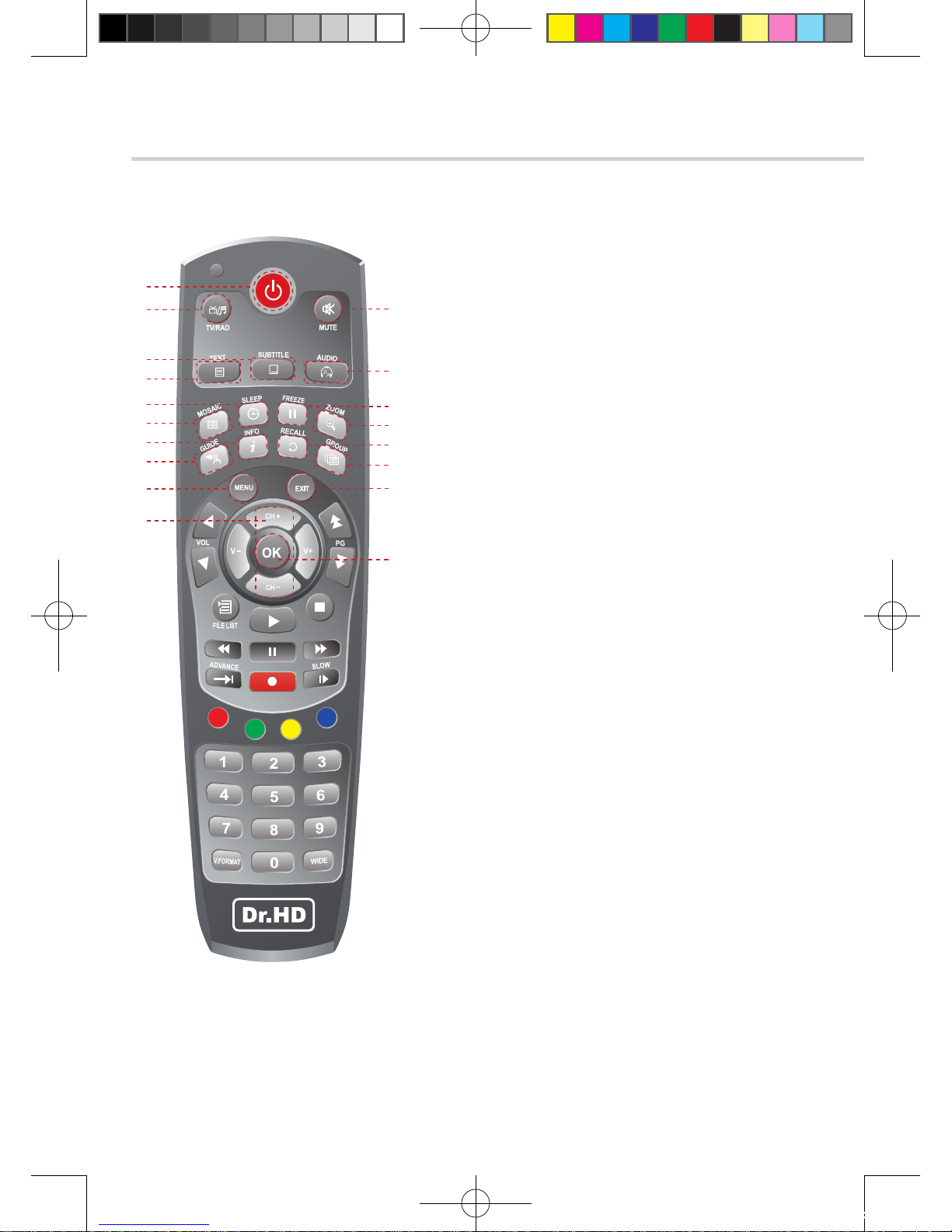

4.5 Remote Controller

❷

⓲

❶

❹

❼
❻
⓫
❿

⓮

⓰

❸

❺

❽
❾
⓬
⓭

⓯

⓱

❶ POWER: To turn the receiver On/Off

❷ TV/RADIO: To switch between TV and Radio

❸ MUTE: To turn the sound On/Off

❹ SUBTITLE: To turn closed captions on or off

❺ AUDIO: To show the Multi-language

audio track, the stereo-mono mode and
subtitle information

❻ MOSAIC: To display multiple pictures

❼ SLEEP: To set the STB off after minutes

❽ FREEZE: To pause the video.

Press again to resume the video

❾ ZOOM: To zoom In/Out

❿ GUIDE: To show the TV/Radio program guide

⓫ INFO: To show information about the

current program. Press twice to show detail

⓬ RECALL: To move to the previous channel

Used for special functions in menu mode

⓭ GROUP: To change the channel groups

(Satellites or favorite groups)

⓮ MENU: To enter or exit the main menu

⓯ EXIT: To exit from the present menu and

move to the previous menu

⓰ Up & Down: To switch channels in

non-menu mode and move the cursor
up/down in menu mode

⓱ OK: To show the Channel List in nonmenu

mode and select an item or confirm in menu mode

⓲ Text: To show the teletext contents if teletext is

transmitted

[2012.10.12]D15+F15_russian+english.indd 82 2012-10-12 11:23:04

83

English

4. Controls/Functions

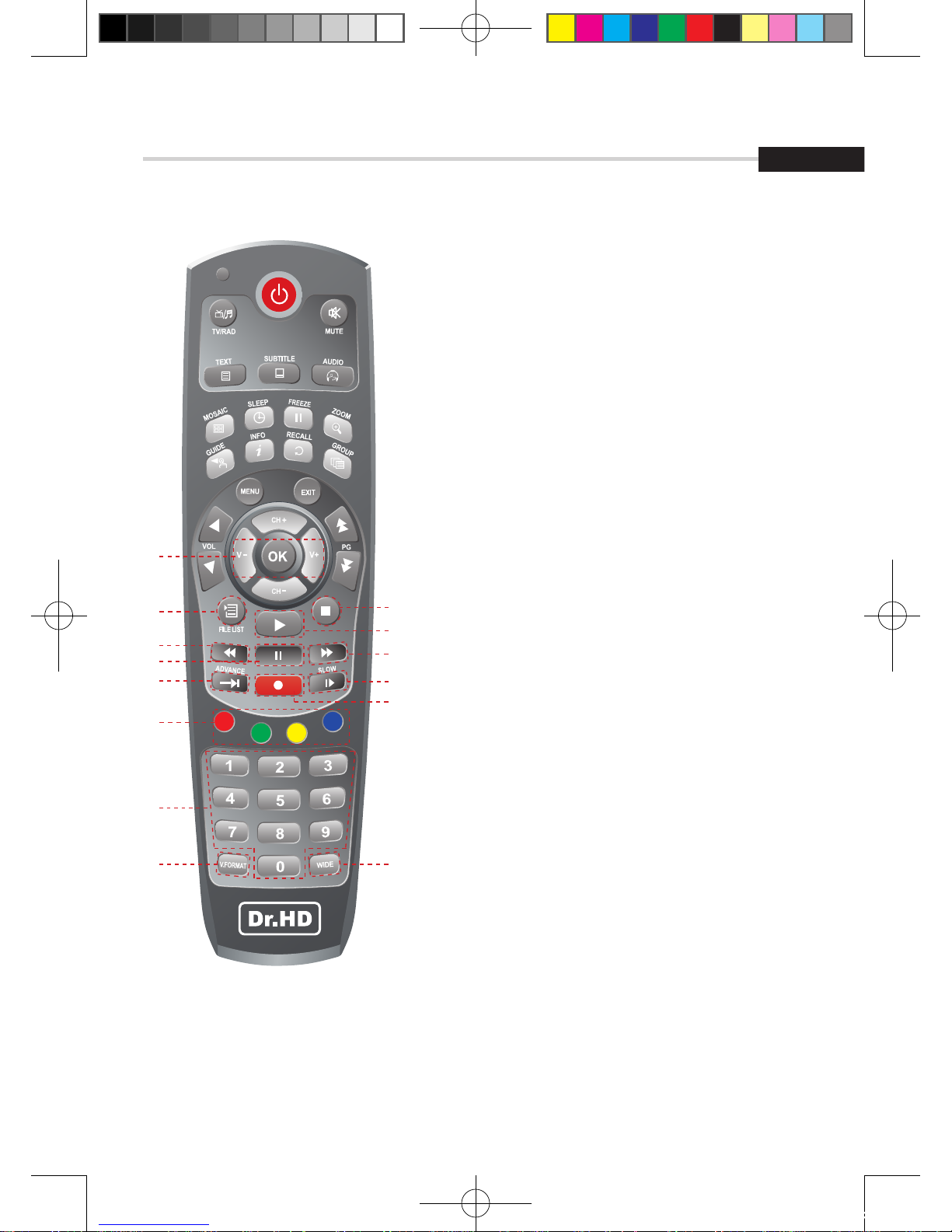

4.5 Remote Controller

❸
❹
❼

❿
❾

⓮

⓬

❷

❺
❻

❽

⓫

⓭

❶

❶ Vol Up & Down: To change the volume level

in non-menu mode

❷ FILELIST: To display the filelist

❸ STOP: Stop Playback

❹ PL AY: Play Content

“& Hotkey to DiVX Player List”

❺ REW: Playback in rewind mode

❻ PAUSE: Pause playback

❼ FWD: Playback in forward mode

❽ ADVANCE: Go to live channel

❾ REC: Start recording

❿ SLOW: Playback in slow mode

⓫ Color Key: Select the option such as View List,

Select Disk, Rename.

“(Long press ‘1’) Hotkey to PIP”,

“(Long press ‘2’) Hotkey to PIP Swap”,

“(Long press ‘3’) Hotkey to PIP List”,

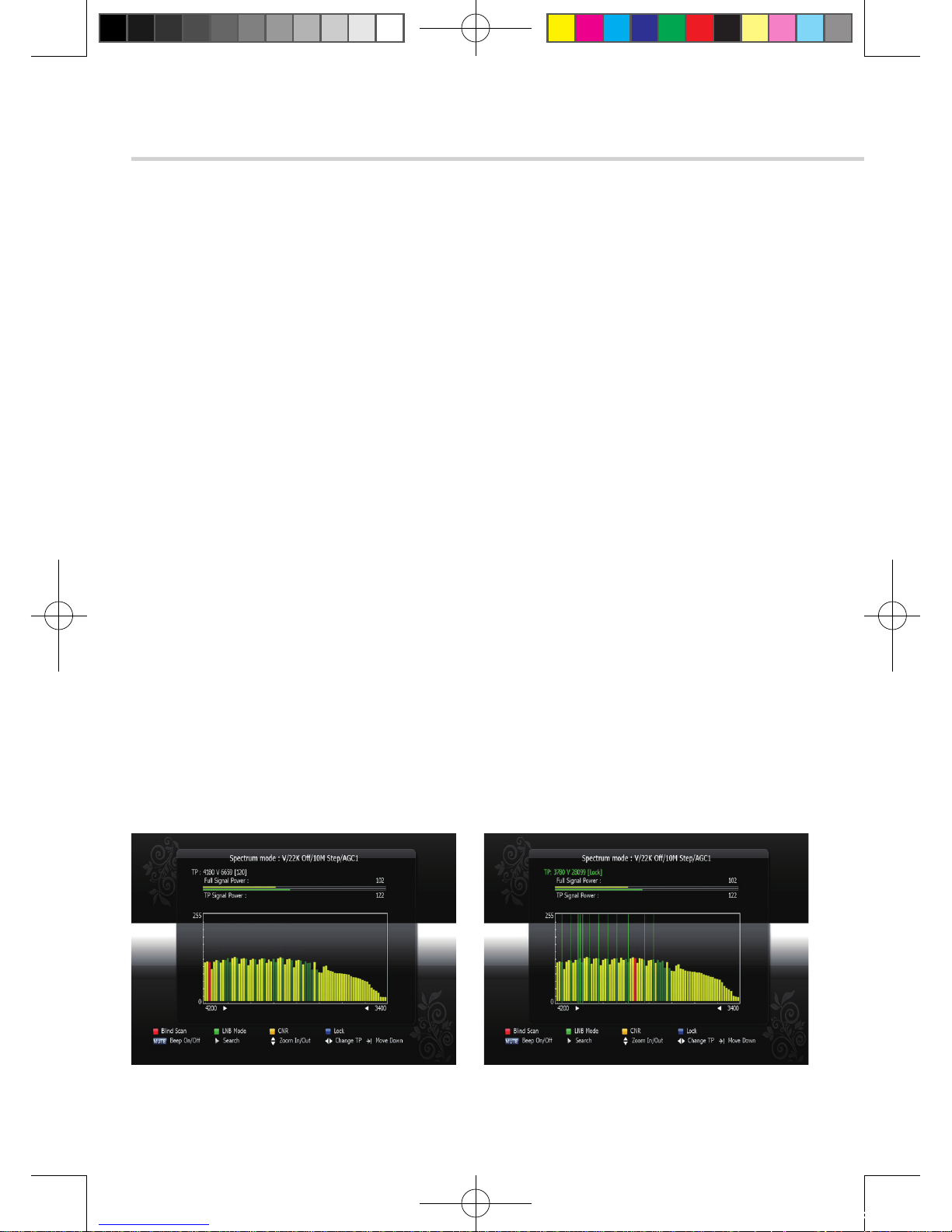

“(Long press ‘0’) Hotkey to Spectrum analyzer”,

⓬ Numeric Keys (0-9): To enter numerical
settings (such as channel numbers) directly.

“(Short press Blue key) Hotkey to Plugin list”

“(Long press Blue key) Hotkey to VK Video”

⓭ V.FORMAT: To switch the resolution of
video output

⓮ WIDE: To select a TV aspect ratio Pan Scan or
Letter-Box(4:3) (Full screen or pillar box(16:9)

[2012.10.12]D15+F15_russian+english.indd 83 2012-10-12 11:23:04

84

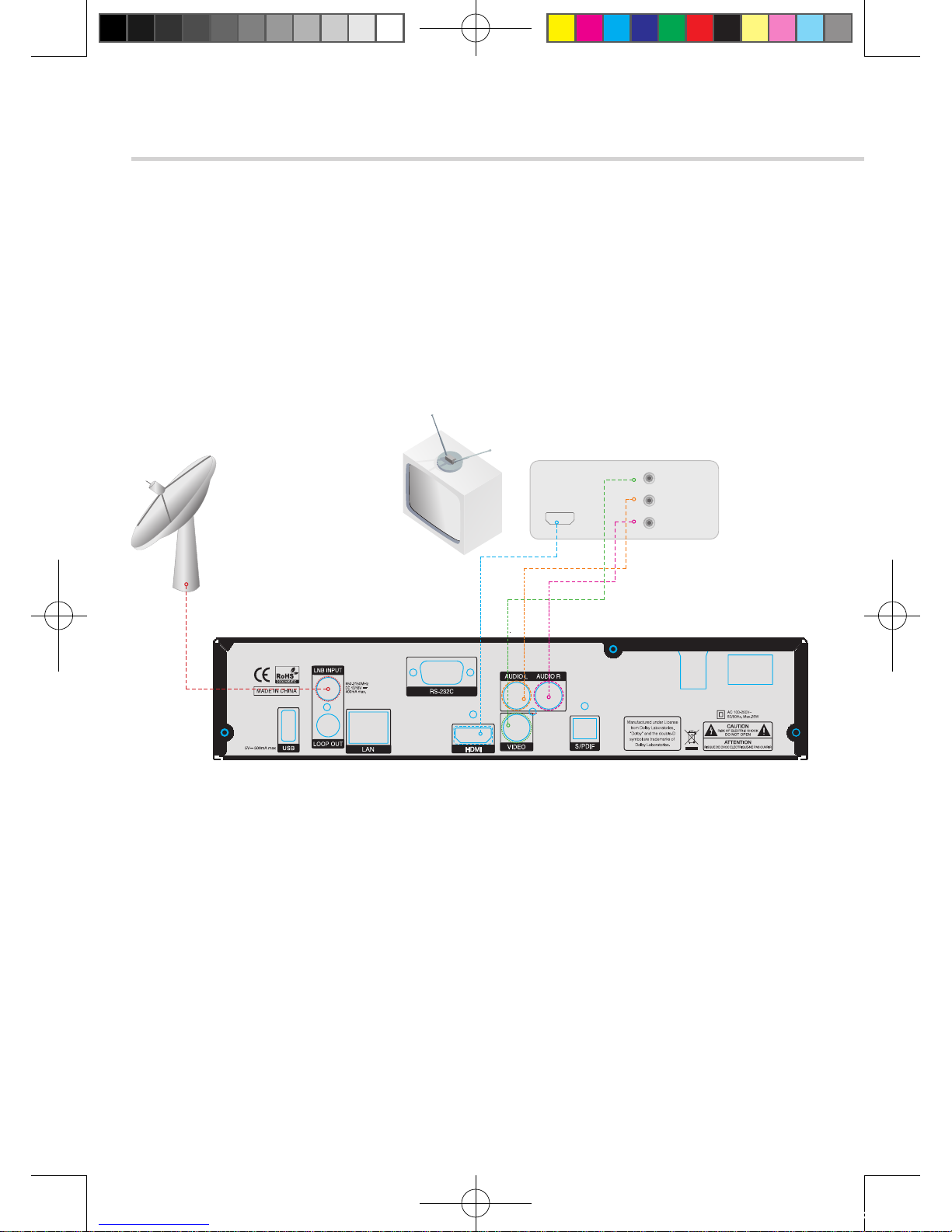

5. How to Connect

D15 - When Connecting the Receiver to a TV

1. Connect the TV antenna to TV ANT IN

2. Connect the Video and Audio of the TV to Video and Audio: connect the red and white
connectors to Audio R and Audio L, and the yellow connector to Video

3. Connect your satellite dish

Video

Audio

HDMI

TV

Satellite Dish

L

R

[2012.10.12]D15+F15_russian+english.indd 84 2012-10-12 11:23:05

85

English

5. How to Connect

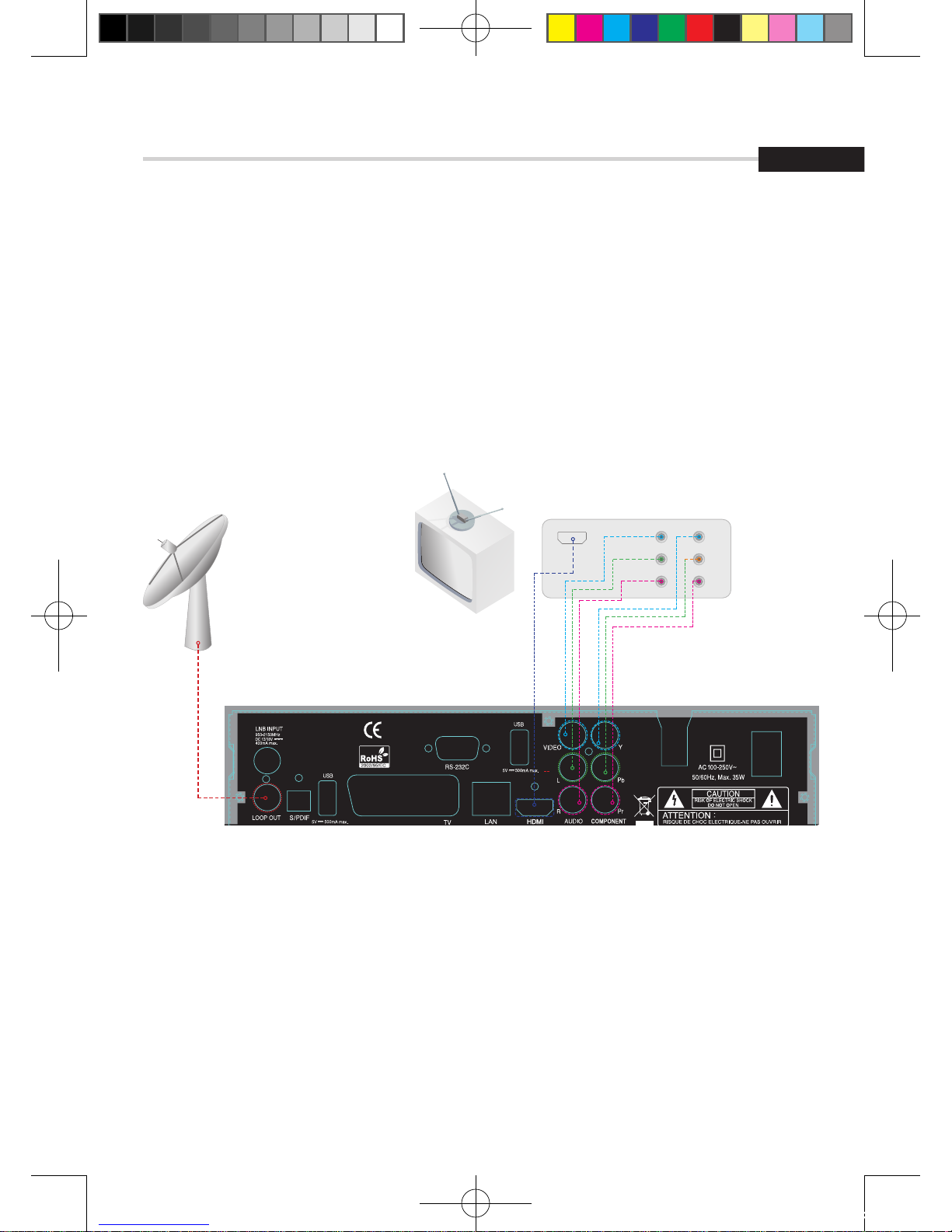

F15 - When Connecting the Receiver to a TV

1. Connect the TV antenna to TV ANT IN

2. Connect the Video and Audio of TV to the Video and Audio. Connect Red and White
connector to Audio R and Audio L, and Yellow into Video port respectively

3. Connect the Component Video of your TV to Component Video for best quality: connect
the Y, Pb and Pr of your TV to Y, Pb and Pr respectively

4. Connect your satellite dish

Video

Audio

HDMI

TV

Satellite Dish

L

Y

Pb

Pr

R

[2012.10.12]D15+F15_russian+english.indd 85 2012-10-12 11:23:05

86

6. Operation

6.1

Getting Started

After your receiver is powered on, proceed with installation as follows :

➊

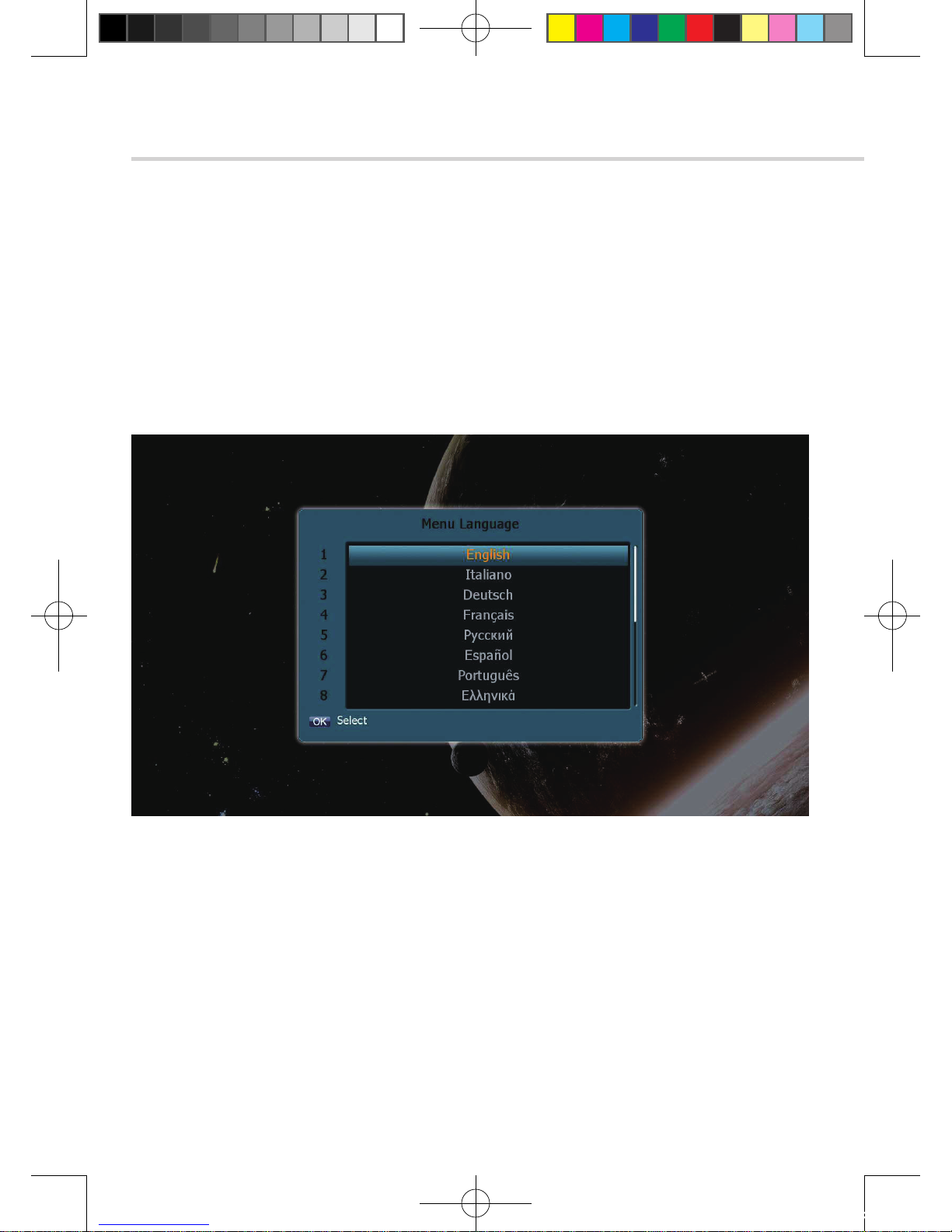

Menu Language Setting

1. Turn on your TV and receiver.

2. The pop-up menu for language selection will apprear. <Figure 6.1.1>
Select one language and press OK button to proceed.

Fi g ure 6.1.1

[2012.10.12]D15+F15_russian+english.indd 86 2012-10-12 11:23:05

87

English

6. Operation

6.1

Getting Started

➋

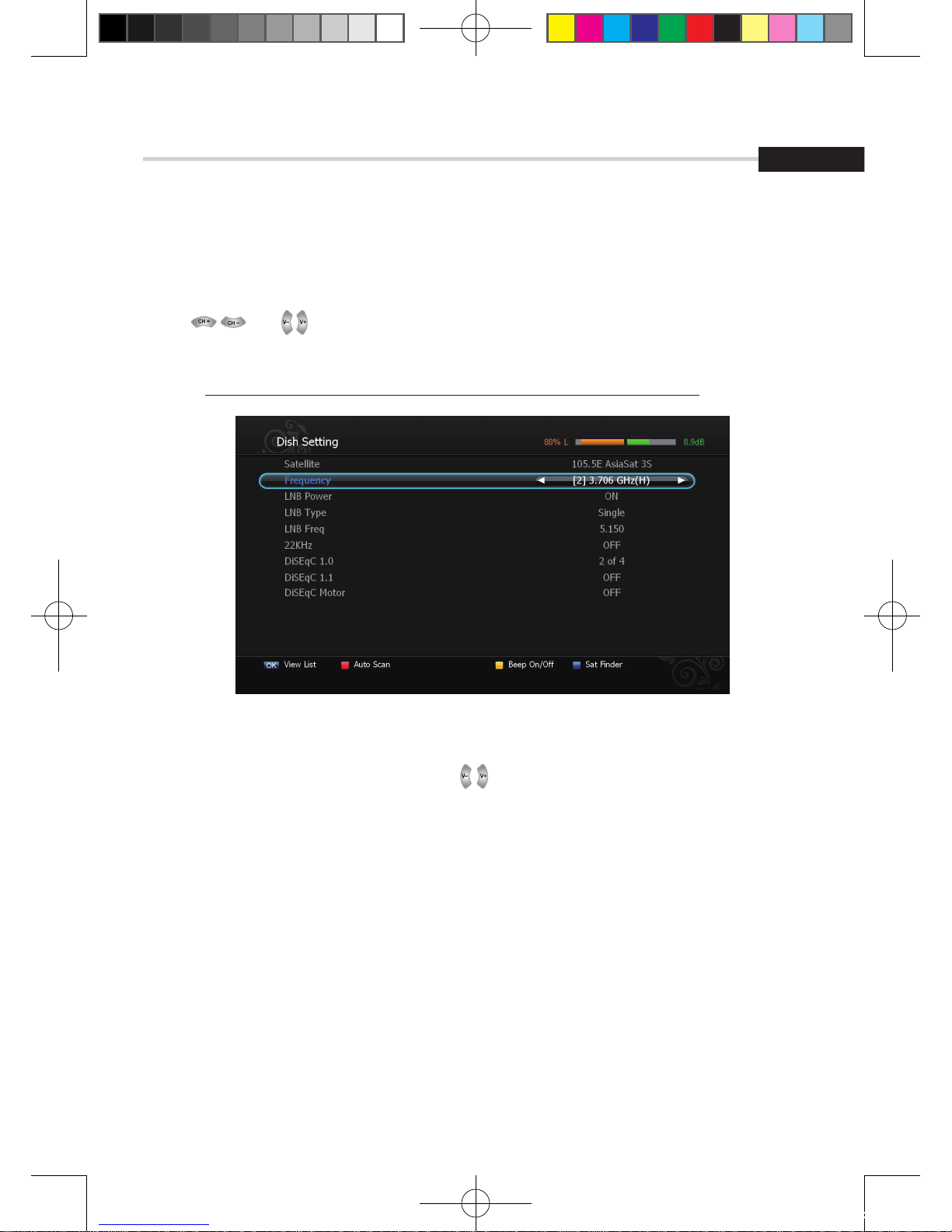

Dish Setup

1. Press the MENU button to display the main menu.

2. Use and to move in the menu.

3. Press OK on ‘Dish Setting’. The following window will appear. <Figure 6.1.2>

✽ Note: Enter a 4-Digit password if need arise. The default password is ‘0000’.

4. Select the item that you want to edit, and set its parameters as desired. <Dish Setting>

▪ Satellite: Select any satellite by pressing buttons.

▪ Frequency: If the default TP frequency is not appropriate, you can select another

TP frequency at which to check for signal.

▪ LNB Power: Select among ON /OFF/13V/18V.

▪ LNB Type : Select among Single/Universal/OCS/SaTCR.

▪ LNB Freq: Set the frequency of the LNB oscillator.

▪ 22KHz: When not AUTO, set the signal path from LNB or switch by selecting a control signal

among 0/22KHz.

▪ DiSEqC 1.0/1.1: Select DiSEqC protocol among OFF/1.0/1.1 as appropriate for your
configuration.
▪ Rename: Change the name of satellite.

(if selected Russian Language that Support Russian keypad)

▪ Beep On/Off: Beep Sound as signal level.

5. Auto Scan: Press Red button the remote to begin Auto Scan.

Fi g ure 6.1.2

[2012.10.12]D15+F15_russian+english.indd 87 2012-10-12 11:23:05

88

6. Operation

6.1

Getting Started

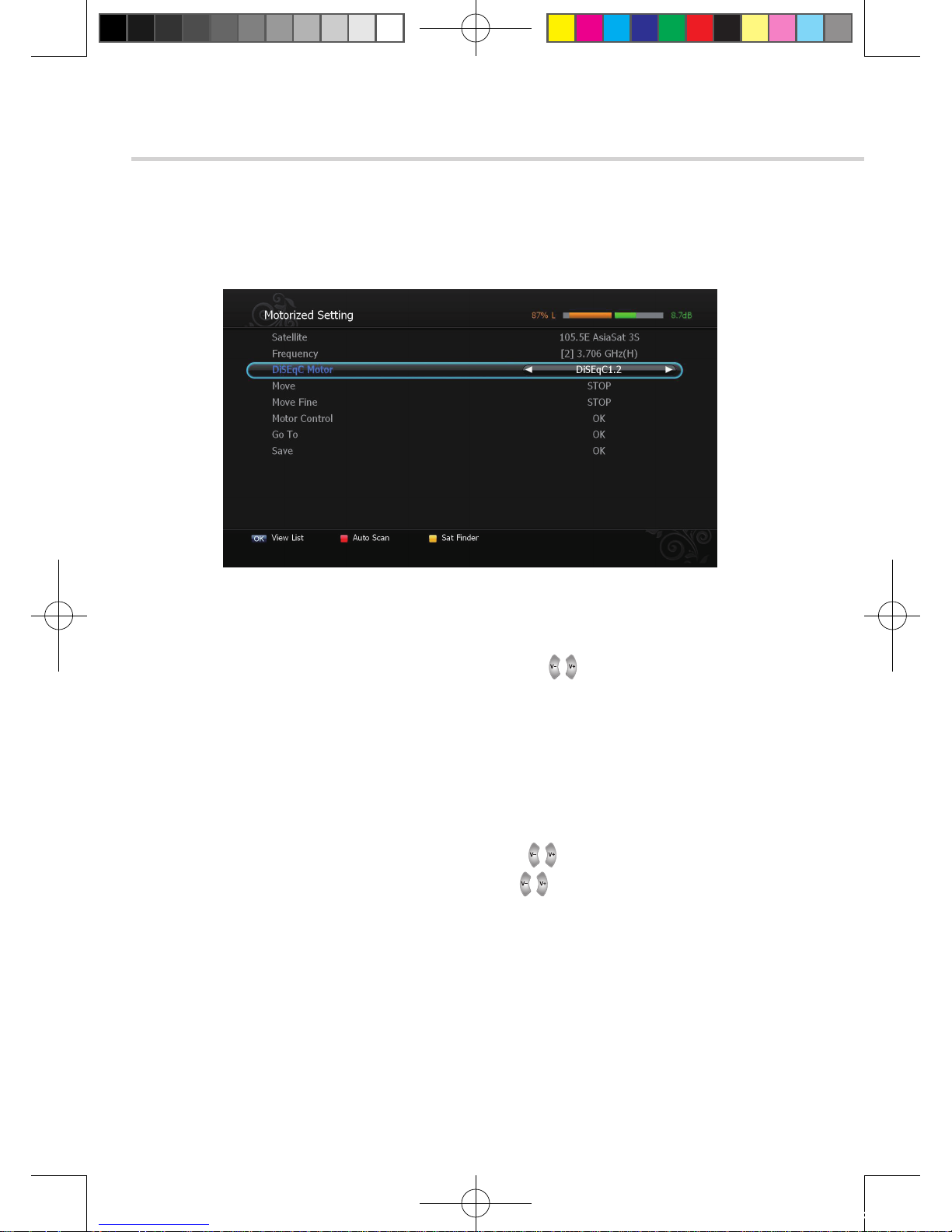

(When the DiSEqC Motor parameter is set as 1.2)

Figure 6.1.3

▪ Motor Step: Select Motor Step

▪ Move: Move the dish position to west/east by pressing buttons.

▪ Go To: Go to the position of the saved satellite.

▪ Motor Control: Control motor by press OK button ot the remote.

▫ Recalculate: Recalculate the position of all other saved satellites relative to the

known position.

▫ Reset System: Reset the position of all saved satellites.

▫ Goto Reference: Move the dish to the 0 position.

▫ Set West Limit: Edit & Save west limit by pressing or OK buttons.

▫ Set East Limit: Edit & Save east limit by pressing or OK buttons.

▫ Enable Limit: Enable the saved east and west limit.

▫ Disable Limit: Disable east and west limit.

▫ Save: Save the current setting of DISEqC 1.2 system.

[2012.10.12]D15+F15_russian+english.indd 88 2012-10-12 11:23:06

89

English

6. Operation

6.1

Getting Started

(When the DiSEqC Motor parameter is set as USALS)

▪ Move: Move the dish position to west/east by pressing buttons.

▪ Motor Control: Control motor by press OK button ot the remote.

▫ Goto Reference: Goto reference by pressing OK button.

▫ Set West Limit: Edit & Save west limit by pressing or OK buttons.

▫ Set East Limit: Edit & Save east limit by pressing or OK buttons.

▫ Enable Limit: Enable the saved east and west limit.

▫ Disable Limit: Disable Limit by pressing OK button.

▫ Save: Save the current Setting of USALS system.

▪ Sat Degree: Displays the current defree of the selected satellite.

Edit degree by pressing buttons and numeric buttons.

▪ Position Setting: Select position setting by pressing OK button.

▫ Goto Reference: Move the dish to the 0 position.

▫ Antenna Longitude: Edit antenna longitude by pressing buttons and numeric buttons

▫ Antenna Latitude: Edit antenna latitude by pressing buttons and numeric buttons

▪ Go To: Save the current setting of USALS System.

[2012.10.12]D15+F15_russian+english.indd 89 2012-10-12 11:23:06

90

6. Operation

6.1

Getting Started

Figure 6.1.4 Fi g ure 6.1.5

▣ SPECTRUM ANALYSER

General information

The spectrum is displayed as histogram. YELLOW bars indicate signal presence. Green bars
indicate signal presence and transponder presence of the selected satellite. RED bars indicate the
frequency of the selected transponder. Shiny GREEN bars indicate the locked frequencies.
Here you can see ratio: locked transponders / all transponders.

The bars height indicates the LNB input mode of the receiver. High values (close to 255)
show that input signal is suppressed by the attenuator at high degree and input signal
overload can occur. Low values (close to 0) show the maximum boost of the input signal.
Noise level may highly interfere with the input signal in this case. The best quality signal is
normally displayed in the upper part of the graph and does not exceed the limits.

▪ Blind Scan(Red button): The receiver searches for all the available channels

▪ LNB Mode (Green button): You can switch LNB mode quickly.( 22K ON / OFF, H /V)

▪ Yellow button : AGC1 / CNR

▪ LOCK (Yellow button): Press “LOCK” YELLOW button to verify all the transponders indicated

by all the Green bars visible in the active window, Locked TP shown shiny green.

▪ Beep On/Off (Mute button): It expresses the value of the level to signal.

▪ Search: Find all satellites that can be give signal to receiver. : locking

▪ Zoom In/out: Zoom funct ion is used for detai led display of the histogram.

It allows locate transponders which are not in the preset list, set the expected frequency range

▪ Change TP: Move using < , > button. red bar shown current selected TP.

[2012.10.12]D15+F15_russian+english.indd 90 2012-10-12 11:23:06

91

English

6. Operation

6.1

Getting Started

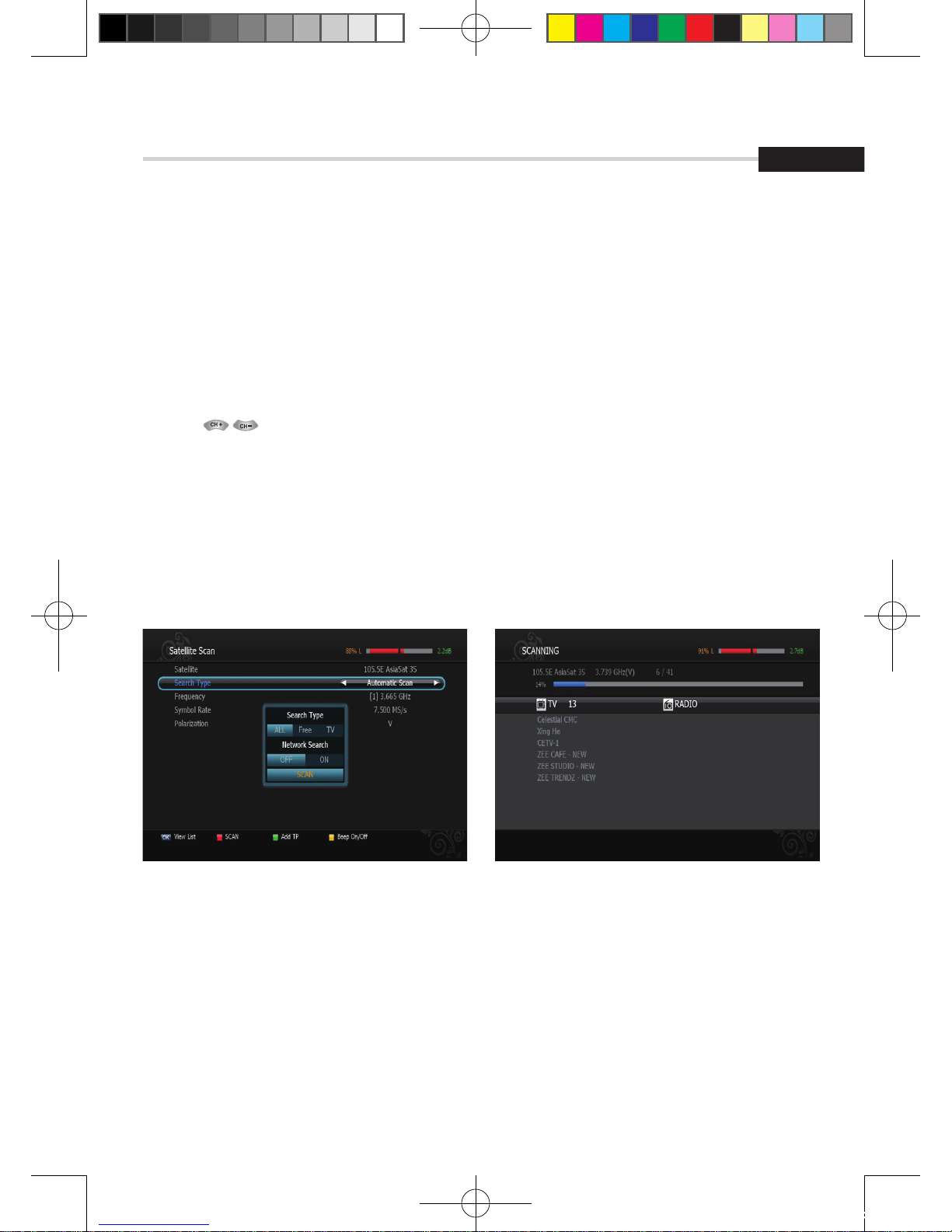

Figure 6.1.6 Fi g ure 6.1.7

➌

Satellite Channel Search

▣ Auto Scan <Figure 6.1.6>

1. To select more than one satellite, press the OK button when the selection bar is positioned on
the satellite.

2. Press OK on the names of the satellites that you want to scan under ‘Satellite List’.
Press the EXIT button to close the ‘Satellite List’.

3. Press and set the ‘Search Type’ and ‘Network Search’ parameters.

▪ Search Type: Decide for which channels to search
(All channels/ Free channels only/ TV channels only).

▪ Network Search: Set ON to find more transponders (frequencies) through a Network

Information Table (NIT) scan. That is, when the broadcaster is sending a NIT through a given
transponder, the receiver will also scan for transponders listed in the NIT and not otherwise
recognized. (this can happen when a transponder is new)

4. Press RED buttom under ‘SCAN’ to scan the selected satellites. <Figure 6.1.7>

[2012.10.12]D15+F15_russian+english.indd 91 2012-10-12 11:23:07

92

6. Operation

6.1

Getting Started

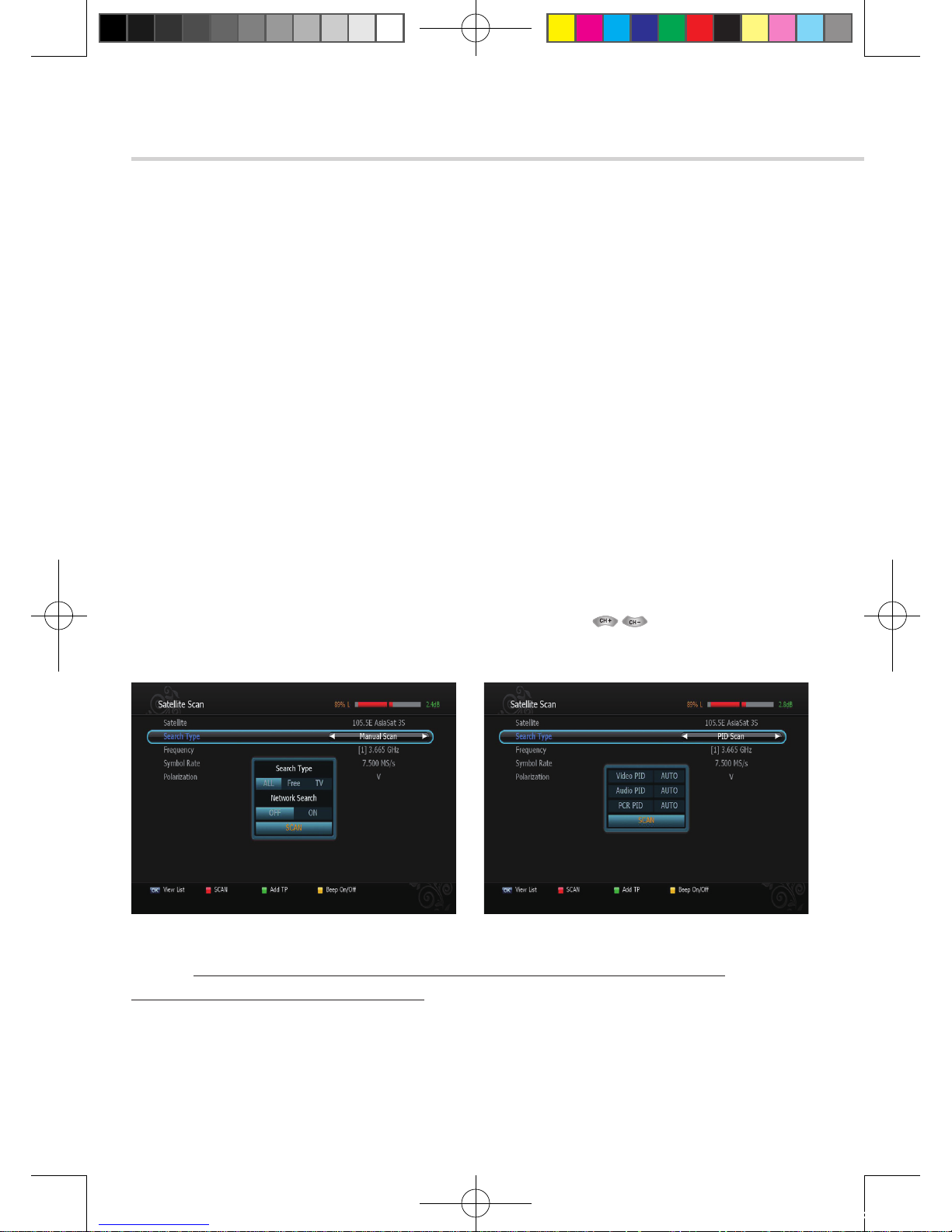

▣ Manual Scan <Figure 6.1.8>

1. Select a transponder.

2. To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC buttons.

3. To add a new transponder, press the GREEN button.

4. To delete a transponder, press the YELLOW button with the cursor next to the Frequency
parameter.

5. To search a transponder, set its different parameters and press RED button.

▣ Package Identifier (PID) Scan <Figure 6.1.9>

1. Select a transponder.

2. To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC buttons.

3. To add a new transponder, press the GREEN button.

4. To delete a transponder, press the YELLOW button with the cursor next to the Frequency parameter.

5. To search a transponder, set its different parameters and press
You can search a specific channel of the transponder by setting its PID data (Video, Audio and PCR).

Fi g ure 6.1.8 F igu re 6 .1. 9

✽ Note: If you cannot access programs after correctly completing a scan procedure,

please contact your seller or your installer.

[2012.10.12]D15+F15_russian+english.indd 92 2012-10-12 11:23:07

93

English

6. Operation

6.1

Getting Started

Fi g ure 6.1.10

▣ Blind Scan <Figure 6.1.10 >

1. To change a transponder’s Frequency use the NUMERIC buttons.

2. Select a range of Symbol Rate (FULL/7.5M Over/7.5M Under/3.7M Under/ DETAIL).

3. Select a Poliariaztion(V/H/ALL).

4. Select a Search Type(All/FTA/TV).

5. Press RED to begin the scan.

[2012.10.12]D15+F15_russian+english.indd 93 2012-10-12 11:23:07

94

6. Operation

6.1

Getting Started

➊

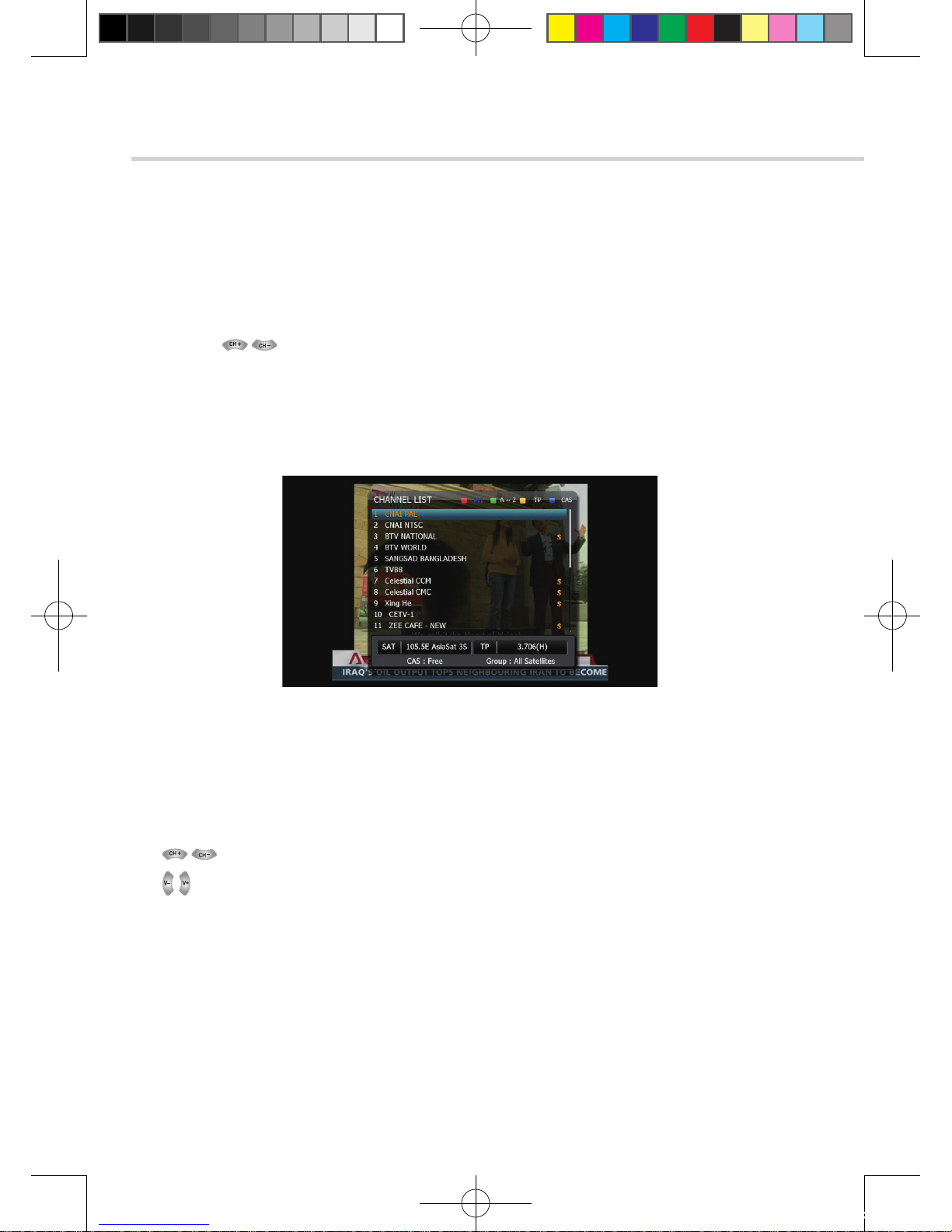

Channel Selection

You can use to navigate between channels until you find the channel you want.

▣ If you know the channel number, you can enter it with the NUMERIC buttons and wait 2
seconds until the channel is changed.

▣ If you know the channel name or transponder or CAS, you can press OK to display the
channel list <Figure 6.1.11>

Fi g ure 6.1.11

1. detailed information about the selected channel will be displayed.
(Satellite Name, Frequency(Polar) and Channel Name)

2. You can use the following buttons to navigate between channels:

▪ : Moves one channel up/ down.

▪ : Moves one page up / one page down.

▪ RED: Press RED button on the remote to use channel sorting.

▪ ALL: Shows all channels in the current group.

▫ A~Z: Shows all channels sorted alphabetically.

▫ TP: Shows all channels sorted by Transponder.

▫ CAS: Shows all channels sorted by CAS system.

3. Press OK when the selection bar is positioned on the desired channel.

2. To View Program

[2012.10.12]D15+F15_russian+english.indd 94 2012-10-12 11:23:08

95

English

Fi g ure 6.1.12

6. Operation

6.1

Getting Started

3. Electronic Program Guide

➊ EPG

This submenu allows you to access the electronic program guide when available.

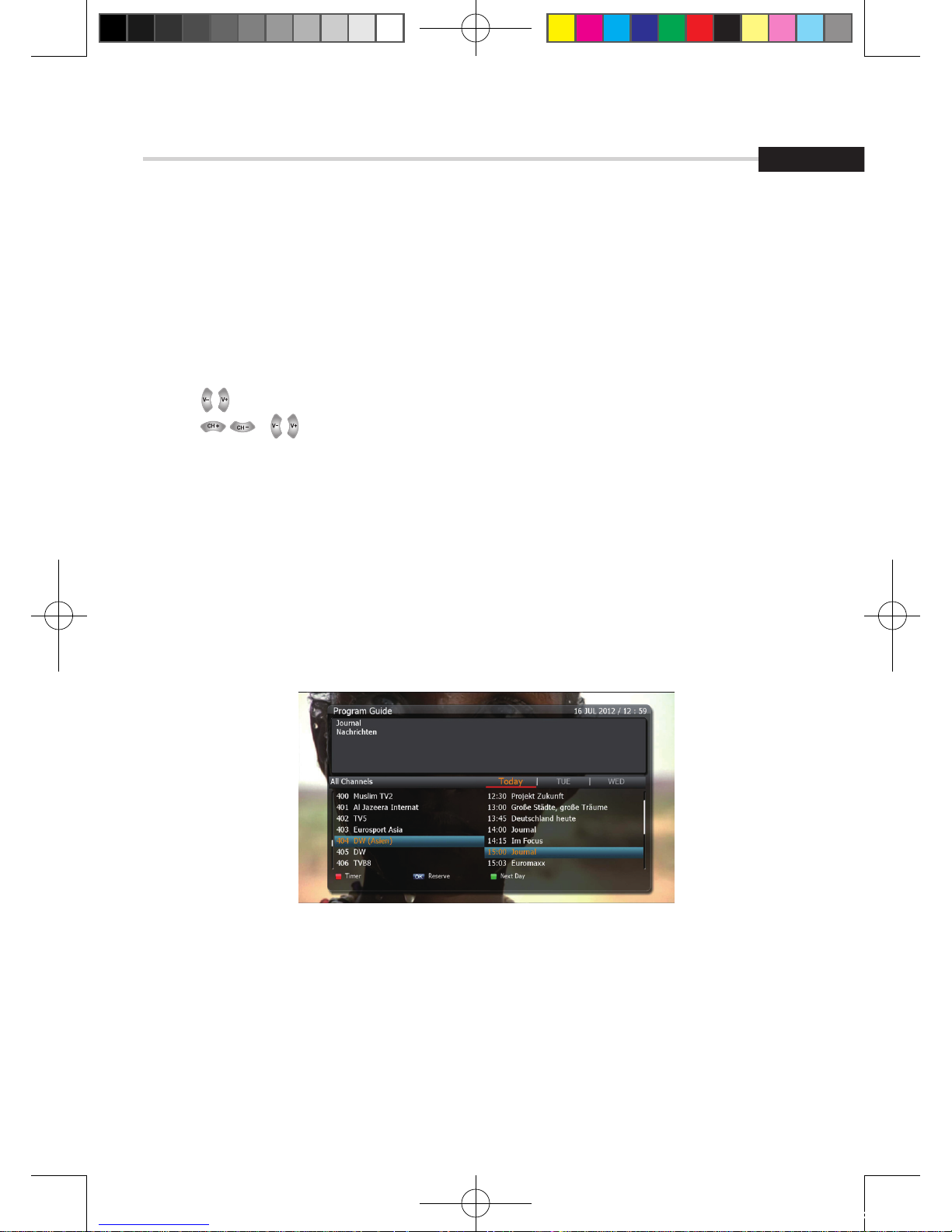

1. Press the EPG button to display the guide menu. <Figure 6.1.12>

2. Press to see the previous/next guide.

3. Press , to select another channel. <Figure 6.1.12>

4. Press OK to watch the selected channel and access its EPG data. If you press OK in the right
side of the screen (Event display list).

▪ If the current time EPG is selected, you will return to the previous menu and get signal from
the selected channel.

▪ If a future time (next) EPG is selected, the selected program will be reserved and the event
color w ill change.

5. You can select TV or Radio channels by pressing the TV/RADIO button

6. You can choose a channel list group by pressing the GROUP button.

7. You can access the timer menu by pressing the RED button. <Figure 6.1.12>

[2012.10.12]D15+F15_russian+english.indd 95 2012-10-12 11:23:08

96

Fi g ure 6.1.13

6. Operation

6.1

Getting Started

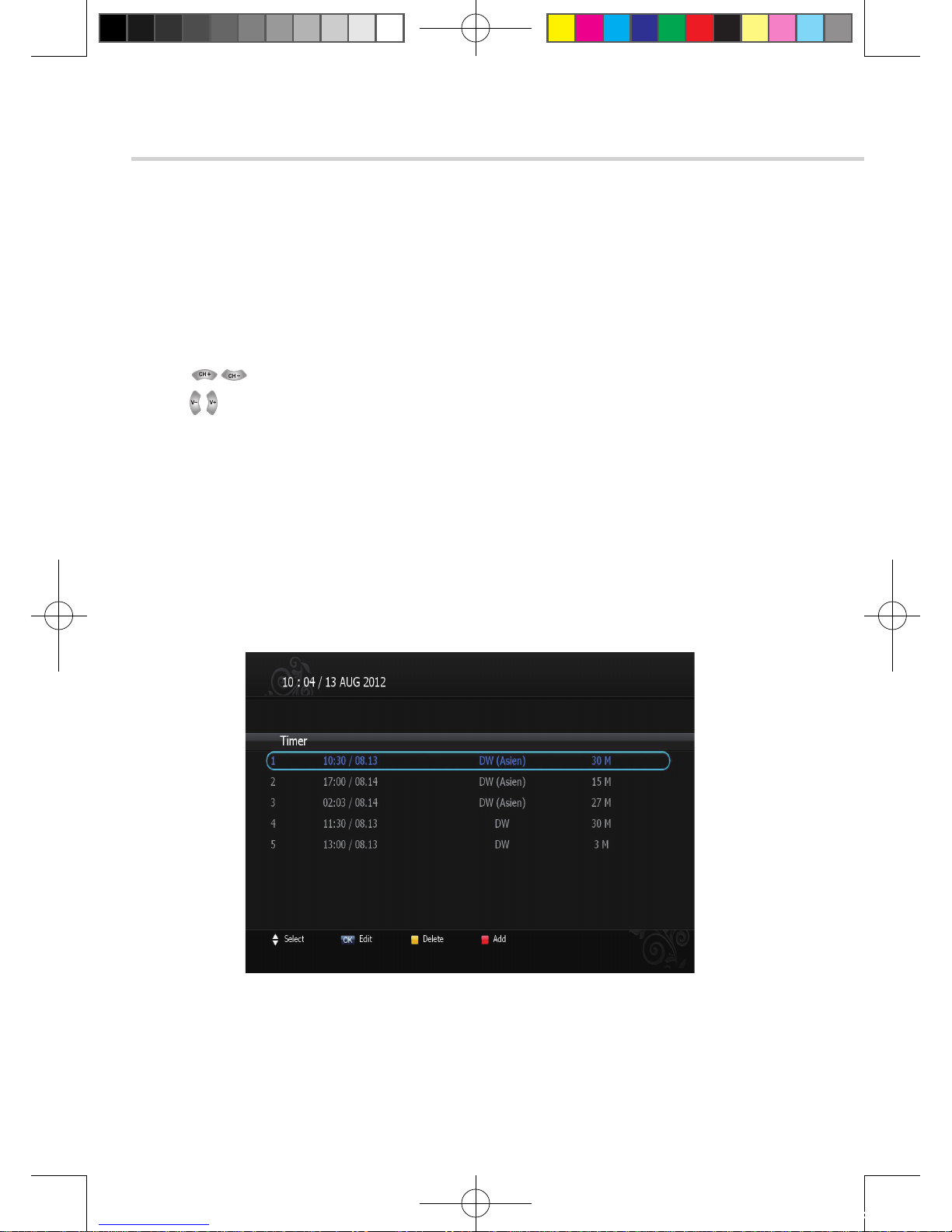

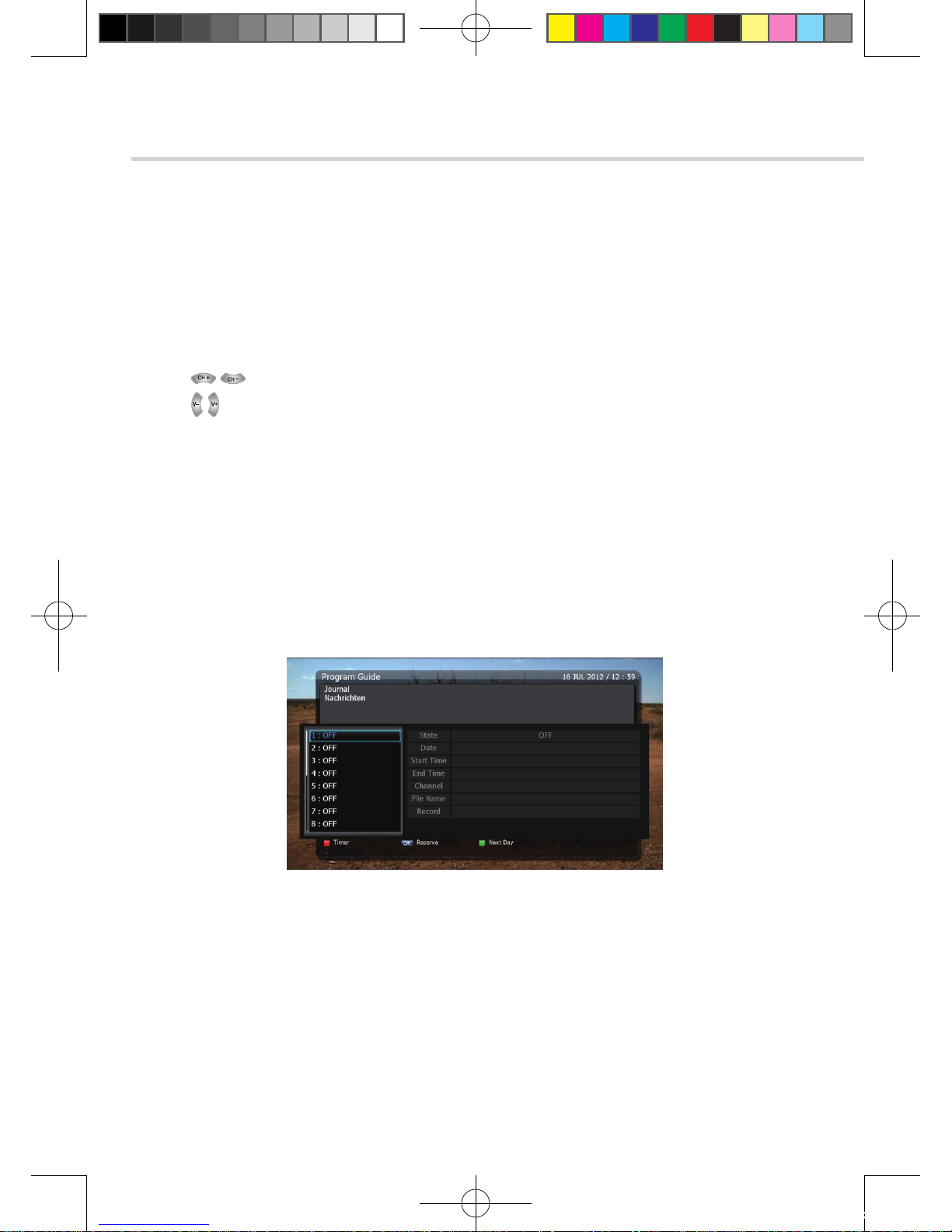

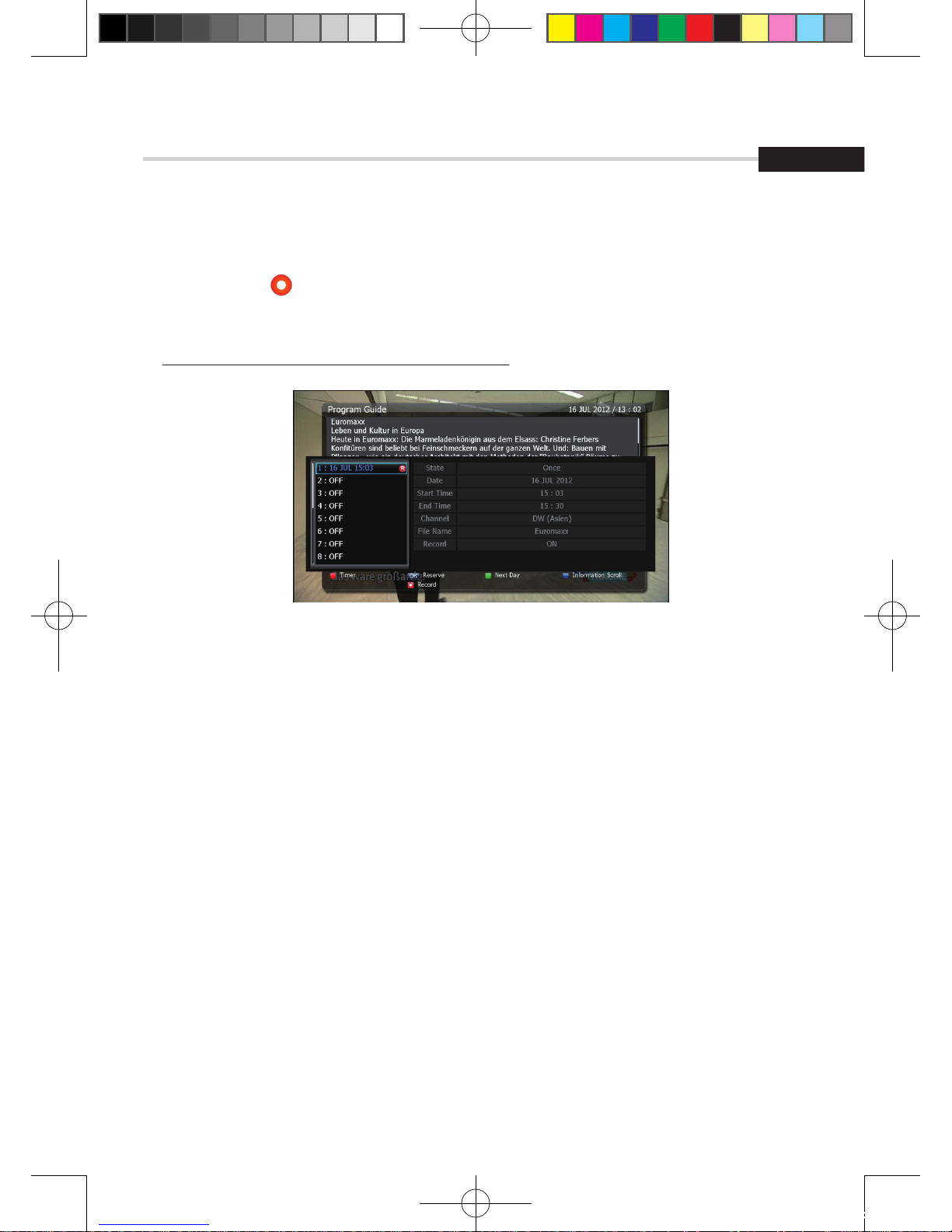

➋ Timer

This sub menu allows you to set the on/off time of your receiver.

1. This submenu allows you to set on/off times of your receiver. To display the timer menu,

press the RED button while in the guide menu. <Figure 6.1.13>

2. Press to select a timer’s parameter.

3. Press to change the parameter.

▪ Timer No: Select the timer that you want to modify. (1- 8)

▪ State: Select the timer frequency. (off/once /daily/weekly)

▪ Date: Press OK to display a Calendar pop-up; Select a date

▪ Start Time: Input the time for your receiver power-on; use the NUMERIC buttons

▪ End Time: Input the time for your receiver power-off; use the NUMERIC buttons

▪ Channel: Press OK to display a Channel list pop-up; Select a channel

▪ File Name: You can change recording file name.

▪ Record: Set record On/Off.

[2012.10.12]D15+F15_russian+english.indd 96 2012-10-12 11:23:08

97

English

Fi g ure 6.1.14

6. Operation

6.1

Getting Started

- If you want to record a program in the right side of the screen, you can select a
program by using . The selected program will be reserved and the evnet color text
will change to red. <Figure 6.1.14>.

- You can also see change the timer menu.
✽ It is worked when a USB device is connected.

[2012.10.12]D15+F15_russian+english.indd 97 2012-10-12 11:23:09

98

6. Operation

6.1

Getting Started

➌

Other Functions of Remote Control

▣ Volume Control

1. While watching a program, press / control the volume.

2. You can press the MUTE button to remove the sound of the program: the mute icon
will be displayed. Press the MUTE button again to turn the sound back on.

▣ Channel Information

1. You can press the INFO button to display the information banner for a few seconds.

2. If you then press the INFO button again, a detailed banner will be displayed.

▣ TV/ RADIO switching

You can press this key to change from a TV channel to a Radio channel or vice versa.

▣ RECALL

Press this key to return to the previous channel.

▣ Audio

Press to adjust the subtitle and/or audio status of the current channel:

▪ Audio Mode: Select between, Stereo/Mono-Left/Mono-Right

▪ Audio Track: Select between tracks available in this program

▪ Audio Level: Select between, Low/Medium/High

* Note: These subtitle and audio parameters are workable only when the desired channel
supports these functions.

▣ FREEZE

You can press this key to freeze the video. Press it again to resume the video.

▣ GROUP

When watching TV or listening to Radio, you can press this button to view the list of
satellites and/or favorite channel groups.
Only registered satellites and favorite groups are displayed.

[2012.10.12]D15+F15_russian+english.indd 98 2012-10-12 11:23:09

99

English

6. Operation

6.1

Getting Started

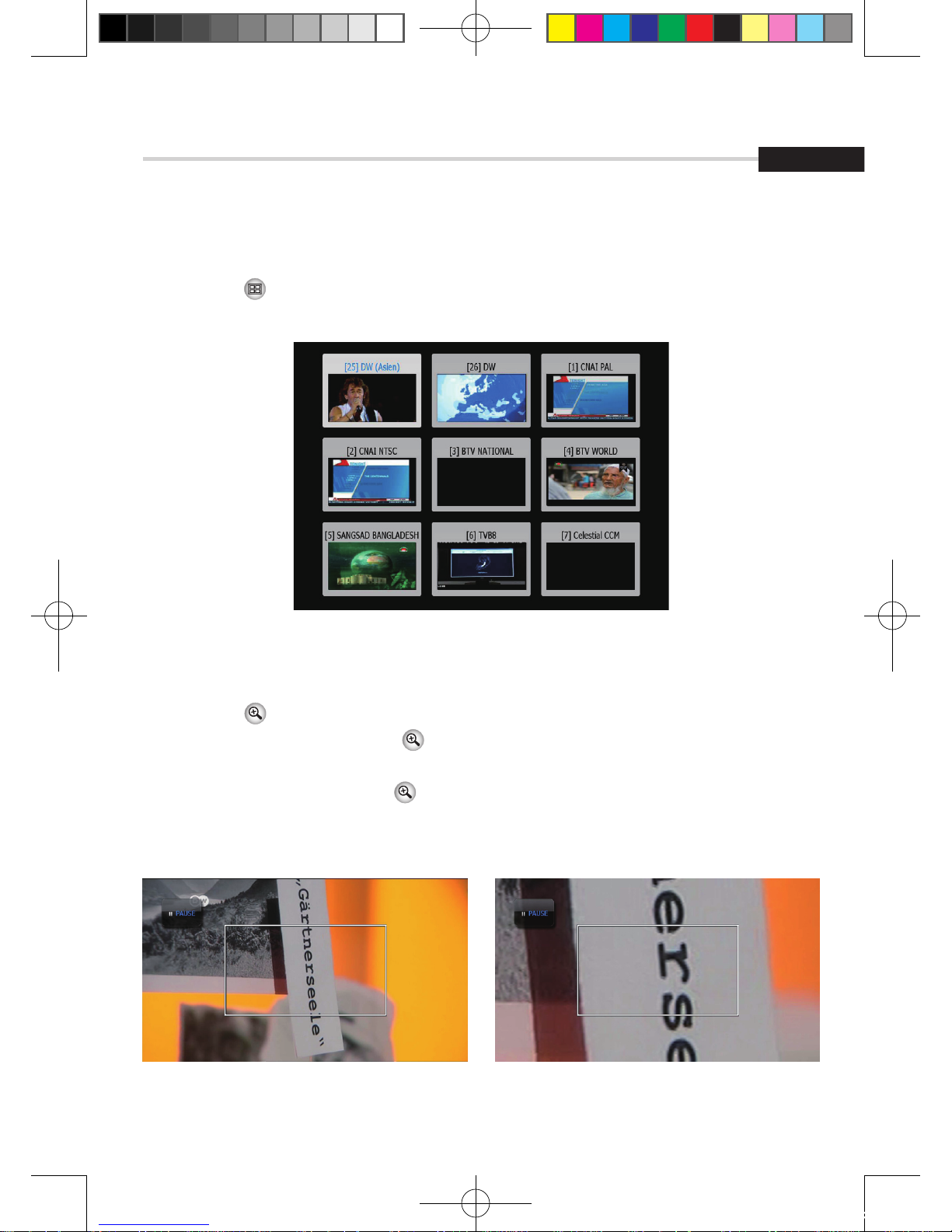

▣ Multi Picture Display <Figure 6.1.15>

You can press to display multiple pictures;
you can choose the number of pictures such as 1X2, 2X2, 2X3 or 3X3.

Fi g ure 6.1.15

Fi g ure 6.1.16 Fi g ure 6.1.17

▣ ZOOM

You can press to zoom in the video.

1. Press the Pause button and press .
You can zoom in sections of Freezed Video <Figure 6.1.16>

2. While watching a program, press .
You can zoom in sections of playing video. <Figure 6.1.17>

3. To cancel the freeze status, please release the zoom status.

[2012.10.12]D15+F15_russian+english.indd 99 2012-10-12 11:23:09

100

▣ SUBTI T L E < Figure 6.1.18 >

You can press to select the subtitle language of current channel.

▣ SLEEP < F i gure 6.1.19 >

You can set the your receiver to turn off after a few minutes. Press to set the sleep timer.

▪ To cancel the sleep timer, please press until you set time as “0 min”.
(Disable, 10, 20, 30, 60, 100, 120 Minutes)

6. Operation

6.1

Getting Started

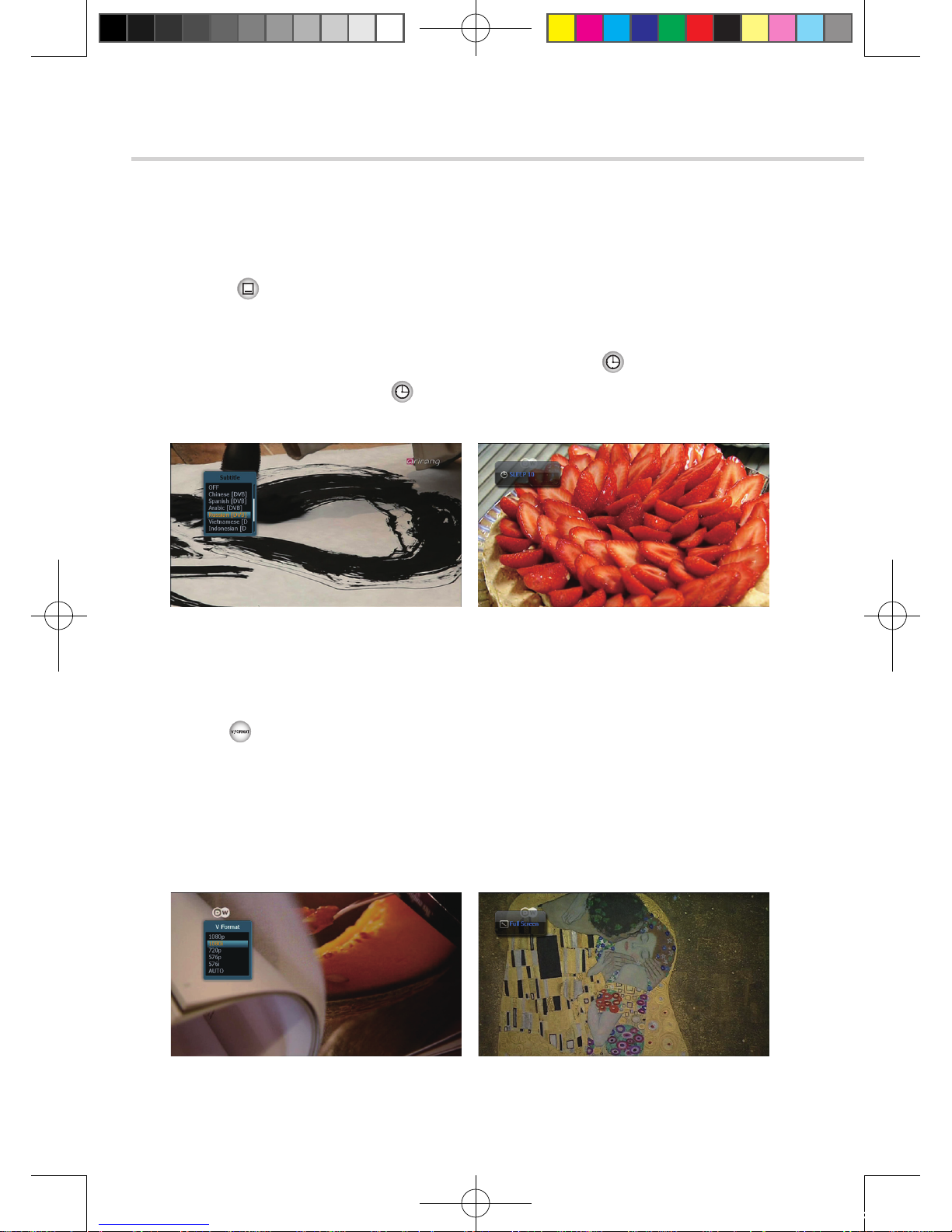

Fi g ure 6.1.18

Fi g ure 6.1.20

Fi g ure 6.1.19

Fi g ure 6.1.21

▣ V.FORMAT <Figure 6.1.20>

You can press to change the video resoultion Select between, 1080p->1080i->720p-> 576p->576i

▣ WIDE <Figure 6.1.21>

You can press ASPECT to change the TV aspect ratio.

▪ 4:3: Pan-Scan or Letter-Box

▪ 16:9: Full-Screen or Pillar-Box

[2012.10.12]D15+F15_russian+english.indd 100 2012-10-12 11:23:10

101

English

6. Operation

6.2 System Setting

➊

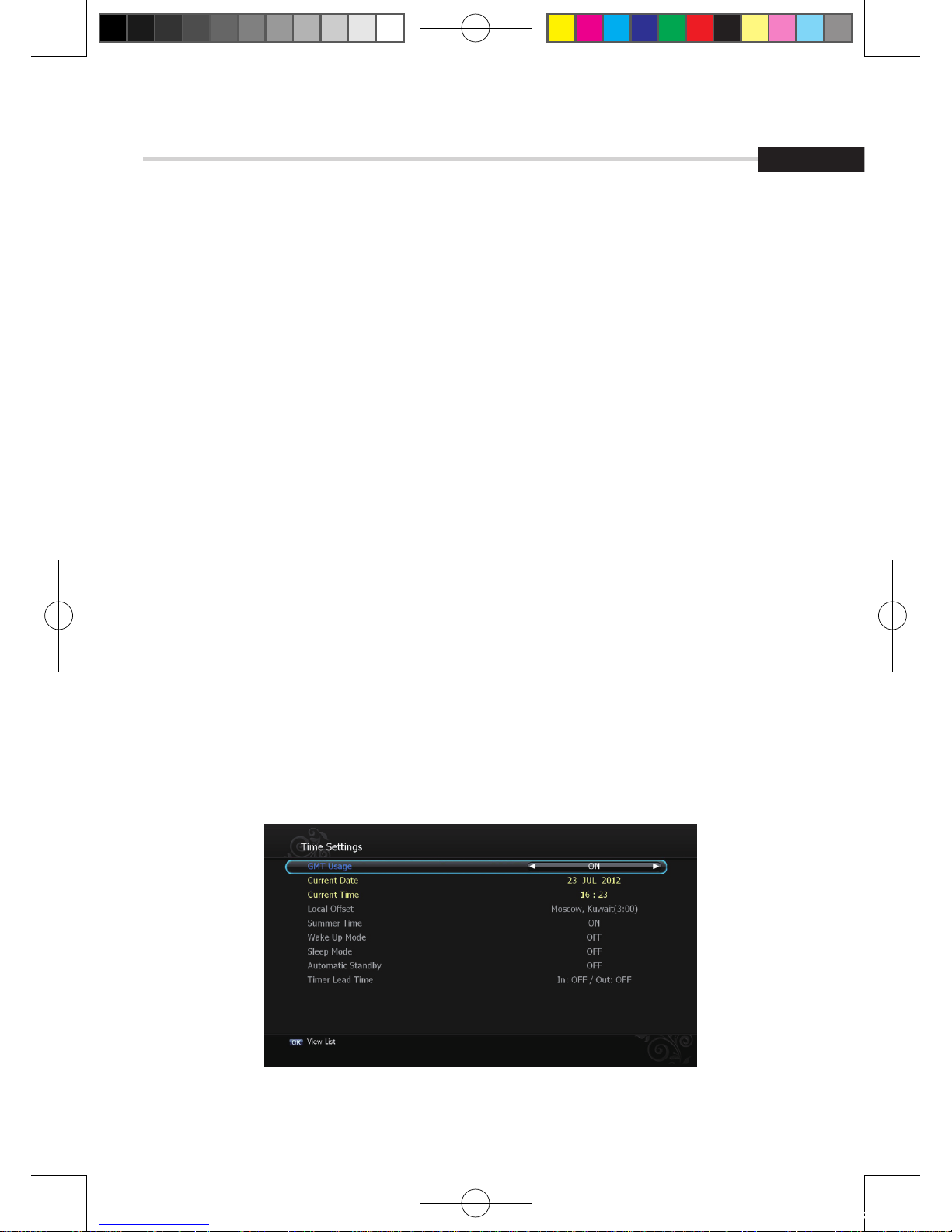

Time Settings

This sub menu allows you to set your local time, wake up time, wake up channel and sleep time.
< F i g u r e 6 . 2.1>

▪ GMT Usage: If you set ON, local time is determined by adjusting the differences from
GMT (Greenwich Meantime) according to your location.

▪ Current Date: If GMT Usage ON, this date is determined by GMT. If GMT Usage OFF, you
can modify this by pressing the OK button. If you set OFF, receiver doesn’t refer to GMT.
Local time is determined by adjusting current date and current time.

▪ Current Time: If GMT Usage ON, this time is determined by GMT. If GMT Usage OFF, you
can modify this by pressing the NUMERIC button.

▪ Local Offset: If GMT Usage ON, Local time is GMT time + Local Offset.

▪ Summer Time: you can set the summer time mode

(Off/Last Sun in Oct~Mar/First Sun in Oct~Mar/Mar~Oct)

▪ Wake Up Mode: You can set the cycle of the wake up mode (Off/Once /Daily/Mon~Fri)

▪ Wake Up Time: You can set wake up time by pressing the NUMERIC button on the remote.

▪ Wake Up Channel: You can set wake up channel by pressing the OK button on the remote.

▪ Sleep Mode: You can set the cycle of the sleep mode (Off/Once/Daily/Mon~Fri)

▪ Sleep Time: You can set sleep time by pressing the NUMERIC button on the remote

▪ Automatic Standby: Selects auto standby time (OFF/After 1~8Hour) After making your

selection press OK to confirm

▪ Timer Lead Time: Press OK to set the Timer Lead In And Lead Out Time.

Fi g ure 6.2 .1

[2012.10.12]D15+F15_russian+english.indd 101 2012-10-12 11:23:11

102

➋

Timer Manager

This sub menu allows you to set the on/off time of your receiver.

1. This submenu allows you to set on/off times of your receiver. To display the timer menu,
press the RED button while in the guide menu. <Figure 6.2.2>

2. Press to select a timer’s parameter.

3. Press to change the parameter.

▪ Timer No: Select the timer that you want to modify. (1- 8)

▪ State: Select the timer frequency. (off/once /daily/weekly)

▪ Date: Press OK to display a Calendar pop-up; Select a date

▪ Start Time: Input the time for your receiver power-on; use the NUMERIC buttons

▪ End Time: Input the time for your receiver power-off; use the NUMERIC buttons

▪ Channel: Press OK to display a Channel list pop-up; Select a channel

▪ File Name: You can change recording file name.

▪ Record: Set record On/Off.

6. Operation

6.2 System Setting

Figure 6.2.2

[2012.10.12]D15+F15_russian+english.indd 102 2012-10-12 11:23:11

103

English

6. Operation

6.2 System Setting

➌

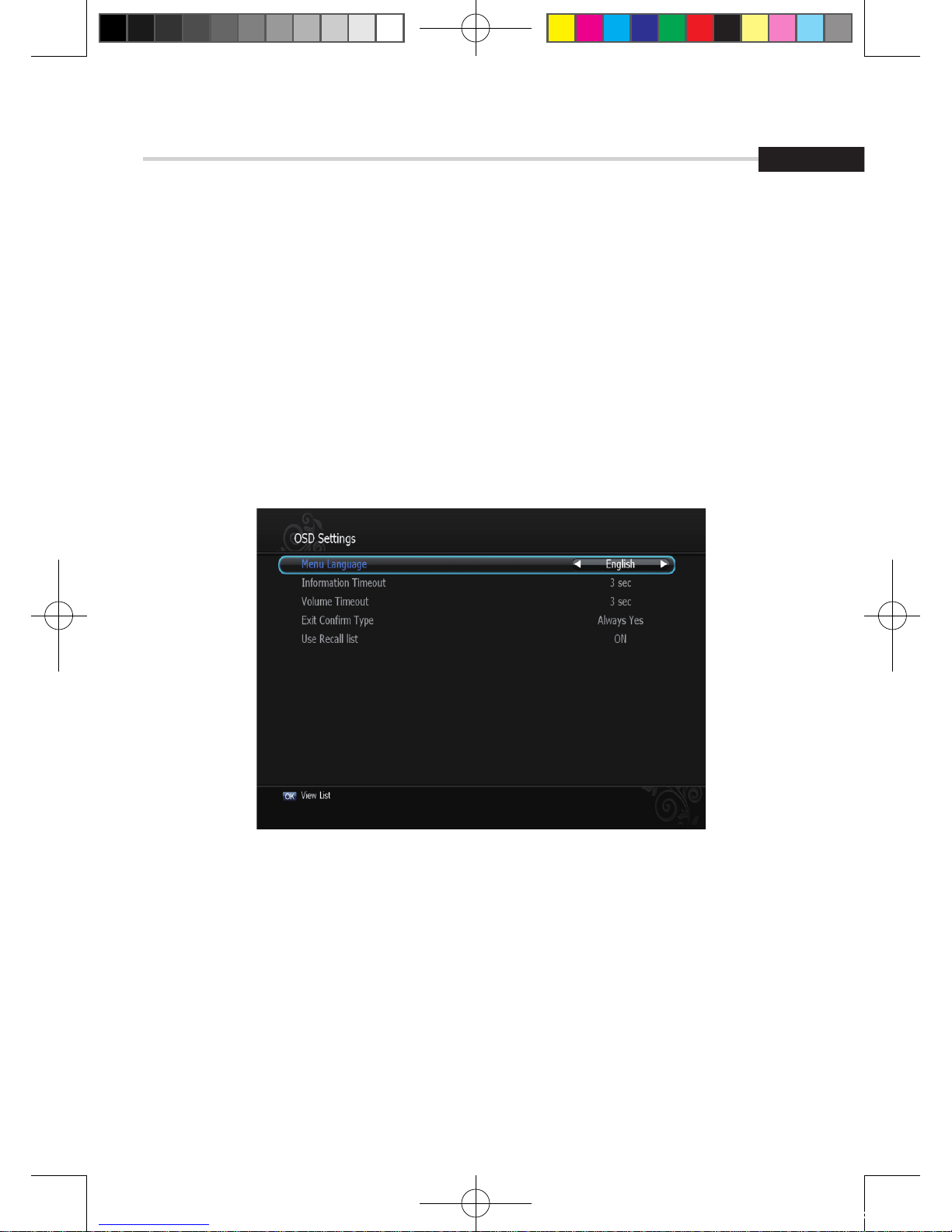

OSD Settings

This submenu allows you to set the menu language, OSD transparency and Information
and Volume timeouts. <Figure 6.2.3>

▪ Menu Language: Select the desired language for the menu.

▪ Information Timeout: Select the display duration of the information banner.

(1, 2, 3, 5 or 10 seconds)

▪ Exit Confirm Type: Set the Exit Confirm Type.(Always Yes / Popup(default Yes) Popup(Default No))

▪ Use Recall list: Store previous channels. If you press recall key on RCU then you will

show recall list.

Figure 6.2.3

[2012.10.12]D15+F15_russian+english.indd 103 2012-10-12 11:23:11

104

➍

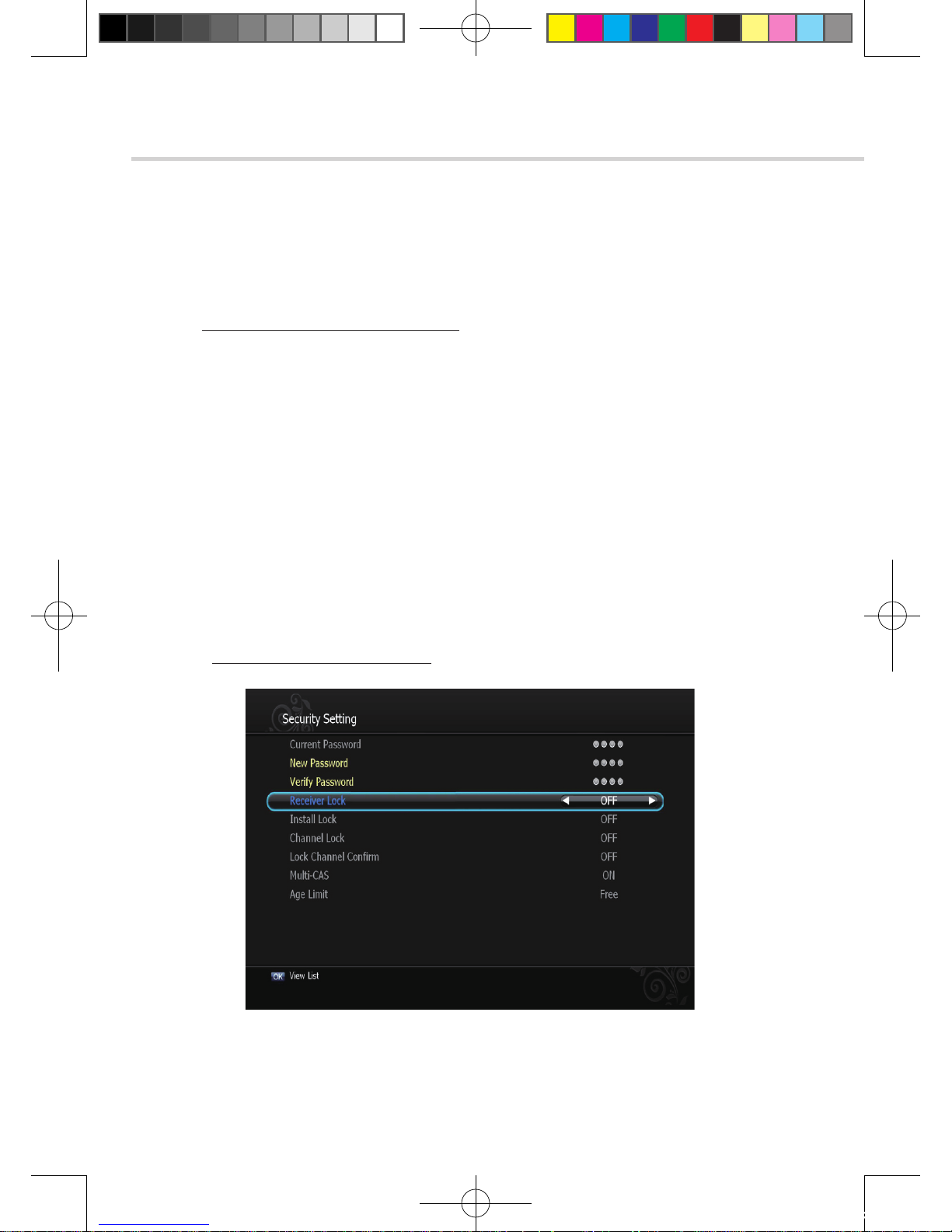

Security Settings

This submenu allows you to set password options and to lock or unlock access to menus

(✽ Note: PIN code and password are the same). <Figure 6.2.4>

▪ Receiver Lock: Set ON to require entering a PIN code at powering on.

▪ Install Lock: Set ON to require entering a PIN code to access the installation menu.

▪ Channel Lock: Set ON to require entering a PIN code to access the channels menu.

▪ Lock Channel Confirm: Set ON to require entering a PIN code to access a locked channel.

▪ Age Limit: Set to prevent children or unauthorized people from watching programs.

Select among (Free / 8 above / 12 above / 15 above / 18 above). When program information
(age limit) is available from broadcaster and this age limit exceeds the selection, a PIN code is
required to access the channel/program.

▪ Current Password: To change your password, first enter your current password.

▪ New Password: Enter the new password that you want to set.

▪ Verify Password: Enter the new password again for confirmation.

✽ Note: The default password is ‘0000’.

6. Operation

6.2 System Setting

Figure 6.2.4

[2012.10.12]D15+F15_russian+english.indd 104 2012-10-12 11:23:12

105

English

6. Operation

6.2 System Setting

➎

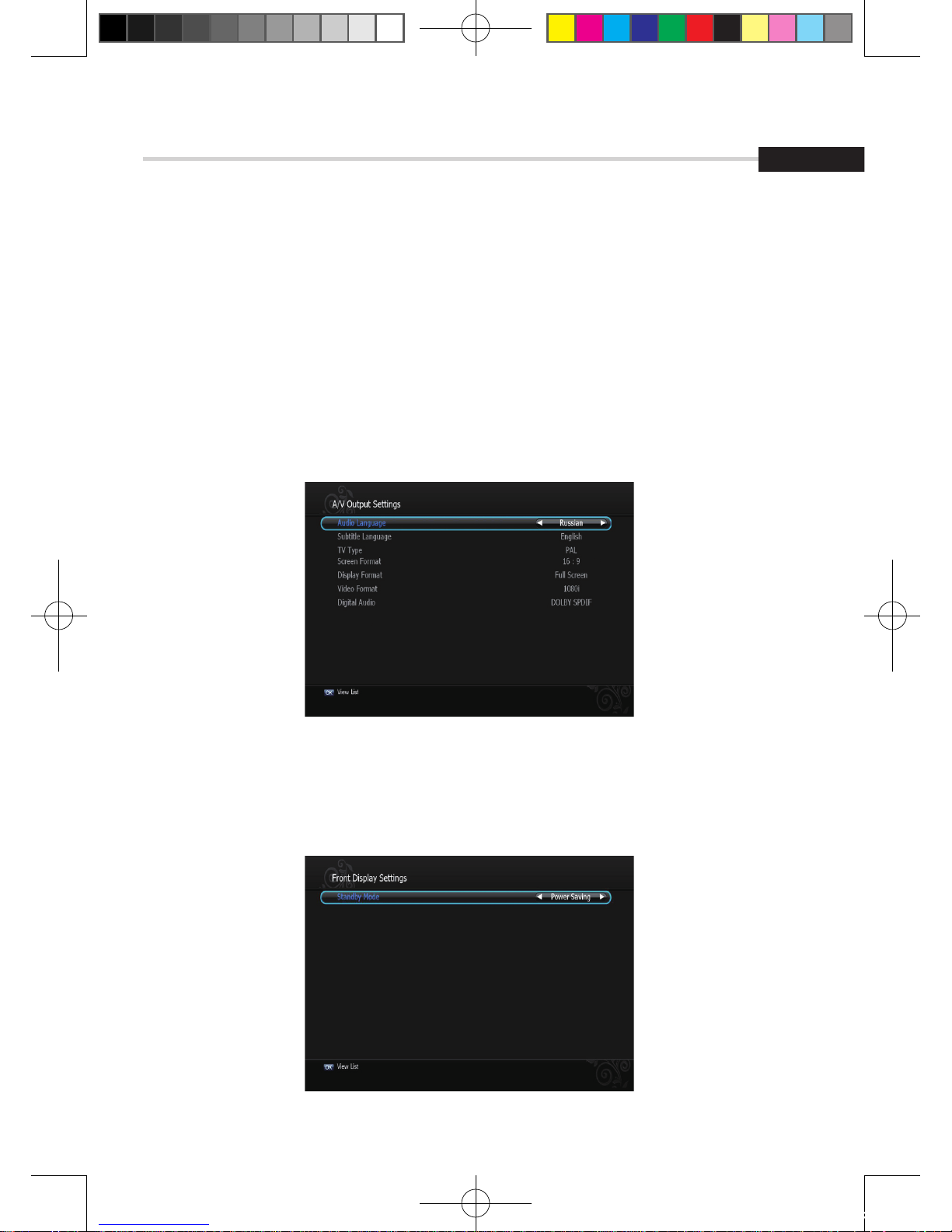

A/V output Setting

This sub menu allows you to set audio/video output setting. <Figure 6.2.5>

▪ Audio Language: Set the default audio language when selecting a channel.

▪ Subtitle Language: Set the default subtitle language.

▪ Screen Format: Select the screen format. (16:9/4:3)

▪ Display Format: Select the TV aspect ratio(Full Screen/Pillar Box, Letter Box/Pan Scan)

▪ Video Format: Select the Scanning type(Interaced, Progressive)

▪ SPDIF: Select the Audio output type (Dolby/PCM)

➏

Front Display Setting

This submenu allows you to set the Standby Mode. <Figure 6.2.6>
▪ Standby Mode: Select the standby Mode. (Normal / Power Saving)

Figure 6.2.5

Figure 6.2.6

[2012.10.12]D15+F15_russian+english.indd 105 2012-10-12 11:23:12

106

➐

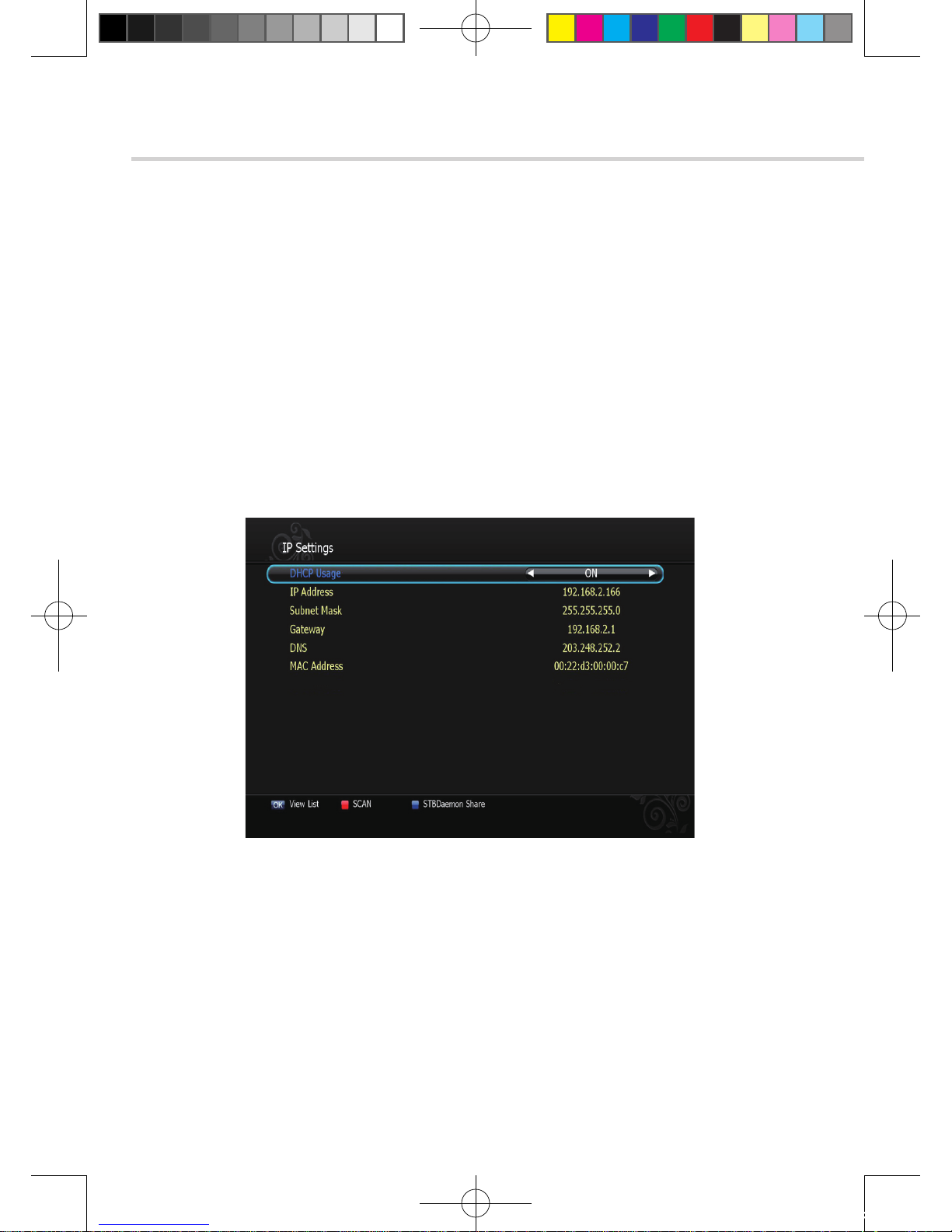

IP Setting

If the Network supports DHCP, IP settings can be allocated automatiocally. If the Network
does not support DHCP, the Addresses must enter manually(Static IP). <Figure 6.2.7>

▪ DHCP Usage: On/Off to receive IP settings automatically.

▪ IP Address: Enter the IP address.

▪ Subnet Mask: Enter Subnet Mask Number from your Network.

▪ Gateway: Enter IP address of Gateway (e.g.router).

▪ DNS: Enter IP address of main DNS server.

▪ MAC Address: MAC address display.

6. Operation

6.2 System Setting

Figure 6.2.7

[2012.10.12]D15+F15_russian+english.indd 106 2012-10-12 11:23:12

107

English

6. Operation

6.2 System Setting

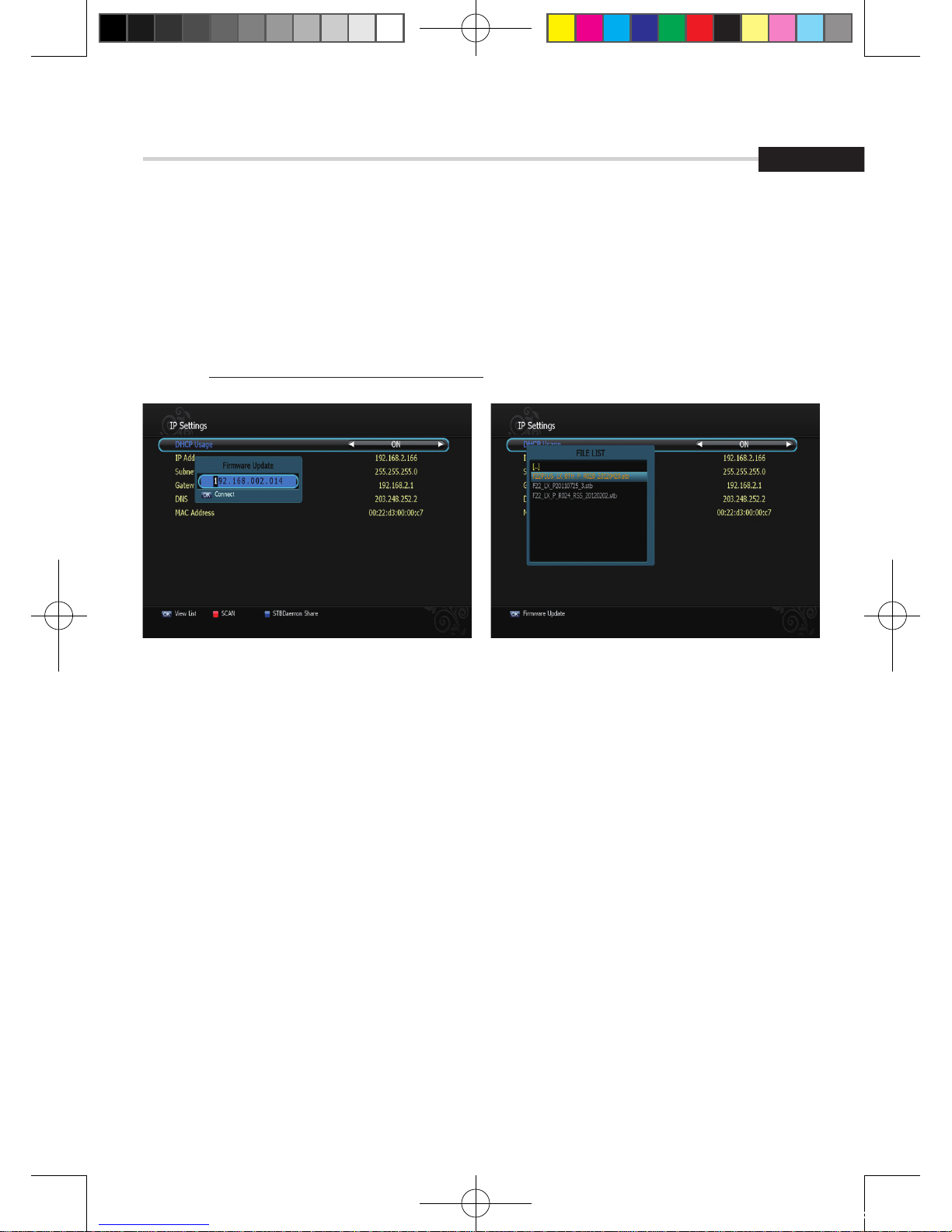

Figure 6.2.8 Figure 6.2.9

▪ Firmware update: Support download from a LAN.

1. BLUE button, appear input target IP address.

2. OK button to connect after input a target IP.

3. Choose a update software and OK button for downloading.

✽ Note: Have to run PC tool before connect PC.

[2012.10.12]D15+F15_russian+english.indd 107 2012-10-12 11:23:13

108

6. Operation

6.3 Channel Manager

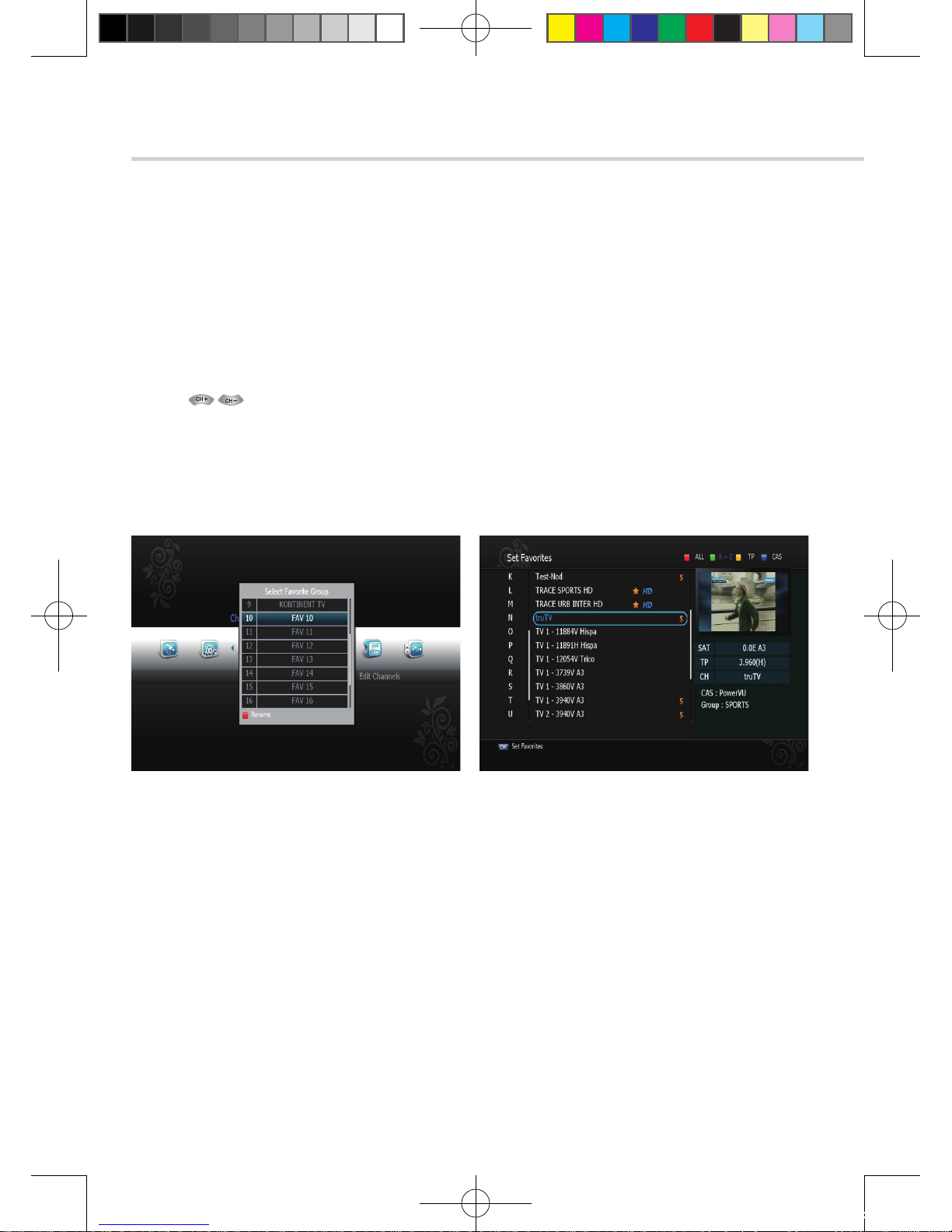

Figure 6.3.1 Figure 6.3.2

➊

Set Favorites

This submenu allows you to set up favorite groups of channels. You can select TV or
Radio channels in an alternative way by pressing the TV/ RADIO button. The receiver
supports 16 favorite groups.

1. Press OK on ‘Set Favorites’. The list of groups will be displayed. <Figure 6.3.1>

2. Press and OK to choose a group. The following menu will be displayed.<Figure 6.3.2>
If you want to change the name of a favorite group, press the RED button.

3. Press OK to add (or remove if previously added) the selected channel to/from the
favorite channel group.

4. Press the EXIT button to return to the previous menu.

[2012.10.12]D15+F15_russian+english.indd 108 2012-10-12 11:23:13

109

English

6. Operation

6.3 Channel Manager

Figure 6.3.3

➋

Edit Channels

This submenu allows you to rename channels and input user PID. You can select TV or Radio
channels in an alternative way by pressing the TV/RADIO button. You can choose a channel list
group by pressing the GROUP button.

1. Press OK on ‘Edit Channels’. The following menu will be displayed. <Figure 6.3.3>

2. Press OK on the channel that you want to edit.

3. Press OK on ‘Edit Name’ to rename the channel; the keypad will be displayed.

4. Similarly, you can edit the PID data using the NUMERIC keys.

✽Note: The VIDEO PID, AUDIO PID and PCR PID are very important for optimal satellite signal

reception. We recommend you get professional advice where available.

[2012.10.12]D15+F15_russian+english.indd 109 2012-10-12 11:23:14

110

6. Operation

6.3 Channels

➌

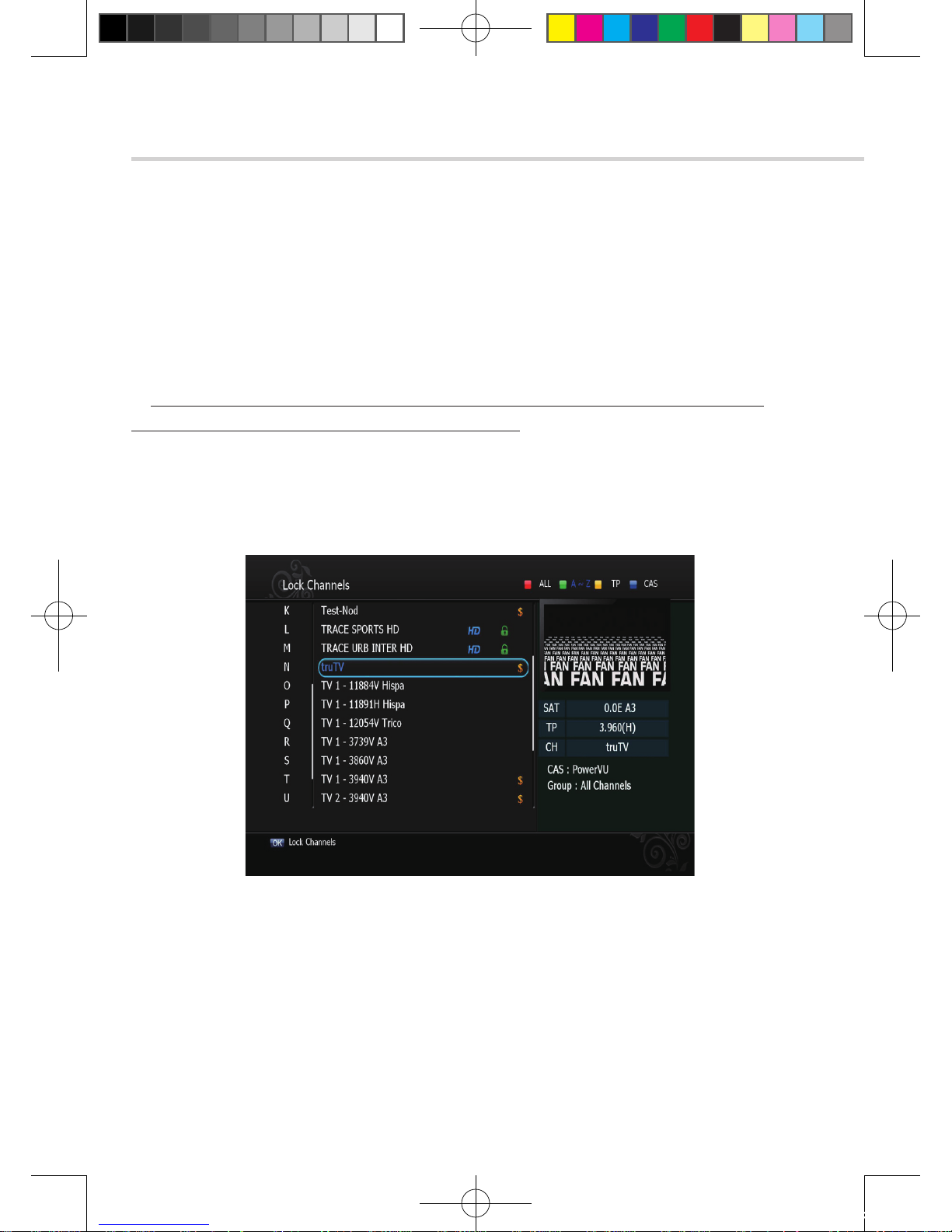

Lock Channels

This submenu allows you to lock channels to control access to them. Once a channel is locked,
you will be asked to enter a password whenever you try to watch it.
You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button.
You can choose a channel list group by pressing the GROUP button.

✽ If you set ‘Lock Channel Confirm’ (refer to <6.2>security setting) to OFF, you will not be

asked to enter a password even if the channel is locked.

1. Press OK on ‘Lock Channels’. The following menu will be displayed. <Figure 6.3.4>

2. Press OK on the channel that you want to lock/unlock; the lock icon will be displayed/removed.

3. Press the EXIT button to return to the previous menu.

Figure 6.3.4

[2012.10.12]D15+F15_russian+english.indd 110 2012-10-12 11:23:14

111

English

➍

Move Channels

This submenu allows you to move channels.
You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button.
You can choose a channel list group by pressing the GROUP button.

1. Press OK on ‘Move Channels’. The following menu will be displayed.<Figure 6.3.5>

2. Press OK on the channel that you want to move; a ‘move’ icon will be displayed.

3. Use the , , , , NUMERIC buttons to move the selected channel.

4. Press OK again to place the channel.

5. Press the EXIT button to return to the previous menu.

6. Operation

6.3 Channels

Figure 6.3.5

[2012.10.12]D15+F15_russian+english.indd 111 2012-10-12 11:23:14

112

6. Operation

6.3 Channels

➎

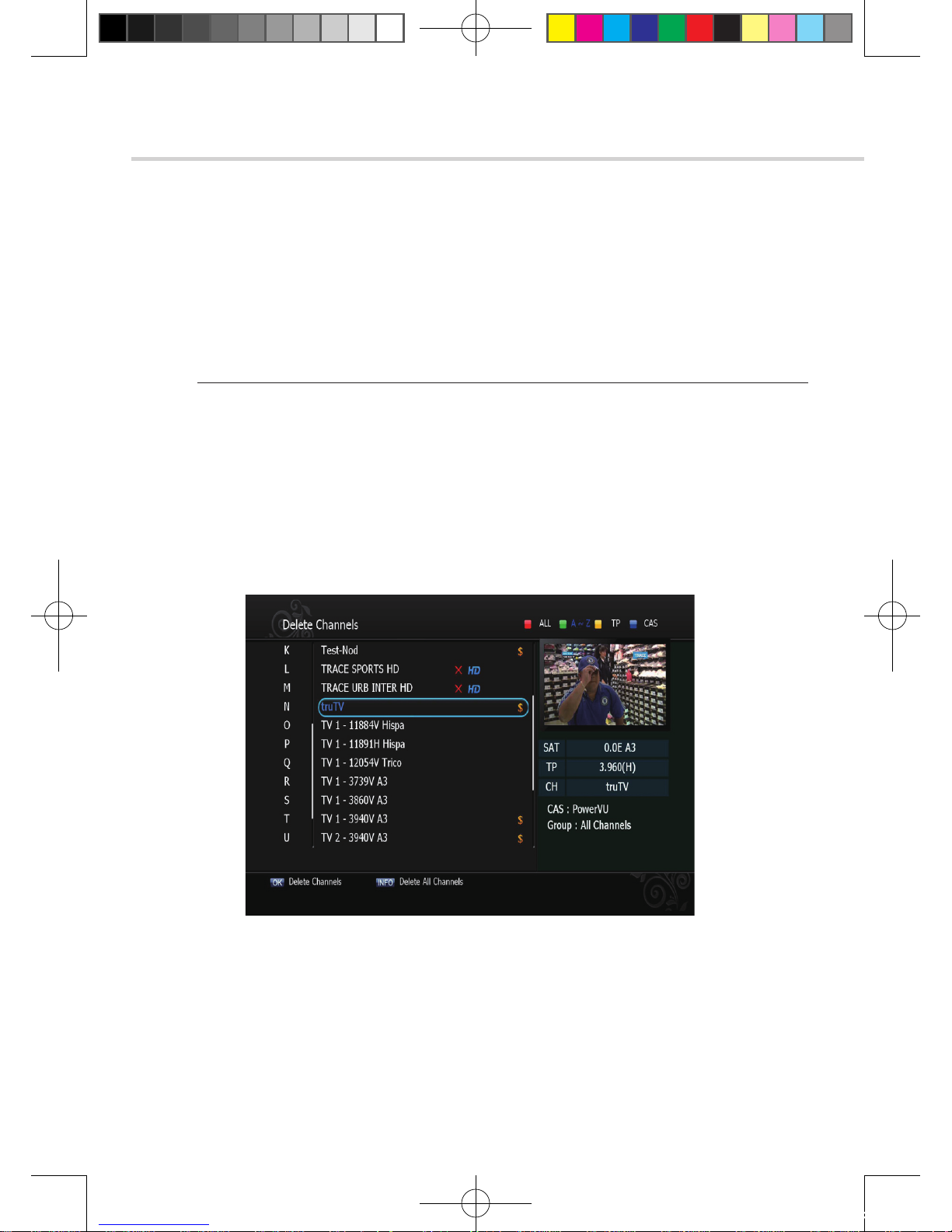

Delete Channels

This submenu allows you to delete channels. You can select TV or Radio channels in an alter­native way by pressing the TV/RADIO button. You can choose a channel list group by pressing
the GROUP button.

✽ Note: Be careful! If you delete a channel, you will not be able to access it again until you rescan.

1. Press OK on ‘Delete Channels’. The following menu will be displayed. <Figure 6.3.6>

2. Press OK on the channel that you want to set/unset for deletion; the delete icon will be
displayed/removed.

3. Press the INFO button to delete all channels in the current list; you will be asked to enter your
password.

4. Press the EXIT button to return to the previous menu and confirm deletion.

Figure 6.3.6

[2012.10.12]D15+F15_russian+english.indd 112 2012-10-12 11:23:15

113

English

➏

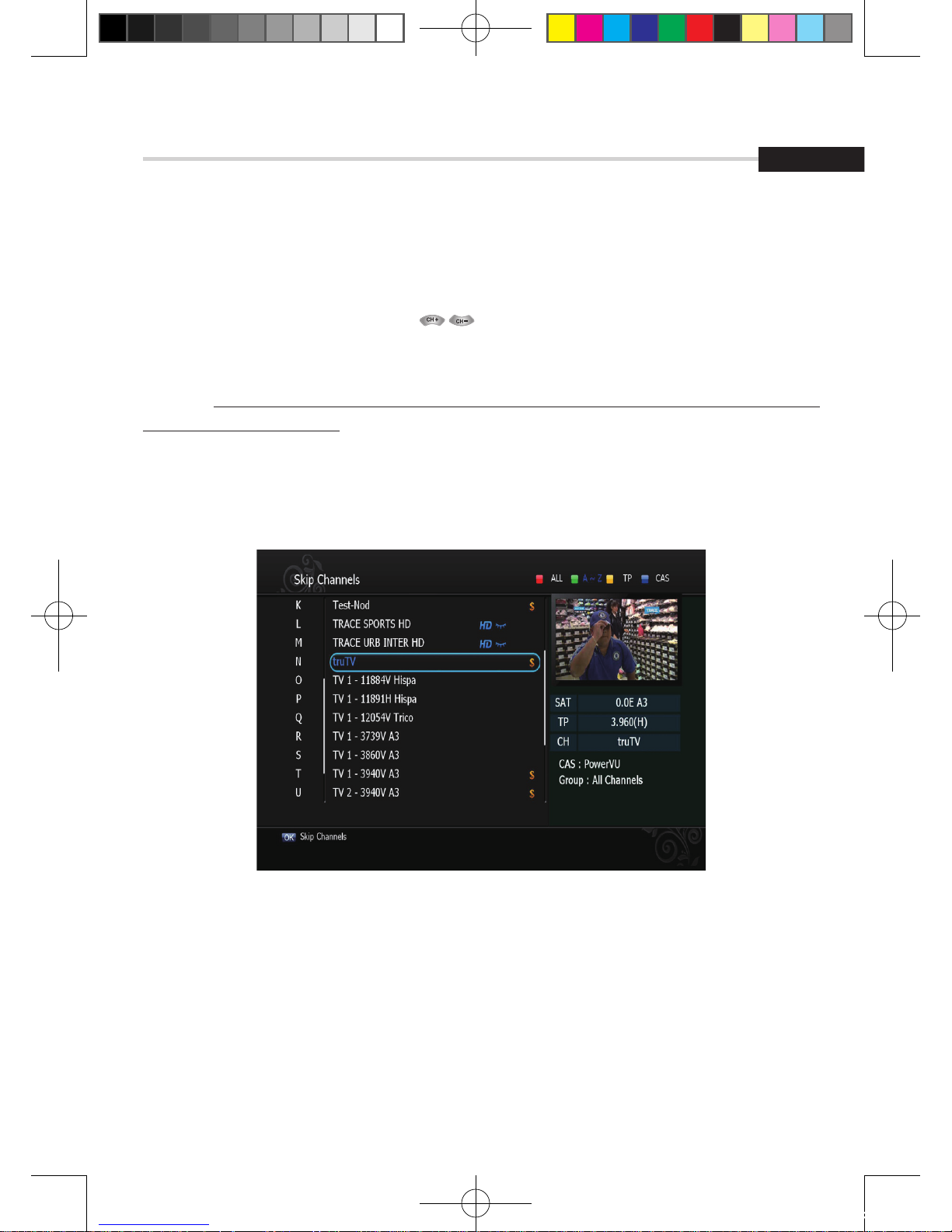

Skip Channels

This submenu allows you to skip channels. Once a channel is set to be skipped, it will be
whenever you navigate channels using in non-menu mode.
You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button.
You can choose a channel list group by pressing the GROUP button.

✽ Note: You can still access a ‘skipped’ channel if you enter its number using the NUMERIC

buttons in non-menu mode.

1. Press OK on ‘Skip Channels’. The following menu will be displayed.<Figure 6.3.7>

2. Press OK on the channel that you want to skip/un-skip; the skip icon will be displayed / removed.

3. Press the EXIT button to return to the previous menu.

6. Operation

6.3 Channels

Figure 6.3.7

[2012.10.12]D15+F15_russian+english.indd 113 2012-10-12 11:23:15

114

Figure 6.4.1

6. Operation

6.4 Installation

➊

Dish Setting

Select the item that you want to edit, and set its parameters as desired. <Dish Setting>
See (6.1 Getting Started 3) Dish setup) for detailed description.

➋

Channel Search

Through this function, the receiver searches for all the available channels and saves them in
Memory. Chose Auto Scan to search using transponders (frequencies) in memory, or chose Blind
Scan to look for new satellite/transponders.
See (6.1 Getting Started 4) Channel Search) for detailed description.

➌

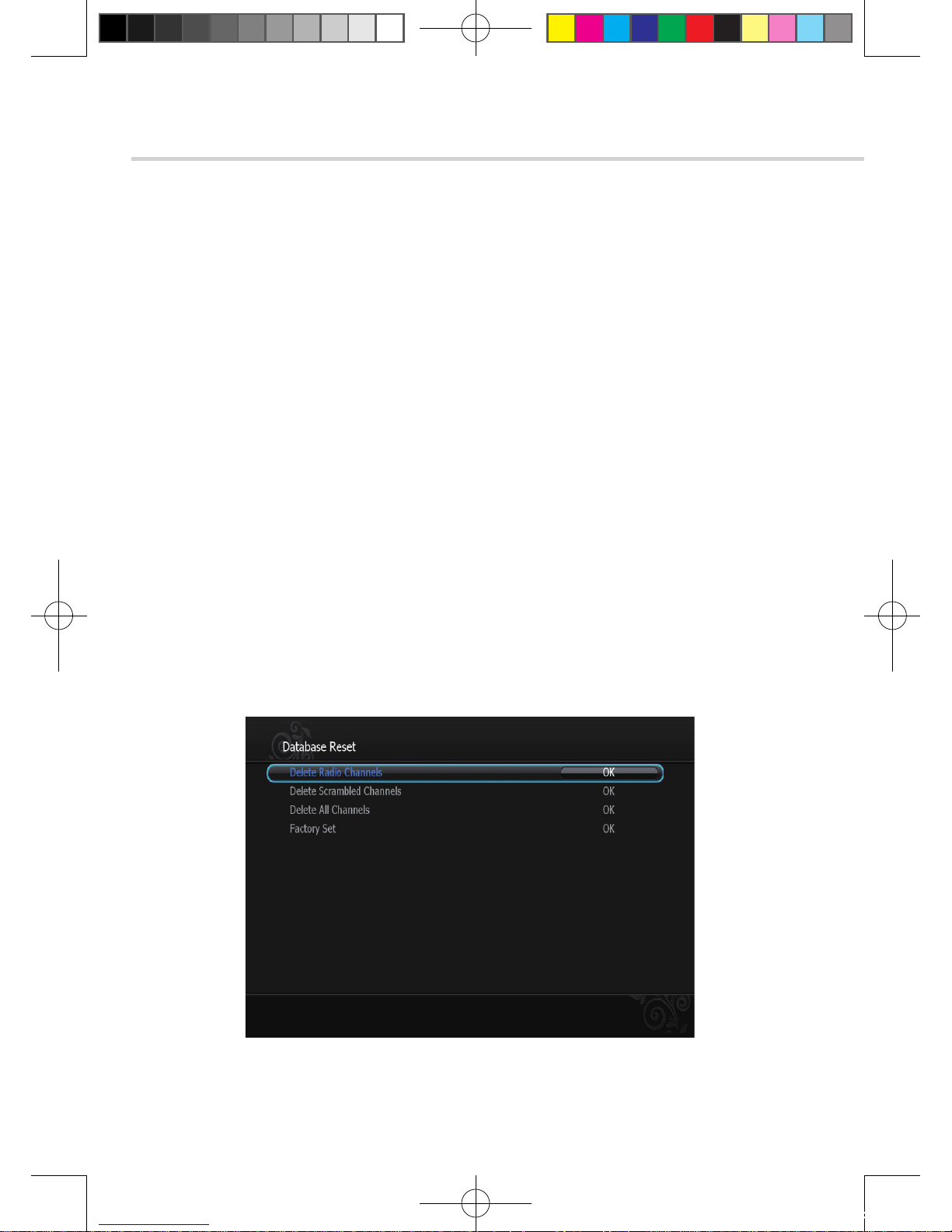

Database Reset

This submenu allows you to restore the factory set values (useful when encountering
problems after changing settings). <Figure 6.4.1>

▪ Delete Radio Channels: Erase all radio channels in the database.

▪ Delete Scramble Channels: Erase all scramble channels in the database.

▪ Delete All Channels: Erase all channels.

▪ Factory Set: Erase all channels and restore the factory default settings.

[2012.10.12]D15+F15_russian+english.indd 114 2012-10-12 11:23:15

115

English

6. Operation

6.4 Installation

Figure 6.4.2

➍

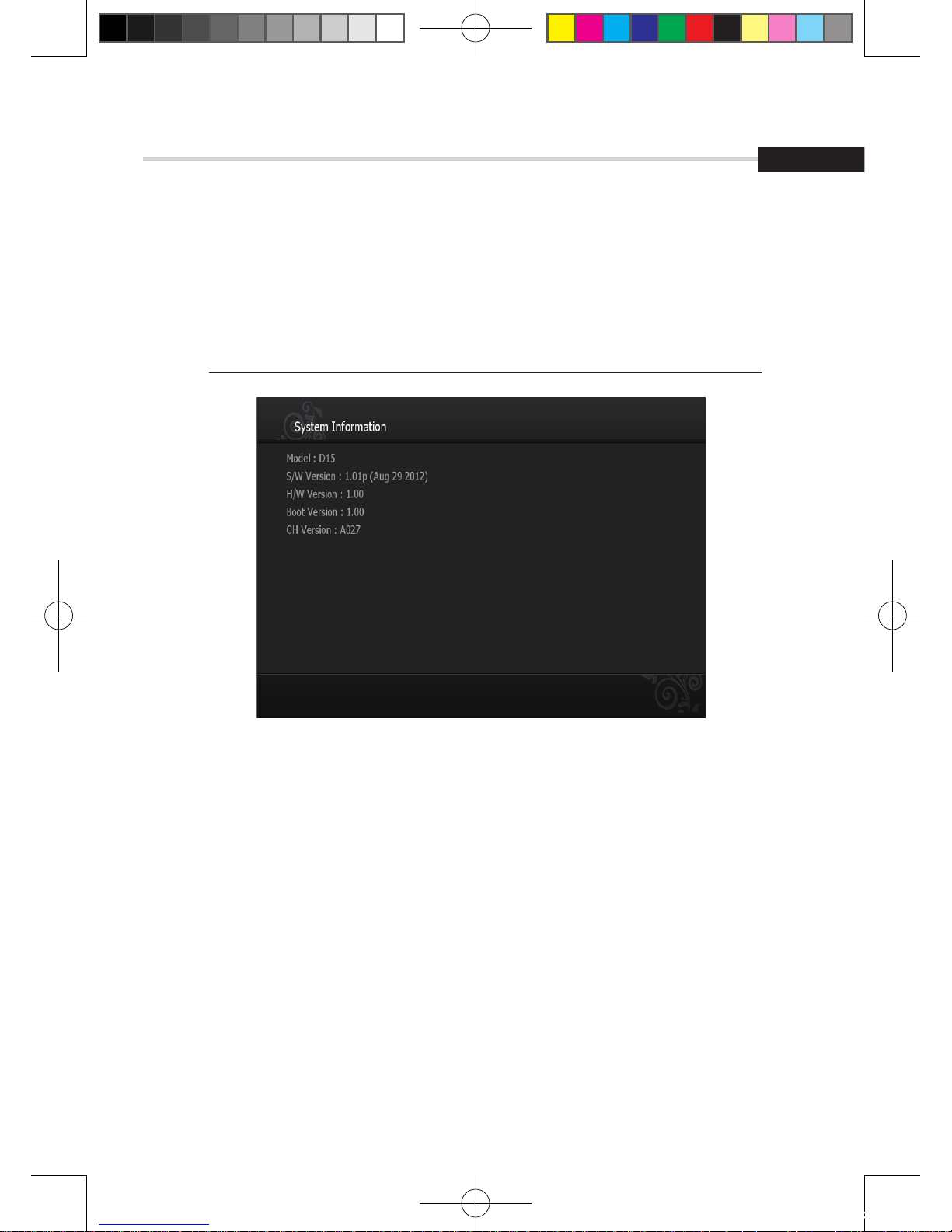

System Information

You can check the current information about your receiver such as receiver model
name, S/ W (software) version, H/W (hardware) version, manufacturing date, etc.
<Figure 6.4.2>
✽ Note: This information is useful to download new software and/or repair the receiver.

[2012.10.12]D15+F15_russian+english.indd 115 2012-10-12 11:23:16

116

6. Operation

6.5 Entertainment

Figure 6.5.1

Figure 6.5.3

Figure 6.5.2

➊

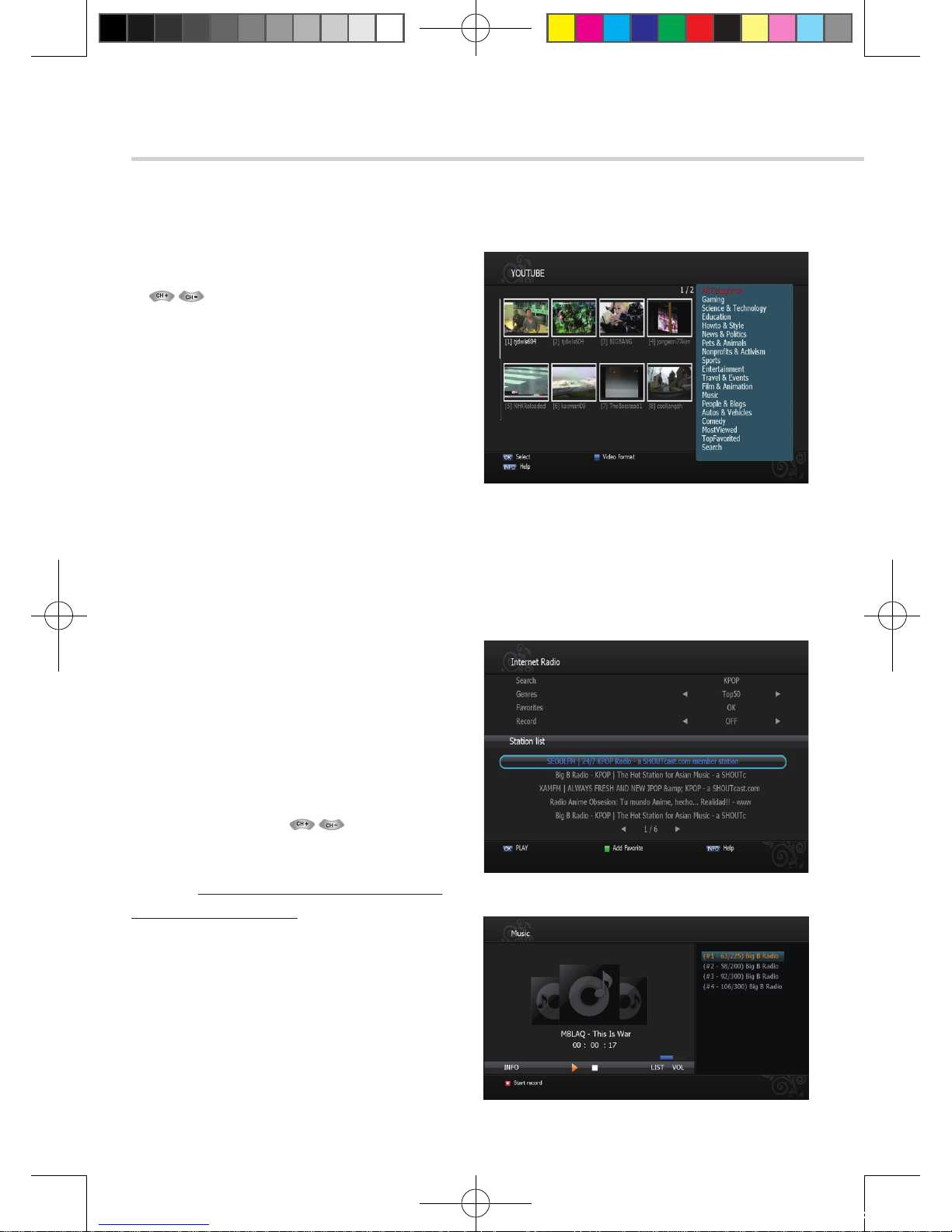

YOUTUBE

1. : To select Youtube movie.

2. OK: To play movie.

▪ Option: To search by Category. Viewed,
Time, Location.

▪ Search: To serch by key word.

▪ Next: To move Next page.

▪ Previous: To move previous page.

▪ REPL AY: To replay the current movie.

▪ PAUSE : To pause the movie.

▪ STOP: To stop the movie.

▪ Fullview: To view the movie in full size.

➋

Internet Radio

▪ Search: To search by key word.

▪ Genres: To search by genre.

▪ Favorites: To set favorite channels.

▪ Record: To record Radio.

1. Search Radio channel by Key word or Genre.

2. Select a channel by <Figure 6.5.2>

3. Press OK to play Radio.

✽ Note: To record Radio, please install USB

storage & Internal HDD.

[2012.10.12]D15+F15_russian+english.indd 116 2012-10-12 11:23:16

117

English

6.5 Entertainment

6. Operation

Figure 6.5.4

Figure 6.5.5

➌

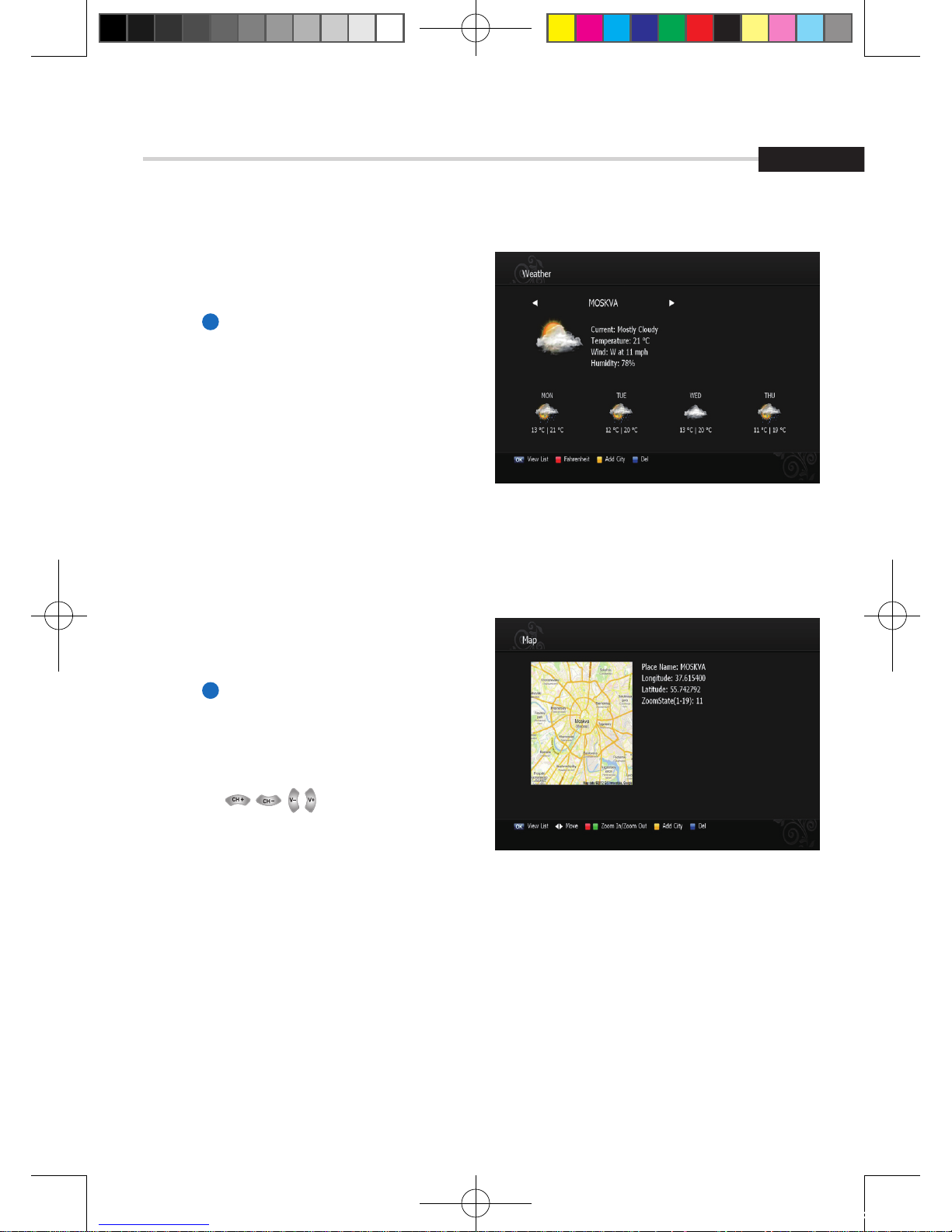

Weather

Searching the Weather for City, Country.

1. Press Blue button.

2. Enter the City or Country name.

3. Press EXIT to save and exit the window.

▪ View List: To view the saved list.

▪ Fahrenheit/Celsuis: To display the

temperature.

▪ Add City: To add City on list.

▪ Rename: To modify the City name.

▪ Save Info: To save the added City name.

➍

MAP

Searching the MAP for City, Country.

1. Press Blue button.

2. Enter the City or Country name.

3. Press Exit to save and exit the window.

▪ View List: To view the saved list.

▪ Move:

▪ Zoom In: To enlarge MAP.

▪ Zoom Out: To reduce MAP.

▪ Add City: To add City on list.

▪ Rename: To modify the City name.

▪ Save Info: To save the added City name.

[2012.10.12]D15+F15_russian+english.indd 117 2012-10-12 11:23:17

118

6. Operation

6.6 Utils

➊

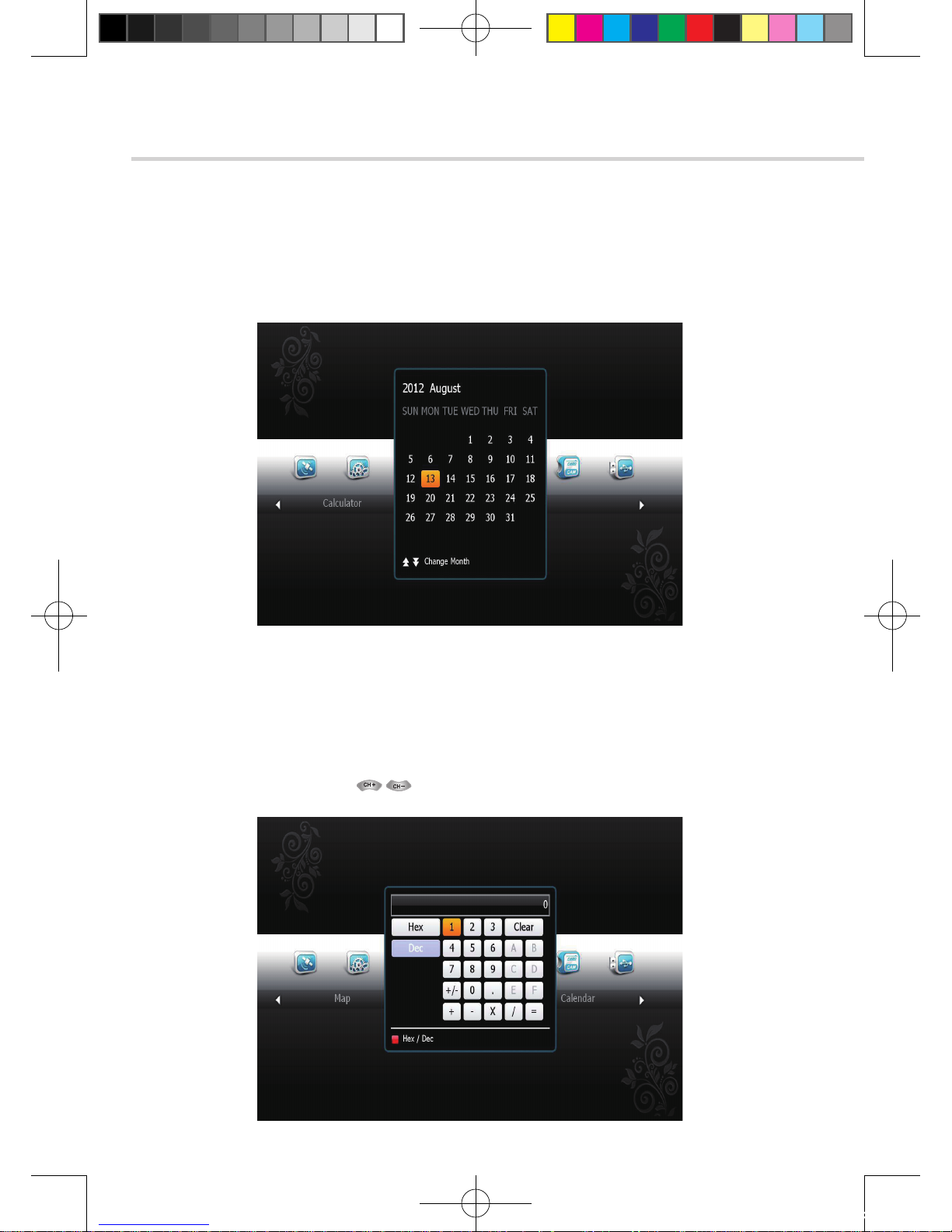

Calendar

This submenu allows you to use a calendar on the screen <Figure 6.6.1>

➋

Calculator

This submenu allows you to use a calculator on the screen. <Figure 6.6.2>

▪ You can switch between Hex (Hexadecimal) and Dec (Decimal) basis for arithmetic
with the RED button of the remote control unit.

▪ Use the Numerical and the , OK buttons on the remote control unit.

Figure 6.6.1

Figure 6.6.2

[2012.10.12]D15+F15_russian+english.indd 118 2012-10-12 11:23:17

119

English

6.6 Utils

6. Operation

Figure 6.6.4Figure 6.6.3

➌

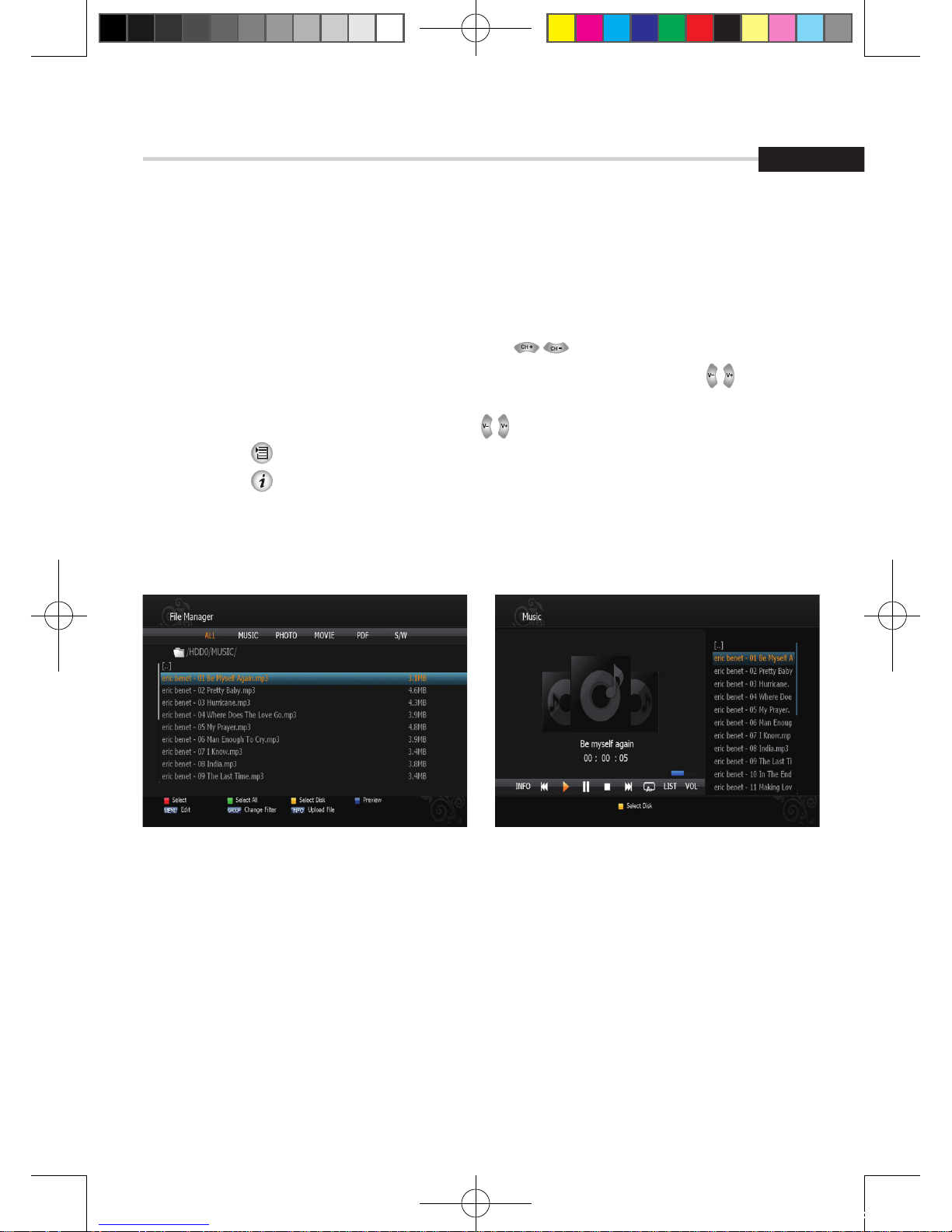

MP3 Menu

This submenu allows you to play various MP3 files, view JPG files or download a new
software by connecting your USB flash drive.

1.Select the MP3 file you want to play back by using , OK in the file list. <Figure 6.6.3>

2. Press the EXIT button to hide the file list. You can then select an option using , OK.
<Figure 6.6.4>

3. You can then change the volume by pressing .

4. Press OK on to display the MP3 file list.

5. Press OK on to display information about the selected MP3 file.

▪ FILELIST: Shows/Hides the MP3 file list

▪ INFO: Shows information about the MP3 file you selected.

▪ YELLOW: Choose the Hard disk volume or usb device with USB hub.

[2012.10.12]D15+F15_russian+english.indd 119 2012-10-12 11:23:18

120

6.6 Utils

6. Operation

Figure 6.6.5

Figure 6.6.6

➍

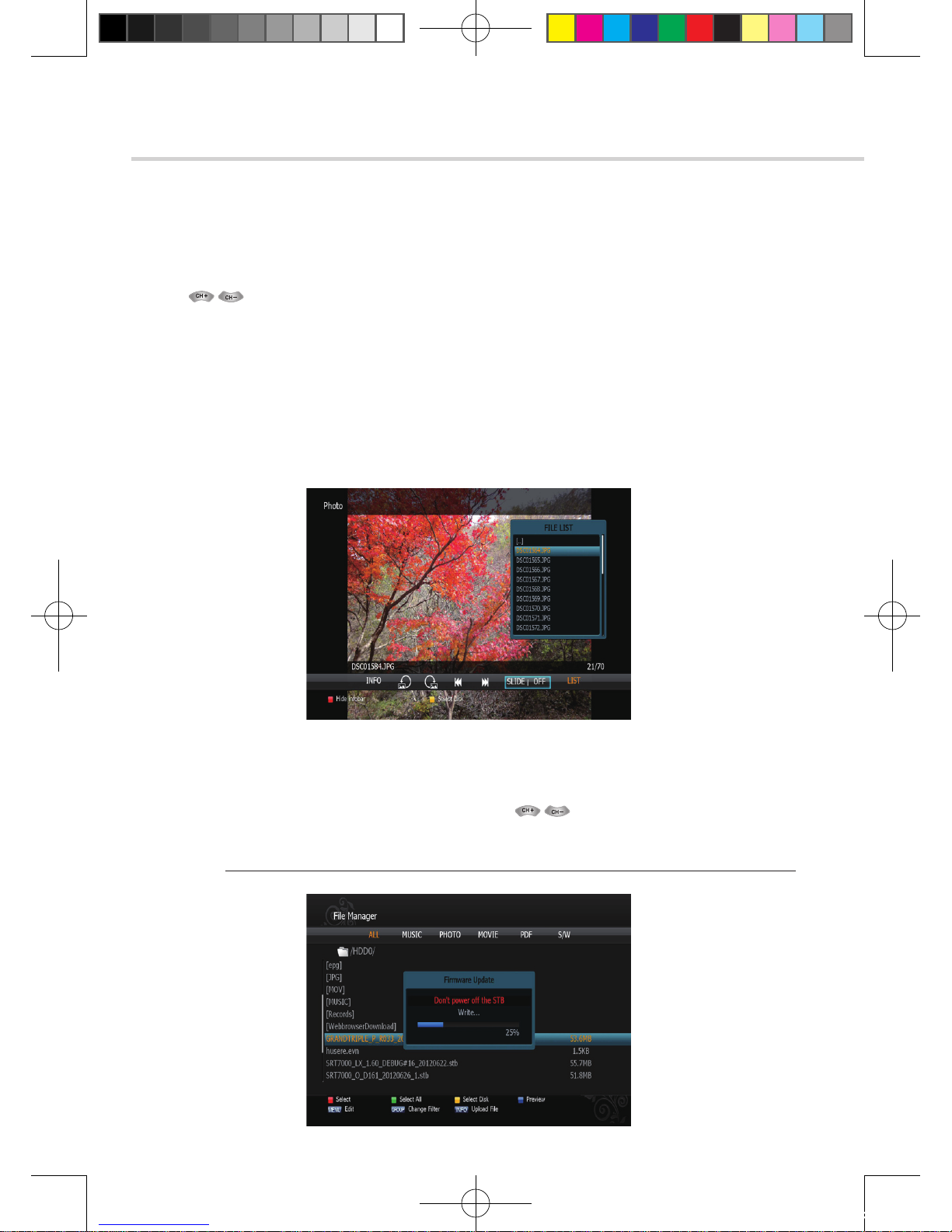

JPG menu

1. Press to select a picture. <Figure 6.6.5>

2. Press OK to show the picture you want to display.

▪ RED: Sets the time interval between slides.

▪ GREEN: Selects slide show.

▪ YELLOW: Choose the Hard disk volume or usb device with USB hub.

▪ BLUE: Rotate the picture.

▪ FILELIST: Shows/Hides the JPEG file list.

➎

Download

1. Select the software you want to download by using in the list <Figure 6.6.6>

2. Press OK to start software downloading

✽ Warning: Please do not switch off your receiver before software downloading is completed.

[2012.10.12]D15+F15_russian+english.indd 120 2012-10-12 11:23:18

121

English

6.6 Utils

6. Operation

➏

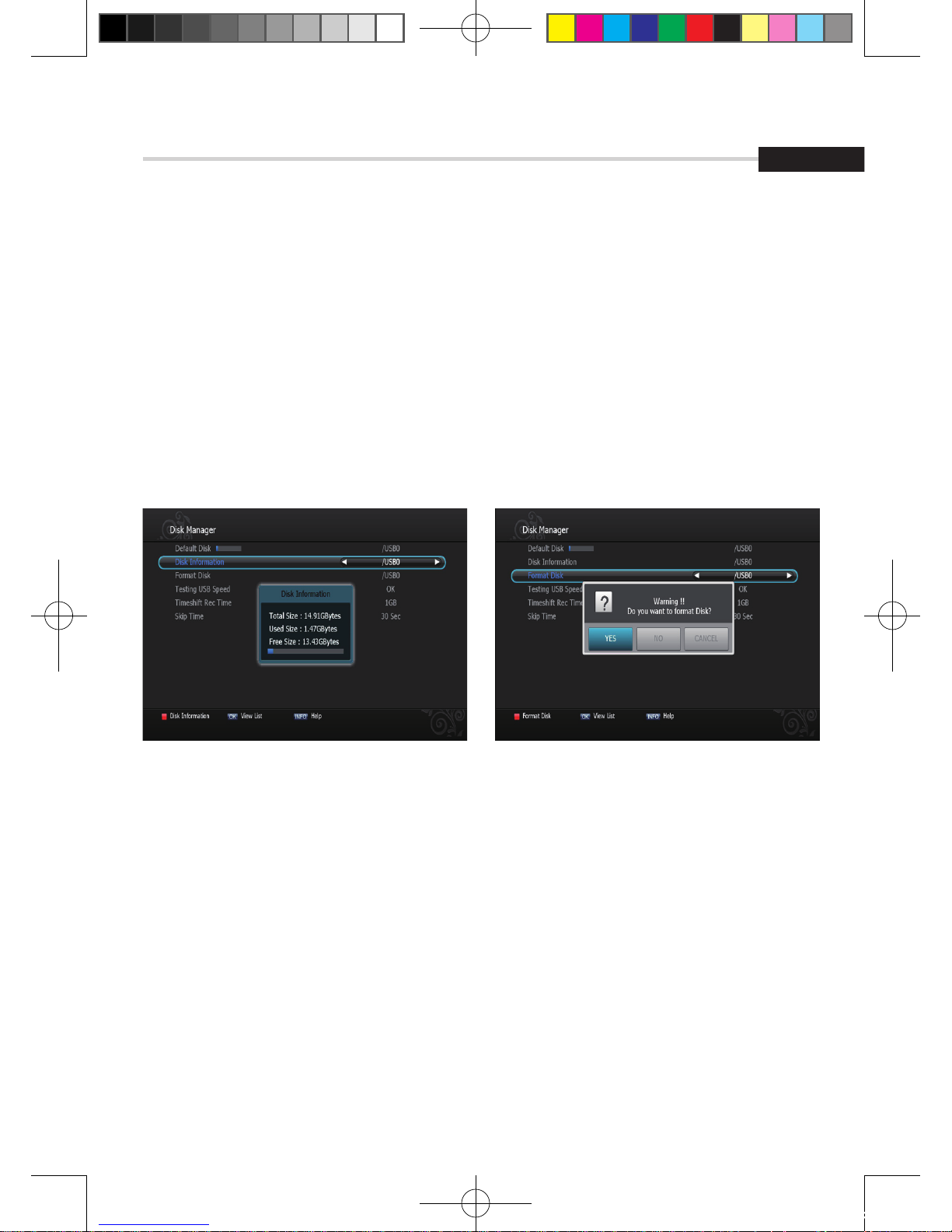

Disk Manager

Use the cursor keys to activate the desired functions from this menu.

▪ Default Disk: If you have additional Storage devices connected to your receiver

(i.e. USB HDD)

you can select which storage device is to be the default drive for playback and

recording

▪ Disk Information: Select the Hard disk volume, USB device.
Information of the storage devices will be displayed (i.e. used size, total size, free size) <Figure 6.6.7>

▪ Format Disk: Format disk enables you to delete all information stored on the selected
storage device. <Figure 6.6.8>

Figure 6.6.8Figure 6.6.7

[2012.10.12]D15+F15_russian+english.indd 121 2012-10-12 11:23:19

122

6. Operation

6.6 Utils

Figure 6.6.9 Figure 6.6.10

Figure 6.6.11

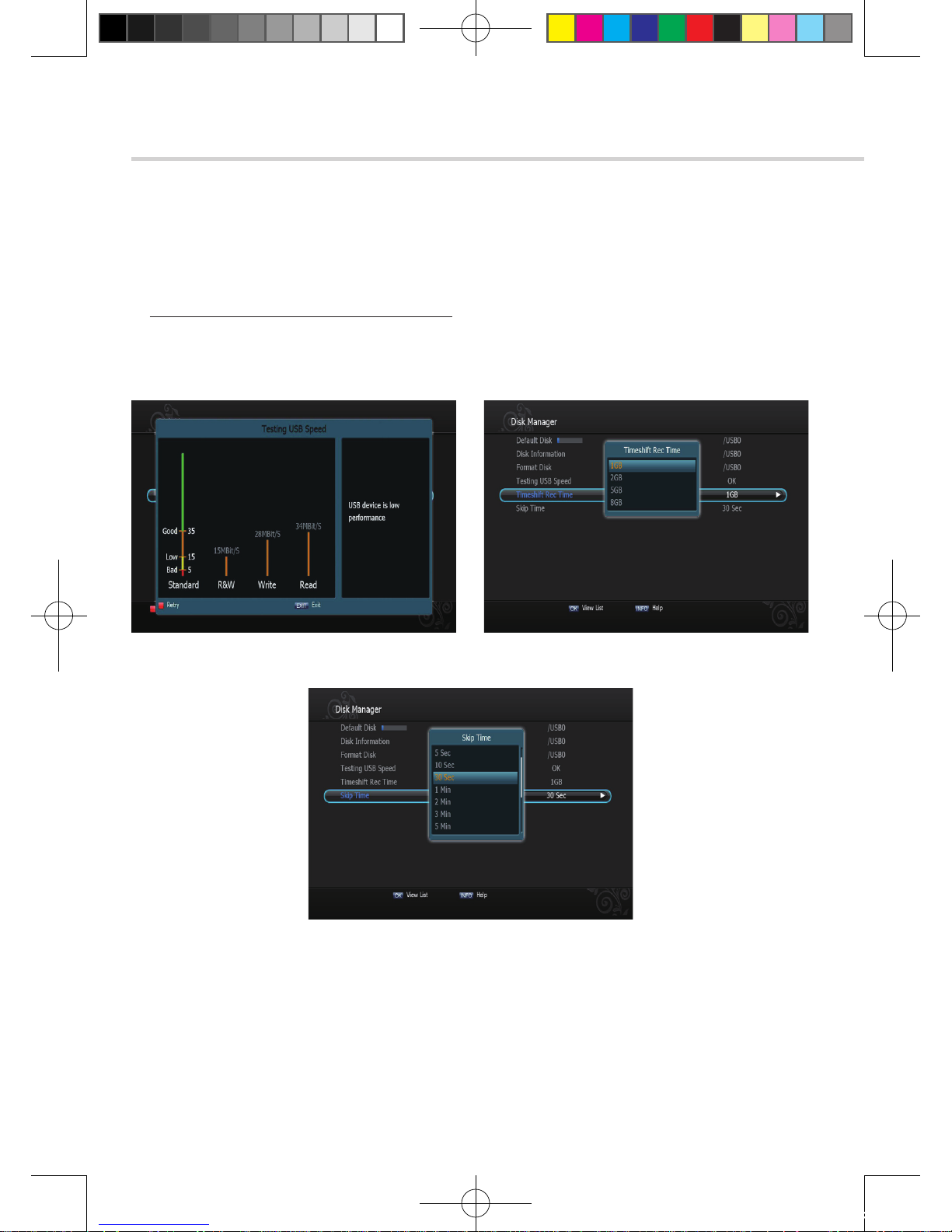

▪ Testing USB speed: Choose the Hard disk volume or usb device with USB hub.
You can test USB speed the usb device <Figure 6.6.9>

✽ It works even its status is bad performance.

▪ Timeshift Rec Time: Set timeshift record time.(1GB/2GB/5GB/8GB). <Figure 6.6.10>

▪ Skip Time: Set jump time when you press / key on RCU during file playback.<Figure 6.6.11>

[2012.10.12]D15+F15_russian+english.indd 122 2012-10-12 11:23:19

123

English

6.6 Utils

6. Operation

➐

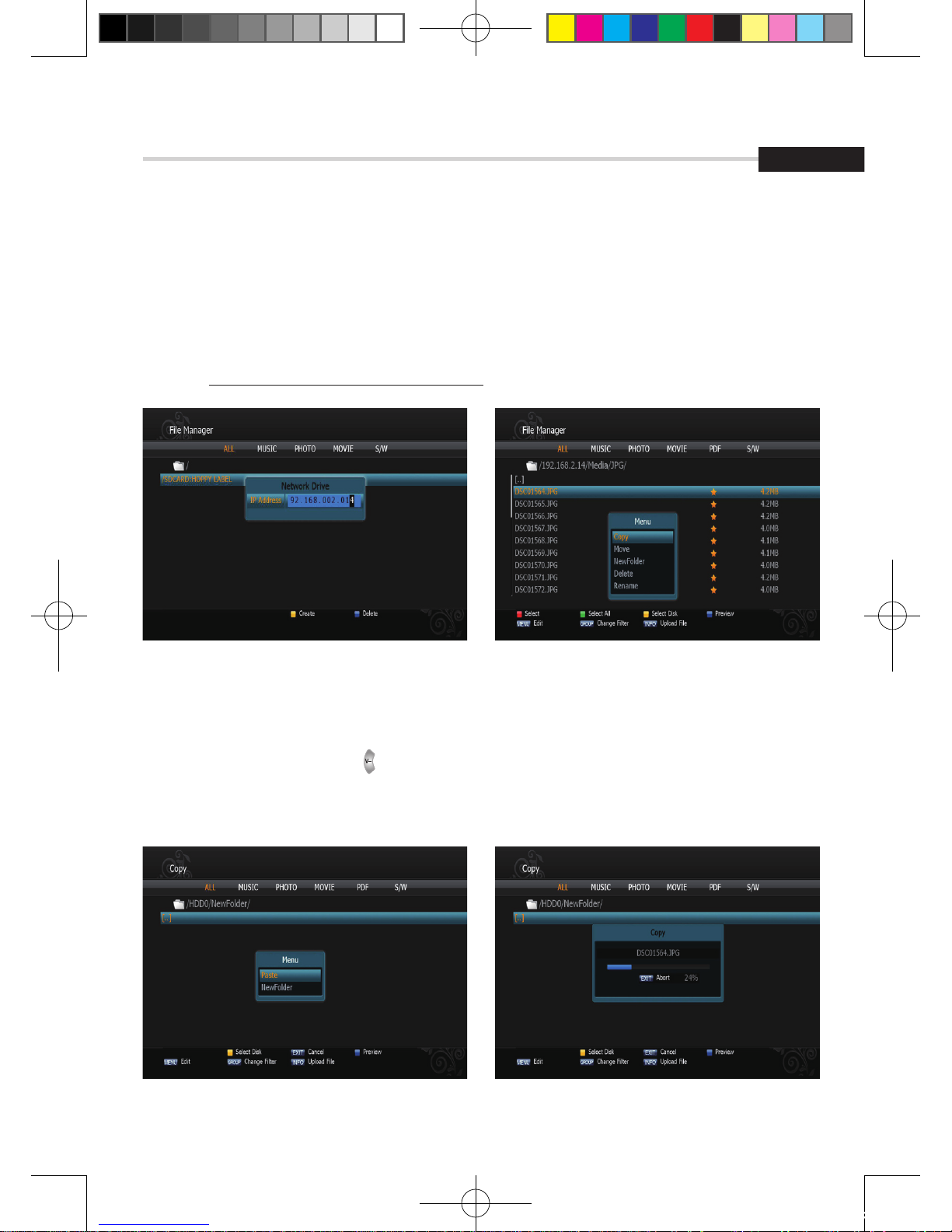

File Manager

1. Press YELLOW button for connect PC.

2. Press OK button after input IP address of PC.

3. Press OK button after choose target.

✽ Note: Have to run PC tool before connect PC.

4. Press Right button and Press RED for chooses files.

5. Press OK button to choose Copy/Move/NewFolder/Delete/Rename after press MENU button.

6. If select copy or move, press button to move target for paste.

7. Press MENU button to paste target.

8. Select a Paste for Copying or Moving files.

Figure 6.6.12

Figure 6.6.14

Figure 6.6.13

Figure 6.6.15

[2012.10.12]D15+F15_russian+english.indd 123 2012-10-12 오전 11:23:20

124

6.7 Common Interface

6. Operation

➊

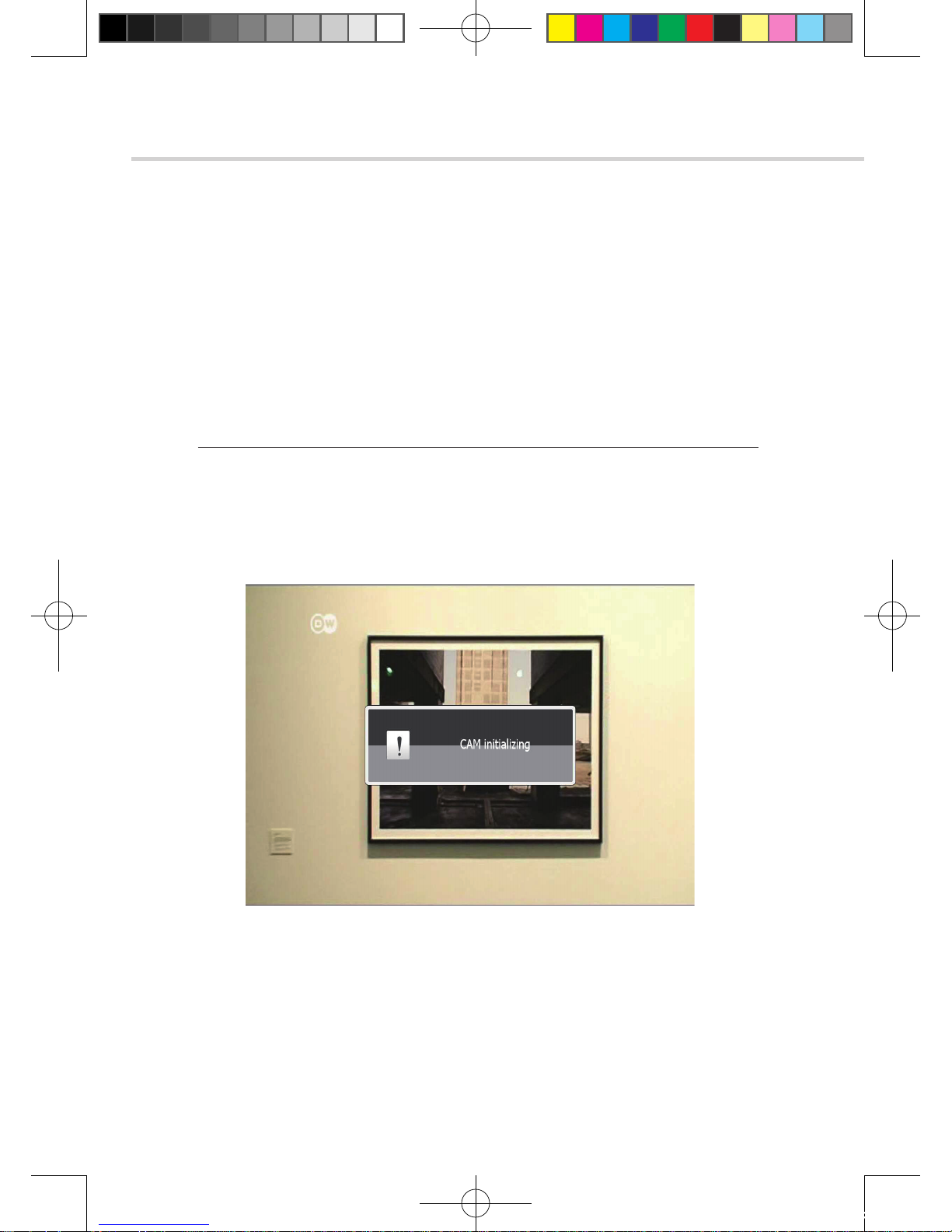

CAM Initializing

To enjoy scrambled channels, you will need a Common Interface Conditional Access Module
(CAM) and a Smart Card from the service provider (program distributor). If you are subscribing
to services from more than one service provider, you will need a Smart Card from each one, and
may even need different CAMs (depending on the DVB Common Interface standard each uses).
Since a Smart Card is connected to a single service provider, a limited range of channels will be
available via it.

✽ Note: Without the CAM and the smart card, you can watch only Free-to-Air programs.

1. Insert a CAM into a receiver’s slot designed for it, and a Smart Card into the CAM.

2. The message ‘CAM Initializing’ will appear on the screen. <Figure 6.7.1>

3. After the message ‘CAM Initializing’ has disappeared, you can select the channel that
you want to watch.

Fig u re 6 . 7.1

[2012.10.12]D15+F15_russian+english.indd 124 2012-10-12 11:23:20

125

English

6.7 Common Interface

6. Operation

➋

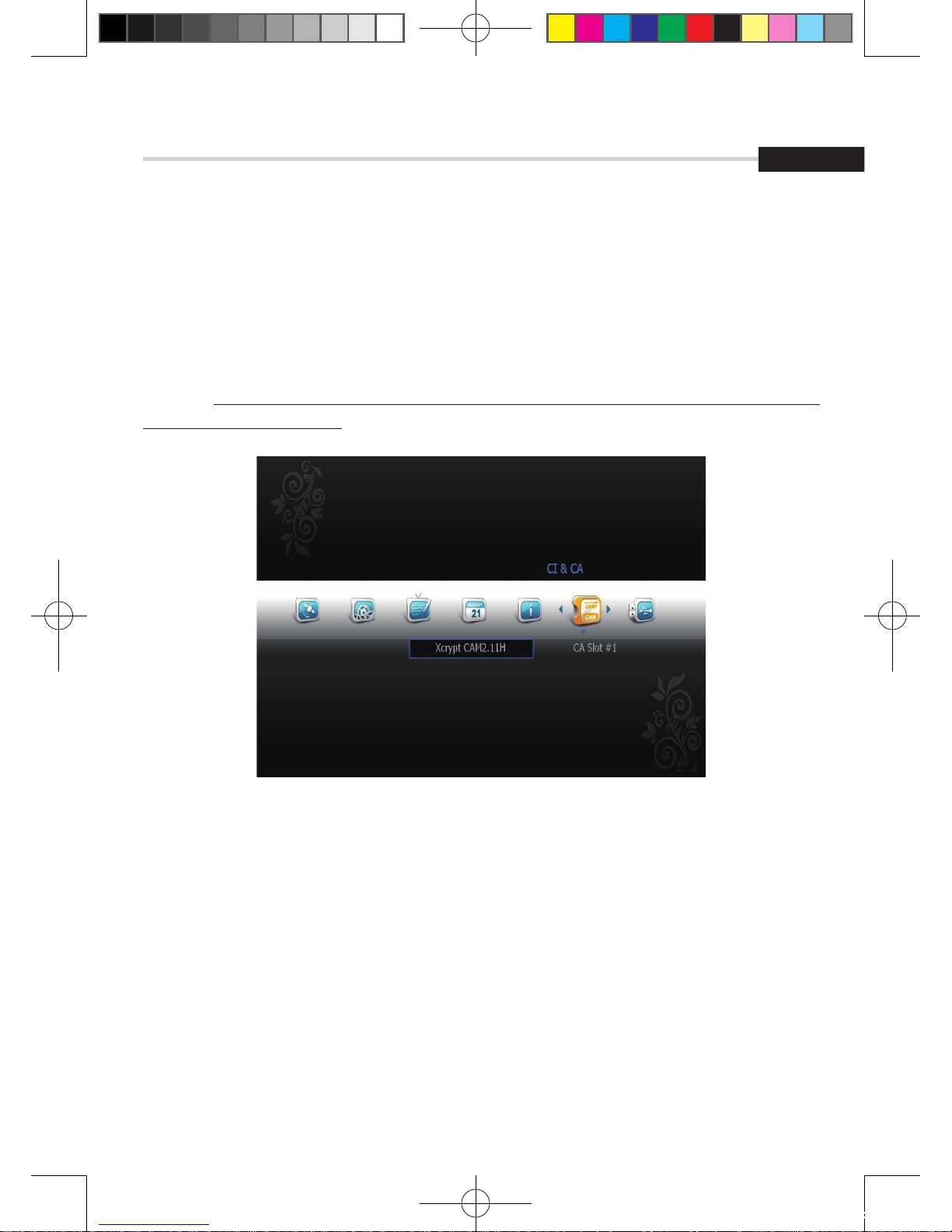

The Status of the CAM

1. You can access detailed information about the CAM using the / keys in the Main Menu to
select ‘CI’ and pressing . <Figure 6.7.2>

2. Proceed with further instructions displayed on the screen to check more detailed information
depending on the CAM in use.

✽ Note: Further detailed information is not mentioned in this manual since the information

depends on the CAM in use.

Fig u re 6 . 7. 2

[2012.10.12]D15+F15_russian+english.indd 125 2012-10-12 11:23:20

126

6. Operation

6.8 Conditional Access System

Fi g ure 6.8 .1

➊

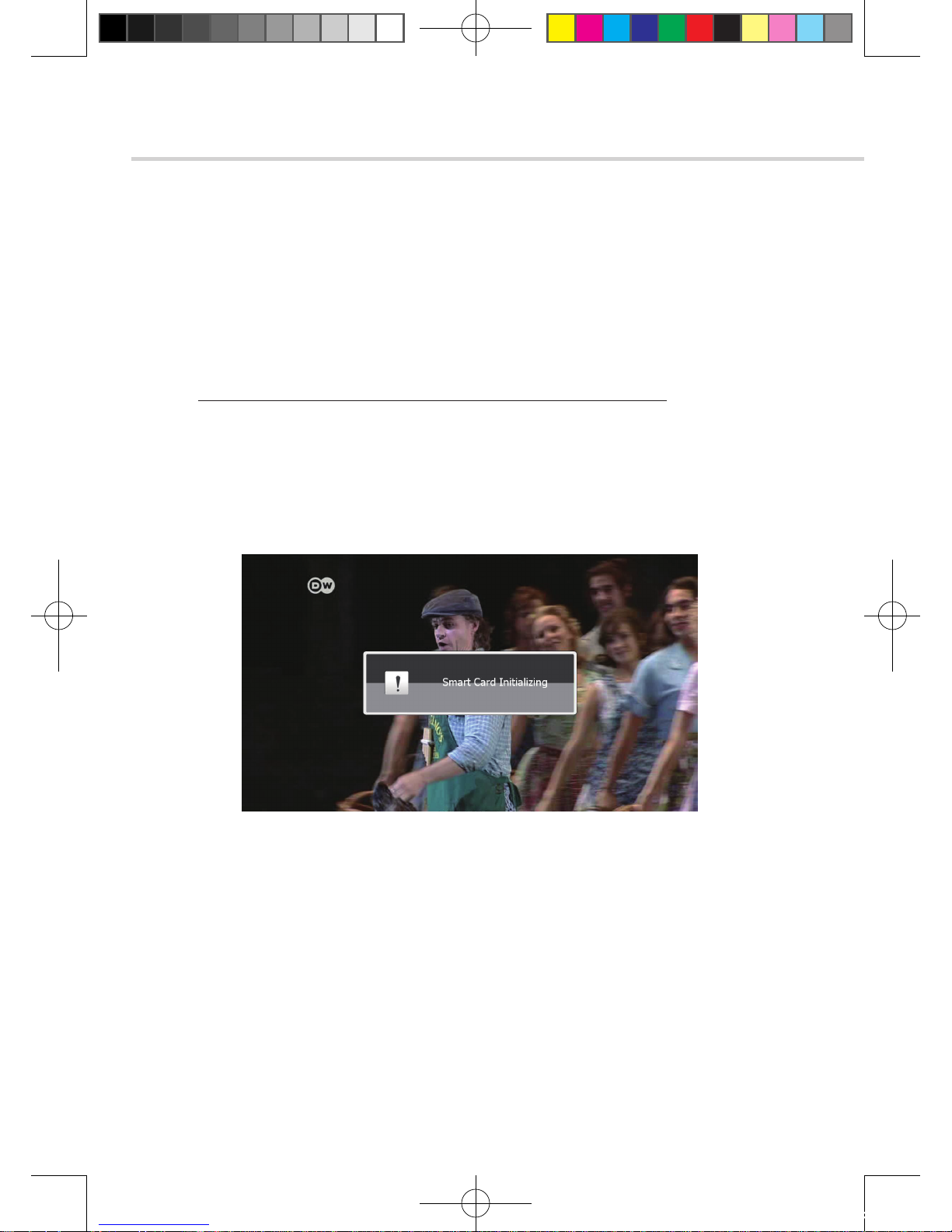

Card Initializing

To Enjoy Crypton scrambled channels, you will need a Smart Card from the service provider
(program distributor). If you are subscribing to services from more than one service provider,
you will need a Smart Card from each one. Since a Smart Card is connected to a single service
provider, a limited range of channels will be available via it.

✽ Note: Without the Smart Card, you can watch only Free-To-Air programs.

1. Insert the Smart Card into the receiver’s slot designed for it.

2. The message ‘Smart Card Initializing’ will appear on the screen. <Figure 6.8.1>

3. After the message ‘Smart Card Initializing’ has disappeared,
you will be able to watch the channels offered by the service provider.

[2012.10.12]D15+F15_russian+english.indd 126 2012-10-12 11:23:21

127

English

6.8 Conditional Access System

6. Operation

Figure 6.8.2

➋

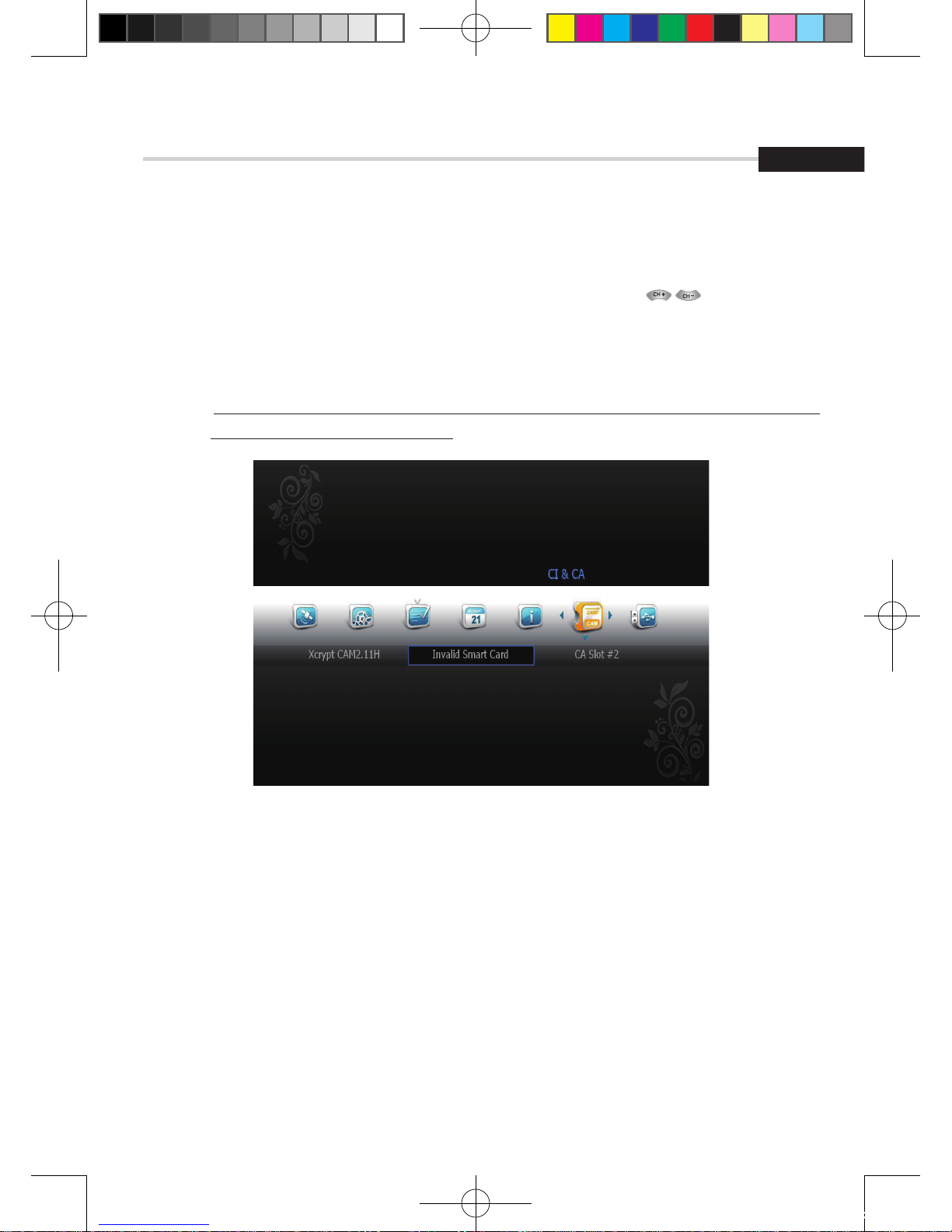

The Status of the Smart Card

1. You can access detailed information about the Smart Card using the keys in the Main
Menu to select ‘CA’ and pressing OK. <Figure 6.8.2>

2. Proceed with further instructions displayed on the screen to check more detailed information
depending on the Smart Card in use.

✽ Note: Further detailed information is not mentioned in this manual since the information

depends on the Smart Card in use.

[2012.10.12]D15+F15_russian+english.indd 127 2012-10-12 11:23:21

128

6. Operation

6.9 DVR

Figure 6.9.1

Figure 6.9.2

➊

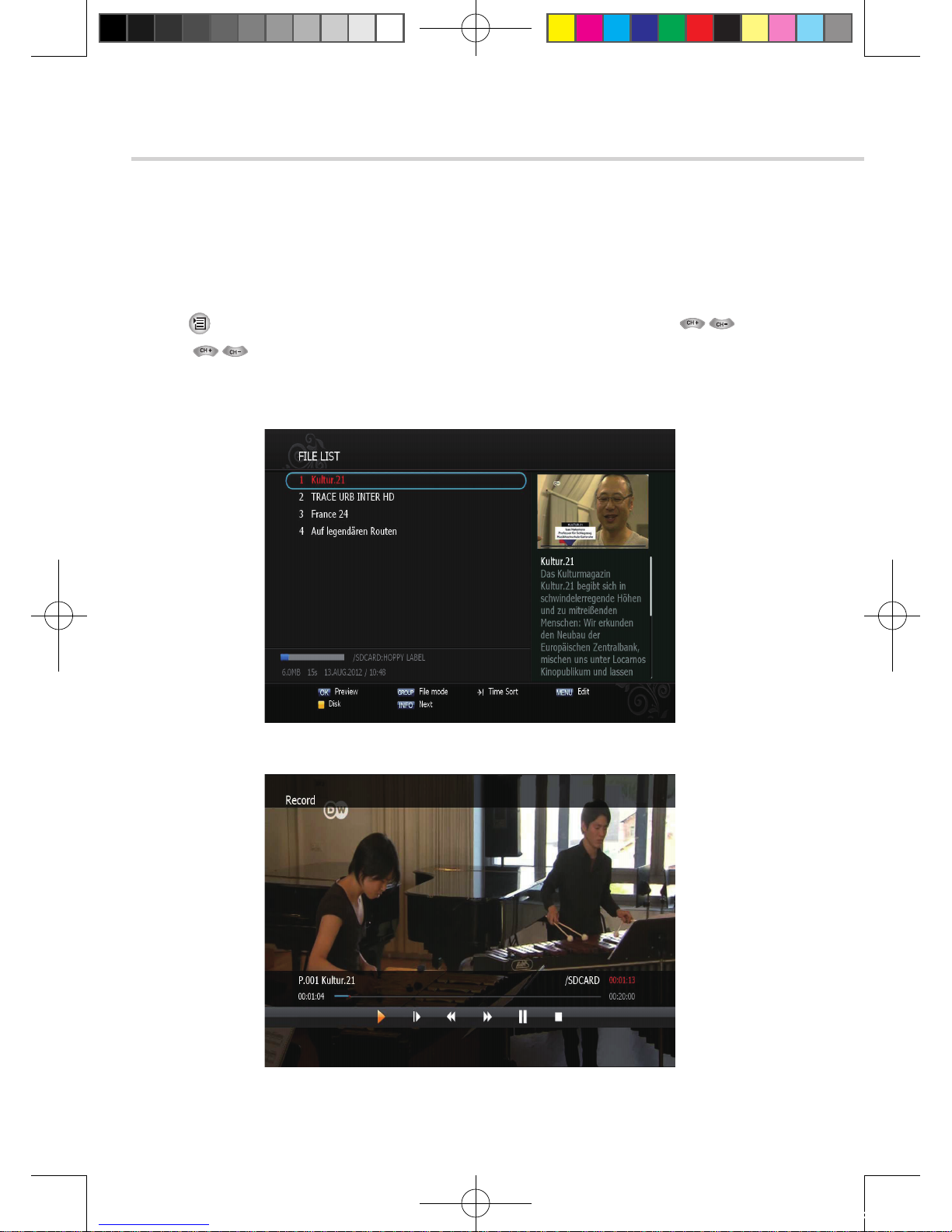

File List

▣

File Playback

1. Press to show the file list. Select the file you want to play back by using , OK.

2. Press . In the left side of screen, detailed information about the selected file will be
displayed. (Recorded Date/ Time, Used size, Total Size) <Figure 6.9.1>
▪ To see a full screen, press OK. And then the following time-bar will apprear.<Figure 6.9.2>

[2012.10.12]D15+F15_russian+english.indd 128 2012-10-12 11:23:21

129

English

6.9 DVR

6. Operation

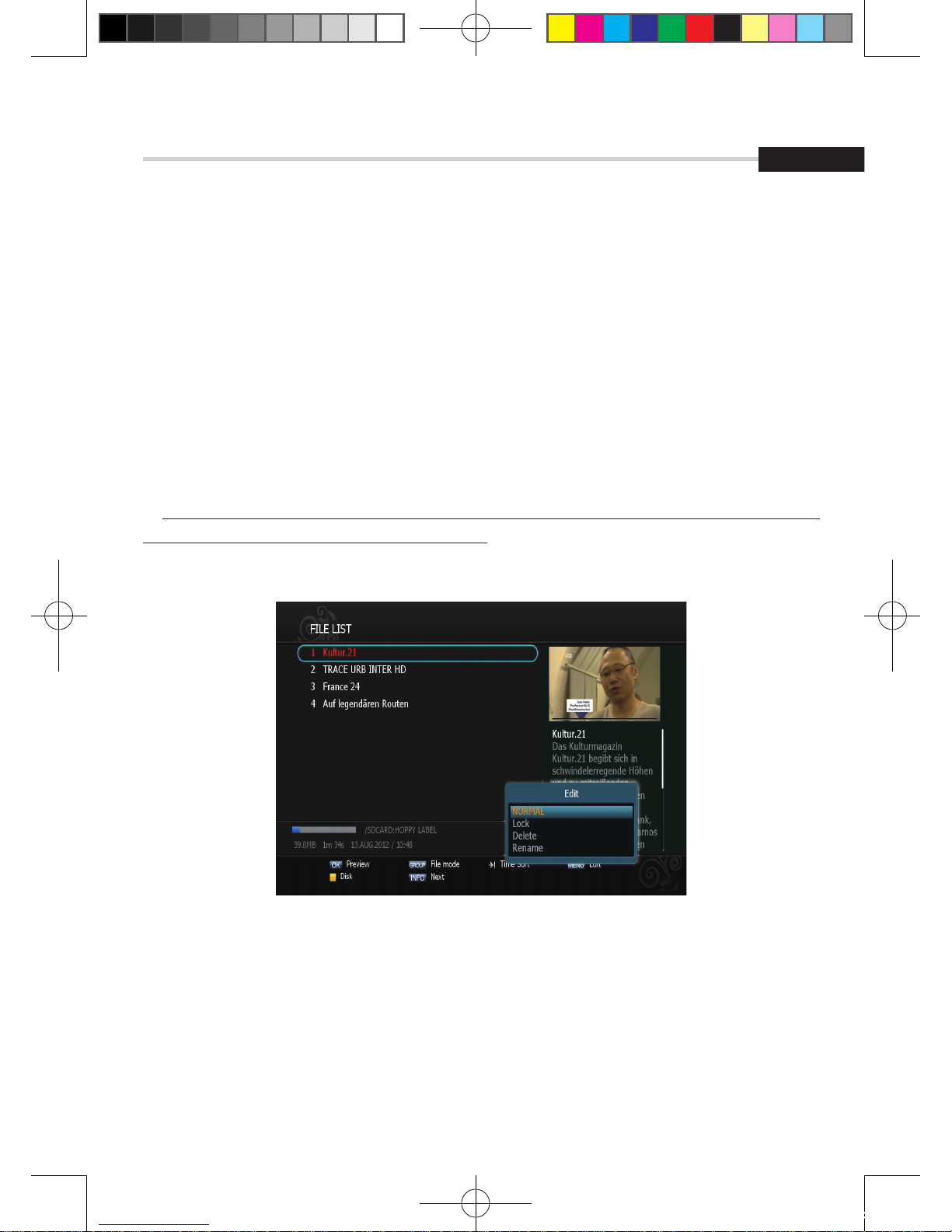

▣ Edit Menu

You will be asked to enter a password whenever you try to enter it. Press Menu.
The popup menu for selection will appear<Figure 6.9.3>. Select the item that you want to edit,
and set its parameters as desired

1. Normal Mode: Press OK on the file that you can see the preview of a selected file.

2. Lock Mode: Press OK on the file that you want to lock/unlock.

3. Delete Mode: Press OK on the file that you want to delete.

▪ Green: Select between, File Mode <-> Dir Mode

▪ ADVANCE : Shows all sorted files. Select between, Sort by name Sort by time.

✽ If you set ‘Channel Lock’ (refer to <Figure 6.2.4>security setting) to OFF, you will not be asked

to enter a password even if the channel is locked.

4. Rename Mode: Press OK on the file tha you want to rename.

Figure 6.9.3

[2012.10.12]D15+F15_russian+english.indd 129 2012-10-12 11:23:21

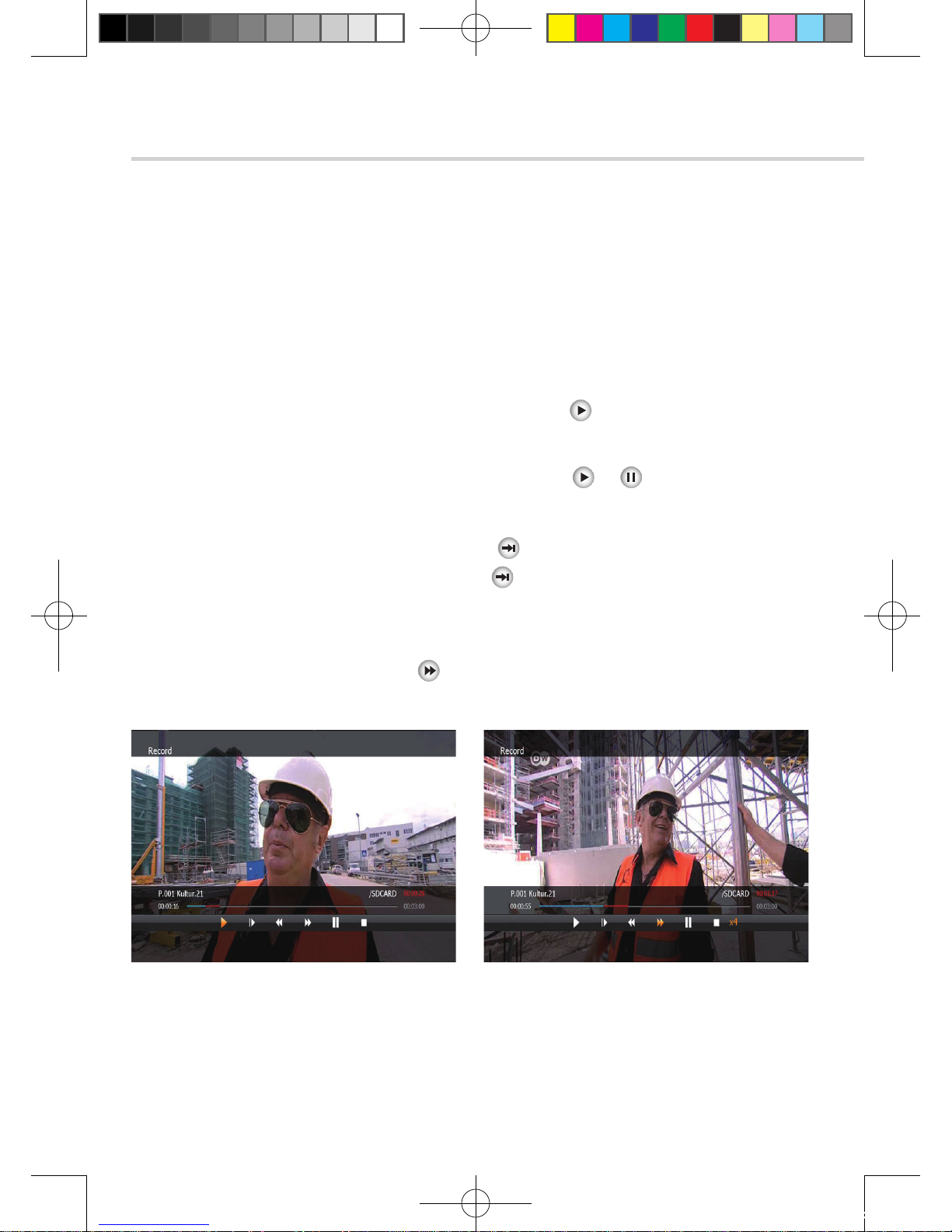

130

6. Operation

6.9 DVR

➋

Trick Mode

You can operate the trick mode while you are playing the recorded files.
These functions are available in playback mode or time-shift mode powerfully.

▣ PL AY

This button will display a time- banner.
If you want to show the play list while playing the file by using .

▣ PAUSE

This button will pause the playing file until you play again with or . <Figure6.10.4>

▣ ADVANCE

▪ If the time-shift mode is enabled, You can press to jump the live program.

▪ If the playback mode is enabled, You can press to stop the current playing file and

then jumping the live program.

▣ FF(Fast Forward)

▪ When playing the file, you can press to adjusting the playing speed.<Figure 6.9.5>

▪ The speed will change to x2, x4, x8, x16 and x32.

Figure 6.9.4 Figure 6.9.5

[2012.10.12]D15+F15_russian+english.indd 130 2012-10-12 11:23:22

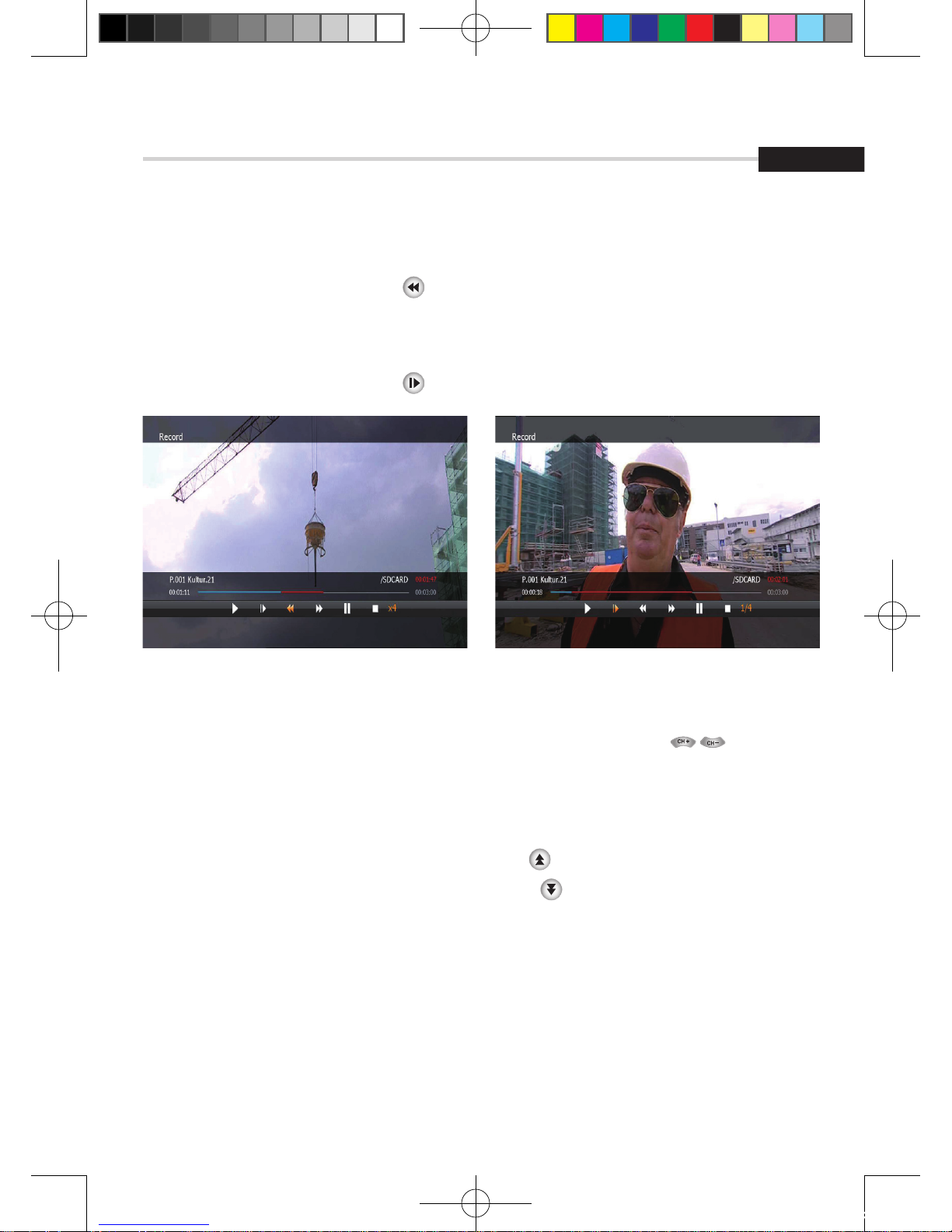

131

English

6.9 DVR

6. Operation

▣ RWD(Rewind)

When playing the file, you can press to adjusting the playing speed. <Figure 6.9.6>
The speed will change to x2, x4, x8, x16 and x32.

▣ Slow(1/2x, 1/4x)

When playing the file, you can press to adjusting the playing speed. <Figure 6.9.7>

▣ Jump

▪ You can locate the control position to the desired position by using the .

▪ If you press this key continuosly, You can locate the control position to the desired

position very quickly.

▣ Skip

▪ You can skips and forward in 15 seconds using the

▪ You can skips and backward in 15 seconds using the

Figure 6.9.6 Figure 6.9.7

[2012.10.12]D15+F15_russian+english.indd 131 2012-10-12 11:23:22

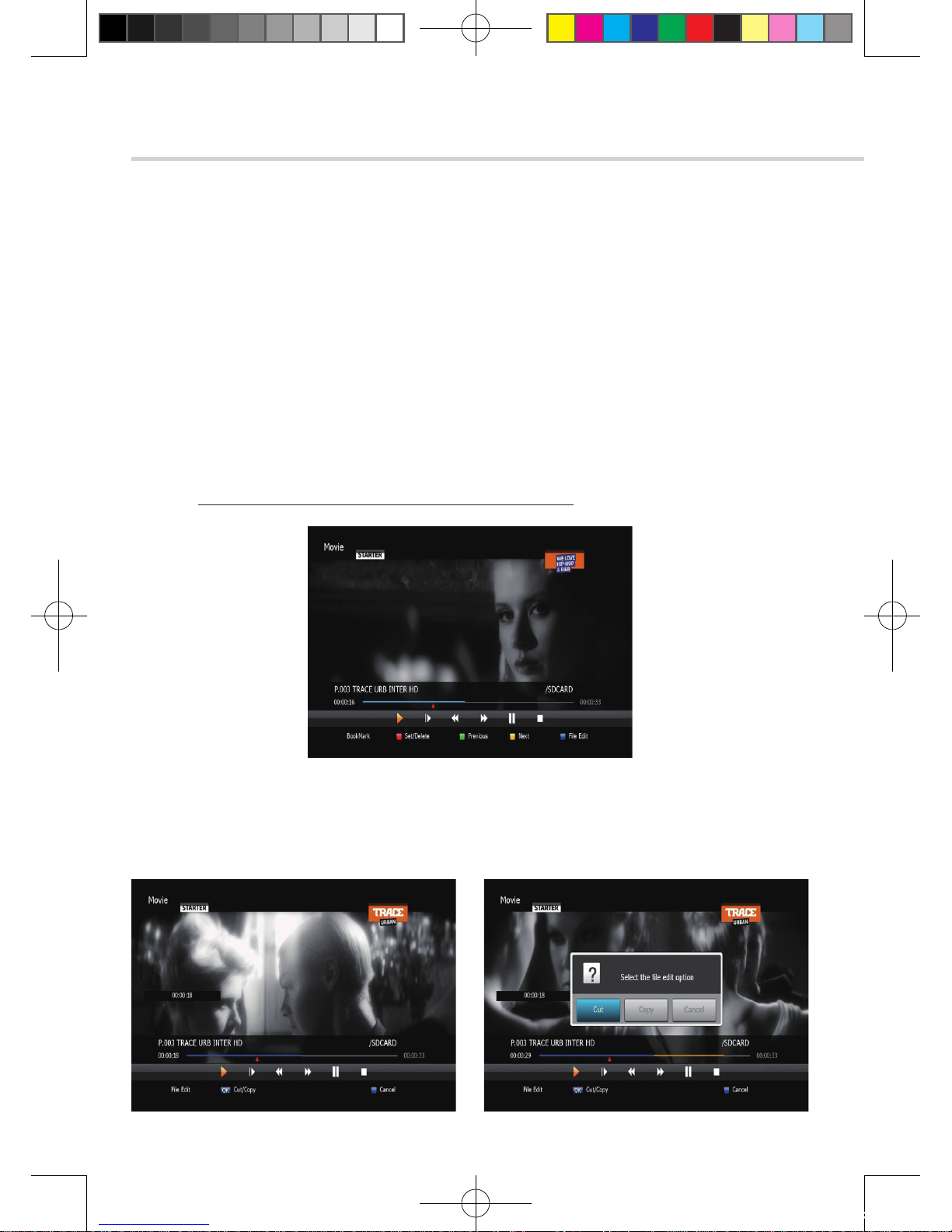

132

Figure 6.9.8

Figure 6.9.9 Figure 6.9.10

6. Operation

6.9 DVR

▣ Bookmark

To mark a specific place in a file for later retrieval. <Figure 6.9.8>

▪ RED: Press this button and red small triangle cursor will be placed at that position.
If you want to delete the bookmarked position, press a this button once more when
red small triangle cursor appear.

▪ GREEN: Press this button and the current position will jump to the next bookmarked
position and playback starts from this point.

▪ YELLOW: Press this button and the current position will jump to the pre-bookmarked
position and playback starts from this point.

✽ Note: The maximum number of the bookmark is 20 in a file.

▪ BLUE: Press this button and edit(copy, cut) the file. <Figure 6.9.9> Press OK button to select
edit start position and one more OK button to select edit end position. Select cut or copy.
< F i g u r e 6 .9.10 >

[2012.10.12]D15+F15_russian+english.indd 132 2012-10-12 11:23:23

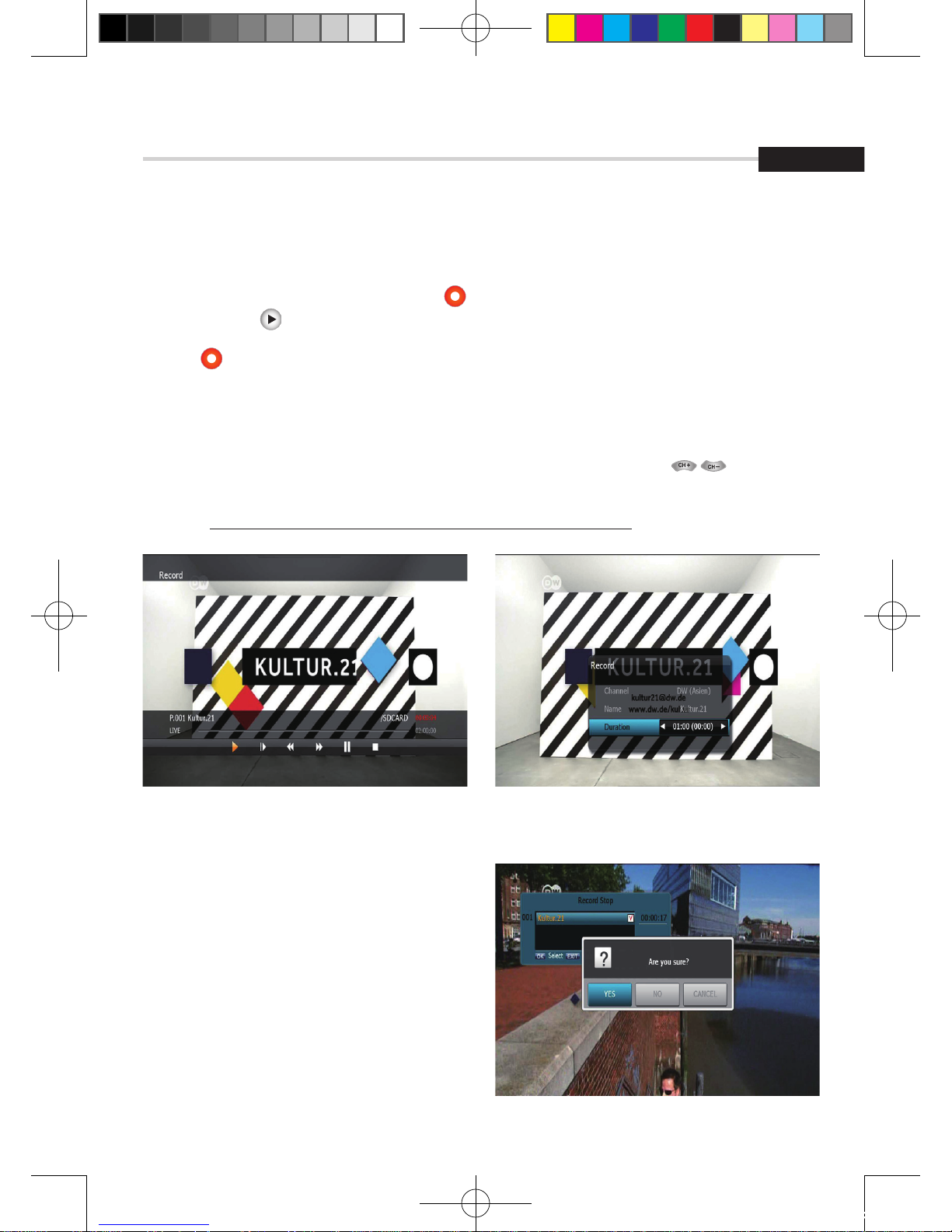

133

English

6.9 DVR

6. Operation

➌

Instant Recording

1. You can record a current channel by using .
If you then press , a time-banner will be displayed. <Figure 6.9.11>

2. Press once more. The following picture shows that you can select item when you
record a current channel. <Figure 6.9.12>

▪ Channel: It shows a current channel.

▪ Name: It shows a current recording name.

▪ Duration: You can change the duration of recording time by using the .

And current recorded time appear.

✽ Note: 1. Do not remove the USB device while recording a program.

➍

Record Stop

1. Press the STOP button on the remote to stop
the recording then Record Stop will be displayed.

2. Select the recording file by OK / STOP button.

3. Press EXIT button then selected recording is
stopped. <Figure 6.9.13>

Figure 6.9.11 Figure 6.9.12

Figure 6.9.13

[2012.10.12]D15+F15_russian+english.indd 133 2012-10-12 11:23:23

134

6. Operation

6.9 DVR

➎

Timer Recording

This function is availabe when usb device is connected. You can choose a channel to record the
Program Guide menu by using . (Refer to 6.4 Electric Program Guide, 2)Timer)

➏

Time Shift

1. If you want to pause and resume live TV channel, press TIMESHIFT button.
The default time of Time-Shift is 60 min in your STB.<Figure 6.9.14>

2. If you want to resume live TV channel, press PL AY button. <Figure 6.9.15>

3. The trick-mode operations are provided. If you want to jump to live channel, please press

➐

Divx Play

Press button to display divx file list.
Press OK button to play the selected file.

Figure 6.9.15Figure 6.9.14

[2012.10.12]D15+F15_russian+english.indd 134 2012-10-12 11:23:24

135

English

7. Troubleshooting

There may be various reasons for the abnormal operation of the unit. Therefore, if the unit does
not work properly, check it according to the procedures shown in the table below:

Problem Possible causes Remedy

The LED light on the
front panel does not light

The AC power cord is
disconnected.

Connect the power cord properly
into the power socket.

No Picture or sound Wrong connection of the

video /audio output to the
TV input terminal.

Wrong connection of the
satellite antenna cable.

Wrong direction of the
satellite antenna.

No signal or weak signal.

Wrong setting of channel
information in the MENU
screen.

Connect the two terminals
correctly with RCA or HDMI cable (s).

Connect the antenna cable
correctly.

Adjust the direction of the
antenna.

Check the cable connections,
the LNB and other equipment
connected between the LNB and
the receiver, or adjust the antenna.

Type the setting values correctly.

Black-and-white
screen or V-Hold

Your TV mode (PAL/NTSC)
is different from the satellite
broadcasting mode.

Use a TV of the same mode.

Connect a NTSC/PAL converter
between the receiver and the TV.

The remote controller
is not working

Batteries are exhausted.

Fluorescent light is interfering
with the remote controller.

Remote controller is
incorrectly aimed.

Change the batteries.

Switch off the light.

Aim the remote control at the
re ceiver.

[2012.10.12]D15+F15_russian+english.indd 135 2012-10-12 11:23:24

136

8. D15 - Specifications

System capabilities
satellite
LNB/Tuner input

Fully DVB compliant

Connector IEC 169-24, female

Frequency range

Signal level

LNB supply

LNB switch control

DiSEqC

950MHz ~ 2150MHz

-65dBm ~ -25dBm

DC 13/18V, max 400mA

22KHz

Ver 1.0 /1.1/1.2/USALS Compat ible

Demodulator Front end DVB-S/S2 QPSK, 8PSK, 16APSK, 32APSK

Symbol rate DVB-S : 2~45Msps

DVB-S2 : 10~30Msps(QPSK) 10~30Msps(8PSK)

36Msps(16APSK), 27Msps(32APSK)

SCPC and MCPC Capable

Spectral inversion Auto conversion

System resource Processor 32bit processor (550MHz, 850DMIPS)

DDR3 128 Mby t e

FLASH 8Mbyte

Video decoder MPEG 2 MPEG-2, MPEG-4, H.264

Data Rate up to 15M bits/s

Resolution 1920 X 1080P/i, 1280 X 720P, 720 X 576P/i

Video format PAL

Aspec Ratio 4:3,16 : 9

Tel etext DVB compliant

MPEG Audio MPEG 1 layer I /II,

MPEG 2 layer II,

AC3 Dolby Digital

Type Mono, Stereo, Joint Stereo

Sampling rates 32, 44.1 and 48 KHz

Serial data interface Connector 9pin D-sub male, Max 115K bps

Remote control Code N E C- IR

Operating condition up to 7 Meter

[2012.10.12]D15+F15_russian+english.indd 136 2012-10-12 11:23:24

137

English

8. D15 - Specifications

Conditional Access
Interface

Smart Card Reader

PCMCI

1 Slot

1 Slot

Power supply Power consumption max 25W

Supply voltage AC 100V ~ 250V

Supply frequency 50Hz ~ 60Hz

Rear Panel
connectors

Video 1 X RCA cinch

Audio L/R 2 X RCA cinch

S/PDIF Fiber Optic

HDMI Digital Video/Audio Output

LAN RJ-45

USB DC 5V Max 500mA

Digital tuner input IEC 169 - 24

Loop-through Digital tuner IEC 169 - 24

Serial Data 9pin D-sub

Physical
Specification

Size (W x H x D) 260 x 53.5 x 181 (mm)

Weight (Net) 1.6 Kg

[2012.10.12]D15+F15_russian+english.indd 137 2012-10-12 11:23:24

138

8. F15 - Specifications

System capabilities
satellite
LNB/Tuner input

Fully DVB compliant

Connector IEC 169-24, female

Frequency range

Signal level

LNB supply

LNB switch control

DiSEqC

950MHz ~ 2150MHz

-65dBm ~ -25dBm

DC 13/18V, max 400mA

22KHz

Ver 1.0 /1.1/1.2/USALS Compat ible

Demodulator Front end DVB-S/S2 QPSK, 8PSK

Symbol rate DVB-S : 2~45Msps

DVB-S2 : 10~30Msps(QPSK) 10~30Msps(8PSK)

SCPC and MCPC Capable

Spectral inversion Auto conversion

System resource Processor 32bit processor (450MHz)

DDR SDRAM 128Mbyte X 2

FLASH 8Mbyte

EEPROM 256Kbit

Video decoder MPEG 2 MPEG-2, MPEG-4, H.264

Data Rate up to 15M bits/s

Resolution 1920 X 1080P/i, 1280 X 720P, 720 X 576P/i

Video format PAL

Aspec Ratio 4: 3,16 : 9

Tel etext DVB compliant

MPEG Audio MPEG 1 layer I /II

MPEG 2 layer II

AC3 Dolby Digital

Type Mono, Stereo, Joint Stereo

Sampling rates 32, 44.1 and 48 KHz

Serial data interface Connector 9pin D-sub male, Max 115K bps

Remote control Code N EC- IR

Operating condition up to 7 Meter

USB USB Supply DC 5V Max 500mA

[2012.10.12]D15+F15_russian+english.indd 138 2012-10-12 11:23:24

139

English

8. F15 - Specifications

Disposal of Old Electrical & Electronic Equipment(Applicable in the European Union and

other European Countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipnent.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could other wise be caused by
inappropirate waste handling of this product. The recycling of materials will help to conserve
natural resources.
For more detailed information about recycling of this produc t, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.

Conditional Access
Interface

Smart Card Reader

PCMCIA

2 Slot

1 Slot

Power supply Power consumption max 30W

Supply voltage AC 100V ~ 250V

Supply frequency 50Hz ~ 60Hz

Rear Panel
connectors

Video 1 X RCA cinch

Audio L/R 2 X RCA cinch

Component(Y/Pb/Pr) 3 X RCA cinch

S/PDIF Fiber Optic

HDMI Digital Video / Audio Output

LAN RJ-45

USB 2*USB A-type

Digital tuner input IEC 169 - 24

Loop-through Digital tuner IEC 169 - 24

Serial Data 9pin D-sub

Physical
Specification

Size (W x H x D) 260 x 54 x 232 (mm)

Weight (Net) 1.8 Kg

[2012.10.12]D15+F15_russian+english.indd 139 2012-10-12 11:23:24

[2012.10.12]D15+F15_russian+english.indd 140 2012-10-12 11:23:24
