Changes
Dreamvision provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including but
not limited to the implied warranties or merchantability and tness for a particular purpose. Dreamvision may
make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any
time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to
the information in this publication; these changes are incorporated in new editions of this publication.
Copyright
All right reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be
recorded, transmitted or stored in a retrieval system without the prior written consent of Dreamvision.
Guarantee
Dreamvision provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of
guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during
transport, as well as for material and manufacturing faults. Dreamvision must be informed immediately in writing
of any complaints. If the purchaser or third party caries out modications or repairs on goods delivered by
Dreamvision, or if the goods are handle incorrectly, in particular if the systems are commissioned operated
incorrectly or if, after the transfer of risks, the goods are subject to inuences not agreed upon in the contract, all
guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are system
failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces.
Normal wear as well as normal maintenance are not subject to the guarantee provided by Dreamvision either.
The environmental conditions as well as the servicing and maintenance regulations specied in this manual must
be complied with by the customer.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights
of their respective holders. All brands and product names mentioned in this manual serve as comments or
examples and are not to be understood as advertising for the products of their manufactures.
2
R699831 - Dreamy Geek User Manual
TABLE OF CONTENTS
1.0 IMPORTANTSAFEGUARDS ...............................................................................................5
2.0 INSTALLATIONGUIDELINES ...........................................................................................6
2.1 Introduction ....................................................................................................................................6
2.2 Packaging .......................................................................................................................................6
2.3 Environment of Use........................................................................................................................6
2.4 Attaching the Unit ..........................................................................................................................7
2.5 Projection Distance.........................................................................................................................8
2.6 Lens Offset and Picture Focus ........................................................................................................8
3.0 REMOTECONTROLUNIT(RCU) ....................................................................................9
3.1 General View ..................................................................................................................................9
3.2 Loading and replacing Batteries ...................................................................................................10

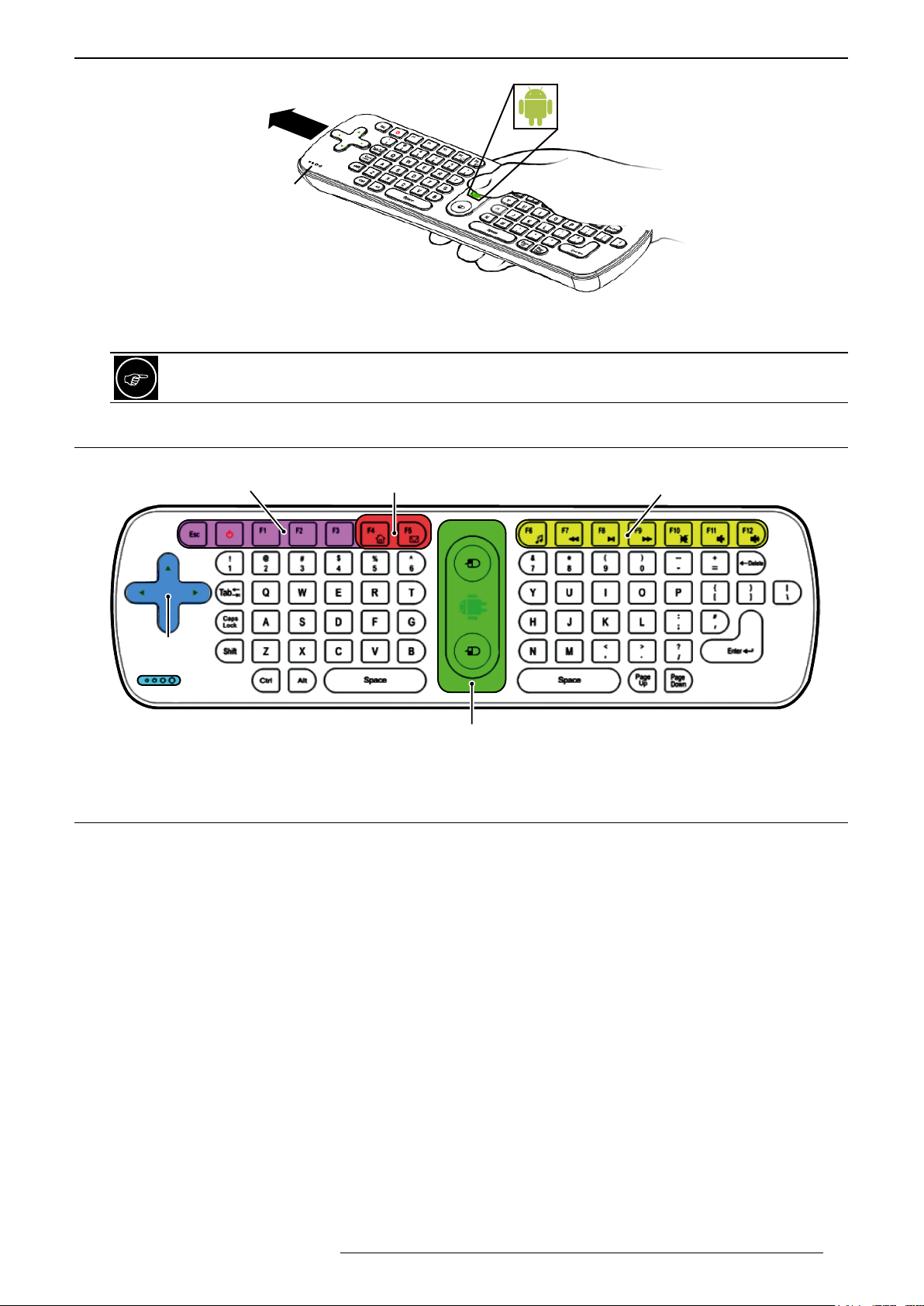

4.0 WIRELESSKEYBOARDANDAIRMOUSE ................................................................ 10
4.1 General View ................................................................................................................................10
4.2 Connecting the Wireless Keyboard and Air mouse ...................................................................... 10
4.3 Switching between Keyboard and Air mouse Functions..............................................................10
4.4 Keyboard keys and Functions ......................................................................................................11
4.5 Troubleshooting ............................................................................................................................11

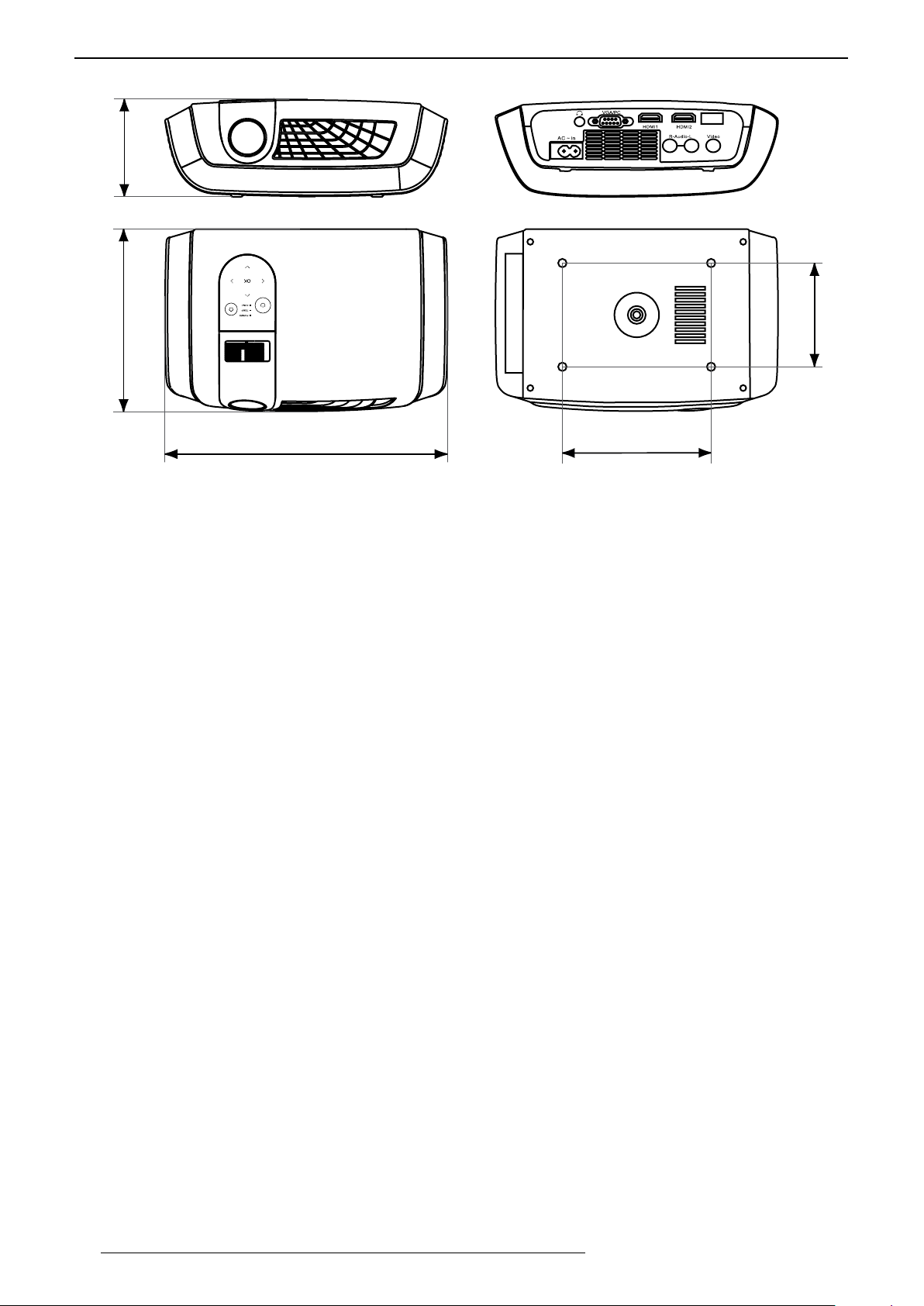

5.0 GENERALVIEW .................................................................................................................. 12
5.1 Control Panel and Operating LEDs ..............................................................................................12
5.2 Front View ....................................................................................................................................12
5.3 Rear View .....................................................................................................................................13
5.4 Side View .....................................................................................................................................13
6.0 GETTINGSTARTED ........................................................................................................... 13
6.1 Connecting the Power Cord .........................................................................................................13
6.2 Power ON .....................................................................................................................................14
6.3 Power OFF ...................................................................................................................................14
7.0 CONNECTIONS .................................................................................................................... 14
7.1 Caution when connecting a Device to HDMI Input .....................................................................14
7.2 Connecting a Video Source to the Projector.................................................................................15
8.0 ETHERNETANDINTERNETSETTING ...................................................................... 15
8.1 Network Connection.....................................................................................................................15
8.2 Network Information ....................................................................................................................15
9.0 SELECTINGANAUDIO/VIDEOSOURCE .................................................................. 16
9.1 Select a Video Input from the Main Screen..................................................................................16
9.2 Picture Prole ...............................................................................................................................17
9.3 Sound Prole ................................................................................................................................17
10.0 WIRELESSPLAYBACKWITHAIRPLAY ................................................................... 18
10.1 Music Playback ............................................................................................................................18
10.2 Projecting Photos from the Camera Roll of your iDevice............................................................19
10.3 Projecting Movies and Podcasts from an iDevice ........................................................................ 19
10.4 Other Apps using AirPlay ............................................................................................................. 19
11.0 THEANDROIDINTERFACE ............................................................................................ 20
11.1 Main “Home” Screen and Extended Home Screen ...................................................................... 20
11.2 “All Apps” Screen ........................................................................................................................21
11.3 “Recents” Overlay ........................................................................................................................ 22

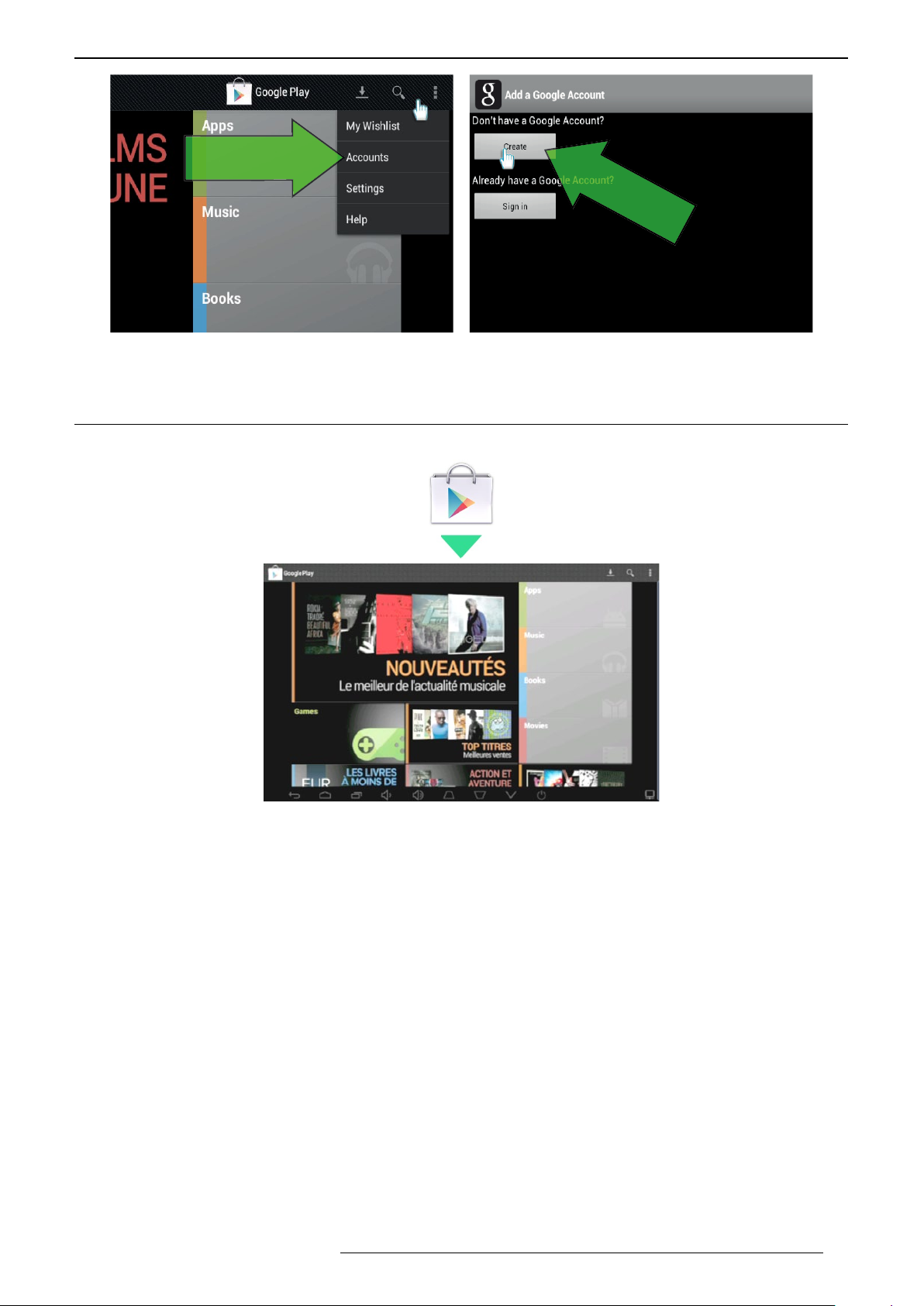

11.4 Creating a Google Account ..........................................................................................................22
11.5 Installing a new App .....................................................................................................................23
12.0 SETTINGSAPP ...................................................................................................................... 24

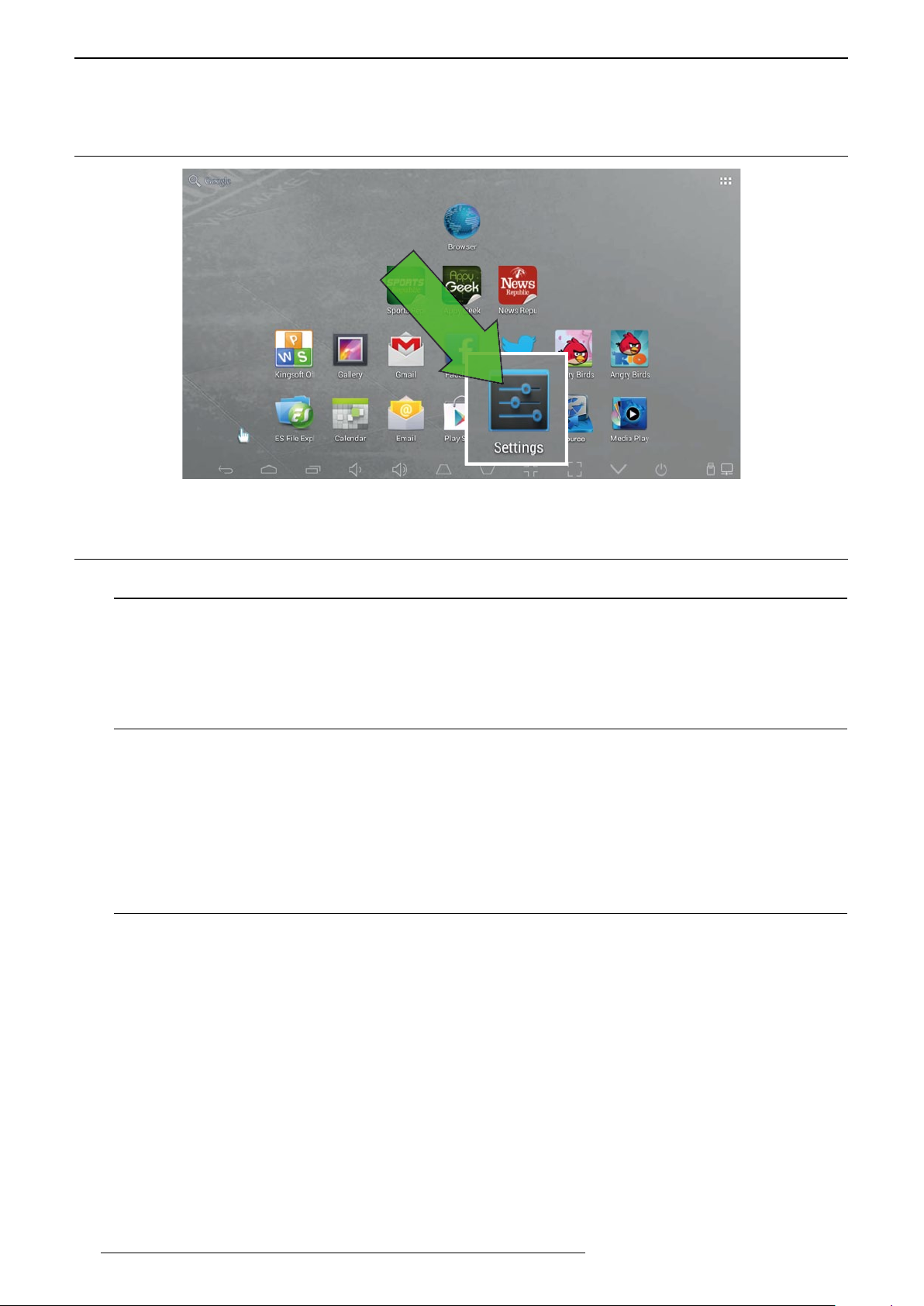

12.1 Launching the Settings App .........................................................................................................24
12.2 Menu Structure ............................................................................................................................. 24
12.3 Desktop settings ...........................................................................................................................25
R699831 - Dreamy Geek User Manual 3
12.4 Application Manager .................................................................................................................... 26
12.5 Network and Internet Settings ...................................................................................................... 26
12.6 Language Setting .......................................................................................................................... 27
12.7 Date and Time Setting ..................................................................................................................27
12.8 System Backup or Update ............................................................................................................27
12.9 Advanced Image Setting ..............................................................................................................27
12.10 Audio Setting ................................................................................................................................27
12.11 Video Setting ................................................................................................................................27
13.0 MAINTENANCE ................................................................................................................... 28
13.1 Clean Dirt .....................................................................................................................................28
13.2 Unexpected Behavior ...................................................................................................................28

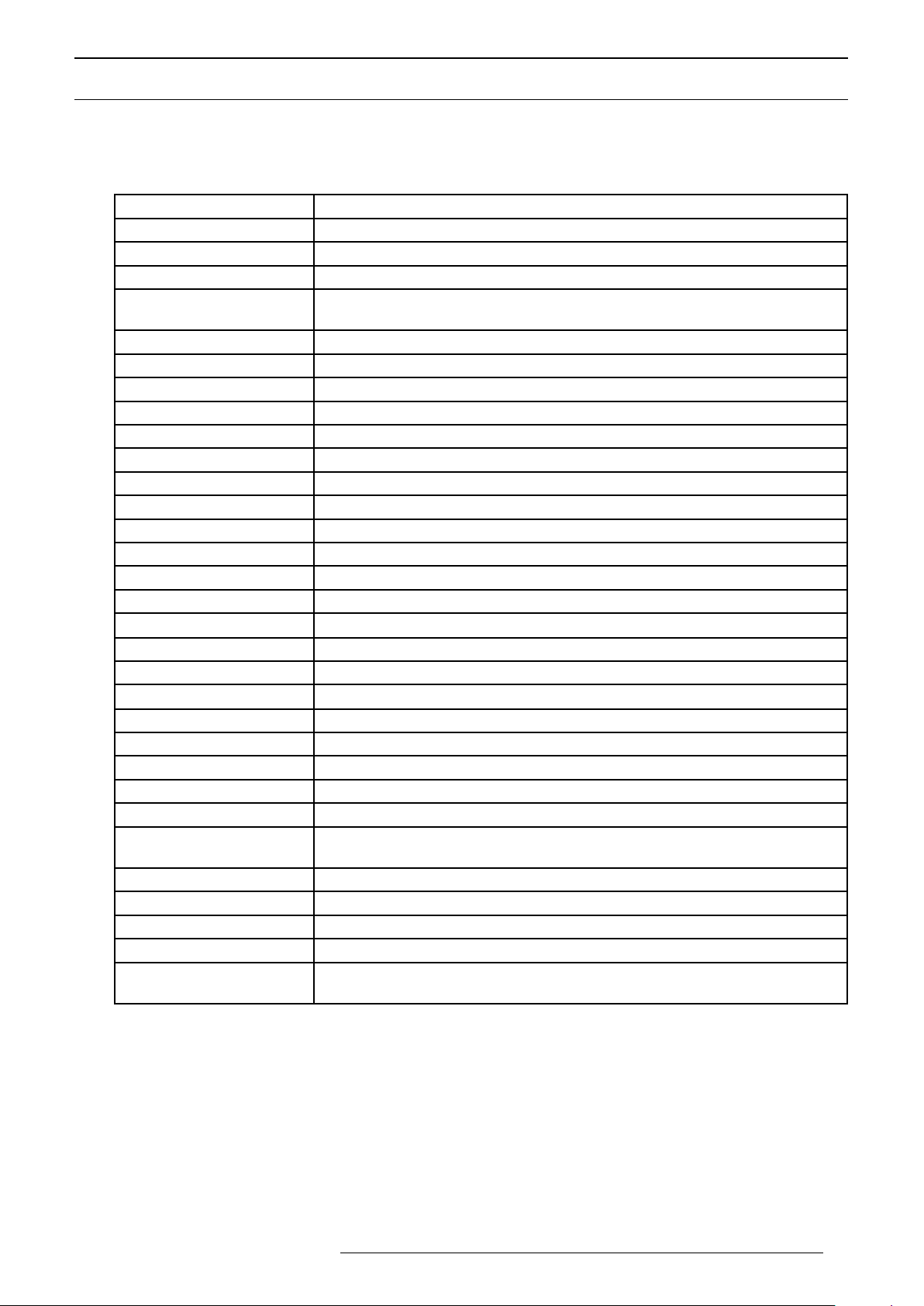

13.3 Specications................................................................................................................................29
Regional Specic Information
CE mark and Directive 2011/65/EU - ROHS 2 (Europe only)
In accordance with Article 7 and the adoption into national law by 2nd January 2013, this product has been
designed and manufactured in accordance with Article 4. The technical documentation and the written declaration
of conformity that assesses the product conformity can be provided to the competent National Authority upon an
email request to: rohs2@dreamvision.net
Information for Users on Disposal of Old Equipment
This symbol indicates that the electrical and electronic equipment should not be disposed as general
household waste at its end of life. Instead, the product should be handed over to the applicable
collection point for the recycling of electrical and electronic equipment for proper treatment, recovery
and recycling in accordance with your national legislation.
By disposing of this product correctly, you will help to conserve natural resources and will help
prevent potential negative effects on the environment and human health which could otherwise be caused by
inappropriate waste handling of this product.
For more information about collection point and recycling of this product, please contact your local municipal
ofce, your household waste disposal service or the shop where you purchased the product. Penalties may be
applicable for incorrect disposal of this waste, in accordance with national legislation.
Other Countries outside the European Union:
If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules
in your country for the treatment of old electrical and electronic equipment.
FCC Information (USA only)
Changes or modication not approved by Dreamvision could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
4
R699831 - Dreamy Geek User Manual
Important SafeguardS
1.0 IMPORTANT SAFEGUARDS
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to
assure your personal safety. IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE
HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules
for its installation, use and service.
The power input is auto-ranging from 100 to 240 VAC.
• Place this product near a wall outlet where the plug can be easily unplugged.
• Do not use this product near water and to prevent re or shock hazards, do not expose this appliance to rain
or moisture.
• Do not use immediately after moving from a low temperature to high temperature, as this causes condensation,
which may result in re, electric shock, or other hazards.
• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. The product should be mounted according to the
manufacturer’s instructions
• This product should be operated only with the type of power source indicated on the label. If you are not sure
of the type of power supply to your home, consult your product dealer or local power company.
• For added protection of this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to
the product due to lightning and power line surges.
• Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can
result in a risk of re or electric shock.
• Slots and openings are provided for ventilation to ensure reliable operation and to protect this unit from
overheating. These openings must not be blocked or covered.
• Never push objects of any kind into this product through openings as they may touch dangerous voltage
points or short out parts that could result in a re or electric shock. Never spill liquid of any kind on the product.
Slots and openings are provided for ventilation must not be blocked or covered. Do not place this unit
on a bed, sofa, rug or other similar surface.
• Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous
voltages and other hazards. Refer all service to qualied service personnel.
• Unplug this product from the wall outlet and refer service to qualied service personnel under the following
conditions:
a) When the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen on the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the Operation Manual, as an improper adjustment of controls may result in damage
and will often require extensive work by a qualied technician to restore the product to normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
• The product should be placed more than one foot away from heat sources such as radiators, heat registers,
stoves, and other products (including ampliers) that produce heat.
• When connecting other products such as VCR’s, and personal computers, you should turn off the power of
this product for protection against electric shock.
• Do not place combustible behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas
lighters that present special hazards when over heated.
• Do not face the projector lens to the sun. It can lead to re.
• Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching xture of the
projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal
injury.
• Use only the accessory cord designed for this product to prevent shock.
• The power supply voltage rating of this product is AC120 V, AC100 V – AC240 V, the power cord attached
conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure
Safety and EMC.
• Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult
R699831 - Dreamy Geek User Manual 5
InStaLLatIon guIdeLIneS
your product dealer.
• Never push objects of any kind into this product cabinet as they may touch dangerous voltage points or shortout parts that could result in a re or an electric shock.
Important Notice
Do not look into the projection lens while the illumination lamp is turned on. Exposure of your eyes to the
strong light can result in impaired eyesight.
2.0 INSTALLATION GUIDELINES
2.1 Introduction
This product is powered by a single HD-Ready DLP® chip with a native resolution of 1280 x 800 pixels. It
supports both Standard and HD video formats when used as a standard projection unit thanks to its 4 standard
Video Inputs:
• 2x HDMI with HDCP (supports HD resolutions including 1080p24/60)
• 1x Video (1x RCA)
• 1x PC-VGA (Sub D15)
The Dreamy Geek runs from an Android 4.0 Operating System then it can operate over 500,000 compatible
APKs from the Google Play market such as video games or internet & medias. Once connected to internet via
the Ethernet LAN or WiFi, the Dreamy Geek is able to read and to play streamed Audio/Video les such as AVI,
MP4 or MKV stored on USB keys, local servers and iOS devices.
These multimedia contents may be brought by one of the multimedia interfaces available:
• 3x USB
• 1x MicroSD (extension slot)
• 1x Ethernet (RJ-45)
• 1x WiFi (iEEE 802.11 n/b/g)
Thanks to the powerful 16W stereo loudspeakers (4x), the Dreamy Geek is a simple stand-alone solution
capable of video with audio playback.
2.2 Packaging
The box contains the following items:
• 1x Dreamy Geek HD-Ready LED projector
• 1x Power cord
• 1x Composite video cable (video with audio 3x RCA)
• 1x HDMI cable
• 1x Infrared Remote control
• 1x Wireless Keyboard and Air mouse
• 1x Quick start guide
There is no battery in the packaging, you need 2x batteries for the Remote Control and 3x for the
Wireless Keyboard and Air mouse.
2.3 Environment of Use
This unit must be installed with at least 5 cm clearance space from walls and requires a free ow of fresh air.
Prevent locations where temperatures may become excessively high, contains humidity, dust, or cigarette smoke
that will cause the unit to malfunction and shorten the electronic component life spans.
6
R699831 - Dreamy Geek User Manual
InStaLLatIon guIdeLIneS
50 mm
50 mm 50 mm
50 mm
Space requirements.
Do not install in places higher than 3000m/10000 feet or in a place exposed to direct sunlight as it may
overheat and cause this unit to stop functioning.
Precautions of Usage
This unit makes use of a light source that may reach high temperature during normal operation. Do not allow
projection under the following conditions:
• Projection with the unit laid on sides.
• Projection at a location that blocks the air inlets or exhaust vents.
2.4 Attaching the Unit
The Dreamy Geek comes with a standard centered 1/4”-20 camera xation thread that may be used to suspend
or attach this unit. Make sure during installation to allow sufcient space around the air inlets to avoid blocking
them.
This unit can be mounted on a camera tripod.
Precautions for Ceiling-mount
1/4”-20 thread
R699831 - Dreamy Geek User Manual 7
• Do not mount at places that may be subjected to vibration and shock.
• Depth of the screw hole is 5 mm, longer screw will damage the mounting thread.
• Install at a safe place in case this unit or a part of it may drop.
• Regardless whether the unit is still under guarantee, Dreamvision is not liable for any
product damage caused by improper installation.
InStaLLatIon guIdeLIneS
2.5 Projection Distance
Projection Distance Chart
The Dreamy Geek has a xed zoom lens with a throw ratio of 1.19:1
Projection Screen
Diagonal Size
(Aspect Ratio 16:10)
20” (51 cm) 17.0” (43 cm) 10.6” (27 cm) 51 cm
30” (76 cm) 25.4” (65 cm) 15.9” (40 cm) 77 cm
50” (127 cm) 42.4” (108 cm) 26.5” (67 cm) 128 cm
70” (178 cm) 59.4” (151 cm) 37.1” (94 cm) 179 cm
100” (254 cm) 84.8” (215 cm) 53.0” (135 cm) 256 cm
138” (350 cm) 117” (297 cm) 73.1” (186 cm) 354 cm
200” (508 cm) 170” (431cm) 106” (269 cm) 512 cm
231” (587 cm) 196” (498 cm) 122” (311cm) 592 cm
• The projection screen sizes and projecting distances in the table above are provided only as a guide. Please
use them as reference during installation.
• The distances are calculated for a projection image of 16:10 aspect ratio
Projection Screen
Base Size
(Aspect Ratio 16:10)
Projection Screen
Height
(Aspect Ratio 16:10)
Dreamy Geek
Projection Distance
2.6 Lens Offset and Picture Focus
Lens Offset
The optimum image can be obtained when this projector is place perpendicular to the projection screen. The lens
offset is xed to 50%, that means that the projector can be placed either at the top or at the bottom of the picture
as shown in the below picture.
This unit comes with a vertical offset xed to +50%. It means that the optimal position of this projector
is at the bottom or top of your screen. Placing the unit in one of these positions prevents the use of
electronic trapezoidal correction and will give the best picture quality.
If the projector is not installed perpendicularly to the screen, use keystone correction to fulll your screen. You can
also use up to +/- 30° up and down keystone correction. Note that using keystone correction is not recommended
if you want the best image quality.
Picture Focus
Adjust the picture focus with the focus adjustment tab located on the top cabinet of this unit as shown below.
8
R699831 - Dreamy Geek User Manual
remote ControL unIt (rCu)
Focus tab
Use the manual focus tab to obtain a sharp picture.
3.0 REMOTE CONTROL UNIT (RCU)
3.1 General View
POWER
Picture Mode / Sound Mode
Sceen capture / Source
Display [Menu]
PICMODE SOUND CAPTURE SOURCE
HOME
RETURNMENU
[Power] On / Standby
Return to main [Home] screen
[Return] to previous screen
[OK] to conrm selection
OK
FUNC
+
[Func] to hide display
[Mute] the volume
Multimedia buttons
Volume - Volume +
Keypad
MOUSE
VOL- VOL+
_
2ABC 3DEF
1.;/@
5JKL 6MNO4GHI
8TUV 9WXYZ7PQRS
01/A/a
The Remote Control Unit is used to power ON the projector from standby mode
• When pressing sequentially the [Picmod] button, you can change the active picture mode. Each picture mode
has a different brightness and color temperature to match the environment and content you are projecting:
Standard, Lightness, Soft and User.
• The [Sound] mode button changes the current acoustic rendition of the loudspeakers: Standard, Music,
Movie, News, User.
• Press [Capture] button to take a screenshot. The picture is stored onto the MicroSD card or the USB Key. The
save path is //sda1/Pictures/Screenshots.
• The [Source] button gives a quick access to Input source selection
The remote control unit can be used by having the signal reected off a screen, as the effect of signals
reected from the RCU differ with the type of screen used, operable distance may decrease.
R699831 - Dreamy Geek User Manual 9
WIreLeSS KeYBoard and aIr mouSe
3.2 Loading and replacing Batteries
a) Push the cover tab with the ngernail a little backwards and pull upwards the cover top. Slide the cover
forward to remove.
b) Push the battery body towards the spring and lift up to remove. Insert two AAA size batteries, making sure
the polarities match the + and - marks inside the battery compartment.
c) Insert the lower tab of the battery cover in the gap at the bottom of the remote control, and press the cover
until it is rmly closed.
If the remote control has to be brought closer to the projector to operate, it means that the batteries are
wearing out. When this happens, replace the batteries. Always insert the batteries according to the +
and - marks.
4.0 WIRELESS KEYBOARD AND AIR MOUSE
4.1 General View
The Wireless Keyboard and Air mouse is a standalone device working on 2.4 GHz radio-frequency. It is a
convenient alternative to the use of both a keyboard and a mouse without the need of a at surface or table. The
USB dongle is small and discrete once connected to a free USB port.
4.2 Connecting the Wireless Keyboard and Air mouse
The Wireless Keyboard and Air mouse uses 3x AAA batteries to operate and must be connected to the Dreamy
Geek using the dedicated USB dongle.
• Open the Wireless Keyboard bottom case and put 3x AAA batteries according to the + and - marks. Take out
the USB dongle.
USB dongle
Locate and pull out the USB dongle from its slot.
• Close the bottom case of the Wireless Keyboard
• Plug the USB dongle into a free USB slot of the Dreamy Geek.
• Press any key on the Wireless Keyboard to wake it up.
4.3 Switching between Keyboard and Air mouse Functions
The wireless control pad acts like a keyboard by default, simply click on the green Android icon to switch ON the
Air mouse function. Wave the Keyboard with the blue LEDs toward the screen to operate the Air mouse.
10
R699831 - Dreamy Geek User Manual
WIreLeSS KeYBoard and aIr mouSe
screen
LEDs
Press the Android Icon to activate the Air mouse function
the LEDs should be pointing toward the screen.
When the Air mouse function is active, the LEDs are continuously lit blue. When using the Air mouse,
the keyboard is also operational.
4.4 Keyboard keys and Functions
System Keys Home Key
Android Icon
Media Player Controls
Directionnal Keys
LEDs
Mouse Keys
Wireless Keyboard and Air mouse layout.
4.5 Troubleshooting
The Wireless Keyboard doesn’t work
If the Keyboard is not working, you should try to initialize communication with its USB dongle. To do so:
• Disconnect the USB dongle from the Dreamy Geek.
• Press and hold simultaneously the Up, Down and Enter keys until the blue LEDs on the bottom left side of
the Keyboard ash.
• Then connect back the USB dongle to the Dreamy Geek USB port and wait until the blue LEDs on the
Keyboard stop ashing and are lit state.
The Air mouse doesn’t work
If the Air mouse is not working:
• Verify that the batteries still have power by testing the Keyboard functions
• Make sure that the keyboard is working by testing the directional keys. The LEDs should lit when a button is
pressed.
• Press on the Android button (middle button of the Mouse Keys)
• The blue LEDs should be continuously lit up when the mouse is activated.
R699831 - Dreamy Geek User Manual 11
generaL VIeW
Projection lens Air out take
5.0 GENERAL VIEW
5.1 Control Panel and Operating LEDs
Temperature LED
Power button
Directional keys
Control panel and operating LEDs.
Control Panel Buttons
Button Description
Power To turn ON or OFF the projector
Home To navigate back to main “Home” screen
Up - down - left - right To navigate into the menus
OK To select or conrm action
Power LED
Home button
Func LED
OK button
Operating LEDs
Power (red) Temp (green) Func (Blue) Description
solid light OFF OFF Unit is in standby mode
cycling > cycling > cycling > Unit is switching ON
OFF OFF solid light Unit is in operation mode
solid light OFF OFF Unit is switching OFF until the fans stop
When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets or
exhaust vents by standing the projector on its end or laying it on its side.
5.2 Front View
Operating LED
12
Front view
R699831 - Dreamy Geek User Manual
5.3 Rear View
VGA/PC input HDMI 1 input
gettIng Started
Audio out (jack)
Power input
Rear view and input panel.
• Inputs: connect your video source to the correct input between HDMI 1, HDMI 2, Video (RCA) or VGA/PC.
• Power input: connect the power cord as shown in the next chapter.
HDMI 2 input
Micro-SD slot
Video input (RCA)
Audio input (R/L)
5.4 Side View
Loudspeakers
Ethernet (RJ-45)
Air intake
USB 1 slot
USB 2 slot
USB 3 slot
Side view and multimedia input slots.
• Multimedia inputs: insert USB devices or a Micro-SD card to read their A/V content.
6.0 GETTING STARTED
6.1 Connecting the Power Cord
• Before plugging in the Power Cord, ensure that all devices have been connected to
their respective inputs of this unit.
• Connect the power cord to the power input terminal of the projector.
CAUTION AGAINST FIRE AND ELECTRIC SHOCK.
Since the power consumption of this unit is high, insert the power plug directly into a wall outlet. Do not
use a power voltage different from that which is indicated. Do not cut, tear or modify the power cords.
Also, do not place a heavy object on, heat or stretch the power cords as this may cause damage to the
cords.
R699831 - Dreamy Geek User Manual 13
ConneCtIonS
6.2 Power ON
Ensure that the power cord is securely connected. The Power LED is red when in standby mode. Turn this unit
ON by pressing the Power button on the Control Panel for 3 seconds or by pressing the Power button on the
IR-RCU.
Power button
Press the Power button to power ON this unit.
6.3 Power OFF
To turn OFF this unit, press and hold for 3 seconds the Power button on the Control Panel or on the IR-RCU. You
may also press the Power OFF icon in the Status and Navigation Bar located at the bottom of the screen.
WAIT UNTIL COOLING CYCLE IS COMPLETE.
When switching this unit OFF, make sure that it completes its cooling cycle before disconnecting the
main power. Do not turn off the main power abruptly or unplug from the main power during operation.
Warning Indicators
The “Temp” LED indicator light green indicates that the projector has overheated. The projector will automatically
shut down. Wait at least 10 minutes before powering it ON again.
7.0 CONNECTIONS
7.1 Caution when connecting a Device to HDMI Input
14
Prior to connecting any device to this unit, switch the projector in standby mode. Never connect a HDMI
source to this unit when the projector is in operate mode. The HDMI termination is a self-powered
connection and can cause electric discharges.
R699831 - Dreamy Geek User Manual
ethernet and Internet SettIng
Audio Left
7.2 Connecting a Video Source to the Projector
VGA/PC
Audio/Video Connection Device to connect
HDMI 1, HDMI 2
(DVI compatible)
Video Composite
(1x Yellow RCA)
VGA / PC (Sub D-15) Computer, Multimedia box using VGA output.
HDMI or DVI-D sources: Blu-ray Disc player, DVD-player equipped with HDMI
output, Game Console, Computer with DVI-D output. The Audio signal is
embedded in the HDMI signal.
DVD-player, HDTV Receiver, Game Console, DVB-T receiver, Multimedia box,
Analog Camera.
NB: The additional 2x RCA (white and red) are used for Left and Right audio
respectively.
HDMI 1
HDMI 2
Video Composite
Audio Right
When using HDMI inputs, make sure to have Full-HD certied cables. Especially when the distance
between the different devices are longer than 5 meters, the use of a split system or optical ber cable
is highly recommended.
8.0 ETHERNET AND INTERNET SETTING
8.1 Network Connection
Ethernet / LAN
Connection Device to connect
Ethernet / LAN / Network Connect to a RJ45 wall plug, to a LAN switch or LAN rooter.
8.2 Network Information
Understanding the Network Installation
The Dreamy Geek can be connected to internet using any Ethernet plug available in your house. The Ethernet
plug must be itself connected to a switch or rooter with an available internet access. Generally, the internet access
is granted from a wealthy rooter connection. If you have trouble connecting to internet double check with your ISP
R699831 - Dreamy Geek User Manual 15
SeLeCtIng an audIo/VIdeo SourCe
(Internet Service Provider) that your connection is working. If you don’t have Ethernet plugs in your house, your
ISP would generally lend a modem used to log to the internet network. The modem has rooter capabilities and
Ethernet plugs that can be used to connect the Dreamy Geek to the internet.
Automatic or Fixed IP Address
The default setting is DHCP and it lets the rooter decides which IP is assigned to the Dreamy Geek. That means
that the IP address of this unit is not xed and may change after a reboot. Therefore, the access to this unit will
use the authentication name on the network.
If you plan to connect to your projector using programs that require a xed IP, you should set manually the
Network settings in the menu: Home Screen > Settings > Net and Location Settings > Wire Settings >Manual.
Make sure to use a valid IP address and to set the same subnet set as dened by the rooter network settings.
9.0 SELECTING AN AUDIO/VIDEO SOURCE
9.1 Select a Video Input from the Main Screen
• Turn the projector ON and wait until the menu appears on the screen.
• Check that your source is connected to a valid input (HDMI 1, HDMI 2, Video (RCA) or VGA/PC)
• Switch ON the source Blu-ray, DVD player, game console, etc.
• Go to the main page screen of the projector by pressing the “Home” button and launch the “Source” App to
select the active input.
Source App
Go to the main page by pressing the Home button
and launch the Source App by selecting the “Source” icon.
• `The current selected input is highlighted in yellow. If a “No Signal” warning is shown, make sure that your
source is correctly connected and is powered ON.
16
Select the correct input, the input selected is colored yellow.
If no signal is detected, a “No Signal” message shall appear.
R699831 - Dreamy Geek User Manual
SeLeCtIng an audIo/VIdeo SourCe
9.2 Picture Prole
Switching Picture Mode
The preset picture proles are available for any physical input: HDMI 1, HDMI 2, VGA/PC or Composite Video
(RCA). You can choose the most adapted prole to your light environment and to the movie ambiance. To do so:
• Click on the screen to pop up the Source Menu
• Select the “Menu” icon and slide left or right to select the desired picture prole.
Click on the screen to pop up the Source Menu, select the Menu option.
Slide up or down to select a setting, slide left or right to modify it.
Setting a Picture Prole
Choose one of the 5 picture proles available:
• Standard to obtain a bright and saturated picture, best for enlightened rooms.
• Cinema ts movie and theatrical representations.
• Natural is a prole that keeps the original color tints and settings.
• Sport optimized for Sport programs and TV shows.
• User, this prole can be tweaked to match user needs.
Slide down to modify the additional settings: Color Temperature, Aspect Ratio, Noise Reduction.
9.3 Sound Prole
From the Picture Prole menu, slide right or left to obtain the set the Sound Mode settings.
R699831 - Dreamy Geek User Manual 17
WIreLeSS pLaYBaCK WIth aIrpLaY
Select or slide down to modify the sound settings.
If there is no sound coming from the internal loudspeakers, make sure that the Audio settings have
been correctly set. Launch the Settings App, browse and set: Settings App > Audio Setting > External
Speakers >OFF.
10.0 WIRELESS PLAYBACK WITH AIRPLAY
The Dreamy Geek projector can use AirPlay communication protocol to stream wirelessly music, photo and video
from an Ipad, Ipod or Iphone.
10.1 Music Playback
Launch the Music application on your iDevice, when the Dreamy Geek is detected, an Airplay icon appears on
the bottom right of your iDevice screen.
Airplay icon
18
Press on the Airplay icon and choose in the list the Dreamy@IP to play your selection
R699831 - Dreamy Geek User Manual
WIreLeSS pLaYBaCK WIth aIrpLaY
When playing music with Airplay, you can access to the track list or any track from your album or play list.
10.2 Projecting Photos from the Camera Roll of your iDevice
Launch the Photos application.
Press on the Airplay icon to project the photos from your iDevice
To change the shown photo, you can slide left or right the album photos. You can also use the Slideshow function
to slide the photos automatically.
10.3 Projecting Movies and Podcasts from an iDevice
Launch the Videos application.
Airplay icon
Press on the Airplay icon to play the movie on the Dreamy Geek.
When your iDevice is connected and streaming a movie, you may use an available USB slot to keep the
battery charged.
10.4 Other Apps using AirPlay
There are numerous applications that support Airplay functionality to stream wirelessly audio, photo and video.
R699831 - Dreamy Geek User Manual 19
the androId InterfaCe
1
5
Check for the Airplay icon or on the features of each application available.
Airplay icon
Numerous Apps from the Apple market support Airplay such as Youtube , TV Apps, Video Games etc.
11.0 THE ANDROID INTERFACE
The Dreamy Geek comes with an embedded Android 4.0 OS (operating system) and is compatible with most
Apps available on the Android market.
11.1 Main “Home” Screen and Extended Home Screen
The “Home” screen is a customizable desktop that houses App shortcuts and widgets. To access the “Home”
screen, press the “Home” button located on the top cabinet of this unit or the “Home” button on the infrared RCU
or Wireless Keyboard and Air mouse. When the main page is populated with icons, folders and widgets, you can
add more items on extended screens. You can also navigate between different extended screens, by swiping the
screen left or right.
Structure of the Main Screens
20
4
3
2
4
R699831 - Dreamy Geek User Manual
the androId InterfaCe
1 - Google Search
Select “Google” to search text or App installed into this unit.
2 - Android Apps Shortcuts
The installed Apps can be easily accessed and displayed in this area. The shortcuts can be arranged on the
Home screen or the extended home screens.
• Moving an item to the home screen
Select an item from the home screen until the positioning grid lines appear, then slide it to the desired
location and release.
• Removing an item from the home screen
Select the item, slide toward the top of the screen and drop it over the Remove icon.
• Creating Apps folders
Select an App icon and drop it over another one, the two icons will be combined into a new folder.
• Widgets
Select the All Apps icon, select Widgets at the top of the screen. From the main Widget screen, you can
move around widgets just as you do for app icons.
• Changing the wallpaper
Select an empty space on the home screen and hold the OK button on the RCU.
• Switching OFF the LED lights
To quickly switch off the LEDs without rebooting the unit, use the IR-RCU and press [Func] button and
select “DLP lock”.
3 - Status and Navigation Bar
The Status and Navigation Bar area is dedicated to the display of notications, communication of device status.
This bar is displayed concurrently with running apps. But can be temporarily hidden with apps that display
immersing contents, such as movies or images.
The Status and Navigation Bar displays from left to the right:
Basic navigation controls (Back, Home, Recents buttons), Volume Up, Volume Down, Trapezoidal correction
Down, Trapezoidal correction Up, Hide this bar, Zoom Modes and Power Off.
On the right side are displayed pending notications; connectivity status or WiFi signal strength.
Back Home Recents Vol - Vol + Trap - Trap + Hide Power Off WiFi / LAN
You can temporarily hide the system bars to allow the user to enjoy full screen content without distraction
by pressing the Hide button.
Zoom Modes
4 - Navigating between the different Home Screens
You can navigate between the different Home screens by double tapping on the left and right areas or by swiping
the screen left or right.
5 - All Apps or Option Icons
Press the All Apps icon to show all the applications and widgets installed on this unit. When
the Option icon is present, press it to display all the available options for a specic application.
11.2 “All Apps” Screen
The All Apps screen lets you browse the entire set of Apps and widgets that are installed on your device. Users
can drag an App or widget icon from the All Apps screen and place it in any empty location on any Home screen.
Access the All Apps screen by clicking on the “All App” icon located on the top-right corner of the Home screen.
R699831 - Dreamy Geek User Manual 21
the androId InterfaCe
All Apps
shortcut
The “All Apps” screen shows all the App icons and widgets that can be installed on Home screens.
11.3 “Recents” Overlay
Recents button provides an efcient way of switching between recently used applications. It provides a clear
navigation path between multiple ongoing tasks.
6
The Recents display bar is overlayed over the current menu or running application. It displays the apps that has
been most recently interacted. They are organized in reverse chronological order with the most recently used app
at the bottom. The user can easily switch to an app by clicking on it.
You can remove an item from the Recents list by swiping left or right.
11.4 Creating a Google Account
By creating a google account, you can take full advantage of the Android system by installing and having access
to all the Google apps and services such as regional weather forecast, video games, movie market, music
download, TV replay content and much more.
Creating a new Google account or adding an account
• Launch the Google Play App.
• Go to Setting > Accounts > “Add a Google Account”.
22
R699831 - Dreamy Geek User Manual
the androId InterfaCe
• Select the account type “Google” to add.
• Follow the on screen steps to enter your detail information and password.
11.5 Installing a new App
With your Google Account, you can search and install the Apps from the Google Play market.
Google Play interface, the Apps market for android systems.
• Choose and install the App you want to install on your Dreamy Geek projector.
• From the All apps screen, select the installed item until the positioning gridlines appear then slide the shortcut
to any Home screen tab.
Uninstalling an App
From the All apps screen, select the item, slide it towards the top of the screen and drop it over the Uninstall bin.
R699831 - Dreamy Geek User Manual 23
SettIngS app
12.0 SETTINGS APP
12.1 Launching the Settings App
Settings App
From the Home screen, launch the Settings App
12.2 Menu Structure
SETTING MENU SUBMENU AVAILABLE OPTIONS
Launch Settings App Desktop settings Wallpaper Select
Sleep 15s, 30s, 1min, 2min
5min, 10min
Font Size small, common, big
Big Font Size Off, On
Click Sound Off, On
Visible Password Off, On
Application manager Application Settings
Allowed to install APKs On, Off
The preferred install position
Default
Internal
External
All Apps Display Installed Apps
SDcard Apps Display Apps on SD
Internal storage space used, total
SDcard storage space used, total
Net and Location setting
(right click on mouse to exit)
Net State
Wire setting
Automatic acquisition IP On, Off
IP address
subnet mask
default gateway
First DNS
Second DNS
Wireless setting
WiFi On, Off
SSID
Automatic acquisition IP On, Off
IP address
subnet mask
default gateway
rst DNS
second DNS
24
R699831 - Dreamy Geek User Manual
SettIngS app
Net and Location setting
(right click on mouse to exit)
Language setting Language setting
Date and Time setting Calibrate the date and time online On, Off
System Backup or update System update Online, Local update
Advanced image setting Keystone Correction -50 +50
Audio setting Tremble 0 - 100
Video setting Brightness 0 - 100
About (information) Model
PPPoE
PPPoE connection
username
password
show password On, Off
PPPoE connection status
WiFi direct
WLAN Direct Device Discover
Location Service
Google location services On, Off
Default input method
Input method setting
Date
Time
Time Zone
24 hours time format
Date format
System Information
Restore factory
Vertical Flip No, Yes
Horizontal Flip No, Yes
Red Gain 0 - 100
Green Gain 0 - 100
Blue Gain 0 - 100
Focus Adjustment
Vertical 0 - 100
Horizontal 0 - 100
Bass 0 - 100
External speaker On, Off
Sound Mode Standard, Music
Movie, News, User
Contrast 0 - 100
Color 0 - 100
Sharpness 0 - 100
Color Temp Cool, Nature, Warm, User
System version
Memory information
12.3 Desktop settings
Wallpaper
Enter the Wallpaper submenu to change the picture used in the background. The screen dialog prompts the user
to select a source for a new wallpaper.
Sleep
You can congure the eco function that will switch off the projector when there is no operation or after a determined
timer. Choose the duration of the timer between: never, 15sec, 30sec, 1min, 2min, 5min and 10min.
Font Size and Big Font Size
Select how big the font will be displayed at the screen.
R699831 - Dreamy Geek User Manual 25
SettIngS app
Click Sound
Select the to set or to mute the click sound.
Visible Password
When set to ON, the password will be displayed un-encrypted during typing to avoid mistakes.
12.4 Application Manager
Application Setting
Allowed to install APKs: when set to ON, the Operating System allows the APKs to be installed. The APKs will
be installed in the internal storage (MicroSD card) or external storage (USB key). The default location is MicroSD
card if there is enough free space, USB key otherwise.
All Apps
This sub menu displays all the installed applications and a detailed memory space usage.
SDcard Apps
This sub menu displays all the installed applications installed on the SD card.
Removing an App shortcut from the main “Home” screen does not uninstall the App. To completely
uninstall an App, the user should log into Google Play market and uninstall the desired Apps from there.
12.5 Network and Internet Settings
Net State
Displays information about the current state of the LAN connexion.
Wire Setting (LAN)
It is better to use a wired connection to connect the Dreamy Geek to your LAN if you plan to stream or watch HD
videos. This sub menu let you choose between automatic or manual conguration of the LAN parameters. When
set to manual, ll the empty elds with the correct parameters to connect this unit to your LAN.
The network settings may have to be modied in the projector’s network menu to match your current LAN
network.
• Automatic acquisition IP (DHCP Client): When set to ON, the projector’s IP address will be automatically set
by the DHCP server on the LAN.
• IP Address: Sets the IP (Internet Protocol) address of the projector. A valid address must be set for this unit.
• Subnet Mask: Sets the Subnet Mask
• Default Gateway: Sets the Default IP Gateway of the projector.
• MAC Address: A 6 byte hex number that uniquely identies the projector on the LAN. The value is unique to
each individual unit on the LAN network.
Wireless Setting (WLAN using WiFi)
If you cannot use the Ethernet (wired) connection to connect the Dreamy Geek to internet, you may congure the
WiFi to connect to the LAN. Using Wireless LAN (WLAN) instead of LAN may consequently reduce the network
bandwidth and the quality of streaming videos.
Refer to your ISP contract or to the modem user manual to determine if you can use a WiFi connection. If you
have a working WiFi network, browse into the Dreamy Geek Settings App > Net and Location Settings > Wireless
Settings and choose the correct WiFi SSID corresponding to your home network. You can also manually set the
IP when using the WiFi network settings.
PPPoE
This sub menu allows you to congure this unit to directly connect to your ISP network. Use the login and
password given by your ISP to ll the empty elds.
WiFi Direct
The WiFi direct let’s the user to easily share content between any Android device with this unit. Select the
26
R699831 - Dreamy Geek User Manual
SettIngS app
discover button to search an available Android device.
12.6 Language Setting
Select the correct language for the OSD and set the correct setting for the input method.
12.7 Date and Time Setting
Activate the automatic calibration of the time and date using online connection or set them manually. Manual
settings available: Date, Time and time Zone. Display options: 24 hours format, date format.
12.8 System Backup or Update
System update method: online or local update.
System information: current operating version.
Restore factory: use the reset factory to restore the Dreamy Geek settings to default. Note that all the installed
APK and system settings will be lost.
12.9 Advanced Image Setting
Keystone Correction
Compensate for trapezoidal distortion caused by installation. Independently to the screen orientation, make sure
that the projector is not tilt more than 20% perpendicularly to the screen. Vertical Keystone from -50 to +50.
Vertical Flip
This setting ips vertically the projected picture in cases where this unit is installed at the ceiling or similar position.
Horizontal Flip
This setting ips horizontally the projected picture in rear-projection installs where the picture is directly watched
on a transparent screen.
Red, Blue and Green Gains
Each color channel of the projected picture can be individually set to obtain a desired color temperature. You can
congure a low color temperature that implies warmer ambiance (more yellow/red) or a high color temperature
implies a colder light (more blue).
Focus Adjustment (electronic)
You can nely tune the electronic focus to perfectly t the surface of your screen or projection surface.
12.10 Audio Setting
The advanced audio setting gives access to the audio output on the loudspeakers. You can set the audio Bass,
Tremble and/or to choose a specic sound mode.
External Speakers
The External Speakers submenu can mute the Jack stereo audio output on its 3.5mm jack stereo. Set it to ON if
you don’t want to listen to music or movies from the integrated loudspeakers. Default setting is OFF.
Sound Modes
Choose a sound mode. Available options: Standard, Music, Movie, News, User.
12.11 Video Setting
Brightness
The brightness function is used to adjust the overall light output. Adjust the Brightness value between 0 and 100.
R699831 - Dreamy Geek User Manual 27
maIntenanCe
Contrast
The contrast function is used to adjust the contrast between the light and dark areas of the displayed image. A
correct contrast setting is important for good image reproduction. Adjust the Contrast value between 0 and 100.
Color
The Color function is used to adjust the saturation levels. Adjust the Color value between 0 and 100.
Sharpness
The Sharpness function is used to adjust the image sharpness of the picture. Adjust the Sharpness value between
0 (soft) and 100 (sharper).
Color Temp
The Color Temp adjustment sets the color temperature of the picture. Cooler temperatures are more bluish and
warmer temperatures are more reddish. Select the best setting between Cool, Nature, Warm and User.
13.0 MAINTENANCE
13.1 Clean Dirt
Dirt on the Cabinet
Always use a soft cloth. In case of heavy soiling, soak a cloth in neutral detergent diluted with water, wring dry
and wipe, followed by wiping again using a dry cloth.
Pay attention to the following as the cabinet may deteriorate in condition, get damaged or paint may
come off:
-Do not wipe with a stiff cloth.
-Do not wipe with force.
-Do not wipe with thinner or benzene.
Dirt on the Lens
The lens shall be cleaned using commercial blowers or lens cleaning papers (for cleaning glasses and cameras).
Do not use uid-type cleaning agents. The lens surface is fragile. Avoid rubbing it hard or knocking.
13.2 Unexpected Behavior
The Unit is unresponsive and/or the Temp LED is solid green
In a few cases, this unit may not respond to the remote control or may display a wrong picture. Make sure that
the batteries used in the remote control have still some power in it.
If the problem persists, try to switch OFF this unit and wait at least 10 minutes before powering it ON again.
Video is playing but there is no Sound
If there is no sound coming from the internal loudspeakers, make sure that the Audio settings have been correctly
set. Launch the Settings App, browse and set: Settings App > Audio Setting > External Speakers >OFF. Make
sure that the HDMI source is set to send audio through the HDMI input, and if you are using the VGA/PC or Video
inputs, make sure to have the audio cable correctly connected to this unit using the Audio L/R inputs (white and
red RCA connectors). Please note that the Stereo Jack 3,5mm may be used only as an audio output.
28
R699831 - Dreamy Geek User Manual
maIntenanCe
13.3 Specications
Overview
The Dreamy Geek projection device is based on a DLP WXGA DarkChip 3 and Android 4.0 Ice-Cream Sandwich
operating system
Emission method Darkchip 3 DLP
Display panel size 0.45” Darkchip 3
Native Resolution 1280 x 800 pixels
Contrast ratio 2000:1
Projection lens Full glass xed ratio 1.19:1
Manual focus
Brightness 500 ANSI Lumens
Light source life time LED illumination system - 30,000 hours
Screen size 10” to 200” (Aspect ratio 16:10)
Distance range from 50cm to 400cm
Inputs:
Composite Video 3x RCA (Video and Left/Right Audio)
VGA (Computer) D-sub 15 pins
HDMI 1 input version 1.3 with HDCP and audio
HDMI 2 input version 1.3 with HDCP and audio
Outputs:
Loudspeakers 16W Stereo (4x speakers)
Stereo Jack 3.5mm jack
Operating System Android 4.0 Ice Cream Sandwich
Processor Dual Core 1GHz with 768 Mo of RAM
Capacity 2GB ash memory
Extension memory 16GB up to 64GB with optional microSD card
Connectivity:
USB 3x USB ports
Ethernet 1x Ethernet port (RJ45)
WiFi 1x IEEE 802.11 n/b/g (WLAN)
Power Requirements 100V - 240V AC, 50Hz/60Hz
Power Consumption <33W at max brightness
<1W in Standby mode
Unit size (W x D x H) 190 x 125 x 70 mm - 7.48” x 4.92” x 2.75”
Net Weight 0.95 Kg - 2.1 lbs
Box size (W x D x H) 253 x 233 x 110 mm - 9.95” x 9.17” x 4.33”
Gross Weight 2,0 Kg - 4.4 lbs
Operation Environment Temperature: 5°C to 35°C (Storage Temperature: -10°C to 60°C)
Humidity: 20% to 80% without condensation
• Design and specications are subject to change without prior notice.
• Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized
in order to aid comprehension. Images may differ from the actual product.
R699831 - Dreamy Geek User Manual 29
maIntenanCe
Dimensions
70 mm
125 mm
190 mm
70 mm
100 mm
