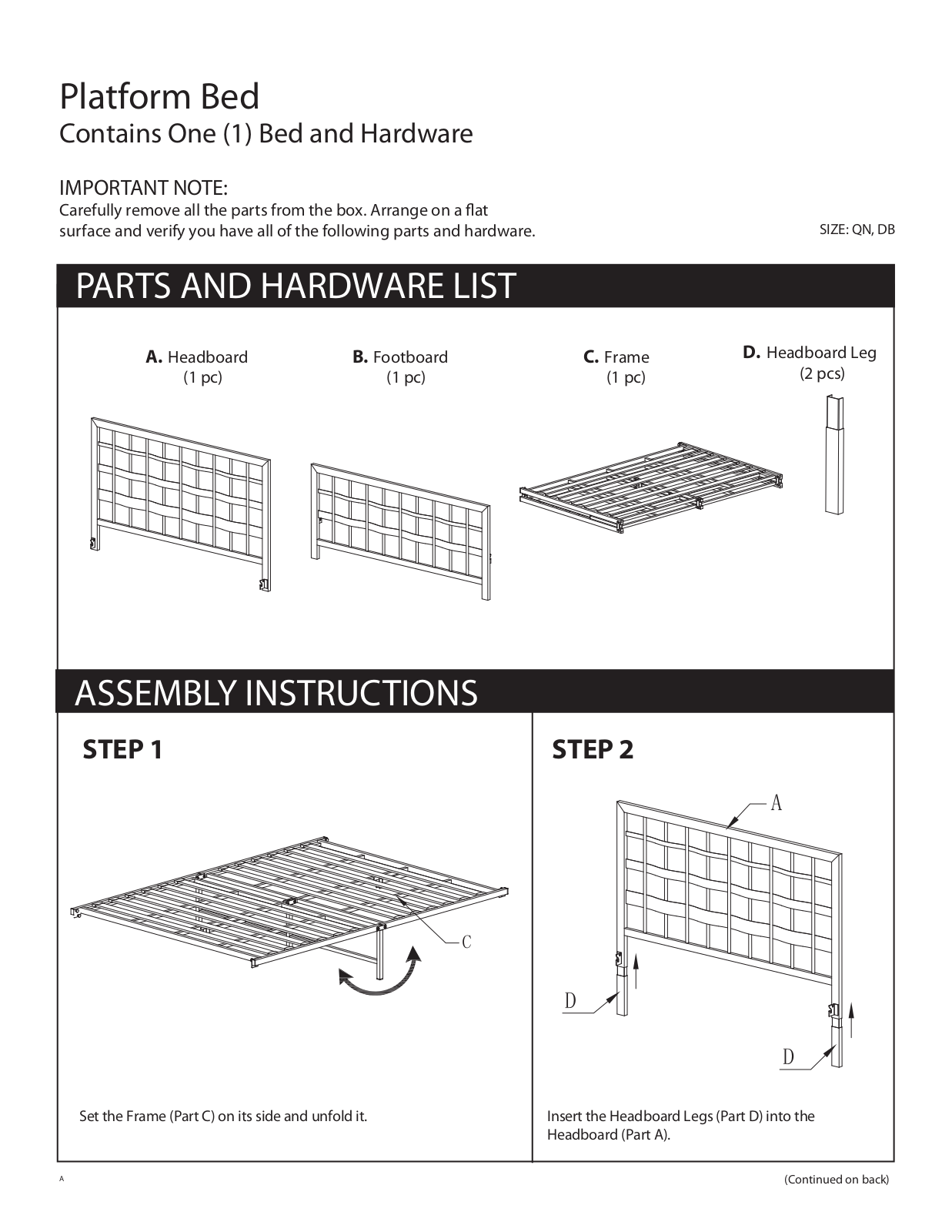

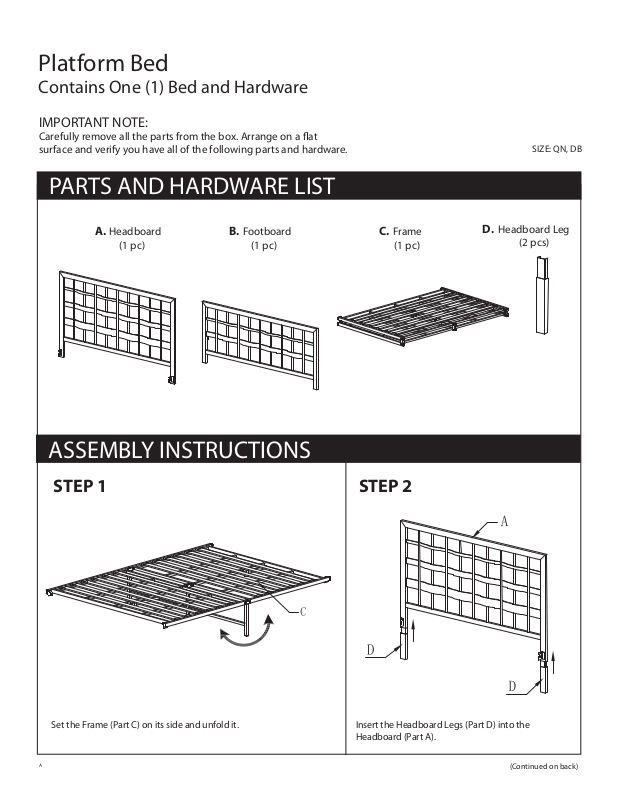

Platform Bed

Contains One (1) Bed and Hardware

IMPORTANT NOTE:

Carefully remove all the parts from the box. Arrange on a at
surface and verify you have all of the following parts and hardware.

PARTS AND HARDWARE LIST

Headboard

A.

(1 pc)

Footboard

B.

(1 pc)

C. Frame

(1 pc)

Headboard Leg

D.

(2 pcs)

SIZE: QN, DB

ASSEMBLY INSTRUCTIONS

STEP 1 STEP 2

Set the Frame (Part C) on its side and unfold it. Insert the Headboard Legs (Part D) into the

Headboard (Part A).

A

(Continued on back)

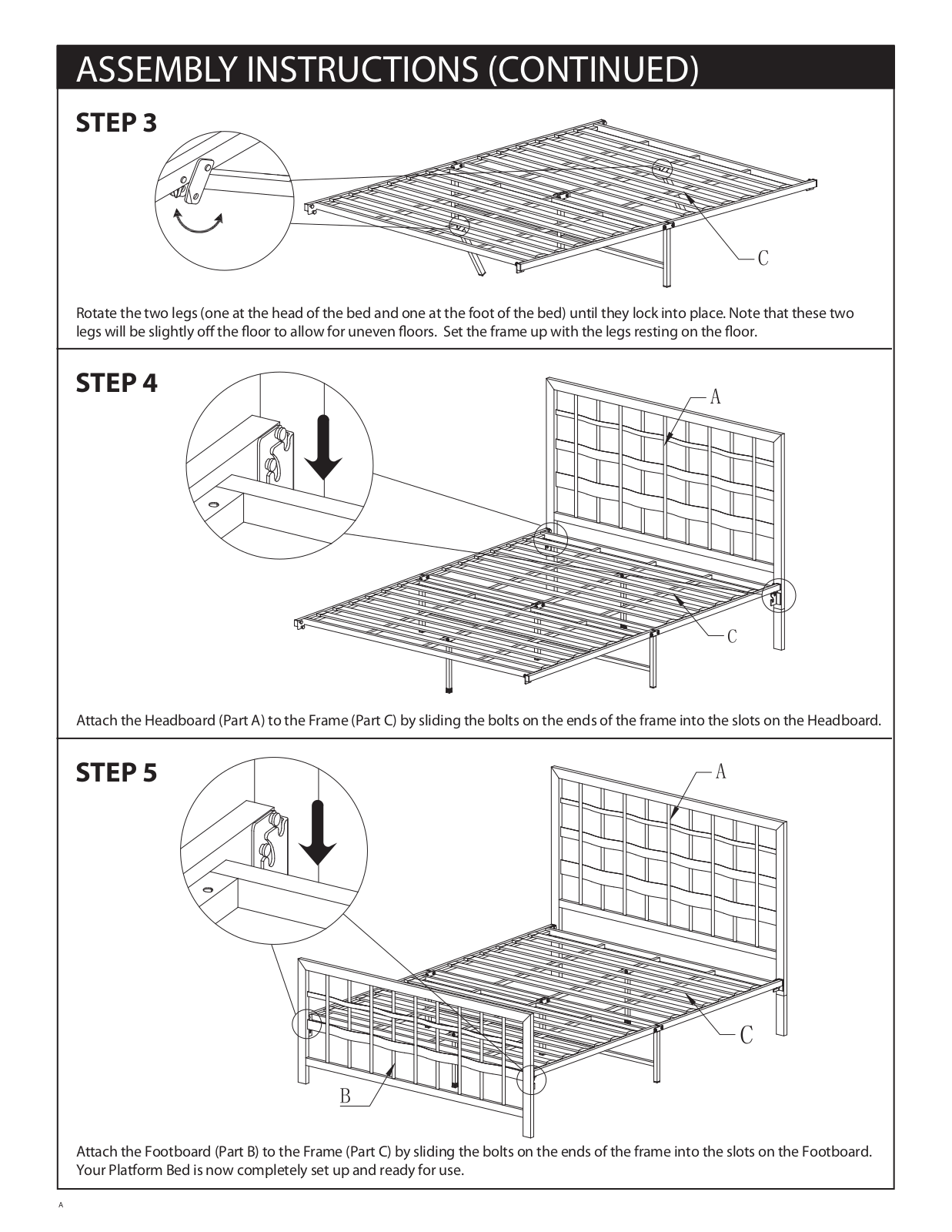

ASSEMBLY INSTRUCTIONS (CONTINUED)

STEP 3

Rotate the two legs (one at the head of the bed and one at the foot of the bed) until they lock into place. Note that these two
legs will be slightly o the oor to allow for uneven oors. Set the frame up with the legs resting on the oor.

STEP 4

Attach the Headboard (Part A) to the Frame (Part C) by sliding the bolts on the ends of the frame into the slots on the Headboard.

STEP 5

Attach the Footboard (Part B) to the Frame (Part C) by sliding the bolts on the ends of the frame into the slots on the Footboard.
Your Platform Bed is now completely set up and ready for use.
