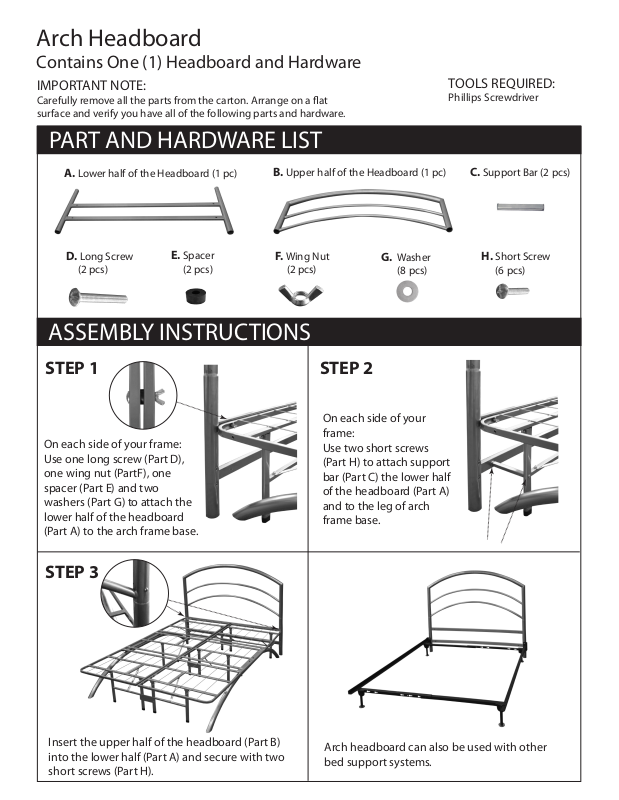

Dream Support DSVHEADBCK User Manual

Arch Headboard

Contains One (1) Headboard and Hardware

IMPORTANT NOTE:

Carefully remove all the parts from the carton. Arrange on a at
surface and verify you have all of the following parts and hardware.

PART AND HARDWARE LIST

A. Lower half of the Headboard (1 pc)

D. Long Screw

(2 pcs)

E. Spacer

(2 pcs)

B. Upper half of the Headboard (1 pc)

F. Wing Nut

(2 pcs)

ASSEMBLY INSTRUCTIONS

STEP 1

STEP 2

G. Washer

(8 pcs)

TOOLS REQUIRED:

Phillips Screwdriver

C. Support Bar (2 pcs)

H. Short Screw

(6 pcs)

On each side of your frame:
Use one long screw (Part D),
one wing nut (PartF), one
spacer (Part E) and two
washers (Part G) to attach the
lower half of the headboard
(Part A) to the arch frame base.

STEP 3

On each side of your
frame:
Use two short screws
(Part H) to attach support
bar (Part C) the lower half
of the headboard (Part A)
and to the leg of arch
frame base.

Insert the upper half of the headboard (Part B)
into the lower half (Part A) and secure with two
short screws (Part H).

Arch headboard can also be used with other
bed support systems.
