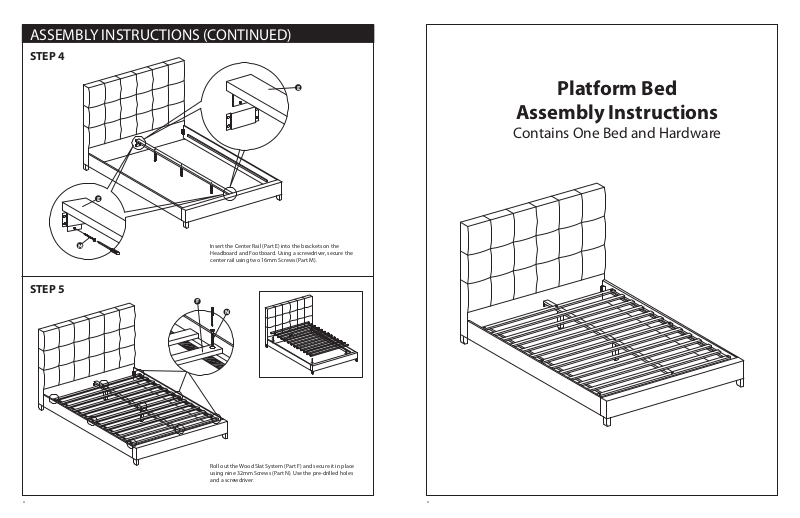

Dream Support DSSANDDB User Manual
ASSEMBLY INSTRUCTIONS (CONTINUED)
STEP 4
E
Platform Bed
Assembly Instructions
Contains One Bed and Hardware
E
M
Insert the Center Rail (Part E) into the brackets on the
Headboard and Footboard. Using a screwdriver, secure the
center rail using two 16mm Screws (Part M).
STEP 5
F
N
Roll out the Wood Slat System (Part F) and secure it in place
using nine 32mm Screws (Part N). Use the pre-drilled holes
and a screwdriver.
A A
IMPORTANT NOTE:
Carefully remove all the parts from the box. Arrange on a at
surface and verify you have all of the following parts and hardware.
TOOLS REQUIRED:
Phillips Screwdriver
ASSEMBLY INSTRUCTIONS
STEP 1
PARTS LIST
A. Headboard Top (1 pc) B. Footboard (1 pc) C. Side Rail (2 pcs)
A1
D. Leg (4 pcs)
F. Wood Slat System (1 pc)
A2
E. Center Rail (1 pc)
G. Center Leg (3 pcs)
A2
A1
A1
D
Assemble the Legs (Part D) to the Headboard (Part A1) by turning the Legs clockwise
until tight. Assemble Headboard Top (Part A2) to Headboard bottom (Part A1) using
three 40mm Bolts (Part H), three Spring Washers (Part I) and three Flat Washers (Part J).
Use the small Hex Key (Part K) to secure the bolts.
STEP 2
STEP 3
K
H
I
J
HARDWARE LIST
H. 40mm Bolt
(6 pcs)
K. Small Hex Key
(1 pc)
L. Large Hex Key
(1 pc)
I. Spring Washer
(3 pcs)
M. 16mm Screw
(2 pcs)
J. Flat Washer
(3 pcs)
N. 32mm Screw
(9 pcs)
B
D
K
H
E
G
Secure the Legs (Part D) into the Footboard (Part B) by turning
the Legs clockwise until tight. Attach the Center Legs (Part G) to
the Center Rail (Part E) using three 40mm Bolts (Part H). Secure
the bolts using the small Hex Key (Part K).
L
C
C
Attach the siderails (Part C) to the Headboard (Part A) and the
Footboard (Part B) by hanging the siderails onto the pre-attached
bolts on the Headboard and Footboard. Tighten the bolts using
the large Hex Key (Part L).
A
A
(Continued on back)
