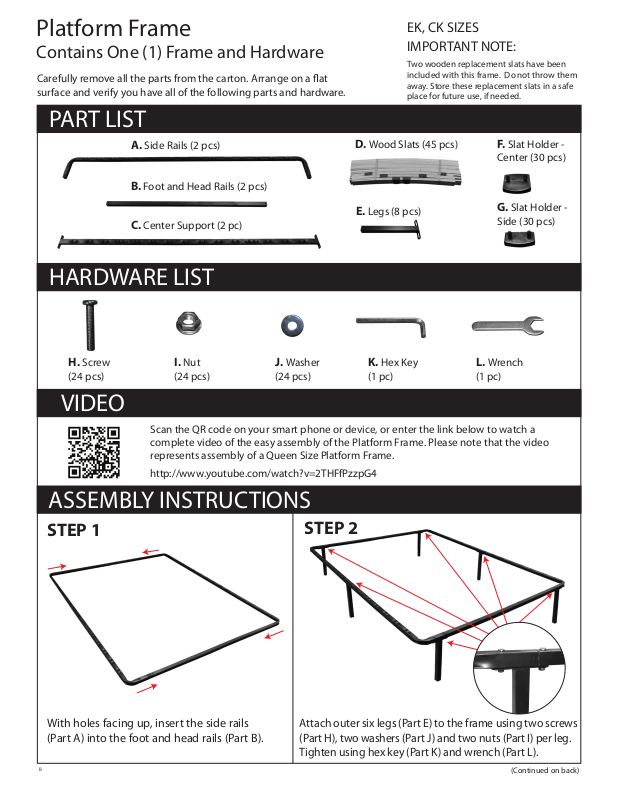

Dream Support DSMODECK, DSMODEEK User Manual

Platform Frame

Contains One (1) Frame and Hardware

Carefully remove all the parts from the carton. Arrange on a at
surface and verify you have all of the following parts and hardware.

PART LIST

EK, CK SIZES
IMPORTANT NOTE:

Two wooden replacement slats have been
included with this frame. Do not throw them
away. Store these replacement slats in a safe
place for future use, if needed.

A. Side Rails (2 pcs)

B. Foot and Head Rails (2 pcs)

C. Center Support (2 pc)

HARDWARE LIST

H. Screw

(24 pcs)

I. Nut

(24 pcs)

VIDEO

Scan the QR code on your smart phone or device, or enter the link below to watch a
complete video of the easy assembly of the Platform Frame. Please note that the video
represents assembly of a Queen Size Platform Frame.

J. Washer

(24 pcs)

D. Wood Slats (45 pcs)

E. Legs (8 pcs)

K. Hex Key

(1 pc)

F. Slat Holder -

Center (30 pcs)

G. Slat Holder -

Side (30 pcs)

L. Wrench

(1 pc)

http://www.youtube.com/watch?v=2THFfPzzpG4

ASSEMBLY INSTRUCTIONS

STEP 1

With holes facing up, insert the side rails
(Part A) into the foot and head rails (Part B).

B

STEP 2

Attach outer six legs (Part E) to the frame using two screws
(Part H), two washers (Part J) and two nuts (Part I) per leg.
Tighten using hex key (Part K) and wrench (Part L).

(Continued on back)

ASSEMBLY INSTRUCTIONS (CONTINUED)

STEP 3 STEP 4

Attach two remaining legs (Part E) to the center
supports (Part C) using two screws (Part H), two
washers (Part J) and two nuts (Part I) per leg.
Tighten using hex key (Part K) and wrench (Part L).

STEP 5

Put center slat holders (Part F) on each side of the
12 single slats (Part D).

Put center slat holders (Part F) on each side of the

3 double slats (Part D).

STEP 7

Attach the center supports from Step 3 to the frame
from Step 2 using two screws (Part H), two washers
(Part J) and two nuts (Part I) for each connection point.
Tighten using hex key (Part K) and wrench (Part L).

STEP 6

Attach slats to the center section of the frame by
pressing the pegs into the holes. Double slats are
installed in the middle.

STEP 8

Put side slat holders (Part G) on one side of the
24 remaining single slats (Part D).

Put side slat holders (Part G) on one side of the
6 remaining double slats (Part D).

B

Attach slats to the side sections of the frame.
Double slats are installed in the middle. By moving
the blue sliders on the double slats closer together
you can make the middle section plusher, and by
moving them apart - make it rmer.
