Dream Support DSMCMSRDB Assembly Guide

Platform Bed

Contains One (1) Bed and Hardware

IMPORTANT NOTE:

Carefully remove all the parts from the box
surface and verify you have all of the following parts and hardware.

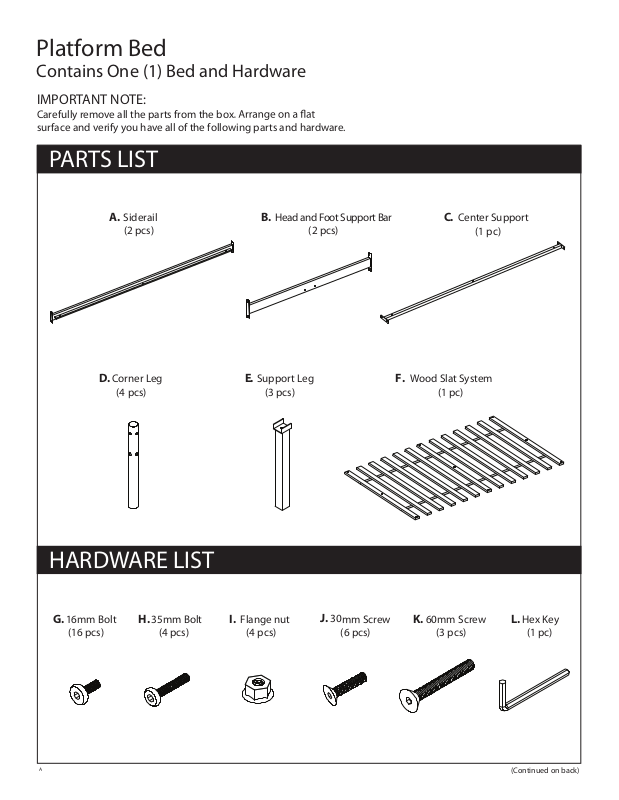

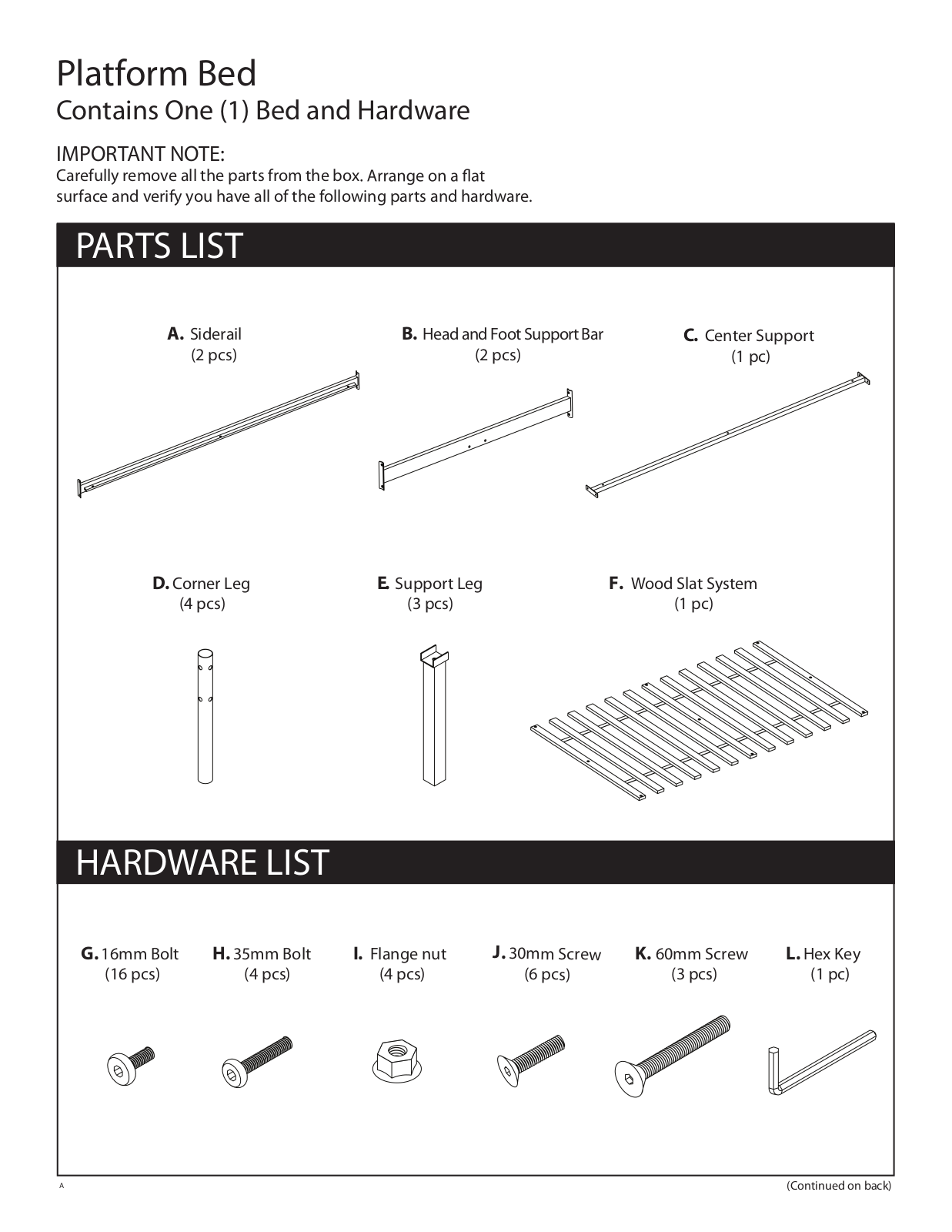

PARTS LIST

Siderail

A.

(2 pcs)

Corner Leg

D.

(4 pcs)

Head and Foot Support Bar

B.

(2 pcs)

Support Leg

E.

(3 pcs)

C.

(1 pc)

Wood Slat System

F.

(1 pc)

Center Support

HARDWARE LIST

G. 16mm Bolt

(16 pcs)

A

H. 35mm Bolt

(4 pcs)

I. Flange nut

(4 pcs)

J.

30mm Screw

(6 pcs)

K. 60mm Screw

(3 pcs)

L. Hex Key

(1 pc)

(Continued on back)

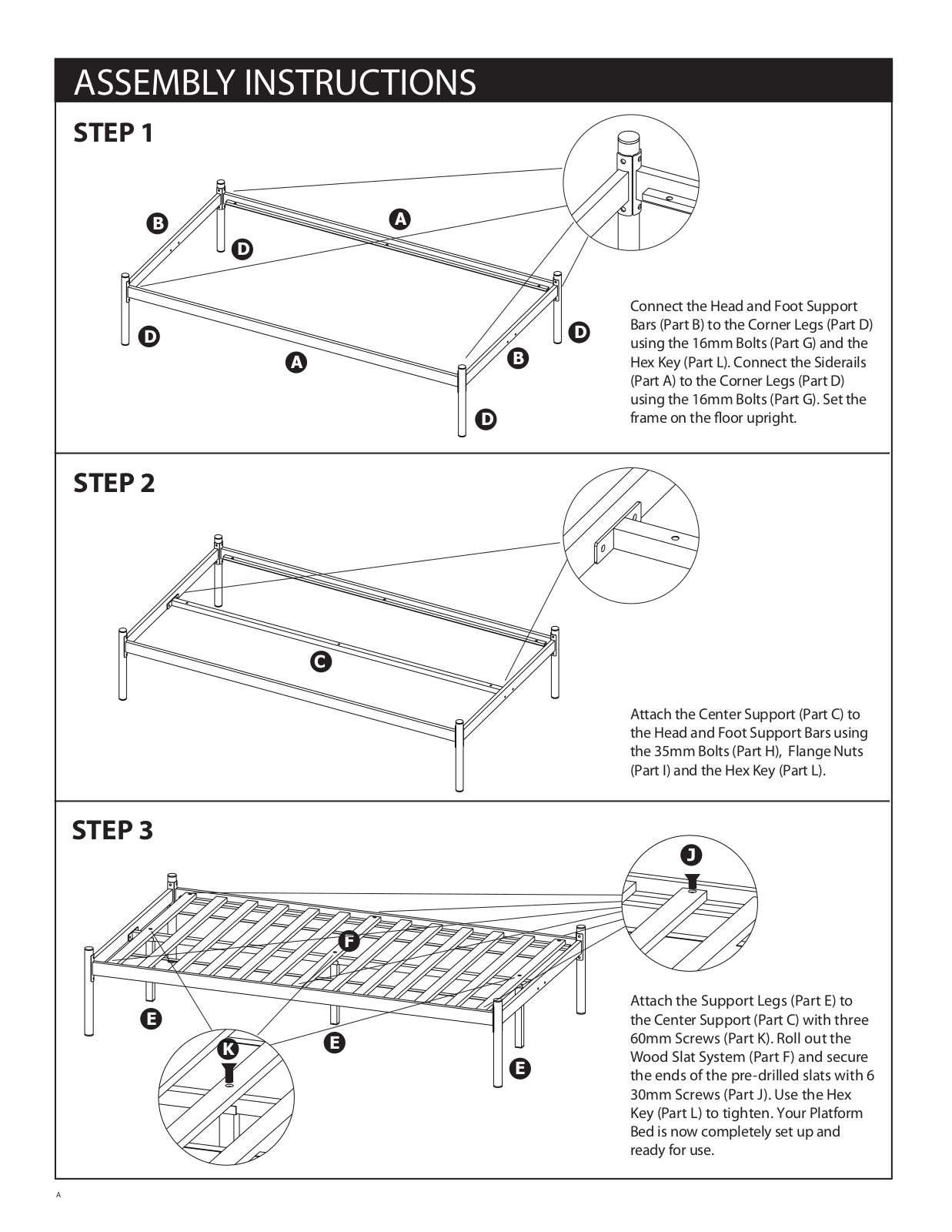

ASSEMBLY INSTRUCTIONS

STEP 1

STEP 2

D

B

D

A

C

A

Connect the Head and Foot Support

D

B

D

Bars (Part B) to the Corner Legs (Part D)
using the 16mm Bolts (Part G) and the
Hex Key (Part L). Connect the Siderails
(Part A) to the Corner Legs (Part D)
using the 16mm Bolts (Part G). Set the
frame on the oor upright.

STEP 3

Attach the Center Support (Part C) to
the Head and Foot Support Bars using
the 35mm Bolts (Part H), Flange Nuts
(Part I) and the Hex Key (Part L).

J

F

Attach the Support Legs (Part E) to

E

K

E

E

the Center Support (Part C)
60mm Screws (Part K). Roll out the
Wood Slat System (Part F) and secure
the ends of the pre-drilled slats with 6
30mm Screws (Part J). Use the Hex
Key (Part L) to tighten.
Bed is now completely set up and
ready for use.

with three

Your Platform

A
