Dream Support DSDILLQN User Manual

Platform Bed

Contains One (1) Bed and Hardware

IMPORTANT NOTE:

Carefully remove all the parts from the box
surface and verify you have all of the following parts and hardware.

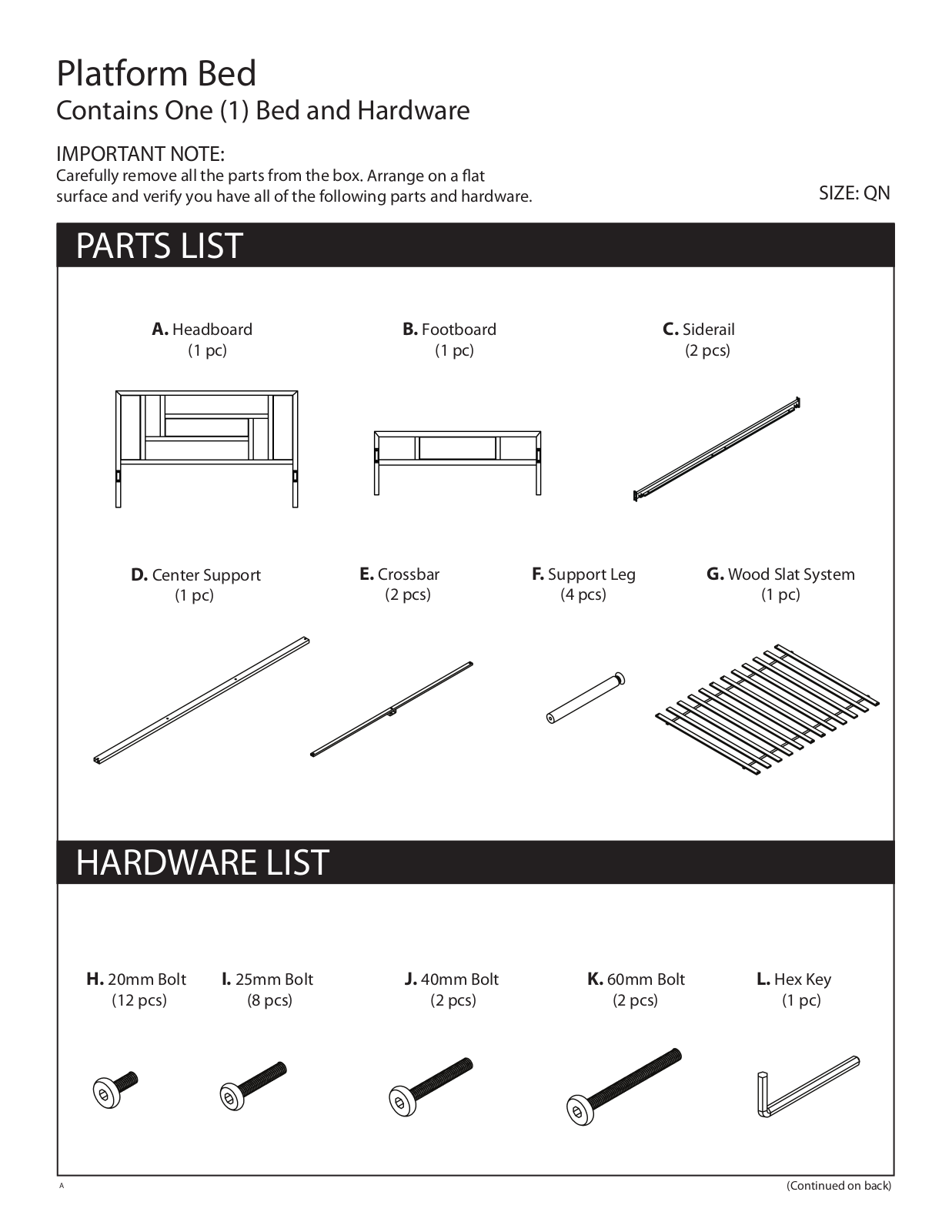

PARTS LIST

SIZE: QN

Headboard

A.

(1 pc)

D.

Center Support

(1 pc)

B.

(1 pc)

Crossbar

E.

(2 pcs)

Footboard

Support Leg

F.

(4 pcs)

C.

Siderail

(2 pcs)

G.

(1 pc)

Wood Slat System

HARDWARE LIST

H. 20mm Bolt

(12 pcs)

A

I. 25mm Bolt

(8 pcs)

J. 40mm Bolt

(2 pcs)

K. 60mm Bolt

(2 pcs)

L. Hex Key

(1 pc)

(Continued on back)

ASSEMBLY INSTRUCTIONS

STEP 1 STEP 2

H

H

H

Attach the Siderails (Part C) to the Headboard (Part A) and
Footboard (Part B) using 20mm bolts (PartH).

STEP 3

K

Attach the Crossbars (Part E) to the Siderails using two
20mm bolts (Part H) for each Crossbar.

STEP 4

II

J

Install the Center Support (Part D) by inserting one 60mm
bolt (Part K) through the Crossbar and Center Support at both
ends of the bed. Then screw the end of each 60mm bolt into
a Support Leg (Part F). Attach the remaining two Support
Legs to the Center Support using the 40mm bolts (Part J).

A

II

Roll out the Wood Slat System (Part G) and secure it in place
using the eight 25mm bolts (Part I).
