Page 1

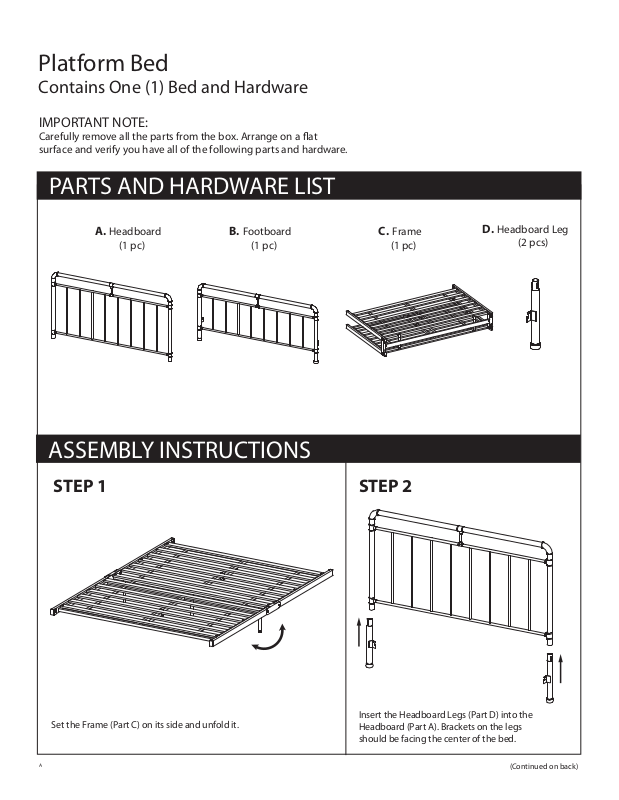

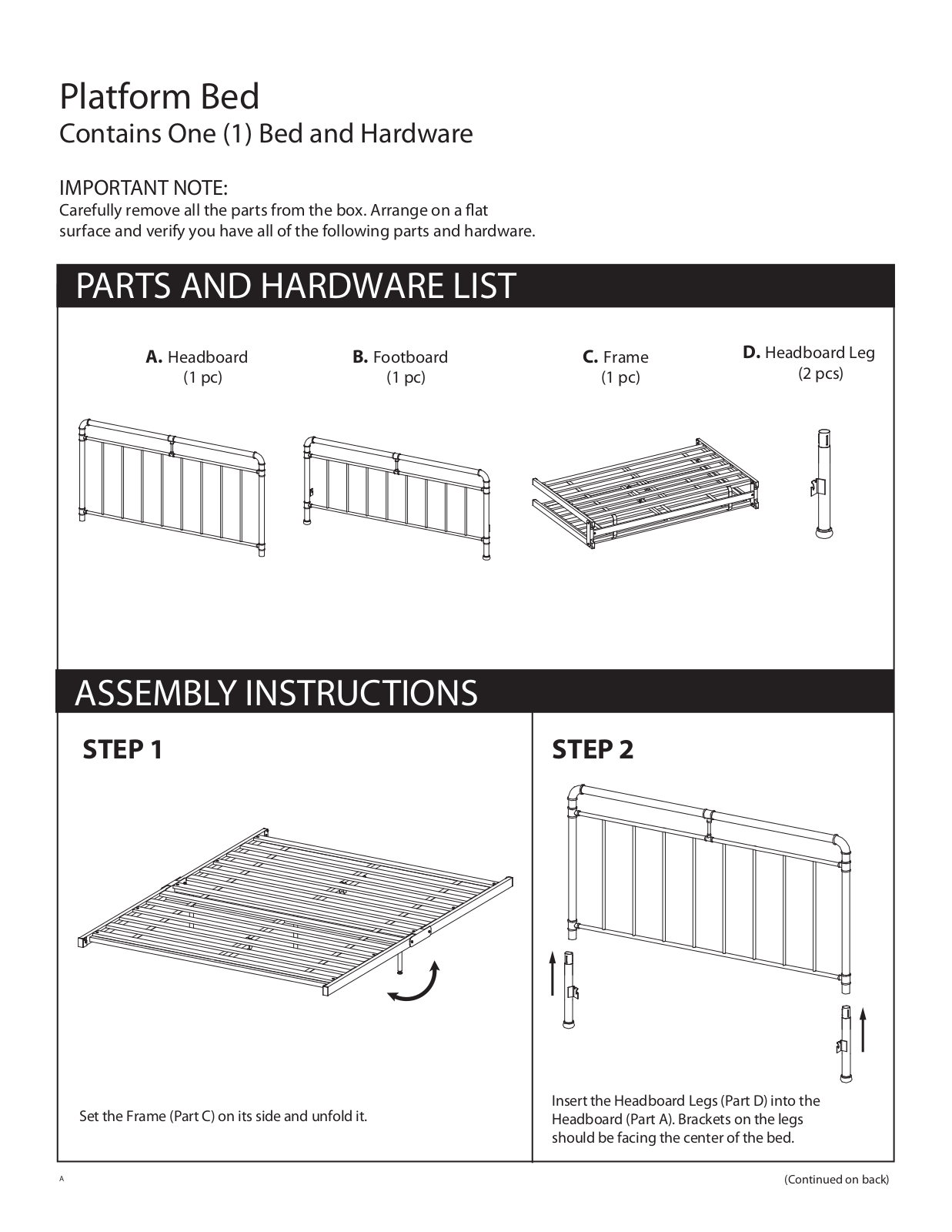

Platform Bed
Contains One (1) Bed and Hardware
IMPORTANT NOTE:
Carefully remove all the parts from the box. Arrange on a at
surface and verify you have all of the following parts and hardware.
PARTS AND HARDWARE LIST
Headboard
A.
(1 pc)
Footboard
B.
(1 pc)
C. Frame
(1 pc)
Headboard Leg
D.
(2 pcs)
ASSEMBLY INSTRUCTIONS
STEP 1 STEP 2
Insert the Headboard Legs (Part D) into the
Set the Frame (Part C) on its side and unfold it.
Headboard (Part A). Brackets on the legs
should be facing the center of the bed.
A
(Continued on back)
Page 2

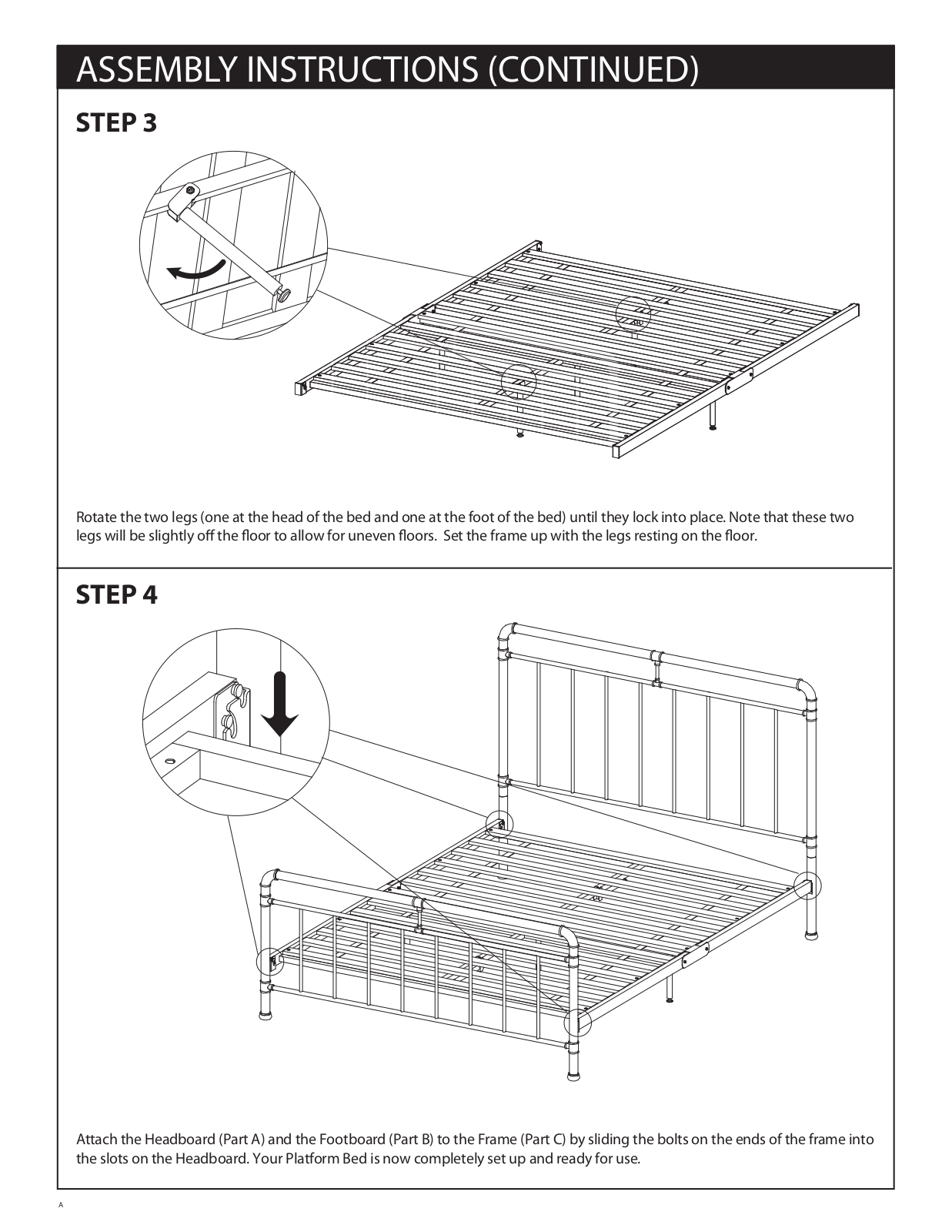

ASSEMBLY INSTRUCTIONS (CONTINUED)
STEP 3
Rotate the two legs (one at the head of the bed and one at the foot of the bed) until they lock into place. Note that these two
legs will be slightly o the oor to allow for uneven oors. Set the frame up with the legs resting on the oor.
STEP 4
Attach the Headboard (Part A) and the Footboard (Part B) to the Frame (Part C) by sliding the bolts on the ends of the frame into
the slots on the Headboard. Your Platform Bed is now completely set up and ready for use.
A
