Dreamsky TSF 40 User Manual

Dreamsky

R

DIGITAL SATELLITE & TERRESTIAL FINDER

USER'S MANUAL

TSF 40

Thank you for purchasing this product and therefore trusting
our company.

To obtain the best performance from this product, please read
the manual carefully before using for first time.

The technical specifications and operating methods included
in this manual are subject to changes without notice. In case
of any inquires after a period of usage, please contact the
manufacturer to the latest news and updates.

2

Table of Contents

Chapter I.Introduction......................................................4

Chapter II.Function........................................ …………….5

A.Front Panel........................................................5

B.Remote Control.................................................7

C.Quick Operation................................................8

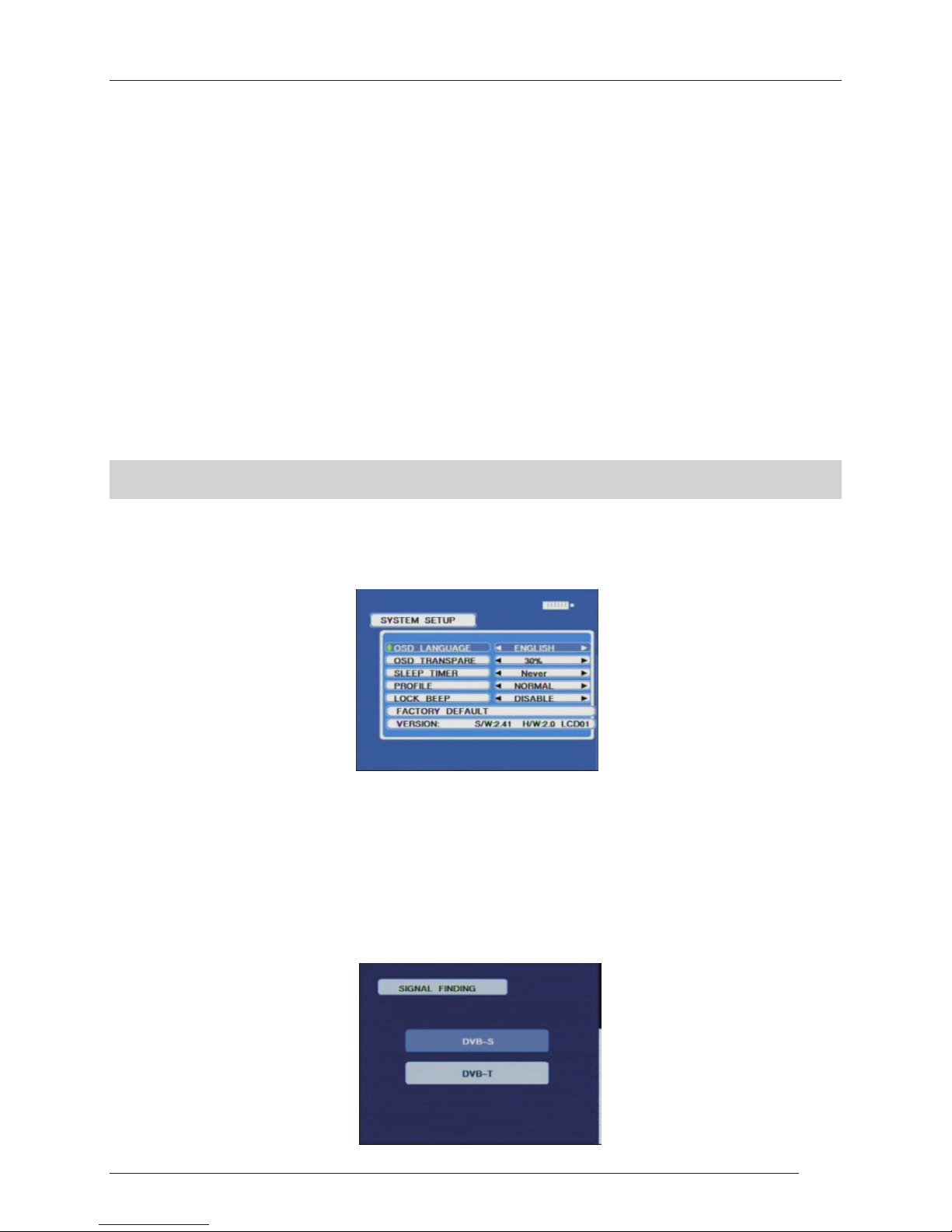

1.Language setting………………………………8

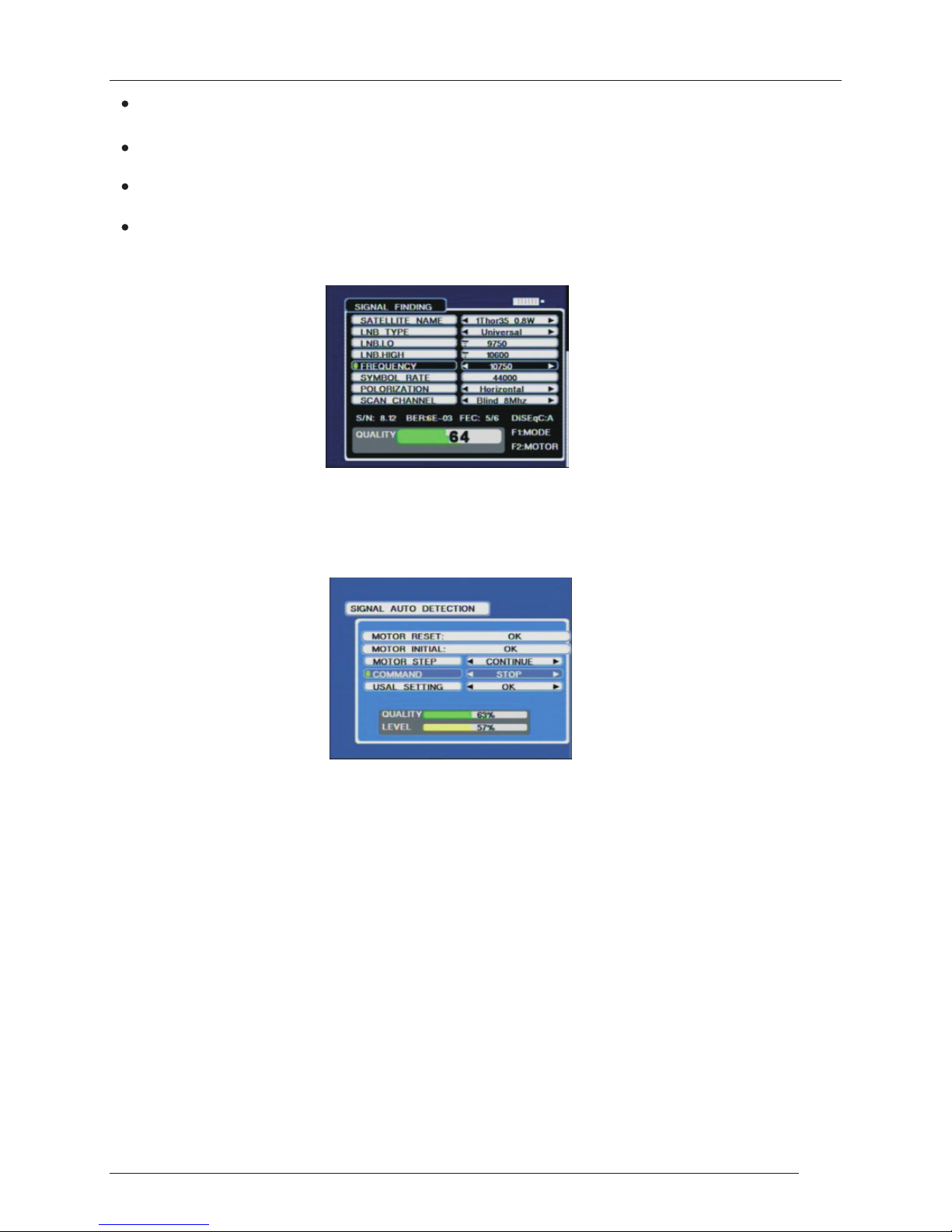

2.DVB-S Signal Finding…………………………9

3.DVB-T Signal Finding.................. …………..12

D.Detailed operation Guide................................14

1.Power On ……………................................. 14

2.Installation... ………............ .....………….....14

3.System Setting.............................................16

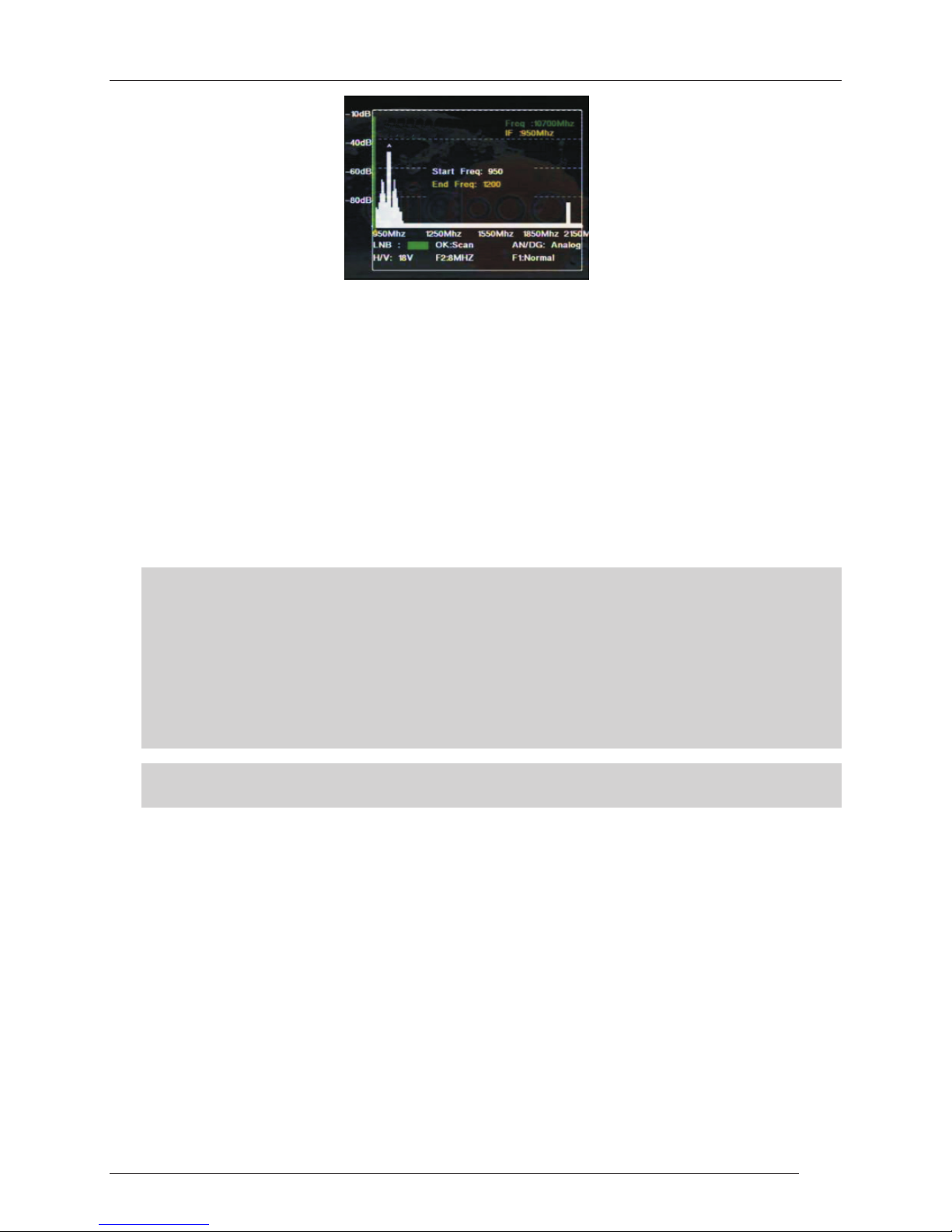

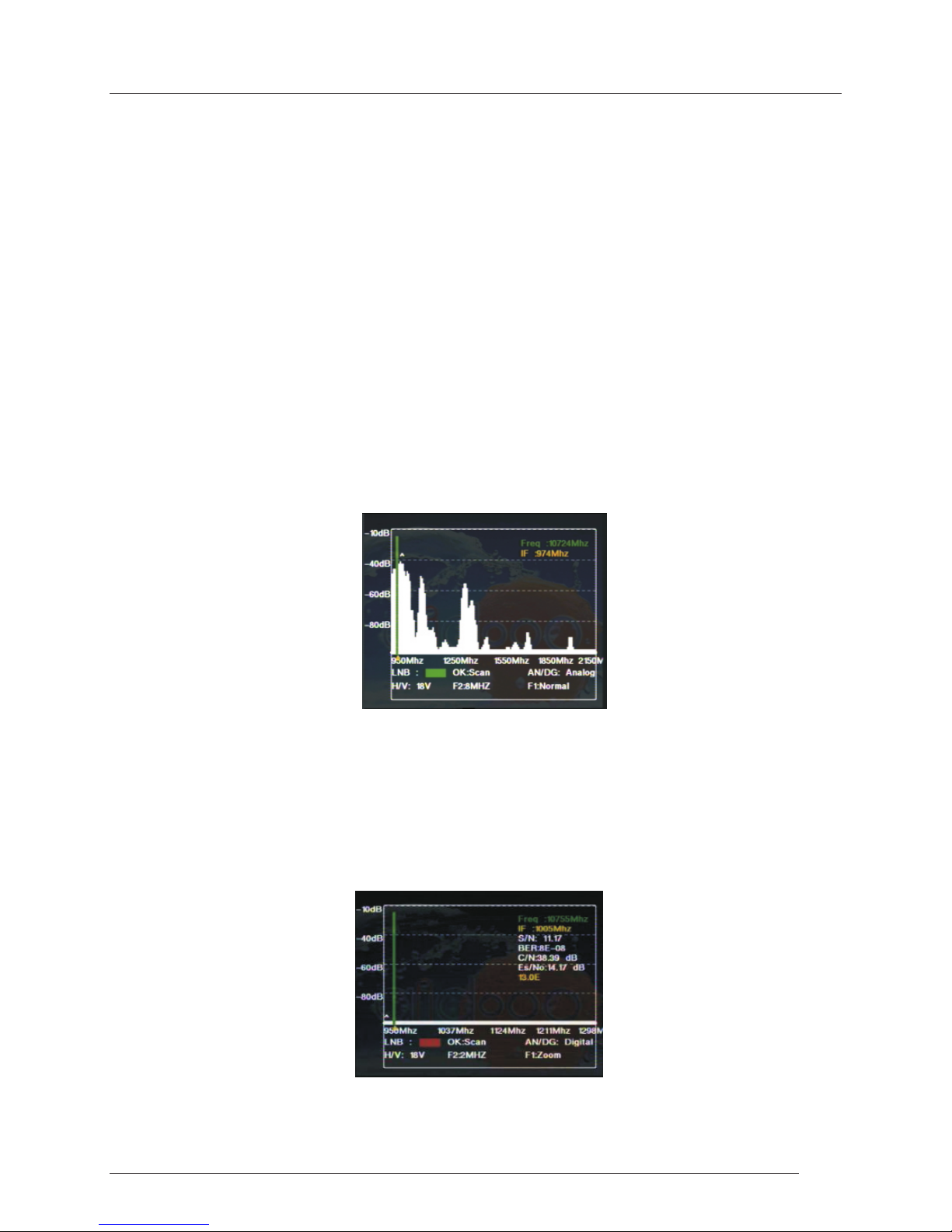

4.Spectrum......................................................17

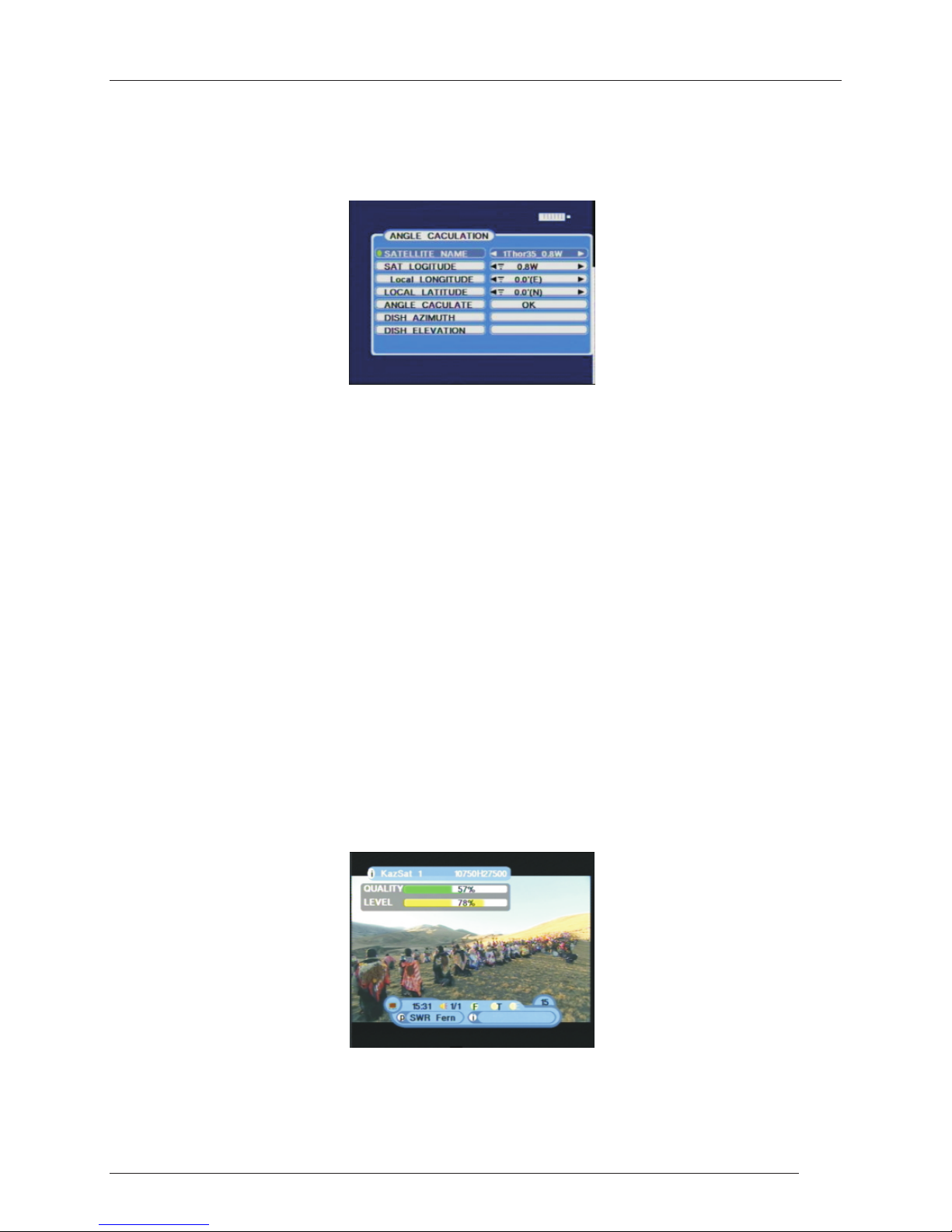

5.Angle Calculation.........................................17

6.Channel Information.....................................18

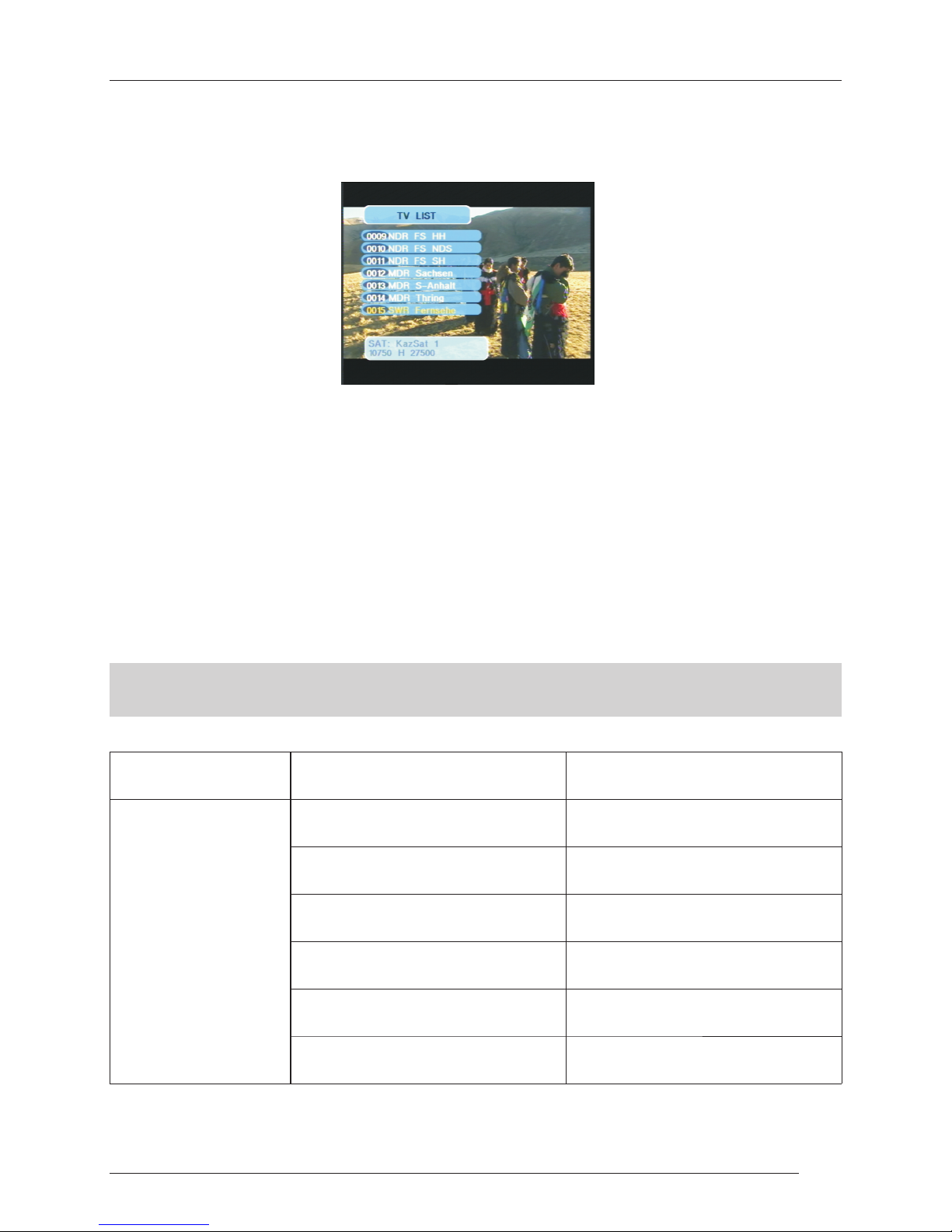

7.Channel list...................................................18

Chapter III. Specification................................................. 19

3

Chapter I Introduction

Digital satellite finder ASF200SF is professional instruments
dedicated to aligning and setting satellite dishes quickly, easily
and accurately.

Designed for field measurement, all instruments are compact

(0.9kg with the battery), autonomous (packed with battery and

fast charger), rainproof designed and are equipped with a 3.5 Inch
High Definition TFT LCD Screen for better readability.

The instrument can be left and operate on its own as it is equipped
with rechargeable Li-on battery pack, 12.6V, 2,200 mAh ensuring
a standard operation for 4 hours. We recommend that you to give
the unit a three hours charge at first time.

In the package:

1 x Protective carrying bag with strap.
1 x Car charger cable.
1 x Upgrade line.

1 x Audio/Video cable.
1 x Adaptor/charger.
1 x Full function IR remote control.

4

Chapter II Function

<Figure2-1>

1.LNB INPUT：

Satellite signal input port, connects directly to satellite antenna
with coaxial cable.

2.ANT INPUT:

Terrestrial signal input female port.

3.LCD Screen：

Shows menus and programs clearly.

A.Front Panel

5

5.LOCK LIGHT：

This will be lighted when signal is locked.

6.22K/13V/18V LIGHT：

Indicates the mode of 22K/13V/18V.

7.FUNCTION KEY：

Consist of 2 keys, F1 – F2.
F1: Changes the signal bar on SIGNAL FINDING menu.

F2: Actives DiSEqC1.2 function on the SIGNAL FINDING menu.
AN/DG: To active the spectrum on the SIGNAL FINDING menu.

0/22K: A quick key to switch 22K output on the SIGNAL FINDING menu.
H/V: A quick key to switch 13V/18V output on the SIGNAL FINDING menu.

8.ARROW KEY AND OK KEY

4.POWER LIGHT：

Light up while power is on.

Use Arrow key to browse the item, press OK key to select option.

9.NUMERICAL KEY：

Used to enter numerical settings directly.

10.FIND KEY:

Accesses prompt satellite menu that sets and aligns a satellite dish quickly.

11.MENU KEY:

Display the main menu or return to the previous one.

12.EXIT KEY：

Cancel the selection and exit from the present menu.

13.ANGLE KEY：

Accesses the AZ, EL and Polarity calculation menu.

14.SYSTEM KEY：

Access SYSTEM mode to create all parameters and information.

15.POWER KEY：

For turn-on / off, to press and hold for 3 seconds to power on the device.

16.TV/RADIO：

Selects and plays TV/Radio channel in playing mode.

17.AV(Optional)：

Shifts AV output / input.

6

18.Charge port:

Allows the external power supply as well as the charging of the battery.

19.USB Port:

Used to connect to PC for upgrade.

20.R/L/VIDEO:

Output audio and video signa.l

21.AV IN:

Input audio and video signal to LCD screen.

B.Remote Control

(1) 0/22K：

Switch 22K output on the SIGNAL FINDING menu.

(2) H/V：

Switch 13V/18V output on the SIGNAL FINDING menu.

(3) AN/DG：

Actives the spectrum on the SIGNAL FINDING menu.

(4) FIND Key:

Accesses easy satellite find menu that sets and aligns a satellite dish quickly.

(5) F1:

Changes the signal bar on SIGNAL FINDING menu.

(6) F2:

Actives DiSEqC1.2 function on the SIGNAL FINDING menu.

(7)Arrow Key and OK Key：

Browse the item and press OK key to select.

(8) AV：

Shifts AV output /AV input.

7
