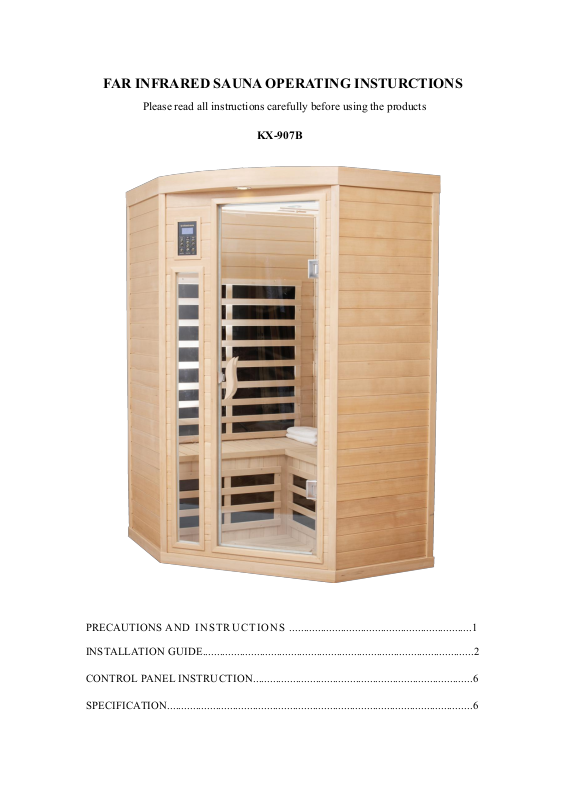

FAR INFRARED SAUNA OPERATING INSTURCTIONS
Please read all instructions carefully before using the products
KX-907B
PRECAUTIONS AN D IN S T R UC TI ON S ................................................................1
INSTALLATION GUIDE...............................................................................................2
CONTROL PANEL INSTRUCTION.............................................................................6
SPECIFICATION...........................................................................................................6
Page 2
1
Precautions and Instructions
ATTENTION
Please read all instructions thoroughly before using.
Serious injury may result if ignore the following warning and instruction.
Basic precautions should always be followed when using this electrical equipment.
DANGER
To avoid the risk of causing burns, fire, electric shock, or other injuries:
Connect the power cord to a properly grounded outlet.
Using only for its intended use as described in this manual.
Don't use accessories not recommended by the manufacturer.
Please disconnect the power after using.
Please keep the electrical cord away from heated surfaces.
If the sauna is faulty, the supply cord or plug is damaged, please stop using it
immediately.
WARNINGS
Don’t stay longer than one hour.
Don’t put the sauna on a humid environment.
Don’t touch the heater directly with hands or body for a long time.
Don’t use any sharp tools on or near the heaters (severe damage may result).
Placing the sauna on a flat surface.
Unauthorized disassembly of the sauna is prohibited.
People with health problems should consult a physician for prior to using the
sauna. (Including acute diseases, malignant tumors, high blood pressure, heart
disease, allergic dermatitis, pregnancy, etc.)
This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities, or lack of adequate experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
To be on the safe side, children should not use the sauna.
Using a sauna after taking alcohol, drugs, or medication can lead to
hyperthermia and increase the risk of death.
If you are feeling uncomfortable, exit the sauna immediately and consult a doctor.
Children should be supervised to ensure that they do not play with the appliance.
HYPERTHERMIA
Prolonged exposure in the sauna may cause hyperthermia. Hyperthermia occurs when
body's core temperature rises above 98.6F. Symptoms of hyperthermia include a rise
in body temperature, dizziness, lethargy, drowsiness, and fainting. The effects of
hyperthermia may include:
Page 3
2
a) Failure to perceive heat / Unawareness of impending heat
Side panel
Back panel
Side panel
Back panel
Picture 1
Picture 2
Picture 3
b) Failure to recognize the need to exit the sauna
c) Fetal damage in pregnant women
d) Physical inability to exit the sauna
e) Unconsciousness
Installation Guide
Each panel is heavy, especially the top panel. Be careful to avoid injury when
installing.
This sauna requires at least 2 adults to complete assembly.
installed correspondently with one (+) to one (–) in the following way: The panel with
the (+) button should be lifted up about 4 inches (10cm) higher than the panel with the
(-) button (Picture 1); place the panel with (+) button against the panel with (–) button
(Picture 2), and then slide down the panel with (+) button up against the two panels
are flat and leveled (Picture 3). If they are not equal in height or there is an obvious
gap between the two panels, which means they are not properly attached, and you
should try again.
The panels should be install in the following order:
Floor Panel → Back Panel → Left Panel → Right Panel → Bench Support Panel →
Bench Surface Panel → Front Panel → Top Panel
Page 4
3
Installation of the Sauna Room Body
A
A
B
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
1. Place the floor panel on a flat surface (Note: Before installing wall and ceiling
panels, make sure the floor is flat. If the surface is not flat, you may need shims to
achieve a flat surface.) (Picture 1)
2. Place back panel (A&B) in the slot of floor panel.(Picture 2&3)
3. Place the left side panel in the slot of floor panel. (Picture4)
4. Place the right side panel in the slot of floor panel.(Picture5)
Page 5
4

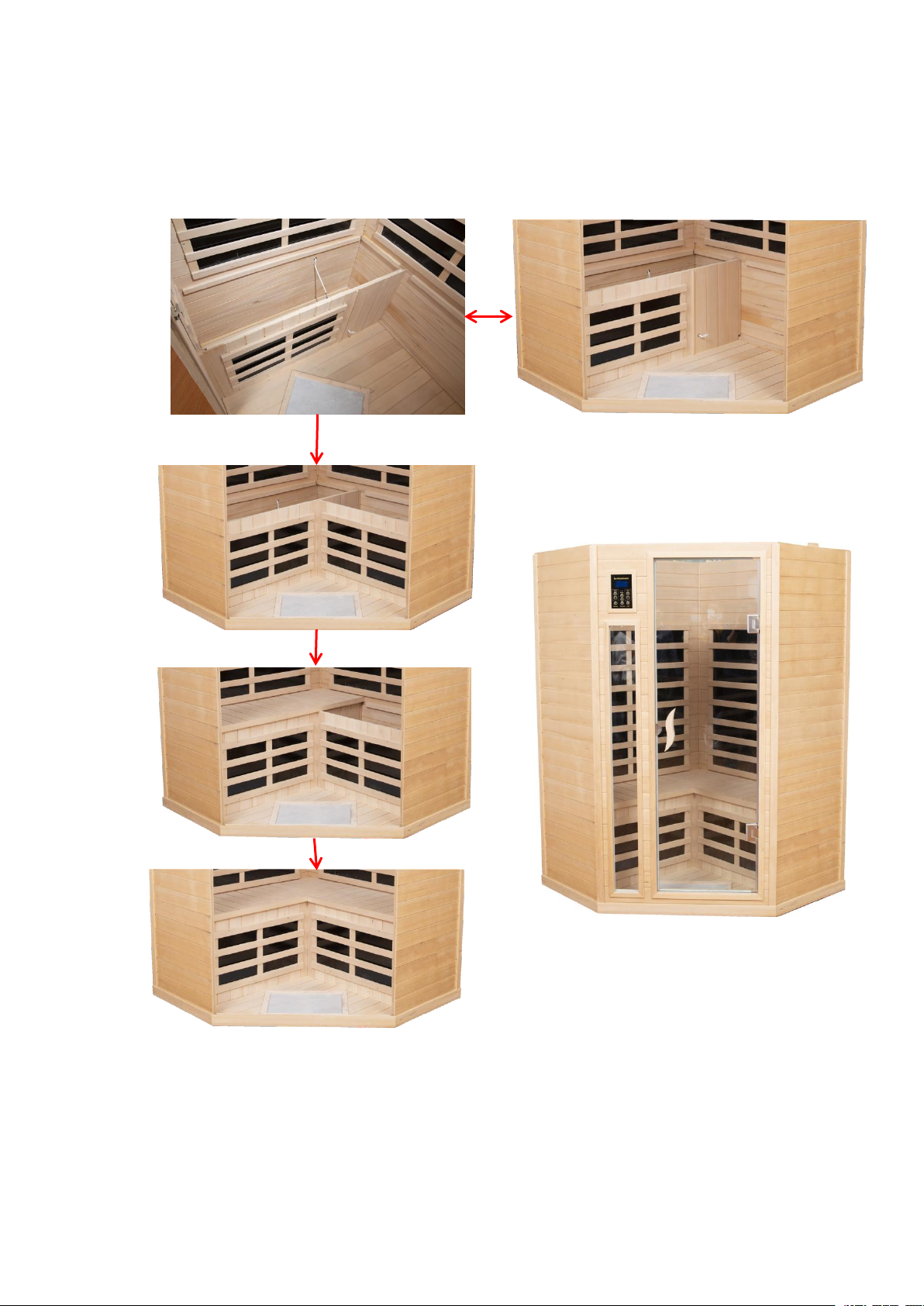

5. Place the Bench Support panel and connect the wires behind.
6. Place the Bench surface panel.
7. Place the front glass door in the slot of floor panel.
Page 6
5

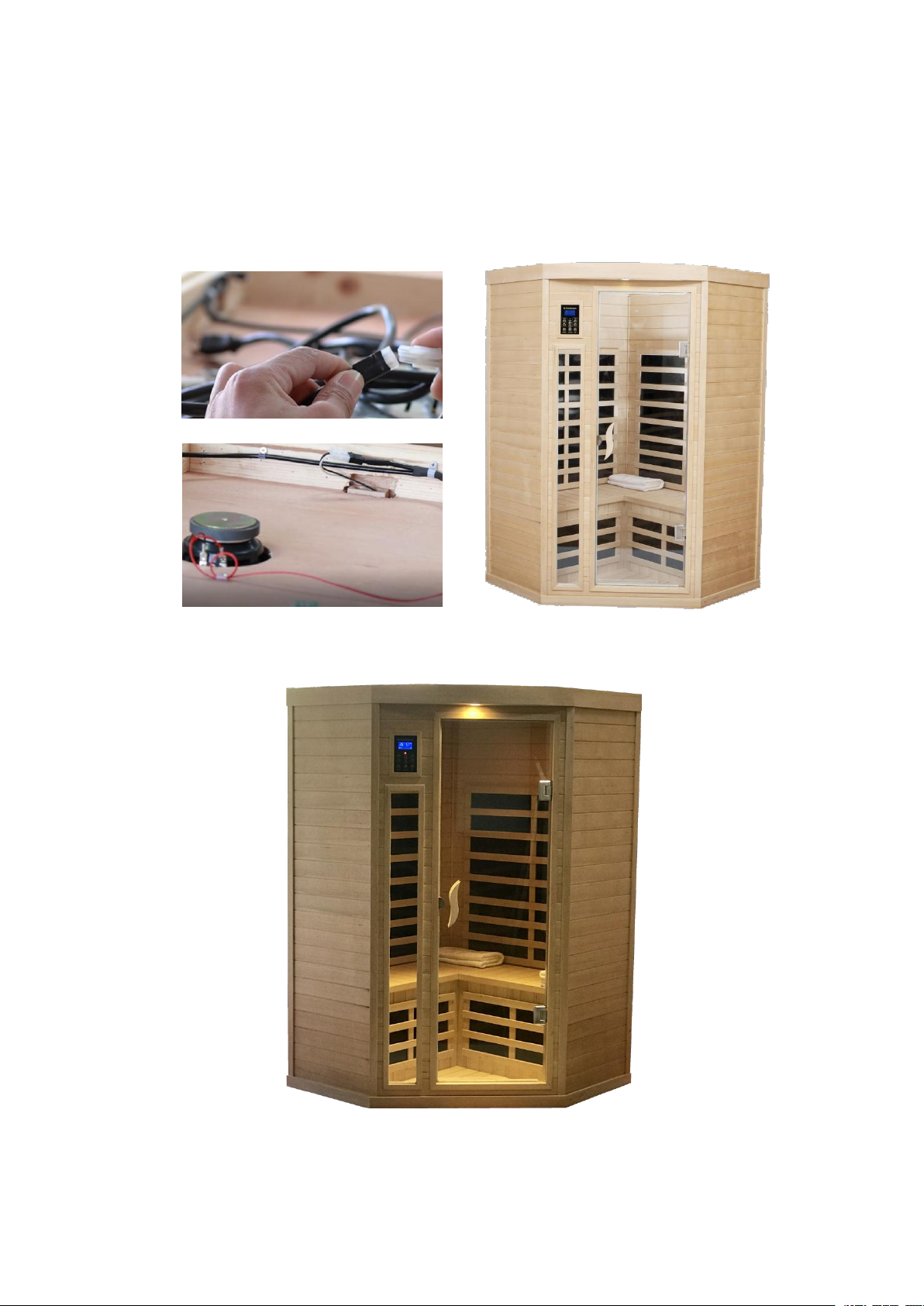

8. Top panel fixed and wire connection.
Make sure all side panels are in the slot of top panel, make sure all wires from
side panels are not pressed in the slot.
Make sure that all wires in the top panel are connected.
9. Plug in and power on to operate the sauna room.
WARNING: Pay attention to the risk of electric shock. Don’t connect the power
supply until all wires are properly connected.
Page 7
6
Control Panel Instruction
Product Name
Infrared Sauna Room
Model No.
KX-907BH
Voltage
110-120VAC
Power
1600w
Raw Material
Hemlock
Switch on or off
the sauna room.
Time adjust
(01-60mins)
Switch on or off
the light inside
sauna room.
Temp adjust
(25-65℃)
Switch on or off
the LED lights
outside the sauna.
Switch on or off
the color lights in
the sauna room.
Simultaneous
operation can
be converted
to Fahrenheit
Specification
