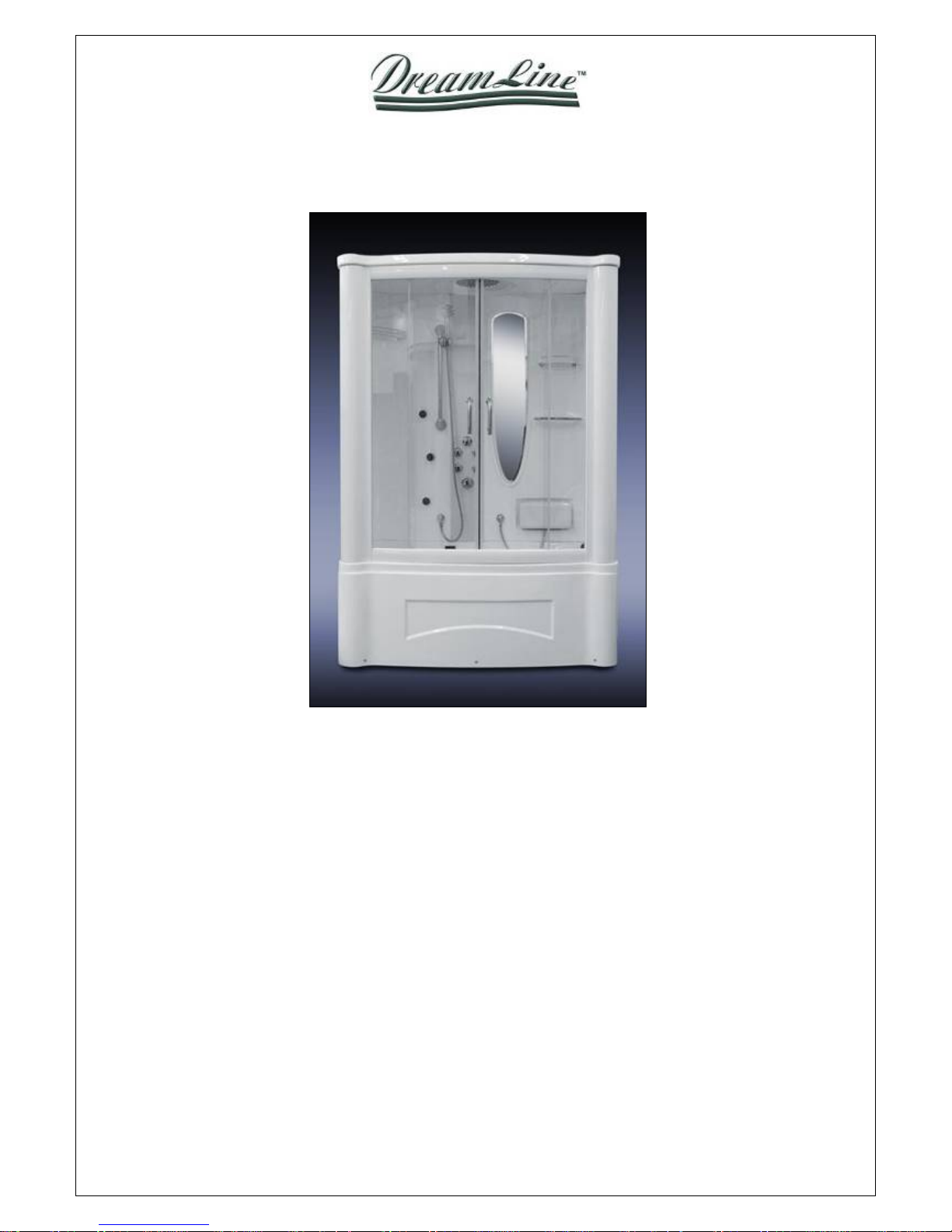

Victoria / DLG-65
Shower Cabin Installation and User’s guide
I. Mounting Preparation
1. After opening the case, read this introduction carefully, check all the packed parts, and examine the shower cabin for
shipping damage. If the unit has been damaged or has a finishing defect, please contact your local distributor within 3
business days. Please note that DreamLine Guarantee will not cover shipping damage or such finishing defects on ce th e un it
has been installed. Your distributor’s responsibility for damage in transit is limited after the shower package has been
transferred to the transportation company, so you may have to contact the transportation company directly to repo rt damage.
Contact your distributor or DreamLine if you have any questions.
2. You should make sure that the floor is leveled and solid and will be able to support the total weight of the unit and its
occupant. You should also consult your local building codes on questions on installation compliance standards.
3. Install all of the required plumbing and drainage before securing the shower. Use a competent and licensed (if required by
local code) plumber for all plumbing installation.
4. Please insure that prior to the installation the floor is leveled and the walls are at right angles. While some adjustment in
leveling of the tray is possible, irregular floor level or improper angle of side walls will result in serious problems for your
installation. Please, note that there are some adjustments and drilling might be necessary during the installation process.
Please, note that there are some adjustments and drilling might be necessary during the installation process.
5. Necessary To ols: Screwdriver, Electric drill, Regular drill bits (1/8”, 7/64”), Phillips screwdriver, Level, Measuring tape,
Pencil and Stepladder. Bear in mind that you will need at least two people to assemble the unit.
© 2002-2006 DreamLine™. All Rights Reserved Victoria/DLG-65
2
II. Packing List
Roof cover (1 pc)
ST4.2x25 Tapping Screw (16 Pcs)
Left and Right panels (2 pc – 1 set)
Stationary Glass Door (2 Pcs)
Tray (1 pc)
Sliding Glass Door (2 Pcs)
M6X20 bolts, Nuts, Washer (26 pcs)
Side Glass Parts (1 Set)
Left and Right posts (2 pcs)
Handle (1 Pair)
Connecting strips (2 pcs)
Foot Massager (1pc)
Top and bottom guide rails (2 pcs)
Handheld Showerhead (1pc)
ST4.2x16 Tapping Screw (24Pcs)
Tray pre-installation instructions
1. Choose the place where you will locate the tray.
2. Unwind the legs to level the tray in case the surface is uneven.
© 2002-2006 DreamLine™. All Rights Reserved Victoria/DLG-65
3
3. Check on the drain if it is fastened tight enough to make sure it won’t leak after complete tray installation.
4. Check all the hose connections to prevent leakage. Your plumber may want to replace the flex hose to hard
PVC pipes which is also possible.

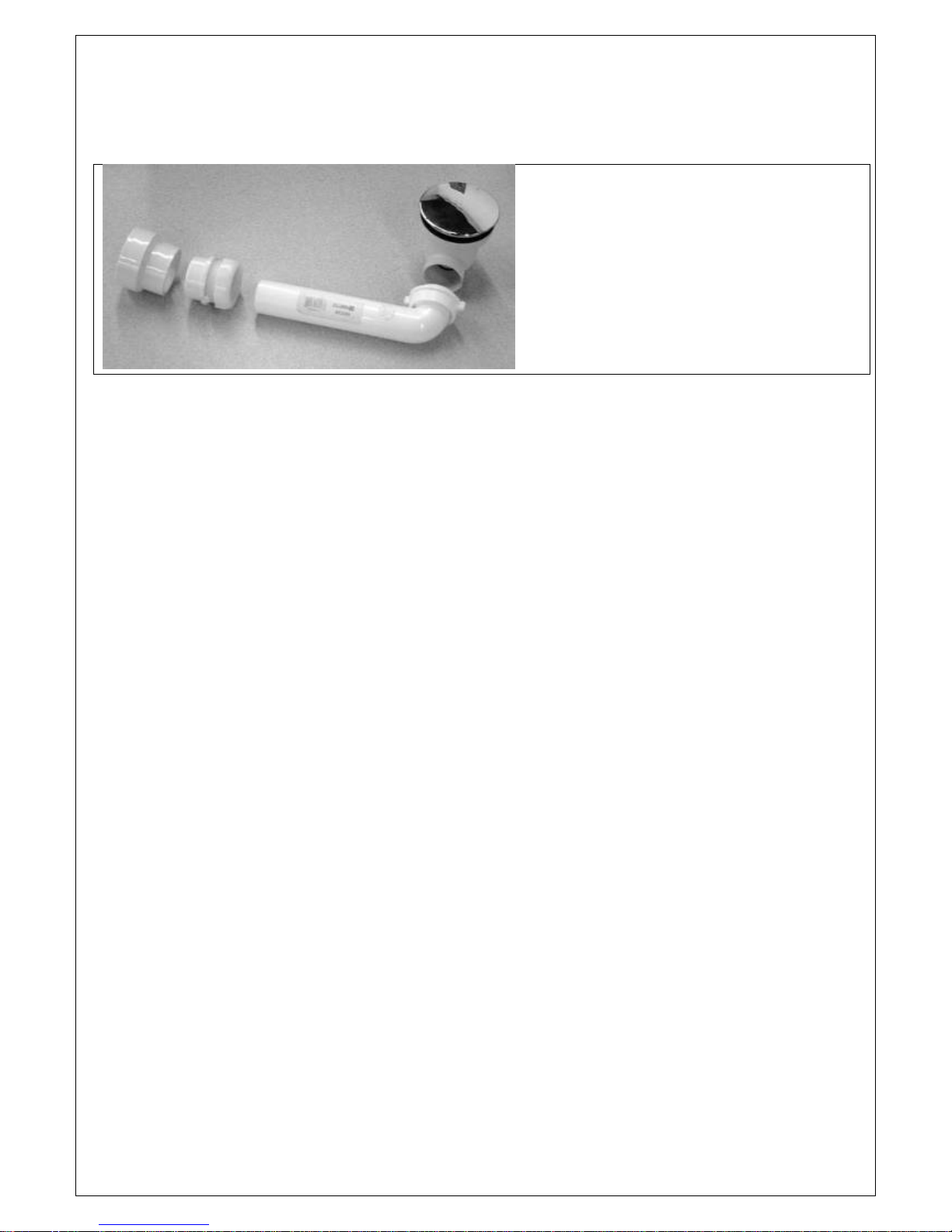

One of the ways on how to change flex hose to
hard PVC pipes:
Disconnect the flex hose from the shower drain
unit. Fasten the 1 ½” hard PVC pipe to the drain.
Using the trap adaptor with washer and plastic nut
to fasten the PVC pipe to the adaptor from 1 ½” to
2”.
III. Installation Process
1. Level the tray by checking and winding in or out the leveling legs behind the front skirting panel. To reach
leveling legs, you should remove the front skirting panel. (Step 1, 2, 5).
2. Please, be careful not to break the inner supports for the tray – shown in Step 3, 4.
3. Clean the surface of the left back part of the tray and apply a layer of silicone (Step 6)
4. Place the left panel on the tray and fasten it with bolts (Step 7-10)
5. Next part to be attached is the decorative panel. Clean the side of the acrylic and apply a layer of silicone
(Step 11)
6. Set the decorative panel in place and secure it with bolts (Step 12, 13)
7. Next part to be attached is the right panel. Apply a layer of silicone to the edge of the middle decorative
panel and on the bottom of the tray where the acrylic part will be. (Step 14-16)
8. Fasten the acrylic wall using bolts (Step 17)
9. Next steps are the front glass assembly. Using screws fasten the bottom guide rail to the left metal profile
(left side when you see it from outside of the shower) (Step 18).
10. Insert stationary glass into the guide rail and the metal profile (Step 19).
11. With the help of a second person insert the second stationary glass in the guide rail and place the top guide
rail on two stationary glasses. Secure the top guide rail on the left side with the metal profile (Steps 20-21).
12. Slide the doors in the guide rail slots (Step 22)
13. Fix the metal profile to the top and bottom guide rails with screws. Make sur e the stationary glass fits into
grooves in the metal profile (Step 23).
14. Insert white filler in the space between two stationary glasses on top and bottom guide rails (Step 24).
15. Fastening the posts. There are two posts which should be attached to the front glass assembly. The left
post has one groove only. Fit the post over the metal profile (Step 25).
16. Secure the left post with the front glass assembly (Step 26-27).
17. The right post has two grooves. Fit the post over the metal profile (Step 28).
18. When the front glass assembly is completed with the posts, clean the surface of the left side of the acrylic
wall, the front side of the tray, apply a layer of silicone and place the glass assembly (Step 29-32).
19. Fix the left post to the acrylic wall making sure there is silicone in between the wall and the post (Step 33).
20. Clean the surface of the acrylic wall and secure the side metal profile to the acrylic wall (Step 34-35).
