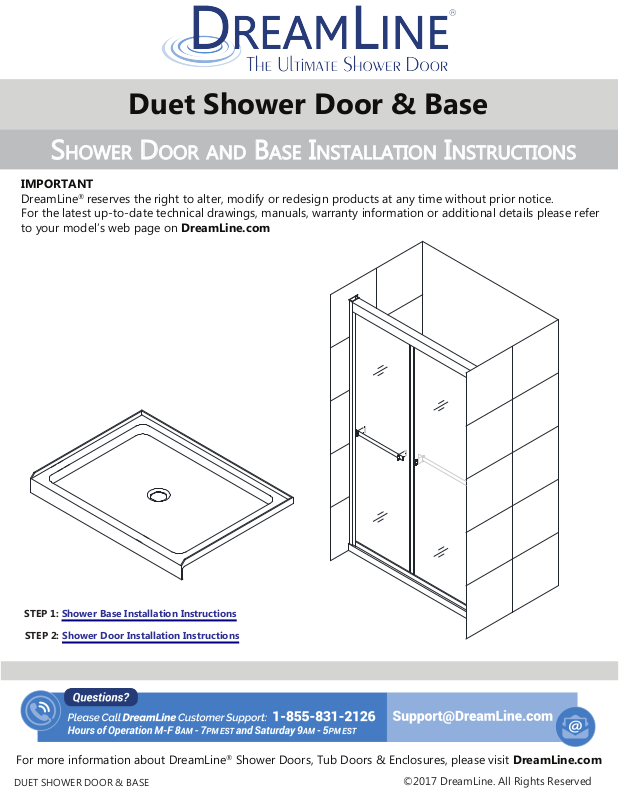

DreamLine DLN5422 Installation & Assembly

Duet Shower Door & Base

SHOWER DOOR AND BASE INSTALLATION INSTRUCTIONS

IMPORTANT

®

DreamLine For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com

reserves the right to alter, modify or redesign products at any time without prior notice.

STEP 1: Shower Base Installation Instructions

STEP 2: Shower Door Installation Instructions

For more information about DreamLine® Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

DUET SHOWER DOOR & BASE

1

SLIMLINE SHOWER BASE

SHOWER BASE DIMENSIONS AND INSTALLATION INSTRUCTIONS

Please review this entire manual before beginning installation

Color options:

--- - White

-22- Biscuit

-88- Black

Double Threshold Shower Base with Corner Drain Configuration shown as an example

IMPORTANT!

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional

details please refer to your model’s web page on DreamLine.com

For more information about DreamLine® products please visit DreamLine.com

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

2

XXX

Tape

Measure

Pencil

Level

Mortar

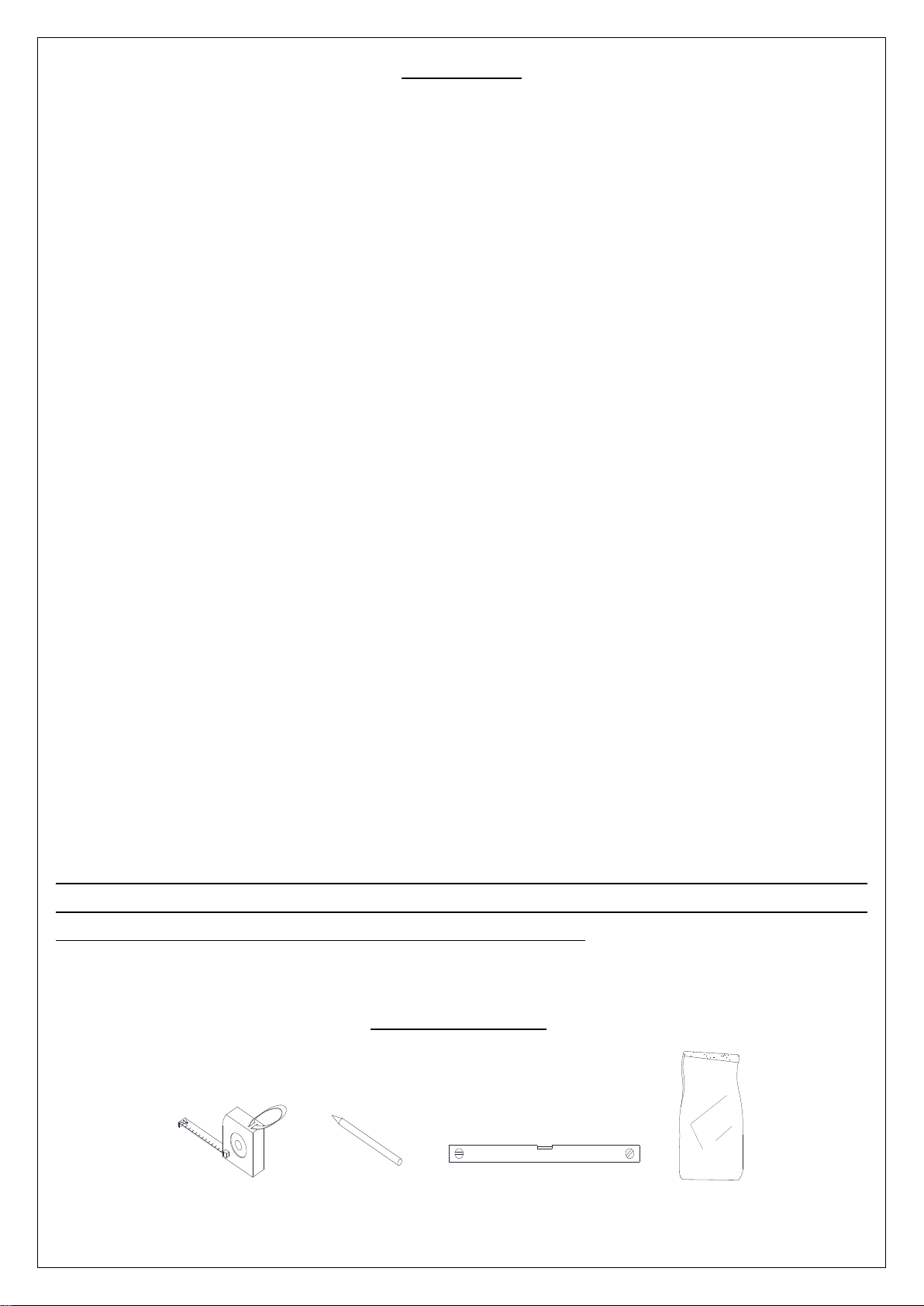

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the

piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not

replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if you have any questions and

please provide an order number, job name or other proof of purchase to help identify the original order.

2. Install all of the required plumbing and drainage before installing the shower base. Use a

competent and licensed (if required by local code) plumber for all plumbing installation.

3. Shower bases must be installed by a licensed plumber. Please note that you should

consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location and DreamLine® is not responsible for code compliance standards for your project.

4. Make sure that prior to the installation the installation surface is leveled and solid and will be

able to support the total weight of the unit. Also make sure the walls are at right angles. While some adjustment in leveling of the tray is possible, irregular installation surface level or improper angle of side walls will result in serious problems for your installation. Please note that some adjustments may be necessary during the installation process.

5. Center drain configurations are centered on the width only. See technical drawing tables

for drain locations.

6. Drain not included with this product. The drain

standard 2” compression fitted drain.

opening

is 3-3/8” in diameter and accepts a

IMPORTANT NOTE: Dimensions provided are for reference only. Measure the actual shower tray before installation. This includes overall dimensions and drain location. Allowed tolerance for center of the drain is +/-1/2".

Tools Required

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

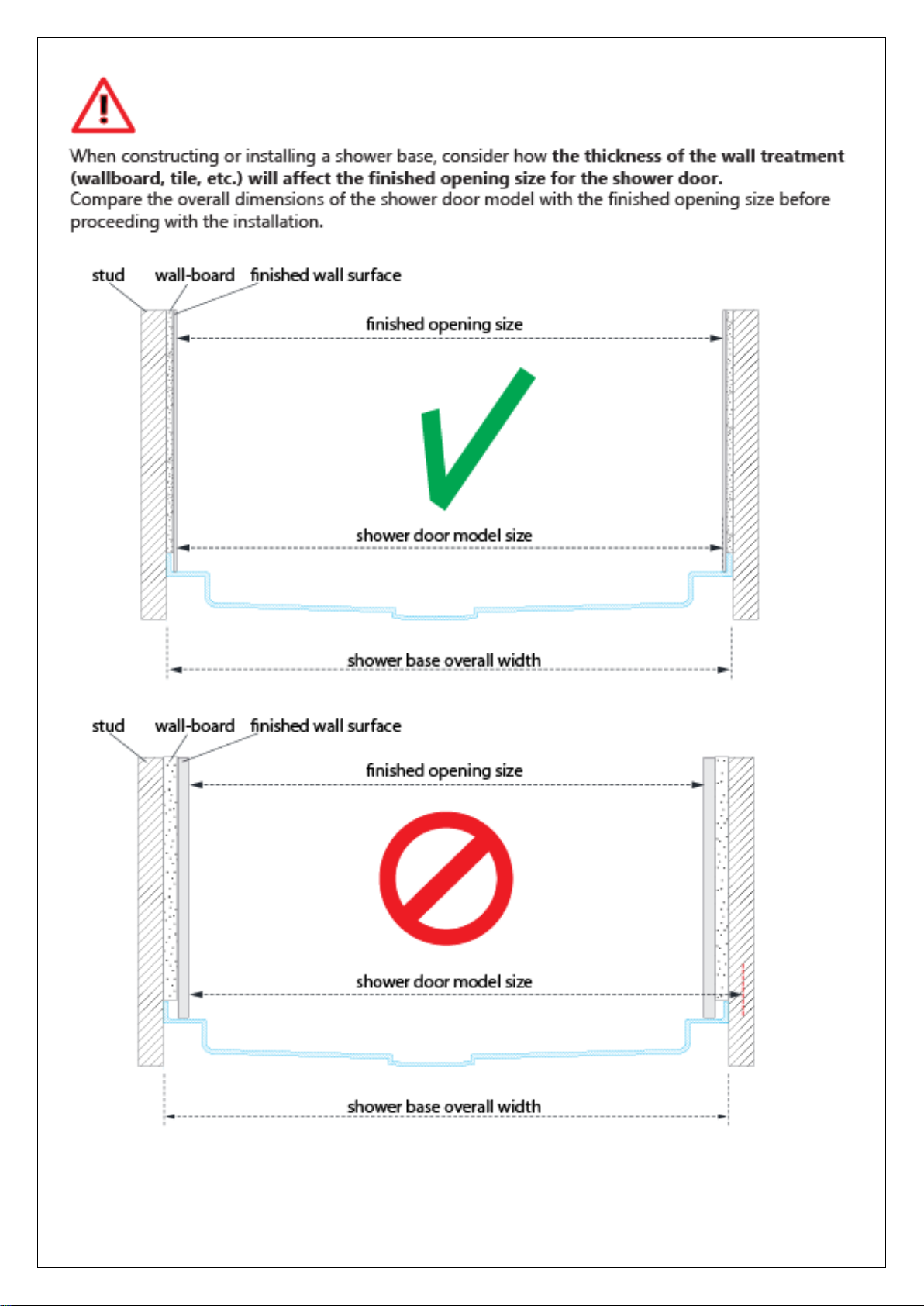

3

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

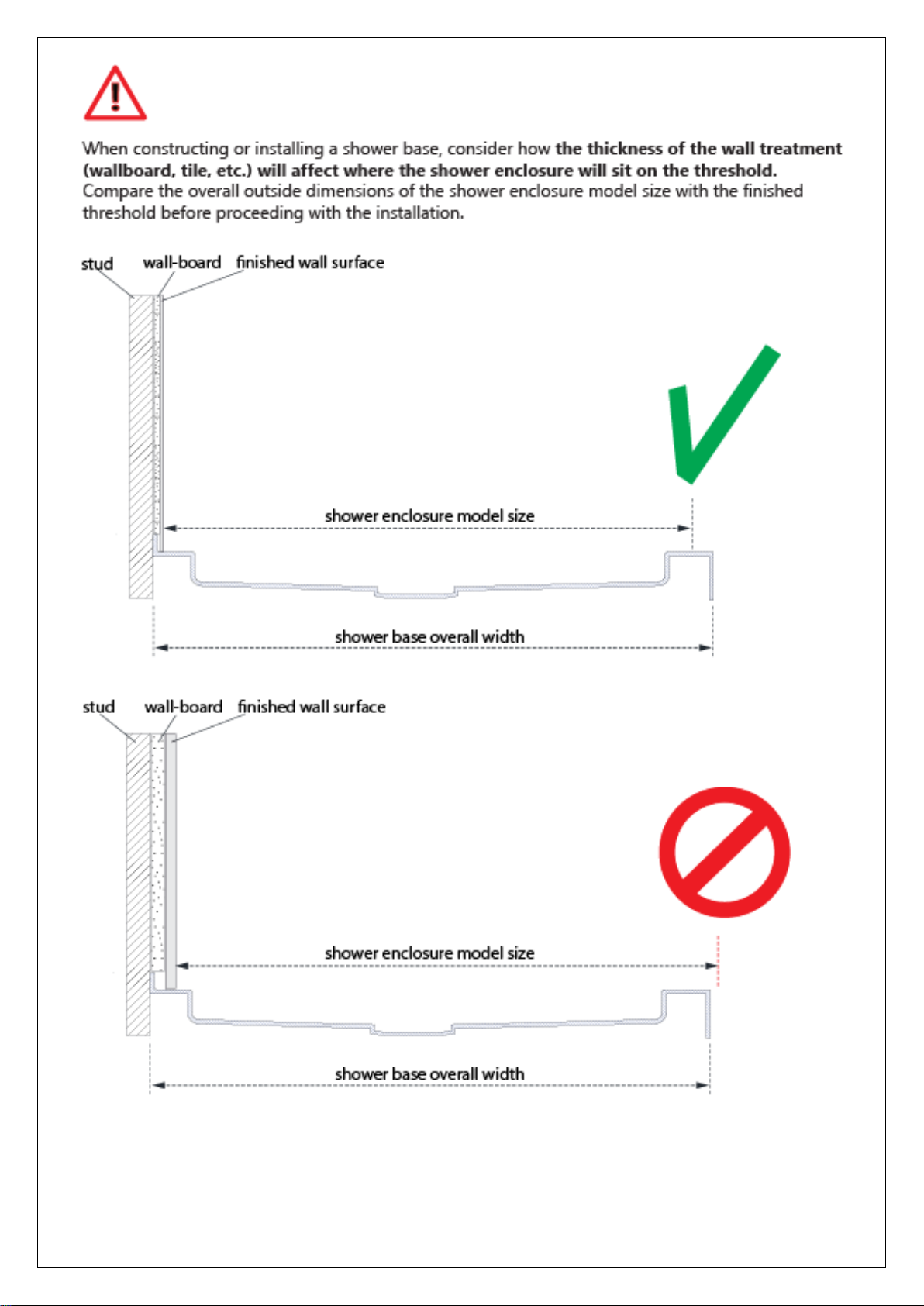

4

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

5

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1132320

32"× 32"

32"

15"

16"

DLT-1136360

36"× 36"

36"

15"

18"

DLT-1132420

32” x 42”

32”

42”

15”

21”

DLT-1134420

34” x 42”

34”

42”

15”

21”

DLT-1136420

36” x 42”

36”

42”

15”

21”

DLT-1142420

42” x 42”

42”

20”

21”

DLT-1132480

32"× 48"

32”

48”

15”

24”

DLT-1134480

34” x 48”

34”

48”

15”

24”

DLT-1136480

36"× 48"

36"

48"

15"

24"

DLT-1132540

32” x 54”

32”

54”

15”

27”

DLT-1134540

34” x 54”

34”

54”

15”

27”

DLT-1136540

36” x 54”

36”

54”

15”

27”

DLT-1130600

30"× 60"

30"

60"

15"

30"

DLT-1132600

32"× 60"

32"

60"

15"

30"

DLT-1134600

34"× 60"

34"

60"

15"

30"

DLT-1136600

36"× 60"

36"

60"

15"

30"

W

D

W1

D1

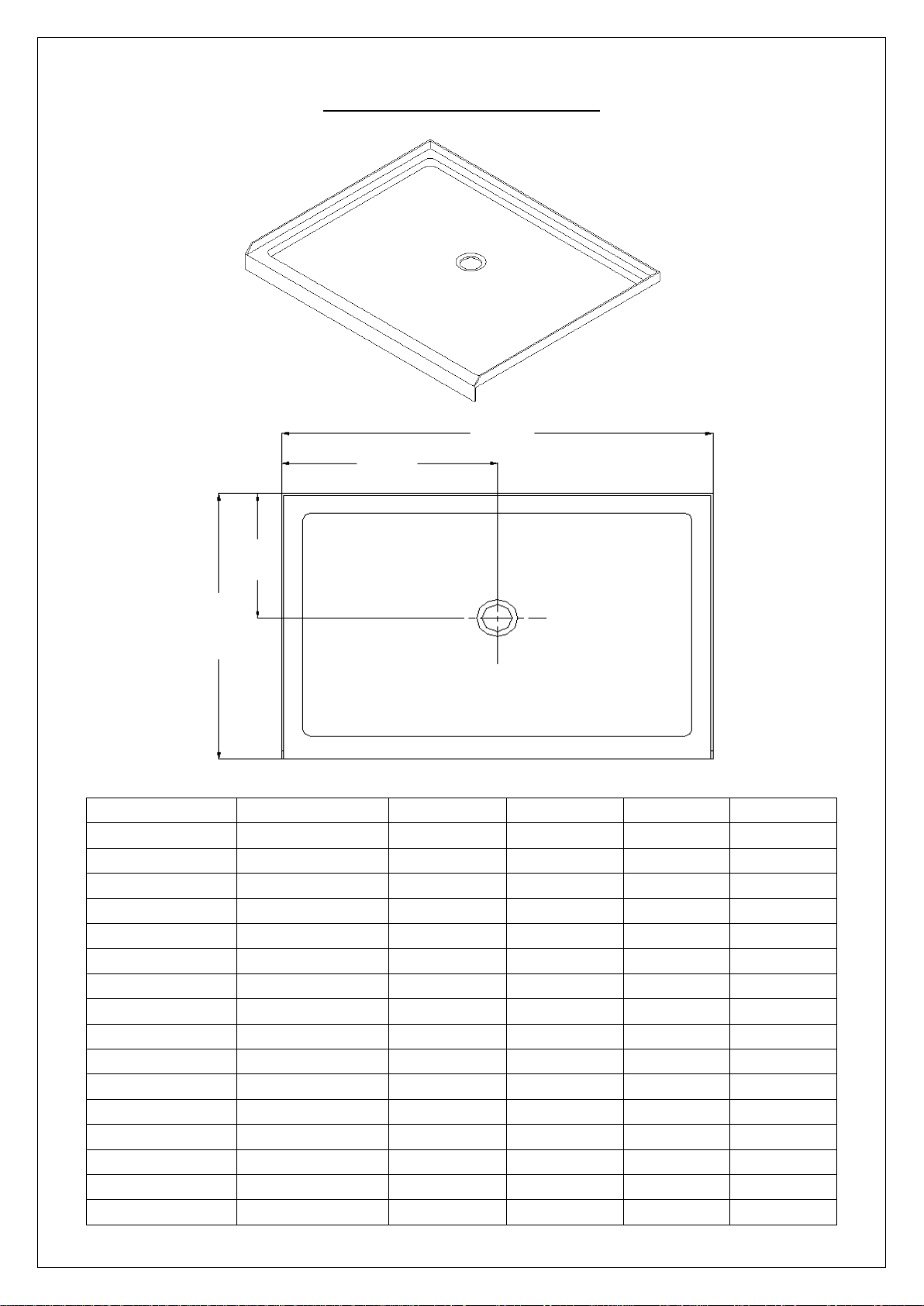

SINGLE THRESHOLD SHOWER BASE

Center Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

6

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1130601

30"×60"

30"

60"

15"

12"

DLT-1132601

32"×60"

32"

60"

15"

12"

DLT-1134601

34"×60"

34"

60"

17"

12"

DLT-1136601

36"×60"

36"

60"

18"

12"

W

D

D1

W1

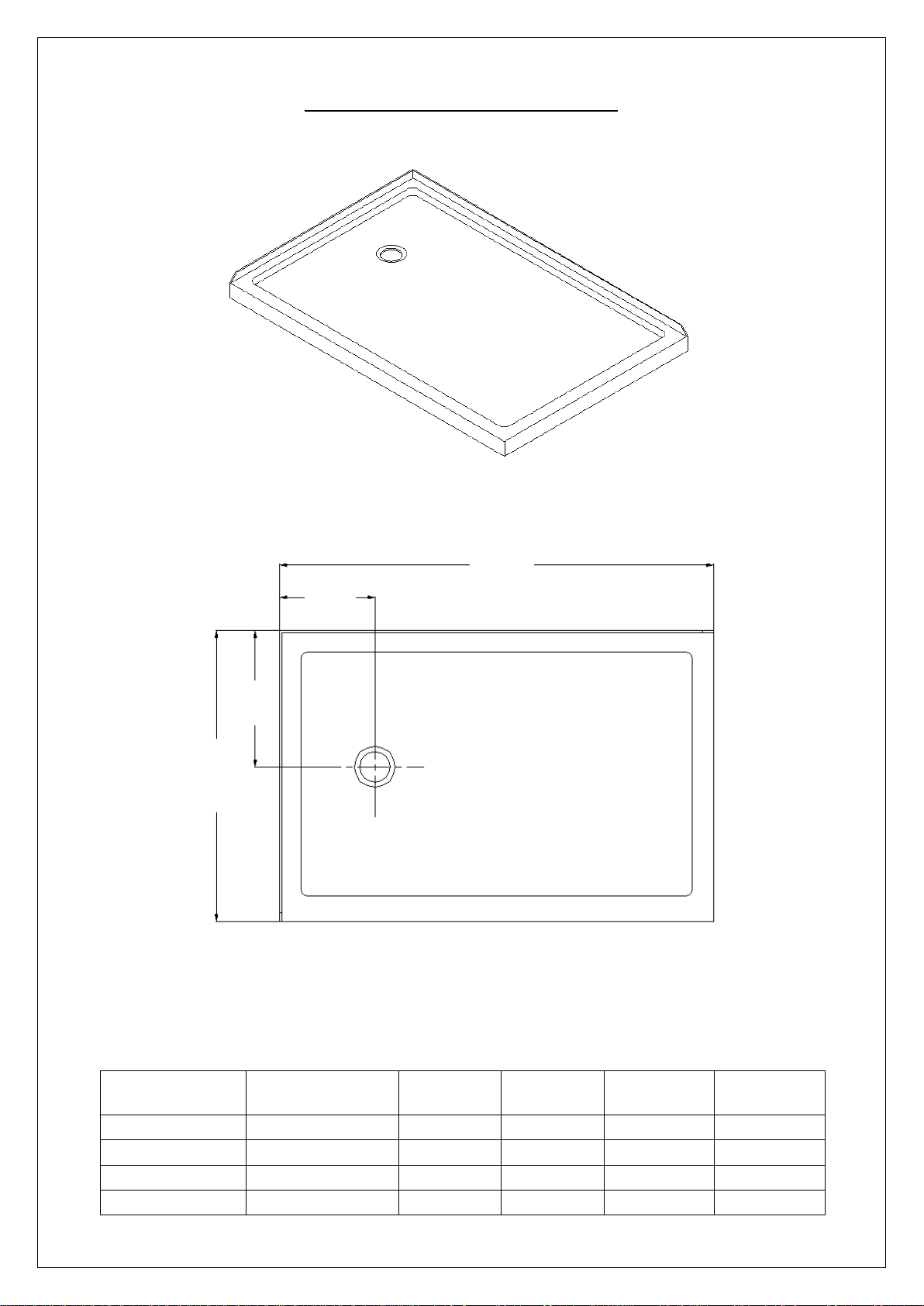

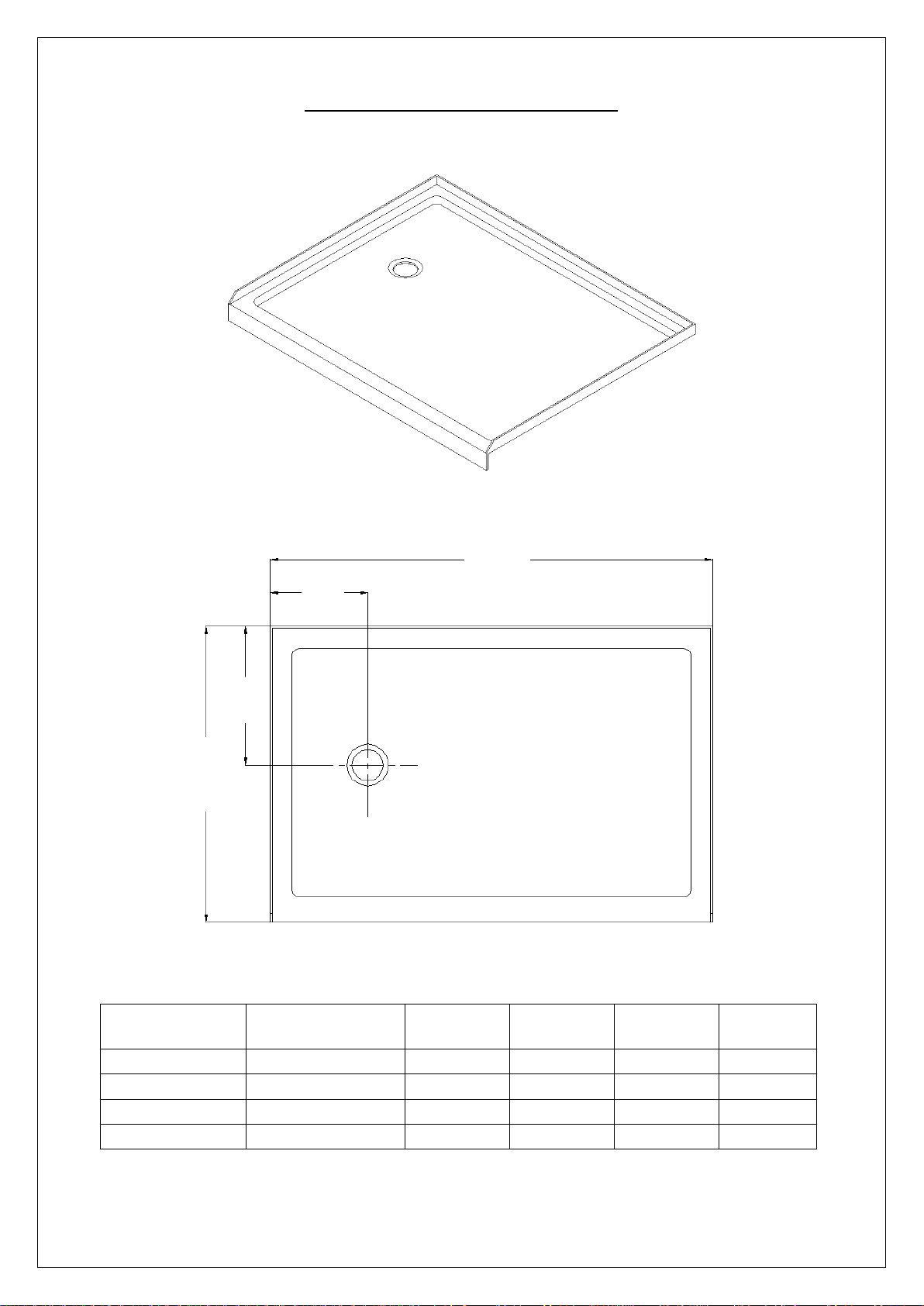

SINGLE THRESHOLD SHOWER BASE

Left-Hand Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

7

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1130602

30"×60"

30"

60"

15"

12"

DLT-1132602

32"×60"

32"

60"

15"

12"

DLT-1134602

34"×60"

34"

60"

17"

12"

DLT-1136602

36"×60"

36"

60"

18"

12"

W1

W D D1

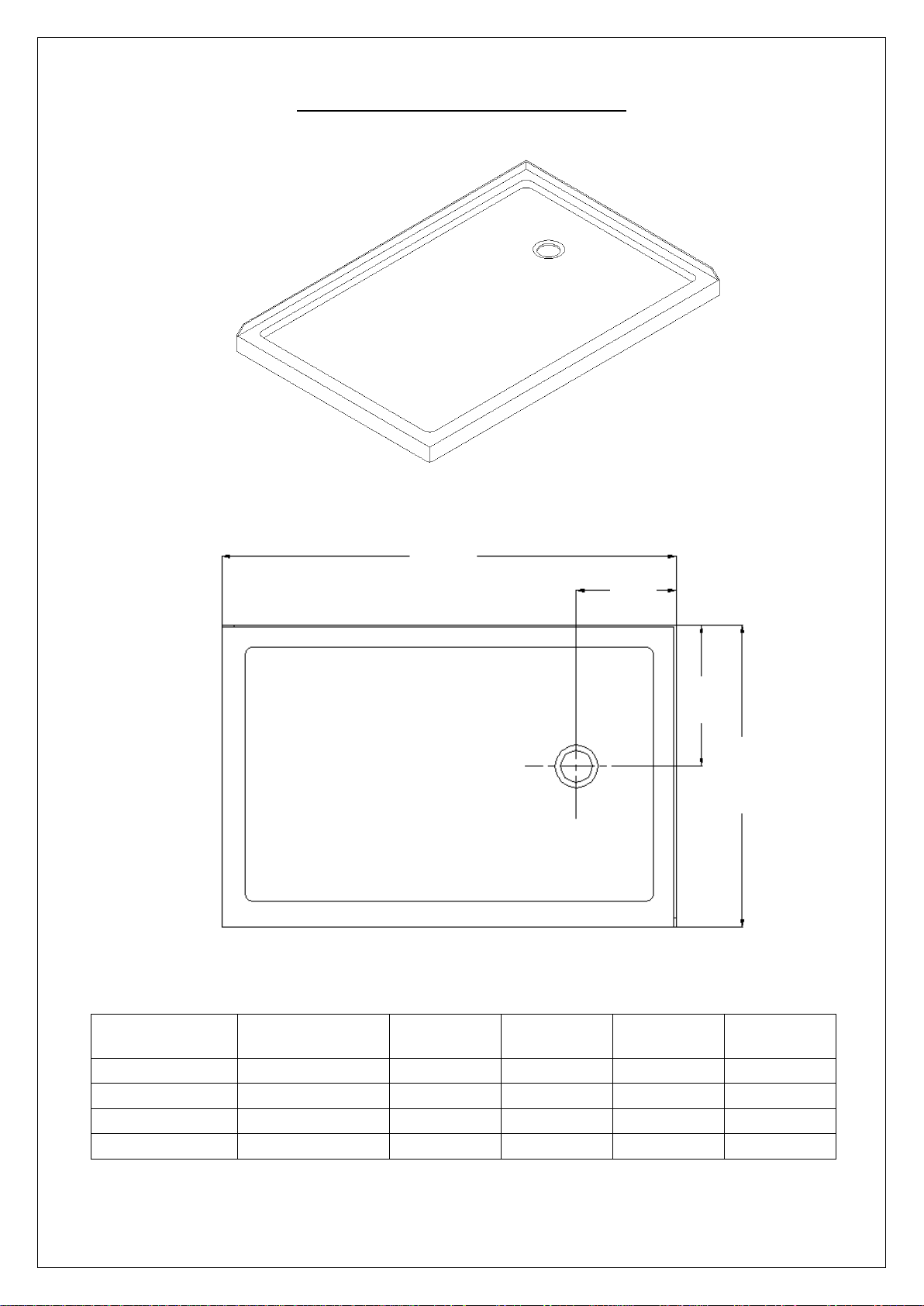

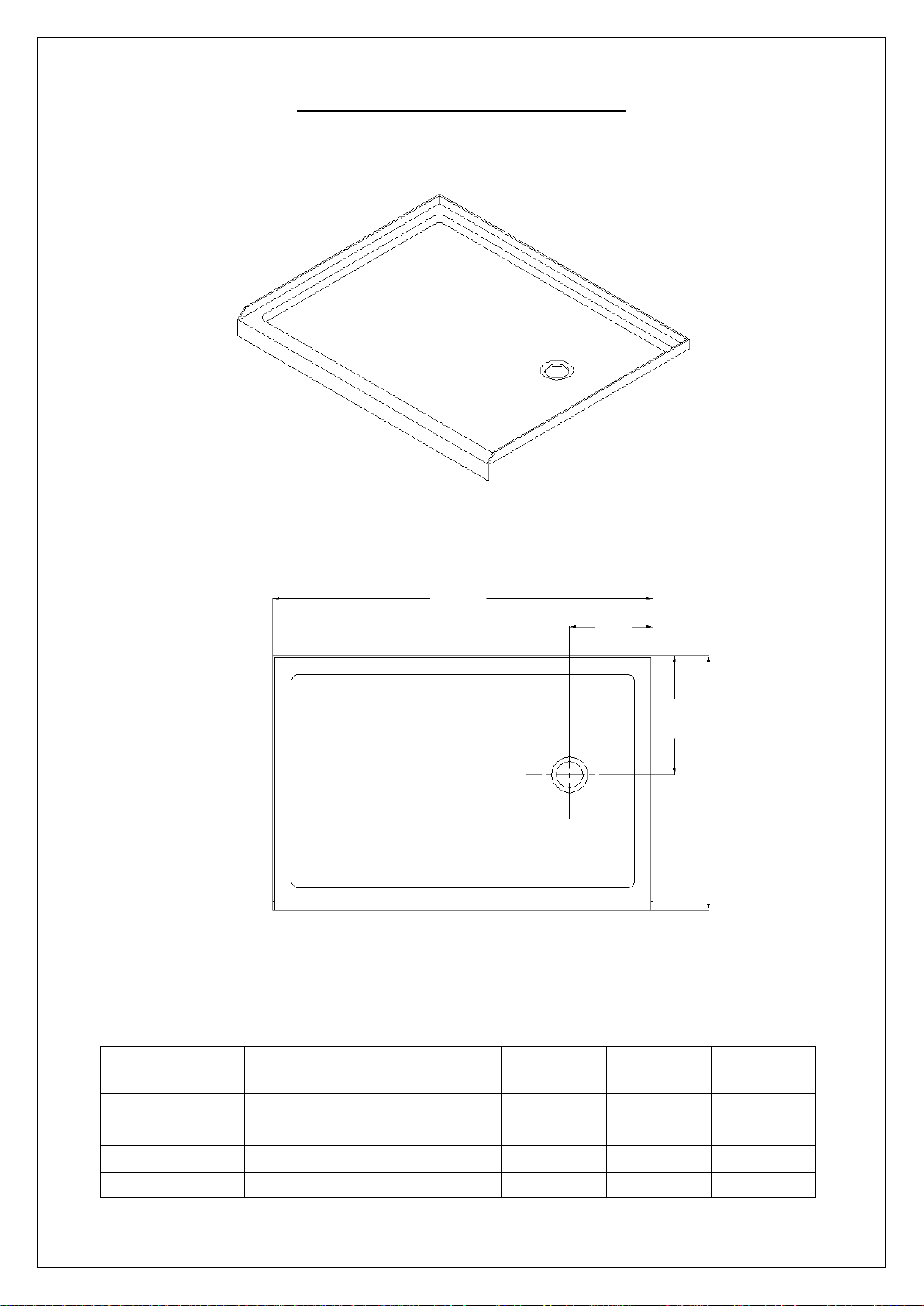

SINGLE THRESHOLD SHOWER BASE

Right-Hand Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

8

MODEL

SPECIFICATION

W (in)

A (in)

B (in)

C (in)

DLT-2036360

36"×36"

36"

18 5/16"

25"

12"

DLT-2038380

38"×38"

38"

20 5/16"

25"

12"

DLT-2040400

40"×40"

40"

22 5/16"

25"

14 3/8"

DLT-2042420

42"×42"

42"

24 5/16"

25"

14 3/8"

W

A A C C B

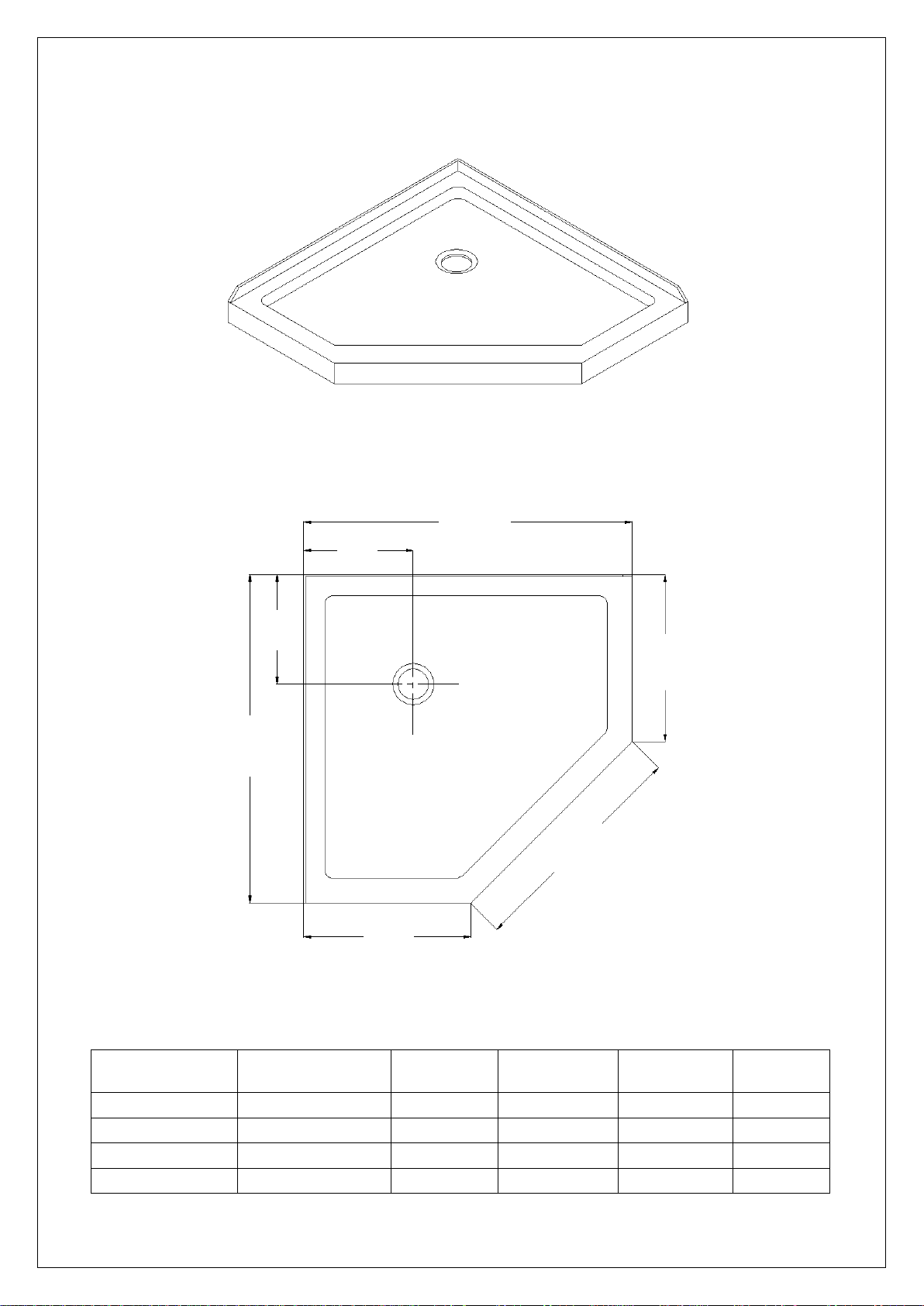

NEO ANGLE SHOWER BASE

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

9

MODEL

SPECIFICATION

W (in)

C (in)

R (in)

DLT-7033330

33"×33"

33"

12"

21 5/8"

DLT-7036360

36"×36"

36"

12"

21 5/8"

DLT-7038380

38"×38"

38"

12"

21 5/8"

W

C C R

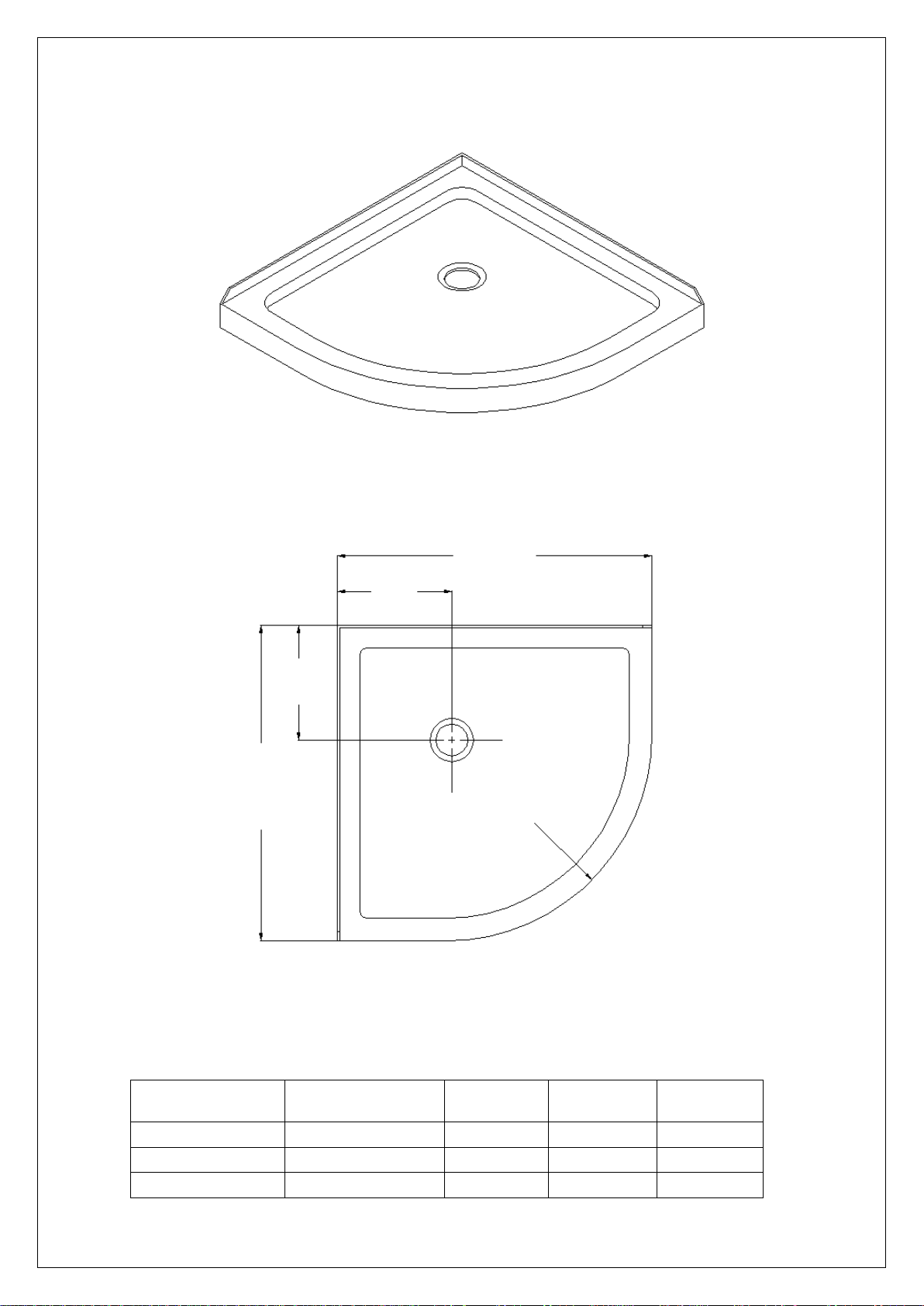

QUARTER ROUND SHOWER BASE

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

10

MODEL

SPECIFICATION

W (in)

C (in)

DLT-1032320

32"×32"

32"

12"

DLT-1036360

36"×36"

36"

12"

W

W C C

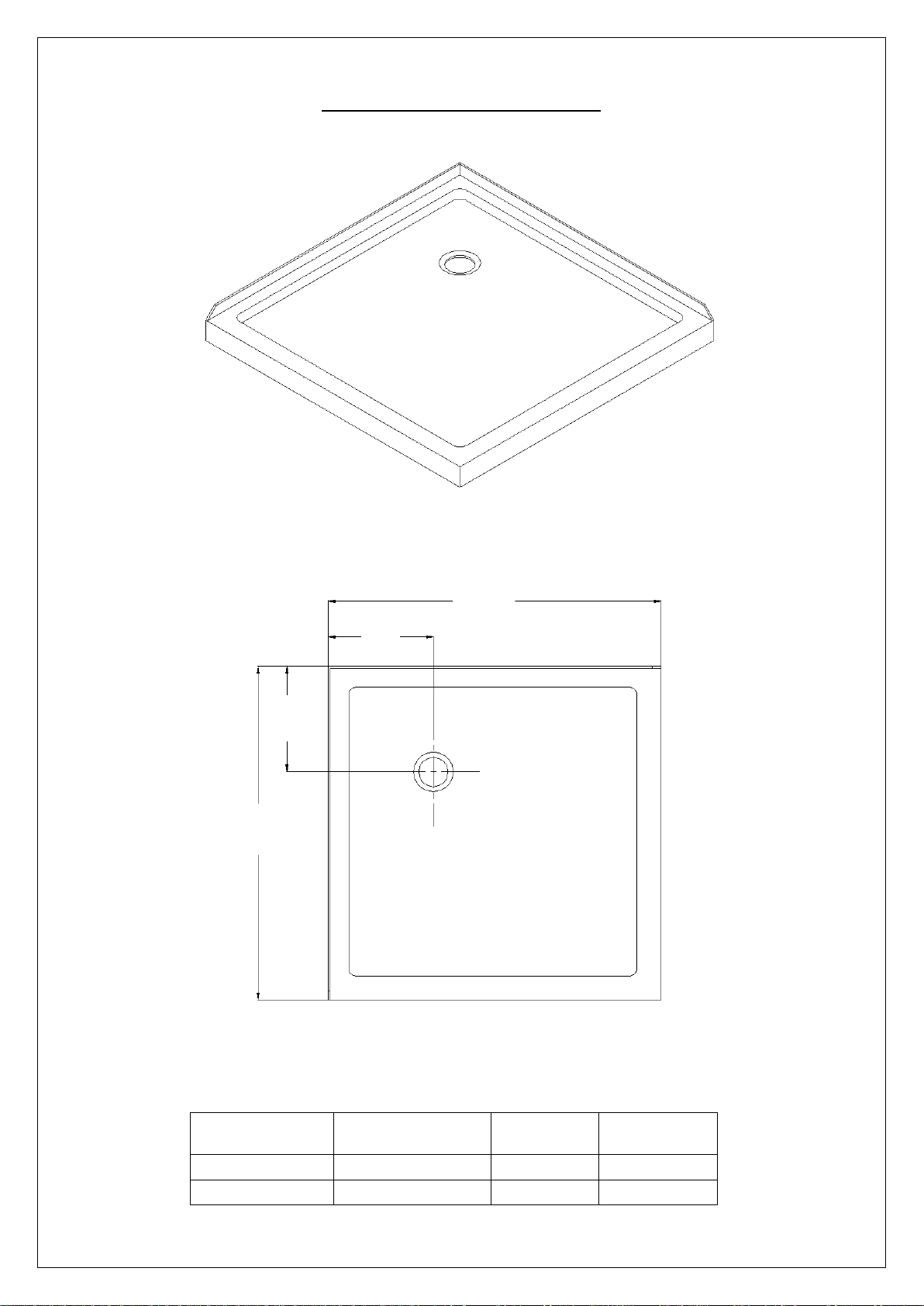

DOUBLE THRESHOLD SHOWER BASE

Corner Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

11

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1034481

34"×48"

34"

48"

17"

12"

DLT-1036481

36"×48"

36"

48"

18"

12"

DLT-1036541

36"×54"

36"

54"

18"

12"

DLT-1036601

36"×60"

36"

60"

18"

12"

D

W

D1

W1

DOUBLE THRESHOLD SHOWER BASE

Left-Hand Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

12

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1034482

34"×48"

34"

48"

17"

12"

DLT-1036482

36"×48"

36"

48"

18"

12"

DLT-1036542

36"×54"

36"

54"

18"

12"

DLT-1036602

36"×60"

36"

60"

18"

12"

W D D1

W1

DOUBLE THRESHOLD SHOWER BASE

Right-Hand Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

13

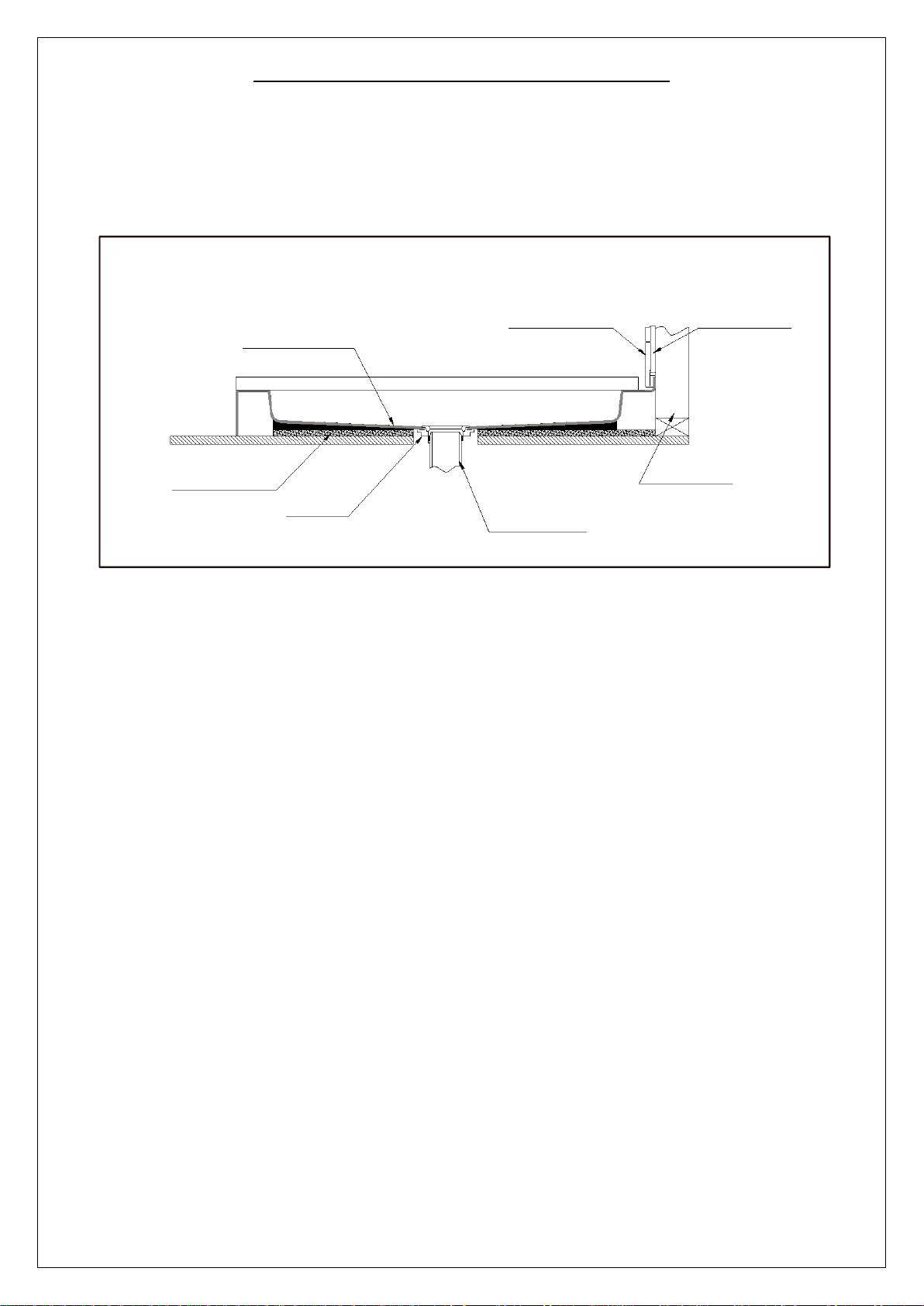

Finished Wall

Cement board

Shower Base

Mortar

Drain*

(2"×4") Stud

* not included

Shower Base Cross Section Diagram

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

14

(See Product Chart for Drain Location)

(5"×5") Opening

2" PVC Waste Pipe

90°

2" PVC Waste Pipe

(5"×5") Opening

(See Product Chart for Drain Location)

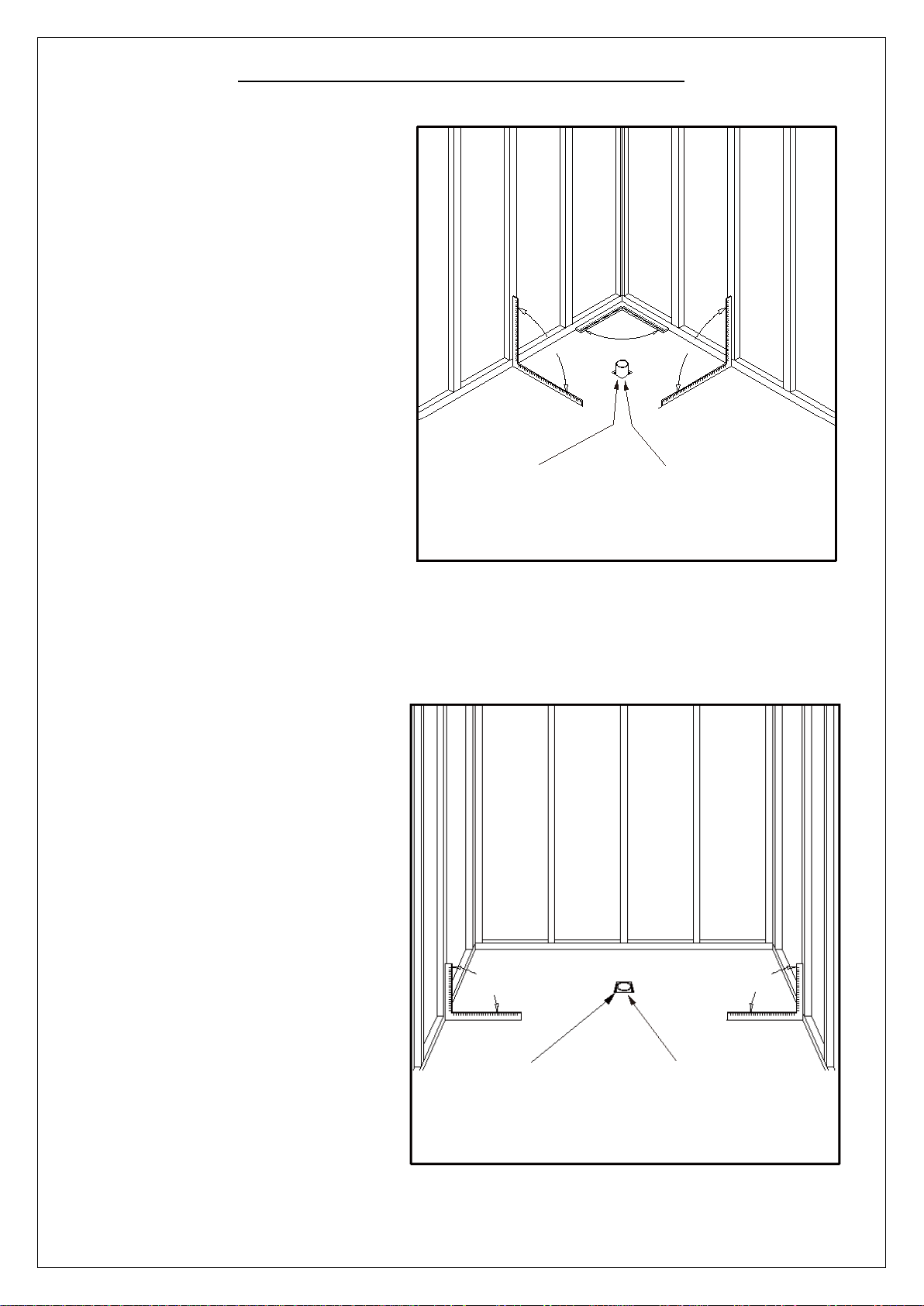

Shower Base Installation - Preparation

1. Ensure that the floor and the studs

are at right angles. Provide a 5”×5” opening in the subfloor for the drain.

The 2” PVC waste pipe should

extend above the surface of the sub-floor according to the drain installation instructions and the height of the Shower base. Refer to the product drawings and tables in this installation manual for the drain location.

See Fig. 1 and Fig. 2 for details.

Fig. 1

Fig. 2

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

15

Lower the base over the drain pipe and set it into place against the studs.

Fig. 4

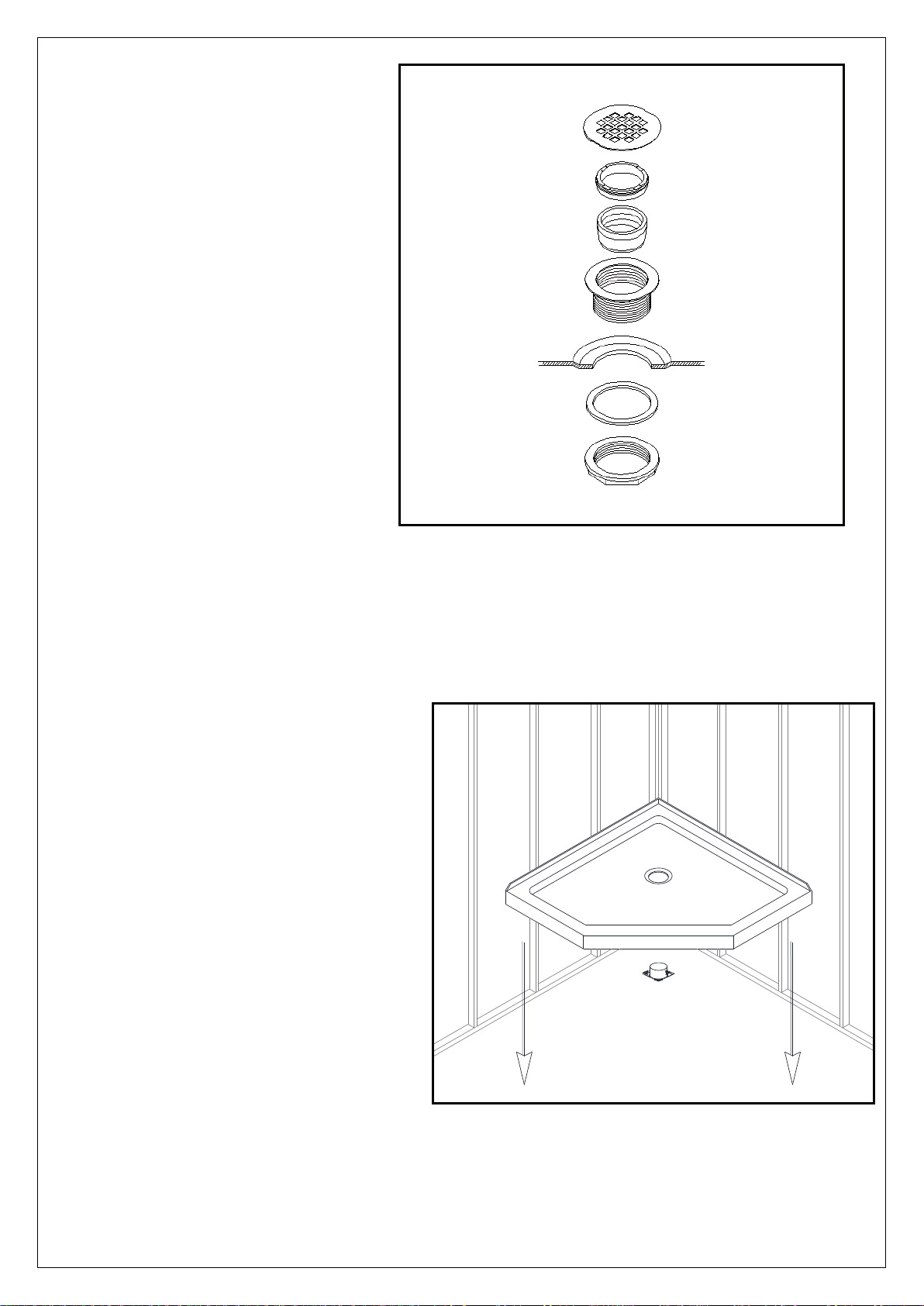

2. Install the shower drain (NOT

INCLUDED) according to the drain installation manual (supplied with the drain).

See Fig. 3 for example

Fig. 3

3. Place the tray into the designated

position so that the Drain cutout drops around the Drain Pipe and butt the Shower Base up against the studs.

See Fig. 4 for details.

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

16

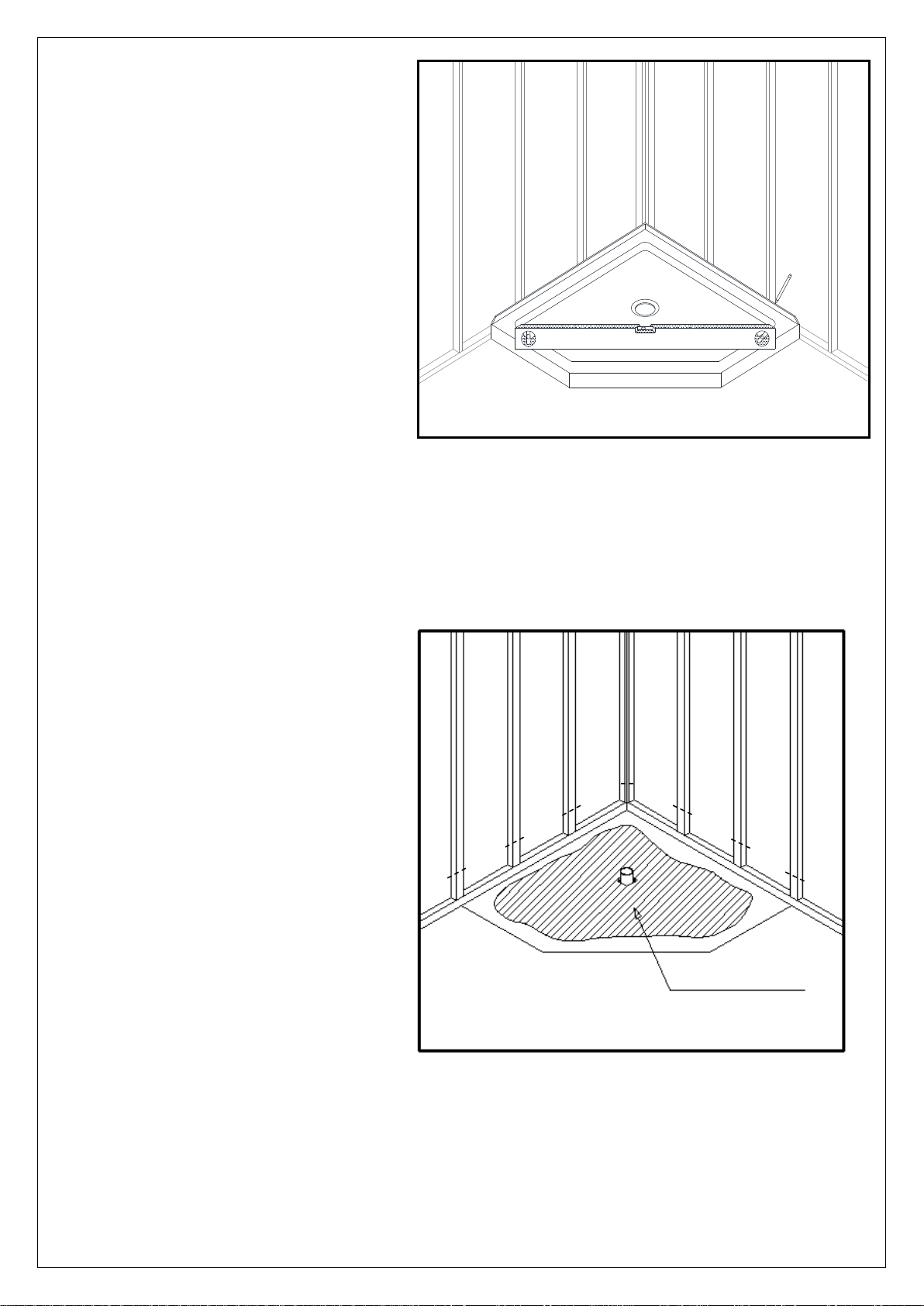

Level base in two directions

Mortar

Fig. 5

4. Level the tray and place marks on the

studs above the upper edge of the tile flange.

See Fig. 5 for details.

5. Mix the bedding material (Mortar,

cement-sand mix, etc.) Concrete or plaster is not recommended. Apply enough bedding material to support the entire bottom of the shower base. This will add additional stability and prevent the base from shifting position.

See Fig. 6 for details.

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

Fig. 6

17

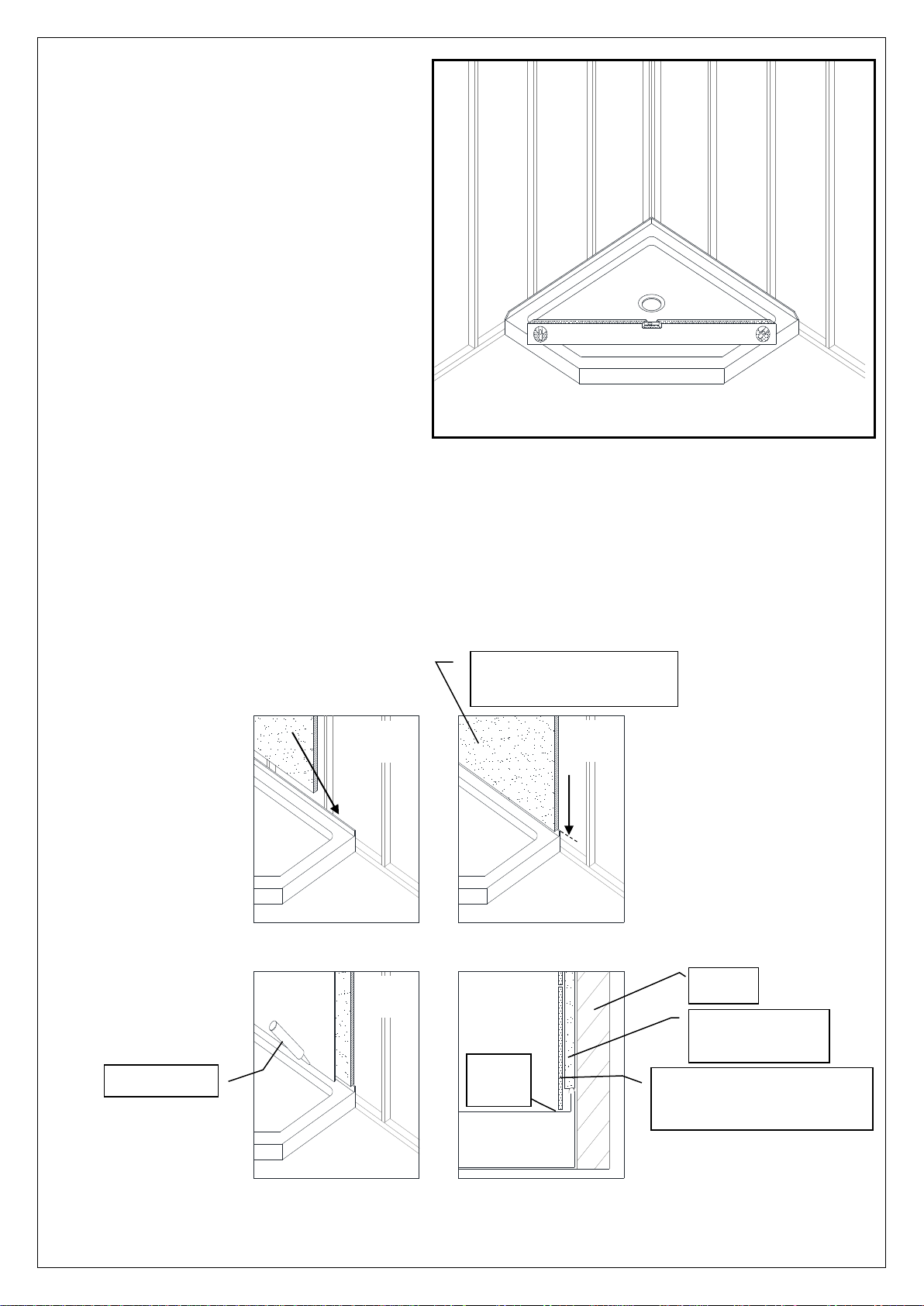

Fig. 7

Fig. 8

Waterproof Drywall to

the top of the tile flange

Caulk

Finished wall overlaps the

dry wall and tile flange

Stud

1

2

Waterproof

Drywall

4

3

Side View

1/8” gap

Base

6. After the bedding material has been

poured and shower base into the position with the drain assembly sliding over the PVC waste pipe. It will be necessary to push the shower base until the top of the tile flange aligns with the marks drawn on the studs and the front edge is contacting the rough floor along the entire length of the shower base. Ensure that the base is level in all directions. You may need to use shims to hold the tray level until the bedding fully sets. Remove all excess mortar.

See Fig. 7 for details.

before

it sets, place the

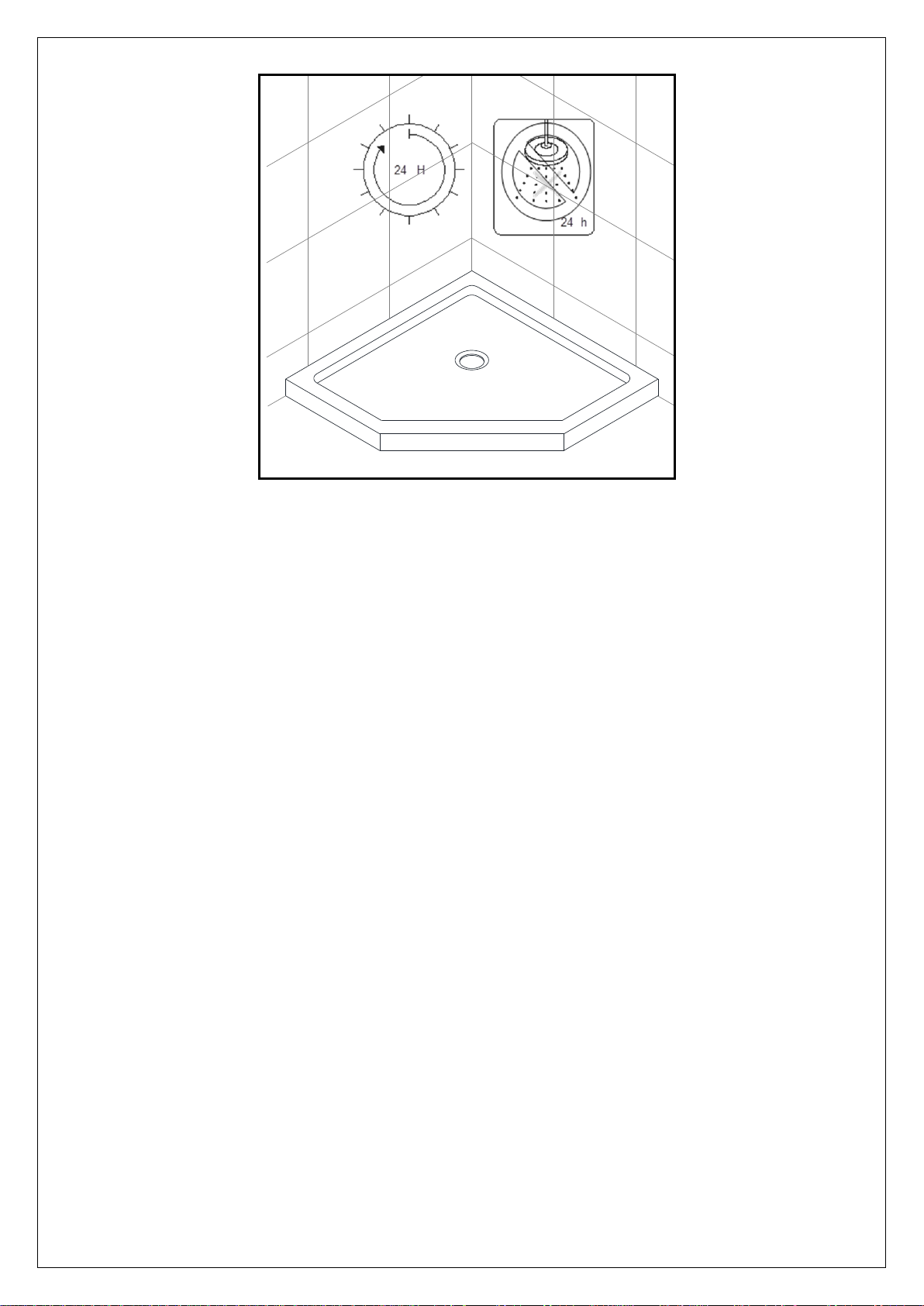

7. Allow the bedding material to completely harden before applying weight to the bottom of the

shower base. Install the cement board (or the wallboard) above the tile flanges and secure it to the studs. Put the tiles (or other finishing wall material) over the cement board leaving 1/8” gap between the bottom of the tile or wall kit and the shower base. Use caulk to fill the gap. See Fig. 8 and Fig. 9 for details.

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

18

Fig. 9

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

19

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic base and/or back walls:

wipe them off after each use with a soft cloth. To clean the acrylic base or back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass

and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.

SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com

DUET

SHOWER DOOR/TUB DOOR INSTALLATION INSTRUCTIONS

Model#: SHDR-1248728-## SHDR-1260728-##

Model#: SHDR-1260588-##

## = finish: 01- Chrome / 04-Brushed Nickel

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details

please refer to your model’s web page on DreamLine.com

For more information about DreamLine® products please visit DreamLine.com

DUET manual Ver.1 Rev 5 11/2016 1

DUET manual Ver.1 Rev 5 11/2016 2

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions and please provide an

order number, job name or other proof of purchase to help identify the original order.

2. If this unit is going to be installed in a new construction, install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.

3. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will

be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please, note that some adjustments and drilling might be necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down

directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

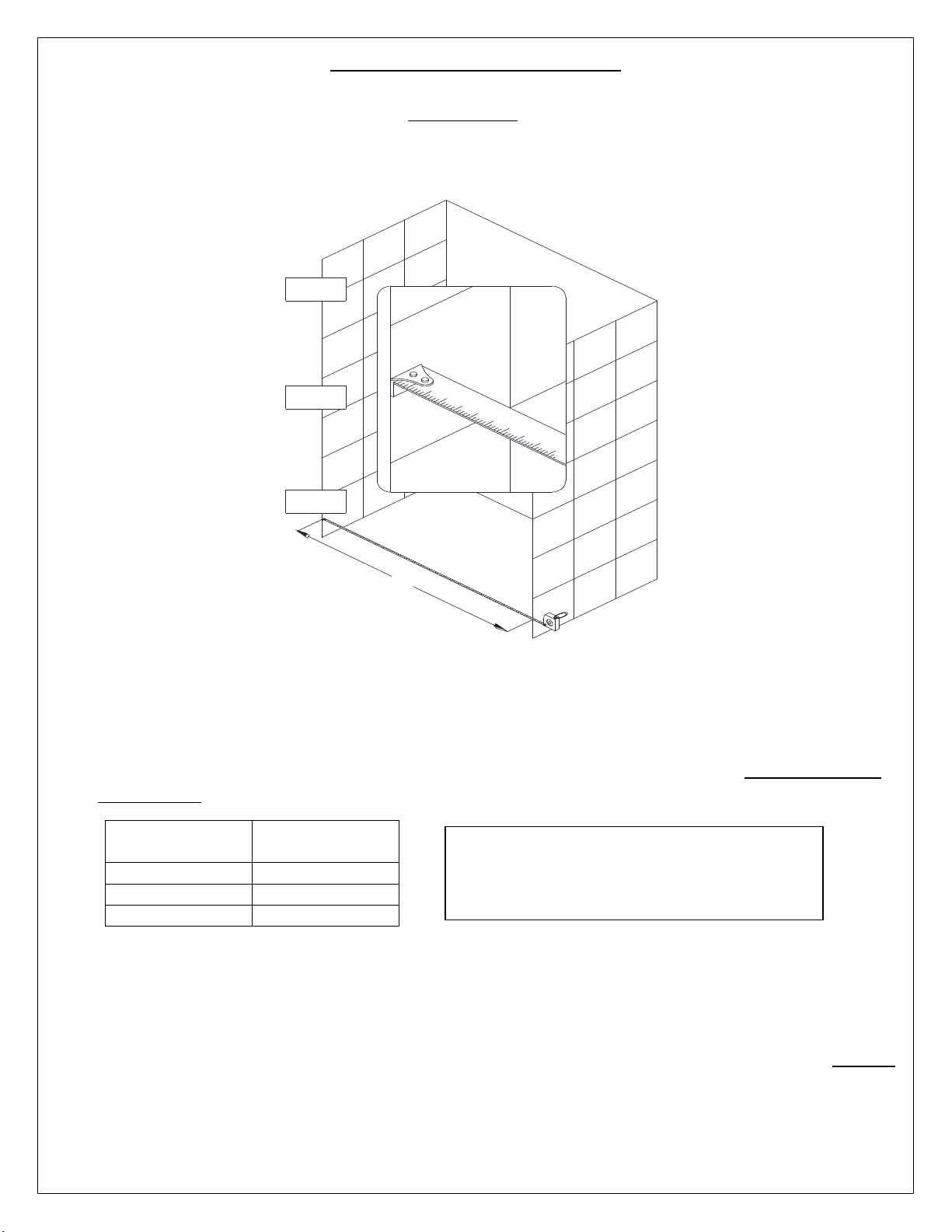

6. This model has 1/2” of adjustment per wall profile for out-of-plumb wall conditions and

overall width within the model size. Confirm the finished opening conditions before proceeding with the installation.

7. This model requires a minimum 2” of flat threshold space and 3” of flat wall space for

installation.

8. This unit must be installed upon a finished threshold (or tub deck) and against finished walls.

9. Professional installation recommended.

These instructions show the installation of the shower door. Please follow the same steps for the installation of the tub door.

DUET manual Ver.1 Rev 5 11/2016 3

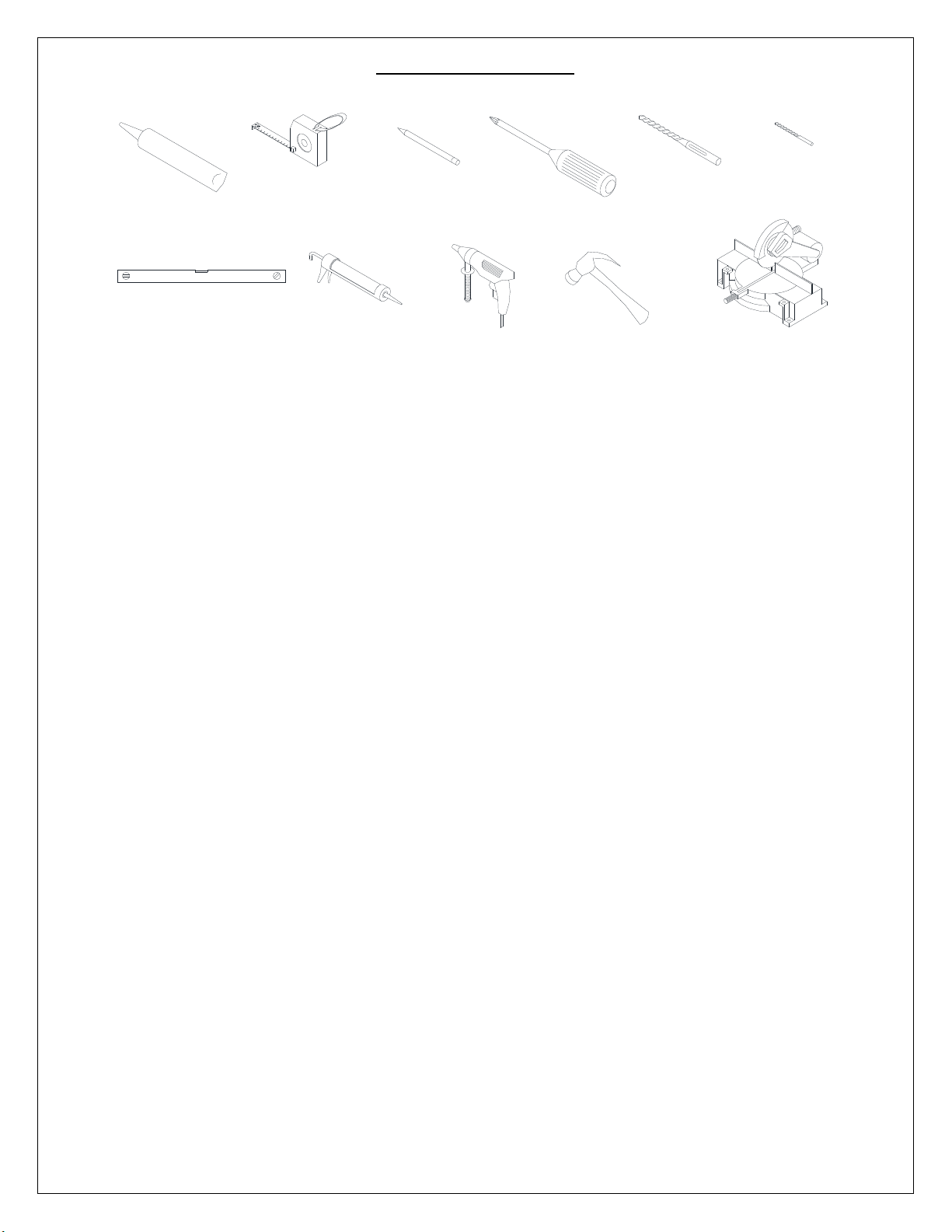

Tools Required

Caulk

Tape Measure Pencil

Screwdriver

Phillips

Level

Gun

Caulk

Drill

Electric

Hammer

Miter saw

Drill bit

(Ø=5/16")

(Ø=1/8")

DUET manual Ver.1 Rev 5 11/2016 4

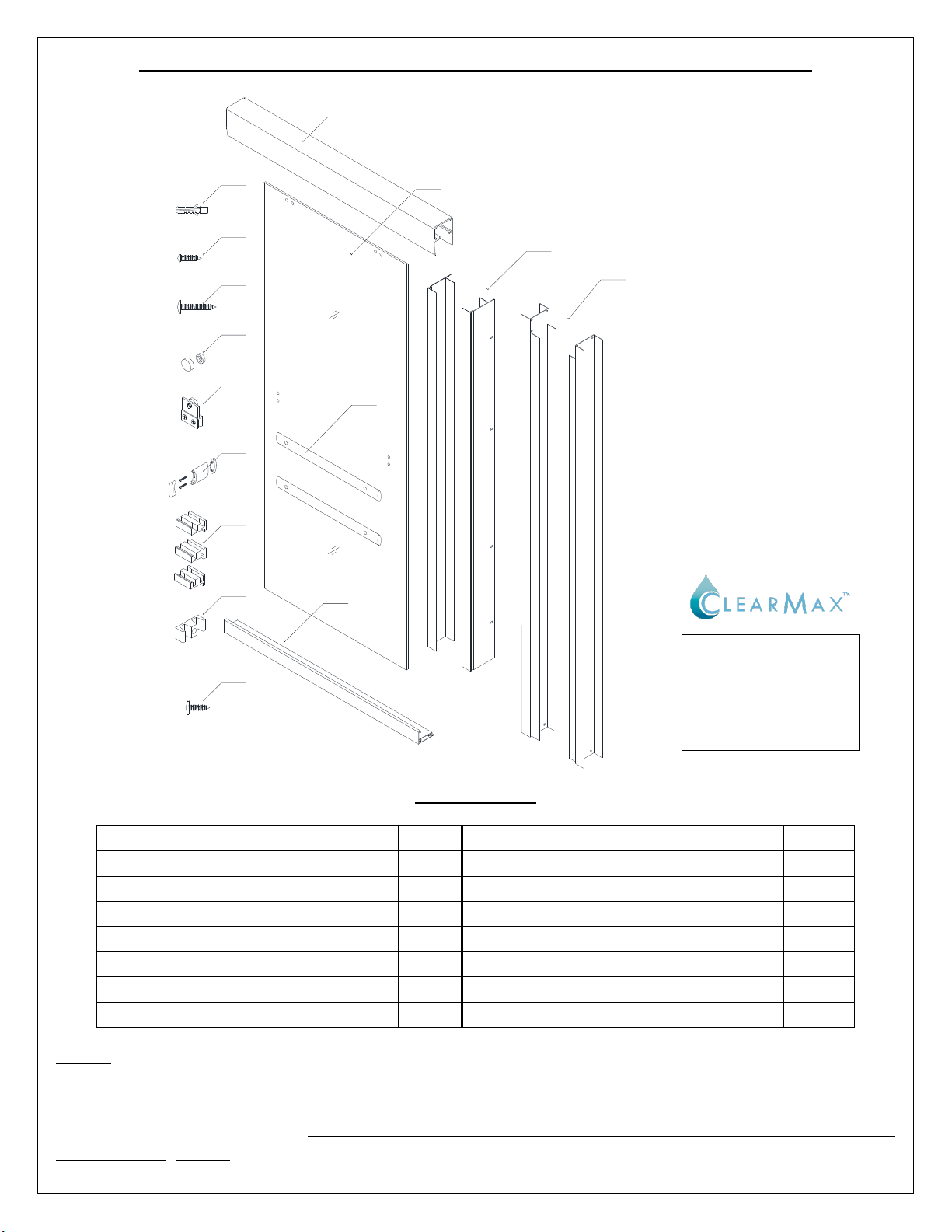

Detailed Diagram of Shower Door/Tub Door Components

1

2

3

4

6

7 8

9

10

11 12

13 14

5

15

01

Upper guide rail

1pc

09

Truss head screw ST4.2×40

8pcs

02

Wall profile

2pcs

10

Decorative cover with washer

10pcs

03

Glass profile - 1 Left / 1 Right

2pcs

11

Roller

4pcs

04

Bottom guide rail

1pc

12

Handle bracket with screws

4 sets

05

Glass door

2pcs

13

Guide block (left, right, middle)

1 set

06

Handle

2pcs

14

Rubber stopper

6pcs

07

Wall anchor

8pcs

15

Truss head screw ST4.2×16

10pcs

08

Pan head screw ST4.2×16

16pcs

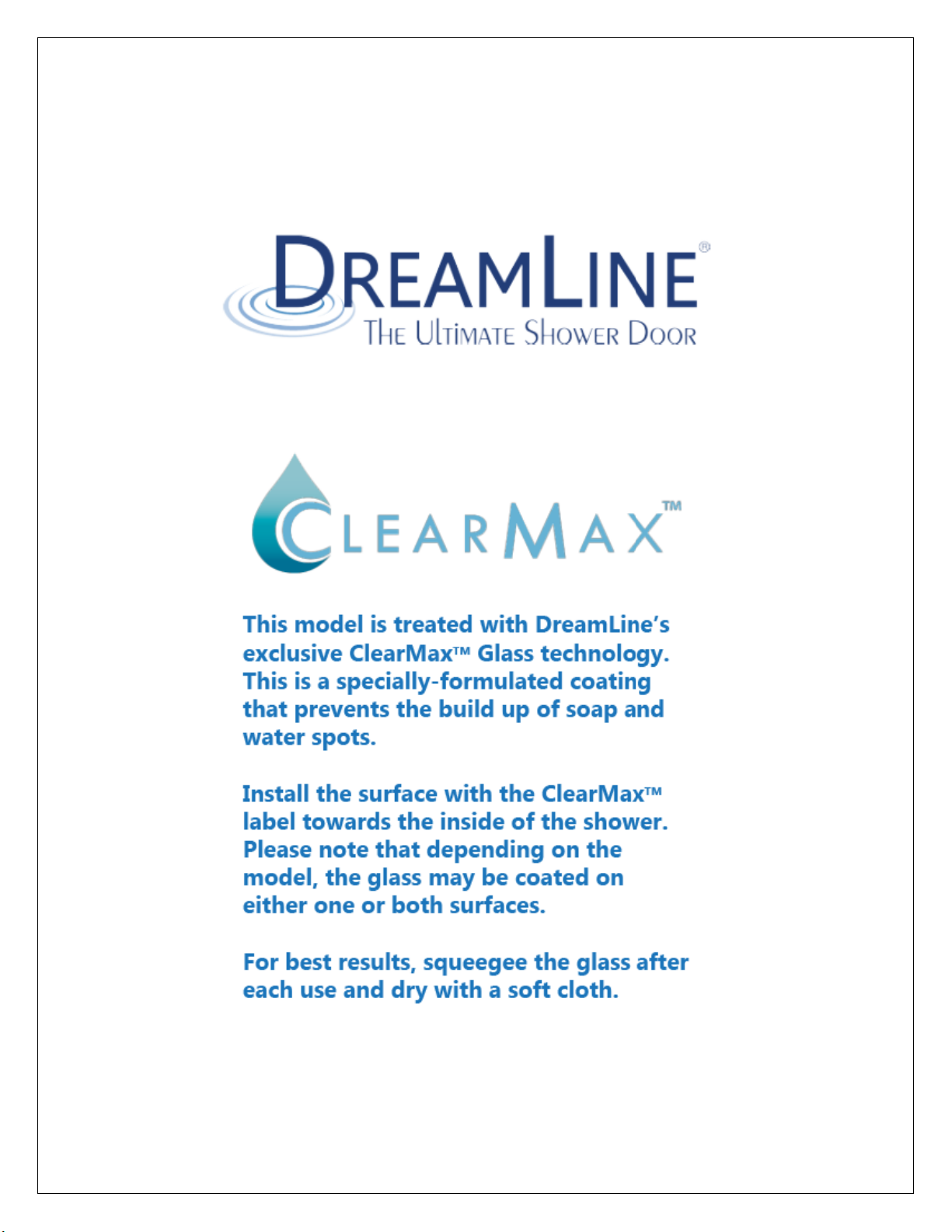

The glass surface with the ClearMax™ label must be installed to face inside of the shower

Packing List

NOTE: Unpack your unit carefully and inspect it. Identify all parts using the detailed diagram and

packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration. NOTE: Retain these installation instructions for future reference.

DUET manual Ver.1 Rev 5 11/2016 5

Shower Door Installation

Model Size

Precut

Rail Length

48” (for shower)

45-3/4”

60” (for shower)

57-3/4”

59” (for tub)

56-3/4”

NOTE: The top and bottom guide rails are

made to fit between the wall profiles and are shorter than the model size by design.

Fig. 1

W

Top

Middle

Bottom

1. Measure the distance between the two finished walls at the top (at unit height), middle and

bottom. The wall profiles will adjust for out-of-plumb conditions. Use the smallest measurement as the finished dimension. See Fig. 1 for details.

The Upper guide rail (#01) and the Bottom guide rail (#04) have been pre-cut for your

model width. See the table below:

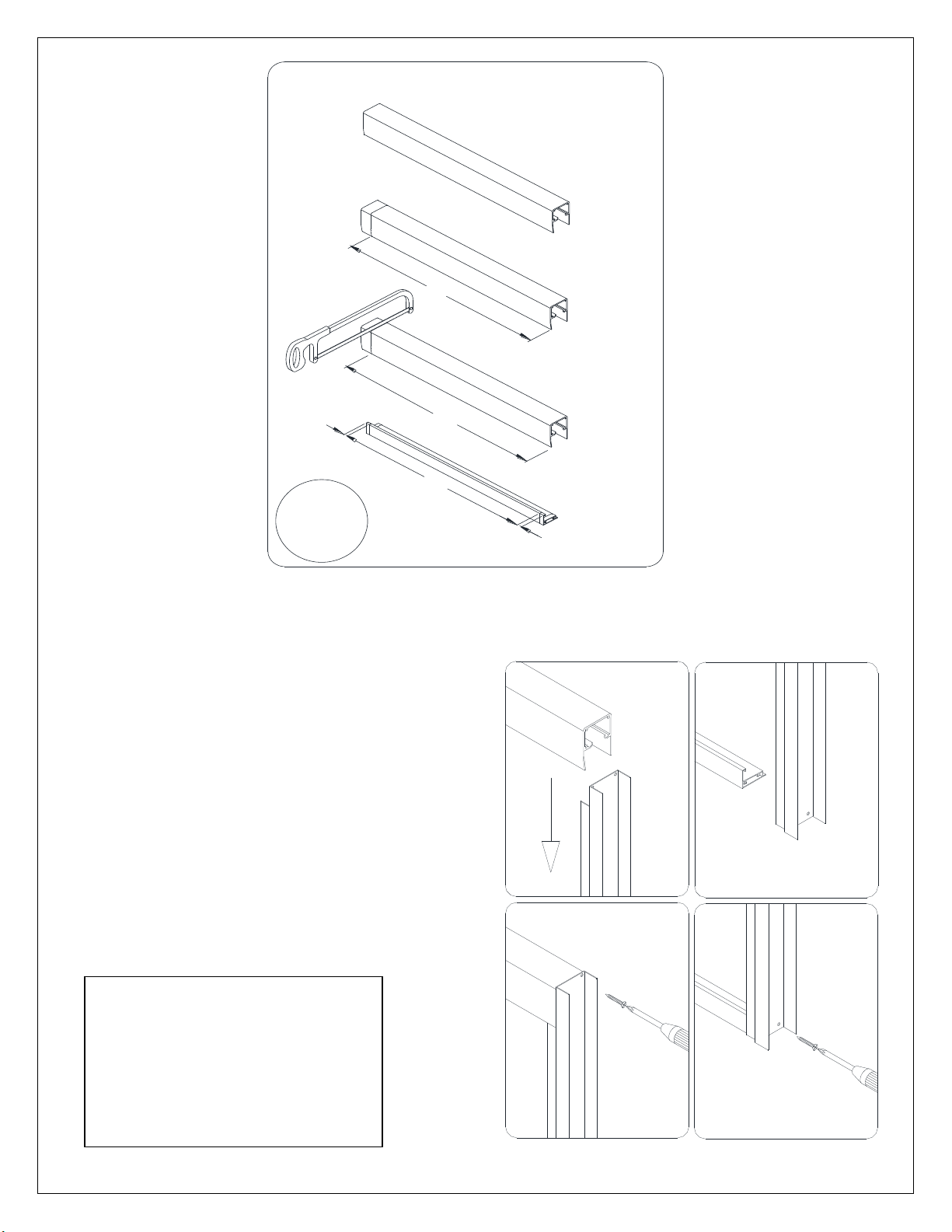

2. Cut the Upper guide rail (#01) and Bottom guide rail (#04) to the finished cut length “D”

Use this formula to determine your finished cut length:

FINISHED OPENING – 2-1/4”= FINISHED CUT LENGTH “D”

 In order to keep the center guide holes centered, cut the Bottom guide rail (#04) equally

from both ends to the same finished length “D” as the Upper guide rail (#01).

See Fig. 2 for details.

DUET manual Ver.1 Rev 5 11/2016 6

1 2 3

4

inside

outside

TIP: For ease of assembly, add some liquid soap, wax or lubricant to the screws prior to attaching the glass profiles to the guide rails. Using a low setting on your power drill can also prevent stripping the screws.

Note: There are 3 holes in the top end of the glass profiles. Align these holes with the holes in the Upper guide rail to determine the left and right glass profile.

inside

outside

4 3 2

1

EQ

"D"

CUT

BOTTOM

RAIL EQUALLY

FROM BOTH

ENDS

"D"

FINISHED OPENING - 2-1/4" = FINISHED CUT LENGTH "D"

Fig. 2

Fig. 3

Upper Guide Rail

Bottom Guide Rail

3. Secure Upper guide rail (#01) and Bottom

guide rail (#04) to the Glass profiles (#03)

with the Truss head screws ST4.2×16 (#15).

See Fig. 3 and Fig. 4 for details.

DUET manual Ver.1 Rev 5 11/2016 7

1

2

inside

Fig. 4

Fig. 5

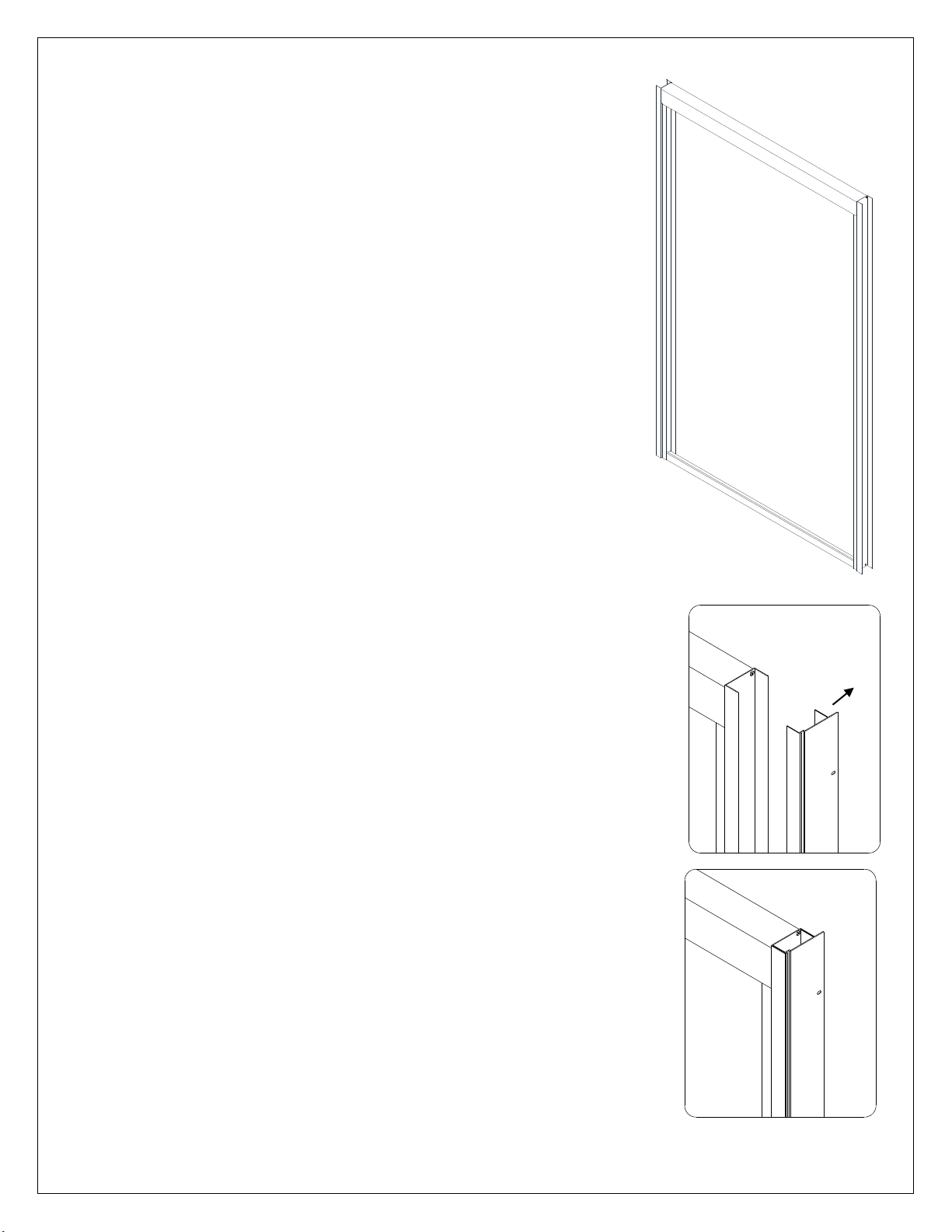

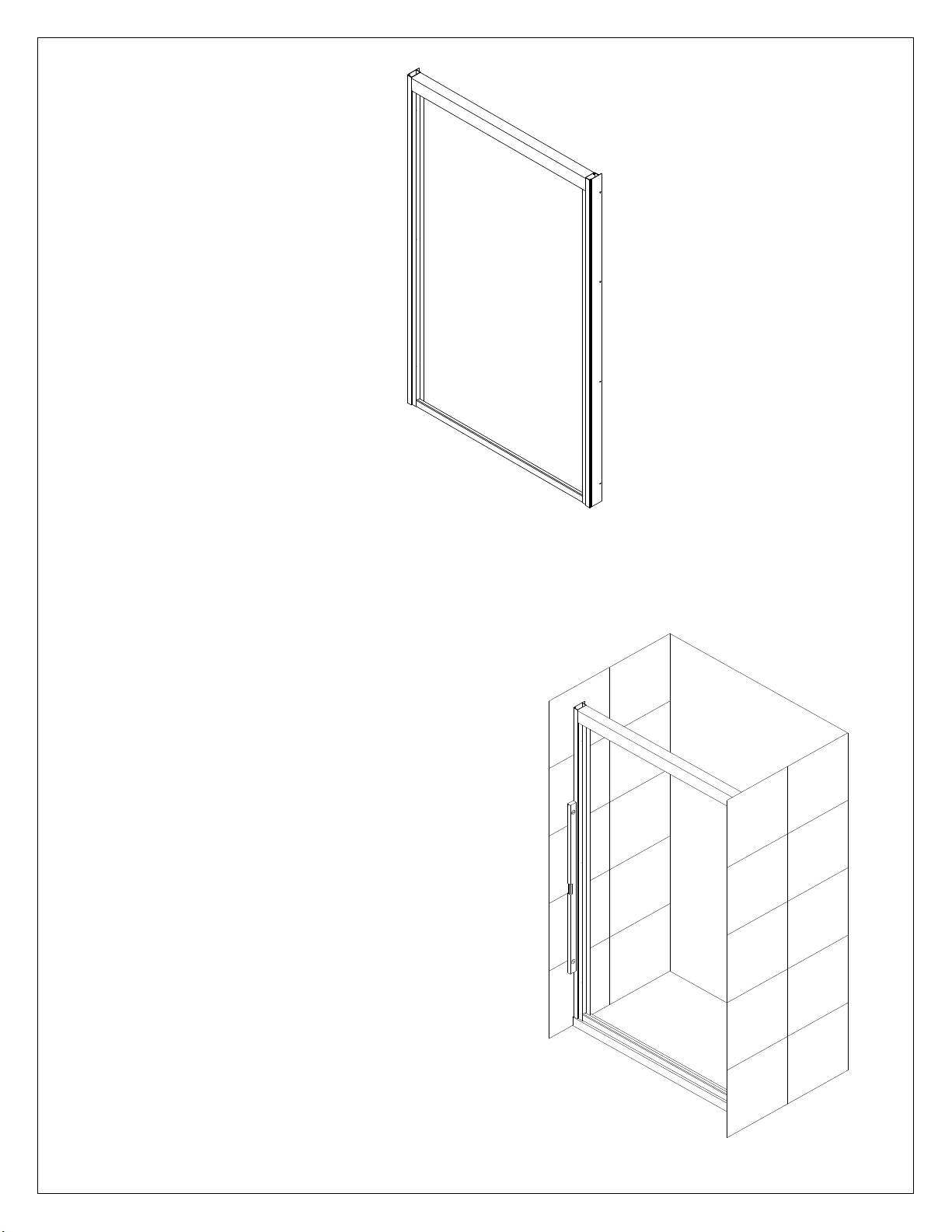

4. Push the Glass Profiles (#03) all the way over the Wall Profiles

(#02). Make sure the Wall Profile flange faces inside the shower.

See Fig. 5 and Fig. 6 for details.

DUET manual Ver.1 Rev 5 11/2016 8

Fig. 6

Fig. 7

5. Move the assembled frame to the designated

position and adjust the Wall profiles (#02) so that they are tight to the walls by slightly pulling them

out of the Glass Profiles (#03) if necessary.

NOTE: Use a level to check the wall profiles for plumb and vertical while marking the holes for drilling.

See Fig. 7 for details.

DUET manual Ver.1 Rev 5 11/2016 9

4 3 2

1

Ø 5/16”

1

2

inside

outside

inside

Fig. 8

Fig. 9

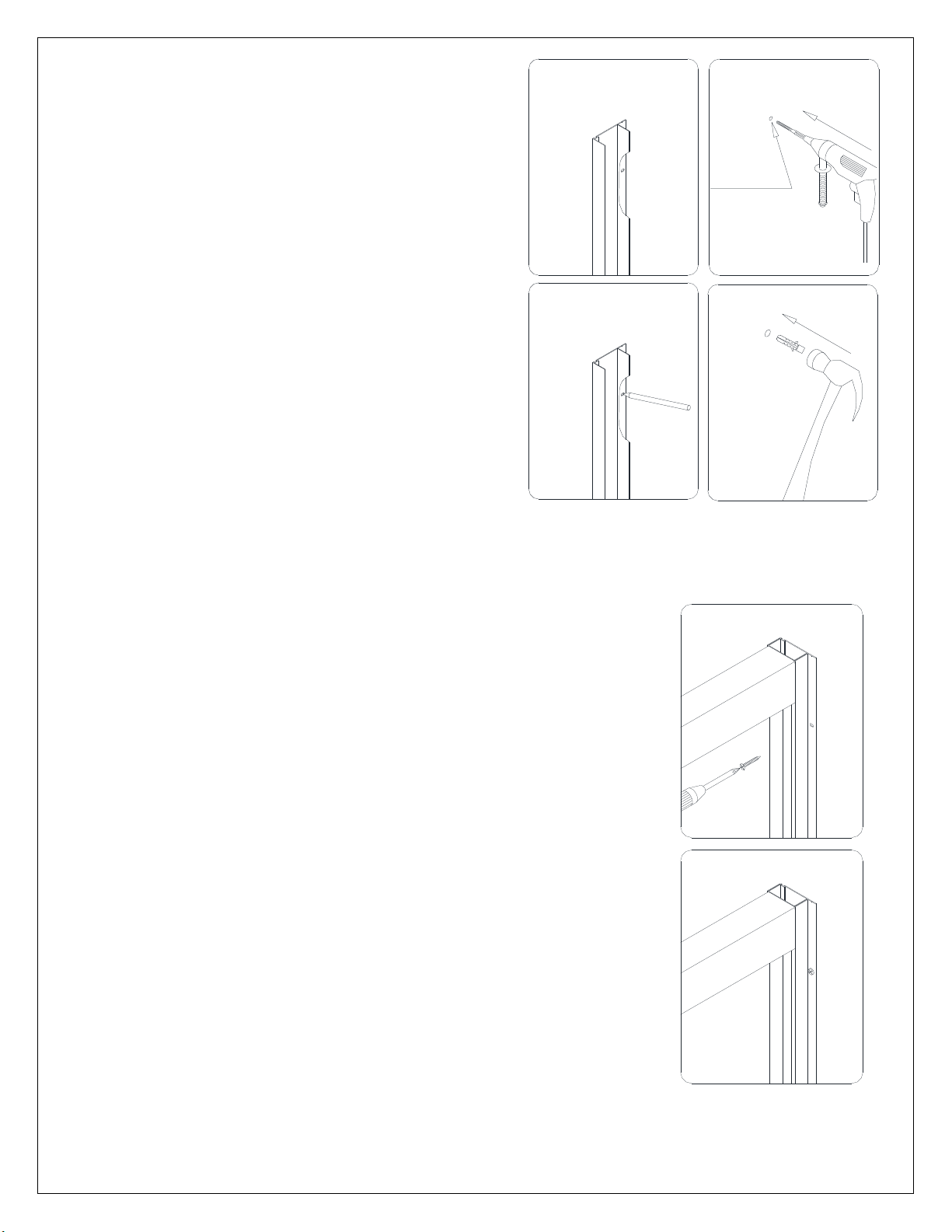

6. Hold the frame in the correct position, mark the

drill holes on the wall through the holes on the flange of the Wall Profile (#02). Set the assembled unit aside; drill the holes in the wall using a Ø5/16” drill bit and insert the Wall anchors (#07).

See Fig. 8 for details.

7. Apply silicone to the back of the wall profiles, into the drilled holes and

to the bottom of the bottom guide rail prior to attaching to the opening. Place the frame back into position and secure it to the walls using Truss Head ST4.2 x 40 screws (#09). Use a level to re-check the wall profiles for plumb before fully tightening the wall screws.

See Fig. 9 for details.

DUET manual Ver.1 Rev 5 11/2016 10

A

4 3 2

1

Fig. 10

Fig. 11

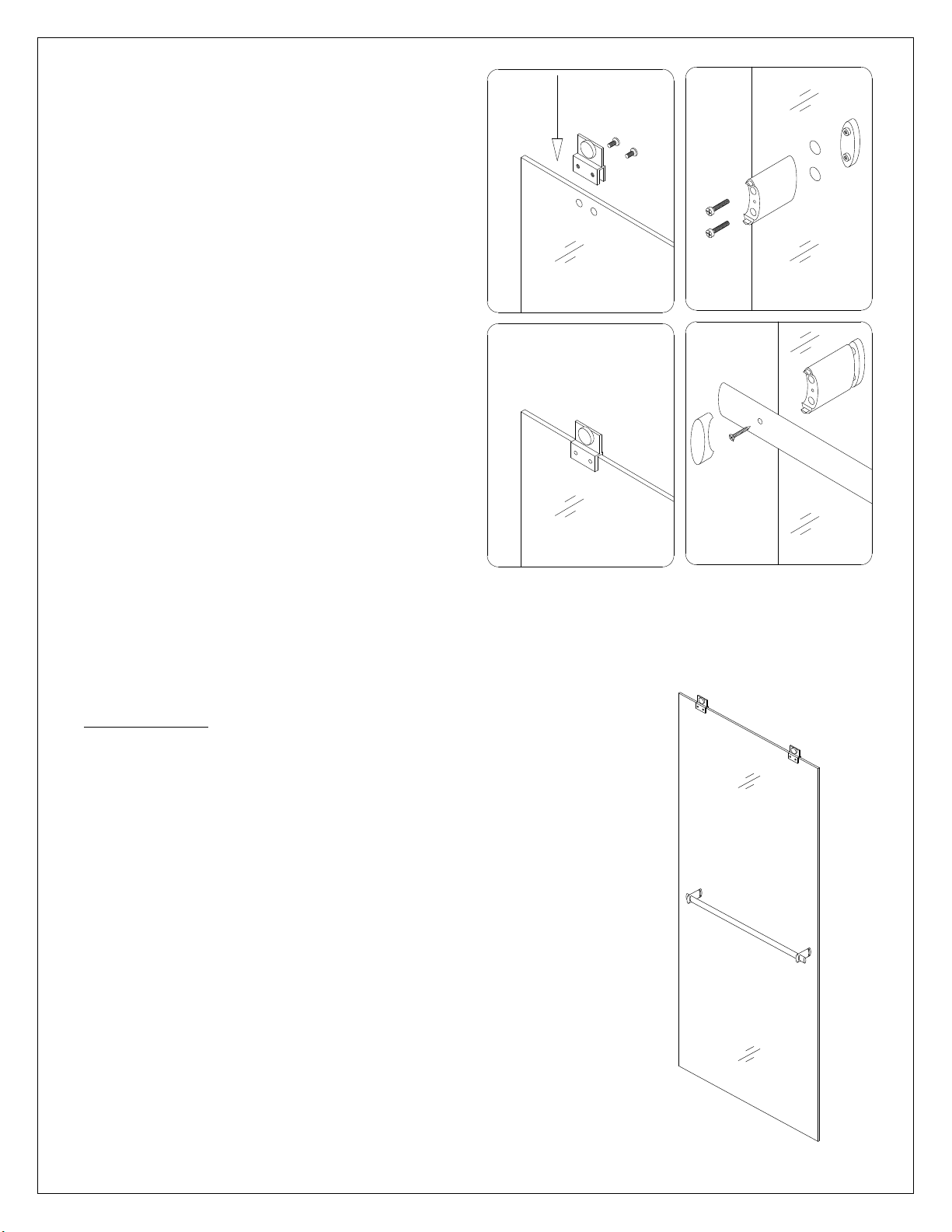

8. Secure the Rollers (#11) to the top of the

Glass door (#05). Mind the direction of the rollers. (See Fig 10.1 and Figs 11- 13) Attach the Handle brackets (#12) to the

Glass doors (A & B) using the 25mm machine head screws (screw bag #12).

The handle brackets should face the same direction as the roller wheels. Then secure the Handles (#06) to the Handle brackets using Round head screw ST4.2×25 (screw bag #12) and cover the holes with the decorative bracket covers provided. (Fig

10.4)

See Fig. 10 for details.

PLEASE NOTE:

 On the outside of Glass door (A) the Handle and the Rollers

should face out.

 On the inside of Glass door (B) the Handle and the Rollers

should face inside.

See Fig. 11 and Fig. 12 for details.

DUET manual Ver.1 Rev 5 11/2016 11

A

B

3

2

4

1

inside

outside

Fig. 12

Fig. 13

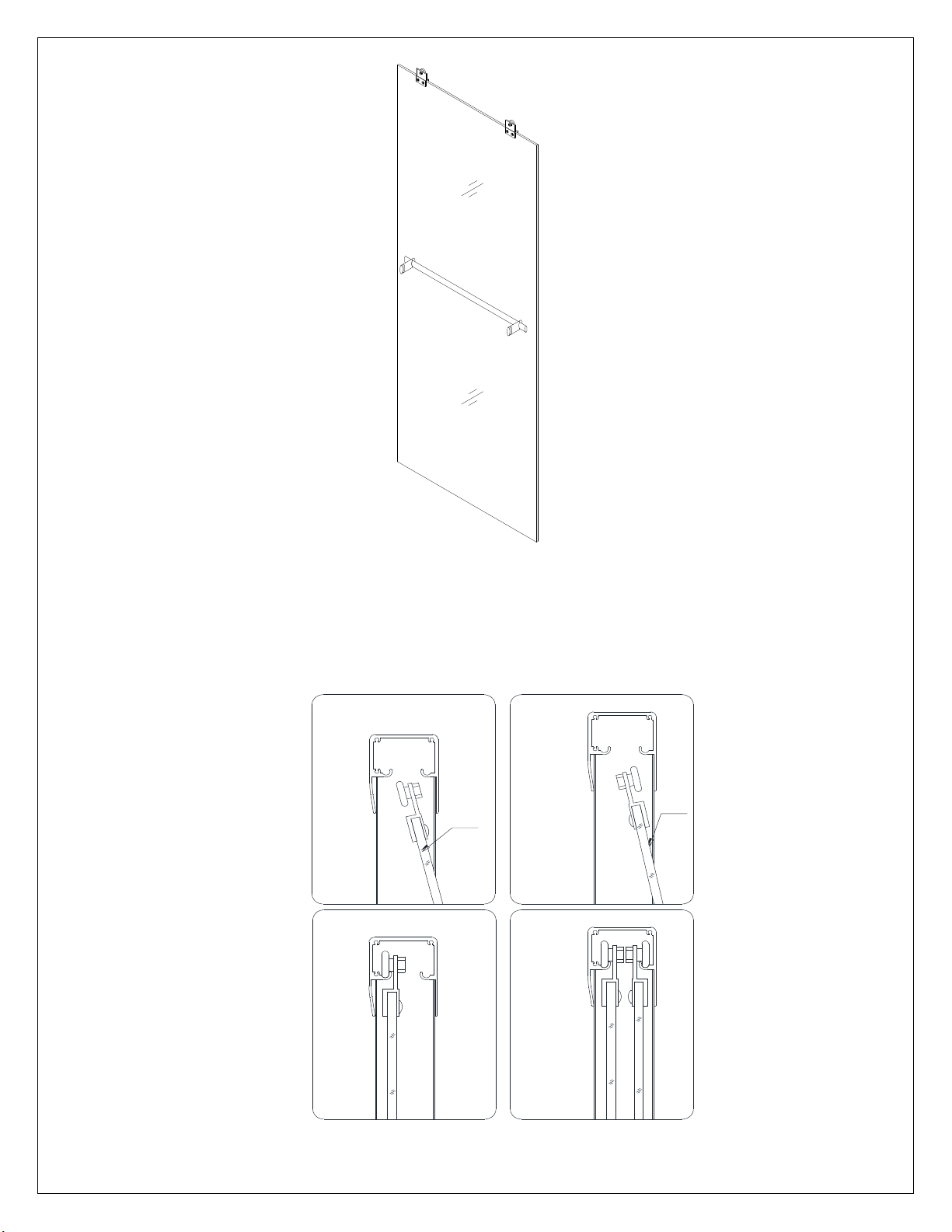

9. From inside of the shower, install the outside Glass door (A) (#05) first, as shown in Fig 13.1 and

13.2. Then install the inside Glass door (B) (#05) making sure that the rollers are aligned in the Upper guide rail (#01) as shown. See Fig. 13 and Fig. 14 for details.

DUET manual Ver.1 Rev 5 11/2016 12

3 1/2"

Ø 1/8”

3

2 4 5

1

Fig. 15

Fig. 14

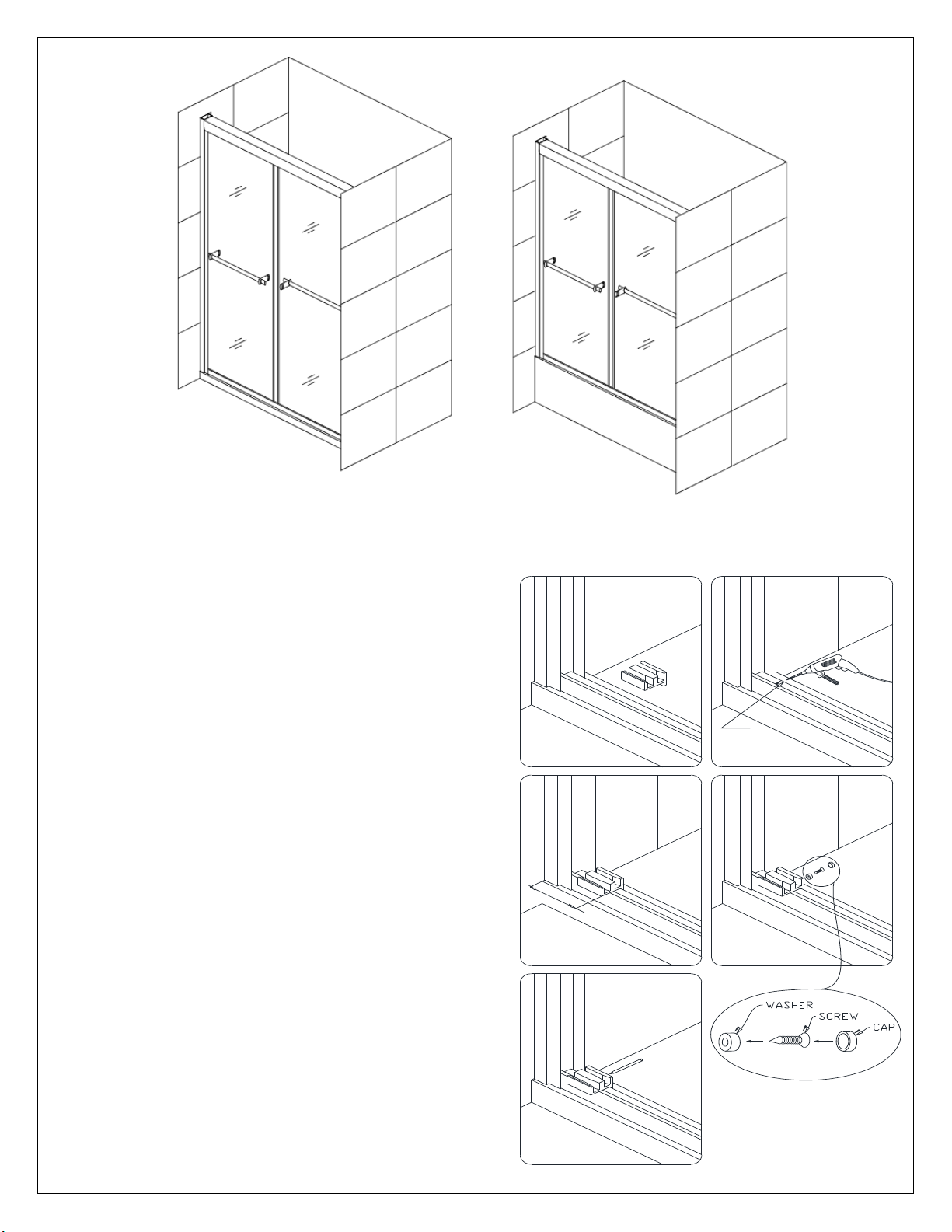

10. From inside the shower, slide both Glass Doors

(#01) to the right. Place the Left guide block (#13) to the end of the guide rail and mark the

drill hole in the Bottom Guide rail (#04) through the pre-drilled hole on the block using an Ø1/8” drill bit. Drill the hole and secure the Guide block with the Pan Head screw ST4.2×16 (08) using

the washers and the Decorative Covers (10).

See fig. 15 for details.

Repeat Step #10 to install the Middle guide

block and the Right guide block to the Bottom Guide rail (#04).

See Fig. 15 for details.

DUET manual Ver.1 Rev 5 11/2016 13

1

2

1

Ø 1/8”

Fig. 17

Fig. 16

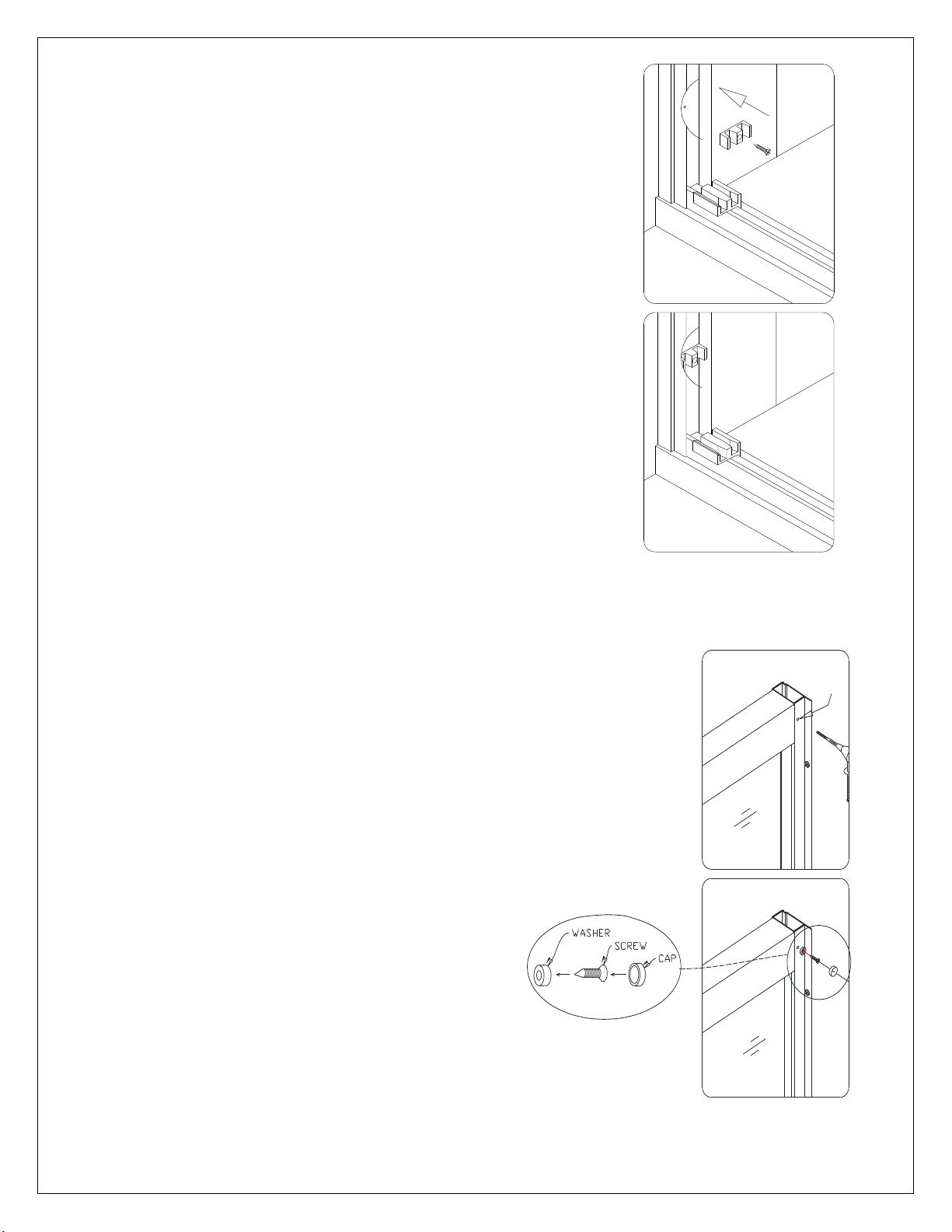

11. Fasten the Rubber stopper (#14) inside the groove of the Wall

Profile (#02) using the Pan Head screw ST4.2×16 (#08). Repeat for all 6 of the Rubber stoppers (#14).

See Fig. 16 for details.

12. Perform final adjustments of the Wall Profiles

(#02) on the assembled unit making sure that the bottom rail is tight to the threshold. Drill Ø1/8" holes through the Glass profiles (#03) into the Wall profiles (#02) as shown in Fig 18.1 and attach them together using the Pan Head

ST4.2 x 16 screws (#08) along with the decorative cover and washer. (#10).

See Fig. 17 for details.

DUET manual Ver.1 Rev 5 11/2016 14

caulk

Fig. 18

Fig. 19

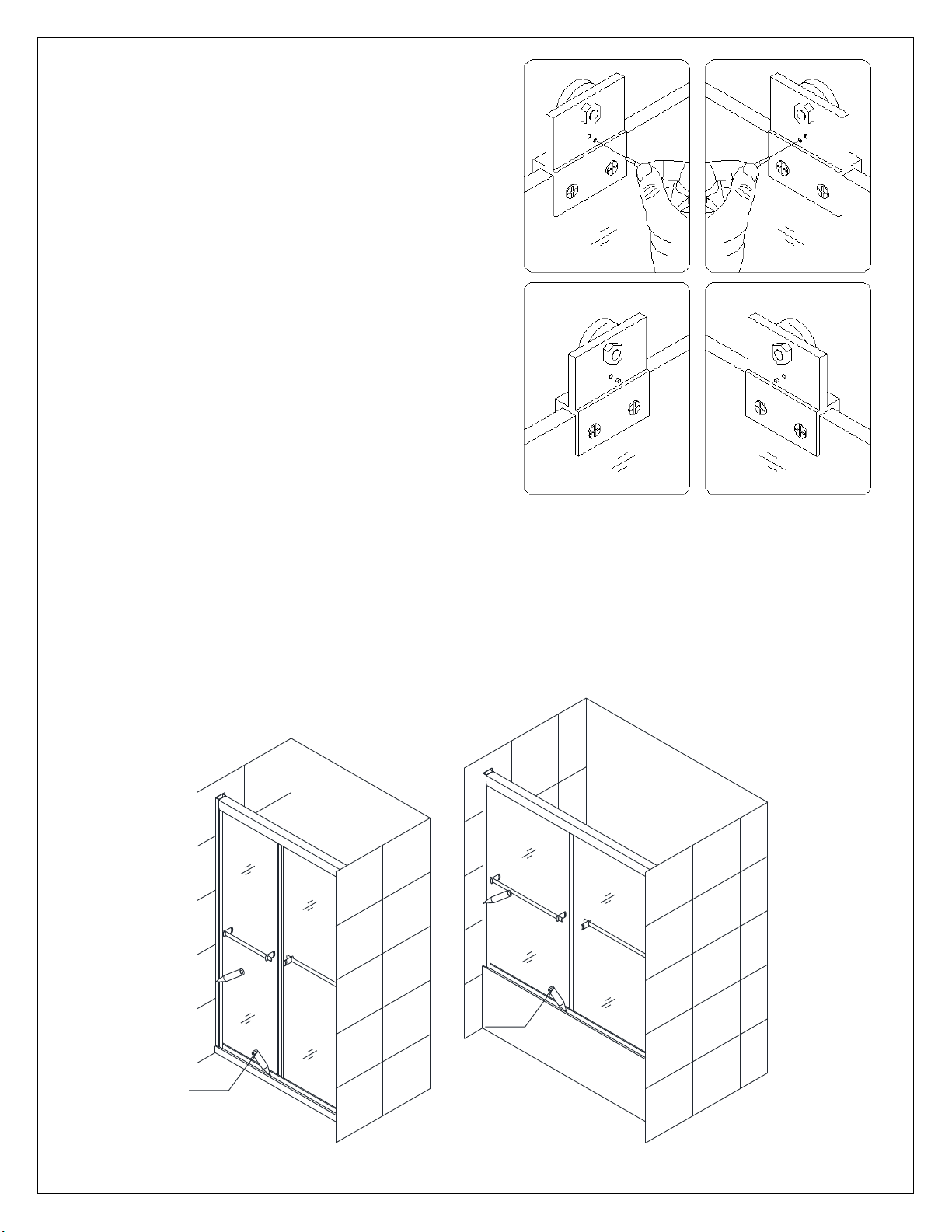

13. After final adjustments of the Glass doors (#05),

install the small black Pin Blocker that is packaged with the Rollers (#11). Insert the Pin Blockers all the way into the pre-drilled holes on the body of the Roller from the screw side as shown. This pin will prevent the doors from being lifted of the track,

See Fig. 18 for details.

14. From inside of the shower, apply a good quality mildew-resistant silicone along the profiles and

the guide rails; on the seams between the bottom guide rail and the vertical profiles as well as along the shower base or threshold. You may also apply silicone from the outside if you choose. See Fig. 19 for details.

DUET manual Ver.1 Rev 5 11/2016 15

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls:

wipe them off after each use with a soft cloth. To clean the acrylic back walls use nonabrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off

after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use

with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.

DUET manual Ver.1 Rev 5 11/2016 16

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com
