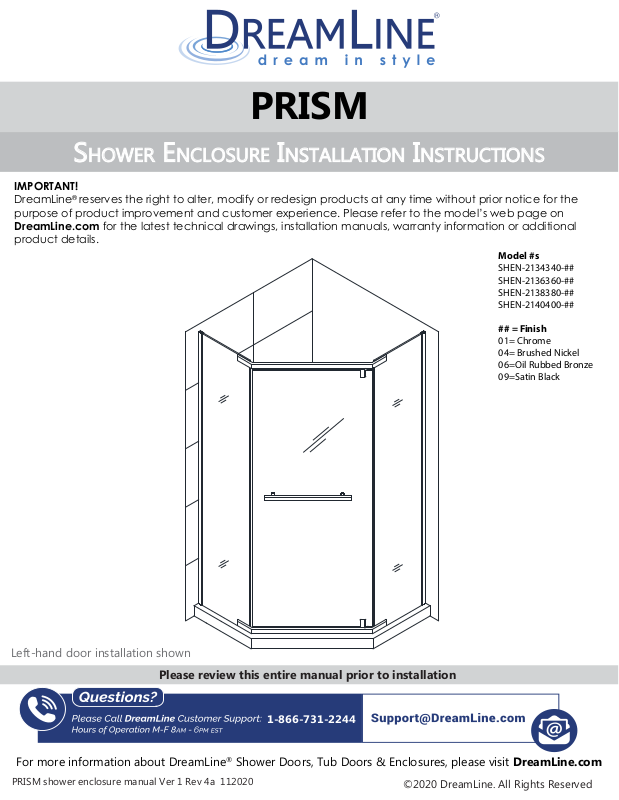

DreamLine DLN5384 Installation & Assembly

Page 1

PRISM

1-866-731-2244

SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS

IMPORTANT!

DreamLine purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

reserves the right to alter, modify or redesign products at any time without prior notice for the

Model #s

SHEN-2134340-## SHEN-2136360-## SHEN-2138380-## SHEN-2140400-##

## = Finish

01= Chrome 04= Brushed Nickel 06=Oil Rubbed Bronze 09=Satin Black

Left-hand door installation shown

Please review this entire manual prior to installation

For more information about DreamLine® Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 2

This model is treated with DreamLine’s

exclusive ClearMax

Glass technology. This is a specially formulated coating that prevents the build up of soap and water spots.

Install the surface with the ClearMaxTM label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.

For best results, squeegee the glass after each use and dry with a soft cloth.

PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 3

Table of Contents

Section title

Preparation

Tools

Detailed Diagram of Shower Door Components

Parts List

Adjustable Wall Profile System

Installation Steps

Vinyl Seals

Handle

Product Maintenance

Page #

5 6

8-13

12 13

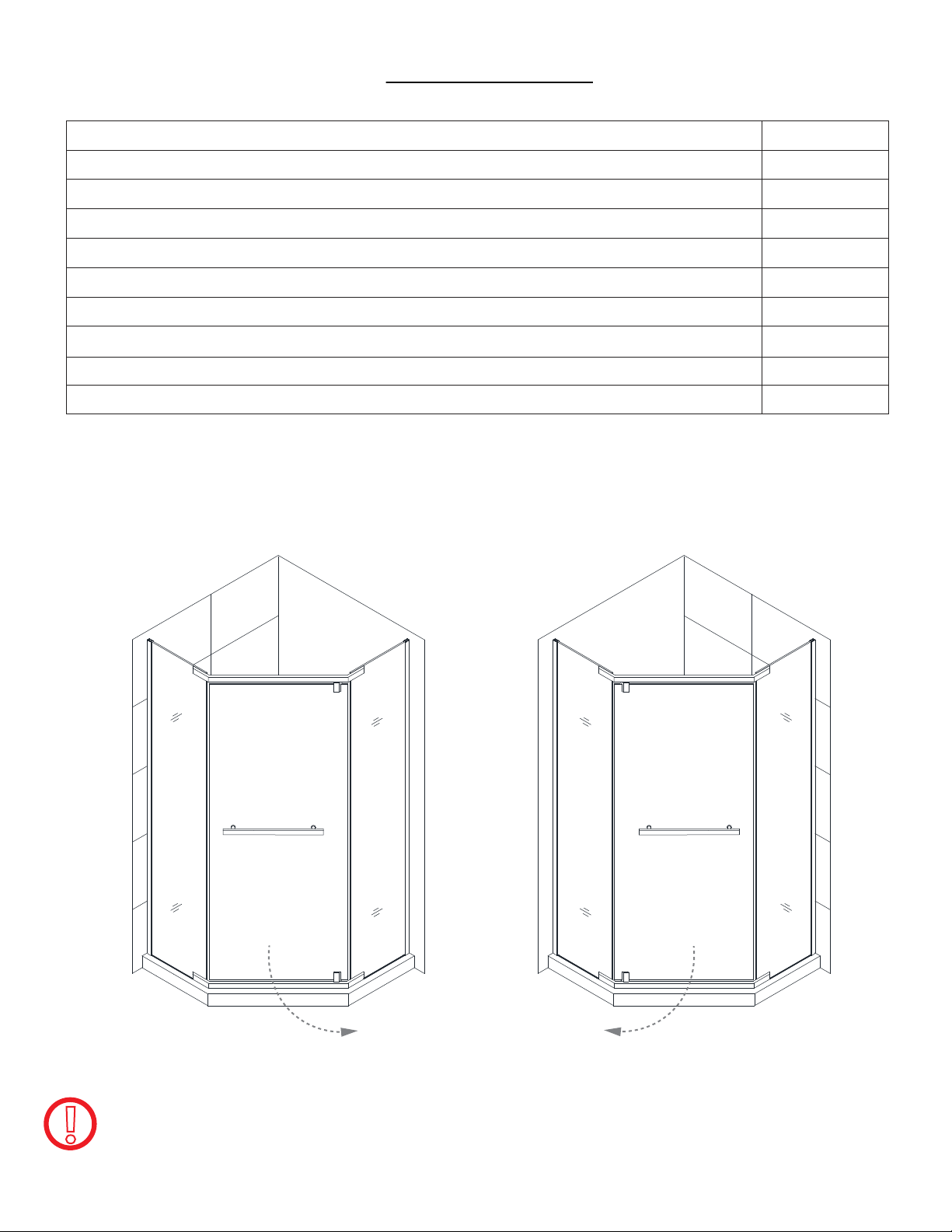

Left-hand door installation shown Right-hand door installation shown

NOTE: This model is reversible for Left or Right-hand door installation. This manual will show the

PRISM shower enclosure manual Ver 1 Rev 4a 112020

Left-hand door installation as an example throughout. For a Right-hand door installation, install both

pivot bars with the holes on the correct side. See step #5 for details.

Page 4

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with the packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the necessary parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Contact

DreamLine of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine not responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Note that some adjustments and drilling will be necessary during the installation process.

if you have any questions, and please provide an order number, job name or other proof

5. Protect all primary surfaces of the product during installation. Never set the glass down directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a level finished threshold and against finished walls.

7. This model has 3/8” of adjustment for out-of-plumb wall conditions using the adjustable wall

profiles Make sure that the walls are within this range before proceeding with the installation.

8. Professional installation recommended.

NOTE: DO NOT attach the handle to the door glass or the towel bar to the panel glass until instructed.

DO NOT use the handle or towel bar to lift the glass during installation. This may result in

damage to the glass and/or serious injury. Always use an assistant or a professional grade glass suction cup when handling heavy glass.

PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 5

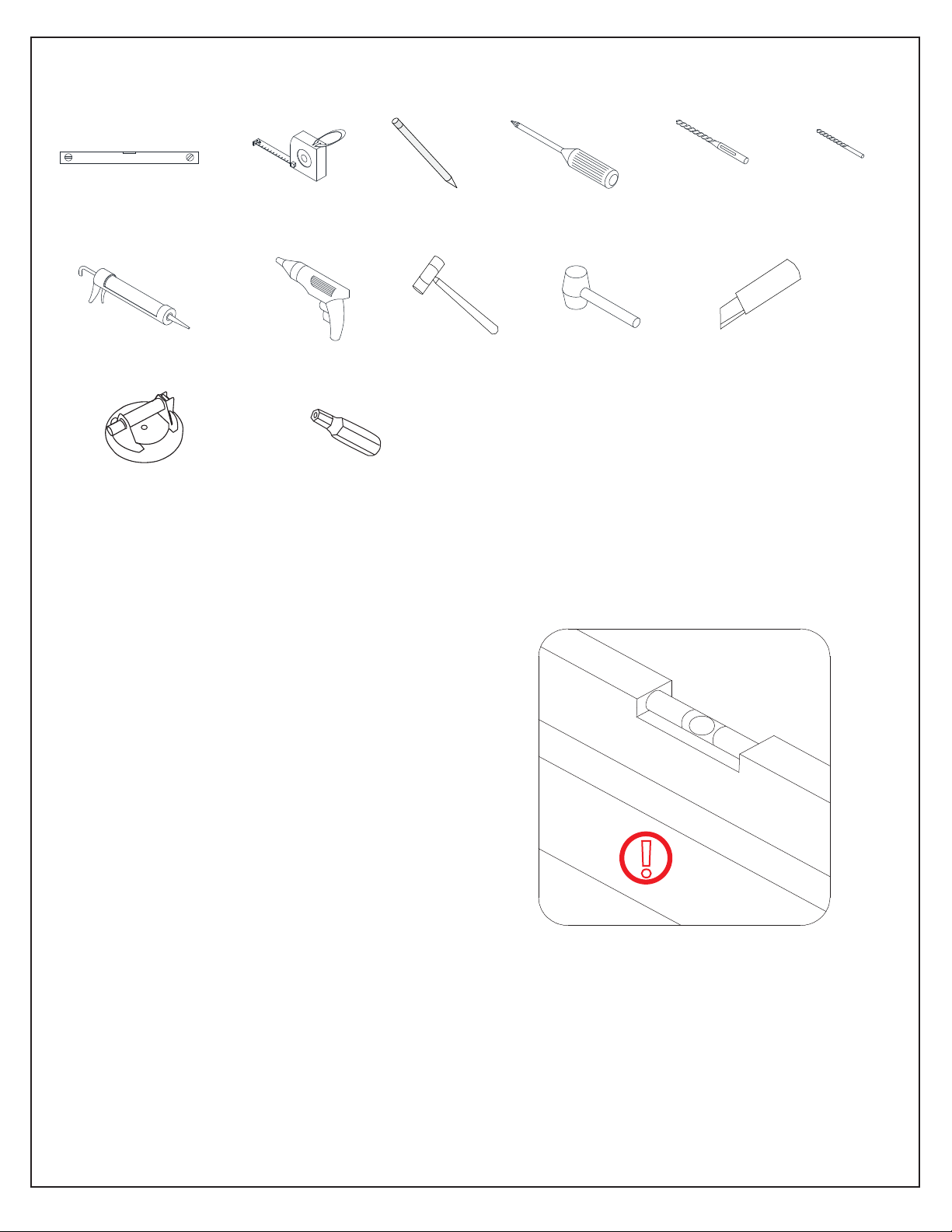

Tools

Level

100% Silicone

Professional Grade Glass Suction Cup

Tape Measure

Power Drill

Hex Head driver bit

4mm

Phillips

Pencil

Hammer Mallet

Screwdriver

Threshold must be level.

Drill bit (Ø5/16”)

Razor Knife

Drill bit (Ø1/8”)

Tip: Measure the finished opening before

proceeding with the installation to be sure that the correct model size has been ordered.

Tip: Prior to installation, cover the

shower/tub drain with tape to prevent losing screws or small parts.

Tip: Set screw gun clutch to low setting when installing screws and bolts to prevent stripping the heads.

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine your model configuration.

for replacement. The shipping boxes may contain extra parts not used in

NOTE: Retain these installation instructions for future reference.

PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 6

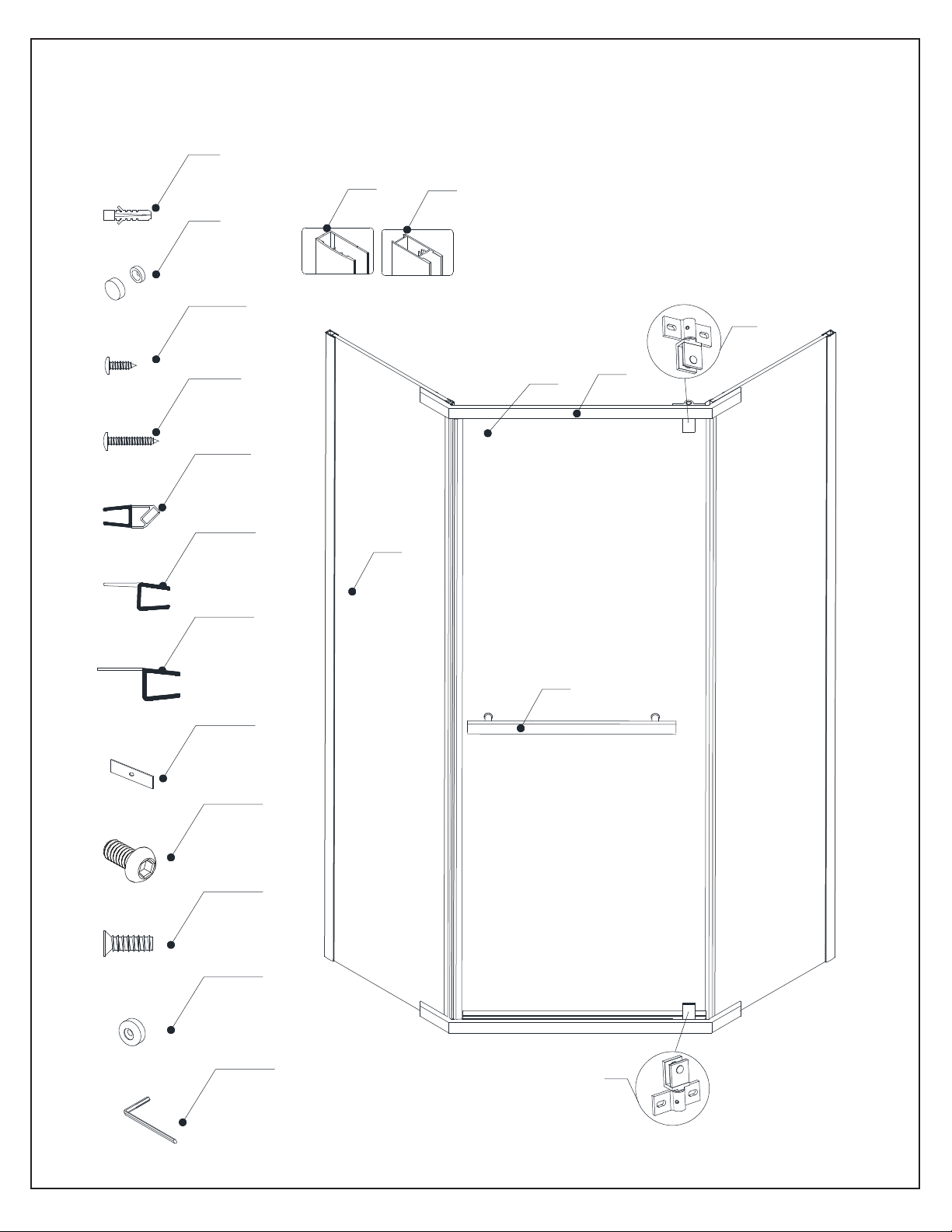

Detailed Diagram of shower door components

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

Left-hand door installation shown as an example

4PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 7

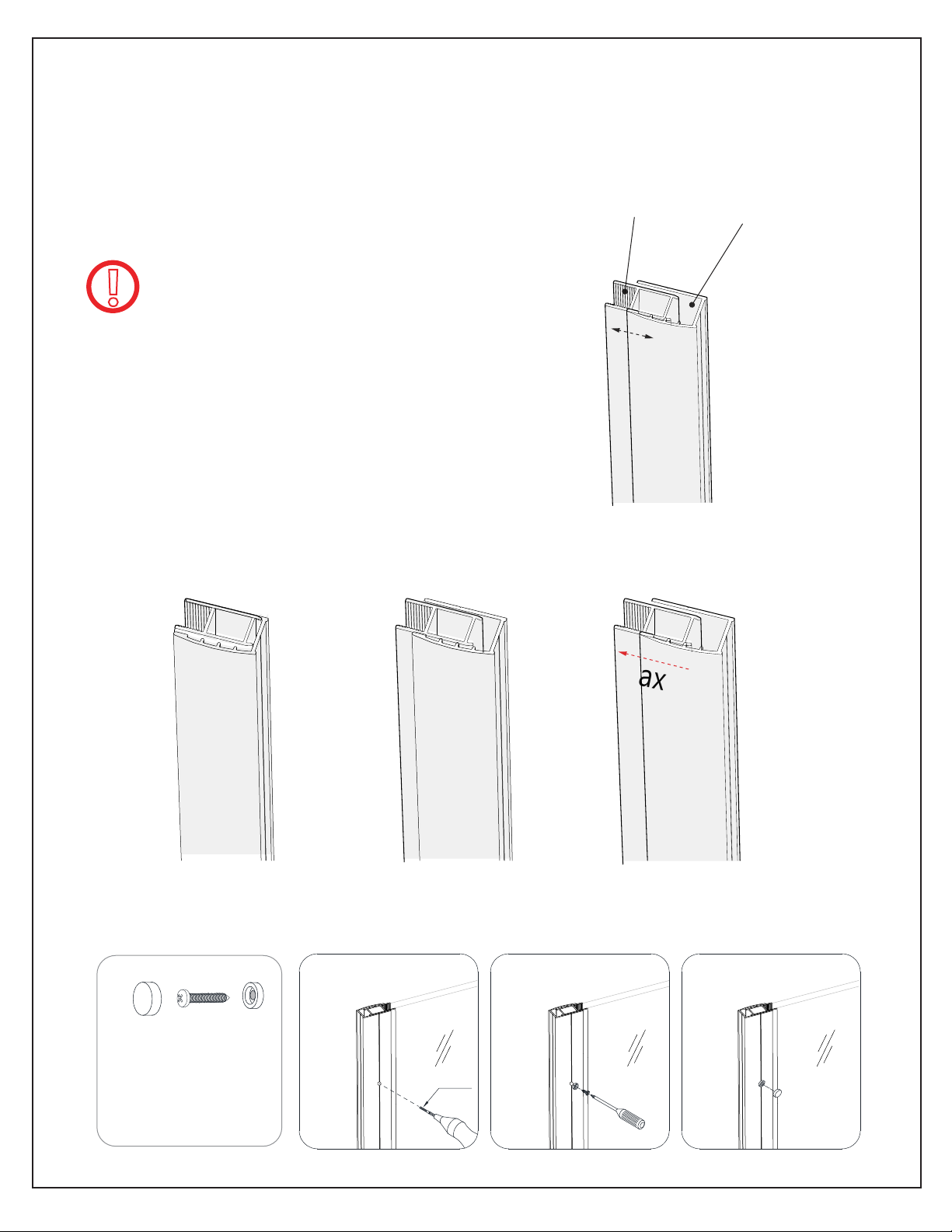

Adjustable Wall Profile System

The Glass Profiles can be adjusted within the Wall Profiles for overall width or to correct for out-of-plumb conditions within the model size. Screw them together after making final adjustments.

Glass Profile

Wall Profile

screw

washer

1 32

inside

Ø1/8”

”

inside

decorative cap

PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 8

Parts List

DESCRIPTION QTYITEM #

Glass Profile

Wall Profile

Panel Glass

Door Glass

Pivot Bar

Handle

Pivot Assembly

Wall Anchor

Decorative Cover

Pan Head Screw ST4.2x10

2pcs

1pc

2pcs

1pc

1pair

8pcs

4pcs

Truss Head Screw ST4.2x40

Magnetic Strike Vinyl

Sweep Vinyl Seal

Hinge-Side Vinyl Seal

Vinyl Gasket (for Pivot Bar)

Hex Socket Bolt M8x12

Hex Socket Bolt M8x25

Decorative Washer

8pcs

1pair

1pc

4pcs

1pcHex Wrench

5PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 9

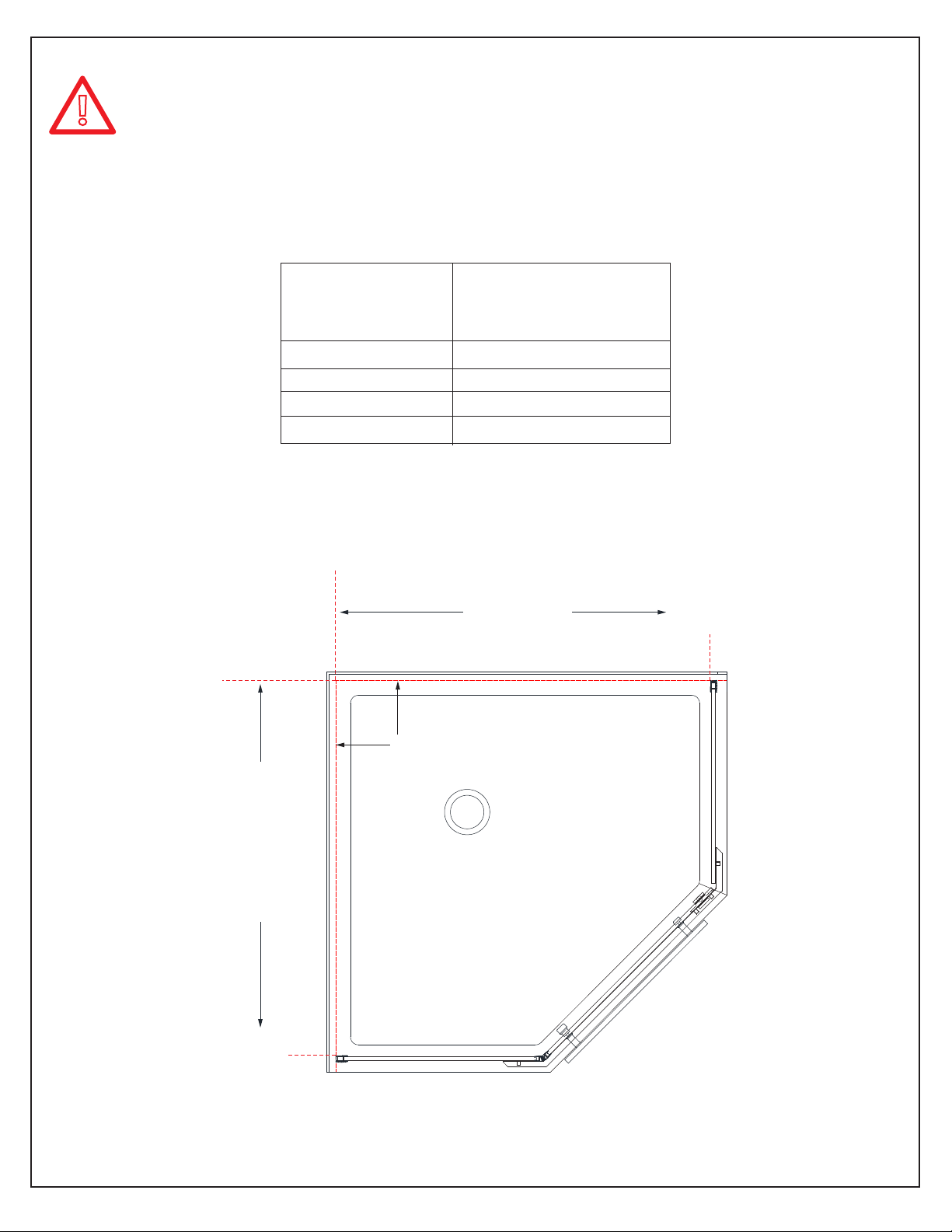

NOTE: This enclosure must be installed at the model size dimensions shown in Table 1 on page 9. Be sure that the correct size shower enclosure has been ordered to fit the finished

dimensions of the base or threshold that the enclosure will be installed on. NOTE: The thickness of the finished wall treatment will effect where the enclosure will align upon the threshold.

DreamLine PRISM Shower Enclosure

Prism 34” Prism 36” Prism 38” Prism 40”

DreamLine Slimline Base

DLT-2036360 (36"X36") DLT-2038380 (38"X38") DLT-2040400 (40"X40") DLT-2042420 (42"X42")

model sizes:

33-7/16”

35-7/16”

37-7/16”

39-7/16”

inside edge of wall profile

model sizes:

33-7/16” 35-7/16” 37-7/16” 39-7/16”

inside edge of wall profile

finished wall surface

7PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 10

Installation steps

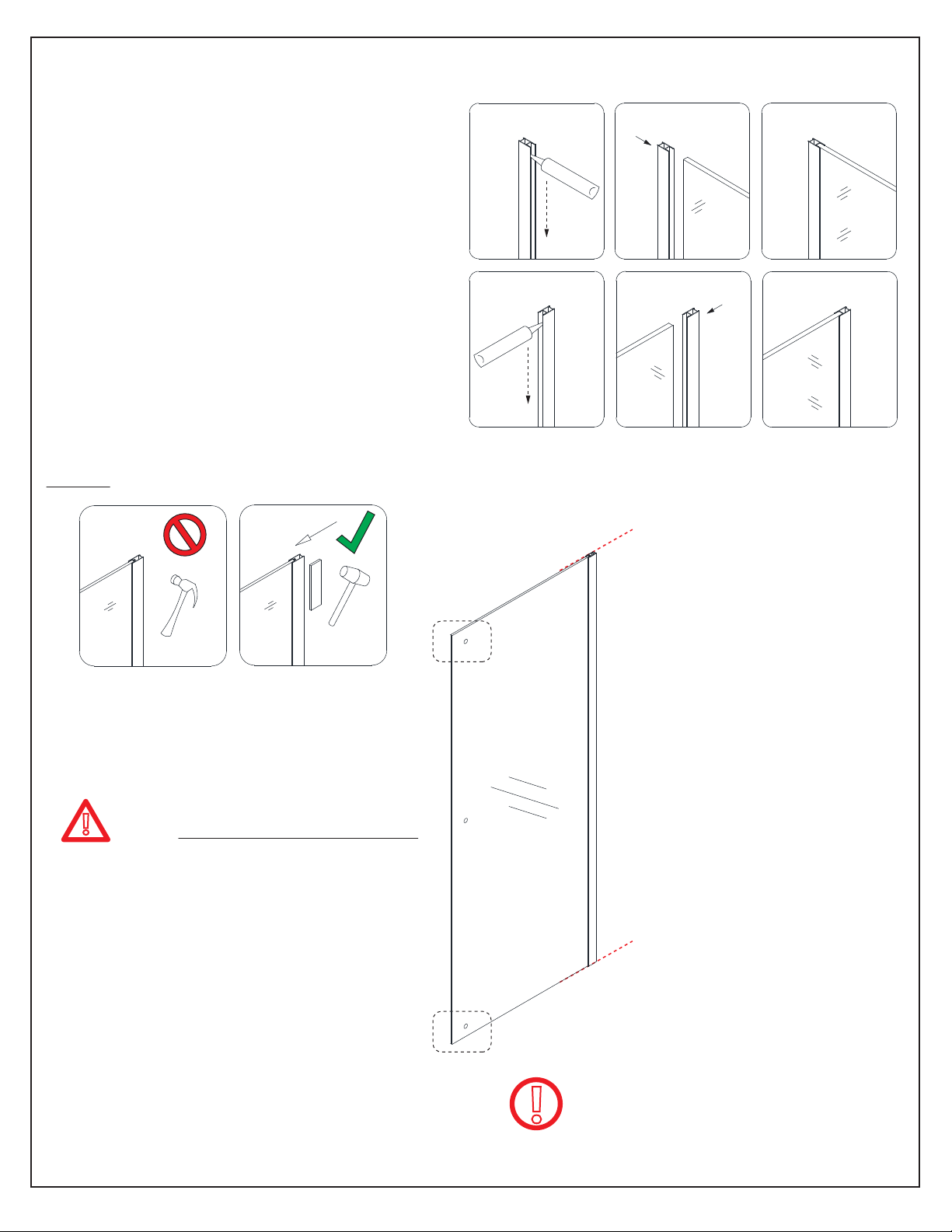

1. Apply clear 100% silicone into the Glass

Profiles (#01) and firmly attach the Glass Profiles (#01) to the correct edge* of the Panel Glass (#03).

Carefully set the Panel Glass (#03) assemblies aside. (Fig 1a)

*NOTE: The holes (for the pivot bar) should be on the opposite edge from the glass profile.

(Fig 1b)

NOTE: If there is difficulty sliding the Glass Profiles (#01) on to the Panel Glass (#03),

lightly tap on the Glass Profile with a rubber mallet and a piece of wood. Do Not strike the profile directly with a hammer.

4 5 6

Fig 1a

flush

Attach the Glass Profile(s) (#01)

to the edge opposite of the holes.

Fig 1b

Make sure that the glass profile is flush/even with the top and bottom of the panel glass.

flush

NOTE: If time allows, do not handle the panel glass until the silicone holding the glass profile has fully cured. This prevents the glass profile from slipping out of postion during installation or adjustment.

8PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 11

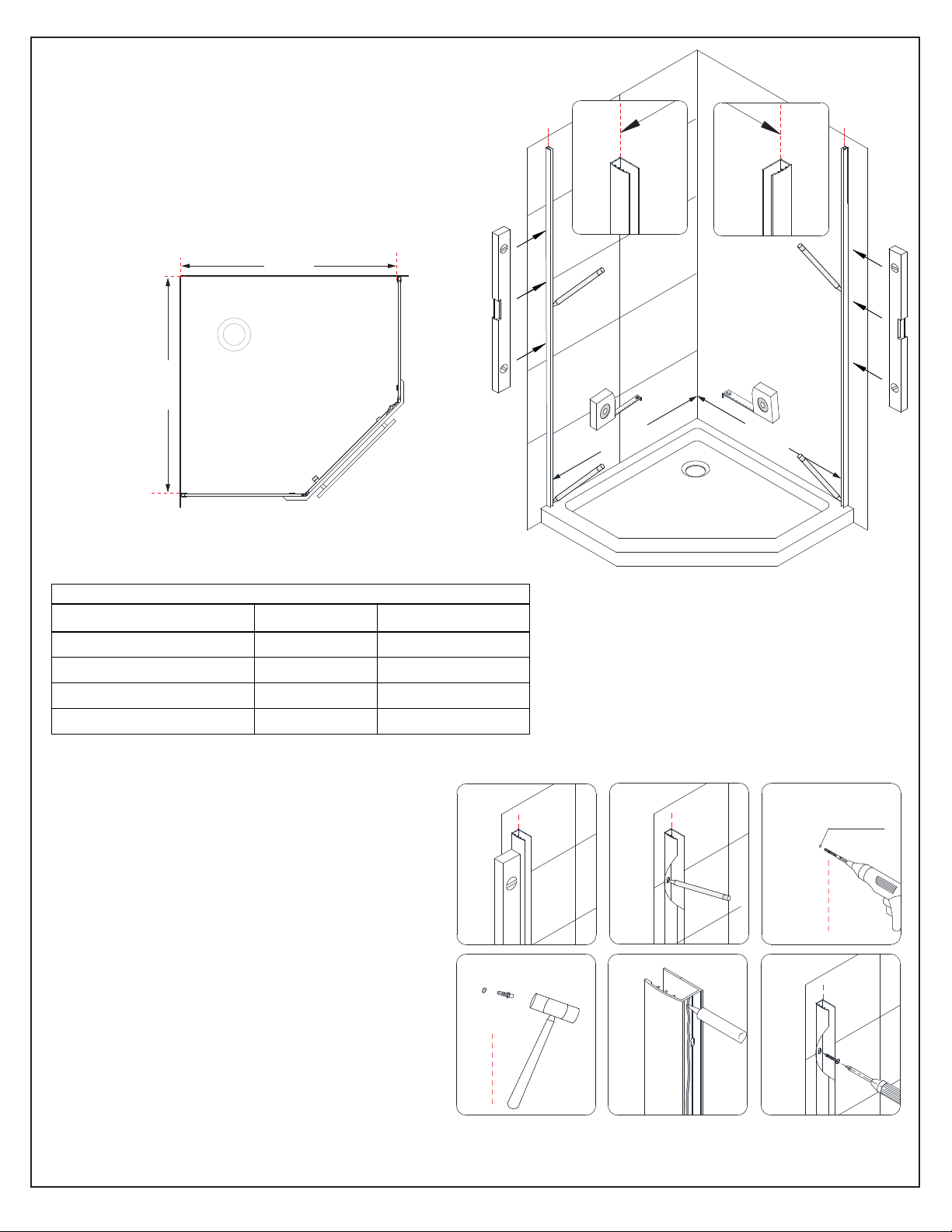

2. Mark the wall at the threshold according to the

dimensions for the model size shown in Table 1 below.

Place the Wall Profiles (#02) against the walls and aligned with the new reference marks on the threshold. Use a level to plumb each wall profile. (Table 1, Fig 2a

and Fig 2b)

NOTE: The inside edge of

each wall profile must be installed at the model size dimensions W1 and W2 shown in Table 1

Fig 2a

Table 1 - Enclosure assembly measurements

Measure from the finished corner to the inside edge of wall profile as shown:

Glass Box SKU /Model #

SHEN-GLP2101-343410 SHEN-GLP2101-363610 SHEN-GLP2101-383810 SHEN-GLP2101-404010

33-7/16” 35-7/16” 37-7/16” 39-7/16”

inside

Fig 2b

3. Make sure each Wall Profile (#02) is plumb.

Mark the holes for drilling on the wall through the predrilled holes in the Wall Profile (#02). Drill the holes in the wall using a Ø5/16” drill bit and insert the Wall Anchors (#08).

Run a bead of waterproof silicone along the back of the Wall Profiles (#02) and around the holes in the wall. Attach the Wall Profile (#02) to the wall using the Truss Head Screws ST4.2×40 (#11). (Fig 3)

Ø5/16”

64 5

Fig 3

9PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 12

pivot holes

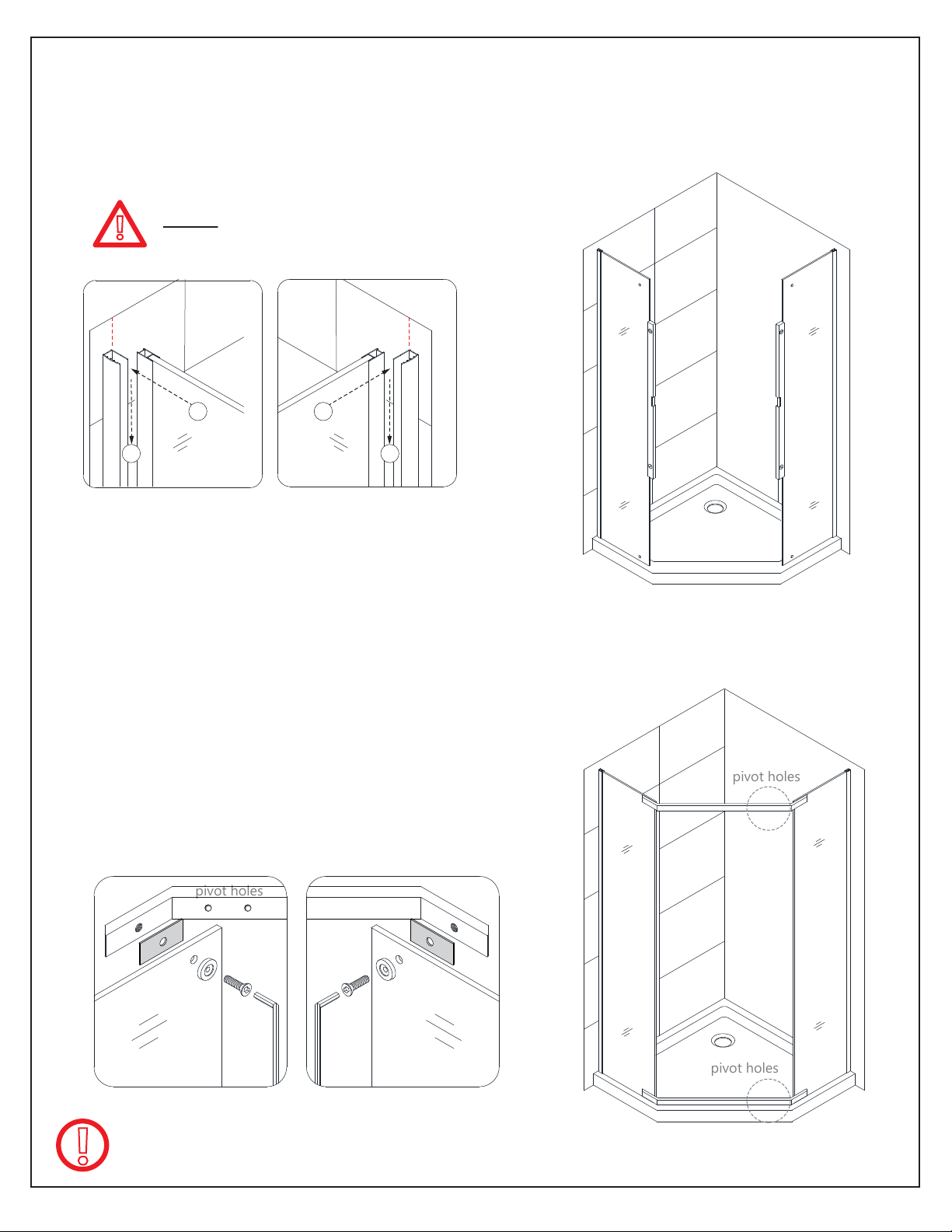

4. Be sure the Panel Glass (#03) and Glass Profiles (#01) have had time to set up before handling. Insert each assembled Panel Glass (#03) and Glass Profile (#01) into the installed Wall Profiles (#03) and check the panels for plumb. If necessary, adjustments can be made by moving the Glass Profiles

(#01) within the Wall Profiles (#03). Use caution not to pull the Panel Glass (#03) out of the Glass

Profiles (#01). (Fig 4a and Fig 4b)

NOTE: Use caution not to bang the panel glass on the threshold.

Fig 4a

5. Examine the Pivot Bars (#05) and notice that there are

holes for the top and bottom pivot assemblies on one end. Attach the top and bottom Pivot Bars (#05) (with the pivot holes on the correct side for the swing of the door) through the holes in the Panel Glass (#03). Put the clear Vinyl Gaskets (#15) between the Pivot Bars (#05) and the Panel Glass (#03) to prevent glass-to-metal contact. Use the Hex Socket Bolts M8×25 (#17) and Decorative Washer (#18) to attach the Pivot Bars (#05) to the Panel Glass (#03). (Fig 5a and Fig 5b)

Fig 4b

Left-hand door installation shown as an example

inside

Fig 5a

Be sure to install both of the Pivot Bars (#05) with the pivot

holes on the correct side for the desired swing of the door.

Fig 5b

10PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 13

Before installing the door glass, attach the longer Magnetic Strike Vinyl (#12) to the strike edge

of the Panel Glass (#03) door glass from making contact with the panel glass during installation. (See Step 8, Fig 8.4)

(the panel that the door will close against) to protect the edge of the

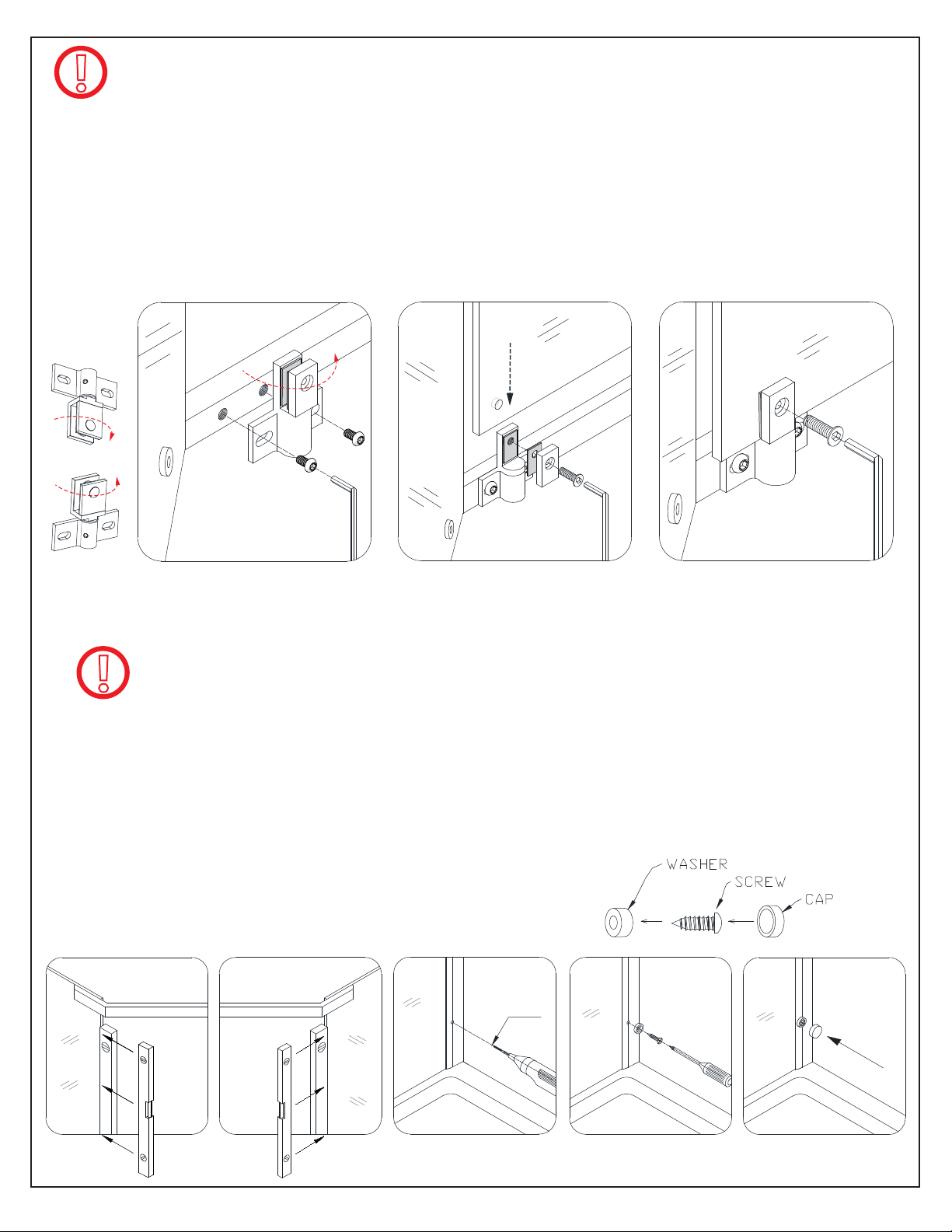

6. The pivot assemblies are paired: one rotates CW and one rotates CCW. Take note to install the

Pivot Assemblies (#07) to the top and bottom Pivot Bars (#05) so that the door will swing out. Attach the top and bottom Pivot Assemblies (#07) to the Pivot Bars (#05) using the Hex Socket Bolts M8×12 (#16).

Remove the bolts and plates from the Pivot Assemblies (#07). Set the Door Glass (#04) into the pivots so that the holes are aligned. Make sure the vinyl gaskets are in place between the glass

and the metal plates. Firmly secure the back plate with the provided bolt. (Fig 6)

Pivot Assemblies (#07)

bottom

1 2 3

door

panel

inside

Fig 6

Left-hand door installation shown

Tip: Attach both pivot assemblies to the pivot bars as shown in Step 6 and install the door

glass to the Pivot Assemblies OR attach the bottom pivot assembly to the bottom pivot bar and the top pivot assembly to the door glass and install the door.

7. Make any final adjustments using the adjustable wall profiles so that the door opening is square.

Drill through the predrilled holes in the Wall Profiles (#02) into the first layer of the Glass Profiles (#01) using an Ø1/8” drill bit. Use the Pan Head Screws ST4.2×10 (#10) and washers to secure the Glass Profiles (#01) inside the Wall Profiles (#02). Cover the screws with the Decorative Covers (#09). (Fig 7)

wall

Ø1/8”

wall

inside

Fig 7

inside

11PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 14

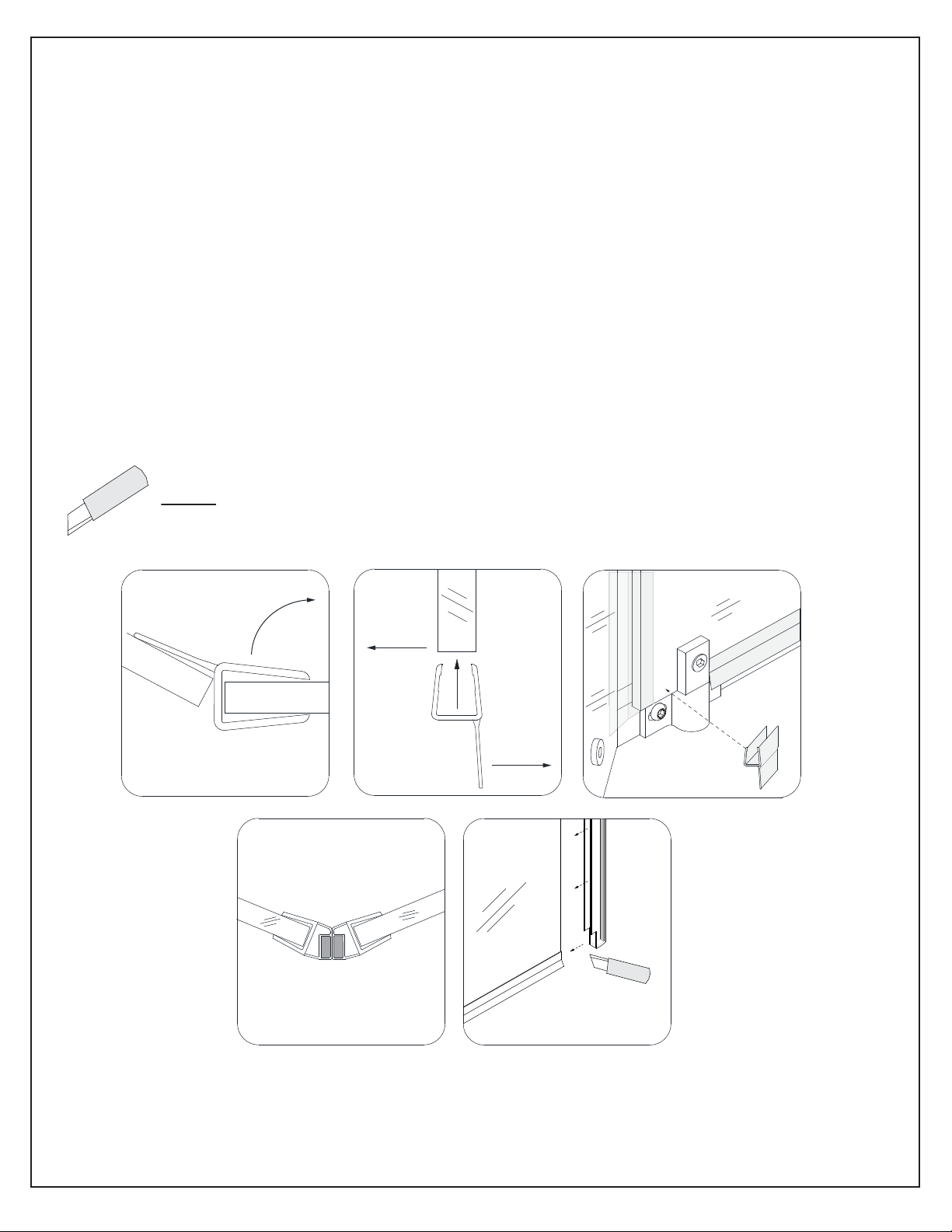

8. Push the Hinge-Side Vinyl Seal (#14) onto the pivot edge of the Door Glass (#04) with the soft fin

on the inside of the shower so that it overlaps the Panel Glass (#03) when the door is closed. (Fig 8.1)

Cut the Sweep Vinyl Seal (#13) to fit from the bottom pivot to the strike edge of the Door Glass (#04). (the mitered end of the Sweep Vinyl Seal goes on the strike side of the door) Firmly push the Sweep Vinyl Seal (#13) onto the bottom edge of the Door Glass (#04). Trim a 1” piece from the cut-off of the Sweep Vinyl Seal (#13) to fit onto the opposite side of the bottom pivot and attach it to the bottom of the door glass. (Fig 8.3)

Note: The fin on the Sweep Vinyl Seal (#13) should be installed toward the inside of the shower. (Fig 8.2)

Push the shorter Magnetic Strike Vinyl (#12) onto the strike edge of the Door Glass (#04). Notch the bottom of this Magnetic Strike Vinyl (#12) to fit around the Sweep Vinyl Seal (#13). (Fig 8.5) Attach the longer Magnetic Strike Vinyl (#12) to the strike edge of the Panel Glass (#03). When correctly installed, the Magnetic Strike Vinyl (#12) will form an outside 45-degree angle. Adjust as necessary to get a tight seal. (Fig 8)

NOTE: Trim off the excess Sweep Vinyl Seal (#13) and attach a 1” piece onto the opposite side of the Bottom Pivot. (Fig 8.3)

inside

panel

outside

door

panel

outside

inside

outside

door

inside

door

sweep vinyl

door

inside

Magnetic strike vinyl

inside

Fig 8

Left-hand door installation shown

12PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 15

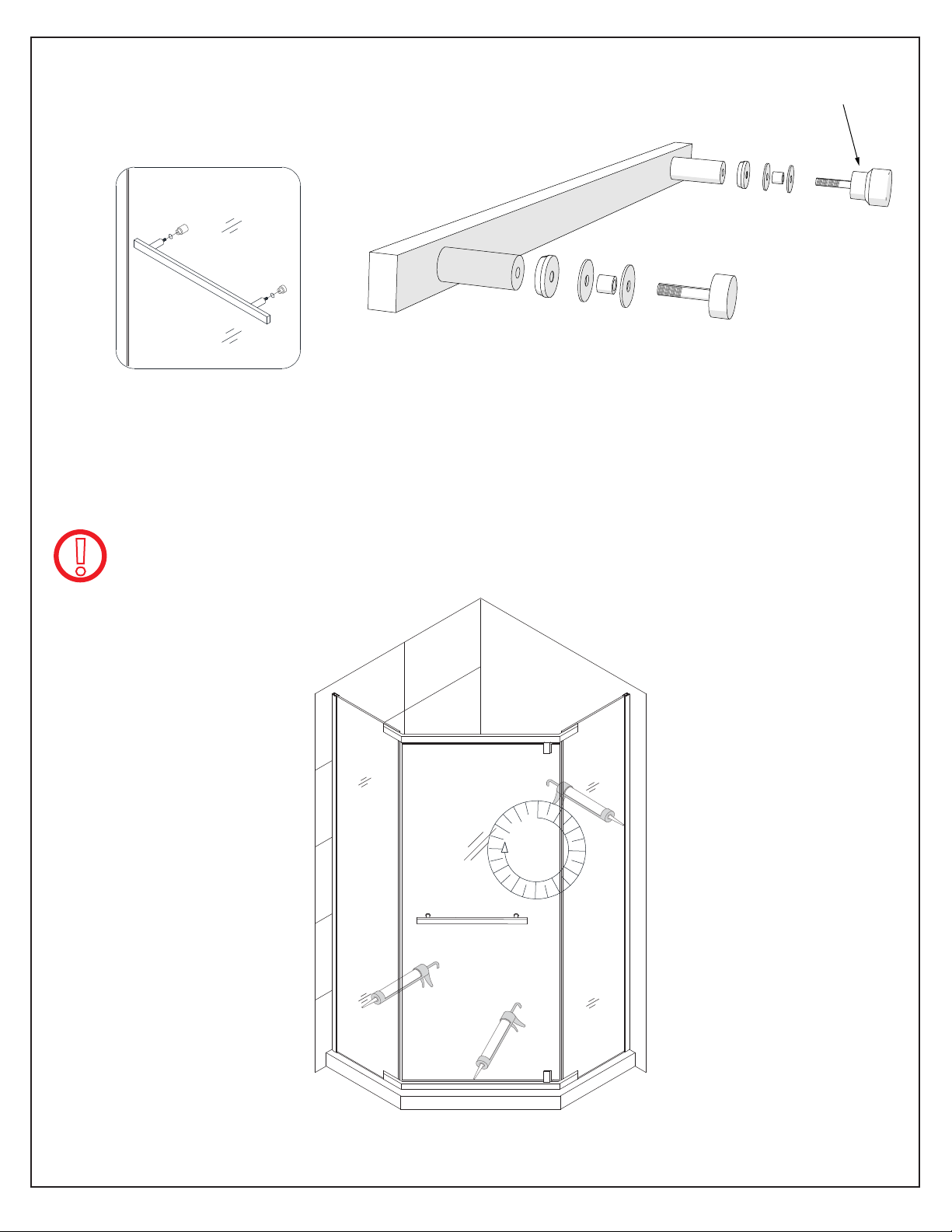

9. Install the Handle (#06) onto the outside of the Door Glass (#04). (Fig 9)

(put the knob on the magnet/strike side of the door)

door

outside

knob

Fig 9

10. Apply a good quality mildew-resistant silicone along the interior edges of the Panel Glass (#03),

Wall Profiles (#02) and Pivot Bar (#05) to seal against the walls and threshold. (Fig 10)

Allow 24 hours for the silicone to cure before using the shower.

Hours

Fig 10

13PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 16

Product Maintenance

BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls, wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products, wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long-lasting finish, wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine

DreamLine

shower doors and enclosures are designed not to leak when

with any questions or concerns.

installed properly and the flow of water is not pointed directly at the pivots or vinyl seals.

14PRISM shower enclosure manual Ver 1 Rev 4a 112020

Page 17

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine

Shower Doors and Enclosures please visit DreamLine.com
