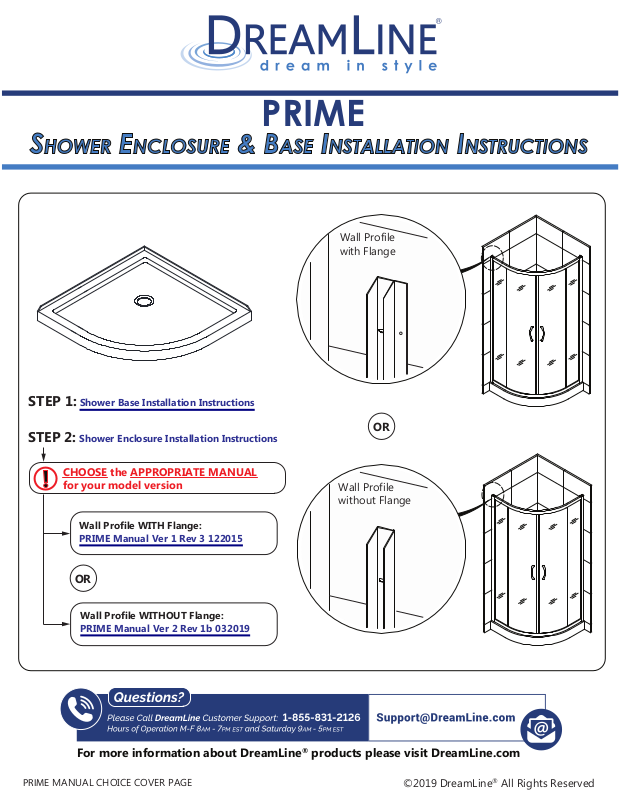

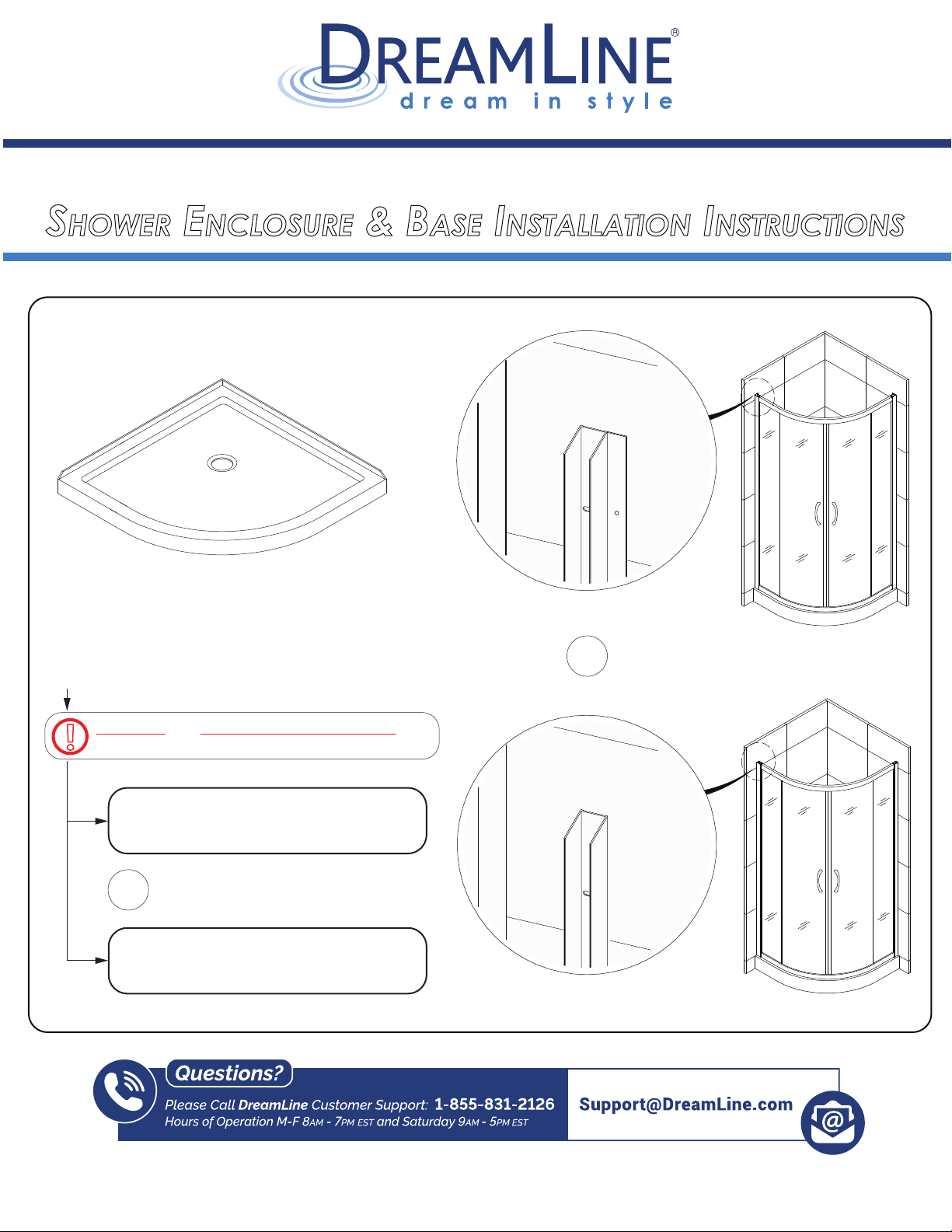

DreamLine DLN4092 Installation & Assembly

PRIME

SHOWER ENCLOSURE & BASE INSTALLATION INSTRUCTIONS

Wall Profile with Flange

STEP 1: Shower Base Installation Instructions

STEP 2: Shower Enclosure Installation Instructions

CHOOSE the APPROPRIATE MANUAL

!

for your model version

Wall Profile WITH Flange:

PRIME Manual Ver 1 Rev 3 122015

OR

Wall Profile WITHOUT Flange:

PRIME Manual Ver 2 Rev 1b 032019

OR

Wall Profile without Flange

For more information about DreamLine® products please visit DreamLine.com

PRIME MANUAL CHOICE COVER PAGE

1

SLIMLINE SHOWER BASE

S

Color options:

Double Threshold Shower Base with Corner Drain Configuration

HOWER BASE DIMENSIONS AND INSTALLATION INSTRUCTIONS

IMPORTANT DreamLine® reserves the right to alter, modify or redesign products at any time without prior

notice for the purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

shown as an example

Please review this entire manual before beginning installation

For more information about DreamLine® products please visit DreamLine.com

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

--- - White

-22- Biscuit

-88- Black

2

XXX

Tape

Measure

Pencil

Level

Mortar

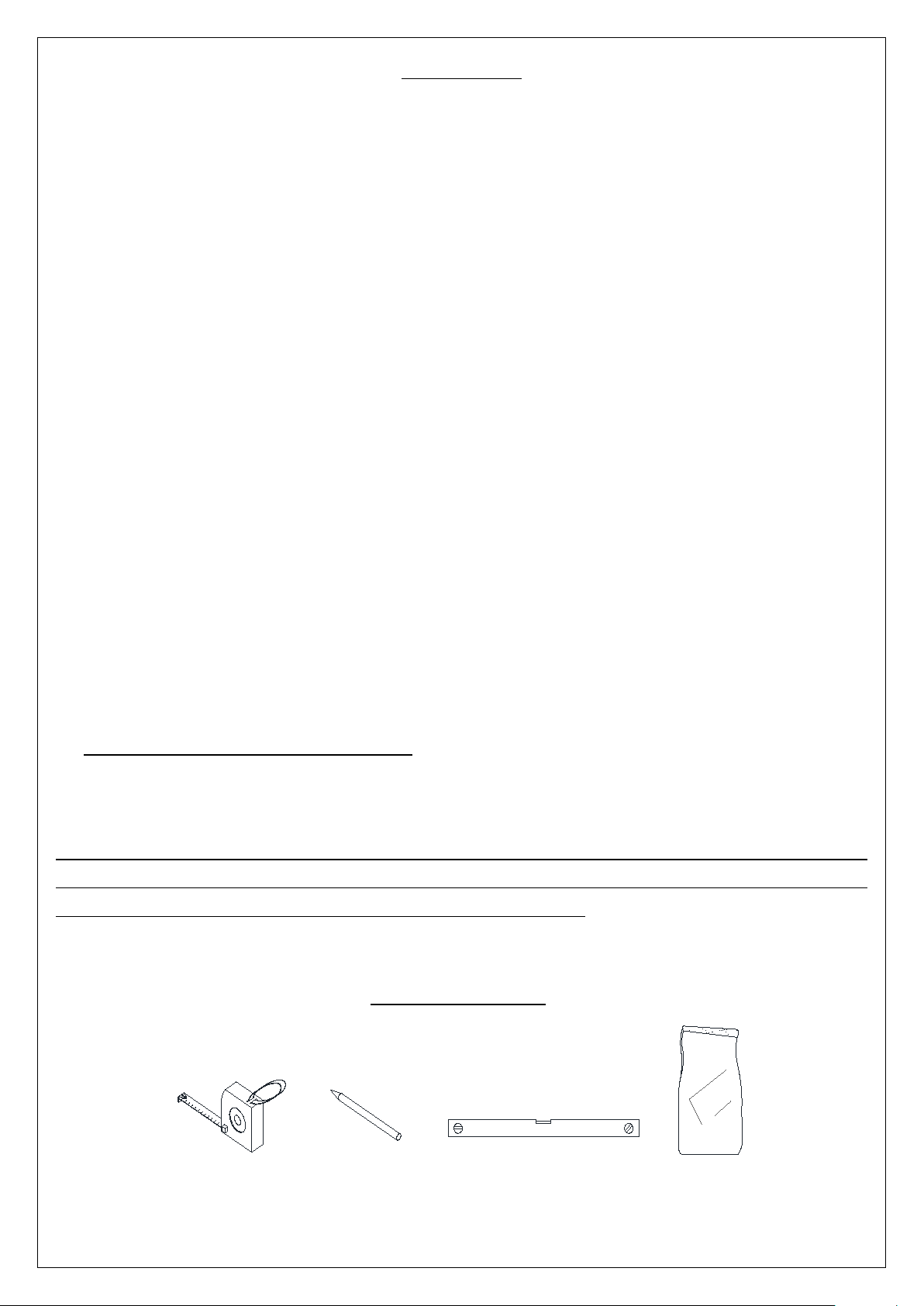

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the parts are included in the package by checking off the components on the parts list. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if with any questions and please provide an order number, job name or other proof of purchase to help identify the original order.

2. Install all of the required plumbing and drainage before installing the shower base. Use a competent and licensed (if required by local code) plumber for all plumbing installation.

3. Shower bases must be installed by a licensed plumber. Please note that you should

consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location and DreamLine® is not responsible for code compliance standards for your project.

4. Make sure that prior to the installation the installation surface is leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. While some adjustment in leveling of the tray is possible, irregular installation surface level or improper angle of side walls will result in serious problems for your installation. Please note that some adjustments may be necessary during the installation process.

5. Center drain configurations are centered on the width only. See technical drawing tables

for drain locations.

6. Drain not included with this product. The drain opening is 3-3/8” in diameter and accepts a standard 2” compression fitted drain.

IMPORTANT NOTE: Dimensions provided are for reference only. Measure the actual shower tray before installation. This includes overall dimensions and drain location. Allowed tolerance for center of the drain is +/-1/2".

Tools Required

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

3

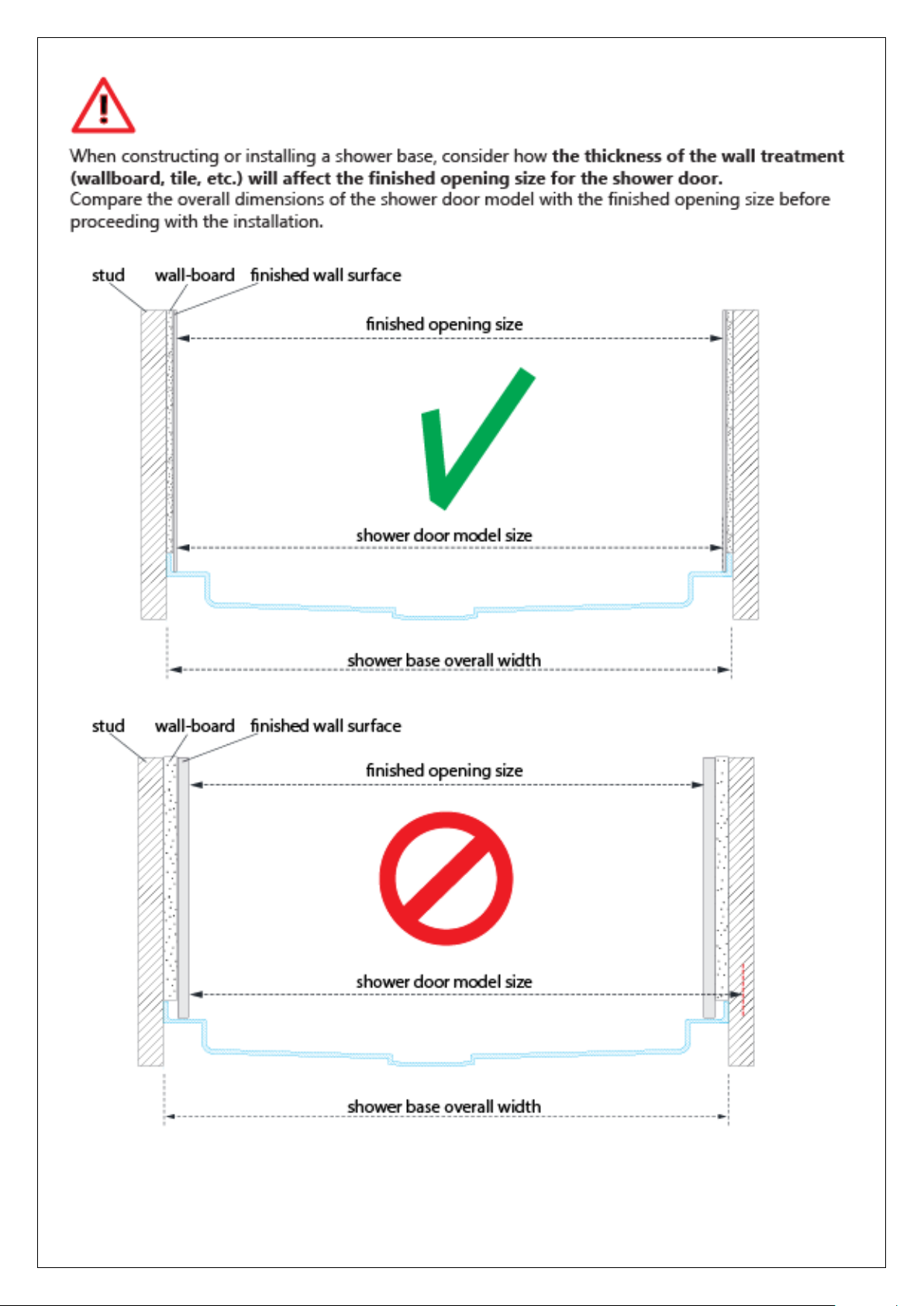

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

4

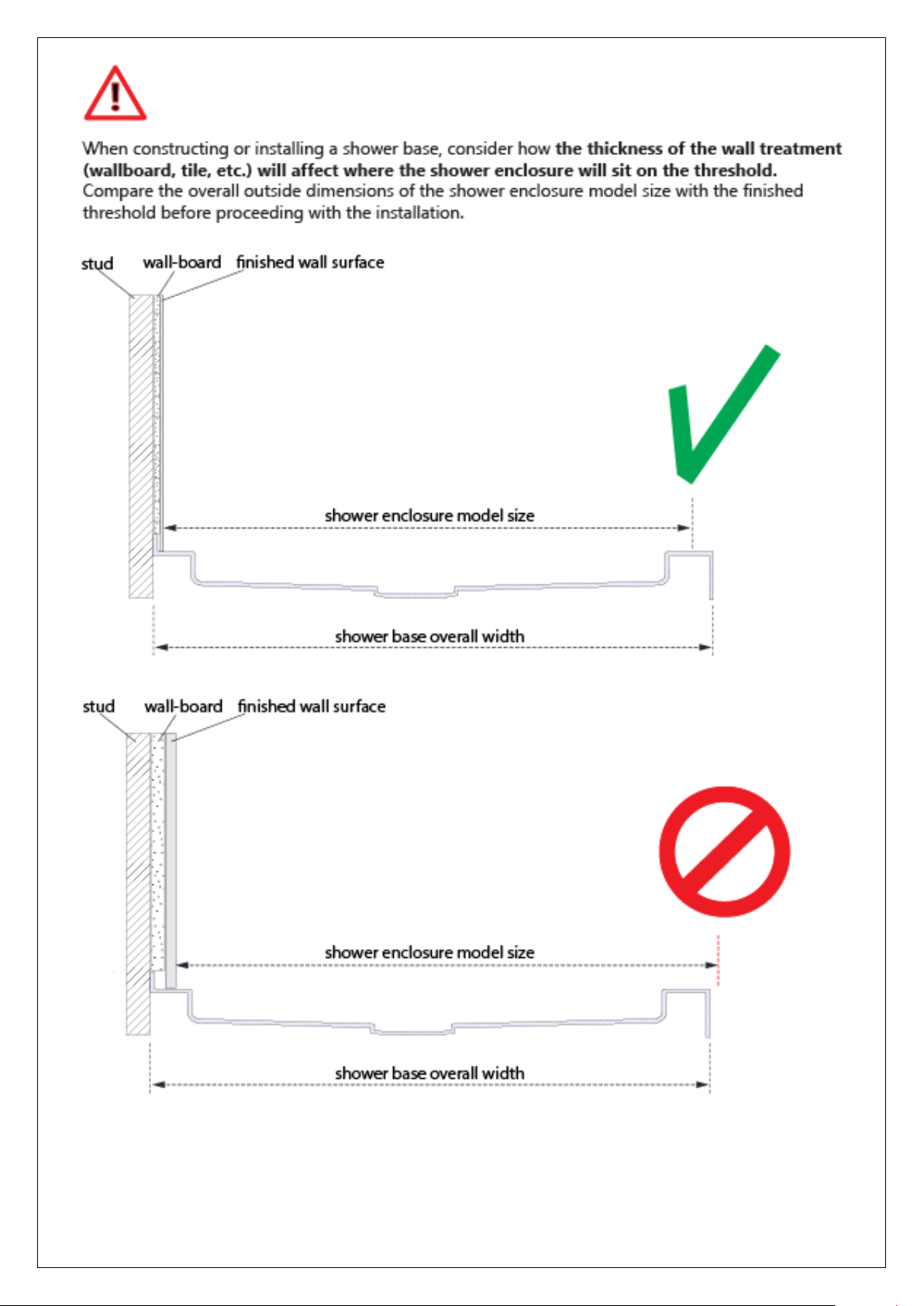

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

5

MODEL

SPECIFICATION

D (in)

W (in)

D1 (in)

W1 (in)

DLT-1132320

32"× 32"

32"

15"

16"

DLT-1136360

36"× 36"

36"

15"

18"

DLT-1132420

32” x 42”

32”

42”

15”

21”

DLT-1134420

34” x 42”

34”

42”

15”

21”

DLT-1136420

36” x 42”

36”

42”

15”

21”

DLT-1142420

42” x 42”

42”

20”

21”

DLT-1132480

32"× 48"

32”

48”

15”

24”

DLT-1134480

34” x 48”

34”

48”

15”

24”

DLT-1136480

36"× 48"

36"

48"

15"

24"

DLT-1132540

32” x 54”

32”

54”

15”

27”

DLT-1134540

34” x 54”

34”

54”

15”

27”

DLT-1136540

36” x 54”

36”

54”

15”

27”

DLT-1130600

30"× 60"

30"

60"

15"

30"

DLT-1132600

32"× 60"

32"

60"

15"

30"

DLT-1134600

34"× 60"

34"

60"

15"

30"

DLT-1136600

36"× 60"

36"

60"

15"

30"

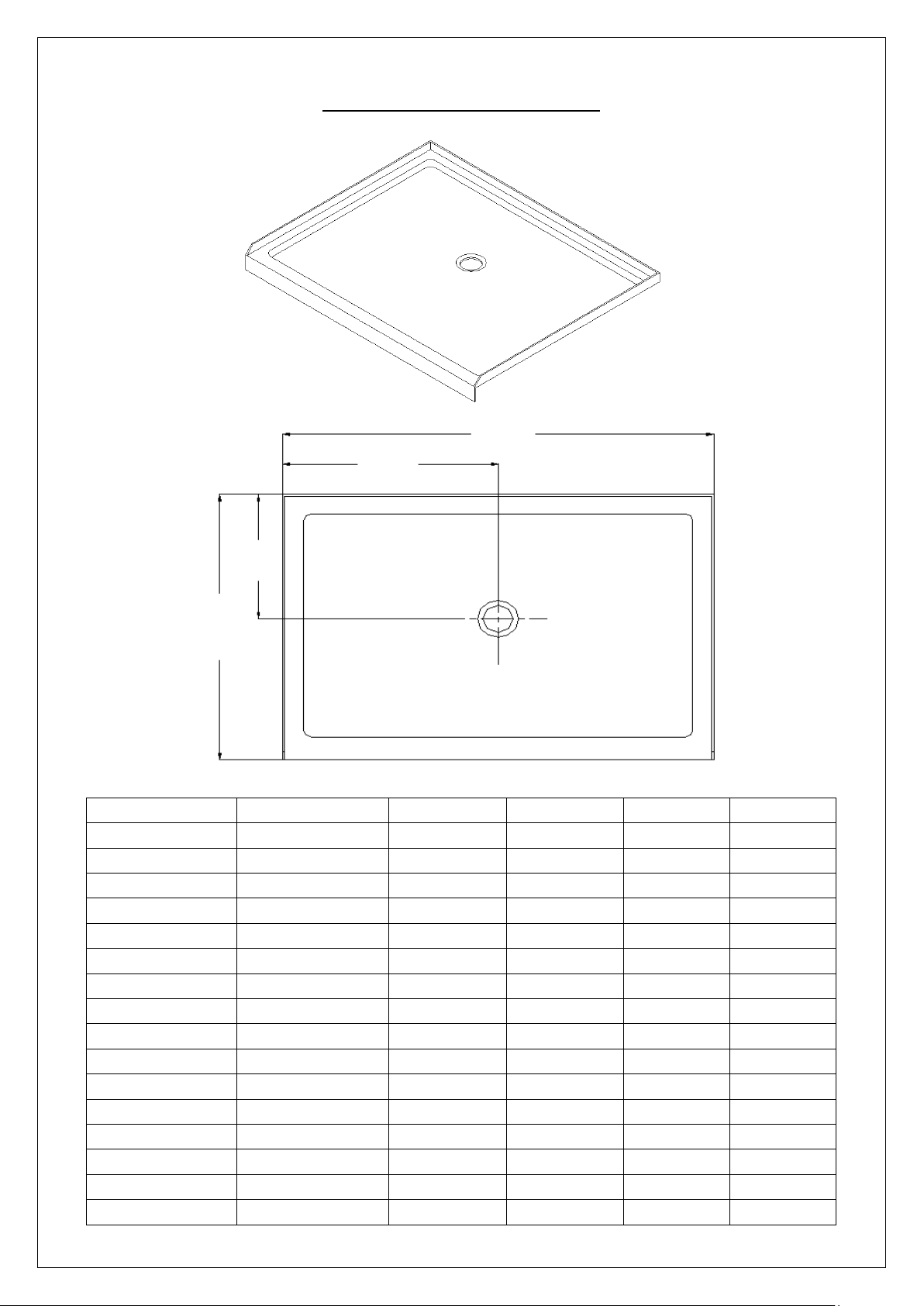

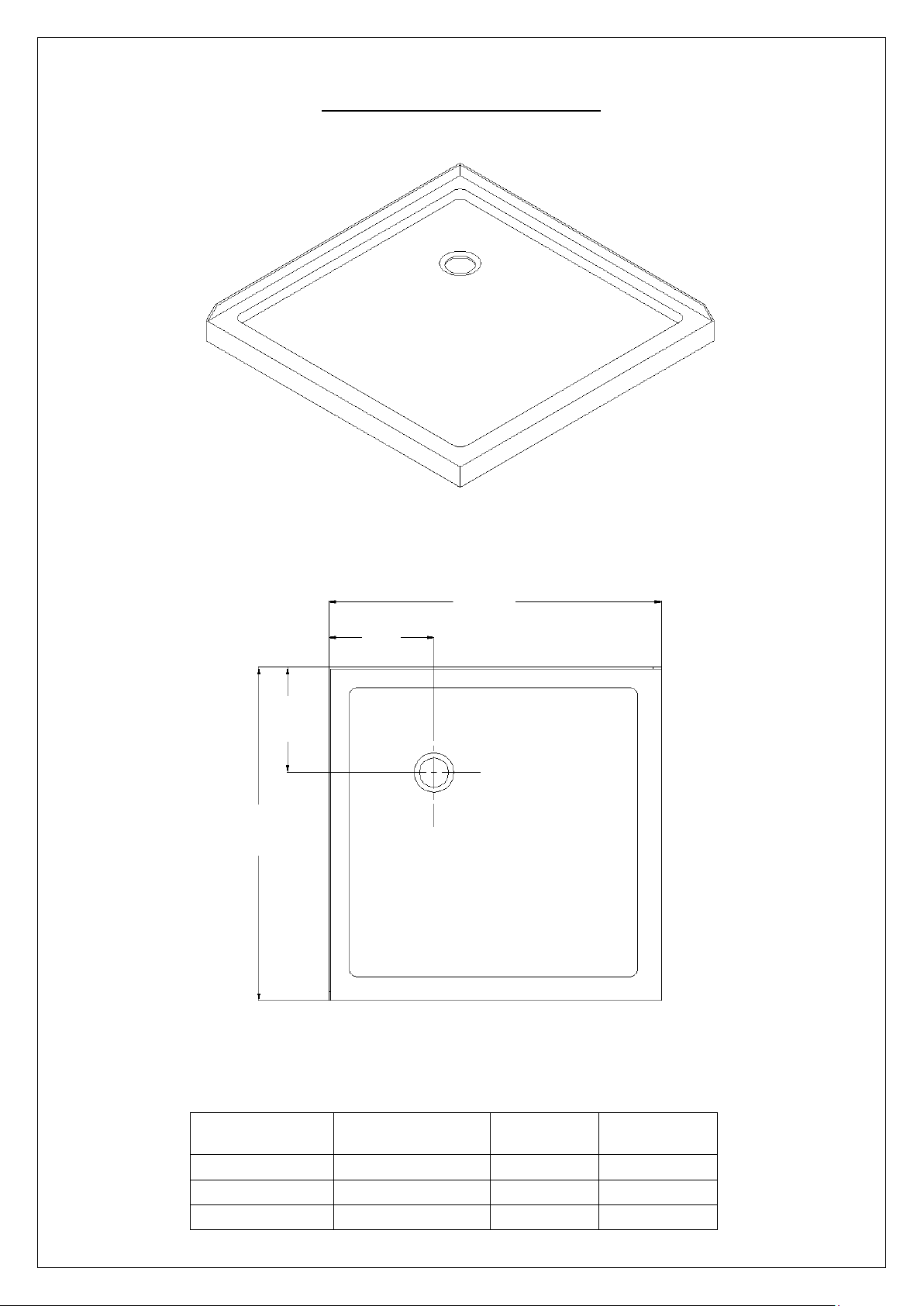

W

D W1D1

SINGLE THRESHOLD SHOWER BASE

Center Drain Configuration

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

6

DLT-1130601

30"×60"

30"

60"

15"

12"

DLT-1132601

32"×60"

32"

60"

15"

12"

DLT-1134601

34"×60"

34"

60"

17"

12"

DLT-1136601

36"×60"

36"

60"

18"

12"

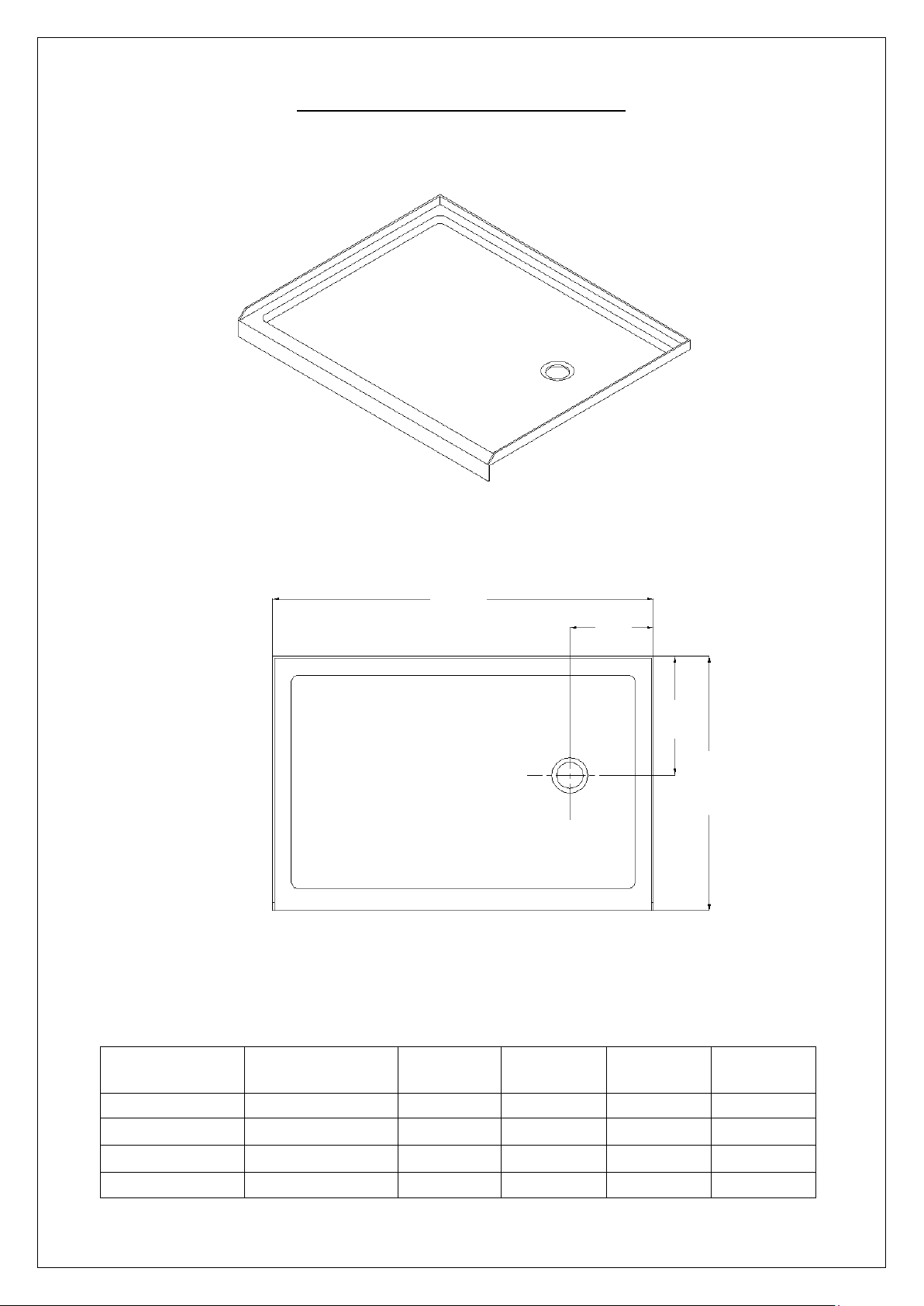

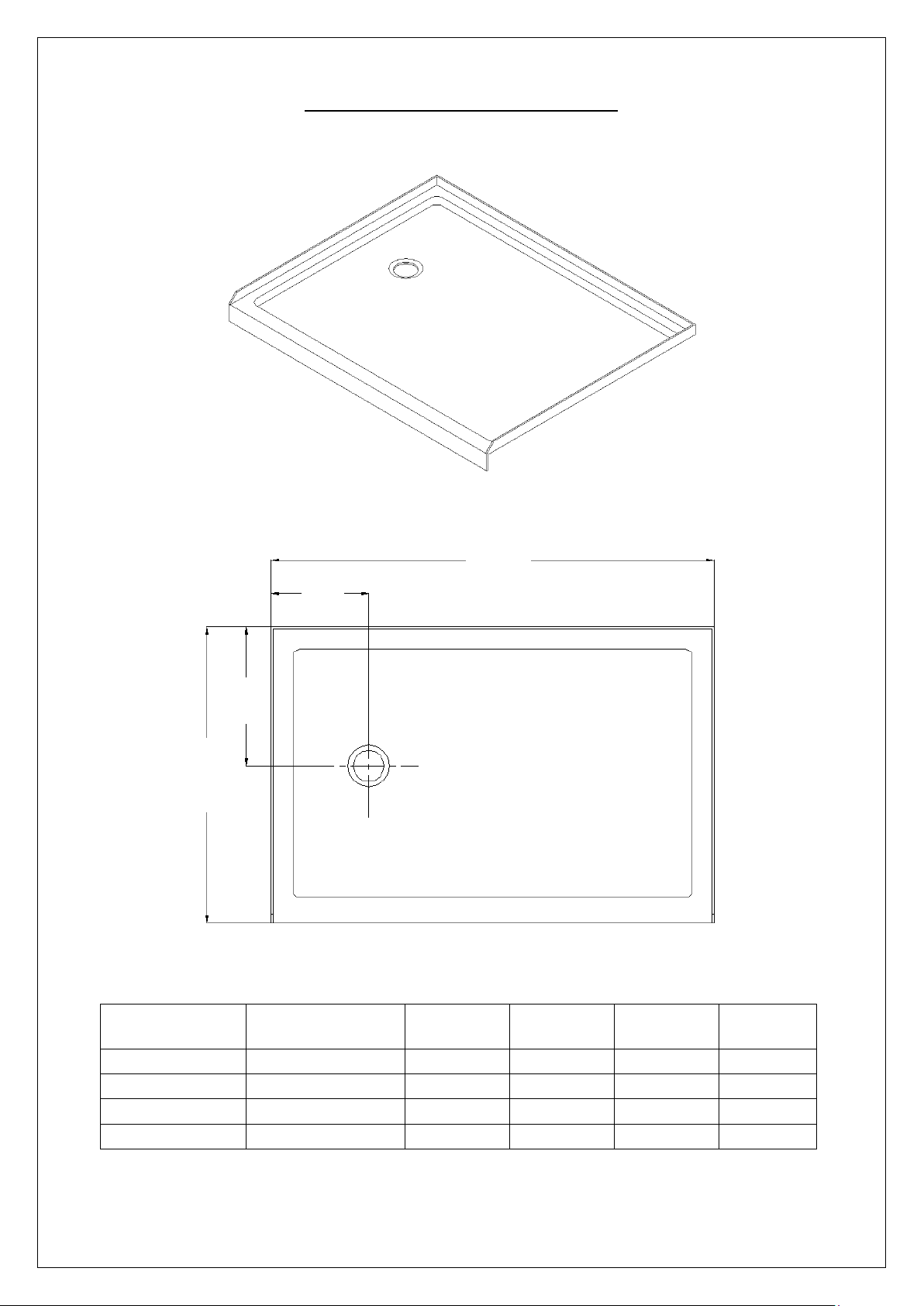

W D D1

W1

SINGLE THRESHOLD SHOWER BASE

Left-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

7

DLT-1130602

30"×60"

30"

60"

15"

12"

DLT-1134602

34"×60"

34"

60"

17"

12"

DLT-1136602

36"×60"

36"

60"

18"

12"

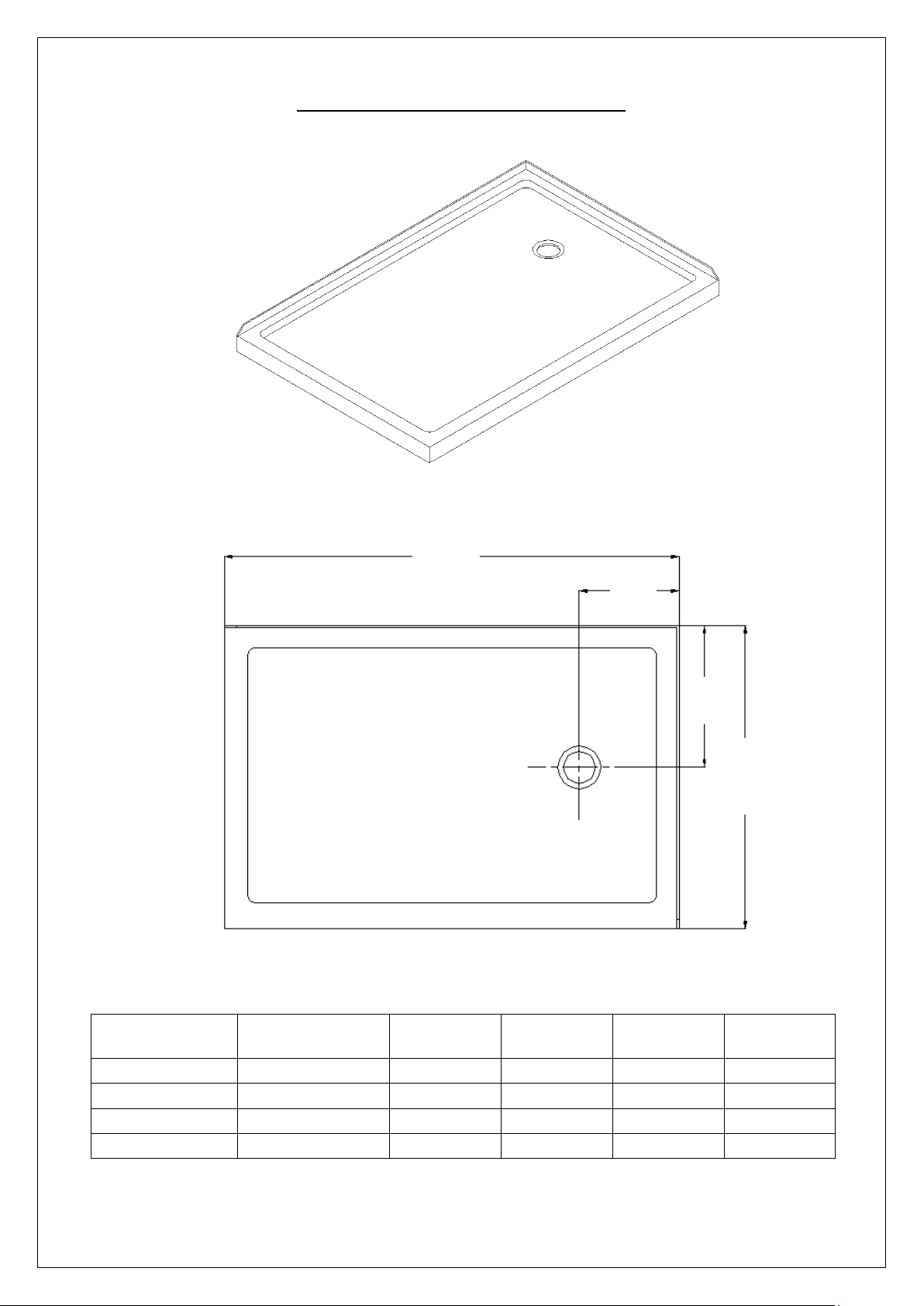

W1

W

D

D1

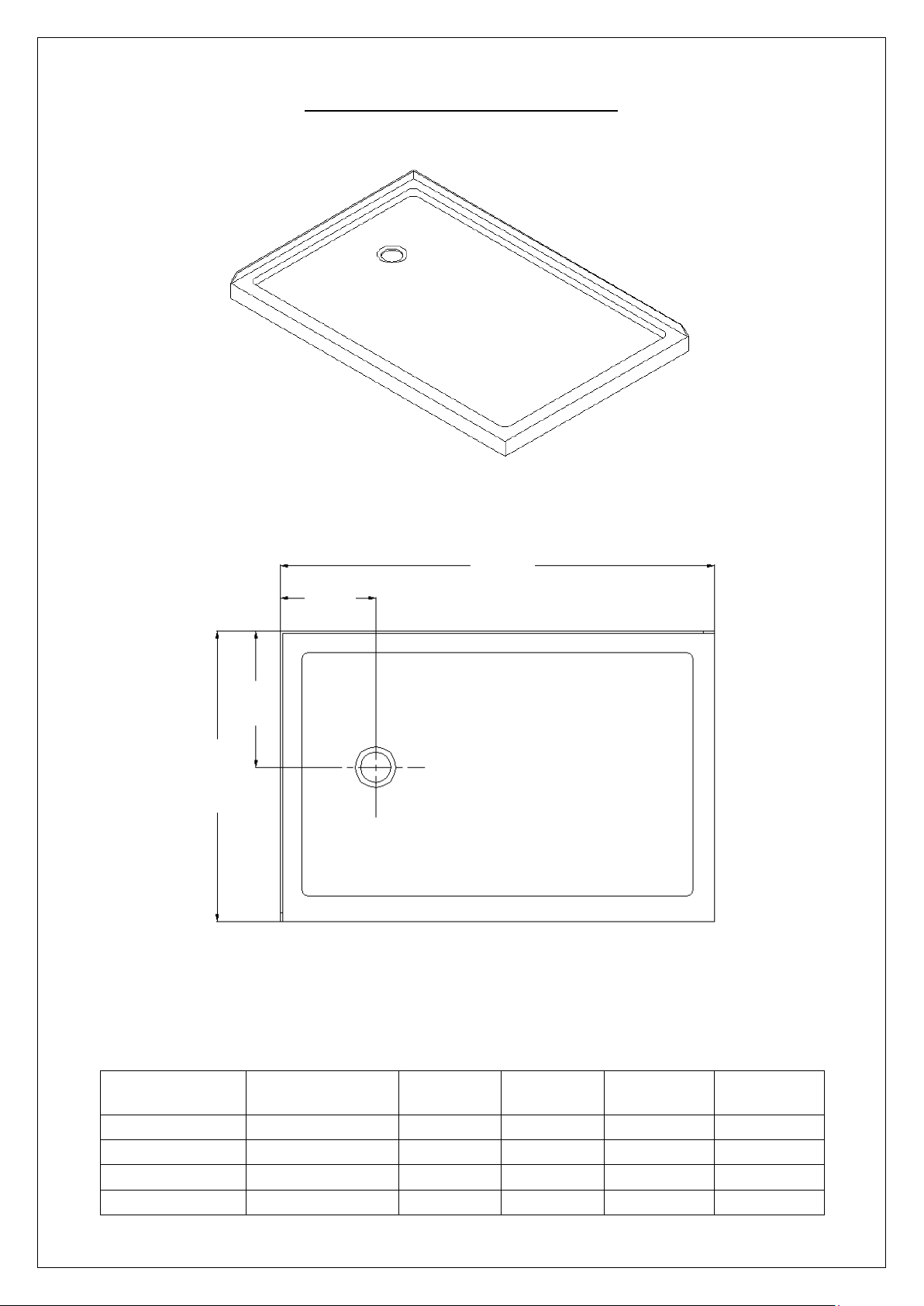

SINGLE THRESHOLD SHOWER BASE

Right-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

DLT-1132602 32"×60" 32" 60" 15" 12"

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

8

DLT-2036360

36"×36"

36"

18 5/16"

25"

12"

DLT-2038380

38"×38"

38"

20 5/16"

25"

12"

DLT-2040400

40"×40"

40"

22 5/16"

25"

14 3/8"

DLT-2042420

42"×42"

42"

24 5/16"

25"

14 3/8"

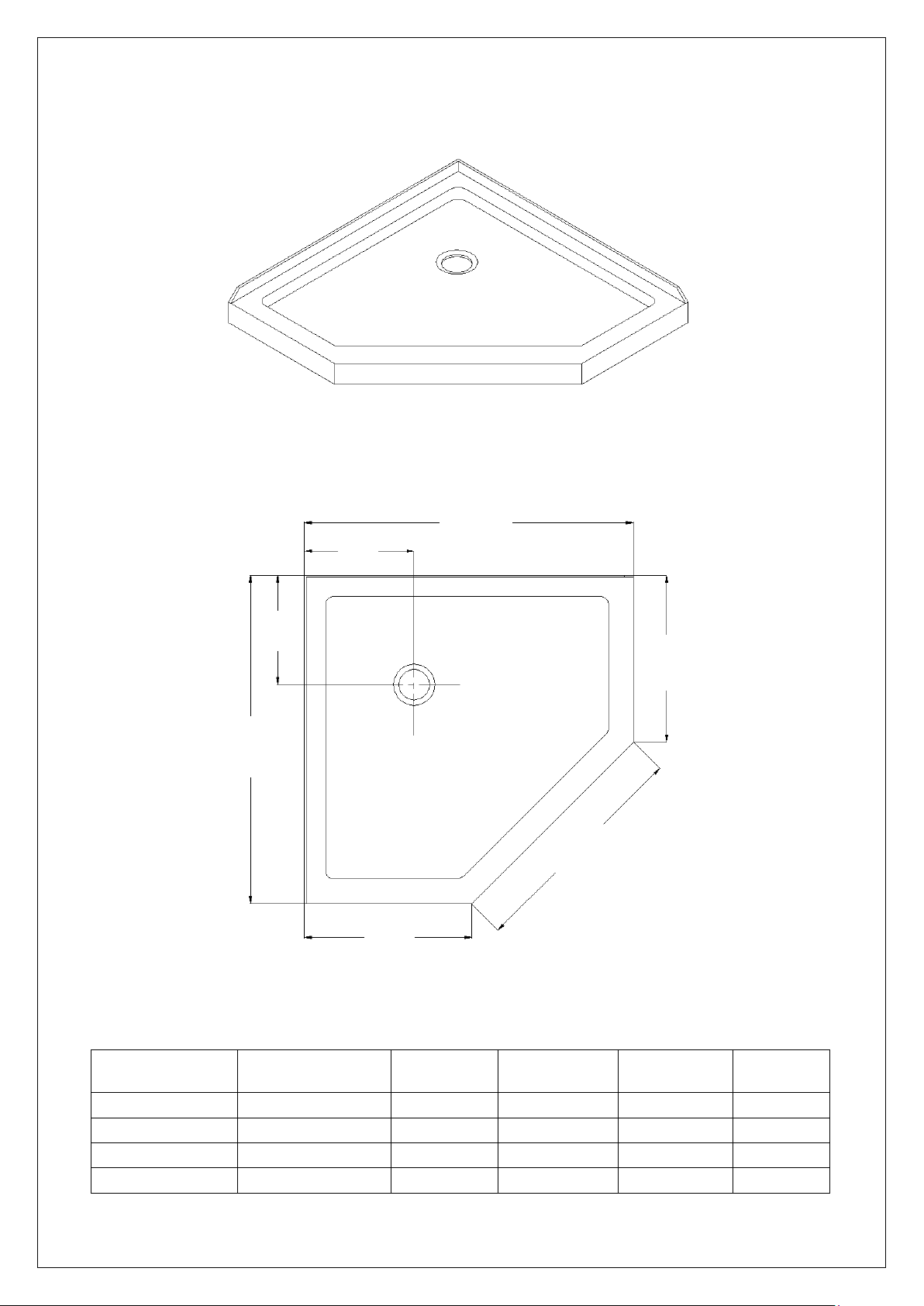

W

A

C C B

NEO ANGLE SHOWER BASE

MODEL SPECIFICATION W (in) A (in) B (in) C (in)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

9

DLT-7033330

33"×33"

33"

12"

21 5/8"

DLT-7036360

36"×36"

36"

12"

21 5/8"

DLT-7038380

38"×38"

38"

12"

21 5/8"

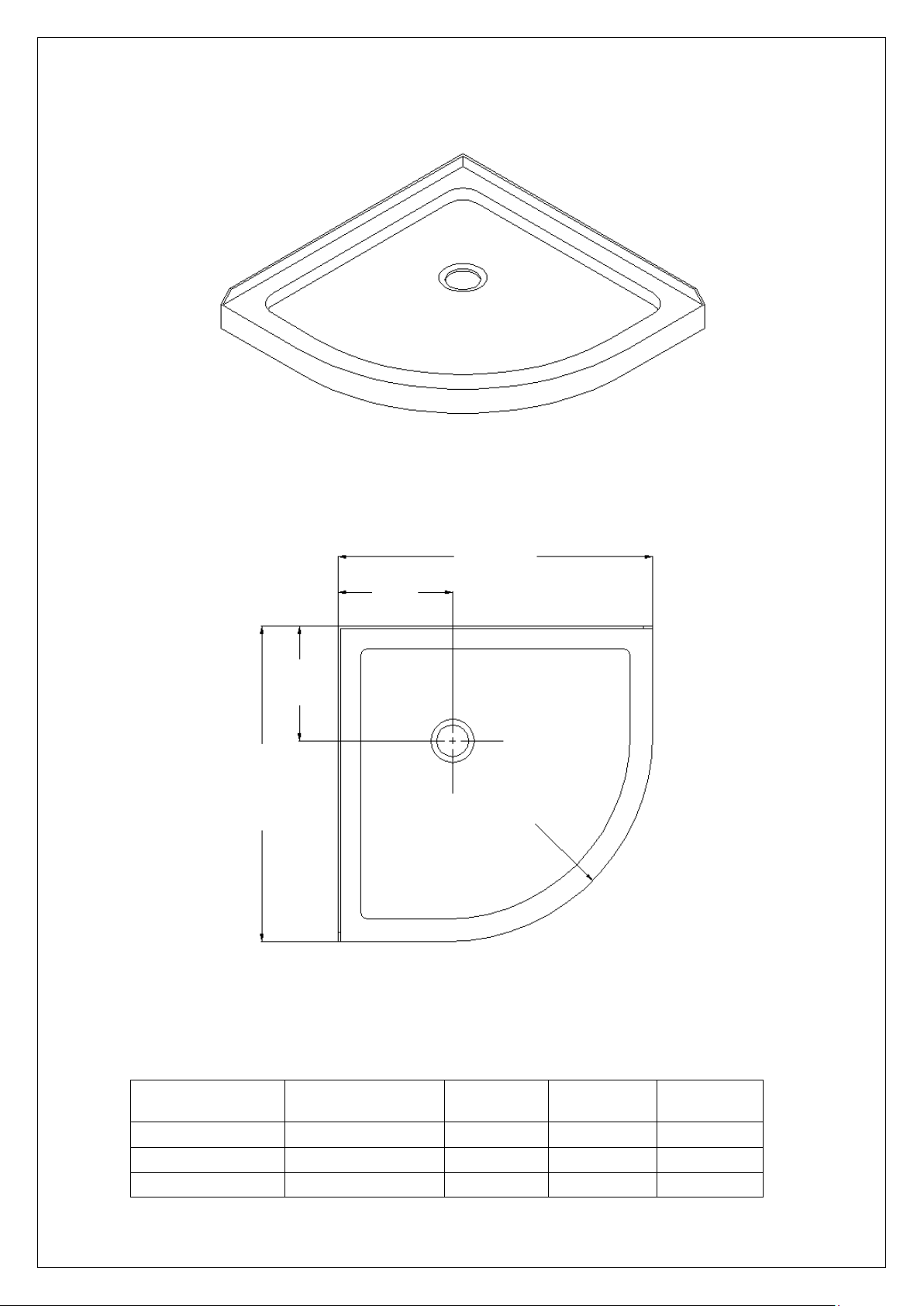

W W C C R

QUARTER ROUND SHOWER BASE

MODEL SPECIFICATION W (in) C (in) R (in)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

10

DLT-1032320

32"×32"

32"

12"

DLT-1036360

36"×36"

36"

12"

DLT-1042420

42” x 42”

42”

12”

W W C

C

DOUBLE THRESHOLD SHOWER BASE

Corner Drain Configuration

MODEL SPECIFICATION W (in) C (in)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

11

DLT-1034481

34"×48"

34"

48"

17"

12"

DLT-1036481

36"×48"

36"

48"

18"

12"

DLT-1036541

36"×54"

36"

54"

18"

12"

DLT-1036601

36"×60"

36"

60"

18"

12"

D W D1

W1

DOUBLE THRESHOLD SHOWER BASE

Left-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

12

DLT-1034482

34"×48"

34"

48"

17"

12"

DLT-1036482

36"×48"

36"

48"

18"

12"

DLT-1036542

36"×54"

36"

54"

18"

12"

DLT-1036602

36"×60"

36"

60"

18"

12"

W D D1

W1

DOUBLE THRESHOLD SHOWER BASE

Right-Hand Drain Configuration

MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

13

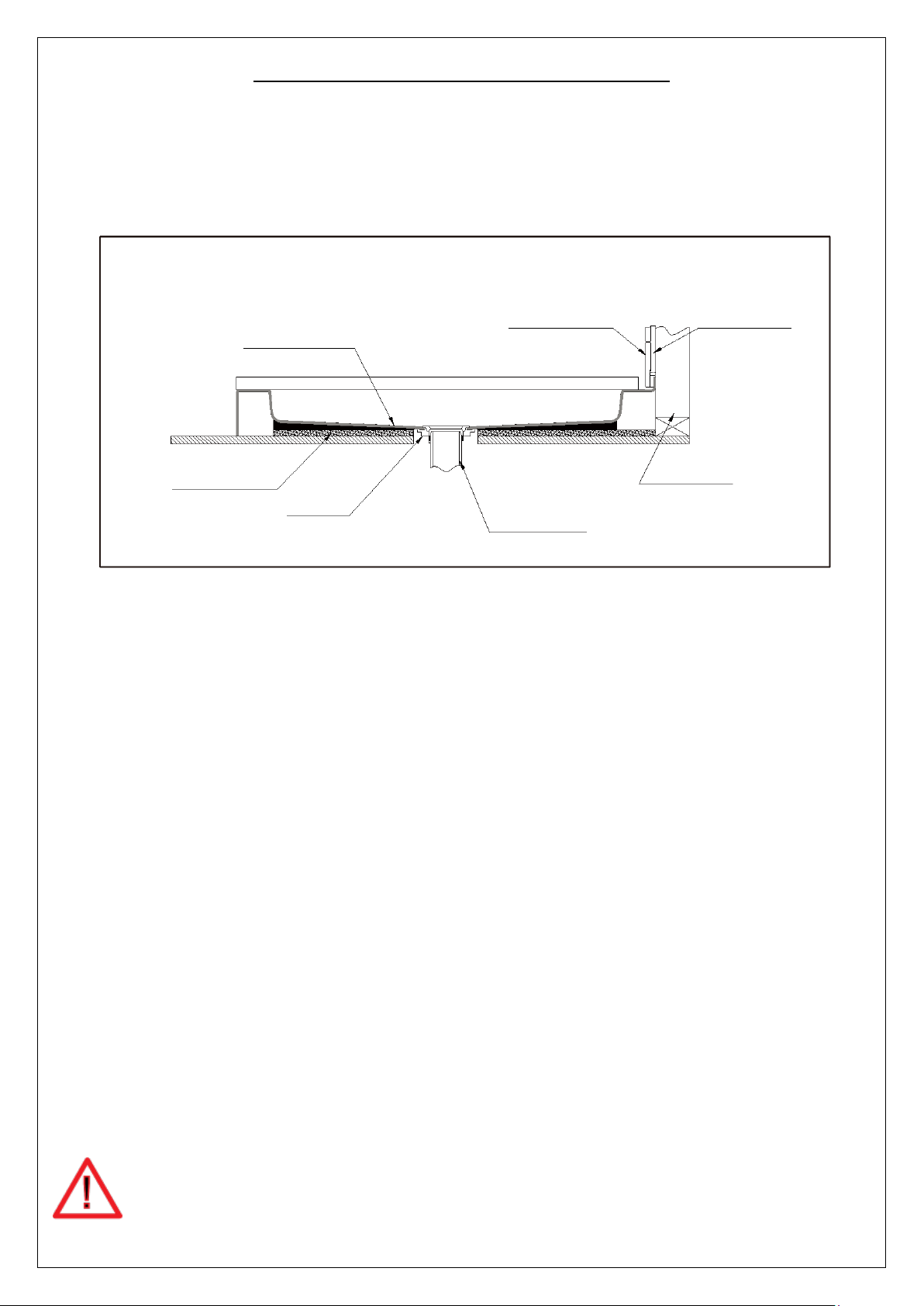

Finished Wall

Cement board

Shower Base

Mortar

Drain*

(2"×4") Stud

* not included

Shower Base Cross Section Diagram

This product should be installed by someone familiar with the construction

requirements for this type of project and the care necessary for the safe

installation and operation of the product.

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

14

(See Product Chart for Drain Location)

(5"×5") Opening

2" PVC Waste Pipe

90°

2" PVC Waste Pipe

(5"×5") Opening

(See Product Chart for Drain Location)

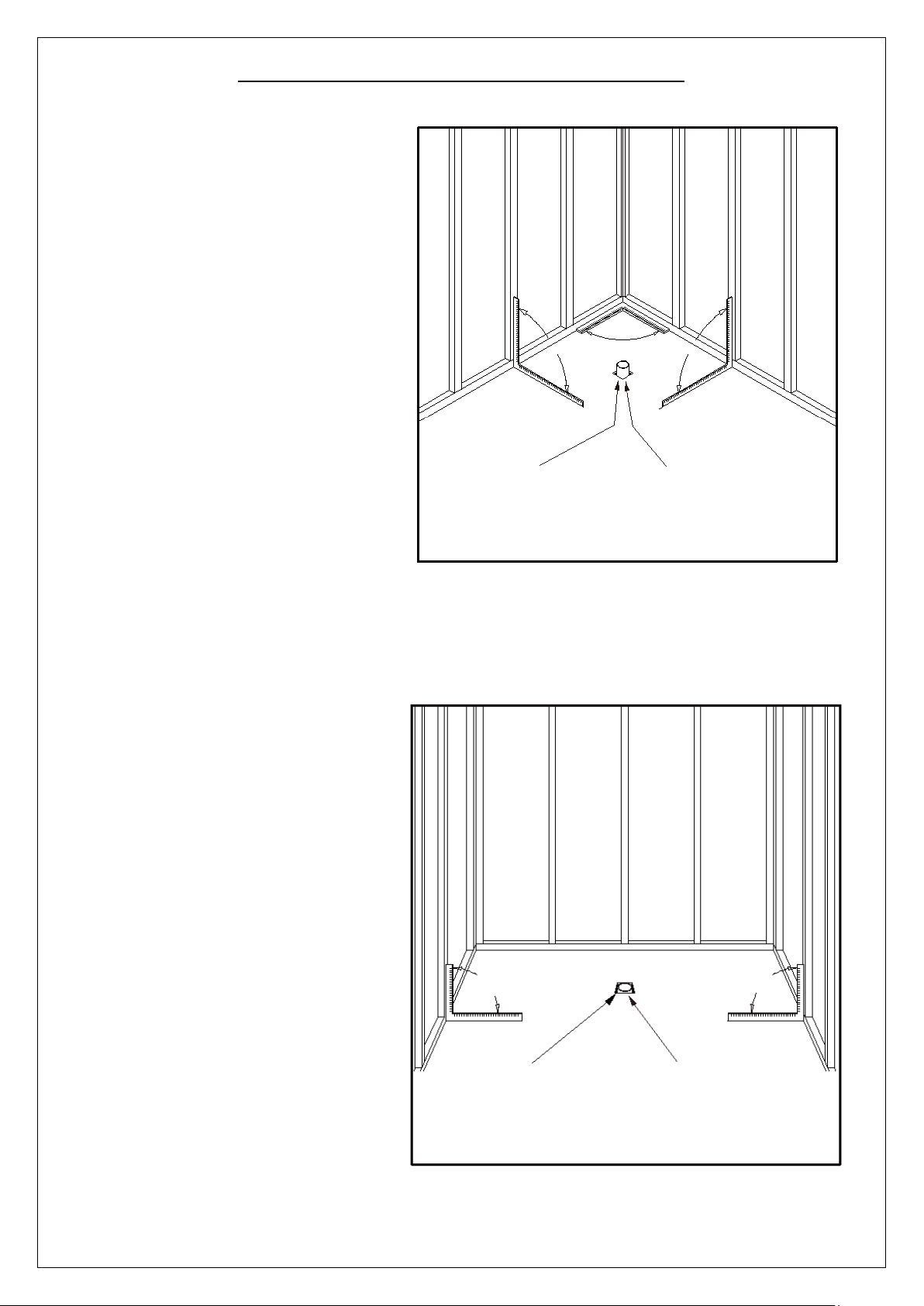

Shower Base Installation - Preparation

1. Ensure that the floor and the studs are at right angles. Provide a 5”×5” opening in the subfloor for the drain. The 2” PVC waste pipe should extend above the surface of the sub-floor according to the drain installation instructions and the height of the Shower base. Refer to the product drawings and tables in this installation manual for the drain location.

(Fig 1a and Fig 1b)

Fig 1a

Fig 1b

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

15

Lower the base over the drain pipe and set it into place against the studs.

Fig 3

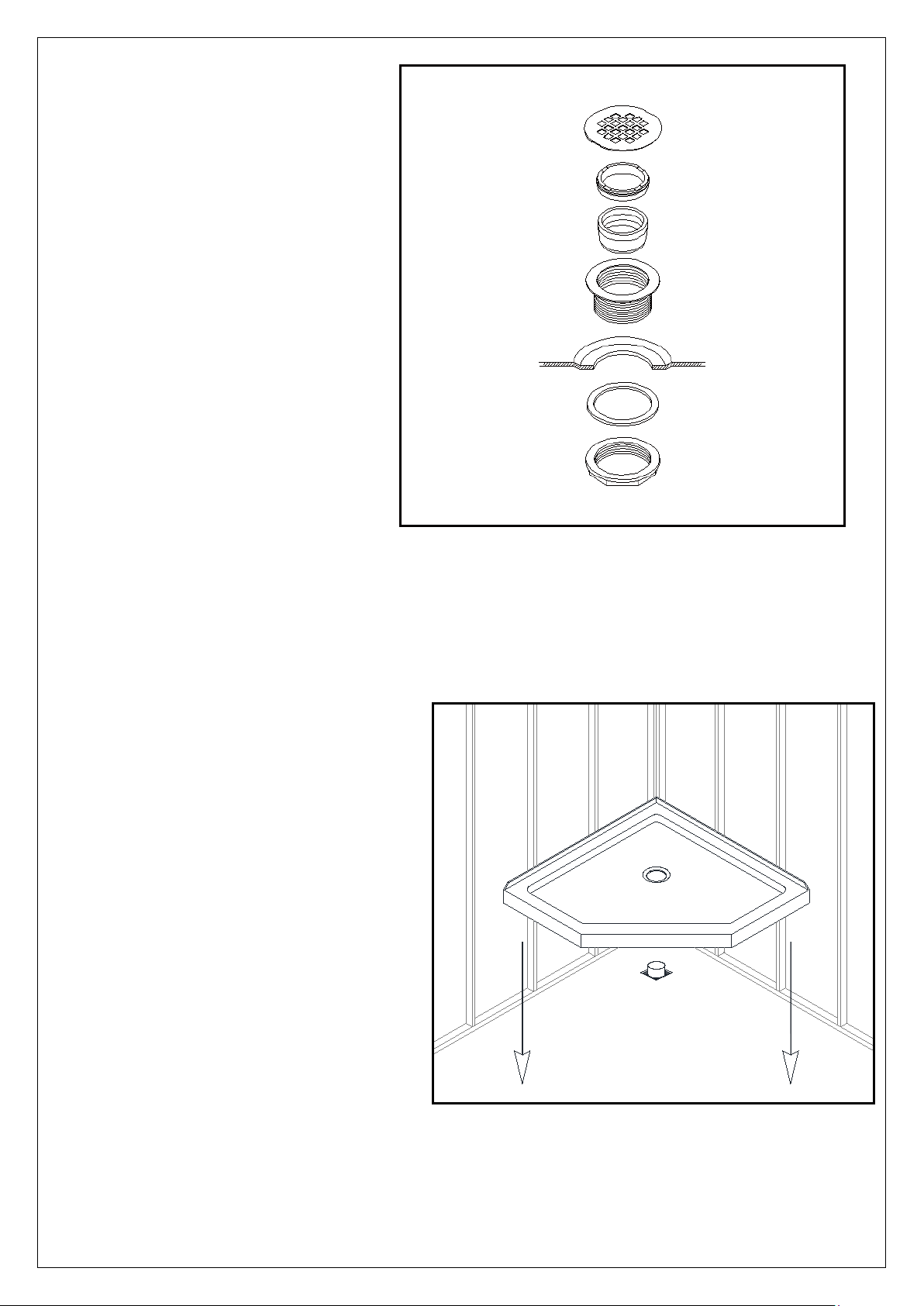

2. Install the shower drain (NOT INCLUDED) according to the

drain installation manual (supplied with the drain).

(Fig 2)

Fig 2

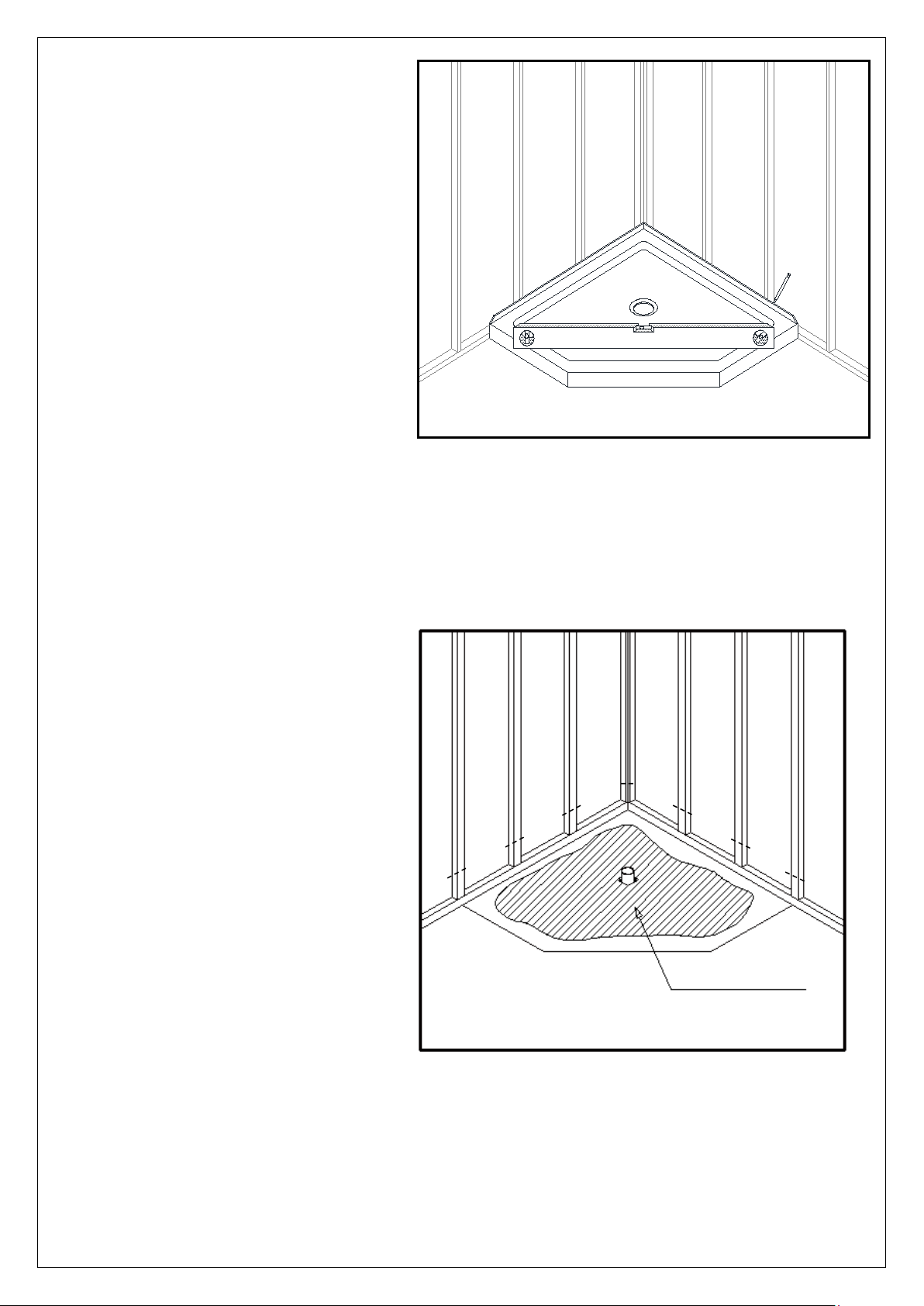

3. Place the tray into the designated position so that the Drain cutout drops around the Drain Pipe and butt the Shower Base up against the studs.

(Fig 3)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

16

Level base in two directions

Mortar

Fig 4

4. Level the tray and place marks on the studs above the upper edge of the tile flange.

(Fig 4)

5. Mix the bedding material (Mortar, cement-sand mix, etc.) Concrete or plaster is not recommended. Apply enough bedding material to support the entire bottom of the shower base. This will add additional stability and prevent the base from shifting position.

(Fig 5)

Fig 5

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

17

Fig 6

Fig 7a

Waterproof Drywall to

the top of the tile flange

Caulk

Finished wall overlaps the

Stud

1

2

Waterproof

Drywall

4

3

Side View

1/8” gap

Base

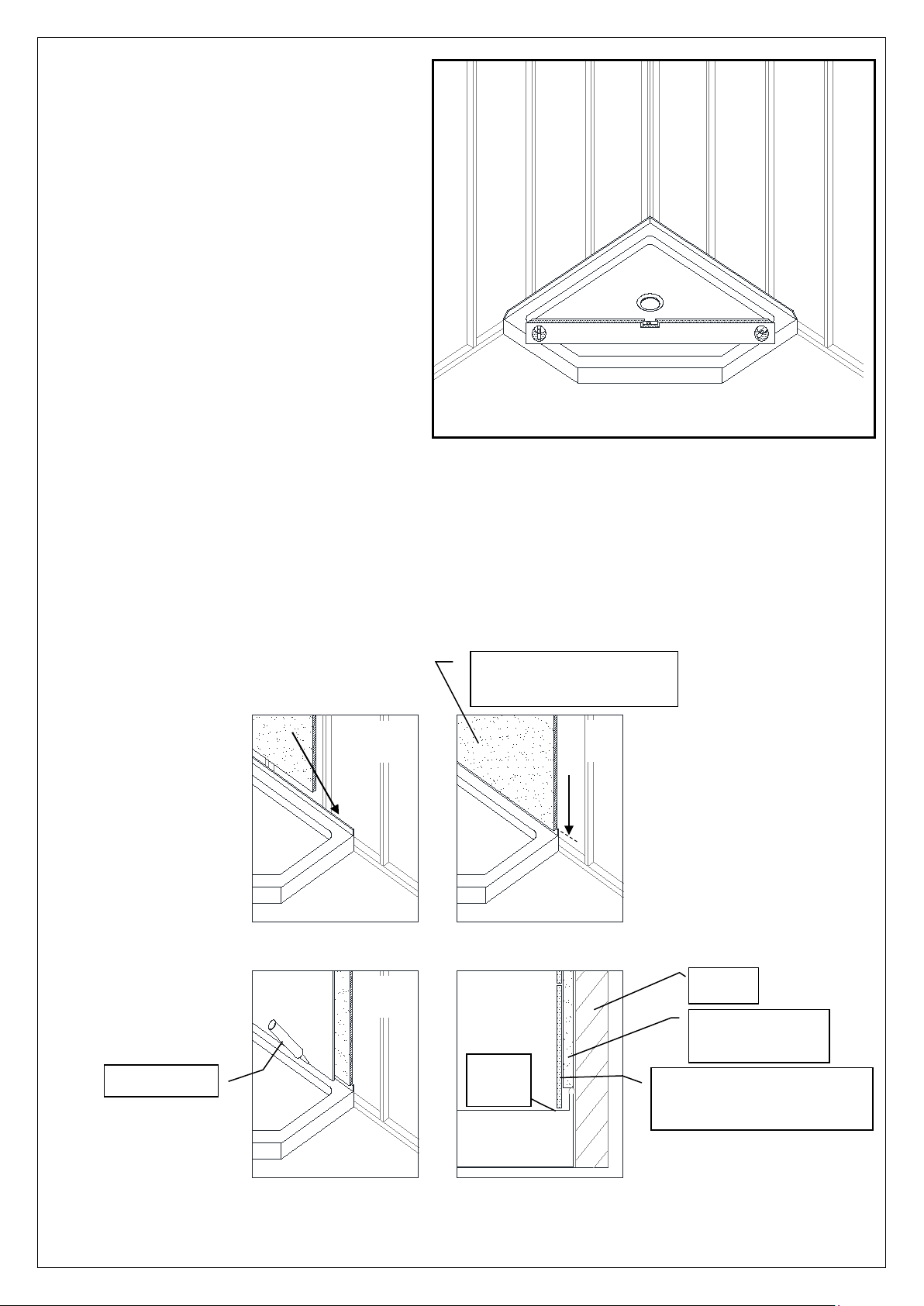

6. After the bedding material has been poured and shower base into the position with the drain assembly sliding over the PVC waste pipe. It will be necessary to push the shower base until the top of the tile flange aligns with the marks drawn on the studs and the front edge is contacting the rough floor along the entire length of the shower base. Ensure that the base is level in all directions. You may need to use shims to hold the tray level until the bedding fully sets. Remove all excess mortar.

(Fig 6)

before

it sets, place the

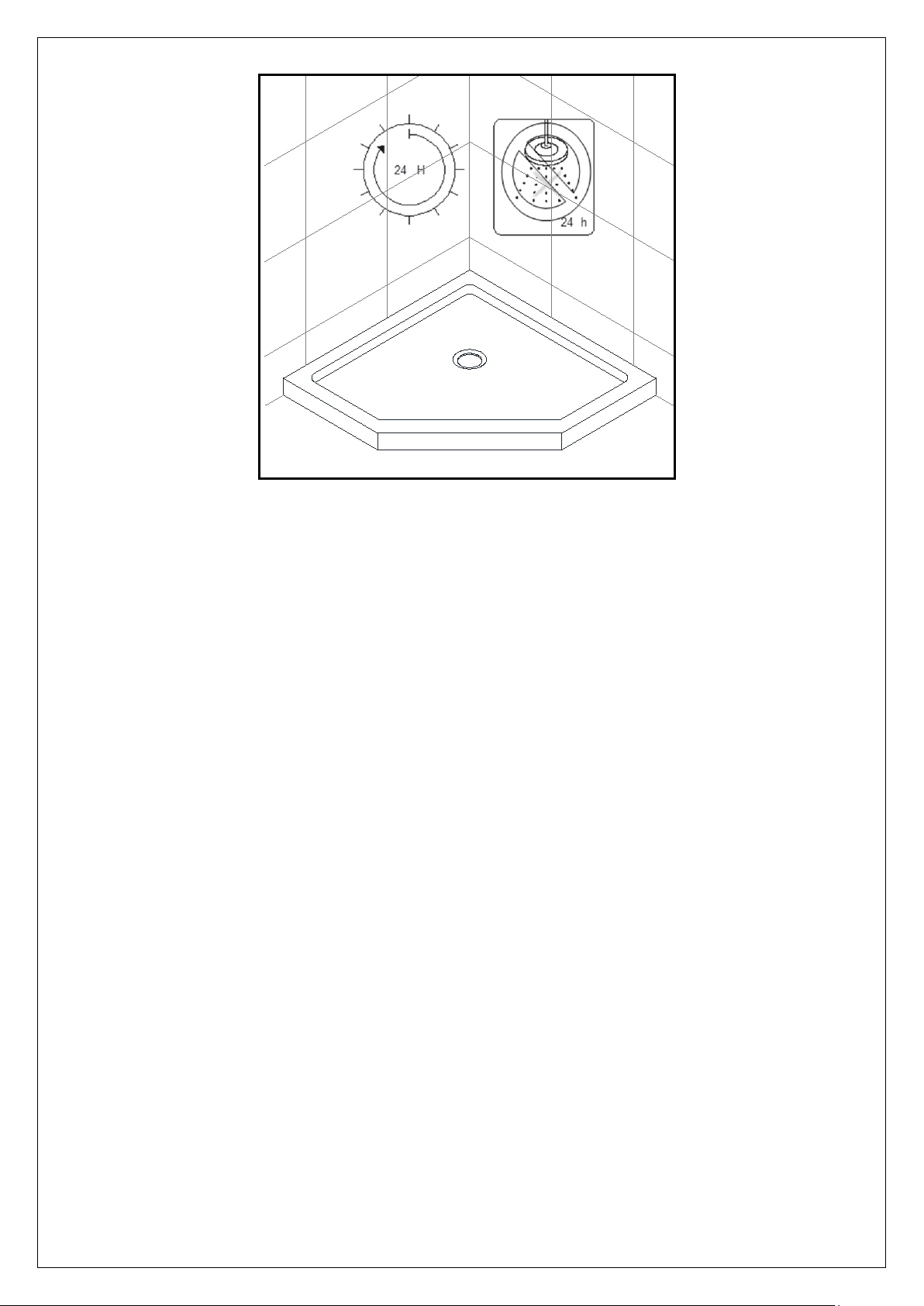

7. Allow the bedding material to completely harden before applying weight to the bottom of the shower base. Install the cement board (or the wallboard) above the tile flanges and secure it to the studs. Put the tiles (or other finishing wall material) over the cement board leaving 1/8” gap between the bottom of the tile or wall kit and the shower base. Use caulk to fill the gap.

(Fig 7a and Fig 7b)

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

dry wall and tile flange

18

Fig 7b

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

19

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic base and/or back walls:

wipe them off after each use with a soft cloth. To clean the acrylic base or back walls use non-abrasive sprays or cream-based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long-lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth. Clean stainless-steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass

and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.

SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com

PRIME

SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS

Model #s SHEN-7031310 SHEN-7031310-FR SHEN-7034340 SHEN-7034340-FR SHEN-7036360 SHEN-7036360-FR

01= Chrome FR= Frosted Glass

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals or any other details please refer

to your model’s web page on DreamLine.com

Please read these instructions carefully before installing. If you have any questions regarding installation, please contact our technical support specialists Monday through Friday 8:00 AM – 7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support group at Support@DreamLine.com.

For more information about DreamLine® products please visit www.DreamLine.com

2

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions, and please provide an

order number, job name or other proof of purchase to help us identify your original order.

2. Please note that you should consult your local building codes with questions about

installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing

and drainage before installing the shower. Use a competent and licensed (if required by local

code) plumber for all plumbing installation.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will

be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please, note that some adjustments and drilling may be necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down

directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

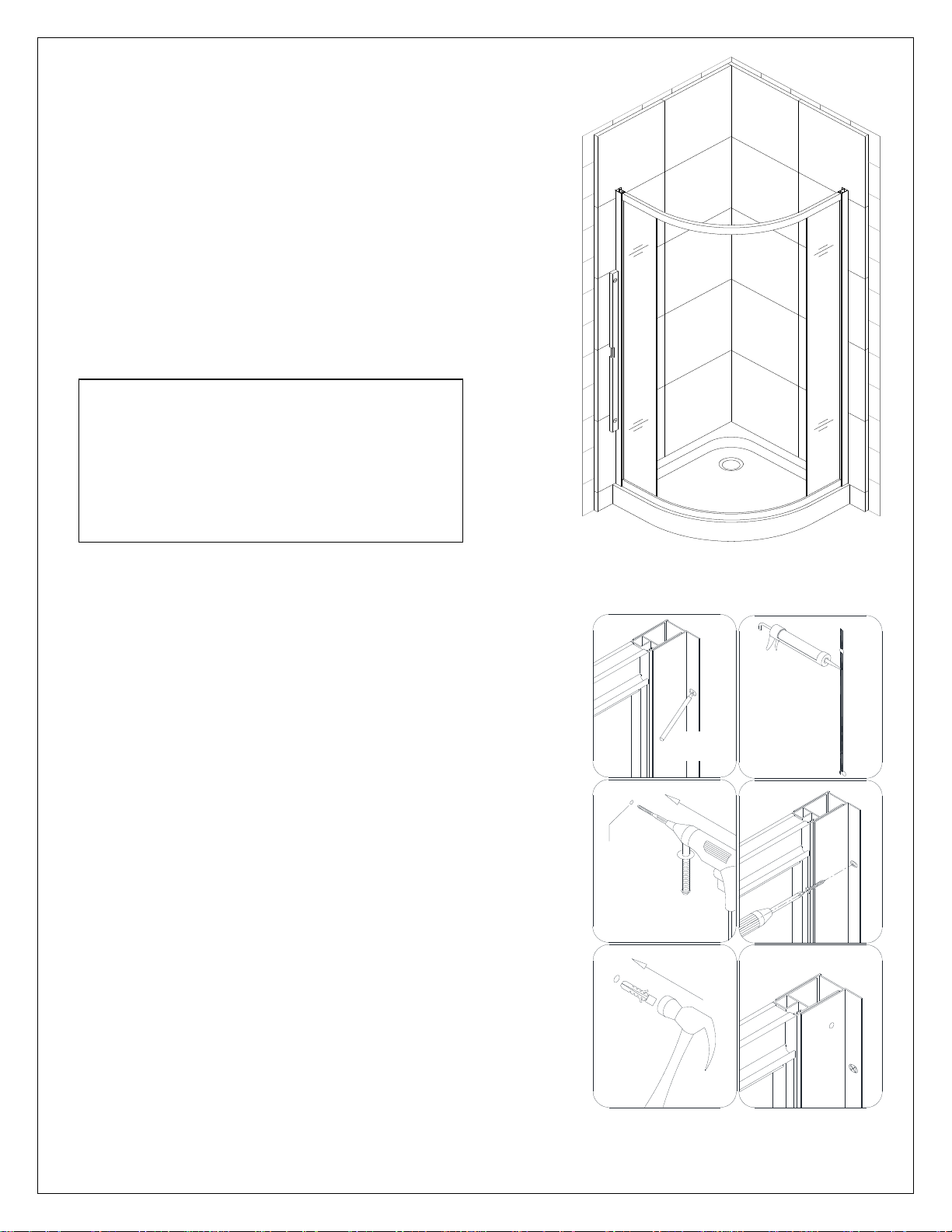

7. This model has 1” of adjustment for out-of-plumb wall conditions within the wall profiles.

NOTE: DO NOT install the handles onto the door glass until instructed to do so. DO NOT lift the glass using the handles. This could result in damage to the glass and /or serious personal injury.

NOTE: For models with Frosted glass, install the textured surface towards the inside of the shower

“PRIME” Enclosure Ver.1 Rev.3 12/2015

3

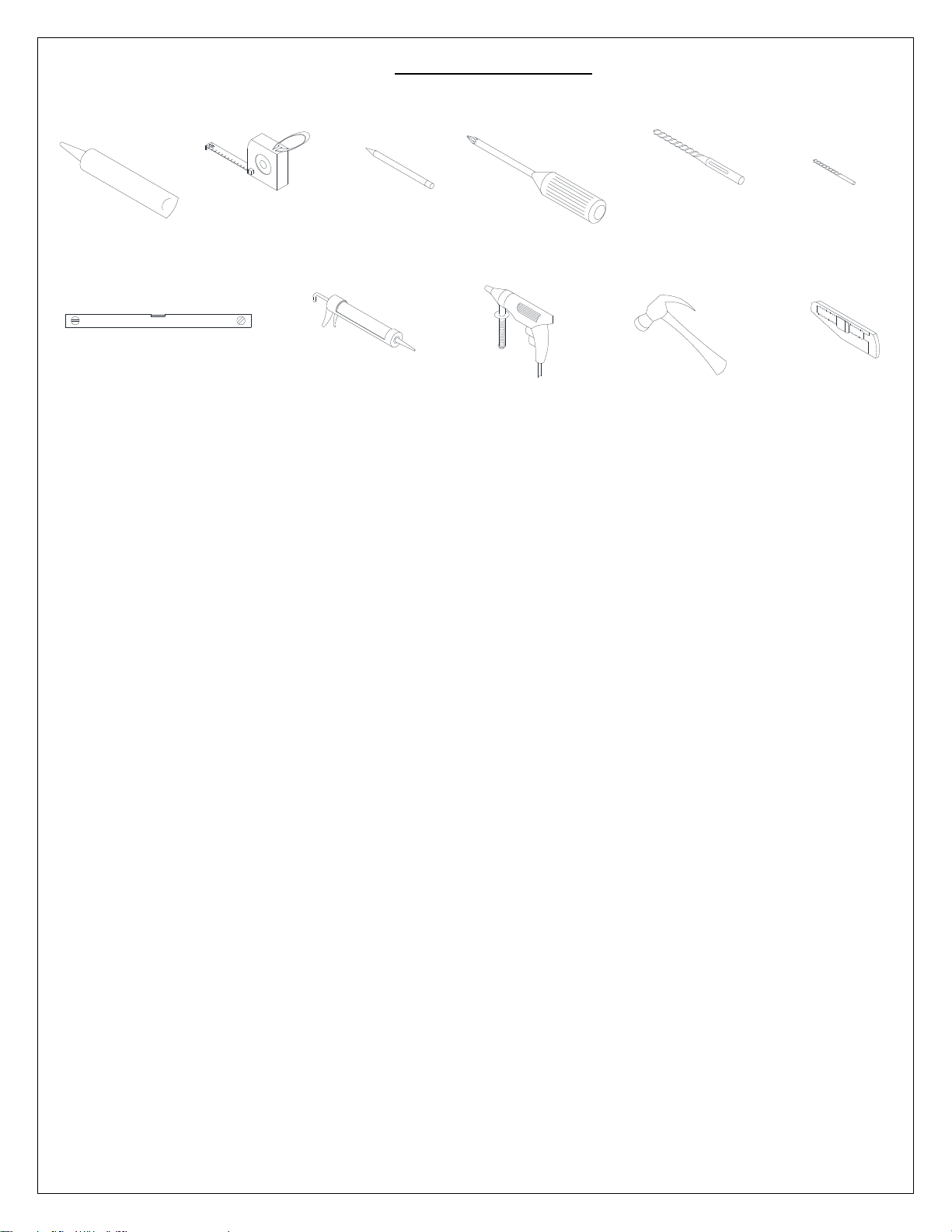

Tools Required

Caulk

Tape Measure Pencil

Screwdriver

Phillips

(Ø=5/16")

Drill bit

Level

Gun

Caulk

Drill

Electric

Hammer

(Ø=1/8")

Drill bit

Knife

“PRIME” Enclosure Ver.1 Rev.3 12/2015

4

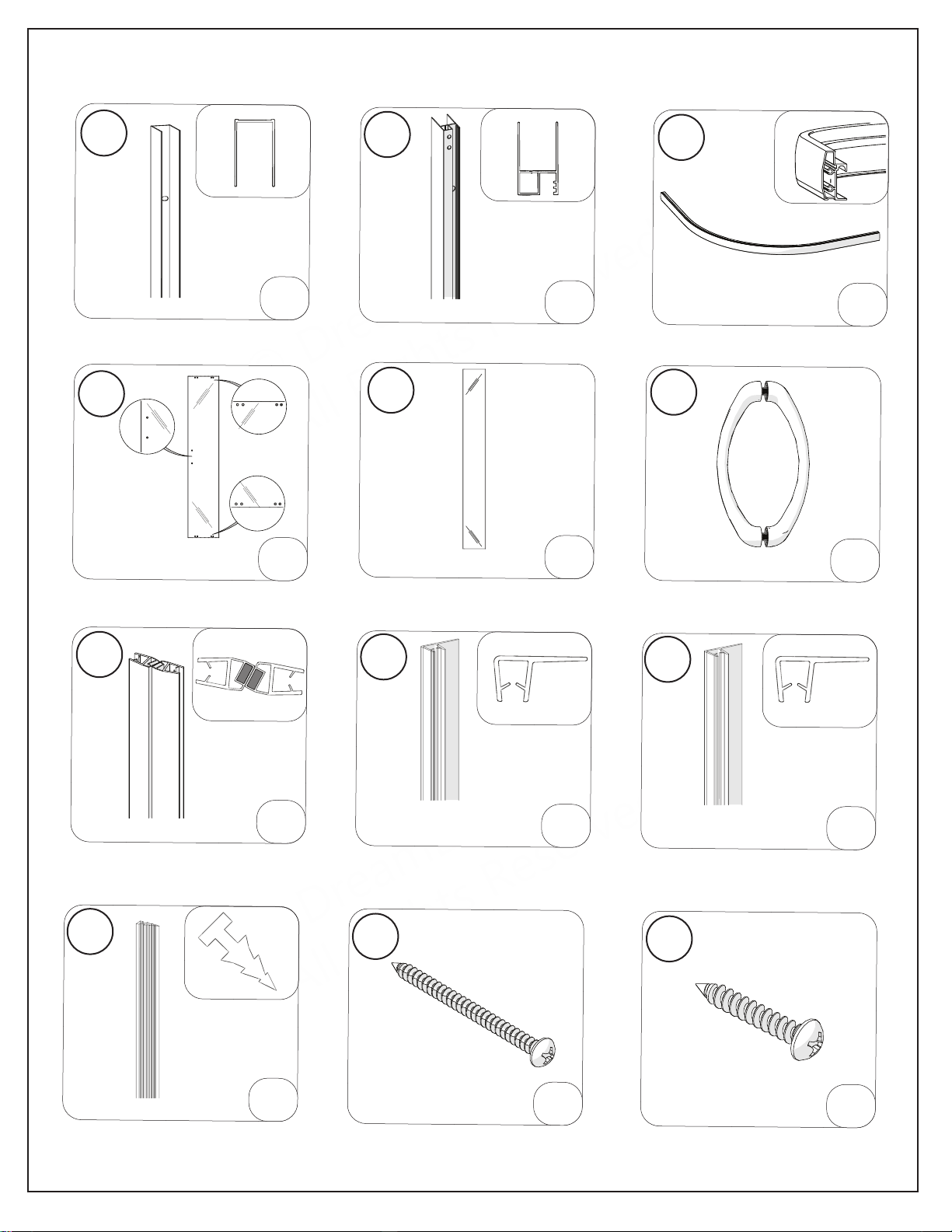

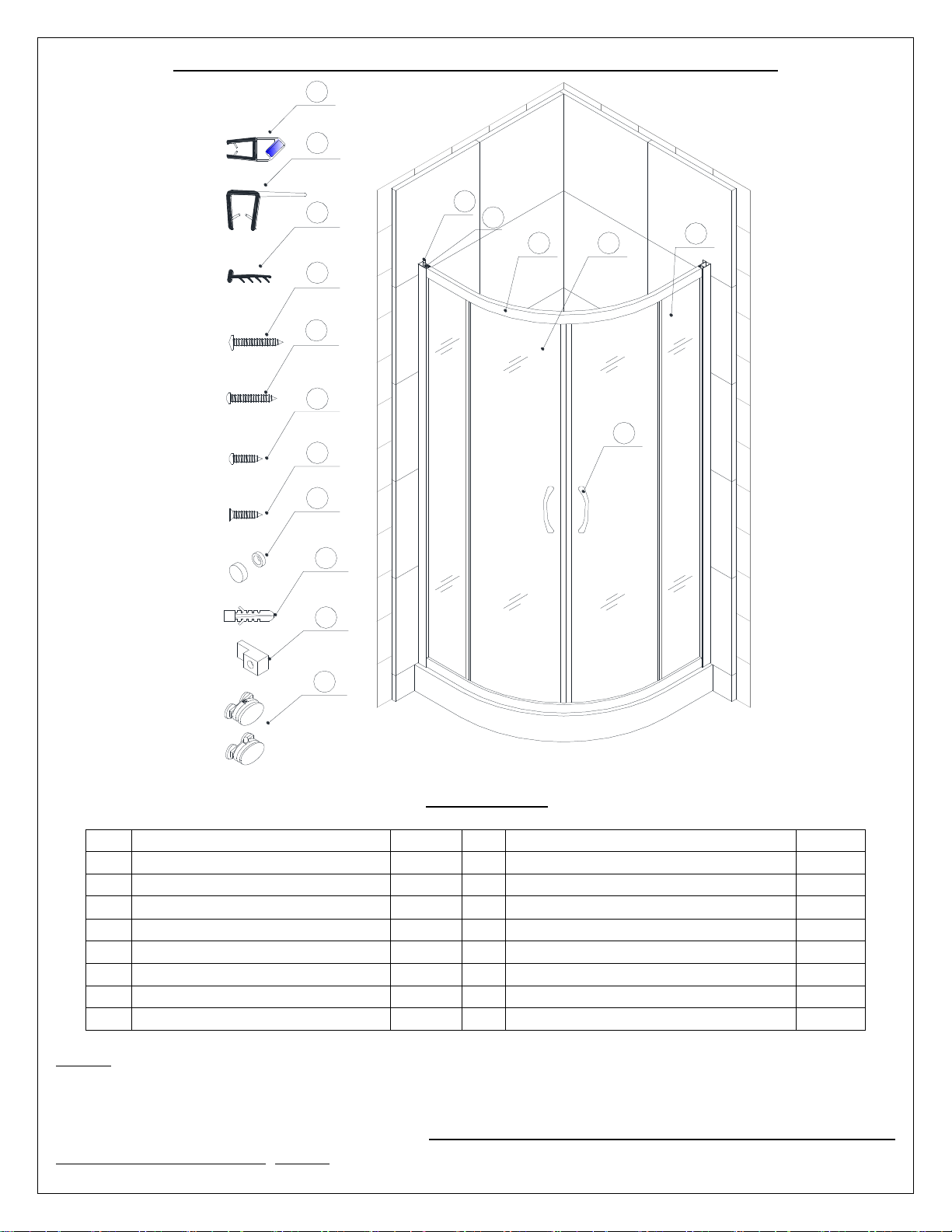

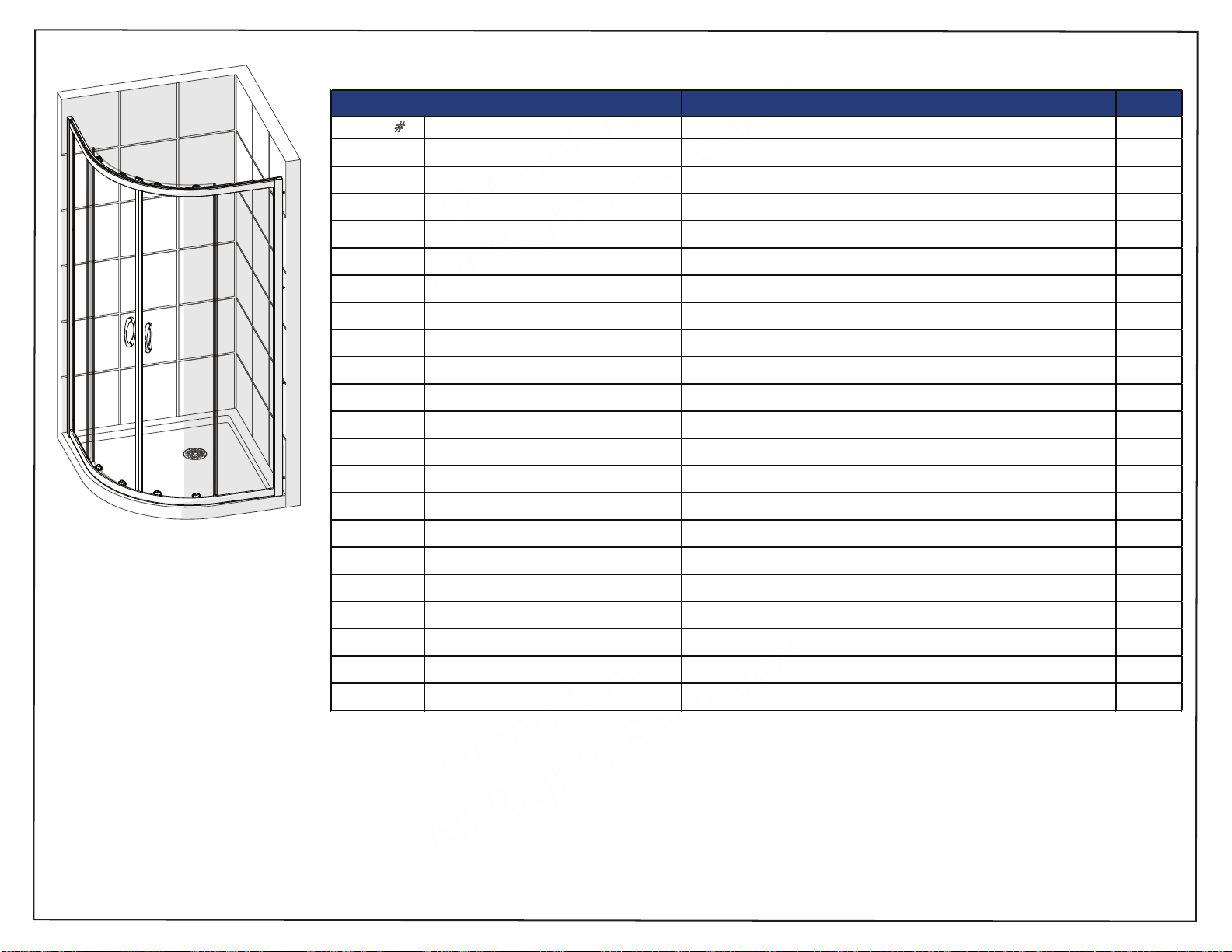

Detailed Diagram of Shower Enclosure Components

7

8

9

10

12

13

14

15

11

16

1

2

3 4

5

6

17

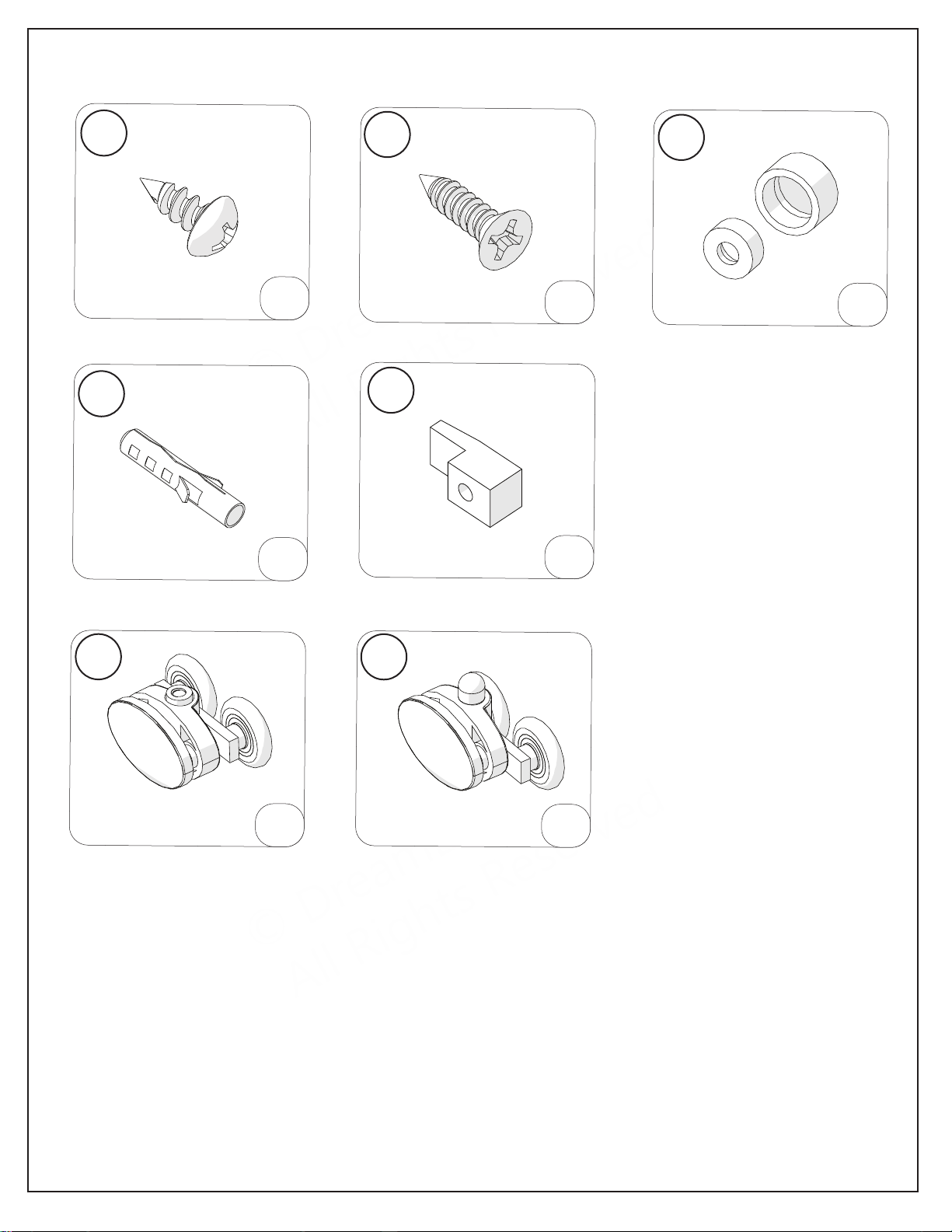

01

Wall profile

2pcs

10

Truss head screw ST4.2×40

8pcs

02

Glass profile

2pcs

11

Round head screw ST4.2x25

8pcs

03

Guide rail

2pcs

12

Round head screw ST4.2x10

4pcs

04

Glass door

2pcs

13

Flat head screw ST4.2x16

4pcs

05

Stationary glass

2pcs

14

Decorative cover with washer

4pcs

06

Handle

2pairs

15

Wall anchor

8pcs

07

Magnetic strip

1pair

16

Glass holder

4pcs

08

Anti-water strip (2 long, 2 short)

4pcs

17

Wheel assembly (top & bottom)

4pairs

09

Single side strip

2pcs

Packing List

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration. NOTE: Retain these installation instructions for future reference.

“PRIME” Enclosure Ver.1 Rev.3 12/2015

5

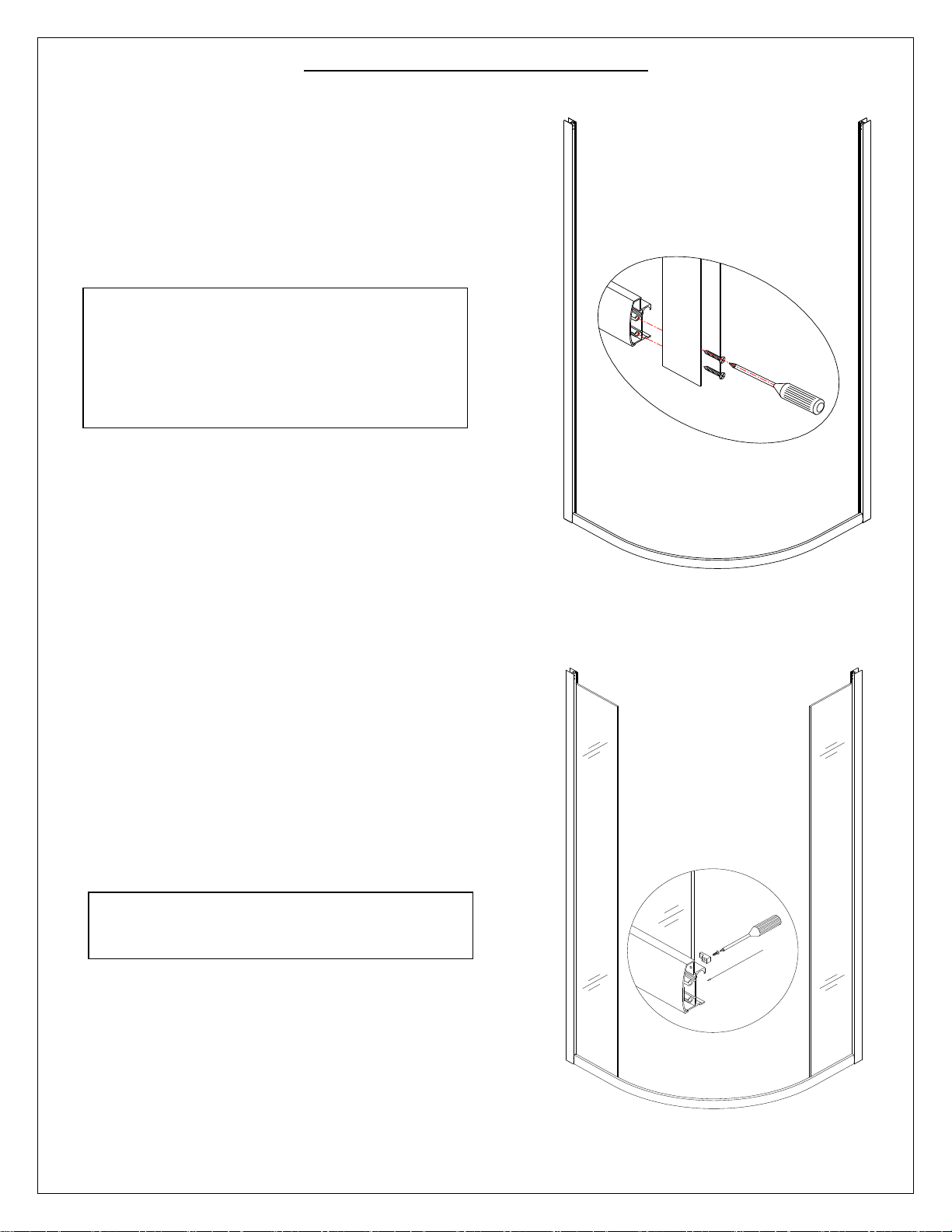

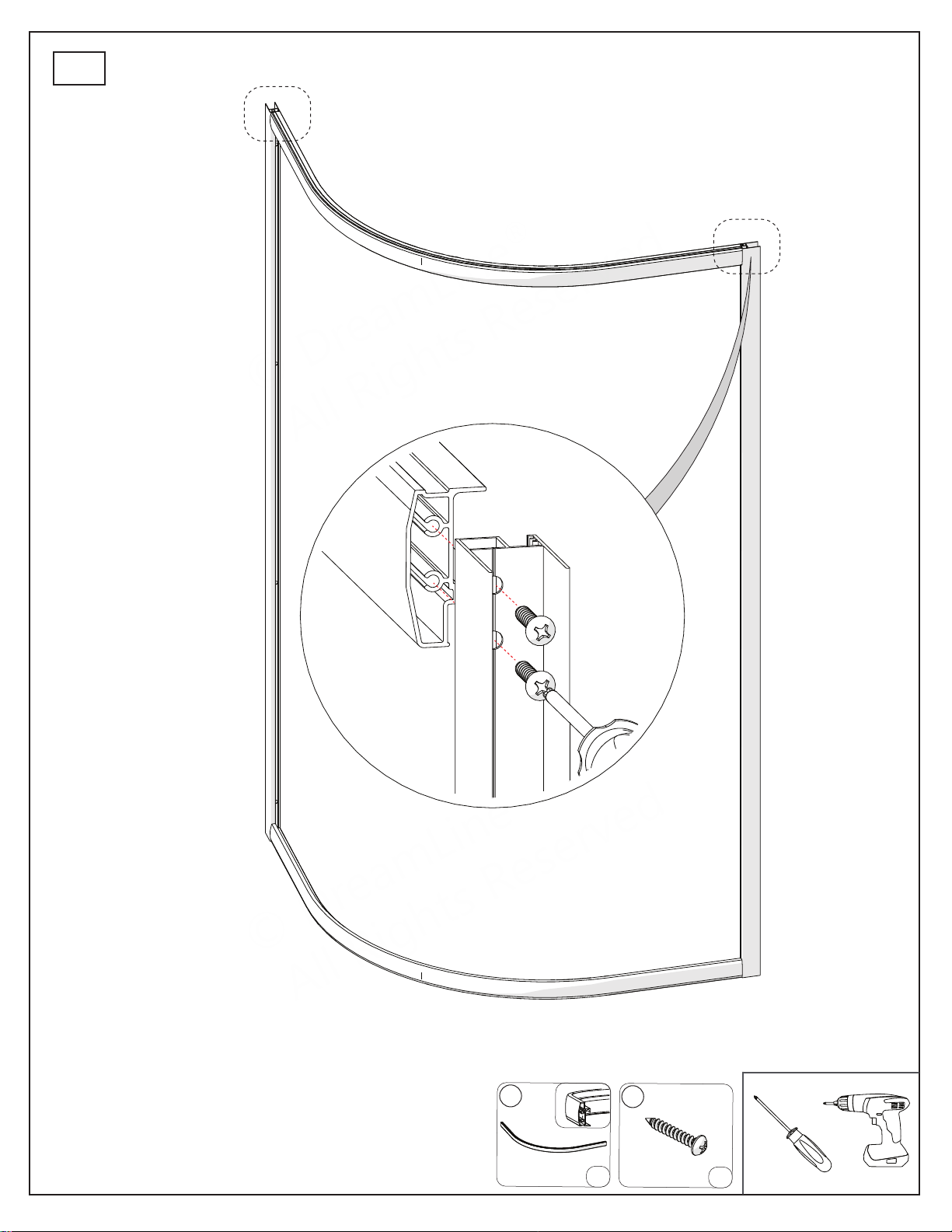

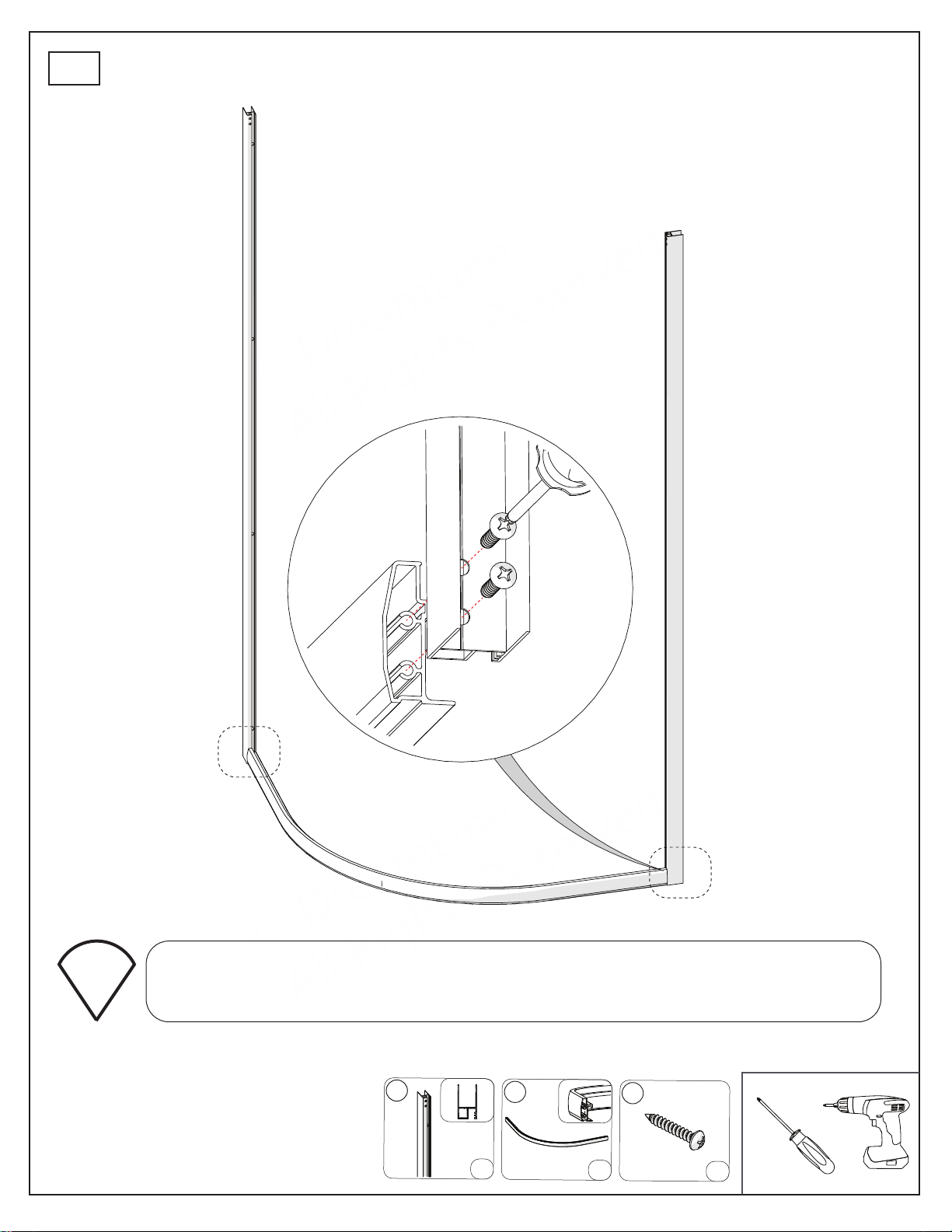

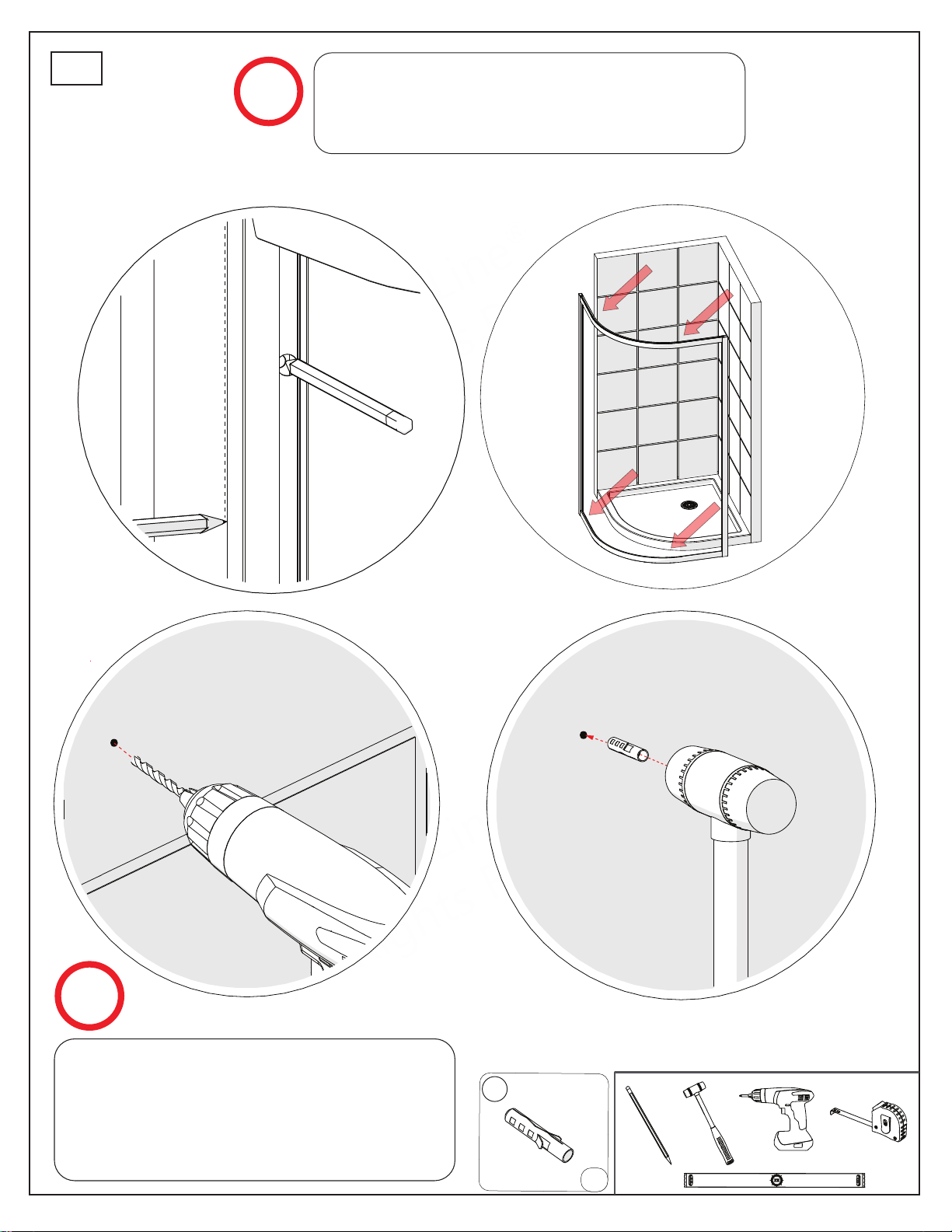

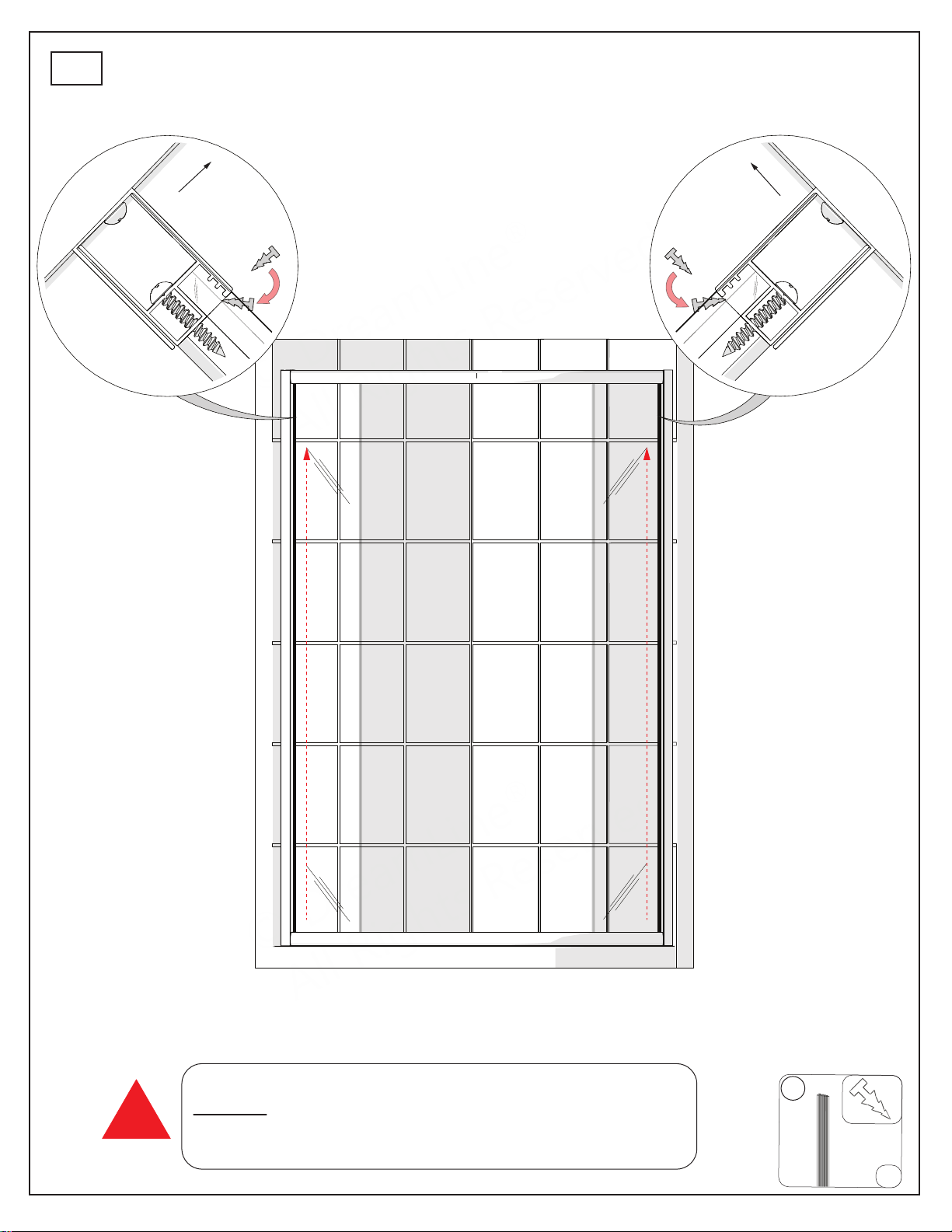

Shower Enclosure Installation

TIP: Apply a small amount of wax or liquid

soap to the screws to make installation easier and to prevent stripping the screws while screwing the Glass profiles (02) to the Guide rails (03).

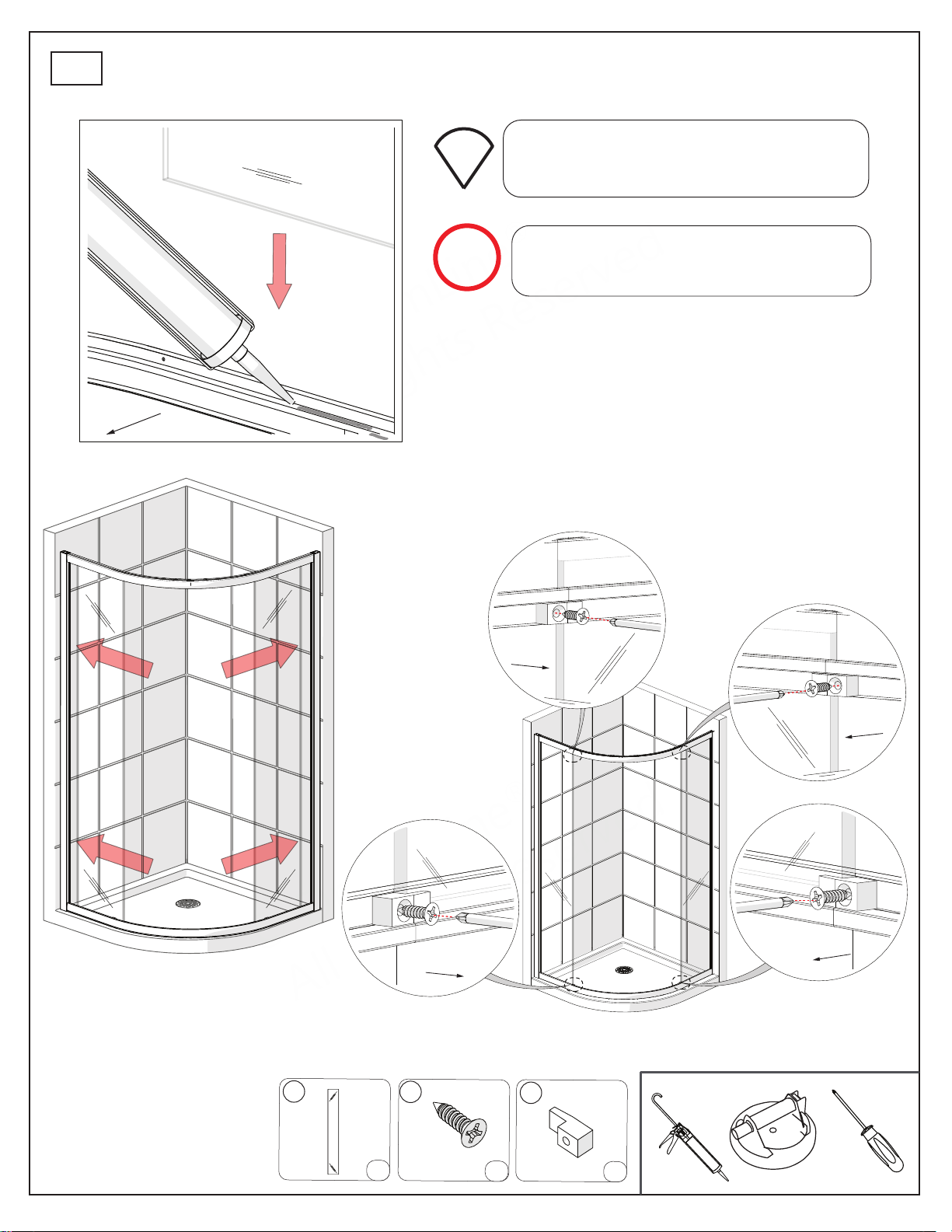

TIP: Apply a thin bead of silicone to the bottom rail when setting the glass in place.

1. Fasten the bottom Guide rail (03) to the Glass

profiles (02) with the Round head screws ST4.2x25 (11).

See Fig. 1 for details.

Fig. 1

2. Slide each Stationary glass (05) fully into the groove

of the Glass profiles (02), and then secure it by attaching the Glass holders (16) to the bottom Guide rail (03) using the Flat Head ST4.2 x 16 screws (13).

See Fig. 2 for details.

Fig. 2

“PRIME” Enclosure Ver.1 Rev.3 12/2015

6

Fig. 3

inside

Fig. 4

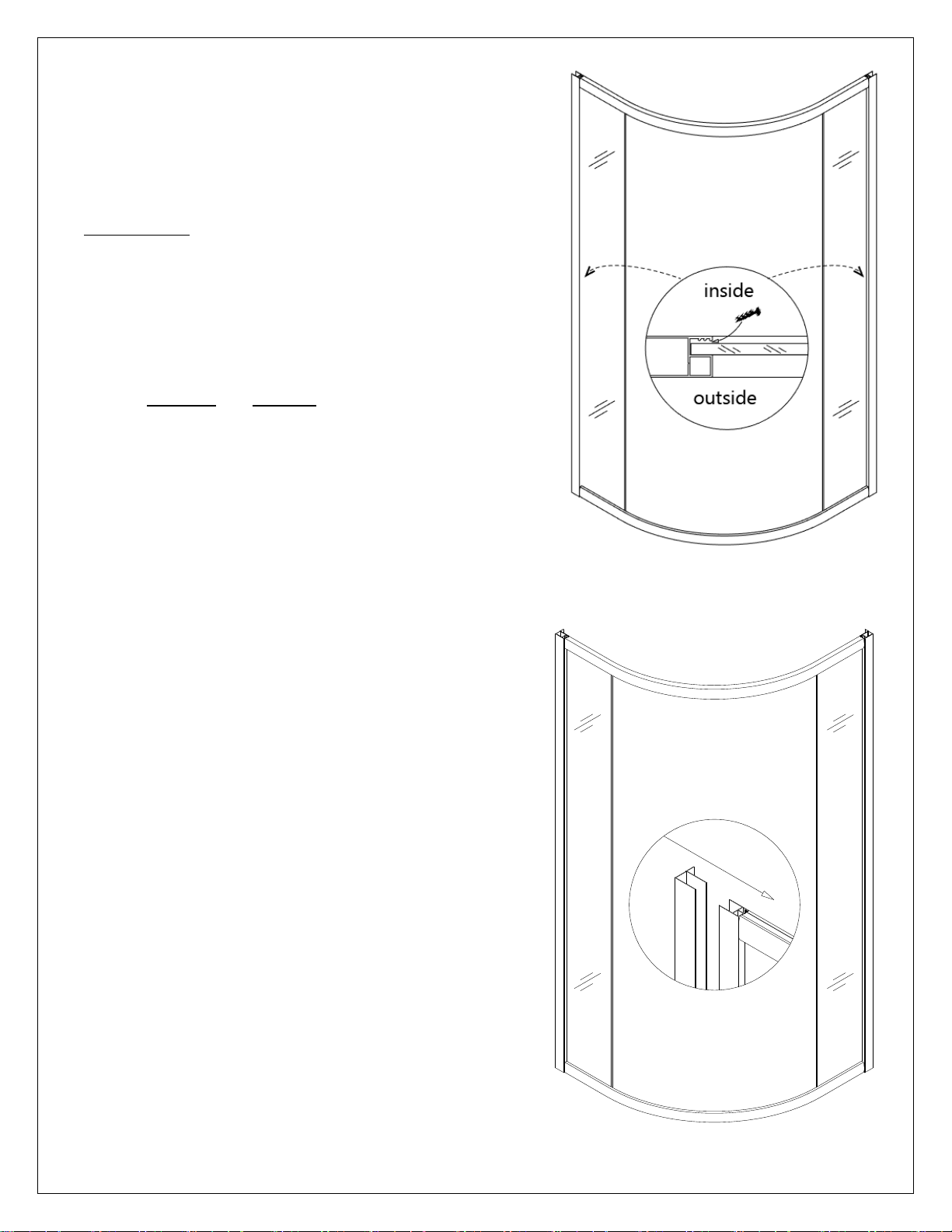

3. Insert the Single side strips (09) in-between the

Stationary glass (05) and the Glass profiles (02) using a wooden shim or plastic blade. The strips should be inserted from the side that will face inside the shower.

ATTENTION: Do not use a screwdriver or other metal objects to push in the strips to prevent scratching or damaging the glass and aluminum.

See Fig. 3 for details.

4. Repeat Step #1 and Step #2 to fasten the upper Guide

rail (03) to the Glass profiles and secure the Stationary glass with the Glass holders (16).

See Fig. 1 and Fig. 2 for details.

5. Slide the Wall profiles (01) all the way over the

Glass profiles (02) on both sides. Make sure the flanges of the Wall profiles (01) face inside the shower.

See Fig. 4 for details.

“PRIME” Enclosure Ver.1 Rev.3 12/2015

7

Ø5/16”

2

1 3 4

5

6

NOTE: The installed unit may not sit perfectly centered on the threshold, depending on the thickness of the finished wall treatment used. You may adjust the position outward slightly by extending the wall profiles.

Fig. 5

inside

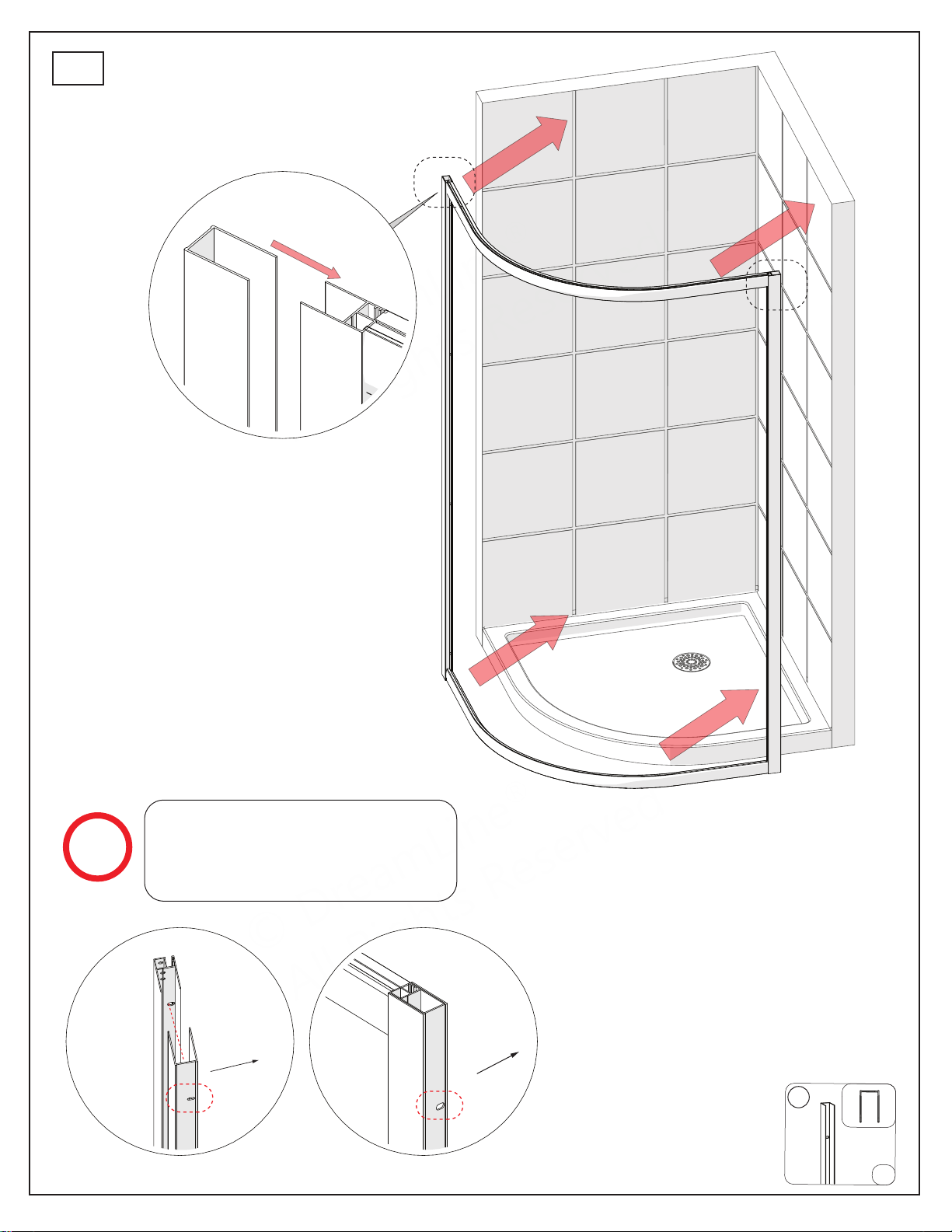

6. Move the finished frame to the designated position on

the shower base or threshold and push it tight to the walls. If the walls are out-of-plumb, make adjustments by slightly pulling the Wall profiles (01) out of the Glass Profiles (02). Use a level to adjust the frame into a plumb, vertical position on both walls.

See Fig. 5 for details.

7. Hold this assembly in position and mark the drill holes on

the wall through the holes on the flange of the Wall Profiles (01). Carefully set the assembled unit aside; drill the holes using a Ø 5/16” drill bit and insert the Wall anchors (15).

Apply silicone caulk along the Wall profiles (01) and

around the holes on the wall. Also apply silicone under the bottom Guide rail (03). Place the entire shower assembly back into the designated position on the threshold and secure it to the walls using the Truss head screws ST4.2×40 (10).

See Fig. 6 for details.

Fig. 6

“PRIME” Enclosure Ver.1 Rev.3 12/2015

8

2

1 3 4 5 6

NOTE: DO NOT install the handles onto the door glass until instructed to do so. DO NOT lift the glass using the handles. This could result in damage to the glass and/or serious personal injury.

1

2 3 4

inside

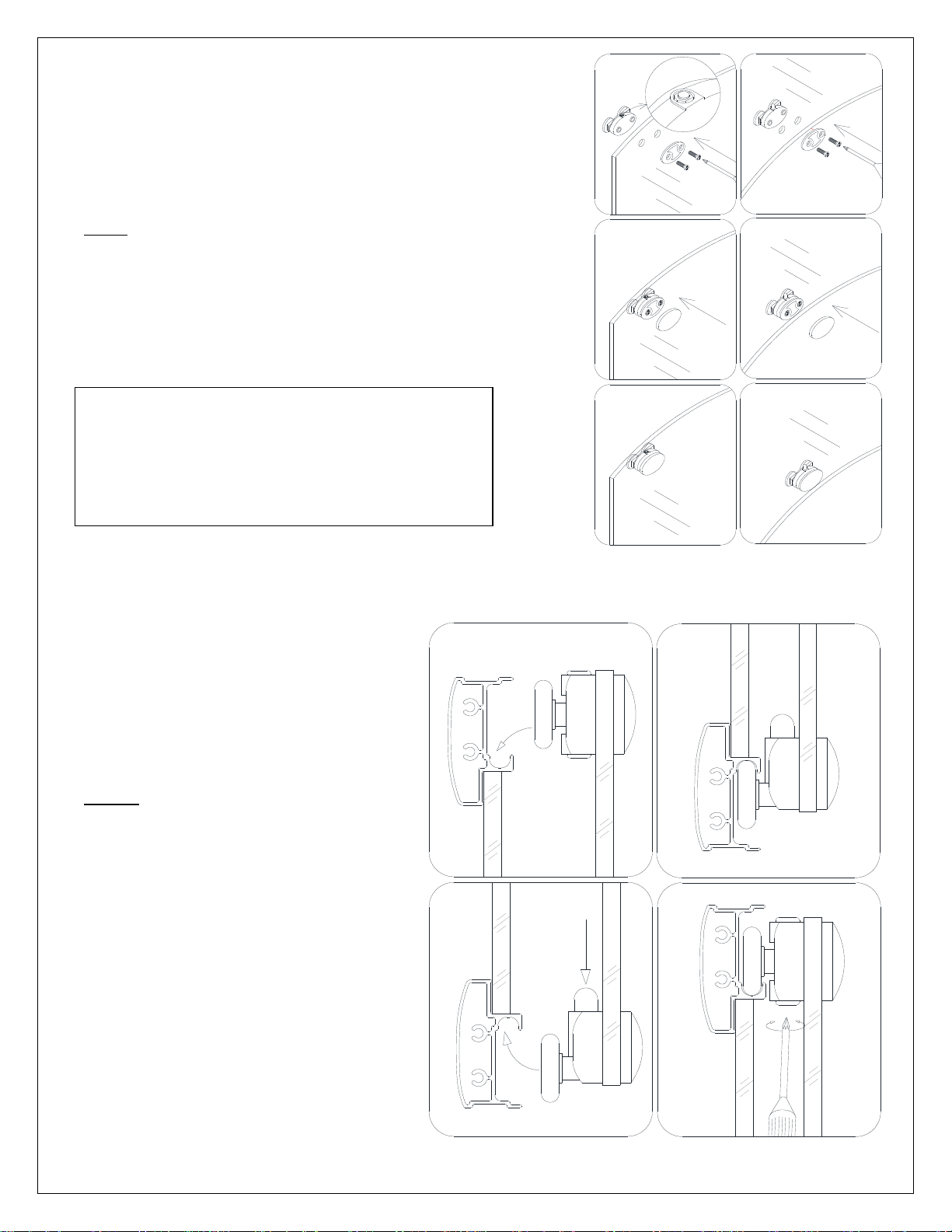

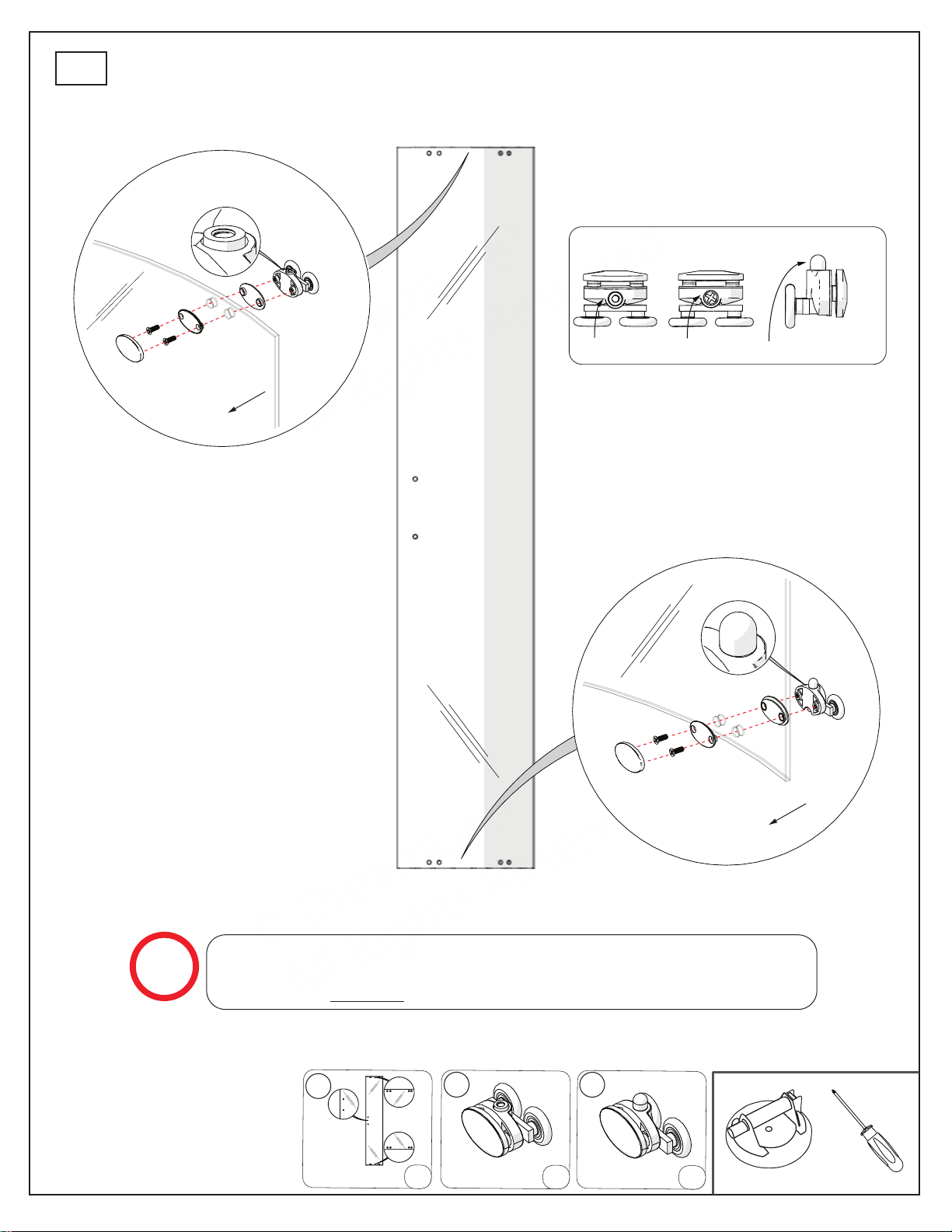

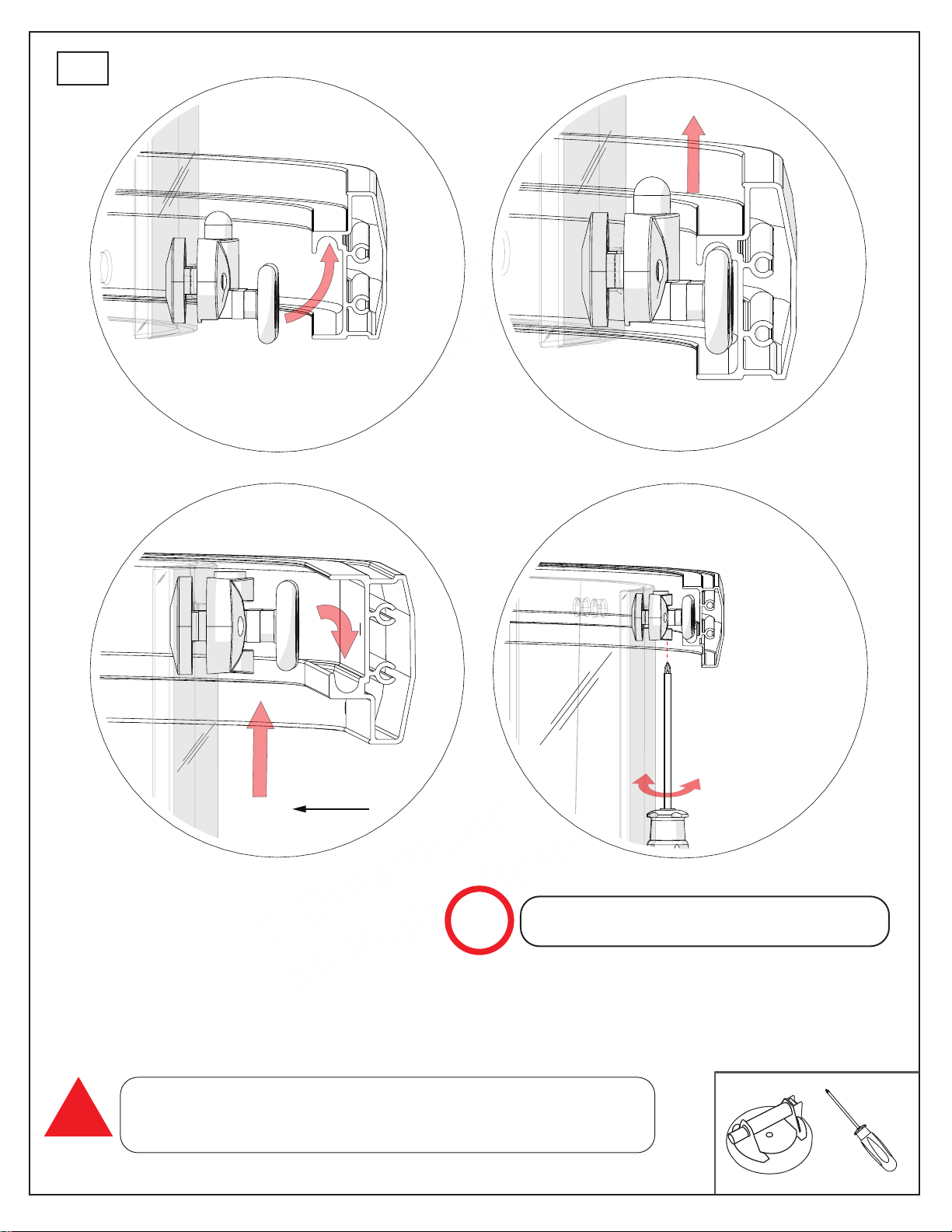

8. Fasten the top and the bottom Wheel assemblies (17) to

the Glass doors (04). The top wheels can adjust the door level with the adjustable bolt and lock nut. The bottom wheel has a press button to allow installation of the wheel into Guide rail (03).

Note:

The lock nut of the upper wheel (Fig 7.1) and the press button of the bottom wheel should be pointing up.

See Fig. 7 & 8 for details.

Fig. 7

9. Slide the top door wheels into the top

Guide rail (03). Push the bottom wheels into the bottom Guide rail (03) by pressing the button on the Wheel

assembly (17).

NOTE:

If necessary, use a hand screwdriver (do not use a power screwdriver) to adjust the upper wheels to make minor adjustments so that the doors operate smoothly and seal tight with the magnets.

See Fig. 8 for details.

Fig. 8

“PRIME” Enclosure Ver.1 Rev.3 12/2015

9

2

1

3

Ø1/8”

2

1

3

Fig. 10

door

panel

door

inside

door

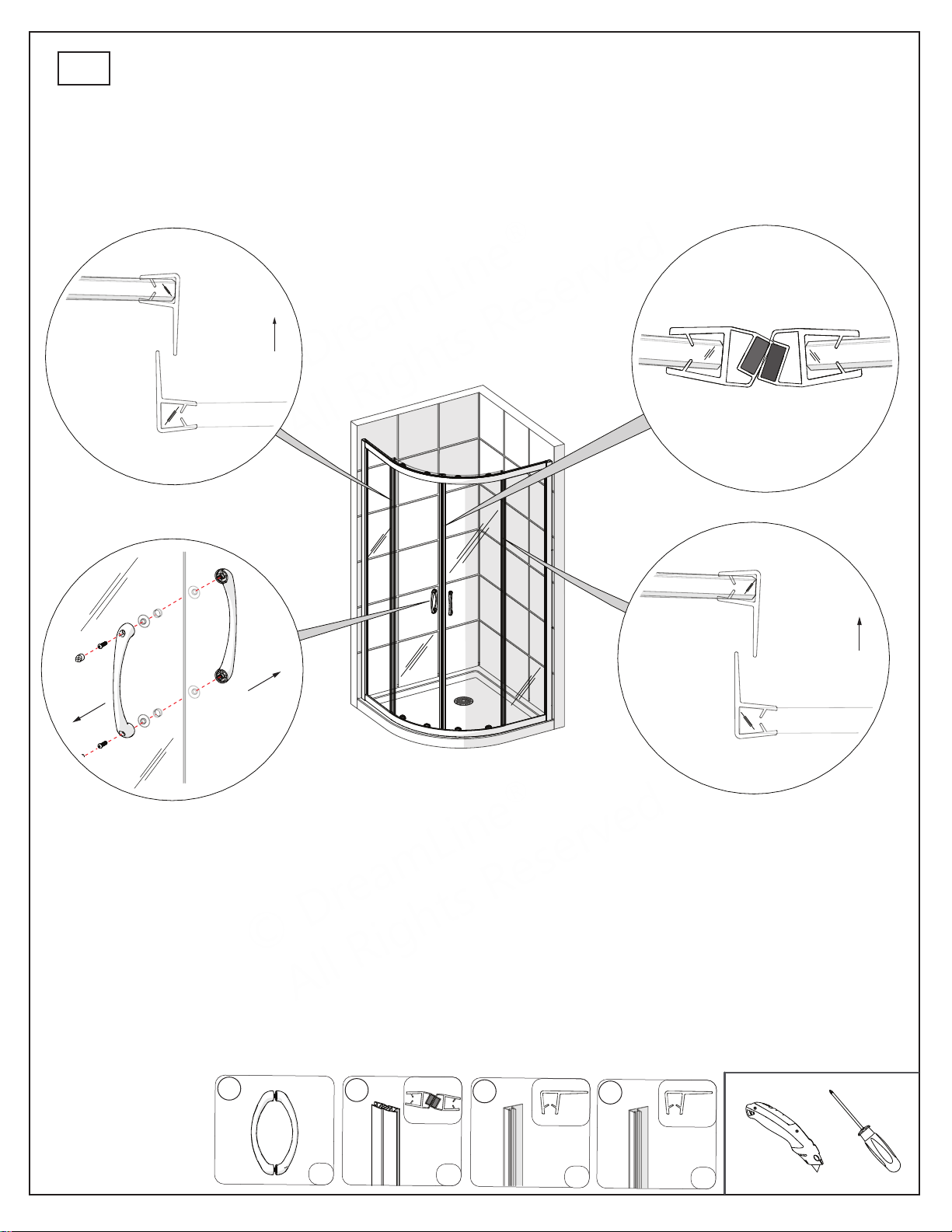

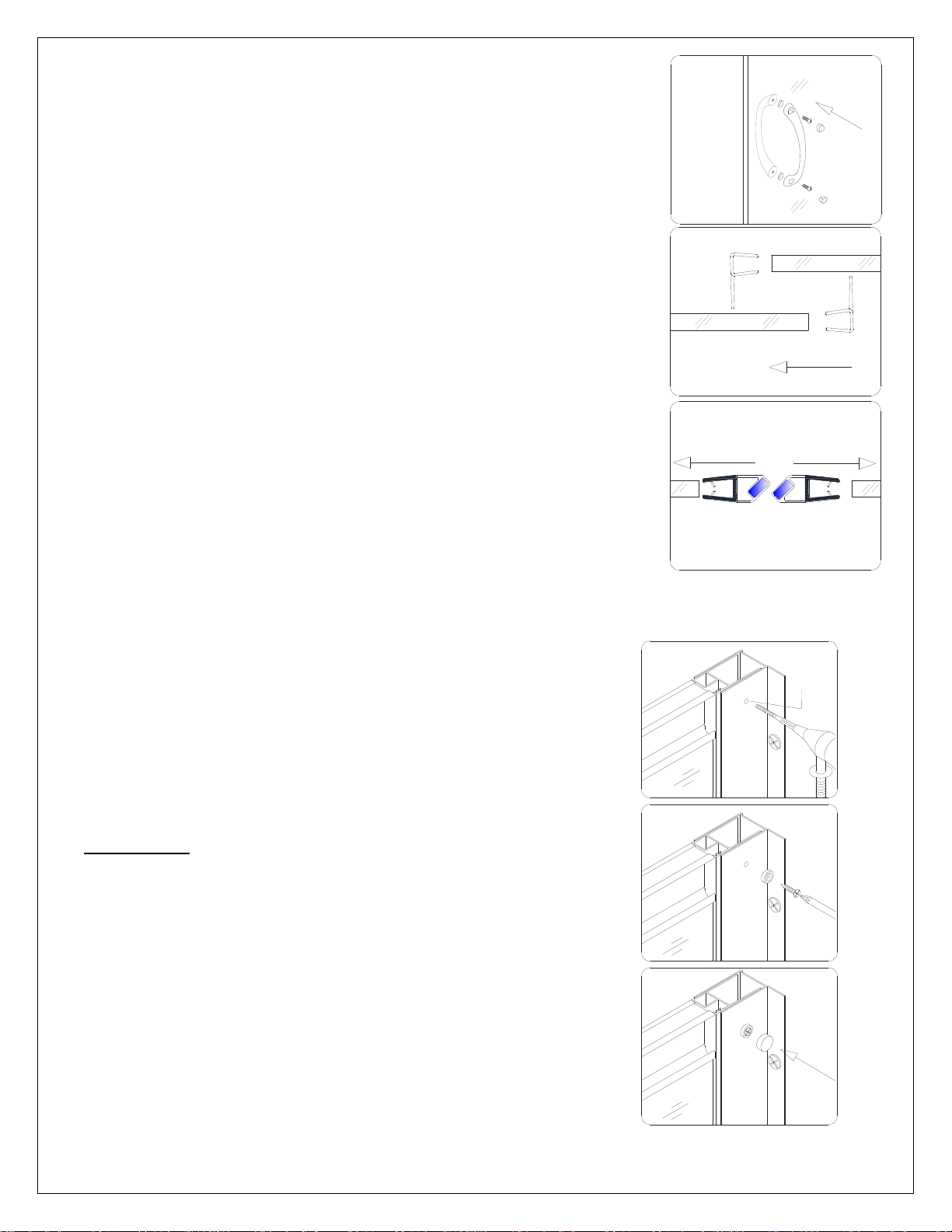

10. Install the Handles (06) onto the Glass doors (04).

Press the Anti-water strips (08) onto the vertical edges of the

Stationary glass (05) and both vertical edges of the Glass doors (04) (the shorter strips attach to the panel glass and the longer

strips onto the doors). Press the Magnetic strips (07) onto the vertical edges of both Glass doors (04) for a tight seal.

See Fig. 9 for details.

Fig. 9

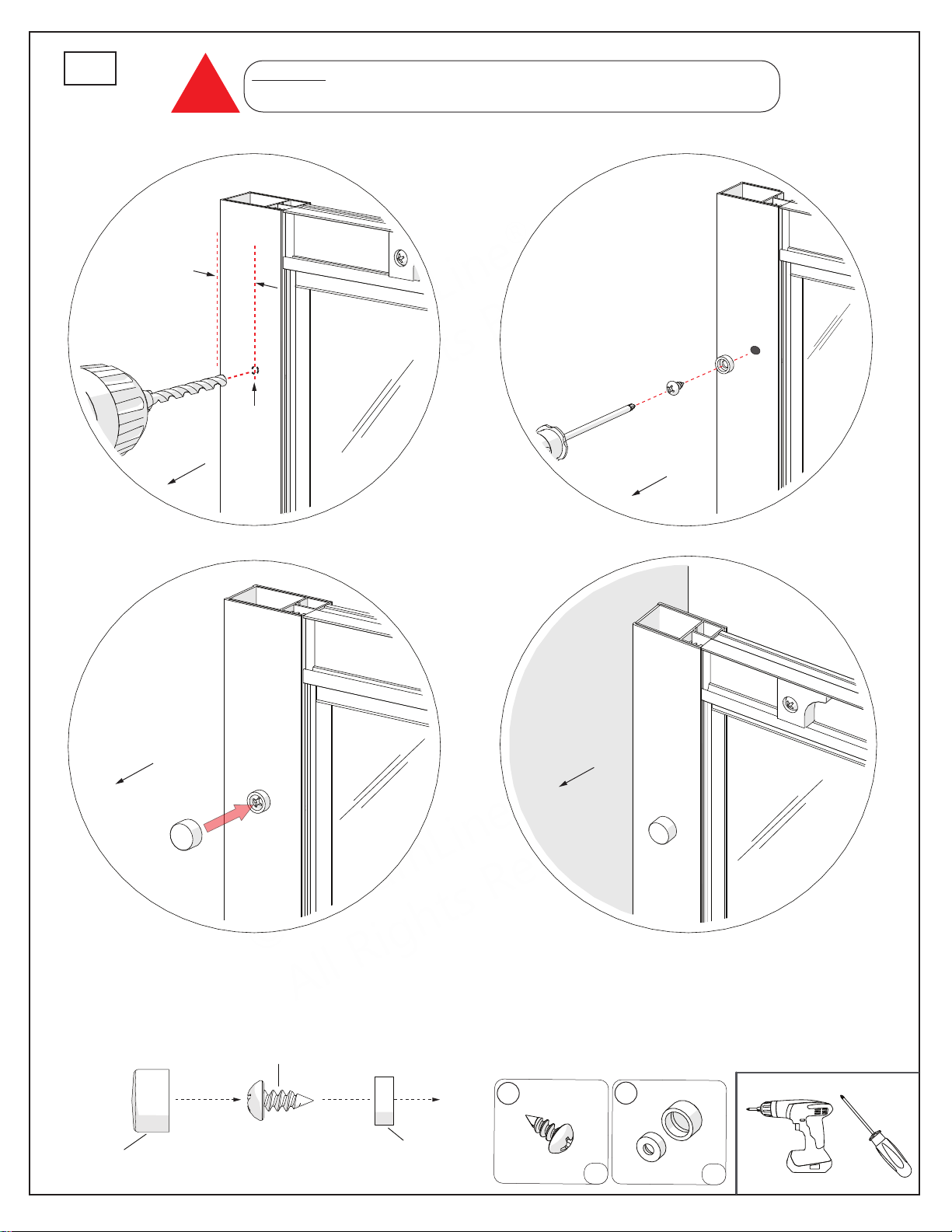

11. Make final adjustments of the assembled unit within the Wall

profiles (01), making the unit tight to the walls and tight to the

threshold. From inside of the shower area, drill 2 holes through the Wall Profiles (01) into the Glass profiles (02) using an Ø 1/8” drill bit. (one hole at the top and one hole at the bottom)

ATTENTION: Do not drill the profiles throughout, only through the first layer of the wall profile and the glass profile.

Secure the Wall profiles (01) to the Glass profiles (02) using the Round head screws ST4.2×10 (12) and washers (Fig 10.2). Cover the exposed screw heads with the Decorative covers

(14).

See Fig. 10 for details.

“PRIME” Enclosure Ver.1 Rev.3 12/2015

10

Caulk

Allow 24 hours for the silicone to fully cure before using the shower.

Follow the safety guidelines from the Sealant manufacturer concerning application, proper ventilation and cure time.

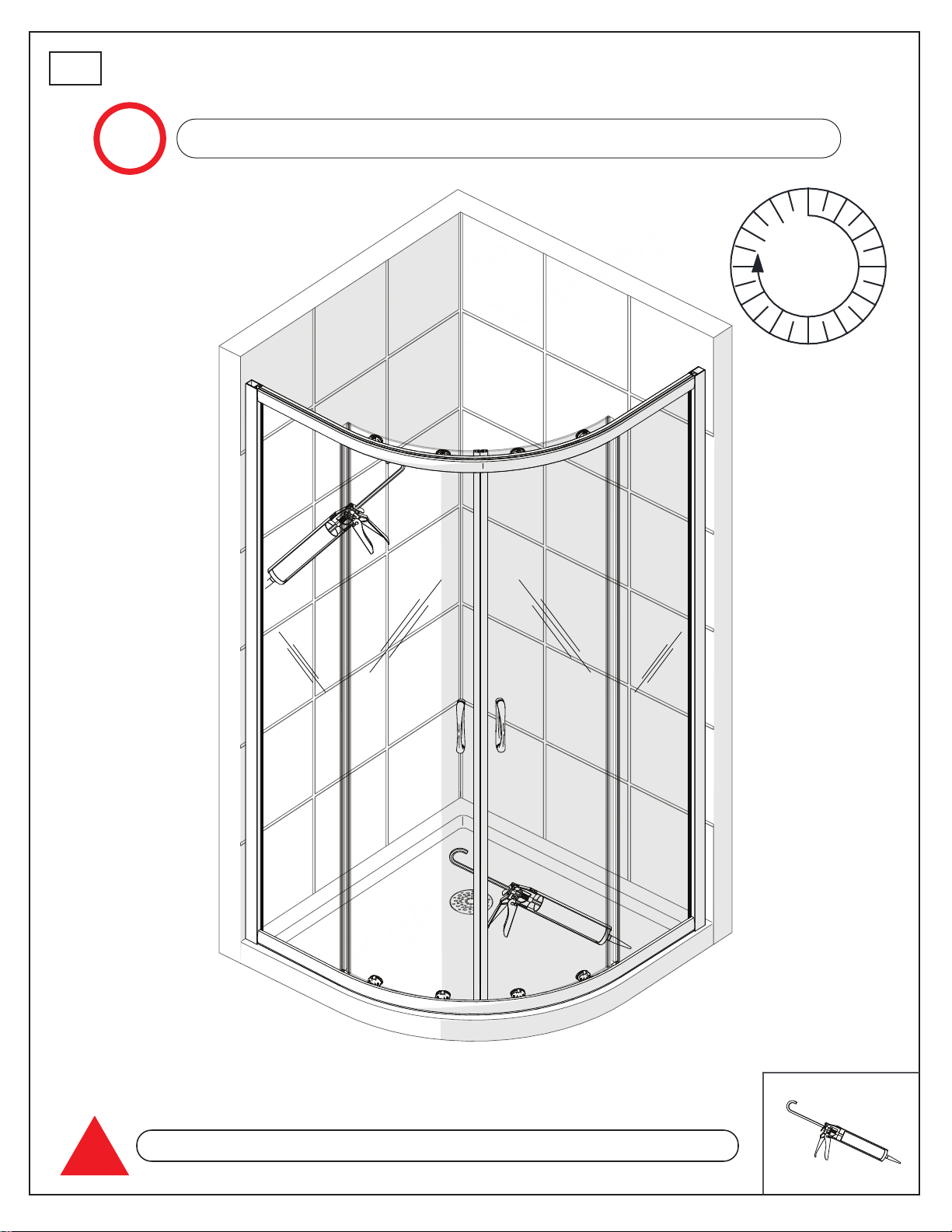

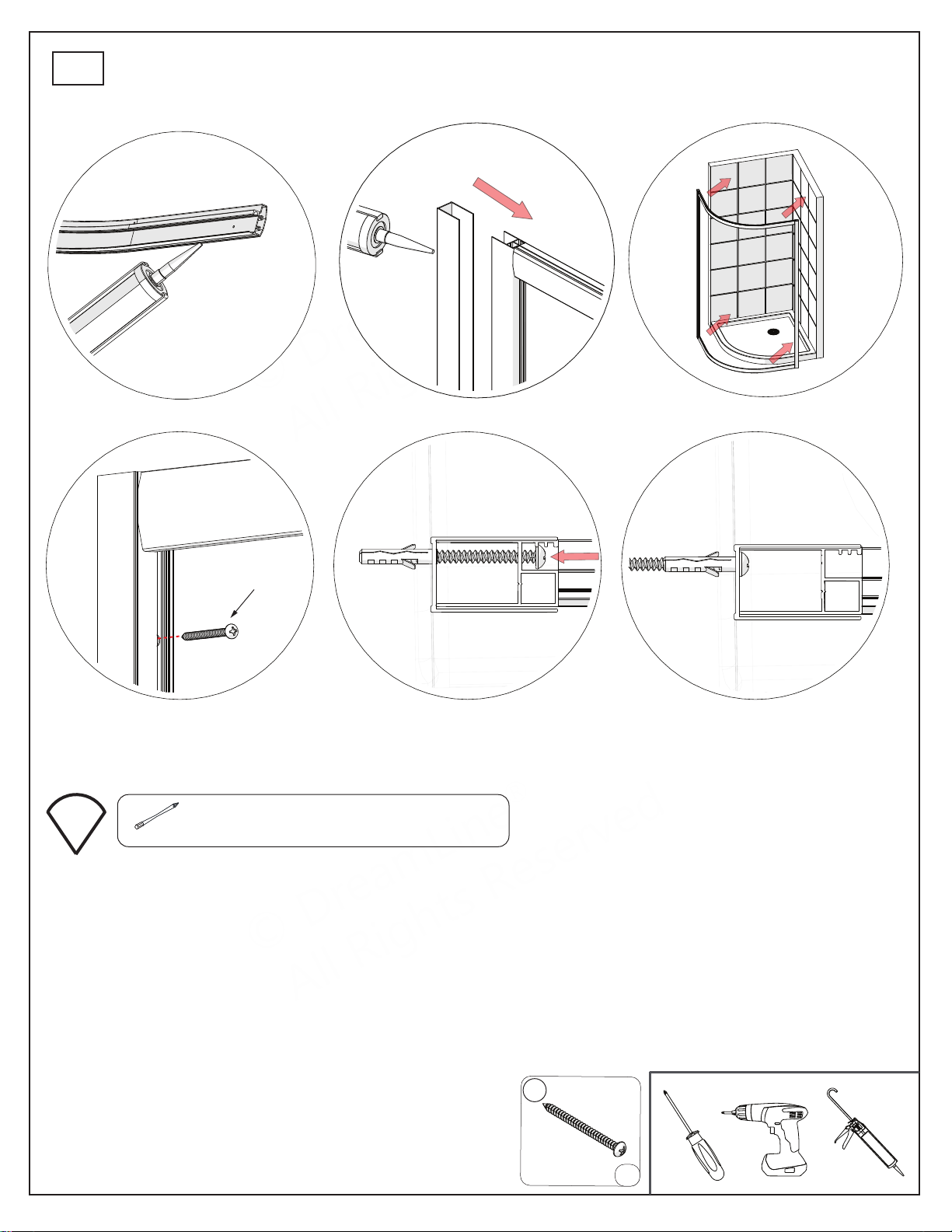

12. Apply a good quality mildew-resistant silicone sealant

along the profiles and guide rails; on the seams between the bottom guide rail and the profiles as well as along the shower base or threshold from the inside of the shower area. You may also apply silicone along the outside if you choose.

See Fig. 11 for details.

Fig. 11

Product Maintenance

BASES and BACKWALLS: To ensure a long life for your acrylic back walls: wipe them off after

each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots. To prevent scratching the surface: never use abrasive cleaners and cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent finish peeling or corrosion. After cleaning the shiny finishes, rinse thoroughly and wipe dry with soft cloth. Never use abrasive sponges or cloth, steel wool or wired brushes as these may permanently scratch the surface.

“PRIME” Enclosure Ver.1 Rev.3 12/2015

11

TEL: 866-731-2244

FAX: 866-857-3638

DreamLineWWW.DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit www.DreamLine.com

®

PRIME

SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

MODEL #s

SHEN-7031310-## SHEN-7031310-##-FR SHEN-7034340-## SHEN-7034340-##-FR SHEN-7036360-## SHEN-7036360-##-FR

## = finish 01 - Chrome 04 - Brushed Nickel FR - Frosted Glass

IMPORTANT!

DreamLine purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

®

reserves the right to alter, modify or redesign products at any time without prior notice for the

Do Not Return Product to the Store. Contact DreamLine® with any questions

®

Record the following purchase information for your records or in the event you need to contact DreamLine

Purchase Order Number

Installation Date

Installed By:

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

Store/Vendor Purchased From

OD Number (optional)

SKU Number

*found on the shipping box or label if available.

®

:

®

Table of Contents

Section Title Page #

Warnings and General Preparation 2 Model Specific Preparation 3 Adjustable Wall Profile System 4 Tools 5 Detailed Diagram of Shower Door Components 6

®

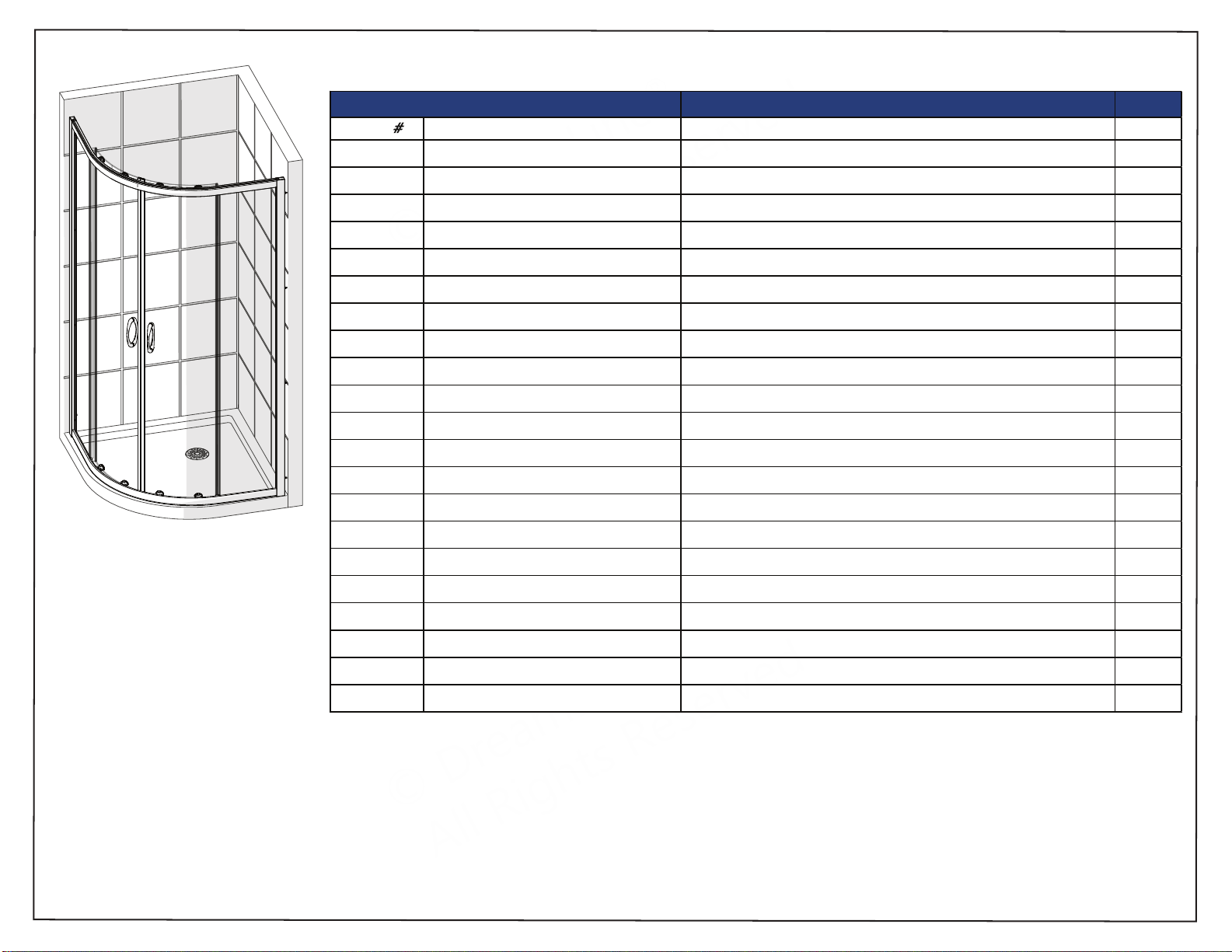

Parts List 7-8 Installation Steps 9-20 Top and Bottom Roller Assembly Installation 16-17 Handle and Vinyl(s) Installation 18 Decorative Cover with Washer Installation 19 Product Maintenance 21 Troubleshooting 22 Factory Parts Information 23-25

Symbol Legend

TIP

NOTE

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

TIP - for ease of installation.

NOTE - take note of special

feature; additional information.

REQUIRED - requires special

!

attention; signifies a warning.

CORRECT recommended.

INCORRECT not recommended.

Average Installation Time

1.5 hrs

®

WARNING DISCLOSURE STATEMENT

IMPORTANT

(Enigma Series)

T

DreamLine® shower doors are not designed to be installed into a fiberglass surround due to the radius corners and lack of a solid surface to mount the hardware.

®

• DreamLine® reserves the right to alter, modify or redesign products any time without prior notice for product improvement and customer experience. Please refer to the

model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

• This product should be installed by someone familiar with the construction requirement for this type of project and the care necessary for the safe installation and operation of the product.

• The safety of any installation is the responsibility of the installer.

•

Professional installation recommended. (All Models)

•

Professional installation required

• To prevent damage or serious injury, Do Not lean against the installed panel/door/glass.

• To prevent damage or serious injury: Do Not attempt to lift or move a heavy lite of glass

alone. Use an assistant and/or a professional grade glass suction cup.

• The installation of some models may require drilling down into the threshold. Contact the

manufacturer of the base, tub, or threshold mat

drilling of holes into their product.

• All drawings in this installation manual are for illustrative purposes only and are not drawn

to scale.

EMPERED GLASS WARNING

• Your Shower Door Glass Could Shatter Without Warning if Improperly Installed or Mishandled

• Do Not install or operate a shower door if the glass has chipped corners, slivered edges or

is otherwise damaged and/or has been dropped or banged into a hard surface such as tile, marble or glass.

• The main causes of tempered glass breakage are:

o Improper handling, storage or installation o Misuse/abuse o Lack of maintenance o Failure to replace damaged glass o Improper handling during storage, unpacking and installation: o Corners and edges are the most susceptible area to damage on a lite of tempered

glass and should be protected and handled with care during storage, unpacking, installation and operation. A concentrated point of pressu harder than itself may cause the tempered glass to shatter. The tempered glass may release immediately, within several hours or even days later.

o Incorrect installation of door hardware, rollers, hinges, channels, stopper or glass: o Improper installation may include: loose hardware and/or lack of proper gaskets

between the hardware and glass. Additionally, improper al profiles or other hardware during installation or operation may place stress on the glass edges and cause it to break.

o This product must be installed by a professional and experienced installer familiar with

the safe handling of tempered glass.

o Improper use of this product:

o Aggressively opening or closing the door may cause trauma to the glass, which can

o The shower door hardware and glass should be inspected periodically:

breakage. This may occur immediately or hours or even days later.

lead to

 Instruct the homeowner how to perform a periodic inspection of the shower

hardware and glass - some minor adjustments may be necessary based upon the use (or misuse) of the shower door. Ensure that the hardware remains tight and that the door alignment and o should be made upon discovery to prevent damage to the product.

 Additional considerations should be given to the installation of frameless

tempered glass products in households with young children or an elderly person due to an increased chance of improper handling. In such cases, alternatives such as shower curtains or grab bars should be considered.

.

erial with any questions regarding the

re or impact with a surface

ignment of guide rails, wall

peration are correct. Any adjustments

GENERAL PREPARATION

• After opening all boxes and packages, read this introduction carefully. Check that all the

items are included in the package by marking off the components on the “Detailed

s

Diagram of Product Components” page. Examine all boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or is missing parts; please contact our Customer Support depart 3 business days of the delivery date. Please note that DreamLine® will not replace any

damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if you have any questions.

• Please note that you should refer to your local building codes with questions on installation compliance standards. Building and plumbi location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

• If this unit is going to be installed in a new construction, install all the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.

• Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the t angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please not that some adjustments and drilling will be necessary during the installation process.

• Protect all primary surfaces of the product during installation. Never set your glass down

• This unit must be installed upon a finished threshold and against finished walls.

•

WARNING: TO AVOID THE RISK OF DAMAGE OR INJURY:

• Follow all recommendations and requirements as shown in the installation

• Perform a thorough inspection of the glass and all parts for any damage prior to

• Do Not install or operate a shower or tub door if the glass has chipped corners, sl

• CAUTION: Contact with any hard surface can damage tempered glass and cause it to

• This product uses tempered glass. Glass cannot be cut after it has been tempered.

• DreamLine

• Always wear proper safety equipment such as: safety goggles, work gloves and

• WARNING. Risk of leakage and/or damage. Follow

• Thoroughly read these instructions before installing or using this product.

• Leave this manual for the end-user of the product.

directly onto a tile floor. Leave corner protectors in place until it is necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

instructions.

installation. Any damage to tempered glass can cause breakage. Do Not install damaged glass!

edges or is otherwise damaged. Do Not install or operate a shower or tub door that has been dropped or banged into a hard surface such as tile, marble or glass.

shatter.

Do Not attempt to cut tempered glass.

®

due to improper handling or lack of maintenance. Conduct periodic inspections of glass and all parts for possible damage, missing or loose parts.

appropriate footwear during the installation process.

application of silicone sealant or caulk. Allow 24 hours for the sealant to cure before the initial use of the shower or tub product. Follow the silicone manufacturer’s recommendations regarding the use of their product.

Glass Shower doors, Tub doors, Inline panels, and Return panels can shatter

ment within

ng codes may vary by

otal weight of the unit. Also make sure the walls are at right

ivered

all instructions regarding the

This product should be installed by someone familiar with the construction requirements for this type of product and the care

!

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

necessary for the safe installation and operation of the product.

2

®

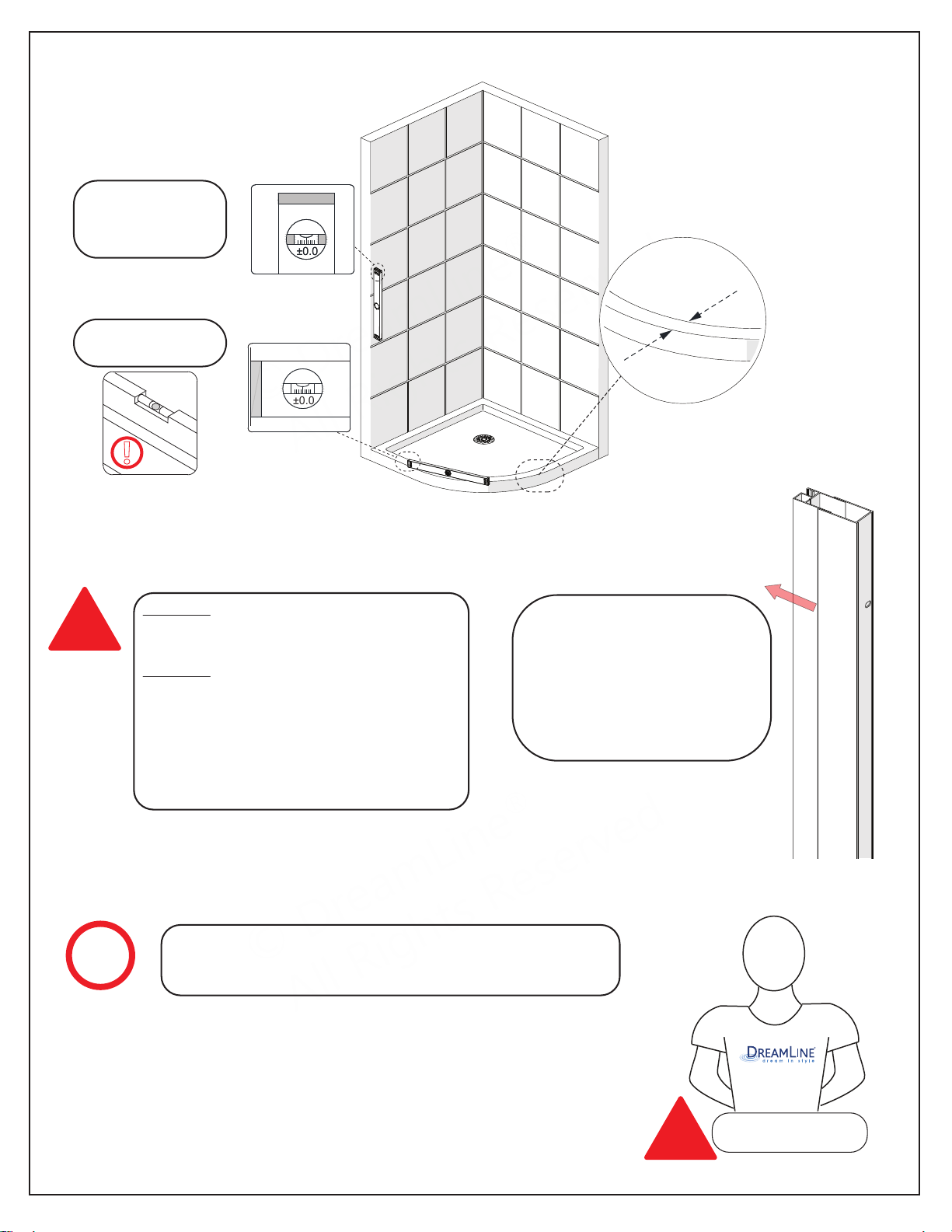

1” Out-of-Plumb

±0.0±0

.0

±0.0±0

.0

Adjustment; Verify

threshold and walls

with a level

Threshold must be

level

!

Model Specific Preparation

1”

minimum at threshold

®

!

NOTE

DO NOT attach the handle and/or towel bar to the glass until instructed to do so. DO NOT attempt to use the handle/towel bar to lift the glass during installation. This may result in damage to the glass and/or serious injury. Always use a professional grade glass suction cup and an assistant.

For models with Frosted glass, install the textured (Frosted) surface facing towards the inside of the shower.

1” max

This model has a 1” adjustable

wall profile system for

Out-of-Plumb wall conditions and

overall width within the model size

when installed into a finished opening. For more infomation, see the Adjustable Wall Profile System

on page 4.

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

!

Certied Professional

Professional Installation

recommended.

3

®

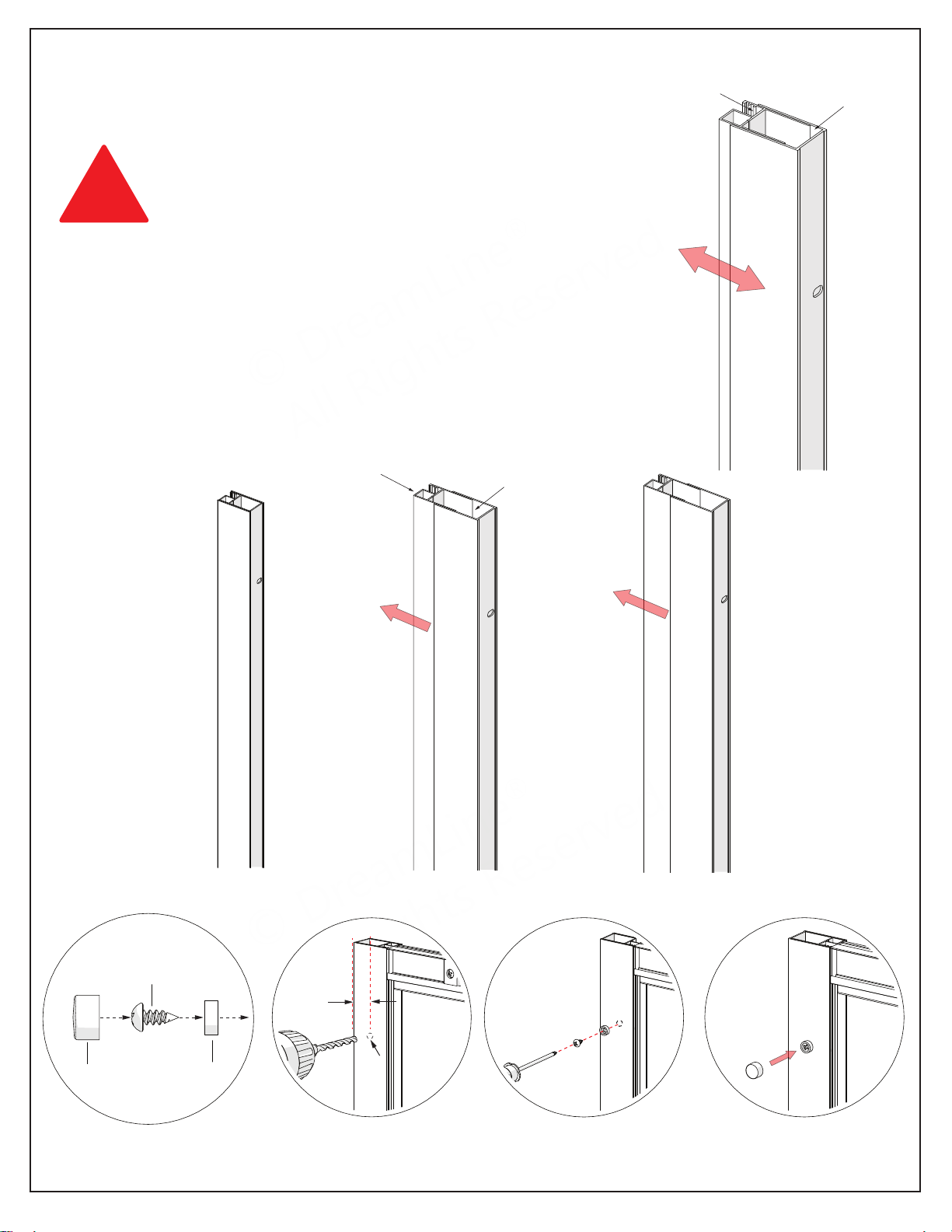

Adjustable Wall Profile System

!

The Glass Profiles can be adjusted within the Wall Profiles for overall width or to correct for out-of-plumb conditions within the model size. Screw them together after making final adjustments.

Glass Profile

Wall Profile

Glass Profile

Wall Profile

®

ST4.0×10mm Pan Head Screw (#10)

decorative cap (#14)

washer (#14)

3/4”

1” max

Ø1/8”

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

4

®

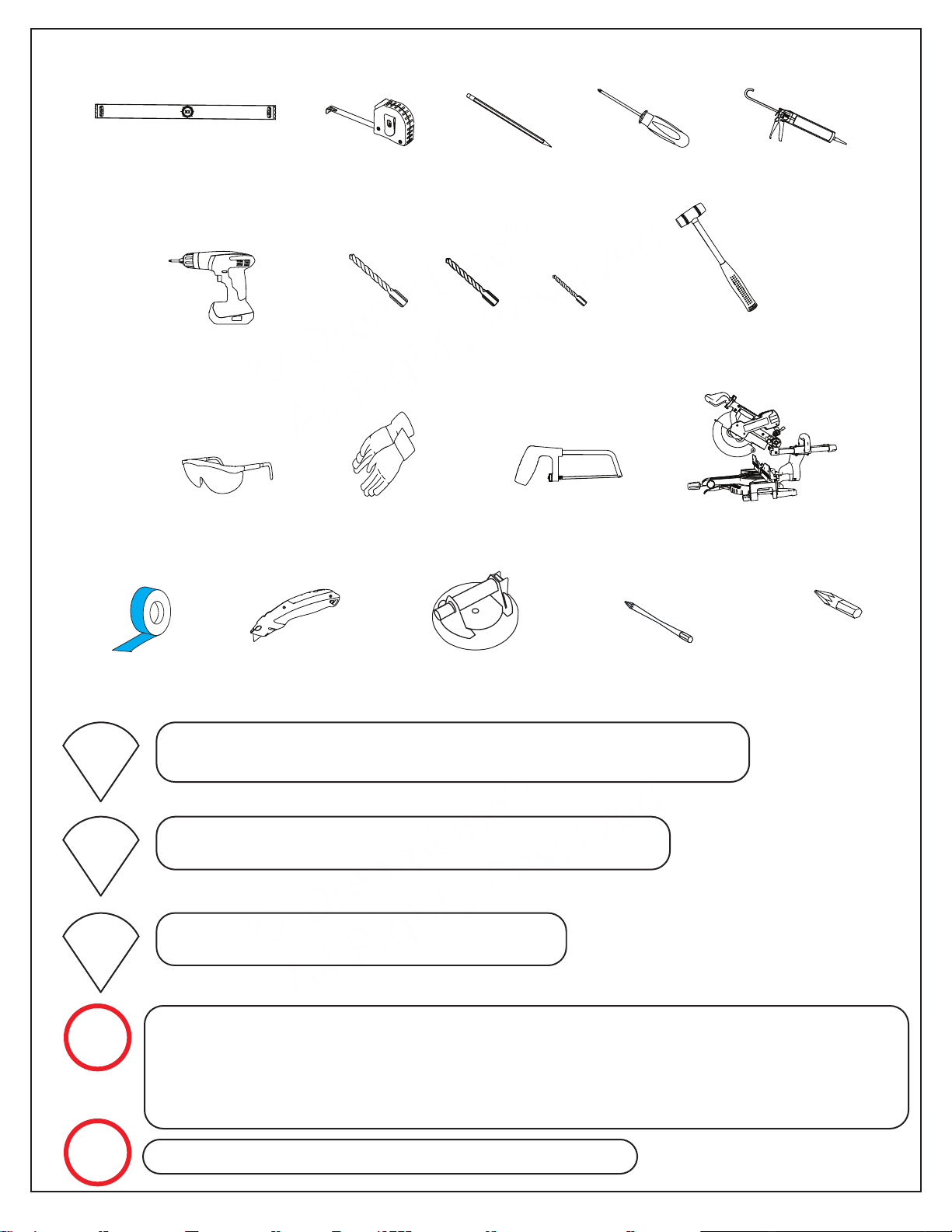

Tools

Level

Power Drill

Safety Glasses

Tape

Measure

Drill Bit Ø5/16"

(8mm)

Work Gloves

Pencil

Drill Bit

Ø3/16" (4mm)

Drill Bit

Ø1/8" (3mm)

Hacksaw

Phillips

Screwdriver

Soft Head Hammer

Mitre Saw

Silicone

®

Painter’s Tape

To be sure that the correct model size has been ordered.

TIP

NOTE

Measure the finished opening before proceeding with the installation.

Cover the shower/tub drain with tape prior to installation to prevent the loss of screws or small parts.

To prevent stripping the screw heads, set power drill to a low setting when installing screws.

Unpack your unit carefully and inspect it. Lay it out and identify all parts using the Detailed Diagram on page 6 and the included packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine The shipping boxes may contain extra parts not used in your model configuration.

Razor Knife

Professional-grade Glass suction cup

Extender Driver Bit

#2 Phillips Driver Bit

®

for replacement.

NOTE

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

Retain these installation instructions for future reference.

5

®

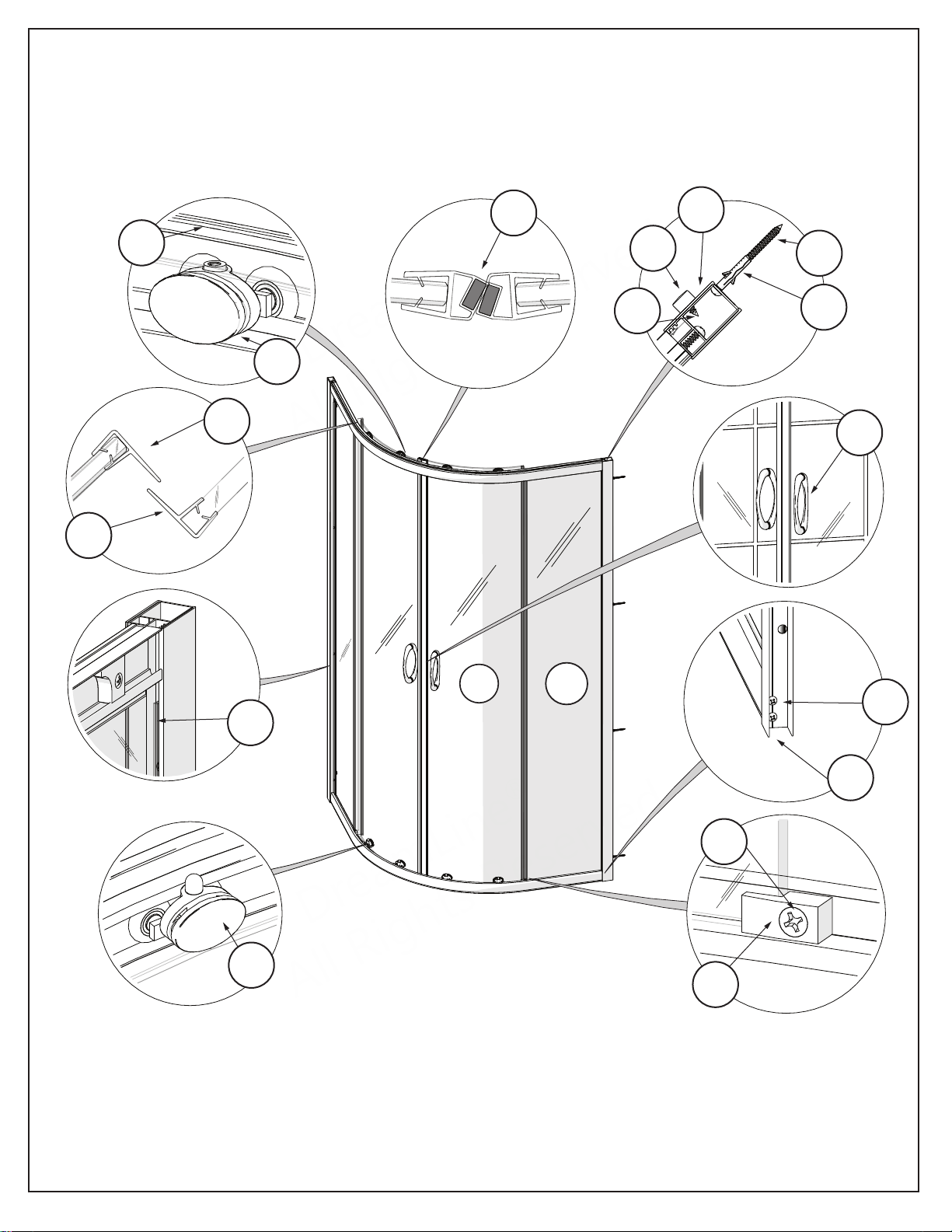

Detailed Diagram of Shower Door Components

®

08b

03

08a

17a

07

14

12

01

10

15

06

09

17b

04

05

11

02

13

16

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

6

®

Parts List

01

04

Wall Profile

Door Glass

x2

02

Glass Profile

05

Inline Panel Glass

x2

03

Guide Rail (Top and Bottom)

06

Back-to-Back Handle

x2

x2sets

®

07

Magnetic Strike Vinyl

x1pair

09

Push-in Glazing Vinyl

x2

08a

Vertical Vinyl Seal (for inline panel)

10

ST4.0x55mm Pan Head Screw

x2

x8

08b

Vertical Vinyl Seal (for door)

11

ST4.0x25mm Pan Head Screw

x2

x8

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

7

®

Parts List

12

ST4.0x10mm Pan Head Screw

15

Wall Anchor

8mm (5/16”)

x4

x8

13

ST4.2x16mm Countersunk Screw

16

Glass Clip for 6mm (1/4”) Glass

x4

14

Decorative Cover with Washer

x4sets

®

17a

Double Roller Assembly (top)

x4

17b

Double Roller Assembly (bottom)

x4

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

8

®

1

Installation Steps

®

Fig 1

Add liquid soap, wax, or lubricant to screws prior to attaching the Glass Profiles (#02)

TIP

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

to the Guide Rails (#03). Use a low setting on the power drill, to prevent stripping the screws.

02

x2

03

x1

Tools NeededParts Needed

11

x4

9

®

2

®

Fig 2

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

03

x1

Tools NeededParts Needed

11

x4

10

®

3

®

The holes in the Wall Profiles (#01)

NOTE

1 2

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

are off-center and must line up with the corresponding holes in the Glass Profiles (#02).

inside

Fig 3

Parts Needed

01

x2

11

®

4

NOTE

Before marking the holes for drilling, confirm that:

◻ the assembled frame is tight to the threshold ◻ the Wall Profiles (#01) are tight to the walls ◻ the frame is level

1 2

®

3 4

Ø3/16” Drill Bit

NOTE

If a stud is present behind the wall, drill a hole using a Ø3/16” drill bit and do not use wall anchors. If no stud is present, drill the hole using a Ø5/16” drill bit and insert Wall Anchors (#15) as shown in Fig 4.3.

*see NOTE

Fig 4

Tools NeededParts Needed

15

x8

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

12

®

5

1

4

bottom

ST4.0×55

2

5

wall

ST4.0×55

Overhead View

3

6

wall

®

TIP

Extender Driver Bit recommended for the installation of these screws.

Fig 5

Tools NeededParts Needed

10

x8

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

13

®

6

inside

Fig 6a

TIP

NOTE

Apply a thin bead of silicone caulk to the bottom Guide Rail (#03) when setting the Inline Panel Glass (#05) in place.

For models with Frosted glass, install the textured (Frosted) surface facing towards the inside of the shower.

®

Fig 6b

05

13

inside

Fig 6c

Tools NeededParts Needed

16

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

x2

x4

14

®

7

inside inside

®

Begin installing the

Push-in Glazing Vinyl (#09) from the bottom

To prevent scratching or damaging the glass and aluminum,

!

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

DO NOT use a screwdriver or other metal tool to install the Push-in Glazing Vinyl (#09). Use a plastic putty knife or

similar if necessary.

Fig 7

Parts Needed

09

x2

15

®

8

®

inside

Top Wheels

Faces DownFaces Up

Bottom Wheels

Button faces up

The lock nut on the Top Roller Assembly (#17a) and the push-button

NOTE

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

on the Bottom Roller Assembly (#17b) should both be pointing up for easier access. DO NOT overtighten the Roller Assemblies (#17a/17b).

04

x2

Fig 8

17a

x4

inside

Tools NeededParts Needed

17b

x4

16

®

9

1

3

2

4

®

inside

!

Use caution not to bang the door glass together during installation. Install the Magnetic Vinyl Seals (#07) onto the door glass before fully closing the doors.

Fig 9

NOTE

adjust

Adjust the Top Roller Assemblies (#17a),

if necessary, for smoother operation.

Tools Needed

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

17

®

10

Handle and Vinyl Installation

®

inside

door

inside

panel

outside

door

inside

panel

06

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

07

x2sets

Fig 10

x1pair

08a

x2

Tools NeededParts Needed

08b

x2

18

®

11

!

DO NOT drill the profiles throughout, ONLY through the first layer of the Wall Profile (#01) and Glass Profile (#02).

®

1

3

wall

3/4”

inside

2

wall

Ø1/8”

inside

4

wall

inside

ST4.0×10mm Pan Head Screw (#12)

Decorative Cap (#14)

Washer (#14)

Fig 11

12

wall

inside

Parts Needed

14

x4

Tools Needed

x4sets

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

19

®

12

NOTE

The surfaces need to be clean and free of debris before applying silicone.

24

Hours

®

!

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

Allow 24 hours for the silicone caulk to cure before using shower.

Fig 12

Tools Needed

20

®

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could permanently scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface of the glass.

HARDWARE: To ensure a long lasting finish: wipe off all metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cleancloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with the grain (not across the grain). Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

®

To maximize the life of your door, it is important to regularly inspect

NOTE

PRIME Maintenance Checklist

Maintenance Checklist

◻ Inspect the Roller Assemblies; tighten if necessary ◻ Test operation of the doors; adjust rollers if necessary for smooth operation ◻ Inspect Handles; tighten if necessary ◻ Inspect glass clips; tighten if necessary ◻ Inspect and replace damaged or missing Vinyl Seals. ◻ Remove Vinyl Seals to inspect the edges of the glass for concealed damage.

Damaged glass must be replaced!

◻ Inspect silicone application. Repalce as necessary to prevent leakage. (refer to the manufacture’s recommendations on the proper application of their product).

the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine

®

with any questions or concerns.

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

21

®

Troubleshooting

•Check all shipping/packaging material for missing parts/components.

factory part replacement.

•See Step 10 for an image of the correct installation method.

redo Steps 4-5 to create a better seal.

•Starting from the bottom, confirm that the Push-in Glazing Vinyl (#09) is

•If possible, direct the flow of water away from the area.

[see Step 7]

Problem/Symptom Suggested Solution

Missing Parts

Magnetic Strike Vinyl (#07) is not creating a tight seal.

Water Leakage: underneath Bottom Guide Rail (#03)

Water Leakage: Inline Panel/Door Glass (#05/04)

Door Glass (#04) is not rolling smoothly/closing tightly.

Inline Panel Glass (#05) shakes/rattles while in operation.

•If not found, contact DreamLine Customer Support [1-855-831-2126] to order

•Inspect the Magnetic Vinyl Seal (#07) for proper installation so that the magnets attract and create a tight seal.

•Make certain that the bottom rail is tight to the threshold and that silicone is creating a seal along the entire length of the bottom rail.

•If the bottom rail is not making contact with the threshold, it may be necessary to

correctly inserted into the glass profile. [see Fig 7]

•Use a #2 phillips screwdriver to evenly adjust the Top Wheel Assemblies (#17a) until the Door Glass (#04) rolls smoothly and tightly closes. [see Fig 9.4]

•The top wheel assemblies for both doors will need to be adjusted so that the magnetic vinyls will create a tight seal when the doors are closed.

•Starting from the bottom, confirm that the Push-in Glazing Vinyl (#09) is installed tightly between the Inline Panel Glass (#05) and Glass Profile (#02).

•Inspect the Glass Clips (#16) for correc

t installation and tighten if necessary.

®

Prior to contacting DreamLine® Customer Service, please have the following information readily available:

- Purchase Order Information

- Name, PO Number, Dealer/Vendor Name, etc.

- SKU/Model Number (see Pages 23-25)

- Factory Part Information (see Pages 23-25)

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

22

®

Factory Parts Information

ITEM

#

FACTORY PART NUMBER ITEM DESCRIPTION QTY

Left or Right Wall Profile 2 pcs

Left or Right Glass Profile for 6mm (1/4in) Glass 2 pcs

Top or Bottom Guide Rail (curved) 2 pcs

Back-to-Back Handle for 6mm (1/4in) Glass 2 sets

Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door) 2 pcs

Decorative Cover and Washer 4 sets

Glass Clip for 6mm (1/4in) Glass 4 pcs

Double Roller Assembly (top) for 6mm (1/4in) Glass 4 pcs

Double Roller Assembly (bottom) for 6mm (1/4in) Glass 4 pcs

PRIME 31x31 SHEN-7031310

FACTORY PARTS INFORMATION

PRIME 31x31

SHEN-7031310

01 04183011-1830 / 04183041-1830

02 04002011-1830 / 04002041-1830

03 04001012-1280 / 04001042-1280

---

04 013021015 / 013021019

05 013021012 / 013021016

06 07241001 / 07244001

07 062002061-1813

08a 063001060-1743

08b 063001060-1814

09 060001000-1765

10 091131

11 091104

12 091101

13 092102

14 07551011 / 07554011

15 07550045

16 07551014 / 07554014

07550009

092102

Roller Stopper (pre-attached to #03) 8 pcs

ST4.2 x 16mm Countersunk Screw (pre-attached to #03) 8 pcs

Door Glass (Clear / Frosted) 2 pcs

Inline Panel Glass (Clear / Frosted) 2 pcs

Magnetic Strike Vinyl for 6mm (1/4in) Glass 1 pair

Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel) 2 pcs

Push-in Glazing Vinyl for 6mm (1/4in) Glass 2 pcs

ST4.0 × 55 Pan Head Screw 8 pcs

ST4.0 x 25mm Pan Head Screw 8 pcs

ST4.0 x 10mm Pan Head Screw 4 pcs

ST4.2 x 16mm Countersunk Screw 4 pcs

Wall Anchor 8mm (5/16in) 8 pcs

®

Contact Support@DreamLine.com for Part replacement, installation assistance or addtional information

17a 07341010 / 07344010

17b 07341011 / 07344011

Complete Warranty information is available on DreamLine.com

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

BOLD digit indicates finish color:

1 = Chrome 4 = Brushed Nickel

23

®

Factory Parts Information

ITEM

#

FACTORY PART NUMBER ITEM DESCRIPTION QTY

Left or Right Wall Profile 2 pcs

Left or Right Glass Profile for 6mm (1/4in) Glass 2 pcs

Top or Bottom Guide Rail (curved) 2 pcs

Back-to-Back Handle for 6mm (1/4in) Glass 2 sets

Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door) 2 pcs

Decorative Cover and Washer 4 sets

Glass Clip for 6mm (1/4in) Glass 4 pcs

Double Roller Assembly (top) for 6mm (1/4in) Glass 4 pcs

Double Roller Assembly (bottom) for 6mm (1/4in) Glass 4 pcs

PRIME 34x34 SHEN-7034340

FACTORY PARTS INFORMATION

PRIME 34x34

SHEN-7034340

01 04183011-1830 / 04183041-1830

02 04002011-1830 / 04002041-1830

03 04001012-1432 / 04001042-1432

---

04 013021015 / 013021019

05 013021013 / 013021017

06 07241001 / 07244001

07 062002061-1813

08a 063001060-1743

08b 063001060-1814

09 060001000-1765

10 091131

11 091104

12 091101

13 092102

14 07551011 / 07554011

15 07550045

16 07551014 / 07554014

07550009

092102

Roller Stopper (pre-attached to #03) 8 pcs

ST4.2 x 16mm Countersunk Screw (pre-attached to #03) 8 pcs

Door Glass (Clear / Frosted) 2 pcs

Inline Panel Glass (Clear / Frosted) 2 pcs

Magnetic Strike Vinyl for 6mm (1/4in) Glass 1 pair

Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel) 2 pcs

Push-in Glazing Vinyl for 6mm (1/4in) Glass 2 pcs

ST4.0 × 55 Pan Head Screw 8 pcs

ST4.0 x 25mm Pan Head Screw 8 pcs

ST4.0 x 10mm Pan Head Screw 4 pcs

ST4.2 x 16mm Countersunk Screw 4 pcs

Wall Anchor 8mm (5/16in) 8 pcs

®

Contact Support@DreamLine.com for Part replacement, installation assistance or addtional information

17a 07341010 / 07344010

17b 07341011 / 07344011

Complete Warranty information is available on DreamLine.com

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

BOLD digit indicates finish color:

1 = Chrome 4 = Brushed Nickel

24

®

Factory Parts Information

ITEM

#

FACTORY PART NUMBER ITEM DESCRIPTION QTY

Left or Right Wall Profile 2 pcs

Left or Right Glass Profile for 6mm (1/4in) Glass 2 pcs

Top or Bottom Guide Rail (curved) 2 pcs

Back-to-Back Handle for 6mm (1/4in) Glass 2 sets

Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for door) 2 pcs

Decorative Cover and Washer 4 sets

Glass Clip for 6mm (1/4in) Glass 4 pcs

Double Roller Assembly (top) for 6mm (1/4in) Glass 4 pcs

Double Roller Assembly (bottom) for 6mm (1/4in) Glass 4 pcs

PRIME 36x36 SHEN-7036360

FACTORY PARTS INFORMATION

PRIME 36x36

SHEN-7036360

01 04183011-1830 / 04183041-1830

02 04002011-1830 / 04002041-1830

03 04001012-1534 / 04001042-1534

---

04 013021015 / 013021019

05 013021014 / 013021018

06 07241001 / 07244001

07 062002061-1813

08a 063001060-1743

08b 063001060-1814

09 060001000-1765

10 091131

11 091104

12 091101

13 092102

14 07551011 / 07554011

15 07550045

16 07551014 / 07554014

07550009

092102

Roller Stopper (pre-attached to #03) 8 pcs

ST4.2 x 16mm Countersunk Screw (pre-attached to #03) 8 pcs

Door Glass (Clear / Frosted) 2 pcs

Inline Panel Glass (Clear / Frosted) 2 pcs

Magnetic Strike Vinyl for 6mm (1/4in) Glass 1 pair

Vinyl Seal with a Flexible Fin for 6mm (1/4in) Glass (for panel) 2 pcs

Push-in Glazing Vinyl for 6mm (1/4in) Glass 2 pcs

ST4.0×55mm Pan Head Screw 8 pcs

ST4.0 x 25mm Pan Head Screw 8 pcs

ST4.0 x 10mm Pan Head Screw 4 pcs

ST4.2 x 16mm Countersunk Screw 4 pcs

Wall Anchor 8mm (5/16in) 8 pcs

®

Contact Support@DreamLine.com for Part replacement, installation assistance or addtional information

17a 07341010 / 07344010

17b 07341011 / 07344011

Complete Warranty information is available on DreamLine.com

PRIME Shower Enclosure Manual Ver 2 Rev 1b 03/2019

BOLD digit indicates finish color:

1 = Chrome 4 = Brushed Nickel

25

®

TEL: 866-731-2244

FAX: 866-857-3638

For more information on DreamLine

DREAMLINE.COM

®

Shower Doors and Enclosures please visit DreamLine.com

DreamLine DLN4092 Installation & Assembly

Specifications and Main Features

Frequently Asked Questions

User Manual
