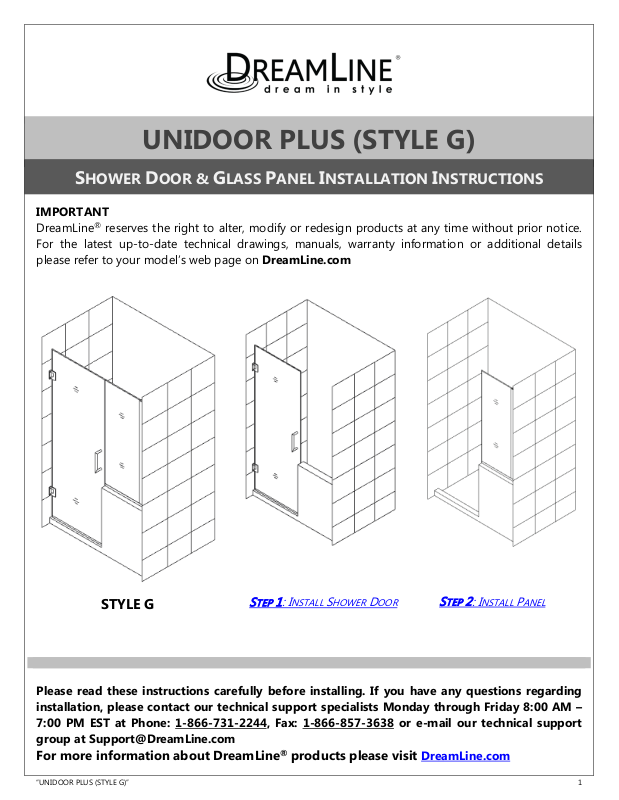

DreamLine DLN4024 Installation & Assembly

1

UNIDOOR PLUS (STYLE G)

S

STEP 1: I

STEP 2: I

STYLE G

HOWER DOOR & GLASS PANEL INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details
please refer to your model’s web page on DreamLine.com

NSTALL SHOWER DOOR

NSTALL PANEL

Please read these instructions carefully before installing. If you have any questions regarding
installation, please contact our technical support specialists Monday through Friday 8:00 AM –
7:00 PM EST at Phone: [phone], Fax: [phone] or e-mail our technical support
group at [email protected]

For more information about DreamLine® products please visit DreamLine.com

“UNIDOOR PLUS (STYLE G)”

UNIDOOR/UNIDOORLUX/UNIDOOR PLUS

SINGLE SHOWER DOOR INSTALLATION INSTRUCTIONS

ATTENTION: This model is also available with the half etched glass option. Please see

specific installation instructions on page 15 when applicable.

Model #s

SHDR-20237210F-##
SHDR-20247210F-##
SHDR-20257210F-##
SHDR-20267210F-##
SHDR-20277210F-##
SHDR-20287210F-##
SHDR-20297210F-##
SHDR-20307210F-##

## = Finish
01 = Chrome
04 = Brushed Nickel
06 = Oil Rubbed Bronze
HFR=Half Frosted Band

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details
please refer to your model’s web page on DreamLine.com

Right-hand installation shown

Please read these instructions carefully before installing. If you have any questions regarding
installation, please contact our technical support specialists Monday through Friday 8:00 AM –
7:00 PM EST at Phone: [phone], Fax: [phone] or e-mail our technical support
group at [email protected]

For more information about DreamLine® products please visit DreamLine.com

2

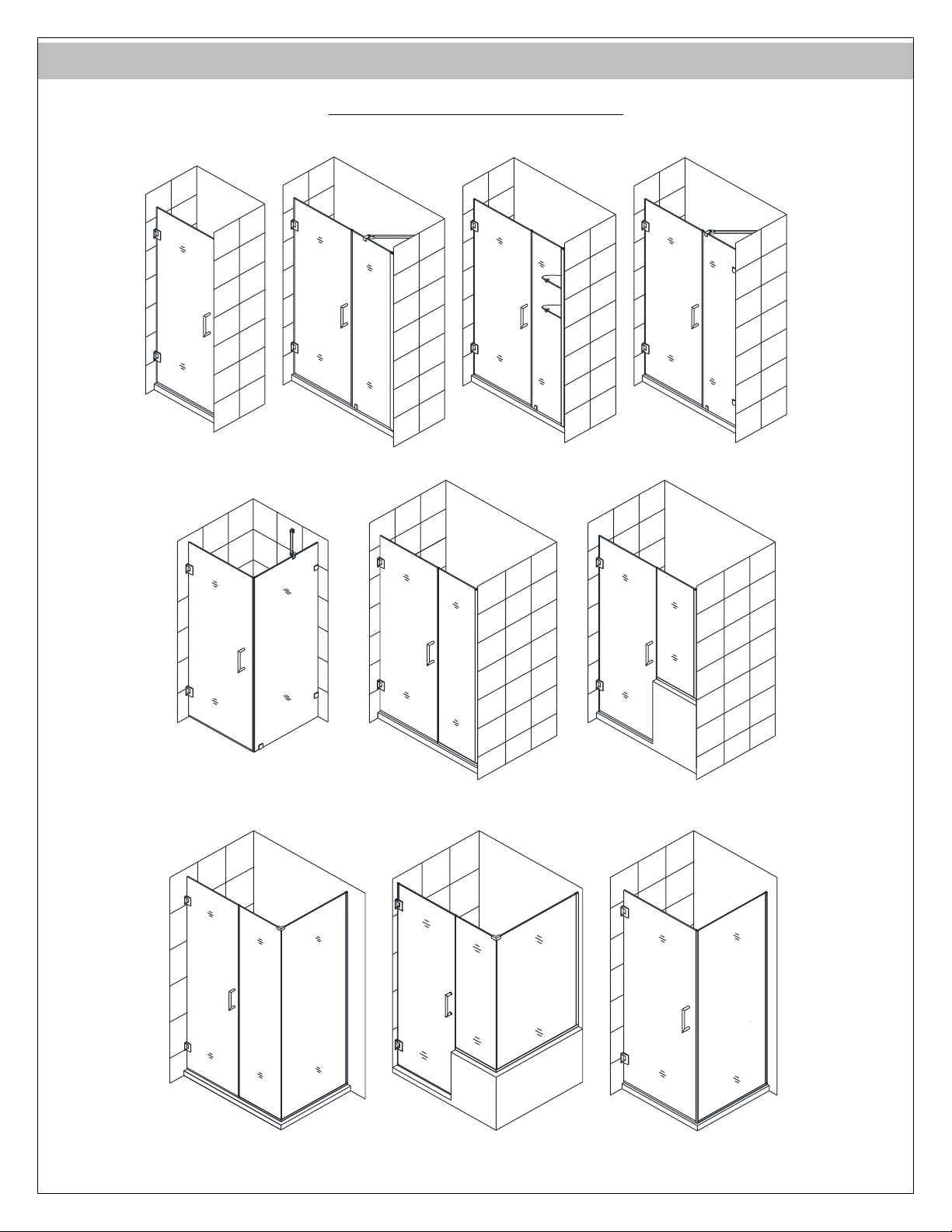

UNIDOOR STYLES

Style A Style B Style C Style D

Style E

Style F

Style G

Style I Style J Style L

Models with Glass-to-Wall hinges

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

3

Models with Glass-to-Glass hinge panels: For Glass to Glass hinge Door installation use the
installation manual packaged with the Hinge panel glass

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

4

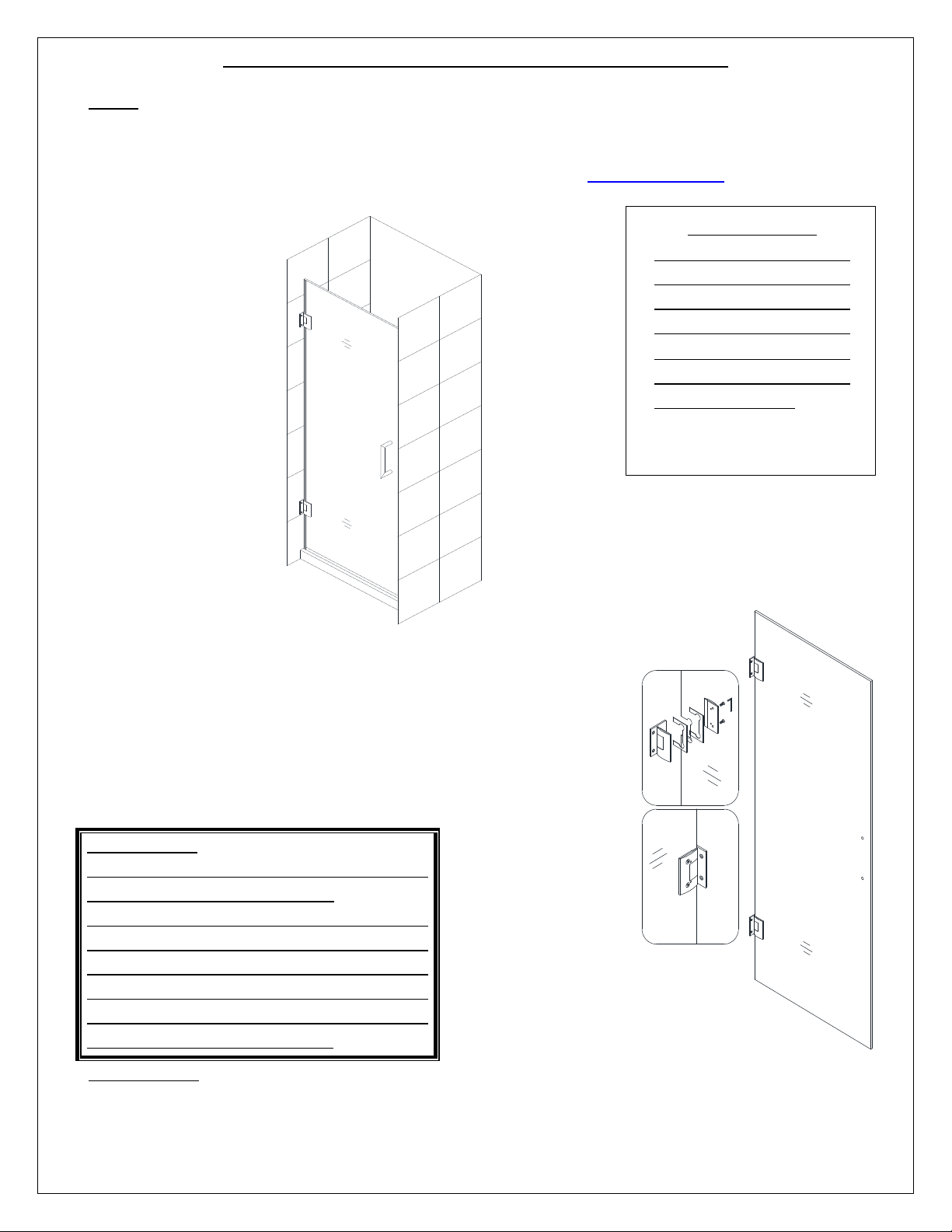

STYLE A
UNIDOOR Single shower door 23”- 30”

Refer to detailed diagram on page 5 of this manual for assembly instructions

STYLE B *
UNIDOOR Shower door 23” – 30” with 6” small or 12”-30” large stationary panel

STYLE C *
UNIDOOR Shower door with 12”-30” large stationary panel

STYLE D *
UNIDOOR LUX Shower door with 6” small or 14”-30” large stationary panel

STYLE E *
UNIDOOR LUX Shower enclosure with 30” return stationary panel

STYLE F *
UNIDOOR PLUS Shower door with 6”-34” in-line stationary panel secured using u-channel

STYLE G *
UNIDOOR PLUS Shower door with 6”-34” in-line half wall panel secured using u-channel

STYLE I *
UNIDOOR PLUS Shower enclosure with 6”-34” in-line stationary panel and 30”-34” return panel

secured using u-channel

STYLE J *
UNIDOOR PLUS Shower enclosure with 12”-36” in-line half wall panel and 30”-34” return panel
secured using u-channel

STYLE L *
UNIDOOR PLUS Shower enclosure with 30”- 34” return stationary panel secured using u-channel

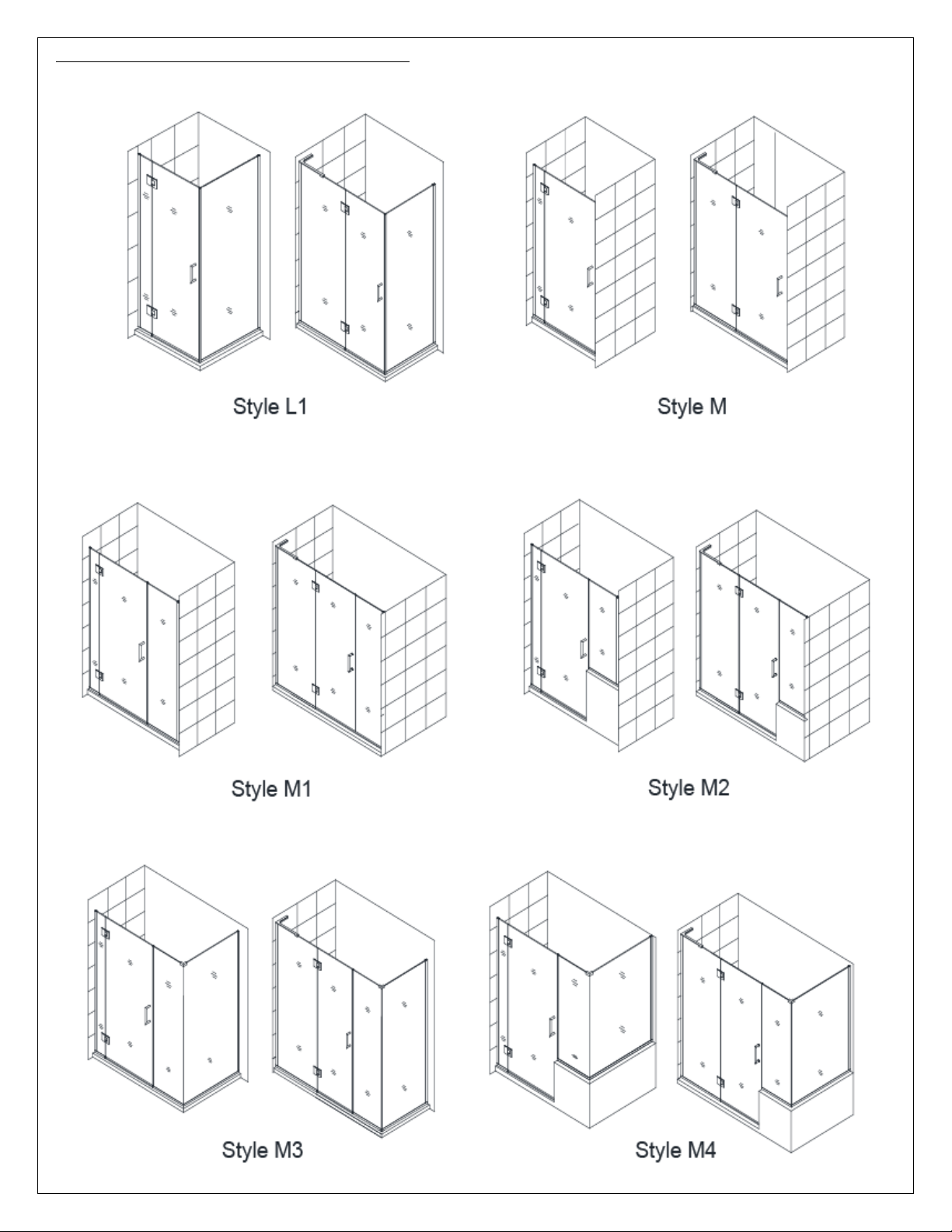

STYLE L1 *^
UNIDOOR Z Shower door 23”~30” with 6” or 24” hinge panel and
with 30”- 34” full height return panel secured using u-channel

STYLE M *^
UNIDOOR Z Shower door 23”~30” with 6” or 24” hinge panel secured using u-channel

STYLE M1 *^
UNIDOOR Z Shower door 23”~30” with 6” or 24” hinge panel and

with 6”, 6-1/2”, 14”, 14-1/2”, 22” or 22-1/2” full height inline panel secured using u-channel

STYLE M2 *^

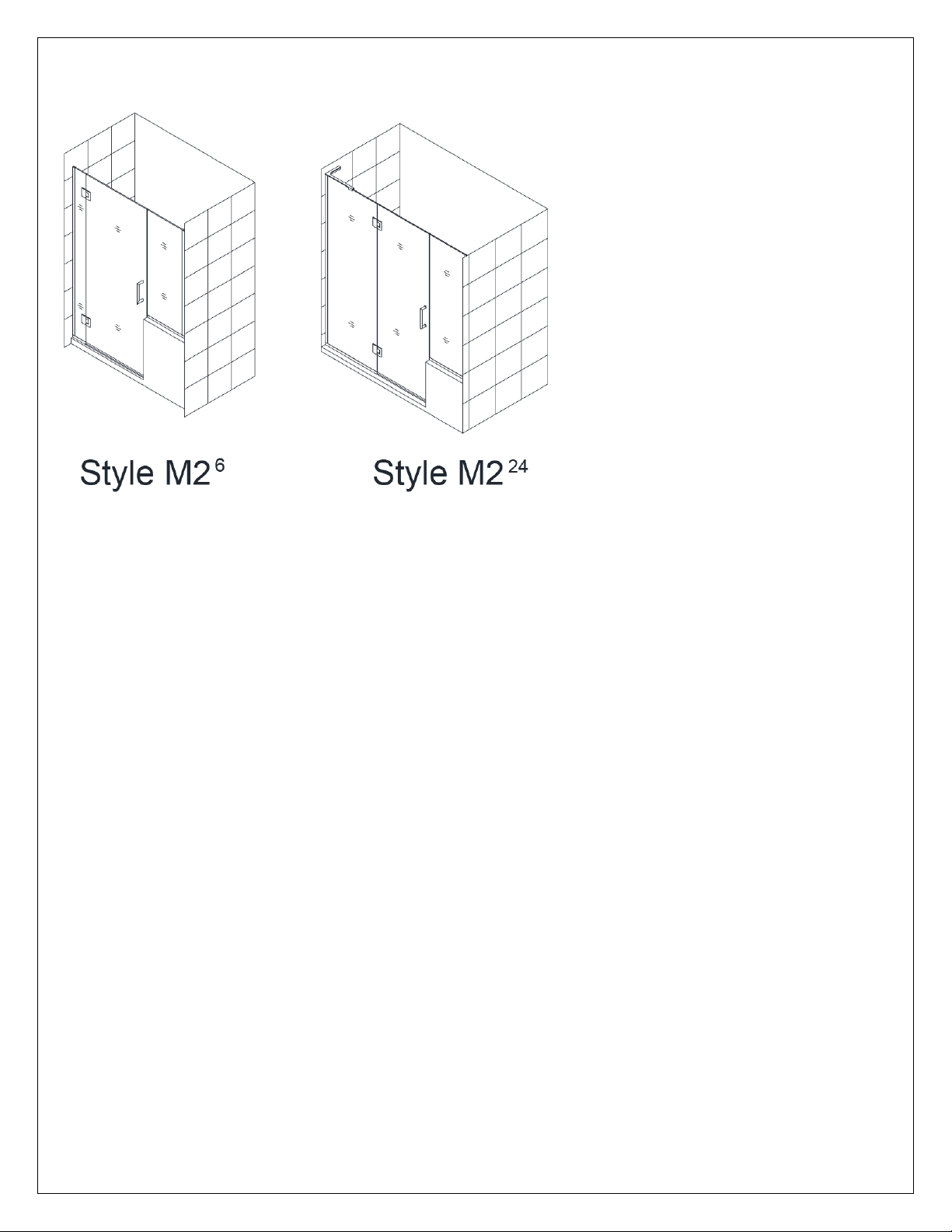

UNIDOOR Z Shower door 23”~30” with 6” or 24” hinge panel

with 12”, 18”, 24” or 26” inline buttress panel secured using u-channel

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

5

STYLE M3 *^
UNIDOOR Z Shower door 23”~30” with 6” or 24” hinge panel,

with 6”, 6-1/2”, 14”, 14-1/2”, 22” or 22-1/2” full height inline panel and 30” - 34” full height return
panel secured using u-channel

STYLE M4 *^
UNIDOOR Z Shower door 23”~30” with 6” or 24” hinge panel,

with 12”, 18”, 24” or 26” in-line buttress panel and 30”- 40” buttress return panel secured using
u-channel

* For the panel installation instructions, please refer to the separate manual included in the
panel glass packaging.

^ For Glass to Glass door installation, please refer to the separate manual included in the hinge

panel glass packaging.

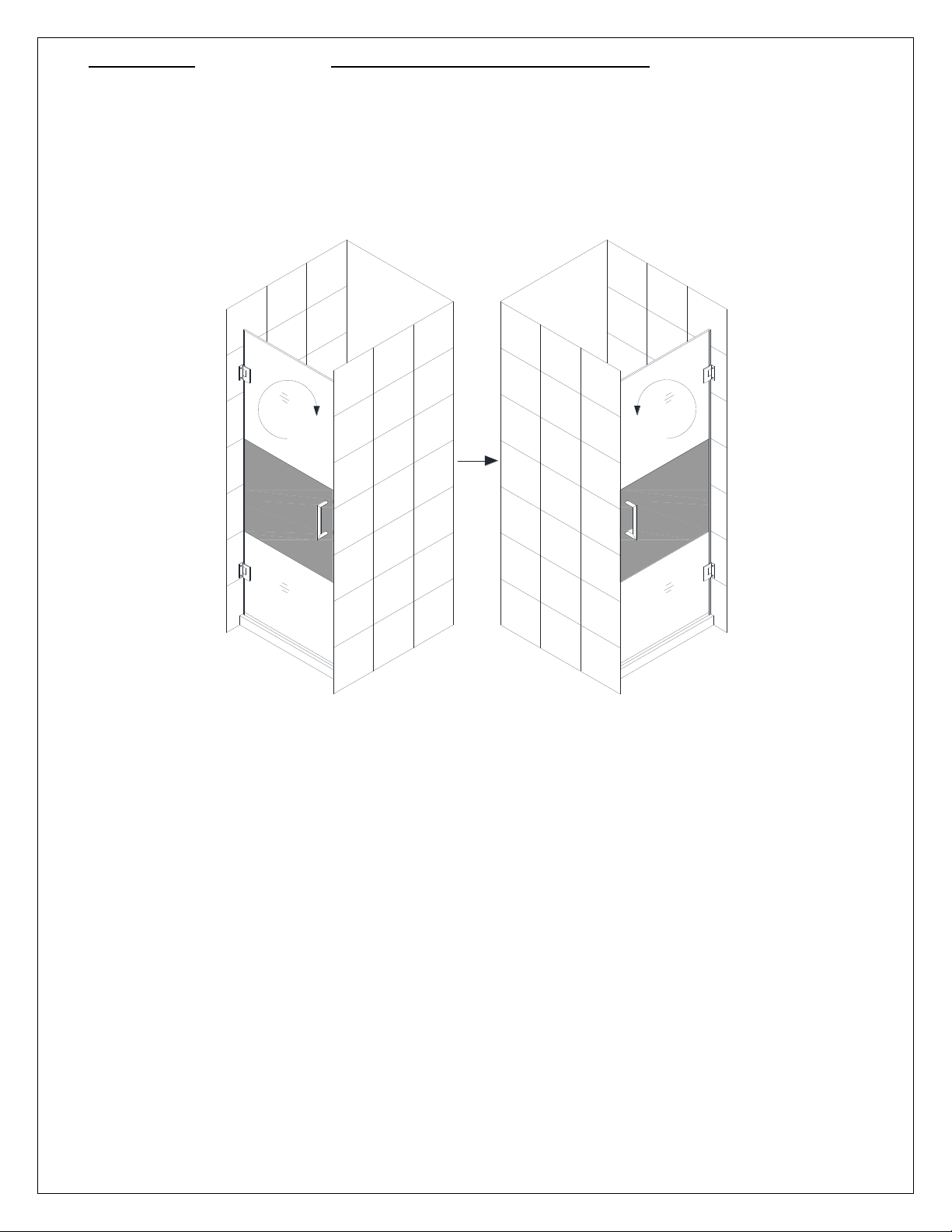

NOTE: The Unidoor series doors and enclosures are reversible for left or right hand installation. This

manual will show the right hand installation. For a left hand installation, simply begin on the opposite
wall and reverse the orientation of the parts as necessary.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

6

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully.
Check that all of the needed parts are included in the package by checking off the components
on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a
finishing defect, or has missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine® will not replace any
damaged products or missing parts free of charge after 3 business days or if the product
has been installed. Please contact DreamLine® if you have any questions and please provide an

order number, job name or other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions about

installation compliance standards. Building and plumbing codes may vary by location, and
DreamLine® is not responsible for code compliance standards for your project and will not
accept any returns.

3. If this unit is going to be installed in a new construction, install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code)
plumber for all plumbing installation.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and

will be able to support the total weight of the unit. Also make sure the walls are at right angles.
Irregular installation surface level, radius corners or improper angle of side walls will result in
serious problems for your installation. Please note that some adjustments and drilling may be
necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down

directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always
use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to
and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. This door is extremely heavy and the hinges on this door must be attached to the studs or

to preinstalled 2” × 6” wood reinforcement behind the wall. See pages 8, 9 & 10 for details.

8. The single Unidoor installation does NOT have any adjustment for out-of-plumb conditions.

Please verify that your walls are plumb before proceeding with the installation.

9. Professional installation is recommended for this heavy glass frameless shower door.

NOTE: DO NOT attach the handle to the door glass until instructed to do so. DO NOT use the
handle to lift the glass during installation. This may result in damage to the glass and/or serious injury.
Always use an assistant and/or a professional grade glass suction cup when handling heavy glass
panels.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

7

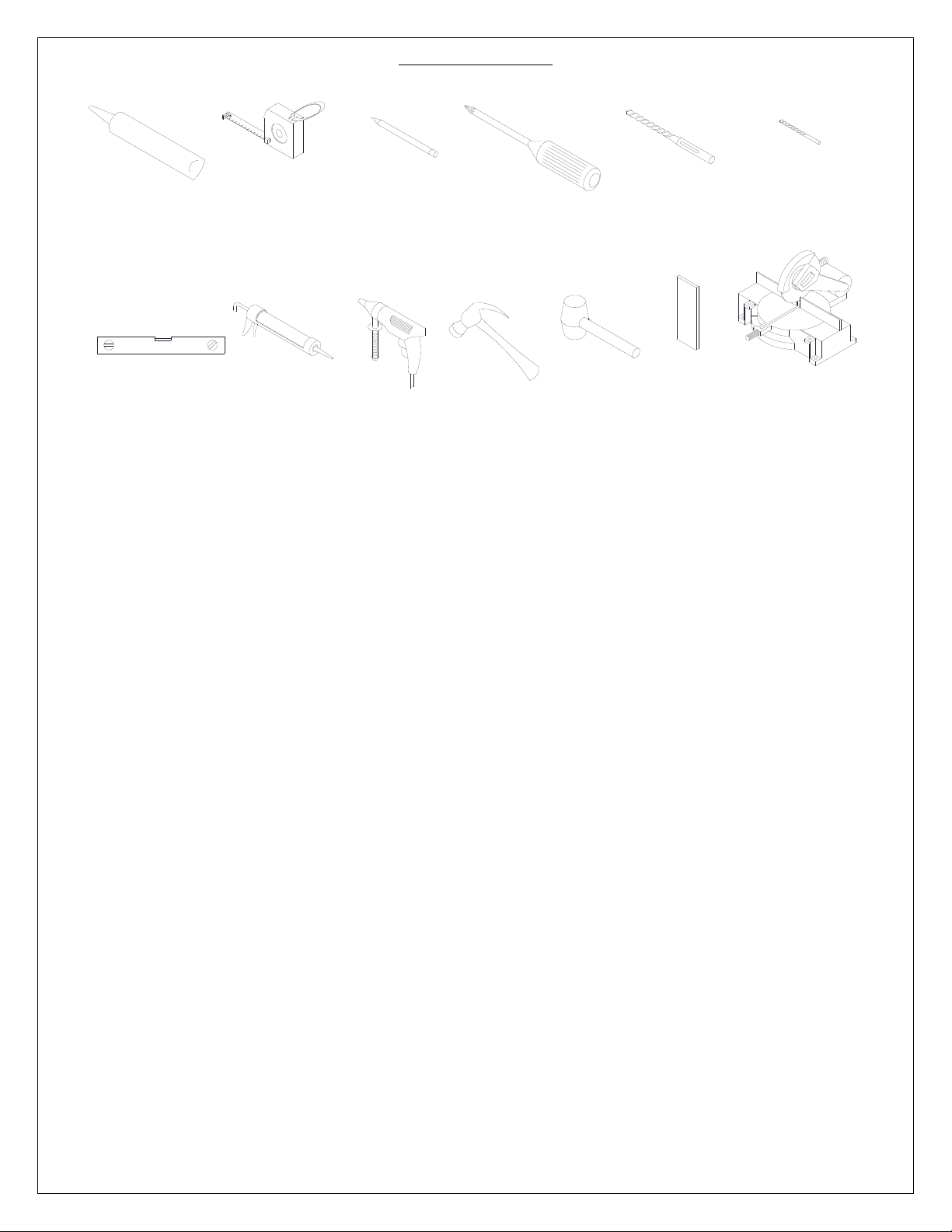

Tools Required

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

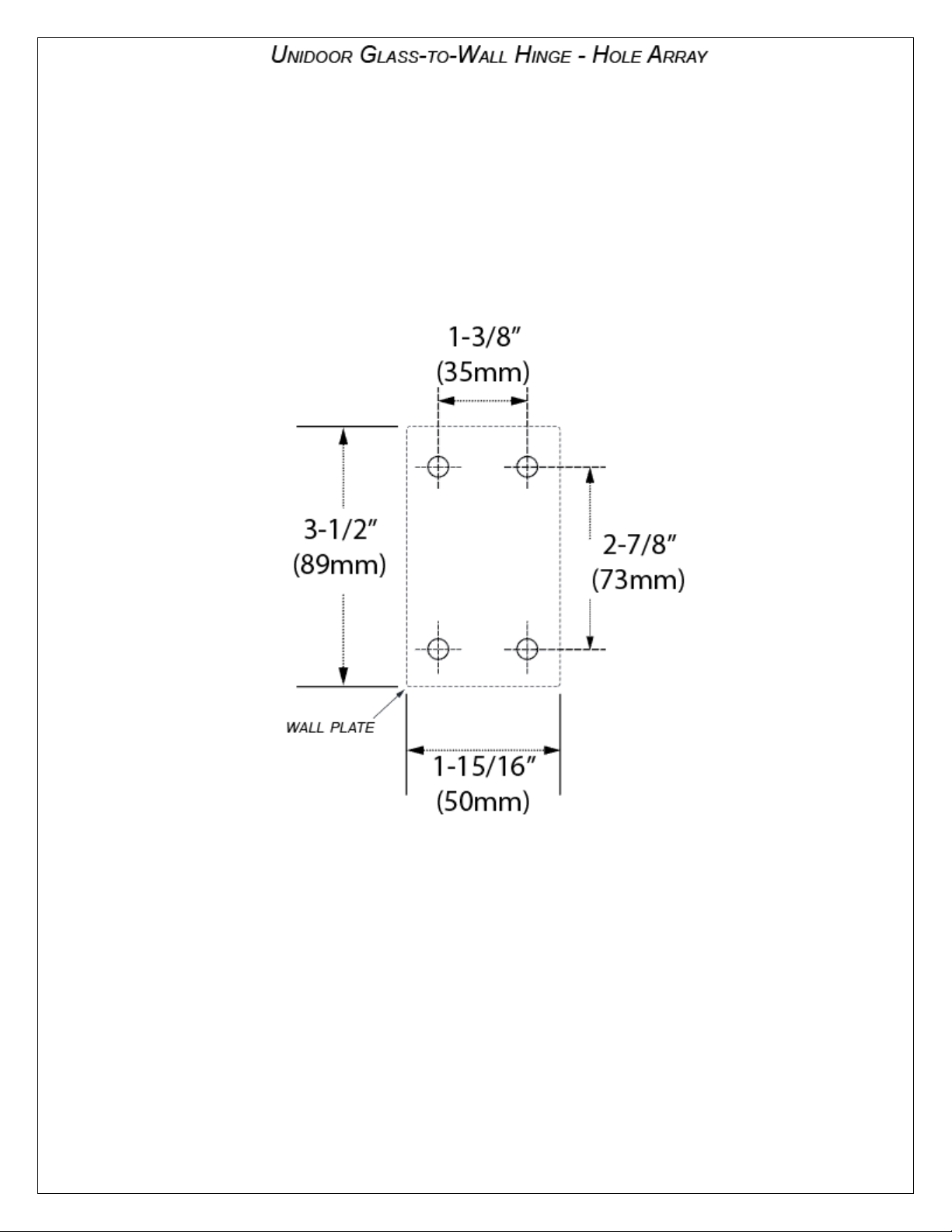

8

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

9

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

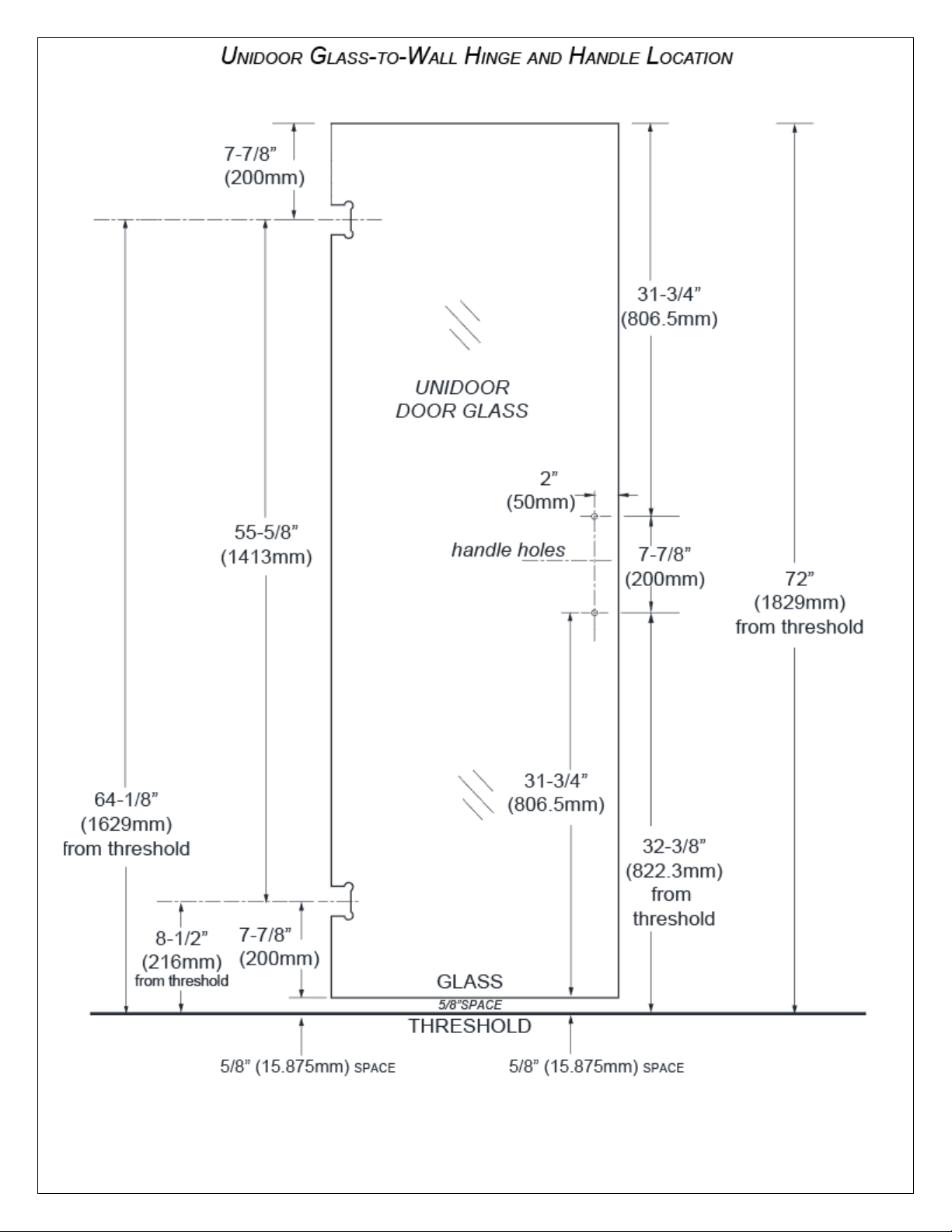

10

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

11

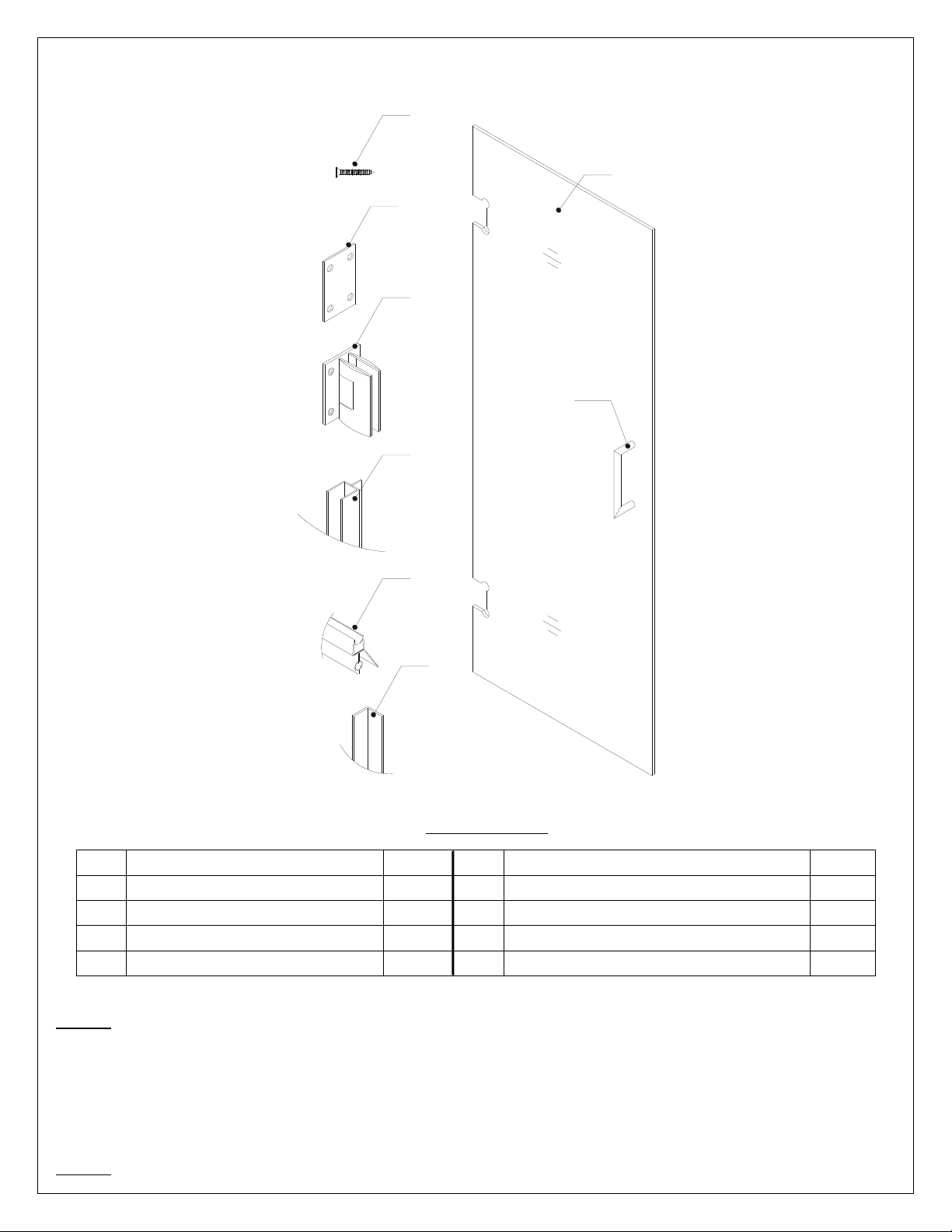

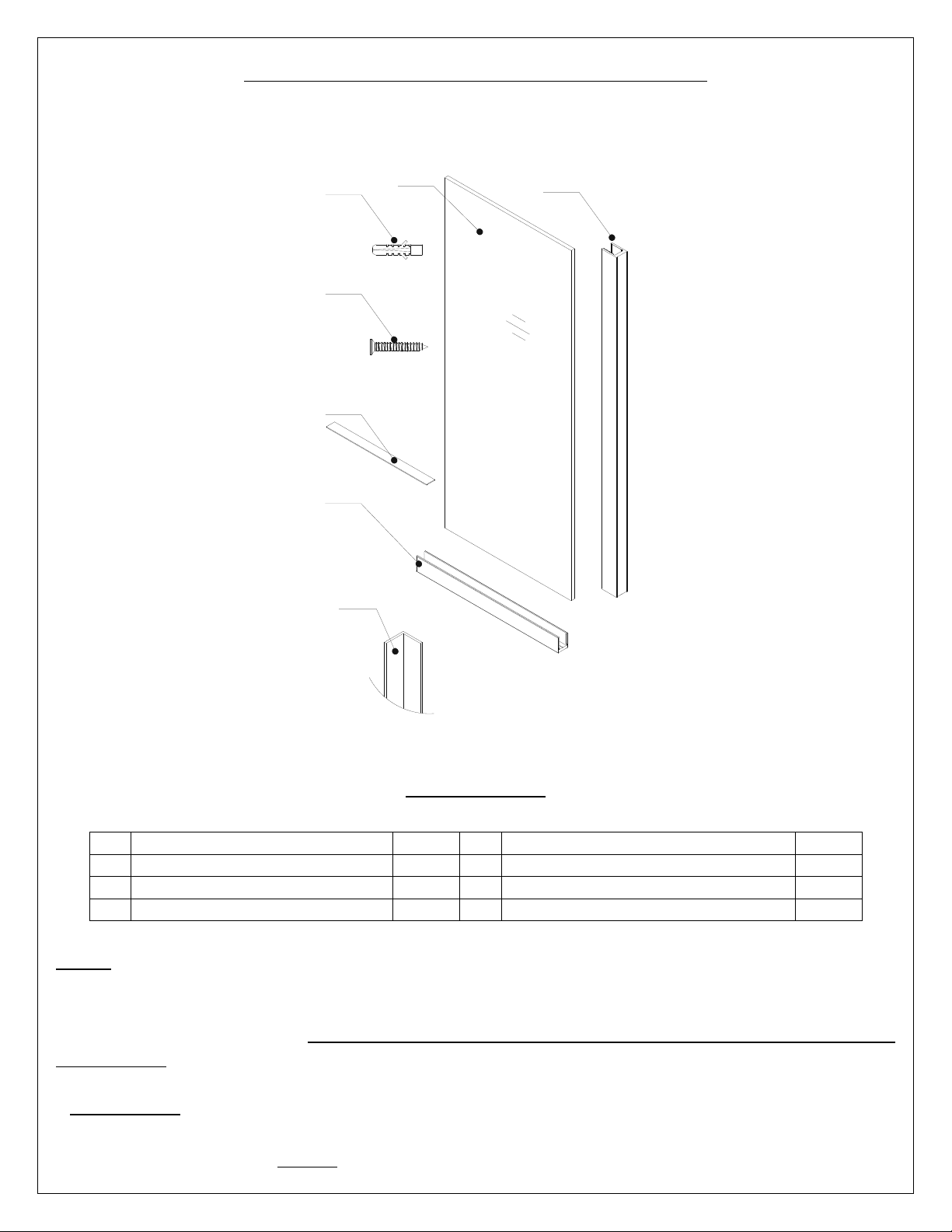

Detailed Diagram of Shower Door Components

1

2

4

5

6

7

8

31

Part#

Description

Qty

Part#

Description

Qty

01

Door glass

1pc

06

Side strip ( 3 sections to cut)

1pc

02

Handle

1pc

07

Bottom anti-water strip

1pc

04

Countersunk screw ST5×70

8pcs

08

L-shaped strip

1pc

05

Hinge with Adjustable angle

2pcs

31

PVC hinge spacer

4pcs

Packing List

NOTE: Unpack your unit carefully and inspect it. Lay out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small
hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,
please contact DreamLine® for replacement.

Part #8 “L-shaped strip” used with single door installation only.

NOTE: Retain these installation instructions for future reference.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

12

Single Shower Door Assembly and Installation

ATTENTION:
Never set your glass down directly
onto a tile or concrete floor.

Always use a piece of wood or cardboard
and leave the corner pads and protective
shims on the glass until it becomes
necessary to remove them to protect the
bottom edge and corners from damage
which could lead to breakage.

Fig. 1

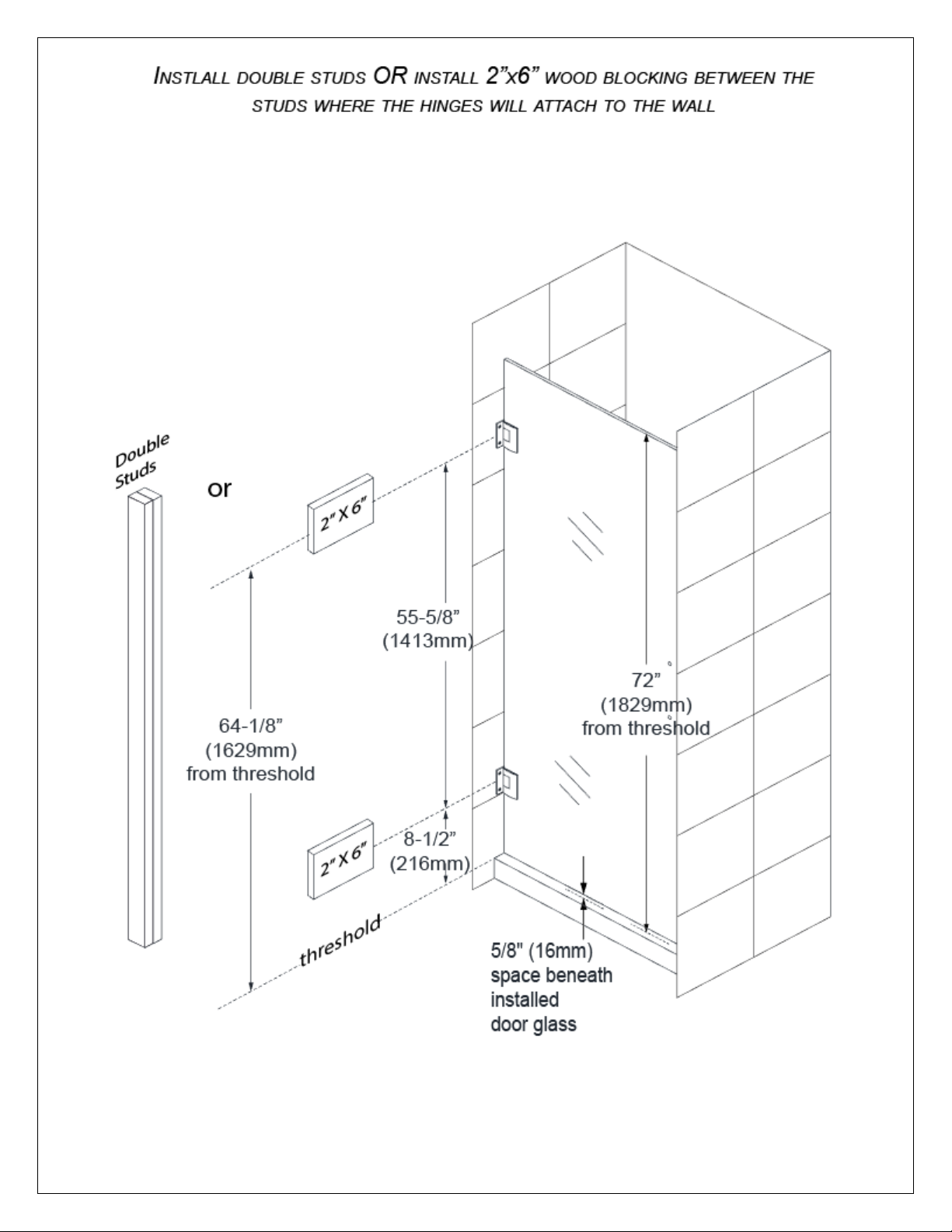

ATTENTION:

This door is extremely
heavy and the hinges
on this door must be
attached to the studs
or to preinstalled 2 ×
6 wood reinforcement
behind the wall.

inside

outside

NOTE: The following shower door installation instructions should be used as a general
guide and prerequisite to the installation of the UNIDOOR, UNIDOORLUX and UNIDOOR
PLUS models. Before you begin the installation, please check your finished opening size.
Specific size information can be found on our website at DreamLine.com

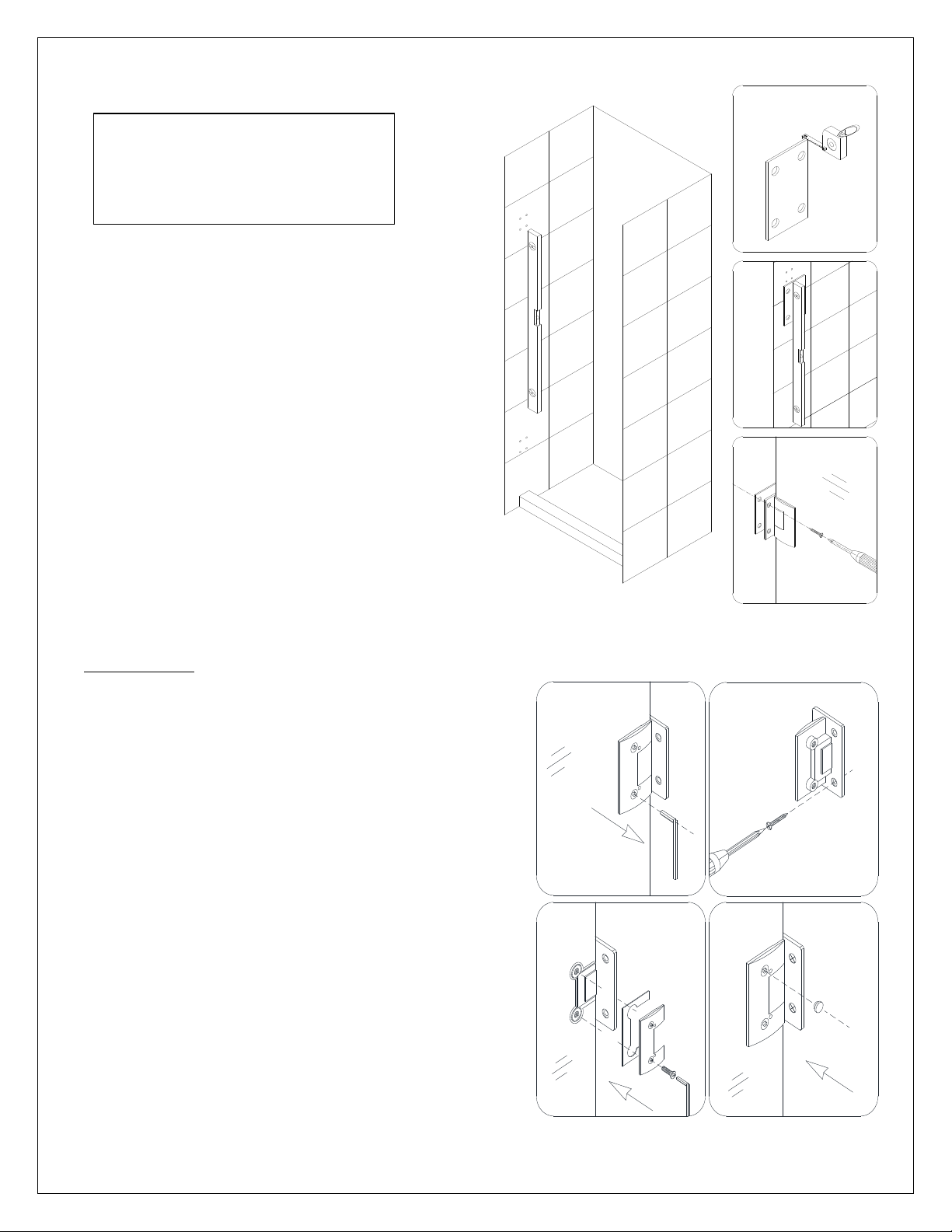

1. Attach the Hinges (05) to the Door Glass (01) using at least one

(2mm) vinyl hinge gasket per side.

See Fig. 1 for details.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

ATTENTION:
For Styles E, I, J, K & L that have return panels:
Please check model dimensions for proper placement of the Glass door (01) so that it will
align correctly with the return panel glass.

13

2

1

3

Ø 1/4"

outside

outside

ATTENTION:
This door is extremely
heavy and the hinges
on this door must be
attached to the studs
or to preinstalled 2 × 6
wood reinforcement
behind the wall.

Fig. 2

Fig. 3

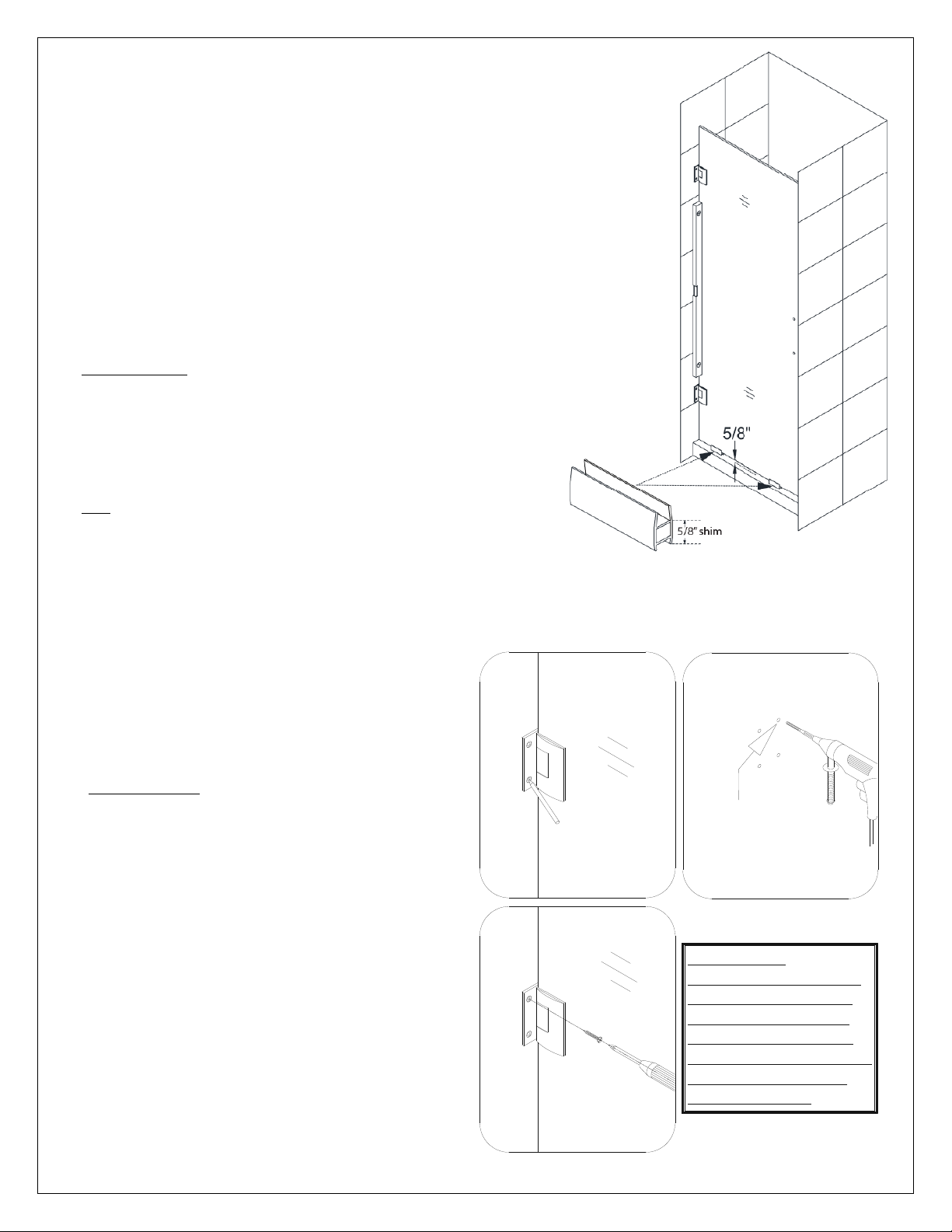

2. The Door Glass (01) ships with four 5/8” shims

attached to the top (2pcs) and bottom (2pcs).
Determine the swing of your door and only remove the
shims from the top of the door glass, leaving the
bottom shims in place. Set the Door Glass (01) onto
the threshold at the desired location and check for level.
These 5/8” shims will leave the proper spacing at the
bottom of the door glass and will ensure that the door
height finishes at 72”, but always confirm with a
measurement. Carefully butt the door with the hinged
side against the wall, adjust its position and check for
plumb with a level.

ATTENTION:

Check the door glass with a level to verify that it is
plumb before marking the hinge positions.

See Fig. 2 for details.

TIP:

If installing the door along with panel glass, use the
72" Anti-Water strip (Inline) (19) that is packed with
the panel glass as a reference to be sure that the door
height will match the panel glass at 72".

3. Hold the door in place and mark the drill

holes for both Hinges (05) on the wall. Set
the door aside and drill the holes in the wall
using Ø 1/4” drill bit.

IMPORTANT:
The included PVC hinge spacers (31) are
provided to compensate for minor out­of-plumb wall conditions. Use only as
needed as their use could compromise
the opening size of your shower. Please
see Fig 4 for an installation example.

Place the Door Glass (01) back onto the
threshold with the 5/8” spacers and attach
both hinges to the wall with only two
Countersunk screws ST5×70 (04) on the
hinge from outside of the shower. Then
open the door and install the remaining
screws to the inside of each hinge.

See Fig. 3 and Fig. 4 for details.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

14

1

2

3

Fig. 5

Fig. 4

TIP: The PVC hinge spacer can
also be used as a template to
assist with marking the hinge
mounting holes.

inside

1

3

2

4

inside

inside

ATTENTION:
The back plate of the hinge from inside the
shower locates too close to the drilled holes in
the wall and might get scratched by the long

screws or screwdriver. Be careful not to scratch

the hinge surface.

(OPTIONAL)

4. Carefully remove back plates from the Hinges (05)

and set the Door Glass (01) aside.
Screw in the rest of the Countersunk screws ST5 x
70 (04) into the wall, place the Door Glass (01) with
the spacers back to its position and reassemble the
Hinges (05). Once the door glass is secure, remove
the 5/8” spacers from beneath the Door Glass (01).

See Fig. 5 for details.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

15

Figure 5a

view from inside the

shower

Setting the Adjustable Hinges

The Adjustable hinges are pre-set to overclose
to 85º and are adjustable up to 90º after the
door is installed. Once the door glass is
installed, simply loosen the allen set screws and
position the door to the desired closed
position. While holding the door in the new
closed position, retighten the allen screws and
your door will now self-center to the chosen
closed position.

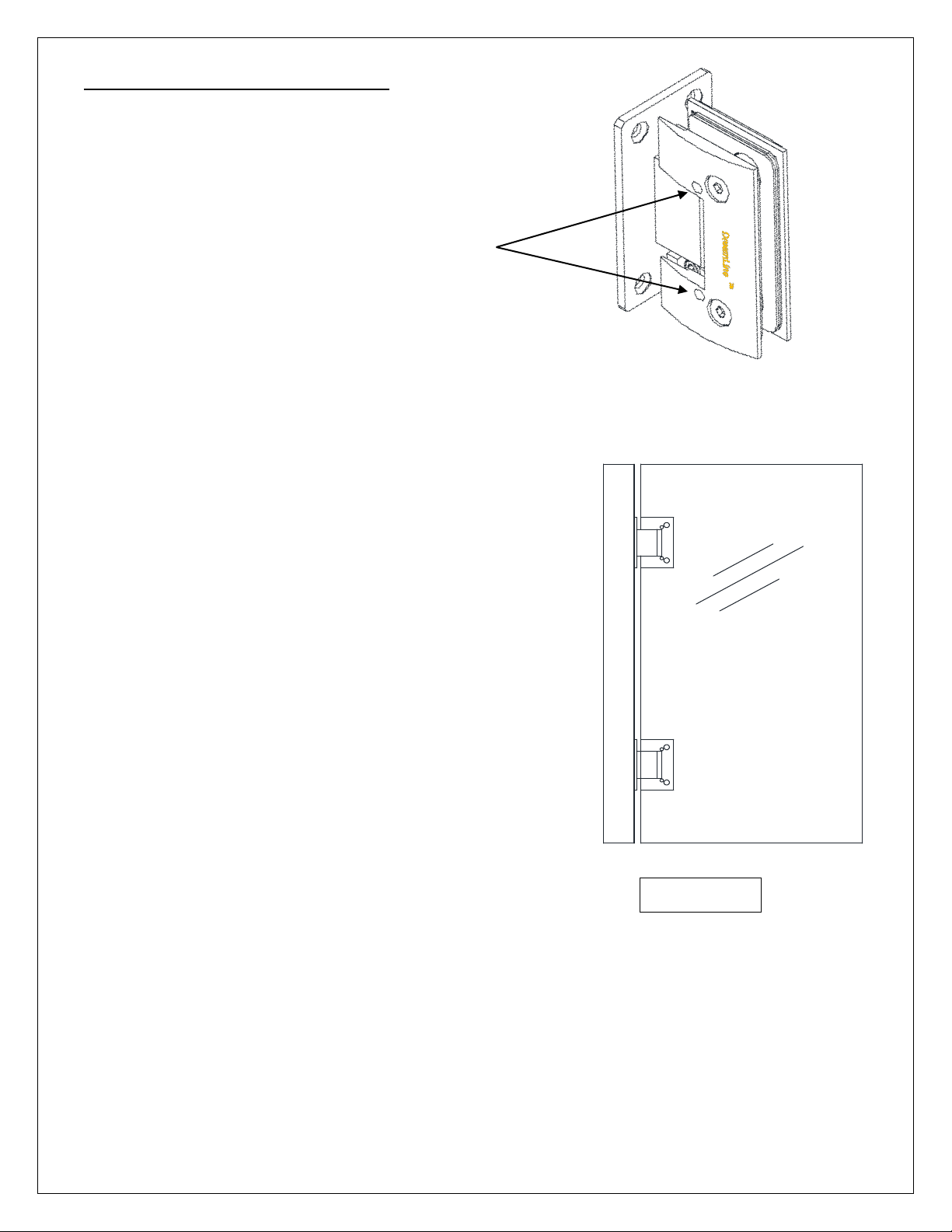

4a. Make sure the door glass is plumb and the edge of the
hinge is installed flush with the glass edge. Center the hinge
in the glass notch and tighten the faceplate screws (Figure
5a). Be careful not to scratch the finished surfaces of the
hinge during installation.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

16

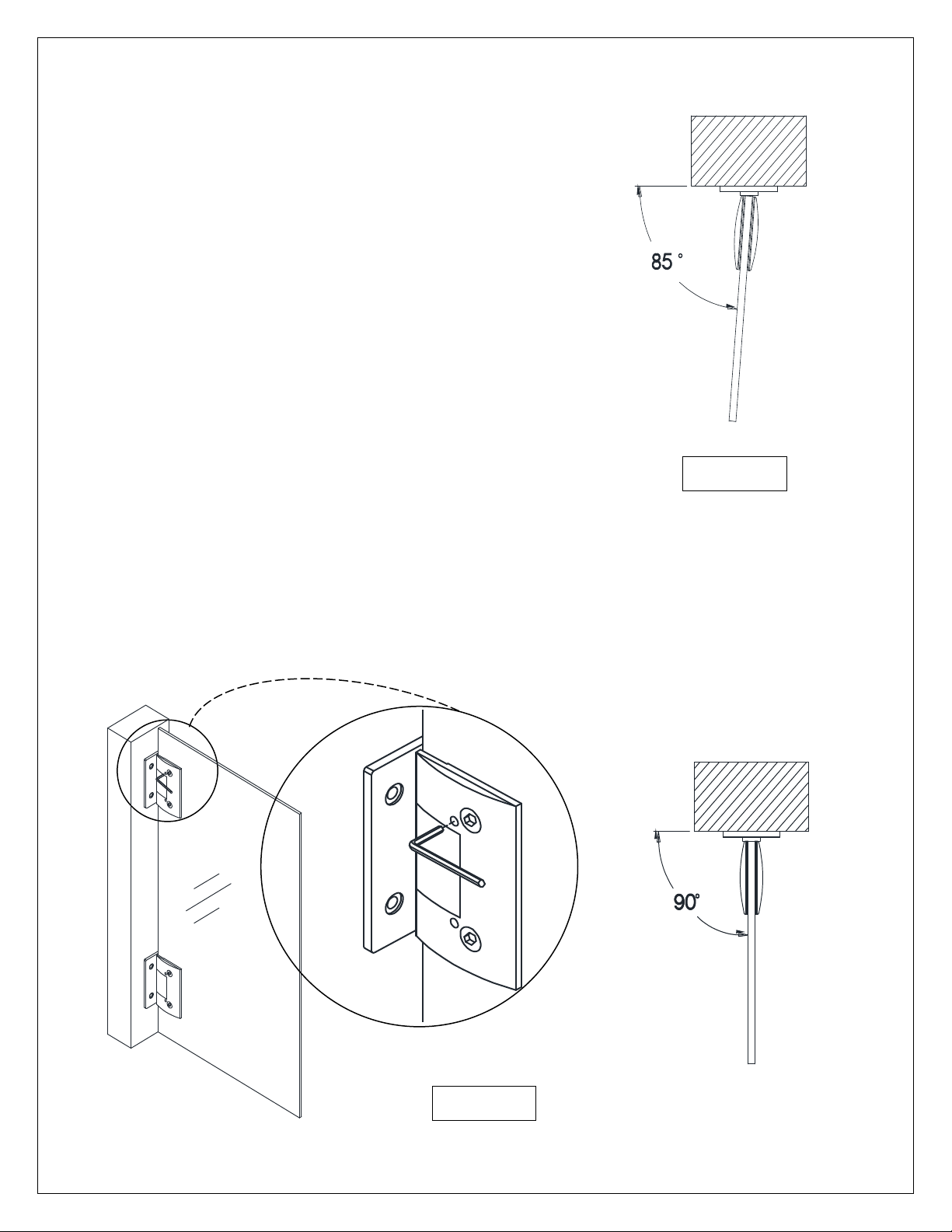

Figure 5b

Figure 5c

inside

outside

inside

outside

View from inside
of shower

4b. The hinges are factory set to 85 degrees.
You can change this angle by using the adjustment screws
on the hinge plate.
(Figure 5b)

4c. Use the supplied Allen Key to loosen the adjustment screws on the inside hinge plate, adjust
the door to the desired angle (90 degrees for example) then retighten the adjustment screws
(Figure 5c). Be sure that you create a tight seal with the supplied strike vinyl when the door is in
the closed position.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

17

Fig. 6

2

1

3

inside

outside

inside

outside

4

inside

outside

inside

outside

Handle side
strip end

3/8"

Fig. 7

NOTE: DO NOT attach the handle to the
door glass until instructed to do so.
DO NOT use the handle to lift the glass
during installation. This may result in damage
to the glass and/or serious injury. Always use
an assistant or a professional grade glass
suction cup when handling the door glass.

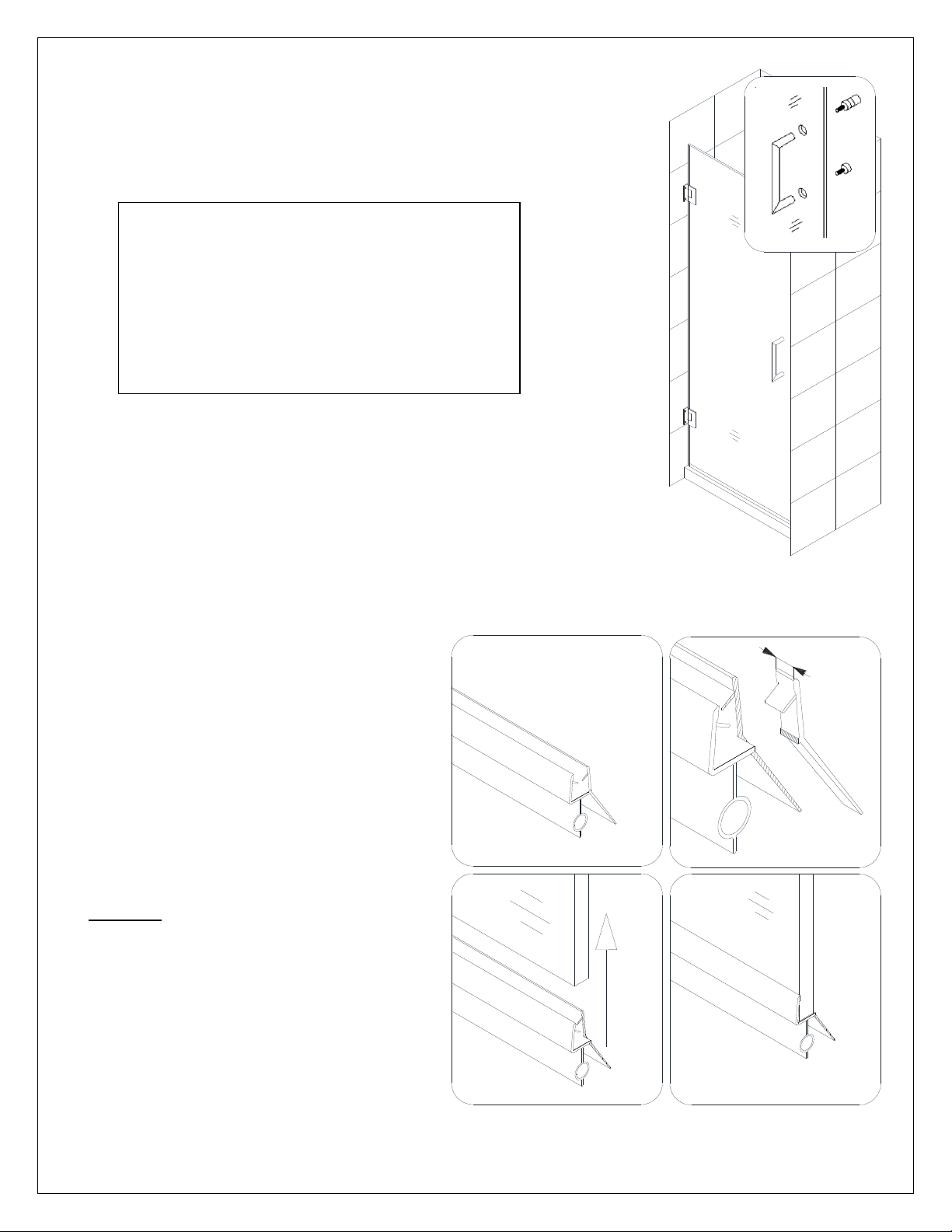

5. Mount the Handle (02) to the Door Glass (01).

See Fig. 6 for details.

6. Measure the bottom of the Door Glass

(01) from end to end to determine the
actual width of the door. Cut the
Bottom anti-water strip (07) to the
size of your measurement and notch
3/8” of the inner side of the Bottom
anti-water strip as shown.
Press the Bottom Anti-water strip (07)
onto the bottom edge of the Door Glass

(01).

NOTICE:

Make sure the Bottom anti-water strip

is flush to the vertical edge of the

Handle side of the Door Glass.

See Fig. 7 for details.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

18

1 2

4

6

3

Into the hinge

Into the hinge

Into the hinge

7/8"

7/8"

7/8"

5

Into the hinge

Around sweep vinyl

1"

7/8"

1

2

Fig. 9
inside

Fig. 8

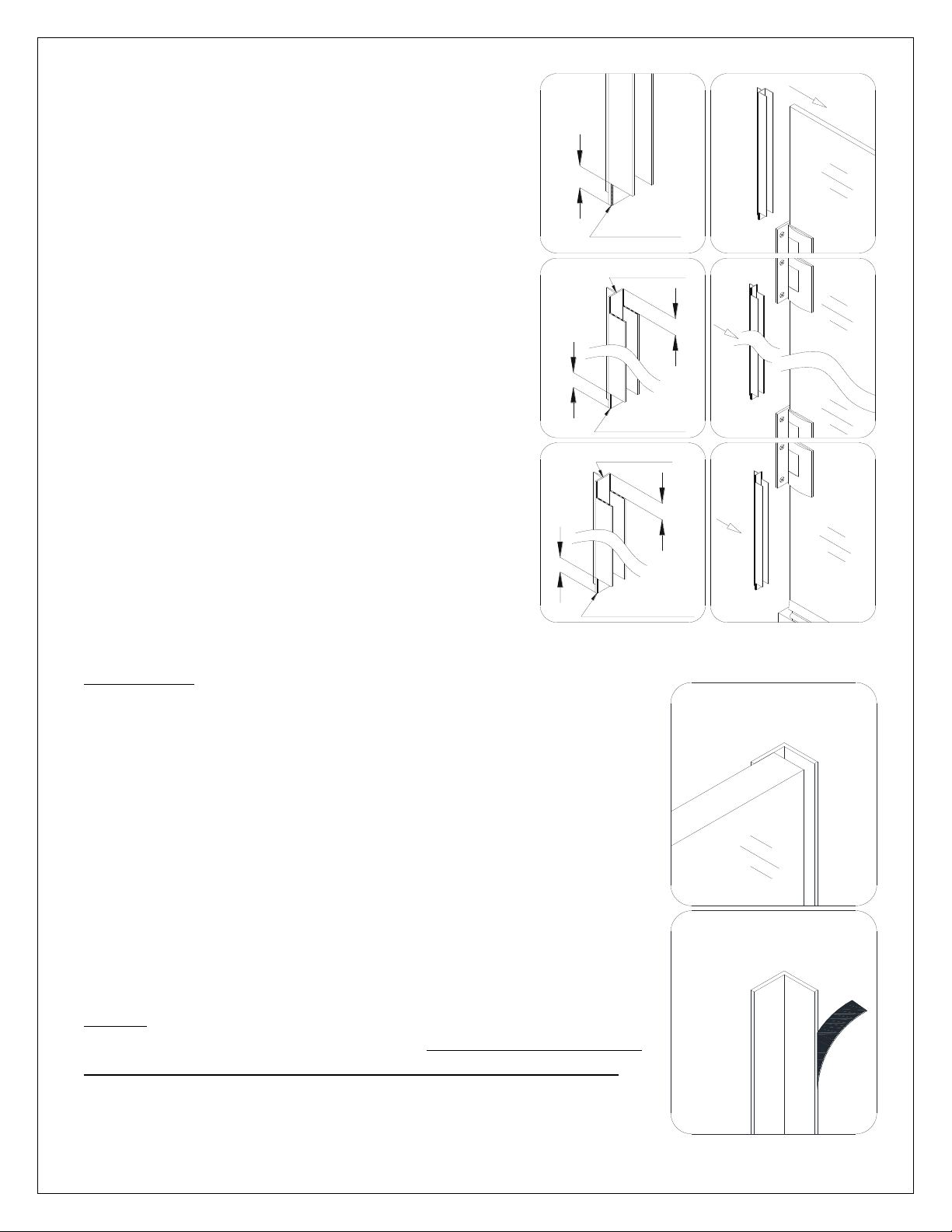

7. Get three measurements:
 from the top edge of the Door Glass (01) to the

upper body of the top Hinge (05) (+) 7/8”

 from the lower body of the upper Hinge to the

upper body of the bottom Hinge (+) 1-3/4”

 from the lower body of the bottom Hinge to top

of the installed Bottom anti-water strip (07)
(+) 1-7/8”

Cut the Side strip (06) according to the
measurements.
Notch the cut strips to be able to slide them into
the Hinge and around the sweep vinyl to cover the
space to the wall.
Press the cut strips onto the vertical edge of the
Door Glass.

See Fig. 8 for details

ATTENTION;
Prior to the next step, please be sure that the section of the
wall where you need to attach the L shaped strip (08) is clean,
dry and free from soap, oil and any construction debris.

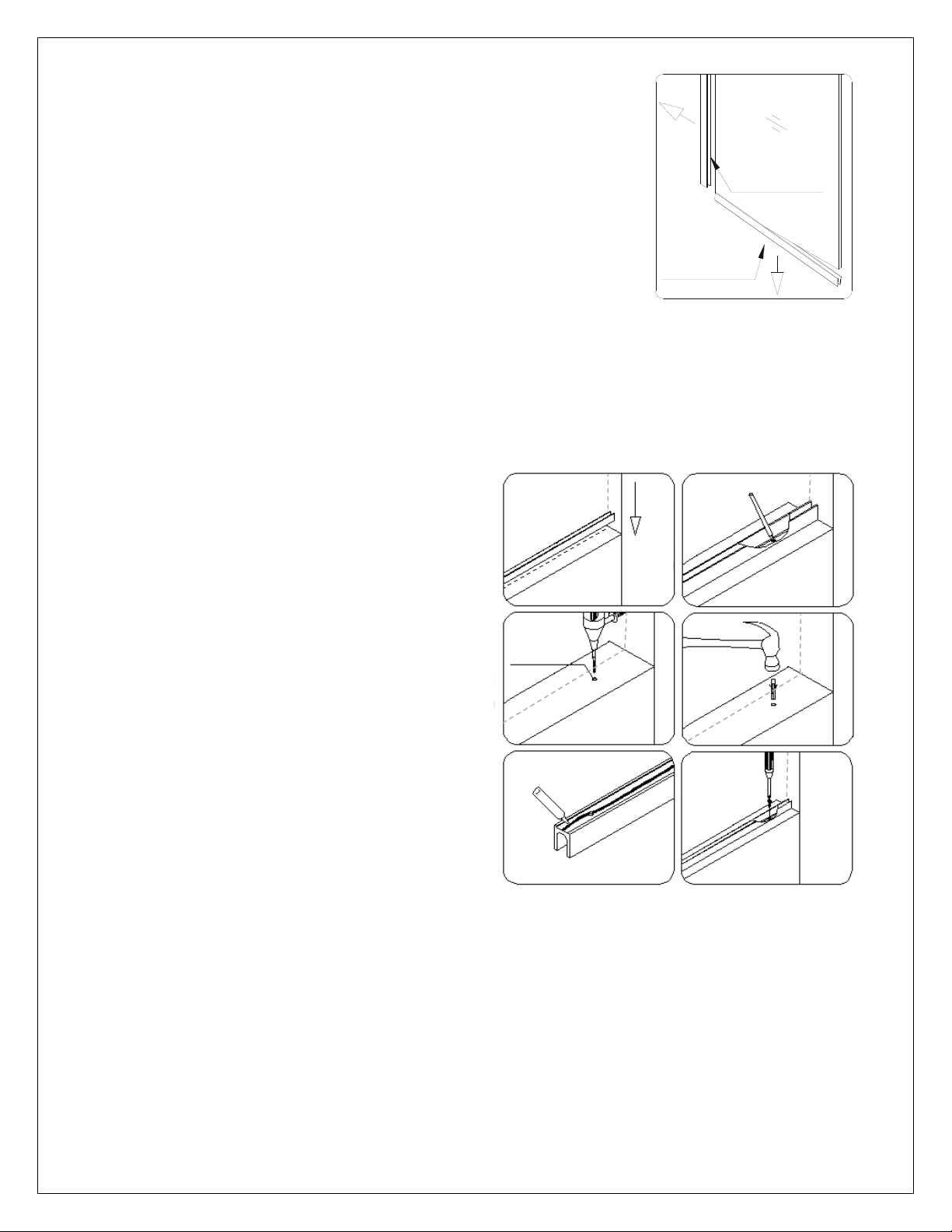

8. With the door closed place the *L-shaped strip (08) on the door

edge and mark its location on the wall.

Please note that the corner of the L-shaped strip (08) should
face inward.

With the door opened, remove the tape backing from the adhesive
strip and firmly press the L shaped strip (08) to the wall.

See Fig. 9 and Fig. 10 for details.

*NOTE:
The above procedure for installing the L-shaped strip (08) is for
the Unidoor Style A single shower door installation only. If
installing another model with additional panel glass, please
refer to the separate glass installation manual located in the
glass packaging for model specific instructions. The vinyl seals
that apply to the panel glass are packaged with the panel glass.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

19

Fig. 10

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

20

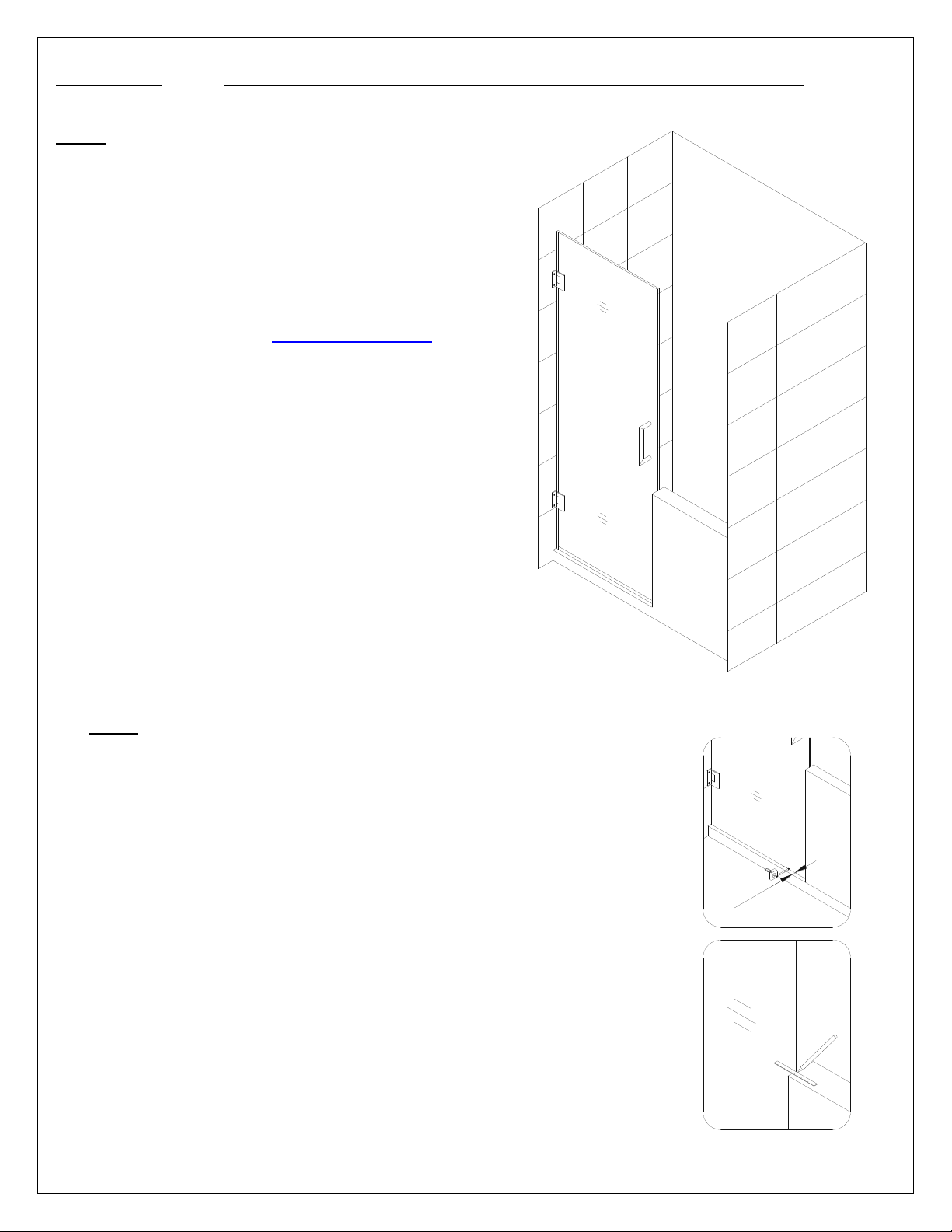

Style “A”: Half Etched Glass Installation

Fig. 11

NOTE: This model features the half etched glass option. Hinged Left installation shown. To
install for hinged Right, flip the door to the proper handing.

-The textured surface of the glass door should face out.

See Fig. 11 for details.

“UNIDOOR” Single Shower Door Ver.2 Rev.2 06/2016

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream
based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal
brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry).
To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain
scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or
corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth.
Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish
to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth,
steel wool or wired brush as these may permanently scratch the surfaces.

TEL: [phone]

FAX: [phone]

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com

1

UNIDOOR (STYLE G)

SHOWER DOOR GLASS PANEL INSTALLATION INSTRUCTIONS

Style G

Right side panel installation shown

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details

please refer to your model’s web page on DreamLine.com

Please read these instructions carefully before installing. If you have any questions regarding
installation, please contact our technical support specialists Monday through Friday 8:00 AM

-7:00 PM EST at Phone: [phone], Fax: [phone] or e-mail our technical support

group at [email protected]

For more information about DreamLine® products please visit DreamLine.com

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

2

Style G

Model #s

SHDR-24232434-##

SHDR-24232436-##

SHDR-24233634-##

SHDR-24233636-##

SHDR-24242434-##

SHDR-24242436-##

SHDR-24243634-##

SHDR-24243636-##

SHDR-24273034-##

SHDR-24273036-##

SHDR-24273634-##

SHDR-24273636-##

SHDR-24283034-##

SHDR-24283036-##

SHDR-24283634-##

SHDR-24283636-##

SHDR-24293034-##

SHDR-24293036-##

SHDR-24293634-##

SHDR-24293636-##

SHDR-24303034-##

SHDR-24303036-##

SHDR-24303634-##

SHDR-24303636-##

## = finish
01 – Chrome
04 – Brushed Nickel
06 – Oil Rubbed Bronze

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

3

D1263036
D1263034
D1262436
D1262434
D1253636
D1253634
D1253036
D1253034
D1252436
D1252434
D1243636
D1243634
D1243036
D1243034
D1242436
D1242434
D1233636
D1233634
D1233036
D1233034
D1232436
D1232434

Model #s

D3242436R-##
D3242436L
D3242434R
D3242434L
D3232436R
D3232436L
D3232434R
D3232434L
D1303636
D1303634
D1303036
D1303034
D1302436
D1302434
D1293636
D1293634
D1293036
D1293034
D1292436
D1292434
D1283636
D1283634
D1283036
D1283034
D1282436
D1282434
D1273636
D1273634
D1273036
D1273034

ADDITIONAL MODEL CONFIGURATIONS for UNIDOOR- X GLASS-TO-GLASS HINGE DOORS

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

4

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully.
Check that all of the needed parts are included in the package by checking off the components on
the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a
finishing defect, or has missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine® will not replace any
damaged products or missing parts free of charge after 3 business days or if the product has
been installed. Feel free to contact DreamLine® if you have any questions and please provide an

order number, job name or other proof of purchase to help us identify your original order.

2. If this unit is going to be installed in a new construction, install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code)
plumber for all plumbing installation.

3. Please note that you should consult your local building codes with questions about

installation compliance standards. Building and plumbing codes may vary by location, and
DreamLine® is not responsible for code compliance standards for your project and will not
accept any returns.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will

be able to support the total weight of the unit. Also make sure the walls are at right angles.
Irregular installation surface level, radius corners or improper angle of side walls will result in
serious problems for your installation. Please note that some adjustments and drilling may be
necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down

directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always
use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to
and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. This model requires that you drill into the threshold for proper installation.

8. This model has 1/2” of adjustment within the u-channel for out-of-plumb wall conditions and

overall width within the model size. Confirm the finished opening conditions before proceeding
with the installation.

9. This model requires a minimum 5/8” of flat threshold space for installation.

10. Professional installation is recommended for this heavy glass frameless shower door.

NOTE: This door is reversible for right or left side panel installation. The right side panel installation is

shown as an example throughout this manual. For the left side panel installation, simply begin on the
opposite wall and reverse the orientation of the steps shown.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

5

Tools Required

Caulk

Tape
Measure Pencil

Screwdriver

Phillips Drill bit

Level

Gun

Caulk

Drill

Electric

Hammer

Drill bit

(Ø=5/16")

(Ø=1/8")

Miter saw

Mallet Wood

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

6

08

L-shaped strip *

1pc

23

Countersunk screw ST4.2x40

14pcs

09

U-channel 1 (76”, wall profile)

1pc

28

Adjustment spacer

6pcs

11

Stationary glass

1pc

29

U-channel 2 (44”, bottom profile)

1pc

13

Ø5/16” Wall anchor

14pcs

9

11

13

23

28

29

8

Detailed Diagram of Glass Panel Components

Packing List

NOTE: Unpack your unit carefully and inspect it. Identify all parts using the detailed diagram and

packing list in this manual as a reference. Before discarding the carton, check for small hardware bags
that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact
DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model
configuration.

* ATTENTION: The L-shaped strip (08) can be found in the glass door packaging and is included

in the above Packing List as a reference only. The L-shaped strip (08) installation is shown in
step #12 of this manual. NOTE: Retain these installation instructions for future reference.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

7

outside

Door

Value

outside

inside

Fig. 1

2

1

Style “G”: 6”-34” In-Line Half Wall Stationary Panel Installation

NOTE: The Unidoor shower door needs to be
installed prior to proceeding with the following
Stationary Glass installation instructions. Please
see the Single Shower Door installation manual
included in the door packaging for complete
shower door installation instructions. Before you
begin the installation, please recheck your shower
opening size. Specific size information can be

found on our website at DreamLine.com

NOTE: The Unidoor hinge is designed to over close 8°. The
following procedure is recommended to ensure proper
alignment of the panel glass and door.

1. Align the Door so that it is perpendicular to the wall and

parallel to the threshold. Measure across the bottom span of
the Door and threshold on the outside of shower and
determine an equal value.
Use a straight edge as guide to mark a line on the half wall
ledge on the handle side for future reference.

See Fig. 1 for details.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

8

W (+) 1"

Fig. 3

H

Fig. 2

a)

NOTE: Use parts from “Detailed Diagram of Glass Panel Components” for the Stationary
Glass assembly and installation.

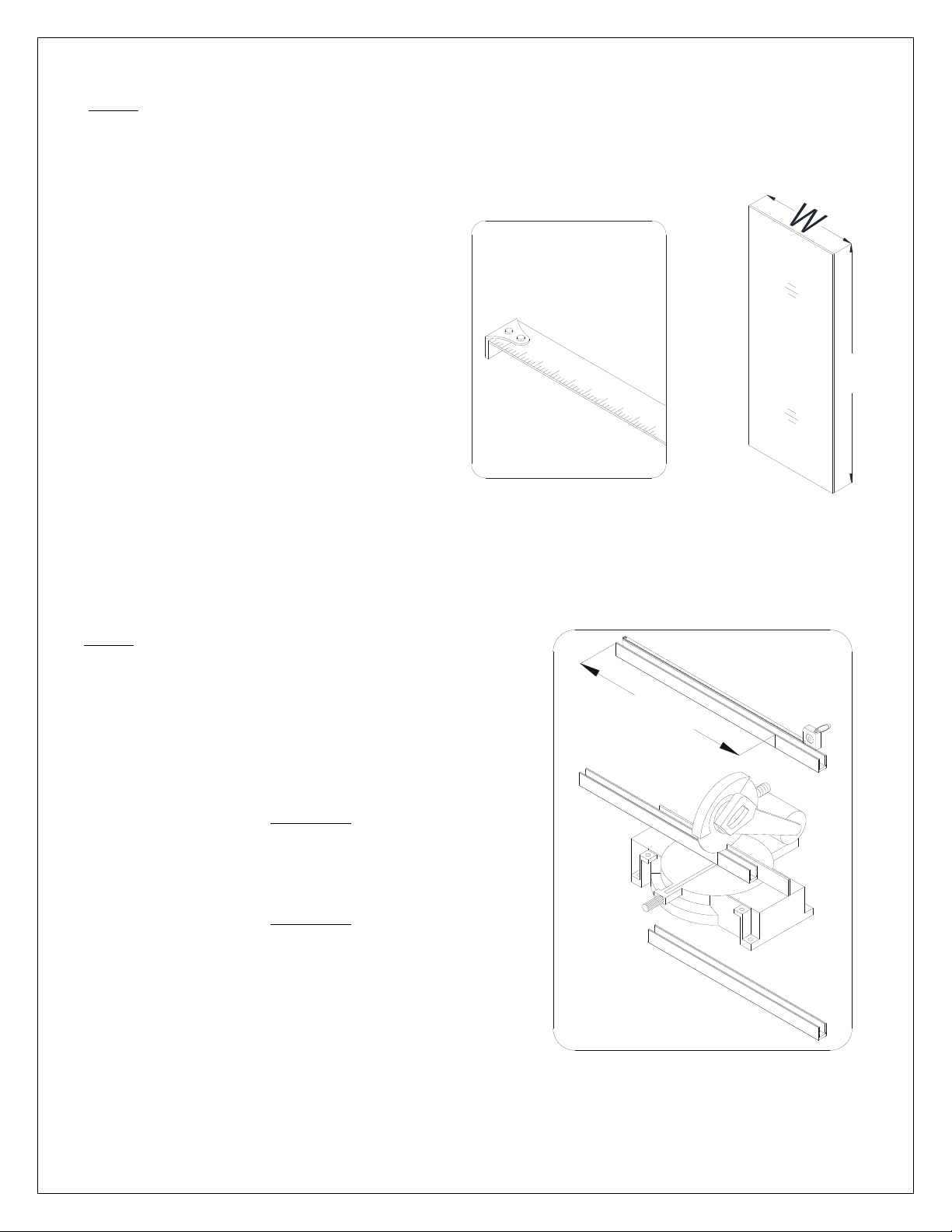

2. Measure the actual width and height of

your Stationary glass (11).

See Fig. 2 for details.

3. NOTE: You will be doing straight cuts for this

stationary panel installation.

*It may be necessary to remove any burrs from
the cut end of the U-channels with a metal file
before placing the U-channel onto the glass.

a) Use a miter saw to rough cut the U-channel 2

(44”, bottom profile) to the actual width of the

glass (+) 1”.

b) Use a miter saw to rough cut the U-Channel 1

(76”, wall profile) (09) to the actual height of
the glass (+) 1”.

See Fig. 3 & 4 for details.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

9

wall

inside

inside

Stationary
glass

U-channel 2

U-channel 1

wall

inside

Fig. 5

1

3

5

2

4

6

H (+) 1"

b)

Fig. 4

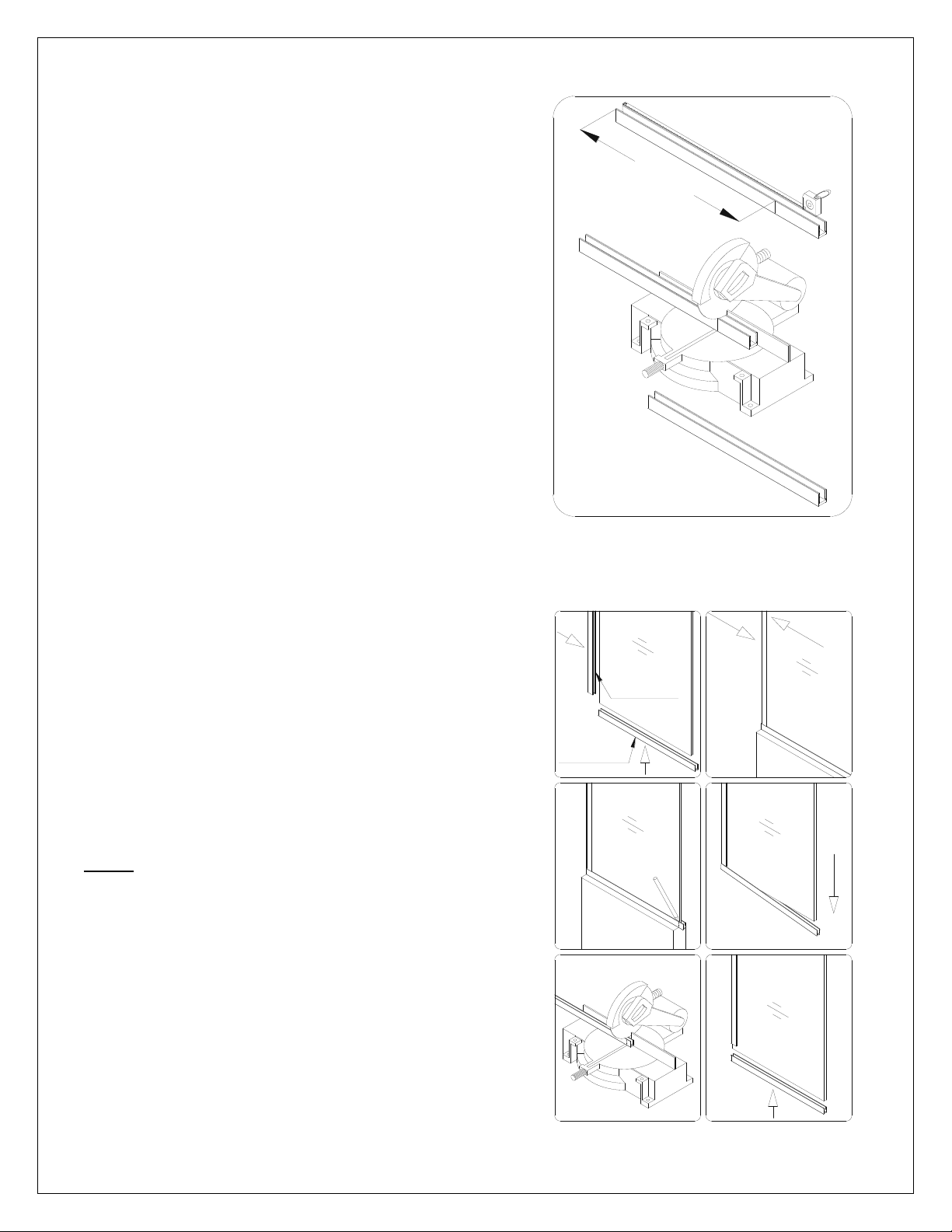

4. Slip the cut U-channel 2 (bottom profile) (29) and

U-channel 1 (wall profile) (09) onto the Stationary
glass (11) in the shown locations.

With the door open, place the Stationary glass on
the half wall ledge opposite of door. Adjust the
Stationary glass and U-channel 1 (wall profile)
against the wall to compensate for any out of plumb
conditions ensuring that the Stationary glass is level
vertically and U-channel 1 is flush with the wall.

NOTE: The exposed vertical glass edge must be
flush with the finished half wall’s door side face.

Mark the U-channel 2 (bottom profile) end
opposite of the wall at the exposed vertical glass
edge.
Remove the U-channel 2 (bottom profile). Leave
the U-channel 1 (wall profile) on the Stationary
glass. Set the Stationary glass aside.
Cut the U-channel 2 (bottom profile) at the mark.
Slip the U-channel 2 (bottom profile) back onto
the Stationary glass.

See Fig. 5 for details.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

10

outside

inside

inside

wall

inside

wall

inside

outside

Door

Stationary
glass

inside

wall

1/8"-3/16"

Align the Stationary
glass with the Door

inside

Door

Stationary
glass

1

3

5

2

4

6

Fig. 6

Fig. 7

5. While securely holding the Stationary glass (11),

close the Glass Door and align the Stationary glass
to it. Use the door mark on the ledge as a reference
to ensure that the Door is perpendicular to the wall.

NOTE: The top of the Stationary glass must be
leveled with the Glass door. By traversing across
the top of both the Stationary glass and door,
height differences can be measured. The
Adjustment spacers (28) are provided to
compensate for such differences by inserting
them into the U-Channel 2 (bottom profile) (29).
Please make note of the spacer size that is needed
for your situation.

Ensure that the Stationary glass is level vertically and
precisely in line with Door. The U-channel 1 (wall
profile) (09) will remain flush against the wall.
Outline the position of the Stationary glass along
the inside edge of both U-channels on the wall and
half wall ledge.
Mark the U-channel 1 (wall profile) (09) at the top
horizontal glass edge. The height of this mark will
change if spacers are needed.

See Fig. 6 & 7 for details.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

11

U-channel 2

U-channel 1

Fig. 8

Fig. 9

Ø5/16”

1

3 5 2

4

6

inside

outside

6. Remove the U-Channel 2 (bottom profile) (29) and U-channel

1 (wall profile) (09) from the Stationary glass (11). Carefully
set the Stationary glass aside.

See Fig. 8 for details.

7. Place the cut U-Channel 2 (bottom

profile) (29) onto the
inside mark

.

ledge in line with the

Mark the drill holes on the ledge through
the predrilled holes in the U-Channel 2
and drill the holes using Ø5/16” drill bit.

Insert the Ø5/16” Wall anchors (13).
Apply waterproof silicone along the bottom

surface and around the holes of the U-
Channel 2 and fasten it to the ledge with
the Countersunk screws ST4.2×40 (23).

NOTE: The surface needs to be clean and
free of debris before applying silicone.

See Fig. 9 & 10 for details.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

12

Fig. 11

Ø5/16”

1

3 5 2

4

U-Channel 1

U-Channel 2

Fig. 10

8. Cut the U-channel 1 (wall profile) (09) at

the top mark that was made in step #5.

Place the U-Channel 1 (wall profile) on
the U-Channel 2 (bottom profile) (29)
and align vertically with the inside wall
mark.

Mark the drill holes on the wall through the
predrilled holes in the U-Channel 1.

Now drill holes in the wall using Ø5/16

drill bit and insert the Ø5/16” Wall
anchors (13).

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

See Fig. 11 for details.

13

waterproof
silicone

Fig. 12

1 3 2

4

5

Fig. 13

9. Apply waterproof silicone along the bottom

surface and around the holes of the U-

Channel 1 (wall profile) (09). Fasten the
U-Channel 1 to the wall with the
Countersunk screw ST4.2x40 (23).

Insert the provided Adjustment Spacers
(28) into U-Channel 2 (bottom profile)
(29) for minor adjustments if necessary.

Apply Waterproof silicone into the groove
of both U-Channels.

NOTE: The surface needs to be clean and
free of debris before applying silicone.

See Fig. 12 & 13 for details

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

14

Fig. 14

1

3 2 4

waterproof
silicone

Fig. 15

10. Slide the Stationary glass (11) into the

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

groove of both U-Channels.

Apply a bead of silicone on the open end
of the U-Channel, and its connection.
Ensure that the silicone applied to the open
end is flat and smooth so that it will not
interfere with the installation of the L-

shaped strip*(08) in step #12.

NOTE:
If you have difficulty sliding the Stationary

glass into the U-Channels, you can slightly

tap on the Stationary glass with a rubber
mallet and a piece of wood.

See fig. 14 & 15 for details

15

Door

Stationary

glass

1/16"-1/8"

Fig. 17

inside

outside

inside

outside

1

4

5

2

3

outside

waterproof
silicone

Fig. 16

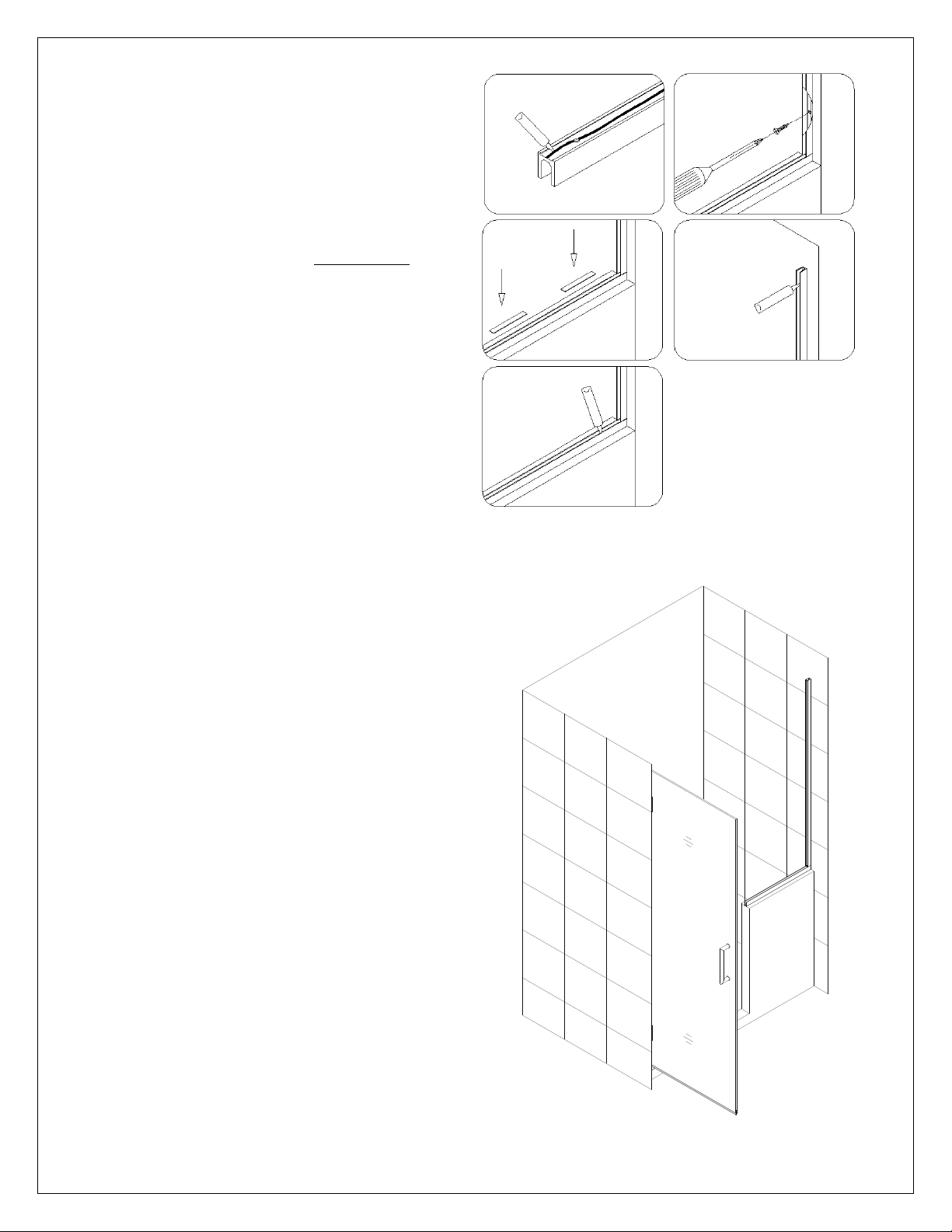

11. Apply a good quality mildew resistant waterproof

12. Align the L-shaped strip*(08)

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

silicone along the connection of both U-Channels to
the wall and ledge on the inside of shower.

See Fig. 16 for details.

ATTENTION:
Prior to the next step, please be sure the part of the
wall and glass edge for installation of the L-shaped
strip*(08) is clean, dry and free from soap, oil and
any construction debris.

on the vertical edge of the
Stationary glass (11) so that
the door glass rests flush
against it in the closed position.
Ensure that the bottom of the
L-Shaped strip makes contact
with the threshold rather than
aligning the top of the strip to
the top of the Stationary glass.
Note the position on the wall
then gently remove the plastic
tape from the adhesive side of
the L-shaped strip. Firmly
press it onto the vertical edge
of the Stationary glass and to
the surface of the half wall.

See Fig. 17 for details.

16

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream
based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal
brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry).
To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain
scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or
corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth.
Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish
to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth,
steel wool or wired brush as these may permanently scratch the surfaces.

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016

17

TEL: [phone]

FAX: [phone]

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com

“UNIDOOR (STYLE G)” Ver 1 Rev 5 06/2016
