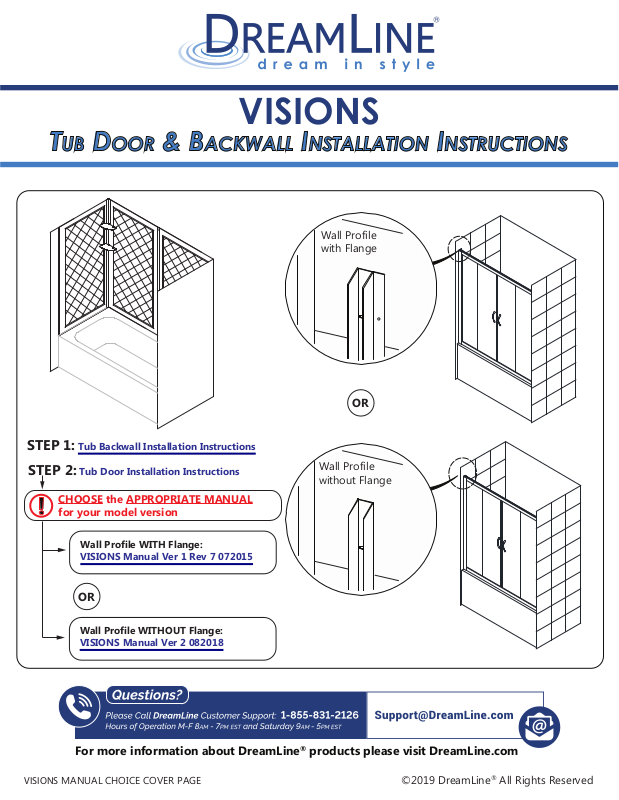

DreamLine DLN3265 Installation & Assembly

VISIONS

TUB DOOR & BACKWALL INSTALLATION INSTRUCTIONS

Wall Profile with Flange

OR

STEP 1: Tub Backwall Installation Instructions

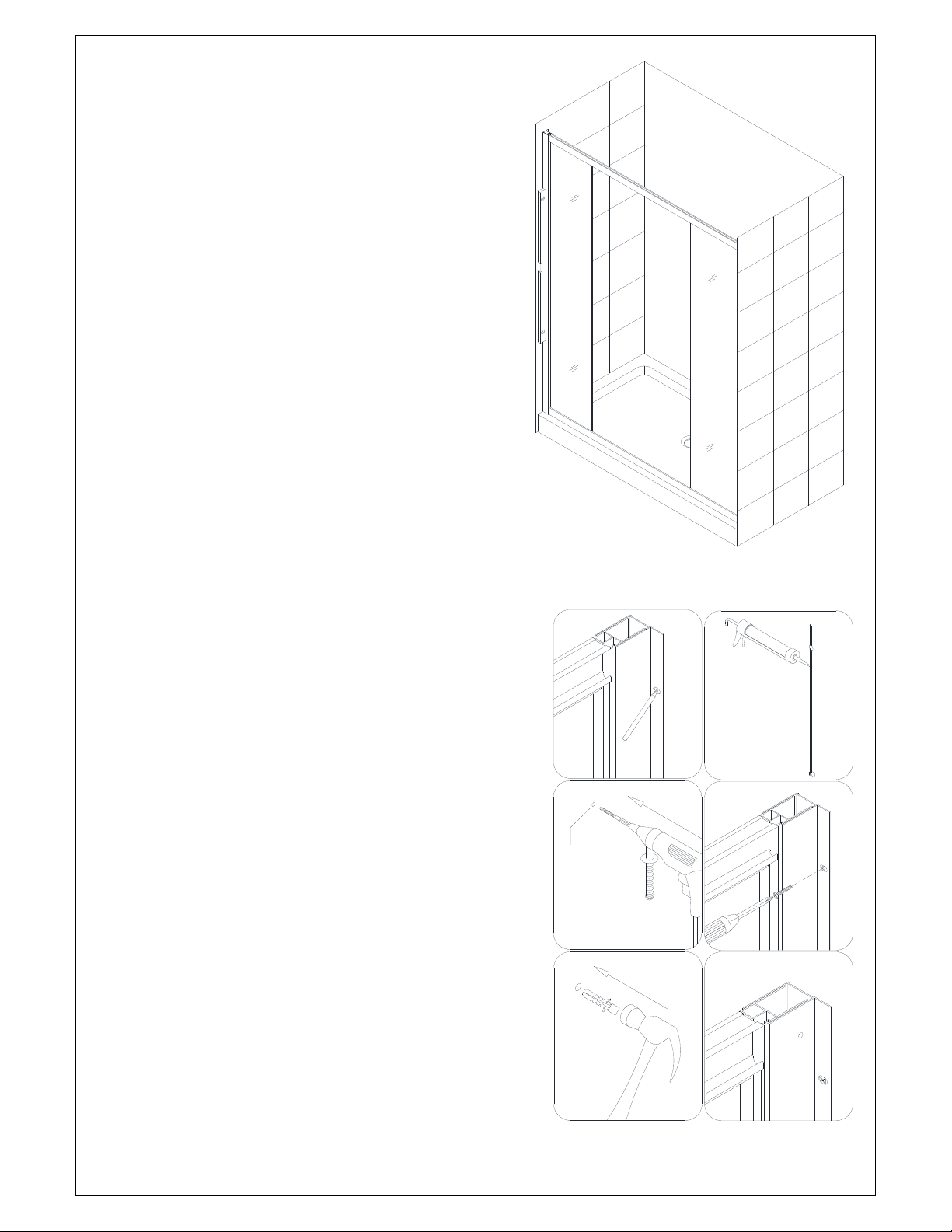

STEP 2: Tub Door Installation Instructions

CHOOSE the APPROPRIATE MANUAL

!

for your model version

Wall Profile WITH Flange:

VISIONS Manual Ver 1 Rev 7 072015

OR

Wall Profile WITHOUT Flange:

VISIONS Manual Ver 2 082018

Wall Profile without Flange

For more information about DreamLine® products please visit DreamLine.com

VISIONS MANUAL CHOICE COVER PAGE

Q-WALL TUB BACKWALL

ACRYLIC BACKWALL INSTALLATION INSTRUCTIONS

IMPORTANT

®

DreamLine For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com

reserves the right to alter, modify or redesign products at any time without prior notice.

MODEL #s

SHBW-1360603-01

For more information about DreamLine

Q-Wall Tub manual Ver 1 Rev 2 11/2017

®

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

Table of Contents

Section title

Preparation Tools

Detailed Diagram of Shower Wall Components

Parts List

Installation Steps

Tub Glass Shelves Installation (optional)

Product Maintenance

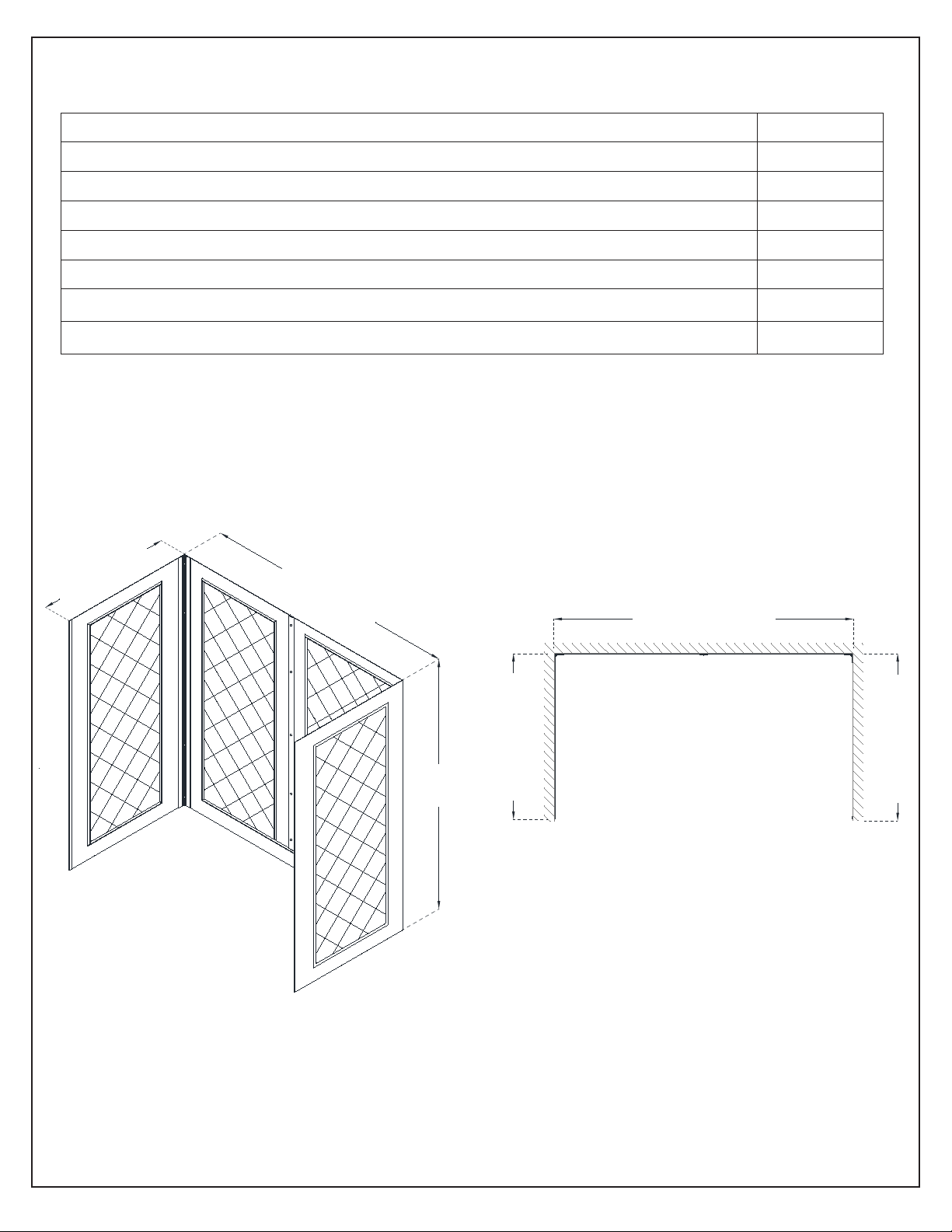

Overall Dimensions

56"--- 60"

28"--- 32"

Page #

2

3

4

5

6-18

19

21

56"--- 60"

Q-Wall Tub manual Ver 1 Rev 2 11/2017

60"

28"--- 32"

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with the packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the necessary parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business

days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed.

®

Contact DreamLine other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine not responsible for code compliance standards for your project and will not accept any returns.

3. This acrylic wall system is specially designed to be installed over any solid surface. If you are installing the acrylic walls over the existing tiles, remove all loose tiles before the installation. If you are installing over the existing painted walls, remove all loose paint. Note that some cutting and drilling will be necessary during the installation process.

if you have any questions, and please provide an order number, job name or

®

is

4. Make sure to turn off the water supply, remove faucet, handles or any fixture trims protruding from the wall. Remove any soap film and dirt from all wall surfaces using regular household detergent, then wipe dry.

5. If this unit is going to be installed in a new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.

6. Side walls must be trimmed to size in most cases (straight edge and a razor knife or other tool suitable for trimming acrylic). Use a straight edge and score the acrylic wall several times to cut to size.

7. Use an adhesive that is safe to use with acrylic walls: i.e. LN715, LN915 etc. Use caulk to seal around the bottom/ top edges, top corners and around any fixture cutouts.

8. Designed to be installed over drywall or tile—not intended for installation against bare

studs.

9. Making cutouts for shower fixtures will not void the warranty. However making cutouts for window openings will void the warranty.

10. Professional installation recommended.

2Q-Wall Tub manual Ver 1 Rev 2 11/2017

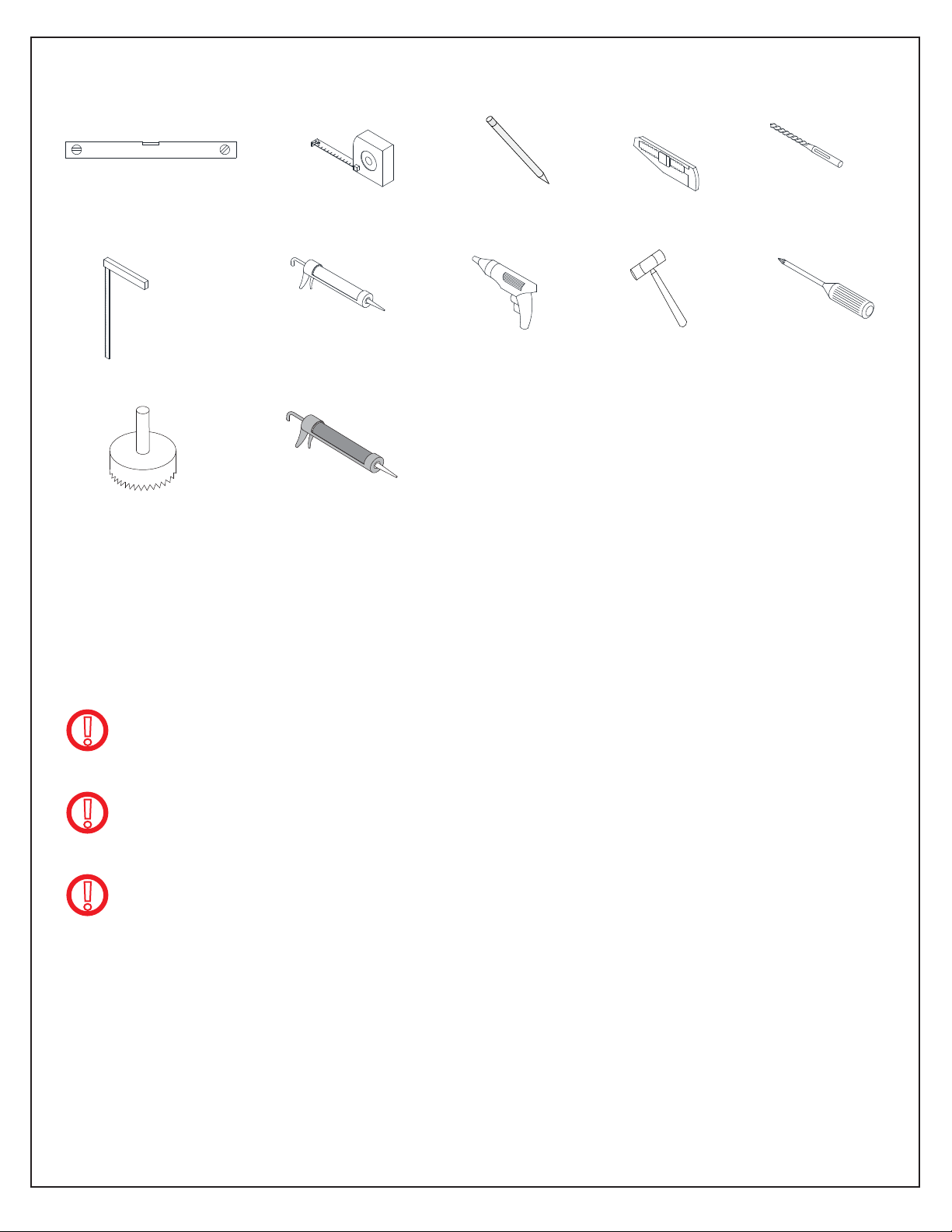

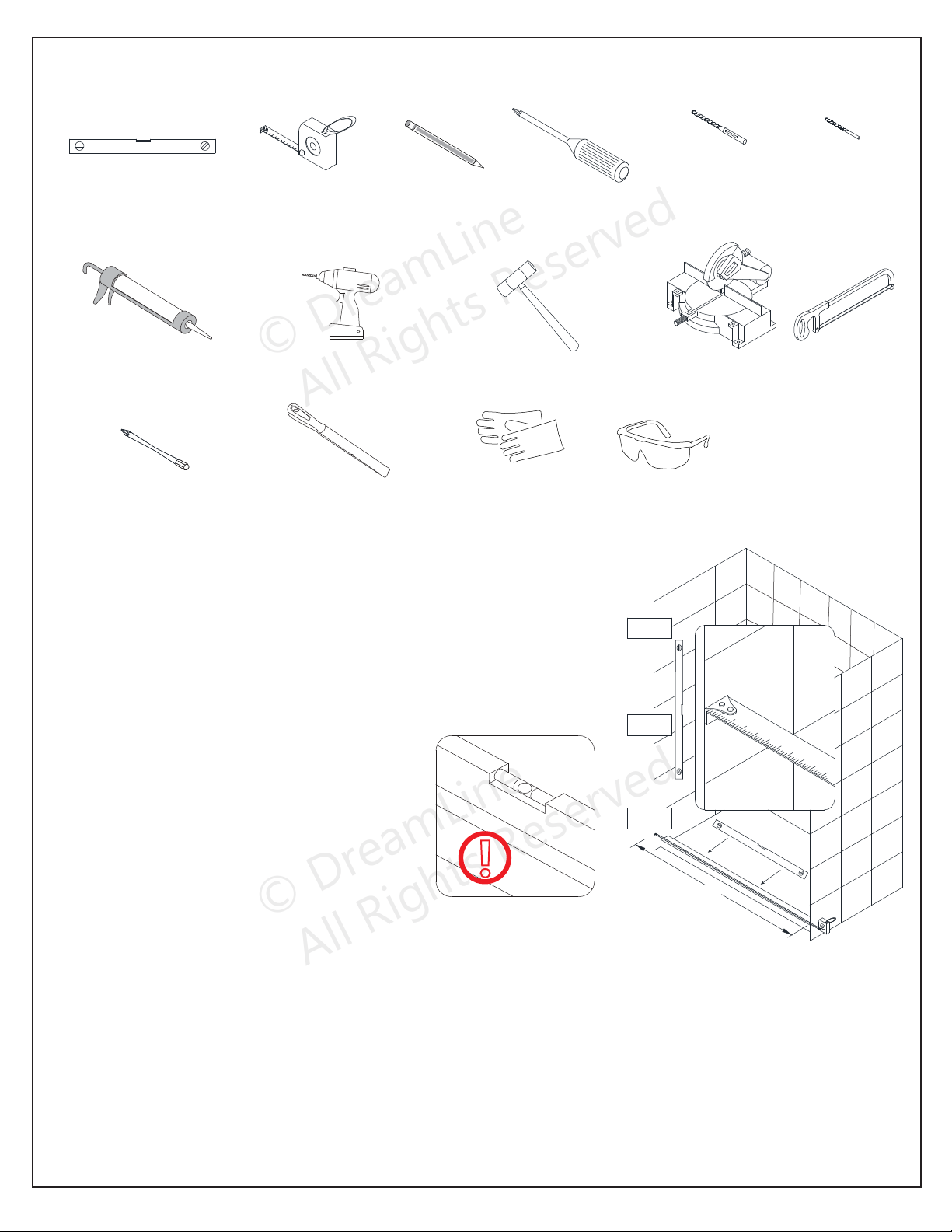

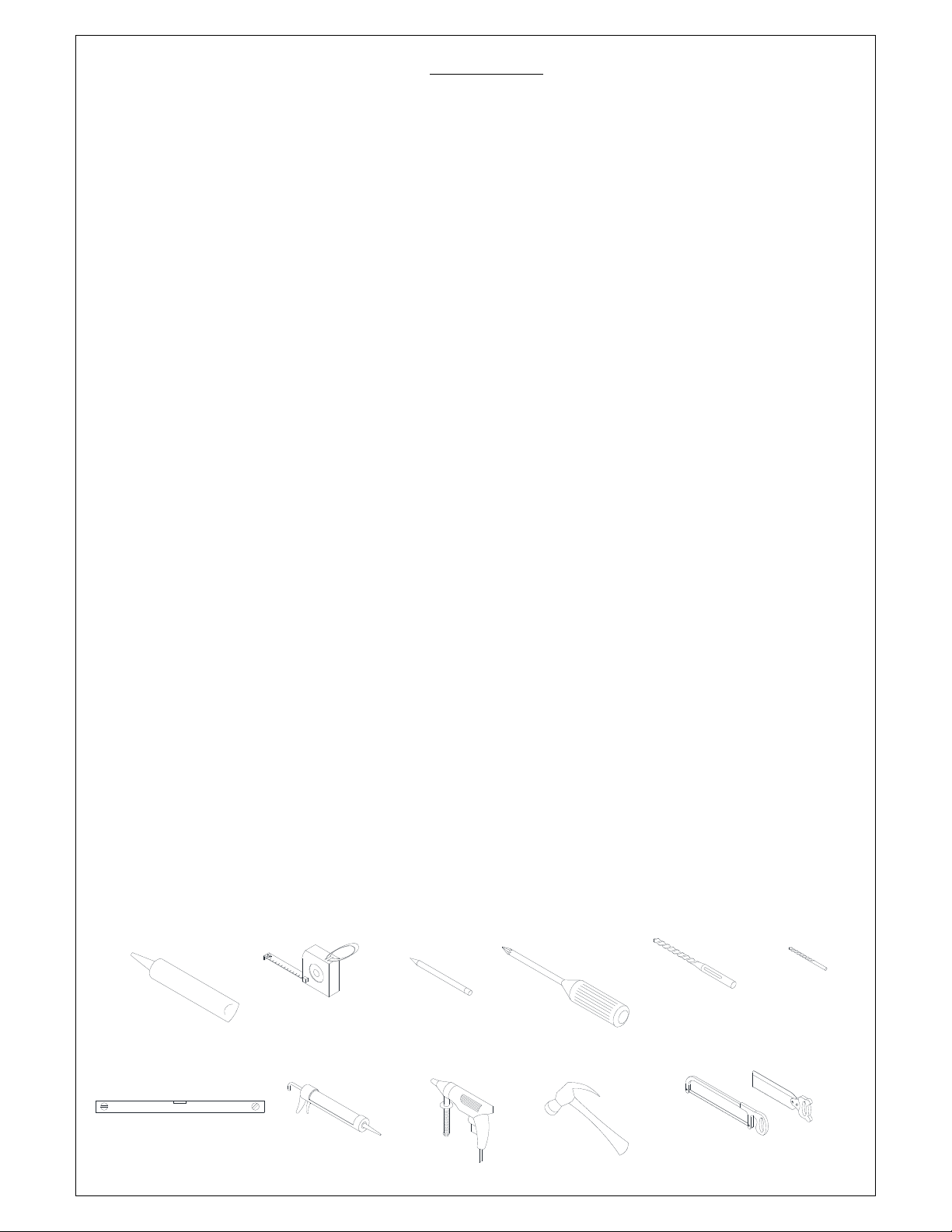

Tools

Level

T-Square

Hole Saw

Tape Measure

Caulk

(acrylic safe) Adhesive

Power Drill

Pencil

Knife

Hammer

Drill bit

(Ø 5/16")

Phillips Screwdriver

Tip: Measure the opening before proceeding with the installation

!

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine your model configuration.

NOTE: Retain these installation instructions for future reference.

to be sure that the correct model size has been ordered.

Tip: Prior to installation, cover the shower/tub drain

with tape to prevent losing screws or small parts.

Tip: Set screw gun clutch to low setting when installing screws and bolts to prevent stripping the heads.

®

for replacement. The shipping boxes may contain extra parts not used in

Q-Wall Tub manual Ver 1 Rev 2 11/2017

3

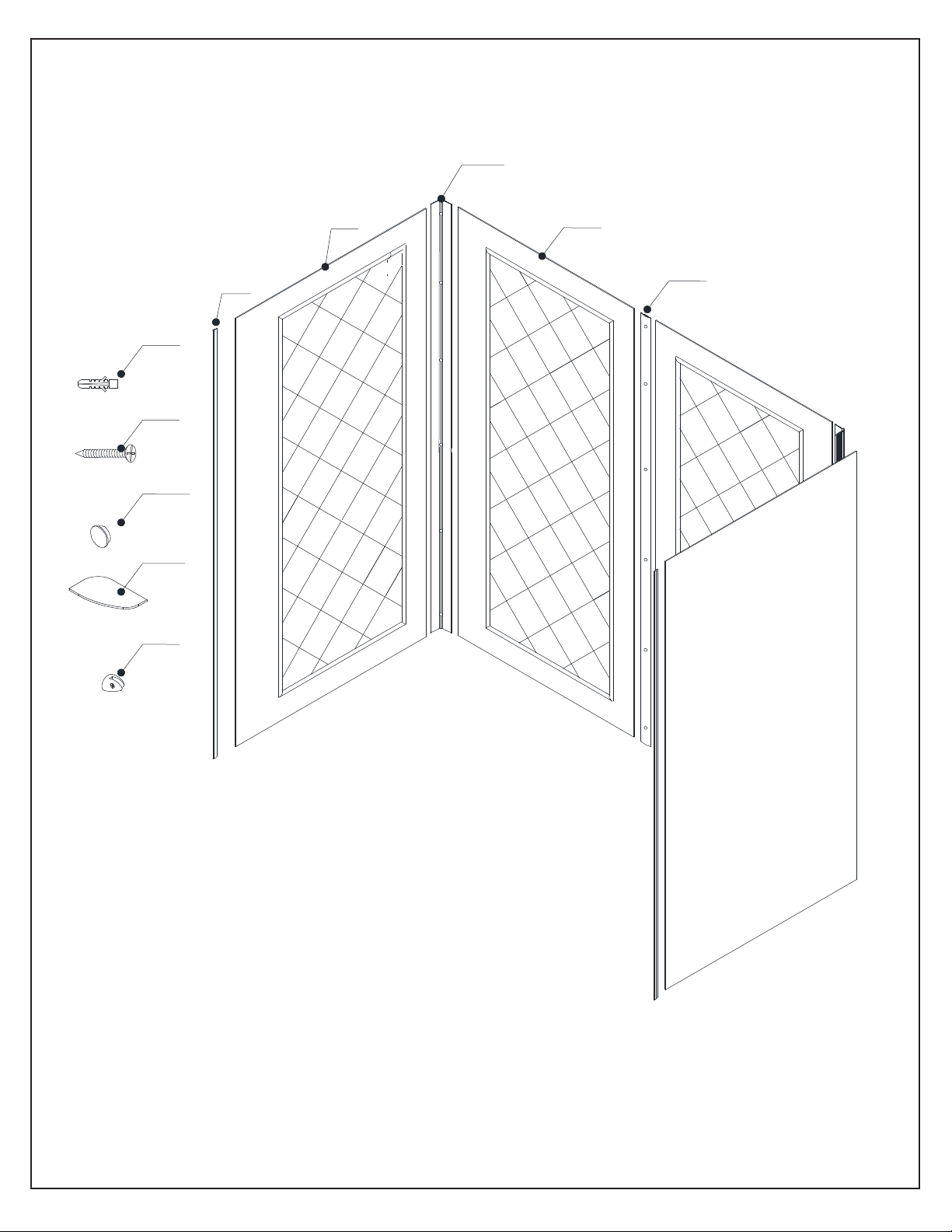

Detailed Diagram of Shower Wall Components

4

6

7

8

9

10

3

1

2

5

Q-Wall Tub manual Ver 1 Rev 2 11/2017

4

Parts List

ITEM #

01

02

03

04

06

07

08

PART NUMBER

030006

030005

060006000-1524

04059021-1524

04058021-1524

07550045

091101

07552010

DESCRIPTION

Side panel

Back panel

Decorative edge molding

Corner cover

Center cover 05

Wall anchor

Countersunk screw ST4.2×30

Decorative cover

QTY

2pcs

1pc

21pcs

15pcs

09

10

017000001

07011029

Glass shelf

Shelf bracket

2pcs

6pcs

Q-Wall Tub manual Ver 1 Rev 2 11/2017

5

Installation steps

1. Measure the distance of the back wall of

the tub from corner to corner. Record this measurement as “W”.

(Fig 1)

W

Fig 1

2. Divide the “W” measurement in half (W/2).

Draw a plumb line to mark the center of the back wall (Fig 2)

W/2

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 2

6

3. Measure the side walls from the corner to the front

point where the Side Panel (#01) will be trimmed to size. Record this measurement as “D”. (Fig 3)

D

4a. Measure 1” from the corners and draw plumb,

vertical reference lines on the walls at both corners.

(Fig 4a )

Fig 3

Draw plumb Vertical Reference lines 1” from the corners

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 4a

7

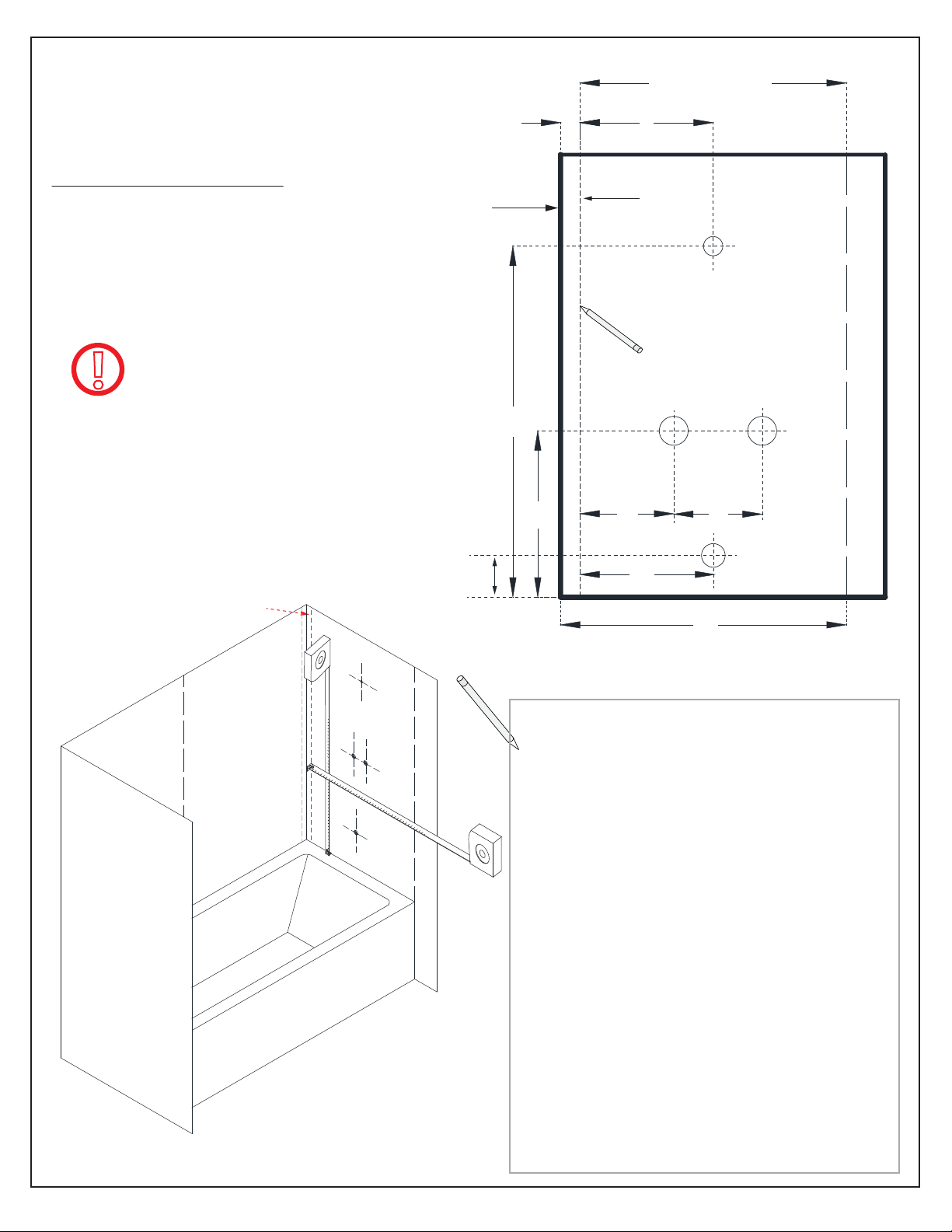

4b. Measure the location of the holes on the wall

where the fixtures will be installed. Use these measurements to drill the cutouts in the corresponding Side Panel (#01) in Step #17.

S

A1"

= (D-1”)

Take exact measurements:

• from the vertical reference line to the center of the fixture holes: (A, B, C, G)

• from the tub deck up to the center of the fixture holes: (E, F, H). (Fig 4b)

Note: This diagram represents the wall,

!

Measure from the Vertical Reference line 1” from corner

not the acrylic side panel.

Note:

This diagram represents a typical fixture hole layout.

back corner of walls

H

E

F B

Vertical Reference line 1” from corner

Measure the fixture locations on the wall

G

Trim line

C

D

Fig 4b

Record all applicable dimensions here:

A _______________________

B _______________________ lever

C _______________________ lever

D _______________________

S (D-1”)_________________

E _______________________

F _______________________

G _______________________

H _______________________

shower head

trim line

tub filler

Right side wall fixtures shown as an example

Q-Wall Tub manual Ver 1 Rev 2 11/2017

These dimensions will be used in Step#17 to drill the holes into the acrylic Side Panel (#01)

.

8

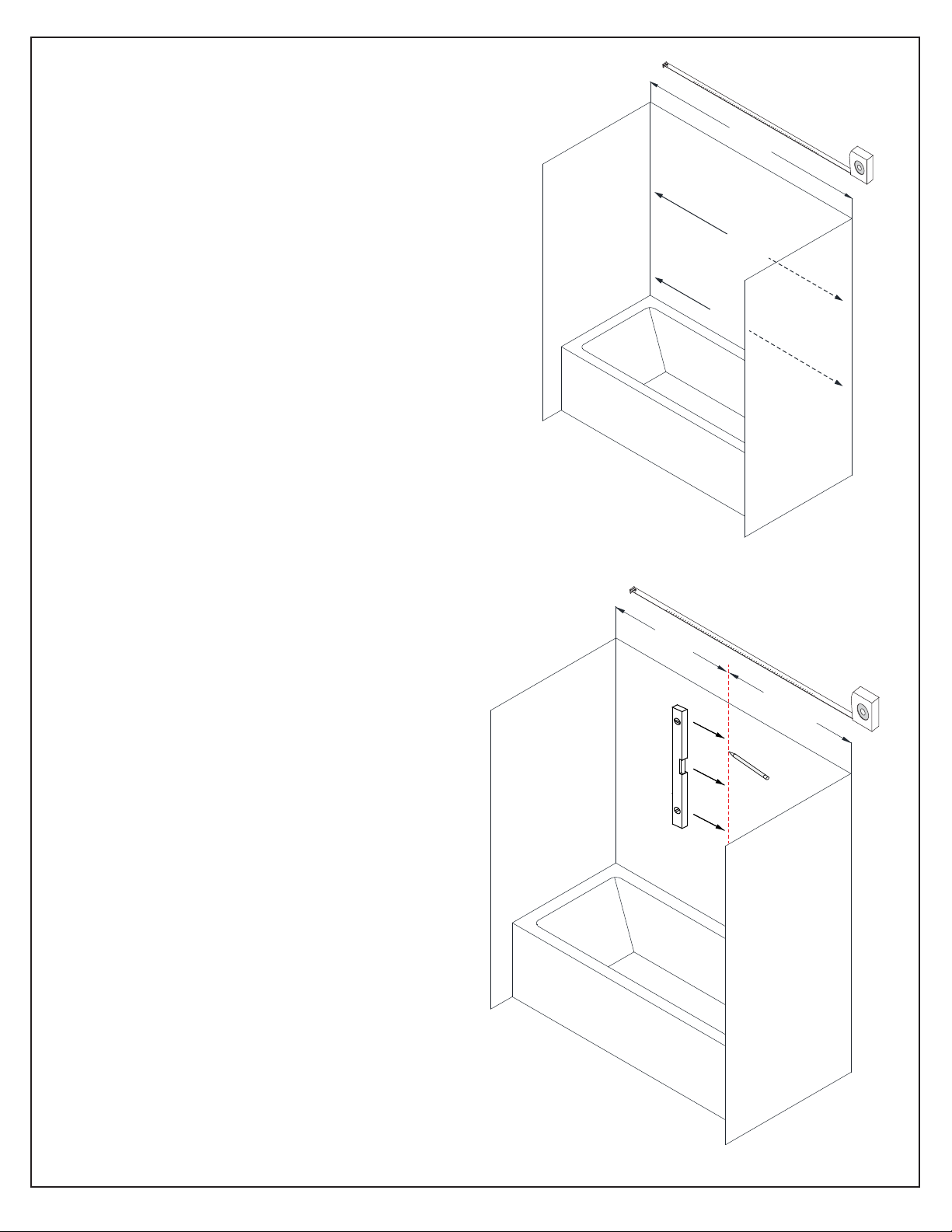

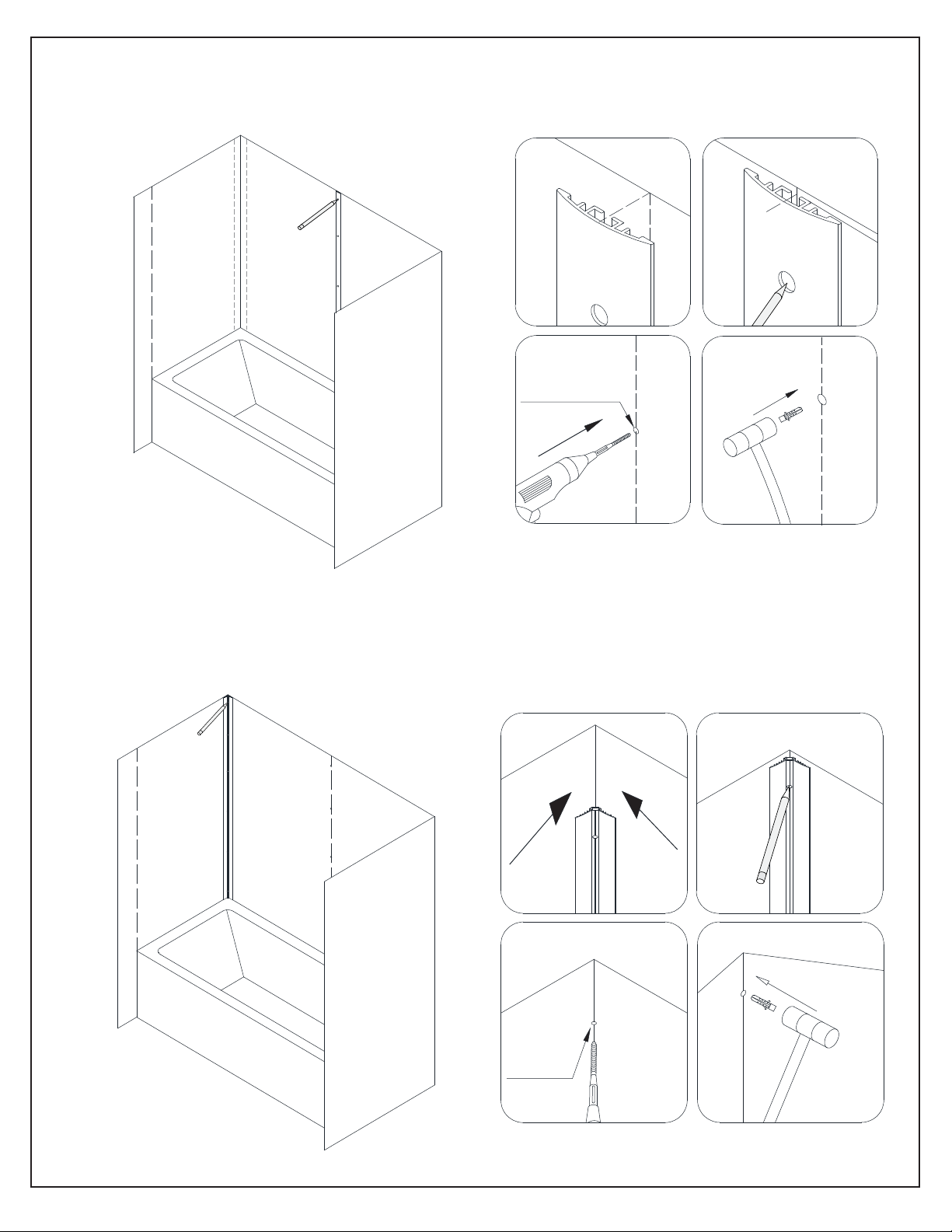

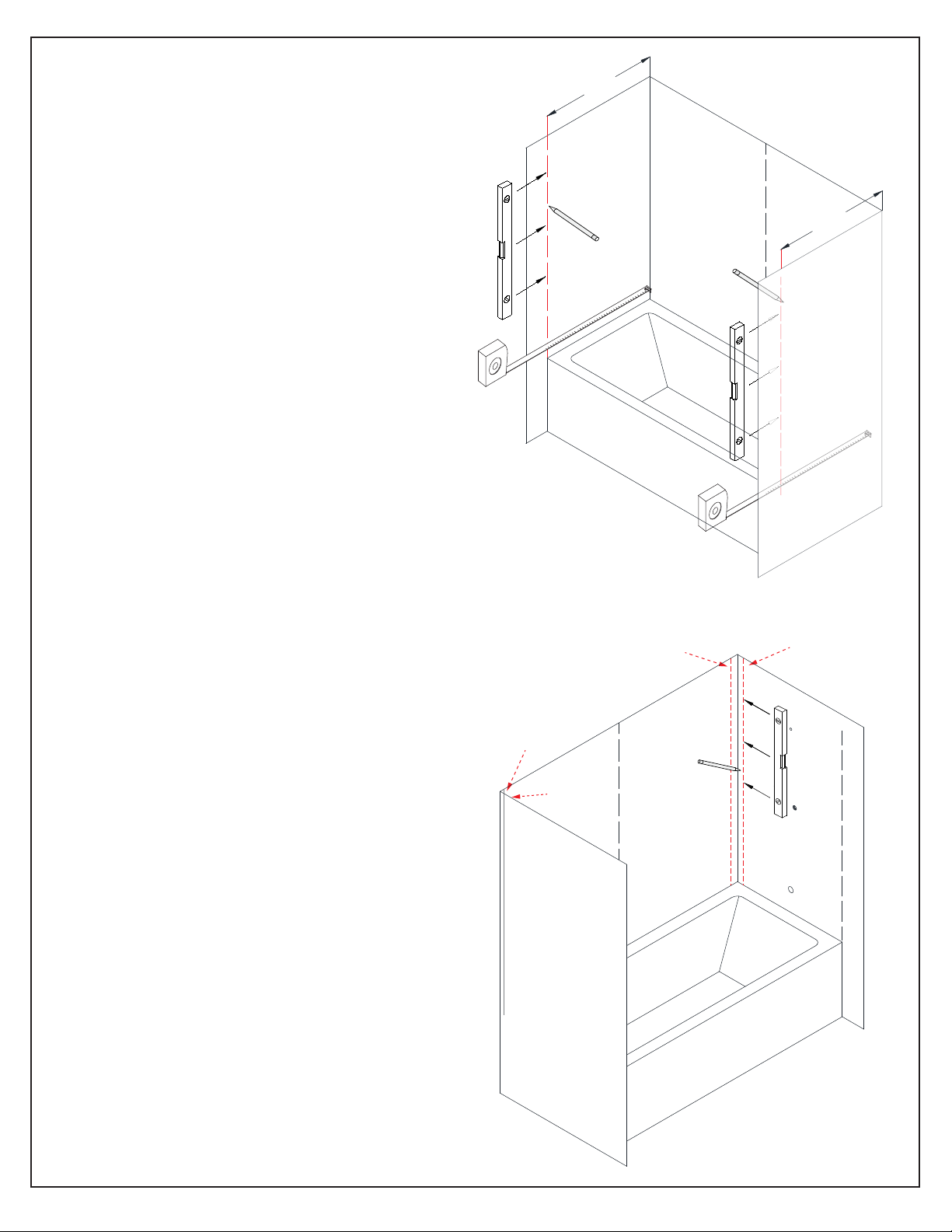

5. Place the Center Cover (#05) vertically on the back wall centerline (from Step#2) and mark the drilling

holes through the predrilled holes in the Center Cover (#05). Drill the holes using a Ø5/16” drill bit and insert the Wall Anchors (#06). (Fig 5a and Fig 5b)

Fig 5a

Ø5/16”

1

3

Fig 5b

2

4

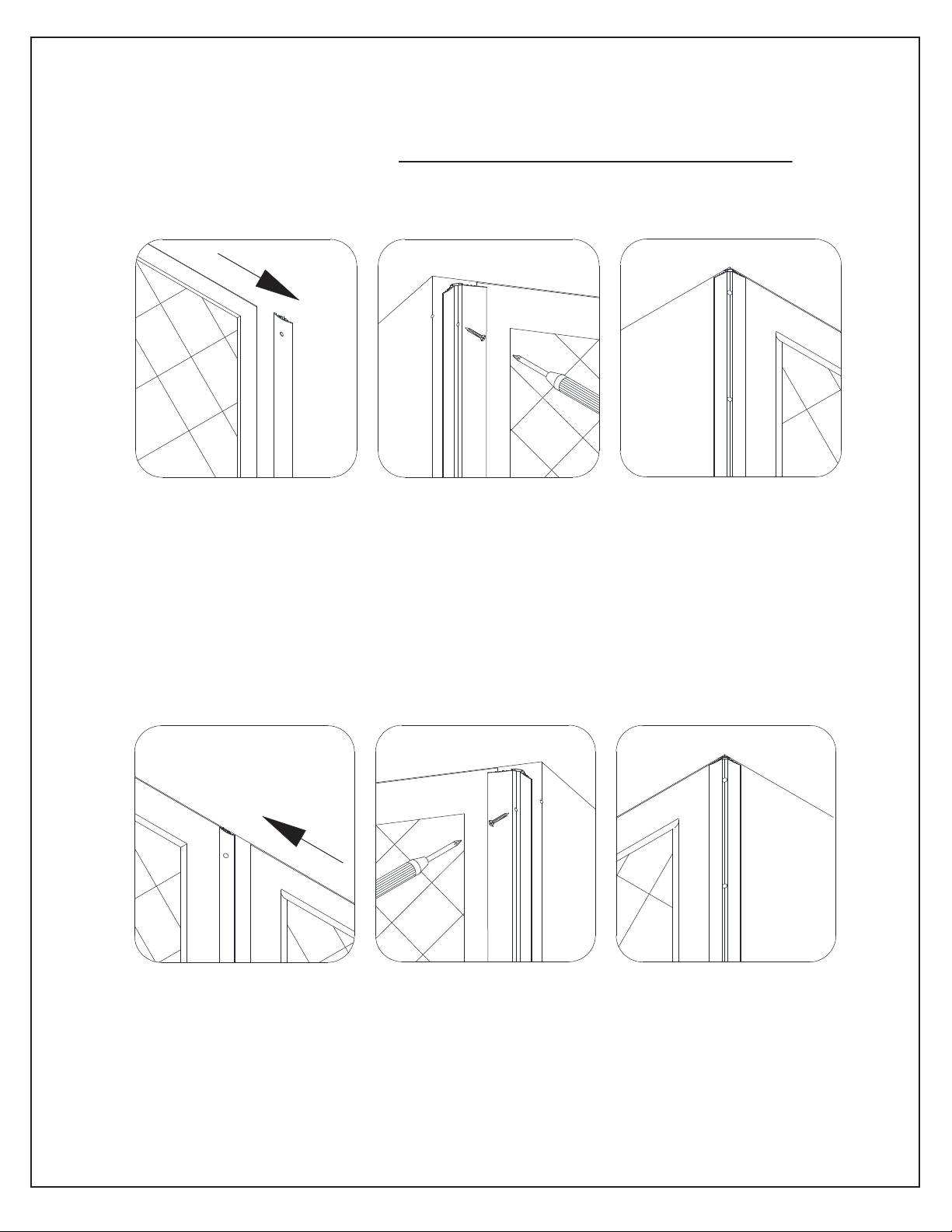

6. Place the Corner Cover (#04) to the corner of the wall and mark the drilling holes through the

predrilled holes in the Corner Cover (#04). Drill the holes using a Ø5/16” drill bit and insert the Wall Anchors (#06). (Fig 6a and Fig 6b)

1

3

Ø5/16”

2

4

Fig 6a Fig 6b

Q-Wall Tub manual Ver 1 Rev 2 11/2017

9

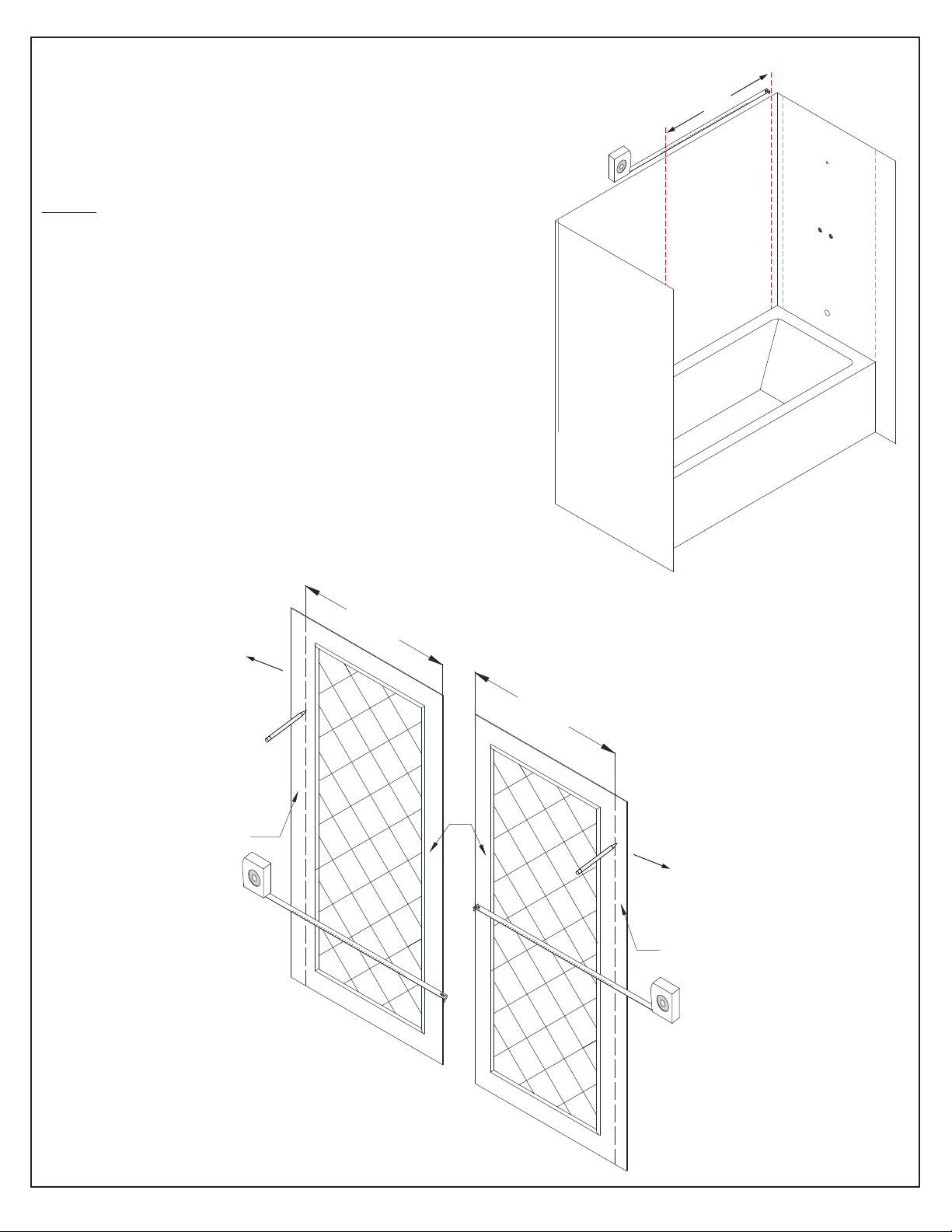

7. Determine the finished cut size for both Back Panels (#02).

1” reference line

(If the finished overall width of the back wall= 59-1/2” from corner-to-corner, then it will not be necessary to trim the back panels. Proceed to Step #9).

NOTE: (a) = Narrow edge (3-3/8”) toward the center line on the back wall. (do not trim this edge) (b) = Wider edge (4-5/8”) toward the corner of the back

wall. (trim this edge only)

Measure the back wall from the 1” reference line in the corner to the center line drawn in Step# 2. This will be dimension “L”. Trim the back panel to this dimension, cutting from the wider edge (b) of the back panel only.

(Fig 7a)

Place a mark on the wider (b) edge of the Back Panel (#02) with a distance of “L” from the (a) edge of the Back Panel (#02). Use a straight edge and draw a straight cut line from top to bottom. (Fig 7b)

centerline

L

Fig 7a

this edge to corner

b

L

these edges to center

L

a

this edge to corner

b

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 7b

10

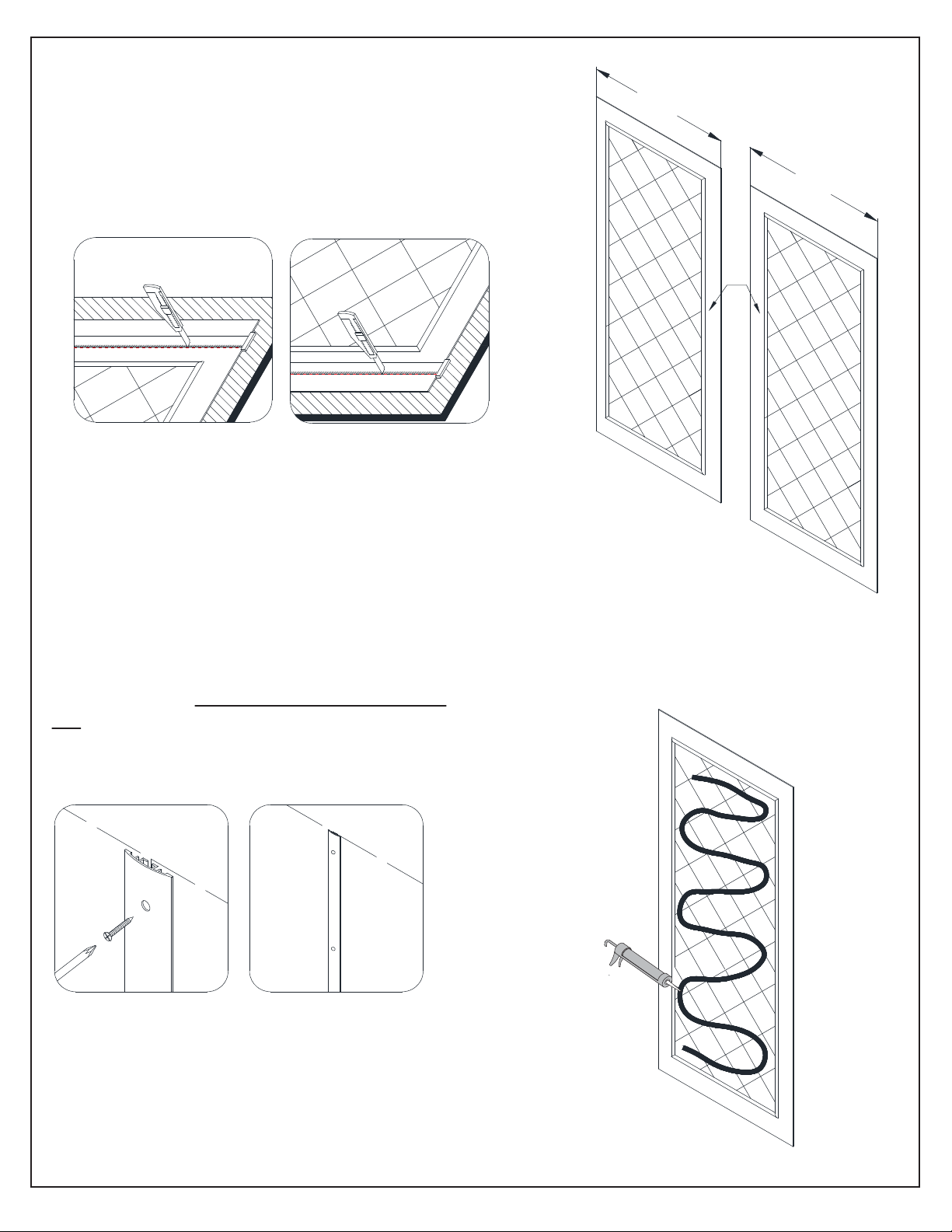

8. Place the Back Panel (#02) onto a flat piece of

plywood or particle board. Use a T-square and a sharp industrial knife to score along the cut lines (from the previous step) on the Back Panel (#02) and continue scoring until fully cut through the panel.

(Fig 8a and Fig 8b)

L

1

2

Fig 8a

9. Install the Center Cover (#05) to the center of

the back wall using the Countersunk Screws ST4.2×30 (#07). Do not fully tighten the screws

yet. Leave the Center Cover (#05) loose on the wall for now. (Fig 9)

a

Fig 8b

10. Apply adhesive to the entire back surface

of the left Back Panel (#02). (Fig 10)

1

Fig 9

Q-Wall Tub manual Ver 1 Rev 2 11/2017

2

Fig 10

11

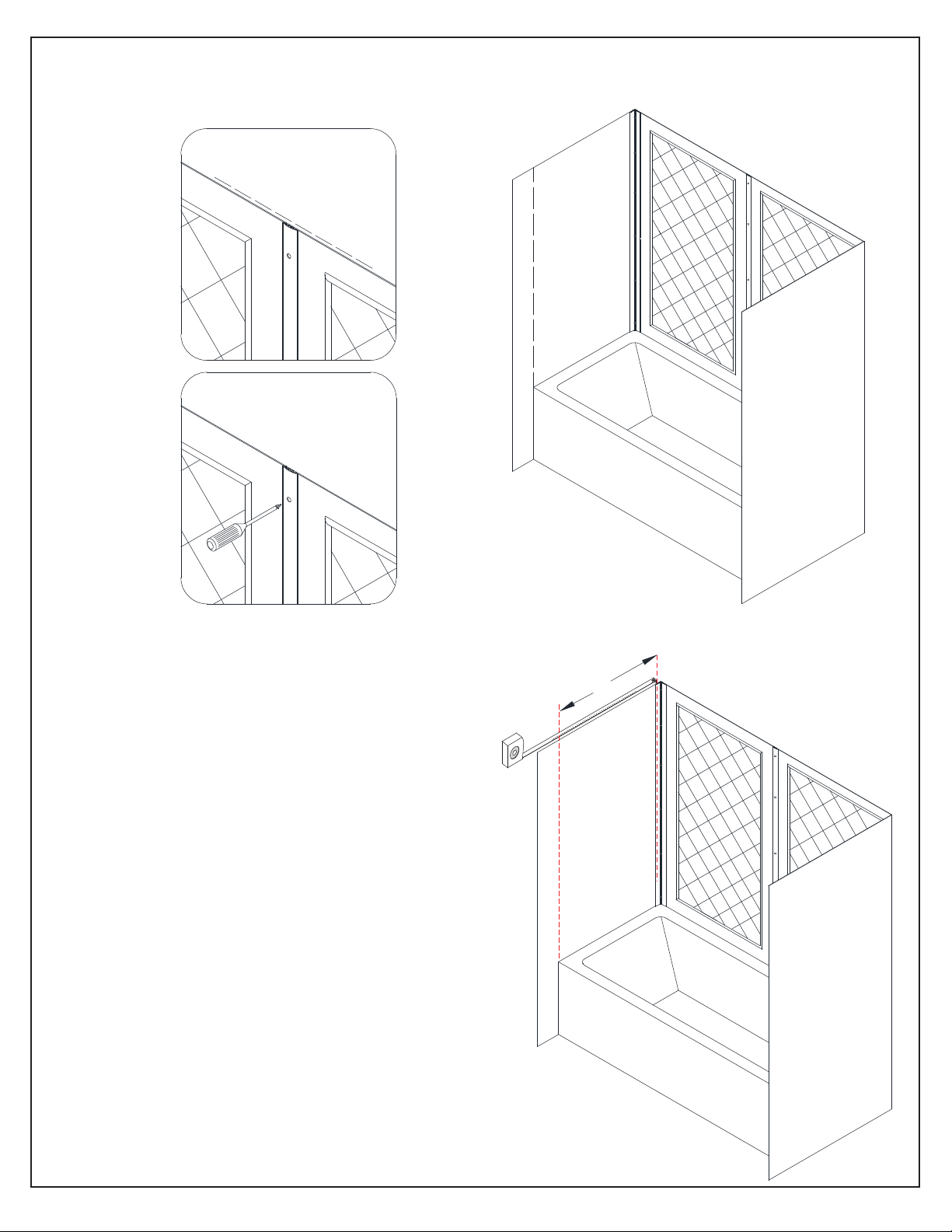

11. Slide the right edge of the left Back Panel (#02) behind the Center Cover (#05) and push the Back

Panel (#02) flat against the wall up to the 1” vertical reference line in the corner. Adjust the position of the Back Panel (#02) before the adhesive sets. Apply equal pressure to the whole surface of the Back Panel (#02) from top to bottom. Fasten the Corner Cover (#04) to the left corner of the backwall using

the Countersunk Screws ST4.2×30 (#07). Do not fully tighten the corner cover screws yet. (Fig 11)

1

2

3

Fig 11

12. Repeat Step#10 and Step#11 to install the right Back Panel (#02) to the right side of the back wall.

(Fig 12)

Q-Wall Tub manual Ver 1 Rev 2 11/2017

4

Fig 12

5

6

12

13. Align both Back Panels (#02) at the top and tighten the screws on the Center Cover (#05) to

secure this assembly in place. Do not tighten the screws on the corner covers yet. (Fig 13a and Fig 13b)

1

2

Fig 13a

Note: Refer to the “D” dimension from Step #3 to

determine the finished cut size “S” for the Side Panel (#02) in the next steps. (D - 1” = S)

14. Measure from the 1” reference line to the D

dimension line from Step #3. This will be dimension “S”. (Fig 14)

Trim line

Fig 13b

1” reference line

S

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 14

13

15.

Mark the finished cut size “S” for both Side

Panels (#01).

NOTE: (a) = Narrow edge (3-3/8”) toward the corner reference line (do not trim this edge)

(b) = Wider edge (6-3/8”) toward the outside of the

side wall. (trim this edge only)

these edges to the corners

S

Trim the side panels to the “S” dimension, cutting from the wider edge (b) of the side panels only.

Place a mark on the wider edge (b) of the Side Panel (#01) to the dimension of S from the corner side of the Side Panel (#01) to the front edge and draw a straight cut line from top to bottom. (Fig 15)

b

this edge to outside

16. Place the Side Panel (#02) onto a flat piece of plywood or

particle board. Use a T-square and a sharp industrial knife to score along the cut lines (from the previous step) on the Side Panel (#02) and continue scoring until fully cut through the panel. (Fig 16a and Fig 16b)

Fig 15

S

a

b

this edge to outside

S

1

Fig 16a

Q-Wall Tub manual Ver 1 Rev 2 11/2017

2

a

Fig 16b

14

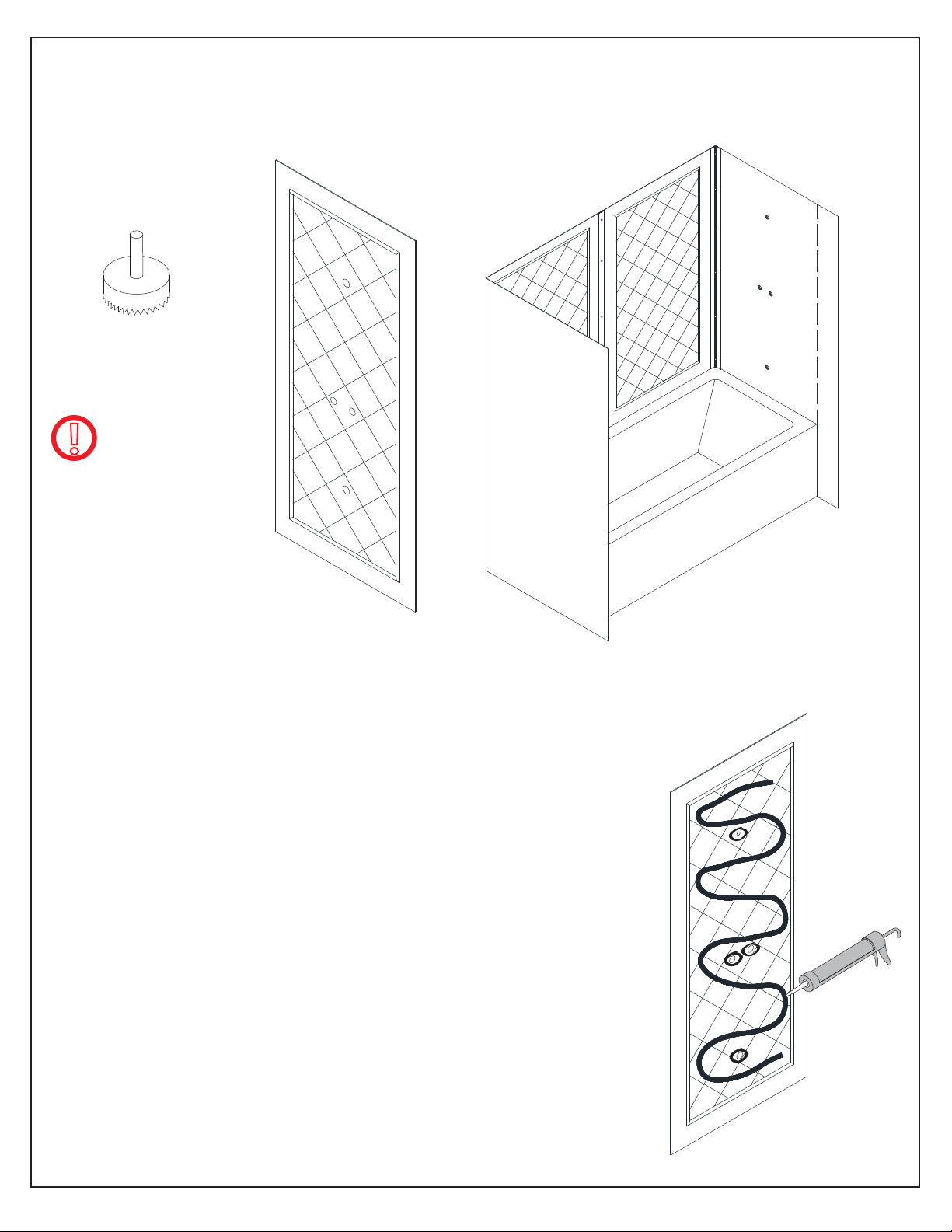

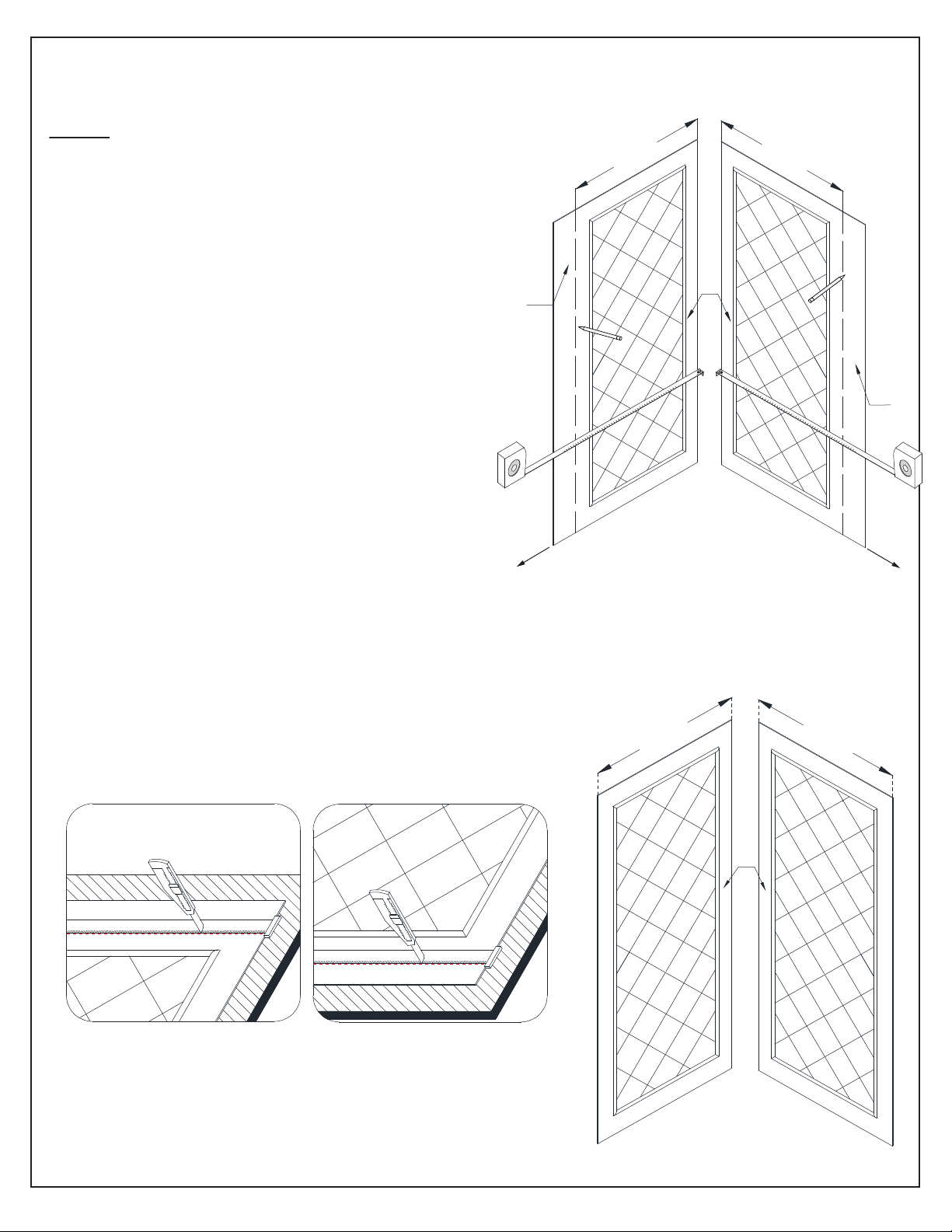

17. Transfer the fixture hole measurements (from Step #4) onto the Side Panel (#01) that will be

installed onto the wall with the fixtures. Drill the holes in the Side Panel (#01) using the appropriate diameter hole saw or a handheld jig saw. (Fig 17a and Fig 17b)

Hole Saw

!

NOTE: Be sure to drill the

holes on the correct surface of the side panel to match the dimensions from Step#2

Fig 17a Fig 17b

18. Apply adhesive to the entire back surface of the Side Panel (#01)

and around the drilled fixture holes. (Fig 18)

Right side wall fixtures shown as an example

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 18

15

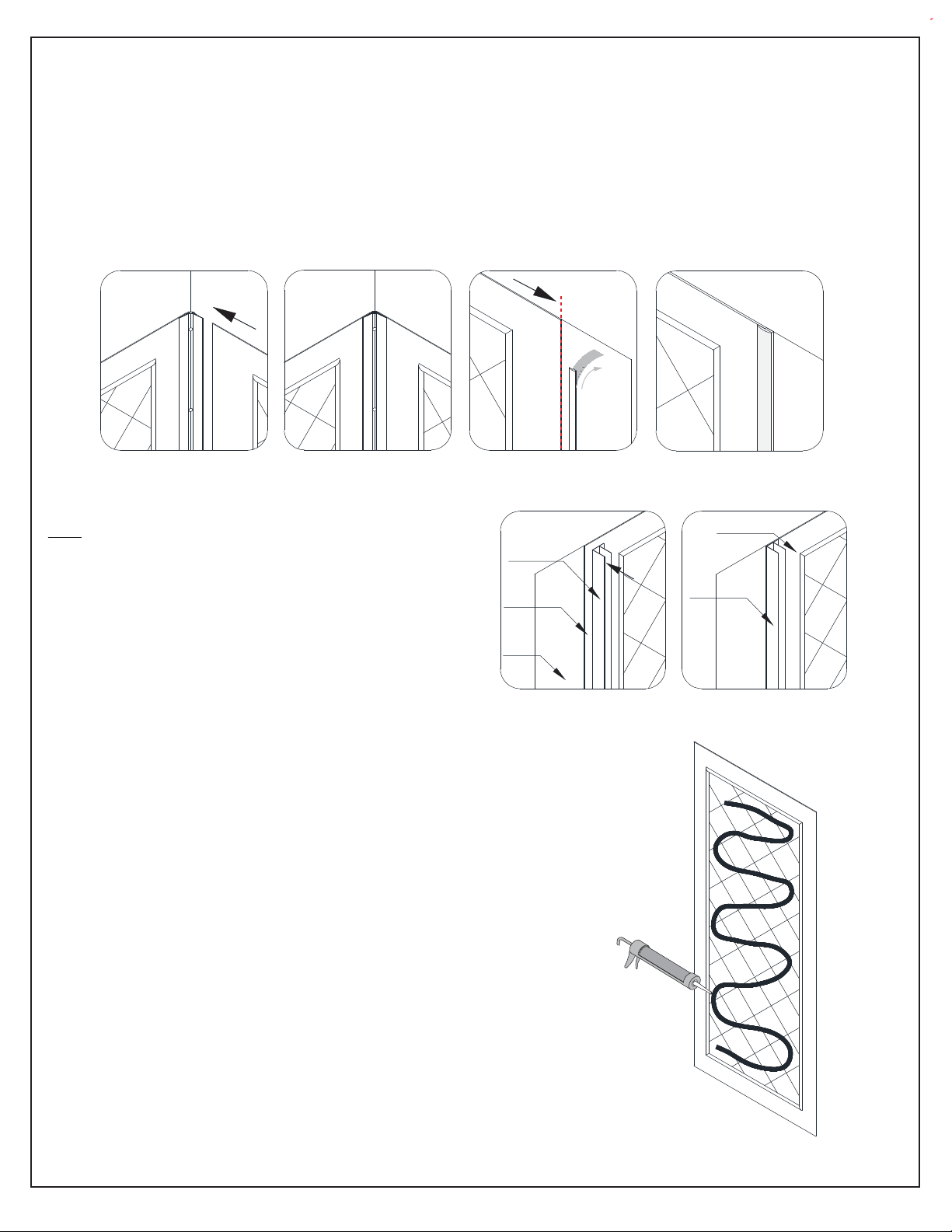

19. Slide the edge of the Side Panel (#01) behind the Corner Cover (#04) and push the Side Panel

(#01) flat against the wall up to the vertical reference line toward the outside of the tub (Fig. 19a.3).

Align the top of the Side Panel (#01) with the Back Panel (#02) before the adhesive sets. Apply equal pressure to the whole surface of the Side Panel (#01) from top to bottom.

*Peel off the adhesive tape on the back side of the Decorative Edge Molding (#03) and attach it to the front edge of the Side Panel (#01). Apply pressure to the Decorative Edge Molding (#03) from top to bottom. (Fig 19a)

1 2

Fig 19a

TIP:

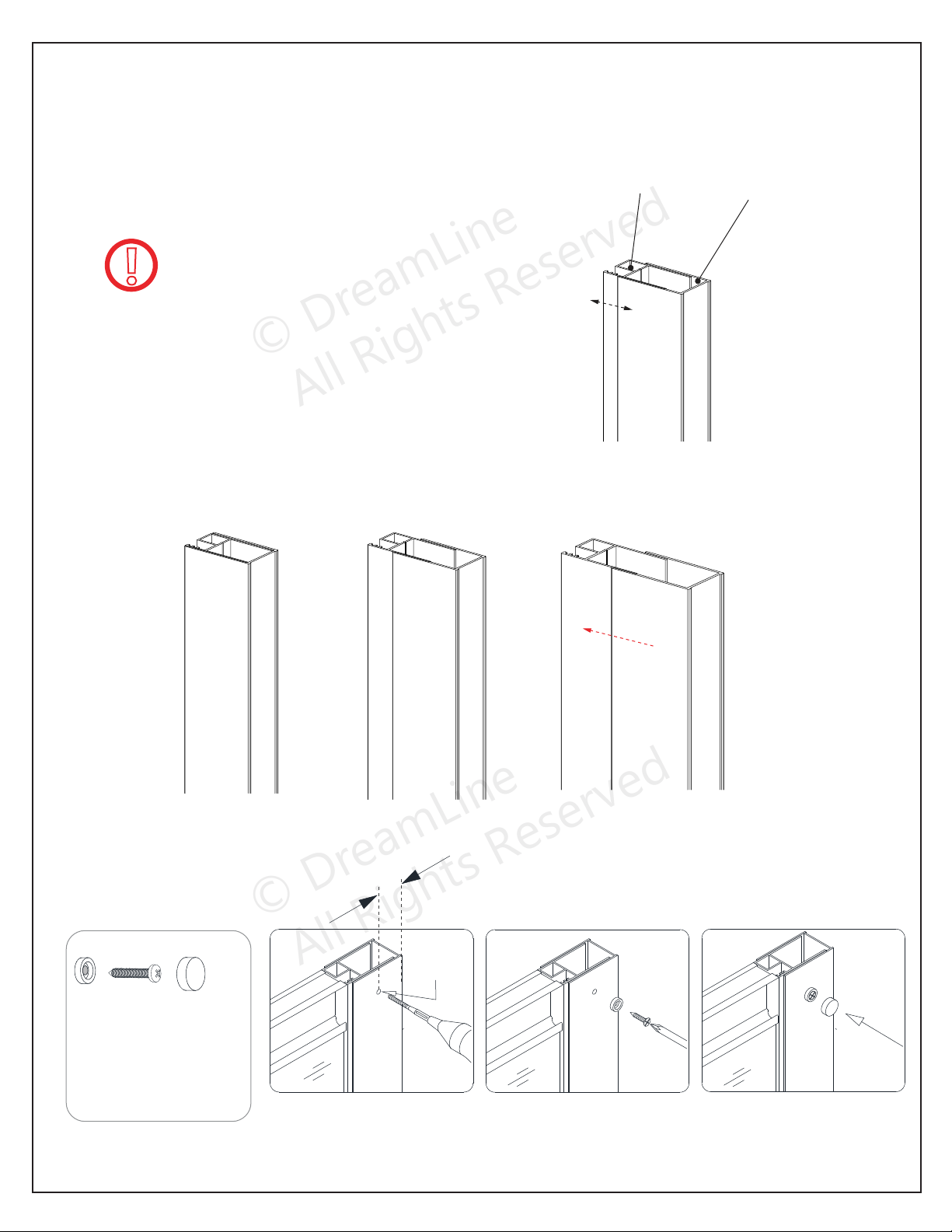

*If also installing a shower door, the wall profile

can be installed to hide the edge of the Side Panel (#01) behind the wall profile and not use the Decorative Edge Molding (#03). (Fig 19b)

1

Wall Profile

Side Panel

Wall

3

Fig 19b

Side Panel

2

Wall Profile

4

20. Apply adhesive to the entire back surface of the Side Panel (#01)

for the opposite side wall installation. Use the same technique to apply pressure over the entire surface and make the top edge even with the adjacent acrylic wall panel. (Fig 20)

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 20

16

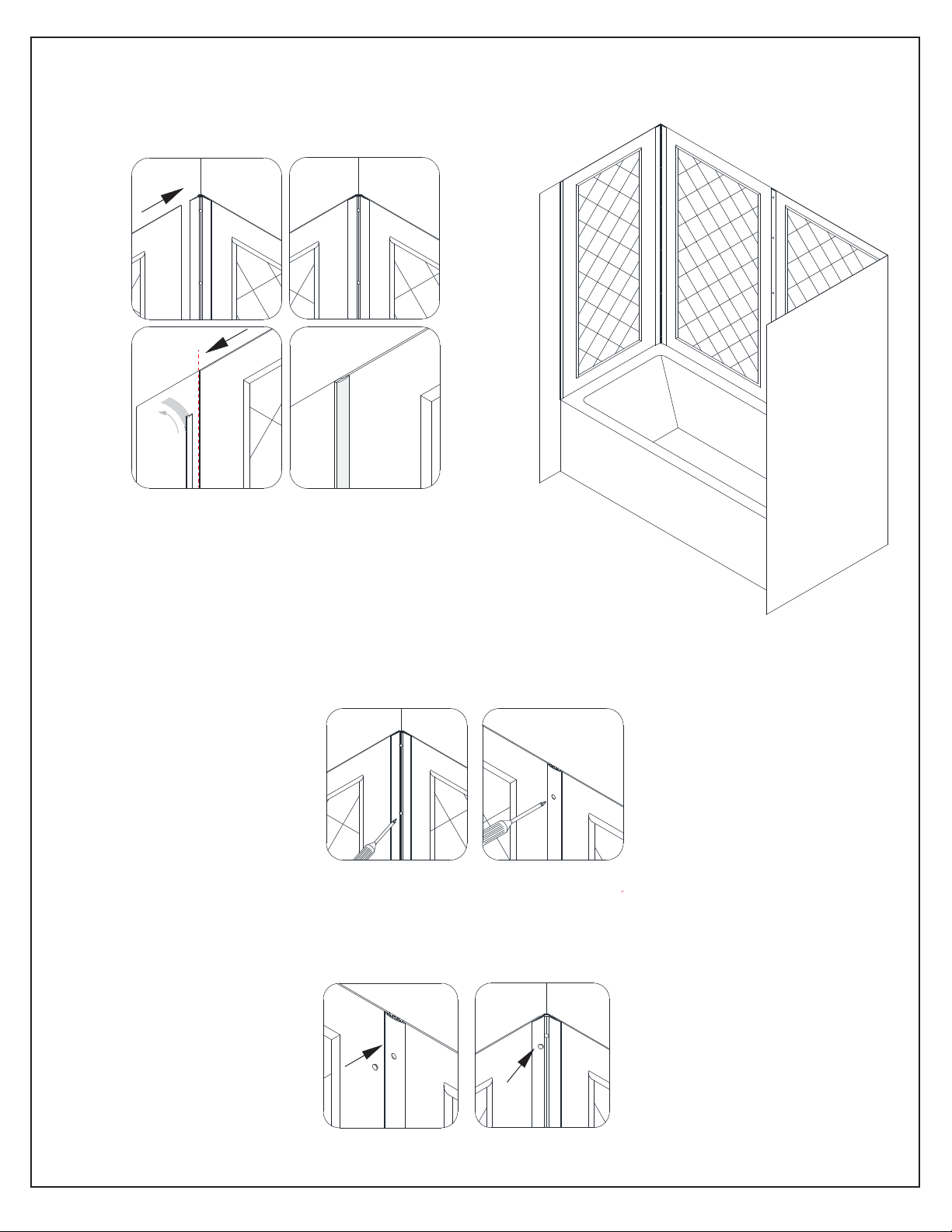

21. Repeat Step#18 to install the second Side Panel (#01), tucking the Side Panel (#01) behind

the corner cover and fully tightening the screws. (Fig 21a and Fig 21b)

1

3

2

4

Fig 21a

Fig 21b

22. Tighten the screws for the Corner Covers (#04) and the Center Cover (#05) to secure the Side

Panels (#01) and the Back Panels (#02) in place. (Fig 22)

Fig 22

23. Use the Decorative Covers (#08) to cover the screw holes in the Corner Covers (#04) and the

Center Cover (#05). (Fig 23)

1

2

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 23

17

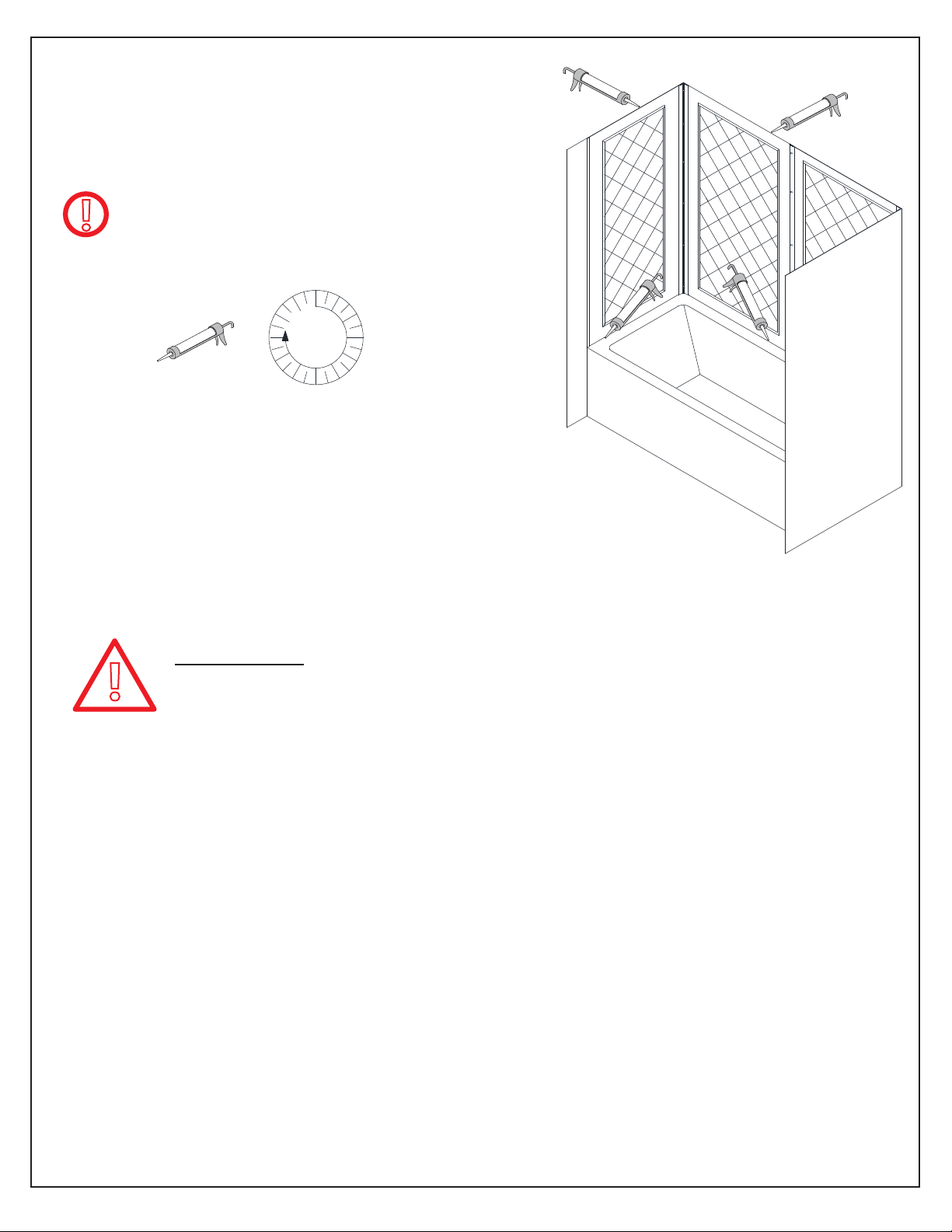

Apply a good quality mildew-resitant caulk or

24.

silicone along the top edge of the panels and corner covers and along the connection of the bottom edges of the panels with the tub. (Fig 24)

Allow 24 hours for the adhesive and

!

silicone/caulk to cure before using the shower.

24

Hours

!

Fig 24

ATTENTION: The installation of the Q-WALL-Tub walls is complete.

To install the optional Glass Shelves (#09), continue onto the next steps.

Q-Wall Tub manual Ver 1 Rev 2 11/2017

18

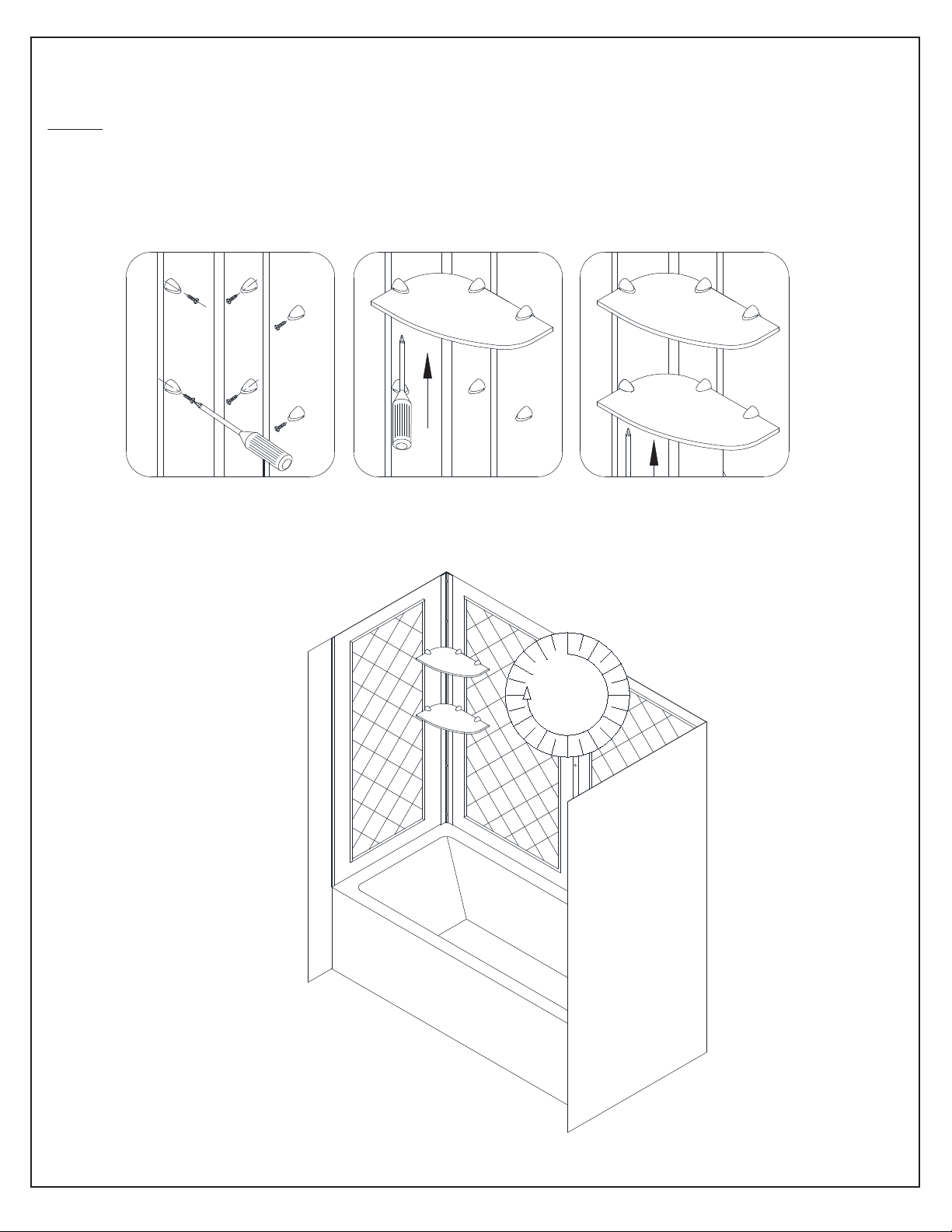

Glass Shelves Installation Instruction (optional)

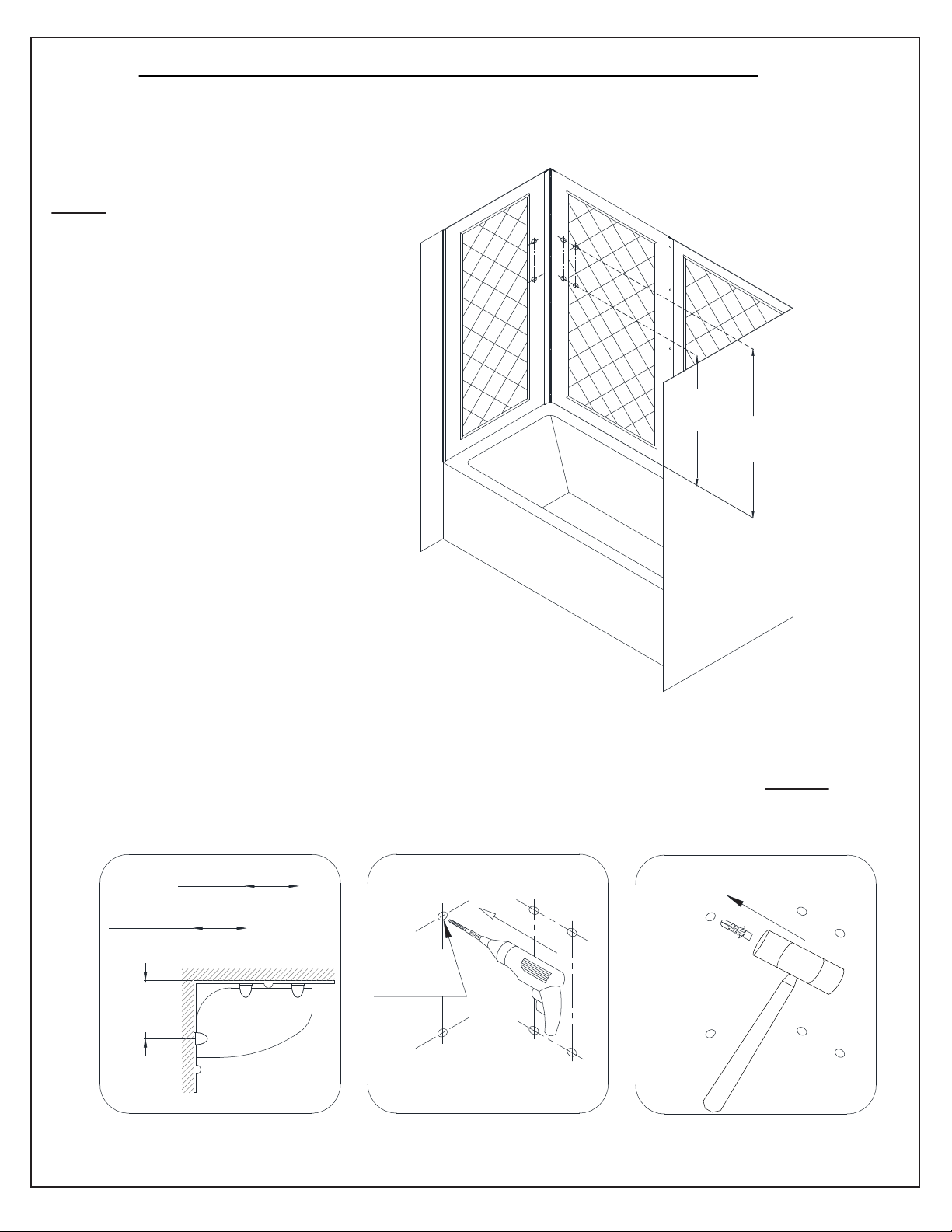

25. Determine the preferred height for the Glass Shelves (#09) and mark the locations on the wall.

(Fig 25)

NOTE:

Both Glass Shelves can be installed in one corner, or one shelf in each corner.

G

H

Fig 25

26. Mark the location for the Shelf Brackets (#10) according to the measurements in Fig 25.1.

Drill the holes using Ø5/16” drill bit and insert the Wall Anchors (#06). (Fig 26)

3-1/2"

1

2

3-1/2"

Ø5/16"

3-1/2"

3

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 26

19

27. Mount the Glass Brackets (#10) to the wall using the Countersunk Screws ST4.2×30 (#07).

NOTE: The Glass Brackets (#10) should be installed with the set screws on the bottom.

Slide the upper Glass Shelf (#09) into the Glass Brackets (#10) and tighten the set screws at the bottom of the brackets. Then slide the bottom Glass Shelf (#09) into place and tighten the set screws.

(Fig 27a and Fig 27b)

1

Fig 27a

2

24

Hours

3

Q-Wall Tub manual Ver 1 Rev 2 11/2017

Fig 27b

20

Product Maintenance

BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls, wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products, wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long-lasting finish, wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine

®

with any questions or concerns.

Q-Wall Tub manual Ver 1 Rev 2 11/2017

21

For more information on DreamLine

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

®

Shower Doors and Enclosures please visit DreamLine.com

VISIONS

SHOWER DOOR & TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLineTM reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals or any other details please refer to your model’s web page on BathAuthority.com

Please read these instructions carefully before installing. If you have any questions regarding installation, please contact our technical support specialists Monday through Friday 8:00 AM – 7:00 PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support group at [email protected]

For more information about DreamLineTM Shower Doors & Tub Doors please visit www.BathAuthority.com

VISIONS Ver 1 Rev 7 07/2015

1

Preparation

1.

Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLineTM will

not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLineTM if you have any questions,

and please provide an order number, job name or other proof of purchase to help us identify your original order.

Please note that you should consult your local building codes with questions

2.

about installation compliance standards. Building and plumbing codes may vary by location, and DreamLine is not responsible for code compliance standards for your project.

Install all of the required plumbing and drainage before securing the shower. Have a competent

3.

and licensed (if required by local code) plumber or tradesman perform and/or approve your plumbing installation.

Please make sure that prior to beginning the installation, the surfaces are leveled and solid and

4.

will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please, note that some adjustments and drilling may be necessary during the installation process.

5.

Please protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6.

This unit must be installed upon a finished threshold and against finished walls.

Tools Required

Caulk

Level

VISIONS Ver 1 Rev 7 07/2015

Tape Measure Pencil

Caulk Gun

Power

Drill

Phillips Screwdriver

Hammer

Drill bit

(Ø=5/16")

Drill bit

(Ø=1/8")

Miter saw or Hacksaw

2

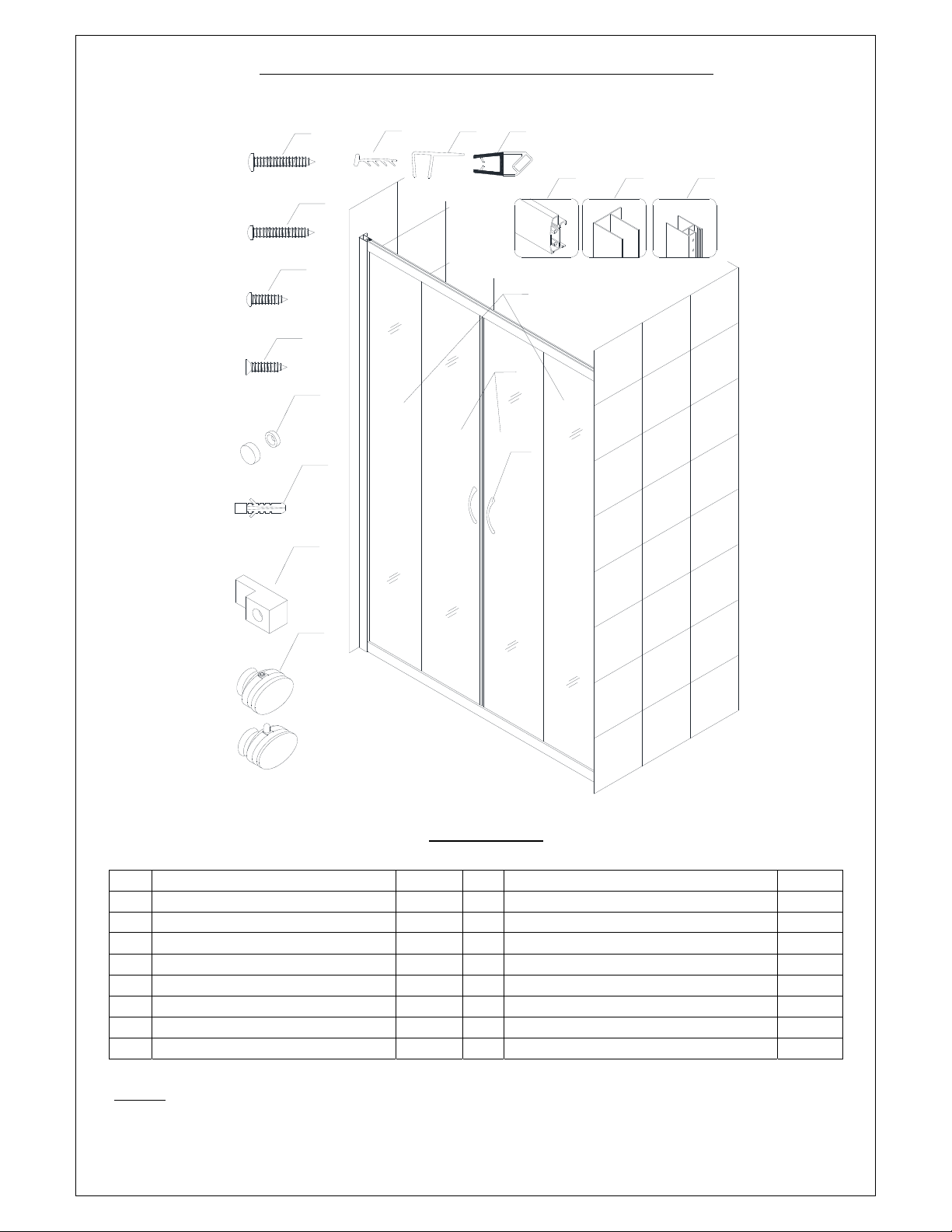

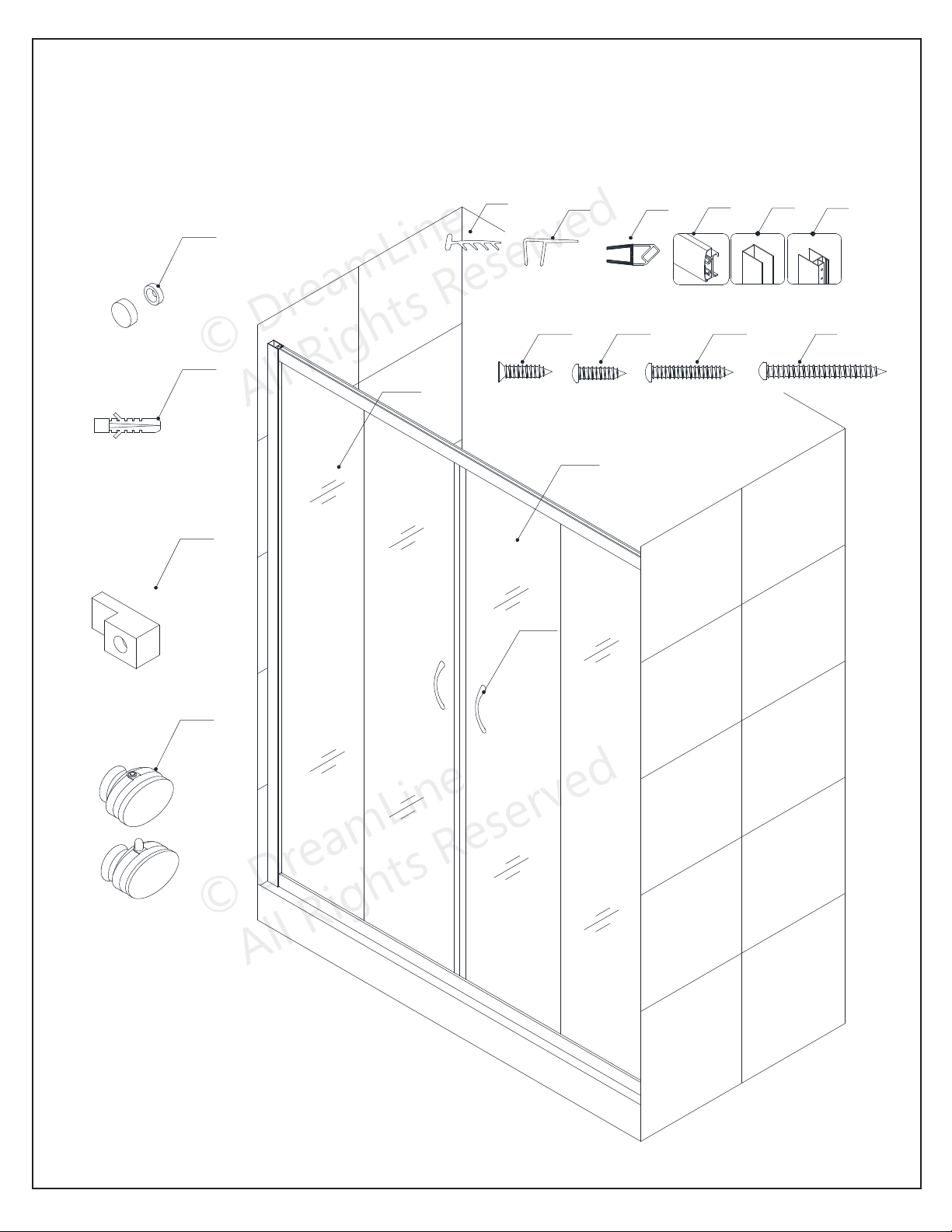

Detailed Diagram of Shower Door Components

12

13

10

11

14

15

16

9

8

7

123

5

4

6

17

Packing List

Glass profile 2pcs 10 Round head screw ST4.2×30 8pcs

01 02 Wall profile 2pcs 11 Round head screw ST4.2x25 8pcs 03 Guide rail 2pcs 12 Round head screw ST4.2x10 4pcs 04 Glass door 05 Stationary glass 2pcs 14 Decorative cover 4pcs 06 Handle 2pairs 15 Wall anchor 8pcs 07 Magnetic strip 1pair 16 Glass holder 4pcs 08 Anti-water strip 4pcs 17 Wheel assembly 4pairs 09 Single side strip 2pcs

2pcs 13 Flat head screw ST4.2x16

4pcs

NOTE:

diagram and part list in your manual as a reference. Before discarding the carton, check for

small hardware bags that tend to fall to the bottom of the box. If any parts are damaged or

missing, please contact DreamLine

VISIONS Ver 1 Rev 7 07/2015

Unpack your unit carefully and inspect it. Lay it out and identify all parts using parts

TM

for replacement.

3

Shower Door Installation

1.

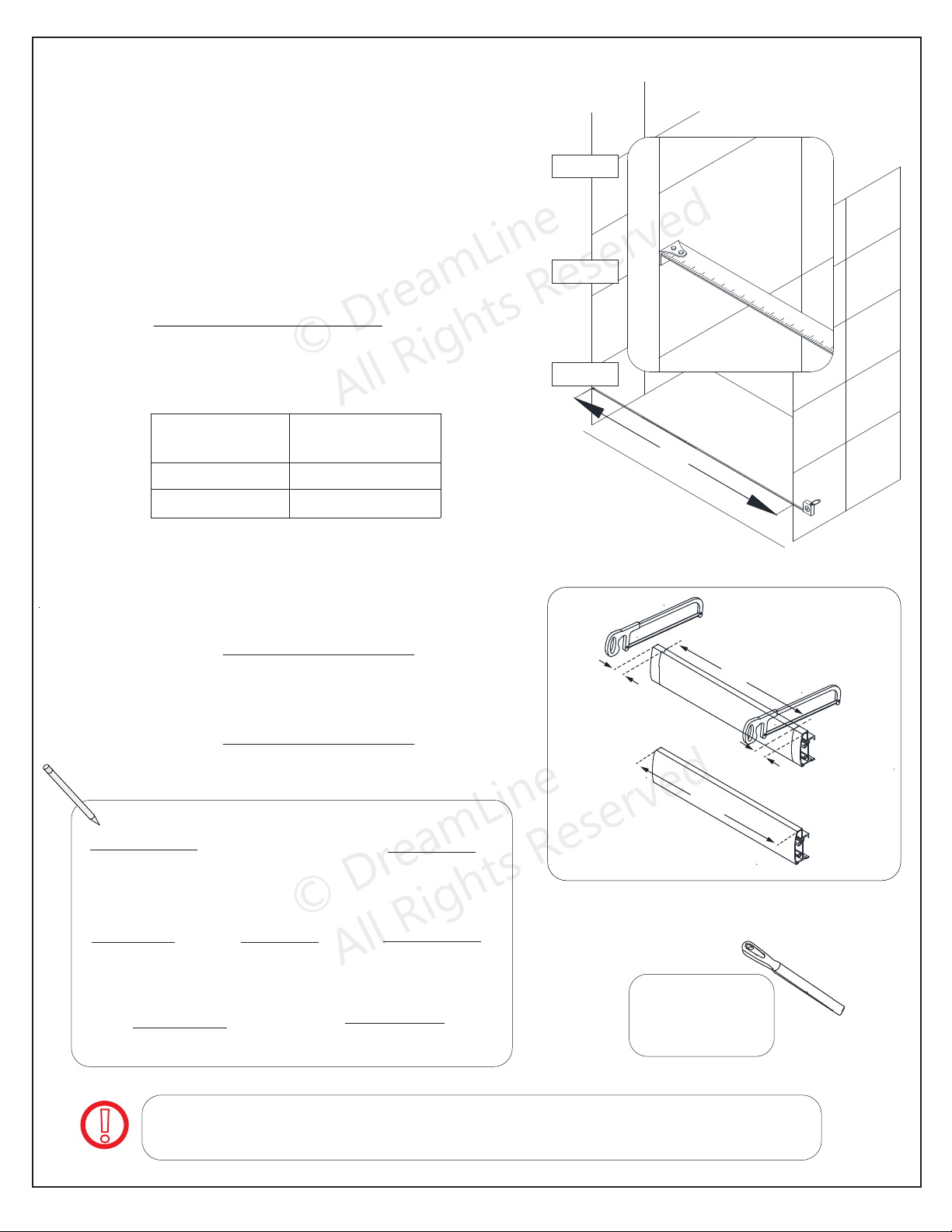

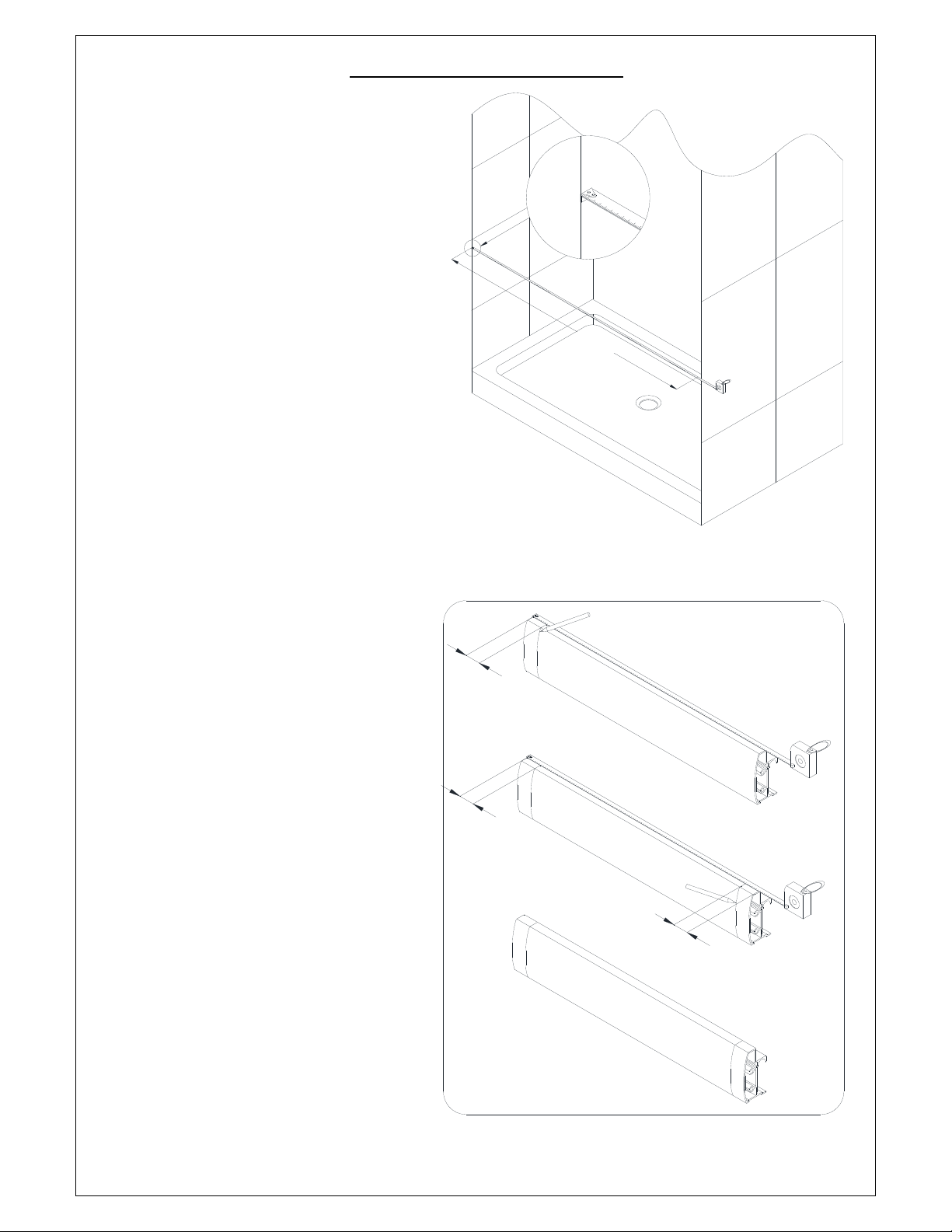

Measure the distance between the two finished walls at the top, middle and bottom. This distance is marked as

“W”.

Also check the threshold for level and the walls for plumb.

See Fig. 1 for details.

W

2.

Your Guide rails (#03) have been precut for the model width

of: 60”. (the rails are shorter than the model width by design).

If W is less than 60" (W<60”), then you will need to cut the Guide rails

(#03) equally from both ends.

Model Width-Finished opening W = L

The length to cut off will be "L".

In order to keep the pre-drilled center stopper holes centered, it is necessary to cut the top and bottom guide rails equally from both ends. Take L and

divide by 2 and cut off equally from each end.

Example:

60"(m 2" divide by 2 = 1" (cut from each end)

odel) -58" opening = 2"

Fig. 1

L

See Fig. 2 & Fig. 3 for details.

VISIONS Ver 1 Rev 7 07/2015

Fig. 2

4

Fig. 3

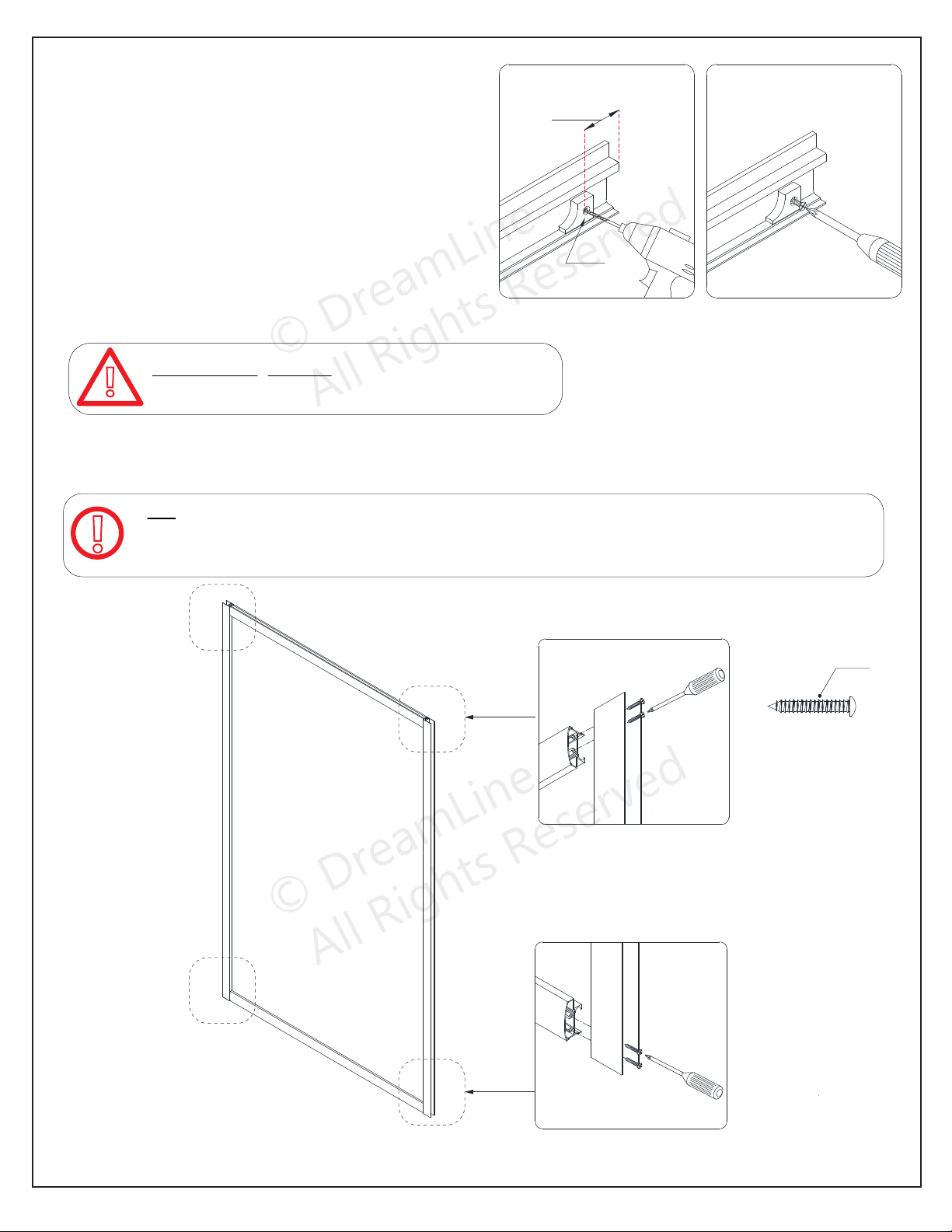

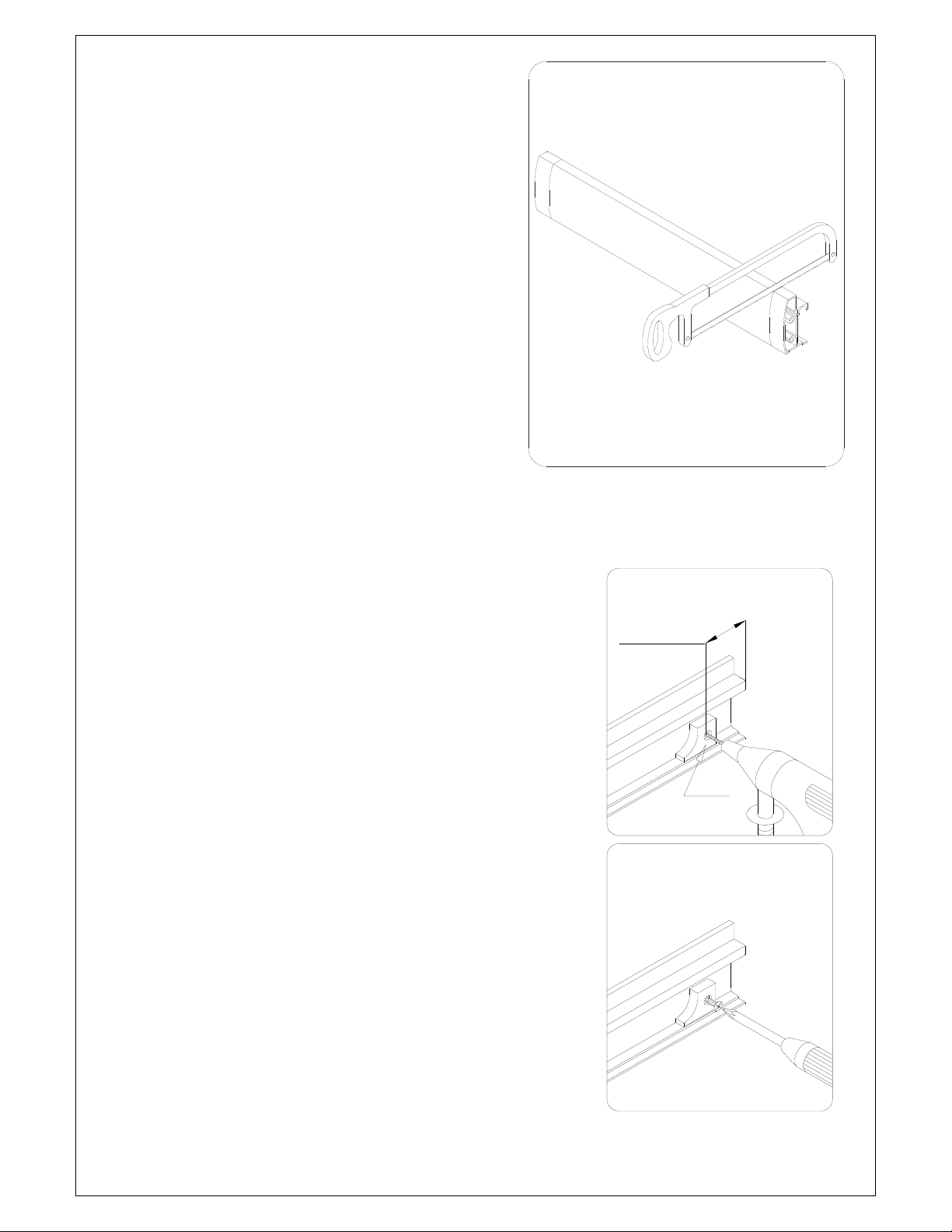

3. Once the Guide rails (#03) have been cut, you will

need to reinstall the roller stoppers on each Guide rail

(#03) on both ends. It is important that these stoppers are installed at the correct location.

Remove the existing stopper. Mark the drilling hole at a distance of 2” from the cut off end of the Guide rail

(#03). Drill a new hole using an Ø 1/8” drill bit; then re-attach the stopper with the screw.

ATTENTION: Do not drill all the way through the Guide rail, only drill into the first layer.

See Fig. 4 for details

1

2”

Ø1/8”

2

VISIONS Ver 1 Rev 7 07/2015

Fig. 4

5

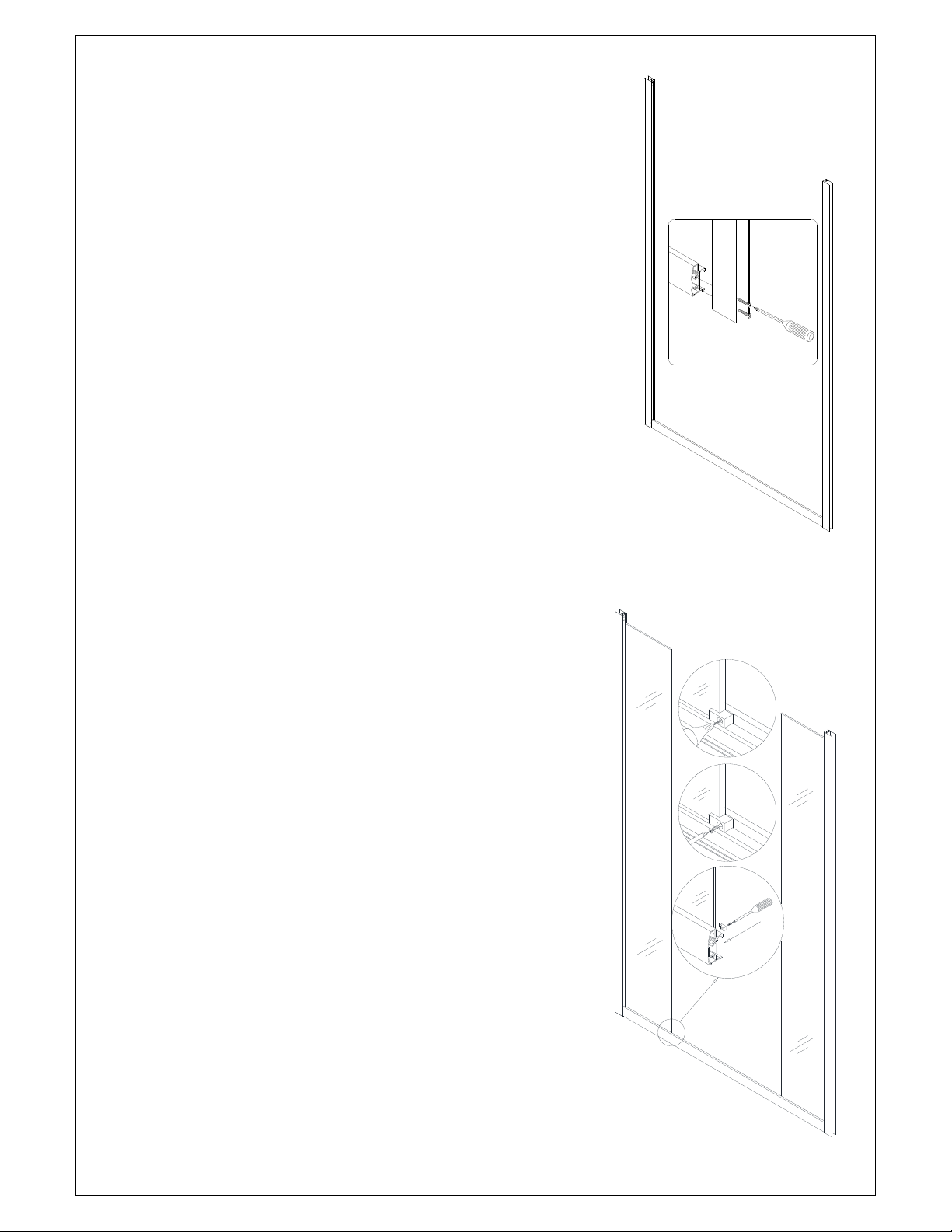

Fasten the bottom Guide rail (#03) to the Glass profiles

4.

(#01) with the Round head screws ST4.2x25 (#11). See Fig. 5 for details.

TIP: For ease of assembly, add some liquid soap or wax to lubricate the screws prior to attaching the glass profiles to the guide rails. Also, use a low setting on your power drill to prevent stripping the screws during assembly.

Slide both pieces of Stationary glass (#05) fully into the

5.

grooves of the Glass profiles (#01), and then secure

them using the Glass holders (#16) to the bottom Guide rail (#03) using the ST4.2 x 16 FH screws (#13). It may be

necessary to drill an Ø 1/8” hole in the rails to attach the Glass holders (#16). Mark the holes and remove the glass to

drill these holes to prevent damaging or breaking the glass while drilling.

See Fig. 6 for details.

Fig. 5

1

2

3

VISIONS Ver 1 Rev 7 07/2015

Fig. 6

6

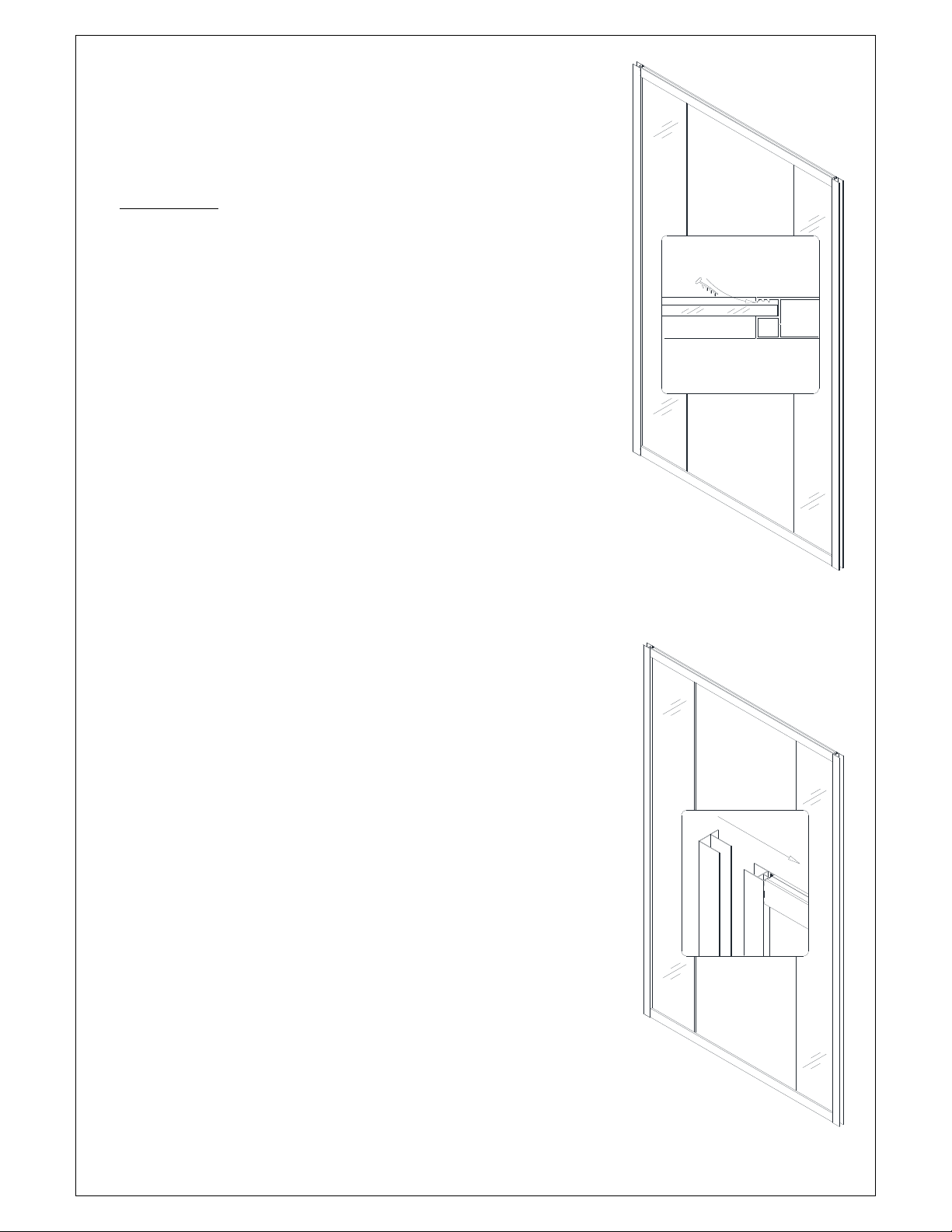

Install the Single side strips (#09) in-between the

6.

Stationary glass (#05) and the Glass profiles (#01). The strips should be inserted on the side that is facing the inside

of the shower. (See detail in Fig. 7)

ATTENTION: Do not use a screwdriver or other metal objects to install the Single Side Strip; you can scratch or damage the glass and aluminum.

Repeat Step #4 and Step #5 to fasten the upper Guide rail

7.

(#03) to the Glass profiles (#01) and secure the Stationary glass (#05) with the Glass holders (#16).

See Fig. 7 for details.

inside

8.

Slide the Wall profiles (#02) all the way into the Glass profiles

(#01) on both sides. Make sure the flanges of the Wall profiles (#02) face inside the shower.

See Fig. 8 for details.

Fig. 7

VISIONS Ver 1 Rev 7 07/2015

Fig. 8

7

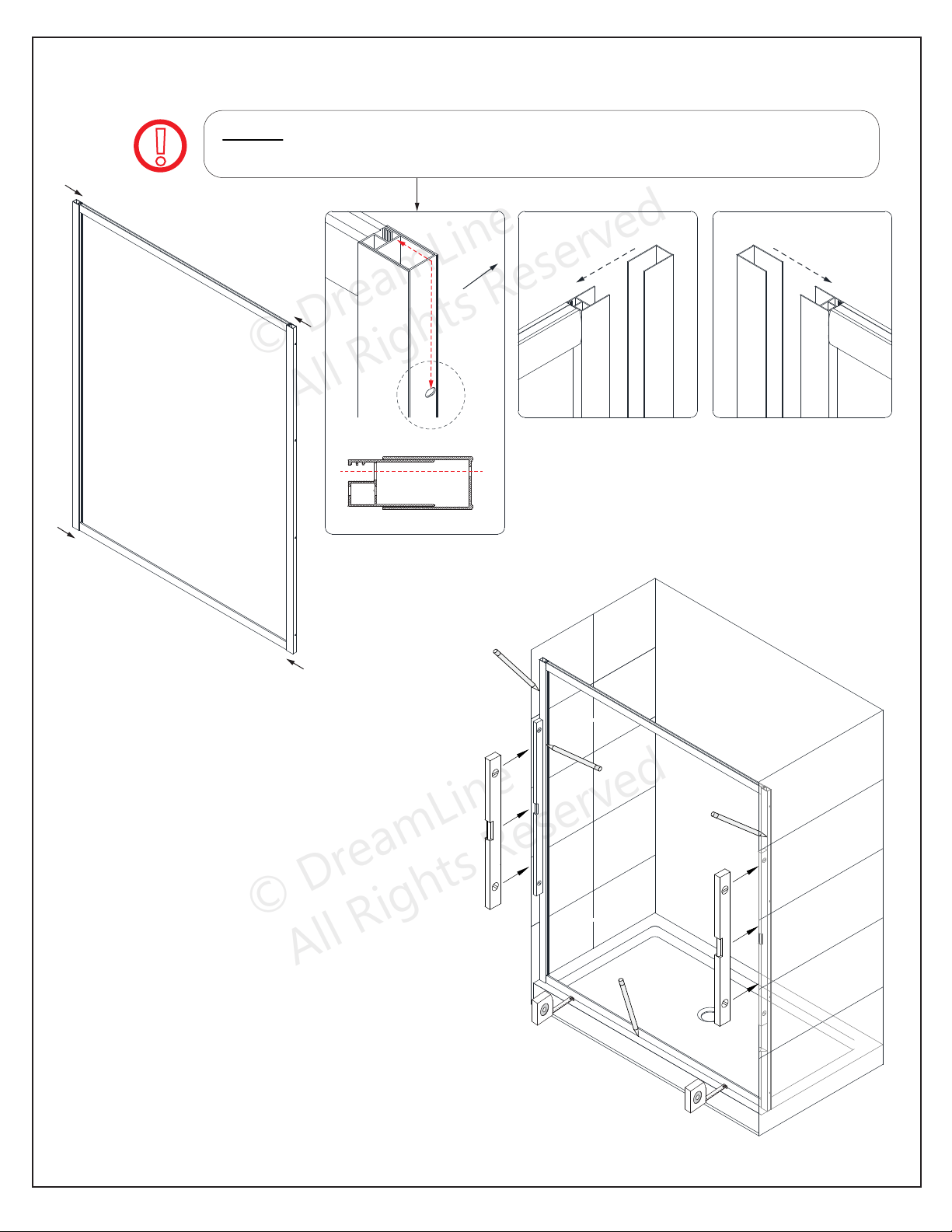

the finished frame to the

Move

9.

position on threshold against the walls. If your top and bottom wall opening measurements vary or if the walls are out-of-plumb, make adjustments by

sliding the Wall profiles (#02) out of the Glass Profiles (#01).

Use a level to adjust the frame so that it is plumb.

e Fig. 9 for details.

Se

the shower base, the bathtub or

(depending on your installation);

designated

the

push it

Using hel

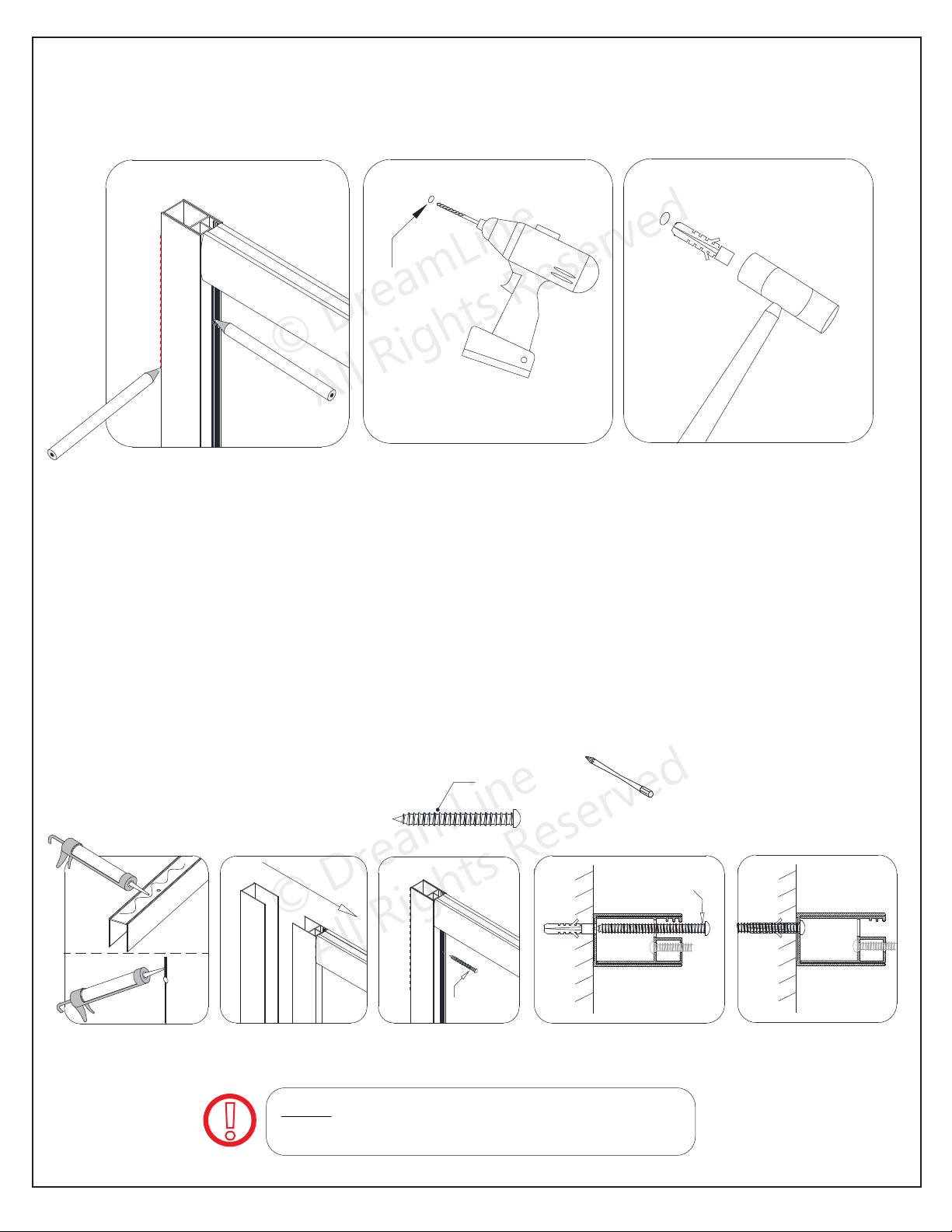

10.

position, mark the drill holes on the wall through the holes on the

11. Gently set the assembled unit aside; drill the holes

using a Ø 5/16” drill bit and insert the Wall

anchors (#15).

Apply silicone caulk along the Wall profiles

(#02) and around the holes on the wall. Also apply silicone under the bottom Guide rail (#03). Place the whole shower assembly back into the designated position and secure it to the walls using the Round head screws ST4.2×30 (#10).

See Fig. 10 for details.

p to hold this assembly in the right

flange of the Wall Profiles (#02).

Ø5/16”

Fig. 9

1

2

3

4

5

6

VISIONS Ver 1 Rev 7 07/2015

Fig. 10

8

12.

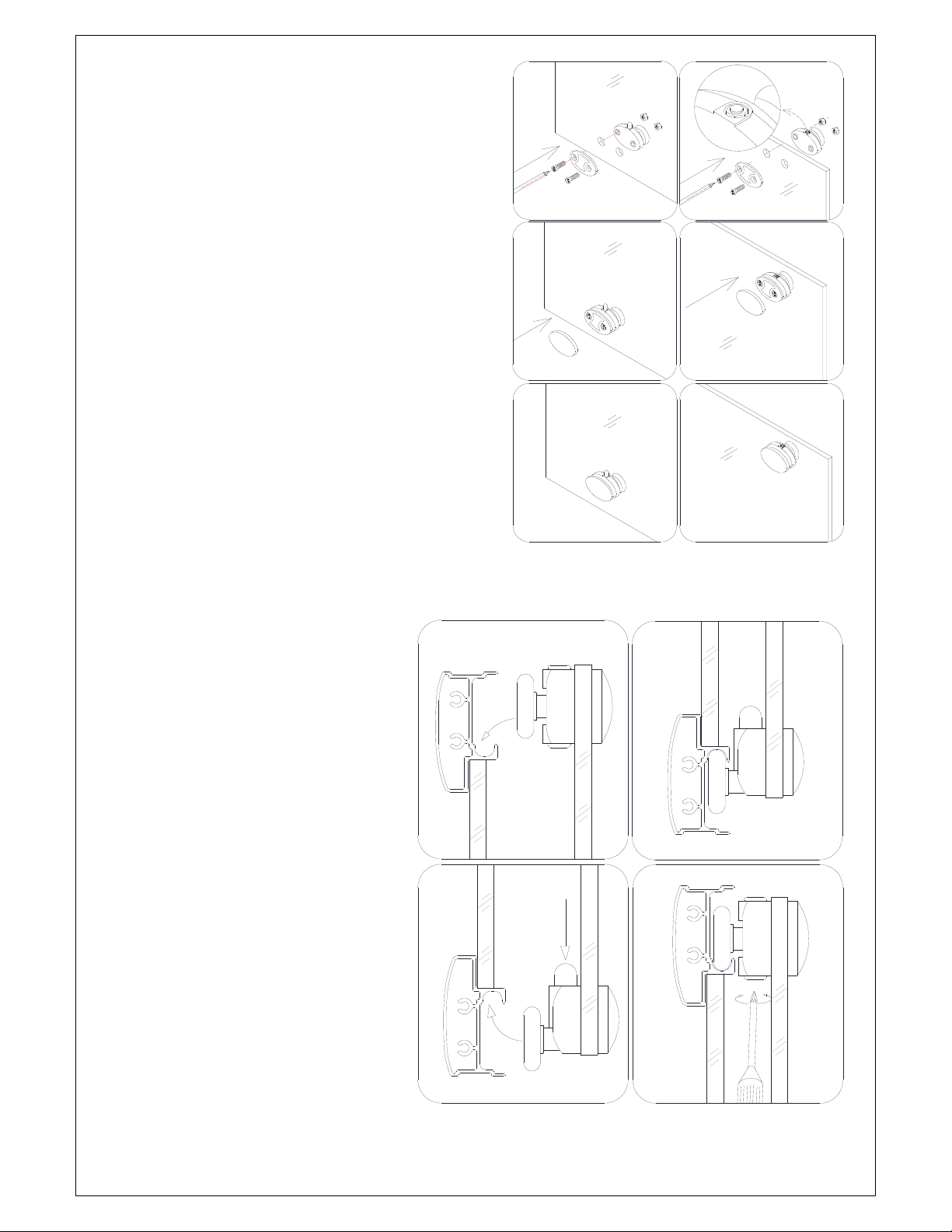

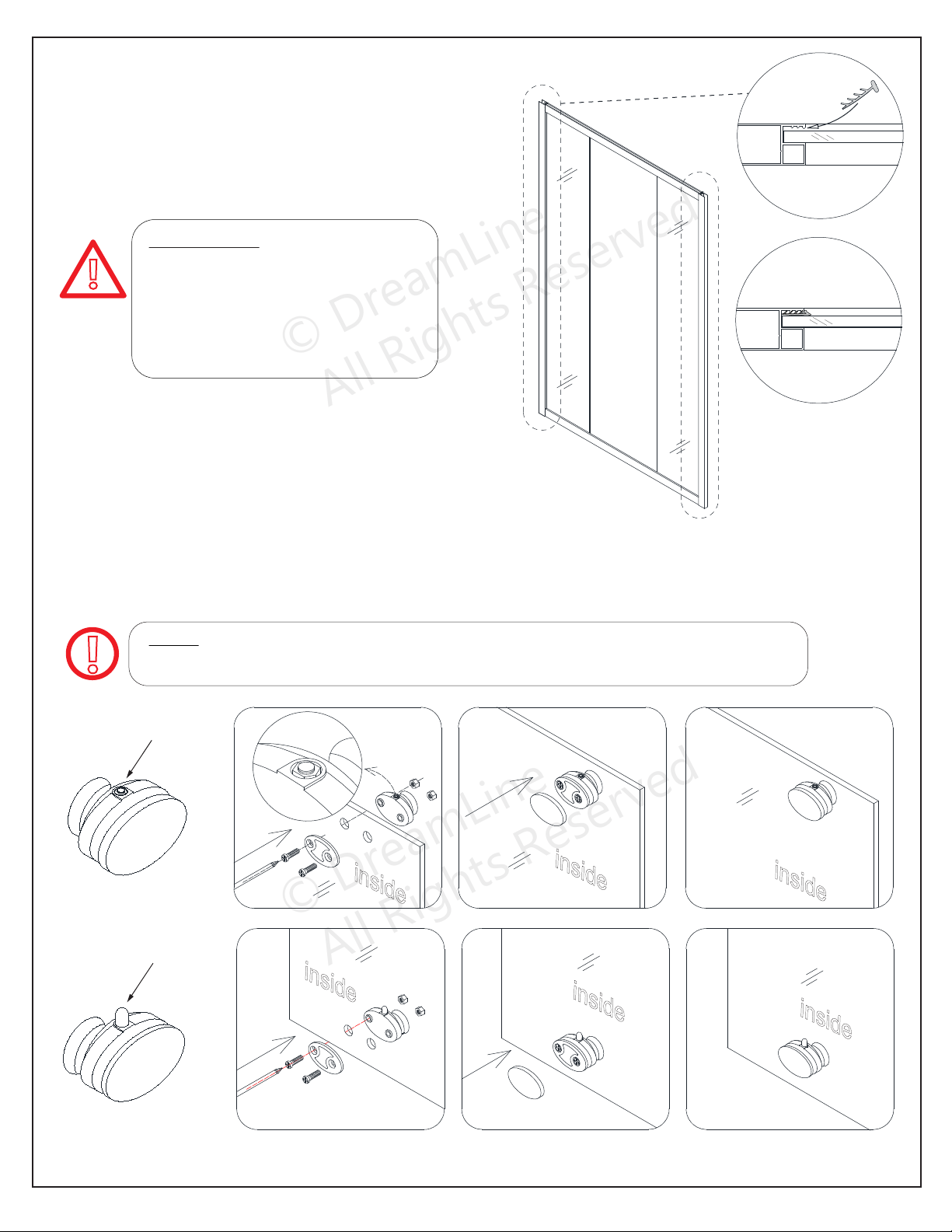

Fasten the top and the bottom Wheel assemblies (#17) to the Glass doors (#04). The top wheels can adjust the door level with the adjustable bolt and lock nut. The bottom wheel has a press button to fix the wheel on to the bottom Guide rail (#03).

Note

:

The lock nut of the upper wheel and the press button of the bottom wheel should be pointing up. (Fig 11.1 and 11.2)

1

2

4

5

See Fig. 11 for

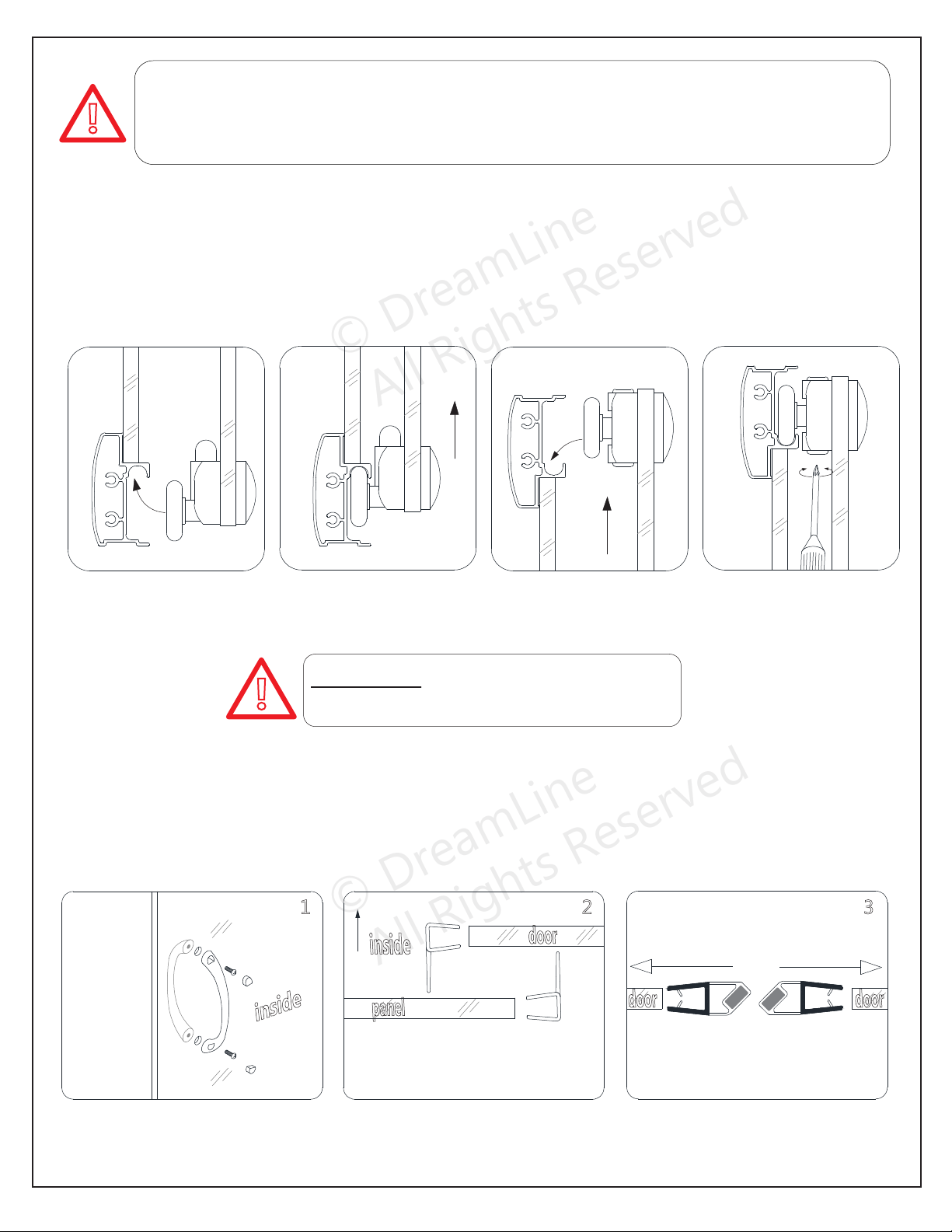

Slide the top door wheels into the

13.

top Guide rail (#03). Push the bottom wheels into the bottom Guide rail (#03) by pressing down on the button on the Wheel assembly. (Fig 12.2) Use a Phillips screwdriver #2 to adjust the upper wheels to make sure they track smoothly and the door closes tight. (do not

use a power screwdriver to avoid damaging the assembly)

details.

1 3

2

4

3

Fig. 11

6

See Fig. 12 for details.

VISIONS Ver 1 Rev 7 07/2015

Fig. 12

9

14.

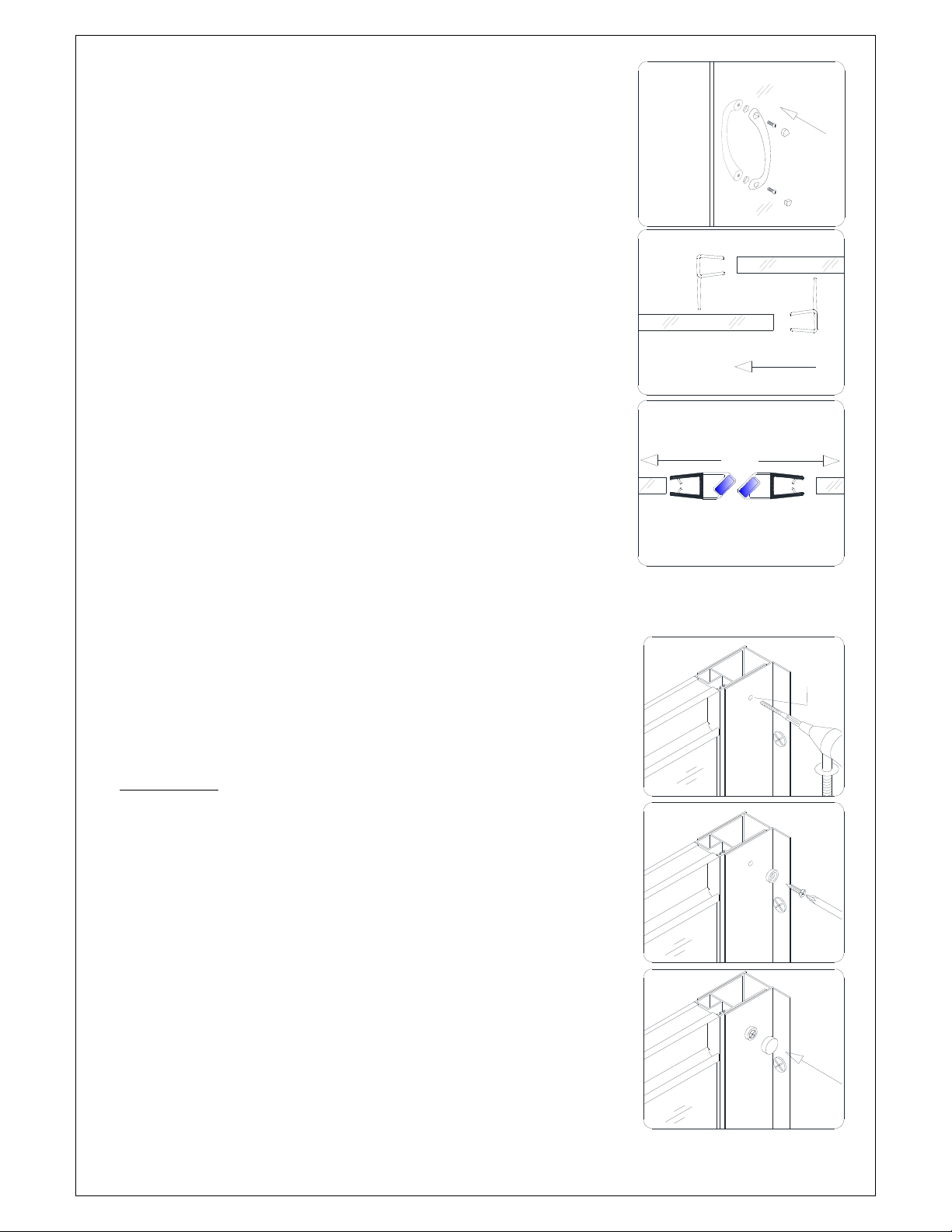

Install the Handles (#06) to the Glass doors (#04).(Fig 13.1) Press the anti-water strips (#08) onto the vertical edges of the Stationary glass (#05) and both vertical edges of the Glass doors (#04). Press the Magnetic strips (#07) onto the vertical edges of both Glass doors (#04) for a tight seal.

1

See Fig. 13 for details.

15.

Do the final adjustments of the assembled unit in the Wall

profiles (#02). Make sure that the bottom rail is tight to the the threshold.

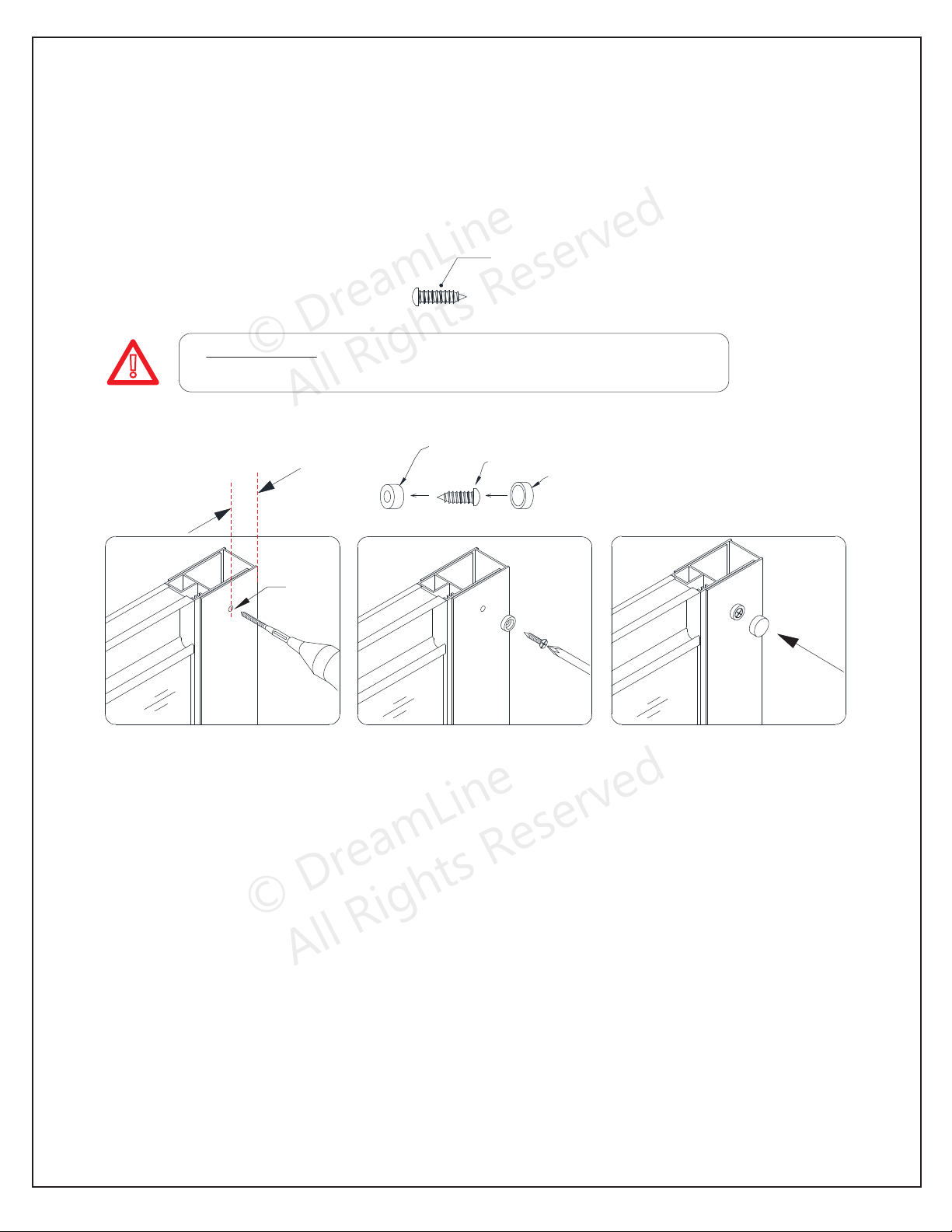

Drill the holes in the Glass profile (#01) through predrilled holes in the Wall Profile (#02) using Ø 1/8” drill bit.

ATTENTION Do not drill the profile throughout, only the first layer of the wall profile.

:

2

3

Fig. 13

1

Ø1/8”

2

Secure the Wall profile (#02) to the Glass profile (#01) using the Round head screws ST4.2×10 (#12). Cover the exposed screw heads with the Decorative covers

(#14).

See Fig. 14 for details.

VISIONS Ver 1 Rev 7 07/2015

3

Fig. 14

10

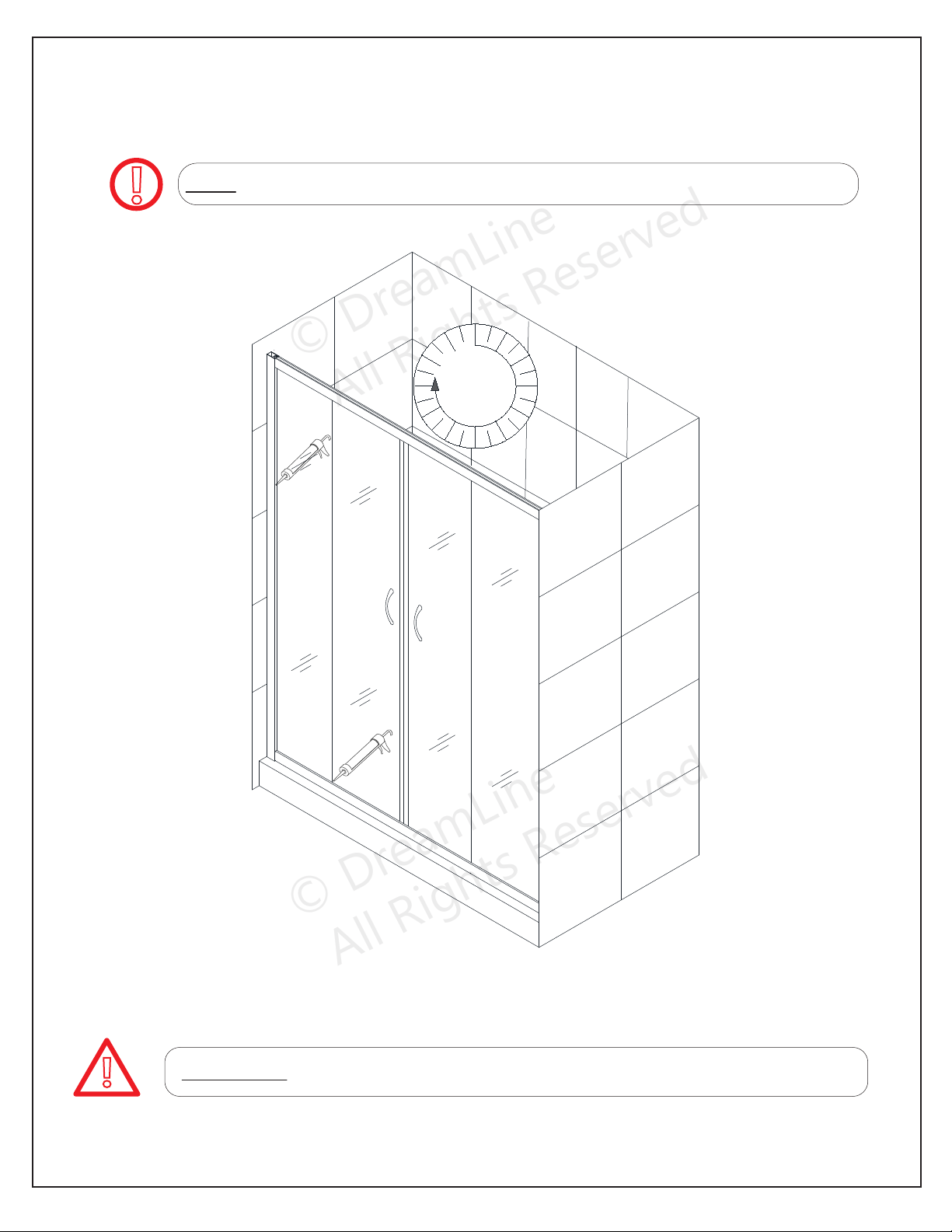

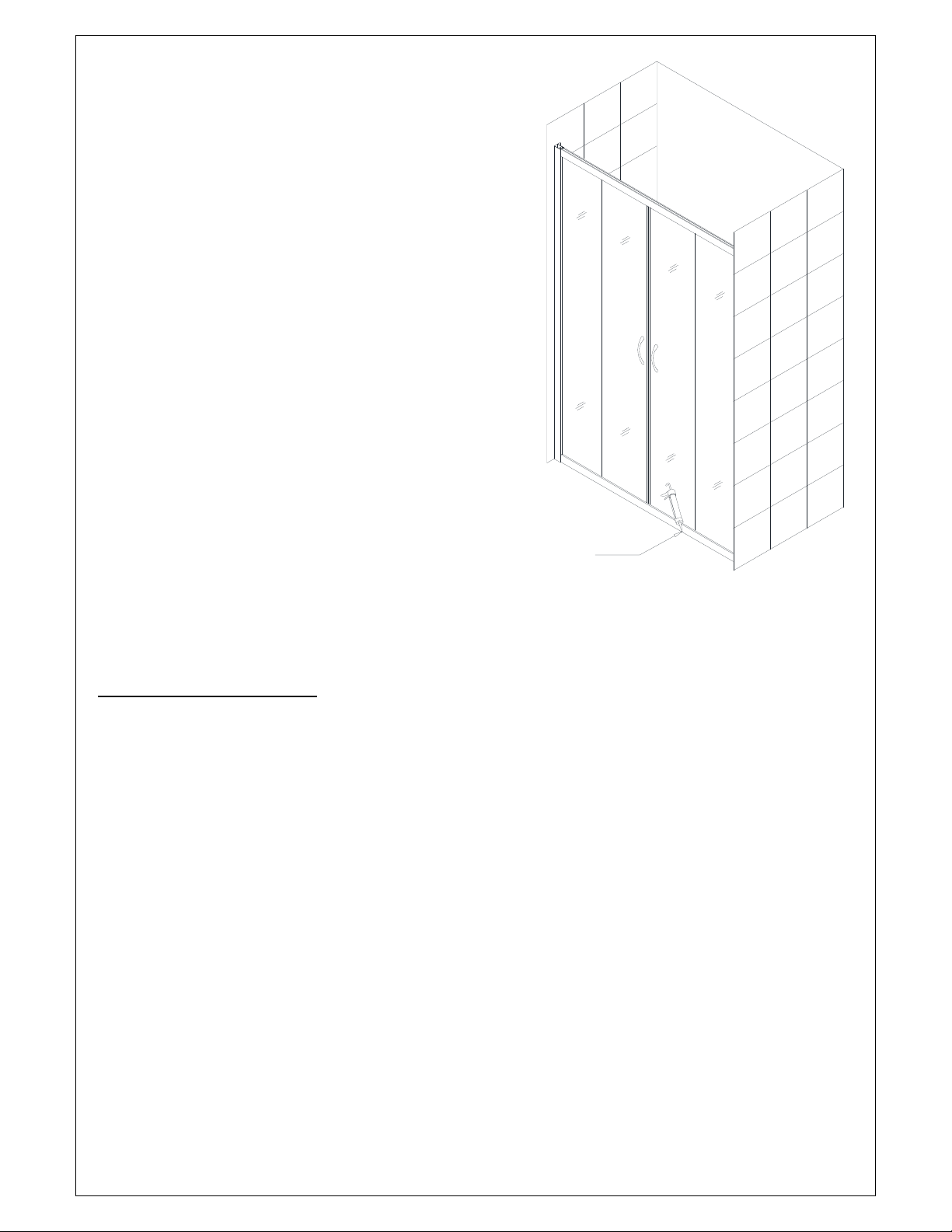

Apply a good quality mildew resistant silicone

16.

along the profiles and guide rails; on the seams between the bottom guide rail and the profiles as well as along the shower base or threshold.

See Fig. 15 for details.

Caulk

Fig. 15

Product Maintenance

BASES and BACKWALLS: To ensure a long life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots. To prevent scratching the surface: never use abrasive cleaners and cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent finish peeling or corrosion. After cleaning the shiny finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish, work with (not across) the grain. Never use abrasive sponge or cloth, steel wool or

wired brushes.

VISIONS Ver 1 Rev 7 07/2015

11

TEL: 866-731-2244

FAX: 866-857-3638

WWW.BATHAUTHORITY.COM

For more information on DreamLineTM Shower Doors & Tub Doors please visit www.BathAuthority.com

VISIONS Ver 1 Rev 7 07/2015

12

VISIONS

SHOWER AND TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

®

DreamLine purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

reserves the right to alter, modify or redesign products at any time without prior notice for the

MODEL #s

SHDR-1160586-## SHDR-1160726-##

##=finish 01- Chrome 04- Brushed Nickel

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

For more information about DreamLine

VISIONS Shower and Tub Door Manual Ver 2 08/2018

®

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

Table of Contents

Section Title

Adjustable Wall Profile System

Preparation Tools

Parts List

Installation Steps

Wheel Assemblies

Vinyl Seals

Product Maintenance

Page #

2

3 4

5-6

7-15

12

13

16

This product should be installed by someone familiar with the construction requirements for this type of project and the

!

VISIONS Shower and Tub Door Manual Ver 2 08/2018

care necessary for the safe installation and operation of the product.

Adjustable Wall Profile System

The Glass Profiles can be adjusted within the Wall Profiles for overall

!

width or to correct for out-of-plumb conditions within the model size. Screw them together after making final adjustments.

Glass Profile

Wall Profile

washer

screw

decorative cap

3/4”

1/8"

Ø

1

”

m

a

x

VISIONS Shower and Tub Door Manual Ver 2 08/2018

2

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with the packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the necessary parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Contact

®

DreamLine purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code)

plumber for all plumbing installation.

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Note that some adjustments and drilling will be necessary during the installation process.

if you have any questions, and please provide an order number, job name or other proof of

®

is not

5. Protect all primary surfaces of the product during installation. Never set the glass down directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. This model has 1” of adjustment per wall profile for out-of-plumb wall conditions and overall width

within the model size. Confirm the finished opening conditions before proceeding with the installation.

8. This model requires a minumum of 1” of flat level threshold space for installation.

9. Professional installation recommended.

This manual will show the installation of the shower door model.

!

Follow the same steps for the installation of the tub door model.

NOTE: DO NOT attach the handle to the door glass until instructed. DO NOT use the handle to lift the glass during installation. This may result in damage to the glass and/or serious injury. Always use an assistant or a professional grade glass suction cup when handling heavy glass.

3VISIONS Shower and Tub Door Manual Ver 2 08/2018

Tools

Level

100% Silicone

Extender driver bit

Tape Measure Pencil

Power Drill

Metal File

Work Gloves

Phillips Screwdriver

Hammer

Drill bit Ø5/16" (8mm)

Miter saw or Hacksaw

Safety glasses

Drill bit Ø1/8"

(3mm)

Tip: Measure the finished opening before

proceeding with the installation to be sure that the correct model size has been ordered.

Threshold must be level

Top

Middle

Tip: Prior to installation, cover the

shower/tub drain with tape to prevent losing screws or small parts.

Tip: Set screw gun clutch to low setting when installing screws and bolts to prevent stripping the heads.

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

®

please contact DreamLine your model configuration.

for replacement. The shipping boxes may contain extra parts not used in

!

Bottom

W

NOTE: Retain these installation instructions for future reference.

4VISIONS Shower and Tub Door Manual Ver 2 08/2018

Detailed Diagram of shower door components

14

15

16

5

9

6

8

4

7

3

111213

2

1

10

17

5VISIONS Shower and Tub Door Manual Ver 2 08/2018

Parts List

Description

Qty

Description

Qty

01

10

02

11

03

12

04

13

05 14

06 15

07

16

08

17

09

Item #

Glass Profile 2pcs Wall Profile

Guide Rail (top & bottom)

Door Glass 2pcs Panel Glass

Handle 2pairs Magnetic Vinyl Seal 1pair

Vertical Vinyl Seal (2 long, 2 short) 4pcs

Side Strip Vinyl 2pcs

2pcs

Item #

ST4.2×55 Pan Head Screw

ST4.2×25 Pan Head Screw 8pcs ST4.2×10 Pan Head Screw 4pcs

ST4.2×16 Countersunk Screw 4pcs

Decorative Cover with Washer

Wall Anchor 8pcs Glass Holder 4pcs

Wheel Assembly (top & bottom)

8pcs

4pcs

4pairs

All drawings in this manual are for illustrative

!

purposes only and are not drawn to scale.

6VISIONS Shower and Tub Door Manual Ver 2 08/2018

Installation Steps

1. Measure the distance between the two finished

walls at the top (at model height: 58” or 72”), middle and bottom. The wall profiles will adjust for out-of-plumb conditions, so use the smallest

measurement as the “finished opening” (W)

dimension to determine the finished cut length in Step #2. (Fig 1)

Top

NOTE: The Top and Bottom Guide Rails (#03) are shorter than the model size by design. They have been pre-cut for the model width and are made to fit between the wall profiles, (not wall-to-wall). See Table A below:

Table A

Model Size

60” (for shower) 56-3/8”

60” (for tub) 56-3/8”

Pre-cut

Guide Rail Length

2. Subtract 3-3/8” from your finished opening (W) to

determine the finished cut length for the Top and Bottom Guide Rails (#03). Cut the Top and Bottom Guide Rails (#03) equally from both ends to the finished cut length (D). (See Table B below.) NOTE: In order to keep the pre-installed center stoppers centered, it is necessary to cut the Top and Bottom Guide Rails (#03) equally from both ends. (Fig 2)

Middle

Bottom

EQ

W

Fig 1

“D”

EQ

Table B

)

-

3-3/8”

Finished Opening

(W)

)

Model Size

(from Table A)

)

-

Finished Cut Size

(D)

÷2

Difference

!

TIP: For easier installation into the opening, cut off an extra 1/8” from each end: FINISHED OPENING (W) - 3-5/8”= FINISHED CUT LENGTH “D”

=

Finished Cut Size

)

=

Amount To Cut

From Each End (EQ)

Difference

“D”

)

(D)

Fig 2

Use a metal file to clean up the cut ends of the rails

7VISIONS Shower and Tub Door Manual Ver 2 08/2018

3. After the Top and Bottom Guide Rails (#03)

have been cut to size, re-install the roller stoppers on both of the Top and Bottom Guide Rails (#03).

Note: It is important that these roller stoppers are installed at the correct locations.

Remove the existing stopper. Mark the drilling hole at a distance of 2” from the end of the Top and

Bottom Guide Rails (#03).

Drill a new hole using an Ø1/8” drill bit; then re-secure the stopper with the screw. (Fig 3)

ATTENTION: Do Not drill the Guide Rail (#03)

!

4. Secure the Bottom Guide Rail (#03) and Top Guide Rail (#03) to the Glass Profiles (#01) with

the ST4.2×25 Pan Head Screws (#11). (Fig 4)

!

throughout, only through the first layer.

TIP: For ease of assembly, add some liquid soap, wax or lubricant to the screws prior to

attaching the glass profiles to the guide rails. Use a low setting on the power drill to prevent stripping the screws.

1

2"

inside

Ø1/8"

(Bottom Guide Rail shown)

2

Fig 3

outside

11

(x8)

Fig 4

8VISIONS Shower and Tub Door Manual Ver 2 08/2018

5. Slide the Wall Profiles (#02) all the way onto the Glass Profiles (#01) on both sides. (Fig 5)

NOTE: The holes in the Wall Profiles (#02) are off-center and should align

!

with the holes in the glass profiles and the groove for the panel glass. (Fig 5.1)

Inside of shower

1

2 3

Fig 5

6. Move the assembled frame into position

on the threshold, and push the Wall Profiles (#02) tight to the walls to compensate for any

out-of-plumb conditions. Push the bottom rail down tight to the threshold and adjust the frame to a vertical position. Confirm with a level before marking the position of the wall profiles and the holes for drilling. (Fig 6)

Fig 6

9VISIONS Shower and Tub Door Manual Ver 2 08/2018

7. Use an assistant to hold the assembly in position and mark the holes for drilling on the wall

through the holes in the Glass Profiles (#01) and the Wall Profiles (#02). Set the assembled unit aside. Drill the holes using a Ø5/16” drill bit and insert the Wall Anchors (#15). (Fig 7)

Ø5/16"

Fig 7

21

3

8. Apply silicone caulk to the rear surface of the Wall Profiles (#02), the underside of the Bottom

Guide Rail (#03), and around the drilled holes in the wall. Place the entire shower assembly back

into the designated position and secure it to the walls using the ST4.2×55 Pan Head Screws (#10). The screws will pass through the larger holes in the Glass Profile (#01) and secure the Wall Profiles (#02) to each wall. (Fig 8)

10

(x8)

Extender driver bit

ST4.2×55

Overhead view

ST4.2×55

left wall profile installation shown

Fig 8

inside

!

NOTE: Use steady, even pressure when installing

the screws to prevent stripping the screw heads!

10VISIONS Shower and Tub Door Manual Ver 2 08/2018

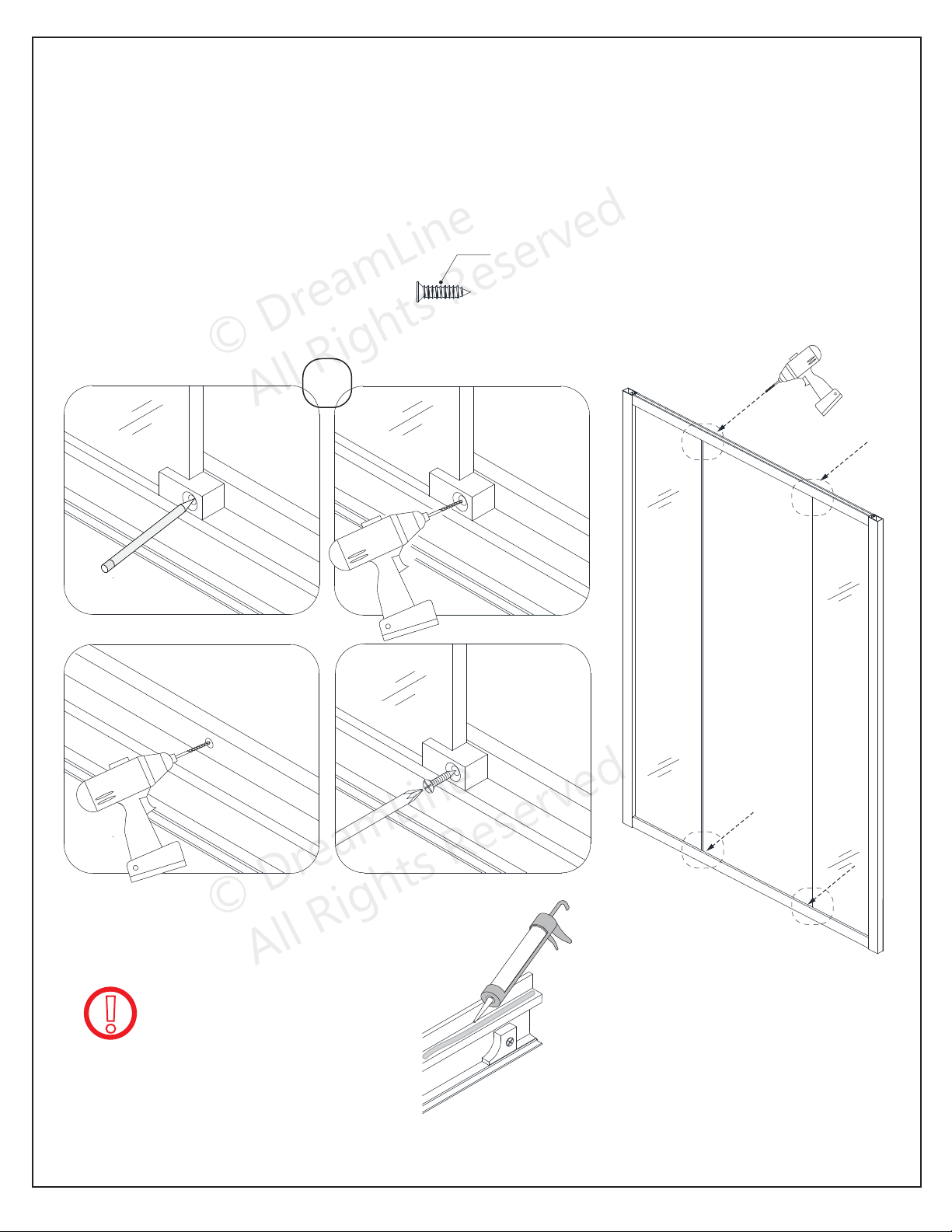

9. It is necessary to drill new Ø1/8” holes into the Guide Rails (#03) to attach the Glass Holders (#16).

Slide both lites of Panel Glass (#05) all the way into the grooves of the Glass Profiles (#01) on both sides. Hold the Glass Holders (#16) in place and mark the new holes with a pencil or a drill bit. Remove the Panel Glass (#05) to prevent damage prior to drilling into the Guide Rails (#03). Drill Ø1/8” holes into the Guide Rails (#03). Reinstall the Panel Glass (#05) and attach the Glass Holders (#16) to the Guide Rails (#03) using the ST4.2×16 Countersunk Screws (#13). (Fig 9)

13

(x4)

or

panel glass

Ø1/8”

inside

Ø1/8”

inside

Fig 9

Tip: Apply a thin bead of

!

silicone onto the bottom rail where the panel glass sits prior to the final installation of the panel glass.

11VISIONS Shower and Tub Door Manual Ver 2 08/2018

10. From the inside of the shower, install the

Side Strip Vinyl (#09) in-between the Panel Glass (#05) and the Glass Profiles (#01).

Start from the bottom and do not stretch the vinyl. (Fig 10)

ATTENTION: To prevent scratching or damaging the glass

!

and aluminium, Do Not use a screwdriver or other metal objects to install the Side Strip

Vinyl (#09).

inside

panel glass

inside

panel glass

Fig 10

11. Fasten the Top and Bottom Wheel Assemblies (#17) to the Door Glass (#04) with the wheels

facing the outside of the shower. The top wheels can adjust the door level with the adjustment bolt and lock nut. The bottom wheel has a press button to fix the wheel into the bottom Guide Rail (#03).

(Fig 11)

NOTE: The lock nut of the Top Wheel Assembly (#17) and the press button

!

Top Wheel

of the Bottom Wheel Assembly (#17) should be pointing up. (Fig 11)

lock nut

press button

in

si

d

e

in

s

1

in

s

i

d

e

4

id

in

si

e

d

2

5

e

in

s

id

in

e

si

d

3

6

e

Bottom Wheel

Fig 11

12VISIONS Shower and Tub Door Manual Ver 2 08/2018

NOTE: DO NOT attach the handle to the door glass until instructed. DO NOT use the handle to lift the glass during installation. This may result in damage to

!

12. From inside the shower, insert the Bottom Wheel Assemblies (#17) into the bottom Guide

Rail (#03) (Fig 12.1-2), lift the door up and set the Top Wheel Assemblies (#17) into the top Guide Rail (#03) (Fig 12.3). Test the operation of the door, and if necessary, use a #2 Phillips

screwdriver (do not use a power screwdriver) to adjust the upper wheels so the door rolls smoothly and closes tight. (Fig 12)

1 42 3

the glass and/or serious injury. Always use an assistant or a professional grade glass suction cup when handling heavy glass.

Fig 12

ATTENTION: Use caution not to close the

!

13. Install the Handles (#06) to the Door Glass (#04).

Press the shorter Vertical Vinyl Seals (#08) onto the vertical edges of the Panel Glass (#05) and the longer Vertical Vinyl Seals (#08) onto the vertical edges of the Door Glass (#04). Press the Magnetic Vinyl Seals (#07) onto the vertical edges of both Door Glass (#04). (Fig 13)

inside

door glass together during installation.

1

inside

door

2 3

panel

door

*Adjust the top wheel assemblies if necessary

door

Fig 13

13VISIONS Shower and Tub Door Manual Ver 2 08/2018

14. Perform the final adjustments of the assembled unit within the Wall Profiles (#02).

Make sure the Bottom Guide Rail (#03) is tight to the threshold. Drill Ø1/8” holes into the center

of the Wall Profile (#02) and into the Glass Profile (#01). Drill one hole at the top and one hole at the bottom of each profile (approx 3/4” from the wall) .

Secure the Wall Profiles (#02) to the Glass Profiles (#01) using the Washers (#14) and ST4.2×10 Pan Head Screws (#12). Cover the exposed screw heads with the Decorative Covers (#14). (Fig 14)

12

(x4)

ATTENTION: Do Not drill the profiles throughout, only

!

through the first layer of the wall profile and glass profile.

washer

3/4”

1

Ø1/8"

inside

2

Fig 14

screw

cap

3

14VISIONS Shower and Tub Door Manual Ver 2 08/2018

15. Apply a good quality mildew-resistant silicone along the interior perimeter of the wall profiles

and bottom guide rail along the walls and threshold. (Fig 15)

!

NOTE: The surfaces need to be clean and free of debris before applying silicone.

24

Hours

!

ATTENTION: Allow 24 hours for the silicone to cure before using the shower.

Fig 15

15VISIONS Shower and Tub Door Manual Ver 2 08/2018

Product Maintenance

BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls, wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products, wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long-lasting finish, wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine

®

DreamLine

installed properly and the flow of water is not pointed directly at the vinyl seals.

shower doors and enclosures are designed not to leak when

®

with any questions or concerns.

16VISIONS Shower and Tub Door Manual Ver 2 08/2018

TEL: 866-731-2244

FAX: 866-857-3638

For more information on DreamLine

DREAMLINE.COM

®

Shower Doors and Enclosures please visit DreamLine.com

VISIONS Shower and Tub Door Manual Ver 2 08/2018
