DreamLine DLN2777 Installation & Assembly

UNIDOOR LUX Style D with Support Bar

SHOWER DOOR AND INLINE PANEL INSTALLATION INSTRUCTIONS

IMPORTANT

®

DreamLine For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com

reserves the right to alter, modify or redesign products at any time without prior notice.

STEP 1: Install Shower Door

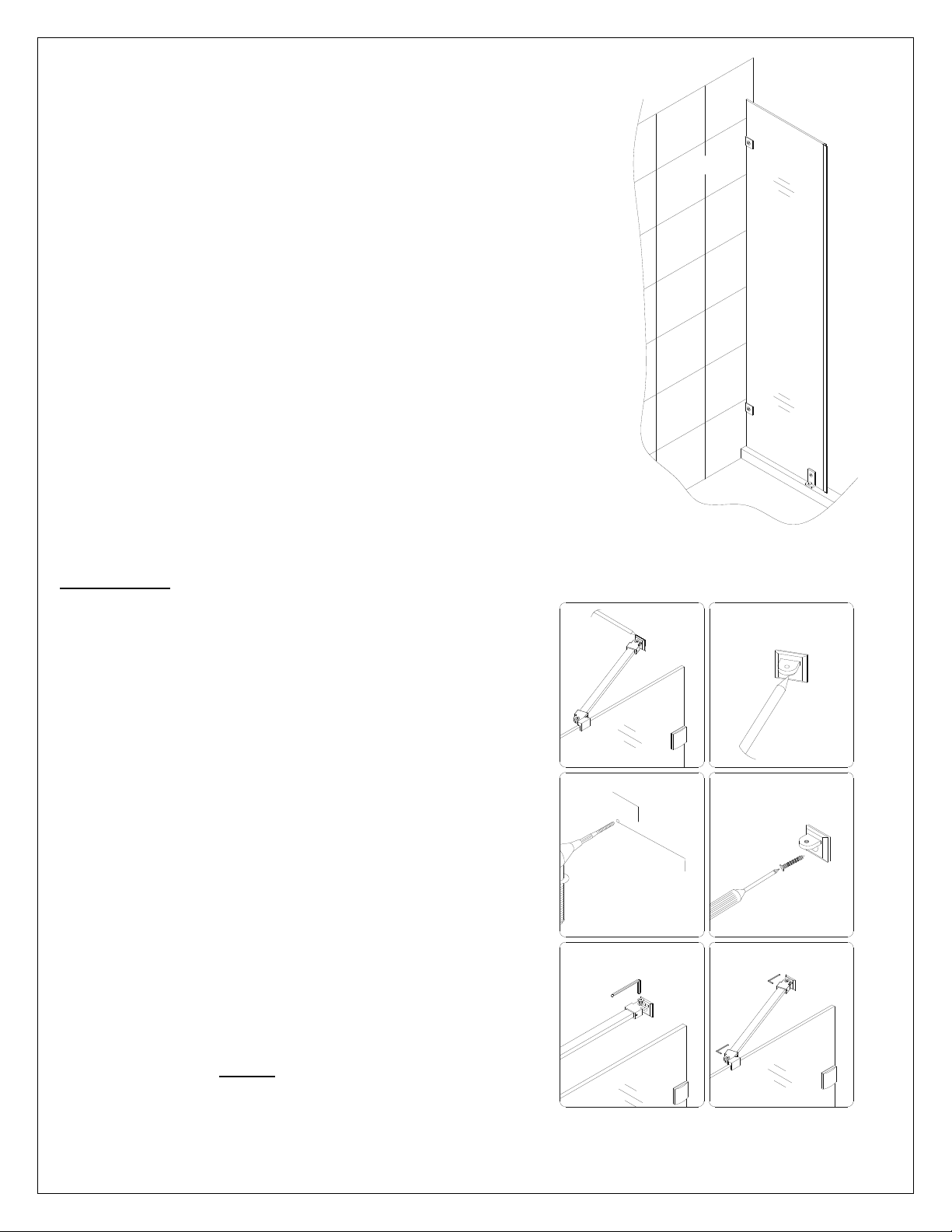

STEP 2: Install Shower Panel

STYLE D with Support Bar

For more information about DreamLine® Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

UNIDOOR LUX STYLE D with Support Bar

UNIDOOR/UNIDOOR-LS/UNIDOOR LUX/UNIDOOR PLUS

SINGLE SHOWER DOOR INSTALLATION INSTRUCTIONS

Please review this entire manual prior to beginning installation.

ATTENTION: Please see specific installation instructions on page 2 when using the

Frosted Band glass option.

Model #s

SHDR-20237210F-## SHDR-20247210F-## SHDR-20257210F-## SHDR-20267210F-## SHDR-20277210F-## SHDR-20287210F-## SHDR-20297210F-## SHDR-20307210F-##

## = Finish 01 = Chrome 04 = Brushed Nickel 06 = Oil Rubbed Bronze 09 = Satin Black HFR=Half-Frosted

NOTE: The glass-to-wall

hinges for this door must be attached into studs or to preinstalled

2” × 6” wood

reinforcement behind the wall.

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com

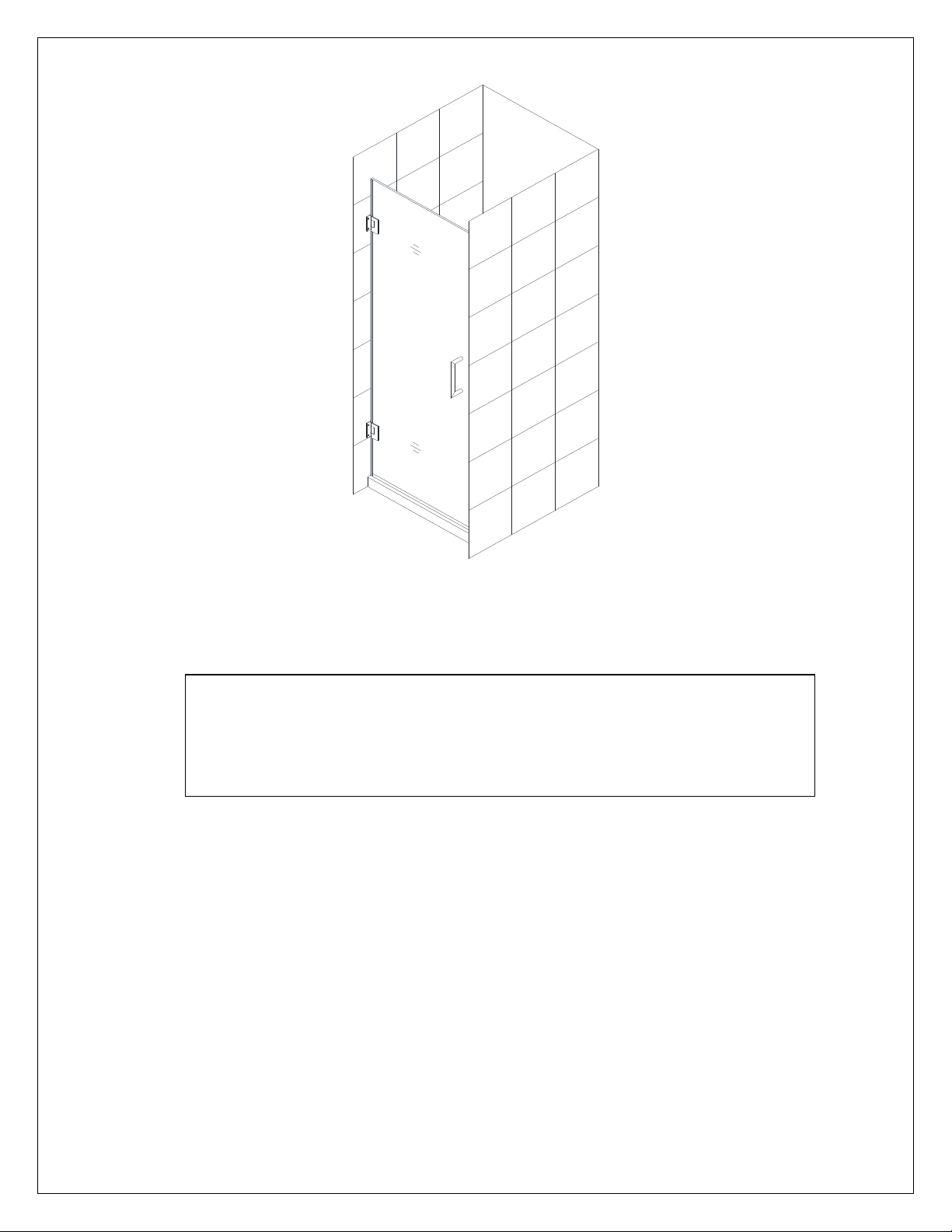

Right-hand installation shown

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

For more information about DreamLine® products please visit DreamLine.com

2

Hinged Left installation

Hinged Right installation

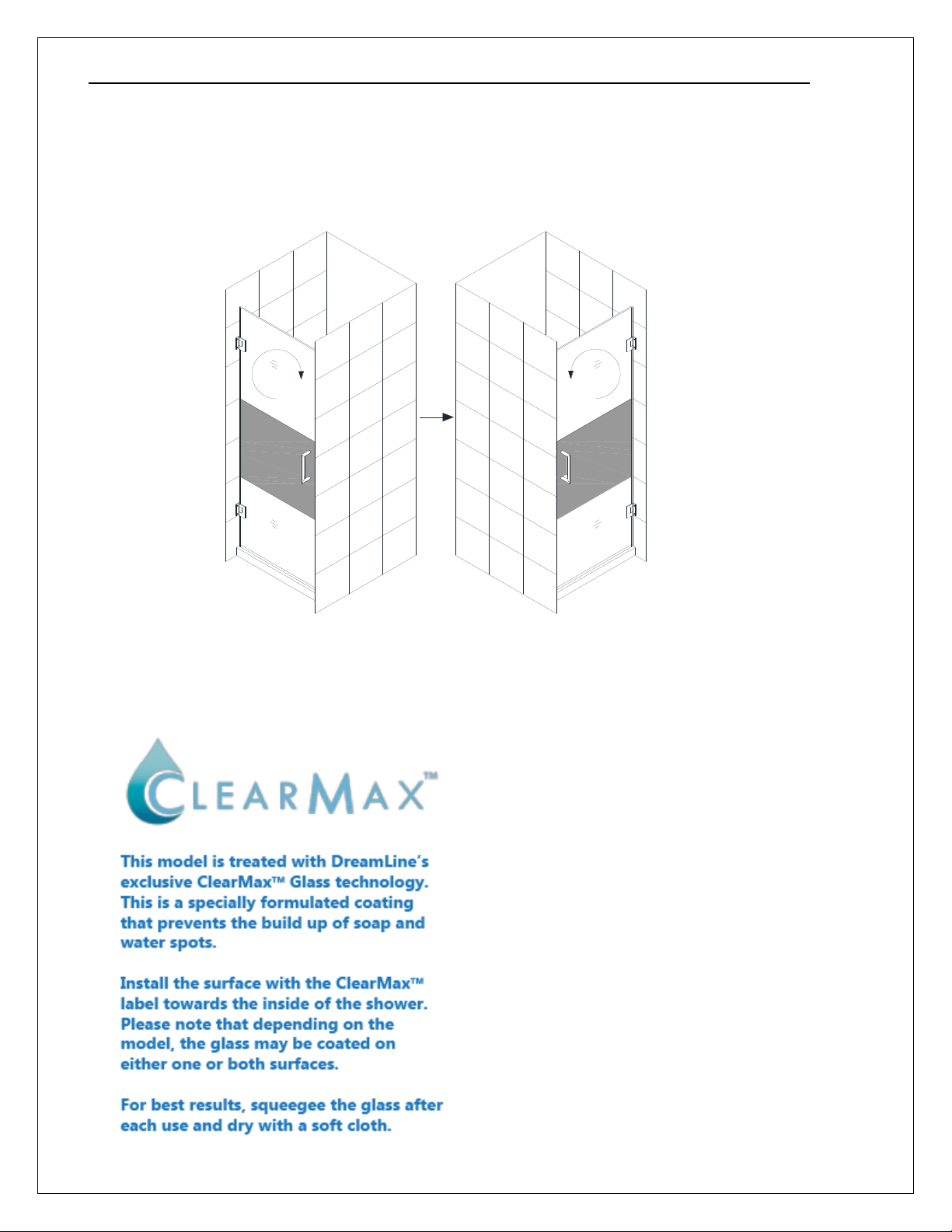

Style “A” (single door installation shown) with Half-Frosted Glass:

NOTE: This model features the Half-Frosted glass option. The textured surface on the door glass should be installed to face outside of the shower. The door glass can be flipped for left or right-hand installation.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

3

Section Title

Page #

Unidoor Styles

4-7

Preparation

8

Tools

9

Required Reinforcement locations

10

Glass and Hinge hole details

11-12

Detailed Diagram of Shower Door Components and Parts List

13

Installation Instructions

14-21

Adjustable Hinge Details

17-18

Handle

19

Vinyl Seals

19-20

Product Maintenance

22

Table of Contents

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

4

UNIDOOR STYLES- Models with Glass-to-Wall hinges

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

5

Models with Glass-to-Glass Hinge panels: For Glass-to-Glass Hinge Door models: Use the installation manual that is packaged with the Hinge panel glass first.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

6

STYLE A UNIDOOR Single shower door 23”- 30”

Refer to detailed diagram on page 12 of this manual to begin the installation.

STYLE B * UNIDOOR Shower door 23” – 30” with 6” small or 12”-30” large stationary panel with a Support Bar UNIDOOR-LS Shower door 23” – 30” with 12”-30” large stationary panel with an L-Bar™

STYLE C * UNIDOOR Shower door with 12”-30” large stationary panel with Support shelves

STYLE D * UNIDOOR LUX Shower door 23”~30” with 6” small or 14”-30” large stationary panel with glass-to-

wall brackets

STYLE E * UNIDOOR LUX Shower enclosure with 30” return stationary panel with glass-to-wall brackets

STYLE F * UNIDOOR PLUS Shower door 23”~30” with 6”-34” in-line stationary panel secured using u-channel

STYLE G * UNIDOOR PLUS Shower door 23”~30” with 6”-34” in-line half wall panel secured using u-channel

STYLE I * UNIDOOR PLUS Shower enclosure with 6”-34” in-line stationary panel and 30”-34” return panel

secured using u-channel

STYLE J * UNIDOOR PLUS Shower enclosure with 12”-36” in-line half wall panel and 30”-34” return panel secured using u-channel

STYLE L * UNIDOOR PLUS Shower enclosure with 30”- 34” return stationary panel secured using u-channel

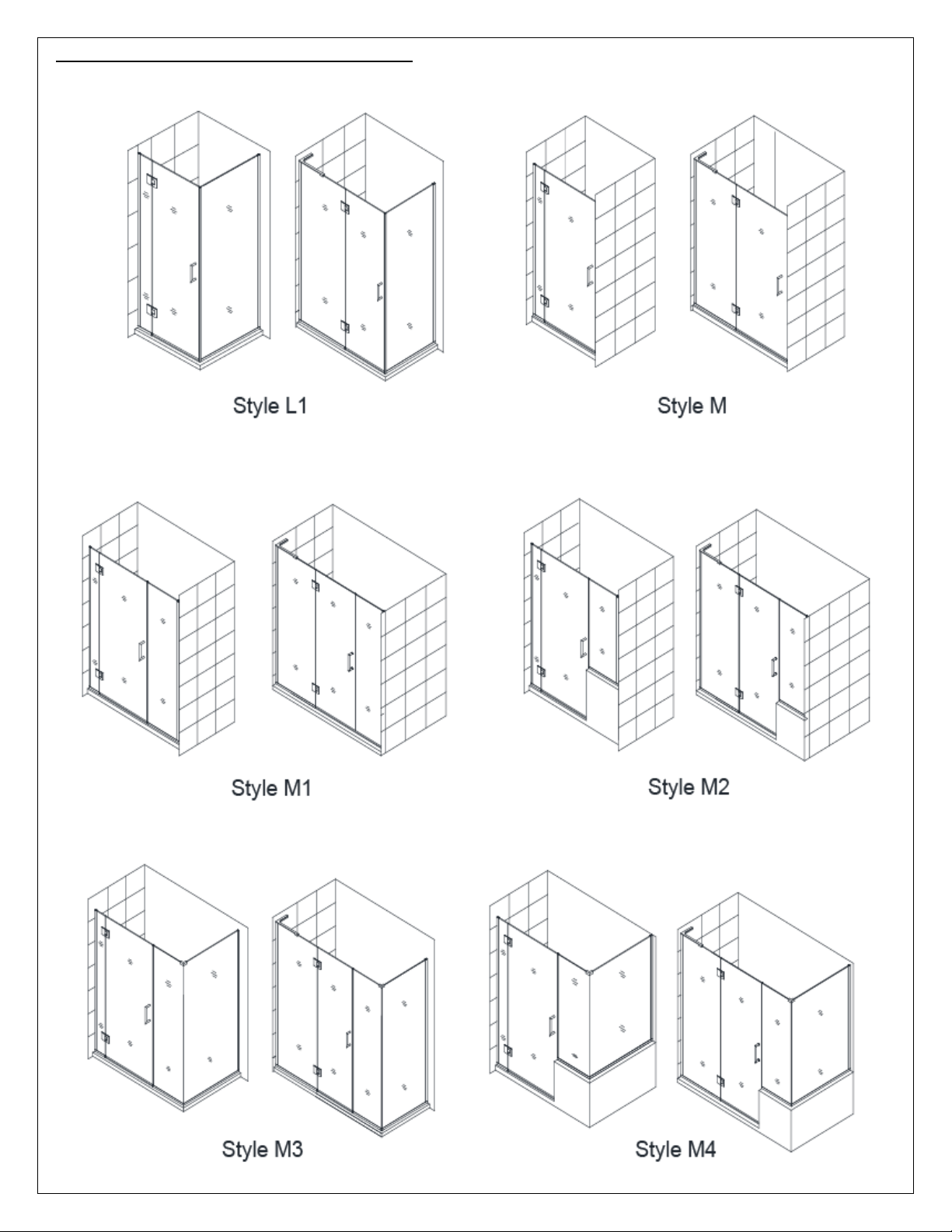

STYLE L1 *^ UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel and with 30”- 34” full height return panel secured using u-channel

STYLE M *^ UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel secured using u-channel

STYLE M1 *^ UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel and

with 6”, 6-1/2”, 14”, 14-1/2”, 22” or 22-1/2” full height inline panel secured using u-channel

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

7

STYLE M2 *^ UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel with 12”, 18”, 24” or 26” inline buttress

panel secured using u-channel

STYLE M3 *^ UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel,

with 6”, 6-1/2”, 14”, 14-1/2”, 22” or 22-1/2” full height inline panel and 30” - 34” full height return panel secured using u-channel

STYLE M4 *^ UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel,

with 12”, 18”, 24” or 26” in-line buttress panel and 30”- 40” buttress return panel secured using u-channel

* For the panel installation instructions, please refer to the separate manual included in the panel glass packaging.

^ For Glass-to-Glass door installation, please refer to the separate manual included in the hinge

panel glass packaging.

NOTE: The Unidoor series doors and enclosures are reversible for left or right-hand installation. This

manual will show the right-hand installation. For a left-hand installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

8

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the necessary parts are included in the package(s) by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or is missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not

replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if you have any questions and please

provide an order number, job name or other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions about

installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be

able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please note that some adjustments and drilling will be necessary during the installation process.

5. Protect all primary surfaces of the product during installation. Never set glass down directly onto

a hard surface unless instructed. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation to prevent damage.

6. This unit must be installed upon a level finished threshold and against plumb finished walls.

7. This door is extremely heavy and the hinges on this door must be attached into studs or to

preinstalled 2” × 6” wood reinforcement behind the wall. See pages 9, 10 & 11 for details.

8. The single Unidoor installation does NOT have any adjustment for out-of-plumb or out-of-level

conditions. Please verify that the walls are plumb and the threshold is level before proceeding with the installation.

9. Professional installation is recommended for this heavy glass frameless shower door.

NOTE: DO NOT attach the handle to the door glass until instructed. DO NOT use the handle to lift the glass during installation. This may result in damage to

the glass and/or serious injury. Always use an assistant and/or a professional grade glass

suction cup when handling heavy glass panels.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

9

Tools Required

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

10

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

11

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

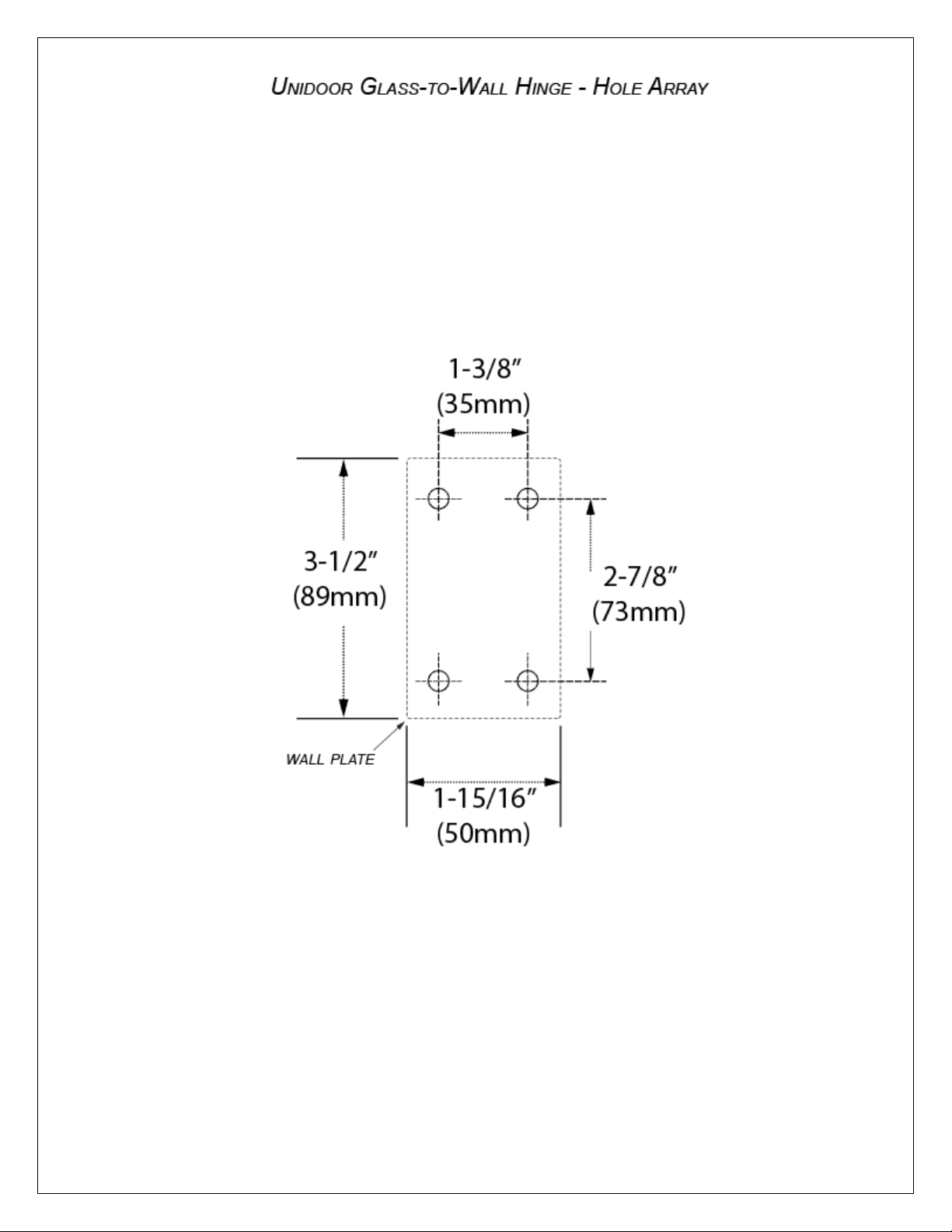

12

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

13

1

2

4

5

6

7

8

31

Part#

Description

Qty

Part#

Description

Qty

01

Door glass

1pc

06

Side strip (hinge side)

1pc

02

Handle

1pc

07

Bottom anti-water strip (sweep)

1pc

04

Countersunk screw ST5×70

8pcs

08*

L-shaped strip (strike)

1pc

05

Hinge with Adjustable angle

2pcs

31

PVC hinge spacer

4pcs

The glass surface with the ClearMax™ label must be installed to face inside of the shower

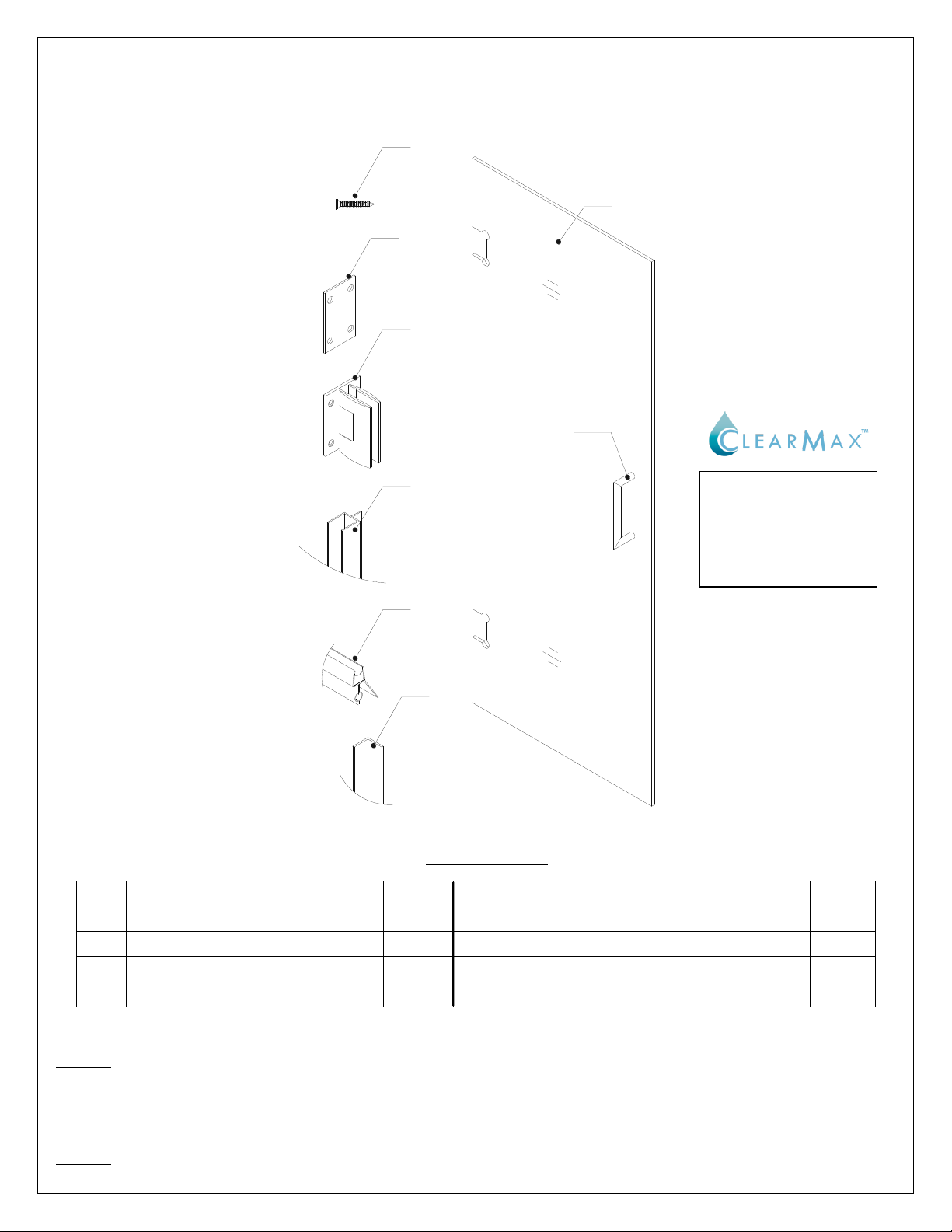

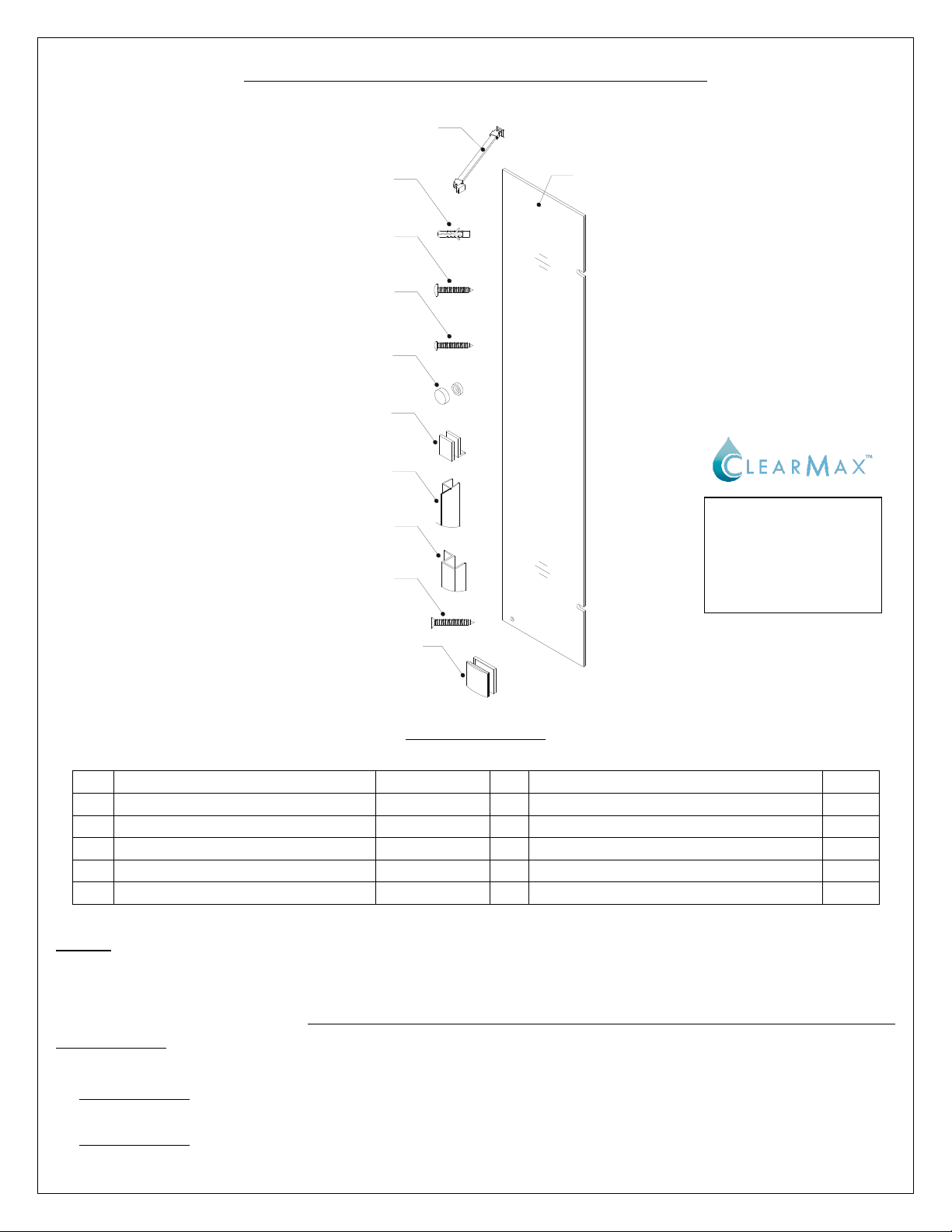

Detailed Diagram of Shower Door Components

Packing List

*Part #8 “L-shaped strip” used with single door installation only. NOTE: Unpack your unit carefully and inspect it. Lay out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. NOTE: Retain these installation instructions for future reference.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

14

Never set your glass down directly onto a tile or concrete floor.

Always use a piece of wood or cardboard and leave the corner pads and protective shims on the glass until it becomes necessary to remove them. This will protect the bottom edge and corners from damage which could lead to breakage.

Fig. 1

ATTENTION:

This door is extremely heavy and

the hinges on this door must be

installed into studs or to

preinstalled 2×6 wood

reinforcement behind the wall.

inside

outside

NOTE: DO NOT attach the handle to the door glass until instructed. DO NOT use the handle to lift the glass during installation. This may result in damage to the glass and/or serious injury. Always use an assistant or a professional grade glass suction cup when handling the door glass.

Single Shower Door Assembly and Installation

NOTE: The following shower door installation instructions should be used as a general guide and prerequisite to the installation of the UNIDOOR, UNIDOOR-LS, UNIDOOR LUX and UNIDOOR PLUS models. Before you begin the installation, please check your finished opening size. Specific size information can be found on DreamLine.com

1. Attach the Hinges (05) to the Door Glass (01). Use one hinge

gasket per side. Attach the hinges centered in the notches and square with the edge of the door glass. Fully tighten the hinge bolts. (Fig 1)

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

ATTENTION:

For Styles E, I, J & L that have return panels: Please check the model dimensions for proper placement of the Door Glass (01) so that the door glass will align correctly with the return panel glass.

15

2

1

3

Ø 1/4"

outside

ATTENTION: This door is extremely heavy and the hinges on this door must be attached to the studs or to preinstalled 2 × 6 wood reinforcement behind the wall.

Fig. 2

Fig. 3

2. The Door Glass (01) ships with four 5/8” shims

attached to the top (2pcs) and bottom (2pcs). Determine the swing of your door and only remove the shims from the top of the door glass, leaving the bottom shims in place. Set the Door Glass (01) onto the threshold at the desired location and check for level. These 5/8” shims will leave the proper spacing at the bottom of the door glass and will ensure that the door height finishes at 72”, but always confirm with a measurement. Carefully butt the door with the hinged side against the wall, adjust its position and check for plumb with a level. (Fig 2)

ATTENTION:

Check the door glass with a level to verify that it is plumb before marking the hinge positions.

TIP:

When installing the door along with panel glass, use the 72" Anti-Water strip (Inline) (19) that is packed with the panel glass as a height reference to be sure that the door height will match the panel glass at 72".

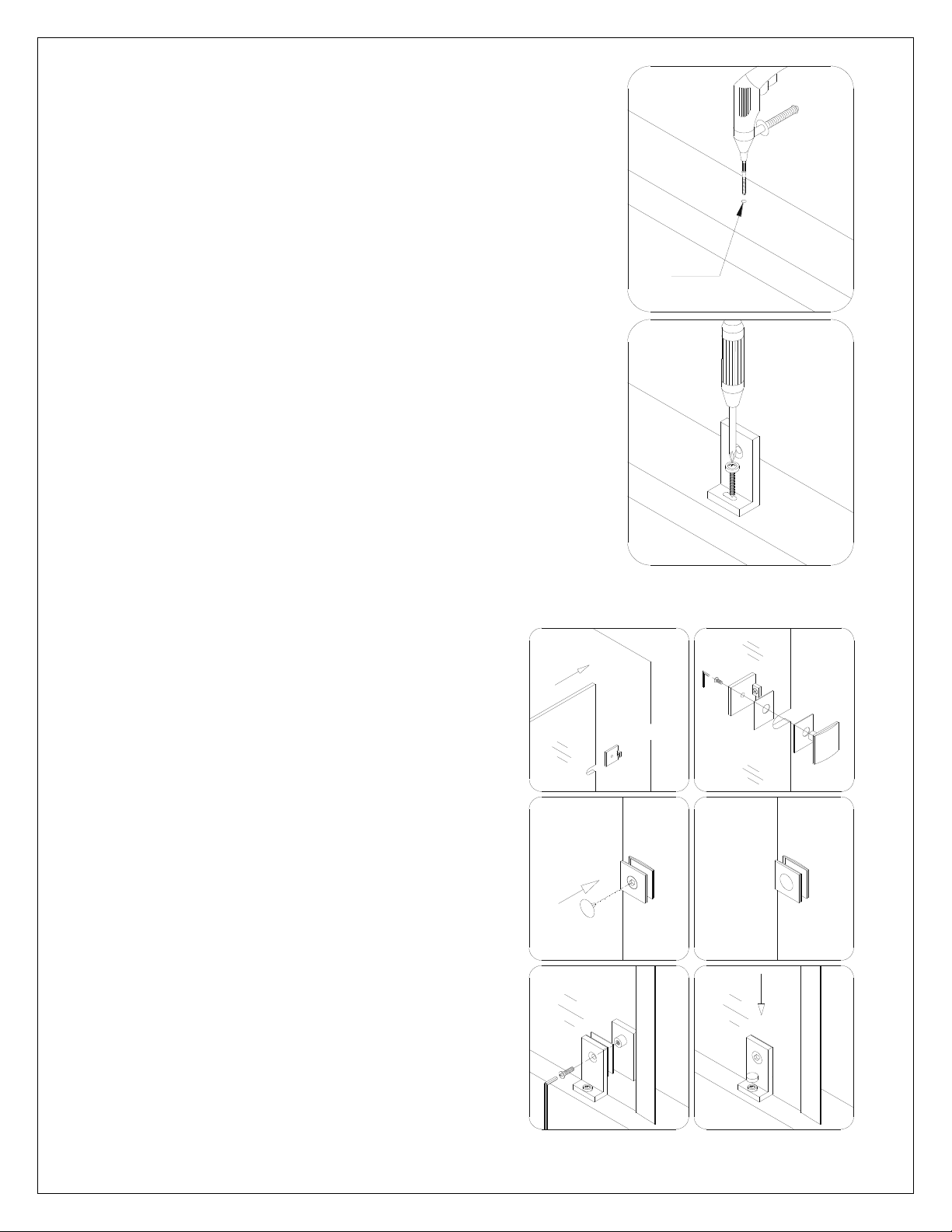

3. Hold the door in place and mark the drill

holes for both Hinges (05) on the wall. Set the door aside and use a Ø 1/4” drill bit to

drill holes up to the stud. Drill 1/8” pilot

holes into the stud if necessary.

IMPORTANT: The included PVC hinge spacers (31) are provided to compensate for minor outof-plumb wall conditions. Use only as necessary as their use could compromise the opening size of your shower. Please see Fig 4 for an installation example*.

4. Place the Door Glass (01) back onto the

threshold along with the 5/8” spacers and attach both hinges to the wall with two Countersunk screws ST5×70 (04) on the hinge from outside of the shower. Then open the door and install the remaining screws to both wall plates from the inside.

(Fig 3 and Fig 4)

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

16

1

2

3

Fig. 5

Fig. 4

TIP: The PVC hinge spacer can also be used as a template to assist with marking the hinge mounting holes.

inside

1

3

2

4

inside

*Only use the PVC hinge spacer to correct for minor out-of-plumb wall conditions.

ATTENTION: As viewed from inside the shower, the hinge plate is very close to the drilled holes in the wall and might get scratched while installing the long screws. Be careful not to scratch the hinge surfaces during installation.

(OPTIONAL)

5. Carefully remove the hinge plates from the Hinges

(05) (Fig 5.1), remove the Door Glass (01) and

carefully set it aside. Install the remaining Countersunk screws ST5 x 70 (04) into the wall, place the Door Glass (01) (with the 5/8” bottom spacers still attached) back into position onto the Hinges (05) and re-assemble the Hinges (05). Once the door glass is secure, remove the 5/8” spacers from beneath the Door Glass (01). (Fig 5)

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

17

Fig 5a

view from inside the

shower

Setting the Adjustable Hinges

The Adjustable hinges are pre-set to overclose to 85º and are adjustable up to 90º after the door is installed. Once the door glass is installed, simply loosen the Allen set screws and position the door to the desired closed position. While holding the door in the new closed position, retighten the Allen screws and your door will now self-center to the chosen closed position.

5a. Make sure the door glass is plumb and the edge of the hinge is installed flush with the glass edge. Center the hinge in the glass notch and tighten the faceplate screws (Fig 5a). Be careful not to scratch the finished surfaces of the hinge during installation.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

18

Fig 5b

Fig 5c

inside

outside

inside

outside

View from inside of shower

5b. The hinges are factory set to 85 degrees. You can change this angle by using the adjustment screws on the hinge plate.

(Fig 5b)

5c. Use the supplied Allen Key to loosen the adjustment screws on the inside hinge plate, adjust

the door to the desired angle (90 degrees for example) then retighten the adjustment screws (Fig 5c). Be sure that you create a tight seal with the supplied strike vinyl when the door is in the closed position.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

19

Fig. 6

2

1

3

inside

outside

inside

outside

4

inside

outside

inside

outside

Handle side

strip end

3/8"

Fig. 7

+/-

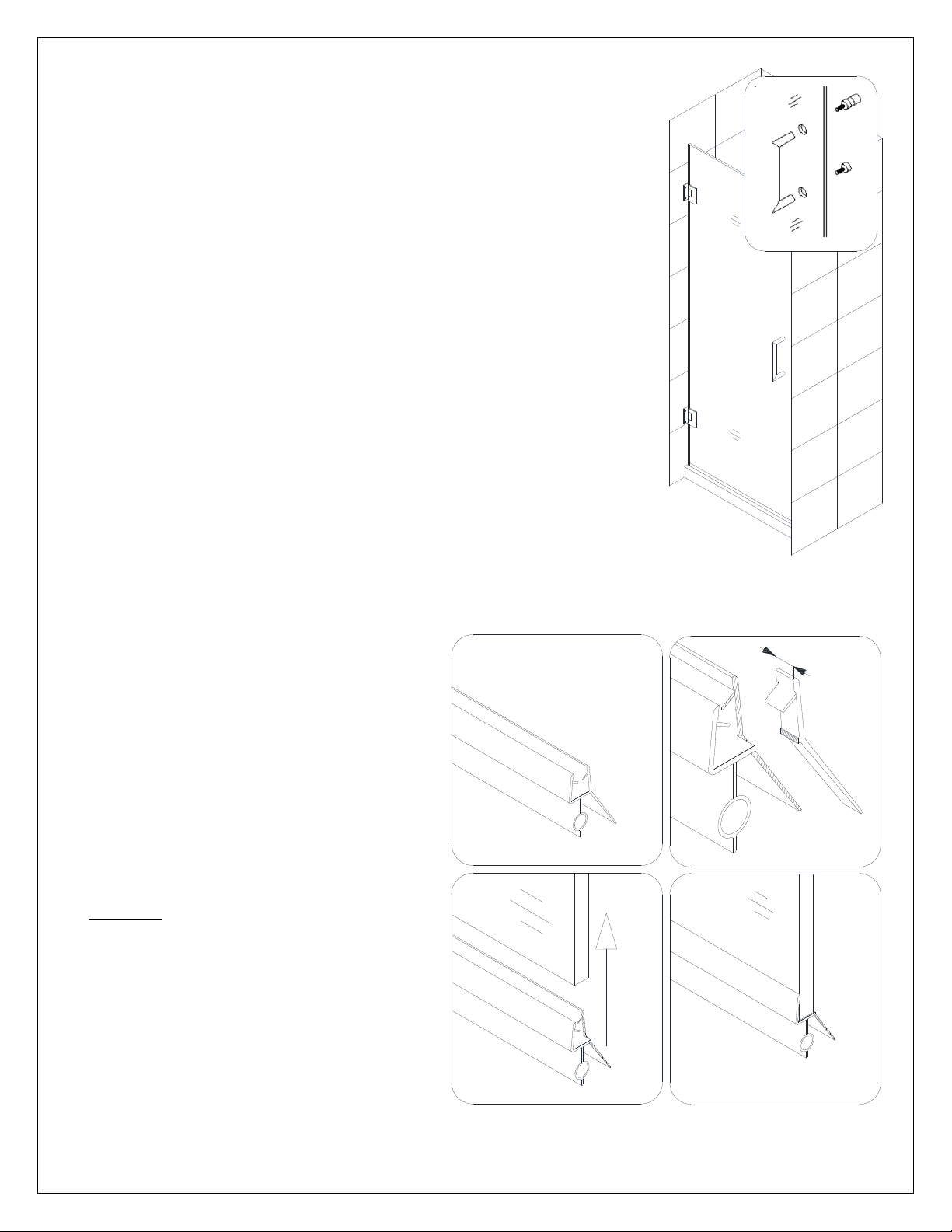

6. Mount the Handle (02) to the Door Glass (01).

(Fig 6)

7. Measure the bottom of the Door Glass

(01) from end to end to determine the actual width of the door. Cut the Bottom anti-water strip (07) to the

size of your measurement and notch approximately 3/8” off the inner side of the Bottom anti-water strip as shown. Press the Bottom Anti-water strip (07) tightly onto the bottom edge of the

Door Glass (01).

NOTICE:

Make sure the Bottom anti-water strip

is flush to the vertical edge of the

Handle side of the Door Glass.

(Fig 7)

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

20

8. Take three measurements:

1 2

4

6

3

Into the hinge

7/8"

5

Into the hinge

Around sweep vinyl

1"

7/8"

1

2

Fig. 9 inside

Fig. 8

Allow the adhesive to set up for 24hrs after installation

door

 from the top edge of the Door Glass (01) to the

upper body of the top Hinge (05) (+) 7/8”

 from the lower body of the upper Hinge to the

upper body of the bottom Hinge (+) 1-3/4”

 from the lower body of the bottom Hinge to top

of the installed Bottom anti-water strip (07) (+) 1-7/8”

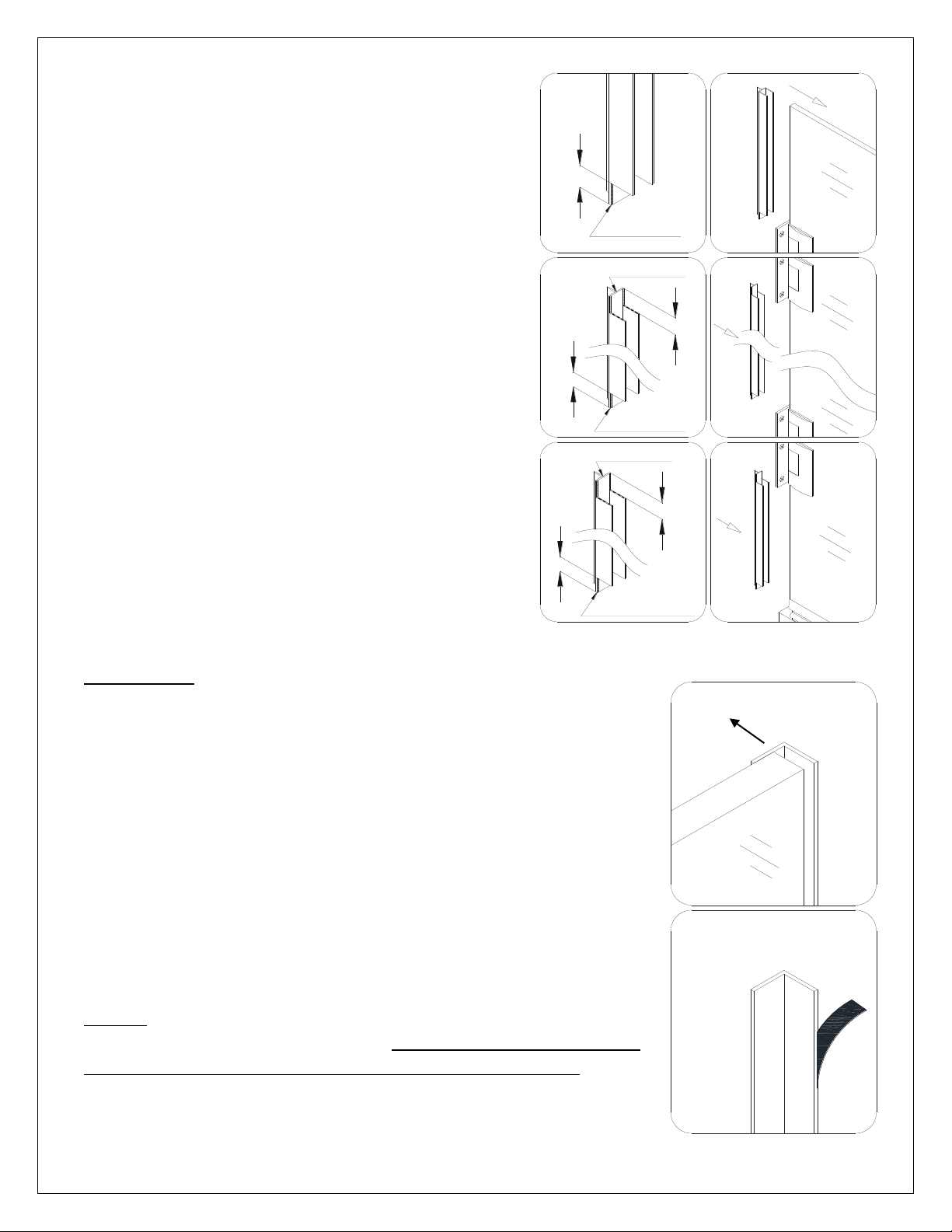

Cut the Side strip (06) according to the measurements. Notch the cut strips to be able to slide them into the Hinge and around the sweep vinyl to cover the space to the wall. Press the cut strips onto the vertical edge of the

Door Glass. (Fig 8)

ATTENTION; Prior to the next step, please be sure that the section of the wall where you need to attach the L-shaped strip (08) is clean, dry and free from soap, oil and any construction debris.

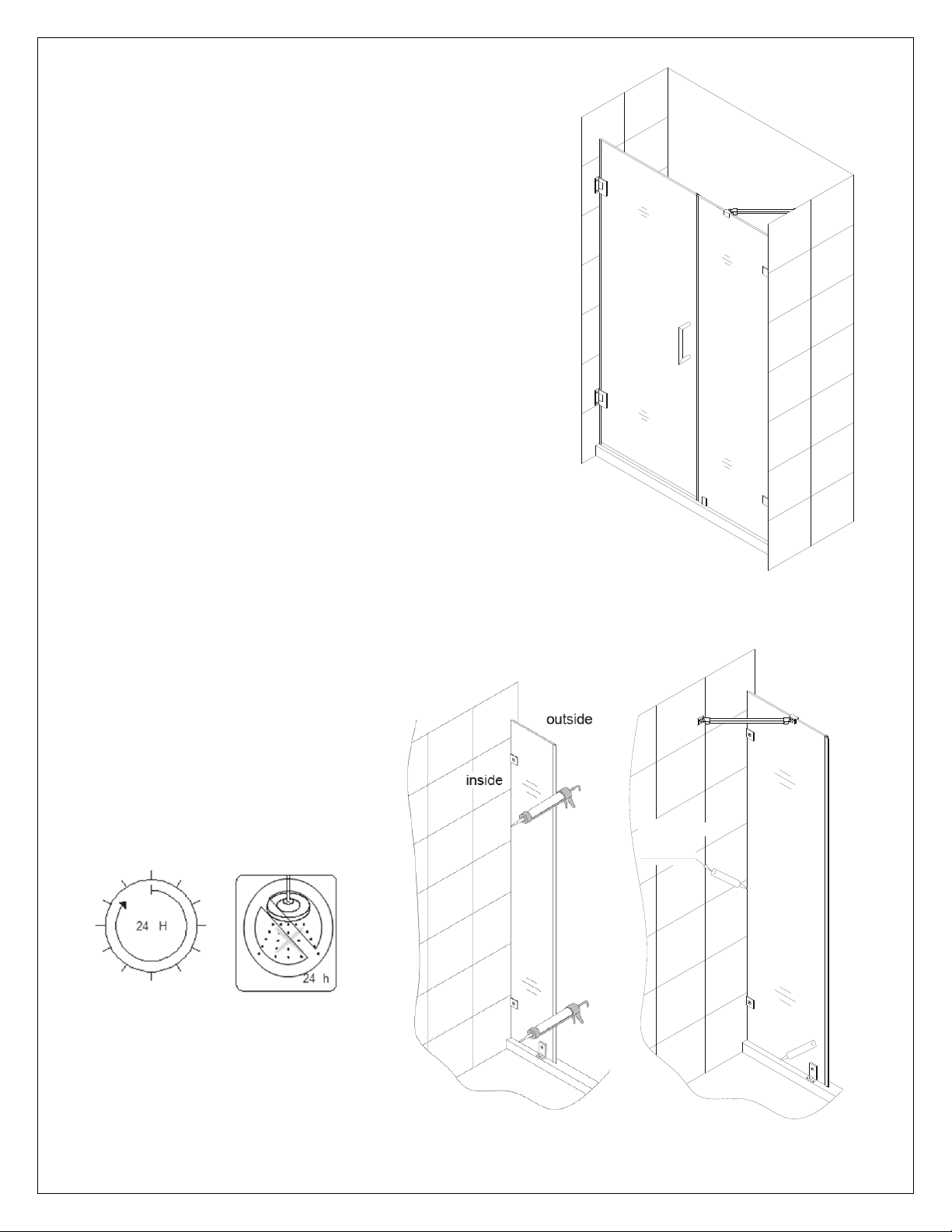

9. Hold the door in the closed position, parallel to the threshold. Place

the *L-shaped strip (08) onto the door edge. Make sure that the door glass makes good contact with the entire length of the L-shaped strip (08), and mark its location on the wall. Open the door. Remove the tape backing from the adhesive strip and firmly press the L-shaped strip (08) to the wall.

Allow 24 hours for the adhesive to fully setup before use. (Fig 9 and Fig 10)

*NOTE: The above procedure for installing the L-shaped strip (08) is for the Unidoor Style A single shower door installation only. When installing another model with additional panel glass, please refer to the separate panel installation manual located in the glass packaging for model specific instructions. The vinyl seals that apply to the panel glass are packaged with the panel glass.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

21

Fig. 10

If the model includes additional panel glass,

refer to the manual that is packaged with

the panel glass to continue with the installation.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

22

Product Maintenance

BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long-lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine® with any questions or concerns.

DreamLine® shower doors and enclosures are designed not to leak when installed properly and the flow of water is not pointed directly at the wallmounted hinges or vinyl seals.

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

23

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com

UNIDOOR Single Shower Door manual Ver 2 Rev 6 02/2018

1

UNIDOOR LUX (STYLE D)

SHOWER DOOR GLASS PANEL INSTALLATION INSTRUCTIONS

Style D

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details

please refer to your model’s web page on DreamLine.com

Please read these instructions carefully before installing. If you have any questions regarding installation, please contact our technical support specialists Monday through Friday 8AM – 7PM and Saturday 9AM-5PM EST at Phone: 1-866-731-2244, Fax: 1-866-857-3638 or e-mail our technical support group at [email protected]

For more information about DreamLine® products please visit DreamLine.com

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

2

Model #s

SHDR-23297210-##

SHDR-23307210-##

SHDR-23317210-##

SHDR-23327210-##

SHDR-23337210-##

SHDR-23347210-##

SHDR-23357210-##

SHDR-23367210-##

SHDR-23377210-##

SHDR-23387210-##

SHDR-23397210-##

SHDR-23407210-##

SHDR-23417210-##

SHDR-23427210-##

SHDR-23437210-##

SHDR-23447210-##

SHDR-23457210-##

SHDR-23467210-##

SHDR-23477210-##

SHDR-23487210-##

SHDR-23497210-##

SHDR-23507210-##

SHDR-23517210-##

SHDR-23527210-##

SHDR-23537210-##

SHDR-23547210-##

SHDR-23557210-##

SHDR-23567210-##

SHDR-23577210-##

SHDR-23587210-##

SHDR-23597210-##

SHDR-23607210-##

##=finish 01- Chrome 04- Brushed Nickel 06- Oil Rubbed Bronze 09- Satin Black

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

3

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece

count with your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions and please provide an

order number, job name or other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions about

installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please, install all of the required plumbing

and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will

be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please, note that some adjustments and drilling may be necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down

directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. Note: The installation of this unit requires that you drill down into the threshold.

8. This model requires a minimum 5/8” of flat threshold space for installation.

9. Professional installation recommended.

NOTE: This model is reversible for left or right hand installation. This manual will show the installation of the panel on the right side. For a left side panel installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

4

Tools Required

Caulk

Tape Measure Pencil

Screwdriver

Phillips Drill bit

Level

Gun

Caulk

Drill

Electric

Hammer

Drill bit

(Ø=5/16")

(Ø=1/8")

Knife

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

5

11

Stationary glass

1pc

18

Bottom bracket

1pc

12

Support bar *

1pc

19

Anti-Water strip (inline panel)

1pc

13

Wall anchor *

2pcs + 1pc

20

Anti-water strip (enclosure)**

1pc

15

Big flat head screw ST4.2×55

2pcs

23

Countersunk screw ST4.2x40*

1pc

16

Round head screw ST4.2×35

1pc

24

Wall bracket

2pcs

17

Decorative screw cover

1pc

11

13

15

16

17

18

19

20

24

12

23

The glass surface with the ClearMax™ label must be installed to face inside of the shower

Detailed Diagram of Panel Glass Components

NOTE: Unpack your unit carefully and inspect it. Identify all parts using the detailed diagram and

packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

* ATTENTION: All parts that are marked with the star (*) not provided with 6” Stationary panel.

** ATTENTION: Anti-Water strip (enclosure) (20) used for 30”- 34” return panel glass

installation (STYLE E).

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

Packing List

6

Value

inside

outside

inside

Door

Fig. 1

2

1

Style “D”: 6” Small or 14”-30” Large Stationary Panel Installation

NOTE: The Unidoor shower door needs to be installed prior to proceeding with the following Stationary Glass installation instructions. Please see the Single Shower Door installation manual included in the door packaging for complete shower door installation instructions. Before you begin the installation, please recheck your shower opening size. Specific size information can be found on our website at Dreamline.com.

NOTE: The 22” In-Line Stationary Glass Panel is the primary example shown throughout this installation manual. Use the following installation procedures when installing a 6” In-Line Stationary Glass Panel with the exclusion of the Support Bar (12). See page 8 for more information.

NOTE: The Unidoor hinge is factory set to over

close 8°. The following procedure is recommended to

ensure proper alignment of the panel glass and the door

glass.

1. Align the Door so that it is perpendicular to the wall and

parallel to the threshold. Measure across the bottom span of the Door and threshold on the outside of shower and determine an equal value. Mark a line on the threshold base on the handle side for reference.

See Fig. 1 for details.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

7

NOTE: Use parts from “Detailed Diagram of Panel Glass Components” for the Stationary

3

2

inside

outside

inside

outside

inside

outside

inside

outside

4 3 2

1

5

6

Fig. 2

Fig. 3

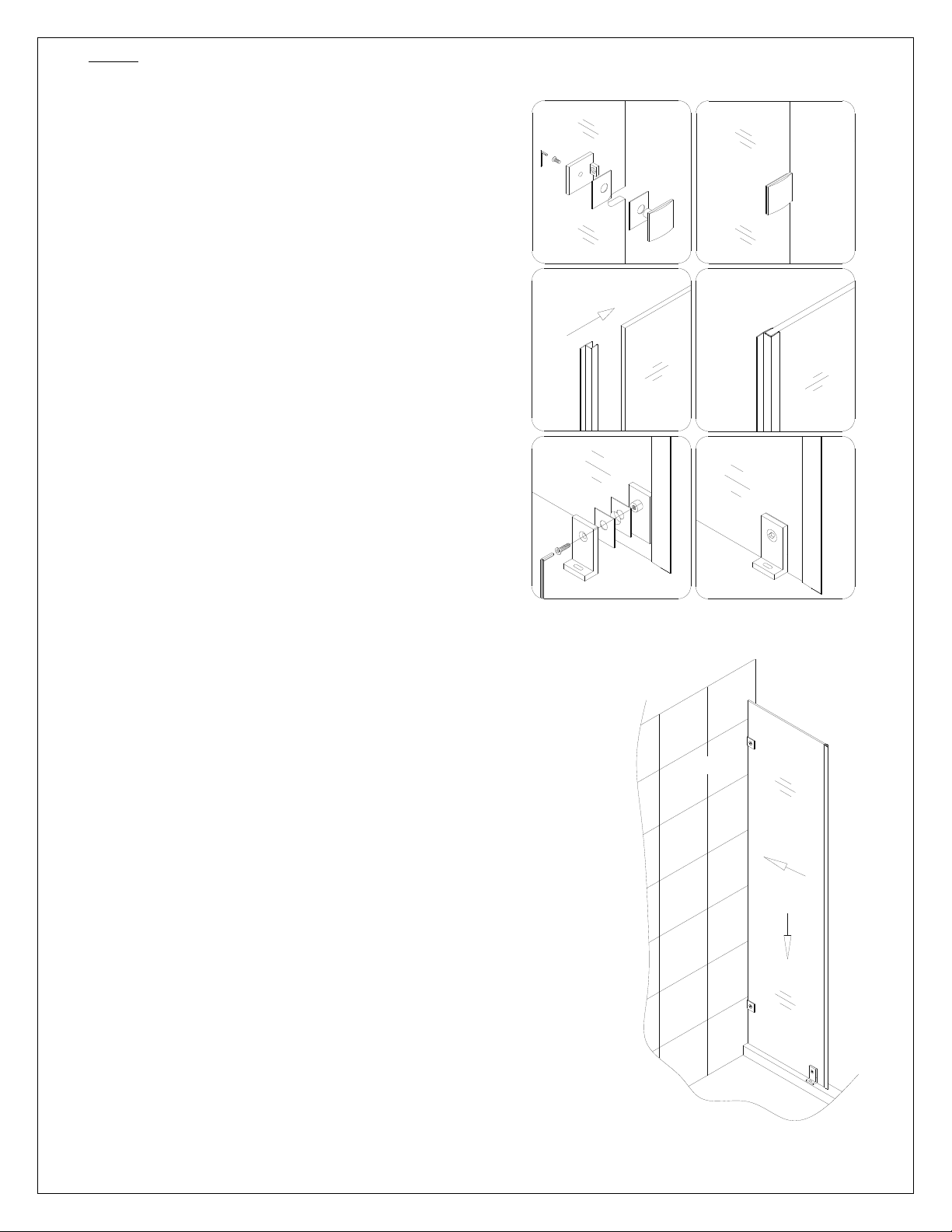

Glass assembly and installation

2. Mount the two Wall brackets (24) through the

notches on the Stationary glass (11). Press the Anti-water strip (inline panel) (19) onto the vertical edge of the Stationary glass. Attach the Bottom Bracket (18) through the bottom hole of the Stationary glass.

See Fig. 2 for details.

3. Carefully butt the Stationary glass (11) up against the wall

vertically.

See Fig. 3 for details.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

8

Ø 5/16"

inside

outside

inside

outside

inside

outside

inside

Door

Align stationary glass and glass door

inside

1/16"-1/8"

Stationary glass

inside

4

3 2 1

5 4 3

2

1

5

6

Fig. 4

Fig. 5

4. While securely holding the Stationary glass (11),

close the Door Glass and align the Stationary glass to it. Use the door mark that was made in step #1 on the threshold as a reference to ensure that the Door is perpendicular to the wall. If necessary, adjust the position of the Stationary

glass so that the Anti-Water strip (inline panel) (19) makes tight contact to the Door Glass from

top to bottom.

NOTE: The top of the Stationary glass must be leveled with the Door glass.

Outline the position of the Wall brackets (24) on the wall from inside the shower. Mark the drilling hole of the Bottom bracket (18) on the shower base or threshold through the oval notched hole.

See Fig. 4 for details.

5. Open the Door Glass and carefully set the

Stationary glass (11) aside. Remove the Wall brackets (24) and Bottom bracket (18) from the Stationary glass.

Replace the Wall brackets to the outlined positions that were made in step #4 and mark the drill holes on the wall. Drill the holes using a Ø 5/16” drill bit, insert the Wall anchor (13) and fasten the Wall brackets to the wall with the Big flat head screws ST4.2×55 (15).

See Fig. 5 for details.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

9

outside

inside

Ø 1/8"

outside

inside

outside

4 3 2

1

5

Fig. 6

Fig. 7

6

2

1

6. Drill the hole into the shower base or threshold for the

Bottom bracket (18) using Ø 1/8” drill bit at the drill mark that was made in step #4. Use the Round head screw ST4.2x35 (16) along with a raised white washer to attach the Bottom Bracket to the shower base or threshold.

See Fig. 6 for details.

7. Move the Stationary Glass (11) back into position

and tighten it up to the Wall Brackets (24). Secure the Bottom Bracket (18) to the Stationary Glass. Cover the Bottom Bracket screw head with Decorative screw cover (17).

See Fig. 7 and Fig. 8 for details.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

10

inside

outside

Ø5/16"

inside

Fig. 9

1

3 5 2

4

6

Fig. 8

ATTENTION:

When installing a model with the 6” panel, skip to step #9 to complete the installation. If installing the 12” panel or larger, the Support Bar (12) must be installed for stability, continue to step #8”:

8. Locate the Support bar (12).

Position the Support bar (12) at an angle to the wall that will provide adequate support for the panel glass and level it horizontally. Hold it firmly and outline the

bracket’s position on the wall. Remove the Support bar and detach the wall bracket from it. Place the wall

bracket against its outlined position on the wall and mark the drilling hole. Drill the hole using Ø5/16” drill bit, insert the Wall anchor (13) and fasten the wall bracket to the wall with the Countersunk screw ST4.2×40 (23). Attach the Support bar to the wall as shown in Fig. 9.5 and tighten the set screws and the glass holding screw to secure the glass. NOTE: Use the clear rubber gasket

to prevent glass to metal contact.

See Fig. 9 and Fig. 10 for details.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

11

Fig. 10

waterproof silicone

inside

Fig. 11

9. Apply good quality mildew-resistant silicone

along the connection of the Stationary glass (11) with the walls and the threshold.

Allow 24 hours for the silicone to fully cure before using the shower.

See Fig. 11 for details.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

12

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and

other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016

13

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine® Shower Doors and Enclosures please visit DreamLine.com

UNIDOOR LUX (STYLE D) Ver 2 Rev 9 09/2016
