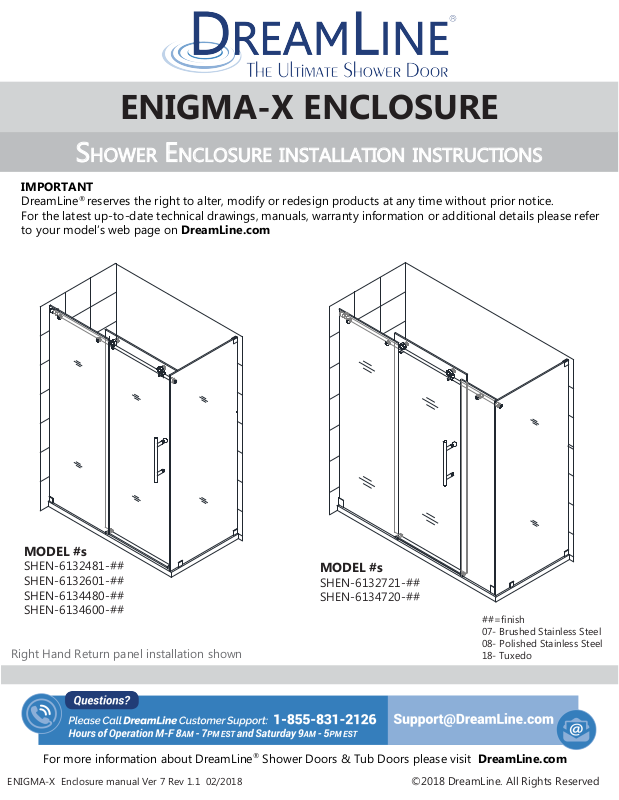

DreamLine DLN2559 Installation & Assembly

Page 1

ENIGMA-X ENCLOSURE

SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model’s web page on DreamLine.com

reserves the right to alter, modify or redesign products at any time without prior notice.

MODEL #s

SHEN-6132481-## SHEN-6132601-## SHEN-6134480-## SHEN-6134600-##

Right Hand Return panel installation shown

For more information about DreamLine

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

MODEL #s

SHEN-6132721-## SHEN-6134720-##

##=finish

07- Brushed Stainless Steel 08- Polished Stainless Steel 18- Tuxedo

Shower Doors & Tub Doors please visit DreamLine.com

Page 2

Table of Contents

Section title

Important Information

Reinforcement Information

Preparation Tools

Detailed Diagram of Shower Door Components

Shower Enclosure Plan (Measurements)

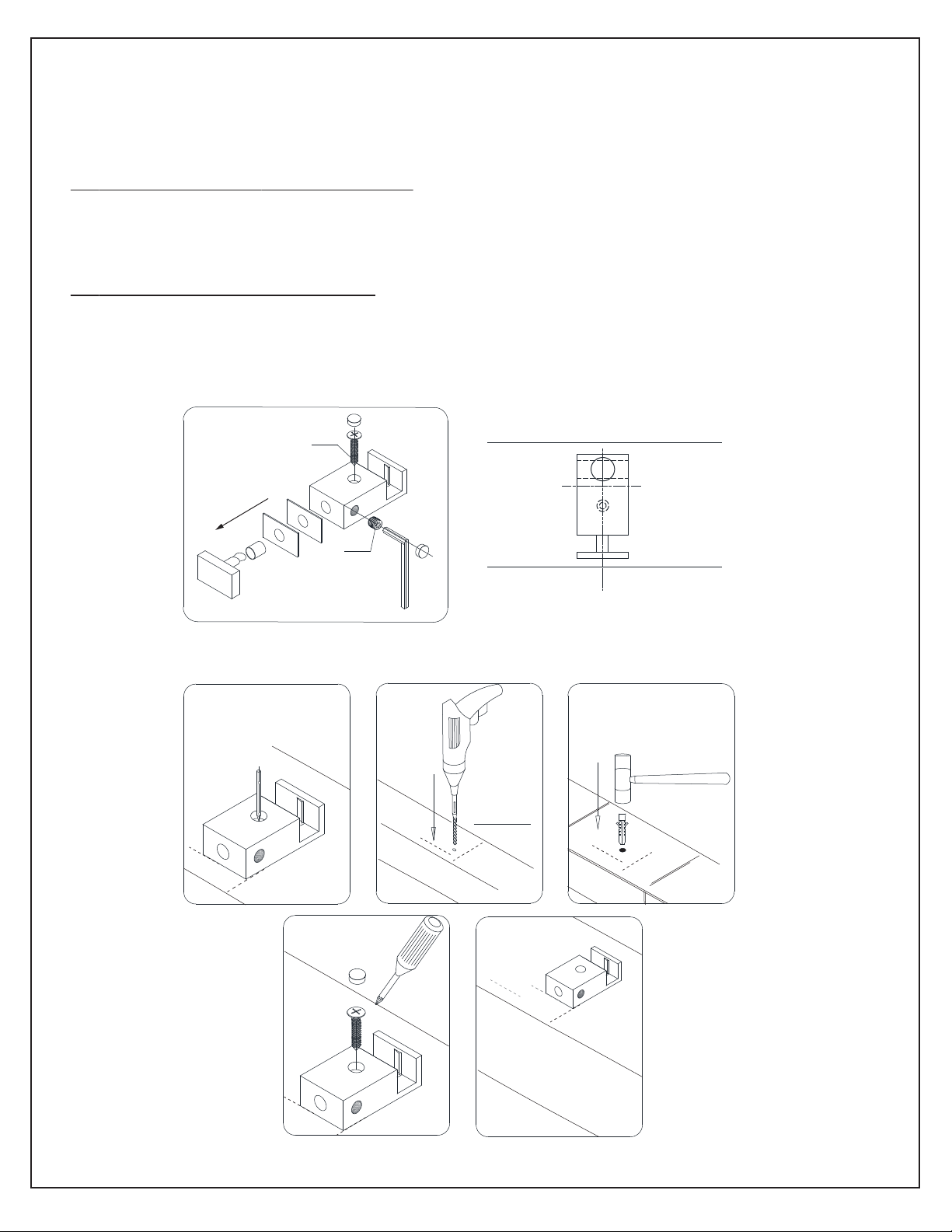

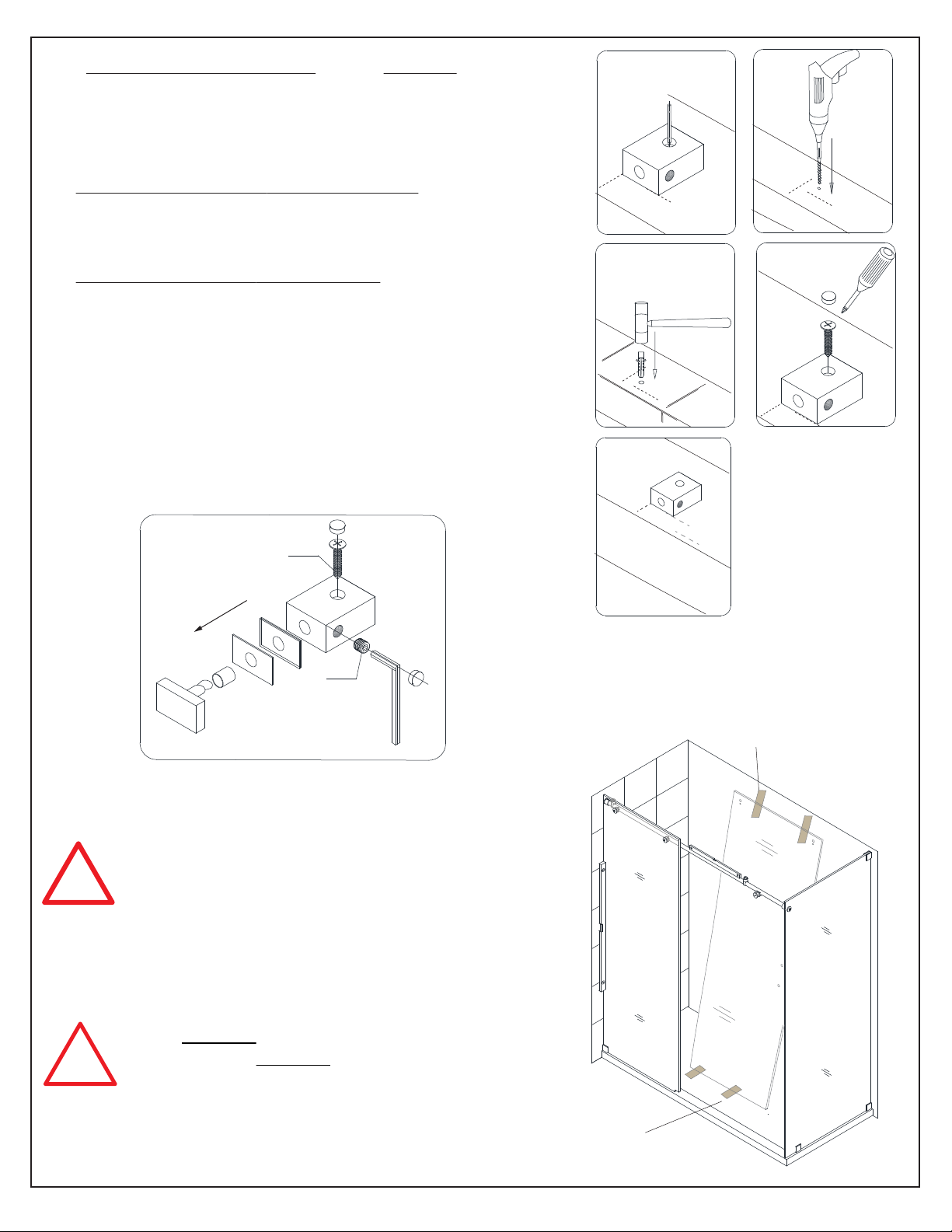

Installation Steps Installation of Guide Block

Guide Rail Bracket Adjustment Installation of Roller Guards

Bumper Installation

Vinyl Seals

Installation of Door Stoppers

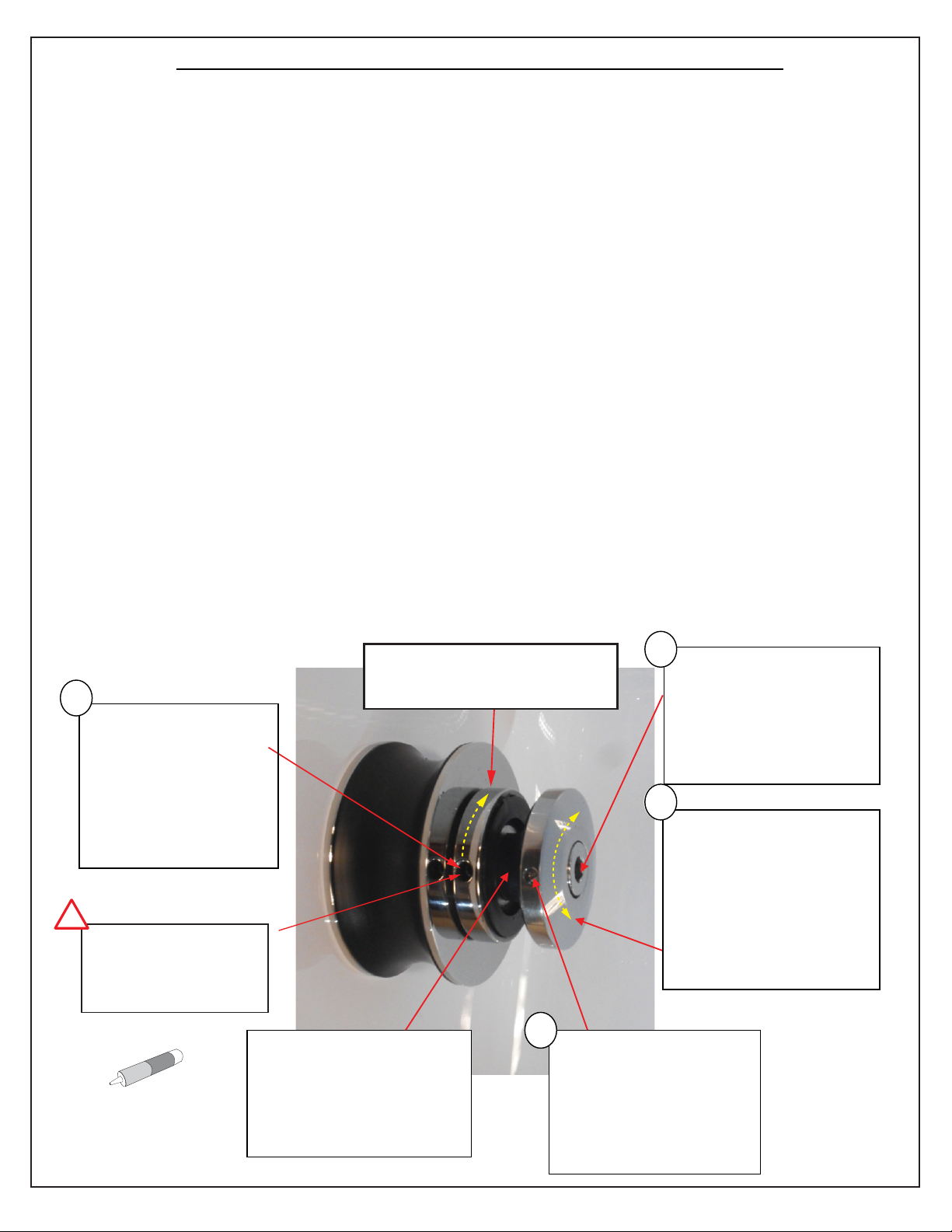

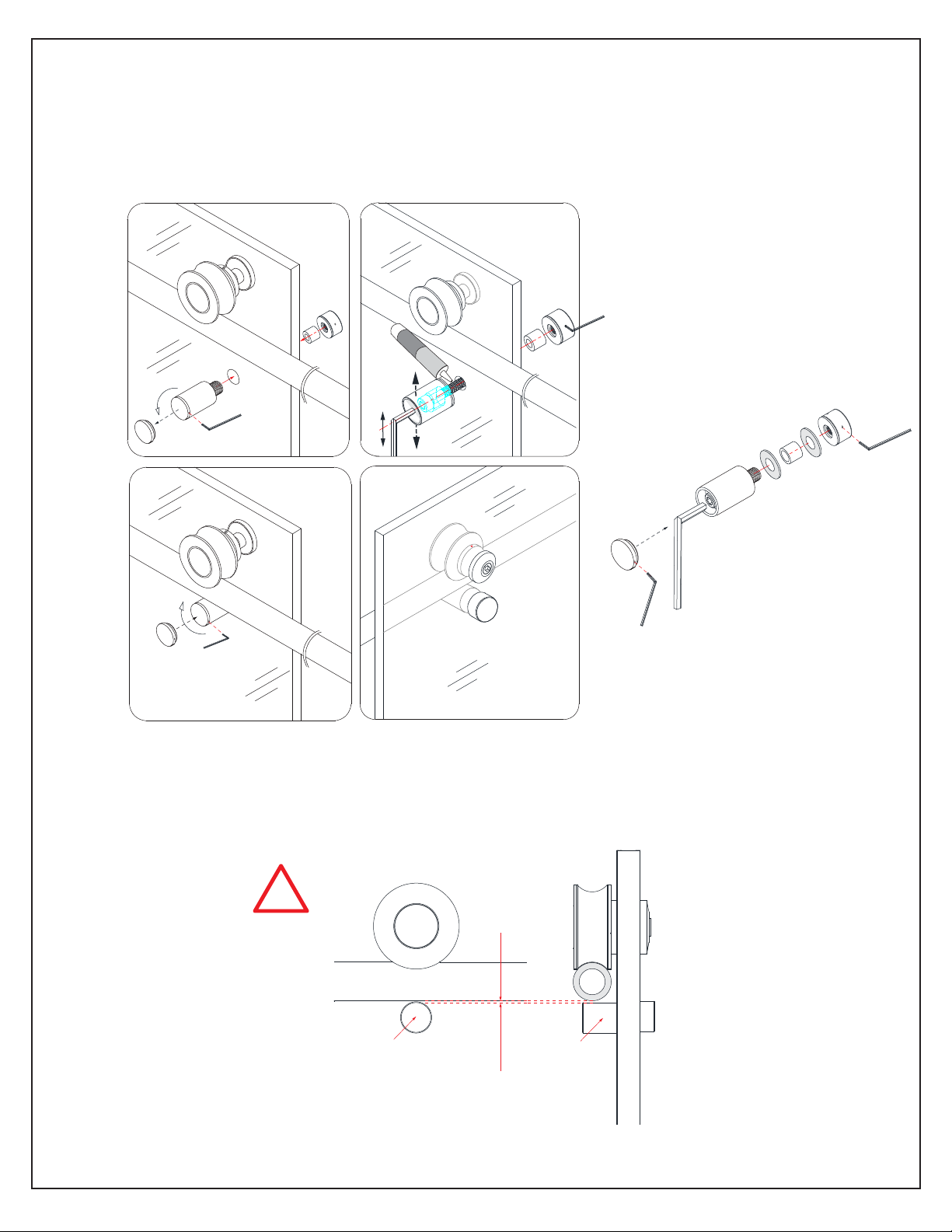

Roller Adjustment Procedure

Product Maintenance and checklist

Page #

7-8

9-10

11-32

22 27

28-29

30 31

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 3

This model is treated with DreamLine’s

exclusive ClearMax

Glass technology. This is a specially formulated coating that prevents the build up of soap and water spots.

Install the surface with the ClearMaxTM label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.

For best results, squeegee the glass after each use and dry with a soft cloth.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 4

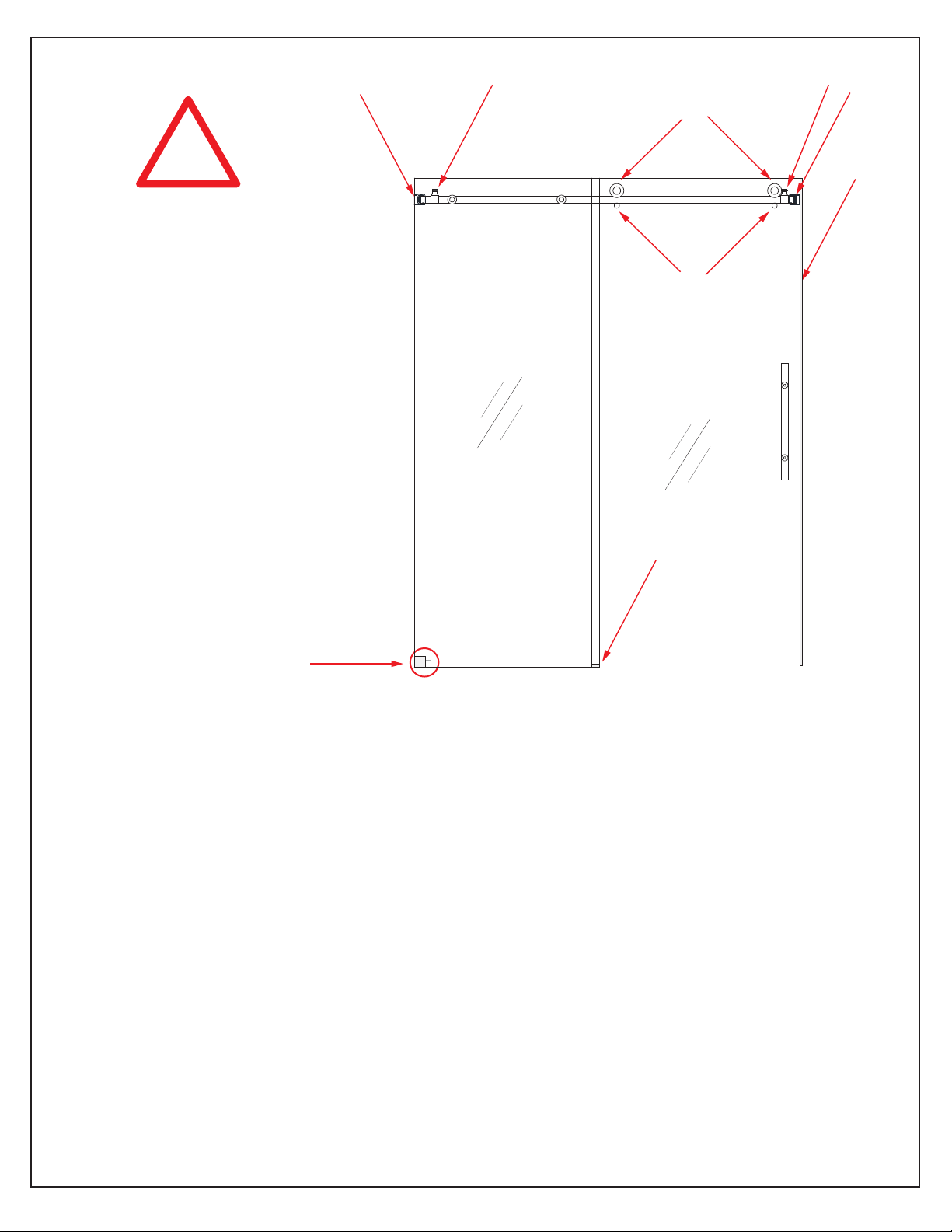

IMPORTANT INFORMATION REGARDING THE INSTALLATION OF THIS SHOWER DOOR

PANEL

DOOR

Guide Rail Brackets must be firmly

attached to the wall. Installation into a stud is strongly recommended. All of the guide rail bracket set screws must be tightened.

Thread Lock must be applied to both

stopper set screws. Panel-side stopper must be installed into the pre-drilled stopper hole in the upper guide rail. Door-side stopper must be installed at the proper position to stop the door from contacting the wall.

Roller Wheel Safety Set Screws must be re-tightened after installation. Apply Thread lock.

Right hand door installation shown as an example

Roller Guards must be postioned and

secured within 1/16” of Upper Guide Rail. Apply thread lock.

Bumper Vinyl Seal must be installed on

the closing edge of the door glass

The Guide Block must be screwed to the

threshold and installed square to the panel

glass and door glass. Installing the guide block crooked may damage the bottom edge of the door glass and lead to breakage.

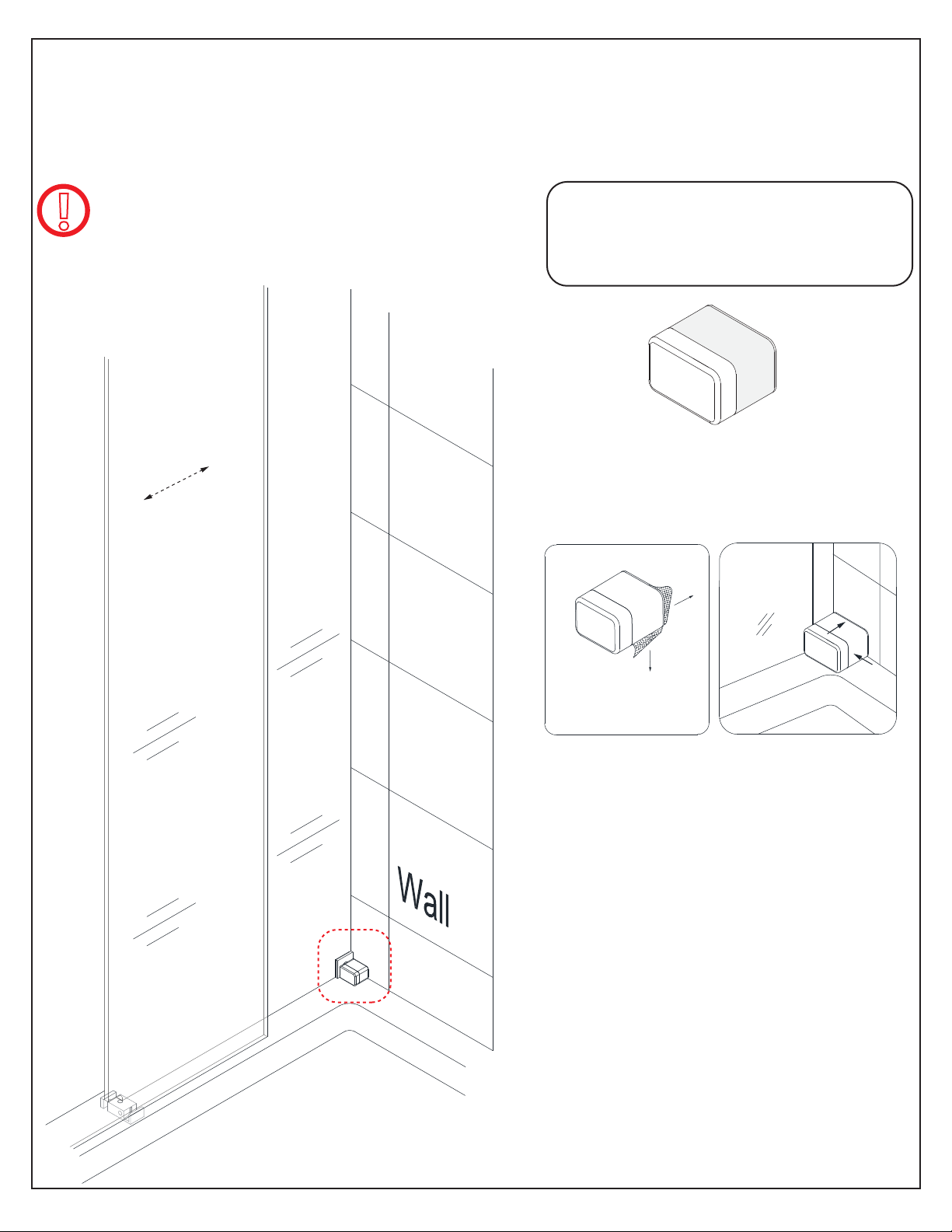

Bumper is secured in position with 3M tape or

screwed to the wall.

PLEASE READ THE ENCLOSED INSTALLATION MANUAL FOR DETAILS REGARDING PROPER INSTALLATION.

THE LATEST VERSION OF THE INSTALLATION MANUAL IS AVAILABLE TO VIEW OR PRINT ON DREAMLINE.COM

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 5

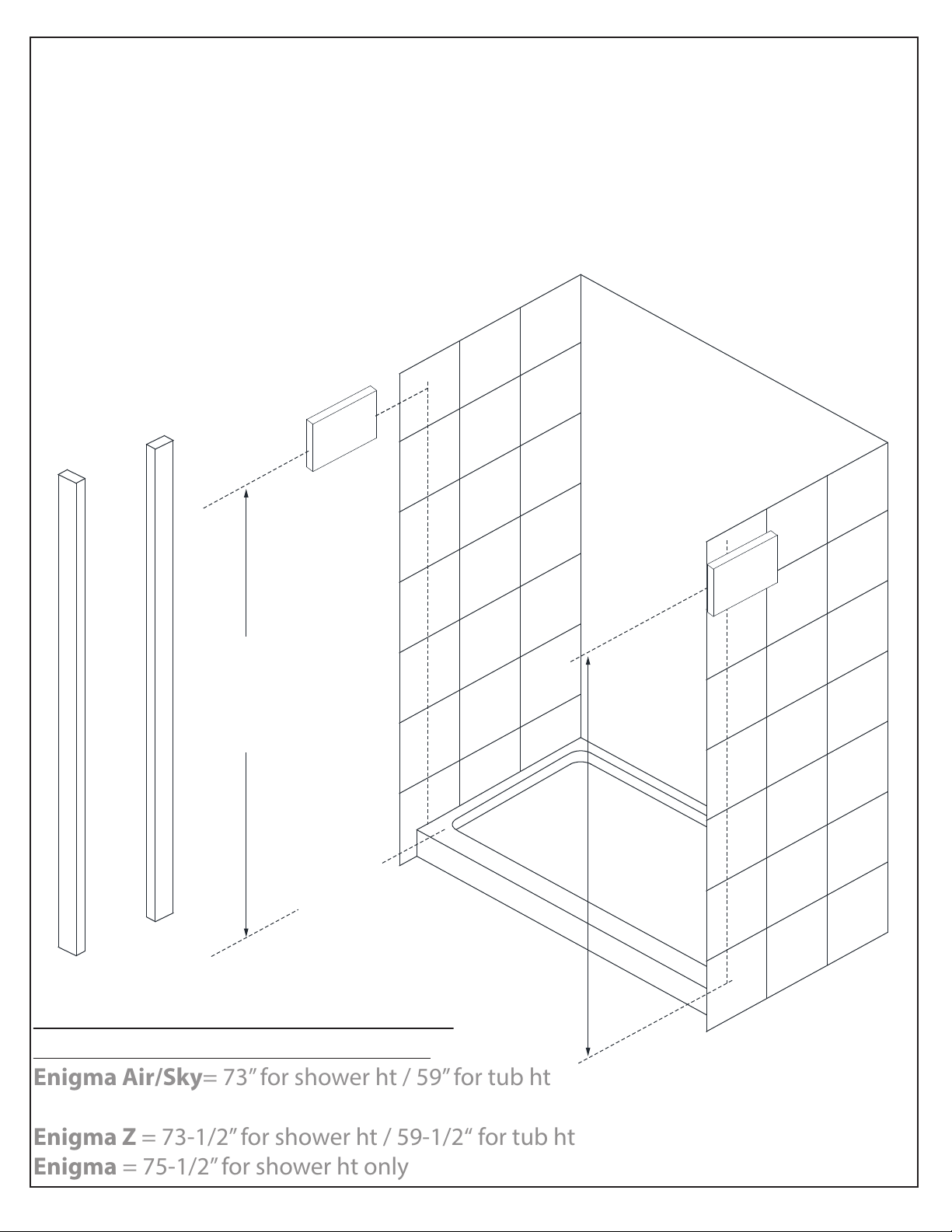

Reinforcement for Enigma Series

Heavy Glass frameless sliding shower door

Install studs OR install 2”x 6” wood blocking between the studs where the

Guide Rail Brackets will attach to the wall

Stud

measured

from threshold*

(see list below)

2” X 6”

threshold or tub deck

*Blocking height requirement (to center)

as measured from threshold or tub deck:

Enigma Air/Sky= 73” for shower ht / 59” for tub ht

threshold or tub deck

Enigma X/XO = 72-1/2“ for shower ht / 58-1/2” for tub ht Enigma Z = 73-1/2” for shower ht / 59-1/2“ for tub ht Enigma = 75-1/2” for shower ht only

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 6

Preparation

1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed parts are included in the package by marking all the components on the “Detailed Diagram of Shower Door Components”. Examine boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine products or missing parts free of charge after 3 business days or if the product has been installed.

Please contact DreamLine

2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine

code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code)

plumber for all plumbing installation.

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please note that some adjustments and drilling might be necessary during the installation process.

if you have any questions.

will not replace any damaged

is not responsible for

5. Protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. NOTE! This door does not have out-of-plumb adjustment. Make sure your walls are at right angles.

8. This door requires a minimum 2-3/4”of flat threshold space for installation.

9. Note: The installation of this unit requires that you drill down into the threshold.

10. Please note that Step #16 has an option for installing the guide rail brackets to the wall using

anchors. However, the manufacturer strongly recommends installing these heavy doors to the studs or to pre-installed 2”x 6” wood reinforcements behind the wall in the area where the guide rail brackets will be attached to the wall.

Attention: This door is extremely heavy and requires professional installation. Two installers recommended.

Do Not hang or drape a towel or wash cloth over the Enigma series guide rail as this may cause the roller wheels to get stuck and possibly cause serious damage or injury.

NOTE: DO NOT attach the handle to the door glass until instructed to do so. DO NOT attempt to lift the door glass with the handle as this may result in damage to

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018 5

the glass and/or serious personal injury. Use a professional grade glass suction cup and an assistant.

Page 7

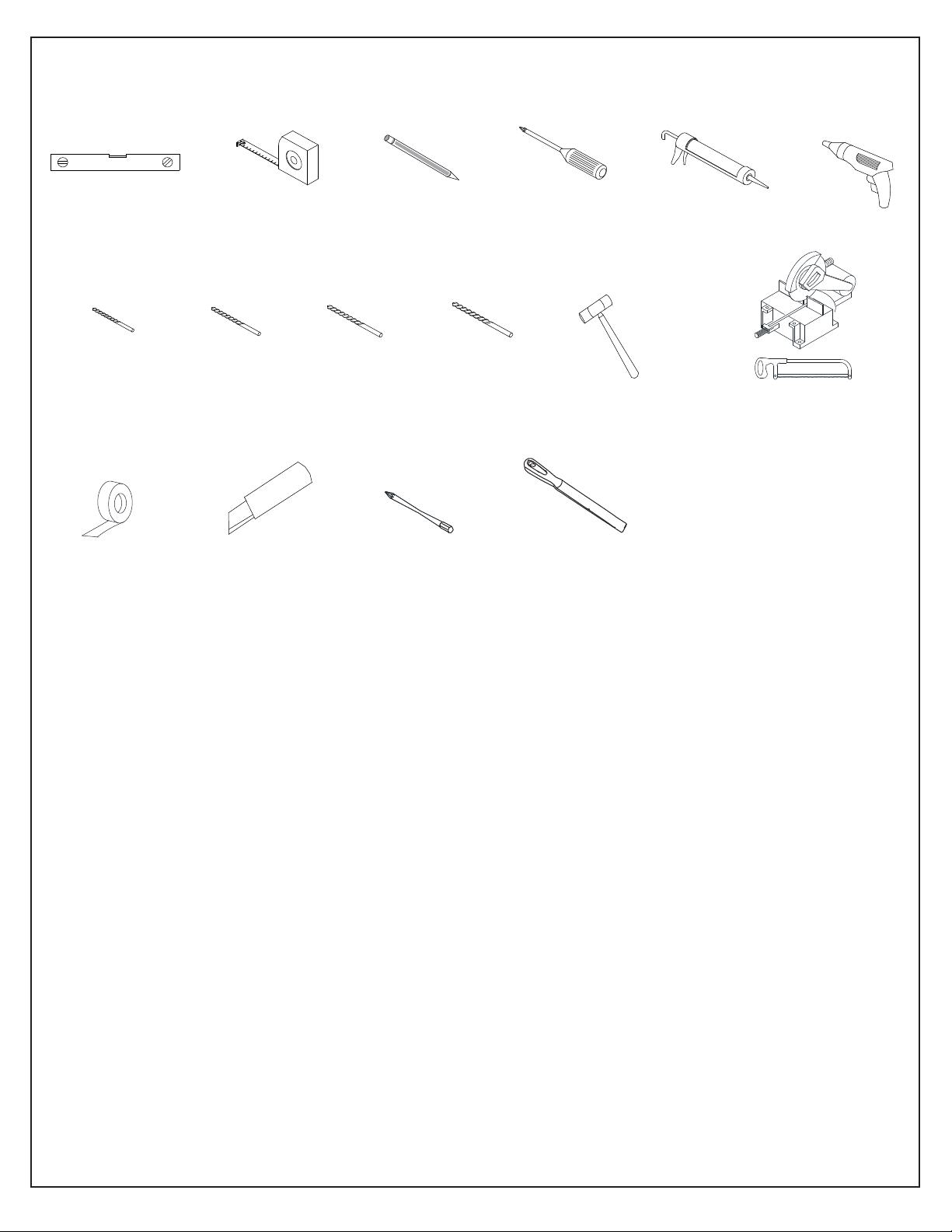

Tools

Level

Drill bit (Ø=1/8")

(3mm)

Painter’s Tape

Tape Measure

Drill bit

(Ø=1/4") (6mm)

Razor Knife

Pencil

Drill bit (Ø=5/16") (8mm)

Extender driver bit

Drill bit (Ø=3/8") (10mm)

Phillips Screwdriver

Hammer

Metal File

Silicone

Chop saw and Hacksaw

Power Drill

NOTE: The Enigma Series doors and enclosures are reversible for left or right hand installation. This manual will show the right hand door installation. For a left hand installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary.

Tip: Measure the finished opening before proceeding with the installation to be sure that the

correct model size has been ordered.

Be sure to cover the shower drain to prevent losing small parts.

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

please contact DreamLine

your model configuration.

NOTE: Retain these installation instructions for future reference.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018 6

for replacement. The shipping boxes may contain extra parts not used in

Page 8

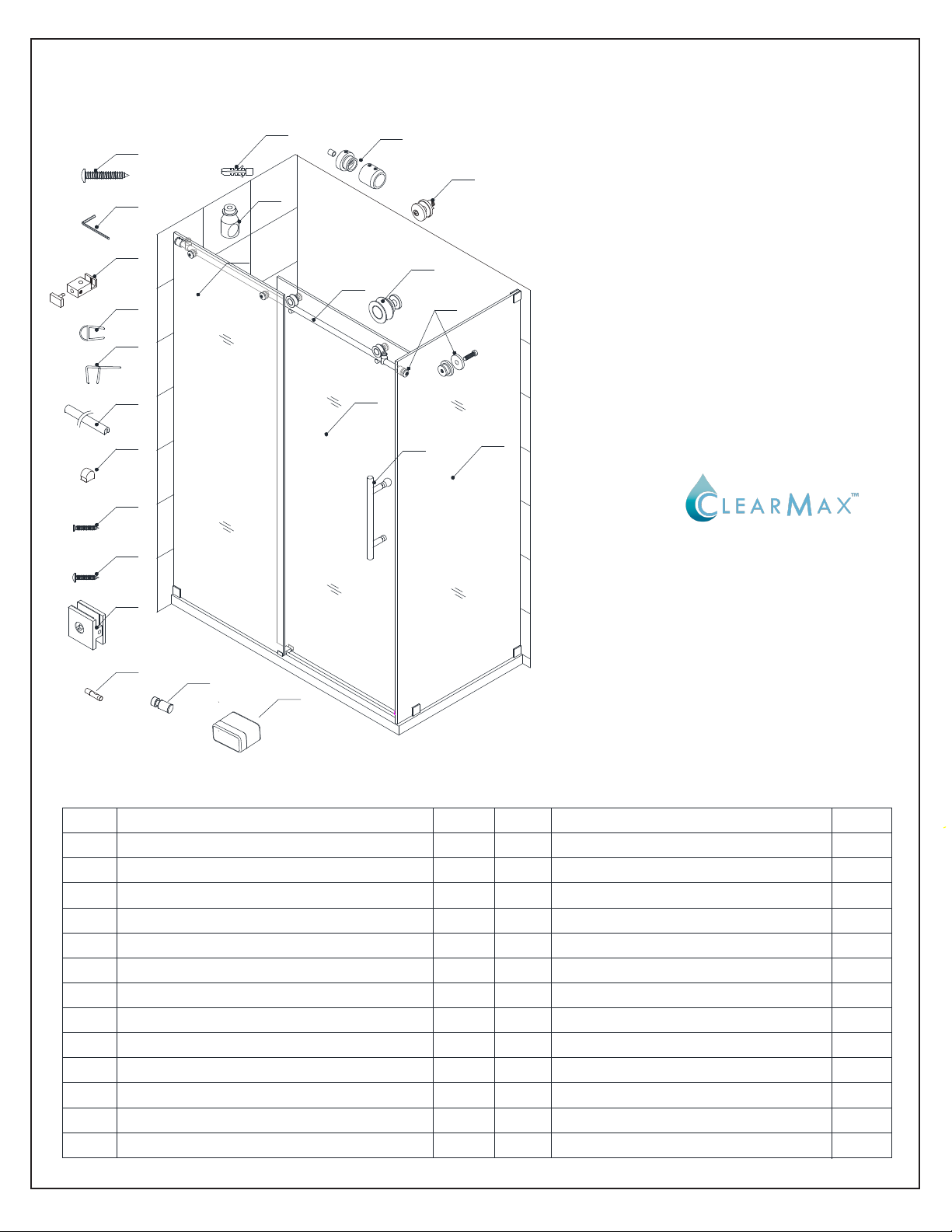

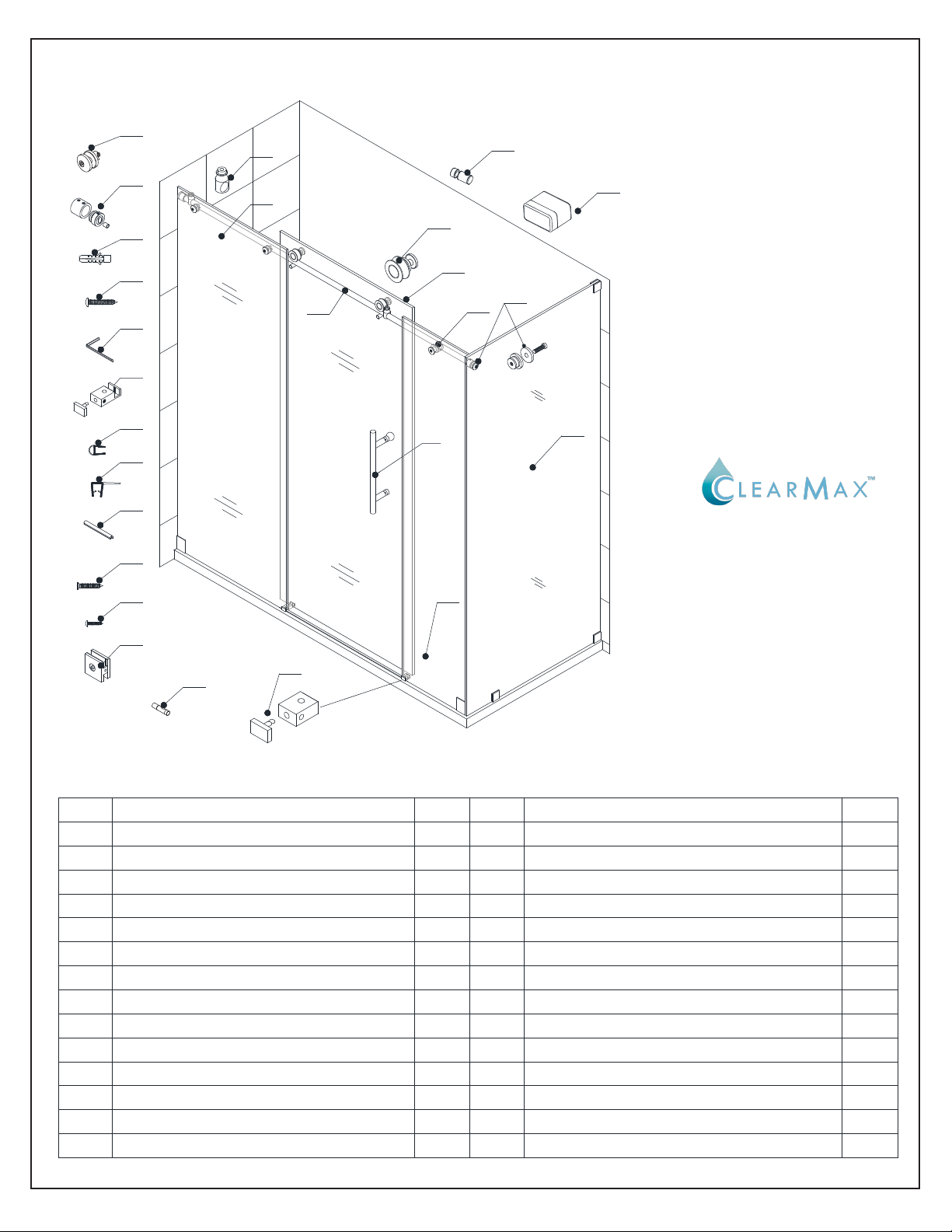

Detailed Diagram of shower door components

9a 9b

SHEN-6132481-## SHEN-6132601-##

SHEN-6134480-## SHEN-6134600-##

##=finish 07- Brushed Stainless Steel 08- Polished Stainless Steel

MODEL #s

The glass surface

with the ClearMax™

label must be

installed facing the

inside of the shower

Part#

01 02 Stationary glass 03 04 05 06 07 08 9a 9b 10 Large Truss Head Screw ST6x55 11 12

DESCRIPTION

Door stopper

Upper Guide rail Roller Door Glass Handle Glass bracket Guide rail bracket Wall anchor Ø 3/8"(10mm) Wall anchor Ø 5/16"(8mm)

Allen Wrench 3,4,5 mm Guide block (with caps)

Parts List

Qty

2pcs 1pc 1pc 2pcs 1pc 1pc 2pcs 2pcs 1pc

4pcs

1pc 1set 1pc

Part# DESCRIPTION Qty

13 14 15 16 17 18 19 26

27 28 29 30

Bumper strip **

Anti-water strip Anti-splash guard Anti-splas ST4.2x40 Countersunk screw

ST4.2x55 Truss Head screw Wall bracket Thread Lock adhesive Return panel Glass Connector

Roller Guard Bumper

h guard cap**

1pc 2pcs 1pc 1pc

3pcs

4pcs

1pc 1pc 1pc

2pcs 1pc

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

** not used with the 72” configuration

Page 9

Detailed Diagram of shower door components

MODEL #s

SHEN-6132721-## SHEN-6134720-##

##=finish 07- Brushed Stainless Steel 08- Polished Stainless Steel

13*

The glass surface

with the ClearMax™

label must be

installed facing the

inside of the shower

Part# DESCRIPTION Qty

01 02 Stationary glass

04 05 06 07 08 9a 9b 10 Large Truss Head Screw ST6x55 11 12 13

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Door stopper

Roller

Door Glass

Handle Glass bracket Guide rail bracket Wall anchor Ø 3/8"(10mm) Wall anchor Ø 5/16"(8mm)

Allen Wrench 3,4,5 mm Guide block (with caps) Bumper strip**

Anti-water strip

Parts List

Part#

2pcs 1pc

2pcs 1pc 1pc 2pcs 2pcs 1pc

4pcs

1pc 1set 1pc 1pc

3pcs

15 16 17 18 19 21 22 23 24

27 28 29 30

DESCRIPTION

Anti-splash guard

Anti-splash guard cap** ST4.2x40 Countersunk

ST4.2x55 Truss Head screw Wall bracket Small stationary glass bracket Small stationary glass Bottom bracket Small stationary glass Upper Guide rail (for 72”)

Thread Lock adhesive Return panel Glass Connector

Roller Guard Bumper

** not used with the 72” configuration

screw

Qty

1pc 1pc

4pcs

3pcs

5pcs

1pc 1pc 1pc

1pc

1pc 1pc 1pc

2pcs 1pc

Page 10

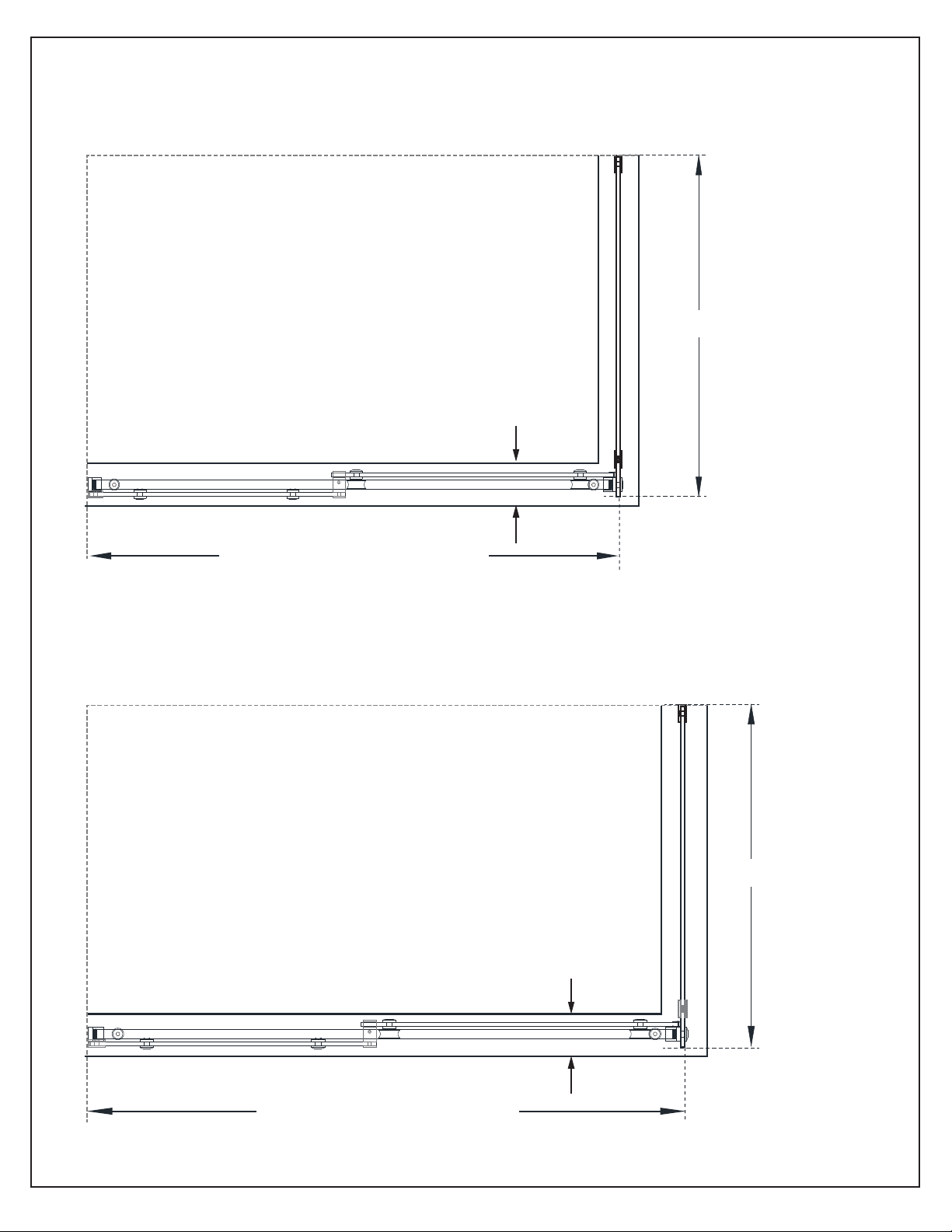

SHOWER ENCLOSURE PLAN

Finished wall

Overall outside dimensions shown for the installed enclosure

Finished wall

the return panel must be installed at the proper dimension to accommodate the shower door area

2-3/4” minimum

threshold required

32-1/2” or 34 1/2"

Return Panel

Finished wall

44-3/8 “ min to 48-3/8” max

Shower Door Area

Finished wall

the return panel must be installed at the proper dimension to accommodate the shower door area

32-1/2” or 34 1/2"

Return Panel

2-3/4” minimum

threshold required

56-3/8” min to 60-3/8” max

Shower Door Area

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 11

SHOWER ENCLOSURE PLAN

Overall outside dimensions shown for the installed enclosure

Finished wall

the return panel must be installed at the proper dimension to accommodate the shower door area

32-1/2” or 34 1/2"

Finished wall

2-3/4” minimum

threshold required

68-3/8” min - 72-3/8" max

Shower Door Area

When constructing or installing a shower base, consider how the thickness of the wall treatment

(wallboard, tile, etc.) will affect where the shower enclosure will sit on the threshold.

Compare the overall outside dimensions of the shower enclosure model size as shown on the “Shower Enclosure Plan” with the finished threshold before proceeding with the installation.

finished wall

Return Panel

finished wall

Note: The minimum threshold requirement

for the ENIGMA-X is 2-3/4” of flat threshold space.

2-3/4”

minimum

Threshold must be level.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

44-3/8 “min to 48-3/8” max

56-3/8” min to 60-3/8” max

68-3/8” min to 72-3/8" max

outside dimensions of installed enclosure

2-3/4” minimum

threshold required

32-1/2” or

34-1/2”

Page 12

Installation steps

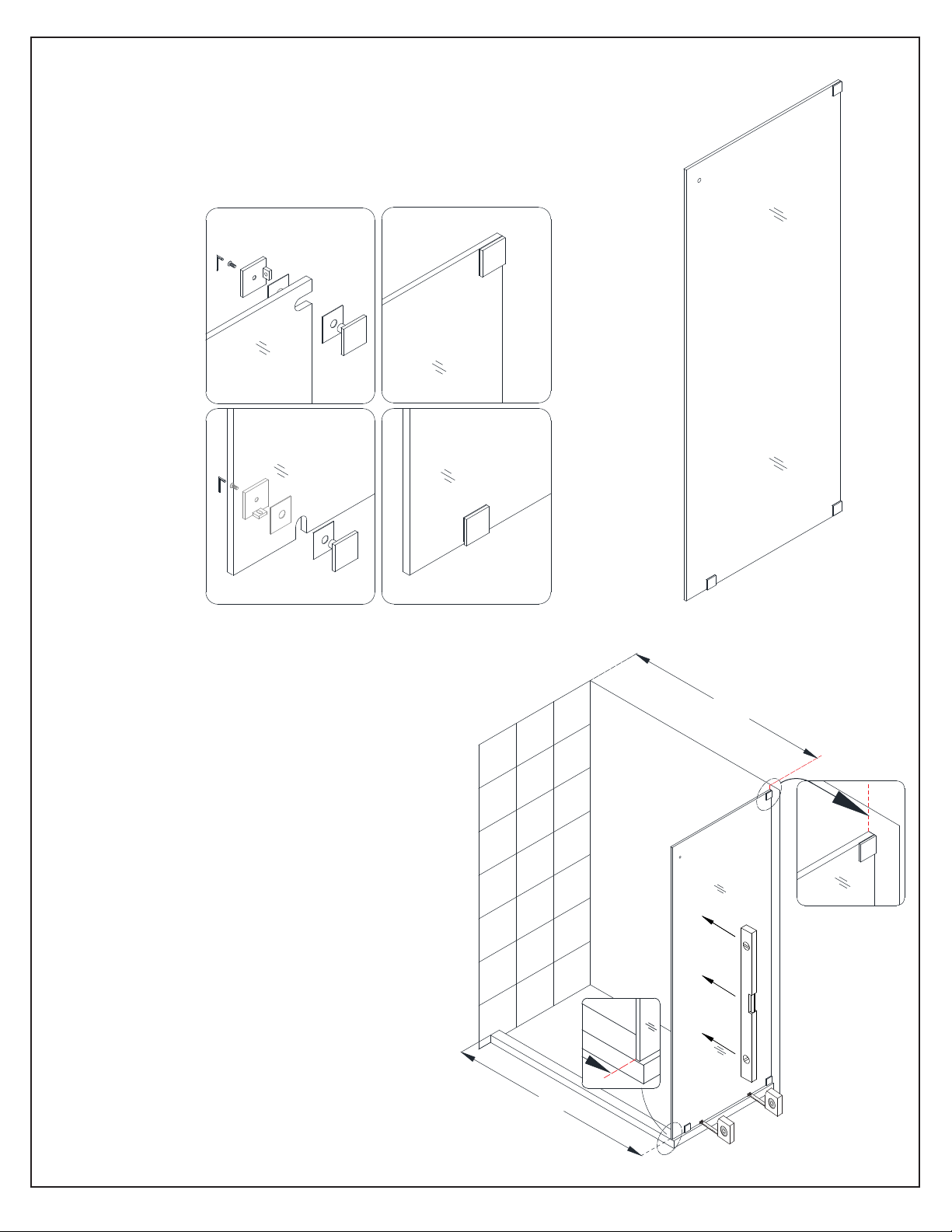

1. Attach the three Wall Brackets (#19) to the Return Panel (#27). The

bolt side of the Wall Bracket (#19) must face inside the shower. (Fig 1)

outside

Fig 1

outside

(right-hand return panel setup shown as an example)

2. Place the Return Panel (#27) on the

pre-installed shower base or threshold. Position the panel up against the wall and level it vertically (plumb). Make sure the Return Panel (#27) is aligned with the shower base or threshold and will create an opening that is within the model dimensions of the door section (as measured from the finished wall to the inside surface of the return panel glass). (Fig 2)

Return panel placement depends on the model size purchased: <48” (SHEN-6134480) or <60” (SHEN-6134600) or <72” (SHEN-6134720)

See the “Shower Enclosure Plan” on pages 9 and 10 for overall outside dimensions.

< 48”, < 60”, < 72”

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 2

Page 13

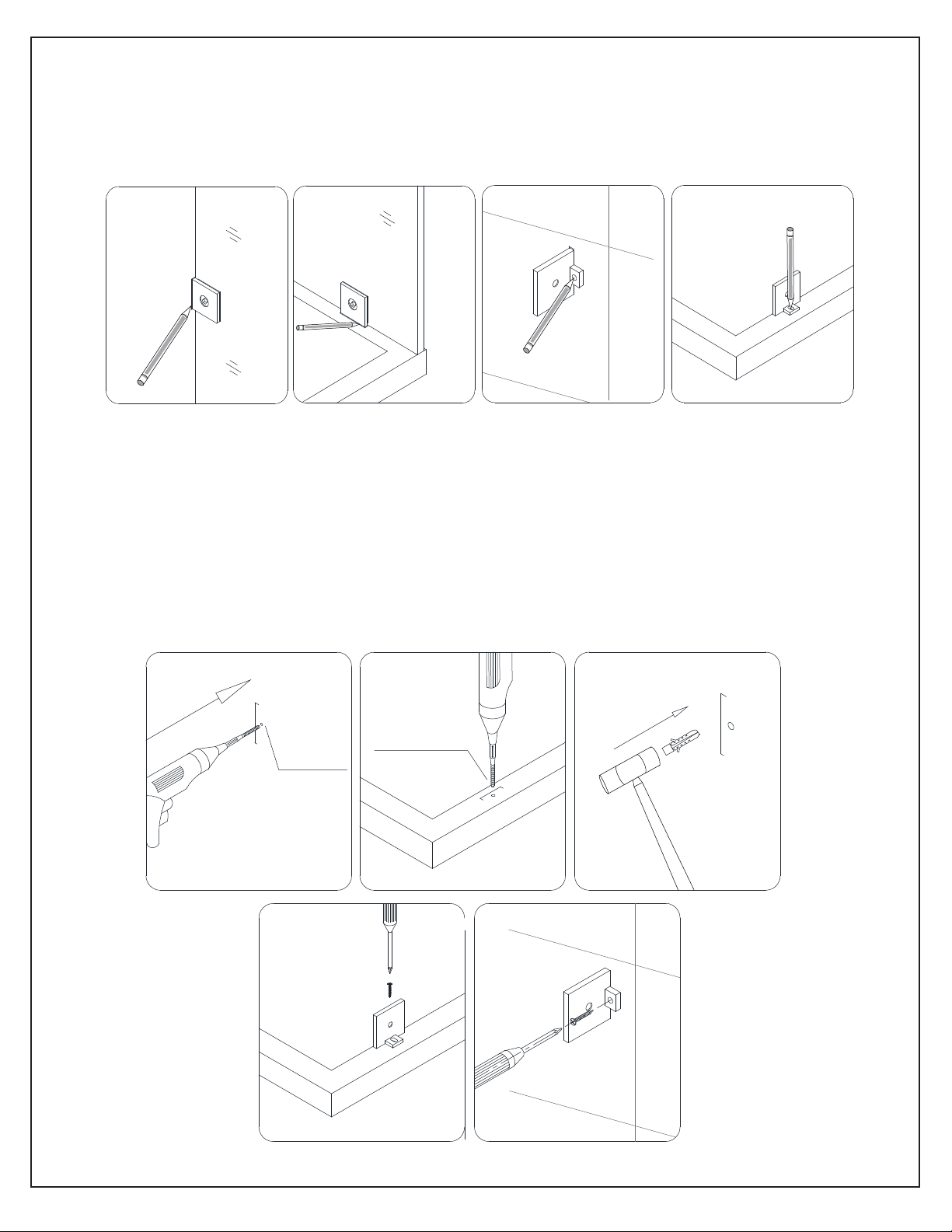

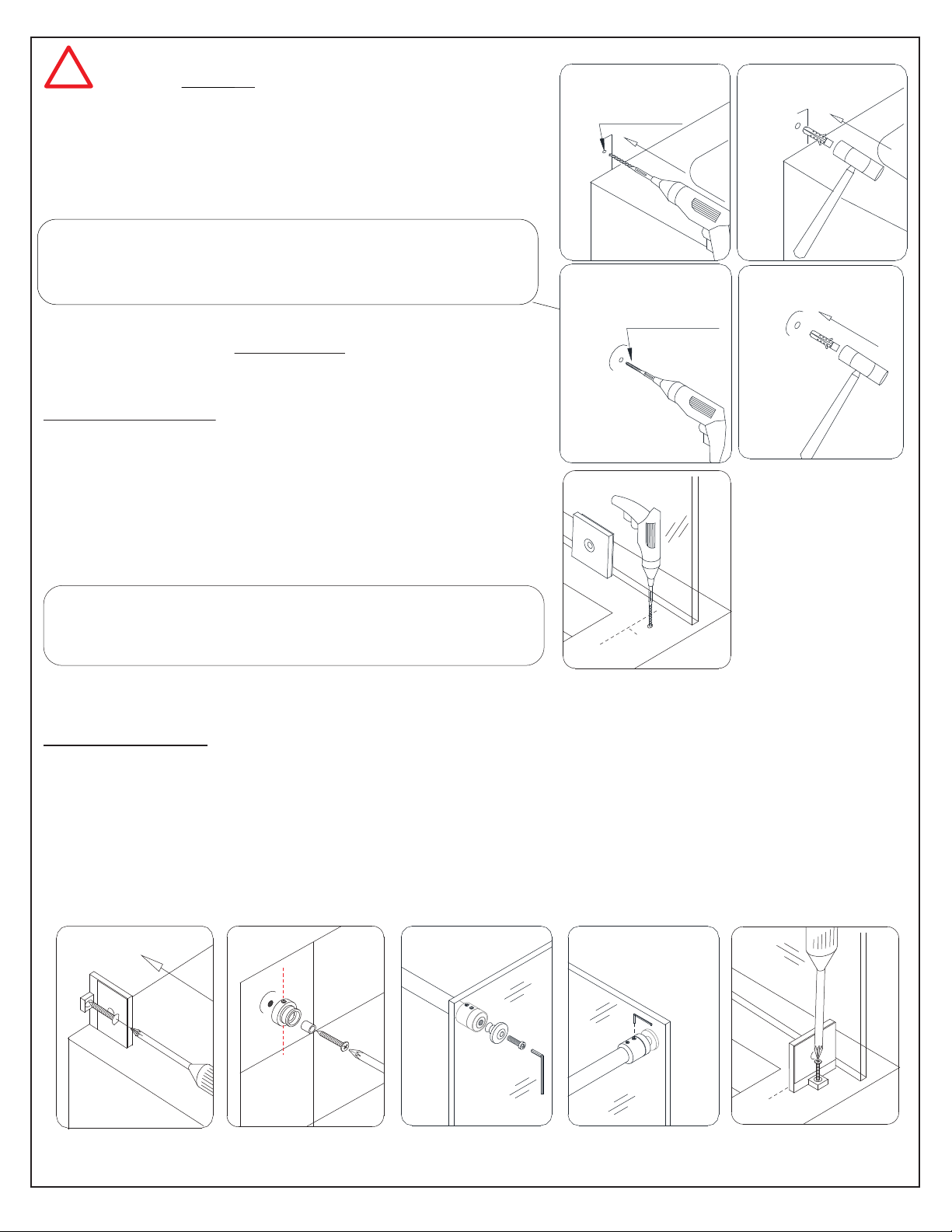

3. Outline the position of the Wall Brackets (#19) on the wall and the shower base or threshold.

Carefully set the Return Panel (#27) aside. Remove the Wall Brackets (#19) from the Return Panel (#27). Place the brackets against the outlined positions and mark the holes on the wall and threshold for drilling. (Fig 3)

2 3 4

inside

Fig 3

4. Drill the holes in the wall using a Ø5/16” drill bit and insert the Wall Anchors (#9b) for two of the

Wall Brackets (#19). Mount the Wall Brackets (#19) to the wall using the Round Head Screw ST4.2×55 (#18).

*Drill a hole into the threshold using a Ø1/8” drill bit for an acrylic base (or Ø5/16” and an anchor for tile) and mount the remaining Wall Bracket (#19) to the threshold using the

screw

(#17). (Fig 4)

ST4.2x40 Countersunk

Ø5/16”

Ø1/8”

Ø5/16”

2* 3

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 4

Page 14

5. Place the Return Panel (#27) back in the

designated position and assemble the Wall Brackets (#19) onto the glass. Use the provided bracket gaskets and sleeves to protect the glass. (Fig 5)

6. Measure the distance from the finished wall to

the inside surface of the installed Return Panel

Glass (#27).

This distance will represent the finished opening size “W” that will be used to calculate the finished cut dimension for the Upper Guide Rail (#03).

(Fig 6)

Fig 5 Fig 6

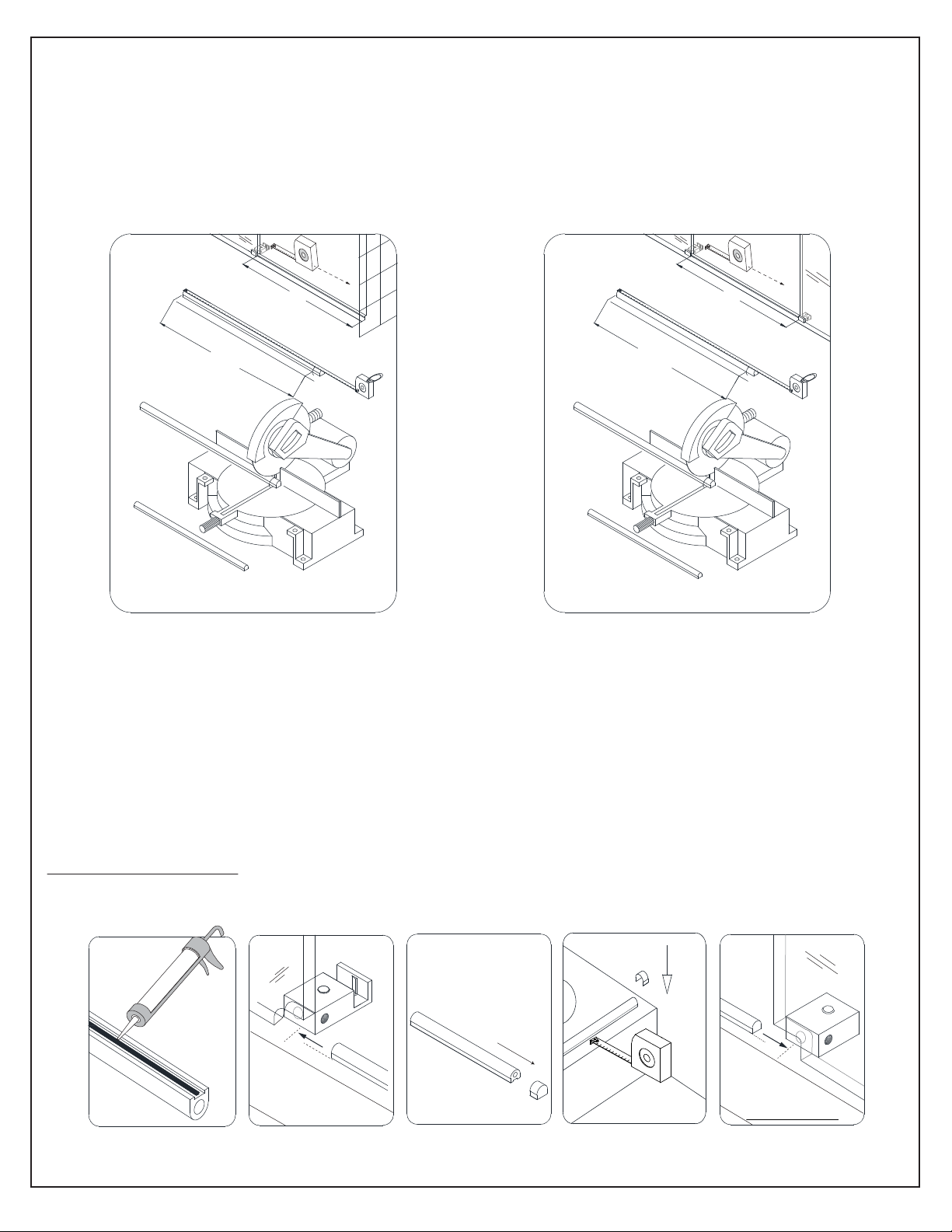

7. The Upper Guide Rail (#03) has been precut for the model

width of 48”, 60” or 72”.

(Note: The actual rail is shorter than the model width by design).

Cut the Upper Guide Rail (#03) from the door end only, which is the end that is farther from the Glass Bracket (#07) holes. Use a metal file to remove any burrs from the cut end.

(Fig 7)

The length to cut off will be (L): Model Width – opening W = cut off length (L)

FOR EXAMPLE

If the model width is 60” and the finished opening from the finished wall to the inside surface of the installed Return Panel Glass (#27) is 58”, then you will need to cut 2” off from the door end of the Guide Rail. Example: 60” – 58” = 2” cut off

*Note that this is only an example and the actual cut-off length will vary based on the actual finished opening dimension.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

glass bracket holes

door end

Metal File

Fig 7

Page 15

8a. Attach the Upper Guide Rail (#03) to the Stationary Glass (#02) with the Glass Brackets (#07) and

tighten the bolts into the predrilled holes in the Upper Guide Rail (#03). Make sure both adjustment disks are installed in the same direction with the high spot towards the door end. (see *Note below) Make sure that the guide rail is attached parallel with the top edge of the stationary panel glass. (Fig 8.3)

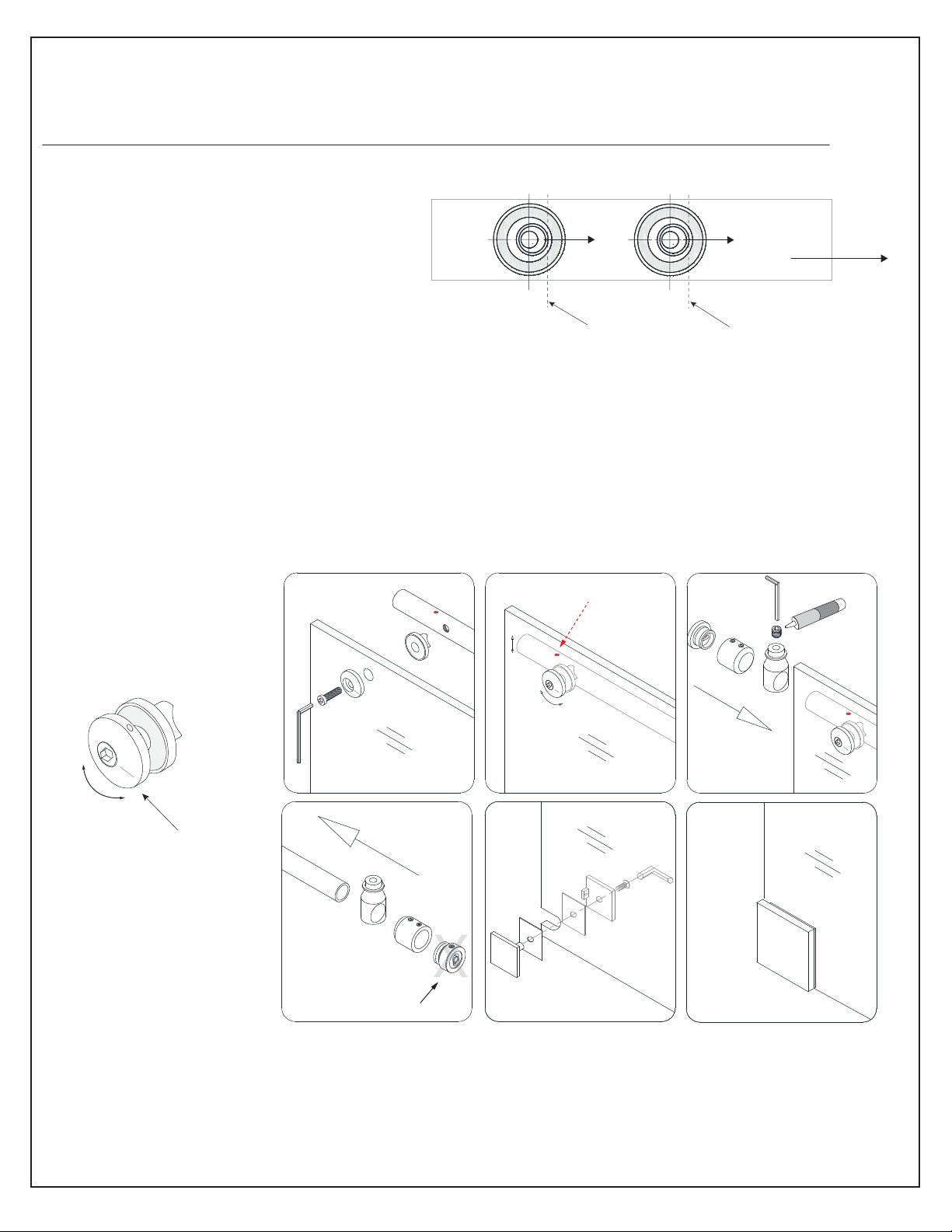

*NOTE: The outer glass bracket disk has

an eccentric bushing for adjustment. Be sure to install both glass bracket disks with the high spot of the bushing pointed towards the door end of the guide rail.

TIP: Mark the location of the high spot on the outer surface of the adjustment disk with a felt tip pen to make adjustment easier to see.

High spot of disk bushing

Door end of guide rail

8b. Slide the Door Stoppers (#01) onto each end of the Upper Guide Rail (#03) and secure them

using the 4mm hex Wrench (#11). Install the panel-end stopper into the pre-drilled stopper hole

in the Upper Guide Rail (#03) and apply Thread Lock (#26) to the set screw.

Attach the door-end stopper approximately 4” from the door-end of the guide rail. (The door-side stopper position will be adjusted in a later step after the door glass is installed). (Fig 8)

glass bracket

disk

panel end

Door end of Guide Rail

outside

not used in this configuration see step# 9

stopper hole

outside

thread lock

outside

Fig 8

8c. Slide the Guide Rail Brackets (#08) onto each end of the Upper Guide Rail (#03) and secure

them. Next, assemble the Wall Bracket (#19) onto the bottom corner of the Stationary Glass (#02) with the bolt facing into the shower as shown in Fig 8.5. Use the supplied bracket gaskets to protect the glass. (Fig 8)

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 16

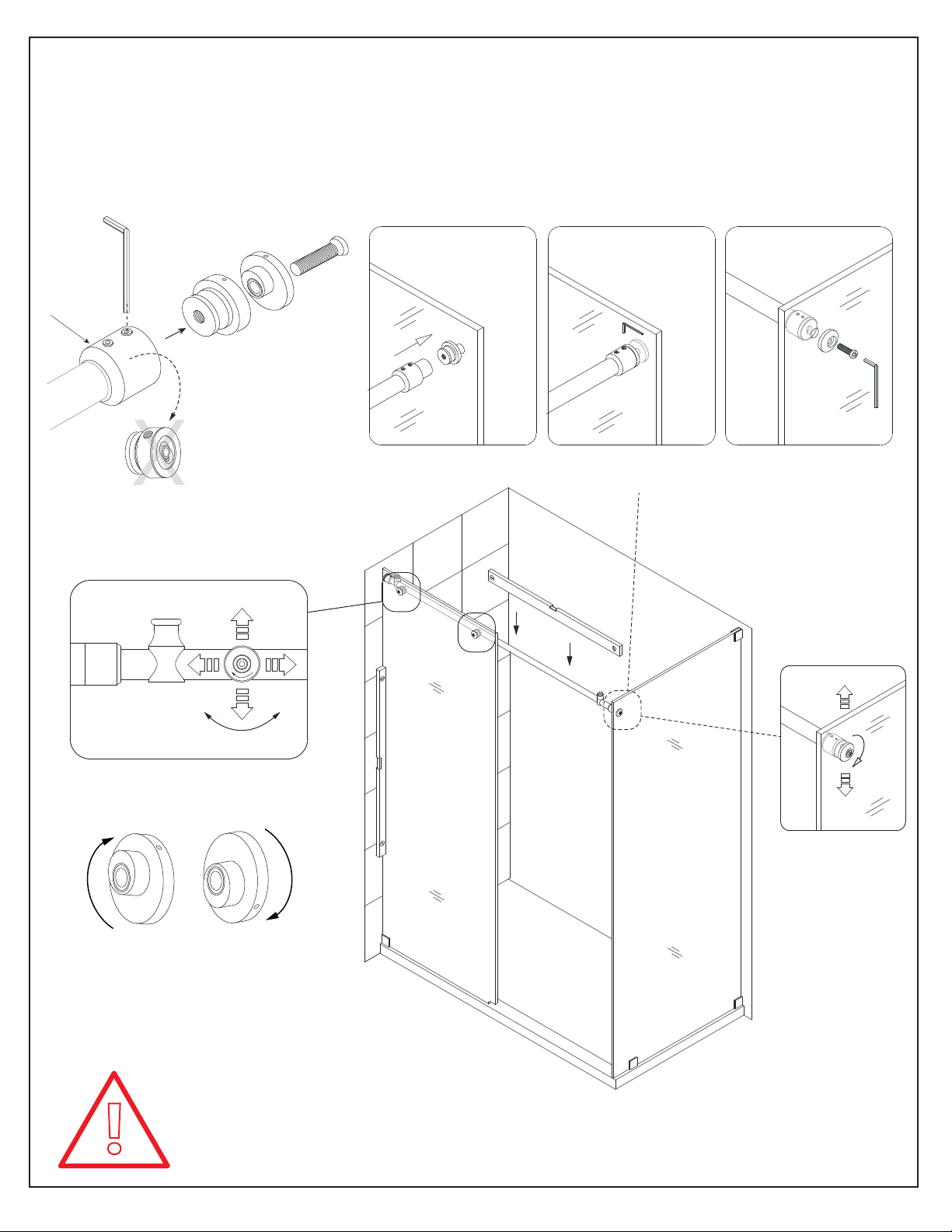

9. Place the Stationary Glass (#02) with the Upper Guide Rail (#03) onto the threshold and position it

against the wall. Fasten the Upper Guide Rail (#03) to the Return Panel (#27) using the Glass

Connector (#28). (Fig 9a)

Tighten the set screws to secure the guide rail bracket sleeve to the Glass Connector (#28). (Fig 9a) Make sure the Stationary Glass (#02) and the Upper Guide Rail (#03) are level. If a horizontal adjustment is required; loosen, rotate and re-tighten the disks on the Glass Brackets (#07) and/or the Glass Connector (#28). (Fig 9b)

1 2 3

sleeve

Glass Connector (#28)

not used in this configuration

Fig 9a

Glass Bracket adjustment

rotate disk(s) to level rail

Lower guide rail Raise guide rail

Glass Bracket adjustments

rotate disk to level rail

Note: When installing the 72” model, proceed to Step #10.

When installing the 48”or 60” model, skip to Step #13 to continue with the installation.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 9b

Page 17

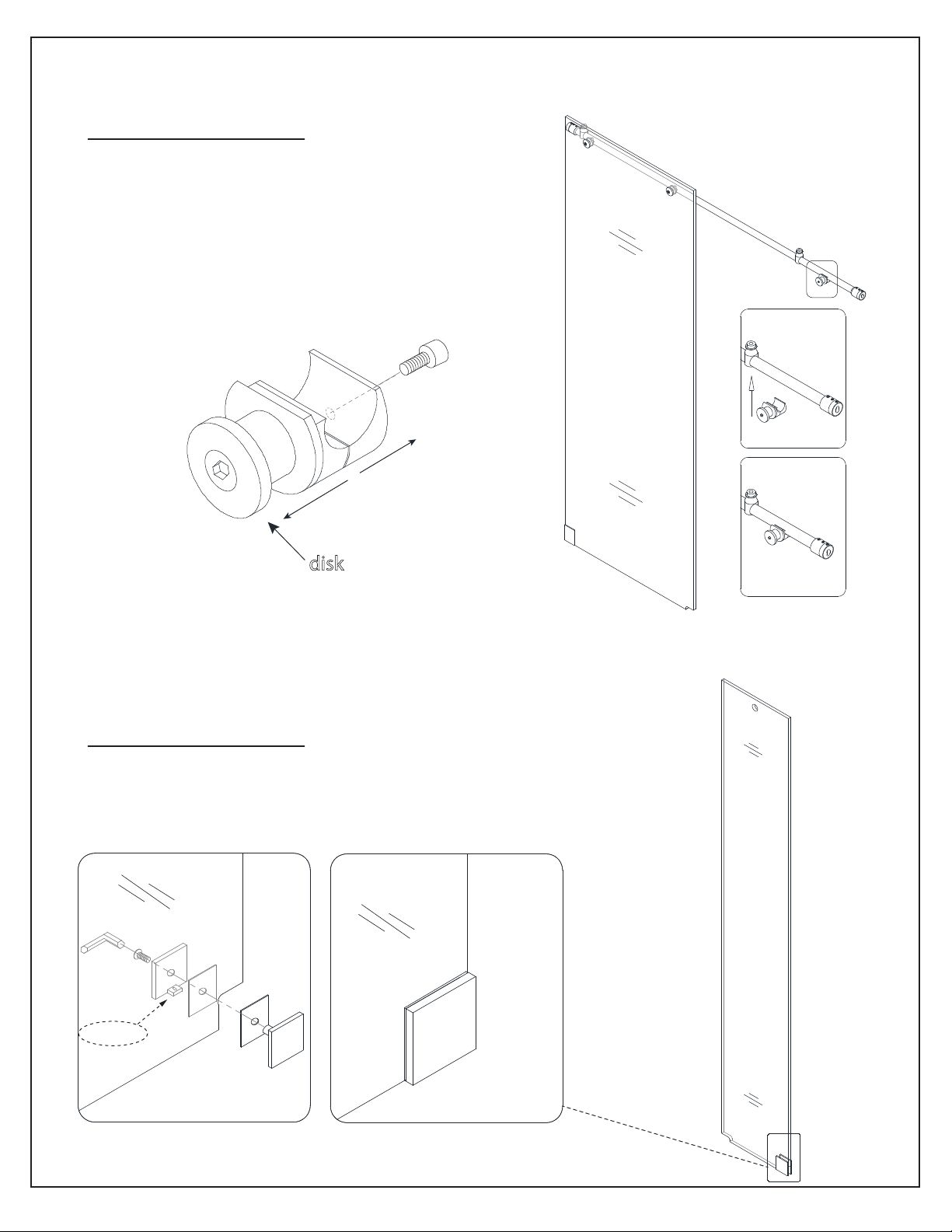

ATTENTION: This step shows the Small Stationary Glass Bracket (#21) installation for the 72” model only (not included with the 48“ or 60” model).

10. If the model width is 72” and includes the

Small Stationary Glass (#23), attach the Small Stationary Glass Bracket (#21) to the Upper Guide Rail for 72” (#24) between the Door Stopper (#01)

and the Guide Rail Bracket (#08) as shown in Fig 10.

This bracket will be repositioned during the installation of the Small Stationary Glass (#23). (Fig 10)

disk

Fig 10

ATTENTION: This step shows the Small Stationary Glass (#23) installation for the 72” model only (not included with the 48“ or 60” model).

11. If the model width is 72” and includes the Small Stationary Glass (#23),

assemble the Wall Bracket (#19) onto the larger notch at the bottom corner of the Small Stationary Glass (#23). Install the bracket flush with the edges of the glass and use the provided gaskets to protect the glass. (Fig 11)

note

outside

Fig 11

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

outside

Note: Install the bracket flush with the edge of the glass

Page 18

12. If installing the 72” model:

Unscrew the disk from the Small Stationary Glass Bracket (#21) and loosen the set screw that secures the bracket to the guide rail. If necessary, slide the Door Stopper (#01) away from the area so that it will not interfere with the placement of the Small Stationary Glass (#23). (Fig 12.2) Position the Small Stationary Glass (#23) onto the threshold and carefully butt it up against the installed

Return Panel Glass (#27). Align the Small Stationary Glass Bracket (#21) with the hole in the Small

Stationary Glass (#23). Re-attach the outer disk and secure the Small Stationary Glass Bracket (#21) to

the Upper Guide Rail for 72” (#24). (Fig 12)

Fig 12

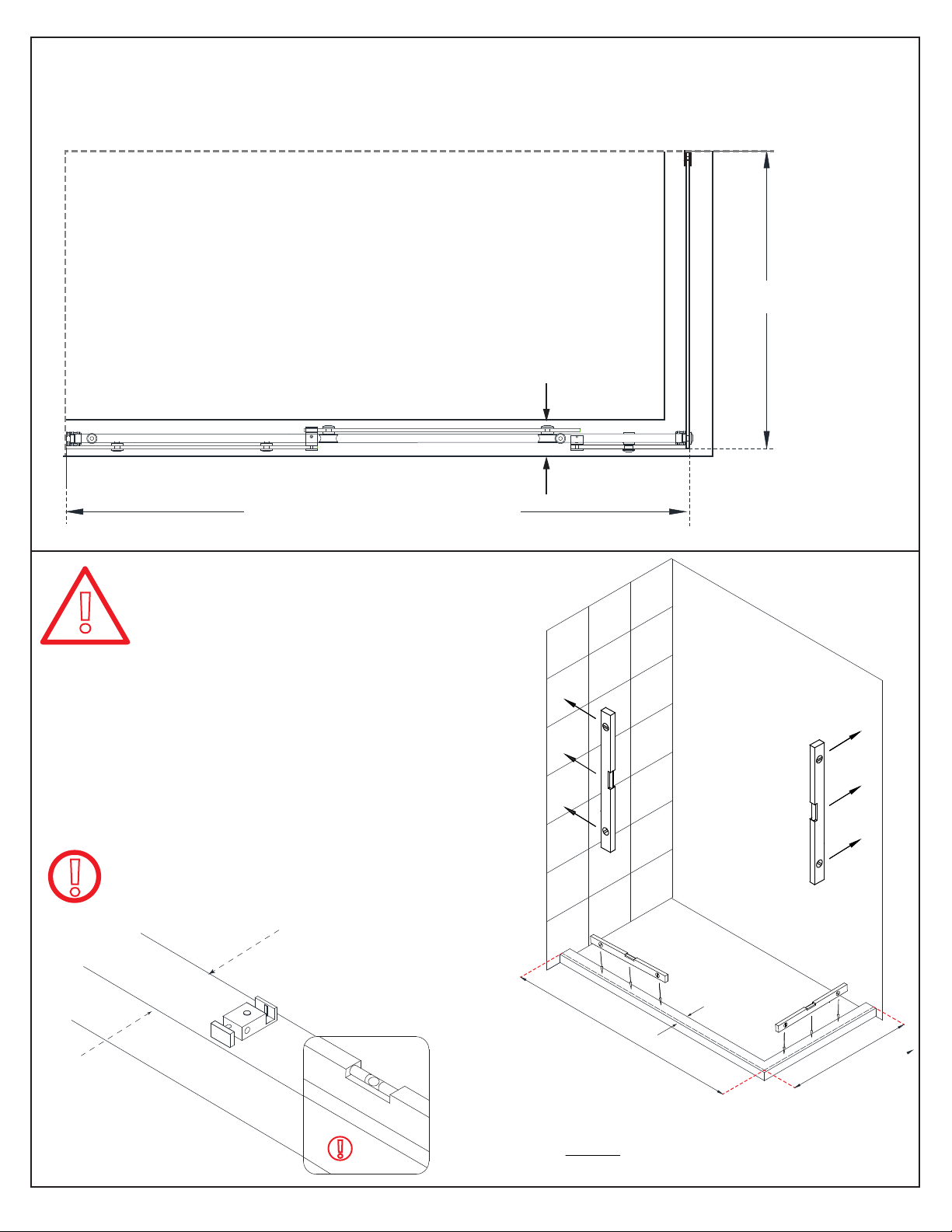

13. Once the Upper Guide Rail (#03) is level, mark the position of the Guide Rail Bracket (#08) and

the Wall Bracket (#19) on the wall. (Fig 13a)

*NOTE: If installing the 72” model, also mark the position of the Wall Bracket (#19) on the threshold

for the Small Stationary Panel Glass (#23). (Fig 13b.3*)

rotate disk(s) to level rail

inside

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 13a

for 72” model

inside

Fig 13b

Page 19

14. Make sure the Stationary Glass (#02) is parallel to the front edge of the threshold. Level it vertically

(plumb) and mark the position on the threshold. Slide the Guide Block (#12) into the notch in the Stationary Glass (#02), and align it flush with the edge. Mark its position and also mark the hole for drilling using a pencil (or center punch). (Fig 14a)

Note: If installing the 72” model, also position the Small Stationary Glass Bottom Bracket (#22) with the edge of the Small Stationary Glass (#23) and mark its position and the hole for drilling. (Fig 14b)

Fig 14a

Fig 14b

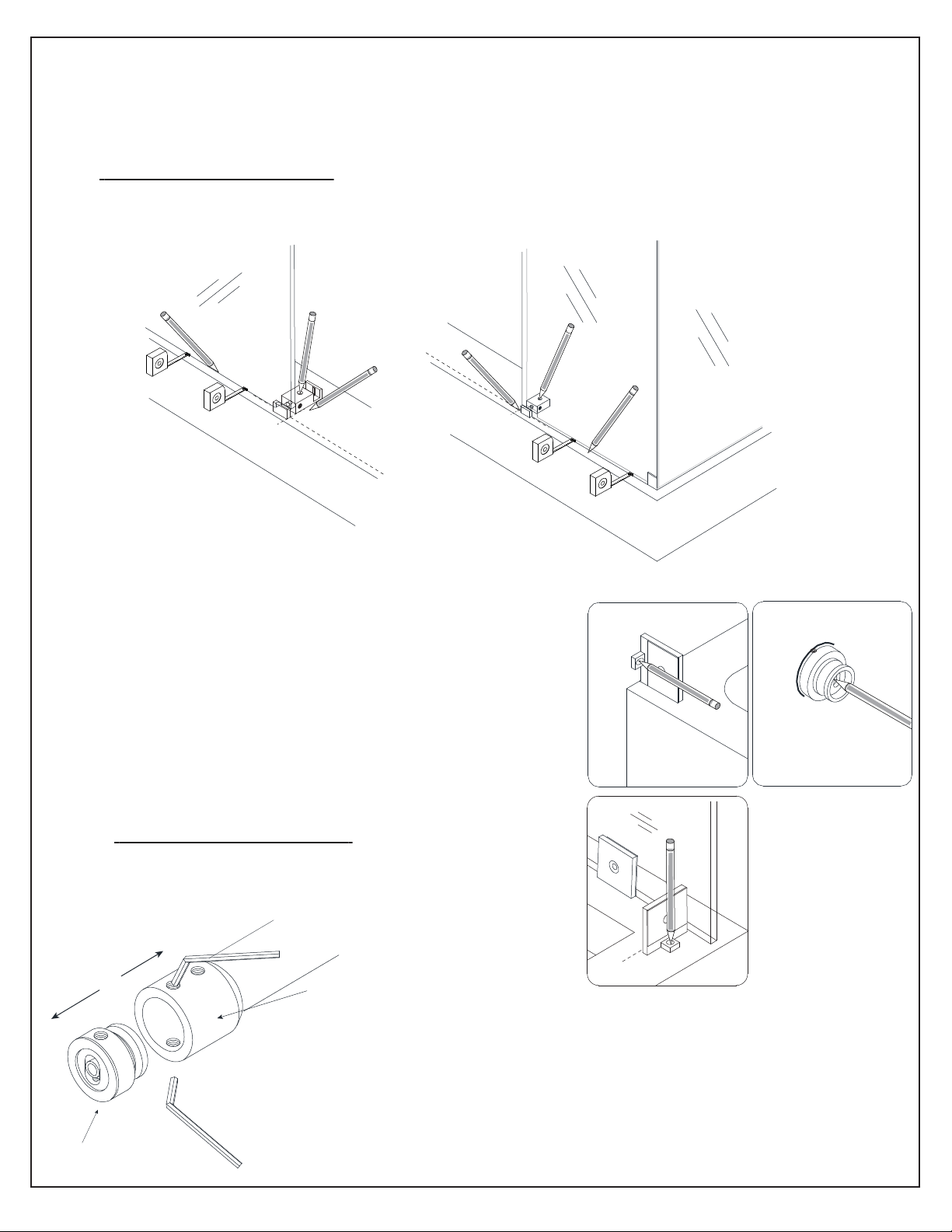

15. After marking the positions of all the hardware, set

the Stationary Glass (#02) with the Upper Guide Rail (#03) aside. (If installing the 72” model, also remove the Small Stationary Panel Glass (#23) from the Upper Guide Rail (#03). Remove the Guide Rail Brackets (#08) from the Upper Guide

Rail (#03) and the Wall Bracket (#19) from the Stationary Glass (#02). Place the Wall Bracket (#19) and one Guide Rail Bracket (#08) back to the outlined positions on the wall and mark the holes for drilling. (Fig 15)

*NOTE: If installing the 72” model, perform the same

procedure to mark the hole for the Wall Bracket (#19) on the

threshold for the Small Stationary Panel Glass (#23). (Fig 15.3)

1 2

Fig 15

sleeve

Separate the Guide Rail Bracket (#08) base from the sleeve by loosening the set screws. Leave the sleeves on both ends of the upper guide rail.

base

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

for 72” model

Page 20

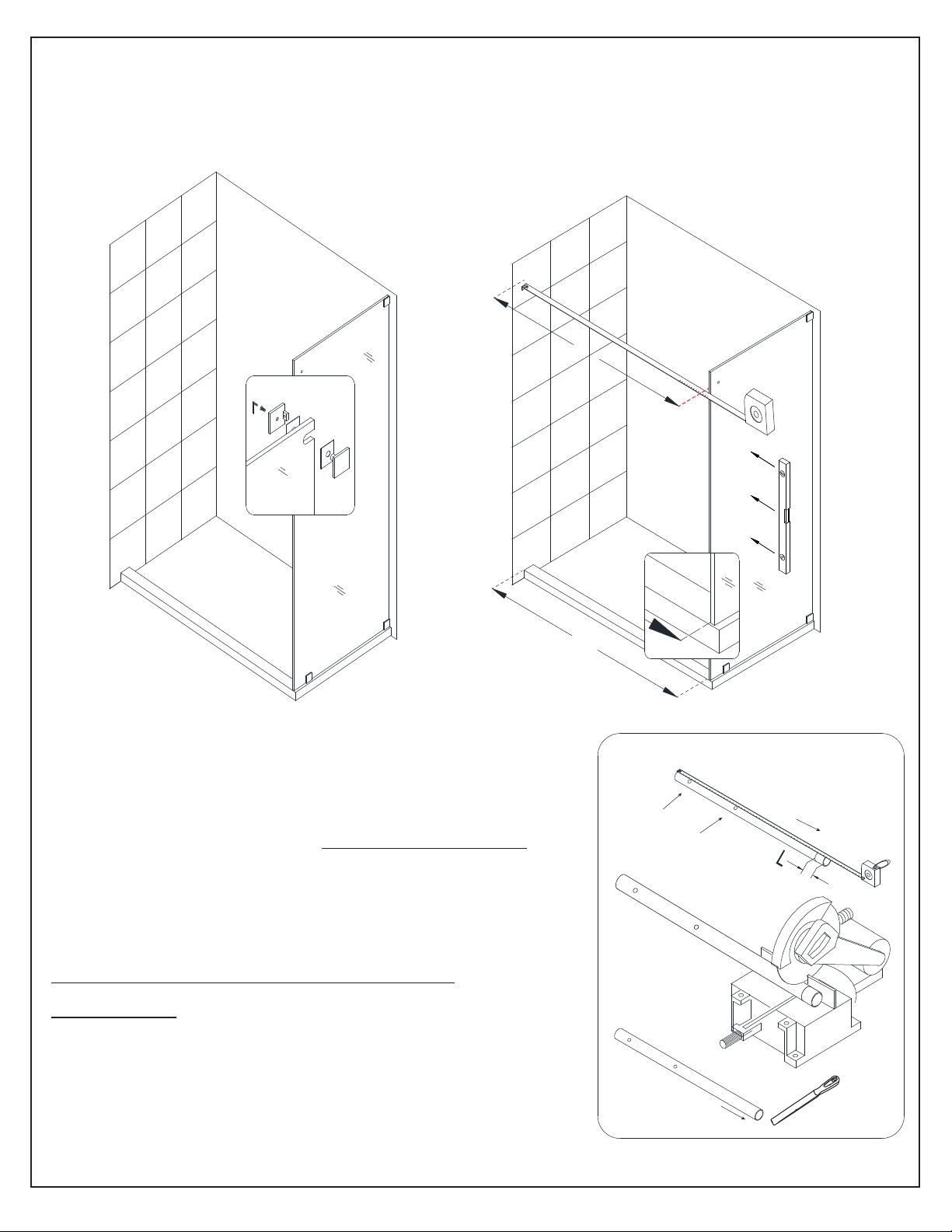

**NOTE: Step #16 has an option for installing the guide rail brackets to the wall using anchors. However, the manufacturer strongly recommends installing these heavy doors to the studs or to pre-installed 2”x 6” wood reinforcement behind the wall in the area where the guide rail brackets will be attached to the wall.

**For the recommended installation into a stud, drill a Ø1/4” hole up to the stud, do not use wall anchors, and let the screw bore into the wood.

16. Drill a hole for the Wall Bracket (#19) using a Ø5/16”

(8mm) drill bit and insert the Wall Anchor (#9b). (Fig 16.1 and 16.2) *For the 72“ model, drill an Ø1/8” for an acrylic base (or Ø5/16” for tile) for the Wall Bracket (#19) for the Small Stationary Panel Glass (#23). (Fig 16.5)

Drill the holes for the Guide Rail Brackets (#08) using a Ø3/8” (10mm) drill bit and insert the Wall Anchors (#9a). (Fig 16.3**-16.4**)

3**

Ø5/16” (8mm)

Ø3/8” (10mm) see Note**

for 72” model

4**

Fig 16

**If installing into a stud (recommended), drill a Ø1/4” hole and do not use the wall anchors (see note above). (Fig 16)

Ø1/8” (8mm) see Note*

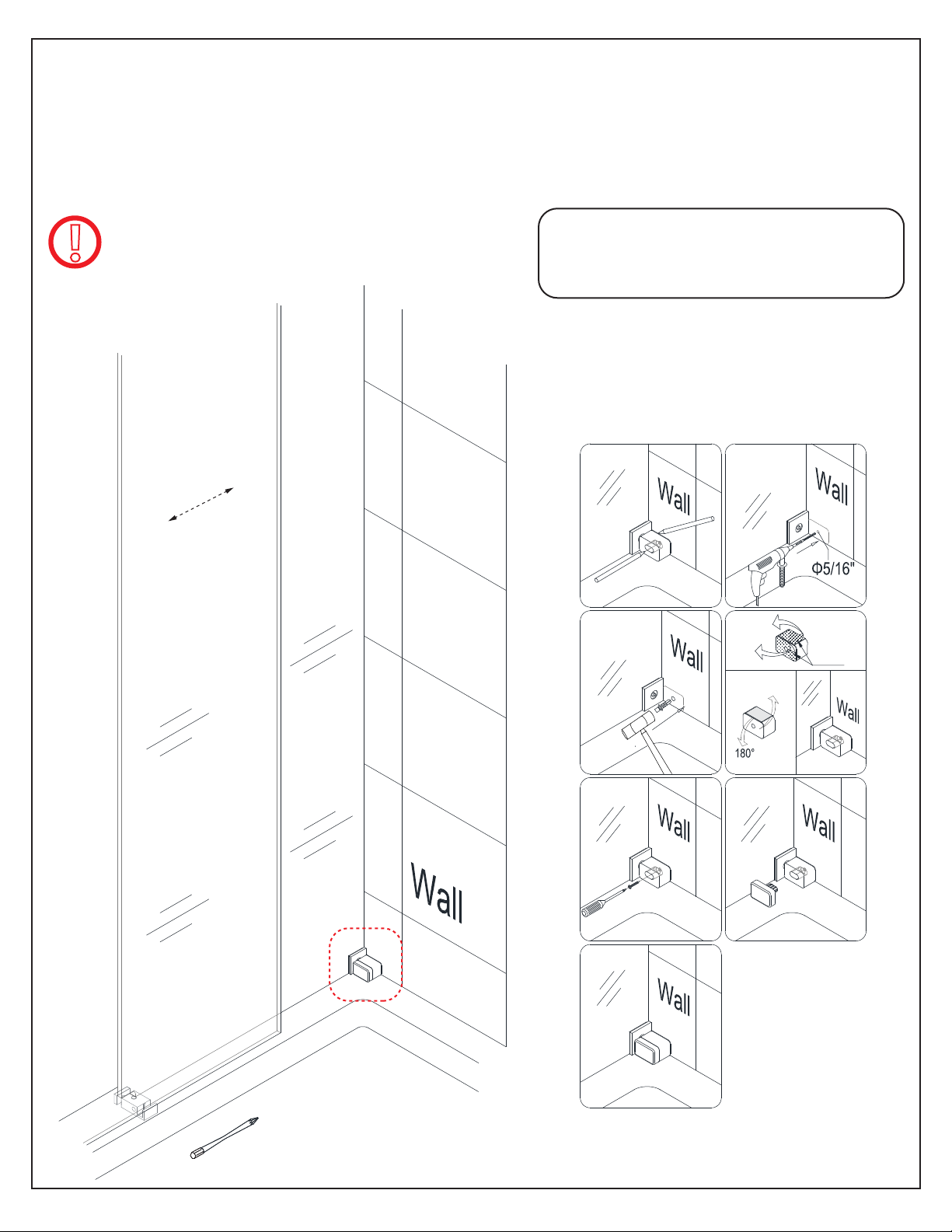

17. Fasten the Wall Bracket (#19) to the wall using the ST4.2×55 Truss Head Screw (#18). (Fig 17.1)

For the 72“ model, repeat this step to attach the Wall Bracket (#19) for the Small Stationary Panel Glass (#23). Use an ST4.2x25 screw into an acrylic base or ST4.2x40 with an anchor for tile (Fig 17.5).

Attach the base part of one Guide Rail Bracket (#08) to the wall using the ST6×65 Large Truss Head Screw (#10) (Fig 17.2). Note that the adjustment set screws on the bracket must be aligned vertically for easier access to tighten and adjust for level after the glass is installed. Fasten the Upper Guide Rail (#03) to the Return Panel (#27), connecting the sleeve of the Guide Rail Bracket (#08) to the Glass Connector (#28) (Fig 17.3 and 17.4). Align the set screws vertically and tighten. (Fig 17)

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

for 72” model

Fig 17

Page 21

18. To install Guide Block (#12): Loosen the set screw and remove the guide block face plate. Apply

silicone to the underside of the Guide Block (#12) and screw the Guide Block (#12) to the threshold as described below:

*NOTE:

◾For installation into an Acrylic Threshold: drill an Ø1/8”(3mm) hole and use the ST4.2 x 40mm Countersunk Screw (#17)

◾For installation into a Tile Threshold: drill a Ø5/16”(8mm) hole, install Wall Anchor Ø5/16” (#09b) and use the ST4.2 x 40mm

Countersunk Screw (#17)

The Guide Block (#12) must be screwed down to the threshold. (Fig 18)

ST4.2 X 40

M5 X 10

Part#12 - Guide Block (with caps)

use a pencil or

a center-punch to mark the hole

overhead view of threshold & guide block

The Guide Block must be installed square to the plane of the glass

**only use an

anchor on a tile threshold

*see note

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 18

Page 22

19. If installing the 72” model, repeat Step #18 for the Small

Stationary Glass Bottom Bracket (#22). Loosen the set screw

and remove the guide block face plate.

use a pencil or a

center-punch to mark the hole

*NOTE:

◾For installation into an Acrylic Threshold: drill an Ø1/8”(3mm) hole and use the ST4.2 x 40mm

Countersunk Screw (#17) OR

◾For installation into a Tile Threshold: drill a Ø5/16”(8mm) hole and use the ST4.2 x 40mm

Countersunk Screw (#17) (with Anchor (#09b) for tile)

Apply silicone to the underside of the Stationary Glass Bottom Bracket (#22) and screw the Stationary Glass Bottom Bracket (#22) to the threshold. (Fig 19)

NOTE: The Small Stationary Glass Bottom Bracket (#22) must be screwed down to the threshold.

ST4.2 X 40

**use anchor with

3 4

tile threshold

*see note

Fig 19

M5 X 10

Part#22 - Small stationary Glass Bottom Bracket for 72” model only

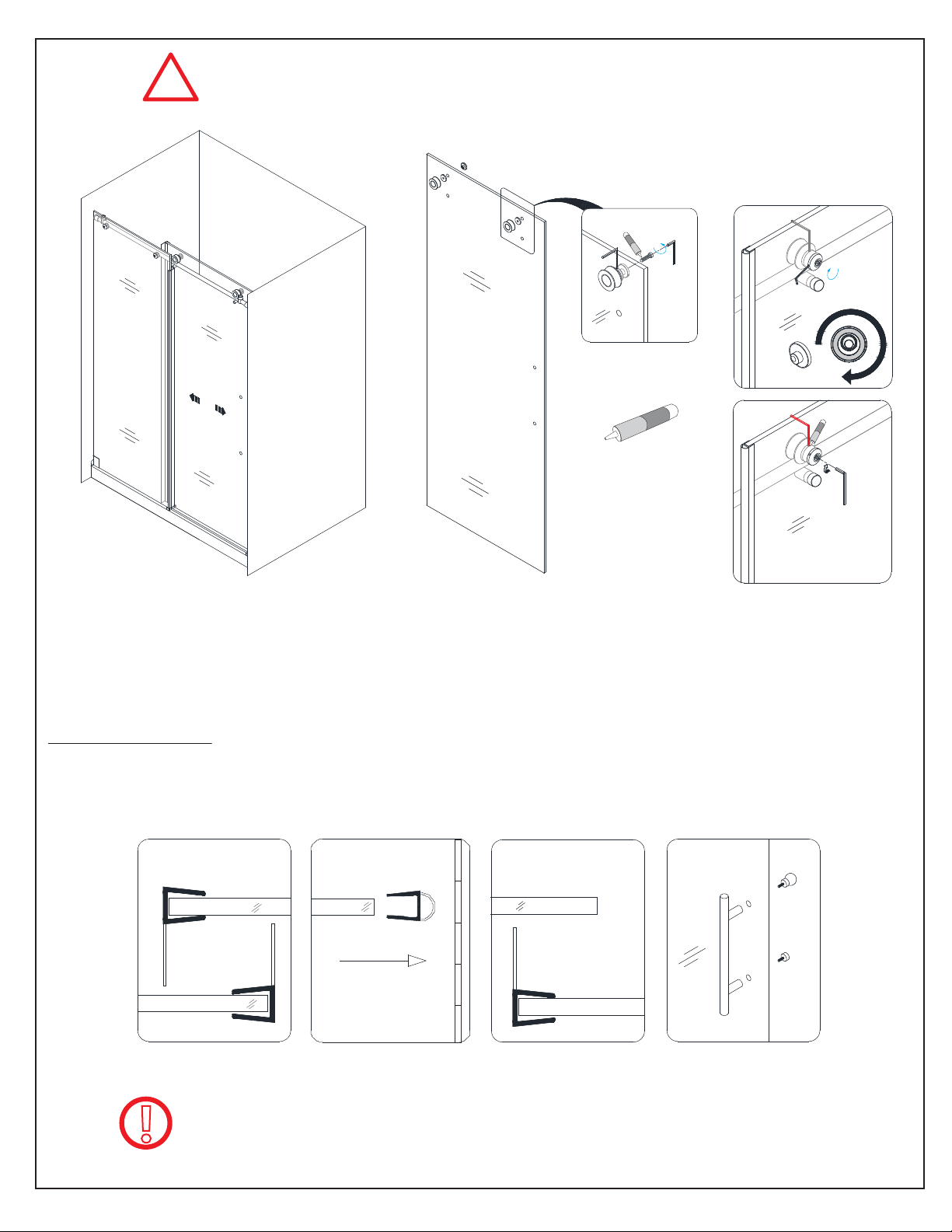

NOTE: Before installing the Stationary Glass (#02), take the Door Glass (#05) into the shower area and

lean it against the wall with the handle holes on the correct side. After the Stationary Glass (#02) is installed, it may not be possible to easily get the door glass into the shower. Always use padding to protect the glass and shower surfaces.

NOTE: DO NOT attach the handle to the door glass

until instructed. DO NOT attempt to lift the door glass with the handle as this may result in damage to the glass and/or serious personal injury. Use a professional grade glass suction cup and an assistant.

protective padding

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 23

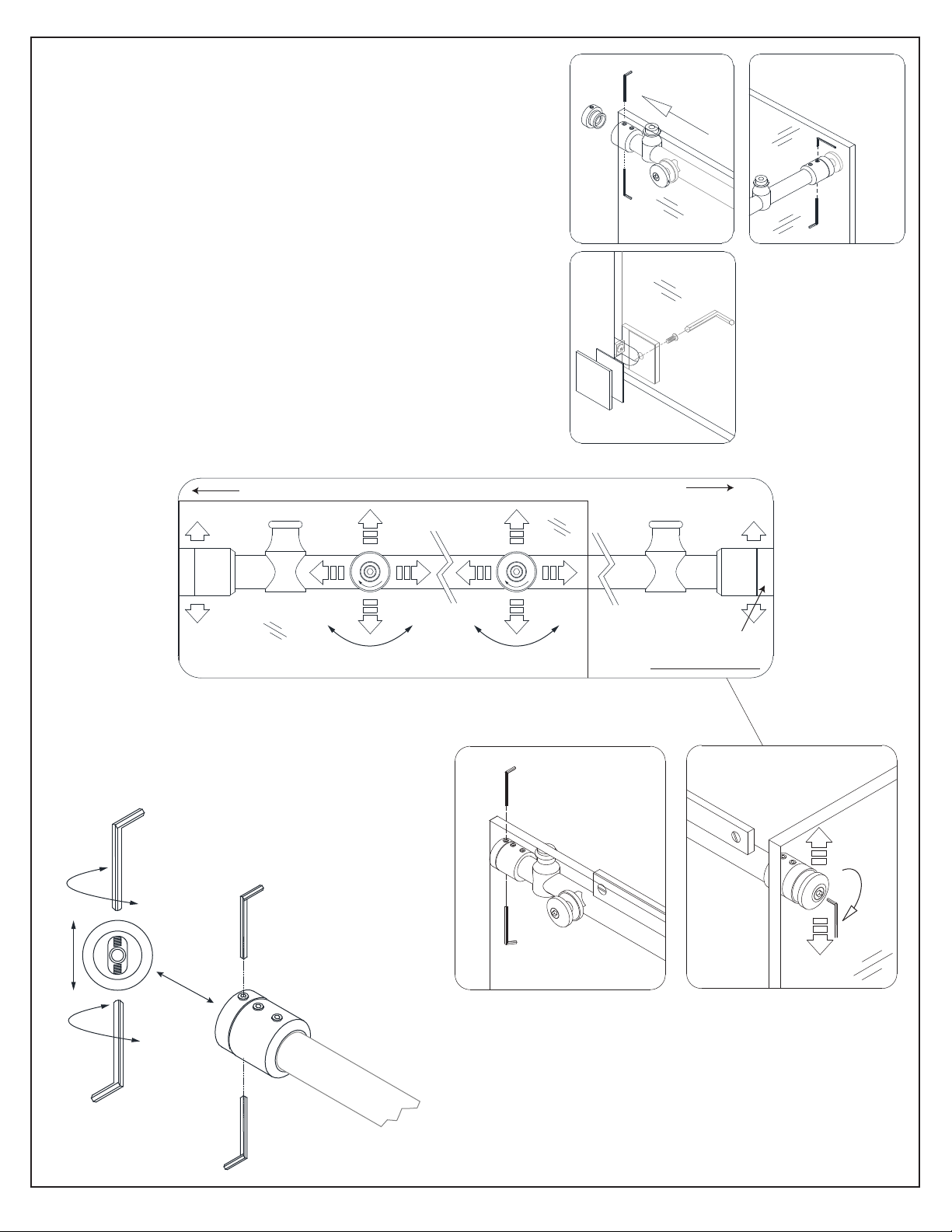

20. Reposition the Stationary Glass (#02) and Upper Guide

Rail (#03) onto the threshold and fasten the sleeves of the Guide Rail Brackets (#08) to the installed bracket on the wall

and the Glass Connector (#28). Tighten the set screws on the Guide Rail Brackets (#08) to secure the Upper Guide Rail (#03). Position the bracket set screws so that they are accessible from the top and bottom. (Fig 20.1 and Fig 20.2)

Assemble the Wall Bracket (#19) at the bottom corner of the Stationary Glass (#02). Use the clear vinyl gasket between the glass and the metal parts to avoid contact with the glass, then tighten the bolt with the supplied allen wrench. (Fig 20)

TIP: Adjust the installed Upper Guide Rail (#03) to level as necessary using the Guide Rail Brackets (#08) first and then the Glass Brackets (#07). Start adjustments from the door end. (Fig 21 and Fig 22)

Panel end

Glass bracket

(Right hand door installation shown as example)

Fig 20

outside

Door end

Guide Rail Bracket or Glass Connector

Fig 21

NOTE: Use the Guide Rail Bracket (#08) set

screws and/or the Glass Connector (#28) to

adjust the Guide Rail (#03) to level.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 22

To lower the rail using the Guide Rail Bracket:

Loosen the top set screw and tighten the bottom set screw.

To raise the rail:

Loosen the bottom set screw and tighten the top set screw.

To raise or lower the rail using the Glass Connector:

Loosen the bolt and rotate the disk then tighten the bolt.

Page 24

21a. For the 48”or 60“ model size: Measure the

distance from the edge of the Guide Block (#12)

to the wall. This distance will be “X”.

Cut the Anti-Splash Guard (#15) to the size of:

(X) + 3/8”. (Fig 23a)

21b. For the 72” model size: Measure the

distance between the edge of the Guide

Block (#12) to the edge of the Small Stationary Glass Bottom Bracket (#22). This

distance will be “L”. Cut the Anti-Splash Guard (#15) to the size of: (L) + 3/4”. (Fig 23b)

for 48”or 60“ model

X + 3/8”

measure the distance ‘X’ from the guide block to the wall and add 3/8”

for 72” model

L + 3/4”

measure the distance ‘L’ between the guide blocks and add 3/4”

Fig 23a Fig 23b

22. Apply silicone to the bottom of the Anti-Splash Guard (#15). Insert one end of the Anti-Splash

Guard (#15) into the Guide Block (#12).

Align the Anti-Splash Guard (#15) parallel with the front edge of the shower base or threshold.

Cover the opposite end of the Anti-Splash Guard (#15) with the Anti-Splash Guard Cap (#16) against the wall. (48” or 60” model) (Fig 24.4)

For the 72” model: Insert the Anti-Splash Guard (#15) into the Small Stationary Glass Bottom

Bracket (#22). (Fig 24.5*)

only use cap when installing up to a wall

for 48” & 60” model

for 72” model

Fig 24

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 25

23. Secure the Anti-Splash Guard (#15) to the threshold with several pieces of painter’s tape to hold it

in position tight to the threshold until the silicone fully cures. (Fig 25)

Fig 25

24. Attach the Guide block face plate to the installed

Guide Block (#12) and use the supplied gaskets and

sleeve to protect the glass. Tighten the set screw with the supplied allen wrench. Use the supplied Decorative caps to cover the screw holes. (Fig 26)

face plate

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 26

Page 26

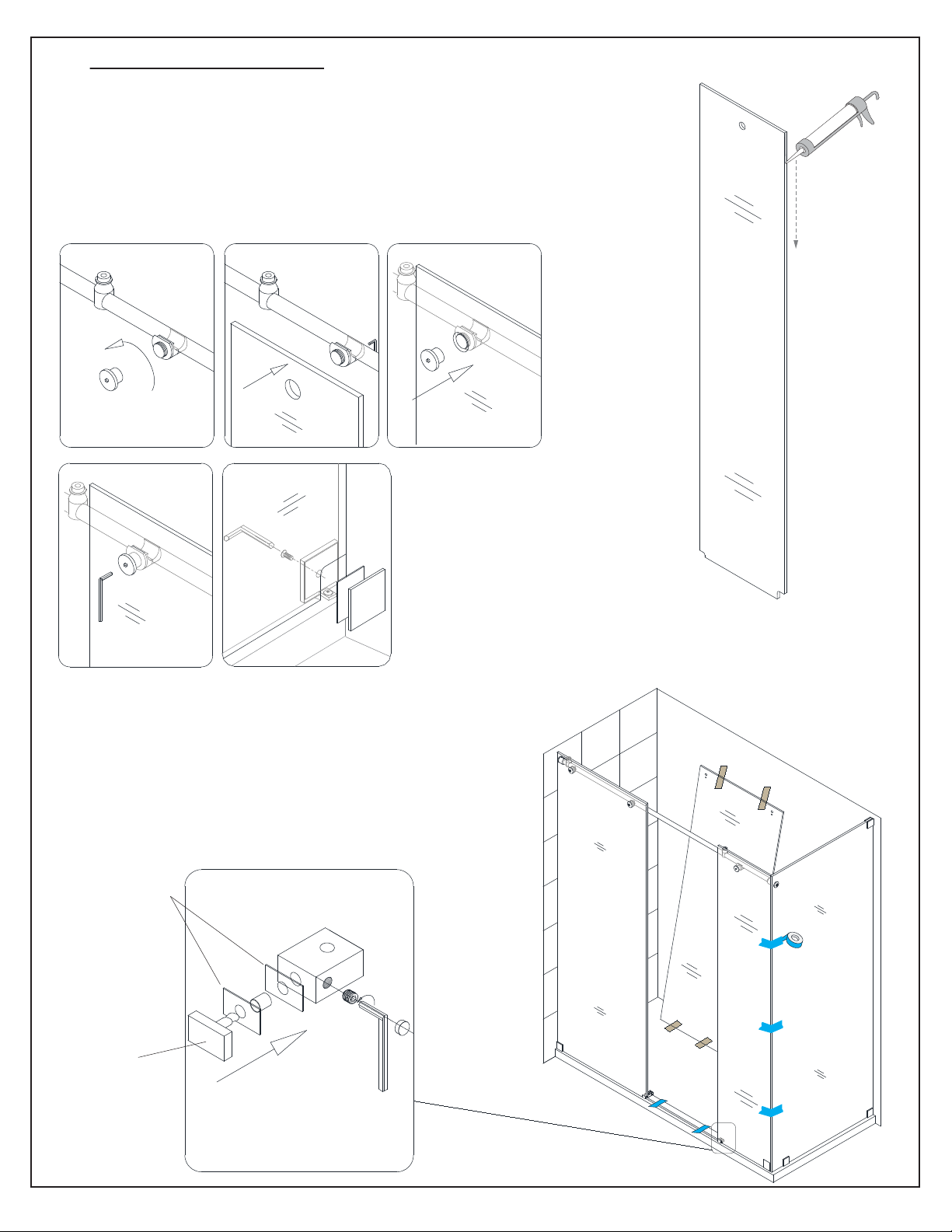

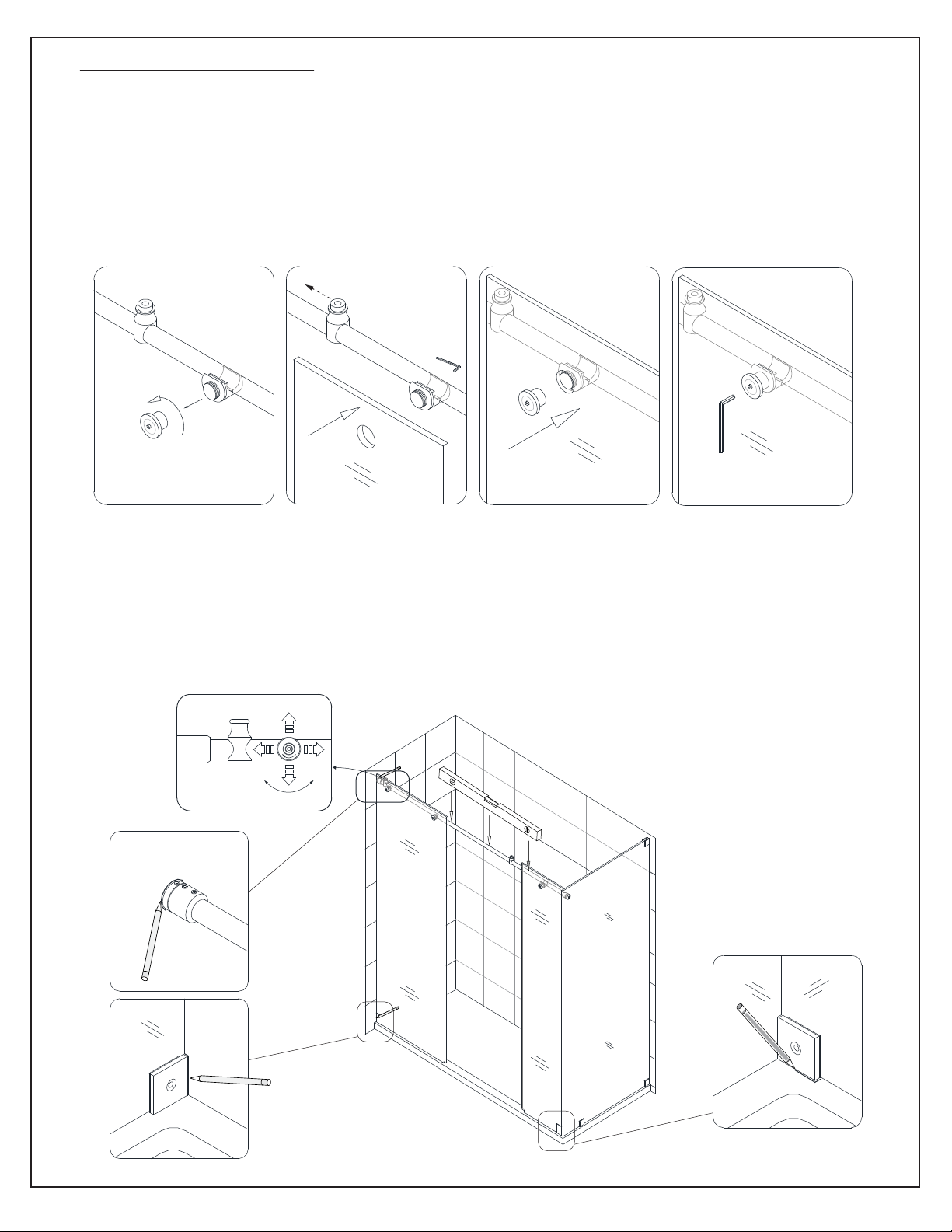

25. If installing the 72” model: Apply a thin bead of silicone to the

edge of the Small Stationary Panel Glass (#23) and carefully butt it up against the installed Return Panel Glass (#27). Attach the Small

Stationary Panel Glass (#23) to the Upper Guide Rail (#03) using the Small Stationary Glass Bracket (#21).

Attach the face plate to the Wall Bracket (#19) on the threshold. Use some painter’s tape to secure the corner until the silicone cures.

(Fig 27 and Fig 28)

1 2 3

Fig 27

outside

26. Attach the Guide block face plate to the installed

Small Stationary Glass Bottom Bracket (#22) and

tighten the set screw with the supplied allen wrench. Make sure that the clear gaskets are in place to protect the glass. Use the supplied Decorative caps to cover the screw holes. (Fig 28)

clear gasket

face plate

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 28

Page 27

NOTE: DO NOT attach the handle to the door glass until instructed.

DO NOT attempt to lift the door glass with the handle as this may result in damage to

the glass and/or serious personal injury.

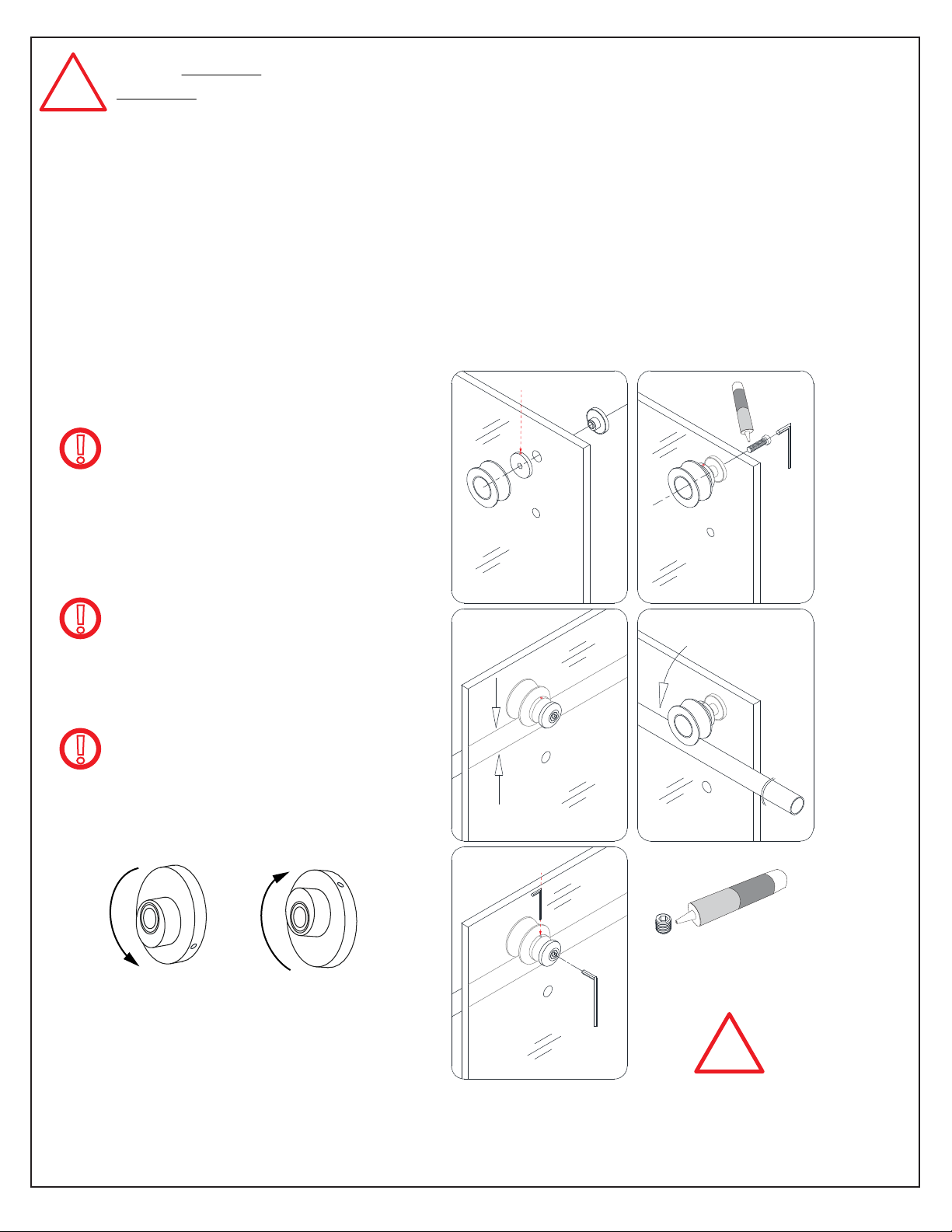

27. Loosen the safety set screws and attach the two Rollers (#04) to the Door Glass (#05) with the

wheels facing outside of the shower. Align the safety set screw towards the top for easier access (See

Fig 29 and page 33 for more details).

Lift the door and position the Rollers (#04) onto the Upper Guide Rail (#03) while carefully guiding the bottom edge of the Door Glass (#05) into the groove of the Guide Block (#12). If necessary, adjust the disks on both Rollers (#04) to ensure that the bottom edge of the Door Glass (#05) does not touch the Guide Block (#12) and the bulb vinyl seal meets evenly with the return panel glass. (see details on page 33). (Fig 29)

safety set screw

Note: The adjustment disks in the

wheels are the same as the disks in the Glass brackets and can be rotated to adjust the door glass to create a seal with the wall. See detailed

description on page 33.

TIP: Mark the location of the high spot on the outer surface of the

adjustment disk with a felt tip pen to make adjustment easier to see.

TIP: Use a 3/16” shim beneath the door glass when adjusting the level

of the door so that the glass does not make contact with the guide block.

Roller wheel adjustment disks

outside

safety set screw

Raise glassLower glass

apply threadlock to

the safety set screw

and wheel bolt

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

inside

Fig 29

Page 28

28. Attach the two Roller Guards (#29) onto the door to secure the door to the Upper Guide Rail

(#03). Apply Thread Lock Adhesive (#26) to the bolts.

Leave no more than a 1/16” gap between the Roller Guards (#29) and the Upper Guide Rail (#03). Tighten the bolt and screw on the cap. (Fig 30)

TIP: Postion the roller guard 1/16”

below the rail, hold the roller guard bolt with the allen wrench and tighten the interior post using the small allen wrench (Fig 30.2)

Fig 30

side view

front view

Upper Guide Rail

Roller Guard

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Roller Guard

1/16”

Page 29

29. To install the Bumper (#30) with the 3M tape: position the Bumper (#30) onto the threshold

and against the wall on the stationary panel side of the installation. (For 72” model, this will be the side of the opening with the large stationary panel) Remove the 3M Tape and position the Bumper (#30) onto the threshold against the Wall Bracket

(#19). (Fig 31)

NOTE: The surfaces need to be clean and free of construction debris before installing the bumper.

Wipe the area with an alcohol swab before installation.

Door

Panel

TIP: Install the Bumper (#30) using the 3M tape. Screwing the bumper to the wall

using a Ø5/16” hole and anchor is optional (see step 30).

The Bumper (#30) is reversible for Left or Right wall installation.

(Left wall installation shown below from inside the shower)

Wall

Inside

Fig 31

REMOVE

3M TAPE

Inside

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 30

30. To install the Bumper (#30) with the screw method: position the Bumper (#30) onto the threshold

and against the wall on the stationary panel side of the installation. (For 72” model, this will be the side of the opening with the large stationary panel). and mark the position of the hole onto the wall. Drill a Ø5/16” hole and insert the wall anchor. Remove the 3M Tape and position the Bumper (#30) onto the threshold against the Wall Bracket (#19) and attach using the ST4.2 x 40 Countersunk screw.

(Fig 32)

NOTE: The surfaces need to be clean and free of construction debris before installing

the bumper. Wipe the area with an alcohol swab before installation.

Panel

Door

NOTE: Use caution if using the screw

method to not crack the wall/tile and to avoid any plumbing behind the wall.

The Bumper (#30) is reversible for Left or Right wall installation.

(Left wall installation shown below from inside the shower)

1 2

3 4

3M TAPE

Inside

Extender driver bit recommended for screw installation method

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 32

Page 31

Note: The Safety set screw on both wheels MUST BE RE-TIGHTENED after installation to prevent the large bolt from coming loose. Apply thread

lock during installation. (See Fig 33 and Page 33 for more details)

add threadlock to

the safety set screw

and wheel bolt

Fig 33

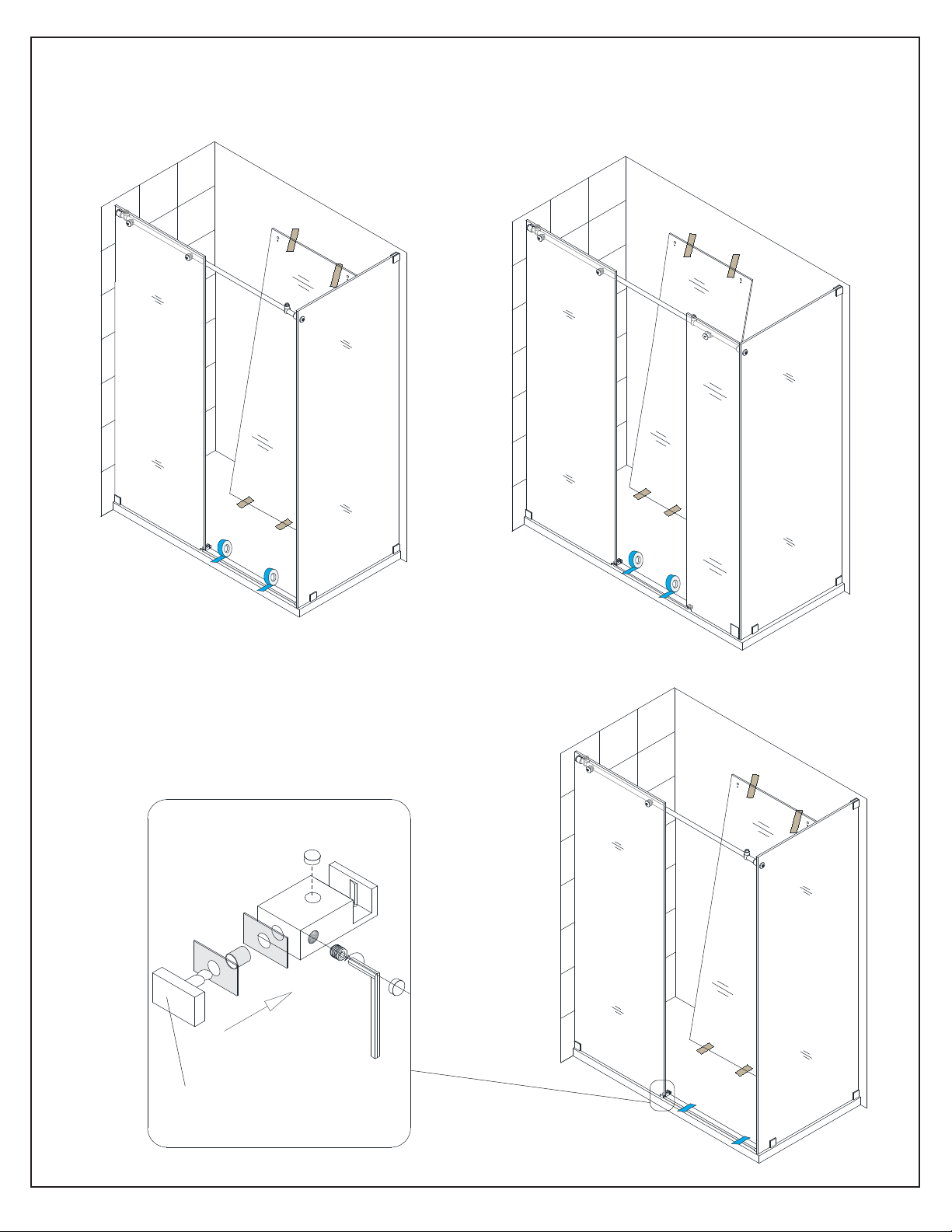

31. Press the Anti-Water Strip (#14) onto the vertical edge of the Stationary Glass (#02) and the

Door Glass (#05). For 48” and 60“ models, press the Bumper Strip (#13) onto the vertical edge of the Door Glass (#05). (Fig 34.2)

For the 72” model: Attach Anti-Water Strip (#14) to the edge of the Small Stationary Glass (#23).

The Bumper Strip (#13) is not necessary with the 72” model. (Fig 34.3*)

Attach the Handle (#06) to the Door Glass (#05). (Fig 34)

48”or 60”

inline panel

(Right hand door installation shown as an example)

inside

door

model

door

wall

72” model

door

small panel

outside

Note: Use a razor knife to trim the Anti-Water Strip (#14) at the top to avoid

interfering with the Roller Guards (#29) and at the bottom where the door meets the Bumper (#30).

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 34

Page 32

32. Correctly position the Door Stoppers (#01) and

screw them tightly to the Upper Guide Rail (#03).

NOTE: The Door Stoppers (#01) must be positioned correctly to prevent the handle from contacting the Stationary Glass (#02) (48”, 60” & 72“ models) and to stop the Door Glass (#05) in a position that allows the bumper strip to create a seal with the return panel glass, but does not allow the door glass to bang into the return panel glass during normal operation (48” & 60” models). (Fig 35a and Fig 35b)

*For the 72” model: Install the door side stopper in a position to

prevent the handle from making contact with the small inline panel glass when the door is in the closed position.

(Fig 35b.7*)

Door Stopper Installation:

Fig 35a

door side of opening 48” and 60” models (right-hand return panel shown as an example)

1. Remove the set screw

2. Slide the Door Stopper (#01) onto the Upper Guide Rail (#03)

3. Align with stopper hole (stationary panel side only)

4. Apply Thread Lock Adhesive (#26) to the set screw threads

5. Tighten screw into the stopper hole on the stationary panel side

6. Correctly position the door side stopper and tighten the set screw with Thread Lock Adhesive (#26)

(Fig 35b)

3”

approximately

return panel glass

(+/- 1/8”)

Stopper

Panel side

Stopper

hole

Thread Lock

Door side

Stopper (#01)

Note: If installing the

Thread

Lock

72” model, position the door-side stopper so that the handle cannot make contact with the small inline panel glass when the door is in the closed position.

position stopper to allow enough clearance for the handle

small panel

(ENIGMA-X Right hand door installation shown as an example)

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Fig 35b

72” model with Right hand door installation

Page 33

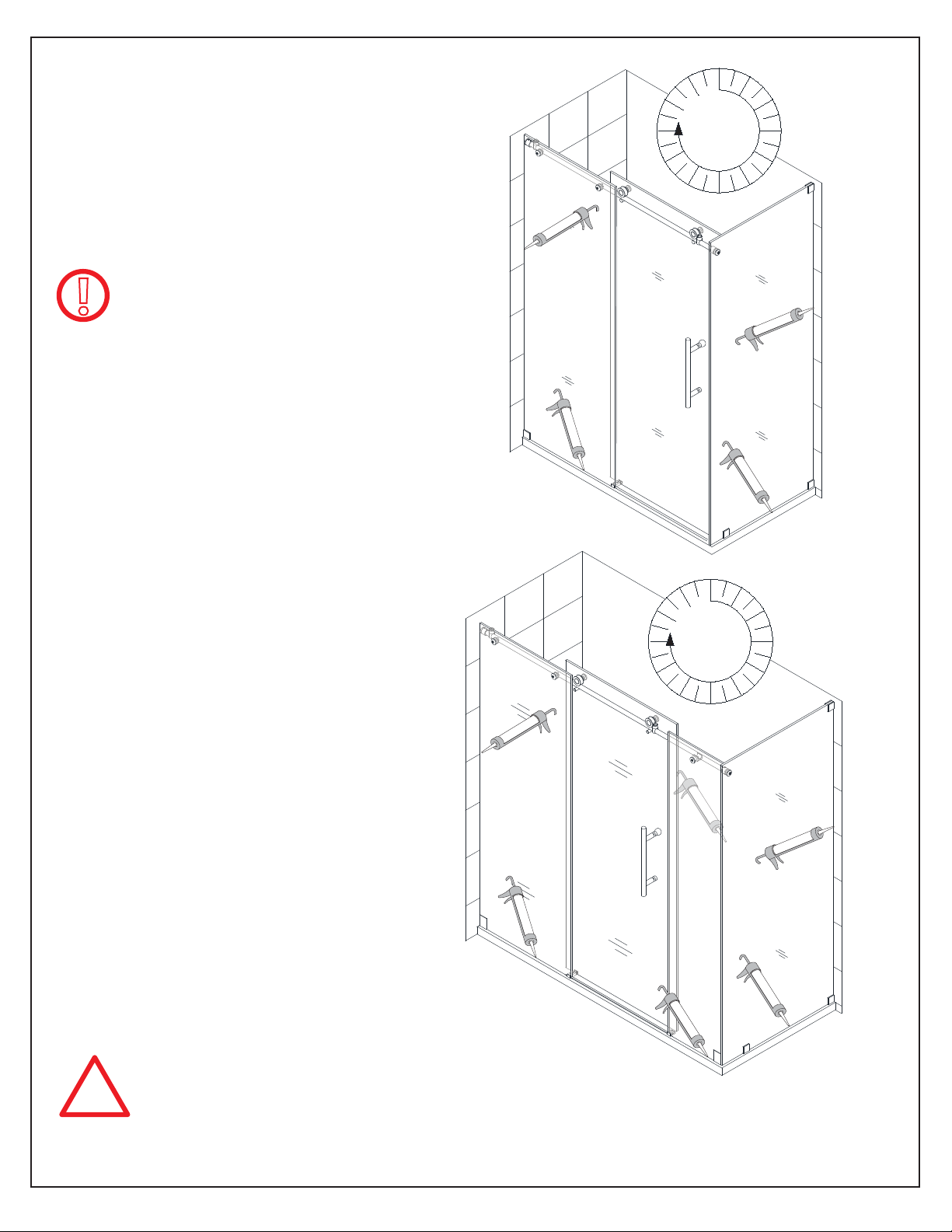

33. Apply a good quality mildew-resistant

silicone along the interior perimeter where the glass meets the wall and threshold and also along the Anti-Splash Guard (#15). (Fig 36)

Allow 24 hours for the silicone to

cure before using the shower.

Hours

Fig 36

Hours

Do Not hang or drape a towel or wash cloth over the

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Enigma guide rail as this may cause the roller wheels to get stuck and possibly cause serious damage or injury.

Page 34

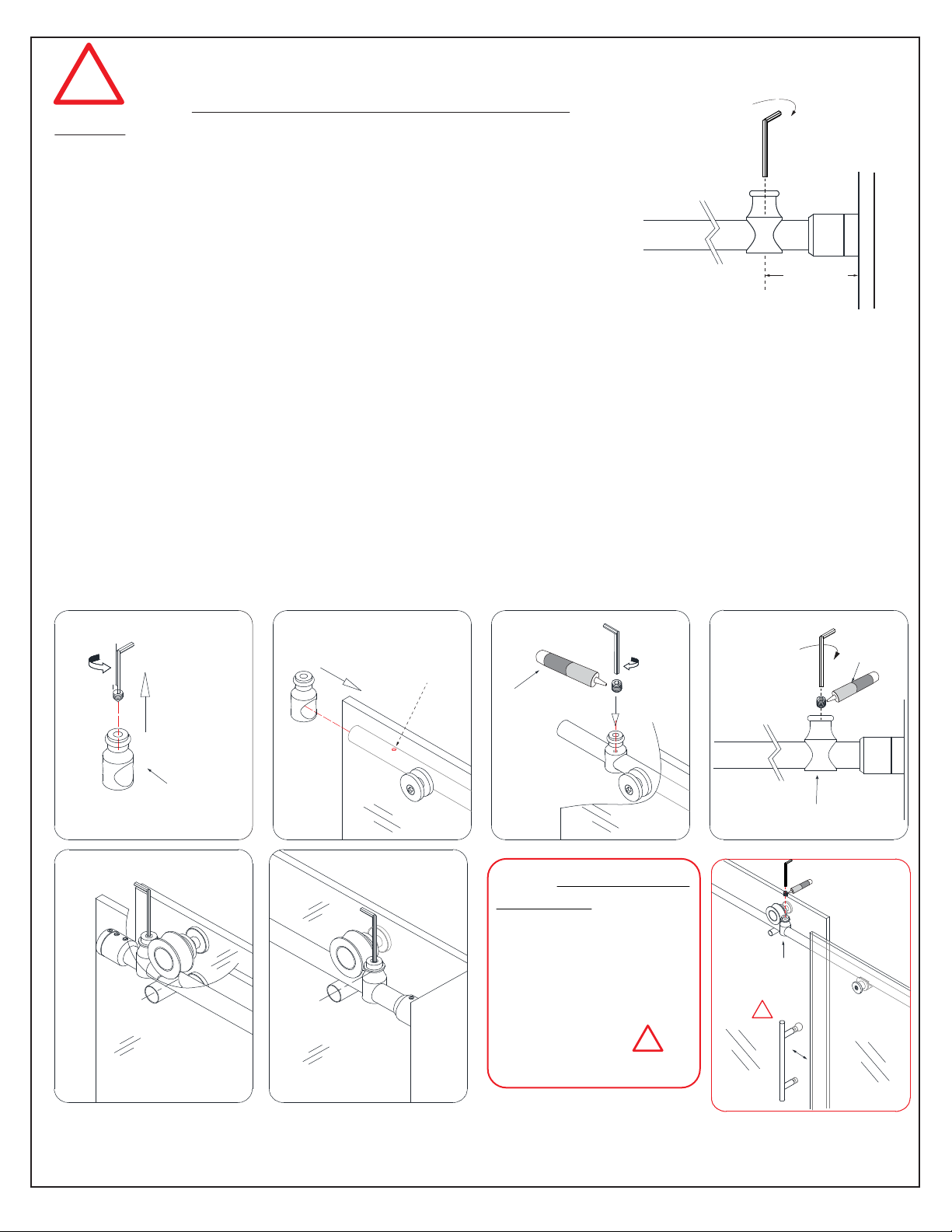

Enigma Roller adjustment procedure for Enigma and Enigma-X

The bushing that goes through

Insert a small tool (like an

you reghten the big bolt.

Once you have loosened the

This is the adjustment disk.

To achieve minimal clearance beneath the door glass without making contact with the boom

guide block and creang a good seal with the wall.

Have at least two 3/16” shims or wedge shims (to maintain space beneath the door glass) and an assistant available to help with this procedure. You should adjust only one wheel at a me and you may need to perform these steps more than once to get the desire

d results.

Cauon: The door glass is heavy and may require two people to safely accomplish these steps.

1. First, loosen and lower either the Roller Guards (Enigma-X) or Boom Rollers (Enigma) to allow you

enough room to adjust the upper rollers. (If you have not installed these yet, you will be instructed to in step #7 aer these adjustments are made)

2. Loosen the safety set screw on the roller. (See

note 2 below)

3. Loosen the big bolt just enough so that you can rotate the adjustment disk. (See note 3 below)

4. Rotate the adjustment disk to raise or lower the door slightly with help from an assistant. You can use a

small tool (like an allen wrench) to aid in turning this disk by inserng it into the small hole on the edge of the adjustment disk. (see note 4 & 4a below)

5. While holding t

he adjustment disk in place, reghten the big bolt. Use a shim or have an assistant hold

the door glass in place while you reghten the big bolt.

6. Re-ghten the safety set screw to hold the big bolt in place (see note 5). Test the operaon of the door.

7. For the Enigma-X:Reposion the roller guards approximately 1/16” beneath the guide rail and

reghten. For the Enigma: adjust the lower rollers to make contact with the rail in upper rollers.

Loosen this safety set screw ﬁrst. This holds the big bolt in place and must be re-ghtened aer the roller is adjusted.

Posion this set screw at

the top for easier access.

It is extremely important that the safety set screw is re-tightened to secure the big bolt.

During installaon onto the glass,

rotate this disk so that the safety set screw is at the top for easier access

the same manner as the

set screw, you will be able to loosen this big bolt just enough to allow you to rotate the adjustment disk.

Once the big bolt is loosened, rotate this disk to raise or lower the door glass slightly. Use cauon so that the door glass does not make contact with the guide block.

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

add threadlock to

the safety set screw

and wheel bolt

the glass is ellipcal and

allows you to raise or lower

the glass when you rotate the

adjustment disk.

allen wrench) into this hole to help rotate this adjustment disk and also to hold the disk in place when

Page 35

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off

after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use

with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine

with any questions or concerns.

Enigma-X Maintenance checklist

◻ Guide rail level and tight ◻ Guide rail brackets tight to the walls

o All set screws tight

◻ Inline and Return Panel glass secure ◻ Panel glass brackets tight ◻ Guide block square to the threshold and glass ◻ Proper clearance beneath the door glass between the threshold and within the guide block ◻ Door Glass adjusted so that the Bulb vinyl seal makes even contact with the return panel glass ◻ Wheel assemblies tight

o Wheel roller bolts tight o Wheel assembly safety set screws tight and accessible ◻ Stoppers tight and positioned correctly o Panel-side stopper installed into the pre-drilled hole in the guide rail o Adequate Handle clearance when the door is fully open o Door-side stopper positioned at approximately 3” (+/- 1/8”) (as measured from the return panel glass to the center of the stopper)

◻ Stopper stops the door and bulb vinyl seals to the return panel glass ◻ SafeStop bumper secure to the wall ◻ Roller guards positioned within 1/16” beneath guide rail ◻ Remove vinyl seals to inspect the edges of the door glass for concealed damage

o Damaged glass must be replaced! ◻ Replace damaged or missing vinyl seals

ENIGMA-X Enclosure manual Ver 7 Rev 1.1 02/2018

Page 36

For more information on DreamLine

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

Shower Doors and Enclosures please visit DreamLine.com
