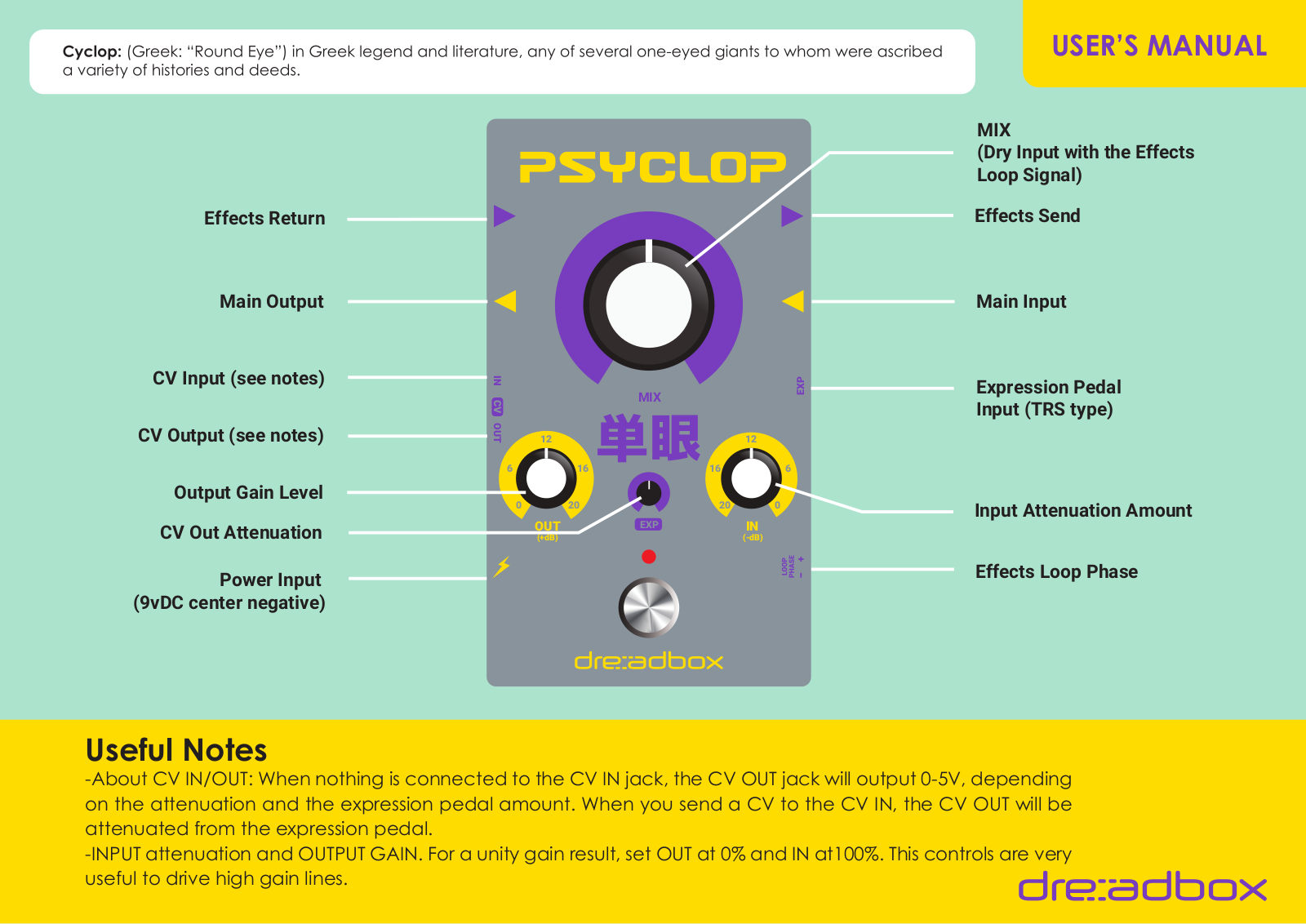

USER’S MANUAL
MIX
(Dry Input with the Effects
Loop Signal)
Effects Return
Main Output
CV Input (see notes)
CV Output (see notes)
Output Gain Level
CV Out Attenuation
Power Input
(9vDC center negative)
OUTIN
6
0 20
12
OUT
(+dB)
Effects Send
Main Input
MIX
EXP
Expression Pedal
Input (TRS type)
12
16
EXP
16
20 0
IN
(-dB)
6
Input Attenuation Amount
Effects Loop Phase
Useful Notes
-About CV IN/OUT: When nothing is connected to the CV IN jack, the CV OUT jack will output 0-5V, depending
on the attenuation and the expression pedal amount. When you send a CV to the CV IN, the CV OUT will be
attenuated from the expression pedal.
-INPUT attenuation and OUTPUT GAIN. For a unity gain result, set OUT at 0% and IN at100%. This controls are very
useful to drive high gain lines.
