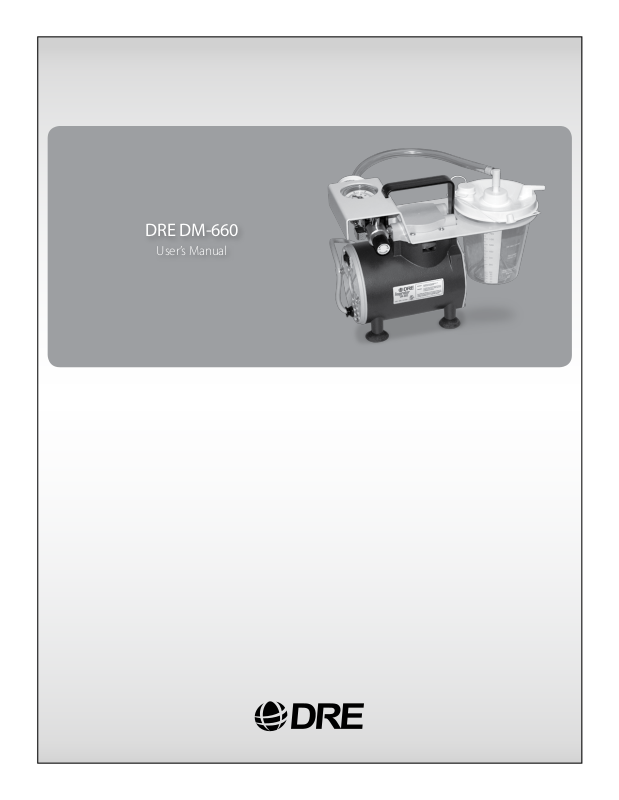

DRE DM-660 User manual

DRE DM-660

User’s Manual

CONTENTS

RECEIVING/INSPECTION ........................................................... 2

INTENDED USE ............................................................................. 2

READ ALL INSTRUCTIONS BEFORE USING ..........................

EXPLANATION OF ABBREVIATIONS ...................................... 2

SAFETY INFOR MATION - WARNINGS AND CAUTIONS 2

.........

SPECIFICATIONS ............................................................................ 4

COMPONENT DESCRIPTION ..................................................... 5

OPERATING INSTRUCTIONS ...................................................... 6

C LEANING/MAINTENANCE ...................................................... 7

R ETURNS .......................................................................................... 8

DISPOSAL INSTRUCTIONS ........................................................ 8

R EPLACEMENT PARTS ............................................................... 8

TROUBLESHOOTING ................................................................... 9

LIMITED WARRANTY ................................................................... 10

2

1

RECEIVING/INSPECTION

Remove the DRE DM-660 Aspirator from packaging
and inspect for damage. If there is any damage, DO NOT USE
and contact your Equipment Provider.

INTENDED USE

To supply a continuous vacuum source adequate within the stated
operating vacuum range, to aspirate uids in medical suctioning
procedures by trained healthcare professionals.

READ ALL INSTRUCTIONS BEFORE USING

This manual instructs a Professional to install and operate the
Aspirator. This is provided for your safety and to prevent
damage to the Aspirator. If you do not understand this
manual, DO NOT USE the Aspirator and contact your
Equipment Provider.

EXPLANATION OF ABBREVIATIONS

inHg Inches of Mercury
mmHg Milimeters of Mercury

SAFETY INFORMATION - WARNINGS AND CAUTIONS

DANGER

WARNING

CAUTION

CAUTION

Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.

Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.

Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.

Used without the safety alert symbol indicates
a potentially hazardous situation which, if not
avoided, may result in property damage.

CONSULT ACCOMPANYING DOCUMENTS.

Type B equipment

2

DANGER

TO REDUCE THE RISK OF ELECTROCUTION

•

Always unplug the Aspirator immediately after use.
DO NOT use while bathing.

•

DO NOT place or store Aspirator where it can fall or be

•

:

pulled into a tub or sink.
DO NOT place or drop into water or other liquid.

•

DO NOT reach for a Aspirator that has fallen into water.

•

Unplug immediately.
DO NOT attempt to repair Aspirator. Any attempt could

•

result in electrical shock.
DO NOT use near any type of ame or ammable/explosive

•

substances.
DO NOT allow Aspirator to exceed Operating or Storage

•

Temperature specications.
Caution must be exercised when using this Aspirator where

•

oxygen is being administered.

WARNING

TO REDUCE RISK OF BURNS, ELECTROCUTION, FIRE , OR
INJURY TO PERSONS

•

The should never be left unattended when running.

•

Close supervision is necessary when the Aspirator is used

:

by, on, or near children or invalids.

•

Use the Aspirator only for its "Intended Use" as
described in this manual.

•

DO NOT use attachments not recommended by the manufacturer.

•

DO NOT use when sleepy or drowsy.

•

DO NOT use if Aspirator has a damaged cord or plug.

•

DO NOT use if Aspirator has been dropped or
damaged.

•

DO NOT cover air vents. Restriction of air ow will cause Aspirator to
overheat, causing the thermal reset to shut down the Aspirator.
DO NOT drop or insert any object into any opening or hole.

•

Connect this Aspirator to a properly grounded outlet only.

•

See Grounding Instructions.
Keep the cord away from heated surfaces.

•

3

CAUTION

If for any reason any label becomes illegible or lost, contact
DRE, Inc.

CAUTION

•

Inspect the Aspirator for visual damage, DO NOT
USE if damaged.

•

Ground reliability can only be achieved when the power
cord is connected to an equivalent receptacle marked
"Hospital Grade".

SPECIFICATIONS

Operating Vacuum Range: 0-26 inHg (0-660 mmHg)

Dimensions: Length: 13.25 in (33.7 cm)

Width: 8.00 in (20.3 cm)

Height: 9.75 in (24.8 cm)

Weight: 12.6 lbs (5.7 kg)

Shipping Weight: 14.5 lbs (6.6 kg)

Electrical: PM60: 108 -132 VAC, 60 Hz, 5 Amps

PM60E: 207 - 253 VAC, 50Hz, 2.4 Amps

Operating Temperature Range: 50°F to 104°F (10°C to 40°C)

Storage Temperature Range: -4°F to 104°F (-20°C to 40°C)

Filter: Inline, Hydrophobic

Safety Systems: Automatic Resetting Thermal Limit Switch

Equipment Classication:

Class I

Type B -

IPX0

Mode of Operation - continuous

The Aspirator meets the EMC requirements of EN 550011:1998.

The

Aspirator

ammable anesthetic mixture with air, oxygen or nitrous oxide.

Specications are subject to change without prior notice.

is not suitable for use in the presence of a

- with respect to protection from electrical shock

degree of protection against electrical shock

- degree of protection against ingress of liquids

4

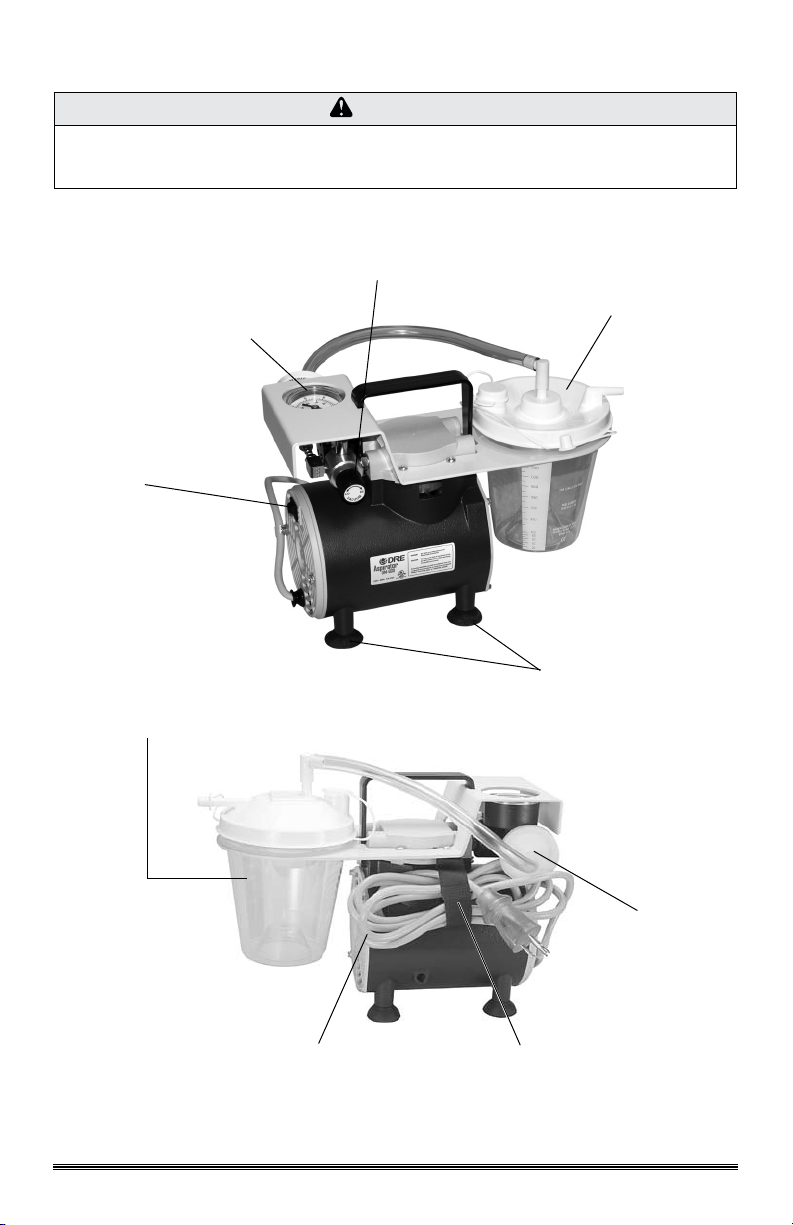

C OMPONENT DESCRIPTION

CAUTION

If for any reason any label becomes illegible or lost, contact

DRE, Inc.

On/O
Switch

Standard 800cc

Suction Canister

Vacuum

Gauge

Control

Knob

Patient
Tubing

Connection

Suction Feet

Power Cord

Inline

Hydrophobic

Filter

Power Cord

Keeper

5

G ROUNDING I NSTRUCTIONS

The Aspirator should be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electrical
shock by providing an escape wire for the electrical current.
This Aspirator is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.

DANGER

Improper use of the grounding plug can result in a risk of
electrical shock.

WARNING

Ground reliability can only be achieved when the power
cord is connected to an equivalent receptacle marked
"Hospital Grade".

OPERATING INSTRUCTIONS

CAUTION

Inspect the Aspirator for visual damage, DO NOT
USE if damaged.

1. Place Aspirator near a properly grounded
electrical receptacle on a table, oor or other horizontal,
smooth, hard surface.
Allow a minimum of 4in (10 cm) clearance on all sides to
ensure adequate air ow for cooling of Aspirator.

2. Press down on Aspirator until Suction Feet are secure.

3. Be sure the On/O Switch is in the “O FF ” position.

4. Be sure the Inline Hydrophobic Filter is properly connected
to the vacuum port on the Suction Canister lid.

•

The Inline Hydrophobic Filter prevents liquid from
entering the vacuum pump.

CAUTION

DO NOT run the Aspirator without Inline

Hydrophobic Filter. This will void the warranty.

5. Plug the Aspirator into a properly grounded recepticle.

6. Turn the On/O Switch to the “O N” position.

6

7. Block the patient connection on the Suction Canister and
adjust the Vacuum Control Knob to the desired vacuum.

To INCREASE vacuum - Turn knob CLOCKWISE
To DECREASE vacuum - Turn knob COUNTERCLOCKWISE

• Vacuum should be set as prescribed by Physician or

Healthcare Professional.

8. Connect one end of the Patient Suction Tubing to the port
on the Canister marked Patient Tubing.

9. Connect the other end of the Patient Suction Tubing to
the suction catheter and begin procedure as instructed by
Healthcare Provider.

10. When procedure is completed, press the On/O Switch to
the “ OFF ” position.

• DO NOT overll the canister

11. Empty the Suction Canister as follows:

• Remove the canister from its bracket and empty as
instructed by your Physician or Healthcare Professional.

CAUTION

Canister is for single patient use only.

12. Replace Suction Canister and reconnect all suctioning tubing.

C LEANING/MAINTENANCE

WARNING

Turn the Aspirator o and disconnect from
any external power source before cleaning.

Inline Hydrophobic Filter:

This lter cannot be cleaned. If it becomes contaminated or
clogged, it must be replaced.

To replace Inline Hydrophobic Filter:

1. Disconnect lter assembly from Suction Canister and
remove Suction Canister from the Aspirator.

2. Remove lter assembly from the Aspirator.

3. Dispose of lter.

4. Install new lter (Part #1690) and reconnect tubing and
elbow.

Tubing is single patient use only. DO NOT clean.

7

Cleaning for Exterior Components:

Use a cloth or sponge dampened with soap and water.
Wipe dry with a clean cloth or paper towel.

R ETURNS

Returned products require a Returned Goods Authorization
(RGA) number, contact DRE , Inc. All returns must
be packaged in sealed containers to prevent damage. DRE, Inc.
will not be responsible for goods damaged in transit.
Refer to DRE Inc. Return Policy available on the
Internet, www.dreme.com.

DISPOSAL I NSTRUCTIONS

Dispose of Bio-waste products as described by your Healthcare
Professional or Healthcare Facility protocol.

WARNING

If Aspirator is used for treatment of infectious disease, consult
your Physician or Healthcare Professional for
procedures for proper disposal.

recommended

Please Recycle

REPLACEMENT PARTS

Description Part #

Patient Suction Tubing 1955
Filter 1690
Filter Assembly 502012
Elbow Canister Outlet 1616
800cc Canister, (Case-10 ea.) 502519-10

8

TROUBLESHOOTING

If the Aspirator fails to function, consult the
Troubleshooting Guide.
If the problem cannot be corrected, consult your Equipment
Provider.

Problem Probable Cause Remedy

Aspirator will not
operate

No vacuum
on gauge / no
vacuum at Patient
Connection Tubing

No vacuum on
gauge / vacuum at
Patient Connection
Tubing

Vacuum on gauge /
no vacuum at Patient
Suction Tubing

Unable to adjust
vacuum

1. On/O switch in
“OFF ” position

2. Power Cord
not connected
properly

3. Thermal limit
exceeded

1. Hydrophobic Filter
not connected
properly

2. Suction Canister
not connected
or assembled
properly

3. Defective Suction
Canister

4. Defective
Regulator

1. Defective vacuum
gauge

1. Clogged
Hydrophobic lter

2. Canister overlled

1. Defective
regulator

1. Push On/O switch
to “O N ” position

2. Check plug at
outlet

3. Shut Aspirator o,
wait 15 minutes, be
sure vents are clear

1. Conrm and
tighten connections

2. Conrm and
tighten

3. Replace Suction
Canister

4. Contact your
Equipment
Provider

1. Contact your
Equipment
Provider

1. Replace
Hydrophobic lter

2. Empty canister

1. Contact your
Equipment
Provider

9

LIMITED WARRANTY

AND

LIMITATION OF LIABILITY

The manufacturer warrants that the Aspirator (the product)
will be free of defects in workmanship and/or material
for the following period:

Five (5) years from shipment

Should any failure to conform to this warranty appear within the
applicable period, the manufacturer shall, upon written
notication thereof and substantiation that the goods have been
stored, installed, maintained and operated in accordance with
the manufacturer.’s instructions and standard industry
practice, and that no modications, substitutions, or alterations
have been made to the goods, correct such defect by suitable
repair or replacement at its own expense.

ORAL STATE MENTS DO NOT CONSTITUTE WARRANTIES.

The representatives of DRE, Inc. or any retailers are
not authorized to make oral warranties about the merchandise
described in this contract, and any such statements shall not be
relied upon and are not part of the contract for sale. Thus, this
writing is a nal, complete and exclusive statement of the terms
of that contract.

THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR OTHER WARRANTY OF QUALITY, WHETHER
E XPRESS OR IMPLIED.

The manufacturer shall not under any circumstances be liable
for special, incidental or consequential damages including but not
limited
Correction of non-conformities as provided above shall constitute
fulllment of all liabilities of the manufacturer whether based
on contract, negligence, strict tort or otherwise. The manufacturer
reserves the right to discontinue manufacture of any product
or change product materials, designs, or specications without
notice.

The manufacturer reserves the right to correct clerical or

typographical errors without penalty.

to lost prots, lost sales, or injury to person or property.

10
