Page 1
1
BOOST BLACK EDITION
User Manual
Page 2
TABLE OF
CONTENTS
Important Safety Information
What’s In The Kit?
Warranty Information
Learning About Your Boost
Boost Anatomy
How To Use Your Boost
Cleaning Your Glass
Swapping Out Your Nail
Swapping Out Your Ceramic Element
Charging Your Boost
5.
7.
9.
11.
13.
15.
17.
19.
21.
23.
Page 3
4
CONTENTS
5
BOOST BLACK EDITION
IMPORTANT
SAFETY INFORMATION
!
Use sensibly. Dr. Dabber products are intended for
use by persons of legal smoking age. These products
are not suitable for children, women who are pregnant
or breastfeeding, or persons with heart disease, high
blood pressure, hypertension or diabetes. These
products should not be using in conjunction with
medication for depression or asthma. Discontinue use
and consult a physician immediately if you experience
symptoms such as nausea, vomiting, dizziness,
diarrhea, weakness, rapid heartbeat or hypertension.
Page 4
6
CONTENTS
7
BOOST BLACK EDITION
Boost Black Edition eRig
Glass Water Attachment
XL Domeless Titanium Nail (Threaded)
XL Ceramic Nail (Threaded)
XL Quartz Nail (Threaded)
Magnetic Carb Cap
Magnetic Loading Tool
Medical Grade Silicon Storage Container x2
Micro USB Charging Cable
Limited Edition Dr. Dabber Keychain

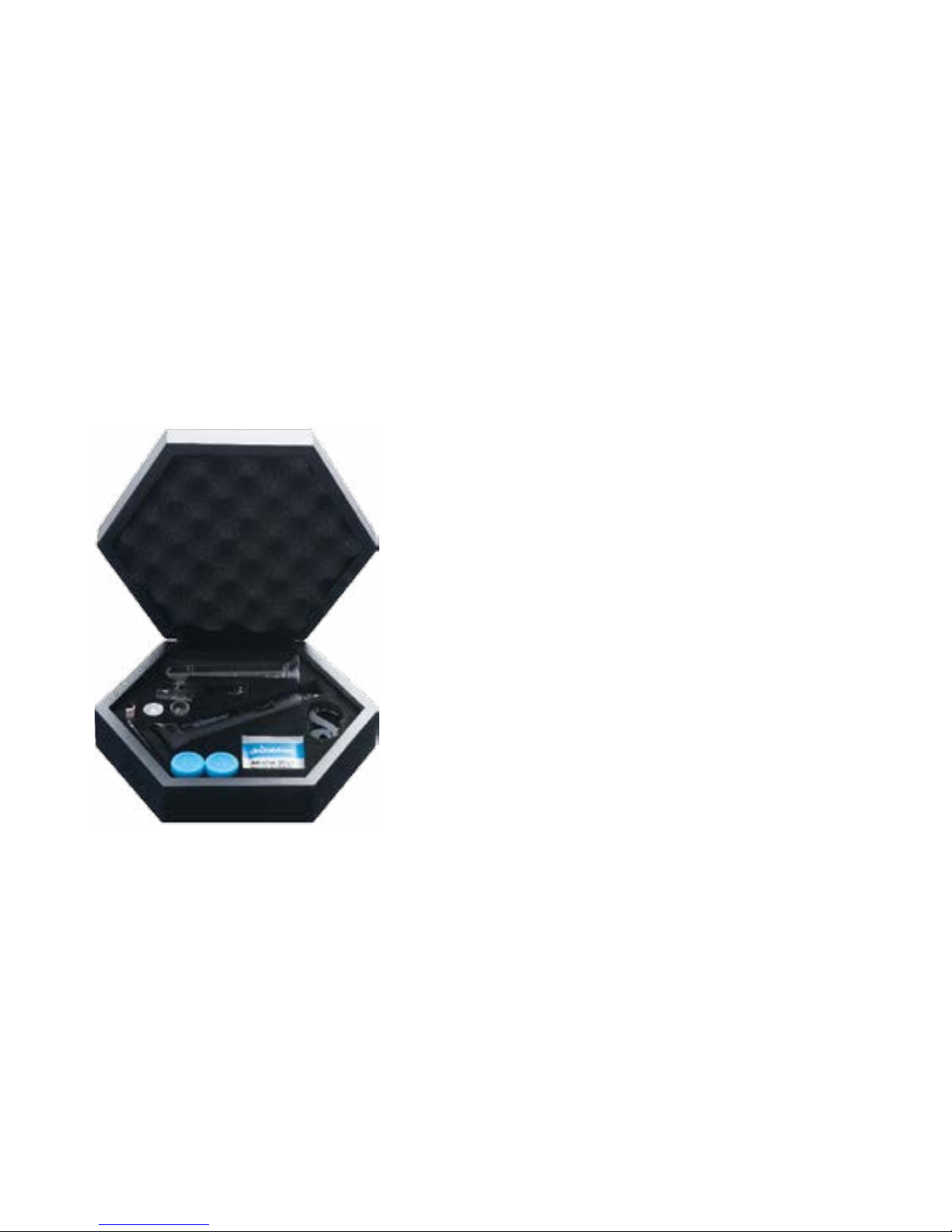

WHAT’S IN THE KIT?
Page 5
8
CONTENTS
9
BOOST BLACK EDITION
DR. DABBER
WARRANTY
INFORMATION
Register your Dr. Dabber product today to
activate your warranty and receive helpful tips.
This unit is under a one year ‘No Questions Asked’
Warranty on electronic components & battery.
Visit DrDabber.com/Register to get started!
WARRANTY
Page 6
11
BOOST BLACK EDITION
10
LEARNING ABOUT
YOUR BOOST
1. Use with caution. Must be 21 years of age or older to
operate.
2. The nail becomes extremely hot. Do not touch once
powered on.
3. Do not expose the device to direct sunlight.
4. Do not attempt to use the device without the glass
attachment in place.
5. Do not attempt to place the device down on a surface
without the base. The base is included to ensure proper
weight distribution and to avoid damage to the glass
attachment.
6. When the battery is low, indicator light will flash.
7. The light on the power button will flash 3 times to indicate
a connection issue.
8. Charging: Charge device fully before use. The power button
shows a purple light when the device is being charged.
9. Titanium Nail: Press the power button 3 times to heat tita-
nium nail. The unit will begin with white light and change to
blue light after 25 seconds indicating it is ready to use (nail
will continue heating for 20 seconds before cutoff)
• Temperature reaches 515°F after 25 seconds
• Temperature reaches 610°F after 45 seconds
10. Ceramic/Quartz Nail: Press the power button 5 times to
heat ceramic/quartz nail. The unit will begin with blue light
and change to white light after 40 seconds indicating it
is ready to use (nail will continue heating for 20 seconds
before cutoff)
• Temperature reaches 520°F after 40 seconds
• Temperature reaches 600°F after 60 seconds
11. Do not heat the device more than 3 cycles continuously to
avoid bodily harm or injury.
12. Do not use or charge in a motor vehicle.
Page 7
12
CONTENTS
Magnetic Loading Tool
13
ANATOMY
Stainless Steel
Magnetic Carb Cap
Glass Water
Attachment
Magnetic Stand
Battery Housing
Battery
Power Button
Detachable Element
Nail
Page 8
14 15

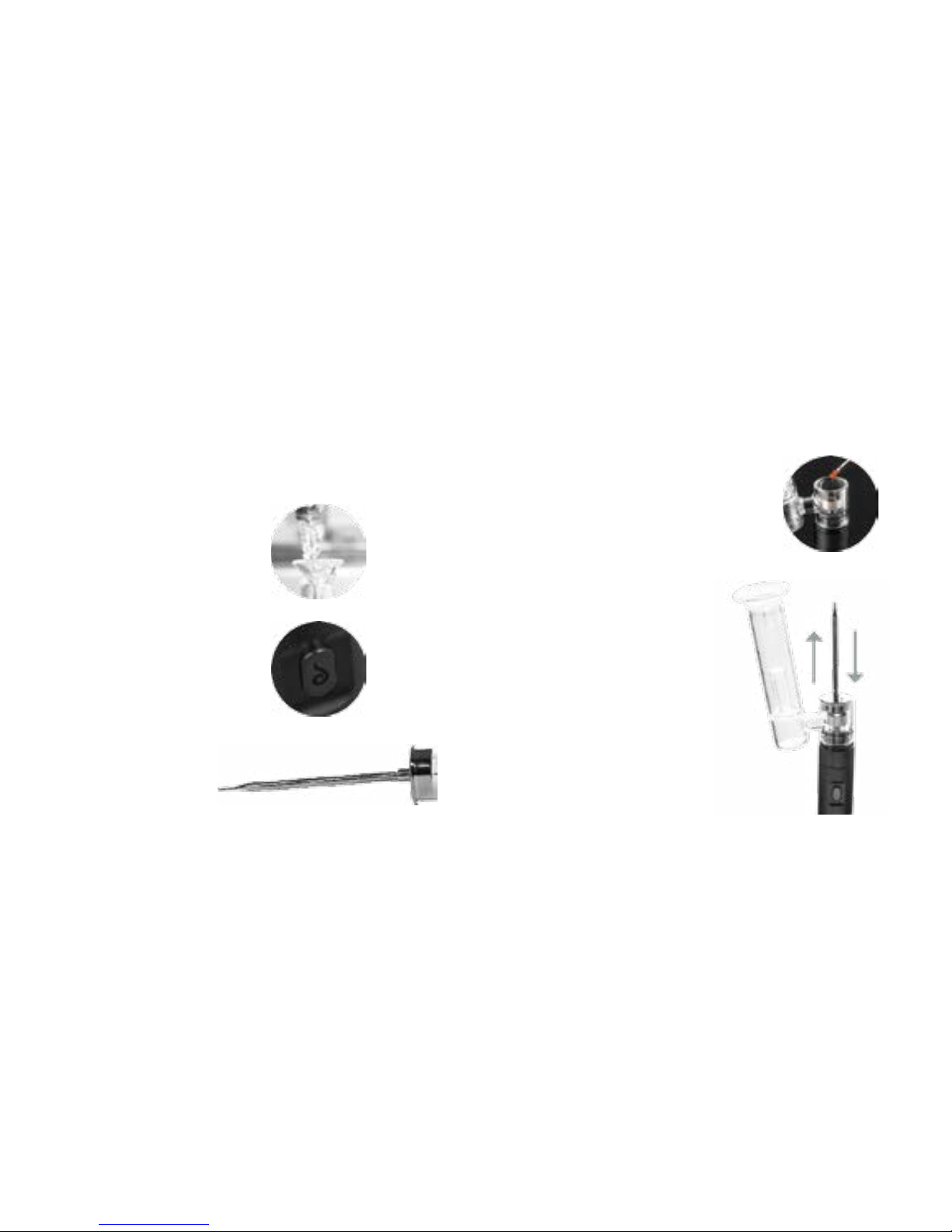

1. Remove glass from unit and
load from the top with water.
2. Click button to turn device on
* 3 times for titanium nail
* 5 times for ceramic/quartz nail
3. Load product
on tip of tool
4. Once light changes color
(Approx 30 seconds), touch
tip of the tool to nail and
begin to inhale through glass
mouthpiece.
5. Once all product has melted
off of tool, flip tool around and
place carb cap on top of the
nail to increase vapor density.
(Generally 3-4 seconds)
HOW TO
USE YOUR BOOST
SIT BACK
AND ENJOY !
Page 9
16
CONTENTS
17
BOOST BLACK EDITION

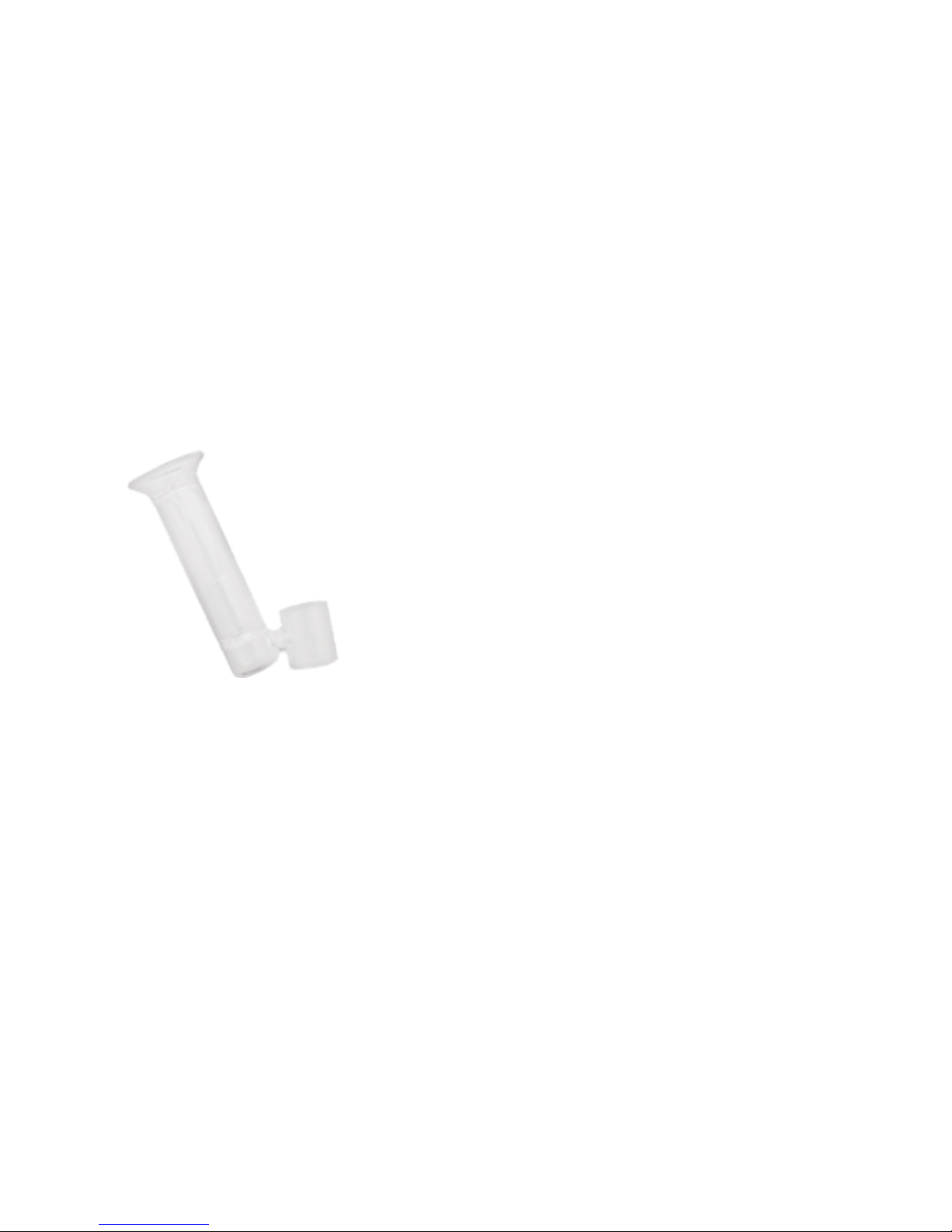

CLEANING YOUR
GLASS ATTACHMENT
To clean glass attachment, first remove the glass
attachment from the eRig, then slowly pour 99%
isopropyl alcohol into the mouthpiece until the unit
is about 1/4 full. Shake the attachment gently until
clean. To rinse out the alcohol, pour water into the
top (mouthpiece) until all alcohol is flushed out of the
bottom of the attachment. To remove all water
from device, blow through mouthpiece and
shake gently.
Page 10
18
CONTENTS
19
BOOST BLACK EDITION

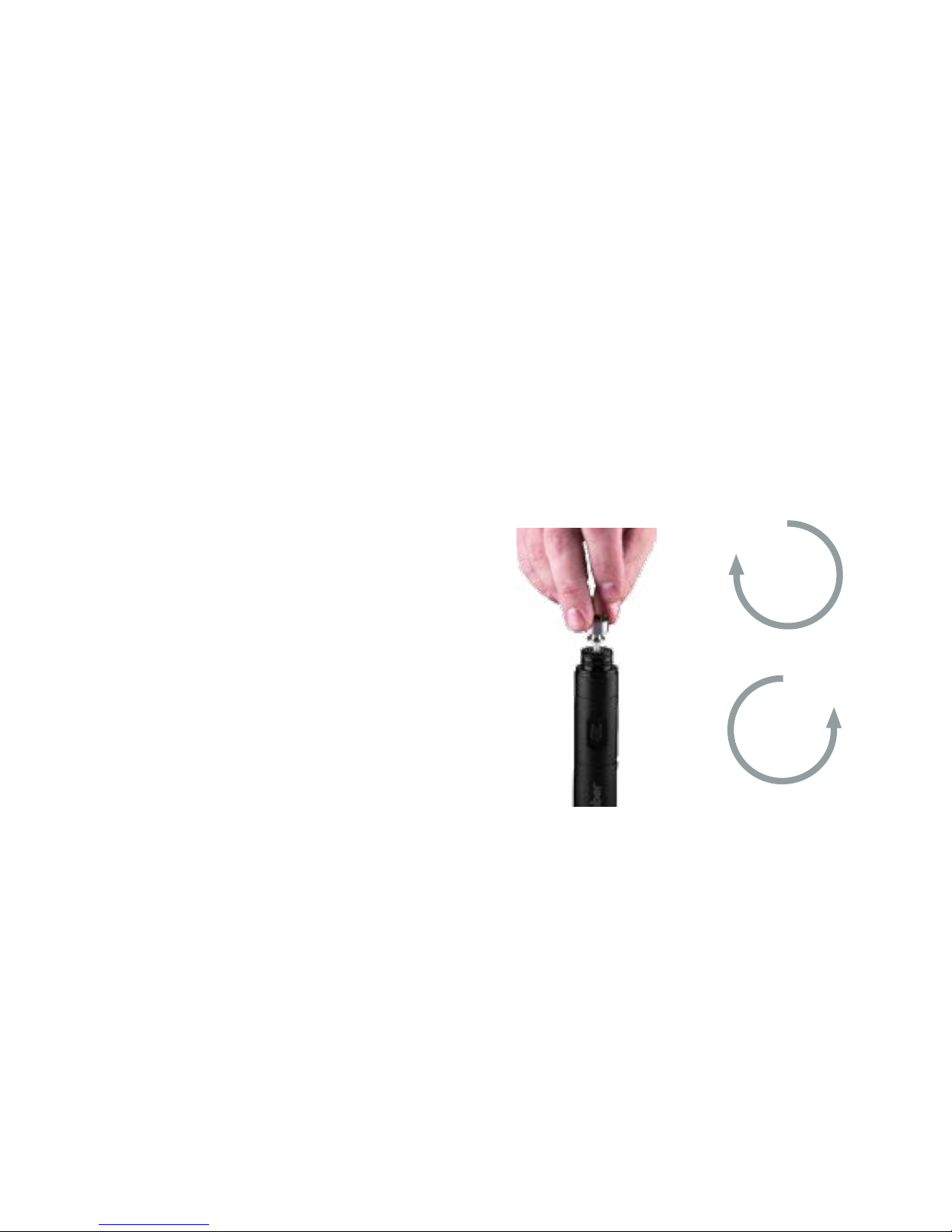

SWAPPING OUT
YOUR NAIL
WARNING: DO NOT ATTEMPT TO REMOVE NAIL WHEN
HOT. REMOVE NAIL CAREFULLY WITHOUT BENDING OR
TWISTING THE CERAMIC ELEMENT.
Turn nail clockwise to
secure nail.
Turn nail counter clockwise
to remove nail.
Page 11
20
CONTENTS
21
BOOST BLACK EDITION

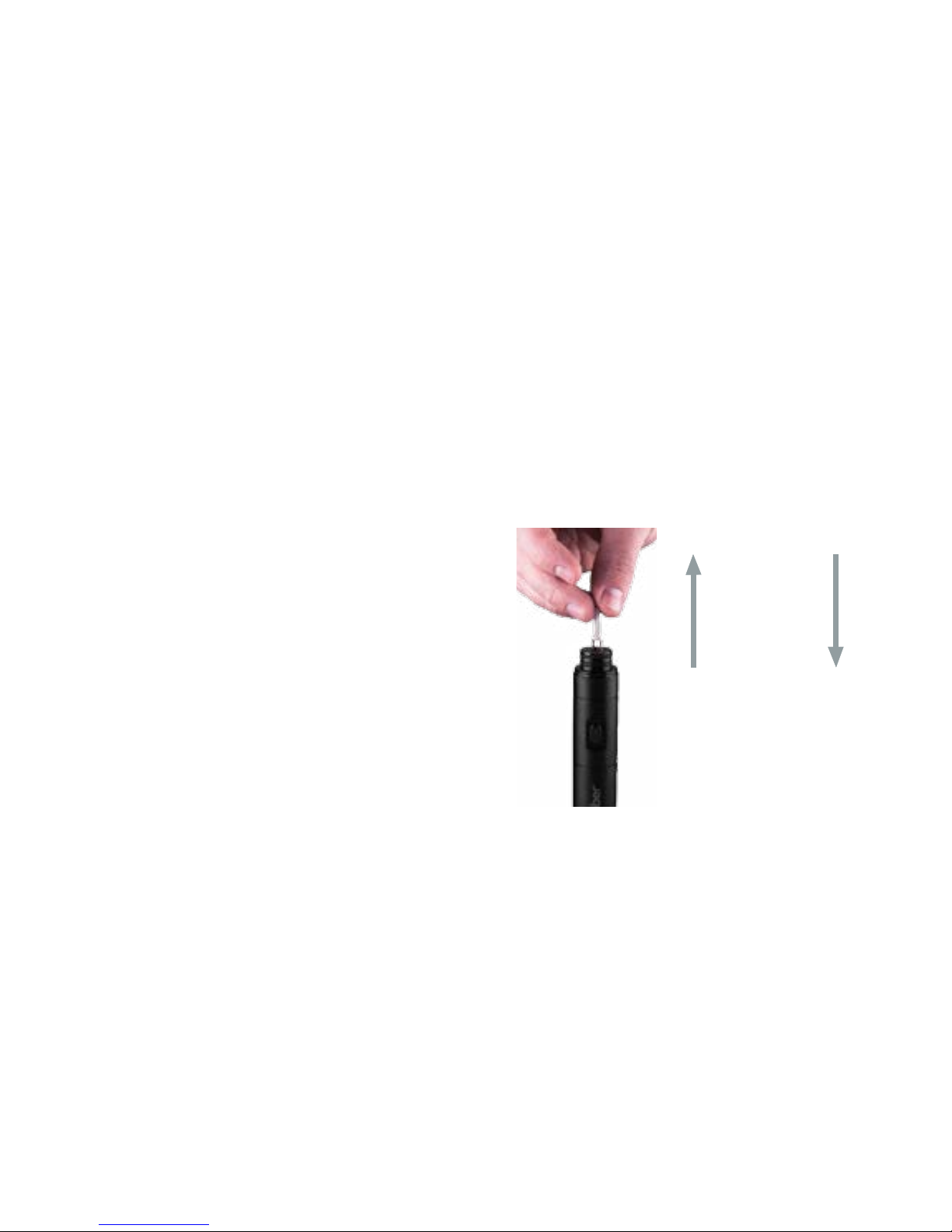

SWAPPING OUT
YOUR CERAMIC ELEMENT
WARNING: DO NOT ATTEMPT TO REMOVE CERAMIC
ELEMENT WHEN HOT.
Pull up vertically on
ceramic element
to remove.
Push down on
ceramic element to
secure gold pins in place.
Page 12
22
CONTENTS
23
BOOST BLACK EDITION

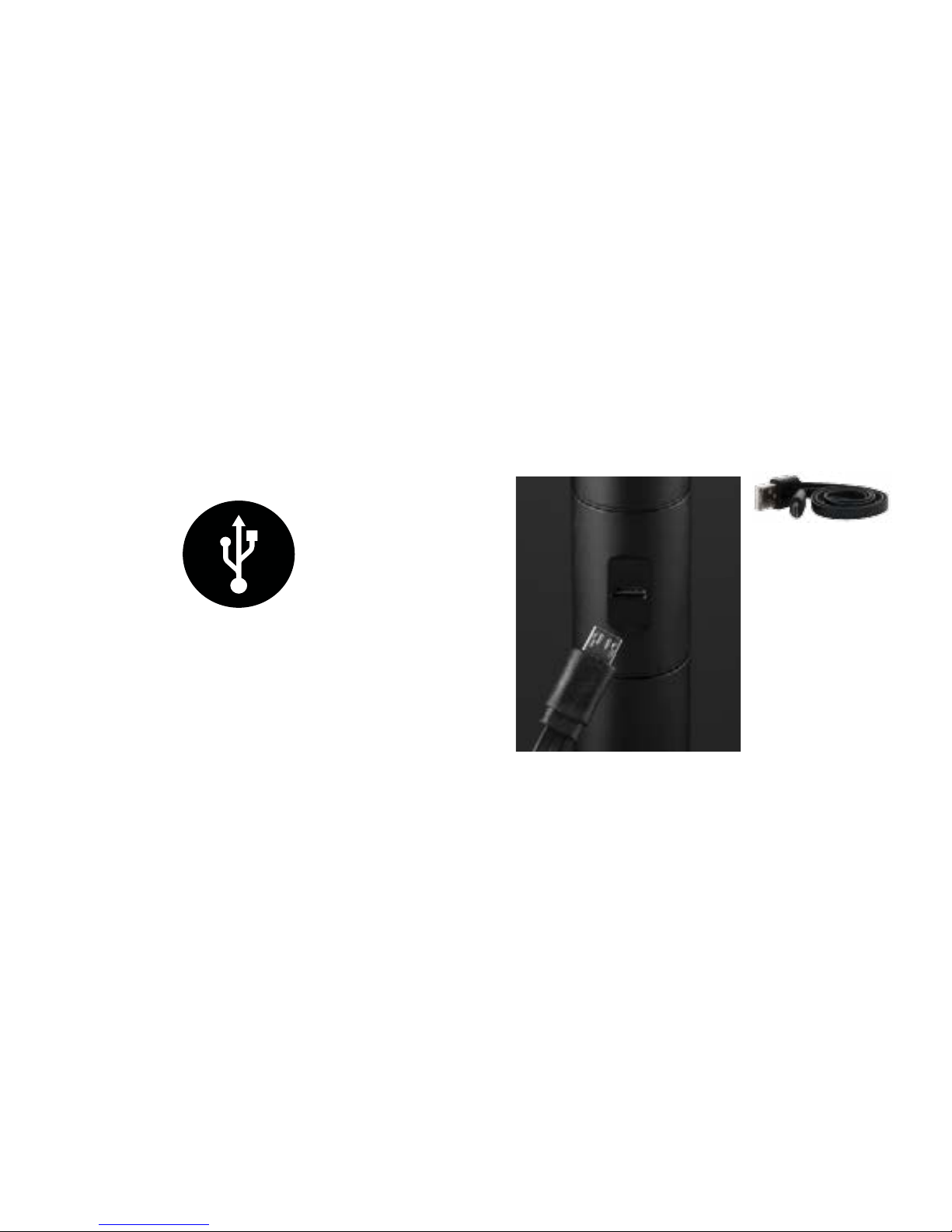

CHARGING YOUR
DR. DABBER BOOST
USB Port
Connects to universal
USB outlets.
Connecting Adapter
Charge device fully before
use. The power button shows a
purple light when the device is
being charged. Light will turn
off when fully charged. Due to
the size of the battery, it
is recommended to charge 6-8
hours or use an AC adapter
(Not Included) to speed up
charging time.
Page 13
24 25
@drdabber
For Helpful Tips and Videos on How to Use and Care
For Your Dr. Dabber Boost
Please Visit: drdabber.com/doctors-office
