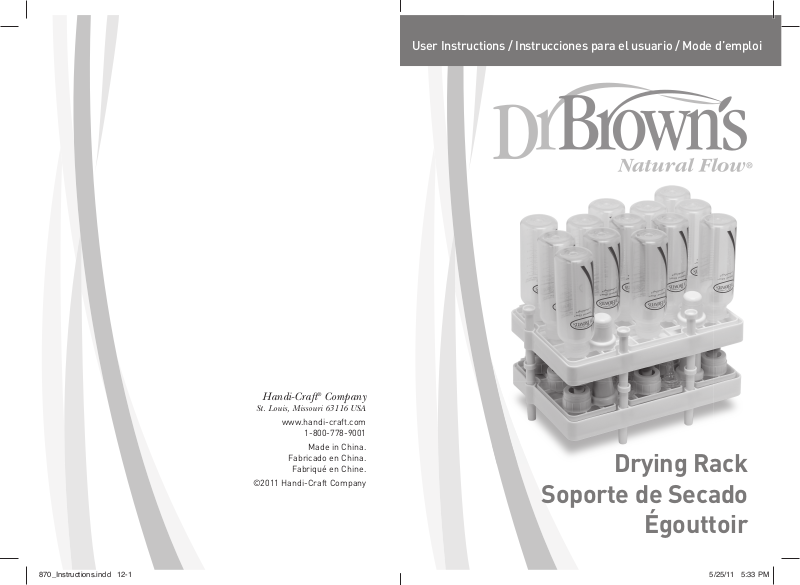

Dr. Brown's Drying Rack User Manual [en, es, fr]

Handi-Craft® Company

St. Louis, Missouri 63116 USA

www.handi-craft.com

1-800-778-9001

Made in China.

Fabricado en China.

Fabriqué en Chine.

©2011 Handi-Craft Company

User Instructions / Instrucciones para el usuario / Mode d’emploi

Drying Rack

Soporte de Secado

Égouttoir

870_Instructions.indd 12-1870_Instructions.indd 12-1 5/25/11 5:33 PM5/25/11 5:33 PM

Designed specifically for Dr. Brown’s™ baby bottles
and their components. Accommodates Standard or
Wide-Neck bottles. Water can be collected or drained,
depending on orientation of tray. The grid tubes were
specifically designed to best drain and dry Dr. Brown’s™
parts while preventing them from toppling.

Contents

• 8 posts

• 2 trays

• 2 grids

Collector Assembly

In this orientation, it can be used on a flat countertop
or table to collect water.

1. Insert 4 posts into each tray, 8 total.
Push the posts firmly into the
postholes until they bottom out.

2. The grid lip fits over the collector tray
edge. Do so for each grid and tray.

3. The trays can be stacked.

4. Place up to 12 Dr. Brown’s™ Standard
or 8 Wide-Neck bottles and their
components on the grid and grid tubes.
Wash all bottle components
per baby bottle instruction sheet.

5. Used in the stacked orientation, place
small items on the bottom rack first
then add the top rack. Place tall items
(bottles and reservoir tubes) on top
then add smaller parts as available
space allows.

6. Allow drying, remove all bottles and
components, and discard excess water.

Note: The posts are not needed when each tray
is used as an individual collector.

Drainer Assembly

In this orientation, it is used to drain water over the side
of your sink.

1. Insert 4 posts into each tray, 8 total.
Push the posts firmly into the postholes
until they bottom out. Flip the trays over
so each tray is inverted with the collector
side oriented down.

2. The grid lip fits over the drainer tray
edge. Do so for each grid and tray.
Place the tray’s open draining edge
over the side of your sink to allow
draining into the sink.

3. The trays can be stacked.

™

4. Place up to 12 Dr. Brown’s
or 8 Wide-Neck bottles and their
components on the grid and grid tubes.
Wash all bottle components per baby
bottle instruction sheet.

5. Used in the stacked orientation, place
small items on the bottom rack first
then add the top rack. Place tall items
(bottles and reservoir tubes) on top
then add smaller parts as available
space allows.

6. Allow drying, remove all bottles and
components, and discard excess water.

Note: The posts are not needed on the first tray when it is used as
a drainer into a sub-surface sink.

Standard
