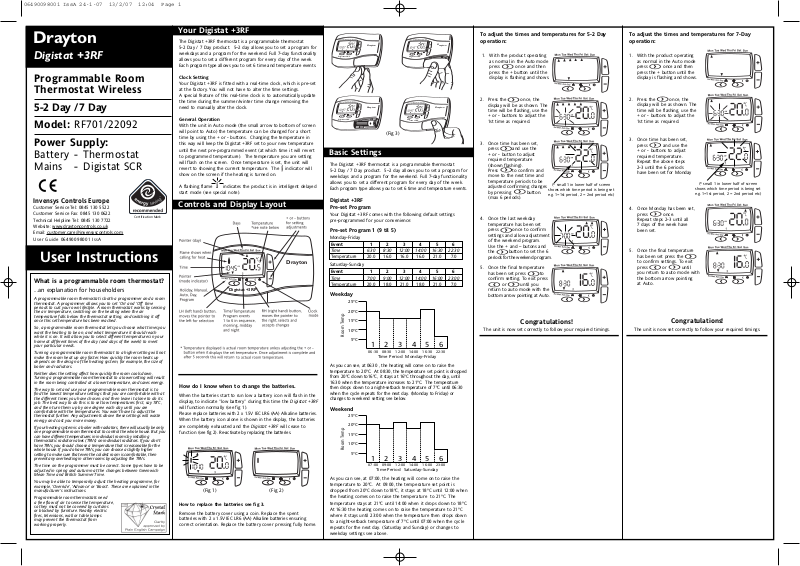

Drayton Digistat +3RF, RF701, 22092 User Instructions

Drayton

Digistat +3RF

06490098001 IssA 24-1-07 13/2/07 12:04 Page 1

Your Digistat +3RF

he Digistat +3RF thermostat is a programmable thermostat

Drayton

Digistat +3RF

Programmable Room Thermostat Wireless

5-2 Day / 7 Day

Model: RF701/22092

Power Supply:

Battery - Thermostat Mains - Digistat SCR

Invensys Controls Europe

Customer Service Tel: 0845 130 5522

ustomer Service Fax: 0845 130 0622

echnical Helpline Tel: 0845 130 7722

ebsite: www

draytoncontrols.co.uk

Email: customer.care@invensyscontrols.com

User Guide 06490098001 IssA

User Instructions

What is a programmable room thermostat?

...an explanation for householders

A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set ‘On’ and ‘Off periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

So, a programmable room thermostat lets you choose what times you want the heating to be on, and what temperature it should reach while it is on. It will allow you to select different temperatures in your home at different times of the day (and days of the week) to meet your particular needs.

Turning a programmable room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the design of the heating system, for example, the size of boiler and radiators.

Neither does the setting affect how quickly the room cools down. Turning a programmable room thermostat to a lower setting will result in the room being controlled at a lower temperature, and saves energy

The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have chosen, and then leave it alone to do its job. The best way to do this is to set low temperatures first, say 18 and then turn them up by one degree each day until you are comfortable with the temperatures. You won’t have to adjust the thermostat further. Any adjustments above these settings will waste energy and cost you more money

If your heating system is a boiler with radiators, there will usually be only one programmable room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don’t have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.

The time on the programmer must be correct. Some types have to be adjusted in spring and autumn at the changes between Greenwich Mean Time and British Summer Time.

ou may be able to temporarily adjust the heating programme, for

Y example, ‘Override’, ‘Advance’ or ‘Boost’. These are explained in the manufacturer’s instructions.

Programmable room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may prevent the thermostat from working properly.

Certification Mark

’ time

T 5-2 Day / 7 Day product. 5–2 day allows you to set a program for weekdays and a program for the weekend. Full 7-day functionality

llows you to set a different program for every day of the week.

ach program type allows you to set 6 time and temperature events.

lock Setting

Your Digistat +3RF is fitted with a real-time clock, which is pre-set at the factory. You will not have to alter the time settings. A special feature of this real-time clock is to automatically update

he time during the summer/winter time change removing the

eed to manually alter the clock.

General Operation

With the unit in Auto mode (the small arrow to bottom of screen

ill point to Auto) the temperature can be changed for a short

ime by using the + or - buttons. Changing the temperature in

his way will keep the Digistat +3RF set to your new temperature

ntil the next pre-programmed event (at which time it will revert

o programmed temperature). The temperature you are setting

t will flash on the screen. Once temperature is set, the unit will revert to showing the current temperature. The indicator will show on the screen if the heating is turned on.

flashing flame indicates the product is in intelligent delayed

A start mode (see special note).

Controls and Display Layout

How do I know when to change the batteries.

When the batteries start to run low a battery icon will flash in the display, to indicate “low battery” during this time the will function normally (see fig 1). Please replace batteries with 2 x 1.5V IEC LR6 (AA) Alkaline batteries. When the battery icon alone is shown in the display, the batteries are completely exhausted and the func tion (see fig 2). Re-activate by replacing the batteries.

(Fig 1) (Fig 2)

How to replace the batteries see fig 3.

Remove the battery cover using a coin. Replace the spent batteries with

2 x 1.5V IEC LR6 (AA) Alkaline batteries

correct orientation. Replace the battery cover pressing fully home.

Digistat +3RF will cease to

Digistat +3RF

ensuring

(Fig 3)

Basic Settings

The Digistat +3RF thermostat is a programmable thermostat 5-2 Day / 7 Day product. 5–2 day allows you to set a program for weekdays and a program for the weekend. Full 7-day functionality

llows you to set a different program for every day of the week.

ach program type allows you to set 6 time and temperature events.

Digistat +3RF Pre-set Program

Your Digistat +3RF comes with the following default settings

re-programmed for your convenience:

Pre-set Program 1 (9 til 5)

Monday-Friday

Event 1 2 3 4 5 6

Time 6:30 8:30 12:00 14:00 16:30 22:30

Temperature 20.0 16.0 16.0 16.0 21.0 7.0

Saturday-Sunday

Event 1 2 3 4 5 6

Time 7:00 9:00 12:00 14:00 16:00 23:00

Temperature 20.0 18.0 21.0 18.0 21.0 7.0

Weekday

25ºC

20ºC

15ºC

10ºC

Room Temp

123456

06:30 08:30 12:00 14:00 16:30 22:30

Time Period Monday-Friday

As you can see, at 06:30 , the heating will come on to raise the temperature to 20

C down to16

from 20º 16:30 when the temperature increases to 21ºC. The temperature then drops down to a night-setback temperature of 7ºC until 06:30 when the cycle repeats for the next day changes to weekend setting see below.

Weekend

oom Temp R

As you can see, at 07:00, the heating will come on to raise the temperature to 20ºC. At 09:00, the temperature set point is dropped from 20ºC down to18ºC, it stays at 18ºC until 12:00 when the heating comes on to raise the temperature to 21ºC. The temperature stays at 21ºC until 14:00 when it drops down to 18ºC. At 16:30 the heating comes on to raise the temperature to 21ºC where it stays until 23:00 when the temperature then drops down to a night-setback temperature of 7ºC until 07:00 when the cycle repeats for the next day. (Saturday and Sunday) or changes to

C. At 08:30, the temperature set point is dropped

C, it stays at 16º

C throughout the day, until

. (Monday to Friday) or

25ºC

20ºC

10ºC

5ºC

123456

07:00 09:00 12:00 14:00 16:00 23:00

Time Period Saturday-Sunday

To adjust the times and temperatures for 5-2 Day operation:

. With the product operating

s normal in the Auto mode

a press once and then

ress the + button until the

isplay is flashing and shows.

. Press the once, the

display will be as shown. The time will be flashing, use the

or - buttons to adjust the

st time as required.

. Once time has been set,

press and use the + or - button to adjust

equired temperature

shown flashing).

( Press to confirm and move to the next time and temperature periods to be

djusted confirming changes

a by pressing button. (max 6 periods).

4. Once the last weekday emperature has been set

ress once to confirm

ettings and allow adjustment

f the weekend program.

se the + and – butons and

U the button to set the 6

eriods for the w

eekend program.

(* small 1 in lower half of screen

shows which time period is being set

e.g. 1=1st period, 2 = 2nd period etc)

5. Once the final temperature

has been set press to confirm setting. To exit press

or until you return to auto mode with the bottom arrow pointing at Auto.

Congratulations!

The unit is now set correctly to follow your required timings.

To adjust the times and temperatures for 7-Day operation:

. With the product operating

as normal in the Auto mode press once and then

ress the + button until the

isplay is flashing and shows.

. Press the once, the

display will be as shown. The time will be flashing, use the

or - buttons to adjust the

st time as required.

. Once time has been set,

press and use the + or - buttons to adjust

equired temperature.

epeat the above steps

R 2-3 until the 6 periods have been set for Monday

(* small 1 in lower half of screen

hows which time period is being set

e.g. 1=1st period, 2 = 2nd period etc)

4. Once Monday has been set, ress once.

peat steps 2-3 until all

R 7 days of the week have

een set.

5. Once the final temperature as been set press the

h to confirm settings. To exit press or until you return to auto mode with the bottom arrow pointing at Auto.

Congratulations!

The unit is now set correctly to follow your required timings.

weekday settings see above.

06490098001 IssA 24-1-07 13/2/07 12:04 Page 2

To change temperature for a short period (Override):

1. Press + or - buttons to djust set temperature. Set

emperature shown flashing

2. After 5 seconds will start

controlling at selected set

oint but displays actual room

emperature. 2 chrevons

t indicates override mode.

. To exit override press

nce or wait until next change

n the pre-set program.

To set a constant room temperature (Manual mode):

. Press once, the display

shows temperature flashing (example

20 0C)

. Press + or - buttons to

adjust the temperature as

equired. The temperature

ill stop flashing after 5

w seconds and start controlling at this temperature

3. To exit manual mode press

once, to return to auto.

To set holiday mode:

1. Press twice, the display

shows time flashing. Time periods between 1 to 23(Hr)hours and 1 to 199(d)days can be set.

2. Press + or - buttons to

adjust the count down time as required. Press once, the display will show temperature flashing

Press + or - buttons to

adjust temperature and press

to start holiday count down time. Alternatively after 10 seconds the temperature will stop flashing and holiday count down time will start Display shows count down time and ambient room temperature.

o exit the holiday mode

4. press the or once, to return to auto.

To switch OFF the thermostat:

Press the + and – simultaneously for 5 seconds until the OFF is displayed. The thermostat and heating system will now be OFF unless the temperature in the controlled space falls below 7 protection set point operation of the domestic hot water where provided. To switch ON the thermostat, press any key to return to auto mode.

. Please note this does not affect the

C, the frost

User Options

If you wish to change any User Options (shown in table 1) they can

e accessed from Auto or Man by pressing < and > simultaneously

or 3 seconds. Once you have accessed the User Options Menu (Fig

4) press > to scroll through selectable options. The settings for ach option can be changed by pressing + or - as required. Press >

o accept the change and move to the next option. To exit press <

t and > simultaeously for 3 seconds. Alternatively, not pressing any buttons for 2 mins will cause the

Fig 5) shows option 01 24 (24 hour clock).

(

nly selected options that have been accepted by pressing > will

O be changed.

(

Fig 4) (Fig 5)

ser

U options What is it Min Max Default

1 Change 12h or 24h clock 12 24 24

0 02 Change to another

pre-set programme 1 3 1

03 Change the number of

programme events per day 2, 4 or 6 6

4 Switch on/off automatic

ummer/winter time change

5 Adjust date and time Factory Set

hange temperature offset

6 C

estore pre-set programme On Off Off

To disable Off function On Off On

ccess protection lock On O

09 A

Option 01)

(

ow to change from 24hr to 12hr clock.

nter user options, select option 01 and use + and – keys to select

E desired option, 12 = 12hr and 24 = 24hr. Press > to accept change.

(Option 02) How to change to another predefined program 1, 2 or 3.

Enter user options, select option 02 and use + and – keys to select desired program 1, 2 or 3. 1 = program 1, 2 = program 2 and 3 = program 3. Press > to accept desired change.

Preset programs 2 and 3 are shown below:

Pre-set Program 2 (Home for lunch)

Monday-Friday

Event 1 2 3 4 5 6

Time

Temperature 21.0 16.0 21.0 16.0 21.0 10.0

Saturday-Sunday

Event 1 2 3 4 5 6

Time 7:00 9:00 12:00 14:00 16:30 23:00

Temperature 21.0 18.0 21.0 18.0 21.0 10.0

Weekday

Weekdays

As you can see, at 06:30, the heating will come on to raise the temperature to 21 At 08:30, the temperature set point is dropped to 16°C, it stays at

C until 12:00 when the heating comes on to raise the

16 temperature to 21 when it drops to 16°C. At 16:30 the heating comes on to raise the temperature to 21 temperature drops down to a setback temperature of 10 06:30 when the cycle repeats the next day.

eekend

6:30 8:30 12:00 14:00 16:30 22:30

ºC

20ºC

15ºC

10ºC

Room Temp

5ºC

123 4 5 6

06:30 08:30 12:00 14:00 16:30 22:30

C. The temperature stays at 21

C where it stays until 22:30 when the

ºC

20ºC

10ºC

Room Temp

123 456

07:00 09:00 12:00 14:00 16:30 23:00

Digistat +3RF to return to Auto.

On Off On

55 0

(Table 1)

Time Period Monday-Friday

Time Period Saturday-Sunday

ff Off

C until 14:00

C until

Weekends

s you can see, at 7:00, the heating will come on to raise the

emperature to 21°C.

t At 9:00, the temperature set point is dropped to 18°C, it stays

t 18°C until12:00 when the heating comes on to raise the

emperature to 21°C. The temperature stays at 21°C until 14:00

t when it drops down to 18°C. At 16:30 the heating comes on to raise the temperature to 21°C where it stays until 23:00 when

he temperature drops down to a setback temperature of 10°C

ntil 07:00 when the cycle repeats the next day.

Pre-set Program 3 (Home Worker)

Monday-Friday

Event 1 2 3 4 5 6

Time 6:00 8:30 12:00 14:00 17:30 22:30

emperature 21.0 19.0 21.0 19.0 21.0 16.0

aturday-Sunday

Event 1 2 3 4 5 6

Time 7:00 9:00 12:00 14:00 16:30 23:00

emperature 21.0 18.0 21.0 18.0 21.0 16.0

Weekday

25ºC

20ºC

15ºC

10ºC

Room Temp

5ºC

1 2 3 4 5 6

6:0008:3012:0014:0017:3022:30

eekdays

As you can see, at 06:00, the heating will come on to raise the temperature to 21°C.

t 08:30, the temperature set point is dropped to 19°C, it stays at

A 19°C until 12:00 when the heating comes on to raise the

emperature to 21°C

t when it drops to 19°C. At 17:30 the heating comes on to raise the temperature to 21°C where it stays until 22:30 when the

emperature drops down to a setback temperature of 16°C

t 06:00 when the cycle repeats the next day.

Weekend

Weekends

As you can see, at 7:00, the heating will come on to raise the temperature to 21°C. At 9:00, the temperature set point is dropped to 18°C, it stays at 18°C until12:00 when the heating comes on to raise the temperature to 21°C. The temperature stays at 21°C until 14:00 when it drops down to 18°C. At 16:30 the heating comes on to raise the temperature to 21°C where it stays until 23:00 when the temperature drops down to a setback temperature of 16°C until 07:00 when the cycle repeats the next day.

(Option 03) How to change the number of program events per day.

Enter user options, select option 03 and use + and – keys to select desired option. 2 = 2 time / temp events per day time / temp events per day and 6 = 6 time / temp events per day. Press > to accept desired change.

(Option 04) How to switch on/off the automatic summer / winter time change.

Twice a year the actual time is automatically changed to keep it in line with the summer / winter time change. Default setting is On. If you wish to disable / enable this feature enter user options, select option 04 and press – or + key to display Off or On as desired. Press > to accept desired change.

Date and time setting.

Digistat +3RF comes with a pre-set clock, which also automatically adjusts for summer/winter time changes. It is activated automatically on 1st installation. There should be no need to change these settings, however, should you wish to, it can be done in Option 05.

(Option 05) How to adjust date and time.

Enter user options, select option 05 (fig 6) T T To change the day press > again (fig 9) To change the time press > again (fig 10) Once you have selected your required display or - and > to accept change.

25ºC

0ºC

15ºC

Room Temp

o change the year press > once (fig 7) o change the month press > again (fig 8)

To select option 06 press > until option 06 display is shown (fig 11)

Time Period Monday-Friday

. The temperature stays at 21°C until 14:00

1 2 3 4 56

7:0009:0012:0014:0016:3023:00

ime Period Saturday-Sunday

until

, 4 = 4

, to adjust press +

Fig 6)

(

(Fig 8)

Fig 10)

(

Option 06)

(

ow to change temperature offset.

The temperature displayed on the thermostat may not match that of other temperature measuring devices in the controlled space,

ecause of its location. The displayed temperature may be offset to

b bring it in line with other devices. To adjust the temperature, enter the user options, select option 06. The temperature may be offset

y +/- 5 degrees by pressing the + and – keys. Press > to accept the

esired change.

(Option 07)

ow to restore the built in time temperature programs.

Enter user options, select option 07 and use + and – keys to select desired option. Off = current programs retained. On = restore factory program settings. Press > to select the desired change. The

ption 07 display automatically reverts back to off.

enabling this function will lose any user changes to the preset programs.

(Option 08) How to disable the OFF function.

To disable the OFF function, enter user options, select option 08 and use + or – keys to select Off. Press > to accept change. It is now not possible to switch the Digistat+3RF OFF using the + and- keys as previously described. To enable the OFF function return to option 08 and select ON. Press > to accept change.

(Option 09) How to lock the key pad - Access Protection Lock.

The access protection lock allows you to lock the Digistat +3RF so that it cannot have any adjustments. The default is OFF mode allowing you to adjust the To Lock the

Digistat +3RF settings enter the User Options Menu

(Fig 7)

Fig 9)

(

Fig 11)

(

lease note

Digistat +3RF.

Option 09 and select On and press > to accept. Once the User Options Menu is exited all buttons will be locked. To switch off the Protection Lock enter the User Menu and change to OFF. Press > to accept. Once the User Menu is exited all buttons will be free to adjust.

Special Note:

The following only applies when the Intelligent delayed start feature is enabled by the installer

When the delay period is operating indicated by the flame symbol flashing (Fig12), pressing any button returns the Digistat +3RF to auto mode allowing normal button operation until the next time/ temperature event, when it will resume the delay start mode or follows the Holiday, Manual, Override or Off modes as selected.

Changes to the installer options and pre-set programmes must be made with the flame symbol not flashing.

(Fig 12)

What is Intelligent delayed start.

The Intelligent Delayed Start is an energy saving feature which automatically reduces the warm up time for the heating system. As the weather becomes milder, Intelligent Start will delay the heating start times so that the fuel is not wasted bringing the room up to temperature earlier than necessary.

Drayton Digistat +3RF, RF701, 22092 User Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
