11.. IInnttrroodduuccttiioonn

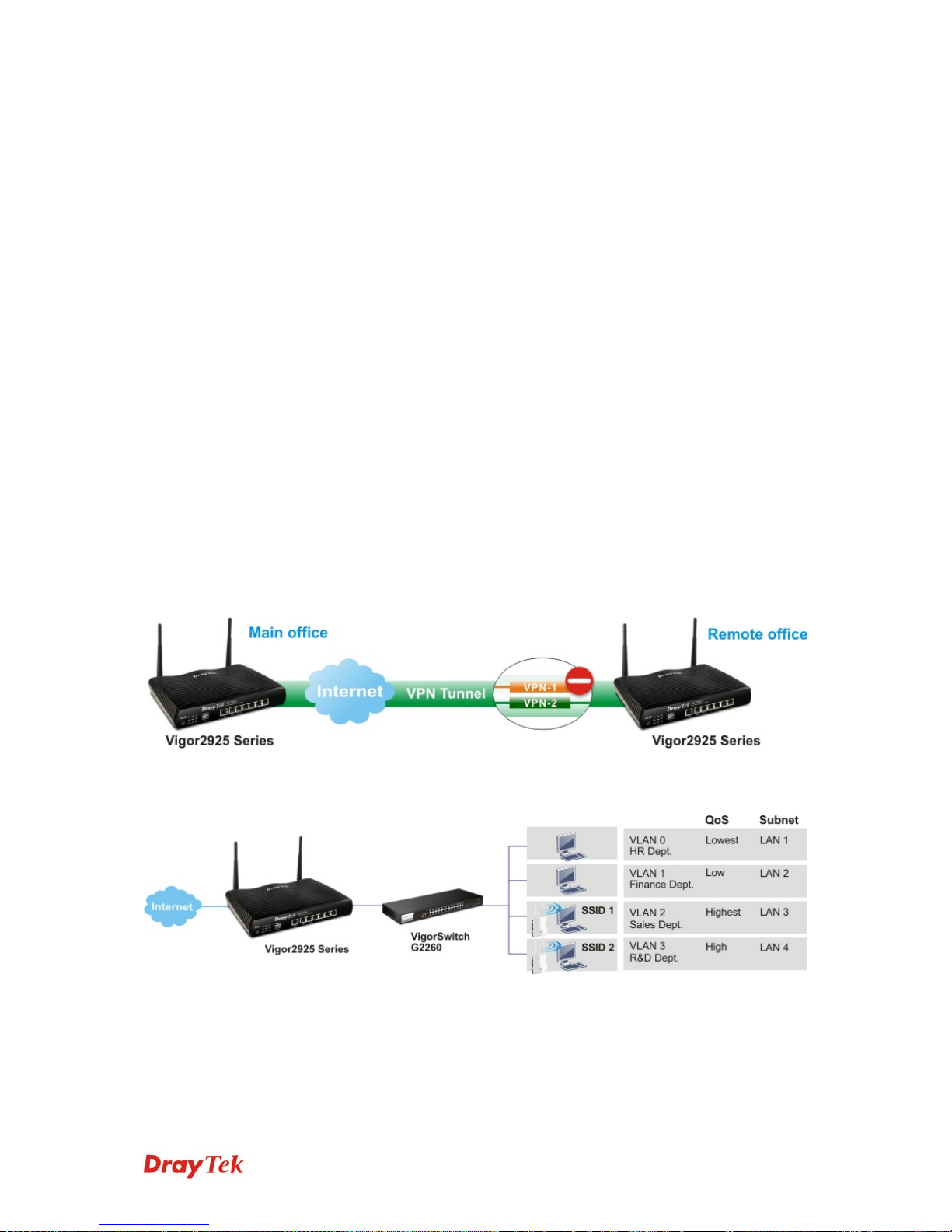

Vigor2925 series is a broadband router which integrates IP layer QoS, NAT
session/bandwidth management to help users control works well with large
bandwidth.
By adopting hardware-based VPN platform and hardware encryption of
AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router
increases the performance of VPN greatly and offers several protocols (such
as IPSec/PPTP/L2TP) with up to 32 VPN tunnels.
The object-based design used in SPI (Stateful Packet Inspection) firewall
allows users to set firewall policy with ease. CSM (Content Security
Management) provides users control and management in IM (Instant
Messenger) and P2P (Peer to Peer) more efficiency than before. In addition,
DoS/DDoS prevention and URL/Web content filter strengthen the security
outside and control inside.
Vigor2925 series supports USB interface for connecting USB printer to
share printing function, 3G USB modem for network connection, or
connectivity for network FTP service.
Page 10
Vigor2925 Series Quick Start Guide
2
11..11 PPaanneell EExxppllaannaattiioonn
11..11..11 FFoorr VViiggoorr22992255

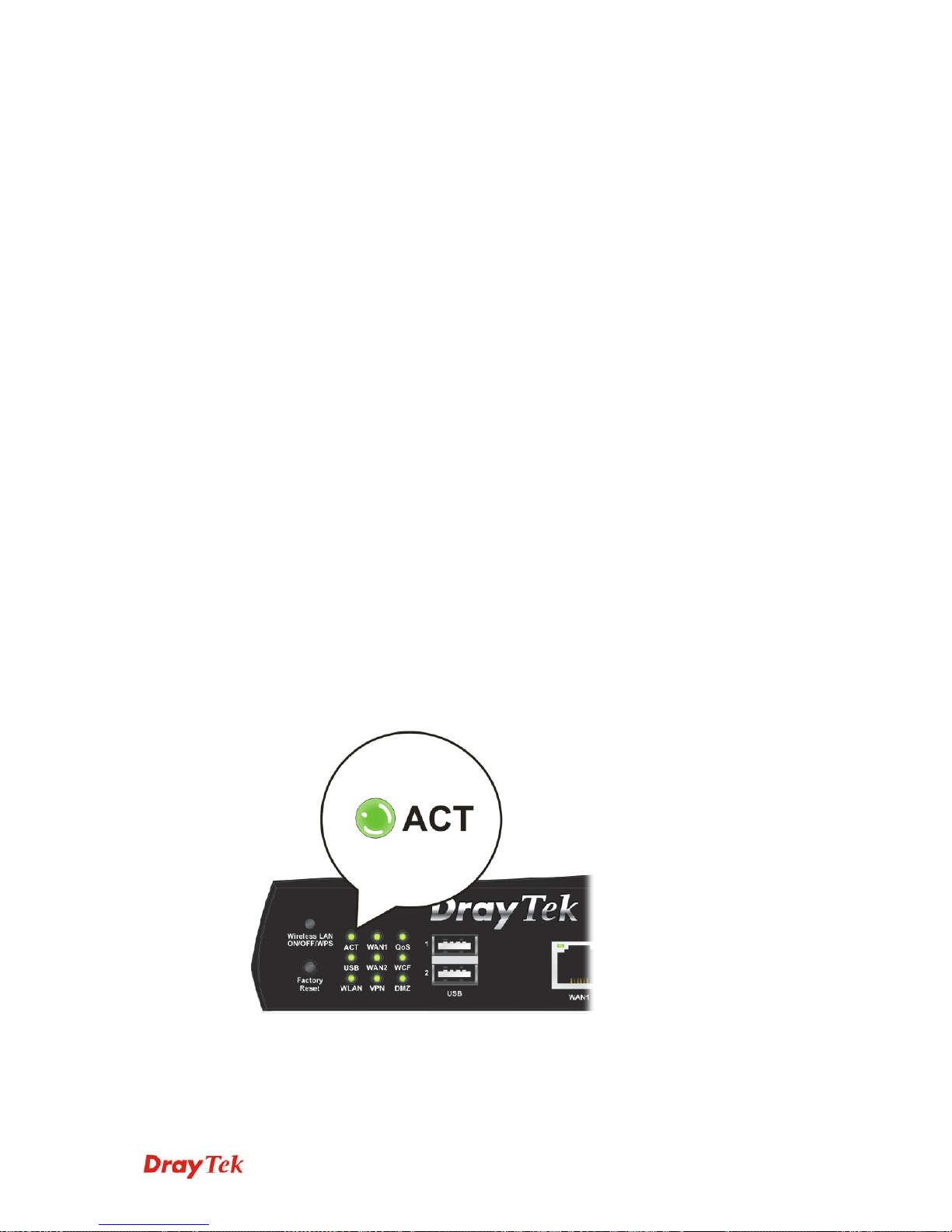

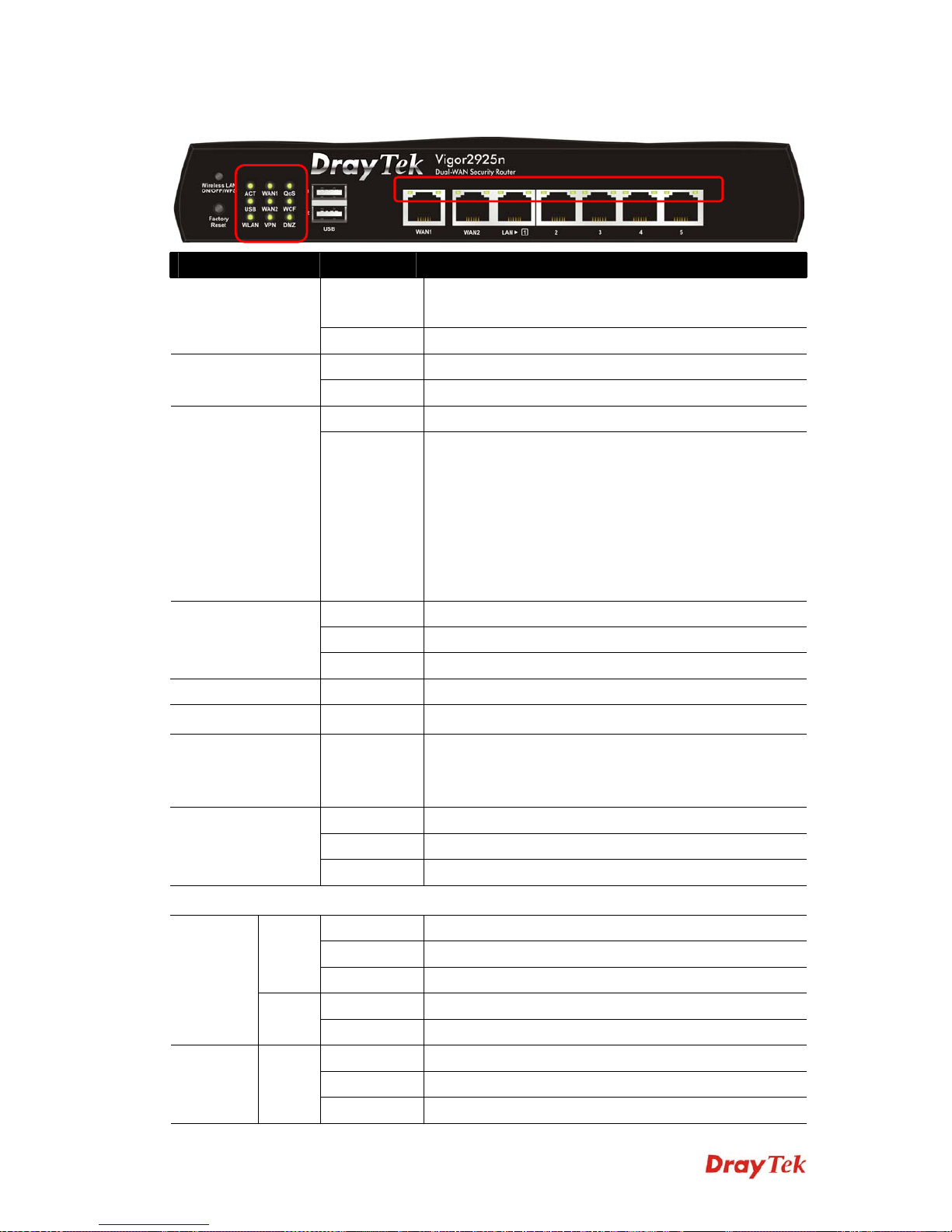

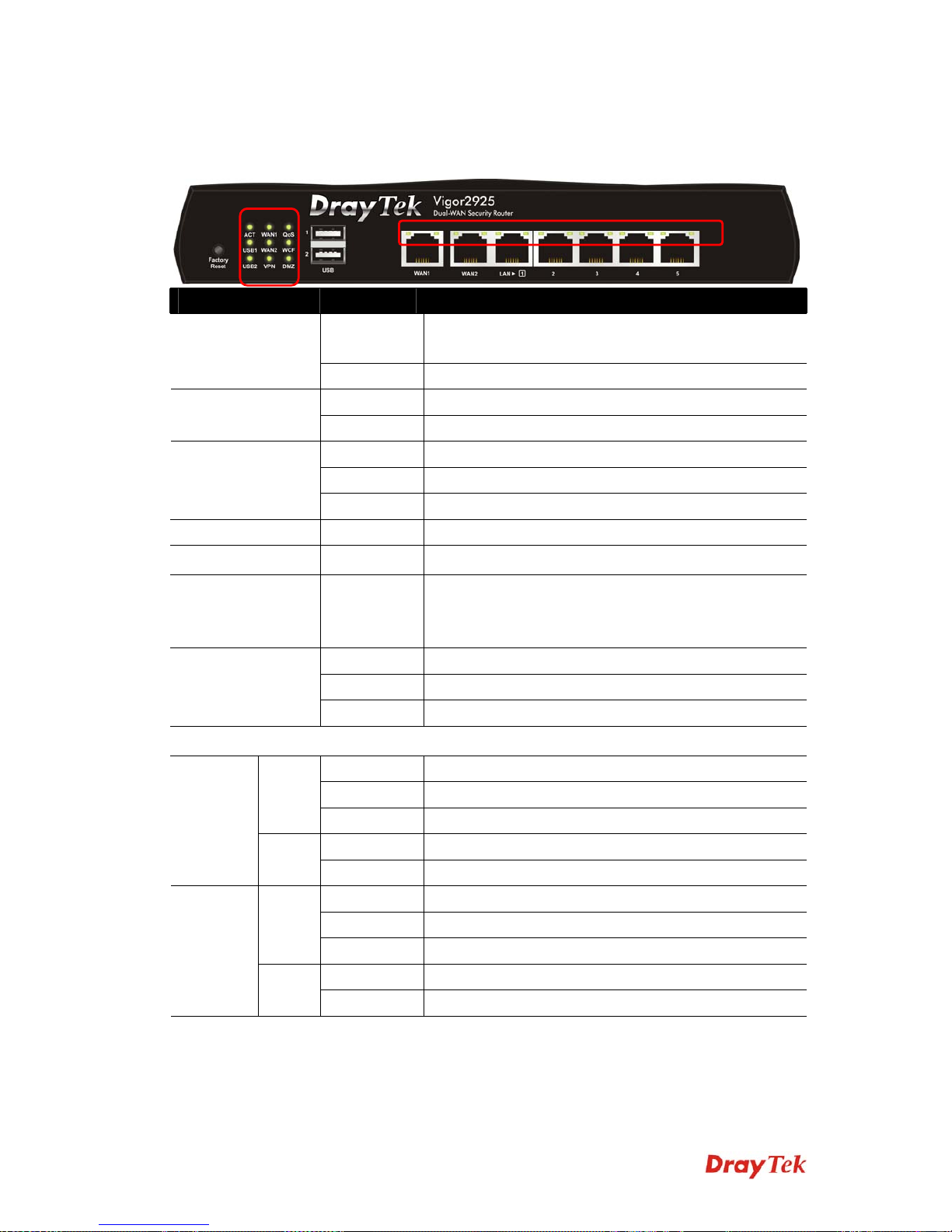

LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB1~USB2
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN1~WAN2
Blinking The data is transmitting.
VPN On The VPN tunnel is active.
QoS
On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General
Setup).
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN1~
WAN2
Right
LED
Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN1~
LAN5
Right
LED
Off The port is connected with 10/100Mbps
Page 11
Vigor2925 Series Quick Start Guide
3
Interface Description

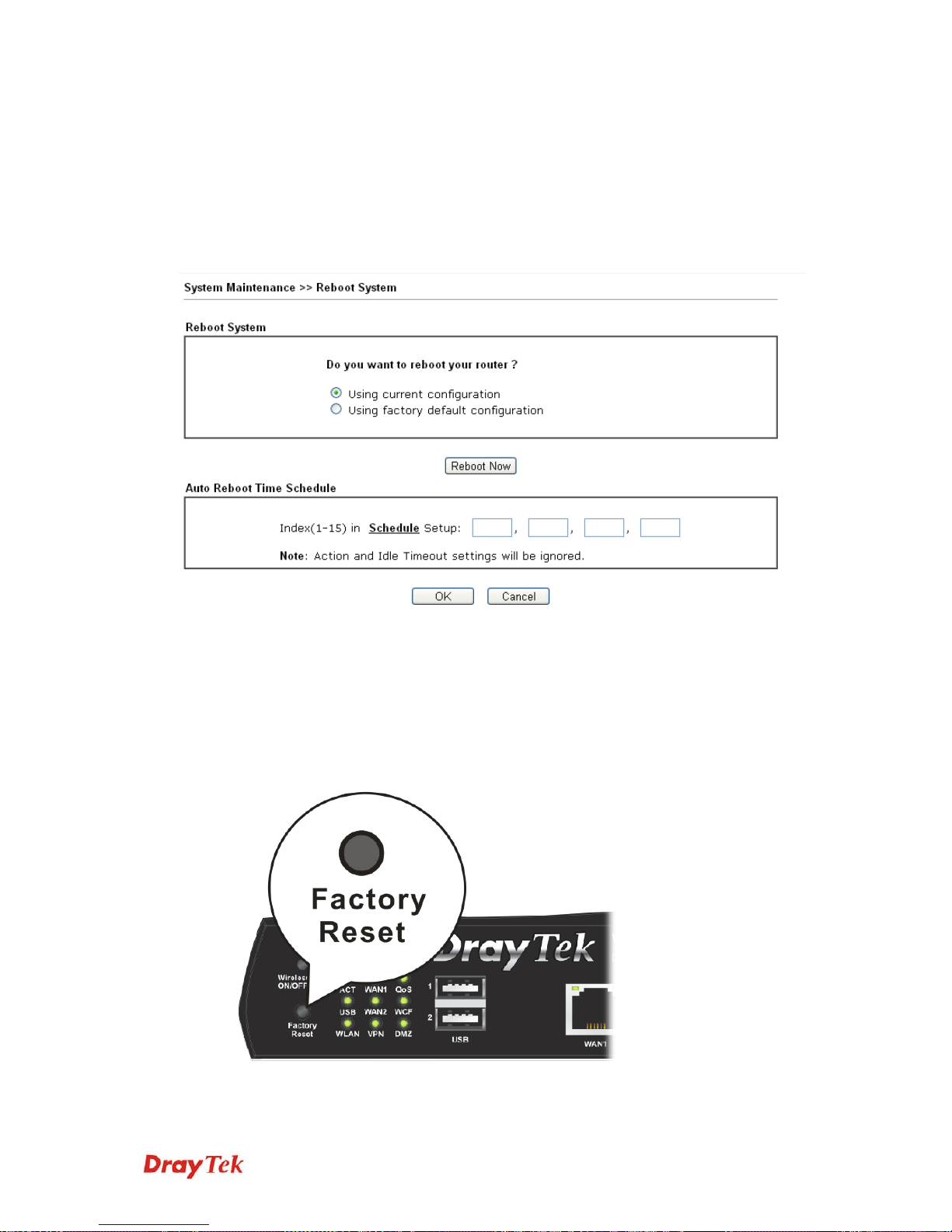

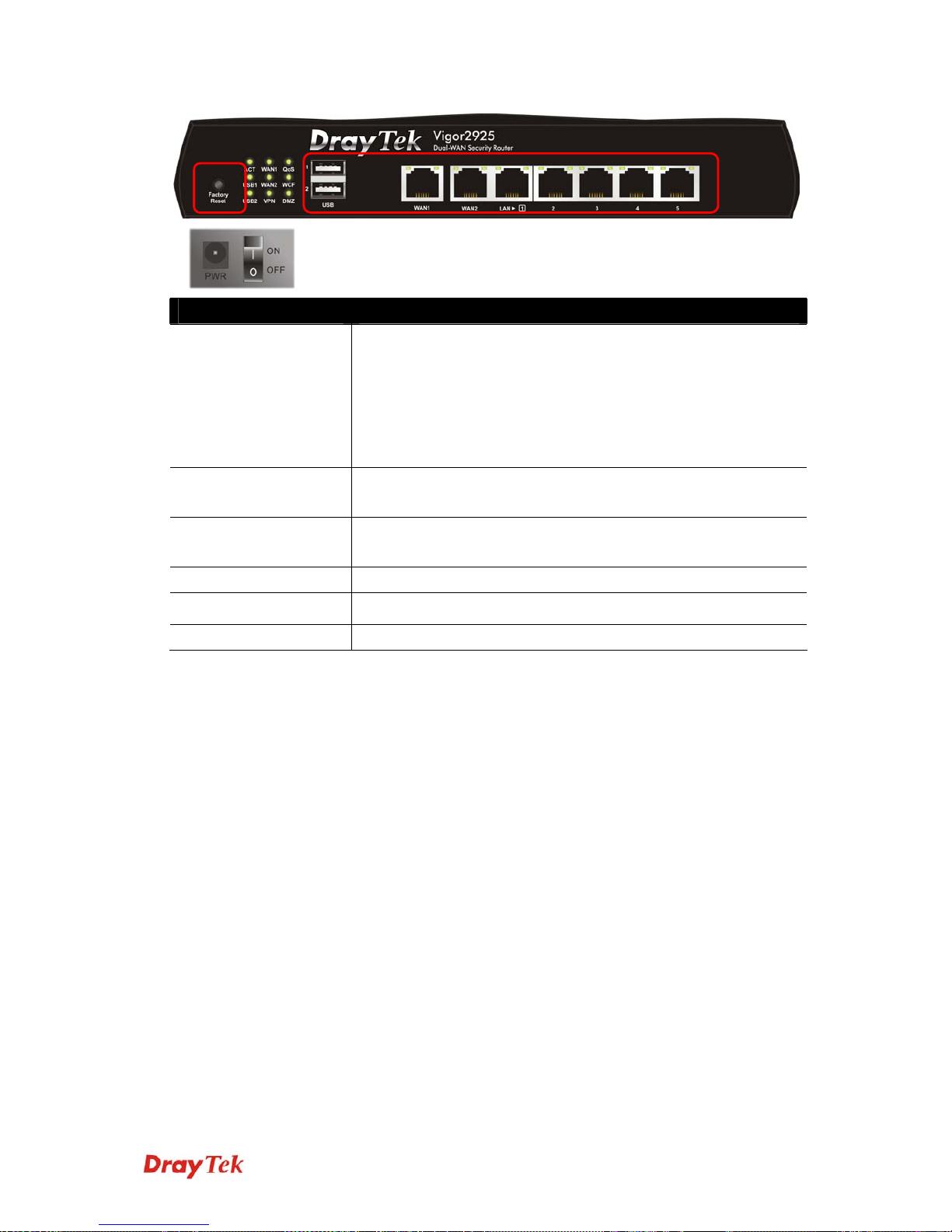

Factory Reset Restore the default settings. Usage: Turn on the
router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the
ACT LED begins to blink rapidly than usual, release
the button. Then the router will restart with the
factory default configuration.
USB1~USB2 Connecter for a USB device (for 3G USB Modem or
printer).
WAN1~WAN2 Connecter for local network devices or modem for
accessing Internet.
LAN1~LAN5 Connecters for local network devices.
PWR
Connecter for a power adapter.
ON/OFF Power Switch.
Page 12
Vigor2925 Series Quick Start Guide
4

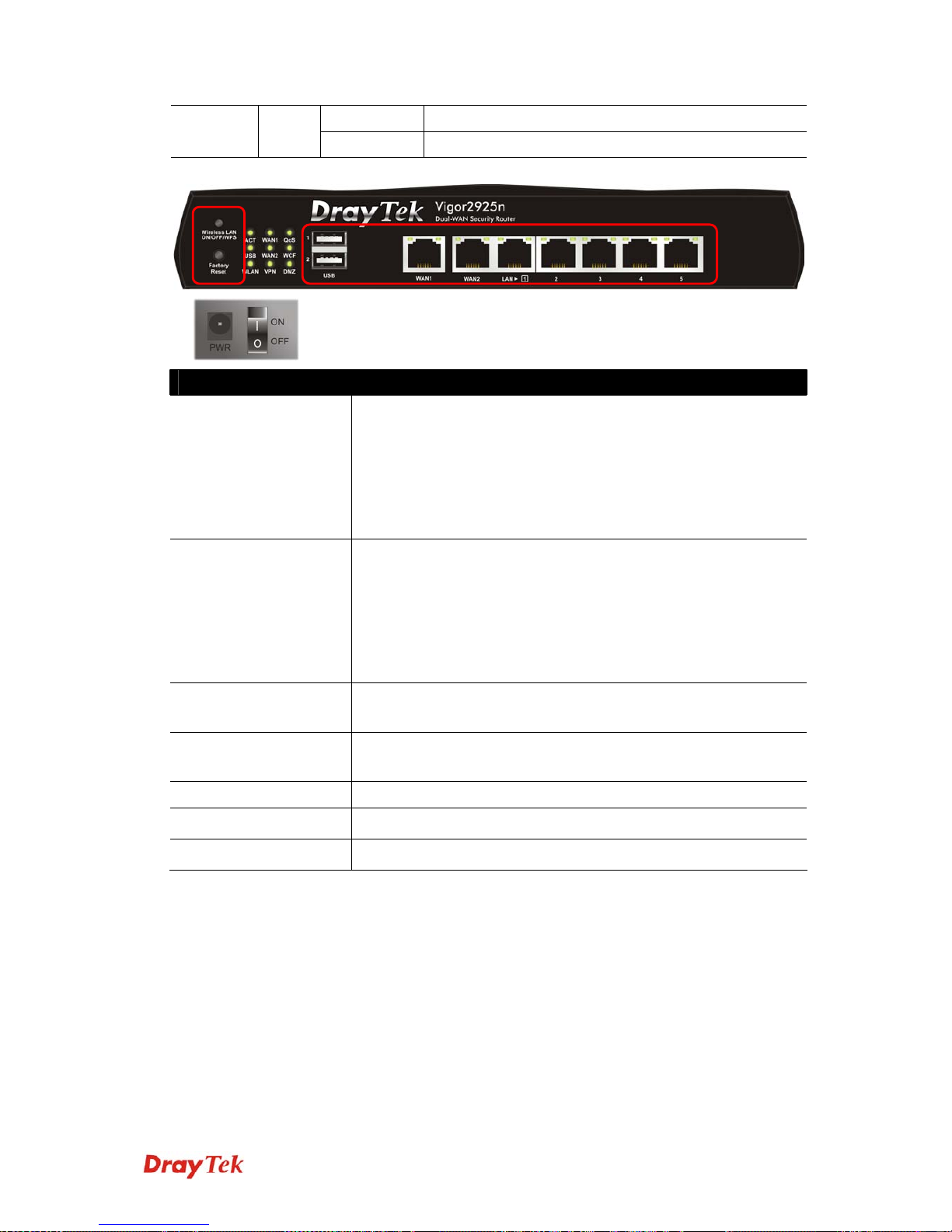

11..11..22 FFoorr VViiggoorr22992255nn
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On
Wireless access point is ready.
WLAN
Blinking
It will blink slowly while wireless traffic
goes through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN1~WAN2
Blinking The data is transmitting.
VPN On The VPN tunnel is active.
QoS
On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General
Setup).
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN1~
WAN2
Right
LED
Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
LAN1~
LAN5
Left
LED
Blinking The data is transmitting.
Page 13
Vigor2925 Series Quick Start Guide
5
On The port is connected with 1000Mbps. Right
LED
Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED
off) wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the
router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the
ACT LED begins to blink rapidly than usual, release
the button. Then the router will restart with the
factory default configuration.
USB1~USB2 Connecter for a USB device (for 3G USB Modem or
printer).
WAN1~WAN2 Connecter for local network devices or modem for
accessing Internet.
LAN1~LAN5 Connecters for local network devices.
PWR
Connecter for a power adapter.
ON/OFF
Power Switch.
Page 14
Vigor2925 Series Quick Start Guide
6
11..22 PPaacckkaaggee CCoonntteenntt

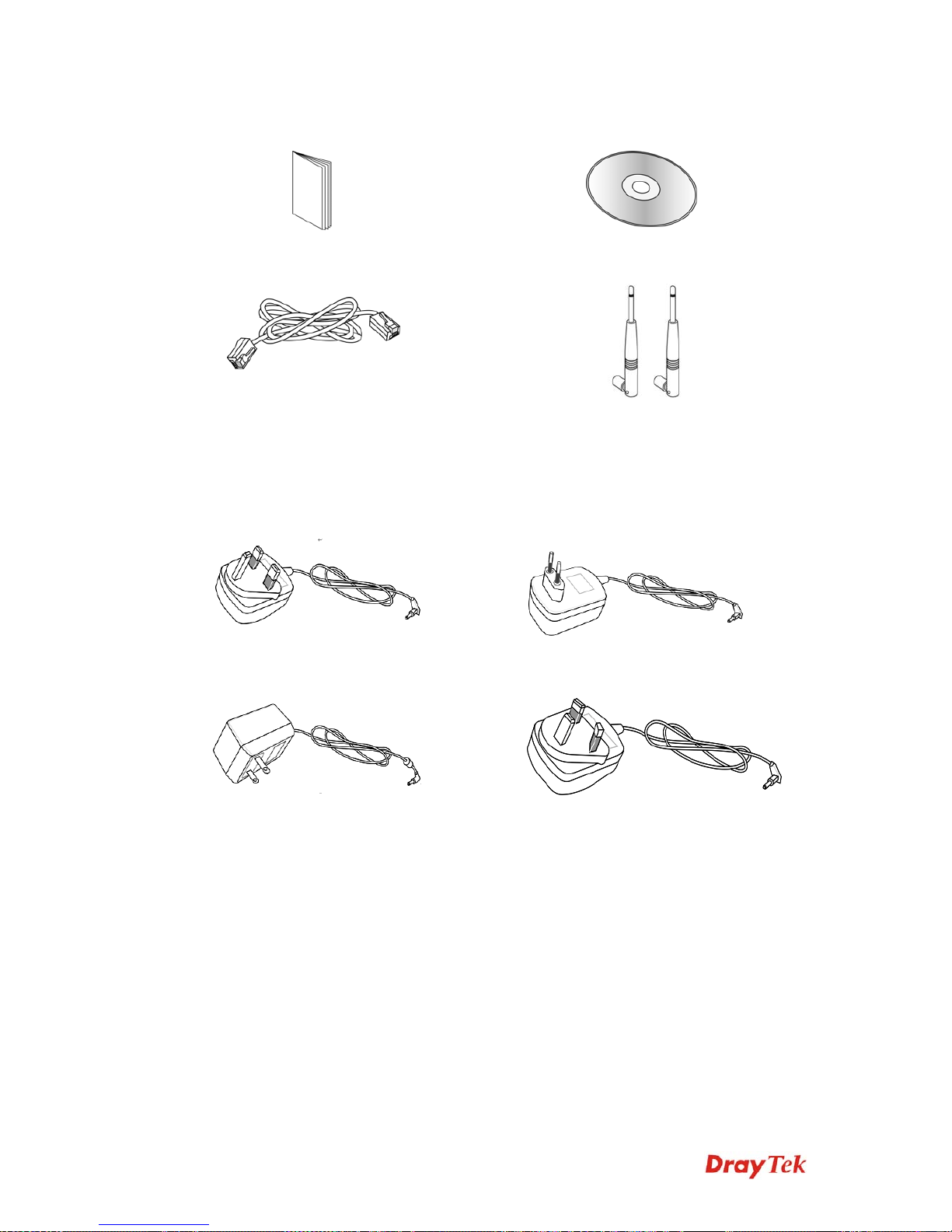

nQuick Start Guide
oCD
p RJ-45 Cable (Ethernet)
q Antenna (n models)
r
The type of the power adapter depends on the country that the router will
be installed:
UK-type Power Adapter EU-type Power Adapter
USA/Taiwan-type Power
Adapter
AU/NZ-type Power Adapter
* The maximum power consumption is 24 Watt.
Page 15
Vigor2925 Series Quick Start Guide
7
22.. IInnssttaalllliinngg YYoouurr RRoouutteerr
This section will guide you to install the router through hardware connection
and configure the router’s settings through web browser.
22..11 HHaarrddwwaarree IInnssttaallllaattiioonn
Before starting to configure the router, you have to connect your devices
correctly.

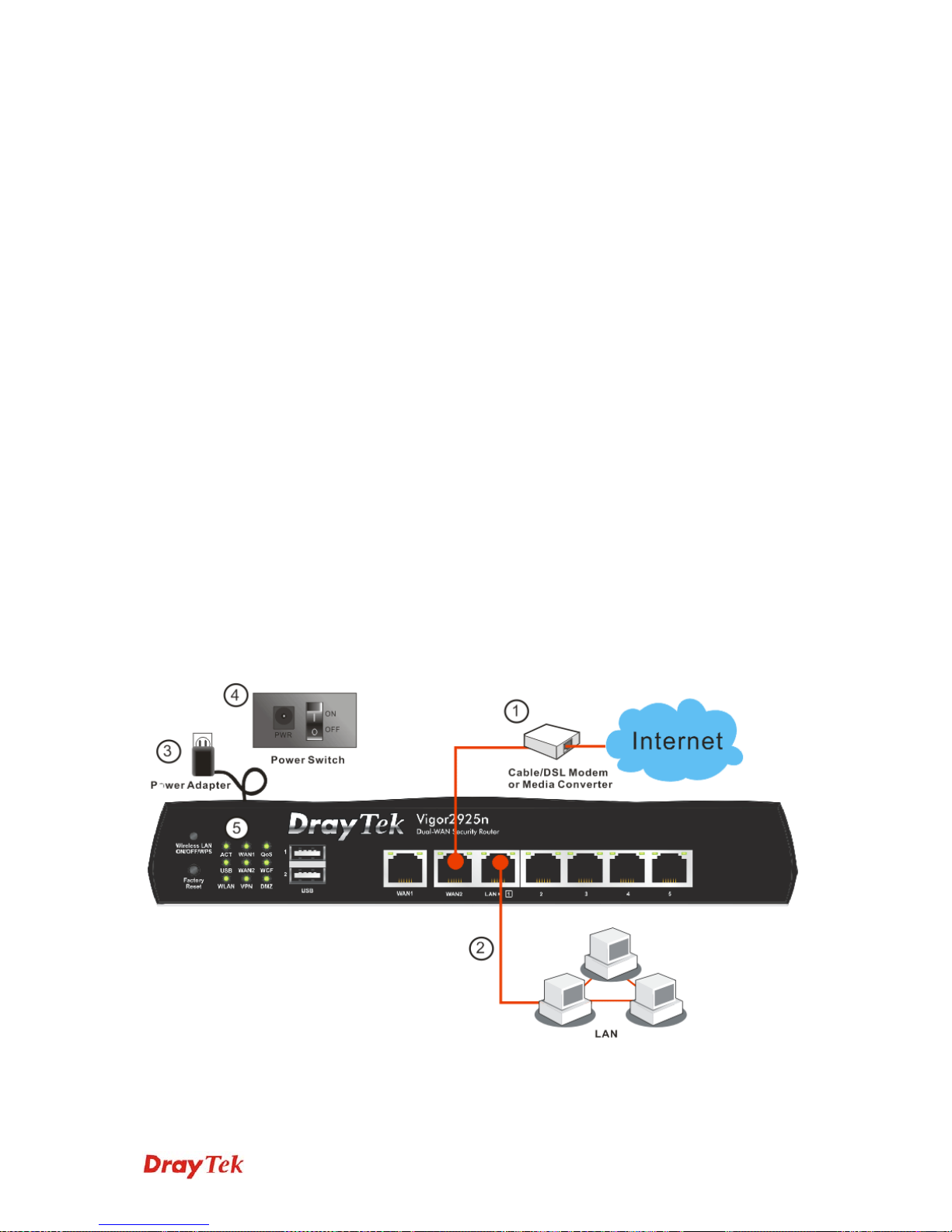

1. Connect the cable Modem/DSL Modem/Media Converter to any WAN
port of router with Ethernet cable (RJ-45).
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports
of the router and the other end of the cable (RJ-45) into the Ethernet port
on your computer.
3. Connect one end of the power adapter to the router’s power port on the
rear panel, and the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear
panel.
5. The system starts to initiate. After completing the system test, the ACT
LED will light up and start blinking.
(For the detailed information of LED status, please refer to section 1.1.)
Page 16
Vigor2925 Series Quick Start Guide
8
22..22 PPrriinntteerr IInnssttaallllaattiioonn

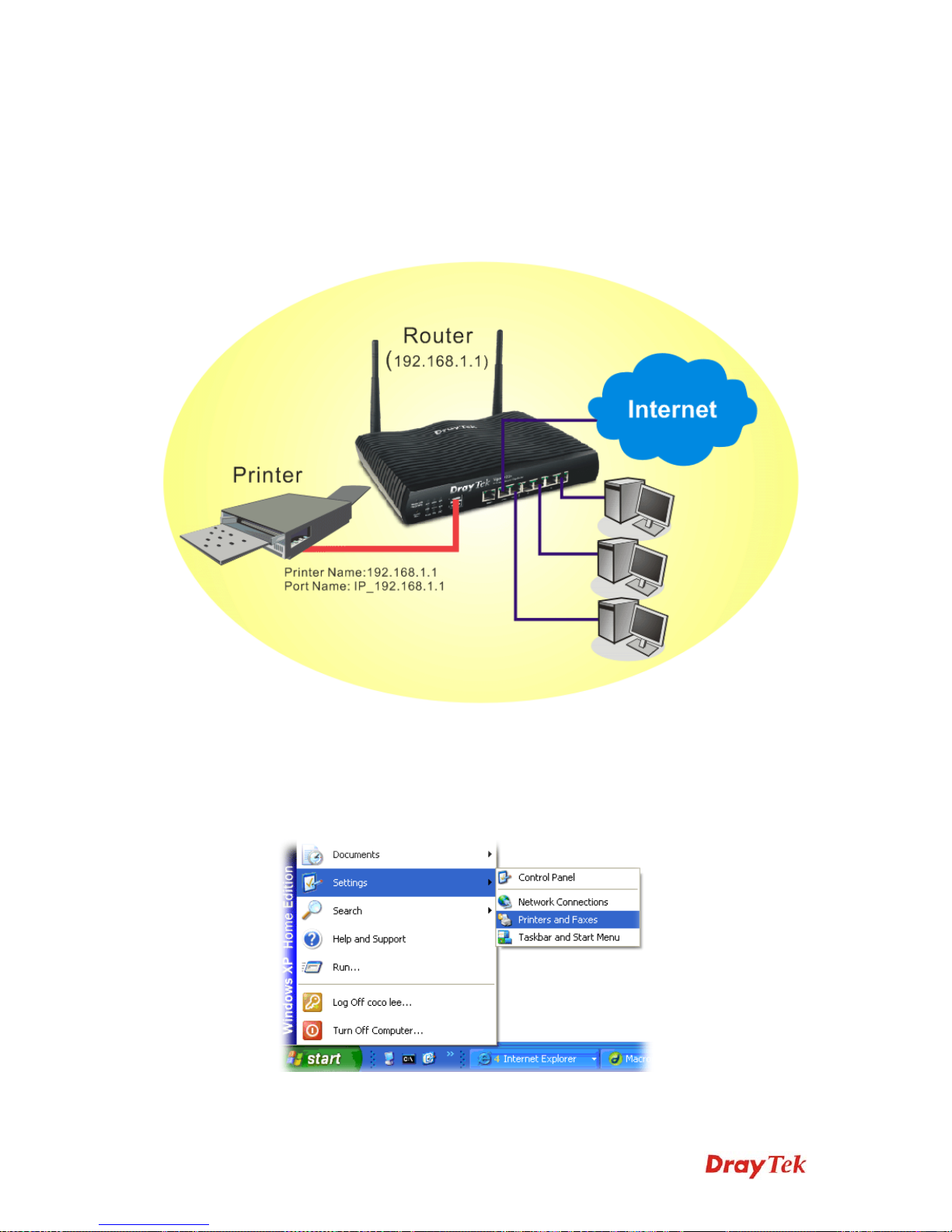

You can install a printer onto the router for sharing printing. All the PCs
connected this router can print documents via the router. The example
provided here is made based on Windows XP/2000. For Windows
98/SE/Vista, please visit www.draytek.com.
Before using it, please follow the steps below to configure settings for
connected computers (or wireless clients).
1. Connect the printer with the router through USB port.
2. Open Start->Settings-> Printers and Faxes.
Page 17
Vigor2925 Series Quick Start Guide
9

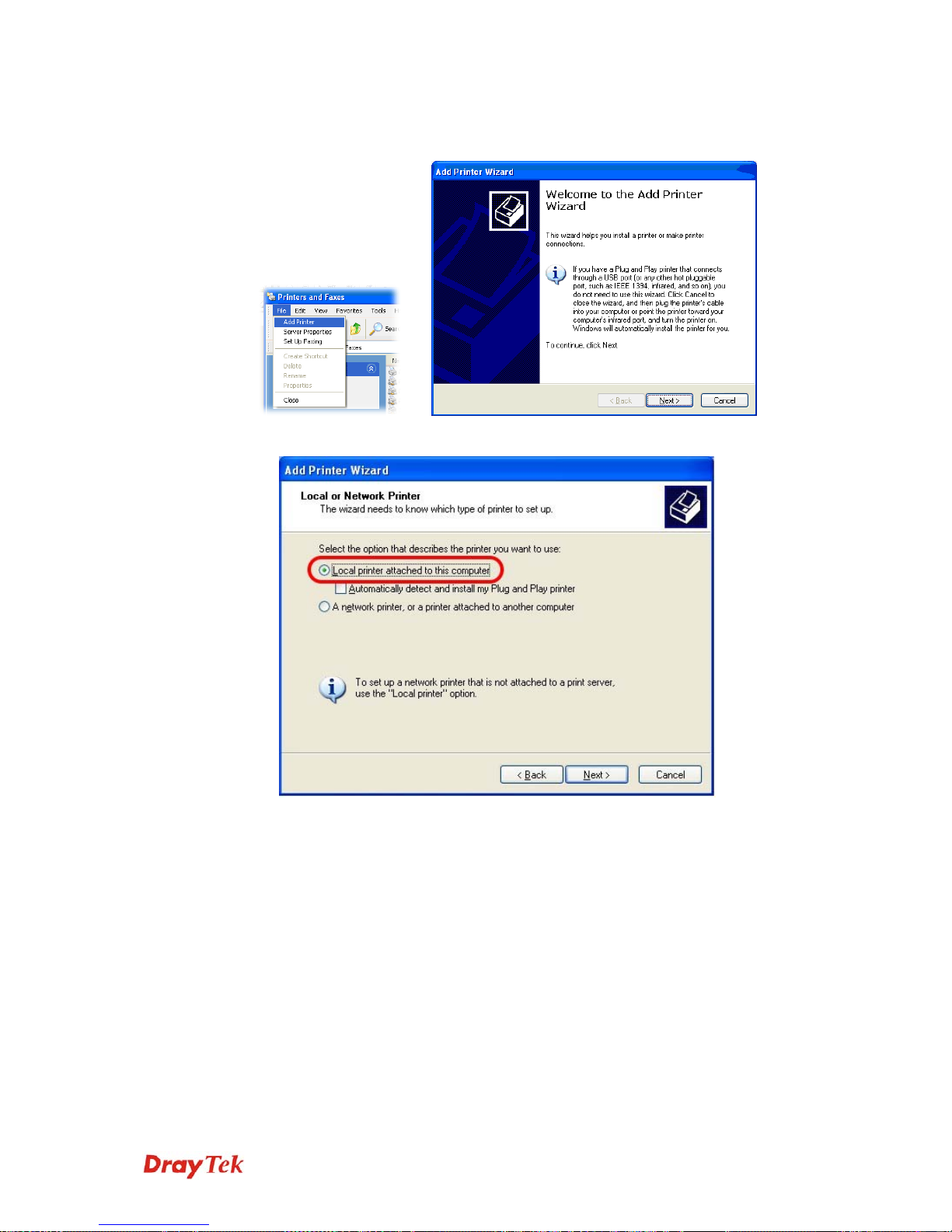

3. Open File->Add a New Computer. A welcome dialog will appear.
Please click Next.
4. Click Local printer attached to this computer and click Next.
Page 18
Vigor2925 Series Quick Start Guide
10

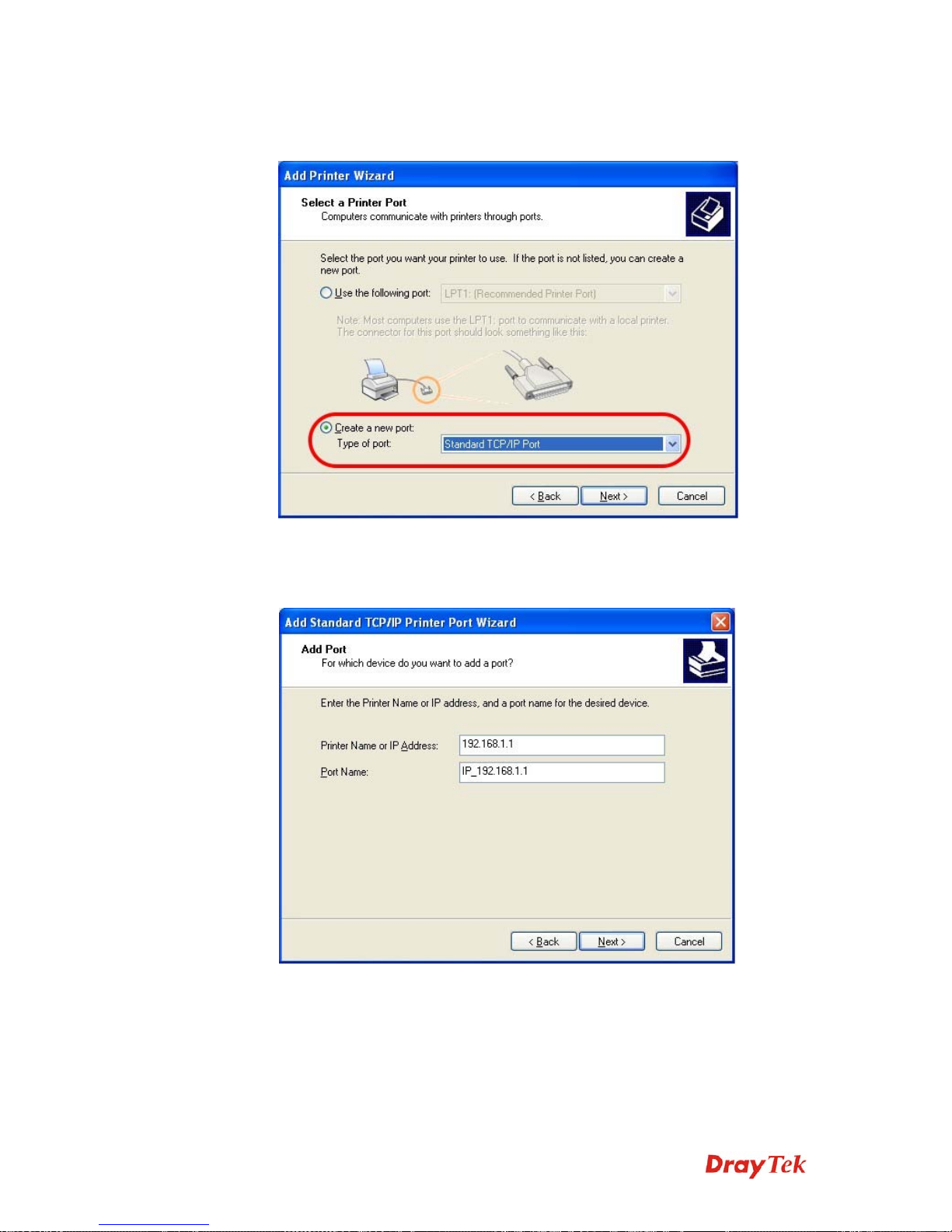

5. In this dialog, choose Create a new port Type of port and use the drop
down list to select Standard TCP/IP Port. Click Next.
6. In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field
of Printer Name or IP Address and type IP_192.168.1.1 as the port
name. Then, click Next.
Page 19
Vigor2925 Series Quick Start Guide
11

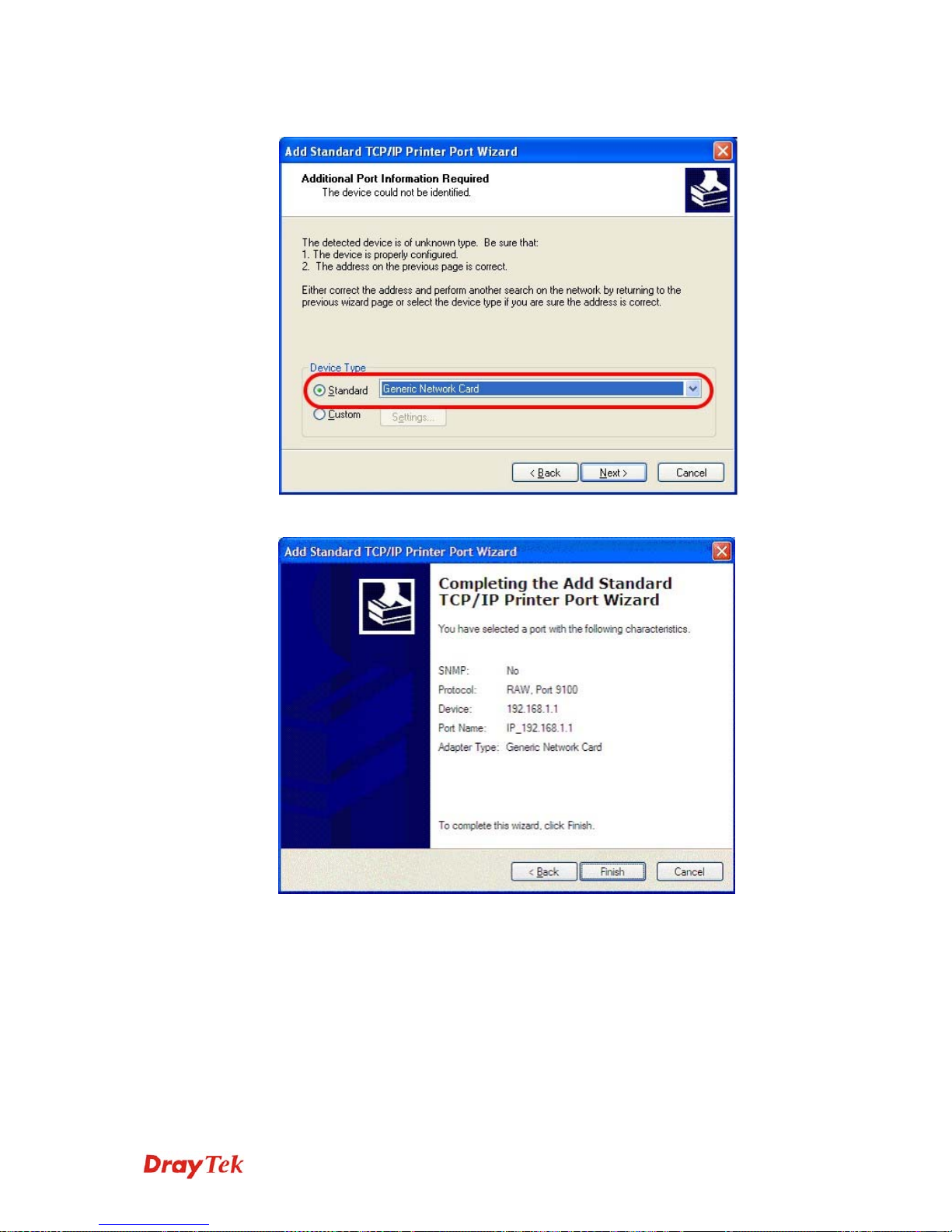

7. Click Standard and choose Generic Network Card.
8. Then, in the following dialog, click Finish.
Page 20
Vigor2925 Series Quick Start Guide
12

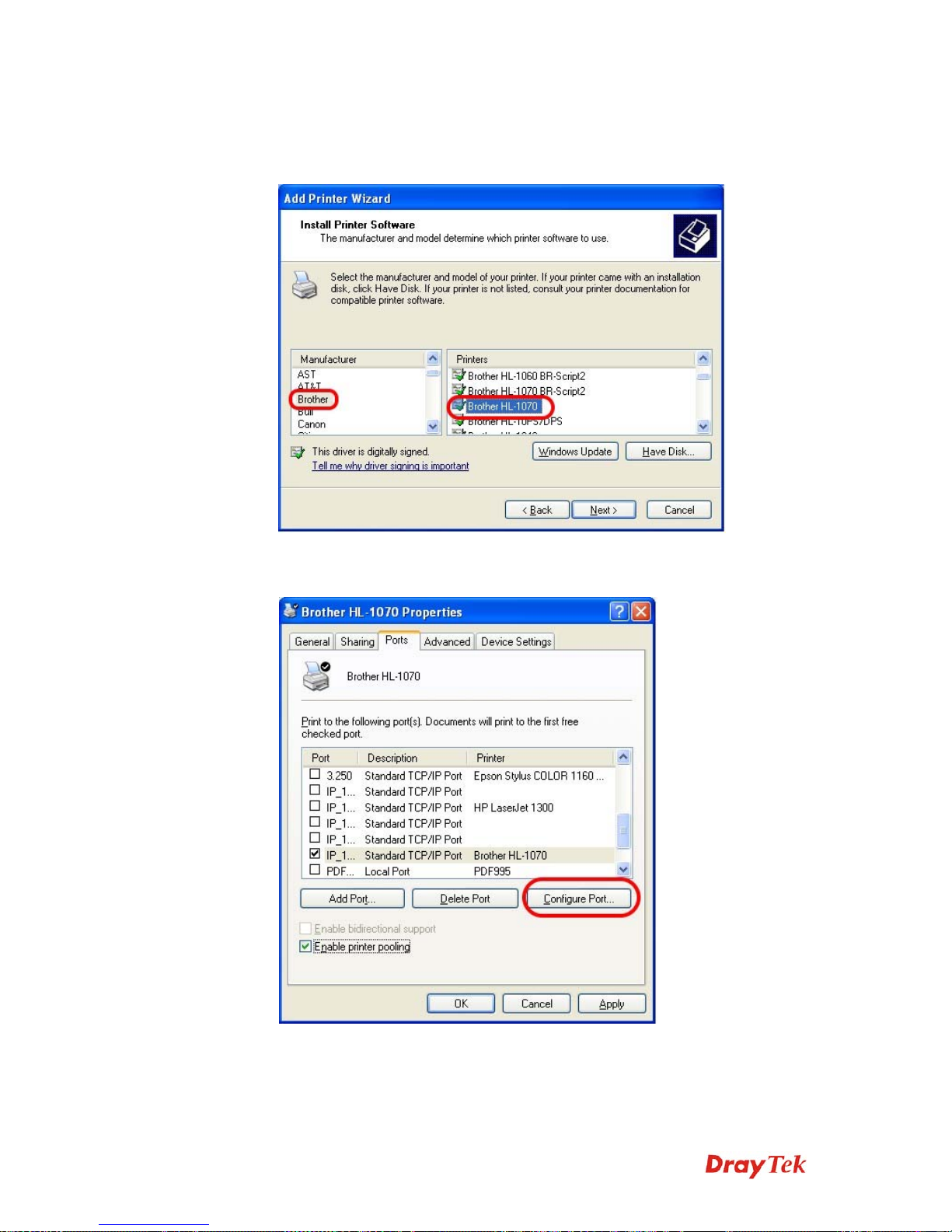

9. Now, your system will ask you to choose right name of the printer that
you installed onto the router. Such step can make correct driver loaded
onto your PC. When you finish the selection, click Next.
10. For the final stage, you need to go back to Control Panel-> Printers
and edit the property of the new printer you have added.
Page 21
Vigor2925 Series Quick Start Guide
13

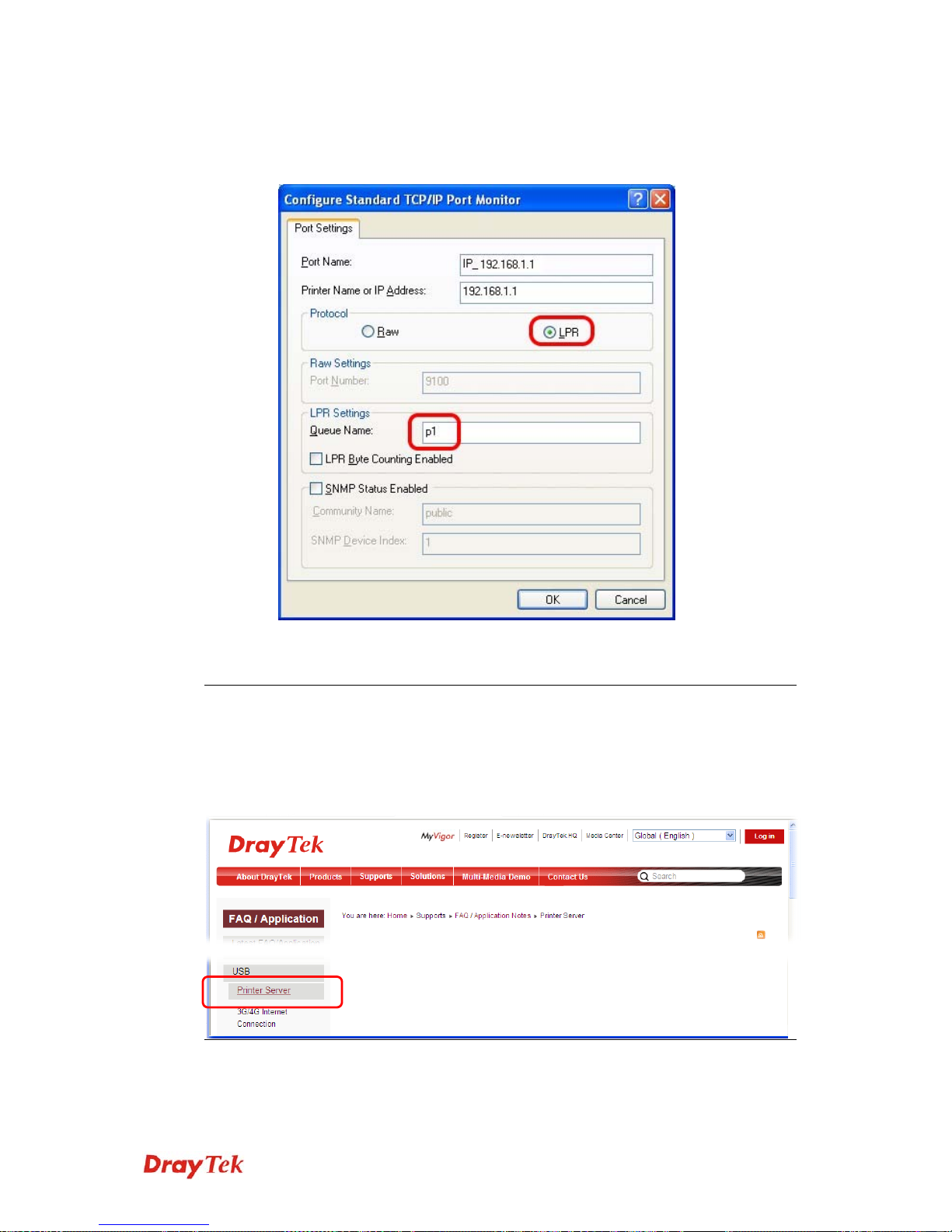

11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then
click OK. Next please refer to the red rectangle for choosing the correct
protocol and LPR name.
The printer can be used for printing now. Most of the printers with
different manufacturers are compatible with vigor router.
Note 1: Some printers with the fax/scanning or other additional
functions are not supported. If you do not know whether your printer is
supported or not, please visit www.draytek.com to find out the printer
list. Open Support >FAQ/Application Notes; find out the link of
USB>>Printer Server and click it.
Page 22
Vigor2925 Series Quick Start Guide
14

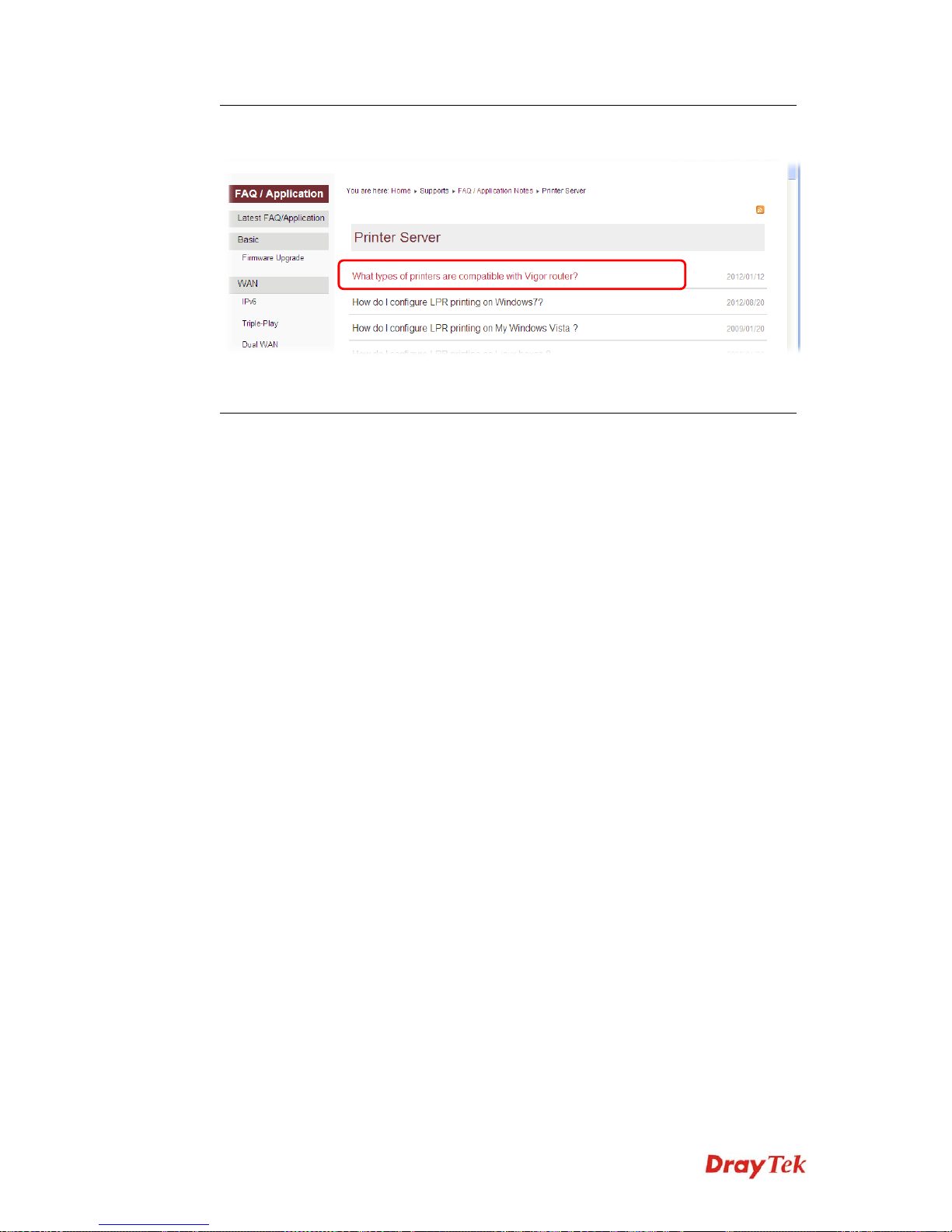

Then, click the What types of printers are compatible with Vigor
router? link.
Note 2: Vigor router supports printing request from computers via
LAN ports but not WAN port.
Page 23
Vigor2925 Series Quick Start Guide
15
33.. IInniittiiaall SSeettttiinnggss
To access Internet, please finish basic configuration after completing the
hardware installation.
33..11 AAcccceessssiinngg WWeebb PPaaggee
1. Make sure your PC connects to the router correctly.

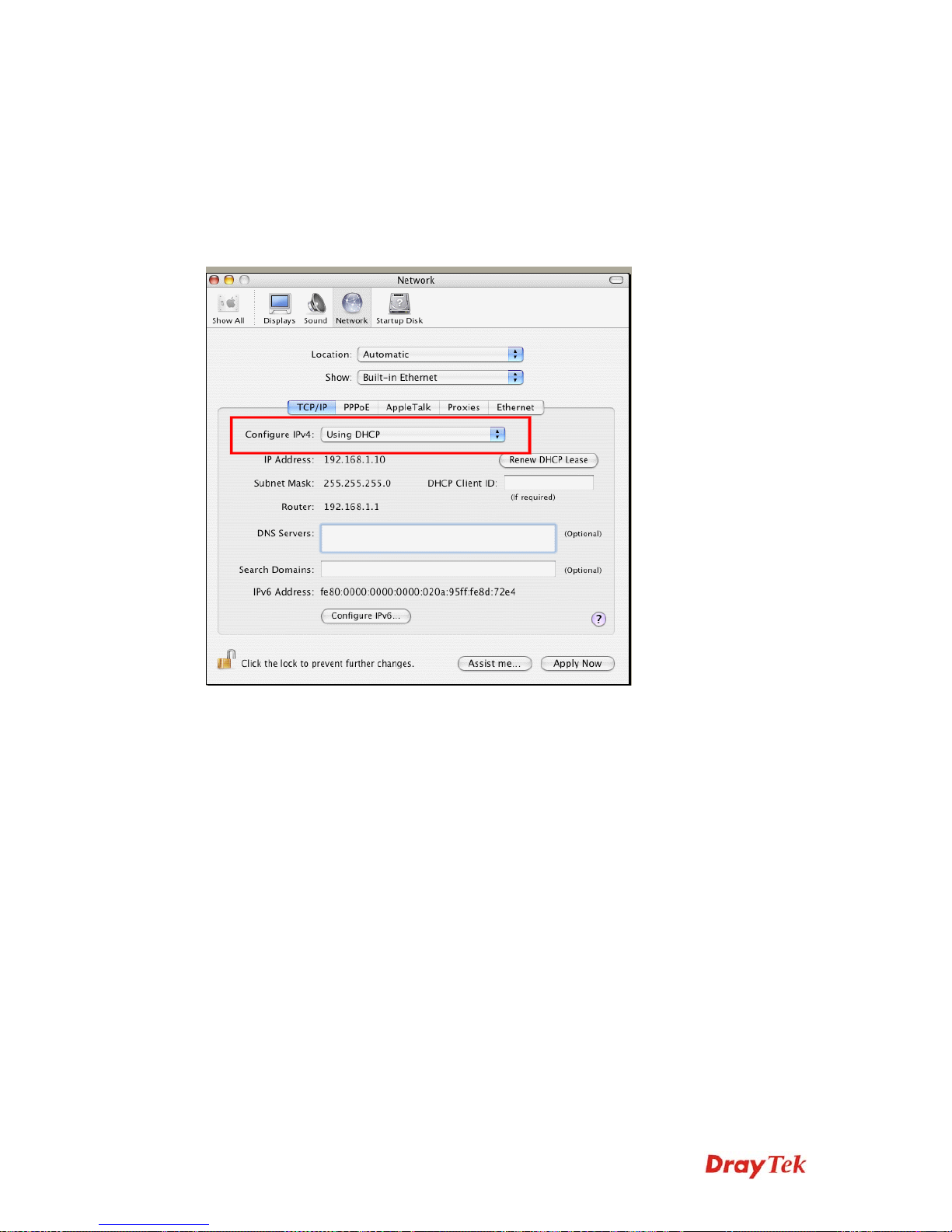

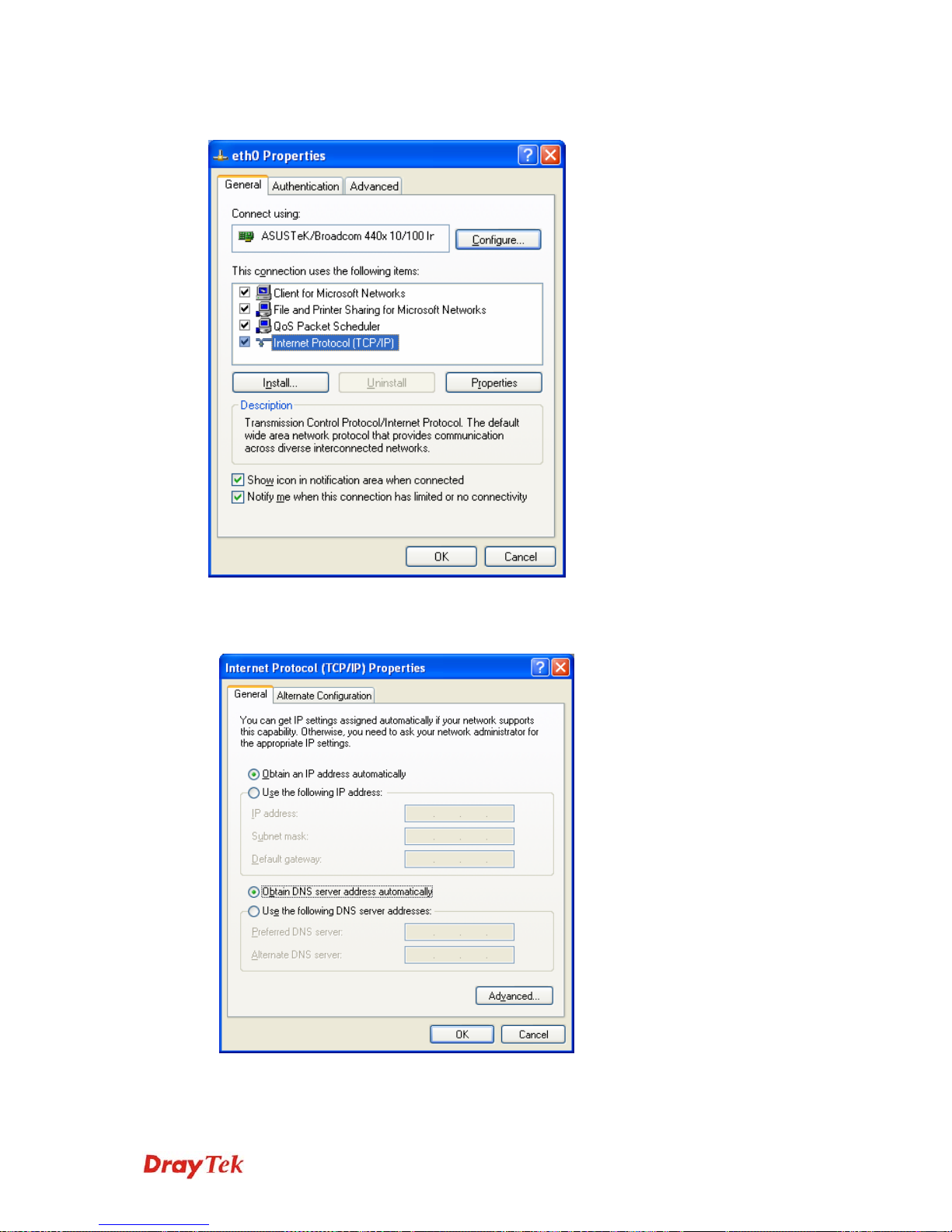

Notice: You may either simply set up your computer to get IP
dynamically from the router or set up the IP address of the
computer to be the same subnet as the default IP address of
Vigor router 192.168.1.1. For the detailed information, please
refer to the later section - Trouble Shooting of this manual.

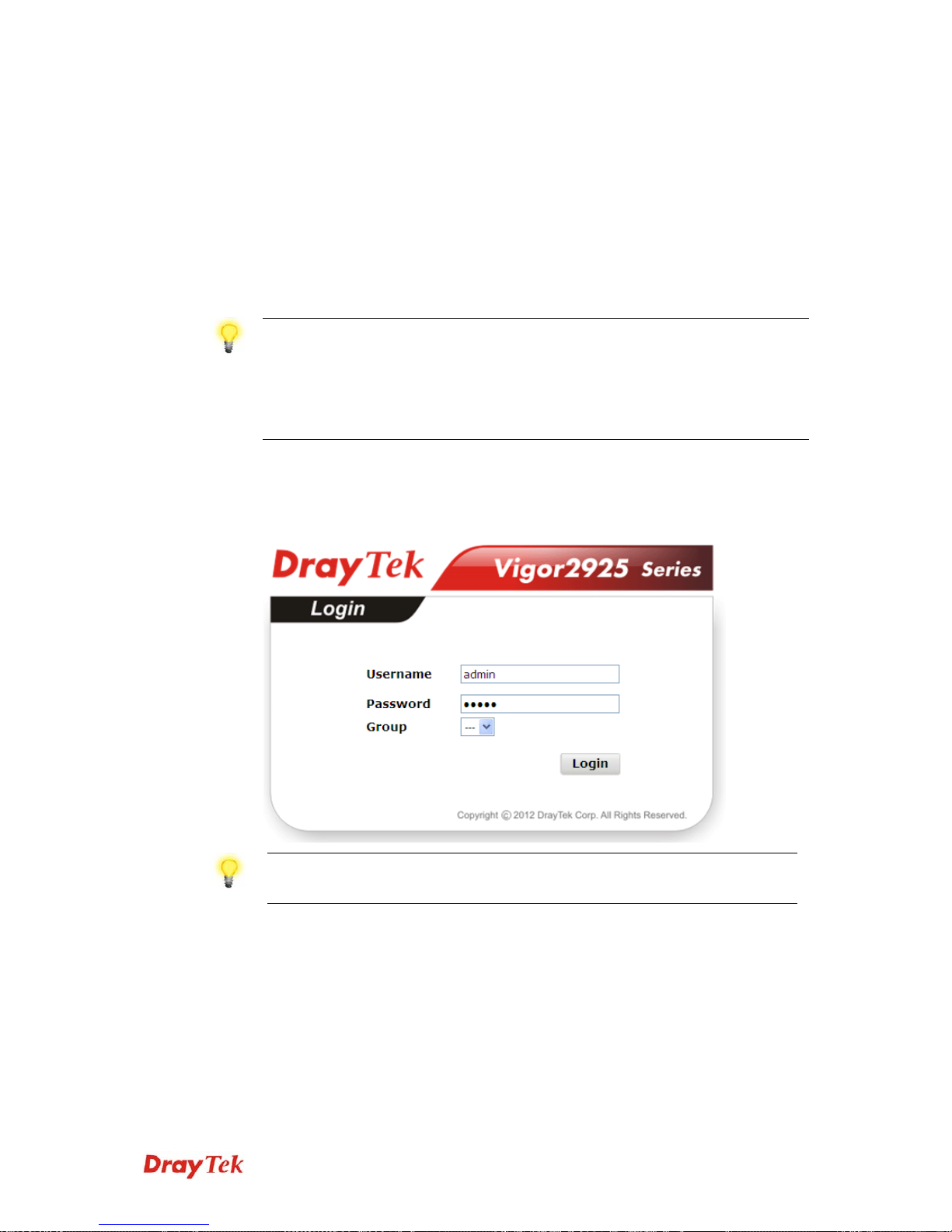

2. Open a web browser on your PC and type http://192.168.1.1. The
following window will be open to ask for username and password.
Please type “admin/admin” on Username/Password and click Login.
Notice: If you fail to access to the web configuration, please go
to “Trouble Shooting” for detecting and solving your problem.
3. Now, the Main Screen will pop up.
Page 24
Vigor2925 Series Quick Start Guide
16

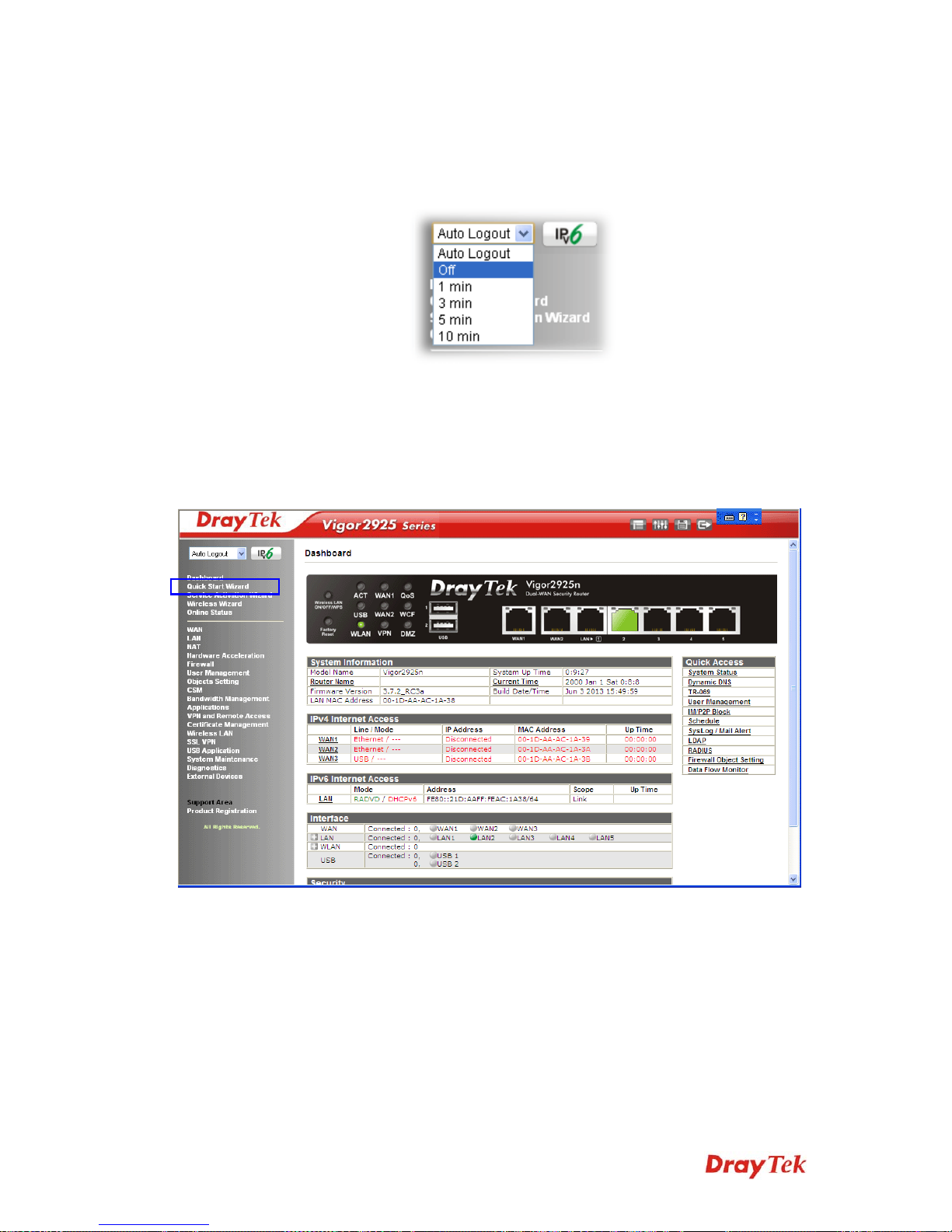

4. The web page can be logged out according to the chosen condition. The
default setting is Auto Logout, which means the web configuration
system will logout after five minutes without any operation. Change the
setting for your necessity.
33..22 BBaassiicc CCoonnffiigguurraattiioonn –– QQuuiicckk SSttaarrtt WWiizzaarrdd
The Quick Start Wizard is designed for you to easily set up your router for
Internet access. You can directly access the Quick Start Wizard via Web
User Interface.
The home page will change slightly in accordance with the router model you
have.
Page 25
Vigor2925 Series Quick Start Guide
17
If your router can be under an environment with high speed NAT, the
configuration provide here can help you to deploy and use the router quickly.

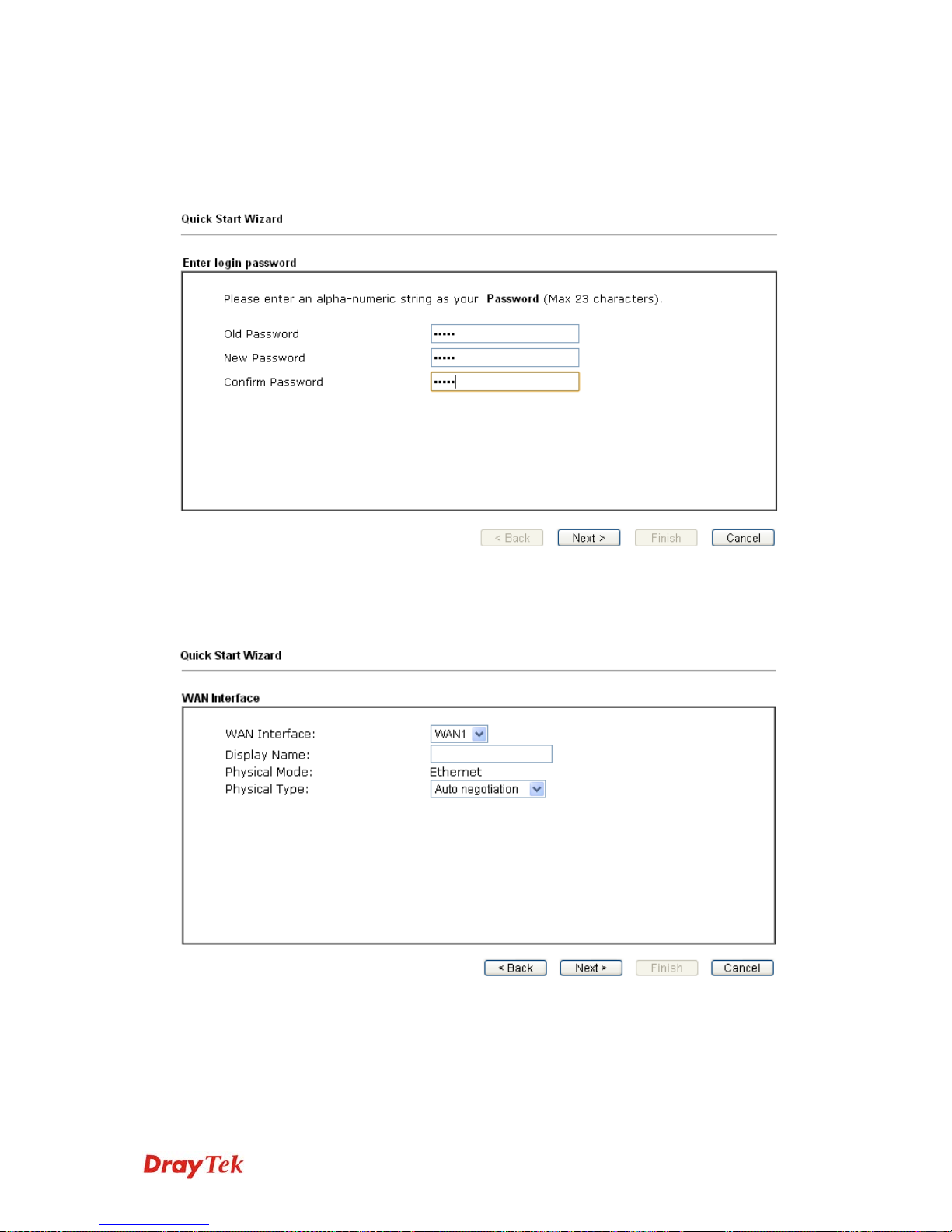

The first screen of Quick Start Wizard is entering login password. After
typing the password, please click Next.
On the next page as shown below, please select the WAN interface that you
use. If Ethernet interface is used, please choose WAN1/WAN2; if 3G USB
modem is used, please choose WAN3. Then click Next for next step.
WAN1/WAN2 and WAN3 will bring up different configuration page. Refer
to the following for detailed information.
Page 26
Vigor2925 Series Quick Start Guide
18
33..22..11 FFoorr WWAANN11//WWAANN22

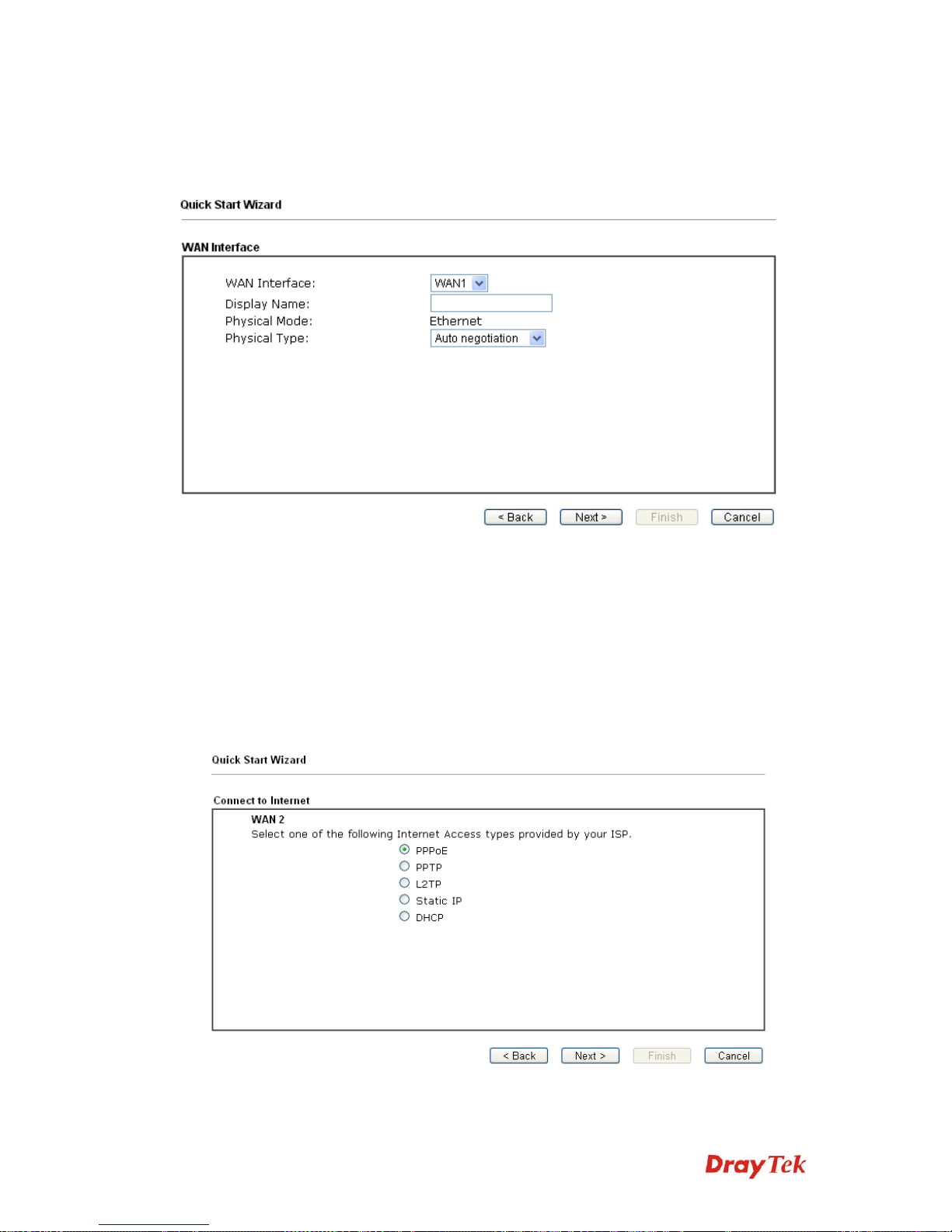

WAN1/WAN2 is dedicated to physical mode in Ethernet. If you choose
WAN1/WAN2, please specify physical type. Then, click Next.
On the next page as shown below, please select the appropriate Internet
access type according to the information from your ISP. For example, you
should select PPPoE mode if the ISP provides you PPPoE interface.
PPPPPPooEE
1. Choose WAN1/WAN2 as the WAN Interface and click the Next button.
The following page will be open for you to specify Internet Access
Type.
Page 27
Vigor2925 Series Quick Start Guide
19

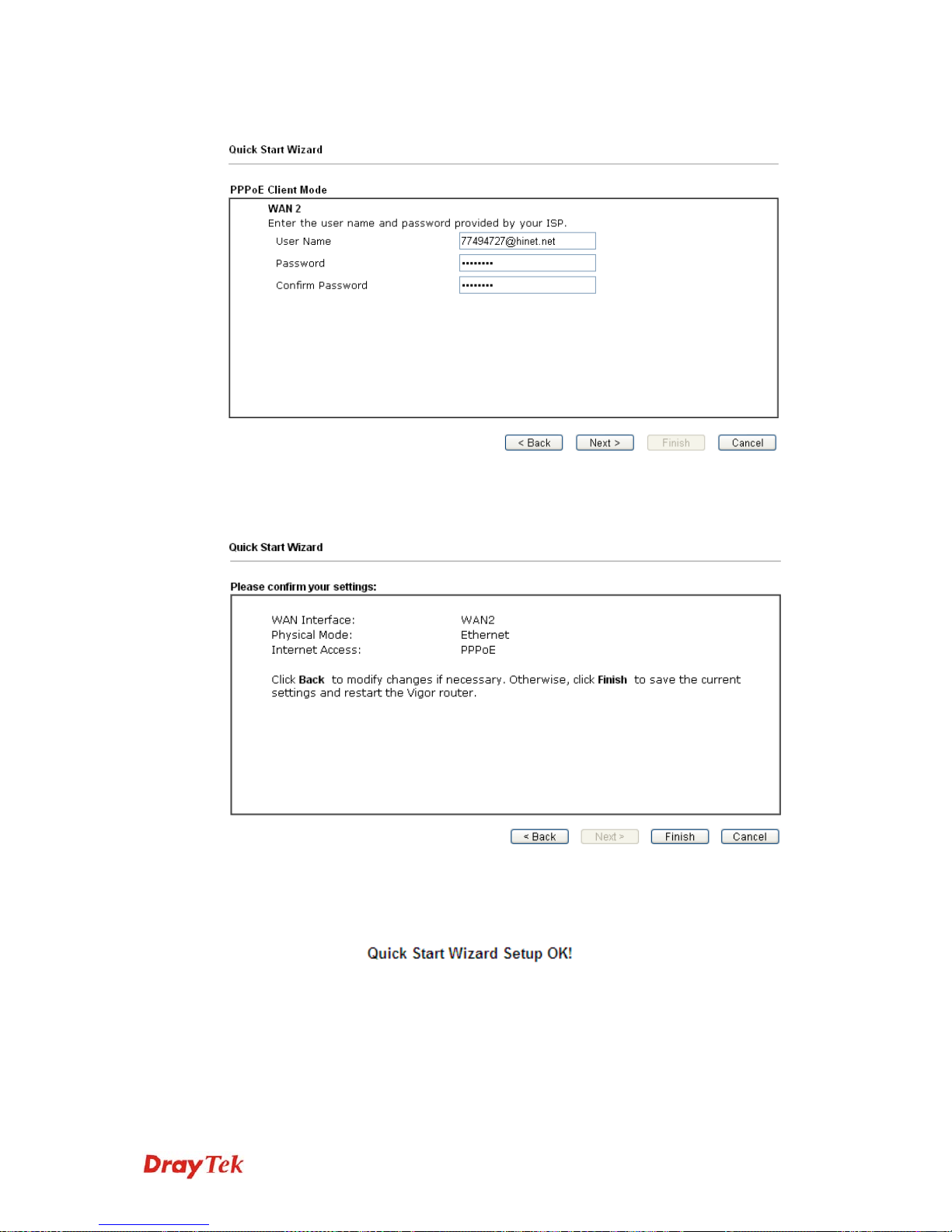

2. Click PPPoE as the Internet Access Type. Then click Next to continue.
3. Please manually enter the Username/Password provided by your ISP.
Click Next for viewing summary of such connection.

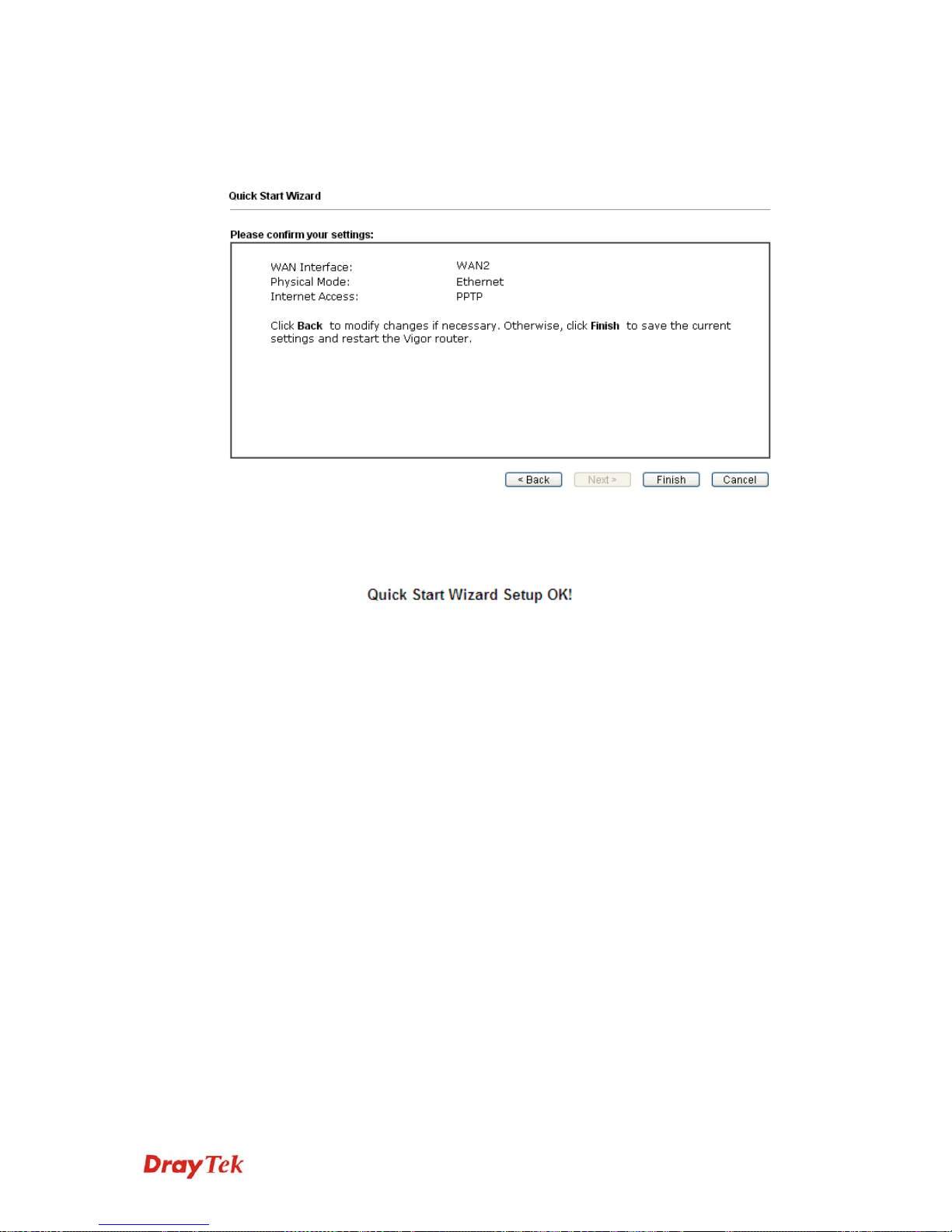

4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
5. Now, you can enjoy surfing on the Internet.
Page 28
Vigor2925 Series Quick Start Guide
20
PPPPTTPP//LL22TTPP
1. Choose WAN1/WAN2 as the WAN Interface and click the Next button.
The following page will be open for you to specify Internet Access
Type.

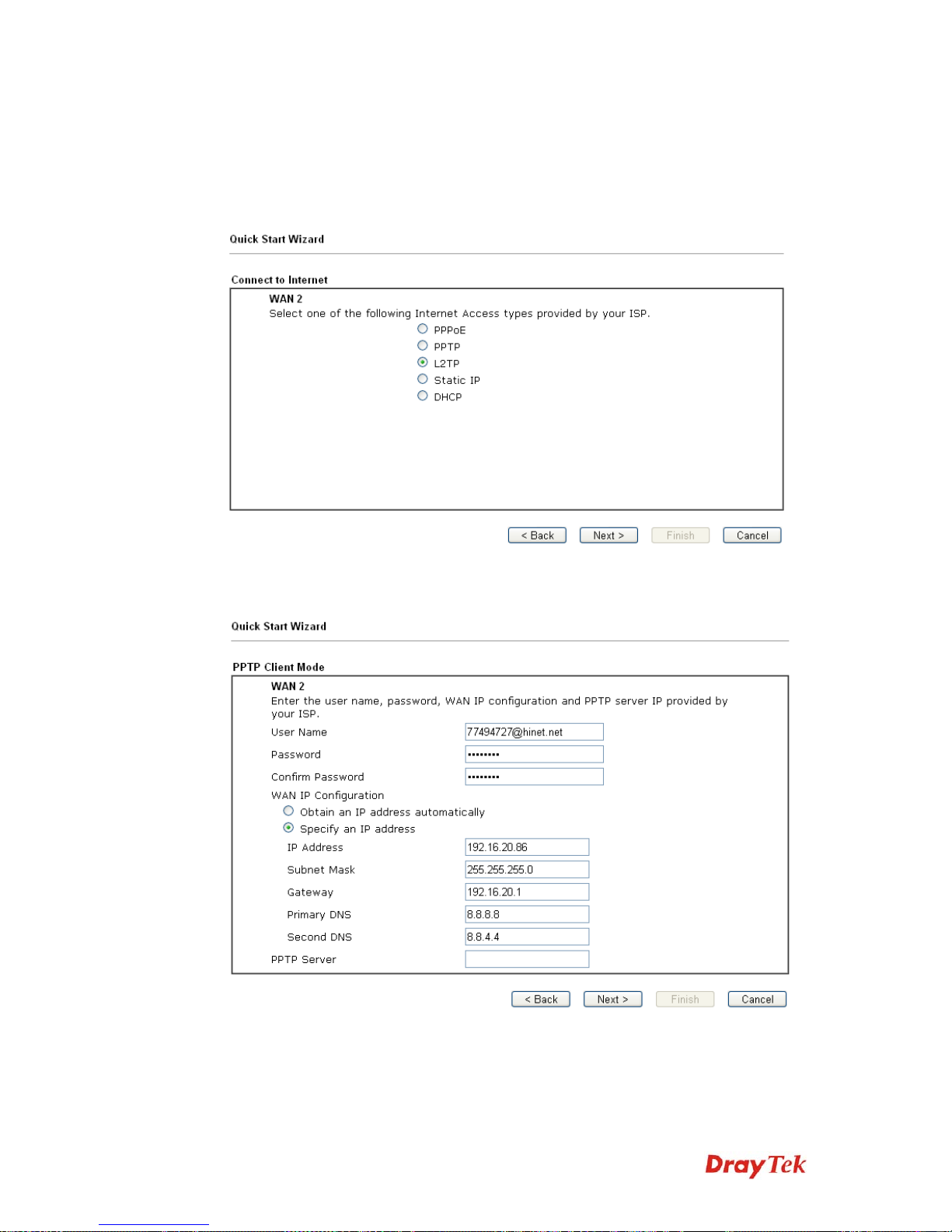

2. Click PPTP/L2TP as the Internet Access Type. Then click Next to
continue.
Page 29
Vigor2925 Series Quick Start Guide
21
3. Please type in the IP address/mask/gateway information originally
provided by your ISP. Then click Next for viewing summary of such
connection.
4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
5. Now, you can enjoy surfing on the Internet.
Page 30
Vigor2925 Series Quick Start Guide
22
SSttaattiicc IIPP

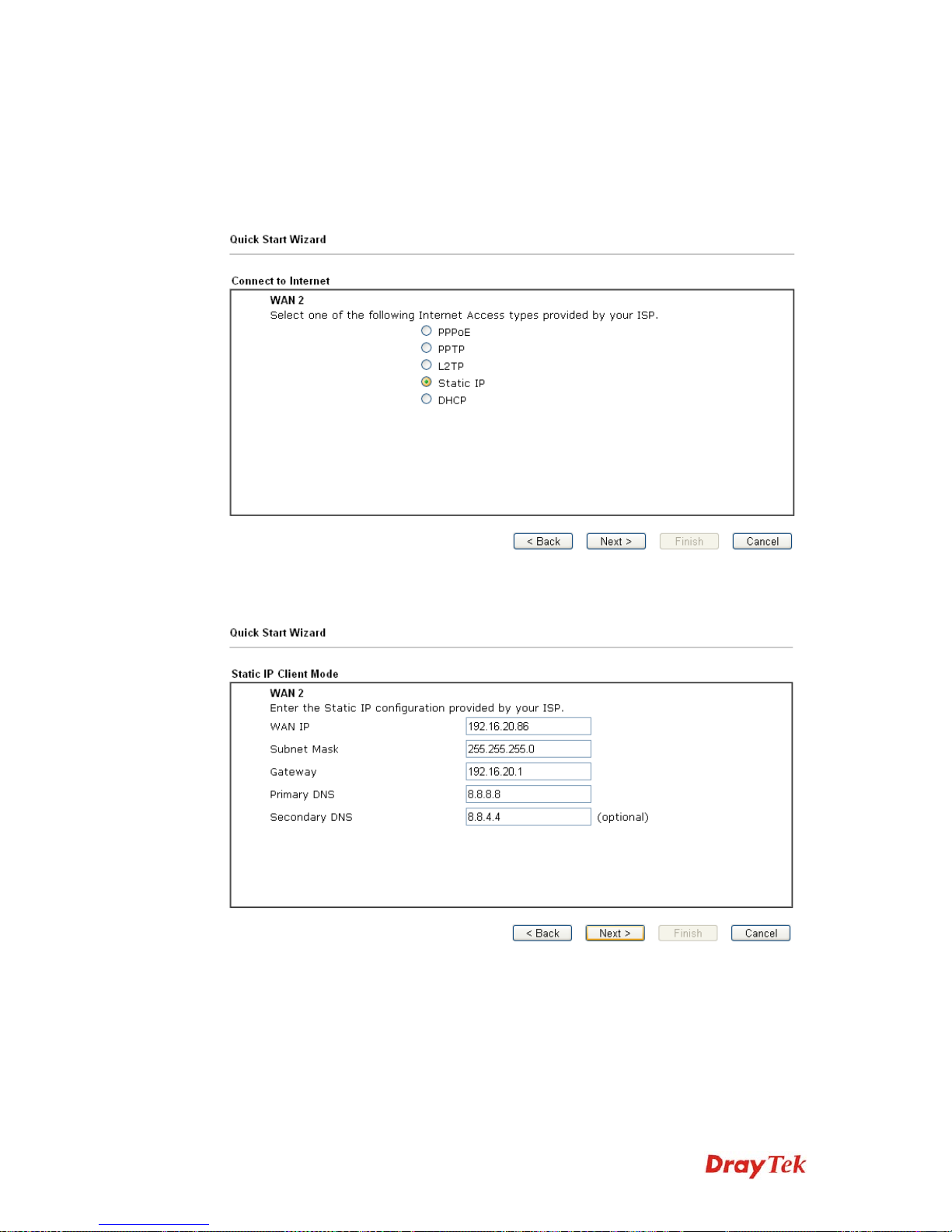

1. Choose WAN1/WAN2 as the WAN Interface and click the Next button.
The following page will be open for you to specify Internet Access
Type.
2. Click Static IP as the Internet Access type. Simply click Next to
continue.
Page 31
Vigor2925 Series Quick Start Guide
23
3. Please type in the IP address information originally provided by your
ISP. Then click Next for next step.
4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
5. Now, you can enjoy surfing on the Internet.
Page 32
Vigor2925 Series Quick Start Guide
24

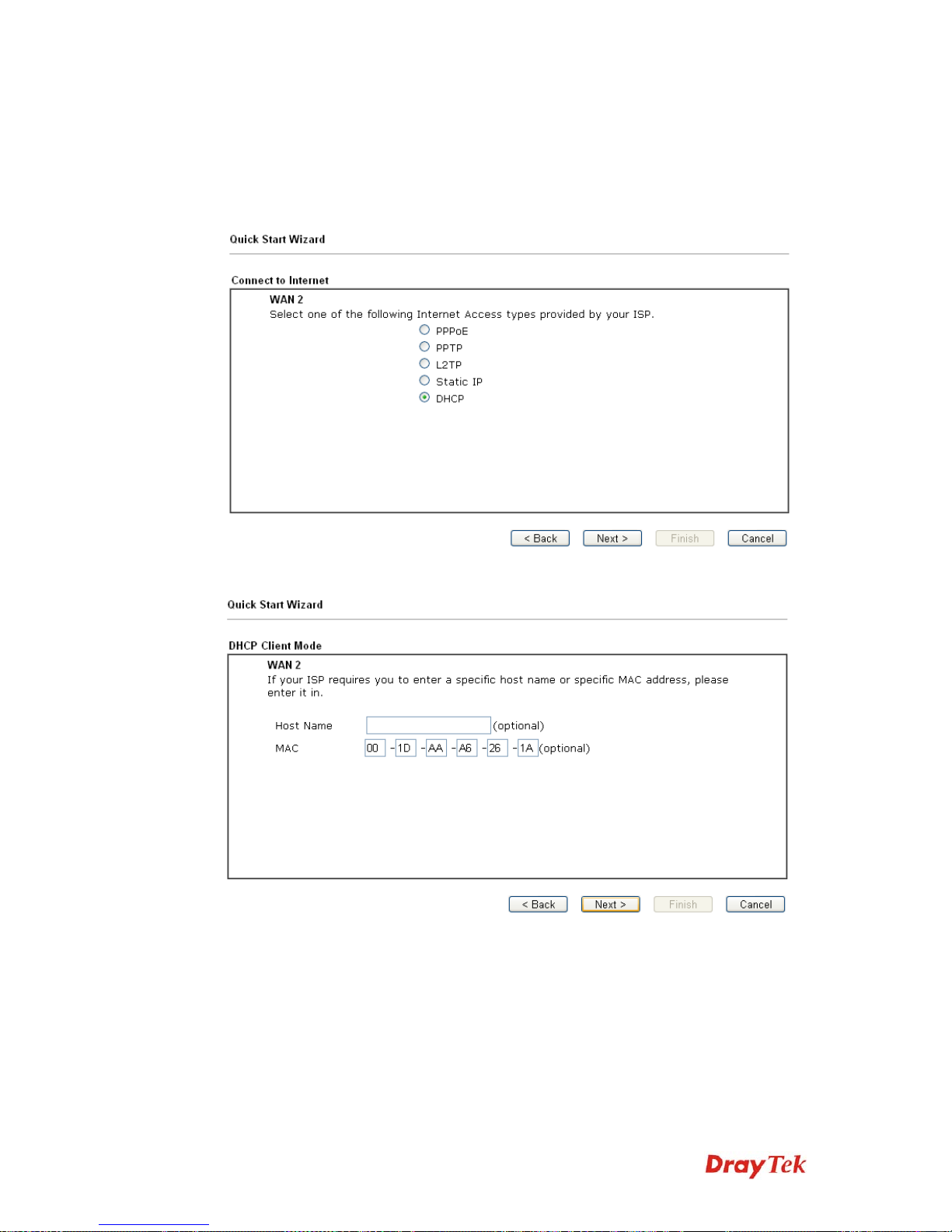

DDHHCCPP
1. Choose WAN1/WAN2 as WAN Interface and click the Next button.
The following page will be open for you to specify Internet Access
Type.
2. Click DHCP as the Internet Access type. Simply click Next to continue.
Page 33
Vigor2925 Series Quick Start Guide
25

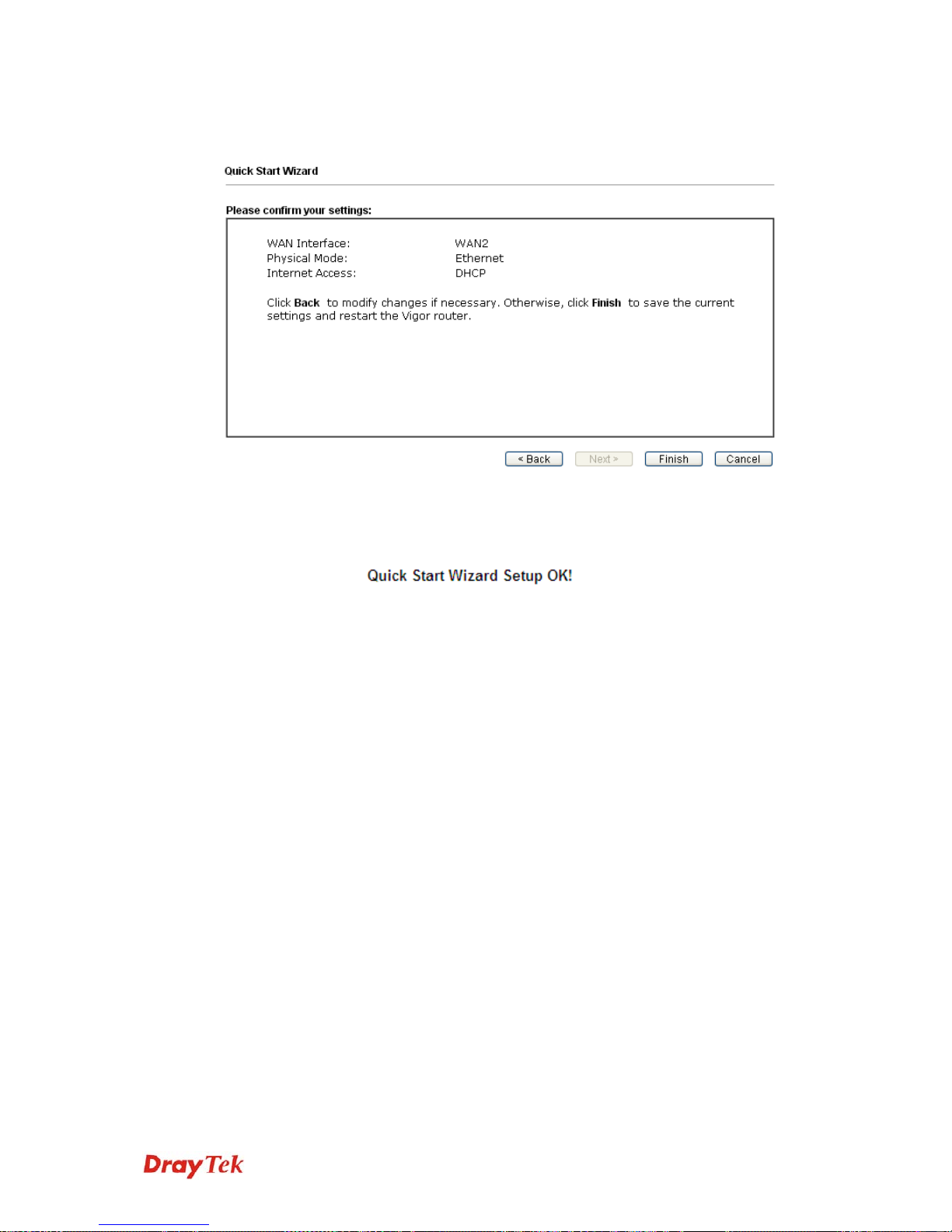

3. After finished the settings above, click Next for viewing summary of
such connection.
4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
5. Now, you can enjoy surfing on the Internet.
Page 34
Vigor2925 Series Quick Start Guide
26

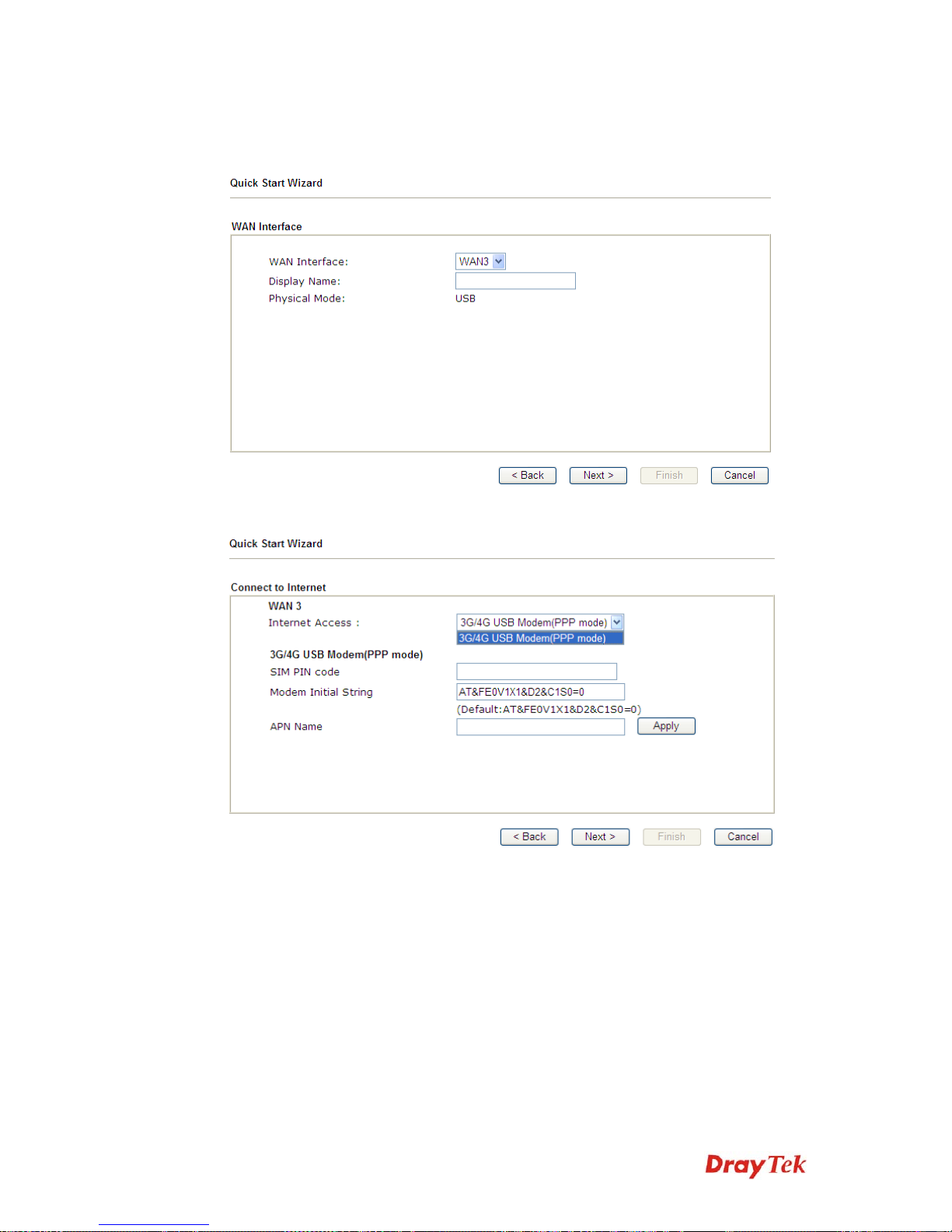

33..22..22 FFoorr WWAANN33 ((UUSSBB))
1. Choose WAN3 as WAN Interface.
2. Then, click Next for getting the following page.
Page 35
Vigor2925 Series Quick Start Guide
27
3. Please type in required information originally provided by your ISP.
Then, click Next for viewing summary of such connection.

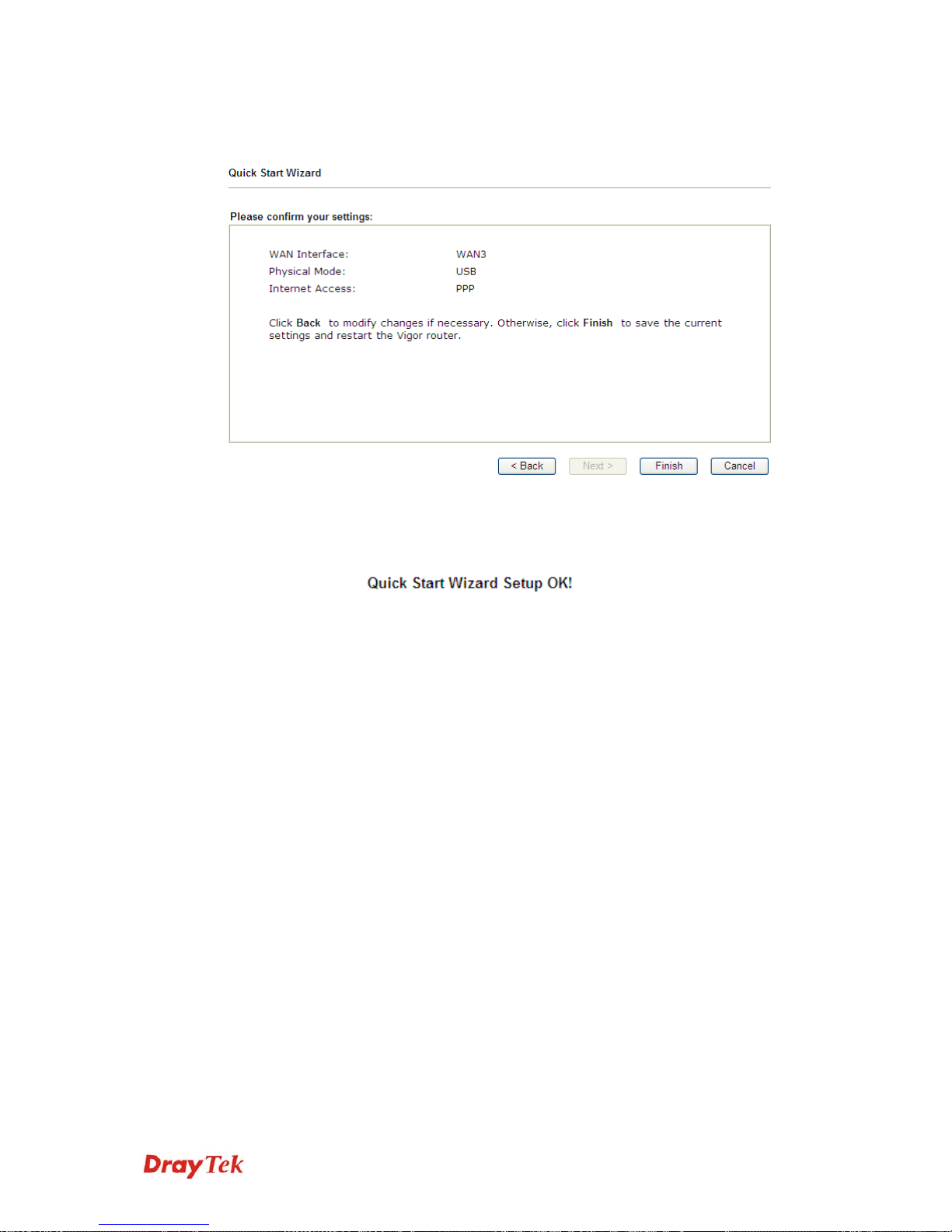

4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
5. Now, you can enjoy surfing on the Internet.
Page 36
Vigor2925 Series Quick Start Guide
28
33..33 WWiirreelleessss CCoonnffiigguurraattiioon
n
For the user of Vigor2925, please skip this section.

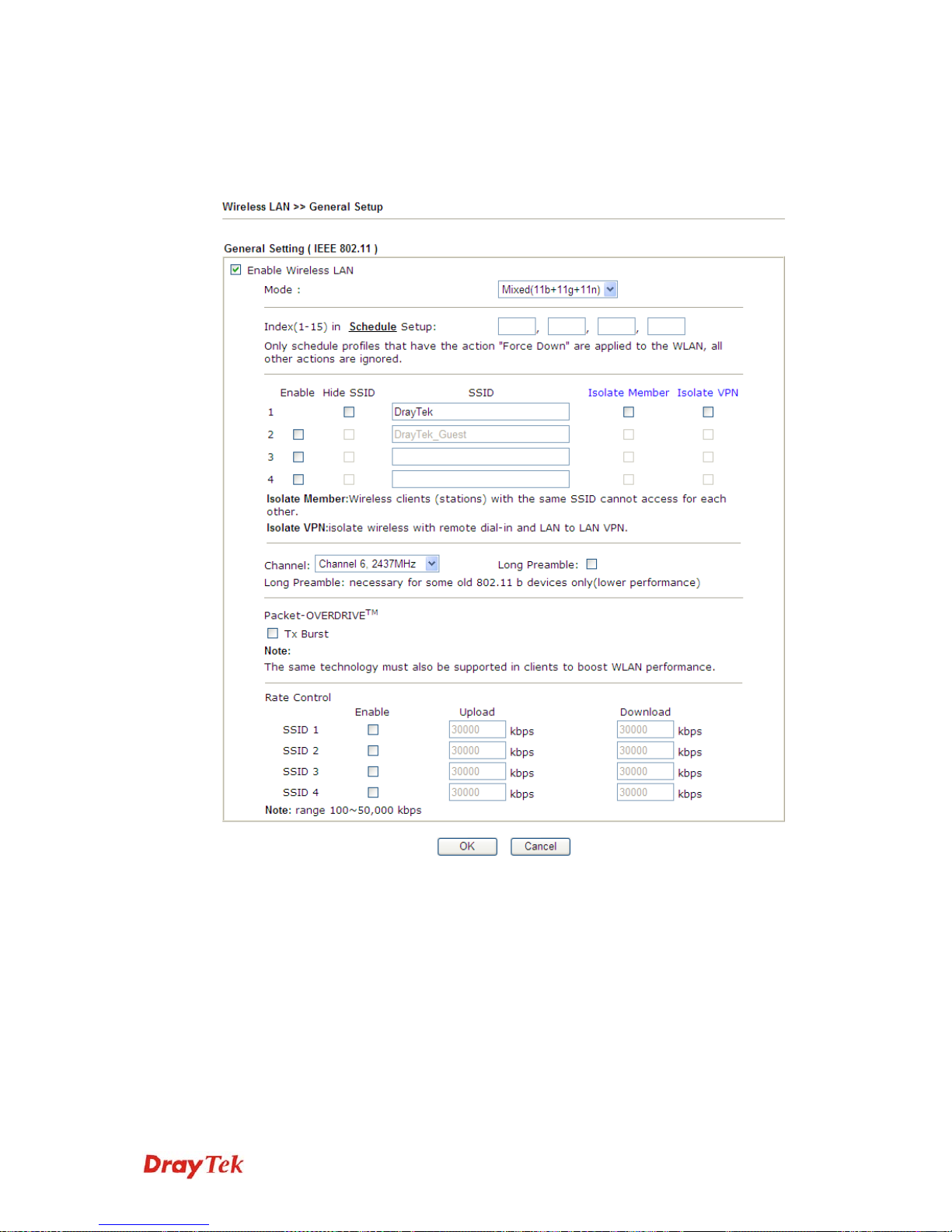

For operating Vigor2925n well, it is necessary for you to set the wireless
LAN settings for using wireless function. Please read the following section
carefully for configuring the settings for this router.
(The default value of Frequency Domain was set by factory depends on the
reselling region.)
33..33..11 BBaassiicc WWiirreelleessss LLAANN CCoonncceepptt

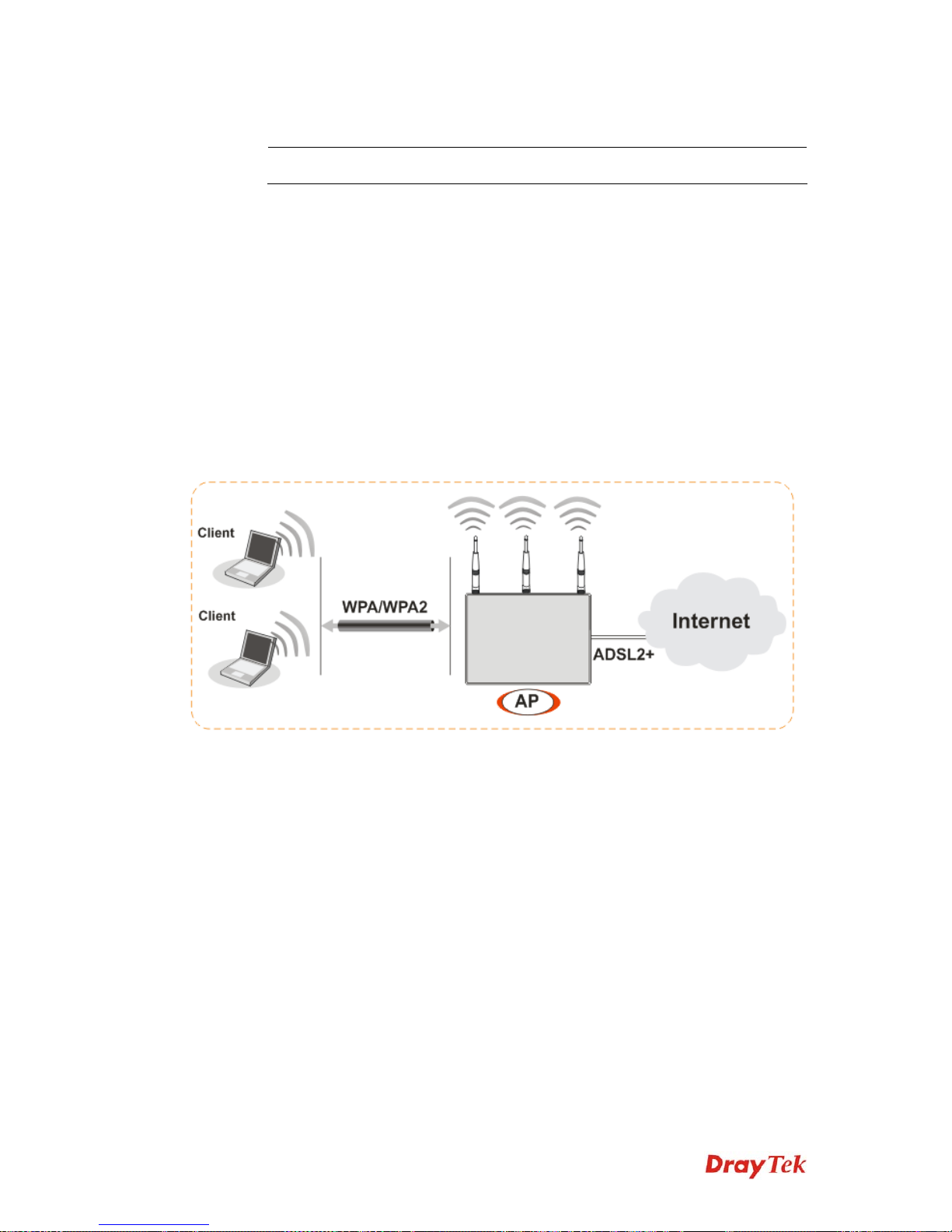

In an Infrastructure Mode of wireless network, Vigor wireless router plays a
role as an Access Point (AP) connecting to lots of wireless clients or
Stations (STA). All the STAs (clients) will share the same Internet
connection with other wired hosts via Vigor wireless router.
Page 37
Vigor2925 Series Quick Start Guide
29
33..33..22 GGeenneerraall SSeettuupp
1. On the Wireless LAN group, select General Setup. The following page
will be shown.
2. Check Enable Wireless LAN to enable the wireless function.
3. At present, the router can connect to 11n Only, 11g Only, Mixed
(11b+11g), Mixed (11a+11n), Mixed (11g+11n), and Mixed
(11b+11g+11n) stations simultaneously. Simply choose Mixed
(11b+11g+11n) mode.
4. Type in the name of the SSID. The default name for SSID is DrayTek.
We suggest you to change it with a particular name.
5. Click OK to save the configuration.
Page 38
Vigor2925 Series Quick Start Guide
30
33..33..33 SSeeccuurriittyy SSeettttiinnggss
1. On the Wireless LAN group, select Security.

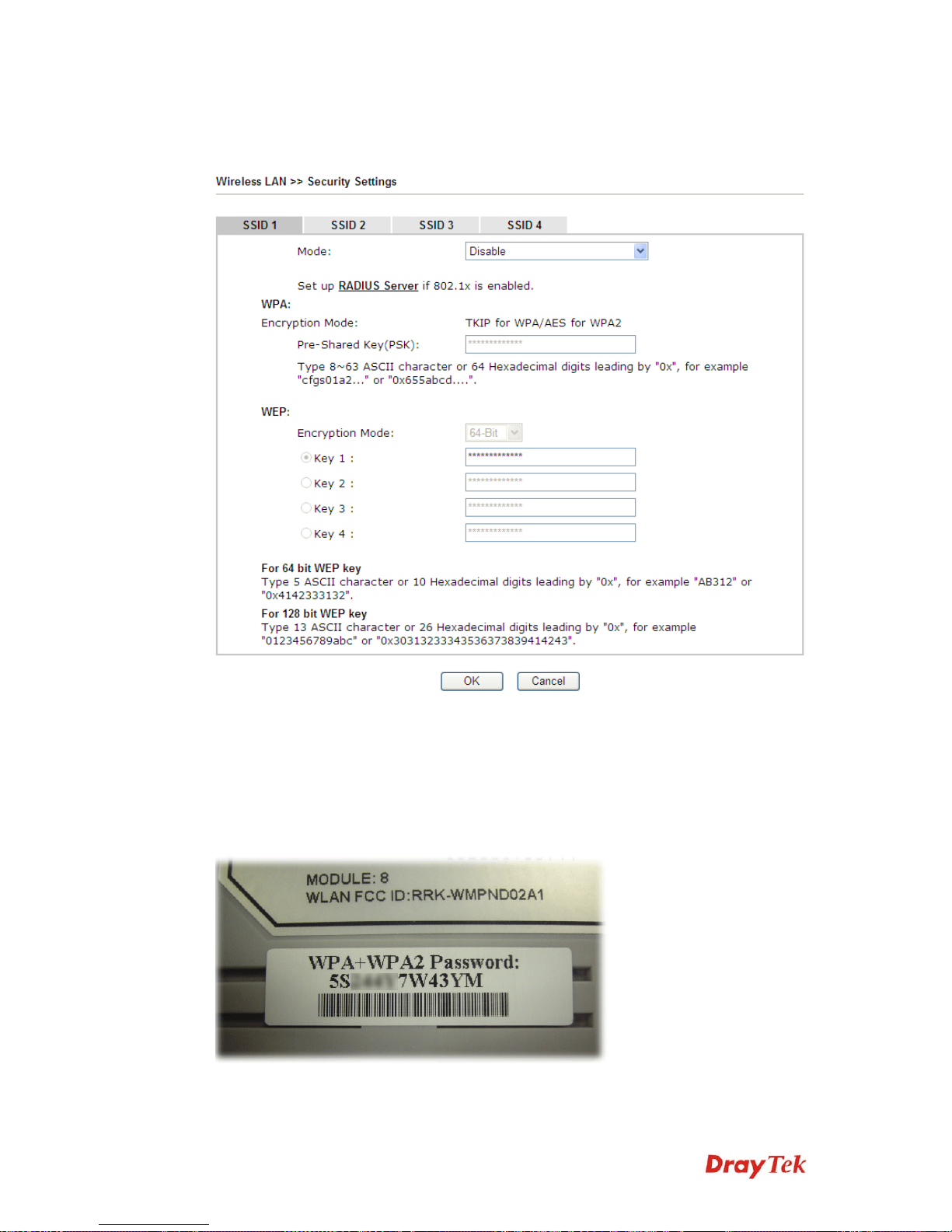

2. The default security mode is Mixed (WPA+WPA2)/PSK. For the
wireless client who wants to access into Internet through such router,
please input the default PSK value for connection.
Default Pre-Shared Key (PSK) with 13 ASCII characters is
provided and stated on the label pasted on the bottom of the router.
Page 39
Vigor2925 Series Quick Start Guide
31
3. Click OK to save settings.
Be aware that for the communication, all wireless devices must support the
same encryption bit length and share the same key. If WEP mode is selected,
only one of four preset keys can be selected at one time.
Page 40
Vigor2925 Series Quick Start Guide
32
This page is left blank.
Page 41
Vigor2925 Series Quick Start Guide
33
44.. TTrroouubbllee SShhoooottiinngg
This section will guide you to solve abnormal situations if you cannot access
into the Internet after installing the router and finishing the web
configuration. Please follow sections below to check your basic installation
status stage by stage.
¾ Checking if the hardware status is OK or not.
¾ Checking if the network connection se ttings on your computer are OK or
not.
¾ Pinging the router from your computer.
¾ Checking if the ISP settings are OK or not.
¾ Backing to factory default setting if necessary.
If all above stages are done and the router still cannot run normally, it is the
time for you to contact your dealer for advanced help.
44..11 CChheecckkiinngg IIff tthhee HHaarrddwwaarree SSttaattuuss IIss OOKK oorr NNoott
Follow the steps below to verify the hardware status.
1. Check the power line and LAN cable connections. Refer to “2.1
Hardware Installation” for details.
2. Turn on the router. Make sure the ACT LED blink once per second and
the correspondent LAN LED is bright.
3. If not, it means that there is something wrong with the hardware status.
Simply back to “2.1 Hardware Installation” to execute the hardware
installation again. And then, try again.
Page 42
Vigor2925 Series Quick Start Guide
34
44..22 CChheecckkiinngg IIff tthhee NNeettwwoorrkk CCoonnnneeccttiioonn SSeettttiinnggss oonn
YYoouurr CCoommppuutteerr IIss OOKK oorr NNoott
Sometimes the link failure occurs due to the wrong network connection
settings. After trying the above section, if the link is stilled failed, please do
the steps listed below to make sure the network connection settings is OK.
FFoorr WWiinnddoowwss
The example is based on Windows XP. As to the examples for
other operation systems, please refer to the similar steps or find
support notes in www.draytek.com.

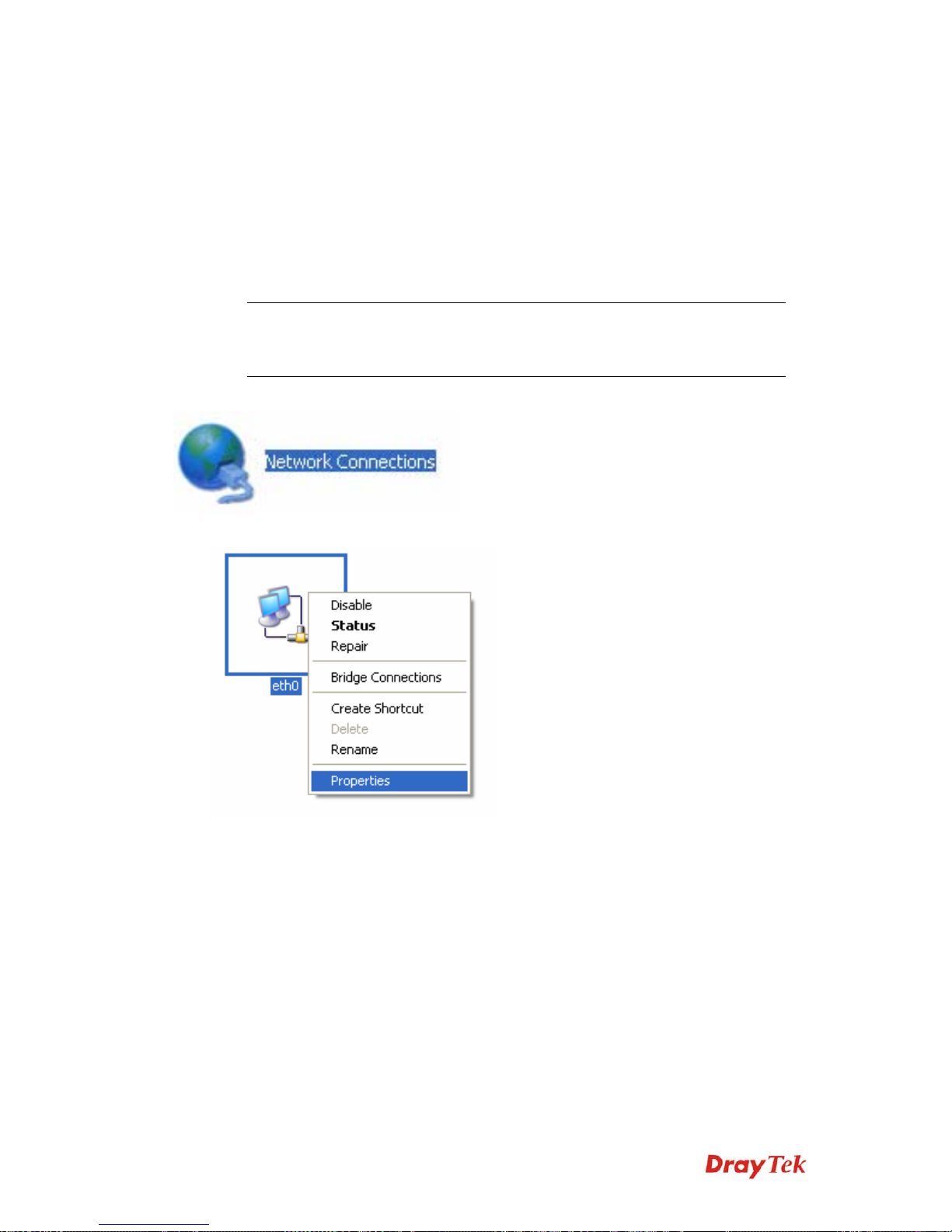

Go to Control Panel and then double-click on Network Connections.
1. Right-click on Local Area Connection and click on Properties.
Page 43
Vigor2925 Series Quick Start Guide
35
2. Select Internet Protocol (TCP/IP) and then click Properties.
3. Select Obtain an IP address automatically and Obtain DNS server
address automatically.
Page 44
Vigor2925 Series Quick Start Guide
36
FFoorr MMaacc OOSS
1. Double click on the current used Mac OS on the desktop.
2. Open the Application folder and get into Network.
3. On the Network screen, select Using DHCP from the drop down list of
Configure IPv4.
Page 45
Vigor2925 Series Quick Start Guide
37
44..33 PPiinnggiinngg tthhee RRoouutteerr ffrroomm YYoouurr CCoommppuutteerr
The default gateway IP address of the router is 192.168.1.1. For some reason,
you might need to use “ping” command to check the link status of the router.
The most important thing is that the computer will receive a reply from
192.168.1.1. If not, please check the IP address of your computer. We
suggest you setting the network connection as get IP automatically. (Please
refer to the section 4.2)
Please follow the steps below to ping the router correctly.
FFoorr WWiinnddoowwss
1. Open the Command Prompt window (from Start menu> Run).
2. Type command (for Windows 95/98/ME) or cmd (for Windows NT/
2000/XP/Vista/7). The DOS command dialog will appear.

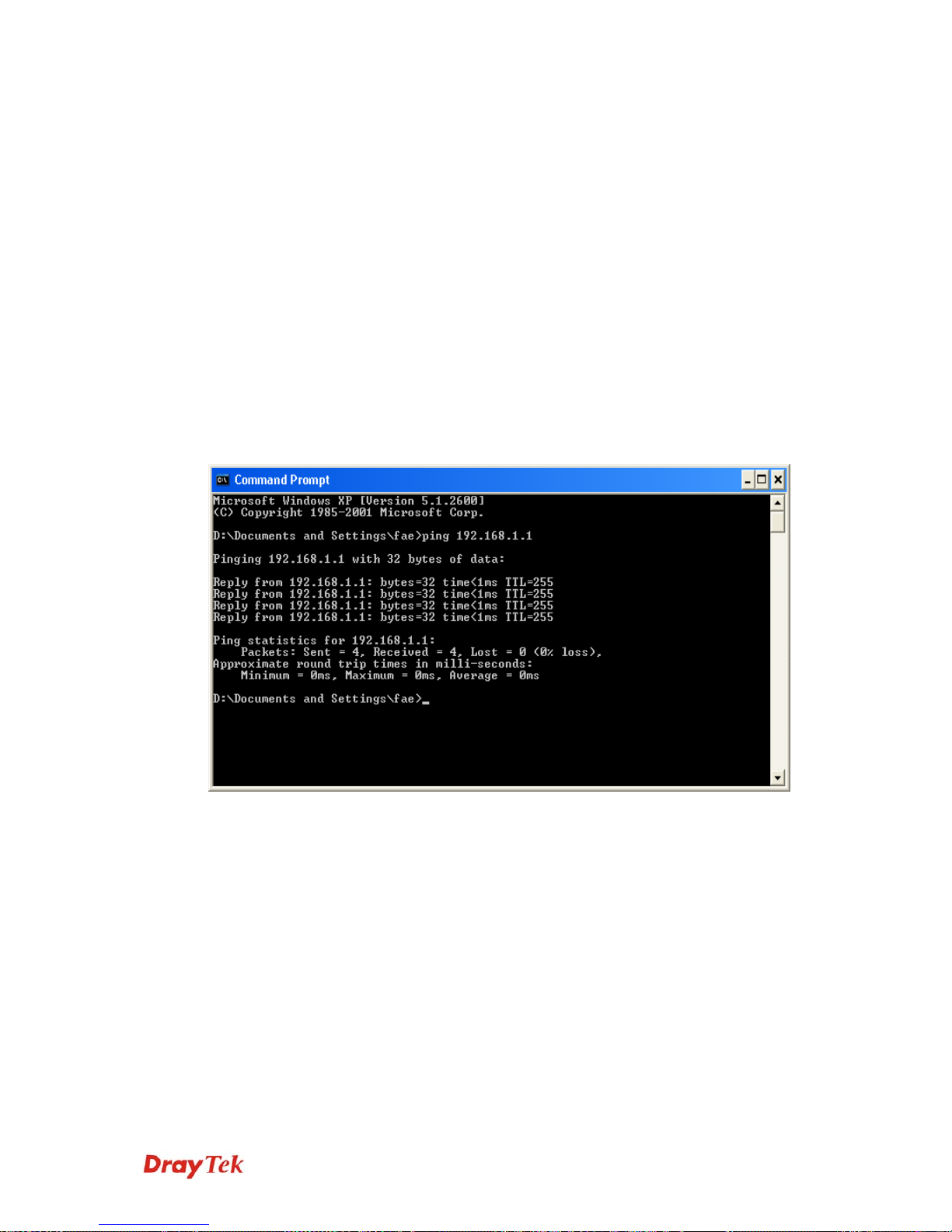

3. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of
“Reply from 192.168.1.1:bytes=32 time<1ms TTL=255” will appear.
4. If the line does not appear, please check the IP address setting of your
computer.
FFoorr MMaacc OOSS ((TTeerrmmiinnaall))
1. Double click on the current used Mac OS on the desktop.
2. Open the Application folder and get into Utilities.
3. Double click Terminal. The Terminal window will appear.

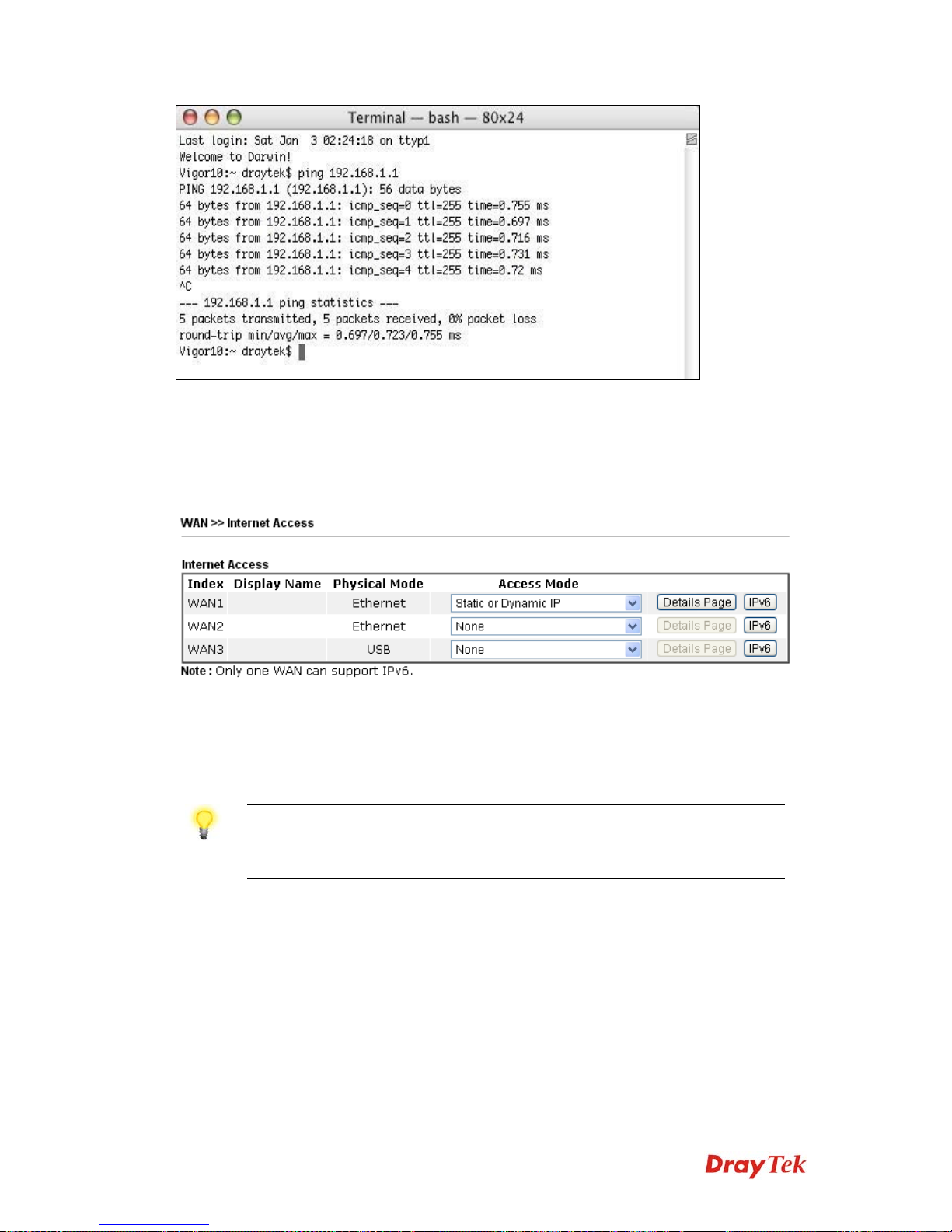

4. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of
“64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will
appear.
Page 46
Vigor2925 Series Quick Start Guide
38
44..44 CChheecckkiinngg IIff tthhee IISSPP SSeettttiinnggss aarree OOKK oorr NNoot
t
Open WAN >> Internet Access page and then check whether the ISP
settings are set correctly. Click Details Page of WAN1/WAN2/WAN3 to
review the settings that you configured previously.
44..55 BBaacckkiinngg ttoo FFaaccttoorryy DDeeffaauulltt SSeettttiinngg IIff NNeecceessssaarry
y
Sometimes, a wrong connection can be improved by returning to the default
settings. Try to reset the router by software or hardware..
Warning: After pressing factory default setting, you will loose
all settings you did before. Make sure you have recorded all
useful settings before you pressing.
Page 47
Vigor2925 Series Quick Start Guide
39
SSooffttwwaarree RReesseett
You can reset the router to factory default via Web page. Go to System
Maintenance and choose Reboot System on the web page. The following
screen will appear. Choose Using factory default configuration and click
Reboot Now. After few seconds, the router will return all the settings to the
factory settings.
HHaarrddwwaarree RReesseett
While the router is running (ACT LED blinking), press the RST button and
hold for more than 5 seconds. When you see the ACT LED blinks rapidly,
please release the button. Then, the router will restart with the default
configuration.
Page 48
Vigor2925 Series Quick Start Guide
40
After restore the factory default setting, you can configure the settings for
the router again to fit your personal request.
44..66 CCoonnttaaccttiinngg YYoouurr DDeeaalleerr
If the router still cannot work correctly after trying many efforts, please
contact your dealer for further help right away. For any questions, please feel
free to send e-mail to [email protected].
Loading...
