Draytek VIGOR 2700GE-E User Manual
Vigor 2700Ge/e
A D S L 2/2+ F irew a l l R ou t er
U ser’s Gu id e
Version: 1.0
D a t e: 2 005 /11/14
Copyright 2005 All rights reserved.
This publication contains information that is protected by copyright. No part may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright
holders. The scope of delivery and other details are subject to change without prior notice.
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP and Explorer are trademarks of Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Computer Inc.
Other products may be trademarks or registered trademarks of their respective manufacturers.
ii
Vigor2700Ge/e User’s Guide
1
2
3
TTaabbllee ooff CCoonntteennttss
Preface................................................................................................................1
1.1 LED Indicators and Connectors...........................................................................................1
1.1.1 LED Explanation...........................................................................................................1
1.1.2 Connector Explanation..................................................................................................2
1.2 Hardware Installation...........................................................................................................2
Configuring Basic Settings...............................................................................5
2.1 Changing Password............................................................................................................5
2.2 Quick Start Wizard...............................................................................................................7
2.2.1 Adjusting Protocol/Encapsulation..................................................................................7
2.2.2 PPPoE/PPPoA..............................................................................................................8
2.2.3 Bridged IP.....................................................................................................................9
2.2.4 Routed IP....................................................................................................................11
2.3 Online Status.....................................................................................................................12
2.4 Saving Configuration.........................................................................................................14
Advanced Web Configuration..................................................................................15
3.1 Internet Access..................................................................................................................15
3.1.1 Basics of Internet Protocol (IP) Network ......................................................................15
3.1.2 PPPoE/PPPoA............................................................................................................16
3.1.3 MPoA..........................................................................................................................18
3.1.4 Multi-PVCs..................................................................................................................20
3.2 LAN ..................................................................................................................................21
3.2.1 Basics of LAN.............................................................................................................21
3.2.2 General Setup.............................................................................................................23
3.2.3 Static Route................................................................................................................25
3.2.4 VLAN..........................................................................................................................28
3.3 NAT...................................................................................................................................30
3.3.1 Port Redirection..........................................................................................................30
3.3.2 DMZ Host ...................................................................................................................32
3.3.3 Open Ports..................................................................................................................34
3.3.4 Well-Known Ports List.................................................................................................36
3.4 Firewall.............................................................................................................................36
3.4.1 Basics for Firewall.......................................................................................................36

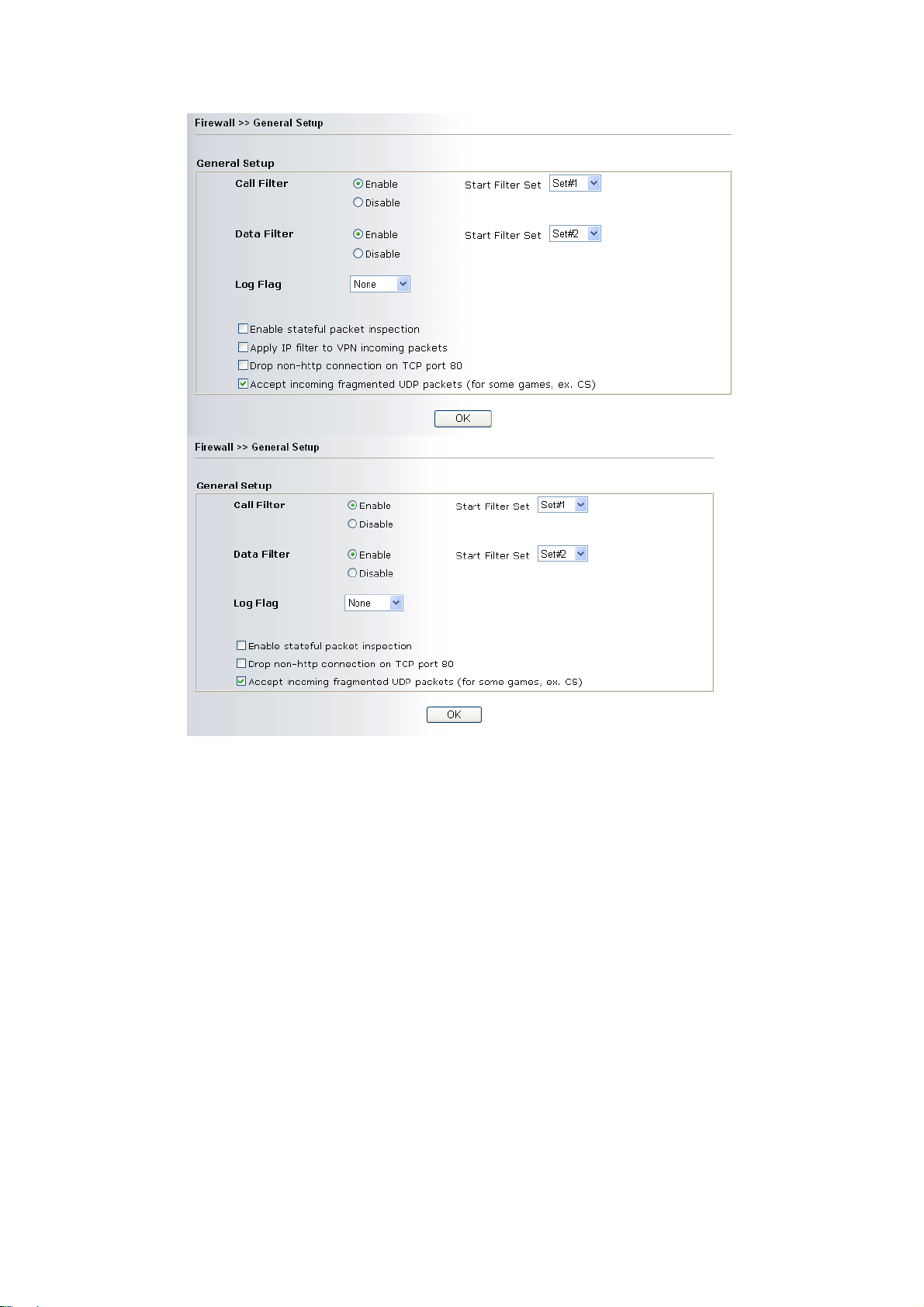

3.4.2 General Setup.............................................................................................................39
3.4.3 Filter Setup.................................................................................................................41
3.4.4 IM Blocking.................................................................................................................44
3.4.5 P2P Blocking..............................................................................................................45
3.4.6 DoS Defense..............................................................................................................46
Vigor2700Ge/e User’s Guide
iii
4
5
3.4.7 URL Content Filter ......................................................................................................48
3.4.8 Web Content Filter......................................................................................................50
3.5 Applications.......................................................................................................................50
3.5.1 Dynamic DNS.............................................................................................................50
3.5.2 Schedule.....................................................................................................................52
3.5.3 UPnP..........................................................................................................................54
3.6 Wireless LAN ....................................................................................................................55
3.8.1 Basic Concept.............................................................................................................56
3.6.2 General Settings.........................................................................................................57
3.6.3 Security.......................................................................................................................58
3.6.4 Access Control............................................................................................................59
3.7 System Maintenance.........................................................................................................60
3.7.1 System Status.............................................................................................................60
3.7.2 Administrator Password ..............................................................................................61
3.7.3 Configuration Backup..................................................................................................62
3.7.4 Syslog/Mail Alert.........................................................................................................63
3.7.5 Time and Date............................................................................................................65
3.7.6 Management...............................................................................................................66
3.7.7 Reboot System ...........................................................................................................67
3.7.8 Firmware Upgrade ......................................................................................................67
3.8 Diagnostics.......................................................................................................................68
3.8.1 PPPoE/PPPoA Diagnostics.........................................................................................68
3.8.2 Triggerred Dial-out Packet Header..............................................................................68
3.8.3 Routing Table.............................................................................................................69
3.8.4 ARP Cache Table.......................................................................................................69

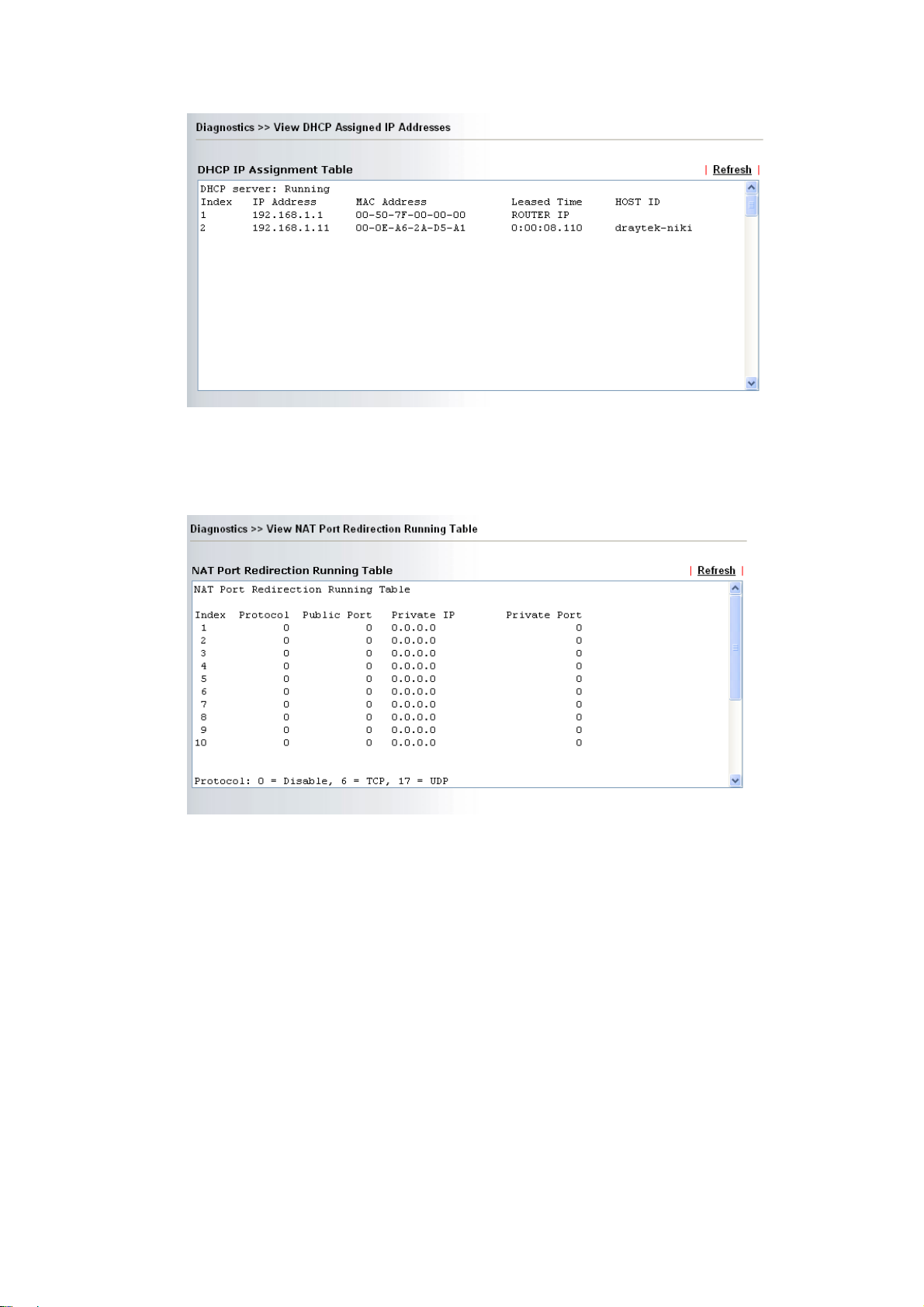

3.8.5 DHCP Table................................................................................................................69
3.8.6 NAT Port Redirection Table.........................................................................................70
3.8.6 NAT Active Sessions Table.........................................................................................71
Application and Examples..............................................................................73
4.4 LAN – Created by Using NAT............................................................................................73
4.2 Upgrade Firmware for Your Router....................................................................................75
Trouble Shooting.............................................................................................78
4.1 Checking If the Hardware Status Is OK or Not ...................................................................78
4.2 Checking If the Network Connection Settings on Your Computer Is OK or Not...................78
4.3 Pinging the Router from Your Computer ............................................................................81
4.4 Checking If the ISP Settings are OK or Not........................................................................83
4.5 Backing to Factory Default Setting If Necessary.................................................................84
4.6 Contacting Your Dealer......................................................................................................85
iv
Vigor2700Ge/e User’s Guide
1
ACT
ADSL2/2+ Router
ACT
ADSL2/2+ Router
Prreeffaaccee
P
Targeting requirement for residential, SOHO (Small Office and Home Office) and business
users, the Vigor2700Ge/e is an ADSL2/2+ enabled integrated access device. With downstream
speed up to 12Mbps (ADSL2) or 24Mbps (ADSL2+), the Vigor2700Ge/e provides
exceptional bandwidth for Internet access.
To secure your network, the Vigor2700Ge/e provides an advanced firewall with advanced
features, such as Stateful Packet Inspection (SPI) to offer network reliability by detecting and
prohibiting malicious penetrating packets or DoS attacks, user-configurable web filtering for
parental control against network abuse etc.
Vigor 2700Ge is embedded with an 802.11g compliant wireless module which provides
wireless LAN access with data rate as much as 54Mbps. As for data privacy of wireless
network, the Vigor2700Ge can encode all transmissions data with standard WEP and
industrial strength WPA2 (IEEE 802.11i) encryption. Additional features include Wireless
Client List and MAC Address Control for maintaining control over user’s authorization in
your network, and Hidden SSID for being invisible to outside intruders scanning.
11..11 LLEEDD IInnddiiccaattoorrss aanndd CCoonnnneeccttoorrss
The displays of LED indicators and connectors for the routers are different slightly.
For Vigor2700Ge
WLAN
For Vigor2700e
11..11..11 LLEEDD EExxppllaannaattiioonn
LED
(Activity)
WLAN
Link
ADSL2+
Data
4)
Status Explanation
Blinking The router is powered on and running properly. ACT
On The router is powered on.
Off Wireless access point is turned off.
On Wireless access point is ready.
Blinking Wireless traffic goes through.
On ADSL is show time. ADSL2+
Blinking The device starts handshaking.
Blinking Data is transmitting.
Green A normal connection is through its corresponding port. LAN (1, 2, 3,
Blinking Ethernet packets are transmitting.
ADSL2+
Link
Data
ADSL2+
Link
Data
LAN
123
4
LAN
123
4
Vigor2700Ge/e User’s Guide
1
Factory
OFF
PWR
Factory
OFF
PWR
Factory
OFF
PWR
Factory
OFF
PWR
11..11..22 CCoonnnneeccttoorr EExxppllaannaattiioonn
e
FFoorr VViiggoorr22770000GGe
ADSL 2+
ADSL 2+
FFoorr VViiggoorr22770000e
ADSL 2+
ADSL 2+
e
Rese t
LAN
Rese t
LAN
Rese t
LAN
Rese t
LAN
ON
for Annex A
ON
for Annex B
ON
for Annex A
ON
for Annex B
Interface
Description
ADSL 2+ Connecter for accessing the Internet through ADSL 2+.
LAN 4 – 1
Connecter for local networked devices.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the router will restart
with the factory default configuration.
ON/OFF Power Switch.
PWR Connecter for a power adapter with 7~7.5VDC.
11..22 HHaarrddwwaarree IInnssttaallllaattiioonn
Before starting to configure the router, you have to connect your devices correctly.
1. Connect the DSL interface to the external ADSL splitter with an ADSL line cable.
2. Connect one port of 4-port switch to your computer with a RJ-45 cable. This device
allows you to connect 4 PCs directly.
3. Connect one end of the power cord to the power port of this device. Connect the other
end to the wall outlet of electricity.
4. Power on the router.
5. Check the ACT and ADSL2+, LAN LEDs to assure network connections.
(For the detailed information of LED status, please refer to section 1.1.)
2
Vigor2700Ge/e User’s Guide
Vigor2700Ge/e User’s Guide
3
4
Vigor2700Ge/e User’s Guide
2
Coonnffiigguurriinngg
C
For use the router properly, it is necessary for you to change the password of web
configuration for security and adjust primary basic settings.
This chapter explains how to setup a password for an administrator and how to adjust basic
settings for accessing Internet successfully. Be aware that only the administrator can change
the router configuration.
22..11 CChhaannggiinngg PPaasssswwoorrdd
To change the password for this device, you have to access into the web browse with default
password first.
1. Make sure your computer connects to the router correctly.
Notice: You may either simply set up your computer to get IP dynamically
from the router or set up the IP address of the computer to be the same
subnet as the default IP address of Vigor router 192.168.1.1. For the
detailed information, please refer to the later section - Trouble Shooting of
this guide.
2. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will
open to ask for username and password. Please type default values (both username and
password are Null) on the window for the first time accessing and click OK for next
screen.
Baassiicc
B
Seettttiinnggss
S
3. Now, the Main Screen will pop up.
Vigor2700Ge/e User’s Guide
5
4. Go to System Maintenance page and choose Administrator Password.
5. Enter the login password (the default is blank) on the field of Old Password. Type a new
one in the field of New Password and retype it on the field of Retype New Password.
Then click OK to continue.
6. Now, the password has been changed. Next time, use the new password to access the
Web Configurator for this router.
6
Vigor2700Ge/e User’s Guide
22..22 QQuuiicckk SSttaarrtt WWiizzaarrdd
If your router can be under an environment with high speed NAT, the configuration provide
here can help you to deploy and use the router quickly. The first screen of Quick Start
Wizard is entering login password. After typing the password, please click Next.
22..22..11 AAddjjuussttiinngg PPrroottooccooll//EEnnccaappssuullaattiioonn
In the Quick Start Wizard, you can configure the router to access the Internet with different
protocol/modes such as PPPoE, PPPoA, Bridged IP, or Routed IP. The router supports the
Ethernet WAN interface for Internet access.
Now, you have to select an appropriate WAN connection type for connecting to the Internet
through this router according to the settings that your ISP provided.
VPI Stands for Virtual Path Identifier. It is an 8-bit header inside each
Vigor2700Ge/e User’s Guide
ATM cell that indicates where the cell should be routed. The ATM,
is a method of sending data in small packets of fixed sizes. It is
used for transferring data to client computers.
7
VCI Stands for Virtual Channel Identifier. It is a 16-bit field inside
ATM cell’s header that indicates the cell’s next destination as it
travels through the network. A virtual channel is a logical
connection between two end devices on the network.
Protocol/Encapsulation Select an IP mode for this WAN interface. There are several
available modes for Internet access such as PPPoE, PPPoA,
Bridged IP and Routed IP.
Fixed IP Click Yes to specify a fixed IP for the router. Otherwise, click No
(Dynamic IP) to allow the router choosing a dynamic IP. If you
choose No, the following IP Address, Subnet Mask and Default
Gateway will not be changed.
IP Address Assign a private IP address for the protocol that you select.
Subnet Mask Assign a subnet mask value for the protocol of Routed IP and
Bridged IP.
Default Gateway Assign a private IP address to the gateway for the protocol of
Routed IP and Bridged IP.
Primary DNS Assign a private IP address to the primary DNS.
Second DNS Assign a private IP address to the secondary DNS.
22..22..22 PPPPPPooEE//PPPPPPooAA
PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted
standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a
common broadband medium, such as a single DSL line, wireless device or cable modem. All
the users over the Ethernet can share a common connection. And the PPPoA stands for
Point-to-Point Protocol over ATM. PPPoA uses the PPP dial-up protocol with ATM as the
transport.
PPPoE or PPPoA is used for most of DSL modem users. All local users can share one PPPoE
or PPPoA connection for accessing the Internet. Your service provider will provide you
information about user name, password, and authentication mode.
If your ISP provides you the PPPoE or PPPoA connection, please select PPPoE or PPPoA
for this router. The following page will be shown:
ISP Name Assign a specific name for ISP requirement.
8
Vigor2700Ge/e User’s Guide
User Name Assign a specific valid user name provided by the ISP.
Password Assign a valid password provided by the ISP.
Confirm Password Retype the password.
Always On Check this box to allow the router connecting to Internet forever.
Idle Timeout Type in the value (unit is second) as the idle timeout of the
connection.
Click Next for viewing summary of such connection.
Click Finish. The online status of this protocol will be shown as below.
22..22..33 BBrriiddggeedd IIPP
Click 1483 Bridged IP as the protocol. Type in all the information that your ISP provides for
this protocol.
Vigor2700Ge/e User’s Guide
9
After finishing the settings in this page, click Next to see the following page.
Click Finish. The online status of this protocol will be shown as below.
10
Vigor2700Ge/e User’s Guide
22..22..44 RRoouutteedd IIPP
Click 1483 Routed IP as the protocol. Type in all the information that your ISP provides for
this protocol.
After finishing the settings in this page, click Next to see the following page.
Click Finish. The online status of this protocol will be shown as below.
Vigor2700Ge/e User’s Guide
11
22..33 OOnnlliinnee SSttaattuuss
The online status shows the system status, WAN status, ADSL Information and other status
related to this router within one page. If you select PPPoE or PPPoA as the protocol, you will
find out a button of Dial PPPoE or Dial PPPoE in the Online Status web page.
Online status for PPPoA/PPPoE
12
Vigor2700Ge/e User’s Guide
Online status for Bridge
Online status for Routed IP
Primary DNS Displays the assigned IP address of the primary DNS.
Secondary DNS Displays the assigned IP address of the secondary DNS.
IP Address (in LAN) Displays the IP address of the LAN interface.
TX Packets Displays the total transmitted packets at the LAN interface.
RX Packets Displays the total number of received packets at the LAN interface.
GW IP Addr: Displays the assigned IP address of the default gateway.
IP Address (in WAN) Displays the IP address of the WAN interface.
TX Rate Displays the speed of transmitted packets at the WAN interface.
RX Rate Displays the speed of received packets at the WAN interface.
Up Time Displays the total system uptime of the interface.
ADSL Information Displays the firmware version of this router.
Vigor2700Ge/e User’s Guide
13
22..44 SSaavviinngg CCoonnffiigguurraattiioonn
Each time you click OK on the web page for saving the configuration, you can find messages
showing the system interaction with you.
Ready indicates the system is ready for you to input settings.
Settings Saved means your settings are saved once you click Finish or OK button.
14
Vigor2700Ge/e User’s Guide
3
Addvvaanncceedd
A
After finished basic configuration of the router, you can access Internet with ease. For the
people who want to adjust more settings for suiting his/her request, please refer to this chapter
for getting detailed information about the advanced configuration of this router. As for other
examples of application, please refer to Chapter 4.
33..11 IInntteerrnneett AAcccceessss
33..11..11 BBaassiiccss ooff IInntteerrnneett PPrroottooccooll ((IIPP)) NNeettwwoorrkk
IP means Internet Protocol. Every device in an IP-based Network including routers, print
server, and host PCs, needs an IP address to identify its location on the network. To avoid
address conflicts, IP addresses are publicly registered with the Network Information Centre
(NIC). Having a unique IP address is mandatory for those devices participated in the public
network but not in the private TCP/IP local area networks (LANs), such as host PCs under the
management of a router since they do not need to be accessed by the public. Hence, the NIC
has reserved certain addresses that will never be registered publicly. These are known as
private IP addresses, and are listed in the following ranges:
From 10.0.0.0 to 10.255.255.255
From 172.16.0.0 to 172.31.255.255
From 192.168.0.0 to 192.168.255.255
Weebb
W
Coonnffiigguurraattiioonn
C
WWhhaatt aarree PPuubblliicc IIPP AAddddrreessss aanndd PPrriivvaattee IIPP AAddddrreessss
As the router plays a role to manage and further protect its LAN, it interconnects groups of
host PCs. Each of them has a private IP address assigned by the built-in DHCP server of the
Vigor router. The router itself will also use the default private IP address: 192.168.1.1 to
communicate with the local hosts. Meanwhile, Vigor router will communicate with other
network devices through a public IP address. When the data flow passing through, the
Network Address Translation (NAT) function of the router will dedicate to translate
public/private addresses, and the packets will be delivered to the correct host PC in the local
area network. Thus, all of the host PCs can share a common Internet connection.
GGeett YYoouurr PPuubblliicc IIPP AAddddrreessss ffrroomm IISSPP
To acquire a public IP address from your ISP for Vigor router as a customer premises
equipment, there are three common protocols: Point to Point Protocol over Ethernet (PPPoE),
PPPoA and MPoA. Multi-PVC is provided for more advanced setup of the above.
In ADSL deployment, the PPP (Point to Point)-style authentication and authorization is
required for bridging customer premises equipment (CPE). Point to Point Protocol over
Ethernet (PPPoE) connects a network of hosts via an access device to a remote access
concentrator or aggregation concentrator. This implementation provides users with significant
ease of use. Meanwhile it provides access control, billing, and type of service according to
user requirement.
When a router begins to connect to your ISP, a serial of discovery process will occur to ask for
a connection. Then a session will be created. Your user ID and password is authenticated via
PAP or CHAP with RADIUS authentication system. And your IP address, DNS server, and
other related information will usually be assigned by your ISP.
Vigor2700Ge/e User’s Guide
15
33..11..22 PPPPPPooEE//PPPPPPooAA
PPPoA, included in RFC1483, can be operated in either Logical Link Control-Subnetwork
Access Protocol or VC-Mux mode. As a CPE device, Vigor router encapsulates the PPP
session based for transport across the ADSL loop and your ISP’s Digital Subscriber Line
Access Pultiplexer (SDLAM).
To choose PPPoE or PPPoA as the accessing protocol of the internet, please select
PPPoE/PPPoA from the Internet Access menu. The following web page will be shown.
16
PPPoE/PPPoA Client Click Enable for activating this function. If you click Disable, this
function will be closed and all the settings that you adjusted in this
page will be invalid.
DSL Modem Settings Set up the DSL parameters required by your ISP. These are vital for
building DSL connection to your ISP.
Multi-PVC channel – The selections displayed here are determined
by the page of Internet Access – Multi PVCs. Select M-PVCs
Channel means no selection will be chosen.
VPI - Type in the value provided by ISP.
VCI - Type in the value provided by ISP.
Encapsulating Type - Drop down the list to choose the type
provided by ISP.
Protocol - Drop down the list to choose the one provided by ISP.
If you have already used Quick Start Wizard to set the protocol,
then it is not necessary for you to change any settings in this group.
PPPoE Pass-through The router offers PPPoE dial-up connection. Besides, you also can
establish the PPPoE connection directly from local clients to your
ISP via the Vigor router.
Vigor2700Ge/e User’s Guide
For Wired LAN – If you check this box, PCs on the same network
can use another set of PPPoE session (different with the Host PC) to
access into Internet.
For Wireless LAN – If you check this box, PCs on the same
network through wireless connection can use another set of PPPoE
session (different with the Host PC) to access into Internet.
ISP Access Setup Enter your allocated username, password and authentication
parameters according to the information provided by your ISP. If
you want to connect to Internet all the time, you can check Always
On.
ISP Name – Type in the ISP Name provided by ISP in this field.
Username – Type in the username provided by ISP in this field.
Password – Type in the password provided by ISP in this field.
PPP Authentication – Select PAP only or PAP or CHAP for PPP.
Always On – Check this box if you want the router keeping
connecting to Internet forever.
Idle Timeout – Set the timeout for breaking down the Internet after
passing through the time without any action.
IP Address From ISP Usually ISP dynamically assigns IP address to you each time you
connect to it and request. In some case, your ISP provides service to
assign you the same IP address whenever you request. In this case,
you can fill in this IP address in the Fixed IP field. Please contact
your ISP before you want to use this function.
Fixed IP – Click Yes to use this function and type in a fixed IP
address in the box.
WAN IP Alias - If you have multiple public IP addresses and would
like to utilize them on the WAN interface, please use WAN IP Alias.
You can set up to 8 public IP addresses other than the current one
you are using.
Vigor2700Ge/e User’s Guide
By checking the checkbox Join NAT IP Pool, data from NAT hosts
will be round-robin forwarded on a session basis.
17
If you do not check Join NAT IP Pool, you can still use these public
IP addresses for other purpose, such as DMZ host, Open Ports.
Default MAC Address Type in MAC address for the router. You can use Default MAC
Address or specify another MAC address for your necessity.
MAC Address – Type in the MAC address for the router manually.
Index (1-15) in
Schedule Setup
You can type in four sets of time schedule for your request. All the
schedules can be set previously in Application – Schedule web
page and you can use the number that you have set in that web
page.
After finishing all the settings here, please click OK to activate them.
33..11..33 MMPPooAA
MPoA is a specification that enables ATM services to be integrated with existing LANs,
which use either Ethernet, token-ring or TCP/IP protocols. The goal of MPoA is to allow
different LANs to send packets to each other via an ATM backbone.
18
Vigor2700Ge/e User’s Guide
To choose MPoA as the accessing protocol of the internet, please select MPoA from the
Internet Access menu. The following web page will be shown.
MPoA (RFC1483/2684) Click Enable for activating this function. If you click Disable, this
function will be closed and all the settings that you adjusted in this
page will be invalid.
DSL Modem Settings Set up the DSL parameters required by your ISP. These are vital for
building DSL connection to your ISP.
Multi-PVC channel - The selections displayed here are determined
by the page of Internet Access – Multi PVCs. Select M-PVCs
Channel means no selection will be chosen.
Encapsulating Type - Drop down the list to choose the type
provided by ISP.
VPI - Type in the value provided by ISP.
VCI - Type in the value provided by ISP.
RIP Protocol Routing Information Protocol is abbreviated as RIPRFC1058
specifying how routers exchange routing tables information. Click
Enable RIP for activating this function.
Bridge Mode If you choose Bridged IP as the protocol, you can check this box to
invoke the function.
WAN IP Network
Settings
This group allows you to obtain an IP address automatically and
allows you type in IP address manually.
Obtain an IP address automatically – Click this button to obtain
the IP address automatically.
Router Name – Type in the router name provided by ISP.
Domain Name – Type in the domain name that you have assigned.
WAN IP Alias - If you have multiple public IP addresses and would
like to utilize them on the WAN interface, please use WAN IP Alias.
You can set up to 8 public IP addresses other than the current one
you are using.
Vigor2700Ge/e User’s Guide
19
Default MAC Address Type in MAC address for the router. You can use Default MAC
DNS Server IP
Address
After finishing all the settings here, please click OK to activate them.
33..11..44 MMuullttii--PPVVCCss
This router allows you to create multi-PVCs for different data transferring for using. Simply
go to Internet Access and select Multi-PVC Setup page.
Specify an IP address – Click this radio button to specify some data.
IP Address – Type in the private IP address.
Subnet Mask – Type in the subnet mask.
Gateway IP Address – Type in gateway IP address.
Address or specify another MAC address for your necessity.
MAC Address – Type in the MAC address for the router manually.
Type in the primary IP address for the router. If necessary, type in
secondary IP address for necessity in the future.
Enable Type in the primary IP address for the router. If necessary, type
20
Vigor2700Ge/e User’s Guide
VPI Type in the value provided by your ISP.
VCI Type in the value provided by your ISP.
QoS Type Select a proper QoS type for the channel.
Protocol Select a proper protocol for this channel.
Encapsulation Choose a proper type for this channel. The types will be different
according to the protocol setting that you choose.
33..22 LLAANN
Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design of
network structure is related to what type of public IP addresses coming from your ISP.
33..22..11 BBaassiiccss ooff LLAANN
The most generic function of Vigor router is NAT. It creates a private subnet of your own. As
mentioned previously, the router will talk to other public hosts on the Internet by using public
IP address and talking to local hosts by using its private IP address. What NAT does is to
translate the packets from public IP address to private IP address to forward the right packets
to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that assigns
private IP address to each local host. See the following diagram for a briefly understanding.
Vigor2700Ge/e User’s Guide
21
In some special case, you may have a public IP subnet from your ISP such as
220.135.240.0/24. This means that you can set up a public subnet or call second subnet that
each host is equipped with a public IP address. As a part of the public subnet, the Vigor router
will serve for IP routing to help hosts in the public subnet to communicate with other public
hosts or servers outside. Therefore, the router should be set as the gateway for public hosts.
WWhhaatt iiss RRoouuttiinngg IInnffoorrmmaattiioonn PPrroottooccooll ((RRIIPP))
Vigor router will exchange routing information with neighboring routers using the RIP to
accomplish IP routing. This allows users to change the information of the router such as IP
address and the routers will automatically inform for each other.
WWhhaatt iiss SSttaattiicc RRoouuttee
When you have several subnets in your LAN, sometimes a more effective and quicker way for
connection is the Static routes function rather than other method. You may simply set rules to
forward data from one specified subnet to another specified subnet without the presence of
RIP.
22
Vigor2700Ge/e User’s Guide
Loading...
