DrayTek Vigor 2110, Vigor 2110n, Vigor 2110Vn Quick Install Guide

i
Vigor2110F Series Quick Start Guide
Vigor2110F Series Quick Start Guide
ii
Vigor2110F Series
Quick Start Guide
Version: 1.0
Date: 03/11/2009
iii
Vigor2110F Series Quick Start Guide
Copyright Information
Copyright Declarations
Trademarks
Copyright 2009 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.
The following trademarks are used in this document:
z Microsoft is a registered trademark of Microsoft Corp. z Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are
trademarks of Microsoft Corp.
z Apple and Mac OS are registered trademarks of Apple Inc. z Other products may be trademarks or registered trademarks of their
respective manufacturers.
Safety Instructions and Approval
Safety Instructions
Warranty
z Read the installation guide thoroughly before you set up the router. z The router is a complicated electronic unit that may be repaired only be
authorized and qualified personnel. Do not try to open or repair the router yourself.
z Do not place the router in a damp or humid place, e.g. a bathroom. z Do not stack the routers. z The router should be used in a sheltered area, within a temperature range
of +5 to +40 Celsius.
z Do not expose the router to direct sunlight or other heat sources. The
housing and electronic components may be damaged by direct sunlight or heat sources.
z Do not deploy the cable for LAN connection outdoor to prevent electronic
shock hazards.
z Keep the package out of reach of children. z When you want to dispose of the router, please follow local regulations on
conservation of the environment. We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to pr o per o perating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in th e contents hereof without obligation to notify any person of such revision or changes.
Be a Registered Owner
Firmware & Tools Updates
Web registration is preferred. You can register your Vigor router via http://www.draytek.com.
Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
http://www.draytek.com
Vigor2110F Series Quick Start Guide
iv
European Community Declarations
Manufacturer: DrayTek Corp. Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor2110F Series Router
DrayTek Corp. declares that Vigor2110F Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN5 5024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1.
Regulatory Information
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
z Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired
operation.
Please visit http://www.draytek.com/user/AboutRegulatory.php
This product is designed for POTS and 2.4GHz WLAN network throughout the EC region and Switzerland with restrictions in France. Please see the user manual for the applicable networks on your product.
v
Vigor2110F Series Quick Start Guide
Vigor2110F Series Quick Start Guide
vi
TTaabbllee ooff CCoonntteennttss
1. Introduction........................................................................................................... 1
1.1 Panel Explanation ...................................................................................................................... 2
1.1.1 For Vigor2110F............................................................................................................. 2
1.1.2 For Vigor2110FV...........................................................................................................4
1.1.3 For Vigor2110Fn...........................................................................................................6
1.1.4 For Vigor2110FVn......................................................................................................... 8
1.2 Package Content...................................................................................................................... 10
2. Installing Your Router..........................................................................................11
2.1 Hardware Installation.................................................................................................................11
Stand Installation.................................................................................................................. 12

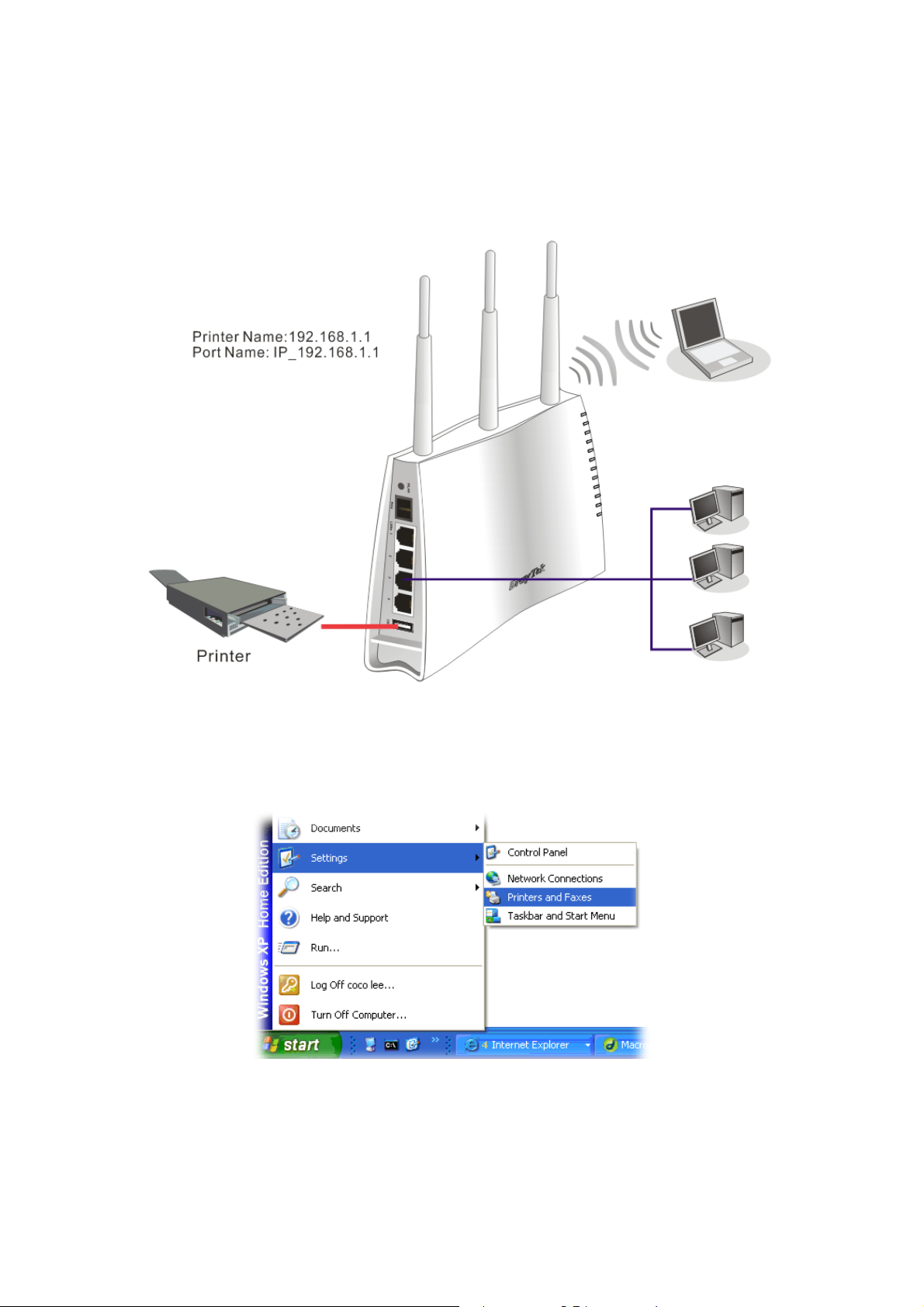

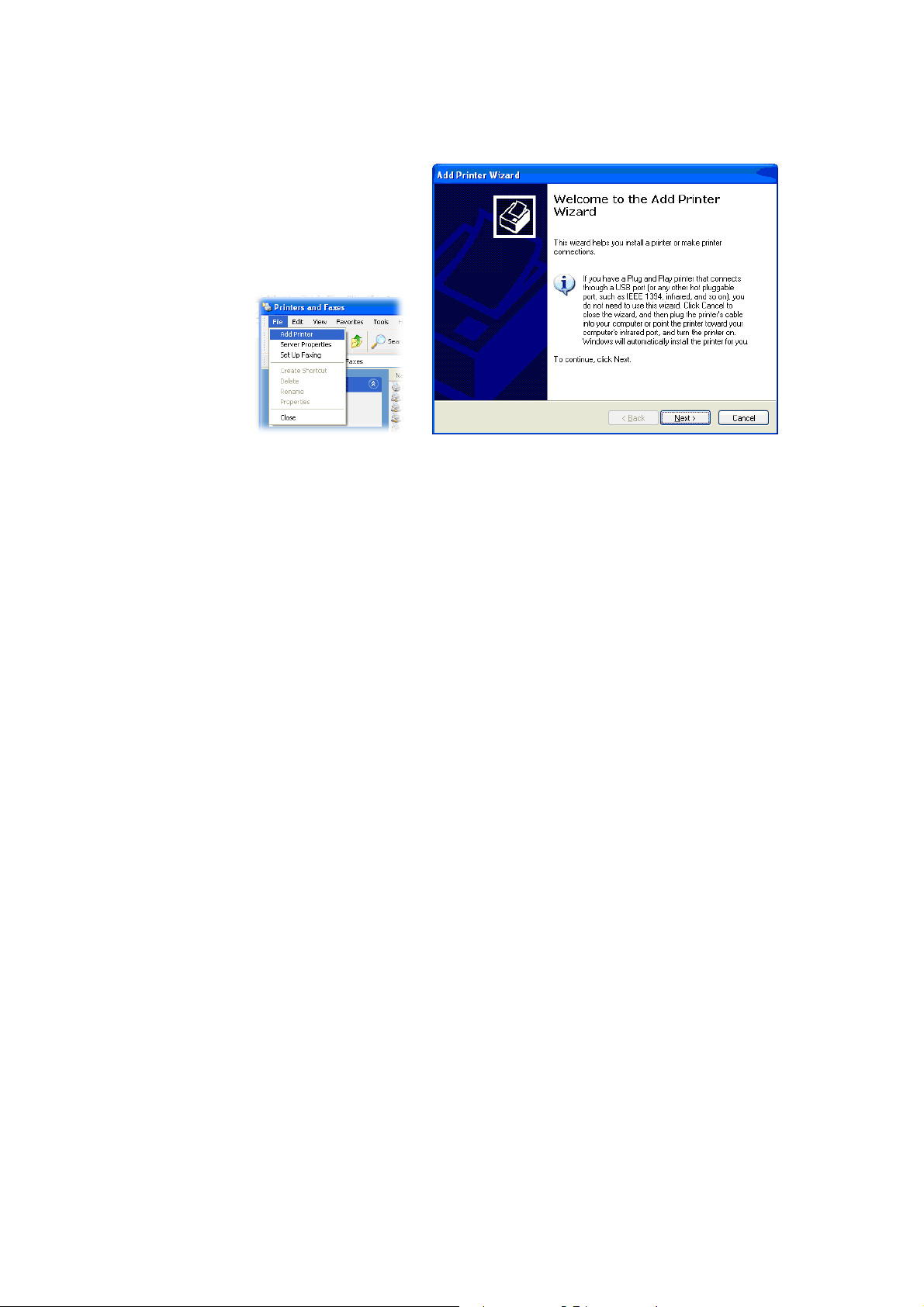

2.2 Printer Installation..................................................................................................................... 13
3. Configuring Web Pages..................................................................................... 19

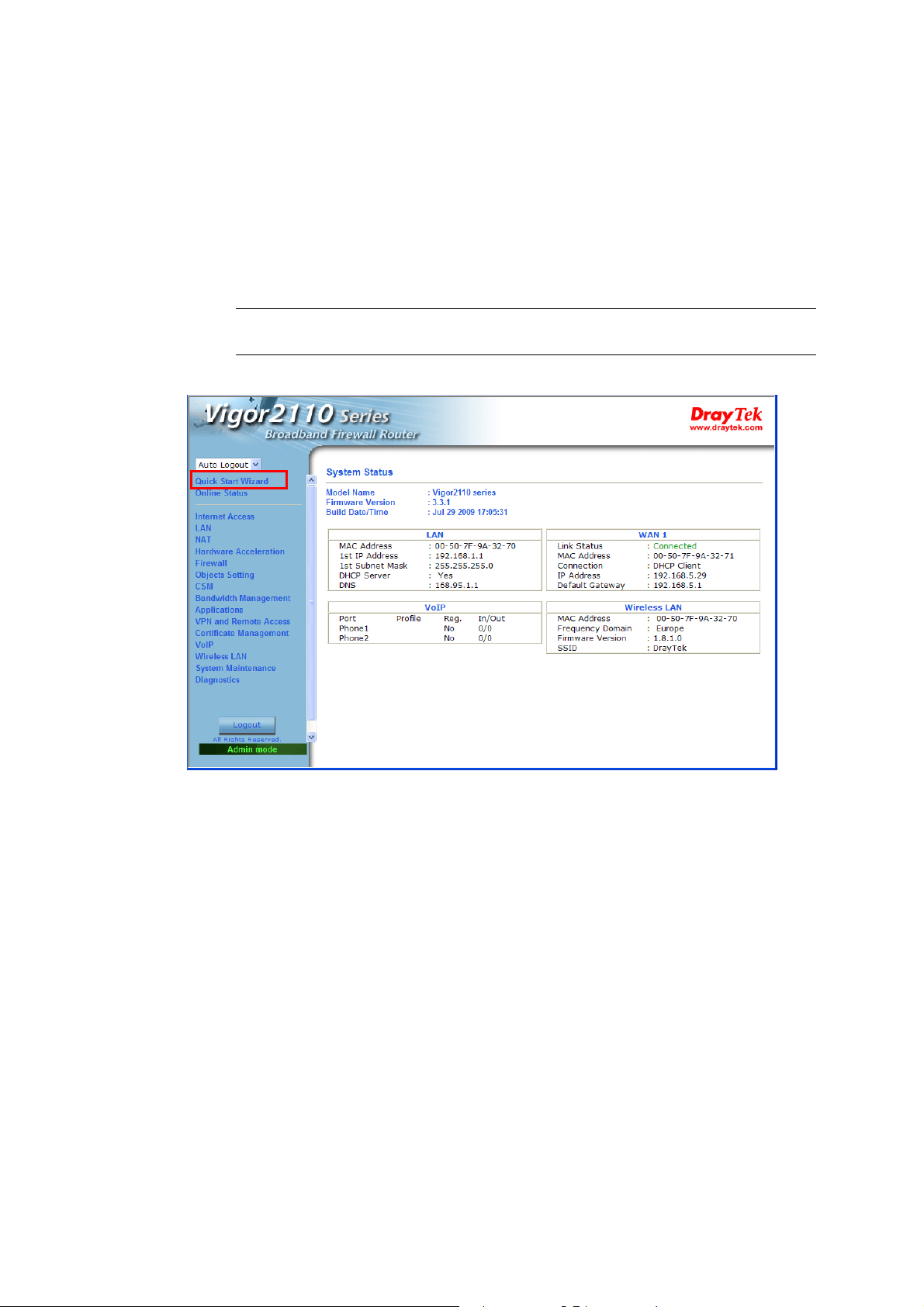

3.1 Accessing Web Page ............................................................................................................... 19

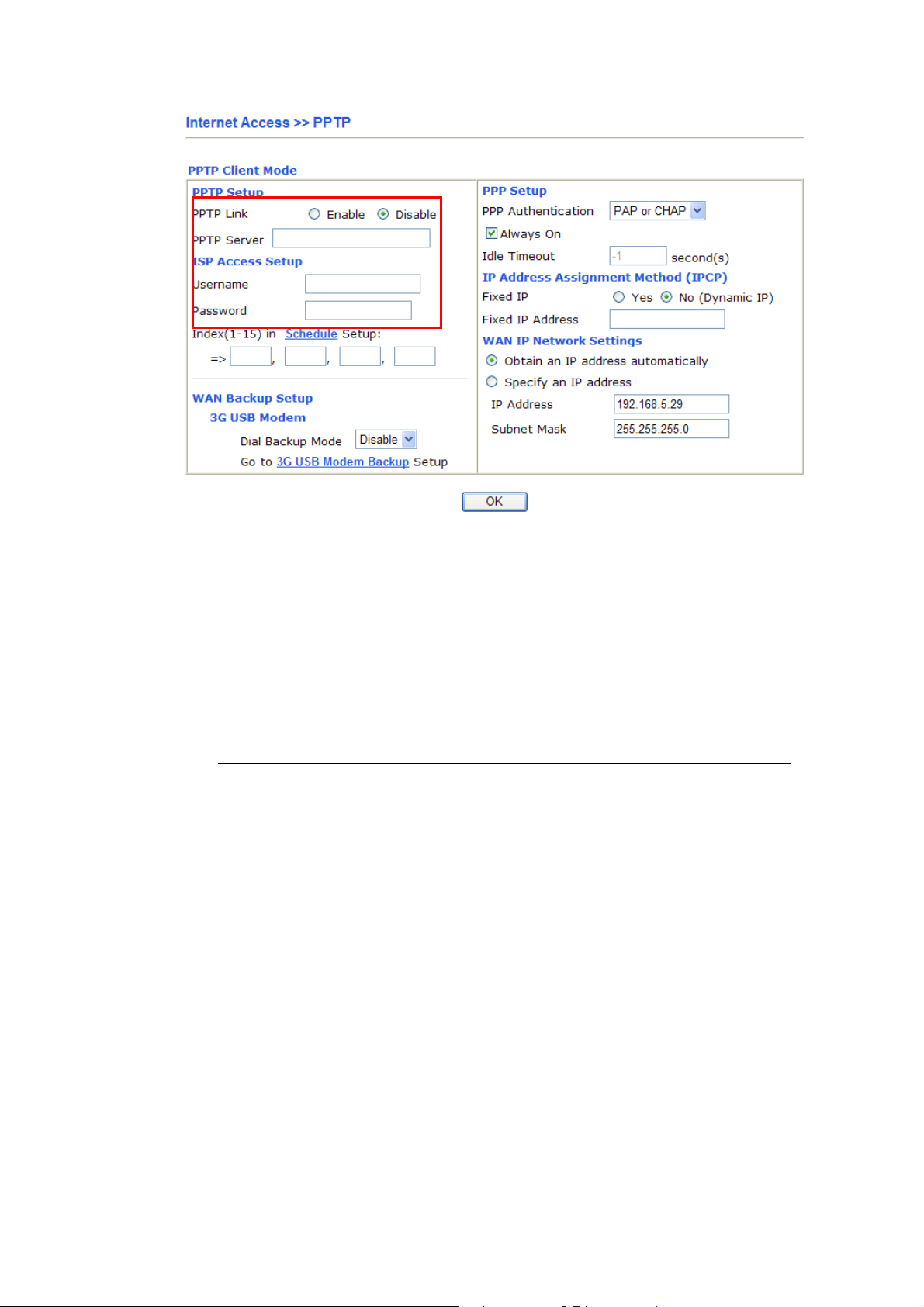

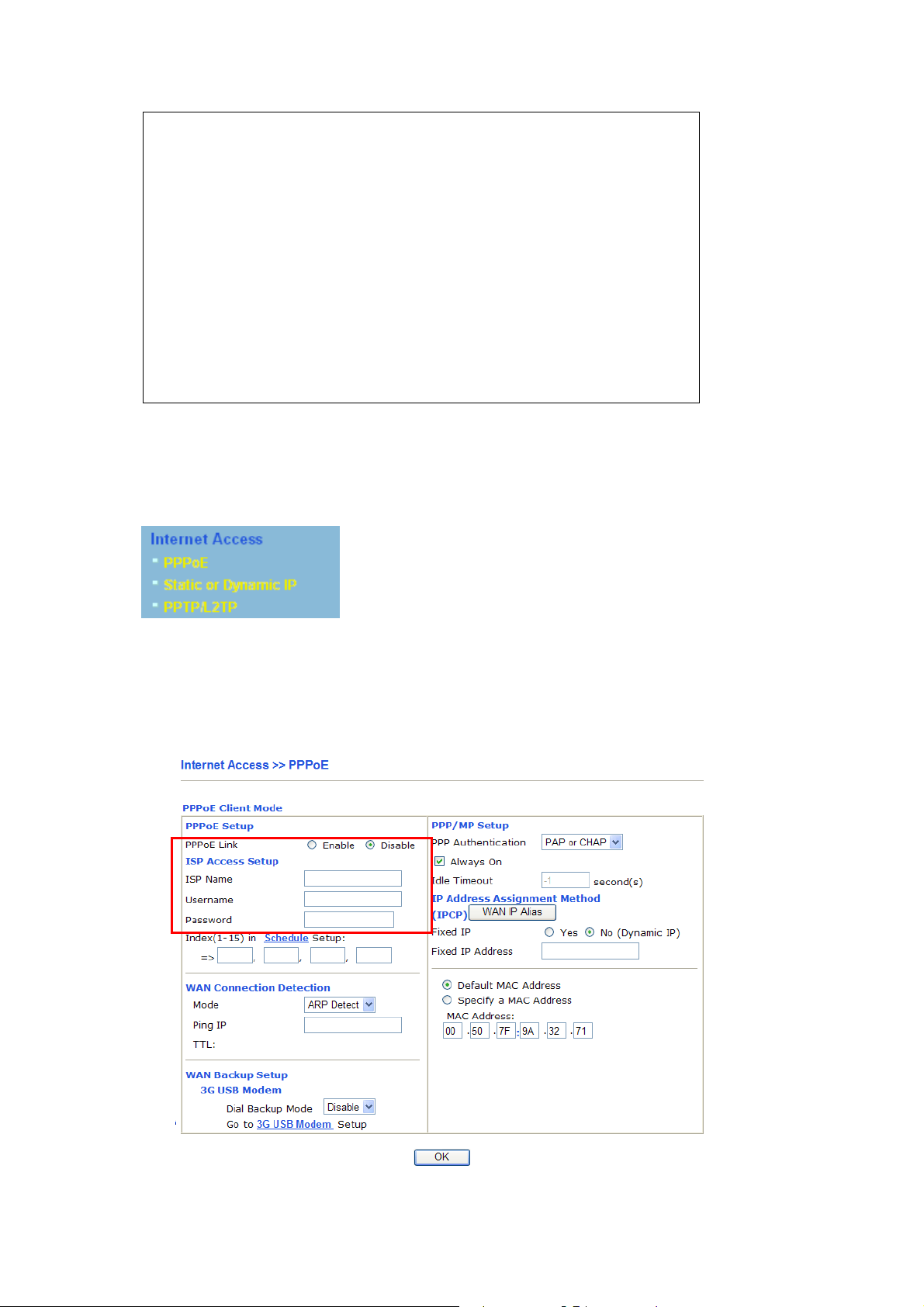

3.2 Basic Configuration..................................................................................................................20
3.3 Wireless Configuration.............................................................................................................24
3.3.1 Basic Wireless LAN Concept......................................................................................24
3.3.2 General Setup.............................................................................................................24

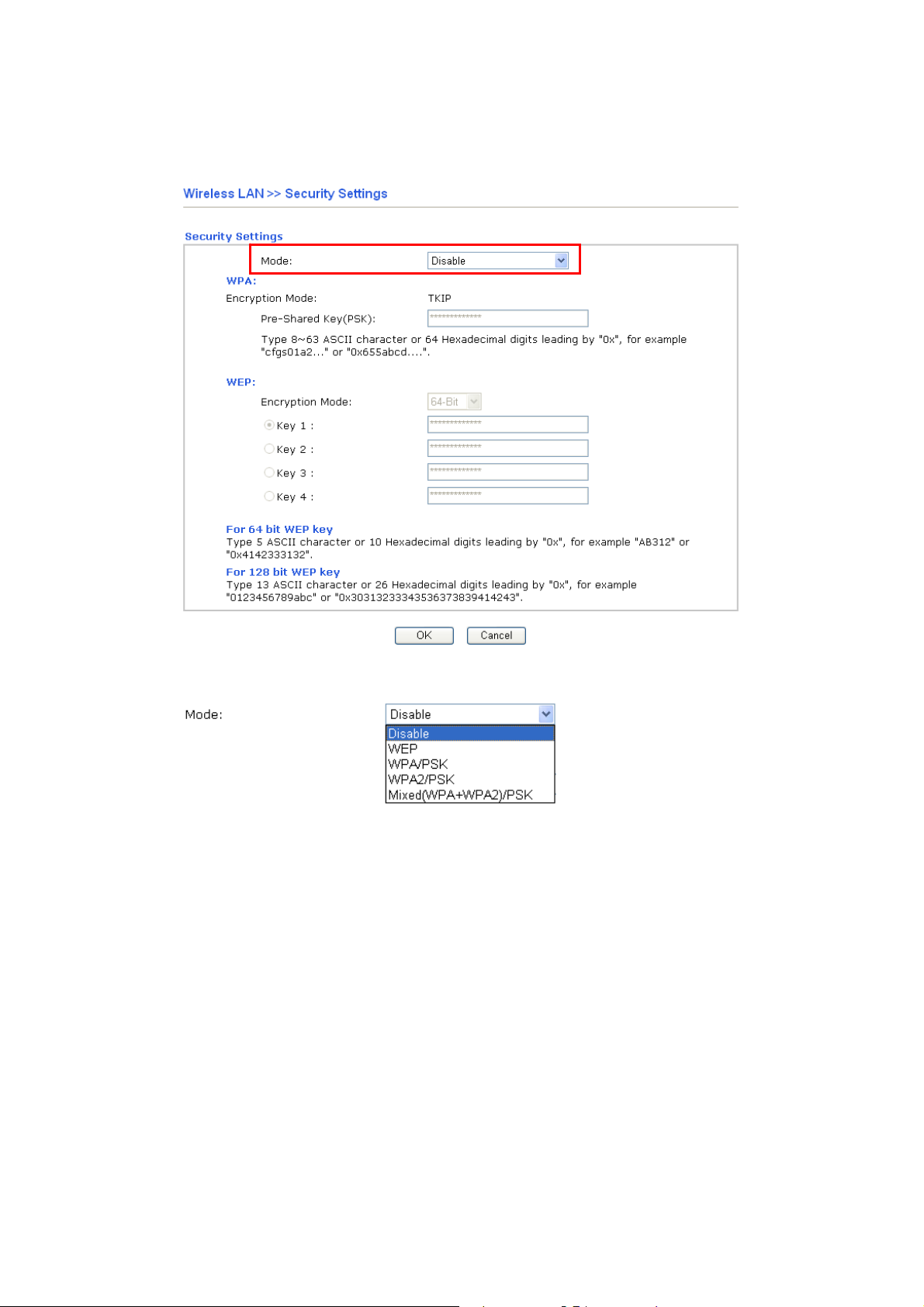

3.3.3 Security Settings.........................................................................................................26
4. Trouble Shooting................................................................................................ 28
4.1 Checking If the Hardware Status Is OK or Not.........................................................................28
4.2 Checking If the Network Connection Settings on Your Computer Is OK or Not ...................... 29

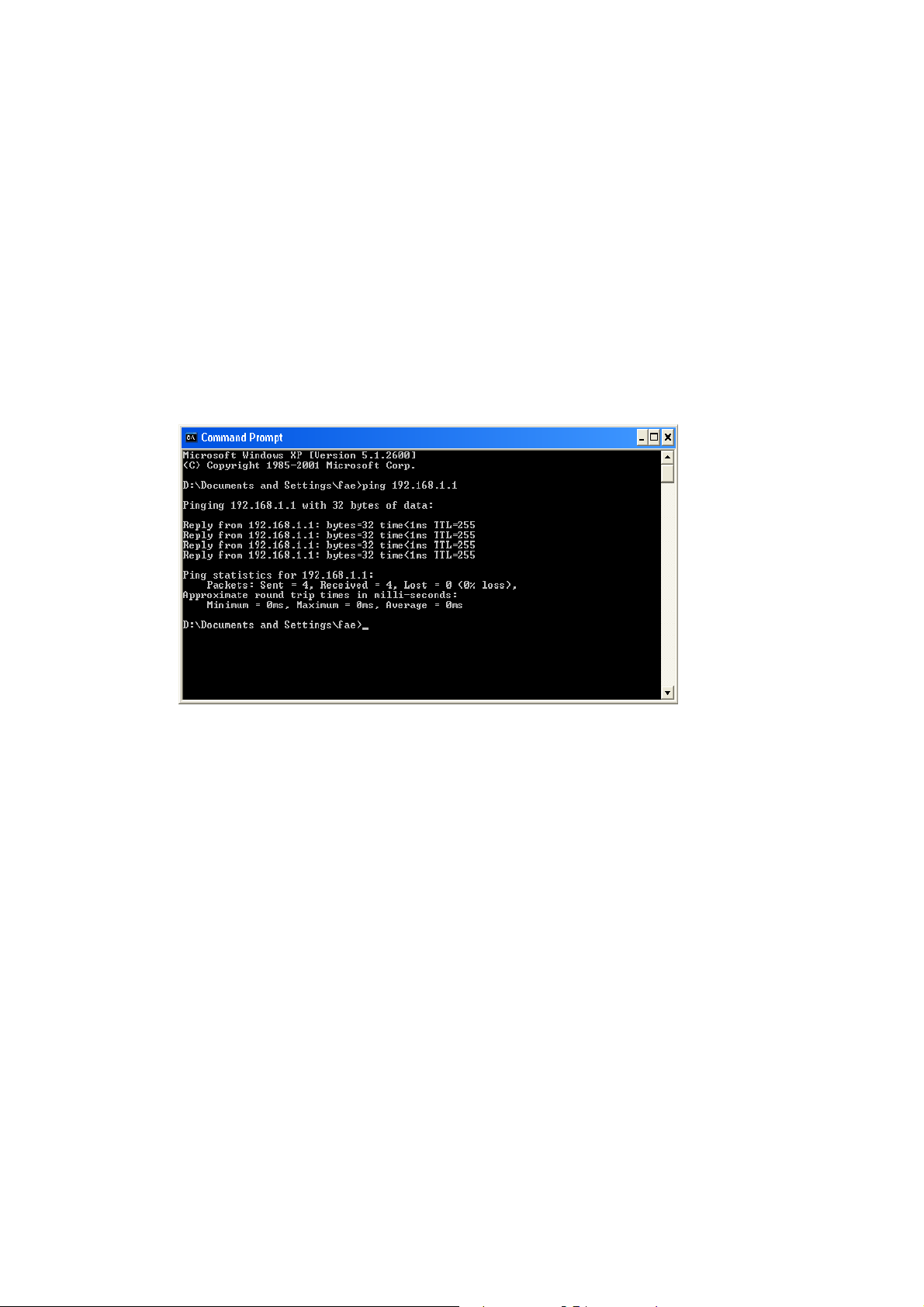

4.3 Pinging the Router from Your Computer..................................................................................31
4.4 Checking If the ISP Settings are OK or Not.............................................................................32
4.5 Backing to Factory Default Setting If Necessary...................................................................... 34
4.6 Contacting Your Dealer ............................................................................................................35
vii
Vigor2110F Series Quick Start Guide
Vigor2110F Series Quick Start Guide
viii
11.. IInnttrroodduuccttiioonn
Vigor2110F series is a broadband router which connects to Internet through optical fiber (up to 100MB/sec).The Vigor2110F series features advanced bandwidth control mechanism such as IP-layer QoS, NAT Session Limitation, Bandwidth Borrowed, etc., to allow easy, flexible, reliable access control and bandwidth management.
The SPI (Stateful Packet Inspection) firewall uses object-based design to make settings of firewall policies easy. The CSM (Content Security Management) feature allows more precise and efficient access control for URL/Web Content Filtering, IM (Instant Messenger) and P2P (Peer to Peer) applications.
Vigor2110F supports up to 2 VPN tunnels using advanced protocols such as IPSec/PPTP/L2TP/L2TP over IPSec with AES/DES/3DES for encryption and MD5/SHA-1 for authentication.
Vigor2110 ‘n’ models comply with 802.11n Draft-n standards. They support WEP/WPA/WPA2 encryption and MAC Address Control, Wireless LAN Isolation. The Wireless Rate Control function can adjust the data rate of each wireless station (client).
Vigor2110 ‘V’ models provide two analogue phone connectors and one line port. It supports multiple SIP registrars with high flexible configuration and call handing options.
In addition, Vigor2110F series supports USB interface for connecting USB printer to share printer or USB storage device for sharing files. Vigor2110F series provides two-level management to simplify the configuration of network connection. The user mode allows user accessing into WEB interface via simple configuration. However, if users want to have advanced configurations, they can access into WEB interface through admin mode.
1
Vigor2110F Series Quick Start Guide
11..11 PPaanneell EExxppllaannaattiioonn
11..11..11 FFoorr VViiggoorr22111100FF
LED Status Explanation
ACT (Activity)
CSM On The profile(s) of CSM (Content
LAN 1/2/3/4
VPN On The VPN tunnel is active. QoS
WCF On The profile(s) of CSM (Content
Interface Description
WAN Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB Connector for USB storage device (Pen
Blinking The router is powered on and running
normally.
Off The router is powered off.
Security Management) for IM/P2P, URL/Web Content Filter application can be enabled from Firewall >>General Setup. (Such profile must be established under CSM menu).
On The WAN port is connected. WAN Blinking It will blink while transmitting data. On The port is connected. Off The port is disconnected. Blinking The data is transmitting. On A USB device is connected and active.USB Blinking The data is transmitting.
On The QoS function is active. On The DoS/DDoS function is active. DoS
Blinking It will blink while detecting an attack.
Security Management) for Web Content Filter application can be enabled from Firewall >>General Setup. (Such profile must be established under CSM menu)
Driver/Mobile HD) or printer.
Vigor2110F Series Quick Start Guide
2
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press
the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
PWR Connector for a power adapter. ON/OFF
Power Switch.
3
Vigor2110F Series Quick Start Guide
11..11..22 FFoorr VViiggoorr22111100FFVV
LED Status Explanation
ACT (Activity)
CSM On The profile(s) of CSM (Content
LAN 1/2/3/4
Phone1/ Phone2
Line
WCF
WPS
WPS Button
Interface Description
WAN Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB Connector for USB storage (Pen Driver/Mobile
Blinking The router is powered on and running
normally.
Off The router is powered off.
Security Management) for IM/P2P, URL/Web Content Filter application can be enabled from Firewall >>General Setup. (Such profile must be established under CSM menu).
On The WAN port is connected. WAN Blinking It will blink while transmitting data. On The port is connected. Off The port is disconnected. Blinking The data is transmitting. On A USB device is connected and active.USB Blinking The data is transmitting. On The phone connected to this port is
off-hook.
Off The phone connected to this port is
on-hook.
Blinking A phone call comes. On A PSTN phone call comes (in and out).
However, when the phone call is disconnected, the LED will be off
about six seconds later. Off There is no PSTN phone call. On The profile(s) of CSM (C ontent
Security Management) for Web
Content Filter application can be
enabled from Firewall >>General
Setup. (Such profile must be
established under CSM menu) On The WPS is on.
Off The WPS is off. Blinking Waiting for wirele ss clie nt sending
requests for connection about two
minutes. On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS connection
will be on. Off The WPS is off. Blinking Waiting for wirele ss clie nt sending
requests for connection about two
minutes.
HD) or printer.
Vigor2110F Series Quick Start Guide
4

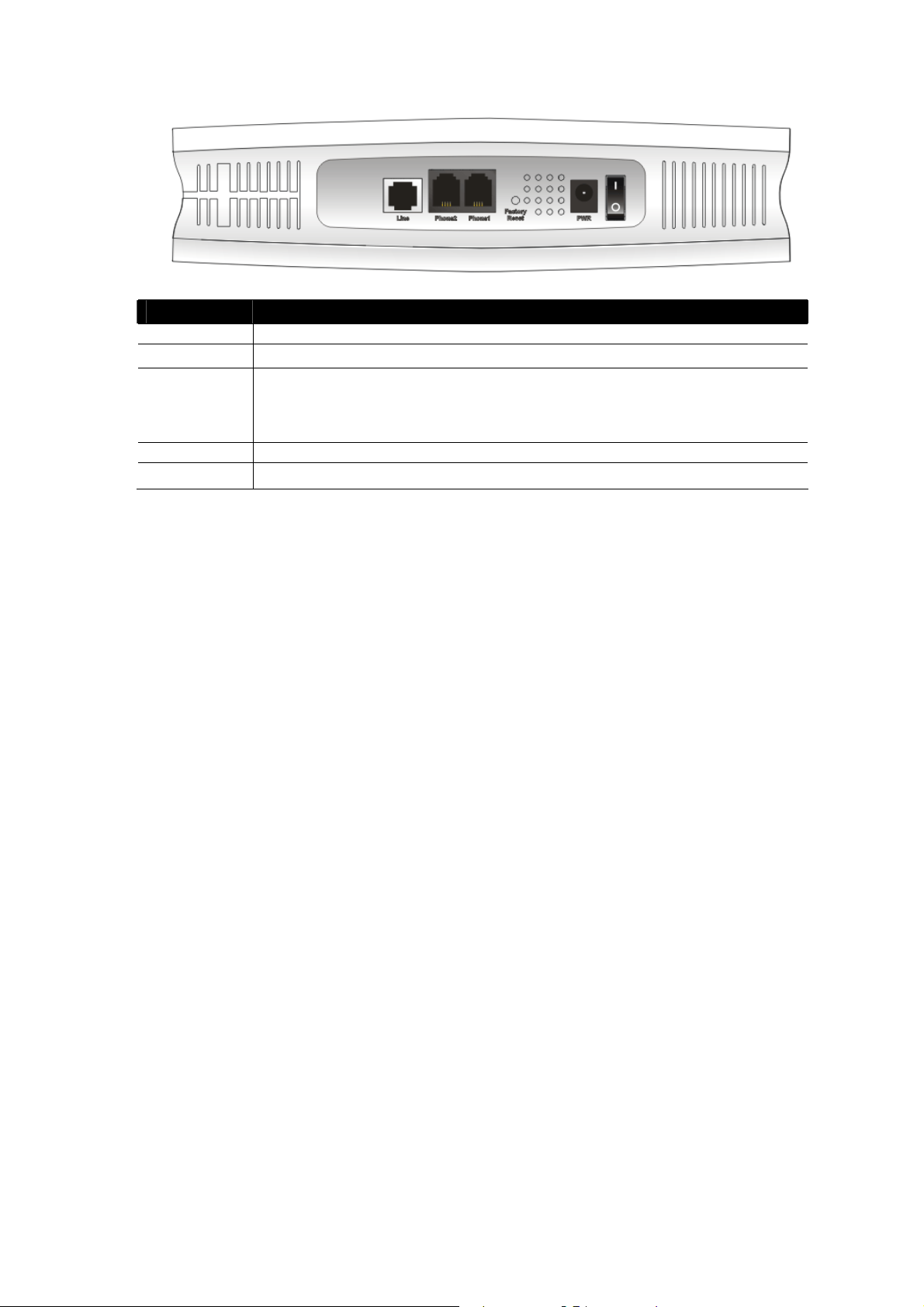

Interface Description
Line Connector for PSTN life line. Phone2/Phone1
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press
PWR Connector for a power adapter. ON/OFF
Connector of analog phone for VoIP communication
the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
Power Switch.
.
5
Vigor2110F Series Quick Start Guide
11..11..33 FFoorr VViiggoorr22111100FFnn
LED Status Explanation
ACT (Activity)
LAN 1/2/3/4
VPN On The VPN tunnel is active. QoS
WPS
WPS Button
Interface Description
WLAN
WAN Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB Connector for USB storage (Pen Driver/Mobile
Blinking The router is powered on and running
normally. Off The router is powered off. On Wireless access point is ready. WLAN
Blinking It will blink while wireless traffic goes
through.
On The WAN port is connected. WAN Blinking It will blink while transmitting data. On The port is connected. Off The port is disconnected. Blinking The data is transmitting. On A USB device is connected and active.USB Blinking The data is transmitting.
On The QoS function is active. On The DoS/DDoS function is active. DoS
Blinking It will blink while detecting an attack. On The WPS is on. Off The WPS is off. Blinking Waiting for wirele ss clie nt sending
requests for connection about two
minutes. On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS connection
will be on. Off The WPS is off. Blinking Waiting for wirele ss clie nt sending
requests for connection about two
minutes.
Press the button once to enable (WLAN LED on) or disable (WLAN LED off) wireless connection.
HD) or printer.
Vigor2110F Series Quick Start Guide
6
Interface Description
Line Connector for PSTN life line. Phone2/Phone1
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press
PWR Connector for a power adapter. ON/OFF
Connector of analog phone for VoIP communication
the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
Power Switch.
.
7
Vigor2110F Series Quick Start Guide
11..11..44 FFoorr VViiggoorr22111100FFVVnn
LED Status Explanation
ACT (Activity)
LAN 1/2/3/4
Phone1/ Phone2
Line
WPS
WPS Button
Interface Description
WLAN
WAN Connector for accessing the Internet. LAN (1-4) Connectors for local networked devices. USB Connector for USB storage (Pen Driver/Mobile
Blinking The router is powered on and running
normally. Off The router is powered off. On Wireless access point is ready. WLAN
Blinking It will blink while wireless traffic goes
through.
On The WAN port is connected. WAN Blinking It will blink while transmitting data. On The port is connected. Off The port is disconnected. Blinking The data is transmitting. On A USB device is connected and active.USB Blinking The data is transmitting. On The phone connected to this port is
off-hook. Off The phone connected to this port is
on-hook. Blinking A phone call comes. On A PSTN phone call comes (in and out).
However, when the phone call is
disconnected, the LED will be off
about six seconds later. Off There is no PSTN phone call.
On The WPS is on. Off The WPS is off. Blinking Waiting for wirele ss clie nt sending
requests for connection about two
minutes. On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS connection
will be on. Off The WPS is off. Blinking Waiting for wirele ss clie nt sending
requests for connection about two
minutes.
Press the button once to enable (WLAN LED on) or disable (WLAN LED off) wireless connection.
HD) or printer.
Vigor2110F Series Quick Start Guide
8
Interface Description
Line Connector for PSTN life line. Phone2/Phone1
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press
PWR Connector for a power adapter. ON/OFF
Connector of analog phone for VoIP communication
the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
Power Switch.
.
9
Vigor2110F Series Quick Start Guide

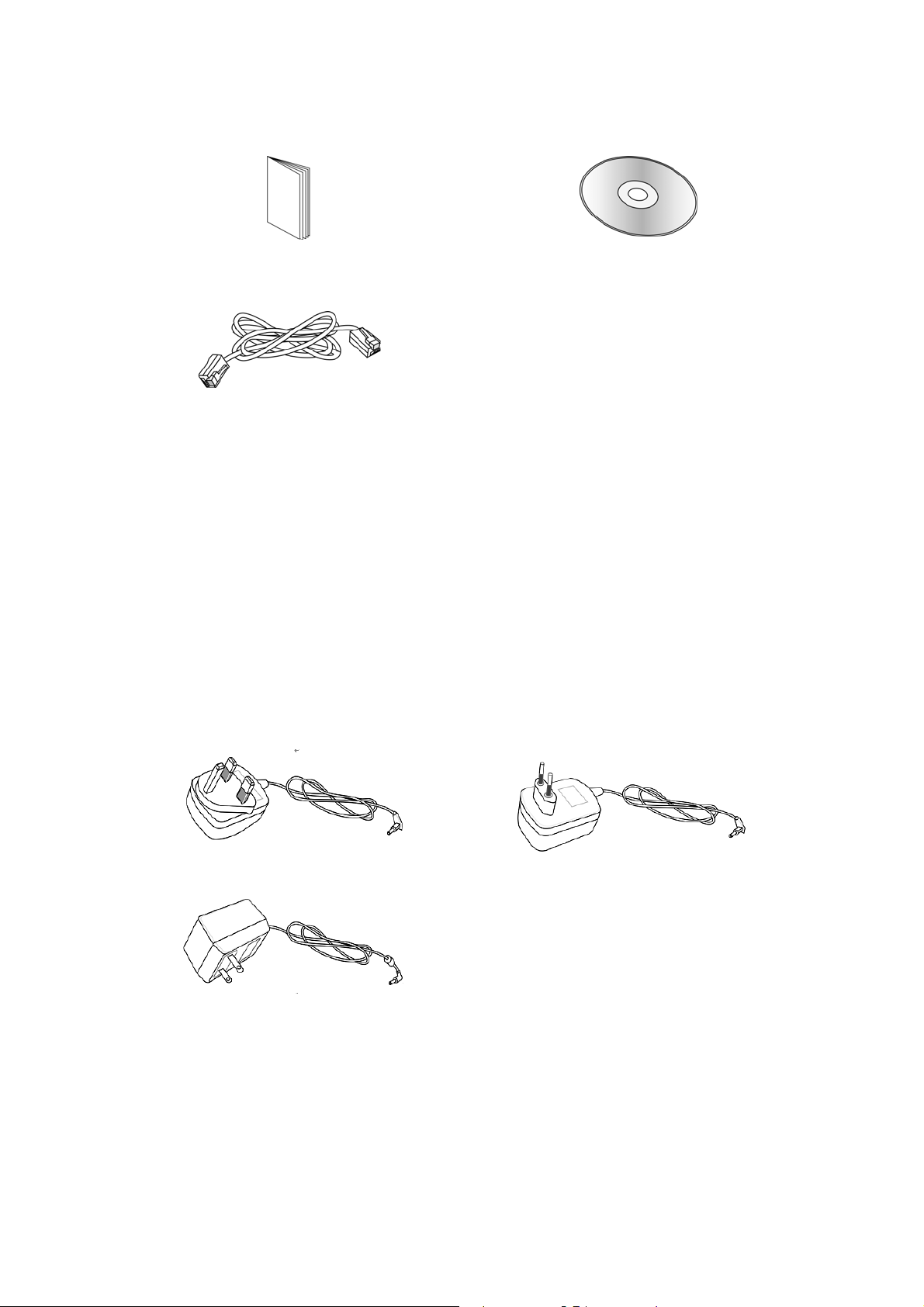

11..22 PPaacckkaaggee CCoonntteenntt
n Quick Start Guide
p
RJ-45 Cable (Ethernet)
o CD
q Antenna (n models)

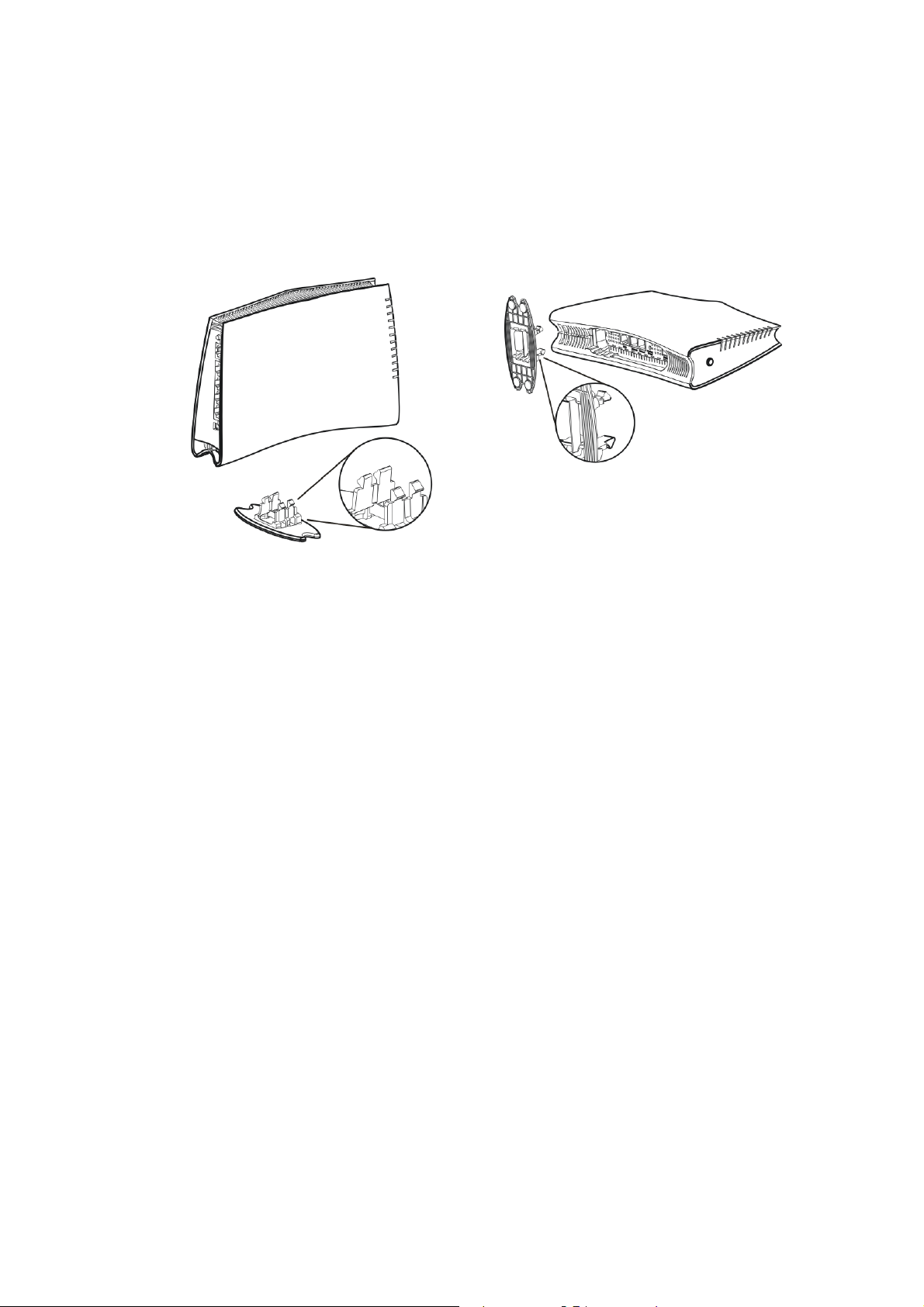

Stand
r
The type of the power adapter depends on the country that the router will be installed.
s
* The maximum power consumption is 17-23 Watt.
UK-type Power Adapter
USA/Taiwan-type Power Adapter
EU-type Power Adapter
AU/NZ-type Power Adapter
Vigor2110F Series Quick Start Guide
10
22.. IInnssttaalllliinngg YYoouurr RRoouutteerr
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser.
22..11 HHaarrddwwaarree IInnssttaallllaattiioonn
Before starting to configure the router, you have to connect your devices correctly.
1. Connect Line port to land line jack with a RJ-11 cable (FV model).
2. Connect this device for accessing Internet via fiber cable.
3. Connect one port of 4-port switch to your computer with a RJ-45 cable. This device
allows you to connect 4 PCs directly.
4. Connect Phone port to a conventional analog telephone.
5. Connect detachable antennas to the router.
6. Connect one end of the power cord to the power port of this device. Connect the
other end to the wall outlet of electricity.
7. Power on the router.
8. Check the ACT and WAN, LAN LEDs to assure network connections.
(For the detailed information of LED status, please refer to section 1.1.)
Caution: (for v model only)
1. Each of the Phone ports can be connected to an analog phone only. Do not connect the phone ports to the land line jack. Such connection might damage your router.
2. When the power is shutdown, VoIP phone will be disconnected. However, a phone set connected to Phone 2 port can be used as the traditional telephone for the line will be guided to land line jack via the router (loop through).
11
Vigor2110F Series Quick Start Guide
SSttaanndd IInnssttaallllaattiioonn
The Vigor2110F series must be placed erectly. Therefore you have to install a stand onto the router to make it standing firmly. Please follow the figures listed below to finish the installation.
c
d
e f
Vigor2110F Series Quick Start Guide
12
22..22 PPrriinntteerr IInnssttaallllaattiioonn
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000/Vista. For Windows 98/SE/Vista, please visit www.draytek.com.
Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
1. Connect the printer with the router through USB port.
2. Open Start->Settings-> Printer and Faxes.
13
Vigor2110F Series Quick Start Guide
3. Open File->Add a New Computer. A welcome dialog will appear. Please click
Next.
4. Click Local printer attached to this computer and click Next.
5. In this dialog, choose Create a new port Type of port and use the drop down list to
select Standard TCP/IP Port. Click Next.
Vigor2110F Series Quick Start Guide
14
6. In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer
Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next.
7. Click Standard and choose Generic Network Card.
8. Then, in the following dialog, click Finish.
15
Vigor2110F Series Quick Start Guide
9. Now, your system will ask you to choose right name of the printer that you installed
onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next.
10. For the final stage, you need to go back to Control Panel-> Printers and edit the
property of the new printer you have added.
11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK.
Next please refer to the red rectangle for choosing the correct protocol and UPR name.
Vigor2110F Series Quick Start Guide
16
The printer can be used for printing now. Most of the printers with different manufacturers are compatible with vigor router.
Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ; find out the link of Printer Server and click it; then click the What types of printers are
compatible with Vigor router? link.
Note 2: Vigor router supports printing request from computers via LAN ports but
not WAN port.
17
Vigor2110F Series Quick Start Guide
This page is left blank.
Vigor2110F Series Quick Start Guide
18
33.. CCoonnffiigguurriinngg WWeebb PPaaggeess
To access Internet, please finish basic configuration after completing the hardware installation.
33..11 AAcccceessssiinngg WWeebb PPaaggee
1. Make sure your PC connects to the router correctly.
Notice: You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of Vigor router 192.168.1.1. For the detailed information, please refer to the later section - Trouble Shooting of the guide.
2. Open a web browser on your PC and type http://192.168.1.1. The following window
will be open to ask for username and password.
3. For user mode, do not type any word on the window and click Login for the simple
web pages for configuration. Yet, for admin mode, please type “admin/admin” on Username/Password and click Login for full configuration.
Notice:
Shooting” for detecting and solving your problem.
4. The web page can be logged out according to the chosen condition. The default
setting is Auto Logout, which means the web configuration system will logout after five minutes without any operation. Change the setting for your necessity.
If you fail to access to the web configuration, please go to “Trouble
19
Vigor2110F Series Quick Start Guide
33..22 BBaassiicc CCoonnffiigguurraattiioonn
The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator.
1. Open a web browser on your PC and type http://192.168.1.1. The system will ask
you to type username/password. The displayed web pages will change according to the username and password typed. Here we take simple web pages for example. So, do not type any word on the window and click Login.
Notice: For advanced configuration (admin mode), please refer to User’s Guide for more detailed information.
2. Now, the Main Screen for user operation will appear. Click Quick Start Wizard.
Note: The home page will change slightly in accordance with the router you have.
Vigor2110F Series Quick Start Guide
20
3. Enter the login password on the field of New Password and retype it on the field of
Retype New Password. Then click Next to continue. After restarting the router, new password must be typed for accessing into router web page.
4. On the next page as shown below, please select the appropriate Internet access type
according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step.
21
Vigor2110F Series Quick Start Guide
PPPoE: if you click PPPoE as the protocol, please manually enter the Username/Password provided by your ISP. Then click Next.
PPTP: if you click PPTP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step.
Vigor2110F Series Quick Start Guide
22
Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step.
DHCP: if you click DHCP, you will get the following page. Simply click Next to continue.

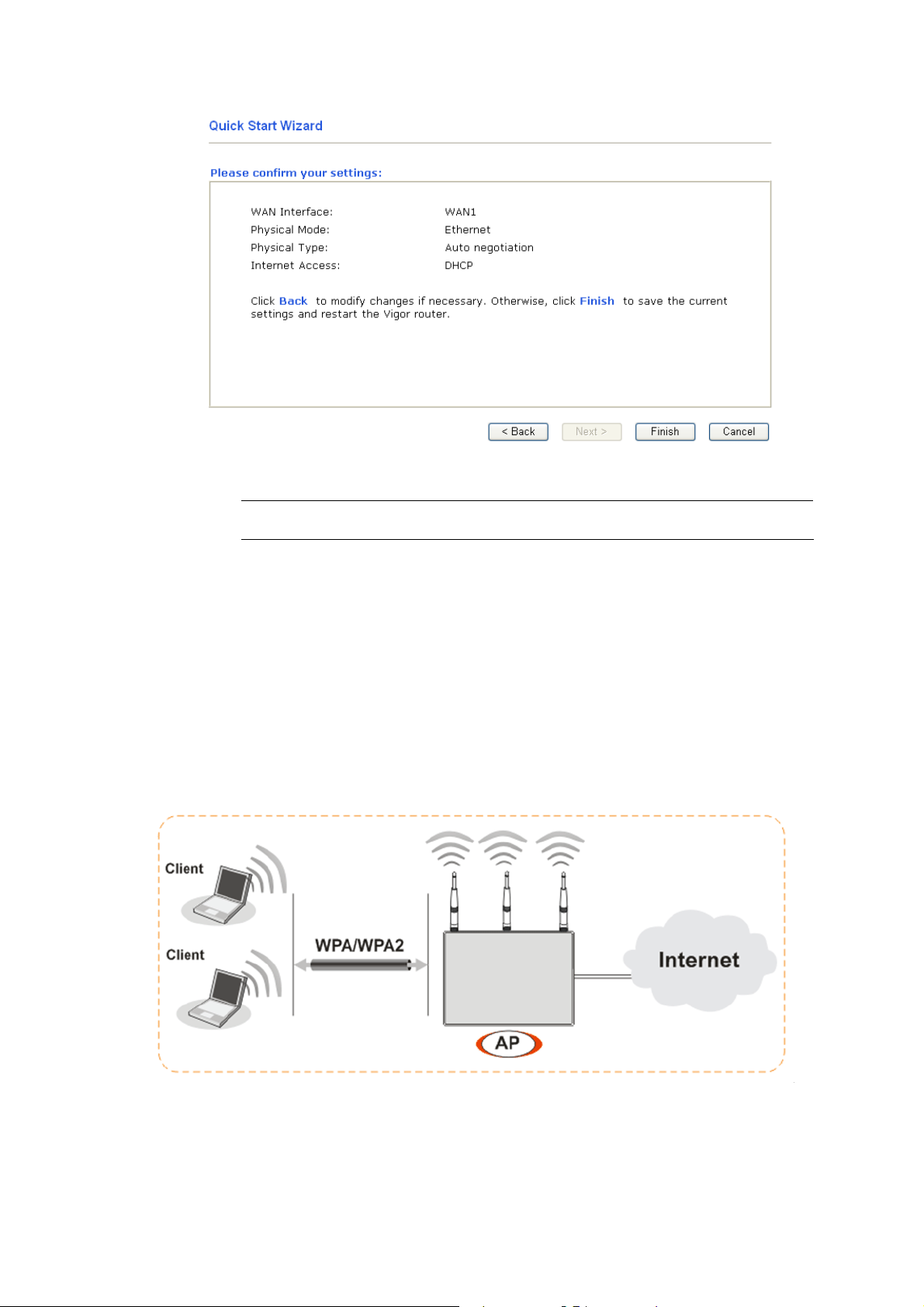

5. Now you can see the following screen. It indicates that the setup is complete.
Different types of connection modes will have different summary. Click Finish and then restart the router. Afterward, you will enjoy surfing on the Internet.
23
Vigor2110F Series Quick Start Guide
33..33 WWiirreelleessss CCoonnffiigguurraattiioon
n
For operating Vigor2110VFn well, it is necessary for you to set the wireless LAN settings for using wireless function. Please read the following section carefully for configuring the settings for this router.
(The default value of Frequency Domain was set by factory depends on the reselling region.)
33..33..11 BBaassiicc WWiirreelleessss LLAANN CCoonncceepptt
In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs (clients) will share the same Internet connection with other wired hosts via Vigor wireless router.
For the user of Vigor2110F/2110FV, please skip this section.
33..33..22 GGeenneerraall SSeettuupp
1. On the Wireless LAN group, select General Setup. The following page will be
shown as below.
Vigor2110F Series Quick Start Guide
24
2. Check Enable Wireless LAN to enable the wireless function.
3. At present, the router can connect to 11g Only, 11b Only, 11n Only, Mixed
(11b+11g), Mixed (11g+11n) and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mix (11b+11g+11n) mode.
4. Type in the name of the SSID. The default name for SSID is DrayTek. We suggest
you change it to a particular name for your necessity.
5. The default channel is 6. You can change it to an appropriate one if the selected
channel is under serious interference.
SSID (Service Set Identifier) - It is used to name the wireless LAN for this router, and it must have the same content in client PC/notebook wireless card(s). SSID can be any text numbers or various special characters.
25
Vigor2110F Series Quick Start Guide
33..33..33 SSeeccuurriittyy SSeettttiinnggss
1. On the Wireless LAN group, select Security Settings.
2. Select an appropriate encryption mode to improve the security and privacy of your
wireless data packets.
Disable
Turn off the encryption mechanism. For the security of your router, please select any one of the encryption mode here.
WEP
Accepts only WEP clients and the encryption key should be entered in WEP Key.
WPA/PSK
Accepts only WPA clients and the encryption key should be entered in PSK.
WPA2/PSK
Accepts only WPA2 clients and the encryption key should be entered in PSK.
Mixed (WPA+ WPA2)/PSK
Accepts WPA and WPA2 clients simultaneously and the encryption key should be entered in PSK.
3. For WPA encryption, type in 8~63 ASCII characters or 64 Hexadecimal digits
leading by 0x, for example "0123456789ABCD...." or "0x321253abcde....." on the
field of Pre-Shared Key (PSK). WPA encrypts each frame transmitted from the radio using the Pre-Shared Key (PSK) which entered from this panel.
Vigor2110F Series Quick Start Guide
26
4. As to WEP encryption, select 64-bit or 128-bit as the encryption mode. For 64bits
WEP key, type in 5 ASCII characters or 10 hexadecimal digitals leading by 0x, for example, ABCDE or 0x4142434445. And for 128bits WEP key, type in 13 ASCII characters or 26 hexadecimal digits leading by 0x, for example, ABCDEFGHIJKLM or 0x4142434445464748494A4B4C4D. Only one WEP key can be selected and allows user to type in the characters.
5. Click OK to save settings. Be aware that for the communication, all wireless devices must support the same
encryption bit length and share the same key. If WEP mode is selected, only one of four preset keys can be selected at one time.
27
Vigor2110F Series Quick Start Guide
44.. TTrroouubbllee SShhoooottiinngg
This section will guide you to solve abnormal situations if you cannot access into the Internet after installing the router and finishing the web configuration. Please follow sections below to check your basic installation status stage by stage.
¾ Checking if the hardware status is OK or not. ¾ Checking if the network connection settings on your computer are OK or not. ¾ Pinging the router from your computer. ¾ Checking if the ISP settings are OK or not. ¾ Backing to factory default setting if necessary.
If all above stages are done and the router still cannot run normally, it is the time for you to contact your dealer for advanced help.
44..11 CChheecckkiinngg IIff tthhee HHaarrddwwaarree SSttaattuuss IIss OOKK oorr NNoott
Follow the steps below to verify the hardware status.
1. Check the power line and LAN cable connections. Refer to “2.1 Hardware
Installation” for details.
2. Turn on the router. Make sure the ACT LED blink once per second and the
correspondent LAN LED is bright.
3. If not, it means that there is something wrong with the hardware status. Simply back
to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again.
Vigor2110F Series Quick Start Guide
28
44..22 CChheecckkiinngg IIff tthhee NNeettwwoorrkk CCoonnnneeccttiioonn SSeettttiinnggss oonn CCoommppuutteerr IIss OOKK oorr NNoott
Sometimes the link failure occurs due to the wrong network connection settings. After trying the above section, if the link is stilled failed, please do the steps listed below to make sure the network connection settings is OK.
FFoorr WWiinnddoowwss
1. Go to Control Panel and then double-click on Network Connections.
2. Right-click on Local Area Connection and click on Properties.
The example is based on Windows XP. As to the examples for other operation systems, please refer to the similar steps or find support notes in www.draytek.com.
YYoouurr
3. Select Internet Protocol (TCP/IP) and then click Properties.
29
Vigor2110F Series Quick Start Guide
4. Select Obtain an IP address automatically and Obtain DNS server address
automatically.
FFoorr MMaaccOOss
1. Double click on the current used MacOs on the desktop.
2. Open the Application folder and get into Network.
3. On the Network screen, select Using DHCP from the drop down list of Configure
IPv4.
Vigor2110F Series Quick Start Guide
30
44..33 PPiinnggiinngg tthhee RRoouutteerr ffrroomm YYoouurr CCoommppuutteerr
The default gateway IP address of the router is 192.168.1.1. For some reason, you might need to use “ping” command to check the link status of the router. The most important thing is that the computer will receive a reply from 192.168.1.1. If not, please check the IP address of your computer. We suggest you setting the network connection as get IP automatically. (Please refer to the section 4.2)
Please follow the steps below to ping the router correctly.
FFoorr WWiinnddoowwss
1. Open the Command Prompt window (from Start menu> Run).
2. Type command (for Windows 95/98/ME) or cmd (for Windows NT/
2000/XP/Vista). The DOS command dialog will appear.
3. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “Reply from
192.168.1.1:bytes=32 time<1ms TTL=255” will appear.
4. If the line does not appear, please check the IP address setting of your computer.
FFoorr MMaaccOOss ((TTeerrmmiinnaall))
1. Double click on the current used MacOs on the desktop.
2. Open the Application folder and get into Utilities.
3. Double click Terminal. The Terminal window will appear.
4. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes
from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear.
31
Vigor2110F Series Quick Start Guide
t
44..44 CChheecckkiinngg IIff tthhee IISSPP SSeettttiinnggss aarree OOKK oorr NNoot
Open Internet Access page and then check whether the ISP settings are set correctly. Click PPPoE/Static IP/DHCP/PPTP/L2TP link to review the settings that you configured previously.
FFoorr PPPPPPooEE UUsseerrss
1. Check if the Enable option is selected.
2. Check if Username and Password are entered with correct values that you got from
your ISP.
Vigor2110F Series Quick Start Guide
32

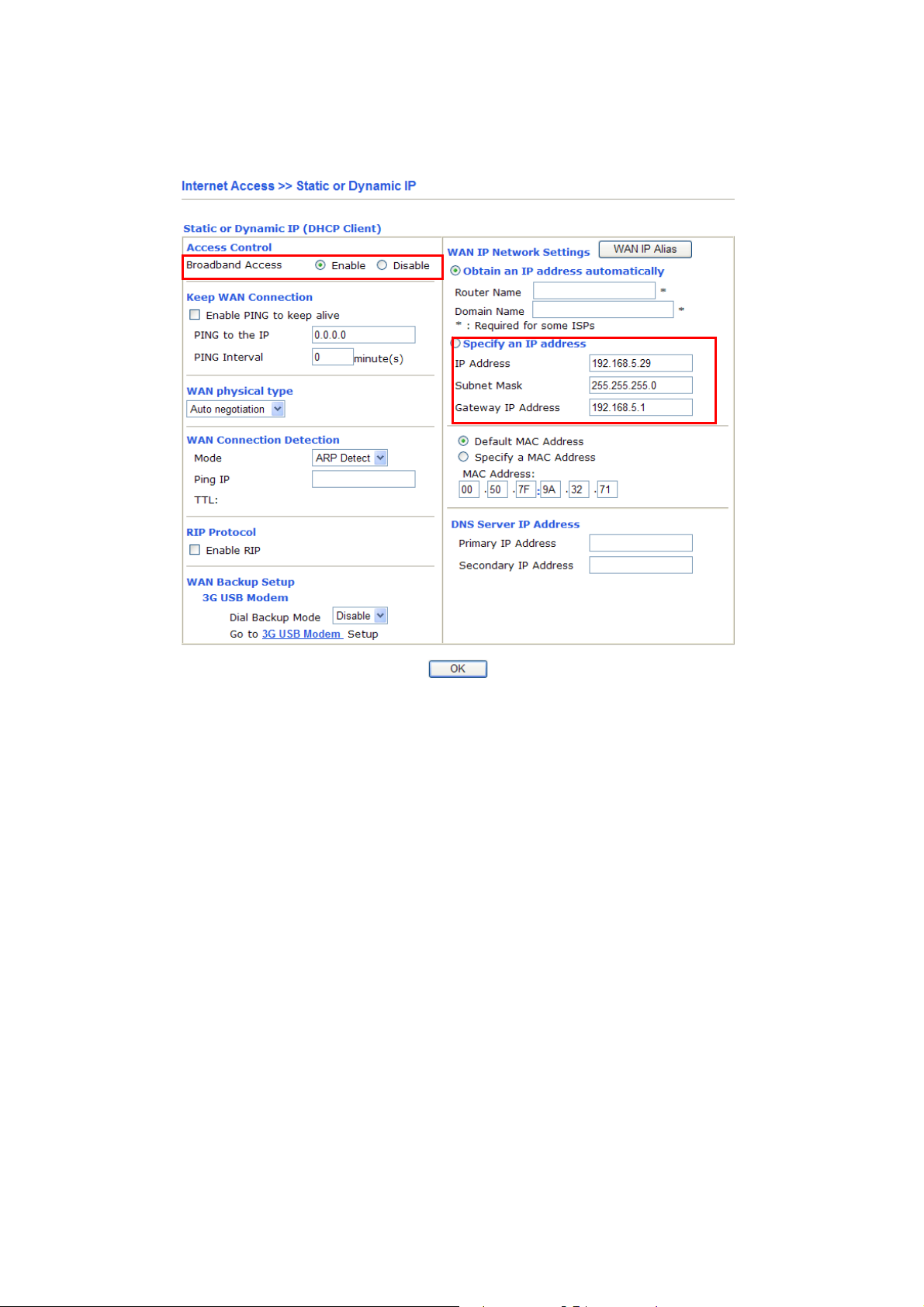

FFoorr SSttaattiicc UUsseerrss
1. Check if the Enable option for Broadband Access is selected.
2. Check if WAN IP Network Settings is set appropriately.
3. Check if IP Address, Subnet Mask and Gateway are set correctly (must identify
with the values from your ISP) if you choose Specify an IP address.
FFoorr PPPPTTPP UUsseerrss
1. Check if the Enable option for PPTP Link is selected.
33
Vigor2110F Series Quick Start Guide
2. Check if PPTP Server, Username, and Password are set correctly (must identify
with the values from your ISP).
Check if WAN IP Network Settings are set properly. If you select Specify an IP address, you have to type in the values of IP Address and Subnet Mask manually. Be sure the values that you type identify with the values from your ISP.
44..55 BBaacckkiinngg ttoo FFaaccttoorryy DDeeffaauulltt SSeettttiinngg IIff NNeecceessssaarry
y
Sometimes, a wrong connection can be improved by returning to the default settings. Try to reset the router by software or hardware. Such function is available in Admin Mode only.
Warning: After pressing factory default setting, you will loose all settings you did before. Make sure you have recorded all useful settings before you pressing.
SSooffttwwaarree RReesseett
You can reset the router to factory default via Web page. Go to System Maintenance and choose Reboot System on the web page. The following
screen will appear. Choose Using factory default configuration and click OK. After few seconds, the router will return all the settings to the factory settings.
Vigor2110F Series Quick Start Guide
34
HHaarrddwwaarree RReesseett
While the router is running (ACT LED blinking), press the Factory Reset button and hold for more than 5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration.
After restore the factory default setting, you can configure the settings for the router again to fit your personal request.
44..66 CCoonnttaaccttiinngg YYoouurr DDeeaalleerr
If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
35
Vigor2110F Series Quick Start Guide
Loading...
