VigorSwitch P1100
PoE Websmart Giga Switch
IPv6 and IPv4 conformity for the next generation network 8 x 10/100/1000 Base-T and 2 x 100/1000 SFP Port Port 1-8 support 802.3at PoE+, the maximum power budget: 120Watt (Up to 30Watt per port) Support SNMPv1/v2c for management Advanced QoS for application traffic prioritization VLAN features support both port-based and tag-based Power saving by 802.3az Energy Efficient Ethernet
The VigorSwitch P1100 is ideal for SOHO and small business with the high-performance capability and IPv6 management. To cater for high bandwidth traffic, it is equipped with 8 Gigabit Ethernet ports for the LAN side, and 2 SFP ports for the backbone side. VigorSwitch P1100 is equipped with extensive facilities for maximizing your LAN performance, VLAN capability to allow flexible network design, and QoS capability for flexible bandwidth control. Furthermore, the power saving by IEEE802.3az EEE can offer you a green Ethernet networking environment.
The VigorSwitch P1100 also offers power to all these ports with Power of Ethernet (PoE) capability. All PoE-enabled devices for the business usages, such as IP phones, wireless AP or IP Cameras can all rely on VigorSwitch P1100 switch for the power supply, you are free to position equipment wherever they should be, not being limited by the power outlet.
Virtual LAN
VLAN provides a way for businesses to assign network functions to different workgroups, branches, sections, employees or visitors, according to their operational requirements. VigorSwitch P1100 offers the Layer 2 Isolation feature (tag-based) VLAN for the groups.
The Voice VLAN function of VigorSwitch P1100 assigns a preset VLAN profile with appropriate level of QoS for VoIP traffic. This ensures that voice related traffic will not be delayed because of inappropriate priority treatment.
Energy efficiency
The VigorSwitch P1100 is fully compliant with IEEE802.3az which is an energy efficient Ethernet protocol.
The Power saving using Power Management techniques to detect the client idle and cable length automatically and provides the different power. The latest application-specific integrated circuits (ASICs), using lower-power technology, allow for lower power consumption and thinner, more efficient designs.
PoE for efficient installation
8-PoE ports allow power to be supplied to end devices, such as Wireless AP, IP Phones and IP cams, directly through the existing LAN cables, eliminating costs for additional AC wiring and reducing Installation Cost. It frees your wireless AP deployment from restriction due to power outlet location. By supplying the power end-span, you can centralize power distribution and backup without the need to increase infrastructure.
Bandwidth Aggregation
The 8 Gigabit ports can be combined together to create a multi-link load-sharing trunk. Up to 8 Gigabit ports can be set up per group. The switch supports up to 8 trunking groups. Port trunks are useful for switch-to-switch cascading, providing very high full-duplex speeds.
For each of the VLAN groups, you can set rate limits for both ingress and egress traffic based on per port or per group.
QoS (Quality of Service)
With DrayTek VigorSwitch P1100, the QoS feature provides ei ght interna l qu eues to support eight diffe rent classifications of traffic. High priority packet streams experience less delay inside the switch, which supports lower latency for certain delay-sensitive traffic. The switch classifies the packet as one of the eight priorities according to 802.1p priority tag, DiffServ and/or DSCP based. The QoS operates at full wire speed.
IP Version
IPv4 IPv6
Standard Compliance
IEEE 802.3 10Base-T IEEE 802.3u 100Base-T IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control Capability ANSI/IEEE 802.3 Auto-negotiation IEEE 802.1q VLAN IEEE 802.1p Class of Service IEEE 802.1d Spanning Tree IEEE 802.1w Rapid Spanning Tree IEEE 802.3ad Port Trunk with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1az Energy Efficient Ethernet
QoS
Support 8 Queues Rate Limit Port-based (Ingress/Egress) Queue Setting WRR Strict Priority Class of Service Port-based CoS DSCP CoS-DSCP IP Precedence
Security
Supports Storm Control DoS Attack Prevention
Link Aggregation
Supports 8 Link Aggregation Groups with Static & LACP types Up to 8 Ports for Each Group Support Traffic Load Balancing
Network
Up to 8K MAC Address Table Dynamic Address Static Address Support Jumbo Frame 10KBytes Support STP and RSTP Support SNTP
PoE
Dynamic (None Priority class Base) Static (Priority Base)
IGMP Snooping
Up to 256 Multicast Groups IGMP Snooping v2/v3 IGMP v2/v3 Querier Immediate Leave
Account Management
Multiple User Account Two-level Security (Admin/User)
Diagnostics
Event Log Port Mirroring Ping Port-based Copper Test
VigorSwitch P1100
VLAN
IEEE802.1Q Tag-based VLAN Support Port-based VLAN Support Static VLAN Port Isolation Management VLAN Voice VLAN (OUI Mode)
Management
Support SNMP v1/v2c Firmware Upgrade/Backup via HTTP/TFTP Support HTTP/HTTPs Web User Interface Configuration Upgrade/Backup via HTTP/TFTP Factory Default System Reboot Support Command Line Interface (CLI) via Telnet Suport DrayTek Switch Management (Future Support)
Hardware Interface
8 x 10/100/1000Mbps Giga Ethernet with PoE+ PSE, RJ-45 (Each Port can Support Both IEEE 802.3af / 802.3at Mode) 2 x 100/1000Mbps Fiber, SFP Slot 1 x Factory Reset Button
Environmental / Physical
Power Voltage: 100 ~ 240VAC
PoE Power Budget 120 Watt
: (up to 30Watt per port) Temperature
Operating:
0 ~ 40 C
Storage: -20 ~ 70
C Humidity: 5 to 90 RH (Non-condensing) Dimension: 44(H) x 266(W) x 185(D) mm
%

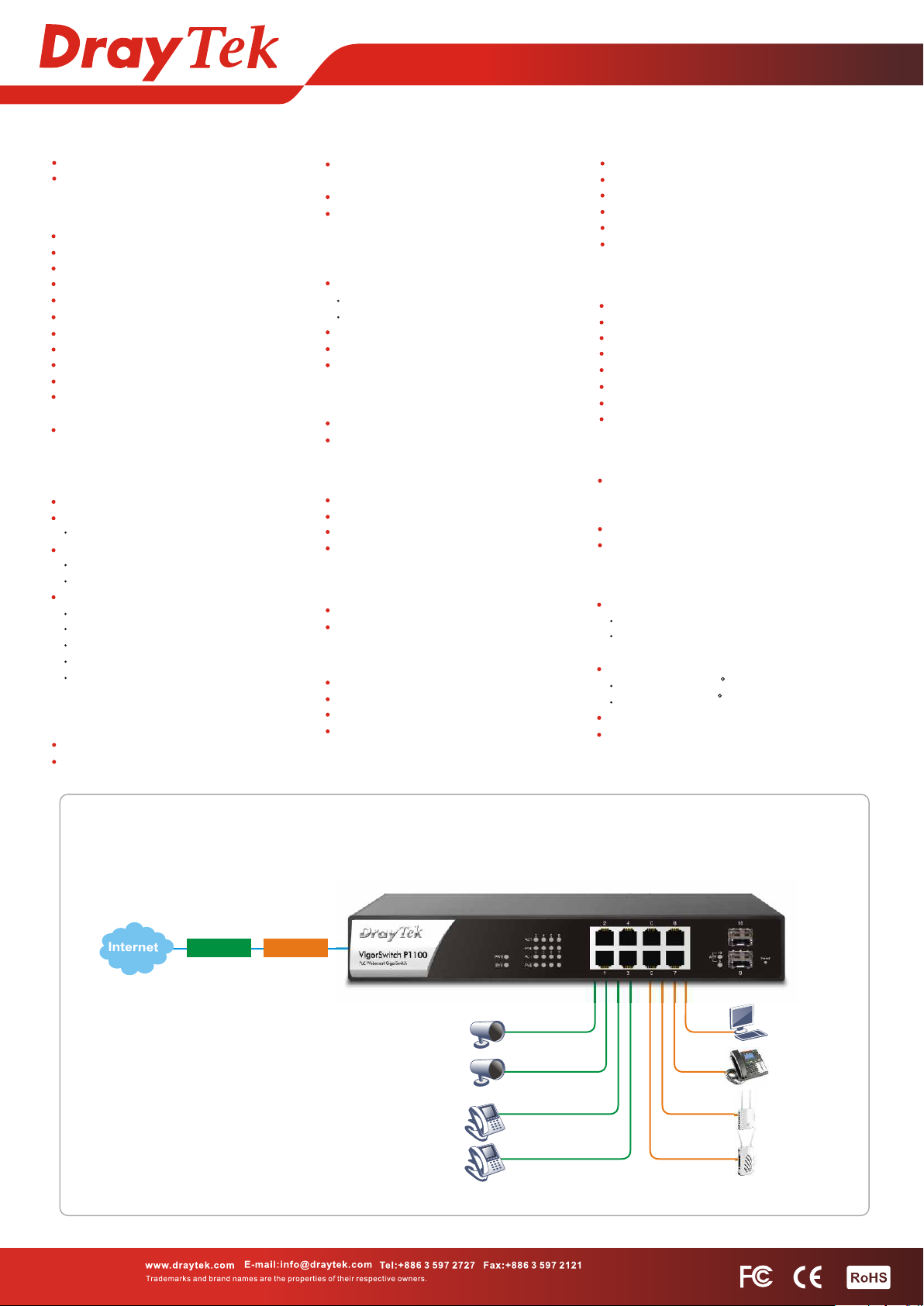

Easy deployment for SOHO and small Business
VLAN2VLAN1
PoE
IP Cameras
PoE
IP Phones
LAN
PoE IP Phones
PoE AP
991-1 24 10 00 -0 0
Specifications subject to change at any time without notice, for more information please visit www.draytek.com or contact your local representative.
