Draytek P1092 User Manual

VigorSwitch P1092

PoE Smart Lite Giga Switch

User’s Guide

Version: 1.0

Firmware Version: V1.01.03

Date: January 12, 2018

(For future update, please visit DrayTek web site for further information)

VigorSwitch P1092 User’s Guide

Intellectual Property Rights (IPR) Information

Copyrights

Trademarks

© All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.

The following trademarks are used in this document:

 Microsoft is a registered trademark of Microsoft Corp.  Windows, Windows 95, 98, Me, NT, 2000, XP, 7 and Explorer are

trademarks of Microsoft Corp.

 Apple and Mac OS are registered trademarks of Apple Inc.  Other products may be trademarks or registered trademarks of their

respective manufacturers.

Caution and Electronic Emission Notices

Caution

Warranty

Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge.

To protect your device, always:  Touch the metal chassis of your computer to ground the static electrical charge

before you pick up the circuit device.

 Pick up the device by holding it on the left and right edges only. We warrant to the original end user (purchaser) that the device will be free from any

defects in workmanship or materials for a period of one (1) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workman s hip and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bun dled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Be a Registered Owner

Firmware & Tools Updates

Web registration is preferred. You can register your Vigor device via http://www.draytek.com.

Due to the continuous evolution of DrayTek technology, all devices will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

http://www.draytek.com

VigorSwitch P1092 User’s Guide

iii

TTaabbllee ooff CCoonntteennttss

Chapter 1: Introduction.....................................................................................................1

1.1 Overview................................................................................................................................. 1

1.2 Features.................................................................................................................................. 1

1.3 Packing List............................................................................................................................. 2

1.4 LED Indicators and Connectors.............................................................................................. 3

1.5 Hardware Installation .............................................................................................................. 4

1.5.5 Configuring the Management Agent of Switch................................................................. 6

1.5.6 IP Address Assignment .................................................................................................... 7

1.6 Typical Applications................................................................................................................11

Chapter 2: Basic Concept and Management.................................................................13

2.1 What’s the Ethernet............................................................................................................... 13

2.2 Media Access Control (MAC)................................................................................................ 15

2.3 Flow Control.......................................................................................................................... 20

Chapter 3: Operation of Web-based Management........................................................23

3.1 Web Management Home Overview...................................................................................... 24

3.2 System Information............................................................................................................... 25

3.3 Port Statistics........................................................................................................................ 26

3.4 Link Aggregation................................................................................................................... 26

3.5 VLAN..................................................................................................................................... 27

3.6 Multicast................................................................................................................................ 28

3.7 PoE........................................................................................................................................ 29

3.8 QoS....................................................................................................................................... 30

3.9 Rate Limiting......................................................................................................................... 32

3.10 Storm Control...................................................................................................................... 33

3.11 Loop Prevention.................................................................................................................. 34

3.12 Port Mirroring ...................................................................................................................... 35

3.13 System Maintenance........................................................................................................... 36

Chapter 4: Trouble Shooting...........................................................................................39

4.1 Resolving No Link Condition.................................................................................................39

4.2 Q & A..................................................................................................................................... 39

VigorSwitch P1092 User’s Guide

Chhaapptteerr 11:: IInnttrroodduuccttiioonn

11..11 OOvveerrvviieeww

Eight PoE Gigabit Ports Smart Lite Switch is a standard switch that meets all IEEE

802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch has 8 10/100/1000Mbps TP ports with 2 SFP ports. It supports http interface for switch management. The network administrator can logon the switch to monitor, configure and control each port’s activity. In addition, the switch implements the QoS (Quality of Service), VLAN, and Trunking. It is suitable for office application.

Others the switch increases support the Power saving for reduce the power consumption with "ActiPHY Power Management" and "PerfectReach Power Management" two techniques. It could efficient saving the switch power with auto detect the client idle and cable length to provide different power.

10/100/1000Mbps TP is a standard Ethernet port that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. 1000Mbps SFP Fiber transceiver is a Gigabit Ethernet port that fully complies with all IEEE 802.3z and 1000Base-SX/LX standards.

Below shows key features of this device:

QQooSS

The switch offers powerful QoS function. This function supports 802.1p VLAN tag priority and DSCP on Layer 3 of network framework.

VVLLAANN

Support IEEE802.1Q Tag-based VLAN. Support 8 active VLANs and VLAN ID 1~4094.

PPoorrtt TTrruunnkkiinngg

Allows one or more links to be aggregated together to form a Link Aggregation Group by the static setting.

PPoowweerr SSaavviinngg

The Power saving using the "ActiPHY Power Management" and "PerfectReach Power Management" two techniques to detect the client idle and cable length automatically and provides the different power. It could efficient to save the switch power and reduce the power consumption.

11..22 FFeeaattuurreess

The VigorSwitch P1092, a standalone off-the-shelf switch, provides the comprehensive features listed below for users to perform system network administration and efficiently and securely serve your network.

HHaarrddwwaarree

 8 10/100/1000Mbps Auto-negotiation Gigabit Ethernet TP ports  Jumbo frame support 9KB  Programmable classifier for QoS (Layer 2)

VigorSwitch P1092 User’s Guide

 8K MAC address and support VLAN ID(1~4094)  Per-port shaping, policing, and Broadcast Storm Control  Power Saving with "ActiPHY Power Management" and "Perfect Reach Power

Management" techniques.

 Full-duplex flow control (IEEE802.3x) and half-duplex backpressure  Extensive front-panel diagnostic LEDs; System: Power, TP Port1-8: LINK/ACT,

10/100/1000Mbps

MMaannaaggeemmeenntt

 Supports per port traffic monitoring counters  Supports a snapshot of the system Information when you login  Supports port mirror function  Supports the static trunk function  Supports 802.1Q VLAN  Maximal packet length can be up to 9600 bytes for jumbo frame application  Supports Broadcasting Suppression to avoid network suspended or crashed  Supports to send the trap event while monitored events happened  Supports default configuration which can be restored to overwrite the current

configuration which is working on via Web UI and Reset button of the switch

 Supports on-line plug/unplug SFP modules  Built-in web-based management, providing a more convenient UI for the user

11..33 PPaacckkiinngg LLiisstt

Before you start installing the switch, verify that the package contains the following:

 VigorSwitch P1092  AC

Power Cord

 Quick Start Guide  Rubber feet  Rack mount kit

Please notify your sales representative immediately if any of the aforementioned items is missing or damaged.

VigorSwitch P1092 User’s Guide

11..44 LLEEDD IInnddiiccaattoorrss aanndd CCoonnnneeccttoorrss

Before you use the Vigor device, please get acquainted with the LED indicators and connectors first.

There are 8 Ethernet ports on the front panel of the switch. LED display area, locating on the front panel, contains an ACT, Power LED and 8 ports working status of the switch.

LLEEDD EExxppllaannaattiioonn

LED Color Explanation

PoE/Alert

PWR/SYS

PoE for Ports 1~8

On (Green) Connected over the PoE maximum power budget.

Off Connected within the PoE maximum power

budget.

On (Green) The switch is powered on and runs normally. Off The switch is not ready or is failed. On (Green) The port is supplied with PoE power. Off No PoE power is supplied on the port. On (Green) The device is connected with 1000Mbps.

RJ 45 LNK/ACT for Ports 1 ~ 8

SFP LNK/ACT for Port 9 ~ 10

CCoonnnneeccttoorr EExxppllaannaattiioonn

Interface Description

RJ 45 LNK/ACT Port 1 ~ 8 PoE for Port 1 ~ 8

SFP Port 9 ~ 10

On (Amber) Blinking

Off The port is disconnected or the link is failed.

On (Green) The device is connected with 1000Mbps. On (Amber) The device is connected with 10/100Mbps. Blinking The system is sending or receiving data through the

Off

The device is connected with 10/100Mbps. The system is sending or receiving data through the port.

port. The port is disconnected or the link is failed.

Port 1 to Port 8 can be used for Ethernet connection and PoE connection, depending on the device

connected Used for fiber connection. Power inlet for AC input (100~240V/AC,

50/60Hz).

Power Output -- IEEE 802.3af Max. 15.4W Output Supported; IEEE 802.3at Max. 30W Output Supported

PoE Power Budget -- 110 Watts (Max)

VigorSwitch P1092 User’s Guide

UUsseerr IInntteerrffaacceess oonn tthhee RReeaarr PPaanneell

11..55 HHaarrddwwaarree IInnssttaallllaattiioonn

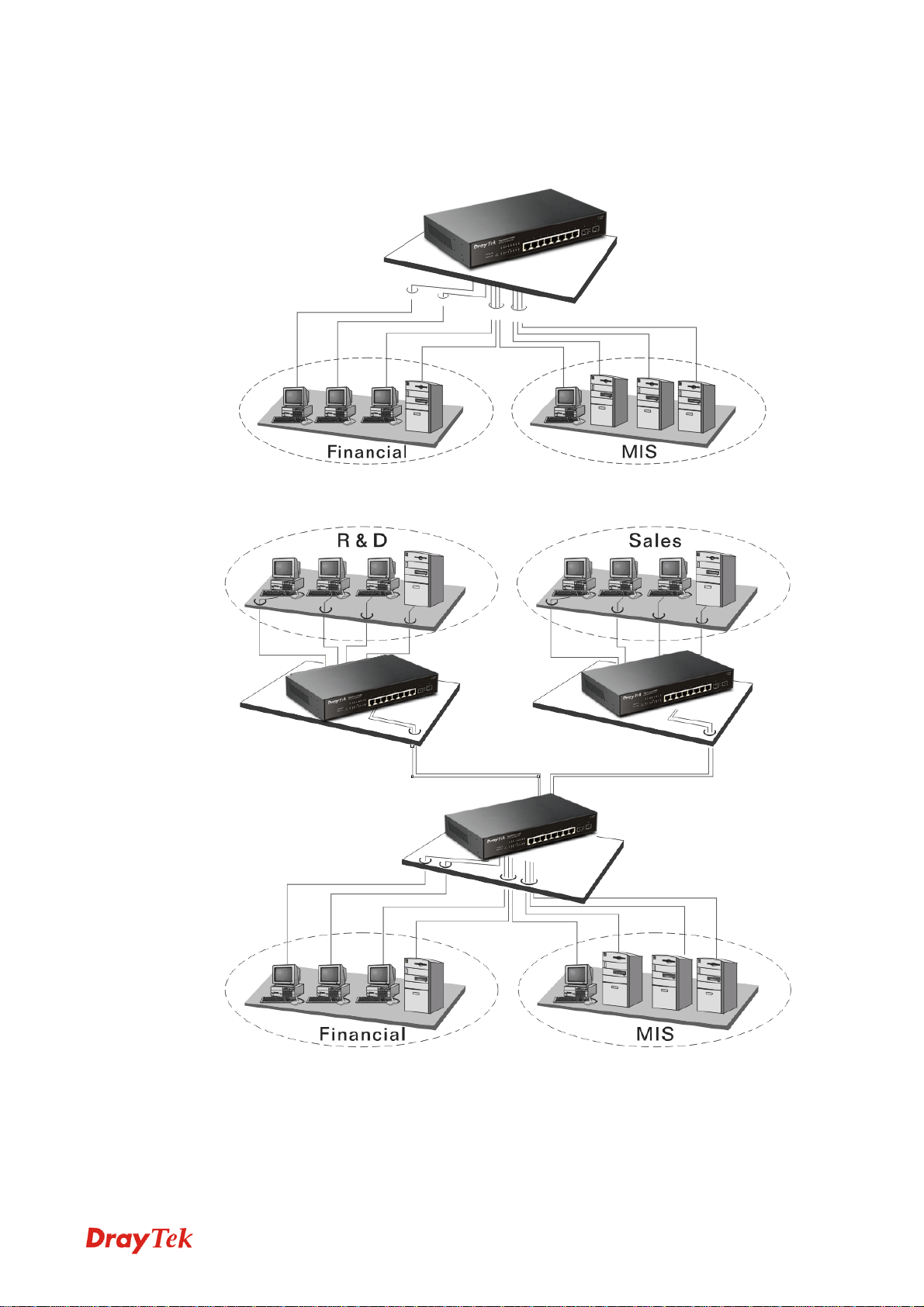

Case 1: All switch ports are in the same local area network.

Every port can access each other. (*The switch image is sample only.)

(

If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.

Case 2: The same VLAN members can be at different switches with the same VID

VigorSwitch P1092 User’s Guide

DDeesskkttoopp IInnssttaallllaattiioonn

1. Install the switch on a level surface that can support the weight of the unit and the

relevant components.

2. Plug the switch with the female end of the provided power cord and plug the male

end to the power outlet.

RRaacckk--mmoouunntt IInnssttaallllaattiioonn

The switch may be standalone, or mounted in a rack. Rack mounting facilitate to an orderly installation when you are going to install series of networking devices.

Procedures to Rack-mount the switch:

1. Disconnect all the cables from the switch before continuing.

2. Place the unit the right way up on a hard, flat surface with the front facing you.

3. Locate a mounting bracket over the mounting holes on one side of the unit.

4. Insert the screws and fully tighten with a suitable screwdriver.

5. Repeat the two previous steps for the other side of the unit.

6. Insert the unit into the rack and secure with suitable screws.

7. Reconnect all the cables.

IInnssttaalllliinngg NNeettwwoorrkk CCaabblleess

 Crossover or straight-through cable: All the ports on the switch support

Auto-MDI/MDI-X functionality. Both straight-through or crossover cables can be used as the media to connect the switch with PCs as well as other devices like switches, hubs or router.

 Category 3, 4, 5 or 5e, 6 UTP/STP cable: To make a valid connection and obtain the

optimal performance, an appropriate cable that corresponds to different transmitting/receiving speed is required. To choose a suitable cable, please refer to the following table.

Media Speed Wiring

10 Mbps Category 3,4,5 UTP/STP

10/100/1000

Mbps copper

100Mbps Category 5 UTP/STP 1000 Mbps Category 5e, 6 UTP/STP

VigorSwitch P1092 User’s Guide

11..55..55 CCoonnffiigguurriinngg tthhee MMaannaaggeemmeenntt AAggeenntt ooff SSwwiittcchh

Users can monitor and configure the switch through the following procedures. Configuring the Management Agent of VigorSwitch P1092 through the Ethernet Port. Web-based UI for the switch is an interface in a highly friendly way to configure and

monitor the switch through the switch’s Ethernet port.

Managing VigorSwitch P1092 through Ethernet Port

Before start using the switch, the IP address setting of the switch should be done, then perform the following steps:

1. Set up a physical path between the configured the switch and a PC by a qualified UTP

Cat. 5 cable with RJ-45 connector.

Note: If PC directly connects to the switch, you have to setup the same subnet mask between them. But, subnet mask may be different for the PC in the remote site. Please refer to the above figure about the 24-Port GbE Smart Lite Switch default IP address information.

2. Run web browser and follow the menu. Please refer to Chapter 3.

VigorSwitch P1092 User’s Guide

11..55..66 IIPP AAddddrreessss AAssssiiggnnmmeenntt

For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS.

IP address:

The address of the network device in the network is used for internetworking communication. Its address structure looks is shown below. It is “classful” because it is split into predefined address classes or categories.

Each class has its own network range between the network identifier and host identifier in the 32 bits address. Each IP address comprises two parts: network identifier (address) and host identifier (address). The former indicates the network where the addressed host resides, and the latter indicates the individual host in the network which the address of host refers to. And the host identifier must be unique in the same LAN. Here the term of IP address we used is version 4, known as IPv4.

Network identifier Host identifier

32 bits

With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24. Each class has its address range described below.

Class A:

Address is less than 126.255.255.255. There are a total of 126 networks can be defined because the address 0.0.0.0 is reserved for default route and 127.0.0.0/8 is reserved for loopback function.

Class B:

IP address range between 128.0.0.0 and 191.255.255.255. Each class B network has a 16-bit network prefix followed 16-bit host address. There are 16,384 (2^14)/16 networks able to be defined with a maximum of 65534 (2^16 –2) hosts per network.

Class C:

IP address range between 192.0.0.0 and 223.255.255.255. Each class C network has a 24-bit network prefix followed 8-bit host address. There are 2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 –2) hosts per network.

VigorSwitch P1092 User’s Guide

Class D and E:

Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.

According to IANA (Internet Assigned Numbers Authority), there are three specific IP address blocks reserved and able to be used for extending internal network. We call it Private IP address and list below:

Class A 10.0.0.0 --- 10.255.255.255 Class B 172.16.0.0 --- 172.31.255.255 Class C 192.168.0.0 --- 192.168.255.255

Please refer to RFC 1597 and RFC 1466 for more information.

Subnet mask:

It means the sub-division of a class-based network or a CIDR block. The subnet is used to determine how to split an IP address to the network prefix and the host address in bitwise basis. It is designed to utilize IP address more efficiently and ease to manage IP network.

For a class B network, 128.1.2.3, it may have a subnet mask 255.255.0.0 in default, in which the first two bytes is with all 1s. This means more than 60 thousands of nodes in flat IP address will be at the same network. It’s too large to manage practically. Now if we divide it into smaller network by extending network prefix from 16 bits to, say 24 bits, that’s using its third byte to subnet this class B network. Now it has a subnet mask

255.255.255.0, in which each bit of the first three bytes is 1. It’s now clear that the first two bytes is used to identify the class B network, the third byte is used to identify the subnet within this class B network and, of course, the last byte is the host number.

Not all IP address is available in the sub-netted network. Two special addresses are reserved. They are the addresses with all zero’s and all one’s host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast.

VigorSwitch P1092 User’s Guide

In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched. The following table shows the result.

Prefix Length No. of IP matched No. of Addressable IP

/32 1 /31 2 /30 4 2 /29 8 6 /28 16 14 /27 32 30 /26 64 62 /25 128 126 /24 256 254 /23 512 510 /22 1024 1022 /21 2048 2046 /20 4096 4094 /19 8192 8190 /18 16384 16382 /17 32768 32766 /16 65536 65534

According to the scheme above, a subnet mask 255.255.255.0 will partition a network with the class C. It means there will have a maximum of 254 effective nodes existed in this sub-netted network and is considered a physical network in an autonomous network. So it owns a network IP address which may looks like 168.1.2.0.

With the subnet mask, a bigger network can be cut into small pieces of network. If we want to have more than two independent networks in a worknet, a partition to the network must be performed. In this case, subnet mask must be applied.

For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network.

Default gateway:

For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router. Basically, it is a routing policy. The gateway setting is used for Trap Events Host only in the switch.

For assigning an IP address to the switch, you just have to check what the IP address of the network will be connected with the switch. Use the same network address and append your host address to it.

VigorSwitch P1092 User’s Guide
