Vigor2122 Series

Dual Band Security Firewall

Quick Start Guide

Version:1.0

Firmware Version: V3.8.9_RC1

(For future update, please visit DrayTek web site)

Date: May 30, 2018

ii

Copyrights

© All rights reserved. This publication contains information that is protected
by copyright. No part may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language without written permission
from the copyright holders.

Trademarks

The following trademarks are used in this document:

 Microsoft is a registered trademark of Microsoft Corp.
 Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8 and

Explorer are trademarks of Microsoft Corp.

 Apple and Mac OS are registered trademarks of Apple Inc.
 Other products may be trademarks or registered trademarks of

their respective manufacturers.

Safety
Instructions

 Read the installation guide thoroughly before you set up the router.
 The router is a complicated electronic unit that may be repaired

only be authorized and qualified personnel. Do not try to open or
repair the router yourself.

 Do not place the router in a damp or humid place, e.g. a bathroom.
 Do not stack the routers.
 The router should be used in a sheltered area, within a

temperature range of +5 to +40 Celsius.

 Do not expose the router to direct sunlight or other heat sources.

The housing and electronic components may be damaged by direct
sunlight or heat sources.

 Do not deploy the cable for LAN connection outdoor to prevent

electronic shock hazards.

 Keep the package out of reach of children.
 When you want to dispose of the router, please follow local

regulations on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free
from any defects in workmanship or materials for a period of two (2) years
from the date of purchase from the dealer. Please keep your purchase receipt
in a safe place as it serves as proof of date of purchase. During the warranty
period, and upon proof of purchase, should the product have indications of
failure due to faulty workmanship and/or materials, we will, at our discretion,
repair or replace the defective products or components, without charge for
either parts or labor, to whatever extent we deem necessary tore-store the
product to proper operating condition. Any replacement will consist of a new
or re-manufactured functionally equivalent product of equal value, and will
be offered solely at our discretion. This warranty will not apply if the product
is modified, misused, tampered with, damaged by an act of God, or subjected
to abnormal working conditions. The warranty does not cover the bundled or
licensed software of other vendors. Defects which do not significantly affect
the usability of the product will not be covered by the warranty. We reserve
the right to revise the manual and online documentation and to make changes
from time to time in the contents hereof without obligation to notify any
person of such revision or changes.

Intellectual Property Rights (IPR) Information

Safety Instructions and Approval

i

Declaration of Conformity

2.4G WLAN

2412MHz - 2472 MHz, max. TX power: 19.95dBm

5G WLAN

5180MHz - 5700 MHz, max. TX power: 25.65dBm

Requirements in AT/BE/BG/CZ/DZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/
CY/LV/LI/LT/LU/HU/MT/NL/NO/PL/PT/RO/SI/SK/TR/FI/SE/CH/
UK/HR. 5150MHz~5350MHz is for indoor use only.

Regulatory Information

Hereby, DrayTek Corporation declares that the radio equipment type Vigor2122 is in compliance with
Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.draytek.com.tw/ftp/Vigor2122/Document/CE/

Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu County,

Taiwan 303

Product: Vigor2122 Series

Frequency Information for Europe area:

This product is designed for the 2.4GHz /5GHz WLAN network throughout the EC region.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause
undesired operation.

Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

The antenna/transmitter should be kept at least 20 cm away from human body.

More update, please visit www.draytek.com.

ii

TTaabbllee ooff CCoonntteennttss

1. Introduction ........................................................................................................... 1

2. Package Content .................................................................................................. 2

3. Panel Explanation ................................................................................................. 3

3.1 Vigor2122 ................................................................................................................................... 3

3.2 Vigor2122ac ............................................................................................................................... 5

4. Hardware Installation ........................................................................................... 7

4.1 Network Connection ................................................................................................................... 7

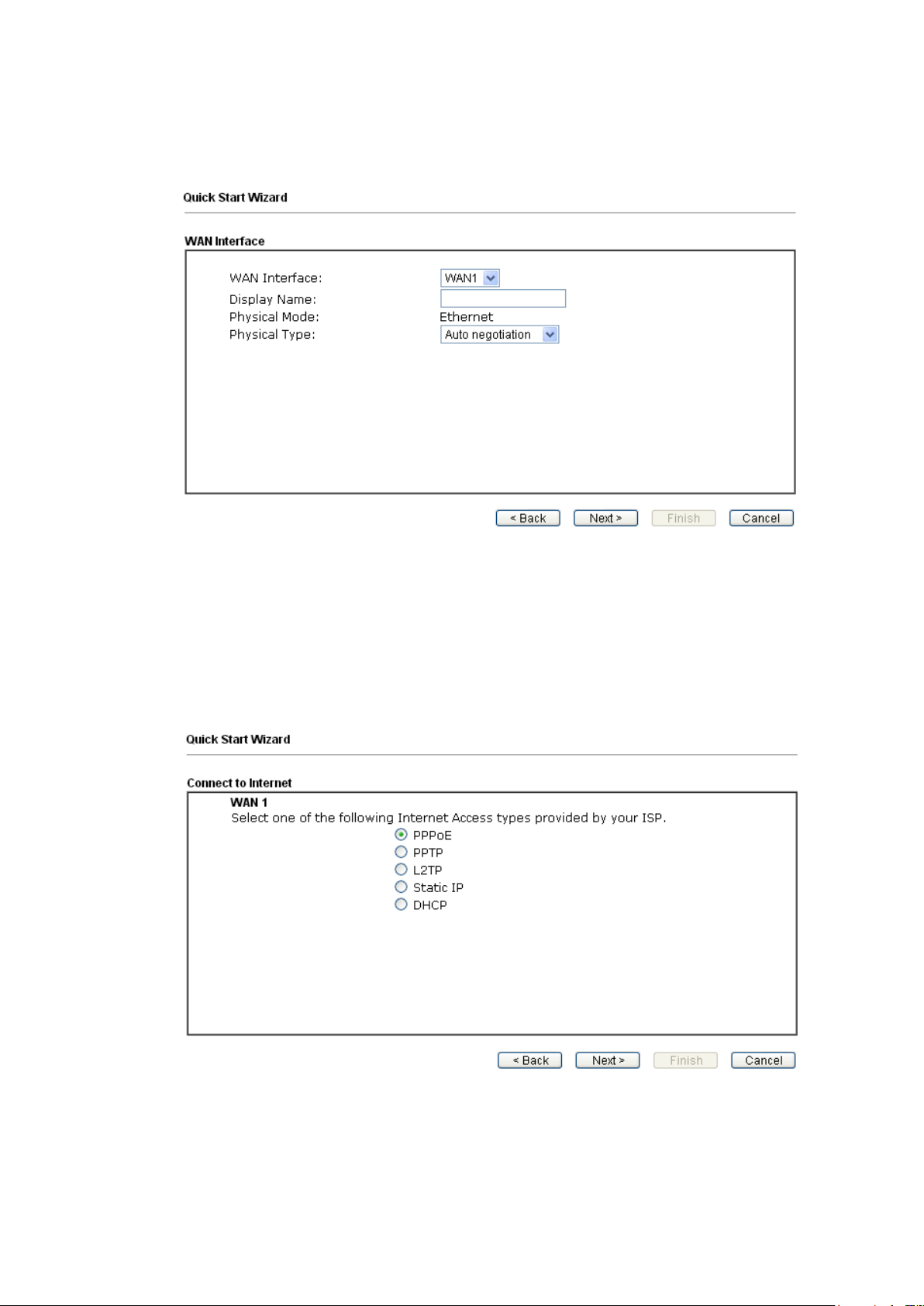

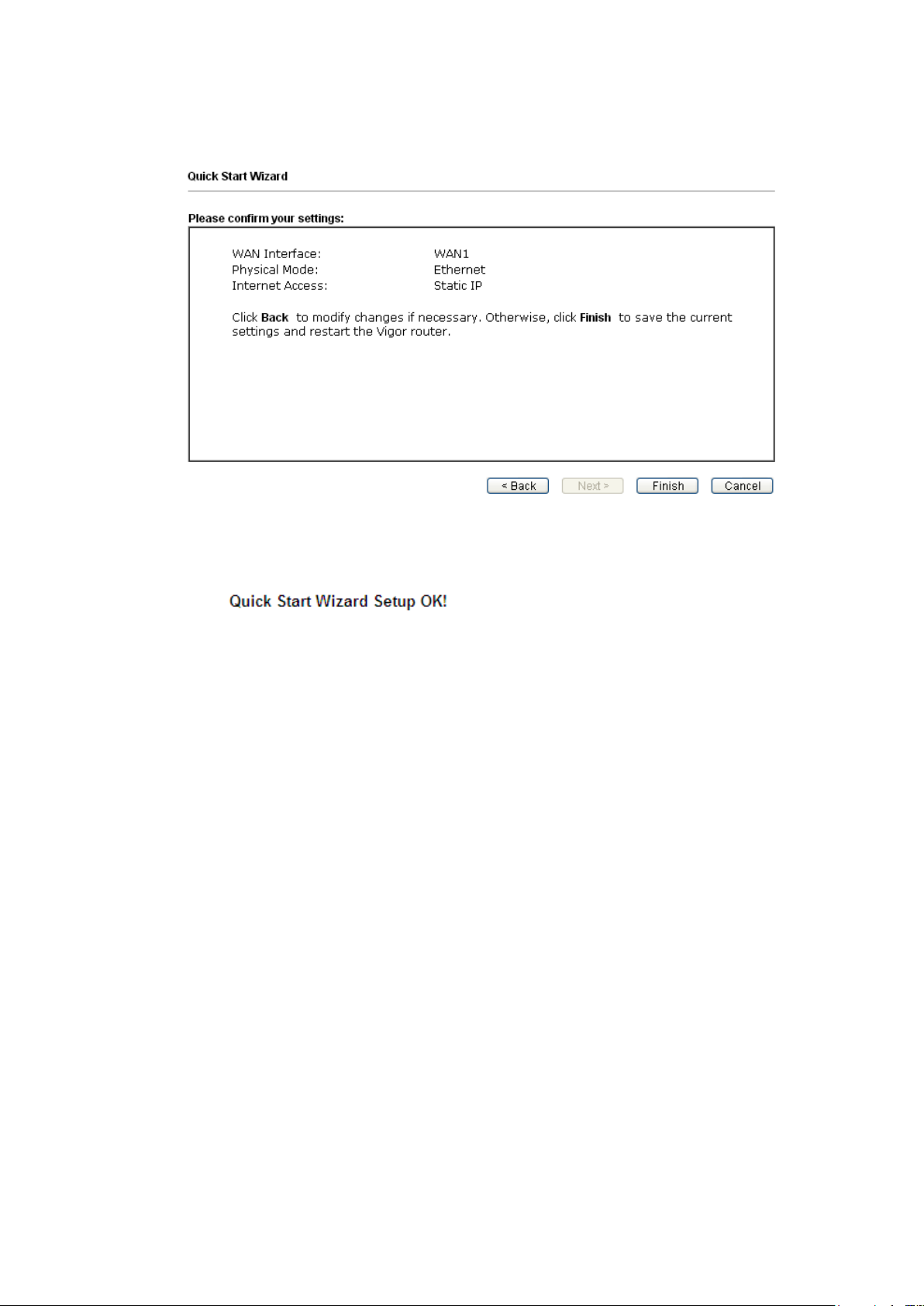

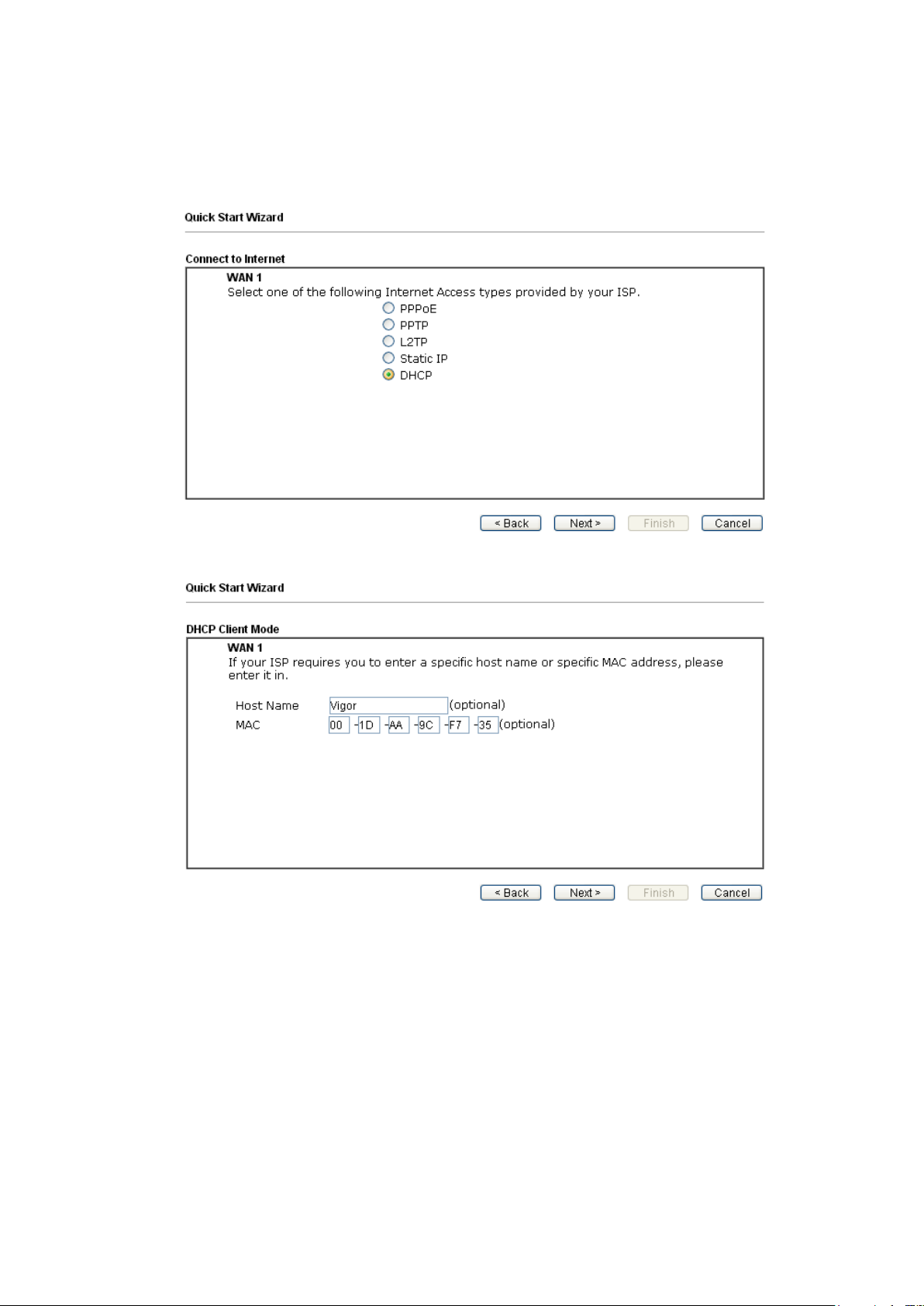

5. Software Configuration ........................................................................................ 8

6. Customer Service ............................................................................................... 18

Be a Registered Owner .................................................................................................................. 18

Firmware & Tools Updates ............................................................................................................. 18

iii

1

11.. IInnttrroodduuccttiioonn

Vigor2122 series is a broadband router which integrates IP layer QoS, NAT
session/bandwidth management to help users control works well with large
bandwidth.

By adopting hardware-based VPN platform and hardware encryption of
AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the
performance of VPN greatly and offers several protocols (such as
IPSec/PPTP/L2TP) with up to 2 VPN tunnels.

The object-based design used in SPI (Stateful Packet Inspection) firewall allows
users to set firewall policy with ease. CSM (Content Security Management)
provides users control and management in IM (Instant Messenger) and P2P (Peer
to Peer) more efficiency than before. In addition, DoS/DDoS prevention and
URL/Web content filter strengthen the security outside and control inside.

Vigor2122 series supports USB interface for connecting USB printer to share
printing function, 3G/4G USB modem for network connection, or connectivity for
network FTP service.

2

22.. PPaacckkaaggee CCoonntteenntt

Vigor Router

Quick Start Guide

RJ-45 Cat-5 Ethernet Cable

Antenna x 2 (for “ac” model)

UK-type Power Adapter

EU-type Power Adapter

USA/Taiwan-type Power Adapter

AU/NZ-type Power Adapter

Take a look at the package content. If there is anything missed or damaged,
please contact DrayTek or dealer immediately.

The type of the power adapter depends on the country that the router will be
installed. * The maximum power consumption is 12 Watt.
