Drayson Technologies CS TAG1 User Manual

USER GUIDE

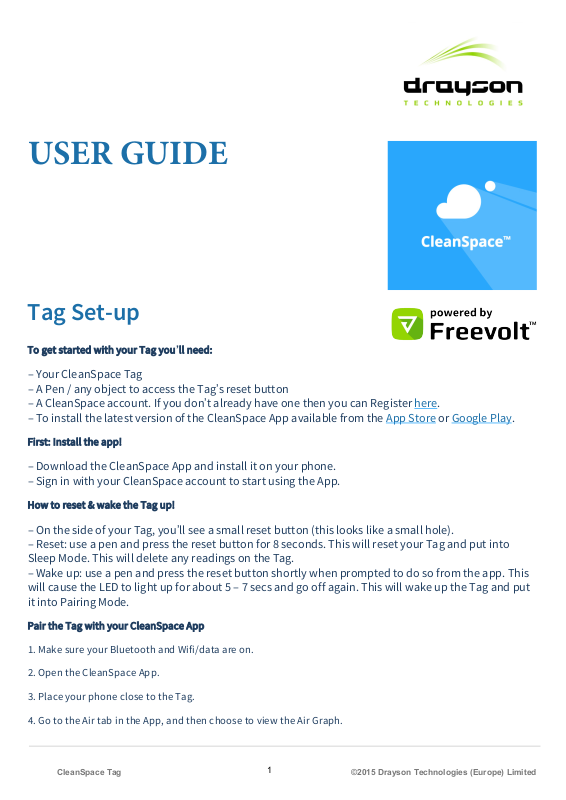

Tag Set-up

Toget started with your Tag you’ll need:

– Your CleanSpace Tag
– A Pen / any object to access the Tag’s reset button
– A CleanSpace account. If you don’t already have one then you can Register here.
– To install the latest version of the CleanSpace App available from the App Store or Google Play.

First: Install the app!

– Download the CleanSpace App and install it on your phone.
– Sign in with your CleanSpace account to start using the App.

How to reset & wake the Tag up!

– On the side of your Tag, you’ll see a small reset button (this looks like a small hole).
– Reset: use a pen and press the reset button for 8 seconds. This will reset your Tag and put into
Sleep Mode. This will delete any readings on the Tag.
– Wake up: use a pen and press the reset button shortly when prompted to do so from the app. This
will cause the LED to light up for about 5 – 7 secs and go off again. This will wake up the Tag and put
it into Pairing Mode.

Pair the Tag with your CleanSpace App

1. Make sure your Bluetooth and Wifi/data are on.

2. Open the CleanSpace App.

3. Place your phone close to the Tag.

4. Go to the Air tabin the App, and then choose to view the Air Graph.

CleanSpaceTag

1

©2015Drayson Technologies (Europe) Limited

5. Press the Pair a Tag button, followedby the ‘Pair now!’ button. It can take up to 30 seconds for the pairing to

6. When ‘Bluetooth Pairing Request’ appears on your screen press Pair.

be completed. You will be prompted to wake up your Tag.

CleanSpaceTag

2

©2015Drayson Technologies (Europe) Limited

7. Wait until the pairing process is 100% complete. You can see now the Tags measurements in My Air section by
pressing on My Air button.

8. Now you’re good to go. Just remember that the Tag needs up to 2 hours to calibrate.

CleanSpaceTag

3

©2015Drayson Technologies (Europe) Limited

CleanSpace Tag intended operation

The Tag takeshourly measurements if static. If you are on a journey, the Tag will automatically increase the
measurement frequency in order to provide you with the most accurate data.

Errors / Troubleshooting

When trying to pair with or connecting to your Tag the following errors might appear:

Use a pen and press the reset button for about 8 seconds. This will reset your Tag. Then press shortly
to put your Tag into pairing mode.
Press Try Again and follow steps 5-7 in section Pair the Tag with your CleanSpace App

CleanSpaceTag

4

©2015Drayson Technologies (Europe) Limited

Make sure that you keep your Tag close to the phone and that are no other Tags nearby.
Press Try Again and follow steps 5-7 in section Pair the Tag with your CleanSpace App

You must be connected to the internet to register your Tag (when you try to Pair).
Switch on Data services or WIFI on your phone, then Press Try Again and follow steps 1-7 in section
Pair the Tag with your CleanSpace App

CleanSpaceTag

5

©2015Drayson Technologies (Europe) Limited

Your Bluetooth must be turned on to connect to/pair with your Tag.
Press Settings and turn your Bluetooth on, then follow steps 1-7 in section Pair the Tag with your
CleanSpace App

If you experience any connection errors, go to the Bluetooth Settings in your phone click on the Info icon next
to your Tag and choose ‘Forget this Device’. Reset the Tag and Wake it up, as shown in How to reset & wake the
Tag up! section,and then follow steps 1-7.

See your Readings

Go tothe Air tab and then visit the Air Graph screen to see your data appear – this can take up to 30 seconds.

CleanSpaceTag

6

©2015Drayson Technologies (Europe) Limited
