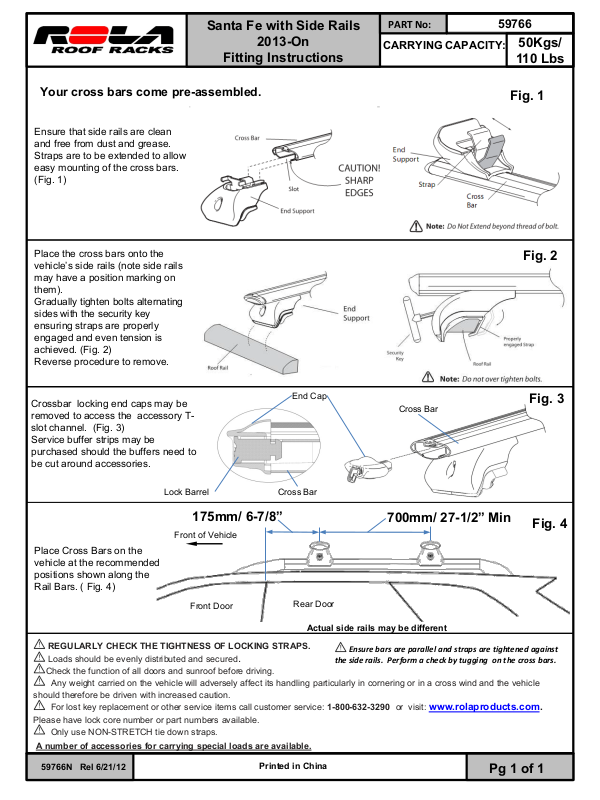

Draw-Tite 59766 User Manual [en, es, fr]
Santa Fe with Side Rails
Fitting Instructions
Your cross bars come pre-assembled.
Ensure that side rails are clean
and free from dust and grease.
Straps are to be extended to allow
easy mounting of the cross bars.
(Fig. 1)
2013-On
PART No:
59766
CARRYING CAPACITY:
50Kgs/
110 Lbs
Fig. 1
Place the cross bars onto the
vehicle’s side rails (note side rails
may have a position marking on
them).
Gradually tighten bolts alternating
sides with the security key
ensuring straps are properly
engaged and even tension is
achieved. (Fig. 2)
Reverse procedure to remove.
Crossbar locking end caps may be
removed to access the accessory Tslot channel. (Fig. 3)
Service buffer strips may be
purchased should the buffers need to
be cut around accessories.
Lock Barrel
Front of Vehicle
Place Cross Bars on the
vehicle at the recommended
positions shown along the
Rail Bars. ( Fig. 4)
175mm/ 6-7/8”
Front Door
End Cap
Cross Bar
Rear Door
Cross Bar
700mm/ 27-1/2” Min
Fig. 2
Fig. 3
Fig. 4
Actual side rails may be different
REGULARLY CHECK THE TIGHTNESS OF LOCKING STRAPS.
Loads should be evenly distributed and secured.
Check the function of all doors and sunroof before driving.
Any weight carried on the vehicle will adversely affect its handling particularly in cornering or in a cross wind and the vehicle
should therefore be driven with increased caution.
For lost key replacement or other service items call customer service: 1-800-632-3290 or visit: www.rolaproducts.com.
Please have lock core number or part numbers available.
Only use NON-STRETCH tie down straps.
A number of accessories for carrying special loads are available.
59766N Rel 6/21/12
Printed in China
Ensure bars are parallel and straps are tightened against
the side rails. Perform a check by tugging on the cross bars.
Pg 1 of 1
