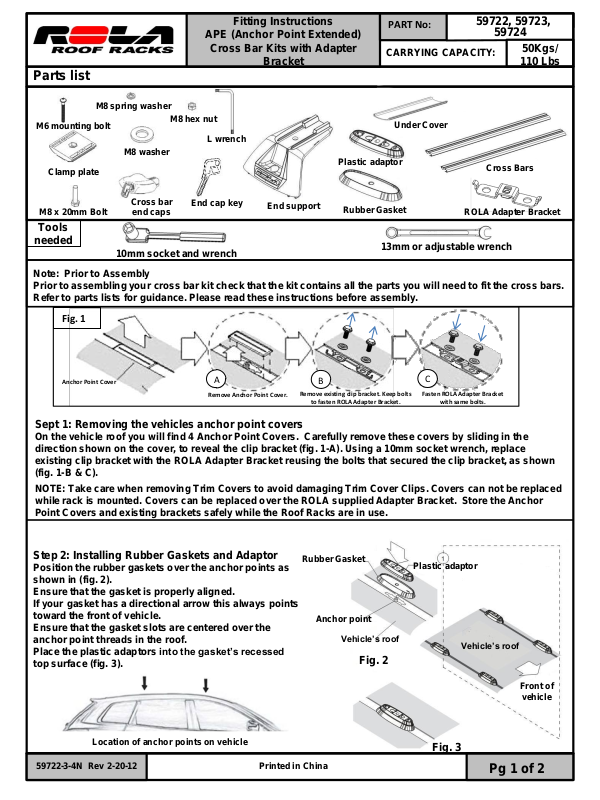

Draw-Tite 59722 User Manual [en, es, fr]

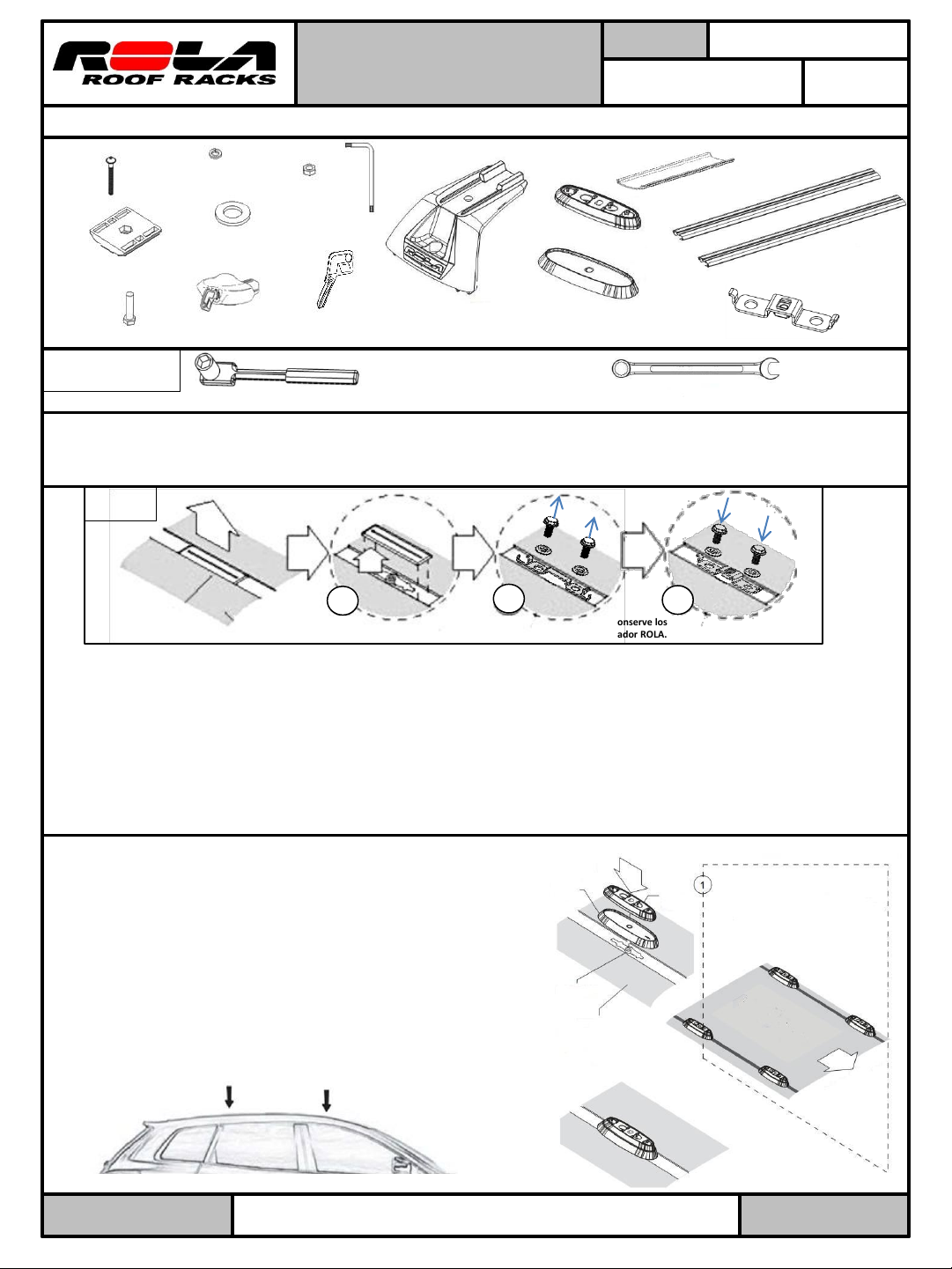

Parts list

M8 spring washer

M6 mounting bolt

Clamp plate

M8 washer

APE (Anchor Point Extended)

Cross Bar Kits with Adapter

M8 hex nut

L wrench

Fitting Instructions

Bracket

PART No:

CARRYING CAPACITY:

Under Cover

Plastic adaptor

59722, 59723,

59724

50Kgs/

110 Lbs

Cross Bars

M8 x 20mm Bolt

Cross bar

end caps

End cap key

End support

Rubber Gasket

ROLA Adapter Bracket

Tools

needed

10mm socket and wrench

Note: Prior to Assembly
Prior to assembling your cross bar kit check that the kit contains all the parts you will need to fit the cross bars.
Refer to parts lists for guidance. Please read these instructions before assembly.

13mm or adjustable wrench

Fig. 1

Anchor Point Cover

A

Remove Anchor Point Cover.

B

Remove existing clip bracket. Keep bolts

to fasten ROLA Adapter Bracket.

C

Fasten ROLA Adapter Bracket

with same bolts.

Sept 1: Removing the vehicles anchor point covers

On the vehicle roof you will find 4 Anchor Point Covers. Carefully remove these covers by sliding in the
direction shown on the cover, to reveal the clip bracket (fig. 1-A). Using a 10mm socket wrench, replace
existing clip bracket with the ROLA Adapter Bracket reusing the bolts that secured the clip bracket, as shown
(fig. 1-B & C).

NOTE: Take care when removing Trim Covers to avoid damaging Trim Cover Clips. Covers can not be replaced
while rack is mounted. Covers can be replaced over the ROLA supplied Adapter Bracket. Store the Anchor
Point Covers and existing brackets safely while the Roof Racks are in use.

Step 2: Installing Rubber Gaskets and Adaptor

Position the rubber gaskets over the anchor points as
shown in (fig. 2).
Ensure that the gasket is properly aligned.
If your gasket has a directional arrow this always points
toward the front of vehicle.

Ensure that the gasket slots are centered over the

anchor point threads in the roof.
Place the plastic adaptors into the gasket’s recessed
top surface (fig. 3).

Location of anchor points on vehicle

59722-3-4N Rev 2-20-12

Printed in China

Rubber Gasket

Anchor point

Vehicle’s roof

Fig. 2

Plastic adaptor

Vehicle’s roof

Front of

vehicle

Fig. 3

Pg 1 of 2

Fitting Instructions

APE (Anchor Point Extended)

Cross Bar Kits with Adapter

Bracket

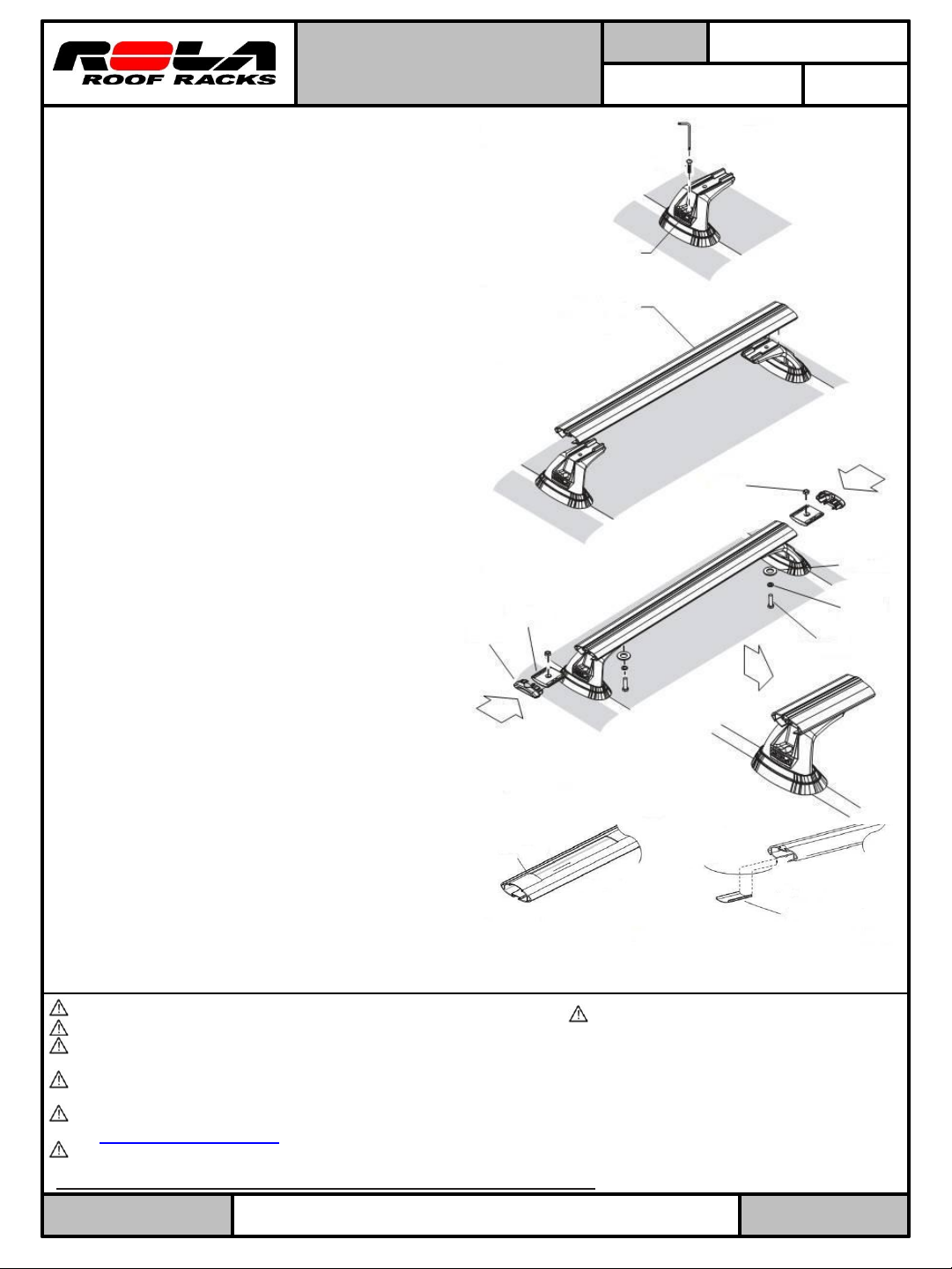

Step 3: Fitting Cross Bars to the vehicle

A. Place an end support into the plastic adaptor and

loosely bolt down by inserting the M6 mounting bolt
into the anchor point threads and turning approx 2-3
turns with the L wrench security key. Do not tighten
yet, repeat for the opposite side. (fig. 4)

B. Place the cross bar onto the end supports ensuring

that the end support tabs are located into the cutouts
on the underside of the bar. Check that the cross bar
has equally distanced overhang on either side of the
end supports. (fig. 5)

C. Insert the M8 hex nut into the clamp plate. Insert the

clamp plate into the end of the cross bar and align it

so that the nut and the end support’s bolt hole align.

D. Secure the cross bar to the end support by screwing

the M8 x 20mm bolt with washer and spring washer
through the end support hole and into the clamp
plate nut. (fig. 6)

E. Using a 13mm or adjustable wrench fully tighten the

bolt on the underside of the support. Now using the
security key finish tightening the 45mm bolts to 5Nm
(44 in/ lbs) or to a firm hand tightness.

Step 4: Installing Under Cover strips

Mark on bars with a pencil the length of Under
Cover strips needed.
Remove bars, measure length of Under Cover strips
to fill slot. Cut Under Cover strips using scissors
or a blade. Slide inner most Under Cover strip into
position on the bars and re-assemble bars onto
vehicle. Add the outer Under Cover strip piece
once bars are attached. (fig. 7)

End cap

PART No:

CARRYING CAPACITY:

M6 mounting

bolt

Anchor hole

Cross Bar

Cross Bar shortened for

illustrative purposes

Fig. 5

Clamp plate

59722, 59723,

L wrench- security key

M8 nut

Fig. 6

59724

50Kgs/

110 Lbs

Fig. 4

M8 washer

Spring washer

M8 bolt

Step 5: Install end caps

Locking end caps can now be installed into the ends of

the cross bars. Remove keys and keep in a safe place.

To load accessories into the cross bar accessory
channel remove end cap, cut buffer strips as needed.
Once accessories have been loaded, re-insert the end
caps and lock. Additional buffer strips may be
purchased from ROLA if needed.

REGULARLY CHECK THE TIGHTNESS OF CROSS BAR ATTACHMENTS.

Loads should be evenly distributed and secured.
Check the function of all doors and sunroof before driving.
Any weight carried on the vehicle will adversely affect its handling particularly in cornering or in a cross wind and the vehicle

should therefore be driven with increased caution.

For lost key replacement or other service items call customer service: 1-800-632-3290 or visit: www.rolaproducts.com.

Please have lock core number or part numbers available.

Only use NON-STRETCH tie down straps.

A number of accessories for carrying special loads are available.

59722-3-4N Rev 2-20-12

Printed in China

Inner Under

Cover strip

Slide to end

Ensure bars are parallel and straps are tightened against

the side rails. Perform a check by tugging on the cross bars.

Caution sharp

edges

Fig. 7

Outer Under

Cover strip

Pg 2 of 2
