Draw-Tite 58405 User Manual
Equipment Required:

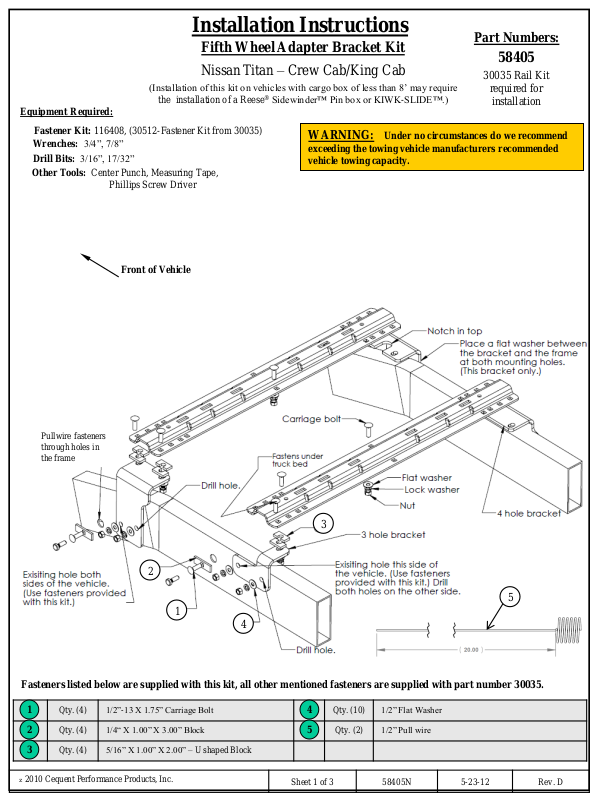

Installation Instructions
Fifth Wheel Adapter Bracket Kit
Nissan Titan – Crew Cab/King Cab
(Installation of this kit on vehicles with cargo box of less than 8’ may require
the installation of a Reese® Sidewinder™ Pin box or KIWK-SLIDE™.)
Part Numbers:
58405
30035 Rail Kit
required for
installation
Fastener Kit: 116408, (30512-Fastener Kit from 30035)
Wrenches: 3/4”, 7/8”
Drill Bits: 3/16”, 17/32”
Other Tools: Center Punch, Measuring Tape,
Phillips Screw Driver
Front of Vehicle
Pullwire fasteners
through holes in
the frame
WARNING: Under no circumstances do we recommend
exceeding the towing vehicle manufacturers recommended
vehicle towing capacity.
3
2
5
1
4
Fasteners listed below are supplied with this kit, all other mentioned fasteners are supplied with part number 30035.
Qty. (4) 1/2”-13 X 1.75” Carriage Bolt Qty. (10) 1/2” Flat Washer
1
Qty. (4) 1/4“ X 1.00” X 3.00” Block Qty. (2) 1/2” Pull wire
2
Qty. (4) 5/16” X 1.00” X 2.00” – U shaped Block
3
z 2010 Cequent Performance Products, Inc.
4
5
Sheet 1 of 3 58405N 5-23-12 Rev. D
2004 & Up NISSAN TITAN – CREWCAB & KING CAB (5-1/2’ Bed Requires Reese® Sidewinder™ Pin box)
(6-1/2’ and 7’ beds may require the Reese® Sidewinder™ Pin box or KIWK-SLIDE™)
CAUTION!
Read pages 2-3 of 30035 instructions before starting installation. Failure to do so could result in significant vehicle damage!
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Use the 58405 service kit together with 30035 mounting kit. Read pages 1-3 of 30035 instruction for general
information.
2. Bolts will need to be pulled through access holes in frame with supplied pull wire (see below).
3. Do not drill through both
walls of frame. Drill only
through wall of frame to
which bracket is mounted.
4. Drill through frame at rear
hole in each front side
bracket and both holes in
passenger side rear side
bracket.
Each base rail must
have a bolt in either
of the marked center
holes. Check for
obstructions before
drilling.
Front of
Vehicle
ROW 1
ROW 2
.
.
NOTE: Row 3
attachment will be
ROW 4
ROW 3
drilled through
accessory track
(If Equipped)
Measure from Rear Edge
of truck bed to rear edge of
base rail.
Do not install on a truck with
a 6-1/2’ or 7’ box unless the
trailer is equipped with a
Reese® Sidewinder™ Pin
box or KIWK-SLIDE™.
Rear Edge
of Truck
Bed
26-1/2”
5-1/2’ Short Box
6-1/2’ Short Box
7’ Long Box
8’ Long Box
* Optional weld
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
z 2010 Cequent Performance Products, Inc.
Sheet 2 of 3 58405N 5-23-12 Rev. D
pattern
