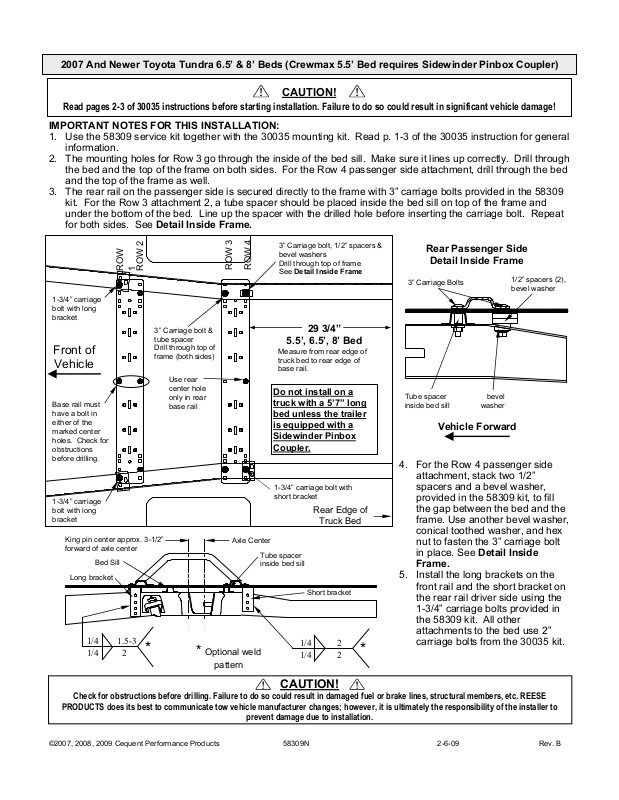

Draw-Tite 58309 User Manual

2007 And Newer Toyota Tundra 6.5’ & 8’ Beds (Crewmax 5.5’ Bed requires Sidewinder Pinbox Coupler)

CAUTION!

Read pages 2-3 of 30035 instructions before starting installation. Failure to do so could result in significant vehicle damage!

IMPORTANT NOTES FOR THIS INSTALLATION:

1. Use the 58309 service kit together with the 30035 mounting kit. Read p. 1-3 of the 30035 instruction for general
information.

2. The mounting holes for Row 3 go through the inside of the bed sill. Make sure it lines up correctly. Drill through
the bed and the top of the frame on both sides. For the Row 4 passenger side attachment, drill through the bed
and the top of the frame as well.

3. The rear rail on the passenger side is secured directly to the frame with 3” carriage bolts provided in the 58309
kit. For the Row 3 attachment 2, a tube spacer should be placed inside the bed sill on top of the frame and
under the bottom of the bed. Line up the spacer with the drilled hole before inserting the carriage bolt. Repeat
for both sides. See Detail Inside Frame.

ROW

1-3/4” carriage
bolt with long
bracket

Front of

Vehicle

Base rail must
have a bolt in
either of the
marked center
holes. Check for
obstructions
before drilling.

1-3/4” carriage
bolt with long
bracket

King pin center approx. 3-1/2”
forward of axle center

Bed Sill

Long bracket

1/4 1.5-3
1/4 2

1

ROW 2

3” Carriage bolt &
tube spacer
Drill through top of
frame (both sides)

Use rear
center hole
only in rear
base rail

*

ROW 3

ROW 4

Axle Center

* Optional weld

pattern

3” Carriage bolt, 1/2” spacers &
bevel washers
Drill through top of frame
See Detail Inside Frame

29 3/4”

5.5’, 6.5’, 8’ Bed

Measure from rear edge of
truck bed to rear edge of
base rail.

Do not install on a
truck with a 5’7” long
bed unless the trailer
is equipped with a
Sidewinder Pinbox
Coupler.

1-3/4” carriage bolt with
short bracket

Rear Edge of

Truck Bed

Tube spacer
inside bed sill

Short bracket

1/4 2
1/4 2

Rear Passenger Side

Detail Inside Frame

3” Carriage Bolts

Tube spacer
inside bed sill

washer

1/2” spacers (2),
bevel washer

bevel

Vehicle Forward

4. For the Row 4 passenger side
attachment, stack two 1/2”
spacers and a bevel washer,
provided in the 58309 kit, to fill
the gap between the bed and the
frame. Use another bevel washer,
conical toothed washer, and hex
nut to fasten the 3” carriage bolt
in place. See Detail Inside

Frame.

5. Install the long brackets on the
front rail and the short bracket on
the rear rail driver side using the
1-3/4” carriage bolts provided in
the 58309 kit. All other
attachments to the bed use 2”
carriage bolts from the 30035 kit.

*

CAUTION!

Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc. REESE

PRODUCTS does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the responsibility of the installer to

prevent damage due to installation.
