Draw-Tite 58186 User Manual

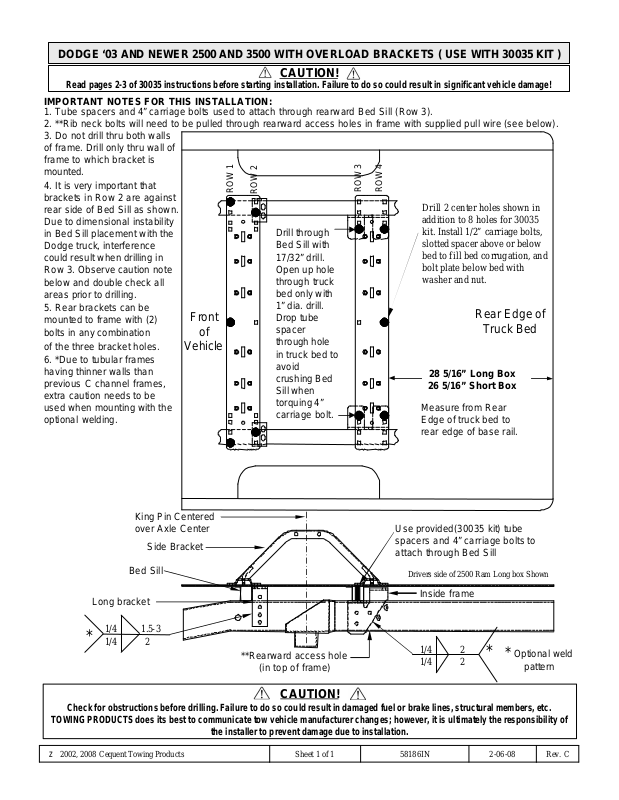

DODGE ‘03 AND NEWER 2500 AND 3500 WITH OVERLOAD BRACKETS ( USE WITH 30035 KIT )

Optional weld

CAUTION!

Read pages 2-3 of 30035 instructions before starting installation. Failure todo so could result in significant vehicle damage!

IMPORTANT NOTES FOR THIS INSTALLATION:

1. Tube spacers and 4” carriage bolts used to attach through rearward Bed Sill (Row 3).

2. **Rib neck bolts will need to be pulled through rearward access holes in frame with supplied pull wire (see below).

3. Do not drill thru both walls
of frame. Drill only thru wall of
frame to which bracket is
mounted.

4. It is very important that
brackets in Row 2 are against
rear side of Bed Sill as shown.
Due to dimensional instability
in Bed Sill placement with the
Dodge truck, interference
could result when drilling in
Row 3. Observe caution note
below and double check all
areas prior to drilling.

5. Rear brackets can be
mounted to frame with (2)

bolts in any combination
of the three bracket holes.

6. *Due to tubular frames
having thinner walls than
previous C channel frames,
extra caution needs to be
used when mounting with the
optional welding.

Front

of

Vehicle

ROW 1

ROW 2

Drill through
Bed Sill with
17/32” drill.
Open up hole
through truck
bed only with
1” dia. drill.
Drop tube
spacer
through hole
in truck bed to
avoid
crushing Bed
Sill when
torquing 4”
carriage bolt.

ROW 3

ROW 4

Drill 2 center holes shown in
addition to 8 holes for 30035
kit. Install 1/2” carriage bolts,
slotted spacer above or below
bed to fill bed corrugation, and
bolt plate below bed with
washer and nut.

Rear Edge of

Truck Bed

28 5/16” Long Box

26 5/16” Short Box

Measure from Rear
Edge of truck bed to
rear edge of base rail.

King Pin Centered

Bed Sill

Long bracket

1/4 1.5-3

*

1/4 2

over Axle Center

Side Bracket

**Rearward access hole

(in top of frame)

Use provided(30035 kit) tube
spacers and 4” carriage bolts to
attach through Bed Sill

Drivers side of 2500 Ram Long box Shown

Inside frame

1/4 2
1/4 2

*

*

pattern

CAUTION!

Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.

TOWINGPRODUCTS does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the responsibility of

the installer to prevent damage due to installation.

Rev. C2-06-0858186INSheet 1of 1z2002, 2008 Cequent Towing Products
