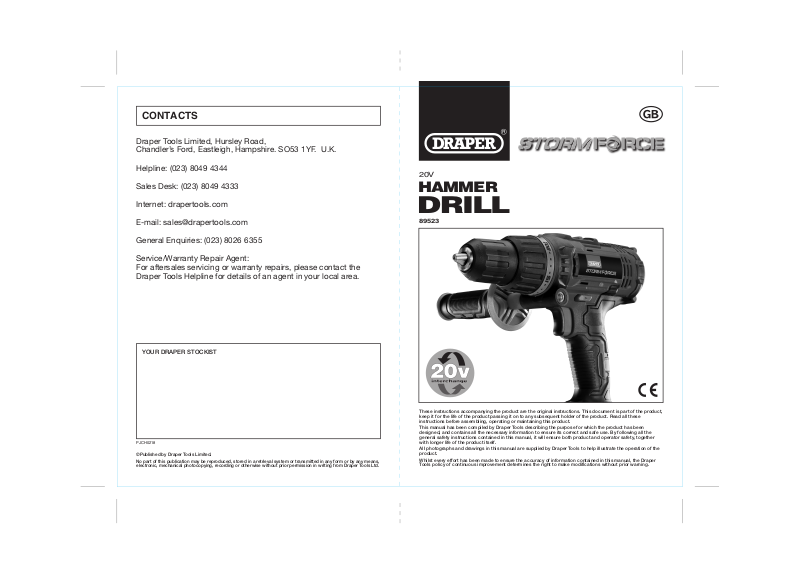

Draper Tools 89523, CHD20SF User Manual

20V
HAMMER
DRILL
89523
These instructions accompanying the product are the original instructions. This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy of continuous improvement determines the right to make modifications without prior warning.
1. TITLE PAGE NOTES
1.1 INTRODUCTION:
USER MANUAL FOR: 20V Hammer Drill
Stock No’s: 89523 Part No’s: CHD20SF
1.2 REVISIONS:
Date first published February 2018.
As our user manuals are continually updated, users should make sure that they use the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited Hursley Road Chandler’s Ford Eastleigh Hampshire SO53 1YF UK
Website: drapertools.com Product Helpline: +44 (0) 23 8049 4344 General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death. CAUTION! – Information that draws attention to the risk of damage to the
product or surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited. Permission is granted to reproduce this publication for personal and educational
use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in
any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
2. CONTENTSNOTES
2.1 CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION.......................................................................................................................... 1
1.2 REVISION HISTORY .................................................................................................................. 2
1.3 UNDERSTANDING THIS MANUAL .............................................................................................2
1.4 COPYRIGHT NOTICE ................................................................................................................. 2
2. CONTENTS
2.1 CONTENTS ................................................................................................................................. 3
3. GUARANTEE
3.1 GUARANTEE............................................................................................................................... 4
4. INTRODUCTION
4.1 SCOPE......................................................................................................................................... 5
4.2 SPECIFICATION.......................................................................................................................... 5
4.3 HANDLING AND STORAGE........................................................................................................ 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................................... 6
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR HAMMER DRILLS.............................................. 7
5.3 RESIDUAL RISK.......................................................................................................................... 8
5.4 SAFETY INSTRUCTIONS FOR MAINS POWERED BATTERY PACKS AND CHARGERS ...... 8
Chargers................................................................................................................................. 8
Battery packs......................................................................................................................... 9
5.5 CONNECTION TO THE POWER SUPPLY – CHARGER............................................................ 9
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION....................................................................................................................... 10
7. UNPACKING AND CHECKING
7.1 PACKAGING ............................................................................................................................. 11
7.2 WHAT’S IN THE BOX ............................................................................................................... 11
8. PREPARING THE DRILL DRIVER
8.1 BATTERY PACK CHARGING ................................................................................................... 12
8.2 BATTERY PACK CHARGE STATUS ......................................................................................... 13
8.3 BATTERY PACK EFFICIENCY AND CHARGING ADVICE ...................................................... 13
9. BASIC OPERATION
9.1 INSTALLING AND REMOVING BITS......................................................................................... 14
9.2 ROTATIONAL DRIVE SELECTION............................................................................................ 14
9.3 VARIABLE SPEED TRIGGER ................................................................................................... 15
9.4 TORQUE SELECTION CONTROL............................................................................................ 15
9.5 TWO SPEED GEARBOX........................................................................................................... 15
9.6 BELT CLIP..................................................................................................................................16
9.7 LED WORKLIGHT...................................................................................................................... 16
9.8 AUXILIARY HAND GRIP............................................................................................................ 16
9.9 SCREWDRIVING....................................................................................................................... 17
9.10 DRILLING WOOD AND PLASTIC............................................................................................ 17
9.11 DRILLING METAL .................................................................................................................... 17
9.12 DRILLING MASONRY.............................................................................................................. 17
10. MAINTENANCE & TROUBLESHOOTING
10.1 MAINTENANCE ....................................................................................................................... 18
10.2 TROUBLESHOOTING GUIDE................................................................................................. 18
11. 20V POWER INTERCHANGE ACCESSORIES
11.1 20V POWER INTERCHANGE BATTERY PACKS/CHARGERS.............................................. 19
12. DISPOSAL
12.1 DISPOSAL ............................................................................................................................... 20
12.2 BATTERY PACK DISPOSAL INFORMATION.......................................................................... 20
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS ................................................................................................ 21
DECLARATION OF CONFORMITY ....................................................................................... ENCLOSED
- 3 -- 22 -
3. GUARANTEE
+
+++++
++++
+++
+
++
+
++
+
+
+
++
+
++++
++++++++
+
+
++++++
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or contact:
Draper Tools Limited, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF. England. Telephone Sales Desk: (023) 8049 4333 or: Product Helpline (023) 8049 4344.
A proof of purchase must be provided. If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 6 months from the date of purchase except where tools are hired out when the guarantee period is 90 days from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 - - 21 -
4. INTRODUCTION
4.1 SCOPE
This cordless drill is designed for use with a variety of drill bits, intended for drilling holes in wood, plastic, metal, brick etc. It is intended for domestic and light commercial use only. Any other application is considered misuse.
This power product is part of the Draper 20V Power Interchange range of power tools. All use universal 2.0 and 4.0Ah batteries and chargers, enabling each battery pack to fit all tools within the range (see the table on page 19 for the batteries and chargers available).
4.2 SPECIFICATION
Stock No................................................................................................................................... 89523
Part No. .............................................................................................................................. CHD20SF
Battery packs:
Stock No. .................................................... 89437.................................. 89433 (sold separately)
Part No..................................................... B202LISF....................................................... B20LISF
Type ............................................................ Li-ion ............................................................... Li-ion
Rated Voltage .............................................. 20V ...................................................................20V
Rating ......................................................... 2.0Ah ..............................................................4.0Ah
Chargers:
Stock No. .................................................... 89425.................................. 23793 (sold separately)
Part No......................................................... CB20 .......................................................... CB203.5
Rated Voltage ............................................ 230V~ .............................................................230V~
Rated Frequency ........................................ 50Hz ................................................................50Hz
Rated D.C. output voltage ...........................21.5V...............................................................21.5V
Rated D.C. output current ............................ 2.4A................................................................. .3.5A
Protective device rated current ...................... 8A ......................................................................8A
Construction .............................................. Class II .......................................................... Class II
Maximum torque....................................................................................................................... 50Nm
/
Revolutions Per Minute (no load) .................................................................. 0 – 440
Chuck capacity................................................................................................................... 2 – 13mm
Spindle capacity ............................................................................................................... 1/2 × 20unf
Drill capacities: ...................................................................................................................................
Wood.................................................................................................................................... 35mm
Mild steel.............................................................................................................................. 13mm
Masonry............................................................................................................................... 13mm
Sound Pressure Level*........................................................................................86dB(A), K=3 db(A)
Sound Power Level** ..........................................................................................97dB(A), K=3 db(A)
Vibration Level.................................................................................................9.247m/s
Weight (machine only)............................................................................................................. 1.54kg
4.3 HANDLING & STORAGE
– Care must be taken when handling this product.
Dropping this power tool could have an effect on its accuracy and could also result in personal injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
Exposure to damp air can gradually corrode components.
If the product is unprotected from dust and debris, components will become clogged.
If not cleaned and maintained correctly or regularly, the machine will not perform at its best
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to prEN ISO 15744:1999
and declared according to EN ISO 4871.
** A-Weighted Sound Power Level in accordance to prEN ISO 15744:1999 and declared according to EN ISO 4871.
0 – 1,650r/min
2
, K=1.5 m/s
2
.
- 5 -- 20 -
5. HEALTH AND SAFETY INFORMATION 11. 20V POWER INTERCHANGE ACCESSORIES
When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
Warning!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Most important: You must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilled on the floor could result in you slipping.
Find a suitable location. If the machine is bench mounted; the location should provide good natural light or artificial lighting as a replacement. Avoid damp and dust locations as it will have a negative effect on the machine’s performance. If the machine is portable; do not expose the tool to rain. In all cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the work area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended while connected to the power supply. They must be housed in a suitable location, away locked up and from children.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what they are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an application it is not designed for. Select a tool appropriate for the size of the job. Overloading a tool will result in tool failure and user injury: This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become entangled in moving machinery: This can also result in parts of body being pulled into the machine. Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed. Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if not suitably protected against. If the work involving the power tool creates dust or fumes; wear a dust mask. Vibration to the hand, caused by operating some tools for longer periods must be protected against. Wear vibration reducing gloves and allow long breaks between uses. Protect against dust and swarf by wearing approved safety goggles or a face shield. These are some of the more common hazards and preventions; however, always find out what hazards are associated with the machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes; connect the machine (if possible) to an extraction system either locally or remotely. Working outdoors can also help if possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply cable. If the product is heavy; employ a second or third person to help move it safely or use a mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This could be from a height or onto a machine and will result in injury.
- 6 -
5. HEALTH AND SAFETY INFORMATION
Wait for the machine to stop. Unless the machine is fitted with a safety brake; some parts may continue to move due to momentum. Wait for all parts to stop; then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the switch is in the OFF position. If the machine is portable; do not hold the machine near the switch and take care when putting the machine down; that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If the tool is designed for use outdoors; use an extension lead also suitable for that environment. When using an extended lead, select one capable of handling the current (amps) drawn by the machine in use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool if you are under the influence of drugs (prescription or otherwise), including alcohol or if you are feeling tired. Being disorientated will result in an accident.
Have this tool repaired by a qualified person. This tool is designed to confirm to the relevant international and local standards and as such should be maintained and repaired by someone qualified; using only original parts supplied by the manufacturer: This will ensure the tool remains safe to use.
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR HAMMER DRILLS
Important: Draper Tools Limited recommends that this machine should not be modified or used
for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.
– Power tools shall not be used in potentially explosive atmospheres unless specifically designed
for that purpose. – Unexpected tool movement due to reaction forces or breakage may cause injuries. – Power tools shall be isolated from the energy source before changing or adjusting the inserted
tool.
Warning!
Wear appropriate ear protection. Exposure to noise can lead to hearing loss.
There is a risk of loose clothing, hair etc., being caught in the rotating spindle of the
power tool.
Do not touch the drill bit or areas close to the drill bit immediately after use; they can still be extremely hot, causing burns.
– Be sure the drill bit is securely in place before using the drill. – There is a risk of release of toxic chemicals into the atmosphere when using certain materials.
Always be mindful to use the appropriate personal protective wear to help safeguard against potential skin contact and dust inhalation. Always consult and follow the material supplier’s
safety guidelines.
– Adopt a suitable posture to counteract normal or unexpected movement of the power tool due to
reaction forces from the power assembly tool.
– Do not modify this drill driver in any way. Any other application is considered misuse and will
invalidate the warranty.
- 7 -
5. HEALTH AND SAFETY INFORMATION
5.3 RESIDUAL RISK
Important: Although the safety instructions and operating manuals for our tools contain extensive
instructions of safe working with power tools, every power tool involves a certain residual risk which can not be completely excluded by safety mechanisms. Power tools must therefore always be operated with caution!
5.4 SAFETY INSTRUCTIONS FOR MAINS POWERED BATTERY PACKS AND CHARGERS
Chargers
– The charger is for indoor use only. – Prior to plugging the charger in to the supply, check that the plug and the cable are in good
repair. If either are damaged, have the defective item replaced immediately by a suitably qualified person. If the casing of the battery charger is damaged, it is good policy to have the charger checked over by a suitably qualified person.
– Only use a correctly rated mains outlet to provide power, do not plug into site generators, attach
to engine generators or D.C. sources. Do not use a mains socket outlet that is not switched.
– Use the correct Draper charger in conjunction with it’s corresponding battery pack (see the
table on page 19 for information).
– Do not charge any other batteries with Draper chargers. Any other application is considered
misuse.
– Do not attempt to charge battery packs that are too hot (over 30ºC) or too cold (under 5ºC); if
these conditions apply set the battery pack aside to “normalise” before proceeding with the charging operation.
– Set up the charger and cable in a safe place where it won’t be knocked, tripped over, stepped
on, etc. and where it is well ventilated; make sure the ventilation slots in the charger case are not obstructed, plug the charger into the socket outlet.
– Inspect the battery pack for damage; if it is undamaged, plug it into the charger, ensuring the
correct orientation. (Most chargers and batteries have ‘keys’ etc, to make sure the battery pack is not inserted incorrectly, if you are having to ‘force’ the battery pack into the charger, the chances are you have it the wrong way round, check and try again.)
– Switch the charger on and check that the correct indicators illuminate, allow the battery pack to
charge (see the specific instructions for your charger). Once charging is complete, switch the charger off, remove the battery pack and store, repeat the procedure if you have more than one battery pack to charge.
Caution: When the battery charger has been continuously used, the battery charger will be hot. Once the charging has been completed, give 15 minutes rest until the next charge.
– After charging is complete, unplug the charger from the socket outlet by pulling on the plug. Do
not pull on the cable. Store the charger in a dry secure place.
– If, when the charger was switched on, the correct indications did not occur, leave for two or
three minutes to allow the charger to stabilise; if the correct indications occur, allow the charging cycle to proceed as normal.
– If no indication appears at all, switch off, remove the battery pack, unplug the charger, check
that the charger contacts and the battery contacts are clean and repeat the process; if there is still no indication, switch off, remove the battery pack, unplug the charger and check the fuse. If the fuse is blown, replace and repeat the process; if the fuse blows again, or if the fuse was intact, attempt no further action. Refer the charger to a suitably qualified person for repair.
- 8 -
5. HEALTH AND SAFETY INFORMATION
Battery packs
– Before charging, read the instructions. – For indoor use. Do not expose to rain. – Only use Draper battery packs with stock numbers 89437 and 89433 in conjunction with this
product.
– Do not charge any other manufacturer’s battery packs using Draper chargers. Any other
application is considered misuse. – The battery must be removed from the appliance before it is recycled. – The charger must be disconnected from the supply mains when removing the battery. – The battery is to be disposed of in-line with local Authority procedures. – Do not use any other than the designated Draper batteries/chargers with this product. – Do not crush, open or burn the battery. Exposure to potentially harmful materials may occur. – In case of fire use CO2 or dry chemical extinguisher. – Do not expose to high temperatures >50°C. The battery may degrade at high temperatures. – Charge battery in conditions between 5°C to 30°C with the specified charger designed for this
battery. – Do not use battery if it has been stored at 5°C or less. Allow it to “normalise” at room
temperature before usage/changing.
Warning!
Leaking battery packs – The electrolyte in battery packs is corrosive. Avoid contact with the skin. – If contact is made, flush the area with running water, pat dry and seek medical
attention and advice at the earliest opportunity. – Inform medical personnel that the contaminant is a “high alkaline, corrosive liquid”. – If electrolyte comes into contact with the eyes, flush with copious amounts of
water only. Seek medical attention immediately, relaying the information above.
5.5 CONNECTION TO THE POWER SUPPLY – CHARGER
– Make sure the power supply information on the charger’s rating plate is compatible with the
power supply you intend to connect it to.
– The charger used by this product is designed for connection to a domestic power supply rated
at 230V AC.
– If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow the instructions supplied with the extension lead.
– If using an extension lead, follow the instructions that came with your lead regarding maximum
load while the cable is wound. If in doubt, ensure that the entire cable is unwound. Using a coiled extension lead will generate heat, which could melt the lead and cause a fire.
– †Double insulated : The charger used by this product requires no earth connection as
supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation.
- 9 -
6. TECHNICAL DESCRIPTION
+
+
++++
+++++++
++
++
++
+
+
+
+
++
++
+
+
+
+
++
++++
+++
+++++
6.1 IDENTIFICATION




13mm Keyless chuck.

Variable speed trigger switch.

Hand grip.

LED Worklight.

20V 2.0Ah Li-ion battery pack.

Belt clip.

Forward/reverse selector.

2 Speed selector switch.

Torque selection collar.







Auxiliary hand grip.

Left-handed auxiliary hand
grip mounting.

Battery release button.
- 10 -


7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have happened during shipping. Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the product needs to be returned for repair.
Warning!
Some of the packaging materials used may be harmful to children. Do not leave any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according to local regulations.
7.2 WHAT’S IN THE BOX
As well as the main product, there are also several other parts not fitted or attached to it:

2 × 20V 2.0Ah Li-ion
battery packs.

Auxiliary hand grip.

1 Hour charger.

Double ended screwdriver bit (No.2 cross slot/5.5mm plain slot).




- 11 -
8. PREPARING THE HAMMER DRILL
8.1 BATTERY PACK CHARGING – FIGS. 1 – 2
This power product is supplied with 2 ×
2.0Ah battery packs and a 1 hour charger.
Important: Only Draper designated battery packs and chargers can be used in conjunction with this product. Use of any other third party battery packs/chargers with this product is considered misuse and will invalidate the product’s warranty.
Once connected to the mains supply recharging of the battery pack can be left generally unsupervised requiring minimal attention. Complex circuit construction monitors the battery pack condition adjusting the recharge current to suit. When the recharge cycle is complete and to maintain the full capacity a low output current will continue as required.
Warning!
Check the condition of the charger and battery prior to each charge. If there is any sign of damage then do not commence charging, seek advice from Draper Tools.
To charge the battery pack To release the battery pack: – Press the battery pack release button
battery pack off (Fig.1). – Plug the battery charger unit – The green LED – Slide the battery pack into place ensuring the battery terminals and the charger terminals make
a good connection Fig.2. – After a few seconds delay the red LED
charged.
Warning!
Ensure battery pack is connected correctly. (Fig.2). Sliding the battery pack on
– When the battery pack is fully charged, the green LED
Warning!
If the indicator lights fail to illuminate during the charging cycle, unplug the charger

incorrectly may cause damage to the battery/charger.
from the power supply socket outlet and replace the battery pack.

, it must first be removed from the tool.


into a 230V/AC 13amp, three pin socket.
will stay lit to show the charger has power.


FIG.1


FIG.2

and gently slide the
will light to show the battery pack is being


will light.
- 12 -
8. PREPARING THE HAMMER DRILL
Completing the charging cycle:
– Disconnect battery charger from the power supply. Caution: Do not pull the plug out of the power supply by pulling on the cord.
Make sure to grasp the plug when removing from power supply to avoid damaging the cord.
– Remove the battery pack from the battery charger.
Supporting the battery charger with hand, pull out the battery pack from the battery charger
Caution: When the battery charger has been continuously used, the battery charger will be hot. Once the charging has been completed, give 15 minutes rest until the next charge.
If the battery pack is charged when it is warm due to battery use or exposure to sunlight, the battery pack will not be recharged. In such a case, let the battery pack cool before charge.
If the red indicator flickers rapidly at 0.2 - second intervals, check for and take out any foreign objects in the charger’s battery slot. If there are no foreign objects, it is probable that the battery pack or charger is malfunctioning. Allow battery/charger to normalise and try again. If a fault remains after trying this then contact Draper Tools.

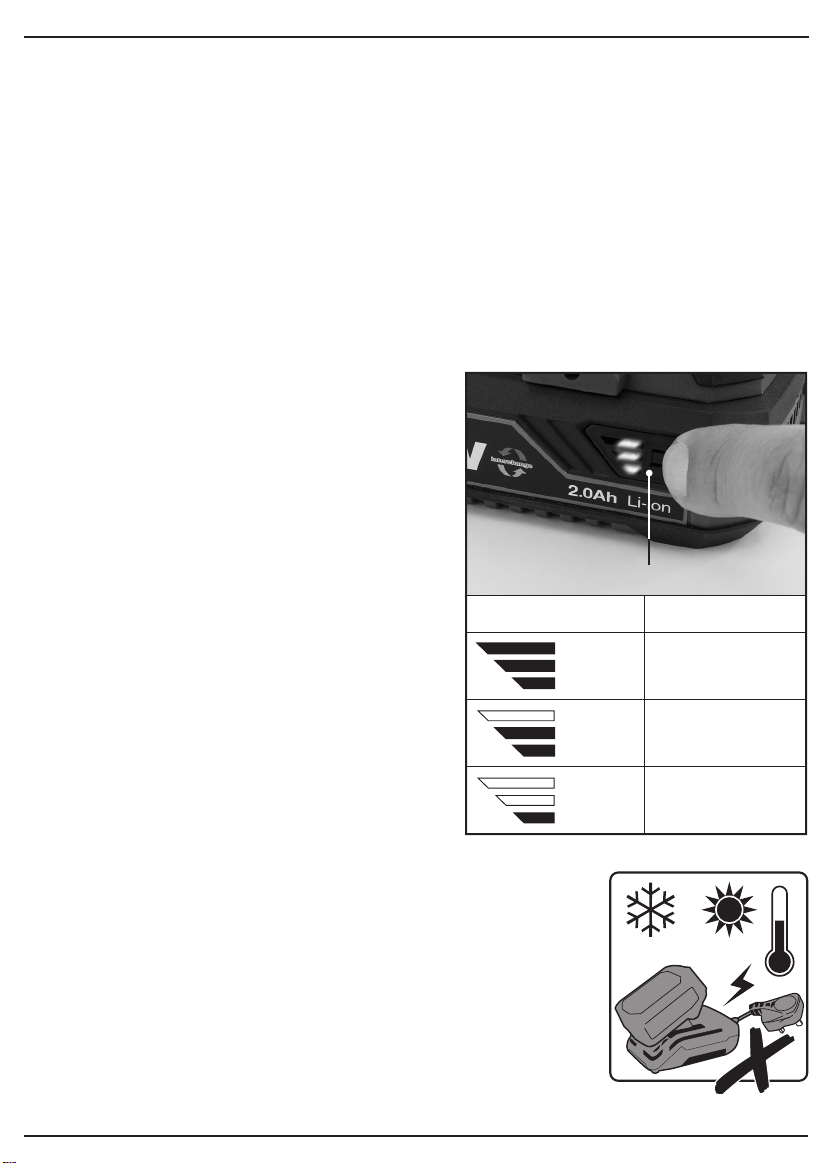

8.2 BATTERY PACK CHARGE STATUS – FIG.3
To display the amount of charge left in the battery pack press the charge level indicator button
8.3 BATTERY PACK EFFICIENCY AND CHARGING ADVICE
– Recharge the battery packs before they become
completely exhausted.
– When you feel that the power of the tool
becomes weaker, stop using the tool and recharge the battery packs. If you continue to use the tool and exhaust the electric current, the battery pack may become damaged.
– Avoid recharging at high temperatures. A
rechargeable battery pack will be hot immediately after use. If such a battery pack is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery pack and recharge it after it has cooled for a while.
– The battery pack should only be used and/or
charged when battery pack temperature is between 5°C and 30°C.
– The battery pack needs to be warmed-up or cooled down in order to
prevent damage to the batteries internal components.
Note: Failure to warm up or cool down a battery pack could result in serious damage to the battery, charger and user.

.

Charge level indicator Charge remaining
GREEN ORANGE RED
ORANGE RED
RED
FIG.3
75 – 100%
25 – 50%
10 – 25%
< 5ºC > 30ºC
- 13 -
9. BASIC OPERATION
++++++
+
+
+++++
+
+++++++
++++
++
+
+
++++
++++
+++
+++++
Warning!
Dust and swarf – A correctly fitted dust mask, suitable
for the activity and in accordance to the relevant standard must be worn.
Swarf produced by metal drilling is
extremely sharp. Take precautions when clearing swarf. The burr left on the hole is also sharp and should be removed with a suitable tool.
Always wear safety goggles.
Drill bit will be hot after use.
9.1 INSTALLING AND REMOVING BITS – FIG. 4
Note: This product is equipped with an electric
brake. The drill is fitted with a keyless chuck, this means
that a chuck key is not required to secure the drill or screwdriver bit.
– Place the drill bit shoulder into the chuck as
far as it will go.
– Tighten the chuck firmly. Note: Short screwdriver bits need only be inserted
to the depth of the hexagon shank before tightening chuck by hand.
O
S
L
E
C
E
P
N
O

FIG.4

9.2 ROTATIONAL DRIVE SELECTION – FIG.5
The forward/reverse drive selector switch determines the direction of rotation of the drive, i.e. clockwise or anticlockwise.
To alter the direction of rotation: – Stop the machine and push switch
left or right. – When the direction switch is pushed to the left, the drive will rotate clockwise. – When the switch is pushed to the right, the drive will rotate anticlockwise. – Before operation, check that the switch is set in the required position. Do not change the
direction of rotation until the driver comes to a complete stop. – When the driver is not in use move the direction switch to the neutral position (the middle
setting) to lock the trigger out. Note: Failure to use the neutral position may activate the trigger inadvertently. This inadvertent
operation may cause the driver to become damaged.


to the
- 14 -
FIG.5
9. BASIC OPERATION
+
+
++++
+++++++
++
++
++
+
+
+
+
++
++
+
+
+
+
++
++++
+++
+++++

9.3 VARIABLE SPEED TRIGGER – FIG.6
When the trigger rotate (provided the direction switch forward or reverse position). This trigger switch is electronic which enables the user to vary the speed continuously.
– The speed varies according to how far the trigger
switch is depressed.
– The further it is depressed, the faster the drive
spindle will rotate.
– The lighter it is depressed, the slower it will
rotate.
9.4 TORQUE SELECTION CONTROL – FIG.7
By turning the collar amount of torque.
– Settings 1 – 25 provide a facility for setting the
torque to the required level. For example, this means that repetitive driving of screws of the same size will be driven into the material to the same torque, thus giving the same fixing strength, or in the case of countersunk screws, these will all be driven to the same depth in the material.
– The torque control prevents the heads of small
diameter screws being twisted off when correctly set.
– By turning the selector
switch between rotary drilling, percussion
drilling and screwdriving functions: – Twist the torque setting to for rotary drilling. – For the “hammer drill” setting, twist the torque
setting to and the percussion feature will come into action – this is intended for drilling into
masonry, etc. – Twist the torque setting to for screwdriving functions.

is depressed, the drive will


it is possible to adjust the

it is possible to
is set in the

FIG.6

FIG.7
1
2
FIG.8

9.5 TWO SPEED GEAR BOX – FIG.8
– Select a low gear
and higher torque) for screwdriving. – Use a high gear
1
(slower rotational speed
2
(faster rotational speed and lower torque) for drilling holes.
- 15 -
9. BASIC OPERATION
+
++
+++
+++
++++
+
+
++
++
+
+
+
++
+
++
+
+
++++++++
+
+
++
++++

9.6 BELT CLIP – FIG.9
The spring steel belt clip hanging the drill temporarily. The clip can be installed on either side of the tool.
To install the clip: – Locate the clip
screw

supplied, take care to not
overtighten and strip the thread.

is convenient for

in position and fasten with
9.7 LED WORKLIGHT – FIG.10
To aid use in confined, and inadequately lit spaces; the LED worklight

automatically illuminates
when the trigger is activated.
9.8 AUXILIARY HAND GRIP – FIG.11.
Warning!
Use the auxiliary handle with the tool. Loss of control has the potential to cause personal injury.
The power tool features left and right hand auxiliary handle mountings of each side of the tool.
– Simply screw the auxiliary handle clockwise into
the chosen mounting

on either side of the
drill.

supplied

FIG.9

FIG.10


FIG.11
- 16 -
9. BASIC OPERATION
9.9 SCREWDRIVING
To prevent slip or damage to the screw head, match the screwdriver bit to the screw head size. To remove screws: – Move the direction switch to the reversing position and apply pressure to the screw head and
depress the trigger slowly).
Screwdriver bits are consumable items.
9.10 DRILLING WOOD AND PLASTIC – FIG. 11
To prevent splitting around the drill holes on the reverse side, clamp a piece of scrap timber under the material to be drilled.
9.11 DRILLING METAL – FIG.12
Metals such as mild steel, aluminium and brass may be drilled.
– Mark the point to be drilled with a centre
– A drop of oil on the drilled area will aid
Note: Although metal drilling is technically within the capabilities of this drill, its rotational speed is not always fast enough to achieve perfect results every time. For this reason, extra caution should always be taken when drilling metal, as snagging of the drill may occur.
B
punch to help the drill bit tip to locate.
cutting and help prolong the life of the bit.
C
9.12 DRILLING MASONRY
Start drilling at a low speed to prevent the drill bit from wandering. Once penetration is achieved, fully depress the trigger to achieve maximum speed and hammer power.
A
A
FIG.12
C
B
FIG.13
- 17 -
10. MAINTENANCE & TROUBLESHOOTING
10.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition.
The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly.
10.2 TROUBLESHOOTING GUIDE
Note: Remove the battery pack before carrying out adjustment, servicing or maintenance.
Problems Possible cause Required action
Drill does not operate. – Battery pack no charge.
– Forward/reverse not
selected.
– battery pack faulty or
damaged.
Motor runs, but slowly/ losing power.
Chuck does not close or grip – Swarf in chuck. – Clean inside of chuck with
Battery pack doesn’t charge non-llumination / non illumination of charger.
– Battery pack no charge. – Battery pack faulty or
damaged.
/
– Fuse blown in charger
plug.
– Charger faulty.
– Re-charge battery pack. – Select forward/reverse.
– Replace battery pack.
– Re-charge battery pack. – Replace battery pack.
cleaning fluid.
– Replace fuse.
– Replace charger.
- 18 -
11.1 20V POWER INTERCHANGE BATTERY PACKS/CHARGERS
This power product is supplied with two 20V 2.0Ah Li-ion battery packs. The table below shows the Draper 20V Power Interchange compatible
batteries and chargers available for this product. 20V Power Interchange tools all use universal 2.0 and 4.0Ah battery packs
and chargers, enabling each battery pack to fit all tools within the range.
Item
Battery pack. 89437 B202LISF 20V/2.0Ah
Battery pack. 89433 B20LISF 20V/4.0Ah
Charger (for Stock No.89437). 89425 CB20 20V/2.4A
Charger (for Stock No.89433).
Stock No. Part No. Voltage
23793 CB203.5 20V/3.5A
- 19 -
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances:
Do not dispose of power tools with domestic waste.
Do not incinerate.
Do not dispose of WEEE* as unsorted municipal waste.
Li-ion
* Waste Electrical & Electronic Equipment.
12.2 BATTERY PACK DISPOSAL INFORMATION
Warning!
Do not put battery pack in fire or mutilate – cells may burst or release toxic materials.
Do not short circuit cells, may cause burns.
The battery pack must be removed from the appliance before it is scrapped.
The battery pack is to be disposed of safely.
Do not mutilate batteries, corrosive electrolyte will be released.
Do not dispose of batteries or cells in a charged condition.
Expired batteries must be recycled/disposed of in accordance with the appropriate regulation or legislation. They should be returned to your local warranty agent/stockist.
13. EXPLANATION OF SYMBOLS
+
+++++
++++
+++
+
++
+
++
+
+
+
++
+
++++
++++++++
+
+
++++++
13.1 EXPLANATION OF SYMBOLS
Read the instruction manual.
99
Single value noise marking.
(Maximum declared A-Weighted sound power level in decibels).
Wear face mask and safety glasses.
Wear ear defenders.
Wear protective gloves.
Long and loose hair must be contained or securely tied back.
Do not abandon into the environment.
Keep out of the reach of children.
Warning!
Class II construction
(Double insulated).
WEEE – Waste Electrical &
Electronic Equipment.
Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
Lithium-ion product.
Do not incinerate or throw onto fire.
For indoor use only. Do not expose to rain.
130°
Fuse.
Polarity indication.
Direction of rotation.
Rated voltage.
- 23 -
CONTACTS
Draper Tools Limited, Hursley Road,
Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: sales@drapertools.com
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
Draper Tools Helpline for details of an agent in your local area.
YOUR DRAPER STOCKIST
PJCH0218
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
Loading...
