1. Preface

These are the original product instructions. This
document is part of the product; retain it for the life
of the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate, or maintain this product.

This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the
product and the operator and increase the
lifespan of the product.

1.1 Product Reference

User Manual for: 12V Oscillating Multi-tool

Stock No: 19392

Part No: OMT-33-12D

1.2 Revisions

Version 1: April 2022
First release

As our manuals are continually updated, always ensure
that the latest version is used.

Download the latest version from:
drapertools.com/manuals

All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.

Every eort has been made to ensure the

information contained in this manual is accurate.
However, Draper Tools reserves the right to amend
this document without prior warning. Always use the
latest version of the product manual.

1.3  Understanding the Safety Content

WARNING! – Situations or actions that may result in
personal injury or death.

CAUTION! – Situations or actions that may result in
damage to the product or surroundings.

Important: – Information or instructions of particular
importance.

1.4 Copyright © Notice

Copyright © Draper Tools Limited.

Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring, or lending is strictly
prohibited.

No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.

In all cases, this copyright notice must remain intact.

– 2 –

2. Contents

EN

1. Preface 2

1.1 Product Reference 2

1.2 Revisions 2

1.3 Understanding the Safety Content 2

1.4 Copyright © Notice 2

2. Contents 3

3. Warranty 4

4. Product Introduction 5

4.1 Scope 5

4.2 Specication 5

5. Health and Safety Information 7

5.1 General Power Tool Safety Warnings 7

5.2 Additional Health and Safety Warnings for this

Multi-Tool 8

5.3 Safety Information for Mains-Powered Chargers

and Battery Packs 8

5.4 Connection to the Power Supply (Charger) 9

6. Identication and Unpacking 10

6.1 Product Overview 10

6.2 What’s in The Box? 11

6.3 Packaging 11

7. Preparing the Multi-tool 12

7.1 Installing and Removing the Battery Pack 12

7.2 Charging the Battery 12

7.3 Fitting Accessories to the Tool Flange 13

7.4 The LED Lamp 13

7.5 The Battery Level Indicators 13

8. Operating Instructions 14

8.1 The Variable Speed Dial 14

8.2 The On/O Switch 14

8.3 Notes on Cutting, Sawing and Scraping

Operations 14

8.4 Notes on Sanding Operations 14

9. Maintenance and Troubleshooting 15

9.1 General Maintenance 15

9.2 Storing the Multi-tool 15

9.3 Troubleshooting 15

10. Disposal 16

11. Explanation of Symbols 17

– 3 –

3. Warranty

Draper Tools products are carefully tested and inspected
before shipment and are guaranteed to be free from
defective materials and workmanship.

Should the tool develop a fault, return the complete tool
to your nearest distributor or contact Draper Tools
directly. Contact information can be found at the back of
this manual.

Proof of purchase must be provided.

If, upon inspection, it is found that the fault occurring is
due to defective materials or workmanship, repairs will
be carried out free of charge.
parts and labour for 24 months from the date of purchase.
Where tools have been hired out, the warranty period
covers 90 days from the date of purchase.

This warranty does not apply to any consumable parts,
batteries or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling,
alterations, accidents, or repairs attempted or made by
any personnel other than the authorised Draper Tools
repair agent.

In all cases, to make a claim for faulty workmanship or
materials within the standard warranty period, please
contact or return the product to the place of purchase.
Proof of purchase may be required.

This warranty period covers

If the place of purchase is no longer trading or if you

experience any diculties with your warranty, please

contact Customer Services with the product details and
your proof of purchase. Contact details can be found at
the back of this manual.

If the tool is not covered by the terms of this warranty,
repairs and carriage charges will be quoted and charged
accordingly.

This warranty supersedes any other guarantees

expressed or implied and variations of its terms are not

authorised.

Your Draper Tools guarantee is not eective until you can

produce, upon request, a dated receipt or invoice to
verify your purchase within the guarantee period.

Please note that this warranty is an additional benet
and does not aect your statutory rights.

Draper Tools Limited

– 4 –

4. Product Introduction

EN

4.1 Scope

This product is designed for sawing and cutting various
unhardened materials, including wood, plastic, gypsum,
non-ferrous metals and fastening elements, such as
unhardened nails and staples, and is particularly suited to

ush cutting. It may also be used for working soft wall tiles

and for dry sanding and scraping small surfaces. This tool
is suitable for enthusiasts and tradespersons alike.

4.2 Specication

Stock No. 19392

Part No. OMT-33-12D

Voltage 12V

Speed (no load) 5,000–16,000rpm

Speed settings 6

Oscillation

Pad Size

Noise emissions:

Sound pressure level: 81.7dB(A)

Uncertainty: 3dB(A)

Sound power level: 7.2dB(A)

Uncertainty: 3dB(A)

Vibration emissions:

Vibration level: 8.5m/s

Uncertainty: 1.5m/s

Weight (bare tool) 0.96kg

Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts
no responsibility for improper use of this product.

WARNING! This product is not a toy and must be
respected.

Read this manual in full before attempting to assemble,
operate or maintain the product, and retain it for later use.

3°

90 ×95mm

2

2

Battery pack:

Stock No. 70308

Part No. CB12VDLI1.5

Type Li-ion

Rated Voltage 12V

Rating 1.5Ah

Charger:

Stock No 70326

Part No C12VDLI

Rated Voltage 100–240V AC

Rated Frequency 50–60Hz

Rated output 35W

Rated D.C. output voltage 12V

Rated D.C. output current 2.0A

Rated DC output current 2A

Construction Class II

– 5 –

4. Product Introduction

EN

Important: The declared vibration total values and noise
emissions values have been measured in accordance with
a standard test method and may be used for comparing
one tool with another. These values may also be used in a

preliminary assessment of exposure.

WARNING! The vibration and noise emissions during

actual use of the product can dier from the declared

values depending on the way in which it is used and the
workpiece it is used upon. Before each use, estimate the
likely exposure resulting from the actual conditions of
use. Take into account all parts of the operation cycle in
order to identify any safety measures required to
protect the operator.

– 6 –

5. Health and Safety Information

EN

5.1 General Power Tool Safety Warnings

WARNING! Read all safety warnings, instructions,

illustrations and specications provided with this

power tool. Failure to follow all instructions listed below

may result in electric shock, re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your

mains-operated (corded) power tool or battery-operated
(cordless) power tool.

Work area safety

•  Keep work area clean and well lit.

 − Cluttered or dark areas invite accidents.

•  Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases or

dust.

− Power tools create sparks, which may ignite the
dust or fumes.

• Keep children and bystanders away while operating a
power tool.

 − Distractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools.

 − Unmodied plugs and matching outlets will

reduce the risk of electric shock.

• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.

− There is an increased risk of electric shock if your
body is earthed or grounded.

•  Do not expose power tools to rain or wet conditions.

 − Water entering a power tool will increase the risk

of electric shock.

•  Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
the cord away from heat, oil, sharp edges or moving
parts.

− Damaged or entangled cords increase the risk of
electric shock.

• When operating a power tool outdoors, use an
extension cord suitable for outdoor use.

 − Use of a cord suitable for outdoor use reduces the

risk of electric shock.

• If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)

protected supply.

 − Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a

power tool while you are tired or under the inuence

of drugs, alcohol or medication.

− A moment of inattention while operating power
tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye

protection.

− Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing
protection use for appropriate conditions will
reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in
the o-position before connecting to a power source

and/or battery pack, picking up or carrying the tool.

 − Carrying power tools with your nger on the

switch or energising power tools that have the
switch on invites accidents.

• Remove any adjusting key or wrench before turning
the power tool on.

− A wrench or a key left attached to a rotating part
of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at
all times.

− This enables better control of the power tool in
unexpected situations.

• Dress properly. Do not wear loose clothing or

jewellery. Keep your hair and clothing away from
moving parts.

− Loose clothes, jewellery or long hair can be
caught in moving parts.

• If devices are provided for the connection of dust
extraction and collection facilities, ensure these are

connected and properly used.

 − Use of dust collection can reduce dust-related

hazards.

• Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles.

− A careless action can cause severe injury within a
fraction of a second.

– 7 –

5. Health and Safety Information

EN

Power tool use and care

• Do not force the power tool. Use the correct power

tool for your application.

− The correct power tool will do the job better and
safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it
on and o.

 − Any power tool that cannot be controlled with the

switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories or storing power tools.

− Such preventive safety measures reduce the risk
of starting the power tool accidentally.

•  Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool.

− Power tools are dangerous in the hands of
untrained users.

• Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of

parts and any other condition that may aect the
power tool’s operation. If damaged, have the power

tool repaired before use.

− Many accidents are caused by poorly maintained
power tools.

• Keep cutting tools sharp and clean.

 − Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier
to control.

• Use the power tool, accessories and tool bits, etc., in

accordance with these instructions, taking into
account the working conditions and the work to be
performed.

 − Use of the power tool for operations dierent from

those intended could result in a hazardous
situation.

• Keep handles and grasping surfaces dry, clean and
free from oil and grease.

− Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in

unexpected situations.

Service

•  Have your power tool serviced by a qualied repair

person using only identical replacement parts.

• This will ensure that the safety of the power tool is
maintained.

5.2 Additional Health and Safety Warnings for this Multi-Tool

• Keep your hands and face away from the accessory
when the tool is switched on.

− Keep your hands visible at all times during the
operation.

 − DO NOT reach underneath the workpiece.

• The accessory may get hot during use; allow it to cool

after use before attempting to remove it from the
multi-tool.

•  Ensure that the accessory is securely fastened in
place before use.

• ALWAY S select the tool speed before switching on the
tool.

• Secure the workpiece; DO NOT hold the workpiece by
hand.

• Check for hidden pipes and cabling within and around
the workpiece before use.

• Some of the accessories for this tool are very sharp;
exercise caution when handling the accessories.

• NEVER start the tool if the accessory is already in

contact with the workpiece.

5.3 Safety Information for Mains-Powered

Chargers and Battery Packs

Important: Use ONLY the Draper Tools 12V range
battery pack and charger supplied with this product. DO

NOT charge any other batteries with this charger.

WARNING! DO NOT use or charge the battery if

leakage is evident. If battery uid comes into contact

with your skin, rinse immediately with water. For

contact with eyes, ush with plenty of water and seek

medical advice.

Chargers

• WARNING! NEVER charge non-rechargeable or
damaged batteries.

• The supplied charger is for indoor use ONLY.

•  Before connecting the charger to the power supply,

check that the plug, cable and charger casing are in
good condition and have any damaged parts

immediately replaced by a suitably qualied person.

• ONLY connect the supplied charger to a rated mains

outlet.

− DO NOT plug the charger into site generators,
engine generators or DC power sources.

– 8 –

5. Health and Safety Information

EN

•  ALWAYS disconnect the charger from the power
supply before removing the battery.

• Charge the battery in a dry and well-ventilated
environment in ambient temperatures between 5 and
40°C, ensuring that the ventilation slots on the
charger casing are not obstructed.

• DO NOT short-circuit the battery by connecting the
positive and negative terminals while outside of the
product.

− Keep the battery away from metallic objects that
may inadvertently allow connection of the
terminals.

Batteries

• DO NOT open, crush or burn the battery as this may
release potentially harmful chemicals.

•  DO NOT expose the battery to temperatures greater
than 50°C. DO NOT attempt to charge batteries with a
temperature that is not between 5 and 30°C.

− Allow batteries that are too hot or too cold to
normalise before charging.

•  DO NOT expose the battery pack to rain or other wet
conditions.

• ALWAY S remove the battery from the tool before
recycling and dispose of it in accordance with local
regulations.

• If a re occurs, use a CO

WARNING! The electrolyte in this battery pack is
corrosive. Avoid contact with skin. If contact occurs,

ush the area with clean water and pat it dry. Seek

medical attention at the earliest opportunity and
inform the responder that the contaminant is a
“high-alkaline corrosive liquid”. If contact with eyes

occurs, ush immediately with plenty of water ONLY

and seek medical advice at the earliest opportunity.

or dry chemical extinguisher.

2

This is a Class II
connection to a power supply matching that detailed on

the rating label and compatible with the plug tted.

CAUTION! Use ONLY the power supply provided.

Important: If using an extension lead, follow the

instructions that came with your lead regarding

maximum load while the cable is wound. If in doubt,
ensure that the entire cable is unwound. Using a coiled
extension lead will generate heat which could melt the
lead and cause a re.

†

Double insulated : This product requires no earth
connection as supplementary insulation is applied to the
basic insulation to protect against electric shock in the
event of failure of the basic insulation.

†

appliance and is designed for

5.4 Connection to the Power Supply (Charger)

CAUTION! Risk of electric shock. Do not open.

Always ensure that the power supply on the machine’s

rating plate is compatible with the power supply to which
you intend to connect it.

The rechargeable battery pack is supplied with a UK

standard three-pin plug and is intended for connection
to a domestic power supply rated at 230V AC. An in-car
power adaptor is also supplied and is intended for
connection to a 12V DC socket found in vehicle interiors.

– 9 –

6. Identication and Unpacking

EN

6.1 Product Overview

(1)

(2)

(4)

(1) Tool ange
(2) Lock lever
(3) LED lamp
(4) On/o switch
(5) Variable speed dial
(6) Battery level indicators
(7) Soft grip handle

(3)

(5)

(8) Battery release buttons
(9) 12V battery pack

– 10 –

(7)

(9)

(6)

(8)

6. Identication and Unpacking

EN

6.2 What’s in The Box?

Carefully remove the product from the packaging and

examine it for any signs of damage that may have

occurred during shipment.

A

C

D

Before assembling the product, lay the contents out and
check them against the parts shown below. If any part is
damaged or missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details can
be found at the back of this manual.

H

B

F

I

G

A. 1 x Oscillating multi-tool
B. 1 x Plunge saw blade
C. 1 x Scraper
D. 1 x Alloy grinding plate
E. 1 x Segment wood and plastic saw blade
F. 1 x Sanding pad

6.3 Packaging

Keep the product packaging for the duration of the
warranty period for reference should the product need to
be returned for repair.

Please visit drapertools.com for our full range of accessories and consumables.

E

G. 4 x Sanding papers (60, 80, 120, 240 grits)
H. 1 x 12V 1.5Ah battery pack
I. 1 x 12V fast charger

WARNING! Keep packaging materials out of reach of
children. Dispose of packaging correctly and
responsibly and in accordance with local regulations.

– 11 –

7. Preparing the Multi-tool

EN

WARNING! ALWAYS ensure that the on/o switch is in
the o (

before preparing or making any adjustments to the
tool.

) position and the battery pack is removed

7.1 Installing and Removing the Battery Pack

Important: ONLY use this tool with battery packs and
chargers from the Draper Tools 12V range. Read all of the
safety and operation instructions provided with these
parts before use.

(8)

(9)

1 Fig.

• To install a battery pack (9), insert it into the socket at

the base of the multi-tool until it clicks into place.

Important: Do not force the battery, and ensure it is

rmly secure before use.

• To remove a battery pack, press and hold the battery
release buttons (8) on either side of the battery pack

and slide the battery away from the tool.

Important: The tool will automatically power down if the
battery voltage drops too low or overheats. DO NOT use
the tool until the battery pack has been charged or
cooled as appropriate.

7.2 Charging the Battery

Important: ALWAYS ensure that the voltage of the

power source is the same as the voltage specied on the

rating plate of the charger before connecting the charger
to the power supply.

(H)

(I)

(I.1)

(I.2)

2 Fig.

1. Connect the charger (I) to a mains power supply; the

green LED (I.2) will ash to indicated standby mode.

2. Insert the battery pack into the charger socket (H);
the red LED (I.1) will illuminate to indicate charging.

3. When the battery is charged, the red LED will go out
and the green LED will illuminate.

4. Unplug the charger from the power supply and
remove the battery from the charger.

Important: For a longer battery lifespan, charge the
battery pack in ambient temperatures of 18–24°C. DO
NOT charge the battery in temperatures greater than
40°C or less than 5°C. If the battery pack is not at an
acceptable temperature when inserted into the charger,

both LEDs will ash alternately and the battery will not

charge until it has reached the required temperature.
The charger LEDs illuminate in the following modes:

• Green ashing: The charger is in standby mode.

• Solid green: Charging is complete.

•  Red ashing: The battery pack is faulty or damaged

and cannot be charged.

• Solid red: The battery is charging.

• Green and red ashing alternately: The battery pack

is either too hot or too cold; charging will begin when
an acceptable temperature is reached.

– 12 –

7. Preparing the Multi-tool

EN

7.3 Fitting Accessories to the Tool Flange

Important: ONLY use accessories intended for this tool
as supplied by Draper Tools. Other accessories may not

t correctly and may damage the tool or cause injury.

(2)

(1)

3 Fig.

1. Lift the lock lever (2) fully to open the tool ange (1).

(3)

5 Fig.

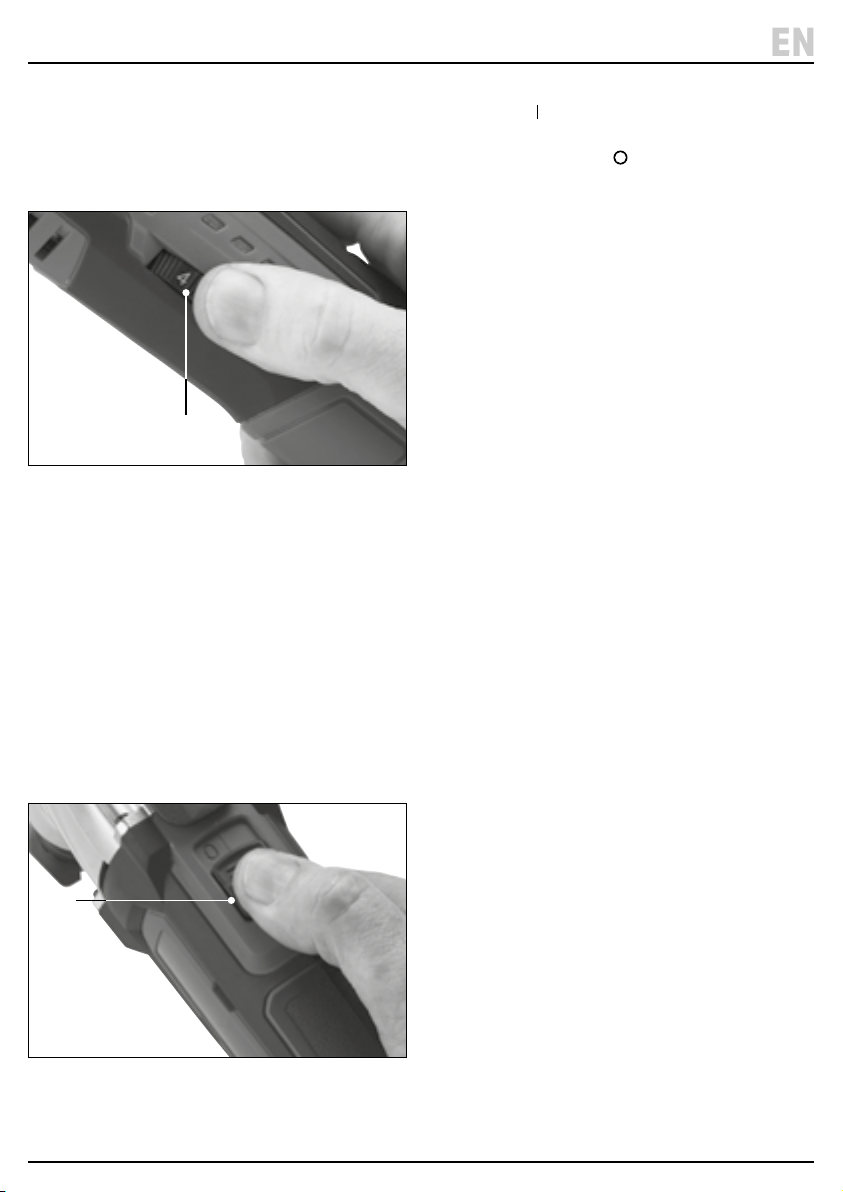

The LED lamp (3) illuminates automatically when the tool
is switched on and goes out when the tool is switched o.

If the tool overheats, the lamp will ash for approximately

10 seconds and the drill will stop automatically. When
this occurs, release the trigger and allow the drill to cool.

7.5 The Battery Level Indicators

4 Fig.

2. Slide the required accessory into the opening in the

tool ange, ensuring that the ange pins sit

comfortably in the accessory frame.

Important: If used for a sanding operation, the

sanding pad (F) must be installed and a sanding paper
sheet attached using the hook and loop xing,

ensuring that the shape of each piece and the dust

extraction holes are correctly aligned.

3. Press the lock lever down fully to secure the
accessory in place.

7.4 The LED Lamp

WARNING! DO NOT look directly into the lamp or
direct it towards others.

(6)

6 Fig.

The battery level indicators (6) illuminate automatically
for approximately ve seconds when the tool is switched

on and may show the following:

• Three lights on: The battery is fully charged.

• Two lights on: The battery is less than 60% charged.

• One light on: The battery is less than 30% charged.

• No lights on: The battery is less than 10% charged

and the tool cannot be used.

Important: Battery levels shown by the indicators are an

approximation only and may vary subject to

environmental conditions.

– 13 –

8. Operating Instructions

EN

Important: Before use, read and understand all the
safety instructions listed in this manual. Ensure that all

attachments are securely xed before use. Secure any

loose workpieces before operating.

8.1 The Variable Speed Dial

(5)

7 Fig.

The speed of the tool’s oscillation can be controlled
using the variable speed dial (5) on the side of the tool

housing. The higher the number selected, the quicker
the stroke rate of the tool.

Important: ALWAYS pre-set the tool speed before use.

CAUTION! The variable speed dial is not continuous
and cannot be rotated directly between values 6 and 1
and vice versa. DO NOT force the dial as this may
damage the tool.

8.2 The On/O Switch

Important: Before switching on the tool, ensure that the
tool speed is appropriately set.

• To switch the tool on, slide the on/o switch upwards
into the on (

• To switch the tool o, slide the on/o switch
downwards into the o (

) position.

) position.

8.3 Notes on Cutting, Sawing and

Scraping Operations

• Allow the tool to reach full speed before applying it to
the workpiece.

• Holding the tool rmly, place the accessory against

the workpiece and move the tool smoothly forward so
that the motion does not slow down.

• DO NOT force the tool in the direction of the
accessory’s non-cutting edge.

•  DO NOT exert excessive pressure on the tool.

• For cutting operations, Draper Tools recommends

speeds 3–5.

8.4 Notes on Sanding Operations

• Allow the tool to reach full speed before applying it to
the workpiece.

• Holding the tool rmly, apply the sandpaper gently
against the workpiece; DO NOT use excessive force.

• DO NOT use worn sandpaper or paper without grit.

•  DO NOT use sandpaper for wood sanding if it has

previously been used to sand metal.

• Use a scrap piece of similar material to test the correct

tool speed before operating on the workpiece.

• DO NOT change the grit of the sandpaper accessory
until the whole area of the workpiece has been
completed.

(4)

8 Fig.

Power is controlled by the sliding on/o switch (4).

– 14 –

9. Maintenance and Troubleshooting

EN

Important: Maintenance and repairs should be carried

out ONLY by authorised and suitably qualied personnel.

WARNING! ALWAYS ensure that the on/o switch (4) is
in the o (

been removed before performing any maintenance on
this product.

) position and that the battery pack has

9.1 General Maintenance

Important: Only the accessories included with this
product are replaceable by the user. Any other repair or
servicing should be carried out by an authorised Draper
Tools repair agent.

• Use only spare parts supplied by Draper Tools.

• Use this product ONLY with the recommended 12V

range battery pack and charger supplied by Draper
Tools.

− ALWAYS check the ratings plate for compatibility
before use.

• DO NOT expose the tool to rain or wet conditions.

• Keep the tool ange clean and free from obstructions.

• Keep all ventilation points on the tool clean and free

from dust and obstructions.

• Clean the product regularly using a dry cloth.

CAUTION! NEVER use aggressive chemicals to
clean the product as these may damage plastic or
insulated parts.

• ALWAY S remove the battery pack from the tool when
not in use.

9.2 Storing the Multi-tool

• Store the product in a clean and dry location, out of
reach of children.

CAUTION! Prolonged exposure to moisture can
cause the tool to rust and render it unsafe.

• Remove any accessories and close the tool ange

before storage.

• ALWAY S remove the battery before storage.

• When stored for extended periods, charge the battery

periodically to maintain its health.

9.3 Troubleshooting

Problem Possible Cause Remedy

The tool does not start when
switched on, runs slowly or loses
power during operation.

The battery pack has not been
installed or has a low charge.

There is a fault with the battery
pack.

Recharge and install the battery
pack.

Contact Draper Tools to discuss
replacement options.

The tool ange does not close or

grip the accessory correctly.

The battery pack doesn’t charge, or

the charger LED does not
illuminate.

The tool does not perform

eciently.

Dust, chippings or other
obstructions are present in the tool

ange.

The pins on the tool ange are

damaged.

The fuse in the charger plug has
blown.

There is a fault with the charger. Contact Draper Tools to discuss

The tool speed has not been set
correctly.

Remove any obstructions from the

tool ange and wipe it clean.

Contact Draper Tools to discuss
replacement options.

Replace the fuse.

replacement options.

Test the tool speed on a scrap piece
of material similar to the workpiece
and adjust the speed as
appropriate.

– 15 –

10. Disposal

EN

At the end of its working life, or when it can no longer be
repaired, dispose of the product according to local
regulations.

Contact your local authority for details of collection
schemes in your area.

In all circumstances:

• DO NOT dispose of power tools with domestic waste.

• DO NOT incinerate.

• DO NOT abandon in the environment.

•  Dispose of the battery pack in accordance with local

regulations or return to your warranty agent or
stockist for recycling.

− Remove the battery from the tool and allow it to
discharge before disposal.

− DO NOT burn or mutilate batteries as this may
release toxic or corrosive materials.

– 16 –

11. Explanation of Symbols

EN

Read the instruction manual

Warning!

Risk of electric shock, do not open

Wear suitable eye and protection and a
dust mask

Wear protective gloves

Do not incinerate or throw onto re

Do not abandon in the environment

81

.7

Direction of rotation

Oscillation range

Product weight (bare)

For indoor use only

Do not expose to rain

WEEE –

Waste Electrical & Electronic Equipment

Do not dispose of Waste Electrical & Electronic Equipment
with domestic waste

Continuous A-weighted sound
pressure level

dB

UK Conformity Assessed

Keep out of the reach of children

European conformity

Rated voltage

Class II construction

(Double insulated)

Accessory attachment pattern

Min/Max. revolutions per minute

– 17 –

Notes

EN

– 18 –

Notes

EN

– 19 –

Contact Details

Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK

Website: drapertools.com
Email: [e-mail]

Product Helpline: [phone]
Telephone Sales Desk: [phone]
General Enquiries: [phone]
General Fax: [phone]

Service / Warranty Repair Agents

For aftersales servicing or warranty repairs, please contact the Draper Tools Product
Helpline for details of an agent in your area.

Delta International

Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands

© Published by Draper Tools Limited
