1. Attach Handles
Preparing 5 / 7
Drawer Trolley
Stock No.
29779 / 29792
To make assembly easier we recommend having two
persons aid one another in assembly.

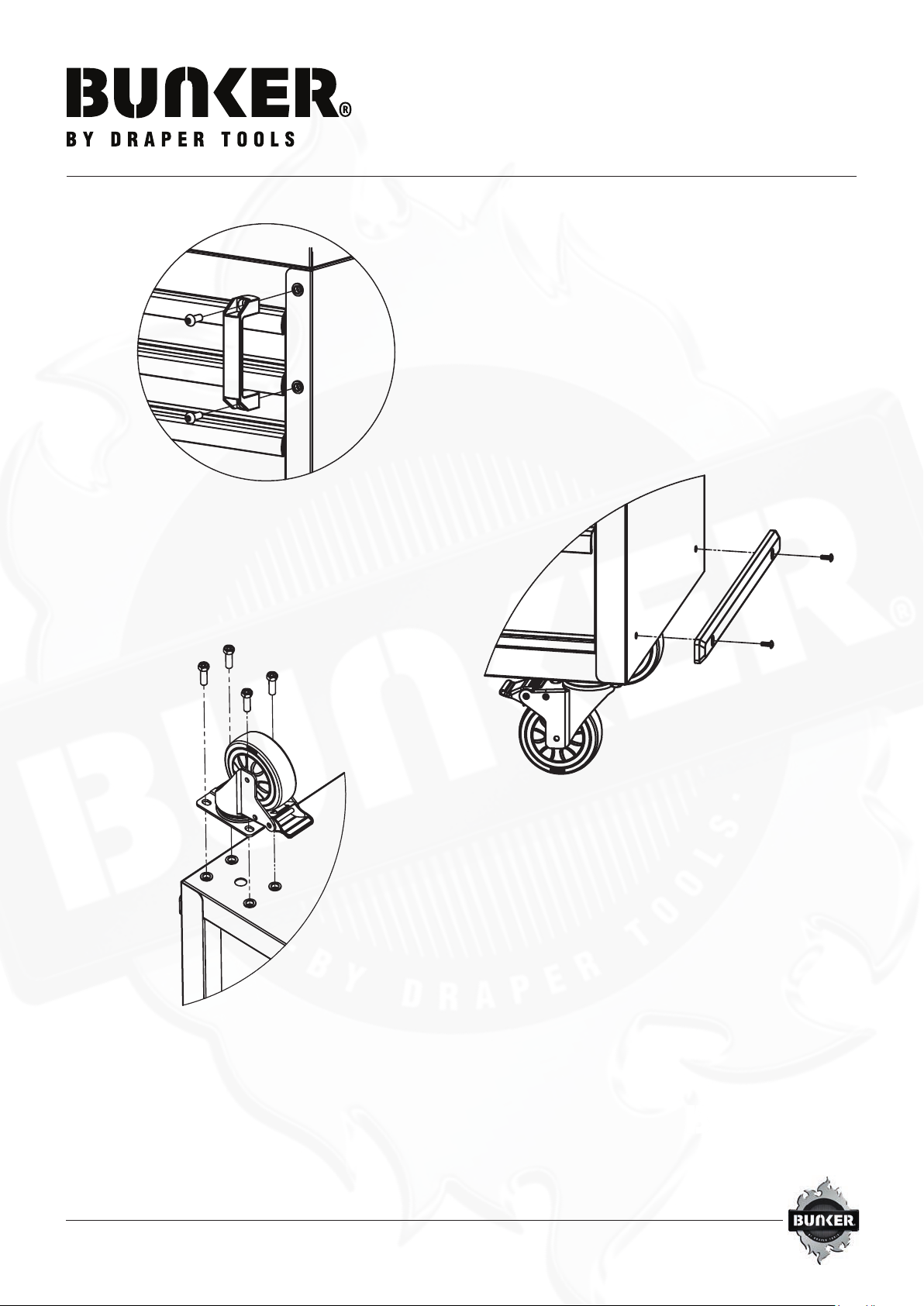

Attach handles to front angled side
with 4 pieces of M8 x 20mm bolt.
Do not fully tighten.
2. Attach Bumpers
Attach bumpers to side panel with
4 pieces of M4 x 10mm bolt.
Do not fully tighten.
3. Attach Castors
Attach castors to the bottom of unit
with 16 pieces of M8 x 20mm bolt.
Do not fully tighten.

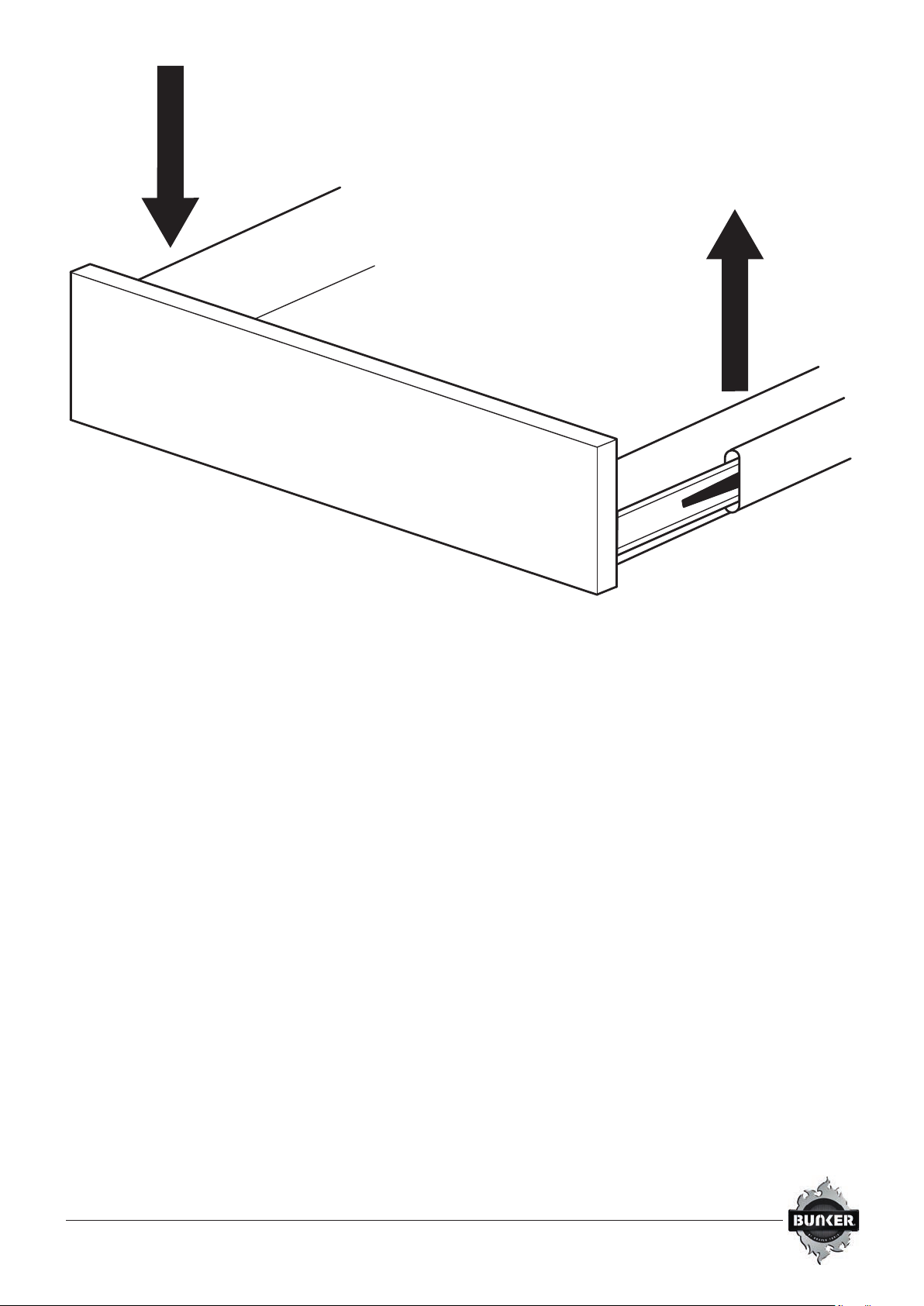

REMOVING AND REPLACING THE DRAWERS:
• Pull the drawer completely out
• Press down the left tab and lift up the right tab
• Pull drawer o sliders
• To reinstall the drawer, realign with the internal drawer slider and push in until locked in place
CASTOR MAINTENANCE
Grease the castors annually using high-quality bearing grease.
CARE AND CLEANING
Periodically the surfaces should be cleaned with a mild detergent and water. Grease and oil can be removed with
most standard cleaning uids. For safety, use a non-ammable cleaning uid.
Auto wax will preserves the storage unit’s luster nish and protects against scratches.
drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.
To make assembly easier we recommend having two
persons aid one another in assembly.
Preparing 1 Door
Tall Cabinet
Stock No.
33165
Item Description Quantity
1 Top Panel 1
2 Bottom Panel 1
3 Left Side Panel 1
4 Right Side Panel 1
5 Back Panel 1
6 Door 1
7 Front Kick Panel 1
8 Side Kick Panel 2
9 Shelf Panel 4
10 Foot Holder 4
11 Leg Leveller 4
12 M8 x 16mm bolt 16
13 M6 x 16mm bolt 12
14
12 x 7 x 5mm
Flat Washer
1
1
11
5
4
9
2
10
8
12
13
14
6
3
7
CABINET CONNECTION
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with phillips screwdriver
(not included).
Note: remove the drawers and open the
doors before cabinet connection.
