Page 1
PENCIL
POWER DRILL
TAPE MEASURE
LEVEL
HARDWARE
(by others)
PLIERS
"
21/2"

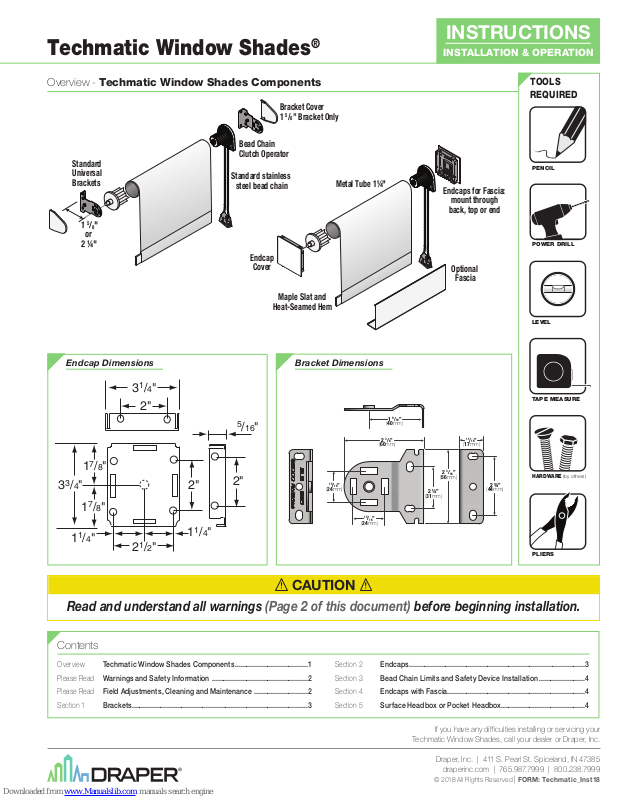

Techmatic Window Shades
®
INSTRUCTIONS
INSTALL ATI O N & OPERATION

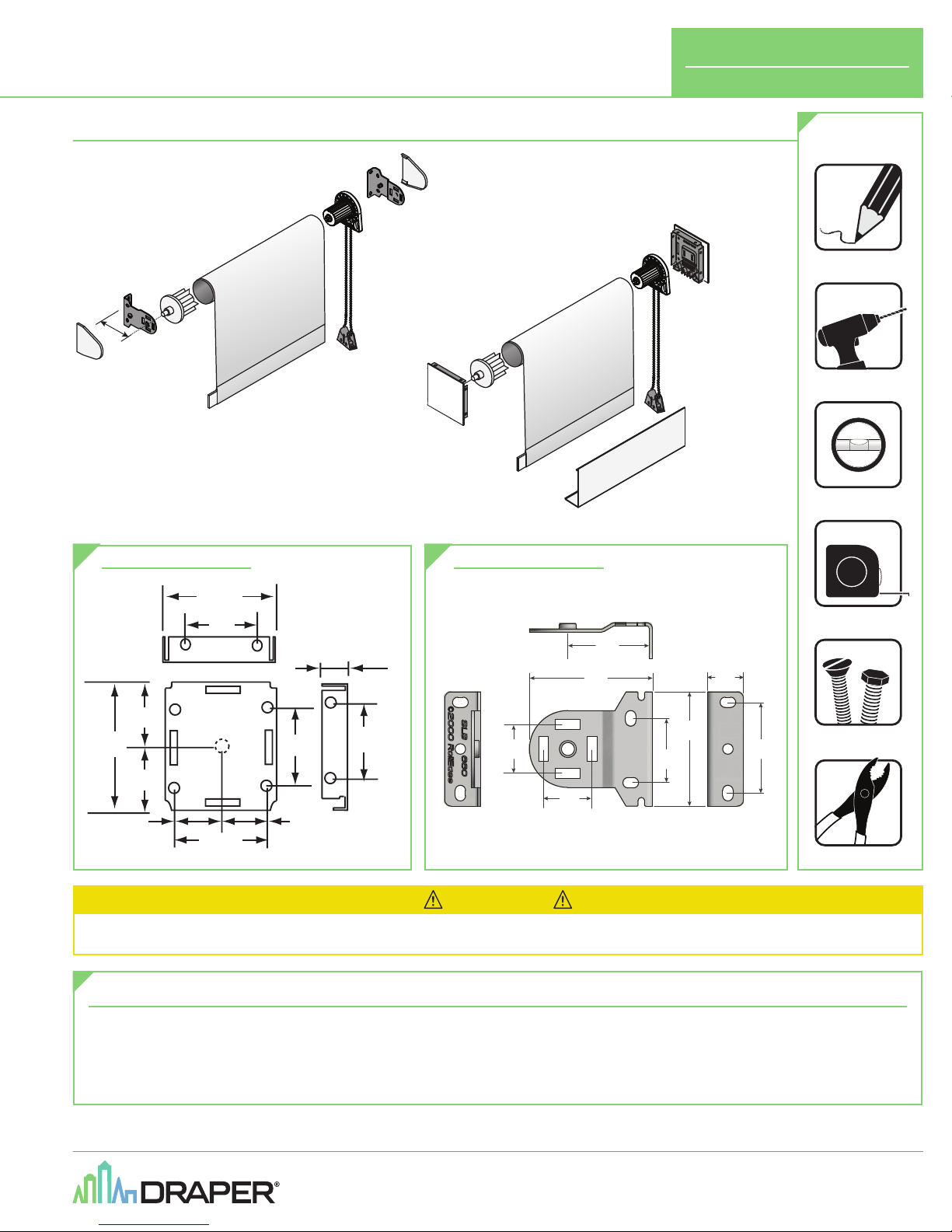

Overview - Techmatic Window Shades Components
Bracket Cover
5
/8” Bracket Only
1
Bead Chain
Standard
Universal
Brackets
5
1
/
"
8
or
2 ¼"
Clutch Operator
Standard stainless
steel bead chain
Endcap
Cover
Maple Slat and
Heat-Seamed Hem
Bracket DimensionsEndcap Dimensions
Metal Tube 1¼"
TOOLS
REQUIRED
Endcaps for Fascia:
mount through
back, top or end
Optional
Fascia
31/4"
2"
1 9/16”
15
/16”
(24mm)
(40mm)
2 3/8”
(60mm)
2 ¼”
(31mm)
2 3/16”
(56mm)
11
/16”
(17mm)
2 ¾”
(44mm)
33/4"
1
5
/16
7
1
/8"
2"
7
/8"
1
1
/4"
1
/4"
1
2"
15
/16”
(24mm)
CAUTION
Read and understand all warnings (Page 2 of this document) before beginning installation.
Contents
Overview Techmatic Window Shades Components ......................................1
Please Read Warnings and Safety Information ..................................................2
Please Read Field Adjustments, Cleaning and Maintenance ............................2
Section 1 Brackets ............................................................................................3
Section 2 Endcaps ............................................................................................3
Section 3 Bead Chain Limits and Safety Device Installation ........................4
Section 4 Endcaps with Fascia ........................................................................4
Section 5 Surface Headbox or Pocket Headbox ............................................4
If you have any difficulties installing or servicing your
Techmatic Window Shades, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2018 All Rights Reserved | FORM: Techmatic_Inst18
Page 2
Techmatic Window Shades
®
page 2 of 4

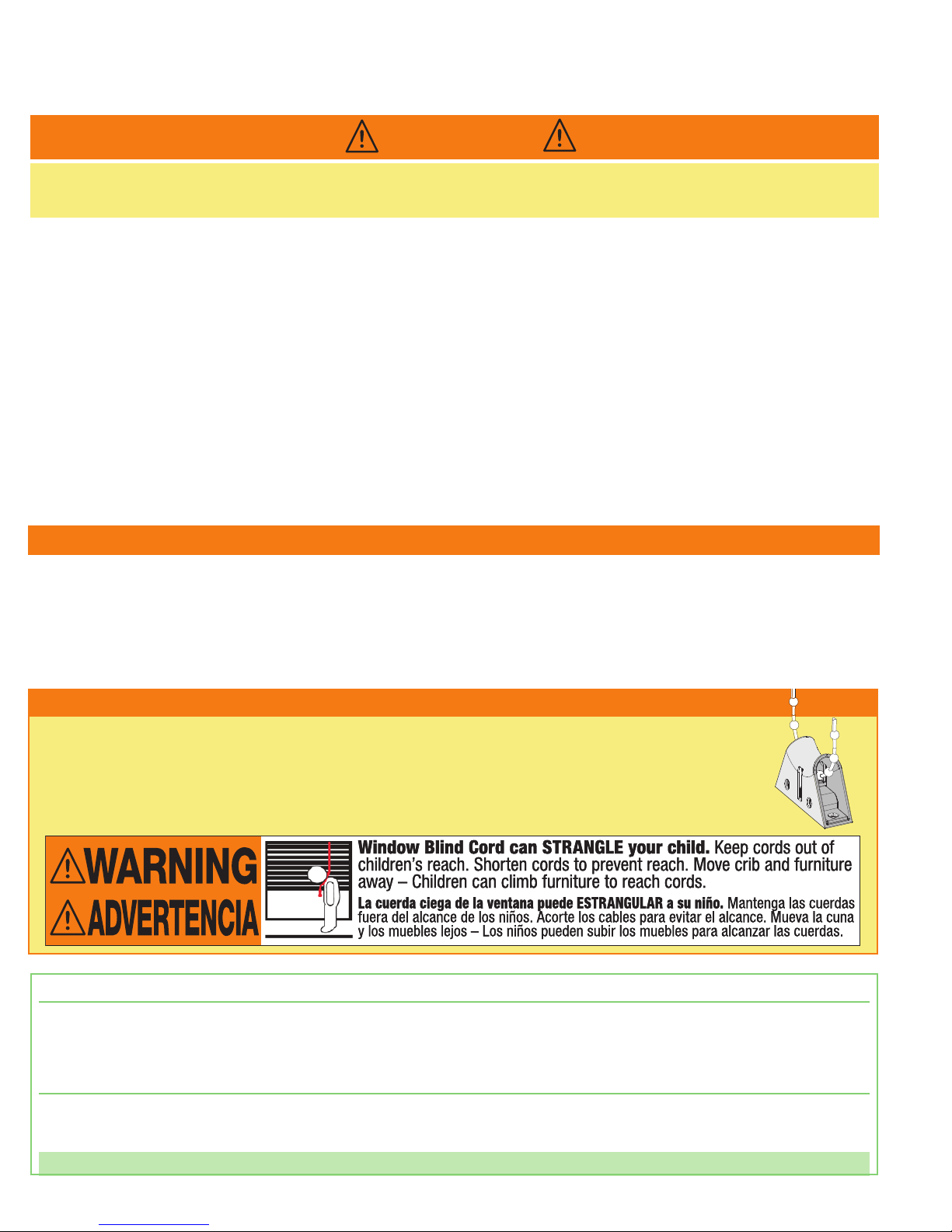

Important Safety Information Important Safety Information
Improper installation and use of the Techmatic Window Shades® can result in serious injury or death. Primarily, injuries can occur when the
shade falls due to imprecise installation, mishandling of the shade during installation or installation on an insufficient wall or ceiling structure.
Please use extreme care.
1.
Please read the following installation guidelines thoroughly and follow them
carefully. Failure to do so may cause product to fall or otherwise fail, and
could result in serious injur y.
2.
Installation and calibration of the shade should only be performed by an
authorized, qualified, and experienced professional.
3.
Do not affix the unit to wall or ceilings that have inadequate strength to
permanently hold the unit during use. It is the owner’s and installer’s responsibility
to confirm the wall or ceiling to which the unit attaches is sufficient to
permanently hold the weight and stress loads of the unit at all times. Draper, Inc.,
is not responsible for improper installation, application, testing or workmanship
related to the product at place of installation.
4.
It is the installer’s responsibility to make sure appropriate fasteners are used for
mounting.
5.
All brackets, fascia, head boxes, pockets, wall clips, and other hardware must be
installed level. shade must be level and square.
6.
Never leave the area while operating the shade during installation, maintenance,
or normal operation, unless it is secure and safe.
7.
Before testing or operation, carefully inspect the entire area and path of the shade
and areas underneath the shade to be sure no persons or objects are in the area.
WARNING
8.
During testing or operation, carefully watch the surrounding area for any potential
safety concerns including nearby persons or objects.
9.
After installation, the entire system should be carefully tested to ensure safe and
normal operation. Extreme care should be taken during testing to remain clear of
moving par ts to avoid possible injury.
10.
Operation of shade should be performed only by authorized and qualified
personnel, who have been trained in the safe and effective operation of the shade
& understand its safety features.
11.
The safety features of the shade should never be disabled, bypassed or
overridden. The system should not be operated until all safety features are
properly and completely installed, calibrated and tested.
12.
Shade may need to comply with local, state or district rules and regulations, in
particular when installed in schools. All applicable rules and regulations should
be reviewed before installation and use.
13.
Failure to precisely follow installation guidelines invalidates all warranties.
14.
Custom products/installations may not be reflected in this manual. Call Draper,
Inc., if you have questions regarding your installation.
Before Beginning Installation
1.
Look for any job site conditions that could inter fere with installation or operation
of the system.
2.
Read carefully and be sure to understand all installation instructions and all
related operations manuals. These instructions are intended to serve as a guide
for the installer and owner. They should be followed closely and combined with
the expertise of experienced qualified installers. Draper, Inc., is not responsible
for improper installation, application, testing or workmanship related to the
product at place of installation. Please retain all instructions for future use.
3.
Open cartons lengthwise.
4.
Locate and lay out all pieces.
5.
Inspect all boxes to make sure you have received the proper shade and parts.
Controls may be shipped separately, or in same carton as shade.
6.
If you have any difficulties with installing, servicing or operating your shade, call
your dealer or Draper, Inc., 765-987-7999.
Child Safety Information
ANSI/WCMA A100.1-2018 standard (developed by the Window Coverings Manufacturer’s Association and the Consumer Product Safety
Commission) was established on December 15, 2018, to eliminate strangulation hazards for small children from hanging cords and chain loops.
When a Draper dealer specifies that custom shades comply with ANSI/WCMA A100.1-2018, Draper provides a pre-installed Spring-Loaded Chain
Tension Device (shown at right) for clutch-operated units. A warning label is attached to the kit and approved mechanical fasteners are included.
When properly installed, the tension device prevents the creation of a hazardous loop by maintaining tension on the bead chain. If not installed
properly, the shade is par tially inoperable. A warning label (shown below) is also added to the shade roller.
For more information, please see Draper's ANSI/WCMA A100.1-2018 compliance page: www.draperinc.com/windowshades/wcmacompliance.aspx
Field Adjustments
Each Draper Solar Control Shade is tested to ensure proper operation. Even with this testing, some field adjustments may be needed for telescoping.
If the shade is telescoping, place a piece of high quality gaffer tape about 1" wide on the exposed roller (where the fabric will cover it) on the side that the
fabric will be drawn toward. For example: if the fabric is tracking to the left, place the tape on the right side.
Cleaning and Maintenance
Window covering products manufactured by Draper, when properly installed, should require no operational maintenance or lubrication.
Most of Draper’s standard fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or
soft cloth and mild solution of warm soapy water. A mild dishwashing liquid is recommended. A clean dry cloth is recommended for the metal finish.
Please Note: Exceptions are Flocké and Phifer SW7000 fabrics, which must be cleaned with a dr y art sponge.
Page 3
1 9/16”
(40mm)
10 lb Clutch
Idler
Endcap
Idler End
of Roller
Retainer Clip
Clutch
Endcap
10 lb Clutch
Techmatic Window Shades
®

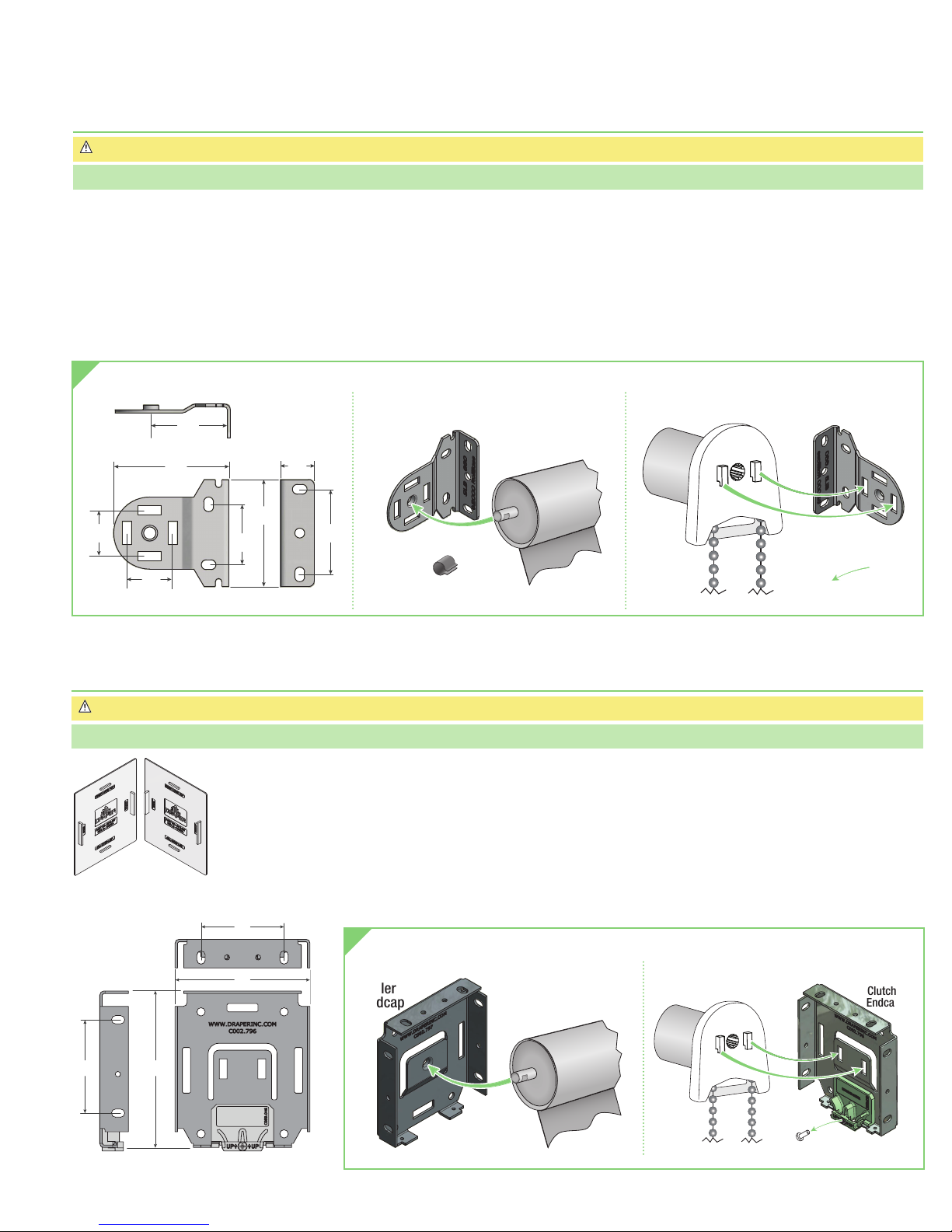

Section 1 - Brackets
Caution: Before mounting shades, verify measurements on card provided with shade, and ensure unit is installed at correct width.
Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.
1.
Mark wall, jamb or ceiling for placement of mounting brackets.
1.
Drill small starter hole (if necessary) in mounting surface.
2.
Mount brackets using appropriate fasteners for surface (Fig. 1 for bracket dimensions).
3.
Place spring-loaded pin into bracket, depress pin by pushing shade roller toward bracket (Fig. 2).
4.
Slip notches on operator end into other bracket, then press down to lock in place (Fig. 3).
5.
Install optional bracket covers (if provided).
SMALL UNIVERSAL BRACKETS - CLUTCH INSTALLATION
Figure 1 Figure 2 Figure 3
1 9/16”
15
/16”
(24mm)
15
/16”
(24mm)
(40mm)
2 3/8”
(60mm)
2 ¼”
(31mm)
2 3/16”
(56mm)
11
/16”
(17mm)
2 ¾”
(44mm)
Idler
Bracket
Retainer Clip
Idler End
of Roller
page 3 of 4
Clutch Bracket
Section 2 - Endcaps
Caution: Before mounting shades, verify measurements on card provided with shade, and ensure unit is installed at correct width.
Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.
1.
Mark wall, jamb or ceiling for placement of mounting endcaps.
2.
Drill small starter hole (if necessary) in mounting surface.
3.
Snap endcap covers(Fig. 4) into place.
4.
Mount endcaps using appropriate fasteners for surface (Fig. 5 for endcap dimensions).
5.
Place spring-loaded pin into idler endcap, depress pin by pushing shade roller toward endcap, slip notches
on operator end into other endcap, then press down to lock in place (Fig. 6).
2”
(51mm)
ENDC A P INSTALLATION
3 ¼”
(83mm)
Figure 6
Figure 5
2 ¼”
(57mm)
Figure 4
3 ¾”
(96mm)
Page 4
STEP 1:
Fascia Attachment Small & Large Endcaps
Large Pocket Headbox
Secure to Endcap
with Screw
Small Pocket Headbox
STEP 1
STEP 2
STEP 3
Small Pocket Headbox
Techmatic Window Shades
®

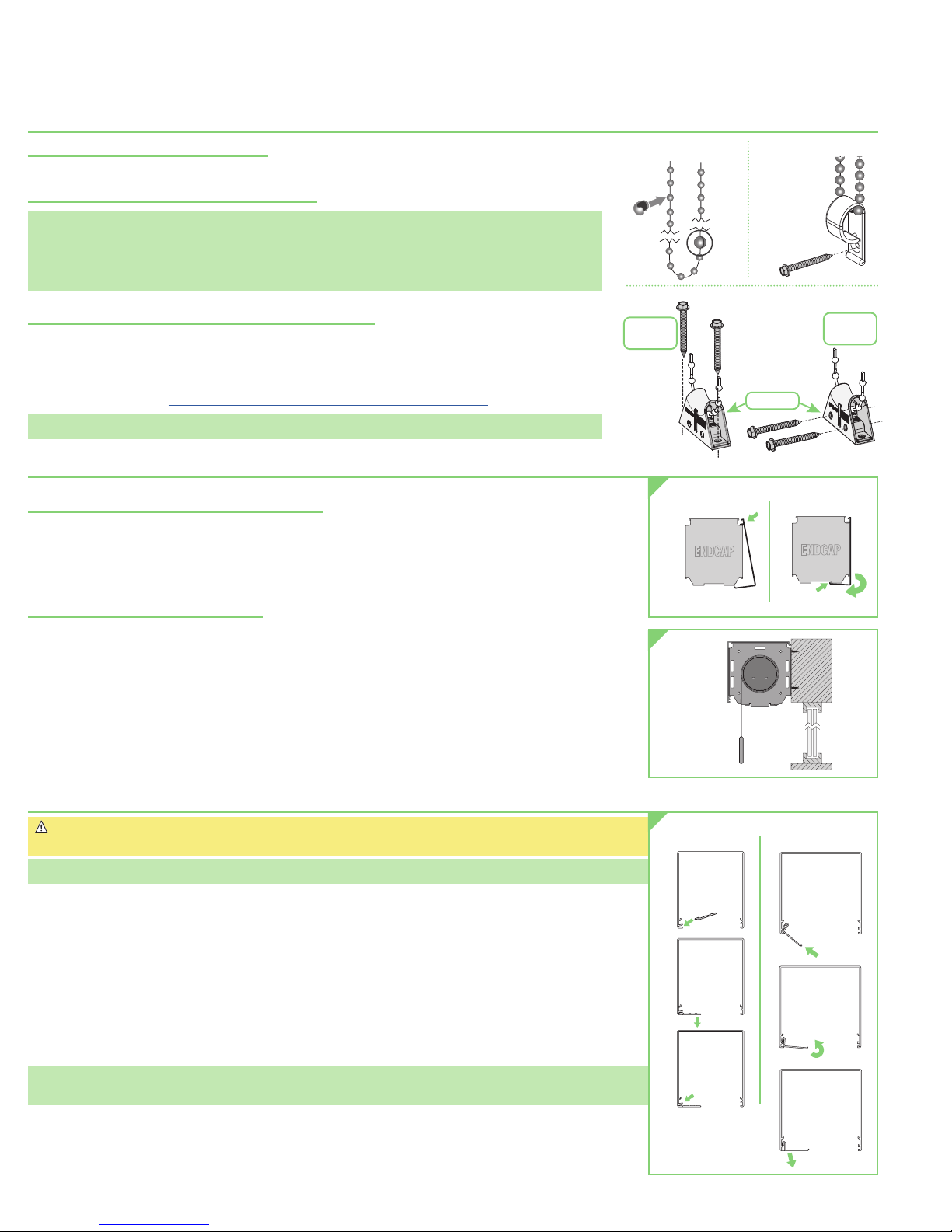

Section 3 - Bead Chain Limits and Safety Device Installation
page 4 of 4
Section 3.1 - Attaching Stop Balls
1.
Set upper and lower travel limits by installing stop balls to bead chain (crimp closed using pliers) (Fig. 7).
Section 3.2 - P-Clip Cord Tension Device
Please Note: Draper Bead Chain Clutch Operated shades that do not comply with WMCA/ANSI Standard
A100.1-2018 come with a cord tension device in a separate kit that dealer MUST install (Fig. 8).
Spring loaded tensioner is preattached to bead chain (Fig. 9). Spring loaded tensioner as well
as the P-clip must be attached to wall, jamb or sill so that bead chain is held taut enough that
children cannot pull it away from wall or fit their head into loop.
Section 3.3 - Spring-Loaded Cord Tension Device
If Draper Clutch FlexShade complies with WMCA/ANSI Standard A100.1-2012, a Spring-Loaded Cord
Tension Device comes installed on bead chain (Fig. 9). An approved permanent warning label and approved
mechanical fasteners (wood screws) are included. Device is designed so that children cannot pull bead chain
away from wall or fit their head into loop. (See safety note on page 2).
For more information, visit www.draperinc.com/WindowShades/WCMAcompliance.asp.
Please Note: Overtightening screws will damage Spring Loaded Tension Device.
Section 4 - Endcaps with Fascia
Section 4.1 - Attaching Fascia to Endcaps
Place groove along top of fascia over endcaps, and snap into place (Fig. 10). Endcaps must be installed
the correct distance apart for fascia to be properly attached with full engagement. Fascia is not fully seated
until it clicks into place on both ends. Once in place, check for secure fit. If not secure, secure with appropriate
fastener (not included).
Section 4.2 - Reverse Roll Fascia
Attach
Stop Balls
Sill
Mount
Figure 8Figure 7
Crimp
Closed
with
Pliers
Figure 9
Tensioner
ATTAC H I N G FA SCIA
STEP 2:
ENDCAP
Figure 10
ENDCAP
Clicks into place
Jamb
Mount
1.
Slide endcaps into extrusions.
2.
Using provided holes in endcaps, mark the fascia for drilling.
3.
Attach endcaps to fascia.
4.
Mount Endcaps/Reverse Roll Fascia.
5.
Install roller/fabric/operator assembly according to relevant instructions.
6.
Attach endcap covers to endcaps. Use double-sided tape to help secure in place.
Section 5 - Surface Headbox or Pocket Headbox
Caution: Before mounting shades, verify measurements on card provided with shade, and ensure unit is
Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.
1.
Snap endcap covers onto endcaps.
2.
Slide endcaps into the top/back portion of surface headbox or into pocket extrusion
of headbox. Using provided holes in endcaps, mark headbox for drilling.
3.
Drill holes in back (wall mount) or top (ceiling mount) of top/back cover or pocket headbox.
4.
Attach endcaps and Surface Headbox back/top or Pocket Headbox extrusion to wall,
ceiling or pocket using mounting hardware appropriate for site conditions.
5.
Install shade (See Section 4.1 - Mounting Endcaps for Fascia).
6.
Attach headbox fascia or pocket closure (Fig. 12).
Note on surface style headbox: Fascia is not fully seated until it clicks into place on both ends. Once in place, check
installed at correct width.
for secure fit. If not secure, secure with appropriate fastener (not included).
Figure 11
ATTAC H I N G CLOS U R E PANEL
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3
Figure 12
Loading...
