Draper Spring Roller Shade User guide

Download

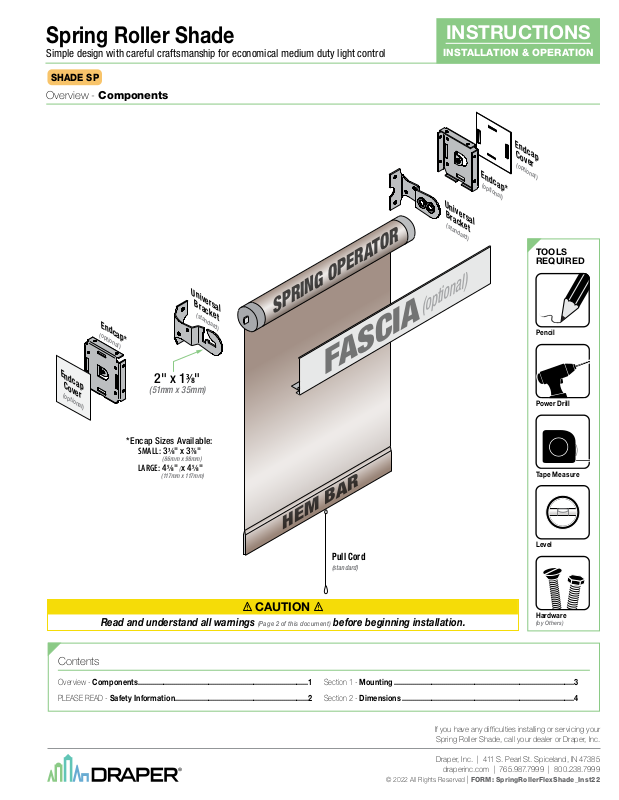

Page 1

FASCIA

(optional)

HEM BAR

SPRING OPERATOR

Spring Roller Shade

Simple design with careful craftsmanship for economical medium duty light control

SHADE SP

Overview - Components

Universal

Bracket

Endcap*

(optional)

(standard)

INSTRUCTIONS

INS TALL ATIO N & OPE R ATIO N

Endcap Cover

(optional)

Endcap*

(optional)

Universal Bracket

(standard)

TOOLS REQUIRED

Pencil

Endcap

Cover

(optional)

Contents

2" x 1"

(51mm x 35mm)

*Encap Sizes Available:

x 3"

 3"

(86mm x 98 mm)

 4" (x 4"

(117m m x 117m m)

Read and understand all warnings

CAUTION

(Page 2 of th is document)

Pull Cord

(standard)

before beginning installation.

Power Drill

Tape Measure

Level

Hardware

(by Oth ers)

Overview - Components .......................................................................................1

PLEASE READ - Safety Information ....................................................................2

Section 1 - Mounting ............................................................................................3

Section 2 - Dimensions ........................................................................................4

If you have any difﬁculties installing or servicing your

Spring Roller Shade, call your dealer or Draper, Inc.

Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385

draperinc.com | 765.987.7999 | 800.238.7999

Page 2

Spring Roller Shade

PLEASE READ - Safety Information

page 2 of 4

Important Safety Information Important Safety Information

Improper installation and use of the Spring Roller Shade can result in serious injury or death. Primarily, injuries can occur if the unit falls due to imprecise installation, mishandling of the shade during installation or installation on an insufﬁcient wall or ceiling structure. Please use extreme care.

Please read the following installation guidelines thoroughly and follow them carefully. Failure to do so may cause product to fall or otherwise fail, and could result in serious injury.

Installation and calibration of the shade should only be performed by an authorized, qualiﬁed, and experienced professional.

Do not afﬁx the unit to wall or ceilings that have inadequate strength to permanently hold the unit during use. It is the owner’s and installer’s responsibility to conﬁrm the wall or ceiling to which the unit attaches is sufﬁcient to permanently hold the weight and stress loads of the unit at all times. Draper, Inc., is not responsible for improper installation, application, testing or workmanship related to the product at place of installation.

It is the installer’s responsibility to make sure appropriate fasteners are used for mounting.

All brackets, fascia, headboxes, pockets, wall clips, and other hardware must be installed level. Shade unit must be level and square.

Never leave the area while operating the shade during installation, maintenance, or normal operation, unless it is secure and safe.

Before testing or operation, carefully inspect the entire area and path of the shade and areas underneath the shade to be sure no persons or objects are in the area.

WARNING

During testing or operation, carefully watch the surrounding area for any potential safety concerns including nearby persons or objects.

After installation, the entire system should be carefully tested to ensure safe and normal operation. Extreme care should be taken during testing to remain clear of moving parts to avoid possible injury.

10.

Operation of shade should be performed only by authorized and qualiﬁed personnel, who have been trained in the safe and effective operation of the shade and understand its safety features.

11.

The safety features of the shade should never be disabled, bypassed, or overridden. The system should not be operated until all safety features are properly and completely installed, calibrated, and tested.

12.

Shade may need to comply with local, state, or district rules and regulations, in particular when installed in schools. All applicable rules and regulations should be reviewed before installation and use.

13.

Failure to precisely follow installation guidelines invalidates all warranties.

14.

Custom products/installations may not be reﬂected in this manual. Call Draper, Inc., if you have questions regarding your installation.

Before Beginning Installation

Look for any job site conditions that could interfere with installation or operation of the system.

Read carefully and be sure to understand all installation instructions and all related operations manuals. These instructions are intended to serve as a guide for the installer and owner. They should be followed closely and combined with the expertise of experienced qualiﬁed installers. Draper, Inc., is not responsible for improper installation, application, testing, or workmanship related to the product at place of installation. Please retain all instructions for future use.

Open cartons lengthwise.

Locate and lay out all pieces.

Inspect all boxes to make sure you have received the proper shade and parts. Controls may be shipped separately, or in same carton as shade.

If you have any difﬁculties with installing, servicing, or operating your shade, call your dealer or Draper, Inc., 765-987-7999.

Field Adjustments

Each Draper Solar Control Shade is tested to ensure proper operation. Even with this testing, some ﬁeld adjustments may be needed for telescoping.

If the shade is telescoping, place a piece of high quality gaffer tape about 1"

(25 mm)

wide on the exposed roller the fabric will be drawn toward. For example: if the fabric is tracking to the left, place the tape on the right side.

Roller loose in brackets: If shade roller is loose in brackets doesn’t readily roll up shade, unroll shade and remove from brackets. Re-roll the cloth by hand and replace it in brackets.

Roller too tight: If shade roller is wound too tight, shade will not fully or freely unroll. Remove rolled up shade from brackets, partially unroll cloth by hand, and replace in brackets.

Spring Tensioning Instructions

Clamp the ﬂat spear on the left end of the roller securely

locking pliers works well)

allow the pliers to slip as tension increases.

Once the desired amount of rotations have been added, stop the rotation of the slotted end in a vertical position. The vertical position must be maintained to lock the mechanism.

Release a small amount of pressure off the roller and allow it to rotate very slowly

(less than 180 degrees of rotation will be necessary)

the spring mechanism to lock into position.

(where the fabric will cover it)

(rolle r should have about

on the side that

1/8

" [3 mm] end play)

(a pair of visegrip

and rotate clockwise 15 turns. Take care not to

. This will allow

and

Cleaning and Maintenance

Window covering products manufactured by Draper, when properly installed, should require no operational maintenance or lubrication.

Most of Draper’s standard fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy water. A mild dishwashing liquid is recommended. A clean dry cloth is recommended for the metal ﬁnish.

Please Note: Exceptions are Flocké and Phifer SW7000 fabrics, which must

be cleaned with a dry art sponge.

Page 3

Spring Roller Shade

page 3 of 4

Section 1 - Mounting

Caution: Before mounting shades, verify measurements on label provided with shade, and ensure unit is installed at correct width.

Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.

Open carton along length, not at end. DO NOT use a knife to open.

Each shade is tagged with the size. If fascia is included, each piece is marked.

Install all Draper window shades level. Check with carpenter’s level.

Left and right brackets are different; be sure you are installing the proper brackets in the proper opening.

Please read the following installation guidelines thoroughly and follow them carefully. Failure to do so may cause product to fall or otherwise fail, and

invalidates warranty.

Caution: Before mounting shades, verify measurements on the card provided with the shade, and ensure the brackets are installed at the correct width.

Section 1.1 - Mounting with Brackets

Mount brackets according to type of installation. Use appropriate fasteners

(two pe r bracket)

for wall, jamb or ceiling

(see Fig. 1)

. The installer is responsible

for selecting mounting hardware appropriate for site conditions.

Insert idler end into right bracket

Lower spear on left end of roller into left bracket and rotate into locked position

(see Fig. 3)

. Note: The notch on the spring roller should be positioned

(see Fig. 2)

down. The spring has been pre-tensioned in the factory.

Section 1.2 - Mounting with Endcaps

For installations with fascia, mount endcaps according to type of installation. Use appropriate fasteners for wall, jamb, or ceiling

(see Fig. 4)

The installer is responsible for selecting mounting hardware appropriate

for site conditions. Snap end covers onto endcaps.

WITH BRACKET MOUNT

Figure 1

For wall mounting, place pin in this hole

For ceilingl mounting, place pin in this hole

Figure 2

For wall mounting, place pin in this hole

For ceilingl mounting, place pin in this hole

Figure 3

WITH ENDCAP MOUNT

Insert idler end into right endcap.

Lower spear onto left endcap and rotate into locked position.

Place fascia top lip over top edge of endcaps, then rotate down and snap into place

(see Fig. 5)

. NOTE: Make sure shade fabric does not retract

completely behind fascia.

Caution: Fascia is not fully seated until it clicks into place on both ends.

Once in place, check for secure ﬁt. If not secure, secure with appropriate fastener

(not included)

Please Note: Small hardware shown. Large hardware will look slightly different,

but install and operate the same way.

Square Fascia

Radius Fascia

STEP 1

Figure 4

Figure 5

STEP 2

Clicks into place

Page 4

Large Pocket Headbox

STEP 1

Small Pocket Headbox

Large Pocket Headbox

STEP 1

STEP 2

Small Pocket Headbox

STEP 1

Large Pocket Headbox

STEP 1

Large Pocket Headbox

STEP 1

STEP 2

STEP 3

Small Pocket Headbox

STEP 1

STEP 2

Large Pocket Headbox

STEP 1

STEP 2

Spring Roller Shade

page 4 of 4

Section 1.3 - Mounting with Headbox

Snap endcap covers onto endcaps.

Place endcaps into back/top portion of wall/ceiling headbox or into pocket extrusion of pocket headbox. Using pre-drilled holes in endcaps, mark the headbox for drilling.

Drill holes in back or top, depending on whether you will be mounting the headbox to the wall, ceiling or pocket.

Attach endcaps and wall/ceiling headbox back/top or pocket headbox extrusion to wall, ceiling or pocket using mounting hardware appropriate for site conditions.

Install shade

Attach headbox fascia or pocket closure

(see "With Endca ps" section above)

(see Fig. 6 for pocket closure)

. Surface Headbox fascia is not fully seated until it clicks into place on both ends. Once in place, check for secure ﬁt. If not secure, secure with appropriate fastener

(not included)

Note on pocket style headbox, small size will require securing closure

panel to endcap with provided screw.

Section 2 - Dimensions

ATTACHI NG C LOS URE PANEL

STEP 1

STEP 2

Figure 6

STEP 3

Secure to Endcap with Screw

STEP 3

Cloth Width (CM)

Outside Measurement (OM)

WINDOW OPENING

(IM) = Outside Measurement (OM) with

Overall Width includes plastic endcap covers.

HEADBOX WITH ENDCAPS

SMALL LARGE

⁄

D12"

⁄

⁄

⁄

⁄

100mm

87mm

16mm

51mm

1.6m m

30mm

3 ¼"

⁄

⁄

⁄

⁄

119 mm

16mm

83mm

2.4mm

40mm

Shade Overall Width includes plastic endcap covers. Pair of small endcap covers adds Pair of large endcap covers adds

Above dimensions based upon 20 lb clutch and 1½"

⁄

⁄

(Pair adds

ENDCAPS WITH FASCIA

SMALL LARGE

⁄

⁄

⁄

D12"

⁄

⁄

(3.2mm)

to Overall Width.

(4.8mm)

to Overall Width.

(38mm)

/8" (3 mm) deduction.

1/8

" [3 mm] to Ove rall Wid th)

98mm

86mm

16mm

51mm

1.6m m

30mm

⁄

3 ¼"

⁄

117m m

⁄

117m m

⁄

16mm

83mm

2.4mm

40mm

⁄

diameter roller.

Please note: When measuring shade height, remember to

include endcaps and fascia or headbox.

BRACKETS

SMALL LARGE

F2NA

Please Note: When mounting brackets

to the wall, use the hole closest to the wall. When mounting brackets to the ceiling, use the hole furthest away from the ceiling.

1 ¼"

⁄

⁄

35mm

⁄

49mm

16mm

41mm

⁄

32mm

⁄

⁄

⁄

⁄

⁄

49mm

68mm

21mm

54mm

41mm
