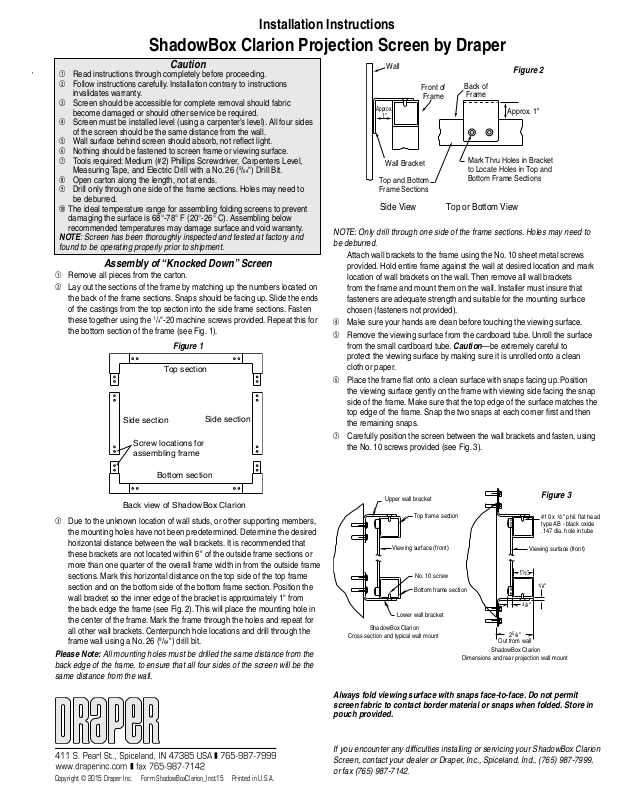

Installation Instructions
Top section
Side section
Bottom section
Side section
Screw locations for
assembling frame
Back view of ShadowBox Clarion
Upper wall bracket
Top frame section
Viewing surface (front)
No. 10 screw
Bottom frame section
Lower wall bracket
ShadowBox Clarion
Cross section and typical wall mount
ShadowBox Clarion
Dimensions and rear projection wall mount
snap
snap
3
/8"
2
5
/8"
Out from wall
1
/8"
1½"
#10 x 1/2" phil. flat head
type AB - black oxide
.147 dia. hole in tube
Viewing surface (front)
Wall Bracket
Approx.
1"
Front of
Frame
Top and Bottom
Frame Sections
Mark Thru Holes in Bracket
to Locate Holes in Top and
Bottom Frame Sections
Wall
Side View
Top or Bottom View
Approx. 1"
Back of
Frame
ShadowBox Clarion Projection Screen by Draper
1 Read instructions through completely before proceeding.
2 Follow instructions carefully. Installation contrary to instructions
invalidates warranty.
3 Screen should be accessible for complete removal should fabric
become damaged or should other service be required.
4 Screen must be installed level (using a carpenter’s level). All four sides
of the screen should be the same distance from the wall.
5 Wall surface behind screen should absorb, not reflect light.
6 Nothing should be fastened to screen frame or viewing surface.
7 Tools required: Medium (#2) Phillips Screwdriver, Carpenters Level,
Measuring Tape, and Electric Drill with a No. 26 (9/64") Drill Bit.
8 Open carton along the length, not at ends.
9 Drill only through one side of the frame sections. Holes may need to
be deburred.
The ideal temperature range for assembling folding screens to prevent
damaging the surface is 68°-78° F (20°-26° C). Assembling below
recommended temperatures may damage surface and void warranty.
NOTE: Screen has been thoroughly inspected and tested at factory and
found to be operating properly prior to shipment.
Assembly of “Knocked Down” Screen
1 Remove all pieces from the carton.
2 Lay out the sections of the frame by matching up the numbers located on
the back of the frame sections. Snaps should be facing up. Slide the ends
of the castings from the top section into the side frame sections. Fasten
these together using the 1/4"-20 machine screws provided. Repeat this for
the bottom section of the frame (see Fig. 1).
Caution
Figure 1
Figure 2
NOTE: Only drill through one side of the frame sections. Holes may need to
be deburred.
Attach wall brackets to the frame using the No. 10 sheet metal screws
provided. Hold entire frame against the wall at desired location and mark
location of wall brackets on the wall. Then remove all wall brackets
from the frame and mount them on the wall. Installer must insure that
fasteners are adequate strength and suitable for the mounting surface
chosen (fasteners not provided).
4 Make sure your hands are clean before touching the viewing surface.
5 Remove the viewing surface from the cardboard tube. Unroll the surface
from the small cardboard tube. Caution—be extremely careful to
protect the viewing surface by making sure it is unrolled onto a clean
cloth or paper.
6 Place the frame flat onto a clean surface with snaps facing up. Position
the viewing surface gently on the frame with viewing side facing the snap
side of the frame. Make sure that the top edge of the surface matches the
top edge of the frame. Snap the two snaps at each corner first and then
the remaining snaps.
7 Carefully position the screen between the wall brackets and fasten, using
the No. 10 screws provided (see Fig. 3).
3 Due to the unknown location of wall studs, or other supporting members,
the mounting holes have not been predetermined. Determine the desired
horizontal distance between the wall brackets. It is recommended that
these brackets are not located within 6" of the outside frame sections or
more than one quarter of the overall frame width in from the outside frame
sections. Mark this horizontal distance on the top side of the top frame
section and on the bottom side of the bottom frame section. Position the
wall bracket so the inner edge of the bracket is approximately 1" from
the back edge the frame (see Fig. 2). This will place the mounting hole in
the center of the frame. Mark the frame through the holes and repeat for
all other wall brackets. Centerpunch hole locations and drill through the
frame wall using a No. 26 (9/64") drill bit.
Please Note: All mounting holes must be drilled the same distance from the
back edge of the frame, to ensure that all four sides of the screen will be the
same distance from the wall.
Copyright © 2015 Draper Inc. Form ShadowBoxClarion_Inst15 Printed in U.S.A.
Figure 3
Always fold viewing surface with snaps face-to-face. Do not permit
screen fabric to contact border material or snaps when folded. Store in
pouch provided.
If you encounter any difficulties installing or servicing your ShadowBox Clarion
Screen, contact your dealer or Draper, Inc., Spiceland, Ind., (765) 987-7999,
or fax (765) 987-7142.
