Page 1

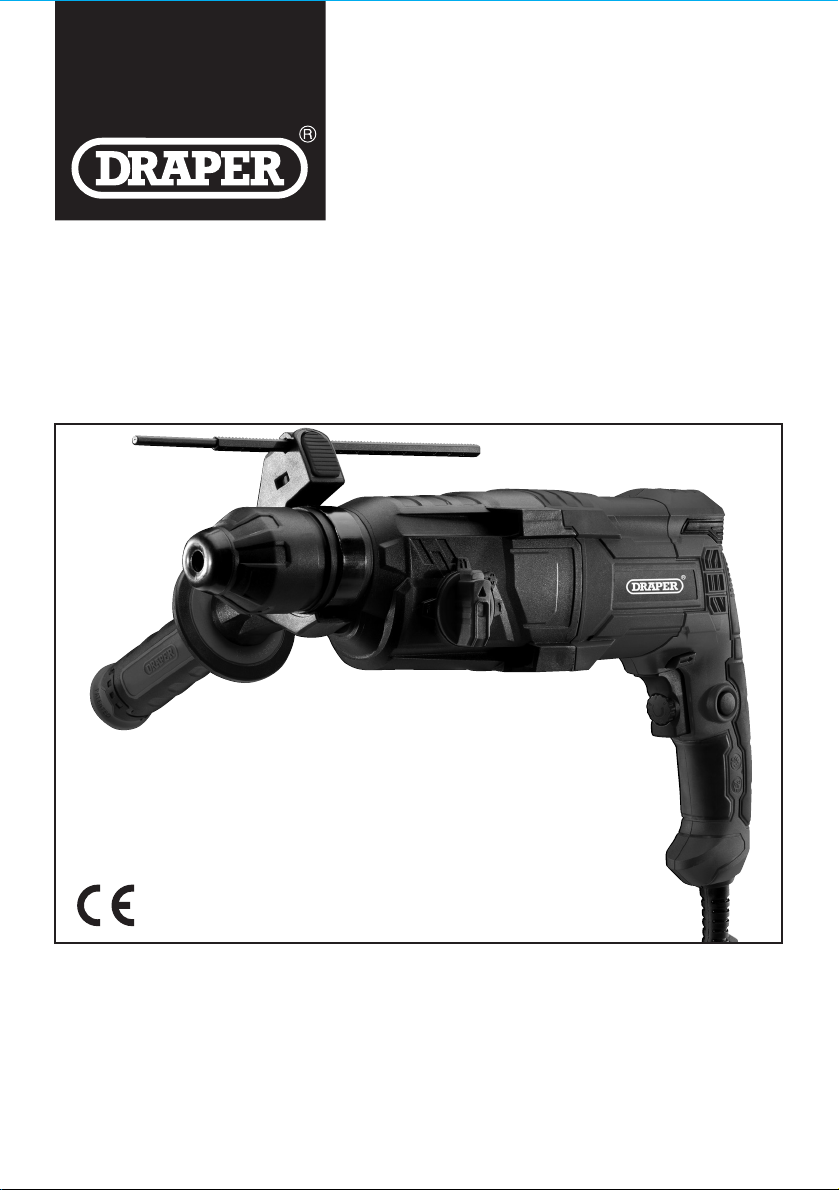

230V 3.4KG
SDS
+
ROTARY
HAMMER DRILL
56382
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Page 2
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V 3.4kg SDS+ Rotary Hammer Drill
Stock No: 56382
Part No: SDSHD1050D
1.2 REVISIONS:
Date first published November 2018.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Help line: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Page 3
2. CONTENTS
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................................ 2
1.2 REVISION HISTORY ..................................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ............................................................................... 2
1.4 COPYRIGHT NOTICE.....................................................................................................2
2 CONTENTS
2.1 CONTENTS..................................................................................................................... 3
3 WARRANTY
3.1 WARRANTY ...................................................................................................................4
4 INTRODUCTION
4.1 SCOPE ...........................................................................................................................5
4.2 SPECIFICATION.............................................................................................................5
4.3 HANDLING & STORAGE................................................................................................ 5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ..................................6
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR HAMMER DRILLS................................. 7
5.3 RESIDUAL RISK ............................................................................................................. 8
5.4 CONNECTION TO THE POWER SUPPLY .................................................................... 8
6 TECHNICAL DESCRIPTION

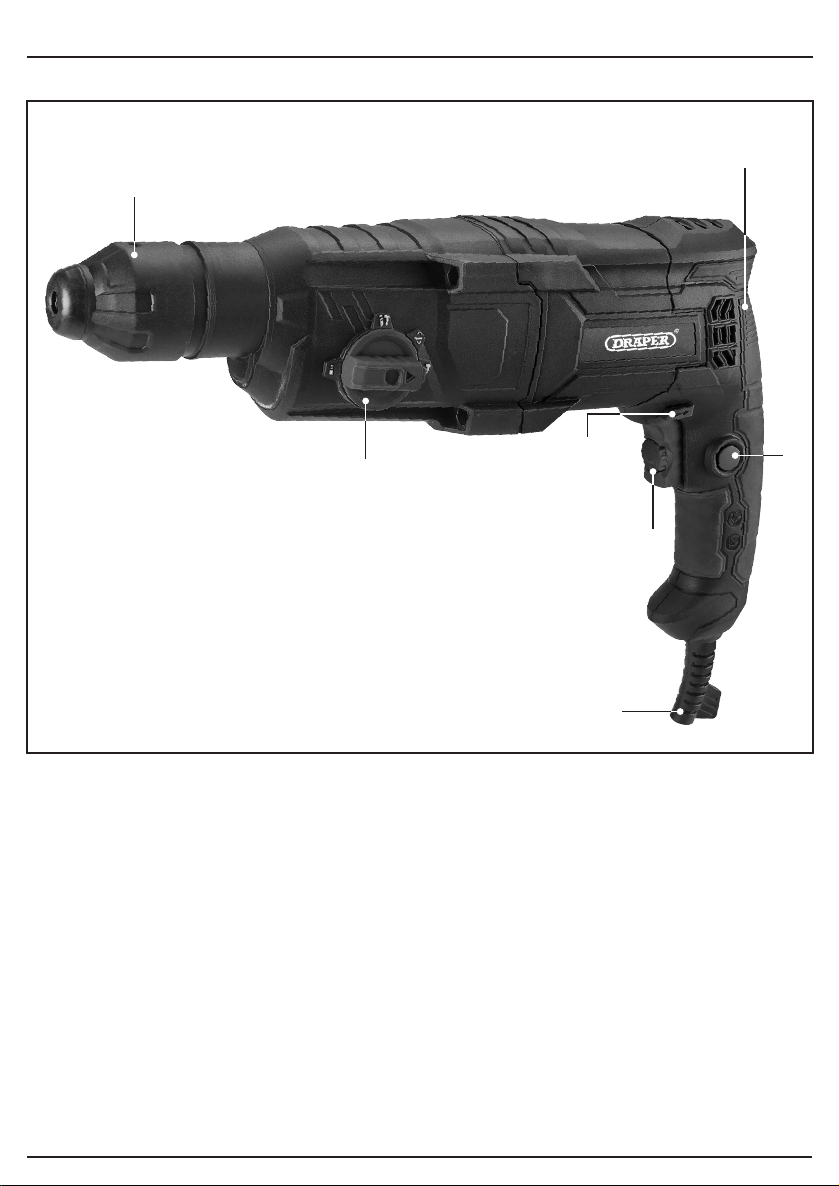

6.1 IDENTIFICATION............................................................................................................9
7 UNPACKING & CHECKING
7.1 PACKAGING ................................................................................................................. 10

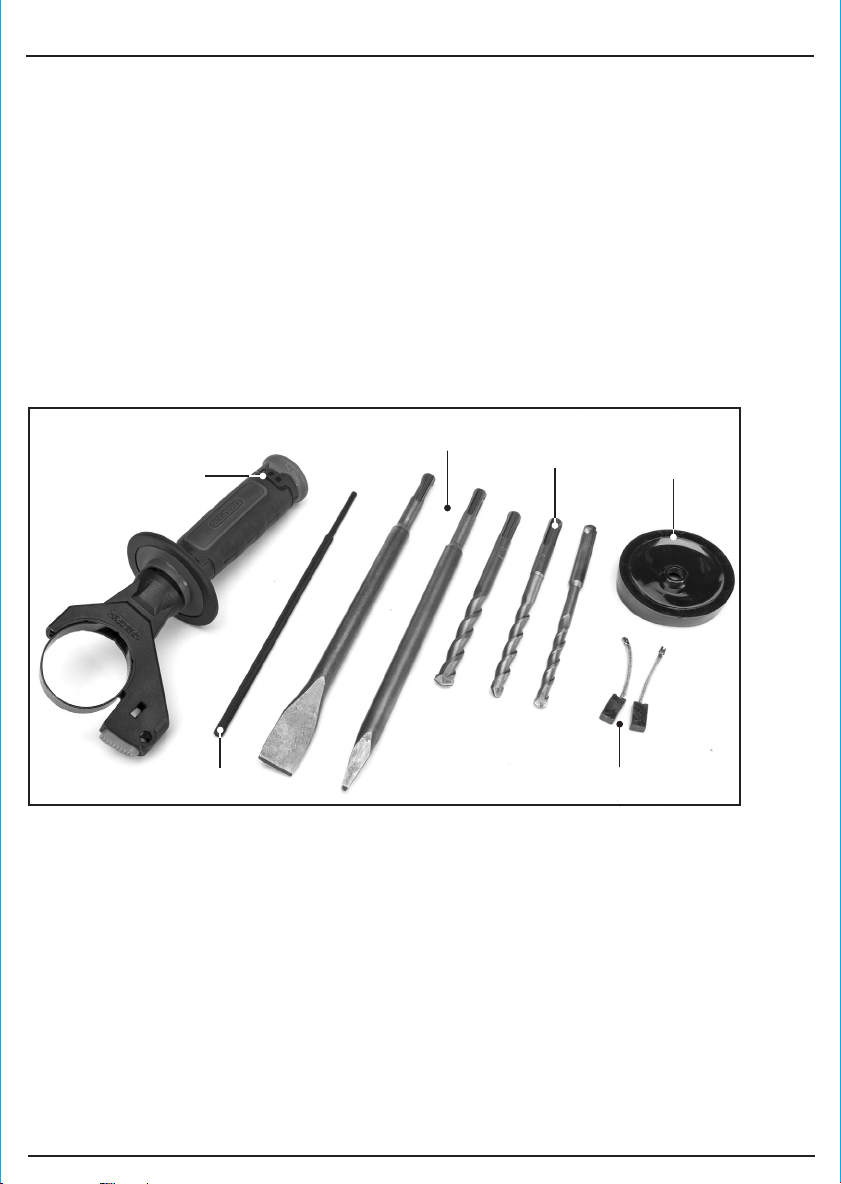

7.2 WHAT’S IN THE BOX....................................................................................................10
8 PREPARING THE DRILL

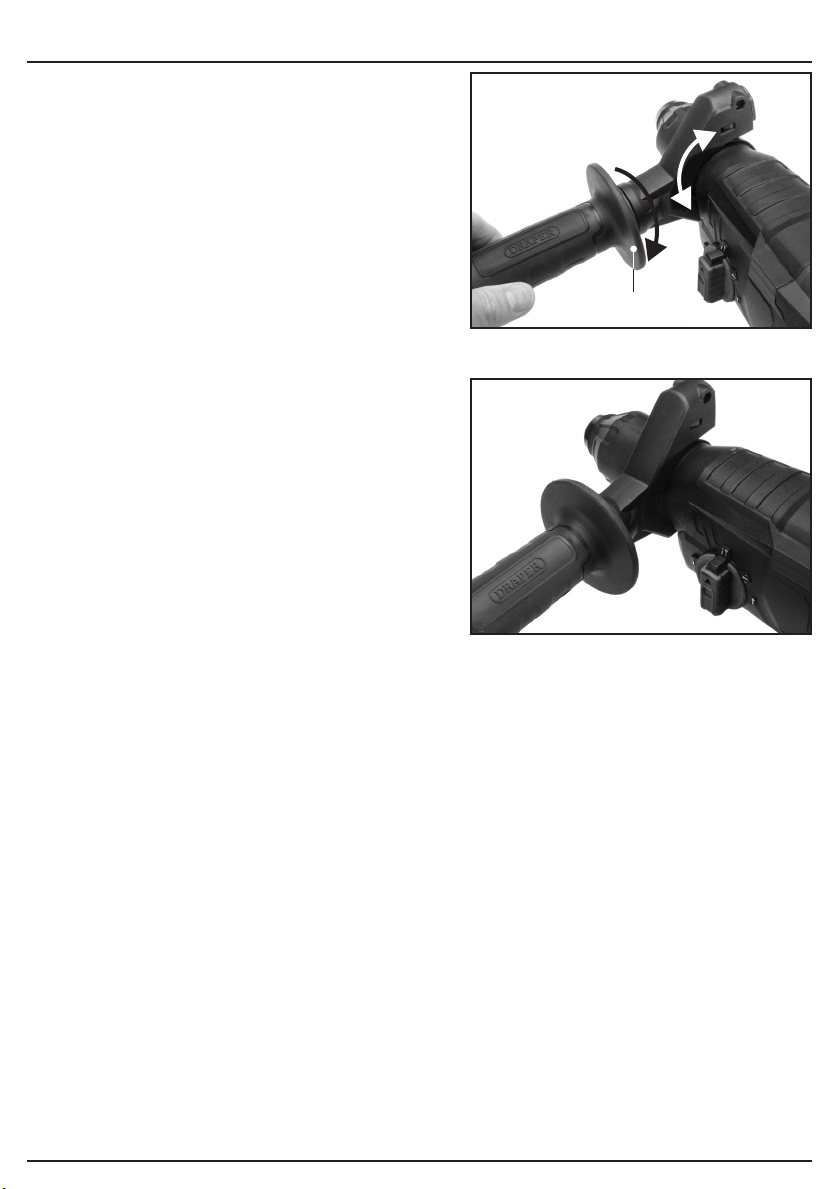

8.1 AUXILIARY HANDLE .................................................................................................... 11
9 BASIC HAMMER DRILL OPERATIONS

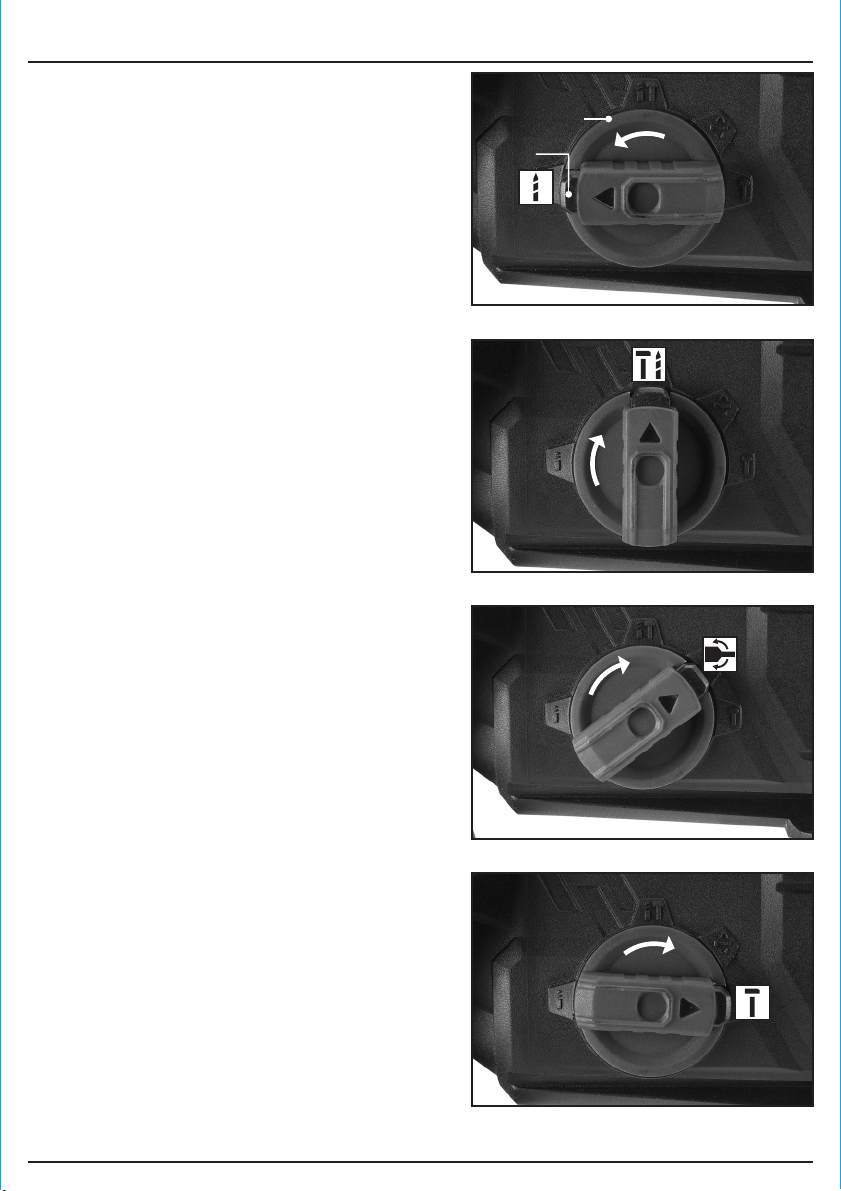

9.1 FUNCTION SELECTORS ............................................................................................. 12
9.2 ROTARY DRILLING ...................................................................................................... 12
9.3 HAMMER AND DRILLING ............................................................................................ 12
9.4 ROTATIONAL CHISELLING .......................................................................................... 12
9.5 CHISELLING .................................................................................................................12
9.6 TRIGGER SWITCH ..................................................................................................... 13

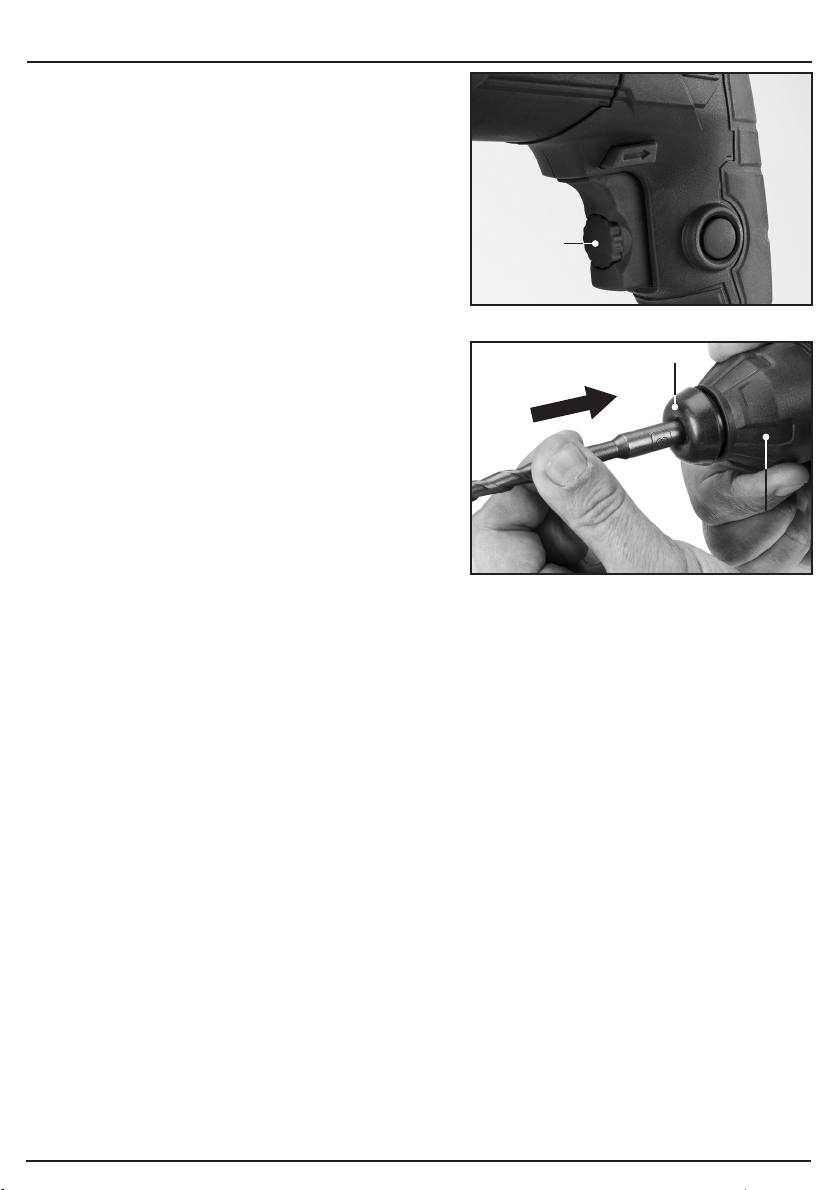

9.7 SDS+ SYSTEM ............................................................................................................. 13
9.8 DUST AND SWARF ..................................................................................................... 13
9.9 DRILLING WOOD, PLASTIC OR METAL ..................................................................... 13
10 MAINTENANCE AND TROUBLESHOOTING
10.1 MAINTENANCE ............................................................................................................ 14
10.2 TROUBLESHOOTING .................................................................................................. 14
11 OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES..........................................................................................15
12 DISPOSAL
12.1 DISPOSAL..................................................................................................................... 16

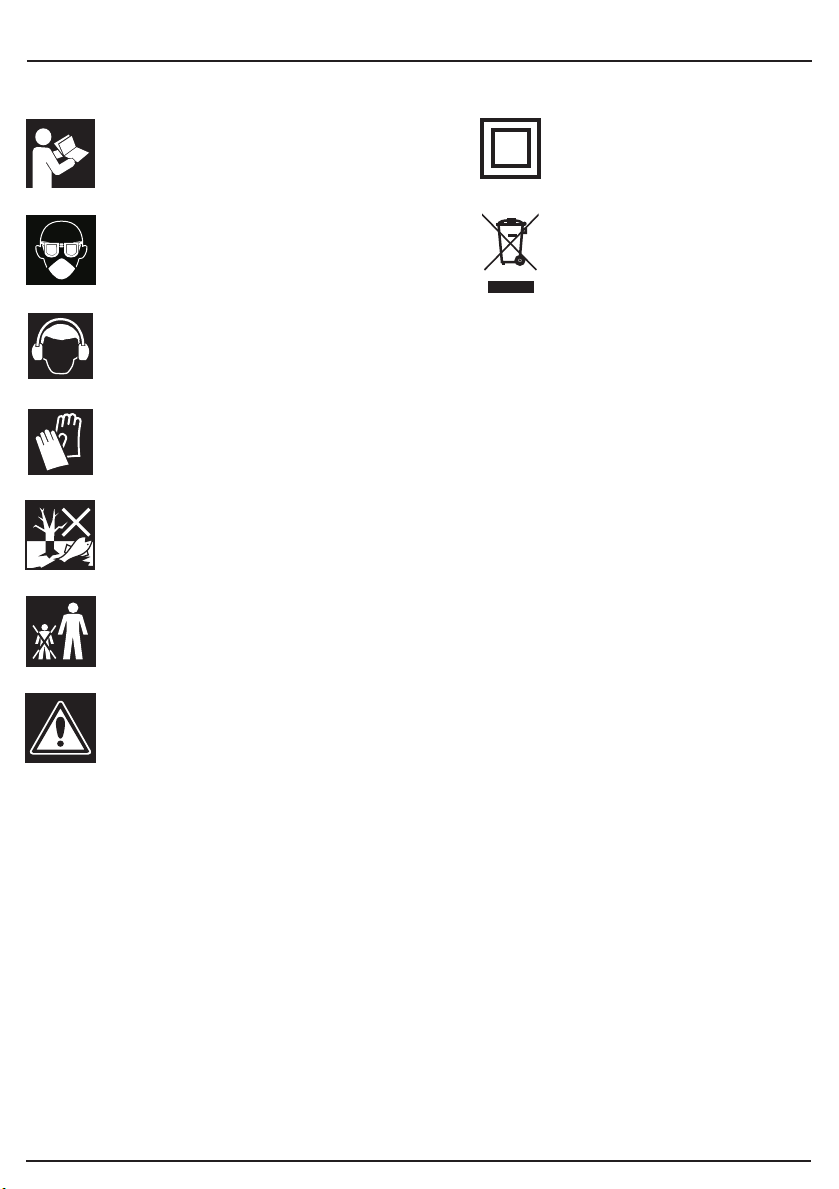

13 EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS ..................................................................................... 17
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
Page 4
3. WARRANTY
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or Product Help Line (023) 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does not
apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms
are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 - - 17 -
Page 5
4. INTRODUCTION
4.1 SCOPE
As part of our core range, this product is suitable for enthusiasts and tradespeople alike.
Any application other than that it was intended for, is considered misuse.
4.2 SPECIFICATION
Stock no. ................................................................................................................................ 56382
Part no. ...................................................................................................................... SDSHD1050D
Rated voltage ................................................................................................................ 230V~50Hz
Rated input ............................................................................................................................ 1050W
Drilling capacity:
Masonry ......................................................................................................................... 26mm
Wood ............................................................................................................................... 42mm
Mild steel ......................................................................................................................... 13mm
Impact force........................................................................................................................ 3.0 Joules
Revolutions per minute (no load) .................................................................................. 0-1150r/min
Impact rate ...................................................................................................................... 5100b/min
Chuck type .............................................................................................................................. SDS+
Sound pressure level (LpA)*: ................................................................................................ 81.3dB(A)
Sound power level (LWA)**: .................................................................................................. 92.3dB(A)
Uncertainty (K): .......................................................................................................................... 3dB(A)
Vibration level:
main handle ........................................................................................................... 14.067m/s²
side handle...............................................................................................................11.042m/s²
Uncertainty (K): .........................................................................................................................
Weight (drill only)...................................................................................................................... 3.4kg
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to and declared
according to EN60745.
** The typical A-weighted noise level determined according to EN60745.
4.3 HANDLING & STORAGE
– Care must be taken when handling this product.
● Dropping this power tool could have an effect on its accuracy and could also result in
personal injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
● Exposure to damp air can gradually corrode components.
● If the product is unprotected from dust and debris, components will become clogged.
● If not cleaned and maintained correctly or regularly, the machine will not perform at its best.
1.5m/s²
- 5 -- 16 -
Page 6
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
When using any type of power tool there are steps that should be taken to make sure that you, as the
user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and understood
this manual.
Most important you must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use
will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilt on the floor
could result in you slipping.
Find a suitable location. If the machine is bench mounted, the location should provide good natural
light or artificial lighting as a replacement. Avoid damp and dust locations as it will have a negative
effect on the machine’s performance. If the machine is portable do not expose the tool to rain. In all
cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the work
area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended
while connected to the power supply. They must be housed in a suitable location, away locked up and
from children. This includes battery chargers.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what they
are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an application it is
not designed for. Select a tool appropriate for the size of the job. Overloading a tool will result in tool
failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become
entangled in moving machinery. This can also result in parts of body being pulled into the machine.
Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed.
Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if
not suitably protected against. If the work involving the power tool creates dust or fumes wear a dust
mask. Vibration to the hand, caused by operating some tools for longer periods must be protected
against. Wear vibration reducing gloves and allow long breaks between uses. Protect against dust and
swarf by wearing approved safety goggles or a face shield. These are some of the more common
hazards and preventions, however, always find out what hazards are associated with the
machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine (if possible)
to an extraction system either locally or remotely. Working outdoors can also help if possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply
cable. If the product is heavy, employ a second or third person to help move it safely or use a
mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This
could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or
missing parts immediately with original parts from the manufacturer. As applicable, keep blades sharp,
moving parts clean, oiled or greased, handles clean, and emergency devices working.
Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may
continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply
before making any adjustments, carrying out maintenance operations or just finishing using the tool.
- 6 - - 15 -
Page 7
5. HEALTH AND SAFETY INFORMATION
Remove and check setting tools. Some machinery requires the use of additional tools or keys to set,
load or adjust the power tool. Before starting the power tool always check to make certain they have
been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the
switch is in the OFF position. If the machine is portable, do not hold the machine near the switch and
take care when putting the machine down, that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If
the tool is designed for use outdoors, use an extension lead also suitable for that environment. When
using an extended lead, select one capable of handling the current (amps) drawn by the machine in
use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess
current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool if
you are under the influence of drugs (prescription or otherwise), including alcohol or if you are feeling
tired. Being disorientated will result in an accident.
Have this tool repaired by a qualified person. This tool is designed to conform to the relevant
international and local standards and as such should be maintained and repaired by someone
qualified, using only original parts supplied by the manufacturer. This will ensure the tool remains safe
to use.
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR ROTARY HAMMER DRILLS
Warning!
● Wear appropriate ear protection. Exposure to noise can lead to hearing loss.
● Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
● Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a
“live” wire may make exposed metal parts of the power tool “live” and could give the
operator an electric shock.
● Wear a hard hat (safety helmet), safety glasses and/or face shield. Ordinary eye or sun
glasses are NOT safety glasses. It is also highly recommended that you wear a dust mask
and thickly padded gloves.
● Be sure the bit is secured in place before operation.
● Under normal operation, the tool is designed to produce vibration. The screws can come
loose easily, causing a breakdown or accident. Check tightness of screws carefully before
operation.
● In cold weather or when the tool has not been used for a long time, let the tool warm up for a
while by operating it under no load. This will loosen up the lubrication. Without proper
warm-up, hammering operation is difficult.
● Always be sure you have a firm footing. Be sure no one is below when using the tool in high
locations.
● Hold the tool firmly with both hands.
● Keep hands away from moving parts.
● Do not leave the tool running. Operate the tool only when hand-held.
● Do not point the tool at any one in the area when operating. The bit could fly out and injure
someone seriously.
● Do not touch the bit or parts close to the bit immediately after operation, they may be hot.
- 7 -- 14 -
Page 8
5. HEALTH AND SAFETY INFORMATION
5.3 RESIDUAL RISK
Important note:
extensive instructions of safe working with power tools, every power tool involves a certain
residual risk which can not be completely excluded by safety mechanisms. Power tools must
therefore always be operated with caution!
5.4 CONNECTION TO THE POWER SUPPLY
Caution:
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class II† and is designed for connection to a power supply matching that
detailed on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instructions supplied with the extension lead.
†Double insulated : This product requires no earth connection as supplementary insulation is
applied to the basic insulation to protect against electric shock in the event of failure of the basic
insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding maximum
load while cable is wound. If in doubt, ensure that the entire cable is unwound. Using a coiled
extension lead will generate heat which could melt the lead and cause a fire.
Although the safety instructions and operating manuals for our tools contain
Risk of electric shock. Do not open.
- 8 -
Page 9
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
SDS+ chuck.
4 Function selector.
Rotation selector.
Soft grip.
ON/OFF trigger switch.
Trigger switch locking button.
Power cable.
- 9 -
Page 10
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have
happened during shipping. Lay the contents out and check them against the parts shown below. If any
part is damaged or missing, please contact the Draper Help Line (the telephone number appears on
the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the warranty period, in case the machine
needs to be returned for repair.
Warning!
● Some of the packaging materials used may be harmful to children. Do not leave any of these
● If any of the packaging is to be thrown away, make sure they are disposed of correctly,
materials in the reach of children.
according to local regulations.
7.2 WHAT’S IN THE BOX
As well as the rotary hammer drill, there are several parts not fitted or attached to it.
Auxiliary handle.
Depth gauge.
250mm SDS+ 14mm chisels x 2 (flat & point).
150mm SDS+ drill bits x 3 (8, 10 & 12mmØ).
Dust cover.
Replacement carbon motor brushes.
- 10 -
Page 11
8. PREPARING THE DRILL7. UNPACKING AND CHECKING
Note:
Remove the plug from the socket before
carrying out adjustment, servicing or maintenance.
8.1 AUXILIARY HANDLE – FIGS. 1 & 2
Warning!
tool. Loss of control can cause personal injury.
When fitting the auxiliary handle
– Ensure the hand grip is loose (screw
– Select the required angle of the handle and
Use auxiliary handle supplied with the
:
anti-clockwise to loosen) before sliding it over
the drill's chuck onto the collar.
tighten the handgrip to secure.
FIG.1
- 11 -
FIG.2
Page 12
9. BASIC HAMMER DRILL OPERATIONS
Warning!
check the surface for the presence of electric cable,
gas or water pipes and other dangerous or damaging
contents. If unsure do not proceed.
Note:
carrying out adjustment, servicing or maintenance.
Prior to beginning any drilling, carefully
Remove the plug from the socket before
9.1 ROTARY/HAMMER AND
DRILLING/ROTATIONAL
CHISELLING/CHISELLING SELECTOR
SWITCHES – FIGS. 3 - 6
Note:
The 4 function selector switch
a safety button
rotating the switch to the desired position.
. Press the button in whilst
incorporates
9.2 ROTARY DRILLING - FIG.3
– Rotate the function selector
setting.
This setting is for using the drilling action without
hammer.
to the rotary drill
9.3 HAMMER AND DRILLING - FIG.4
– Rotate the function selector
and drill setting.
This setting is for hammer drilling.
to the hammer
FIG.3
FIG.4
9.4 ROTATIONAL CHISELLING - FIG.5
– Rotate the function selector
chiselling setting.
This setting is for chiselling with a freely rotating
chisel.
to the rotational
9.5 CHISELLING - FIG.6
– Rotate the function selector
setting.
This setting is for chiselling with a fixed chisel.
to the chiselling
- 12 -
FIG.5
FIG.6
Page 13
9. BASIC HAMMER DRILL OPERATIONS
9.6 TRIGGER SWITCH – FIG.7
Select the required function.
– Pull trigger
9.7 SDS+ SYSTEM – FIG. 8
The tool holder
chisels without the need for a chuck key.
– Insert the bit. It may be necessary to rotate the
bit to ensure it engages correctly.
DO NOT pull collar back to insert bit as the drill
bit will not seat.
–
Check by pulling the bit to see if it's firmly seated.
Important:
shaft before inserting into the chuck.
Take care that the dust protection cap is not
damaged. Allowing dust and debris inside the
holder will cause problems in the future.
– To remove a bit, pull collar
remove bit.
Warning!
9.8 DUST AND SWARF:
A correctly fitted dusk mask, suitable for the activity
and in accordance to the relevant standard, must be
worn.
Swarf produced by metal drilling is extremely sharp.
Take precautions when clearing swarf. The burr left
on the hole is also sharp and should be removed
with a suitable tool.
9.9 DRILLING WOOD, PLASTIC OR
METAL
Although technically possible, Draper Tools do not
recommend the use of this machine for drilling into
wood, metal or plastic. This machine is designed for
drilling through brick, concrete and is engineered to
do so. This makes it an unwieldy machine to drill
wood, metal or plastic and there are tools that are
far more capable of doing the job with a greater
degree of control.
to activate the machine.
clamps SDS+ drill bits and
Always clean and lightly grease the tool
back and
Bit will be hot after use.
FIG.7
FIG.8
- 13 -
Page 14
10. MAINTENANCE AND TROUBLESHOOTING
10.1 MAINTENANCE
The hammer drill does not require any special maintenance. Regularly clean/vacuum the
ventilation slots. Use only a mild cleaner and a damp cloth to clean the tool.
10.2 TROUBLESHOOTING
Note:
Remove the plug from the socket before carrying out adjustment, servicing or maintenance.
Problem Possible Cause Remedy
Motor does not start.
1. Fuse.
2. Brushes worn.
3. Unsure.
1. Replace/reset 13 amp time
delay fuse or circuit breaker.
2. Have carbon brushes
replaced in motor.
3. Return to an authorised
service agent for diagnosis.
Page 15
11. OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES
A full range of accessories are available from Draper Tools.
Please visit our website for details: www.drapertools.com
Page 16
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
● Do not dispose of power tools with domestic waste.
● Do not incinerate.
● Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
Page 17
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS
Read the instruction manual.
Wear face mask and safety
glasses.
Wear ear defenders.
Wear protective gloves.
Do not abandon into the
environment.
Keep out of the reach of children.
Class II construction
(Double insulated).
WEEE –
Waste Electrical &
Electronic Equipment.
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish.
Warning!
Page 18
NOTES
- 18 -
Page 19
NOTES
- 19 -
Page 20
CONTACTS
Draper Tools Limited, Hursley Road,
Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Help line: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Help line for details of an agent in your local area.
YOUR DRAPER STOCKIST
TAL J1118
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
Loading...
