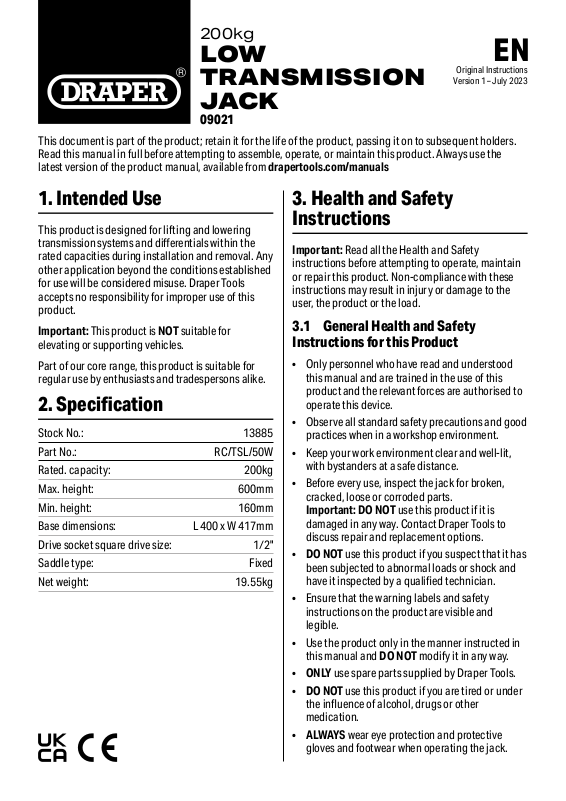

Draper RC/TSL/50W User guide

200kg

LOW
TRANSMISSION

Version 1 – July 2023

EN

Original Instructions

JACK

09021

This document is part of the product; retain it for the life of the product, passing it on to subsequent holders.
Read this manual in full before attempting to assemble, operate, or maintain this product. Always use the
latest version of the product manual, available from drapertools.com/manuals

1. Intended Use

This product is designed for lifting and lowering

transmission systems and dierentials within the

rated capacities during installation and removal. Any
other application beyond the conditions established
for use will be considered misuse. Draper Tools
accepts no responsibility for improper use of this
product.

Important: This product is NOT suitable for
elevating or supporting vehicles.

Part of our core range, this product is suitable for
regular use by enthusiasts and tradespersons alike.

2. Specication

Stock No.: 13885

Part No.: RC/TSL/50W

Rated. capacity: 200kg

Max. height: 600mm

Min. height: 160mm

Base dimensions: L 400 x W 417mm

Drive socket square drive size: 1 ⁄ 2"

Saddle type: Fixed

Net weight: 19.55kg

3. Health and Safety
Instructions

Important: Read all the Health and Safety
instructions before attempting to operate, maintain
or repair this product. Non-compliance with these
instructions may result in injury or damage to the
user, the product or the load.

3.1 General Health and Safety
Instructions for this Product

• Only personnel who have read and understood
this manual and are trained in the use of this
product and the relevant forces are authorised to
operate this device.

• Observe all standard safety precautions and good
practices when in a workshop environment.

• Keep your work environment clear and well-lit,
with bystanders at a safe distance.

• Before every use, inspect the jack for broken,
cracked, loose or corroded parts.

Important: DO NOT use this product if it is

damaged in any way. Contact Draper Tools to
discuss repair and replacement options.

• DO NOT use this product if you suspect that it has
been subjected to abnormal loads or shock and

have it inspected by a qualied technician.

• Ensure that the warning labels and safety

instructions on the product are visible and
legible.

• Use the product only in the manner instructed in
this manual and DO NOT modify it in any way.

• ONLY use spare parts supplied by Draper Tools.

• DO NOT use this product if you are tired or under
the inuence of alcohol, drugs or other

medication.

• ALWAY S wear eye protection and protective
gloves and footwear when operating the jack.

•  Keep loose-tting clothes, jewellery and long hair tied

back to prevent it from snagging during operation.

• The wheels of this product DO NOT lock.

 − Ensure that the jack will not roll once positioned

for use.

• ALWAY S ensure that the load is stable and secure in
the saddle before raising, lowering or transporting it.

• Before moving the jack, ALWAY S inspect the intended
route and ensure that it is clear of obstructions.

• Take care when moving the jack.

 − ALWAYS ensure that the load is fully secure

before moving the jack.

− DO NOT use the jack on uneven surfaces that may
cause it to tip over.

− ALWAYS bring the load to its lowest possible
position before transportation.

− Stay alert for trailing straps that may interfere with
the movement of the jack, especially when under
load.

• NEVER leave the jack unattended when it is in use or
under load.

• When not in use, ensure that the lifting arm is in its
lowest position and the release valve is fully closed.

• This jack does not emit noise that exceeds a level of
70 dB(A) during operation.

WARNING! If the jack tips or leans while under

load, move immediately to a safe distance. DO
NOT attempt to steady or hold the jack.

3.2 Correct Use of the Transmission Jack

CAUTION! This product is designed to support

loads for short periods ONLY. DO NOT use this
product to support a load for longer than 30
minutes at a time.

• ONLY operate the jack on solid, level and horizontal
surfaces; a concrete surface is recommended, where
possible.

WARNING! NEVER use the jack on any

surface that is slippery or may sink or rock.

• NEVER attempt to lift or support any load that
exceeds the rated capacity of the jack.

• NEVER attempt to lift any load higher than the
maximum safe height of the jack.

• When attaching a load to the jack, ALWAYS use the
manufacturer’s recommended contact points.

• Ensure that the contact points are not dirty, greasy or
corroded.

• ALWAY S ensure that the load is fully detached from
its surroundings before moving it.

• NEVER allow anyone to position themselves or other
obstructions beneath the load during raising and
lowering or below any load supported only by the
jack.

• DO NOT stand or climb on the jack.

• Observe the saddle and load throughout the

operation and ensure that it does not drop without
intervention.

• Take all precautions to prevent movement of the load
during raising and lowering.

− Be aware that external forces may cause the load
to rock.

• Stay alert to external interference that may cause the
raised load to rock during preparation and operation.

− Should any dangerous conditions occur, cease all
operation until these conditions have been

rectied.

• Stay alert to the possibility of the load slipping from

the saddle and remain observant at all times.

• ALWAY S ensure that the vehicle is raised to the
correct height before attempting to move the jack
underneath it.

• ALWAY S ensure that the vehicle is level and
adequately supported before removing the

transmission or dierentials.

• Take any necessary precautions to prevent the vehicle

from sliding, including chocking the wheels (Rubber
Wheel Chocks, Stock No. 54500, for example).

• DO NOT move the jack further than is absolutely
necessary while under load.

− ALWAYS ensure that the route from the location
of engine to its destination is clear of obstructions
and is as short as possible.

• ALWAY S use a ratchet or breaker bar that allows the
operator to remain clear of the load during operation.

WARNING! NEVER operate this tool using an

impact wrench or other power tool.

WARNING! NEVER work under an unsupported

vehicle.

3.3 Residual Risk

The safety instructions in this manual cannot account for
all possible conditions and situations that may occur.
Exercise common sense and caution when using this
product and protect against any additional conceivable
risks.

– 2 –

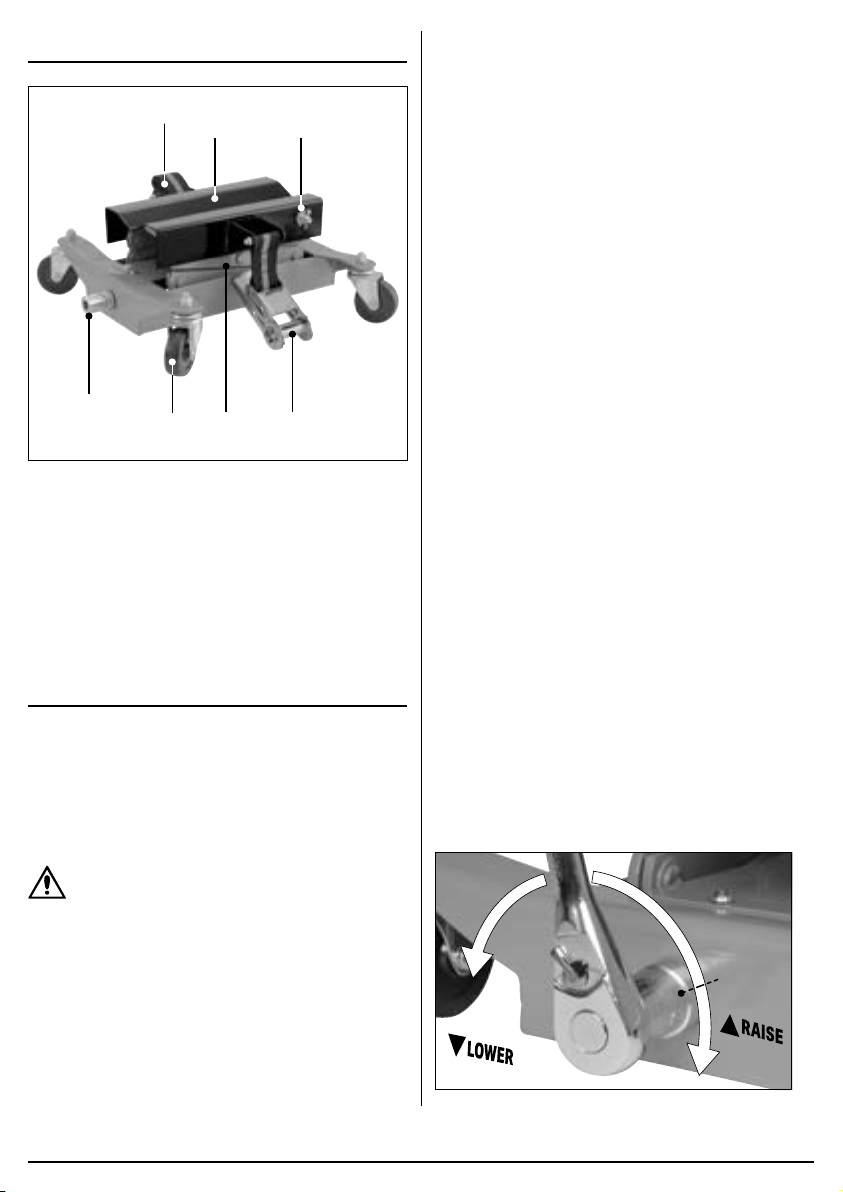

4. Product Overview

(7)

(2)

(1) (3) (4)

(1) Castors
(2) Drive socket
(3) Lifting arm
(4) Ratchet
(5) Saddle
(6) Saddle tilt adjustment screws
(7) Strap

(6)(5)

5. Operating Instructions

Important: Before lifting any load, read and understand
all the safety instructions listed in this manual.

Important: ALWAYS test the jack thoroughly and ensure
that all bolts and attachments are securely fastened
before use. Observe the load at all times during
operation.

CAUTION! This product is for lifting

transmission systems and dierentials ONLY.

DO NOT use this product to suspend equipment
for prolonged periods.

1. Raise the vehicle to an appropriate height and

secure it on suitable supports (not supplied).

2. Move the jack into position beneath the vehicle.

3. Loosen the saddle tilt adjustment screws (6) and

open the strap using the ratchet (4); see 6.2
Loosening the Strap.

4. Use a 1 ⁄ 2” square drive ratchet to rotate the drive

socket (2) clockwise to extend the lifting arm (3) until
the saddle (5) contacts the transmission system.

Important: Allow the saddle to tilt as appropriate to

seat itself rmly beneath the load.

5. Firmly tighten the saddle tilt adjustment screws to

secure the saddle in place.

6. Ensure that the load’s centre of gravity is positioned

centrally on the saddle, then carefully extend the
lifting arm a little further to transfer the weight of the
load from the vehicle to the jack.

7. Detach the transmission system from the vehicle,

ensuring that movement of the load is not
obstructed in any way.

8. Check that the saddle is securely and comfortably

holding the load and does not show signs of stress.

9. Pass the strap over the load and secure it tightly in

place using the ratchet; see 6.1 Tightening the
Strap.

10. Ensure that no one is present beneath the load and

that the load can be lowered without obstruction,
then slowly and carefully operate the drive socket
anticlockwise to lower the load to its lowest position.

Important: Keep clear of the load while operating

the drive socket.

11. Check the saddle again for signs of stress or poor

sating of the load.

12. With the lifting arm in its lowest position, manoeuvre

the jack to a suitable workspace to operate on the
load.

13. When work is complete, perform this procedure in

reverse to install the transmission system back into
the vehicle.

– 3 –

(2)

1 Fig.

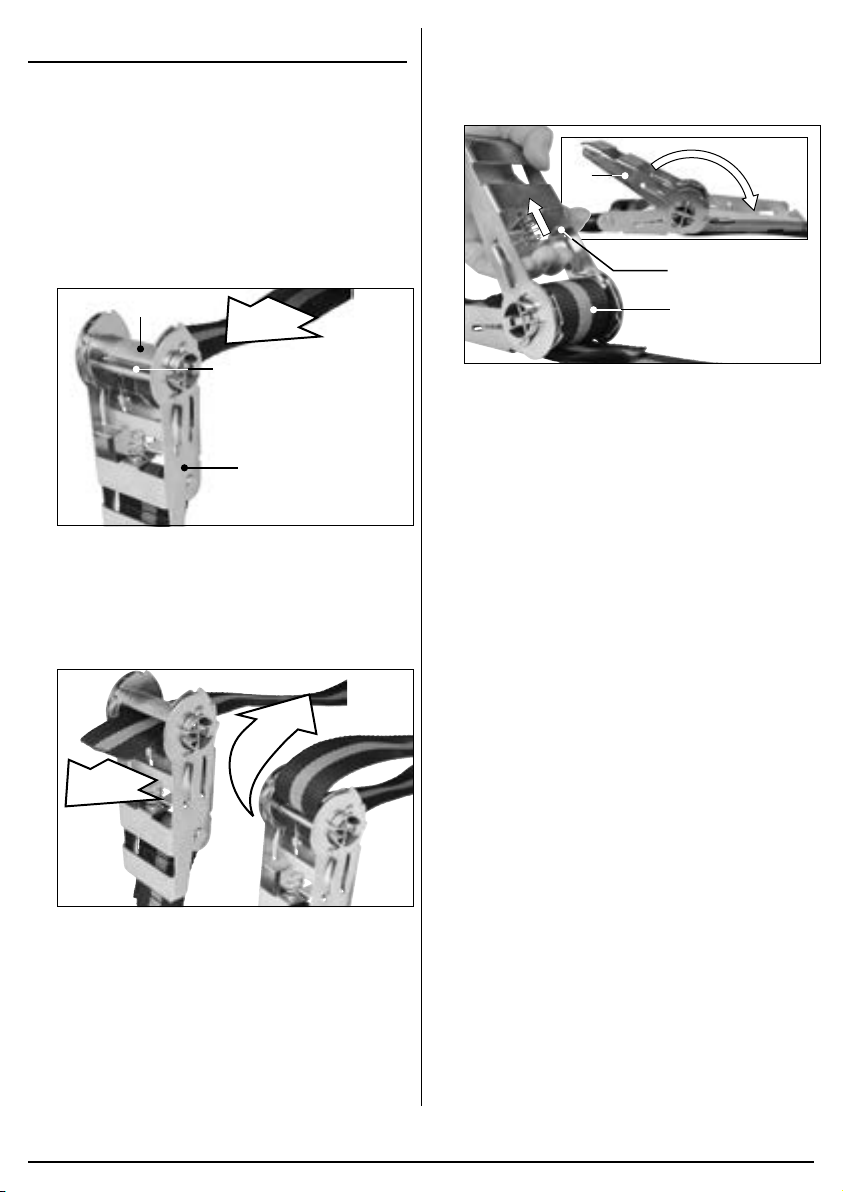

6. Using the Strap and Ratchet

Use the strap (7) and ratchet (4) to secure the load rmly

to the saddle.

Important: ALWAYS ensure that the strap is not twisted
or pressing against fragile parts of the load.

6.1 Tightening the Strap

1. Operate the empty ratchet until the slot (8) in the
windlass (9) is perpendicular to the ratchet handle
(10) when the handle is closed.

6.2 Loosening the Strap

1. Pull the C-shaped pawl (11) away from the windlass
(9) and fully open the ratchet handle (10) so the

mechanism is completely at.

(10)

(11)

(9)

(8)

(10)

2 

Fig.

2. Pass the strap over the top of the load and insert the
free end through the slot in the windlass.

Important: The strap MUST be inserted through the

back of the mechanism towards the ratchet handle.

3. Double the strap back on itself and pull it tight.

(9)

4 Fig.

2. Holding the ratchet handle in its open position, pull

on the xed end of the long strap (7) until the loose

end runs free of the windlass.

3. To close the ratchet handle, pull the C-shaped pawl
away from the windlass and move the handle to the
closed position.

3 Fig.

Important: Pull through as much excess as possible

before operating the ratchet.

4. Pump the ratchet handle down and up repeatedly to
tighten the strap.

5. Ensure that the strap is securely fastened and tight
around the load and that the ratchet strap is closed.

– 4 –

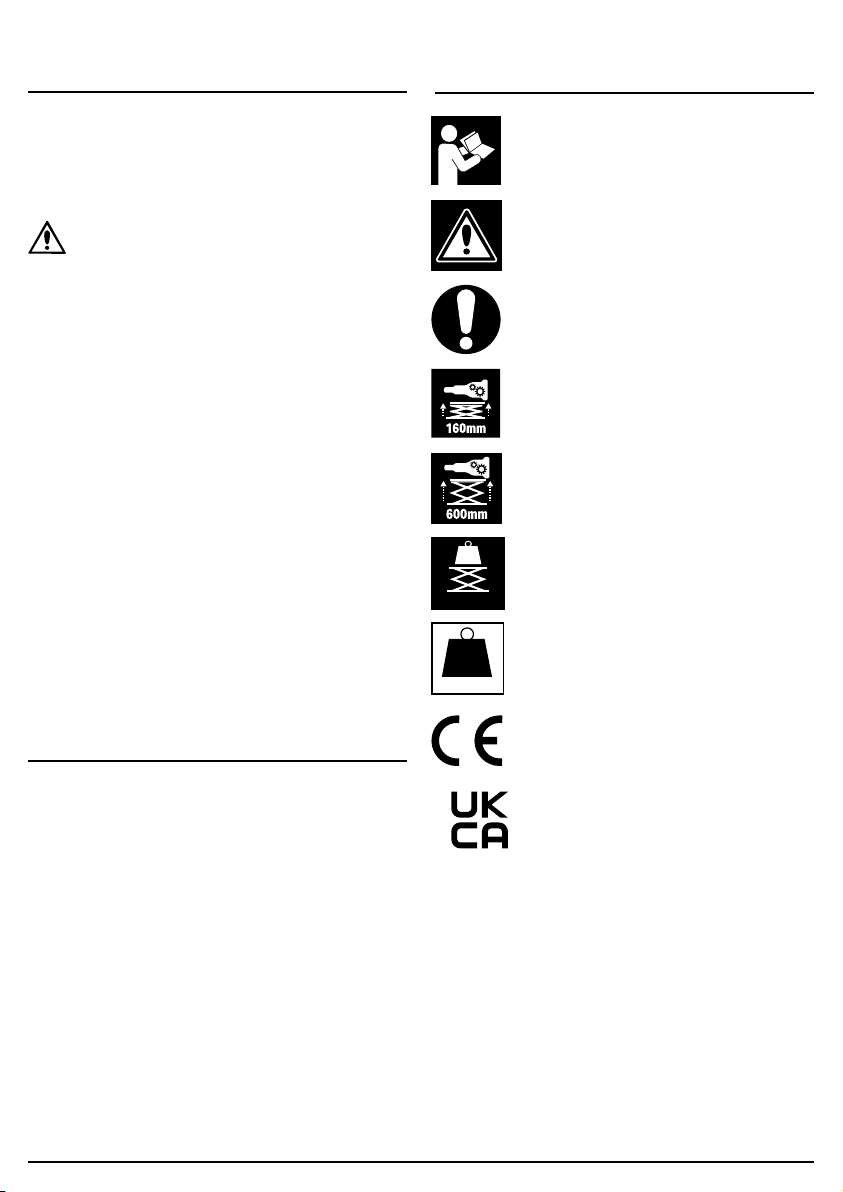

7. Maintenance, Storage

and Disposal

Important: Maintenance and repair of the jack must only

be performed by qualied personnel and in accordance

with these instructions. DO NOT perform any
maintenance that will invalidate this product’s
compliance with BS EN 1494.

WARNING! DO NOT attempt to perform any

maintenance on the jack while it is under load.
Safely lower and remove any load from the jack
and drop the lifting arm to its lowest position
before proceeding.

• Keep the jack clean and regularly treat all moving

parts with heavy oil or grease.

• Protect the jack and its components from adverse

environmental and weather conditions, both during
use and when stored.

− Components may rust if exposed to water or damp
air for prolonged periods.

• Before each use, check the jack for signs of damage or
disrepair.

• When the jack is not in use:

 − Remove any load installed on the jack and bring

the saddle to its lowest position.

− Store the jack in a clean and dry location, out of
reach of children.

 − Keep the jack covered while it is stored.

At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.

9. Explanation of Symbols

Read the instruction manual

Warning!

Mandatory action required

Minimum height

Maximum height

200kg

Maximum capacity

MAX

19.5

kg

net

Product weight (net)

8. Warranty

Should the tool develop a fault, return the complete tool
to your nearest distributor or contact Draper Tools
directly. Proof of purchase must be provided.

If, upon inspection, it is found that the fault occurring is
due to defective materials or workmanship, repairs will
be carried out free of charge. This warranty covers parts
and labour for 12 months from the date of purchase.
However, if the tools are hired out, the warranty period is
90 days from the date of purchase.

This warranty does not apply to any consumable parts,
batteries or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling,
alterations, accidents, or repairs attempted or made by
any personnel other than the authorised Draper Tools
repair agent.

Visit drapertools.com/warranty for full details.

European conformity

UK Conformity Assessed

– 5 –

Contact Details

Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK

Website: drapertools.com
Email: [email protected]

Product Helpline: [phone]
Telephone Sales Desk: [phone]
General Enquiries: [phone]
General Fax: [phone]

Please contact the Draper Tools Product Helpline for repair and servicing enquiries.

Delta International

Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands

© Published by Draper Tools Limited© Published by Draper Tools Limited
